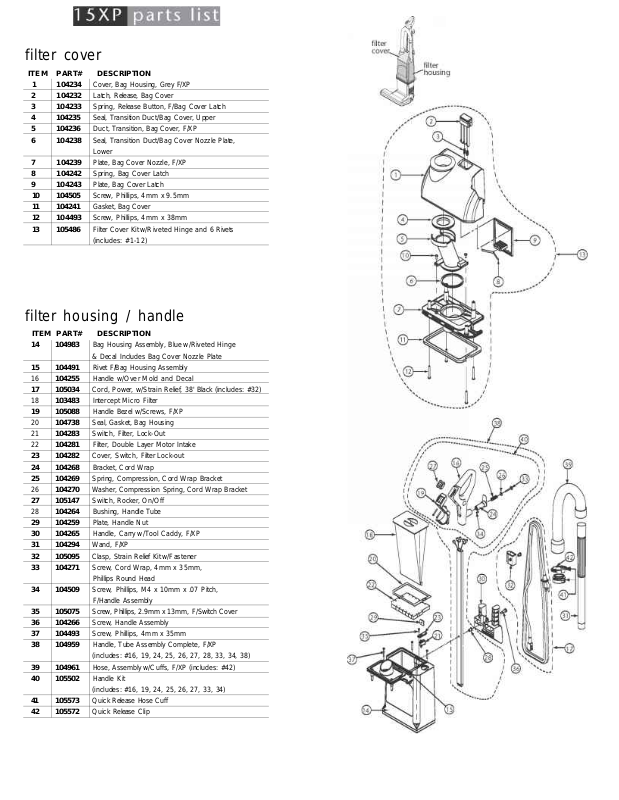

Page 1
filter cover
ITEM PART# DESCRIPTION
1 104234 Cover, Bag Housing, Grey F/XP
2 104232 Latch, Release, Bag Cover
3
104233
4
104235
5 104236 Duct, Transition, Bag Cover, F/XP
6 104238 Seal, Transition Duct/Bag Cover Nozzle Plate,
7 104239 Plate, Bag Cover Nozzle, F/XP
8 104242 Spring, Bag Cover Latch
9
104243
10
104505
11
104241
12
104493
13 105486 Filter Cover Kit w/Riveted Hinge and 6 Rivets
Spring, Release Button, F/Bag Cover Latch
Seal, Transition Duct/Bag Cover, Upper
Lower
Plate, Bag Cover Latch
Screw, Phillips, 4mm x 9.5mm
Gasket, Bag Cover
Screw, Phillips, 4mm x 38mm
(includes: #1-12)
filter housing / handle
ITEM PART# DESCRIPTION
14
104983
15
104491
16
104255
17 105034 Cord, Power, w/Strain Relief, 38' Black (includes: #32)
18
103483
19 105088 Handle Bezel w/Screws, F/XP
20 104738 Seal, Gasket, Bag Housing
21
104283
22
104281
23 104282 Cover, Switch, Filter Lock-out
24 104268 Bracket, Cord Wrap
25 104269 Spring, Compression, Cord Wrap Bracket
26 104270 Washer, Compression Spring, Cord Wrap Bracket
27 105147 Switch, Rocker, On/Off
28 104264 Bushing, Handle Tube
29 104259 Plate, Handle Nut
30
104265
31 104294 Wand, F/XP
32
105095
33
104271
34 104509 Screw, Phillips, M4 x 10mm x .07 Pitch,
35
105075
36 104266 Screw, Handle Assembly
37
104493
38 104959 Handle, Tube Assembly Complete, F/XP
39
104961
40 105502 Handle Kit
41
105573
42 105572 Quick Release Clip
Bag Housing Assembly, Blue w/Riveted Hinge
& Decal Includes Bag Cover Nozzle Plate
Rivet F/Bag Housing Assembly
Handle w/Over Mold and Decal
Intercept Micro Filter
Switch, Filter, Lock-Out
Filter, Double Layer Motor Intake
Handle, Carry w/Tool Caddy, F/XP
Clasp, Strain Relief Kit w/Fastener
Screw, Cord Wrap, 4mm x 35mm,
Phillips Round Head
F/Handle Assembly
Screw, Phillips, 2.9mm x 13mm, F/Switch Cover
Screw, Phillips, 4mm x 35mm
(includes: #16, 19, 24, 25, 26, 27, 28, 33, 34, 38)
Hose, Assembly w/Cuffs, F/XP (includes: #42)
(includes: #16, 19, 24, 25, 26, 27, 33, 34)
Quick Release Hose Cuff

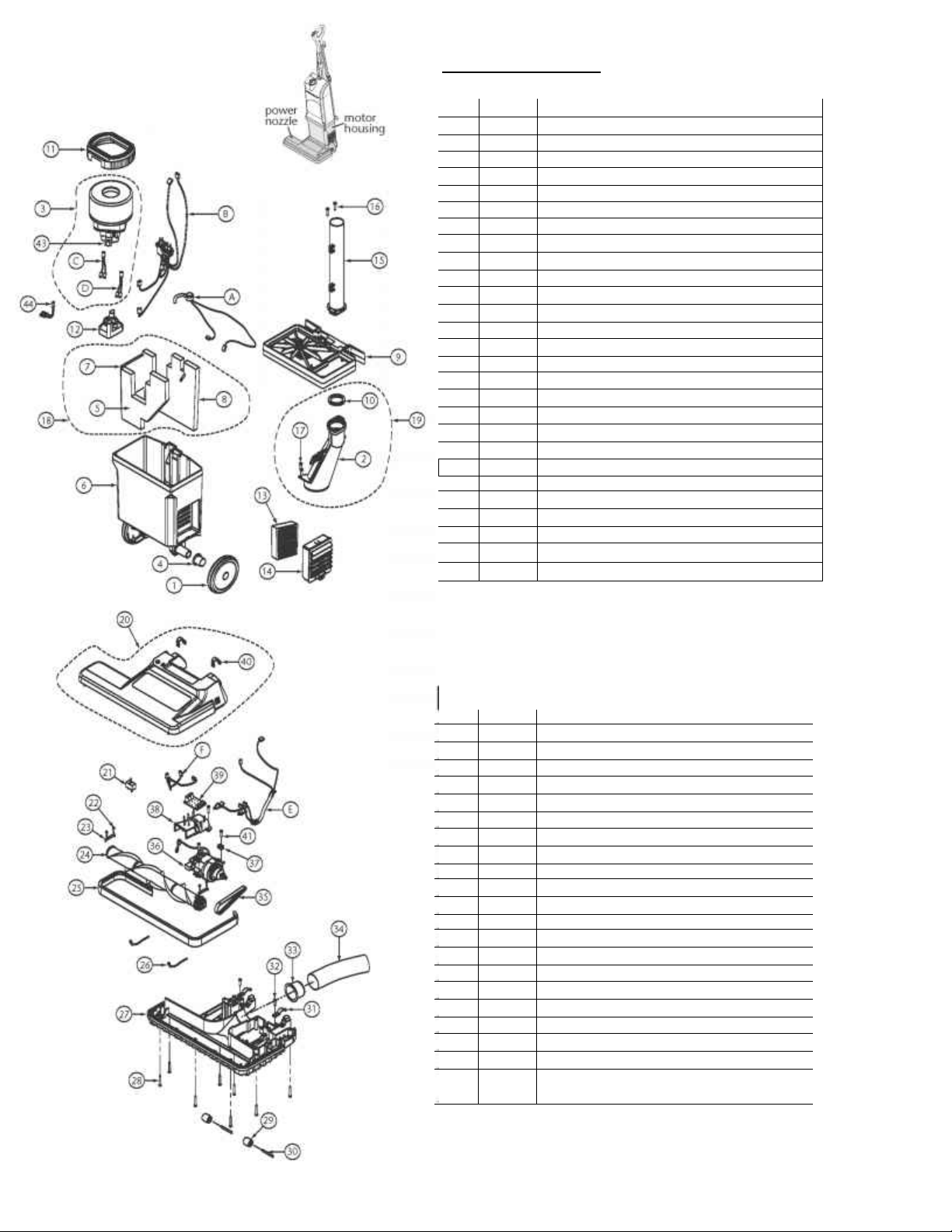

Page 2
motor housing
ITEM PART# DESCRIPTION
1 104209 Screw, Phillips, 4mm x 12mm F/Wand Guide
2
104261
3 104260 Guide, Wand, Upper Right
4
104263
5
104245
6
104253
7 104267 Screw, Phillips, 4mm x 19mm F/Lower Air Duct
8 104250 Air Duct
9 104782 Motor Housing, Blue
10 104504 Bearing, Pivot
11 104306 Wheel, Rear
12 105136 Filter, Exhaust, HEPA Media
13
104785
14 103532 Foam, Sound, Motor Housing, Front Panel
15
103533
16
103531
17 104247 Motor Mount, Lower Nitrile
18 104249 Motor Mount, Upper Nitrile
19 104957 Motor Assembly w/Jumpers (includes: A, B)
20 105488 Motor Housing Sound Filter (includes: #14,15,16)
21 105490 Wand Kit (includes: #1, 2, 3, 4)
22 105489 Air Duct Kit (includes: #6, 7, 8)
46
105281
47 105760 Thermal Protector
105756 Wire Harness Kit includes:
Guide, Wand, Upper Left
Switch, Wand Lockout
Bulkhead, Dark Grey
Seal, Lower Air Duct , Nitrile
Cover, Filter Cartridge, Blue
Foam, Sound, Motor Housing, Left Panel
Foam, Sound, Motor Housing, Rear Panel
Carbon Brush Set for ProCare Motor
A. Harness, Jumper, Red
B. Harness, Jumper, White
C. Sensor, Bag Full Indicator
D. Harness, Main Power Supply
E. Harness, Wire, Power Nozzle
F. Harness, Power Nozzle Switch
power nozzle
ITEM PART# DESCRIPTION
23 104789 Power Nozzle Cover w/Detent Springs & Decal
24 104212 Circuit Breaker
25 104496 Screw, Phillips, 2.9mm x 35mm, F/Brush Retainer
26 104499 Retainer, Brush Roll
27 104216 Brush Roll, Power Nozzle, 14"
28 104218 Bumper, Power Nozzle, Vinyl
29 104500 Brace, Formed Wire, F/Power Nozzle Base
30
104221
31 104497 Screw, Phillips, 4mm x 35mm F/Base Cover
32
104501
33 104502 Shaft, Front Roller Axle
34
104503
35
104495
36 104227 Sleeve, Hose, Air Duct
37 104230 Hose, Power Nozzle to Air Duct, Lower
38 104217 Belt, Drive, F/Brush Roll
39 104506 Motor, Power Nozzle with Crimps
40 104498
41 104224 Cover, Air Duct, Power Nozzle
42 104226 Board, Vacuum Operation Indicator
43 104507 Spring, Detent, Upright Lock
44
105371
Baseplate, Power Nozzle
Roller, Front
Clamp, Rear Wheel
Screw, Phillips, 4mm x 19mm F/Powerhead
Grommet, Vibration, Power Nozzle Motor, Nitrile
Screw, Phillips, 4.2mm x 19mm, F/Power
Nozzle Motor

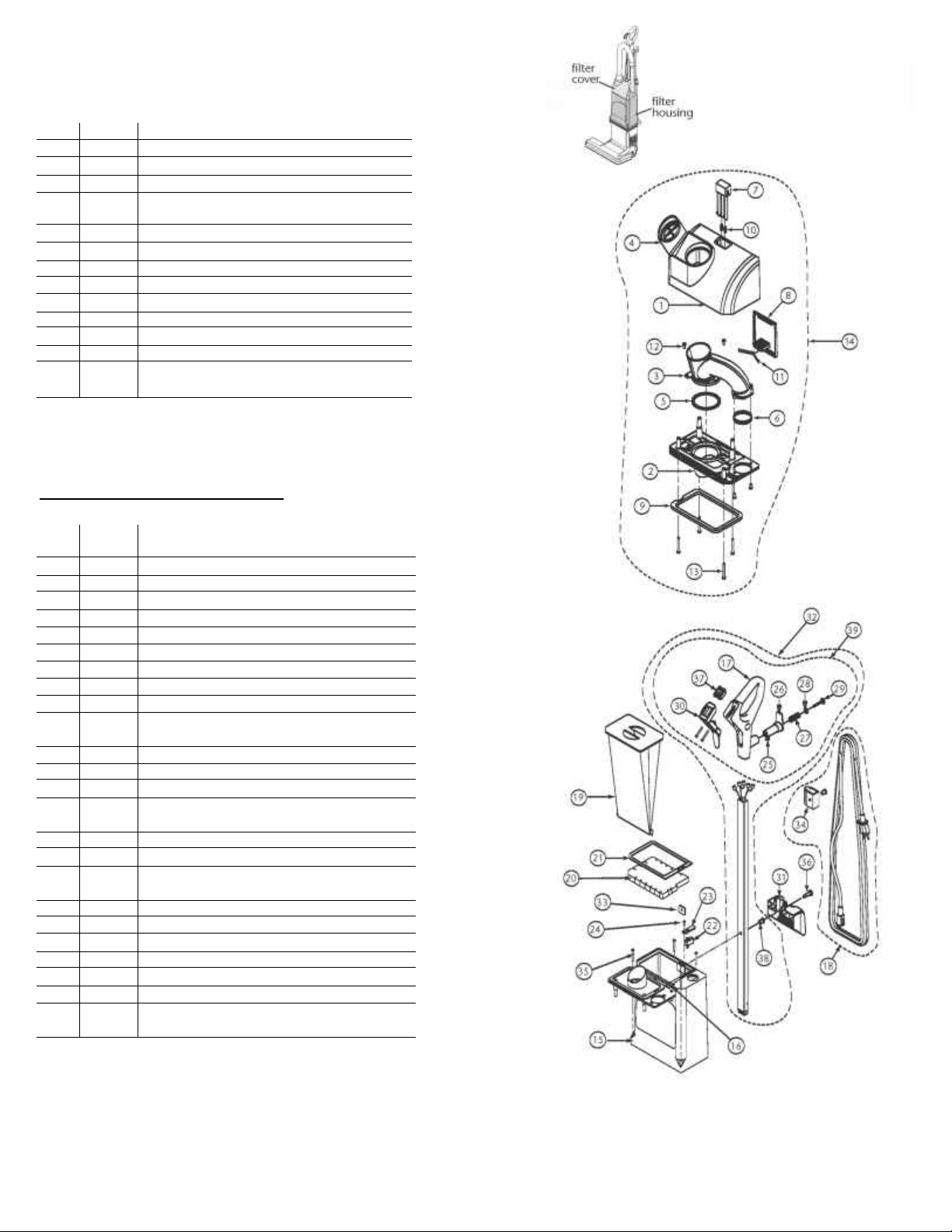

Page 3
15 parts list
filter cover
ITEM PART# DESCRIPTION
1 104569 Cover, Bag Housing, Grey
2 104570 Plate, Bag Cover Nozzle
3
104571
4 104574 Plug, Access Port
5
104575
6 104576 Seal, Crossover Duct, Inlet
7 104232 Latch, Release, Bag Cover
8
104243
9
104241
10
104233
11 104242 Spring, Bag Cover Latch
12 104577 Screw, Phillips, 4mm x 9.5mm
13
104493
14
105491
Duct, Crossover, Bag Cover
Seal, Crossover Duct/Bag Cover Nozzle Plate,
Lower
Flex Plate, Bag Cover Latch
Seal, Gasket, Bag Cover
Spring, Release Button, F/Bag Cover Latch
Screw, Phillips, 4mm x 38mm
Filter Cover Kit, w/Riveted Hinge and
6 Rivets (includes: #1-13)
filter housing / handle
ITEM PART# DESCRIPTION
15 104989 Bag Housing Assembly, Blue, w/Riveted Hinge
and Decal Includes Bag Cover Nozzle Plate
16
104491
17
104255
18 105034 Cord, Power Clasp, 38' Black (includes: #34)
19 103483 Intercept Micro Filter
20
104281
21 104738 Seal, Gasket, Bag Housing
22 104283 Switch, Filter, Lock-Out
23 104282 Cover, Switch, Filter Lock-out
24
105075
25 104509 Screw, Phillips, F/Handle Assembly
26 104268 Bracket, Cord Wrap
27 104269 Spring, Compression, Cord Wrap Bracket
28 104270 Washer, Compression Spring, Cord Wrap Bracket
29
104271
30 105090 Handle Bezel w/Screws
31
104741
32 105114 Handle, Tube Assembly Complete
33 104259 Plate, Handle Nut
34
105095
35 104493 Screw, Phillips, 4.2mm x 35mm
36 104266 Screw, Handle Assembly
37 105147 Switch, Rocker, On/Off
38 104264 Bushing, Handle Tube
39
105501
Rivet F/Bag Housing Assembly
Handle w/Over Mold and Decal
Filter, Motor Intake
Screw, Phillips, 2.9mm x 13mm, F/Switch Cover
M4 x 10mm x .07 Pitch
Screw, Cord Wrap, 4mm x 35mm
Phillips Round Head
Handle, Carry
(includes: #17, 25, 26, 27, 28, 29, 30, 36, 38, 39)
Clasp, Strain Relief
Handle Kit
(includes: #17, 25, 26, 27, 28, 29, 30, 38)
Page 4
motor housing
ITEM PART# DESCRIPTION
1 104306 Wheel, Rear
2 104250 Air Duct
3 104957 Motor Assembly Kit w/Jumpers (includes: C, D)
4 104504 Bearing, Pivot
5 103532 Foam, Sound, Motor Housing Front Panel
6 104782 Motor Housing, Blue
7 103533 Foam, Sound, Motor Housing Left Panel
8
103531
9
104245
10 104253 Seal, Lower Air Duct , Nitrile
11 104249 Motor Mount, Upper Nitrile
12 104247 Motor Mount, Lower Nitrile
13 105136 Filter, Exhaust, HEPA Media
14
104785
15 104578 Air Duct, Upper ProCare 15
16 104209 Screw, Phillips, 4mm x 12mm, F/Upper Air Duct
17 104267 Screw, Phillips, 4mm x 19mm, F/Lower Air Duct
18 105488 Motor Housing Sound Filter Kit (includes: #5, 7, 8)
19 105489 Air Duct At (includes: #2, 10, 16)
43
105281
44 105760 Thermal Protector
105757 Wire Harness Kit includes:
Foam, Sound, Motor Housing Rear Panel
Bulkhead, Dark Grey
Cover, Filter Cartridge, Blue
Carbon Brush Set for ProCare Motor
A. Sensor, Bag, Full Indicator
B. Harness, Wire, Main Power Supply
C. Harness, Jumper, White
D. Harness, Jumper, Red
E. Harness, Wire, Power Nozzle
F. Harness, Power Nozzle Switch
power nozzle
ITEM PART# DESCRIPTION
20 104789 Power Nozzle Cover w/Detent Springs & Decal
21 104212 Circuit Breaker
22 104496 Screw, Phillips, 2.9mm x 13mm, F/Brush Retainer
23 104499 Retainer, Brush Roll
24 104216 Brush Roll, Power Nozzle, 14"
25 104218 Bumper, Power Nozzle, Vinyl
26 104500 Brace, Formed Wire, F/Power Nozzle Base
27
104221
28 104497 Screw, Phillips, 4mm x 35mm F/Base Cover
29
104501
30 104502 Shaft, Front Roller Axle
31
104503
32
104495
33 104227 Sleeve, Hose, Air Duct
34 104230 Hose, Power Nozzle to Air Duct, Lower
35 104217 Belt, Drive, F/Brush Roll
36 104506 Motor, Power Nozzle with Crimps
37 104498 Grommet, Vibration, Power Nozzle Motor, Nitrile
38 104224 Cover, Air Duct, Power Nozzle
39 104226 Board, Vacuum Operation Indicator
40 104507 Spring, Detent, Upright Lock
41
105371
Baseplate, Power Nozzle
Roller, Front
Clamp, Rear Wheel
Screw, Phillips, 4mm x 19mm, F/Powerhead
Screw, Phillips, 4.2mm x 19mm, F/Power
Nozzle Motor
