Page 1

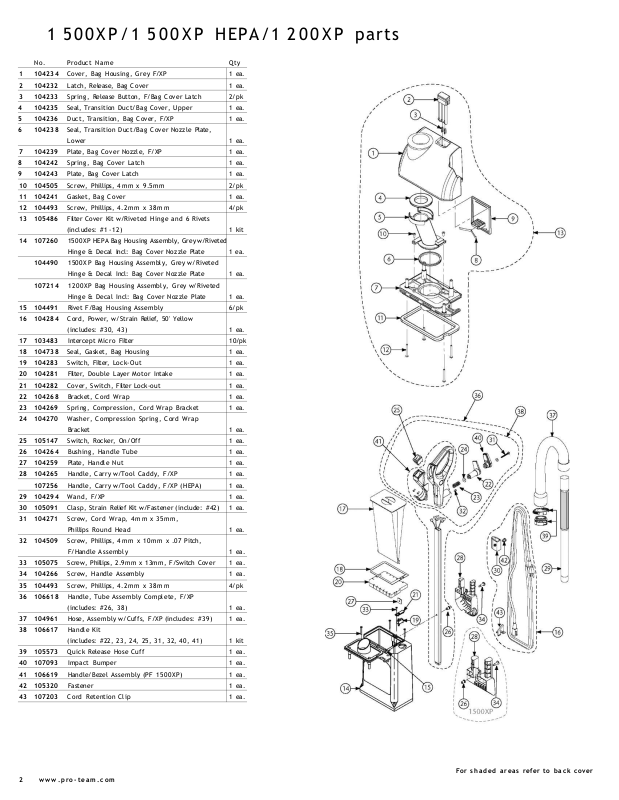

1 500XP/1 500XP HEPA/1 200XP parts
No. Product Name Qty
1 104234 Cover, Bag Housing, Grey F/XP 1 ea.
2 104232 Latch, Release, Bag Cover 1 ea.
3 104233 Spring, Release Button, F/Bag Cover Latch 2/pk
4 104235 Seal, Transition Duct/Bag Cover, Upper 1 ea.
5 104236 Duct, Transition, Bag Cover, F/XP 1 ea.
6 104238 Seal, Transition Duct/Bag Cover Nozzle Plate,
Lower 1 ea.
7 104239 Plate, Bag Cover Nozzle, F/XP 1 ea.
8 104242 Spring, Bag Cover Latch 1 ea.
9 104243 Plate, Bag Cover Latch 1 ea.
10 104505 Screw, Phillips, 4mm x 9.5mm 2/pk
11 104241 Gasket, Bag Cover 1 ea.
12 104493 Screw, Phillips, 4.2mm x 38mm 4/pk
13 105486 Filter Cover Kit w/Riveted Hinge and 6 Rivets
(includes: #1-12) 1 kit
14 107260 1500XP HEPA Bag Housing Assembly, Grey w/Riveted
Hinge & Decal Incl: Bag Cover Nozzle Plate 1 ea.
104490 1500XP Bag Housing Assembly, Grey w/Riveted
Hinge & Decal Incl: Bag Cover Nozzle Plate 1 ea.
107214 1200XP Bag Housing Assembly, Grey w/Riveted
Hinge & Decal Incl: Bag Cover Nozzle Plate 1 ea.
15 104491 Rivet F/Bag Housing Assembly 6/pk
16 104284 Cord, Power, w/Strain Relief, 50' Yellow
(includes: #30, 43) 1 ea.
17 103483 Intercept Micro Filter 10/pk
18 104738 Seal, Gasket, Bag Housing 1 ea.
19 104283 Switch, Filter, Lock-Out 1 ea.
20 104281 Filter, Double Layer Motor Intake 1 ea.
21 104282 Cover, Switch, Filter Lock-out 1 ea.
22 104268 Bracket, Cord Wrap 1 ea.
23 104269 Spring, Compression, Cord Wrap Bracket 1 ea.
24 104270 Washer, Compression Spring, Cord Wrap
Bracket 1 ea.
25 105147 Switch, Rocker, On/Off 1 ea.
26 104264 Bushing, Handle Tube 1 ea.
27 104259 Plate, Handle Nut 1 ea.
28 104265 Handle, Carry w/Tool Caddy, F/XP 1 ea.
107256 Handle, Carry w/Tool Caddy, F/XP (HEPA) 1 ea.
29 104294 Wand, F/XP 1 ea.
30 105091 Clasp, Strain Relief Kit w/Fastener (include: #42) 1 ea.
31 104271 Screw, Cord Wrap, 4mm x 35mm,
Phillips Round Head 1 ea.
32 104509 Screw, Phillips, 4mm x 10mm x .07 Pitch,
F/Handle Assembly 1 ea.
33 105075 Screw, Phillips, 2.9mm x 13mm, F/Switch Cover 1 ea.
34 104266 Screw, Handle Assembly 1 ea.
35 104493 Screw, Phillips, 4.2mm x 38mm 4/pk
36 106618 Handle, Tube Assembly Complete, F/XP
(includes: #26, 38) 1 ea.
37 104961 Hose, Assembly w/Cuffs, F/XP (includes: #39) 1 ea.
38 106617 Handle Kit
(includes: #22, 23, 24, 25, 31, 32, 40, 41) 1 kit
39 105573 Quick Release Hose Cuff 1 ea.
40 107093 Impact Bumper 1 ea.
41 106619 Handle/Bezel Assembly (PF 1500XP) 1 ea.
42 105320 Fastener 1 ea.
43 107203 Cord Retention Clip 1 ea.
2 www.pro-team.com
For shaded areas refer to back cover
Page 2
1 500XP/1 500XP HEPA/1 200XP parts
No. Product Name Qty
1 104267 Screw, Phillips, 4mm x 12mm F/Wand Guide 2/pk
2 104261 Guide, Wand, Upper Left 1 ea.
3 104260 Guide, Wand, Upper Right 1 ea.
4 104263 Switch, Wand Lockout 1 ea.
5 107255 1500XP HEPA Bulkhead, Dark Grey 1 ea.
104245 1500XP/1200XP Bulkhead, Dark Grey 1 ea.
6 104253 Seal, Lower Air Duct , Nitrile 1 ea.
7 104267 Screw, Phillips, 4mm x 12mm F/Lower Air Duct 2/pk
8 104250 Air Duct 1 ea.
9 107257 1500XP HEPA Motor Housing, Charcoal 1 ea.
104536 1500XP/1200XP Motor Housing, Charcoal 1 ea.
10 104504 Bearing, Pivot 2/pk
11 104306 Wheel, Rear 2/pk
12 107005 1500XP HEPA Filter, Exhaust, HEPA Media 1 ea.
105136 Filter, Exhaust, HEPA Media 1 ea.
13 107258 1500XP HEPA Cover, Filter Cartridge, Charcoal 1 ea.
104246 1500XP/1200XP Cover, Filter Cartridge, Charcoal 1 ea.
14 103532 Foam, Sound, Motor Housing, Front Panel 1 ea.
15 103533 Foam, Sound, Motor Housing, Left Panel 1 ea.
16 103531 Foam, Sound, Motor Housing, Rear Panel 1 ea.
17 104247 Motor Mount, Lower Nitrile 1 ea.
18 104249 Motor Mount, Upper Nitrile 1 ea.
19 104957 Motor Assembly w/Jumpers (includes: A, B) 1 kit
20 105488 Motor Housing Sound Filter (includes: #14,15,16)1 kit
21 105490 Wand Kit (includes: #1, 2, 3, 4) 1 kit
22 105489 Air Duct Kit (includes: #6, 7, 8) 1 kit
23 107282 1500XP HEPA Power Nozzle Cover w/Detent
Springs & Decal 1 ea.
104494 1500XP Power Nozzle Cover w/Detent Springs
& Decal 1 ea.
107165 1200XP Power Nozzle Cover w/Detent Springs
& Decal 1 ea.
24 104279 Switch, Safety, Power Nozzle Lockout 1 ea.
25 104212 Circuit Breaker 1 ea.
26 104496 Screw, Phillips, 2.9mm x 35mm, F/Brush Retainer 4/pk
27 104499 Retainer, Brush Roll 2/pk
28 104216 Brush Roll, Power Nozzle, 14" 1 ea.
107163 1200XP Brush Roll, Power Nozzle, 12" 1 ea.
29 104218 Bumper, Power Nozzle, Vinyl 1 ea.
107166 1200XP Bumper, Power Nozzle, Vinyl 1 ea.
30 104500 Brace, Formed Wire, F/Power Nozzle Base 2/pk
31 104221 Baseplate, Power Nozzle 1 ea.
107167 1200XP Baseplate, Power Nozzle 1 ea.
32 104497 Screw, Phillips, 4mm x 35mm F/Base Cover 8/pk
33 104501 Roller, Front 2/pk
34 104502 Shaft, Front Roller Axle 2/pk
35 104503 Clamp, Rear Wheel 1 set
36 104495 Screw, Phillips, 4mm x 19mm F/Powerhead 5/pk
37 104227 Sleeve, Hose, Air Duct 1 ea.
38 104230 Hose, Power Nozzle to Air Duct, Lower 1 ea.
105489 Hose, Power Nozzle to Air Duct, Lower (HEPA) 1 ea.
39 104217 Belt, Drive, F/Brush Roll 1 ea.
40 104506 Motor, Power Nozzle with Crimps 1 ea.
41 104498
42 104224 Cover, Air Duct, Power Nozzle 1 ea.
43 104226 Board, Vacuum Operation Indicator 1 ea.
44 104507 Spring, Detent, Upright Lock 2/pk
45 105371 Screw, Phillips, 4.2mm x 19mm, F/Power
46 105281 Carbon Brush Set for ProForce Motor 1 set
47 105760 Thermal Protector 1 ea.
105754 Wire Harness Kit includes:
Grommet, Vibration, Power Nozzle Motor, Nitrile 2/pk
Nozzle Motor 2/pk
1 set 33.00
A. Harness, Jumper, Red
C. Sensor, Bag Full Indicator
E. Harness, Wire, Power Nozzle
B. Harness, Jumper, White
D. Harness, Main Power Supply
F. Harness, Power Nozzle Switch
866.888.2168 3
Page 3

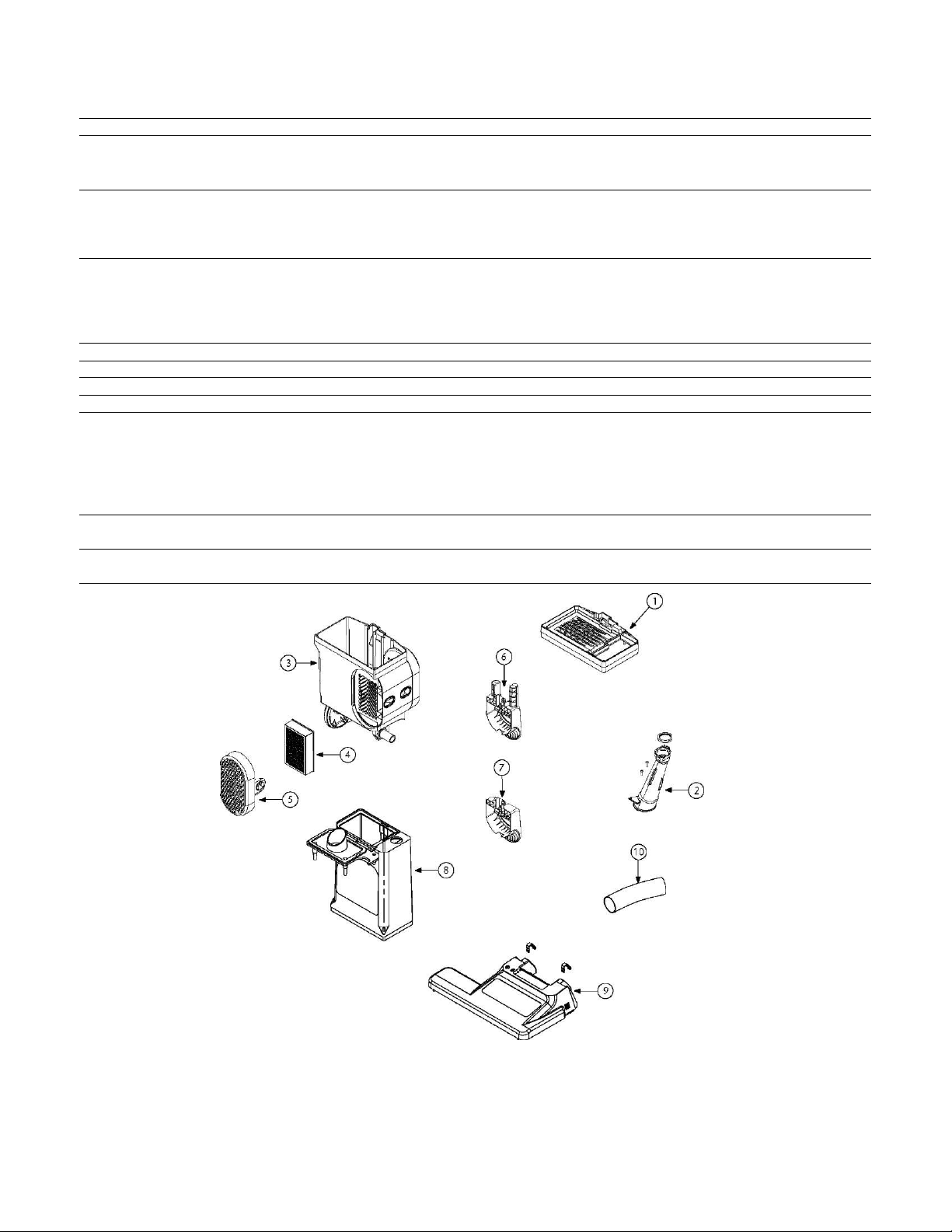

1500XP HEPA/1500 HEPA Parts Chart
IF YOU NEED THIS YOU ALSO NEED THIS
FOR HEPA MODEL
Non-HEPA No. HEPA Model No. Product Name List Price
1 104245 107255 Bulkhead, Dark Grey 107256 for 1500XP, or
107289 for 1500
NOTE: The HEPA model bulkhead does not have a cord wrap; it interferes with the HEPA filter cover.
2 104250 104250 Air Duct
NOTE: Older 104250s have extended "wings" on the side. The current 104250 does not.
A current version must be used with HEPA models or these wings snipped off of older air ducts
to be compatible with HEPA models.
3 104536 107257 Motor Housing, Charcoal (2) 107005, (2) 107258, 104250,
107255, 107256 for 1500XP,
or 107289 for 1500
NOTE: 104536 available for non-HEPA models while supplies last.
The new motor housing requires other parts for compatibility.
4 105136 107005 Filter, Exhaust, HEPA Media
5 104246 107258 Cover, Filter Cartridge, Charcoal
6 104265 107256 Handle, Carry W/Tool Caddy
7 104741 107289 Handle, Carry
8 104490 107260 1500XP HEPA Bag Housing Assembly, Grey 107257, (2) 107005, (2) 107258,
w/Riveted Hinge & Decal 104250, 107255, 107256
104739 107284 1500 HEPA Bag Housing Assembly, Grey 107257, (2) 107005, (2) 107258,
w/Riveted Hinge & Decal 104250, 107255, 107289
NOTE: 104490 & 104739 available for non-HEPA models while supplies last.
The HEPA model housing requires the new carry handle.
9 104494 107282 Power Nozzle Cover w/Detent Springs 107257, (2) 107005, (2) 107258,
& Decal 104250, 107255, 107289
10 104230 105489 Hose, Power Nozzle to Air Duct, Lower
NOTE: 104230 available for non-HEPA models while supplies last.
