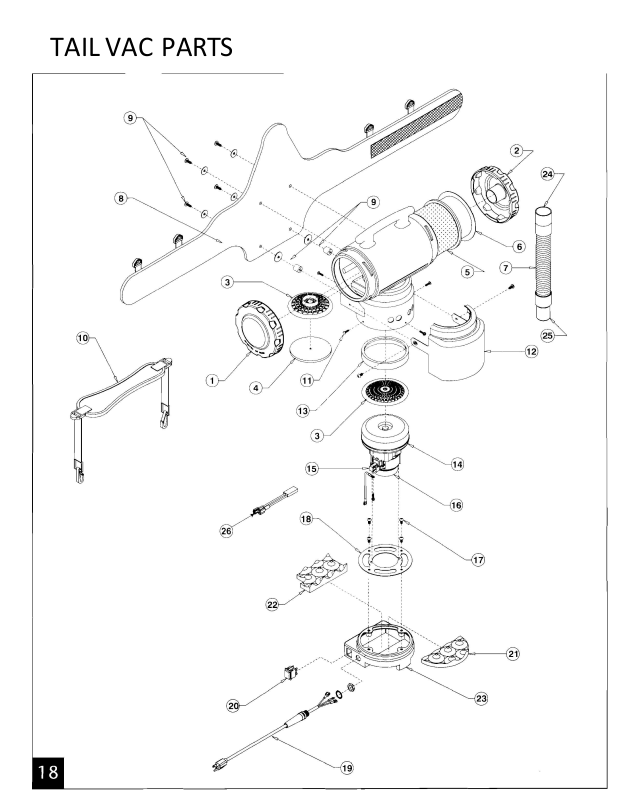

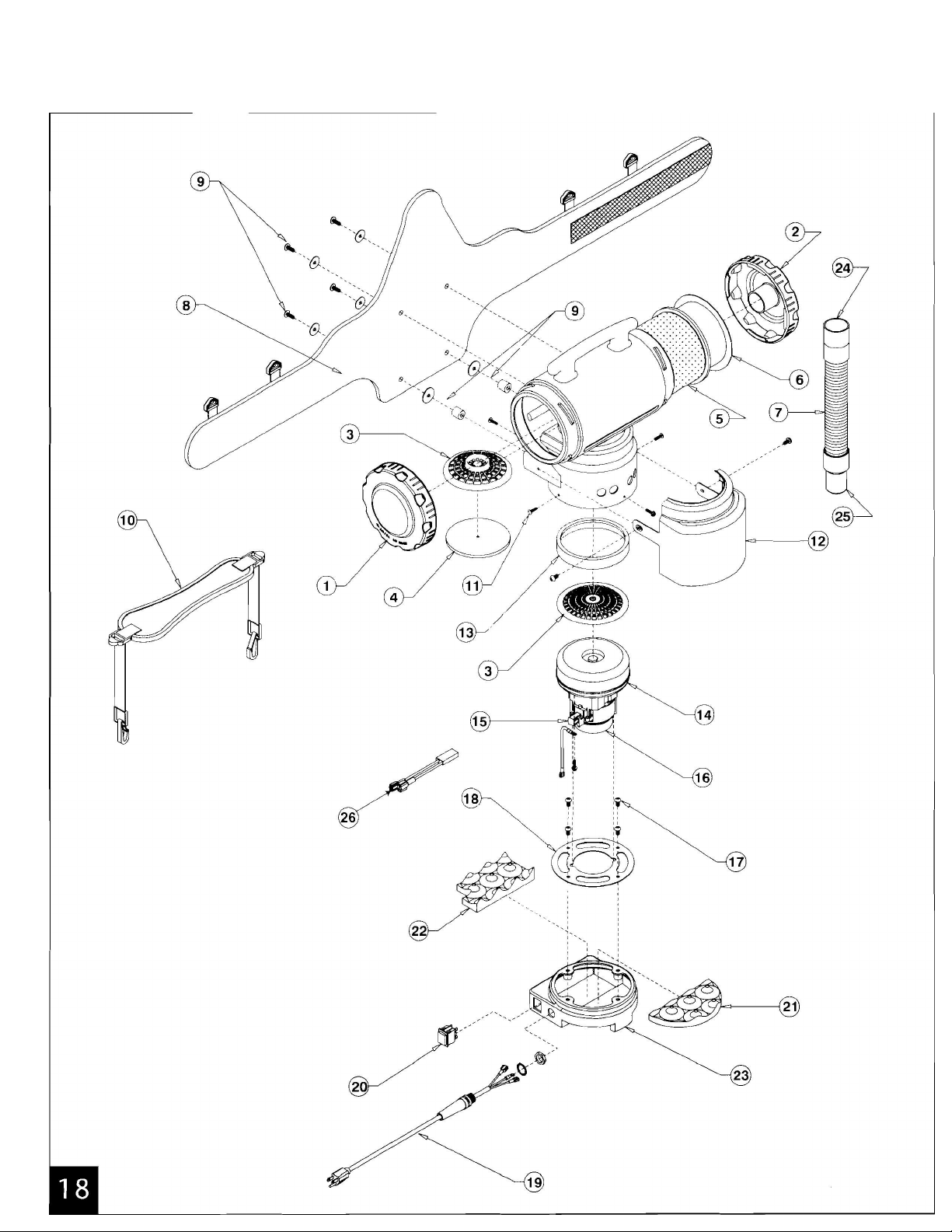

TAIL VAC PARTS
Page 2
No. Product Name Qty
1 101288
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
101934
102784
101949
102761
100564
100431
101184
101705
102878
101274
102879
103025
101272
101711
103236
101189
102988
103043
101271
100950
101713
100743
101228
101229
103262
101437
101536
101436
100694
105648
101678
TAILVAC PARTS
Blind Twist Cap Assembly (Grey)
Twist Cap for 1 Vz" Cuff (Grey) 1 ea.
Dome Filter w/Foam Media 1 ea.
Foam Filter Media for Dome Filter 1 ea.
High Filtration Disk (optional)
Micro Cloth Filter
496 Sq. In. Intercept Micro Filter
3-1 Stretch Hose w/Cuffs 1 '/ยป"
3-1 Stretch Hose w/Cuffs 1 ,/2
Waist Belt w/Velcro
Waist Belt Connection Set: 6 Screws, 6 Washers, 2 Stand-offs
Monostrap
Retrofit Set: Waist Belt and Monostrap 1 set
Step Cap Screw Kit: 4 Screws 1 set
Shroud Retro Kit (Grey) w/2 Screws 1 ea.
Motor Seal 1 ea.
Motor/Fan (120V) w/Crimps (includes: #1 6, 18)
Carbon Brush Set for TailVac Motor
Fan and Brush Cover Kit 1 ea.
Motor Mount Screw Kit: 6 Screws,4 Washers
Director Plate 1 ea.
Power Cord (18" 16/3) Assembly 1 ea.
On/Off Switch
Front Sound Foam Baffle
Rear Sound Foam Baffle
Step Cap (Grey) (includes: #21)
Replacement Fixed Hose Cuff (Black) 1 Vz" x 1 '/V
Replacement Fixed Hose Cuff (Black) 1W (not shown)
Replacement Swivel Cuff (Black) VA"
Replacement Swivel Cuff (Black) V/z"
Thermal Protector
50' Extension Cord (Not Shown) 1 ea.
11
1 ea.
2/pk
1 ca.
10/pk
1 ea.
1 ea.
1 ea.
1 set
1 ea.
1 ea.
1 set
1 ea.
1 ea.
1 ea.
1 ea.
1 ea.
1 ea.
1 ea.
1 ea.
1 ea.
1 ea.
19
