InstructionSheet
InstructionSheet
IMPORTANT SAFETY INFORMATION. READ AND FOLLOW ALL SAFETY INSTRUCTIONS. Follow label information
and instructions concerning Wet or Damp Locations, installation near combustible materials, insulation, building materials,
and proper lamping. Do not install in areas subject to combustible vapors or gases. Before wiring to power supply and
during servicing or relamping, turn off power at fuse or circuit breaker. All servicing or relamping must be performed by
qualified service personnel. Product must be grounded to avoid potential electric shock or other potential hazard.
Product must be mounted in locations and at heights and in a manner consistent with its intended use, and in
compliance with the National Electrical Code and local codes. The use of accessory equipment not recommended by
the manufacturer or installed contrary to instructions may cause an unsafe condition. Do not block light emanating from
product in whole or part, as this may cause an unsafe condition. Do not allow items such as drapes, curtains, screens or
the like to come into contact with the product or to block light from the product, as this may cause an unsafe condition.

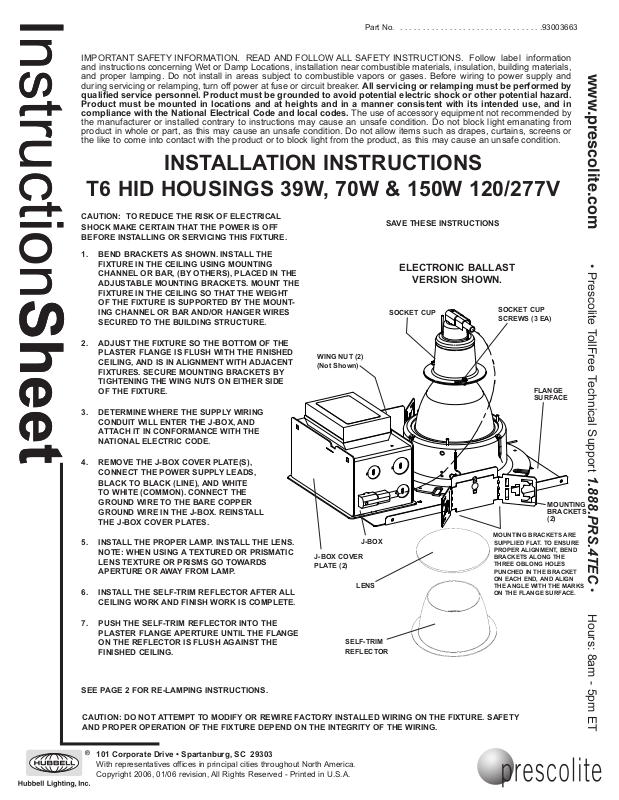

INSTALLATION INSTRUCTIONS
T6 HID HOUSINGS 39W, 70W & 150W 120/277V
Part No. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .93003663
www.prescolite.com • Prescolite TollFree Technical Support 1.888.PRS.4TEC • Hours: 8am - 5pm ET
CAUTION: TO REDUCE THE RISK OF ELECTRICAL
SHOCK MAKE CERTAIN THAT THE POWER IS OFF
BEFORE INSTALLING OR SERVICING THIS FIXTURE.
BEND BRACKETS AS SHOWN. INSTALL THE
1.
FIXTURE IN THE CEILING USING MOUNTING
CHANNEL OR BAR, (BY OTHERS), PLACED IN THE
ADJUSTABLE MOUNTING BRACKETS. MOUNT THE
FIXTURE IN THE CEILING SO THAT THE WEIGHT
OF THE FIXTURE IS SUPPORTED BY THE MOUNTING CHANNEL OR BAR AND/OR HANGER WIRES
SECURED TO THE BUILDING STRUCTURE.
2. ADJUST THE FIXTURE SO THE BOTTOM OF THE
PLASTER FLANGE IS FLUSH WITH THE FINISHED
CEILING, AND IS IN ALIGNMENT WITH ADJACENT
FIXTURES. SECURE MOUNTING BRACKETS BY
TIGHTENING THE WING NUTS ON EITHER SIDE
OF THE FIXTURE.
3. DETERMINE WHERE THE SUPPLY WIRING
CONDUIT WILL ENTER THE J-BOX, AND
ATTACH IT IN CONFORMANCE WITH THE
NATIONAL ELECTRIC CODE.
4. REMOVE THE J-BOX COVER PLATE(S),
CONNECT THE POWER SUPPLY LEADS,
BLACK TO BLACK (LINE), AND WHITE
TO WHITE (COMMON). CONNECT THE
GROUND WIRE TO THE BARE COPPER
GROUND WIRE IN THE J-BOX. REINSTALL
THE J-BOX COVER PLATES.
ALL THE LENS.
THE PROPER LAMP
ALL
INST
5.
NOTE: WHEN USING A TEXTURED OR PRISMATIC
LENS TEXTURE OR PRISMS GO TOWARDS
APERTURE OR AWAY FROM LAMP.
THE SELF-TRIM REFLECT
ALL
INST
6.
CEILING WORK AND FINISH WORK IS COMPLETE.
. INST
OR
AFTER
ALL
WING NUT (2)
(Not Shown)
J-BOX COVER
PLATE (2)
SAVE THESE INSTRUCTIONS
ELECTRONIC BALLAST
VERSION SHOWN.
SOCKET CUP
J-BOX
LENS
SOCKET CUP
SCREWS (3 EA)
FLANGE
SURFACE
MOUNTING
BRACKETS
(2)
MOUNTING BRACKETS ARE
SUPPLIED FLAT. TO ENSURE
PROPER ALIGNMENT, BEND
BRACKETS
THREE OBLONG HOLES
PUNCHED IN THE BRACKET
ON EACH END, AND ALIGN
THE ANGLE WITH THE MARKS
ON THE FLANGE SURFACE.
ALONG THE
O THE
PUSH THE SELF-TRIM REFLECT
7.
PLASTER FLANGE APERTURE UNTIL THE FLANGE
ON THE REFLECTOR IS FLUSH AGAINST THE
FINISHED CEILING.
SEE PAGE 2 FOR RE-LAMPING INSTRUCTIONS.
TTEMPT T
CAUTION: DO NOT
AND PROPER OPERATION OF THE FIXTURE DEPEND ON THE INTEGRITY OF THE WIRING.
101 Corporate Drive • Spartanburg, SC 29303
With representatives of
Copyright 2006, 01/06 revision, All Rights Reserved - Printed in U.S.A.
A
fices in principal cities throughout North
OR INT
O MODIFY
SELF-TRIM
REFLECT
OR REWIRE FACTORY INSTALLED WIRING ON THE FIXTURE. SAFETY
America.
OR
InstructionSheet
TO RE-LAMP THE FIXTURE FROM THE BOTTOM. (REFER TO THE DIAGRAM ON SHEET 1 FOR PART LOCATIONS).
1. VERIFY THAT THE POWER IS SHUT OFF TO THE FIXTURE!
2. REMOVE THE SELF-TRIM REFLECTOR.
3. REMOVE THE LENS BY DISENGAGING THE THREE RETAINING SPRINGS.
4. VERIFY THE CORRECT LAMP TYPE. A RE-LAMPING LABEL IS LOCATED INSIDE THE COWLING,
AND IS VISIBLE WHEN THE SELF-TRIM REFLECTOR IS REMOVED.
5. REMOVE THE OLD LAMP, AND INSTALL THE NEW LAMP.
6. RE-INSTALL THE LENS AND SELF-TRIM REFLECTOR.
RE-LAMPING FROM ABOVE: (REFER TO THE DIAGRAM ON SHEET 1 FOR PART LOCATIONS)
1. VERIFY THE POWER IS SHUT OFF TO THE FIXTURE!
2. LOCATE AND LOOSEN THE 3 SOCKET CUP SCREWS.
3. THE SOCKET CUP CAN THEN BE ROTATED UNTIL KEY HOLES ALIGN WITH SCREWS AND LIFTED UP FROM THE
MOUNTING FLANGE.
4. TURN THE SOCKET CUP OVER. THE LAMP IS NOW EXPOSED, AND CAN BE REMOVED AND REPLACED.
5. VERIFY THE CORRECT LAMP TYPE. A RE-LAMPING LABEL IS LOCATED ON THE TOPSIDE OF THE PLASTER FLANGE.
6. REMOVE THE OLD LAMP, AND INSTALL THE NEW LAMP.
7. RE-ATTACH THE SOCKET CUP BY REPLACING IT IN ITS ORIGINAL LOCATION AND ORIENTATION,
AND TIGHTENING THE 3 SCREWS.
Part No. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .93003663
www.prescolite.com • Prescolite TollFree Technical Support 1.888.PRS.4TEC • Hours: 8am - 5pm ET
101 Corporate Drive • Spartanburg, SC 29303
With representatives of
Copyright 2006, 01/06 revision, All Rights Reserved - Printed in U.S.A.
fices in principal cities throughout North
America.
