InstructionSheet
Part No. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .123560100
IMPORTANT SAFETY INFORMATION. READ AND FOLLOW ALL SAFETY INSTRUCTIONS. Follow label information
and instructions concerning Wet or Damp Locations, installation near combustible materials, insulation, building materials,
and proper lamping. Do not install in areas subject to combustible vapors or gases. Before wiring to power supply and
during servicing or relamping, turn off power at fuse or circuit breaker. All servicing or relamping must be performed by
qualified service personnel. Product must be grounded to avoid potential electric shock or other potential hazard.
Product must be mounted in locations and at heights and in a manner consistent with its intended use, and in
compliance with the National Electrical Code and local codes. The use of accessory equipment not recommended by
he manufacturer or installed contrary to instructions may cause an unsafe condition. Do not block light emanating from
t
roduct in whole or part, as this may cause an unsafe condition. Do not allow items such as drapes, curtains, screens or
p
he like to come into contact with the product or to block light from the product, as this may cause an unsafe condition.
t

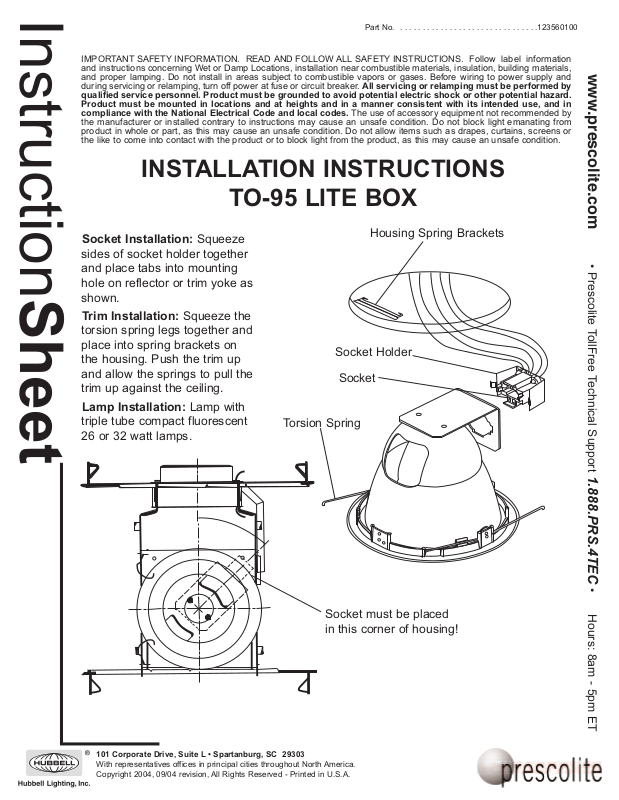

INSTALLATION INSTRUCTIONS
TO-95 LITE BOX
www.prescolite.com • Prescolite TollFree Technical Support 1.888.PRS.4TEC • Hours: 8am - 5pm ET
Socket Installation: Squeeze
sides of socket holder together
and place tabs into mounting
hole on reflector or trim yoke as
shown.
Trim Installation: Squeeze the
torsion spring legs together and
place into spring brackets on
the housing. Push the trim up
and allow the springs to pull the
trim up against the ceiling.
Lamp Installation: Lamp with
triple tube compact fluorescent
26 or 32 watt lamps.
Housing Spring Brackets
Socket Holder
Socket
Torsion Spring
Socket must be placed
in this corner of housing!
101 Corporate Drive, Suite L • Spartanburg, SC 29303
With representatives of
Copyright 2004, 09/04 revision, All Rights Reserved - Printed in U.S.A.
fices in principal cities throughout North
America.
