IMPORTANT SAFETY INFORMATION. READ AND FOLLOW ALL SAFETY INSTRUCTIONS. Follow label information
and instructions concerning Wet or Damp Locations, installation near combustible materials, insulation, building materials,
and proper lamping. Do not install in areas subject to combustible vapors or gases. Before wiring to power supply and
during servicing or relamping, turn off power at fuse or circuit breaker.
qualified service personnel. Product must be grounded to avoid potential electric shock or other potential hazard.
Product must be mounted in locations and at heights and in a manner consistent with its intended use, and in
compliance with the National Electrical Code and local codes. The use of accessory equipment not recommended by
the manufacturer or installed contrary to instructions may cause an unsafe condition. Do not block light emanating from
product in whole or part, as this may cause an unsafe condition. Do not allow items such as drapes, curtains, screens or
the like to come into contact with the product or to block light from the product, as this may cause an unsafe condition.
INSTALLATION INSTRUCTIONS
SPECIAL NOTES
Do NOT install decorative trim if parts are
damaged or cracked. • CAUTION: Do NOT
disassemble decorative trim or skyhook
brackets! • Verify that trim flange does NOT
damage ceiling due to interference while
hanging trim down for relamping or rotating
into position during installation.
SIGNOS
Part No. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .06600600
All servicing or relamping must be performed by
E
A
www.prescolite.com • Prescolite TollFree Technical Support 1.888.PRS.4TEC • Hours: 8am - 5pm ET

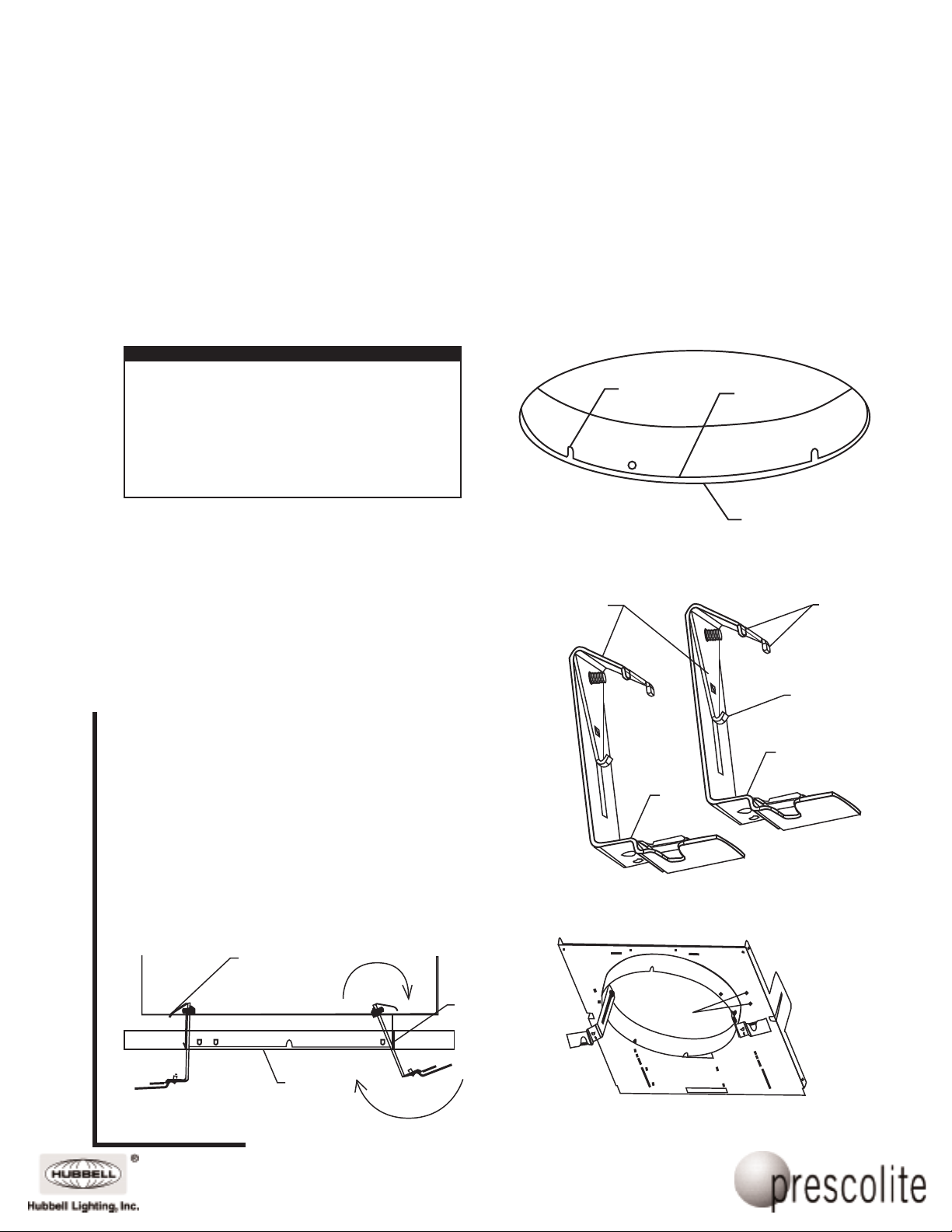

1. Remove reflector from fixture and verify that fixture is
secured to ceiling supports so fixture is stable and does
not move. Lower edge of fixture opening (A) should be
situated just above room side surface of ceiling,
approximately 1/8". Adjust fixture position if necessary.
2. Remove skyhook brackets from package. Package
should contain two skyhook “L” bracket’s (B). Verify that
triangular hook bracket (C) with tabs is in the uppermost position, situated at the top of the slot on both
skyhook brackets. Attach brackets to fixture by hooking
bracket’s lower tab (D) onto slot (E) located on lower
edge of fixture opening (A). Rotate top of bracket over
top edge of fixture opening until bracket’
(F) snap into holes (G) located on top surface of fixture
flange.
SNAP TABS(G)
O HOLES(H)
INT
s upper tabs
CEILING
C
B
F
D
B
HOOK TAB ON
FLANGE SLOT
CEILING
101 Corporate Drive • Spartanburg, SC 29303
With representatives of
Copyright 2005, 08/05 revision, All Rights Reserved - Printed in U.S.A.
fices in principal cities throughout North
ROTATE INTO
POSITION
America.
G
(CEILING REMOVED FROM VIEW)
InstructionSheet
3. Adjust bracket heights so brackets seat against ceiling: Loosen screw (H)
on skyhook brackets and push brackets up against ceiling. Retighten screw.
B
H
ADJUST BRACKET
SO SURF
TOUCHES CEILING.
ACE
Part No. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .06600600
www.prescolite.com • Prescolite TollFree Technical Support 1.888.PRS.4TEC • Hours: 8am - 5pm ET
4. Replace reflector with socket and lamp.
5. Locate flange nut (I) on back of decorative
trim. Insert flangenut into keyhole slot on
skyhook bracket (B).
6. Rotate trim so flange nut (K) engages into
slot (M) on skyhook “L” bracket securing
trim to ceiling. Verify that trim flange does
not damage ceiling due to interference
while or rotating into position during instal
lation. Readjust bracket height (Step 3) if
interference is evident.
J
I
ROTATE TRIM
K
M
101 Corporate Drive • Spartanburg, SC 29303
With representatives of
Copyright 2005, 08/05 revision, All Rights Reserved - Printed in U.S.A.
fices in principal cities throughout North
America.
