IMPORTANT SAFETY INFORMATION. READ AND FOLLOW ALL SAFETY INSTRUCTIONS. Follow label information
and instructions concerning Wet or Damp Locations, installation near combustible materials, insulation, building materials,
and proper lamping. Do not install in areas subject to combustible vapors or gases. Before wiring to power supply and
during servicing or relamping, turn off power at fuse or circuit breaker.
qualified service personnel. Product must be grounded to avoid potential electric shock or other potential hazard.
Product must be mounted in locations and at heights and in a manner consistent with its intended use, and in
compliance with the National Electrical Code and local codes. The use of accessory equipment not recommended by
the manufacturer or installed contrary to instructions may cause an unsafe condition. Do not block light emanating from
product in whole or part, as this may cause an unsafe condition. Do not allow items such as drapes, curtains, screens or
the like to come into contact with the product or to block light from the product, as this may cause an unsafe condition.

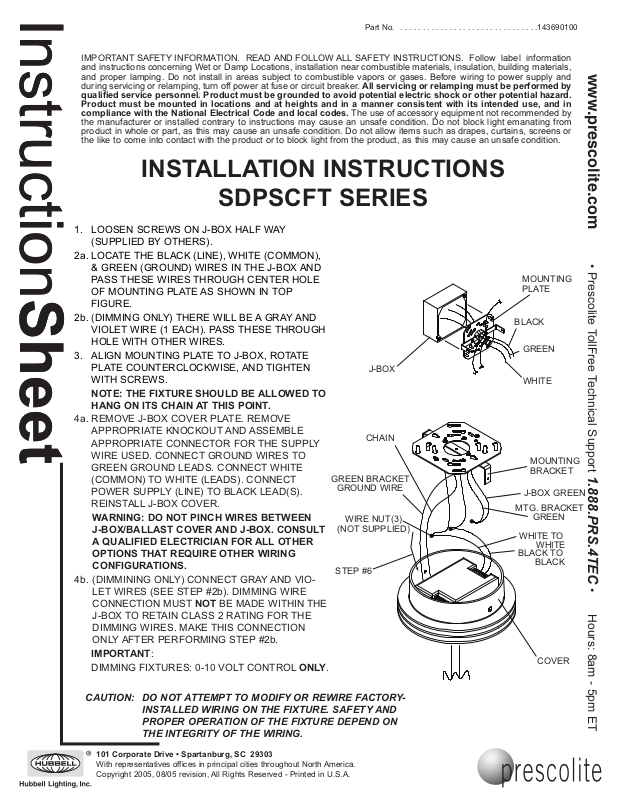

INSTALLATION INSTRUCTIONS
1. LOOSEN SCREWS ON J-BOX HALF WAY
(SUPPLIED BY OTHERS).
2a. LOCATE THE BLACK (LINE), WHITE (COMMON),
& GREEN (GROUND) WIRES IN THE J-BOX AND
PASS THESE WIRES THROUGH CENTER HOLE
OF MOUNTING PLATE AS SHOWN IN TOP
FIGURE.
2b. (DIMMING ONLY) THERE WILL BE A GRAY AND
VIOLET WIRE (1 EACH). PASS THESE THROUGH
HOLE WITH OTHER WIRES.
3. ALIGN MOUNTING PLATE TO J-BOX, ROTATE
PLATE COUNTERCLOCKWISE, AND TIGHTEN
WITH SCREWS.
NOTE: THE FIXTURE SHOULD BE ALLOWED TO
HANG ON ITS CHAIN AT THIS POINT.
4a. REMOVE J-BOX COVER PLATE. REMOVE
APPROPRIATE KNOCKOUT AND ASSEMBLE
APPROPRIATE CONNECTOR FOR THE SUPPLY
WIRE USED. CONNECT GROUND WIRES TO
GREEN GROUND LEADS. CONNECT WHITE
(COMMON) TO WHITE (LEADS). CONNECT
POWER SUPPLY (LINE) TO BLACK LEAD(S).
REINSTALL J-BOX COVER.
WARNING: DO NOT PINCH WIRES BETWEEN
J-BOX/BALLAST COVER AND J-BOX. CONSULT
A QUALIFIED ELECTRICIAN FOR ALL OTHER
OPTIONS THAT REQUIRE OTHER WIRING
CONFIGURATIONS.
4b. (DIMMINING ONLY) CONNECT GRAY AND VIO-
LET WIRES (SEE STEP #2b). DIMMING WIRE
CONNECTION MUST
J-BOX TO RETAIN CLASS 2 RATING FOR THE
DIMMING WIRES. MAKE THIS CONNECTION
ONLY AFTER PERFORMING STEP #2b.
IMPORTANT:
DIMMING FIXTURES: 0-10 VOLT CONTROL ONLY.
Part No. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .143690100
All servicing or relamping must be performed by
SDPSCFT SERIES
J-BOX
CHAIN
GREEN BRACKET
GROUND WIRE
WIRE NUT(3)
(NOT SUPPLIED)
STEP #6
NOT BE MADE WITHIN THE
www.prescolite.com • Prescolite TollFree Technical Support 1.888.PRS.4TEC • Hours: 8am - 5pm ET
MOUNTING
PLATE
BLACK
GREEN
WHITE
MOUNTING
BRACKET
J-BOX GREEN
MTG. BRACKET
GREEN
WHITE TO
WHITE
BLACK TO
BLACK
COVER
CAUTION: DO NOT ATTEMPT TO MODIFY OR REWIRE FACTORY-
INSTALLED WIRING ON THE FIXTURE. SAFETY AND
PROPER OPERATION OF THE FIXTURE DEPEND ON
THE INTEGRITY OF THE WIRING.
101 Corporate Drive • Spartanburg, SC 29303
With representatives offices in principal cities throughout North America.
Copyright 2005, 08/05 revision, All Rights Reserved - Printed in U.S.A.
InstructionSheet
5. PUSH THE SPLICES INTO THE J-BOX. HOLD UP THE
FIXTURE WHILE DOING THIS TO REDUCE SLACK ON
THE BLACK AND WHITE WIRES.
6. PUSH CHAIN AND GREEN BRACKET GROUND WIRE
INSIDE COVER.
7. ALIGN SIDE HOLES ON COVER TO SIDE HOLES ON
MOUNTING BRACKET AND FASTEN WITH FLAT HEAD
SCREWS SUPPLIED.
8. INSTALL THE DESIRED REFLECTOR AFTER ALL CEILING INSTALLTION AND FINISHING WORK IS COMLETE.
*SEE INSTRUCTION SHEET 1077-**** FOR DPR8 &
DPR10 SERIES REFLECTORS.
*SEE INSTRUCTION SHEET 1079-**** FOR DPRL &
DPRVML SERIES DIFFUSERS.
9. INSTALL THE DESIRED LAMP (BY OTHERS).
Part No. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .143690100
www.prescolite.com • Prescolite TollFree Technical Support 1.888.PRS.4TEC • Hours: 8am - 5pm ET
8-32 FLAT HEAD SCREWS
(SUPPLIED)
INSTRUCTIONS FOR LAMP POSITIONING
THERE ARE 3 LAMP POSITIONS AVAILABLE FOR THIS
FIXTURE. THE FIXTURE IS SHIPPED AND INSTALLED
IN THE LOWEST (CLOSEST TO REFLECTOR APERTURE) POSITION.
THESE POSITIONS ARE DETERMINED BY AN
ADJUSTABLE BRACKET MECHANISM WITHIN THE
HOUSING. THE 57W VERSION ONLY HAS ONE LAMP
POSITION AVAILABLE.
10a. IF THE LAMP IS A 26W COMPACT FLUORESCENT
LAMP, DO NOT REPOSITION THE LAMP.
10b. IF THE LAMP IS A 32W COMPACT FLUORESCENT
LAMP, PLACE THUMBS AT BOTTOM OF LAMP AND
PUSH UP UNTIL BRACKET MECHANISM CLICKS
INTO MIDDLE POSITION.
10c. IF THE LAMP IS A 42W COMPACT FLUORESCENT
LAMP, PLACE THUMBS AT BOTTOM OF LAMP AND
PUSH UP UNTIL BRACKET MECHANISM CLICKS
INTO TOP POSITION.
11. TO REPOSITION THE LAMP TO A LOWER POSITION,
PULL DOWN ON THE CHAIN SHOWN IN THE LOWER
FIGURE. PUSH ON LAMP UNTIL IT IS IN THE NEW
POSITION (SEE STEPS 10a - 10c).
REFLECTOR NOT SHOWN FOR
EASE OF VIEW
CHAIN
SEE PAGE 3 FOR FIGURE OF FULLY
INSTALLED FIXTURE
101 Corporate Drive • Spartanburg, SC 29303
With representatives offices in principal cities throughout North America.
Copyright 2005, 08/05 revision, All Rights Reserved - Printed in U.S.A.
InstructionSheet
CEILING OUTLINE
Part No. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .143690100
www.prescolite.com • Prescolite TollFree Technical Support 1.888.PRS.4TEC • Hours: 8am - 5pm ET
FULLY INSTALLED
FIXTURE
101 Corporate Drive • Spartanburg, SC 29303
With representatives offices in principal cities throughout North America.
Copyright 2005, 08/05 revision, All Rights Reserved - Printed in U.S.A.
