InstructionSheet
Part No. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .93012107
IMPORTANT SAFETY INFORMATION. READ AND FOLLOW ALL SAFETY INSTRUCTIONS. Follow label information
and instructions concerning Wet or Damp Locations, installation near combustible materials, insulation, building materials,
and proper lamping. Do not install in areas subject to combustible vapors or gases. Before wiring to power supply and
during servicing or relamping, turn off power at fuse or circuit breaker. All servicing or relamping must be performed by
qualified service personnel. Product must be grounded to avoid potential electric shock or other potential hazard.
Product must be mounted in locations and at heights and in a manner consistent with its intended use, and in
compliance with the National Electrical Code and local codes. The use of accessory equipment not recommended by
the manufacturer or installed contrary to instructions may cause an unsafe condition. Do not block light emanating from
product in whole or part, as this may cause an unsafe condition. Do not allow items such as drapes, curtains, screens or
the like to come into contact with the product or to block light from the product, as this may cause an unsafe condition.
WARNING - This product contains chemicals known to the State of California to cause cancer, birth defects, and/or other
reproductive harm. Thoroughly wash hands after installing, handling, cleaning, or otherwise touching this product.

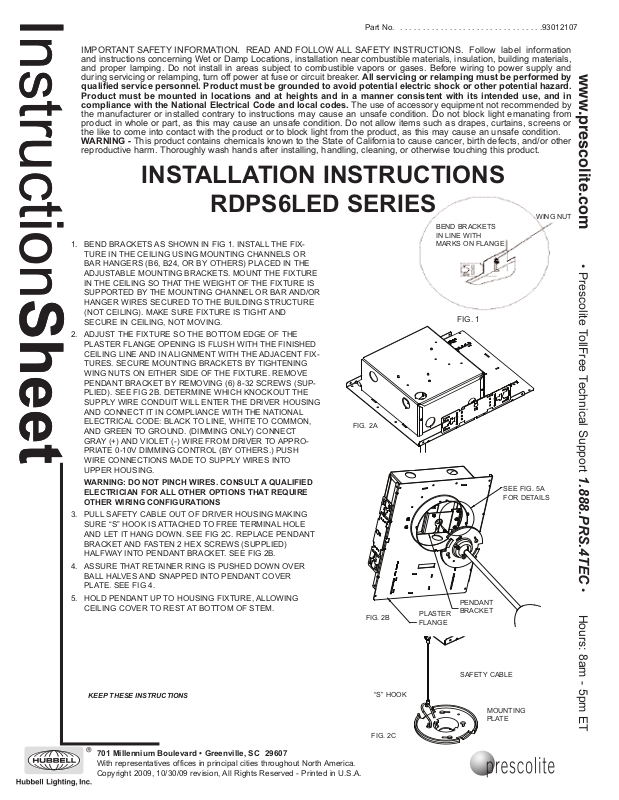

INSTALLATION INSTRUCTIONS
www.prescolite.com • Prescolite TollFree Technical Support 1.888.PRS.4TEC • Hours: 8am - 5pm ET
RDPS6LED SERIES
1. BEND BRACKETS AS SHOWN IN FIG 1. INSTALL THE FIXTURE IN THE CEILING USING MOUNTING CHANNELS OR
BAR HANGERS (B6, B24, OR BY OTHERS) PLACED IN THE
ADJUSTABLE MOUNTING BRACKETS. MOUNT THE FIXTURE
THE CEILING SO THAT THE WEIGHT OF THE FIXTURE IS
IN
SUPPORTED BY THE MOUNTING CHANNEL OR BAR AND/OR
HANGER WIRES SECURED TO THE BUILDING STRUCTURE
(NOT CEILING). MAKE SURE FIXTURE IS TIGHT AND
SECURE IN CEILING, NOT MOVING.
2. ADJUST THE FIXTURE SO THE BOTTOM EDGE OF THE
PLASTER FLANGE OPENING IS FLUSH WITH THE FINISHED
CEILING LINE AND IN ALIGNMENT WITH THE ADJACENT FIXTURES. SECURE MOUNTING BRACKETS BY TIGHTENING
WING NUTS ON EITHER SIDE OF THE FIXTURE. REMOVE
PENDANT BRACKET BY REMOVING (6) 8-32 SCREWS (SUPPLIED). SEE FIG 2B. DETERMINE WHICH KNOCKOUT THE
SUPPLY WIRE CONDUIT WILL ENTER THE DRIVER HOUSING
AND CONNECT IT IN COMPLIANCE WITH THE NATIONAL
ELECTRICAL CODE: BLACK TO LINE, WHITE TO COMMON,
AND GREEN TO GROUND. (DIMMING ONLY) CONNECT
GRAY (+) AND VIOLET (-) WIRE FROM DRIVER TO APPROPRIATE 0-10V DIMMING CONTROL (BY OTHERS.) PUSH
WIRE CONNECTIONS MADE TO SUPPLY WIRES INTO
UPPER HOUSING.
WARNING: DO NOT PINCH WIRES. CONSULT A QUALIFIED
ELECTRICIAN FOR ALL OTHER OPTIONS THAT REQUIRE
OTHER WIRING CONFIGURATIONS
3. PULL SAFETY CABLE OUT OF DRIVER HOUSING MAKING
SURE “S” HOOK IS ATTACHED TO FREE TERMINAL HOLE
AND LET IT HANG DOWN. SEE FIG 2C. REPLACE PENDANT
BRACKET
HALFWAY INTO PENDANT BRACKET. SEE FIG 2B.
4. ASSURE THAT RETAINER RING IS PUSHED DOWN OVER
5.
HAL
BALL
PLATE. SEE FIG 4.
HOLD PENDANT
CEILING COVER TO REST AT BOTTOM OF STEM.
ASTEN 2 HEX SCREWS (SUPPLIED)
AND F
VES AND SNAPPED INTO PENDANT COVER
O HOUSING FIXTURE,
T
UP
ALLOWING
FIG. 2A
FIG. 2B
BEND BRACKETS
IN LINE WITH
ARKS ON FLANGE
M
PLASTER
FLANGE
FIG. 1
PENDANT
BRACKET
W
SEE FIG. 5A
FOR DETAILS
ING NUT
KEEP THESE INSTRUCTIONS
701 Millennium Boulevard • Greenville, SC 29607
ith representatives of
W
Copyright 2009, 10/30/09 revision, All Rights Reserved - Printed in U.S.A.
fices in principal cities throughout North
America.
SAFETY CABLE
“S” HOOK
MOUNTING
PLATE
FIG. 2C
InstructionSheet
DRIVER WIRE
ASSEMBLY
TAMPER PROOF SCREW
LIGHT ENGINE
WIRE ASSEMBLY
WIRE ASSEMBLY
SAFETY
CABLE
FIG 4
6. CONNECT “S” HOOK IN FREE KEYHOLE OF PLASTER
FLANGE. ALLOW PENDANT TO HANG FREELY ON SAFETY
CABLE. SEE FIG 2C
7. LOCATE THE RED AND BLUE WIRES FROM PENDANT
ASSEMBLYAND PASS WIRES AND PROTECTIVE SLEEVE
THROUGH SLOTTED HOLE IN PENDANT BRACKET.
8. CONNECT WIRES FROM DRIVER HOUSING TO WIRES FROM
PENDANT (RED TO RED, BLUE TO BLUE) SECURING WITH
WIRE NUTS SUPPLIED.
9. PUSH WIRES BACK INTO HOUSING. ALL WIRES MUST BE
RUN THROUGH CENTER OF SLOTTED HOLE OF PENDANT
BRACKET. STRAIN RELIEF ON PROTECTIVE SLEEVE MUST
BE LOCATED ON INSIDE FACE OF PENDANT BRACKET
BEFORE SECURING MOUNTING PLATE IN PLACE.
10. HOLD PENDANT UP TO HOUSING FIXTURE, ALLOWING CEILING COVER
HOOK AND ALLOW SAFTY CABLE (WITH “S” HOOK) TO HANG
OUT SIDE OF HOUSING FIXTURE.
11. ALIGN HOLES OF PENDANT COVER PLATE TO HEX SCREWS
ON PENDANT BRACKET. TURN COUNTER-CLOCKWISE AND
TIGHTEN HEX SCREWS. SEE FIG 7.
12. PUSH “S” HOOK AND CABLE UP INTO HOUSING FIXTURE.
13. MOUNT CEILING COVER BY INSERTING TORSION SPRINGS
THROUGH SLOTS. SEE FIG 5B.
TO REST AT BOTTOM OF STEM DISENGAGE “S"
BALL HALF
FIG. 4
S
S
ORSION SPRING
T
Part No. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .93012107
ETAINER
R
ING
R
PENDANT
OVER PLATE
C
LOT FOR TORSION
PRING (2X)
CEILING COVER
STEM AND
ENDANT
P
F
IG. 5A
FIG. 5B
www.prescolite.com • Prescolite TollFree Technical Support 1.888.PRS.4TEC • Hours: 8am - 5pm ET
LED ARRAY REPLACEMENT
1. REMOVE THE TRIM BY LOOSING THE CAPTIVE SCREW.
2. DISCONNECT LIGHT ENGINE WIRE ASSY FROM DRIVER
WIRE ASSY.
3. LOOSEN AND REMOVE SAFETY CABLE FROM BOTTOM OF
REFLECTOR SUB-ASSEMBLY.
4. REMOVE (3) MOUNTING SCREWS FROM REFLECTOR.
REPLACE LIGHT ENGINE AND SECURE WITH (3) MOUNTING
SCREWS.
5. RECONNECT SAFETY CABLE TO LOWER HOLE IN REFLECTOR. CONNECT REPLACEMENT LIGHT. ENGINE WIRE ASSY
O DRIVER WIRE
T
6. SLIDE REFLECTOR AND LIGHT ENGINE SUB ASSEMBLY IN
PLACE.
TIGHTEN CAPTIVE SCREW
7.
LED DRIVER REPLACEMENT
REMOVE PENDANT
1.
TIONS IN STEPS 3-13 ABOVE. DISCONNECT ALL WIRING
NECESSARY TO REMOVE DRIVER. REMOVE (2) 8-32
SCREWS SECURING DRIVER. (SUPPLIED). REPLACE OLD
DRIVER WITH NEW ONE BY
MOUNTING SCREWS. RECONNECT ALL WIRING REFERENCE
STEPS 2 AND 8 OF INSTALLATION INSTRUCTIONS
.
ASSY
.
FROM HOUSING REVERSING INSTRUC
TIGHTENING
THE 2 DRIVER
-
PENDANT
BRACKET
701 Millennium Boulevard • Greenville, SC 29607
ith representatives of
W
Copyright 2009, 10/30/09 revision, All Rights Reserved - Printed in U.S.A.
fices in principal cities throughout North
FIG. 7
America.
InstructionSheet
CANOPY
8-32 FLAT HEAD
SCREWS
(SUPPLIED)
SAFETY
C
ABLE
FOR RDPSLED
CEILING OUTLINE
FIG 2
FIG 3
Part No. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .93012107
www.prescolite.com • Prescolite TollFree Technical Support 1.888.PRS.4TEC • Hours: 8am - 5pm ET
FULLY INSTALLED
FIXTURE
701 Millennium Boulevard • Greenville, SC 29607
W
Copyright 2009, 10/30/09 revision, All Rights Reserved - Printed in U.S.A.
ith representatives of
fices in principal cities throughout North
America.
