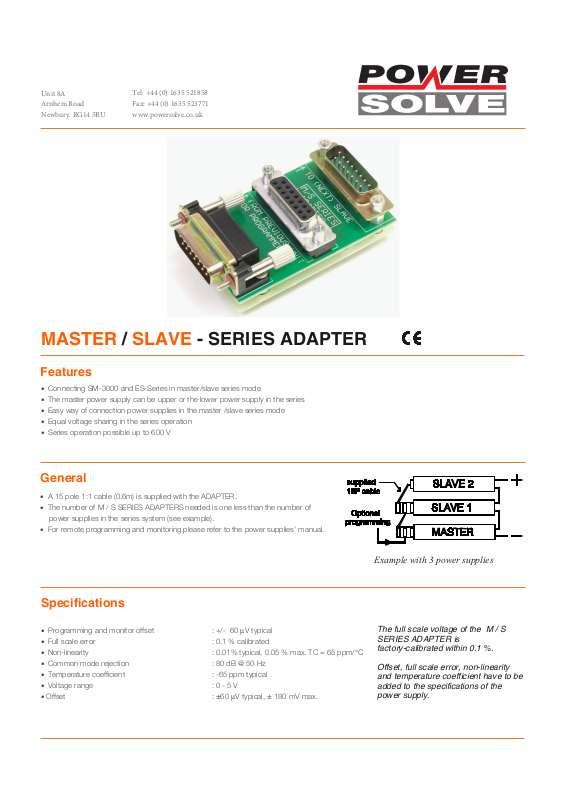

MASTER / SLAVE - SERIES ADAPTER

Features

• Connecting SM-3000 and ES-Series in master/slave series mode

• The master power supply can be upper or the lower power supply in the series

• Easy way of connection power supplies in the master /slave series mode

• Equal voltage sharing in the series operation

• Series operation possible up to 600 V

General

• A 15 pole 1:1 cable (0.6m) is supplied with the ADAPTER.

• The number of M / S SERIES ADAPTERS needed is one less than the number of

power supplies in the series system (see example).

• For remote programming and monitoring please refer to the power supplies’ manual.

Specifications

• Programming and monitor offset : +/- 60 µV typical

• Full scale error : 0.1 % calibrated

• Non-linearity : 0.01% typical, 0.05 % max. TC = 65 ppm/°C

• Common mode rejection : 80 dB @ 50 Hz

• Temperature coefficient : -65 ppm typical

• Voltage range : 0 - 5 V

• Offset : ±60 µV typical, ± 180 mV max.

Example with 3 power supplies

The full scale voltage of the M / S
SERIES ADAPTER is
factory-calibrated within 0.1 %.

Offset, full scale error, non-linearity
and temperature coefficient have to be
added to the specifications of the
power supply.
