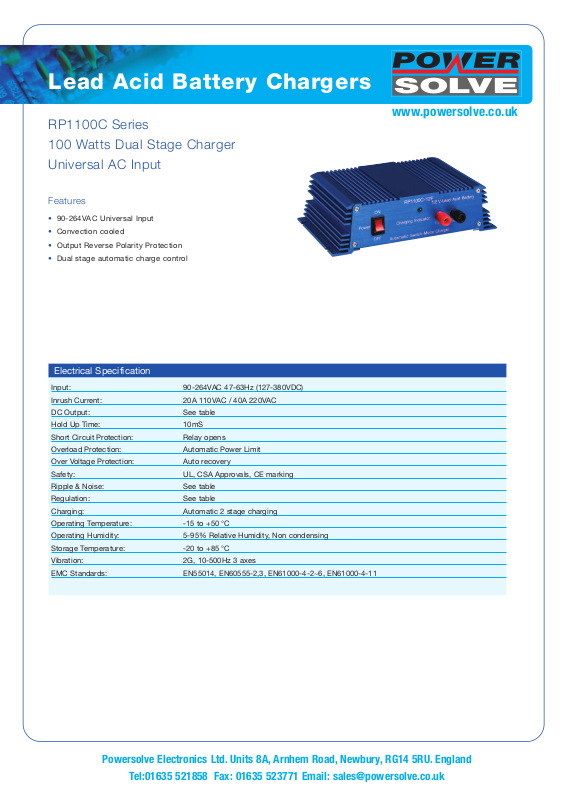

Lead Acid Battery Chargers
RP1100C Series
100 Watts Dual Stage Charger
Universal AC Input
Features
• 90-264VAC Universal Input
• Convection cooled
• Output Reverse Polarity Protection
• Dual stage automatic charge control
www.powersolve.co.uk
Electrical Specification
Input: 90-264VAC 47-63Hz (127-380VDC)
Inrush Current: 20A 110VAC / 40A 220VAC
DC Output: See table
Hold Up Time: 10mS
Short Circuit Protection: Relay opens
Overload Protection: Automatic Power Limit
Over Voltage Protection: Auto recovery
Safety: UL, CSA Approvals, CE marking
Ripple & Noise: See table
Regulation: See table
Charging: Automatic 2 stage charging
Operating Temperature: -15 to +50 °C
Operating Humidity: 5-95% Relative Humidity, Non condensing
Storage Temperature: -20 to +85 °C
Vibration: 2G, 10-500Hz 3 axes
EMC Standar
ds:
EN55014, EN60555-2,3, EN61000-4-2~6, EN61000-4-11
Powersolve Electronics Ltd. Units 8A, Arnhem Road, Newbury, RG14 5RU. England
Tel:01635 521858 Fax: 01635 523771 Email: sales@powersolve.co.uk
Lead Acid Battery Chargers
Charging Curve
Current
V
oltage
Fast charge
M
aintenance
7A (3.5A) I rated
V Boost 14.4V (28.8V)
V
Float 13.8V (27.6V)
1A
I
V
Dimensions are in millimeters
Dimensions: 206(L) x 136(W) x 57(H)
Colour: Blue
Material: Aluminium
34
12
24
21
18.5
5
75
5
15.5
17
126.5
15525.5 25.5
12.5 12.5
5.5
49
31.5 140.5
ON
OFF
Power
Charging Indicator
Lead Acid Battery
Automatic Switching Mode Charger
www.powersolve.co.uk
MODEL OUTPUT LOAD (CURRENT)
VOLTAGE +% MIN. RATED MAX. & NOISE
1
RIPPLE LINE LOAD EFFICIENCY
4
REGULATION
2
REGULATION
3
RP1100C-12F V1: +14.4V----- 0A 7A 8A 250mVp-p ±1% ±2% 75% Min.
RP1100C-24F V1: +28.8V----- 0A 3.5A 4A 250mVp-p ±1% ±2% 78% Min.
Note:
1. Each output can provide up to a maximum load, but total load can not exceed rated output power.
2. Line regulation is measured from low line to high line at rated load.
3. Load regulation is measured from 20% to 100% of rated load at 110VAC input.
4. Ripple and Noise is measured by using a 0.1uF/630V metalized capacitor & a 47uF electrolytic capacitor parallel on the test point,
at rated load and 110VAC.
5. Efficiency is measured at rated load and 110VAC input.
6. Hold-up time is measured at rated load and 110VAC input.
5
Powersolve Electronics Ltd. Units 8A, Arnhem Road, Newbury, RG14 5RU. England
Tel:01635 521858 Fax: 01635 523771 Email: sales@powersolve.co.uk
