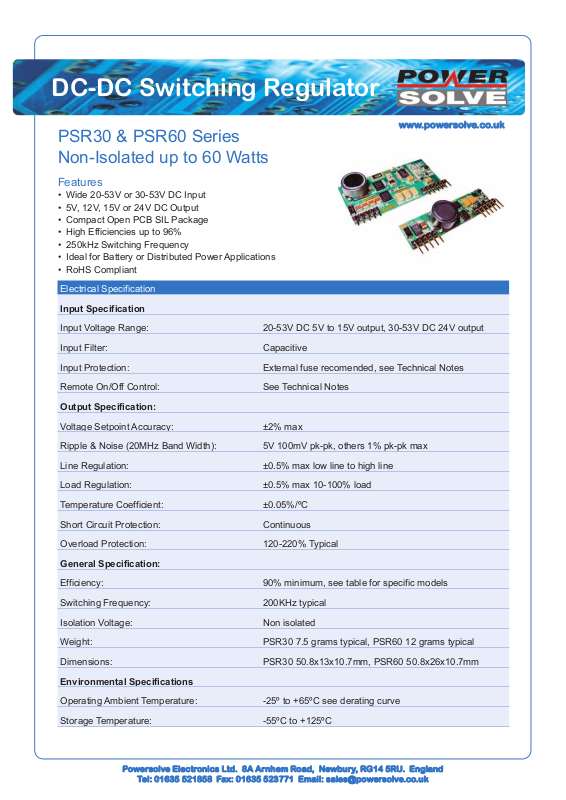

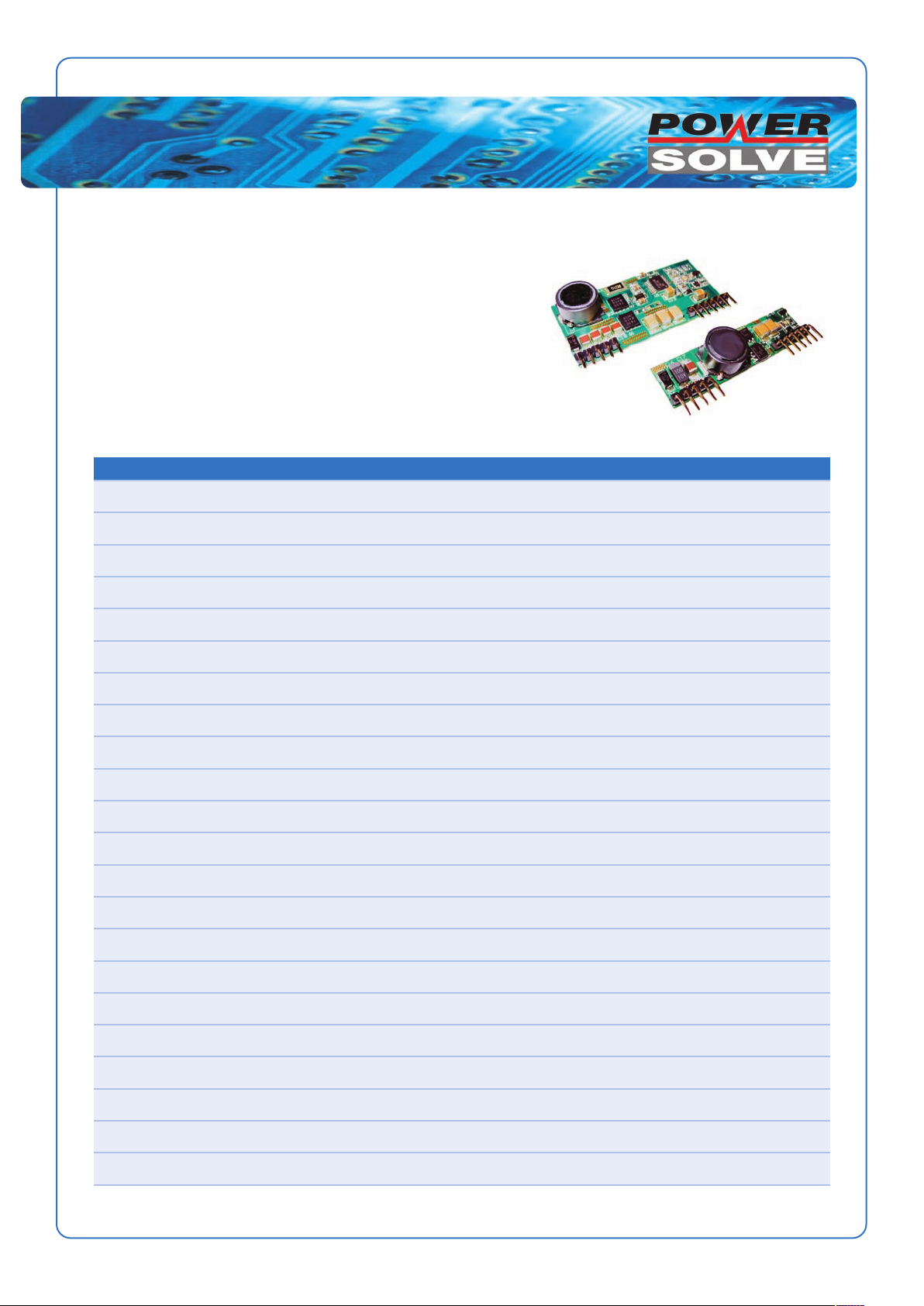

Powersolve PSR60 User Manual

DC-DC Switching Regulator

www.powersolve.co.uk

PSR30 & PSR60 Series
Non-Isolated up to 60 Watts

Features

• Wide 20-53V or 30-53V DC Input

• 5V, 12V, 15V or 24V DC Output

• Compact Open PCB SIL Package

• High Efficiencies up to 96%

• 250kHz Switching Frequency

• Ideal for Battery or Distributed Power Applications

• RoHS Compliant

Electrical Specification

Input Specification

Input Voltage Range: 20-53V DC 5V to 15V output, 30-53V DC 24V output

Input Filter: Capacitive

Input Protection: External fuse recomended, see Technical Notes

Remote On/Off Control: See Technical Notes

Output Specification:

Voltage Setpoint Accuracy: ±2% max

Ripple & Noise (20MHz Band Width): 5V 100mV pk-pk, others 1% pk-pk max

Line Regulation: ±0.5% max low line to high line

Load Regulation: ±0.5% max 10-100% load

Temperature Coefficient: ±0.05%/ºC

Short Circuit Protection: Continuous

Overload Protection: 120-220% Typical

General Specification:

Efficiency: 90% minimum, see table for specific models

Switching Frequency: 200KHz typical

Isolation Voltage: Non isolated

Weight: PSR30 7.5 grams typical, PSR60 12 grams typical

Dimensions: PSR30 50.8x13x10.7mm, PSR60 50.8x26x10.7mm

Environmental Specifications

Operating Ambient Temperature: -25º to +65ºC see derating curve

Storage Temperature: -55ºC to +125ºC

Powersolve Electronics Ltd. 8A Arnhem Road, Newbury, RG14 5RU. England

Tel: [phone] Fax: [phone] Email: [e-mail]

DC-DC Switching Regulator

www.powersolve.co.uk

Voltage & Current Ratings

Input Current

No Load Full Load

Model DC Input DC Output Output Current

PSR30-05 20 to 53V 5V 2.50A 15mA 580mA 91% A

PSR30-12 20 to 53V 12V 2.50A 14mA 1320mA 96% A

PSR30-15 20 to 53V 15V 2.00A 15mA 1300mA 96% A

PSR30-24 30 to 53V 24V 1.25A 30mA 700mA 94% A

PSR60-05 20 to 53V 5V 4.00A 15mA 935mA 90% B

PSR60-12 20 to 53V 12V 4.00A 20mA 2110mA 95% B

PSR60-15 20 to 53V 15V 4.00A 20mA 2590mA 96% B

PSR60-24 30 to 53V 24V 2.5A 30mA 1320mA 95% B

Other output voltages available, consult sales office for details

Technical Notes

(Nominal Input Voltage)

Efficiency Package

Fuse 1

+Vin

C1

Common

Remote On/Off

L1

+Vin

PSR30/60

C2

RC

Q1

Circuit above shows recommended filter components for improvement in EMI
performance and remote on/off circuit if required.

+Vout

Common

Circuit Reference Recommended Components

Fuse 1 3A Slow Blow for PSR30 Series or 5A Slow Blow for PSR60 Series

L1 SCD0503 2.2µH

C1 22µF 100V Chemicon KMF Series

C2 22µF 100V Chemicon KMF Series

C3 100µF 25V Chemicon KY Series

Q1 Open Circuit: Logic High = DC-DC Converter ON, <0.4V Logic Low = DC-DC Converter OFF

+Vout

C3

Common

Derating Curves

PSR30-05 PSR30-12, -15, -24 PSR60 Series

Ambient Temp ºC

Powersolve Electronics Ltd. 8A Arnhem Road, Newbury, RG14 5RU. England

Tel: [phone] Fax: [phone] Email: [e-mail]

Ambient Temp ºC

Ambient Temp ºC

DC-DC Switching Regulator

Mechanical Details

PSR30 Series

www.powersolve.co.uk

PSR60 Series

All dimensions in mm (inches). Tolerance ±0.5mm
For PCB mounting we recomend 1.1mm plated through hole with 1.6mm pad size.

Pin Function

1 +Vout
2 +Vout
3 +Vout
4 +Vout
5 Common
6 Common
7 +Vin
8 +Vin

9 NC
10 NC
11 Remote On/OFF
