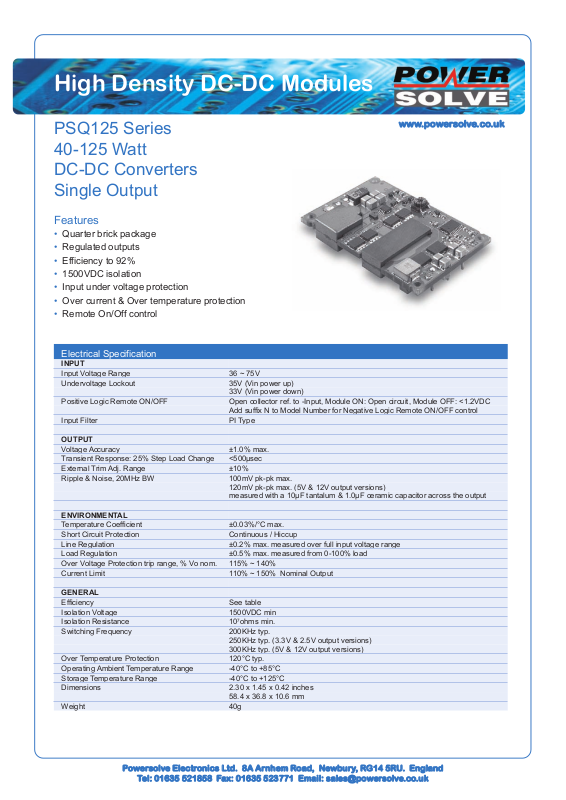

Powersolve PSQ125 User Manual

High Density DC-DC Modules

PSQ125 Series

www.powersolve.co.uk

40-125 Watt
DC-DC Converters
Single Output

Features

• Quarter brick package

• Regulated outputs

• Efficiency to 92%

• 1500VDC isolation

• Input under voltage protection

• Over current & Over temperature protection

• Remote On/Off control

Electrical Specification

INPUT

Input Voltage Range 36 ~ 75V
Undervoltage Lockout 35V (Vin power up)

Positive Logic Remote ON/OFF Open collector ref. to -Input, Module ON: Open circuit, Module OFF: <1.2VDC

Input Filter PI Type

33V (Vin power down)

Add suffix N to Model Number for Negative Logic Remote ON/OFF control

OUTPUT

Voltage Accuracy ±1.0% max.
Transient Response: 25% Step Load Change <500µsec
External Trim Adj. Range ±10%
Ripple & Noise, 20MHz BW 100mV pk-pk max.

ENVIRONMENTAL

Temperature Coefficient ±0.03%/°C max.
Short Circuit Protection Continuous / Hiccup
Line Regulation ±0.2% max. measured over full input voltage range
Load Regulation ±0.5% max. measured from 0-100% load
Over Voltage Protection trip range, % Vo nom. 115% ~ 140%
Current Limit 110% ~ 150% Nominal Output

GENERAL

Efficiency See table
Isolation Voltage 1500VDC min
Isolation Resistance 107ohms min.
Switching Frequency 200KHz typ.

Over Temperature Protection 120°C typ.
Operating Ambient Temperature Range -40°C to +85°C
Storage Temperature Range -40°C to +125°C
Dimensions 2.30 x 1.45 x 0.42 inches

Weight 40g

120mV pk-pk max. (5V & 12V output versions)
measured with a 10µF tantalum & 1.0µF ceramic capacitor across the output

250KHz typ. (3.3V & 2.5V output versions)
300KHz typ. (5V & 12V output versions)

58.4 x 36.8 x 10.6 mm

Powersolve Electronics Ltd. 8A Arnhem Road, Newbury, RG14 5RU. England

Tel: [phone] Fax: [phone] Email: [e-mail]

High Density DC-DC Modules

www.powersolve.co.uk

Output Voltage and Current Ratings

MODEL INPUT OUTPUT OUTPUT INPUT CURRENT % EFF.

PSQ125-48S1V0 1.0 VDC 40A 60mA 1016mA 82
PSQ125-48S1V2 1.2 VDC 40A 60mA 1190mA 84
PSQ125-48S1V5 1.5 VDC 40A 60mA 1453mA 86
PSQ125-48S1V8 1.8 VDC 40A 60mA 1724mA 87
PSQ125-48S2V5 36-75 VDC 2.5 VDC 40A 80mA 2341mA 89
PSQ125-48S3V3 3.3VDC 35A 80mA 2673mA 90
PSQ125-48S05 5VDC 25A 100mA 2861mA 91
PSQ125-48S12 12VDC 10A 100mA 2717mA 92

NOTE: Nominal Input Voltage 48VDC

Mechanical and Connection Details

VOLTAGE VOLTAGE CURRENT max. NO LOAD FULL LOAD

Pin Function

1 +Vin
2 ON/OFF
3 -Vin
4 -Vout
5 -Sense
6 Trim
7 +Sense
8 +Vout

All dimensions in inches (mm)
Tolerances: Inches x.xx ±0.02 x.xxx ±0.010

Remote ON/OFF Control

The PSQ125 Series allows the user to switch the module on and off electronically with the remote on/off feature.
The PSQ125 Series are available with “positive logic” or “negative logic” (option).

Logic Table

External Output Trim

The output can be trimmed externally (±10%) using a fixed resistor or
a trimpot as shown.

Logic State

(Pin 2)

Logic low-

Switch closed

Logic high-

Switch open

The output noise is measured with a 10µF tantalum and a 1.0µF
ceramic capacitor across the output.

+Vout

Negative

Logic

Module on Module off

Module off Module on

Output Noise

Pin Connection

Millimeters x.x ±0.5 x.xx ±0.25

Positive

Logic

-Vout

All specifications typical at nominal line, full load and 25°C unless otherwise stated.

Powersolve Electronics Ltd. 8A Arnhem Road, Newbury, RG14 5RU. England

Tel: [phone] Fax: [phone] Email: [e-mail]

High Density DC-DC Modules

www.powersolve.co.uk

Application Note

Derating:
The operating temperature range of the PSQ125 series is -40°C to +85°C. When operating the PSQ125 series, proper derating or
cooling is required.

Following is the derating curve for the PSQ125.

300LFM
200LFM
100LFM

20LFM
