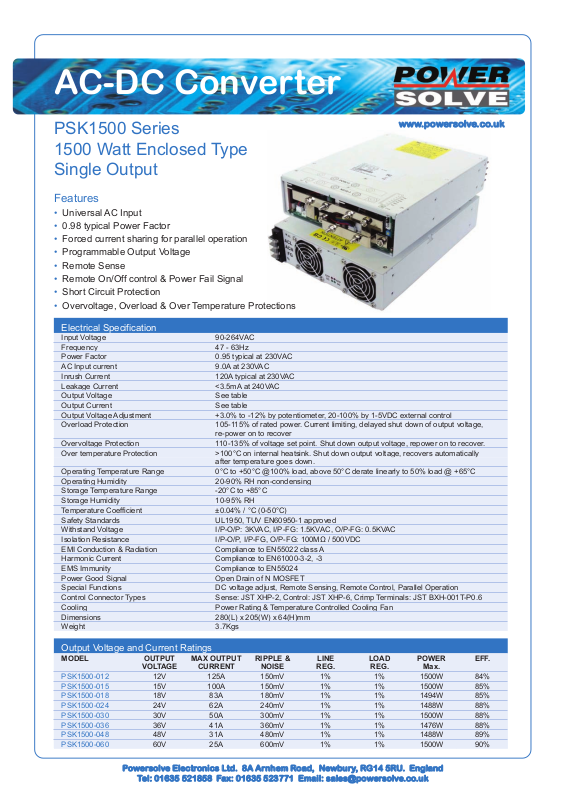

AC-DC Converter
PSK1500 Series
www.powersolve.co.uk
1500 Watt Enclosed Type
Single Output
Features
• Universal AC Input
• 0.98 typical Power Factor
• Forced current sharing for parallel operation
• Programmable Output Voltage
• Remote Sense
• Remote On/Off control & Power Fail Signal
• Short Circuit Protection
• Overvoltage, Overload & Over Temperature Protections
Electrical Specification
Input Voltage 90-264VAC
Frequency 47 - 63Hz
Power Factor 0.95 typical at 230VAC
AC Input current 9.0A at 230VAC
Inrush Current 120A typical at 230VAC
Leakage Current <3.5mA at 240VAC
Output Voltage See table
Output Current See table
Output Voltage Adjustment +3.0% to -12% by potentiometer, 20-100% by 1-5VDC external control
Overload Protection 105-115% of rated power. Current limiting, delayed shut down of output voltage,
Overvoltage Protection 110-135% of voltage set point. Shut down output voltage, repower on to recover.
Over temperature Protection >100°C on internal heatsink. Shut down output voltage, recovers automatically
Operating Temperature Range 0°C to +50°C @100% load, above 50°C derate linearly to 50% load @ +65°C
Operating Humidity 20-90% RH non-condensing
Storage Temperature Range -20°C to +85°C
Storage Humidity 10-95% RH
Temperature Coefficient ±0.04% / °C (0-50°C)
Safety Standards UL1950, TUV EN60950-1 approved
Withstand Voltage I/P-O/P: 3KVAC, I/P-FG: 1.5KVAC, O/P-FG: 0.5KVAC
Isolation Resistance I/P-O/P, I/P-FG, O/P-FG: 100MΩ / 500VDC
EMI Conduction & Radiation Compliance to EN55022 class A
Harmonic Current Compliance to EN61000-3-2, -3
EMS Immunity Compliance to EN55024
Power Good Signal Open Drain of N MOSFET
Special Functions DC voltage adjust, Remote Sensing, Remote Control, Parallel Operation
Control Connector Types Sense: JST XHP-2, Control: JST XHP-6, Crimp Terminals: JST BXH-001T-P0.6
Cooling Power Rating & Temperature Controlled Cooling Fan
Dimensions 280(L) x 205(W) x 64(H)mm
Weight 3.7Kgs
re-power on to recover
after temperature goes down.
Output Voltage and Current Ratings
MODEL OUTPUT MAX OUTPUT RIPPLE & LINE LOAD POWER EFF.
PSK1500-012 12V 125A 150mV 1% 1% 1500W 84%
PSK1500-015 15V 100A 150mV 1% 1% 1500W 85%
PSK1500-018 18V 83A 180mV 1% 1% 1494W 85%
PSK1500-024 24V 62A 240mV 1% 1% 1488W 88%
PSK1500-030 30V 50A 300mV 1% 1% 1500W 88%
PSK1500-036 36V 41A 360mV 1% 1% 1476W 88%
PSK1500-048 48V 31A 480mV 1% 1% 1488W 89%
PSK1500-060 60V 25A 600mV 1% 1% 1500W 90%
VOLTAGE CURRENT NOISE REG. REG. Max.
Powersolve Electronics Ltd. 8A Arnhem Road, Newbury, RG14 5RU. England
Tel: 01635 521858 Fax: 01635 523771 Email: sales@powersolve.co.uk
