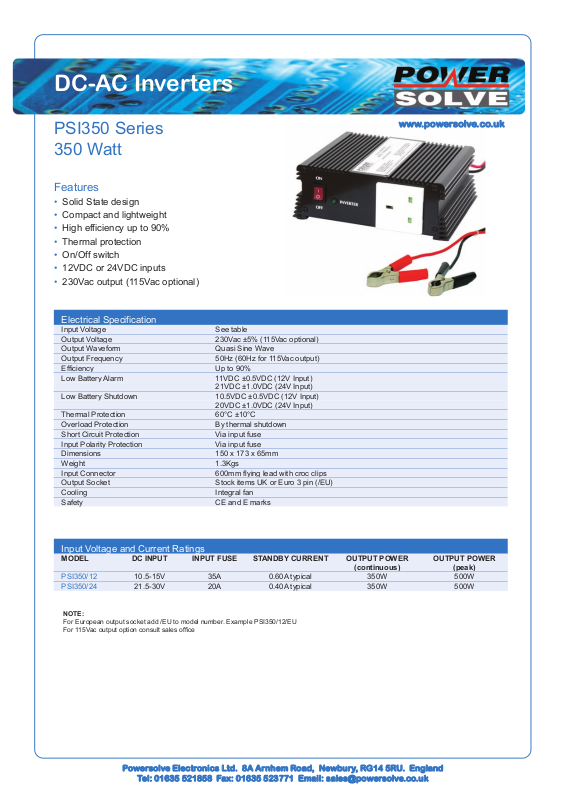

Powersolve PSI350 User Manual

DC-AC Inverters

PSI350 Series
350 Watt

Features

• Solid State design

• Compact and lightweight

• High efficiency up to 90%

• Thermal protection

• On/Off switch

• 12VDC or 24VDC inputs

• 230Vac output (115Vac optional)

Electrical Specification

Input Voltage See table
Output Voltage 230Vac ±5% (115Vac optional)
Output Waveform Quasi Sine Wave
Output Frequency 50Hz (60Hz for 115Vac output)
Efficiency Up to 90%
Low Battery Alarm 11VDC ±0.5VDC (12V Input)

21VDC ±1.0VDC (24V Input)

Low Battery Shutdown 10.5VDC ±0.5VDC (12V Input)

20VDC ±1.0VDC (24V Input)
Thermal Protection 60°C ±10°C
Overload Protection By thermal shutdown
Short Circuit Protection Via input fuse
Input Polarity Protection Via input fuse
Dimensions 150 x 173 x 65mm
Weight 1.3Kgs
Input Connector 600mm flying lead with croc clips
Output Socket Stock items UK or Euro 3 pin (/EU)
Cooling Integral fan
Safety CE and E marks

www.powersolve.co.uk

Input Voltage and Current Ratings

MODEL DC INPUT INPUT FUSE STANDBY CURRENT OUTPUT POWER OUTPUT POWER

PSI350/12 10.5-15V 35A 0.60A typical 350W 500W
PSI350/24 21.5-30V 20A 0.40A typical 350W 500W

NOTE:

For European output socket add /EU to model number. Example PSI350/12/EU
For 115Vac output option consult sales office

Powersolve Electronics Ltd. 8A Arnhem Road, Newbury, RG14 5RU. England

Tel: [phone] Fax: [phone] Email: [e-mail]

(continuous) (peak)
