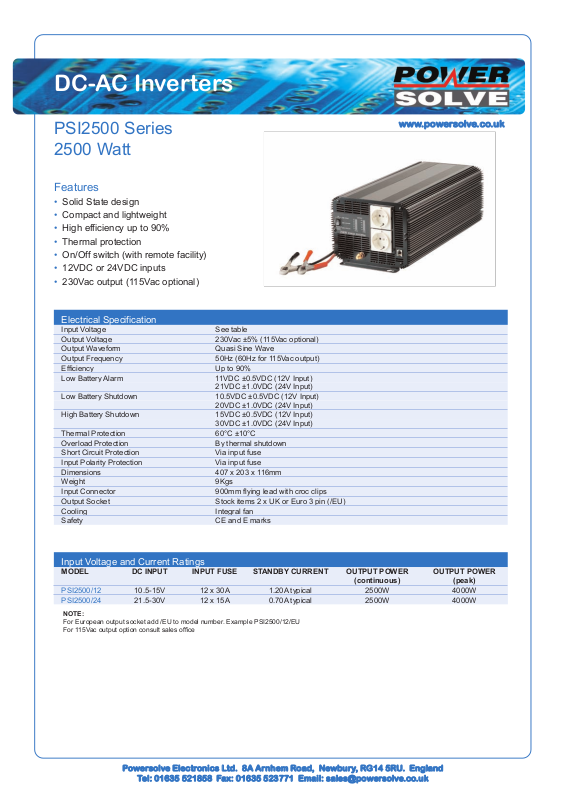

DC-AC Inverters
PSI2500 Series
2500 Watt
Features
• Solid State design
• Compact and lightweight
• High efficiency up to 90%
• Thermal protection
• On/Off switch (with remote facility)
• 12VDC or 24VDC inputs
• 230Vac output (115Vac optional)
Electrical Specification
Input Voltage See table
Output Voltage 230Vac ±5% (115Vac optional)
Output Waveform Quasi Sine Wave
Output Frequency 50Hz (60Hz for 115Vac output)
Efficiency Up to 90%
Low Battery Alarm 11VDC ±0.5VDC (12V Input)
21VDC ±1.0VDC (24V Input)
Low Battery Shutdown 10.5VDC ±0.5VDC (12V Input)
20VDC ±1.0VDC (24V Input)
High Battery Shutdown 15VDC ±0.5VDC (12V Input)
30VDC ±1.0VDC (24V Input)
Thermal Protection 60°C ±10°C
Overload Protection By thermal shutdown
Short Circuit Protection Via input fuse
Input Polarity Protection Via input fuse
Dimensions 407 x 203 x 116mm
Weight 9Kgs
Input Connector 900mm flying lead with croc clips
Output Socket Stock items 2 x UK or Euro 3 pin (/EU)
Cooling Integral fan
Safety CE and E marks
www.powersolve.co.uk
Input Voltage and Current Ratings
MODEL DC INPUT INPUT FUSE STANDBY CURRENT OUTPUT POWER OUTPUT POWER
PSI2500/12 10.5-15V 12 x 30A 1.20A typical 2500W 4000W
PSI2500/24 21.5-30V 12 x 15A 0.70A typical 2500W 4000W
NOTE:
For European output socket add /EU to model number. Example PSI2500/12/EU
For 115Vac output option consult sales office
Powersolve Electronics Ltd. 8A Arnhem Road, Newbury, RG14 5RU. England
Tel: 01635 521858 Fax: 01635 523771 Email: sales@powersolve.co.uk
(continuous) (peak)
