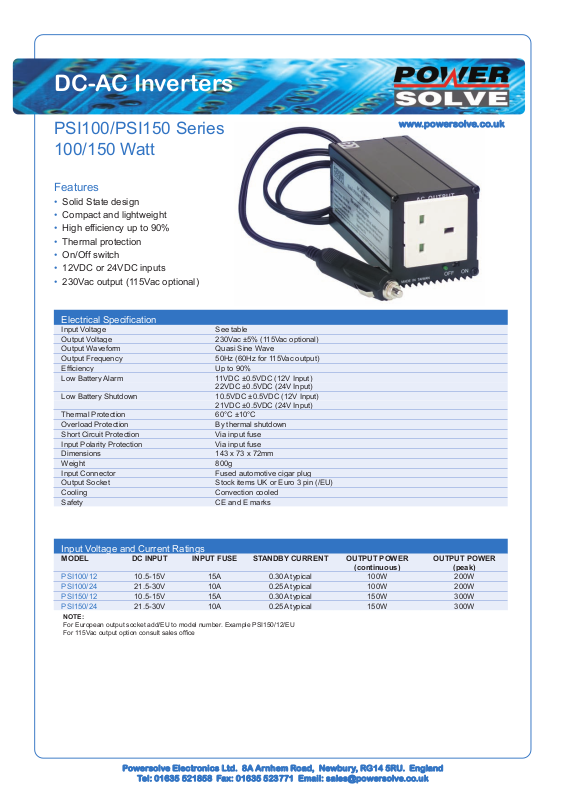

Powersolve PSI150 User Manual

DC-AC Inverters

PSI100/PSI150 Series
100/150 Watt

Features

• Solid State design

• Compact and lightweight

• High efficiency up to 90%

• Thermal protection

• On/Off switch

• 12VDC or 24VDC inputs

• 230Vac output (115Vac optional)

Electrical Specification

Input Voltage See table
Output Voltage 230Vac ±5% (115Vac optional)
Output Waveform Quasi Sine Wave
Output Frequency 50Hz (60Hz for 115Vac output)
Efficiency Up to 90%
Low Battery Alarm 11VDC ±0.5VDC (12V Input)

22VDC ±0.5VDC (24V Input)

Low Battery Shutdown 10.5VDC ±0.5VDC (12V Input)

21VDC ±0.5VDC (24V Input)
Thermal Protection 60°C ±10°C
Overload Protection By thermal shutdown
Short Circuit Protection Via input fuse
Input Polarity Protection Via input fuse
Dimensions 143 x 73 x 72mm
Weight 800g
Input Connector Fused automotive cigar plug
Output Socket Stock items UK or Euro 3 pin (/EU)
Cooling Convection cooled
Safety CE and E marks

www.powersolve.co.uk

Input Voltage and Current Ratings

MODEL DC INPUT INPUT FUSE STANDBY CURRENT OUTPUT POWER OUTPUT POWER

PSI100/12 10.5-15V 15A 0.30A typical 100W 200W
PSI100/24 21.5-30V 10A 0.25A typical 100W 200W
PSI150/12 10.5-15V 15A 0.30A typical 150W 300W
PSI150/24 21.5-30V 10A 0.25A typical 150W 300W

NOTE:

For European output socket add/EU to model number. Example PSI150/12/EU
For 115Vac output option consult sales office

Powersolve Electronics Ltd. 8A Arnhem Road, Newbury, RG14 5RU. England

Tel: [phone] Fax: [phone] Email: [e-mail]

(continuous) (peak)
