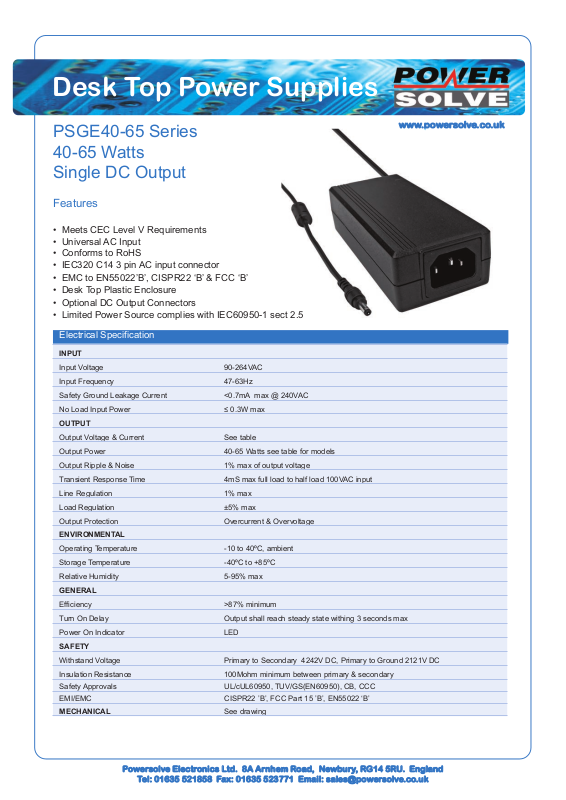

Powersolve PSGE65 User Manual

Desk Top Power Supplies

PSGE40-65 Series

www.powersolve.co.uk

40-65 Watts
Single DC Output

Features

• Meets CEC Level V Requirements

• Universal AC Input

• Conforms to RoHS

• IEC320 C14 3 pin AC input connector

• EMC to EN55022’B’, CISPR22 ‘B’ & FCC ‘B’

• Desk Top Plastic Enclosure

• Optional DC Output Connectors

• Limited Power Source complies with IEC60950-1 sect 2.5

Electrical Specification

INPUT

Input Voltage 90-264VAC

Input Frequency 47-63Hz

Safety Ground Leakage Current <0.7mA max @ 240VAC

No Load Input Power ≤ 0.3W max

OUTPUT

Output Voltage & Current See table

Output Power 40-65 Watts see table for models

Output Ripple & Noise 1% max of output voltage

Transient Response Time 4mS max full load to half load 100VAC input

Line Regulation 1% max

Load Regulation ±5% max

Output Protection Overcurrent & Overvoltage

ENVIRONMENTAL

Operating Temperature -10 to 40ºC, ambient

Storage Temperature -40ºC to +85ºC

Relative Humidity 5-95% max

GENERAL

Efficiency >87% minimum

Turn On Delay Output shall reach steady state withing 3 seconds max

Power On Indicator LED

SAFETY

Withstand Voltage Primary to Secondary 4242V DC, Primary to Ground 2121V DC

Insulation Resistance 100Mohm minimum between primary & secondary

Safety Approvals UL/cUL60950, TUV/GS(EN60950), CB, CCC

EMI/EMC CISPR22 ’B’, FCC Part 15 ’B’, EN55022 ‘B’

MECHANICAL See drawing

Powersolve Electronics Ltd. 8A Arnhem Road, Newbury, RG14 5RU. England

Tel: [phone] Fax: [phone] Email: [e-mail]

Desk Top Power Supplies

www.powersolve.co.uk

Output Voltage & Current Ratings

MODEL OUTPUT VOLTAGE OUTPUT CURRENT MAX OUTPUT POWER

PSGE40-12-(XX) 12V DC 3.33A 40 Watts

PSGE40-15-(XX) 15V DC 2.67A 40 Watts

PSGE40-16-(XX) 16V DC 2.5A 40 Watts

PSGE40-18-(XX) 18V DC 2.22A 40 Watts

PSGE40-24-(XX) 24V DC 1.67A 40 Watts

PSGE60-15-(XX) 15V DC 4.00A 60 Watts

PSGE60-16-(XX) 16V DC 3.75A 60 Watts

PSGE65-12-(XX) 12V DC 5.42A 65 Watts

PSGE65-18-(XX) 18V DC 3.61A 65 Watts

PSGE65-24-(XX) 24V DC 2.71A 65 Watts

NOTE: (XX) in part number denotes output connector type. Standard stock items have 2.5 x 5.5 x 11mm centre positive barrel
connector. Therefore part number would be PSGE40-12-02. Other connectors are available which would be a different 2 digit number,

consult sales office for details. Other output voltages also available consult sales office for details.

Mechanical Details

Weight 280 grams (approx)
Dimensions in mm

1200 ±30
