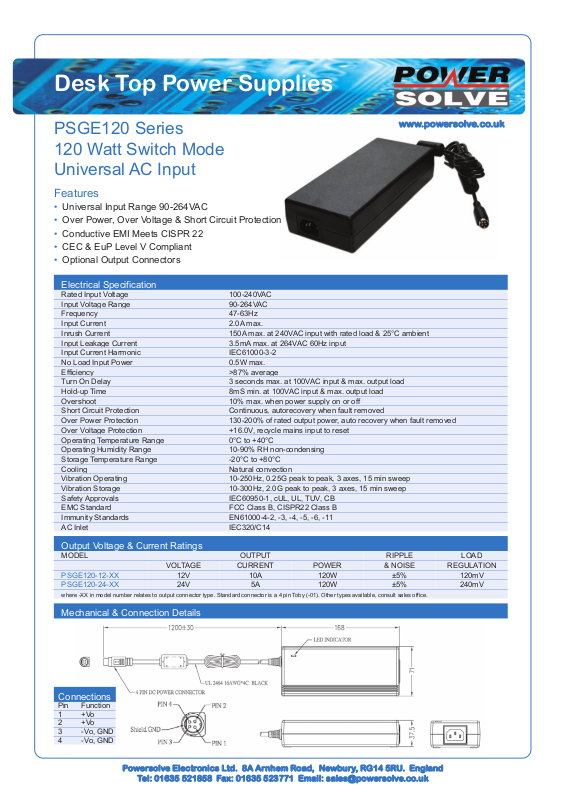

Desk Top Power Supplies
PSGE120 Series
www.powersolve.co.uk
120 Watt Switch Mode
Universal AC Input
Features
• Universal Input Range 90-264VAC
• Over Power, Over Voltage & Short Circuit Protection
• Conductive EMI Meets CISPR 22
• CEC & EuP Level V Compliant
• Optional Output Connectors
Electrical Specification
Rated Input Voltage 100-240VAC
Input Voltage Range 90-264VAC
Frequency 47-63Hz
Input Current 2.0A max.
Inrush Current 150A max. at 240VAC input with rated load & 25°C ambient
Input Leakage Current 3.5mA max. at 264VAC 60Hz input
Input Current Harmonic IEC61000-3-2
No Load Input Power 0.5W max.
Efficiency >87% average
Turn On Delay 3 seconds max. at 100VAC input & max. output load
Hold-up Time 8mS min. at 100VAC input & max. output load
Overshoot 10% max. when power supply on or off
Short Circuit Protection Continuous, autorecovery when fault removed
Over Power Protection 130-200% of rated output power, auto recovery when fault removed
Over Voltage Protection +16.0V, recycle mains input to reset
Operating Temperature Range 0°C to +40°C
Operating Humidity Range 10-90% RH non-condensing
Storage Temperature Range -20°C to +80°C
Cooling Natural convection
Vibration Operating 10-250Hz, 0.25G peak to peak, 3 axes, 15 min sweep
Vibration Storage 10-300Hz, 2.0G peak to peak, 3 axes, 15 min sweep
Safety Approvals IEC60950-1, cUL, UL, TUV, CB
EMC Standard FCC Class B, CISPR22 Class B
Immunity Standards EN61000-4-2, -3, -4, -5, -6, -11
AC Inlet IEC320/C14
Output Voltage & Current Ratings
MODEL OUTPUT RIPPLE LOAD
VOLTAGE CURRENT POWER & NOISE REGULATION
PSGE120-12-XX 12V 10A 120W ±5% 120mV
PSGE120-24-XX 24V 5A 120W ±5% 240mV
where -XX in model number relates to output connector type. Standard connector is a 4 pin Toby (-01). Other types available, consult sales office.
Mechanical & Connection Details
Connections
Pin Function
1 +Vo
2 +Vo
3 -Vo, GND
4 -Vo, GND
Powersolve Electronics Ltd. 8A Arnhem Road, Newbury, RG14 5RU. England
Tel: 01635 521858 Fax: 01635 523771 Email: sales@powersolve.co.uk
