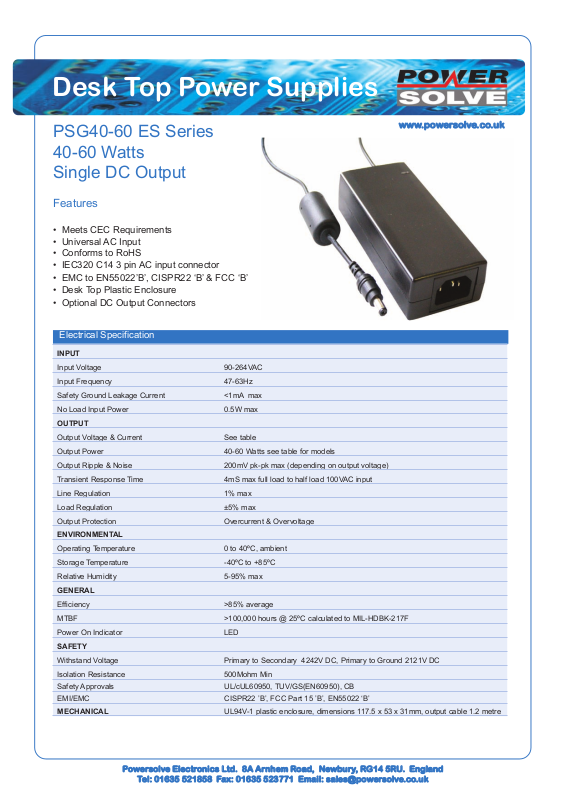

Powersolve PSG60ES User Manual

Desk Top Power Supplies

PSG40-60 ES Series

www.powersolve.co.uk

40-60 Watts
Single DC Output

Features

• Meets CEC Requirements

• Universal AC Input

• Conforms to RoHS

• IEC320 C14 3 pin AC input connector

• EMC to EN55022’B’, CISPR22 ‘B’ & FCC ‘B’

• Desk Top Plastic Enclosure

• Optional DC Output Connectors

Electrical Specification

INPUT

Input Voltage 90-264VAC

Input Frequency 47-63Hz

Safety Ground Leakage Current <1mA max

No Load Input Power 0.5W max

OUTPUT

Output Voltage & Current See table

Output Power 40-60 Watts see table for models

Output Ripple & Noise 200mV pk-pk max (depending on output voltage)

Transient Response Time 4mS max full load to half load 100VAC input

Line Regulation 1% max

Load Regulation ±5% max

Output Protection Overcurrent & Overvoltage

ENVIRONMENTAL

Operating Temperature 0 to 40ºC, ambient

Storage Temperature -40ºC to +85ºC

Relative Humidity 5-95% max

GENERAL

Efficiency >85% average

MTBF >100,000 hours @ 25ºC calculated to MIL-HDBK-217F

Power On Indicator LED

SAFETY

Withstand Voltage Primary to Secondary 4242V DC, Primary to Ground 2121V DC

Isolation Resistance 500Mohm Min

Safety Approvals UL/cUL60950, TUV/GS(EN60950), CB

EMI/EMC CISPR22 ’B’, FCC Part 15 ’B’, EN55022 ‘B’

MECHANICAL UL94V-1 plastic enclosure, dimensions 117.5 x 53 x 31mm, output cable 1.2 metre

Powersolve Electronics Ltd. 8A Arnhem Road, Newbury, RG14 5RU. England

Tel: [phone] Fax: [phone] Email: [e-mail]

Desk Top Power Supplies

www.powersolve.co.uk

Output Voltage & Current Ratings

MODEL OUTPUT VOLTAGE OUTPUT CURRENT MAX OUTPUT POWER

PSG40-12-(XX)ES 12V DC 3.33A 40 Watts

PSG45-09-(XX)ES 9V DC 5.00A 45 Watts

PSG50-12-(XX)ES 12V DC 4.16A 50 Watts

PSG60-12-(XX)ES 12V DC 5.00A 60 Watts

PSG60-15-(XX)ES 15V DC 4.00A 60 Watts

PSG60-16-(XX)ES 16V DC 3.75A 60 Watts

PSG60-18-(XX)ES 18V DC 3.33A 60 Watts

PSG60-19-(XX)ES 19V DC 3.16A 60 Watts

PSG60-20-(XX)ES 20V DC 3.00A 60 Watts

PSG60-24-(XX)ES 24V DC 2.50A 60 Watts

PSG60-30-(XX)ES 30V DC 2.00A 60 Watts

NOTE: (XX) in part number denotes output connector type. Standard stock items have 2.5 x 5.5 x 11mm centre positive barrel
connector. Therefore part number would be PSG40-12-02ES. Other connectors are available which would be a different 2 digit number,

consult sales office for details.

Mechanical Details

Weight: 280 grams approx
Tolerances: ±0.4 mm

Powersolve Electronics Ltd. 8A Arnhem Road, Newbury, RG14 5RU. England

Tel: [phone] Fax: [phone] Email: [e-mail]
