www.powersolve.co.uk
Powersolve Electronics Ltd. 8A, Arnhem Road, Newbury, RG14 5RU. England
Tel :01635 521858 Fax: 01635 523771 Email: sales@powersolve.co.uk

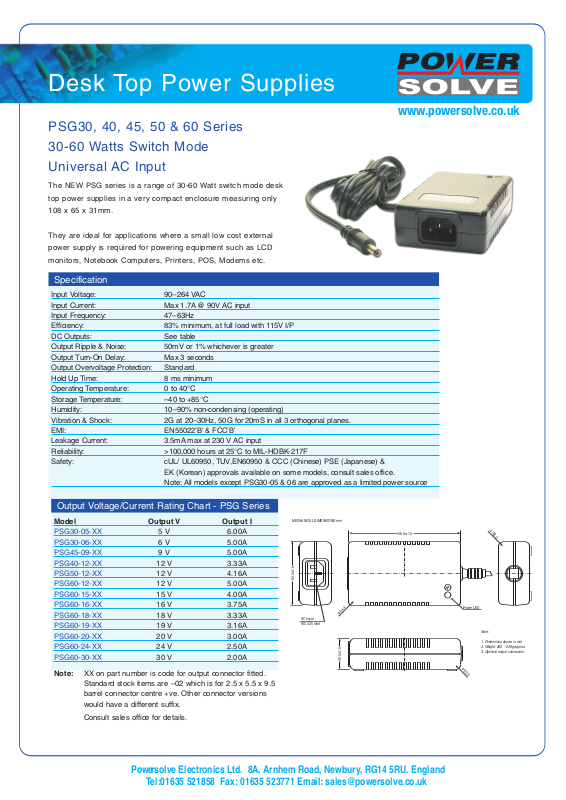

Desk Top Power Supplies
0.56
± 0.1
0.03 ±
0.1
106.0 ±1.0
AC Input
IEC 320 Inlet
5
.
4R
-
4
0
.3
R
-4
0
.
3
R
-
4
Power LED
MECHANICAL DIMENSIONS mm
Note:
1. Dimensions shown in mm
2. Weight: 200 –230g approx.
3. Optional output connectors
PSG30, 40, 45, 50 & 60 Series
30-60 Watts Switch Mode
Universal AC Input
The NEW PSG series is a range of 30-60 Watt switch mode desk
top power supplies in a very compact enclosure measuring only
108 x 65 x 31mm.
They are ideal for applications where a small low cost external
power supply is required for powering equipment such as LCD
monitors, Notebook Computers, Printers, POS, Modems etc.
Specification
Input Voltage: 90–264 VAC
Input Current: Max 1.7A @ 90V AC input
Input Frequency: 47–63Hz
Efficiency: 83% minimum, at full load with 115V I/P
DC Outputs: See table
Output Ripple & Noise: 50mV or 1% whichever is greater
Output Turn-On Delay: Max 3 seconds
Output Overvoltage Protection: Standard
Hold Up Time: 8 ms minimum
Operating Temperature: 0 to 40°C
Storage Temperature: –40 to +85°C
Humidity: 10–90% non-condensing (operating)
Vibration & Shock: 2G at 20–30Hz, 50G for 20mS in all 3 orthogonal planes.
EMI: EN55022’B’ & FCC’B’
Leakage Current: 3.5mA max at 230 V AC input
Reliability: >100,000 hours at 25°C to MIL-HDBK-217F
Safety: cUL/ UL60950, TUV,EN60950 & CCC (Chinese) PSE (Japanese) &
EK (Korean) approvals available on some models, consult sales of
All models except PSG30-05 & 06 are approved as a limited power source
Note:
fice.
Output Voltage/Current Rating Chart - PSG Series
Model Output V Output I
PSG30-05-XX 5 V 6.00A
PSG30-06-XX 6 V 5.00A
PSG45-09-XX 9 V 5.00A
PSG40-12-XX
12 V
PSG50-12-XX 12 V 4.16A
PSG60-12-XX 12 V 5.00A
PSG60-15-XX 15 V 4.00A
PSG60-16-XX
PSG60-18-XX
16 V
18 V 3.33A
PSG60-19-XX 19 V 3.16A
PSG60-20-XX
20 V
PSG60-24-XX 24 V 2.50A
PSG60-30-XX
30 V
Note: XX on part number is code for output connector fitted.
Standard stock items are –02 which is for 2.5 x 5.5 x 9.5
barrel connector centre +ve. Other connector versions
would have a different suffix.
Consult sales office for details.
3.33A
3.75A
3.00A
2.00A
