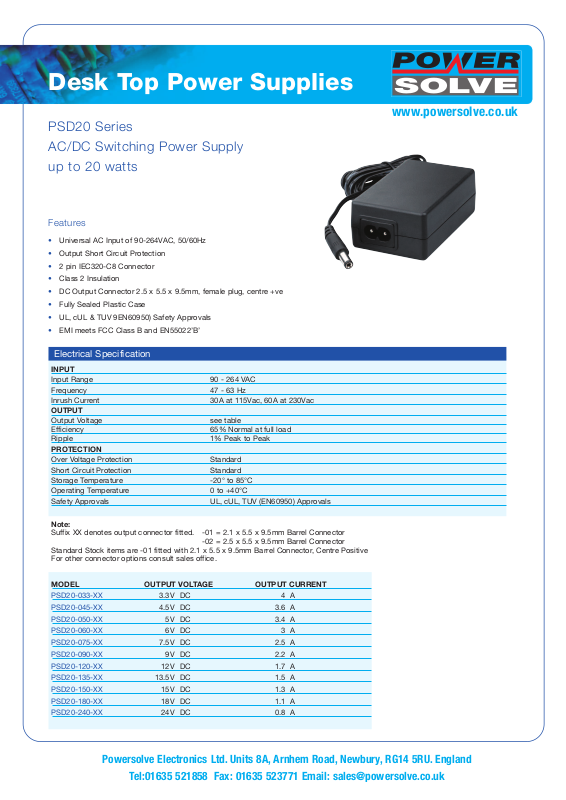

Powersolve PSD20 User Manual

Desk Top Power Supplies

PSD20 Series

AC/DC Switching Power Supply

up to 20 watts

Features

• Universal AC Input of 90-264VAC, 50/60Hz

• Output Short Circuit Protection

• 2 pin IEC320-C8 Connector

• Class 2 Insulation

• DC Output Connector 2.5 x 5.5 x 9.5mm, female plug, centre +ve

• Fully Sealed Plastic Case

• UL, cUL & TUV 9EN60950) Safety Approvals

• EMI meets FCC Class B and EN55022’B’

Electrical Specification

INPUT

Input Range 90 - 264 VAC
Frequency 47 - 63 Hz
Inrush Current 30A at 115Vac, 60A at 230Vac

OUTPUT

Output Voltage see table
Efficiency 65% Normal at full load
Ripple 1% Peak to Peak

PROTECTION

oltage Pr

Over V
Short Circuit Protection Standard
Storage Temperature -20° to 85°C
Operating Temperature 0 to +40°C
Safety Appr

otection Standard

ovals UL, cUL, TUV (EN60950) Approvals

www.powersolve.co.uk

Note:

Suffix XX denotes output connector fitted. -01 = 2.1 x 5.5 x 9.5mm Barrel Connector

Standard Stock items are -01 fitted with 2.1 x 5.5 x 9.5mm Barrel Connector, Centre Positive
For other connector options consult sales office.

MODEL OUTPUT VOLTAGE OUTPUT CURRENT

PSD20-033-XX

PSD20-045-XX 4.5V DC 3.6 A

PSD20-050-XX 5V DC 3.4 A

PSD20-060-XX

PSD20-075-XX

PSD20-090-XX 9V DC 2.2 A

PSD20-120-XX 12V DC 1.7 A

PSD20-135-XX

PSD20-150-XX 15V DC 1.3 A

PSD20-180-XX 18V DC 1.1 A

PSD20-240-XX 24V DC 0.8 A

3.3V

6V

7.5V

13.5V

-02 = 2.5 x 5.5 x 9.5mm Barrel Connector

DC 4 A

A

DC

DC

DC

3

2.5 A

1.5

A

Powersolve Electronics Ltd. Units 8A, Arnhem Road, Newbury, RG14 5RU. England

Tel:[phone] Fax: [phone] Email: [e-mail]
