Instructions for 6827045Z Accessory Workbench Table
The Powermatic Workbench Table is an optional accessory intended for use with the Powermatic PM2000B
Table Saw. It requires minor assembly and will bolt to the rails of the table saw with no drilling needed.
Read carefully the instructions on the following pages for assembly and adjustment procedures.
WARNING: This product can expose you to chemicals including lead which is known to the State of
California to cause cancer and birth defects or other reproductive harm. For more information go to
http://www.p65warnings.ca. gov.
WARNING: Drilling, sawing, sanding or machining wood products generates wood dust and other
substances known to the State of California to cause cancer. Avoid inhaling dust generated from wood
products or use a dust mask or other safeguards for personal protection. Wood products emit chemicals known
to the State of California to cause birth defects or other reproductive harm. For more information go to
http://www.p65warnings.ca.gov/wood.
Powermatic
427 New Sanford Road
LaVergne, Tennessee 37086 Part No. M-6827045Z
Ph.: 800-274-6848 Edition 2 10/2018
www.powermatic.com Copyright © 2018 Powermatic
Warranty and Service
Powermatic® warrants every product it sells against manufacturers’ defects. If one of our tools needs service or
repair, please contact Technical Service by calling 1-800-274-6846, 8AM to 5PM CST, Monday through Friday.
Warranty Period
The general warranty lasts for the time period specified in the literature included with your product or on the official
Powermatic branded website.
Powermatic products carry a limited warranty which varies in duration based upon the product. (See chart
below)
Accessories carry a limited warranty of one year from the date of receipt.
Consumable items are defined as expendable parts or accessories expected to become inoperable within a
reasonable amount of use and are covered by a 90 day limited warranty against manufacturer’s defects.
Who is Covered
This warranty covers only the initial purchaser of the product from the date of delivery.
What is Covered
This warranty covers any defects in workmanship or materials subject to the limitations stated below. This warranty
does not cover failures due directly or indirectly to misuse, abuse, negligence or accidents, normal wear-and-tear,
improper repair, alterations or lack of maintenance. Powermatic woodworking machinery is designed to be used with
Wood. Use of these machines in the processing of metal, plastics, or other materials outside recommended
guidelines may void the warranty. The exceptions are acrylics and other natural items that are made specifically for
wood turning.
Warranty Limitations
Woodworking products with a Five Year Warranty that are used for commercial or industrial purposes default to a
Two Year Warranty. Please contact Technical Service at 1-800-274-6846 for further clarification.
How to Get Technical Support
Please contact Technical Service by calling 1-800-274-6846. Please note that you will be asked to provide proof
of initial purchase when calling. If a product requires further inspection, the Technical Service representative will
explain and assist with any additional action needed. Powermatic has Authorized Service Centers located throughout
the United States. For the name of an Authorized Service Center in your area call 1-800-274-6846 or use the Service
Center Locator on the Powermatic website.
More Information
Powermatic is constantly adding new products. For complete, up-to-date product information, check with your local
distributor or visit the Powermatic website.
How State Law Applies
This warranty gives you specific legal rights, subject to applicable state law.
Limitations on This Warranty
POWERMATIC LIMITS ALL IMPLIED WARRANTIES TO THE PERIOD OF THE LIMITED WARRANTY FOR EACH
PRODUCT. EXCEPT AS STATED HEREIN, ANY IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS
FOR A PARTICULAR PURPOSE ARE EXCLUDED. SOME STATES DO NOT ALLOW LIMITATIONS ON HOW
LONG AN IMPLIED WARRANTY LASTS, SO THE ABOVE LIMITATION MAY NOT APPLY TO YOU.
POWERMATIC SHALL IN NO EVENT BE LIABLE FOR DEATH, INJURIES TO PERSONS OR PROPERTY, OR
FOR INCIDENTAL, CONTINGENT, SPECIAL, OR CONSEQUENTIAL DAMAGES ARISING FROM THE USE OF
OUR PRODUCTS. SOME STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR
CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATION OR EXCLUSION MAY NOT APPLY TO YOU.
Powermatic sells through distributors only. The specifications listed in Powermatic printed materials and on the official
Powermatic website are given as general information and are not binding. Powermatic reserves the right to effect at
any time, without prior notice, those alterations to parts, fittings, and accessory equipment which they may deem
necessary for any reason whatsoever.
Product Listing with Warranty Period
90 Days – Parts; Consumable items
1 Year – Motors, Machine Accessories
2 Year – Woodworking Machinery used for industrial or commercial purposes
5 Year – Woodworking Machinery
NOTE: Powermatic is a division of JPW Industries, Inc. References in this document to Powermatic also apply to
JPW Industries, Inc., or any of its successors in interest to the Powermatic brand.
2
Unpacking
Compare contents of shipping carton against the list and illustrations below and on page 4. Report any
damage immediately to your distributor. If any parts are missing, contact Powermatic at 800-274-6848.
Remove all loose items from the workbench frame, such as the vise assembly, vise faces, vise handle,
legs, cross brace, and hardware package.
Contents of Carton:

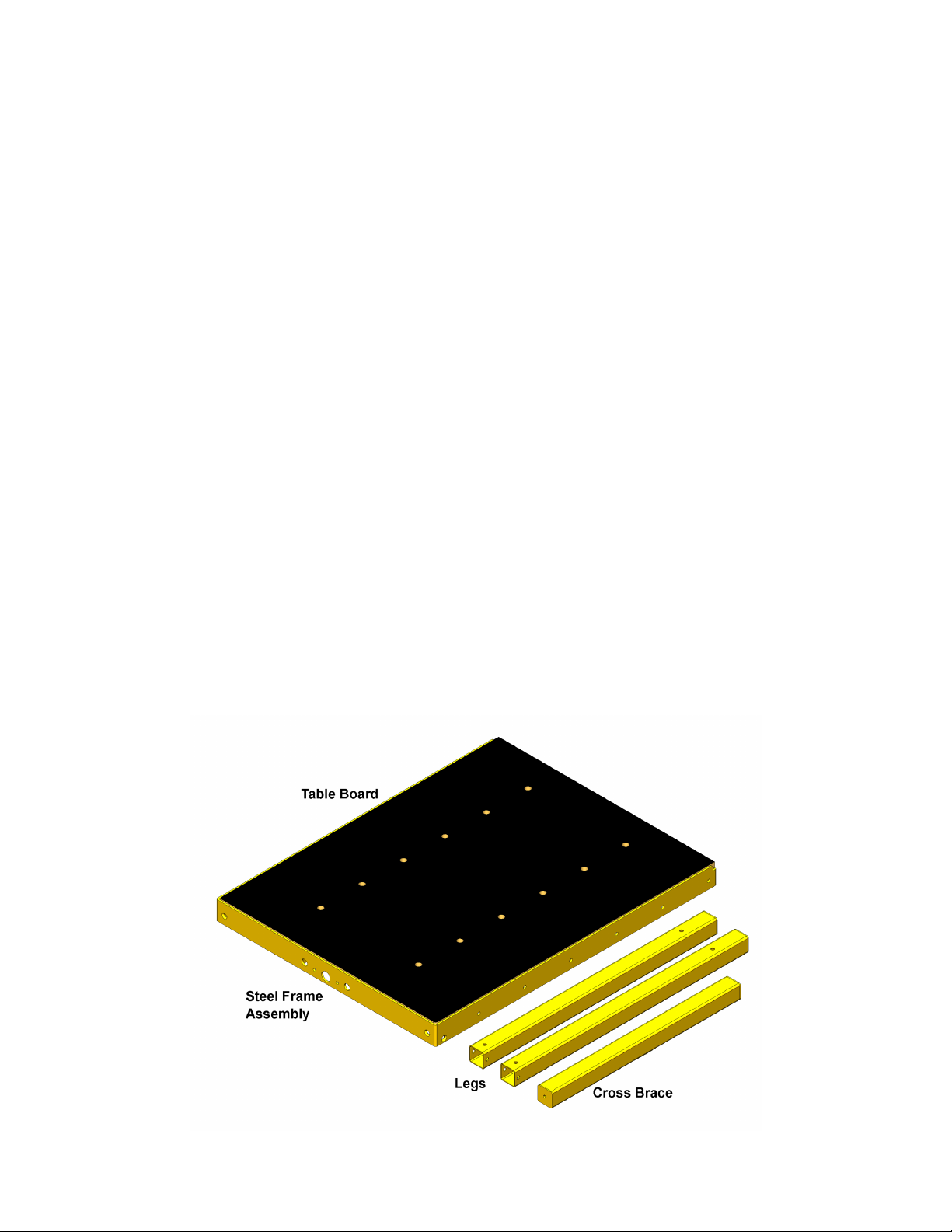

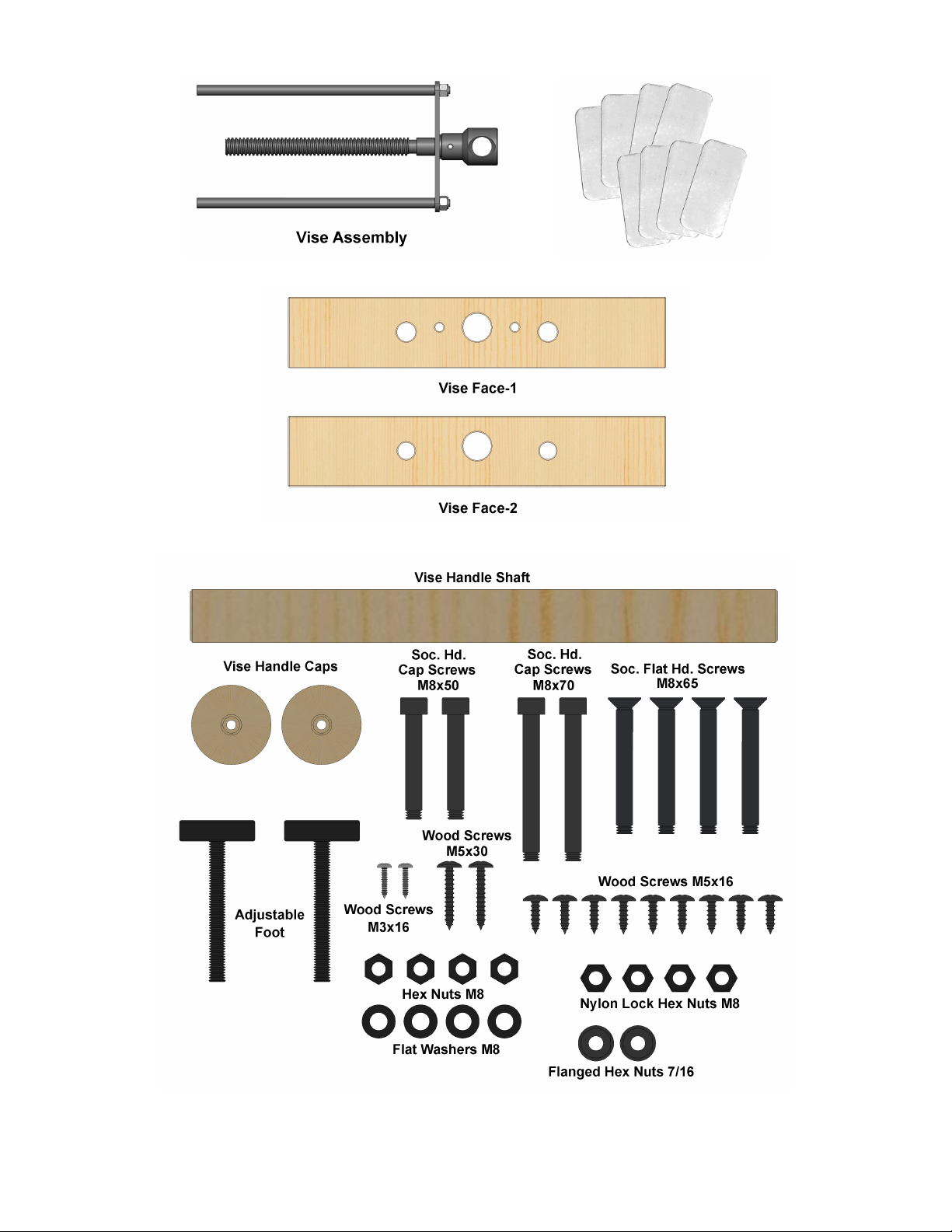

Refer to Figures 1 through 5:
Part No. Description Qty
6827045Z-SFA ............. Steel Frame Assembly ....................................... 1
6827045Z-1 .................. Table Board ........................................................ 1
6827045Z-16 ................ Leg ...................................................................... 2
6827045Z-17 ................ Cross Brace ........................................................ 1
6827045Z-18 ................ Omni-Directional Caster ..................................... 1
6827045Z-15 ................ Flanged Hex Nut ................................................. 2
6827045Z-14 ................ Adjustable Foot ................................................... 2
6827045Z-28 ................ Vise Face-1 ........................................................ 1
6827045Z-29 ................ Vise Face-2 ........................................................ 1
6827045Z-VA ................ Vise Assembly .................................................... 1
6827045Z-8 .................. Wood Screw, M5x30L ........................................ 2
6827045Z-31 ................ Vise Handle Shaft ............................................... 1
6827045Z-30 ................ Vise Handle Cap ................................................. 2
6827045Z-9 .................. Wood Screw, M3x16L ........................................ 2
TS-1550061 .................. Flat Washer, M8 ................................................. 4
TS-2311081 .................. Hex Nut, M8 ........................................................ 4
TS-1504101 .................. Socket Head Cap Screw, M8-1.25 x 50 ............. 2
TS-1541031 .................. Nylon Lock Hex Nut, M8-1.25 ............................ 4
F010989 ........................ Socket Head Flat Screw, M8-1.25 x 65 ............. 4
TS-1504131 .................. Socket Head Cap Screw, M8-1.25 x 70 ............. 2
6827045Z-4 .................. Wood Screw, M5x16L ........................................ 9
6827045Z-3 .................. Shim.................................................................... 8
Figure 1
3
Shims
Figure 2 Figure 3
Figure 4
Figure 5
4
Assembly of Accessory Workbench
If further clarification is needed for any assembly
procedure, consult the breakdown on page 7.
Tools Required for Assembly
(not included)
6mm hex (Allen) wrench
Cross point (Phillips) screwdriver
13mm open-end wrench
If desired, apply stain or finish over the natural
wood parts before assembly.
TIP: Steps 1 through 4 below are easier if done
with table assembly upside down and flat on the
floor.

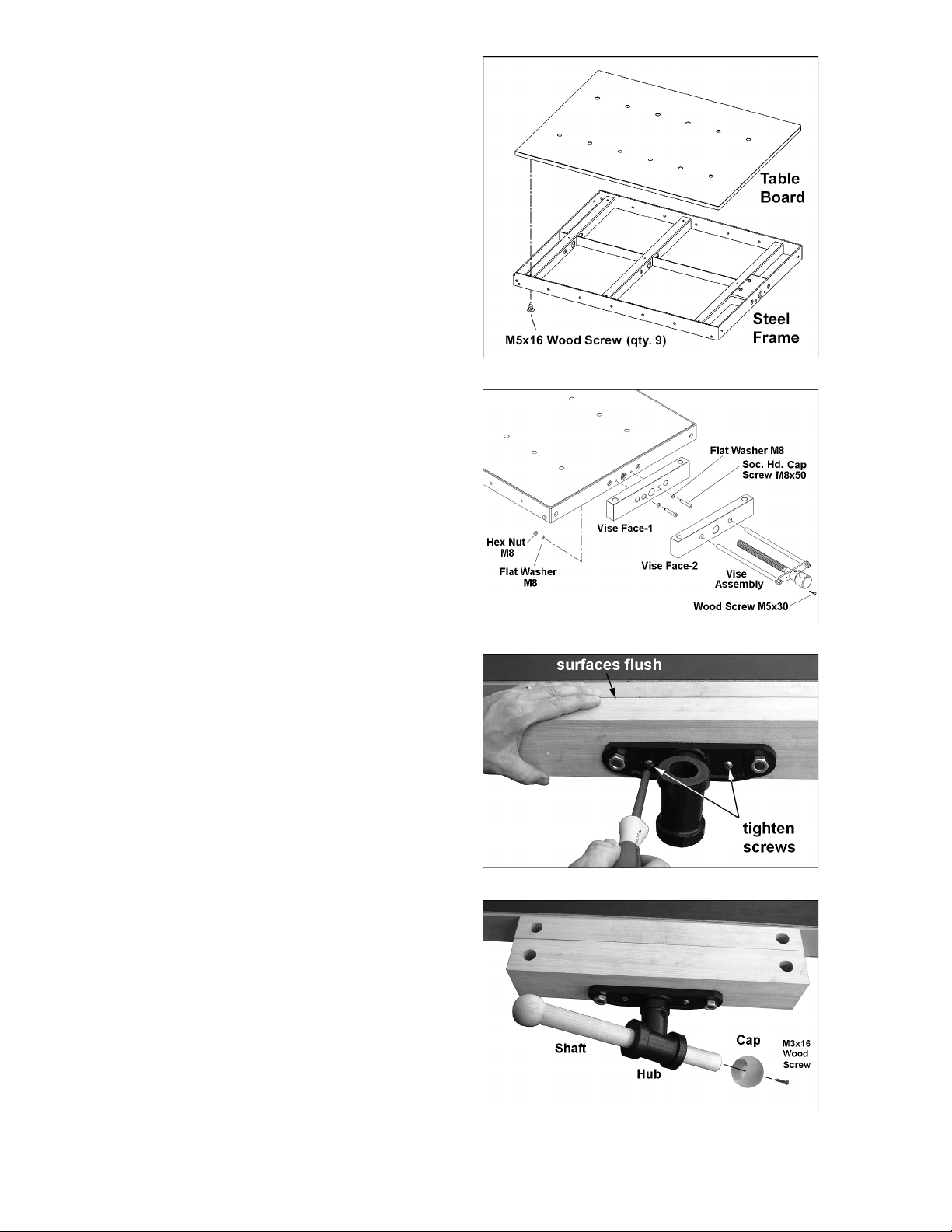

1. Position the table board upside down. (Put a
mat or cloth under it to prevent scratching
the surface.) Place the steel frame on top of
the table board. Square the steel frame with
the table board, and secure using nine
M5x16 wood screws through the holes in the
frame (see Figure 6).
2. With table still lying flat, mount the vise face-
1 to the steel frame. The top surface of vise
face-1 should be flush with the top surface
of the workbench. Secure vise face-1 with
two M8x50 socket head cap screws, four M8
flat washers, and two M8 hex nuts, as
shown in Figure 7.
3. Insert the vise assembly through the holes in
vise face-2, and through vise face-1. Rotate
the handle hub to thread it through the
bracket on the steel frame.
Figure 6
Figure 7
4. Make sure vise face-1 and vise face-2 are
flush at the top surfaces, then insert two
M5x30 wood screws. See Figures 7 and 8.
Continue holding the vise faces flush while
tightening the wood screws.
5. Slide the vise handle shaft into the hub, and
secure the two caps with the provided
M3x16 wood screws, as shown in Figure 9.

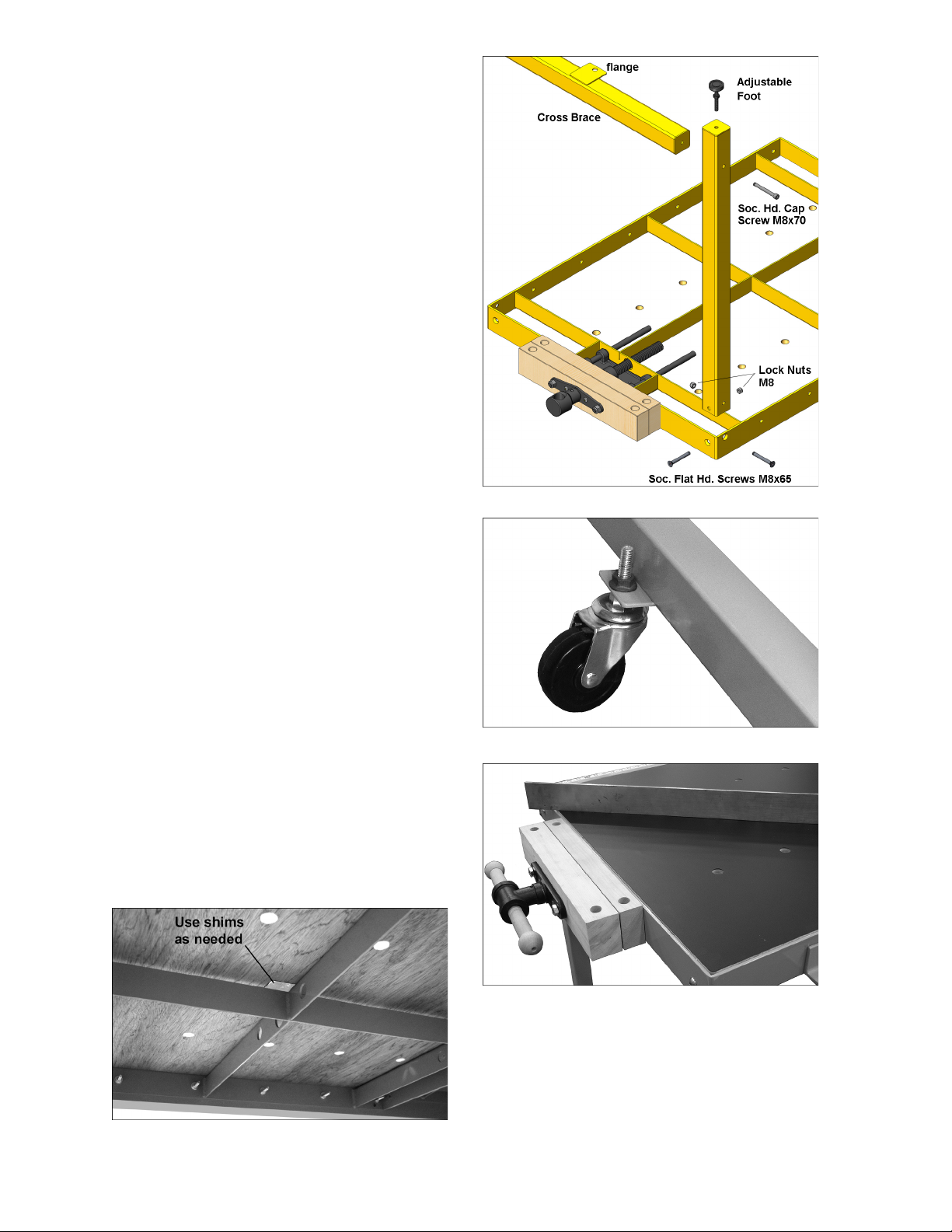

6. The two provided legs are identical. With the
workbench upside down, position one leg at
a corner (at the vise end of the workbench).
See Figure 10. Rotate the leg until the two
holes in the leg align with the holes in the
steel frame, as shown in Figure 10.
7. Insert two socket flat head screws into the
holes of the steel frame and through the
holes in the leg. Install a nylon lock hex nut
on each screw and finger tighten only.
8. Install the other leg in the adjacent corner of
the table in the same manner. Finger tighten
only.
Figure 8
Figure 9
5
9. Position the cross brace between the legs,
aligning the holes at the ends of the cross
brace with the holes in the legs. NOTE: The
flange on cross brace should be oriented as
shown in Figure 10.
10. Insert a socket head cap screw M8x70
through each leg and into the threaded
holes at the ends of the cross brace. Tighten
the screws.
11. Fully tighten the four nylon lock hex nuts
already installed on the legs.
12. Install an adjustable foot into the threaded
hole at the end of each leg (Figure 10).
NOTE: The adjustable foot will be used to
level the workbench after it has been
installed on the saw. The adjustable foot is
rotated in or out to the correct height, and
the accompanying hex nut is then tightened
against the end of the leg to secure the
setting.
13. Install the caster on the cross brace flange
with two flanged hex nuts. See Figure 11.
14. Turn the workbench right side up, and
position it between the rails of the tablesaw.
The workbench should be flush to, and level
with, the cast iron table of the saw. (Raise or
lower the adjustable feet as needed to assist
in this.)
15. Using the fasteners that came with the rails,
secure the workbench to the rails. (Refer to
the Accu-Fence Manual M-2195079B for
more detailed information on this.)
16. After the workbench table has been
positioned against the table saw, the
workbench surface can be raised at certain
points using the provided shims. This may
help “fine-tune” any leveling or flatness
adjustments. Use a straight edge (Figure 12)
to check for flatness. (More information on
these procedures is available in your AccuFence manual.) Place a shim as needed
between the table underside and the metal
braces (see Figure 13).
Figure 10
Figure 11
Figure 13
Figure 12
6

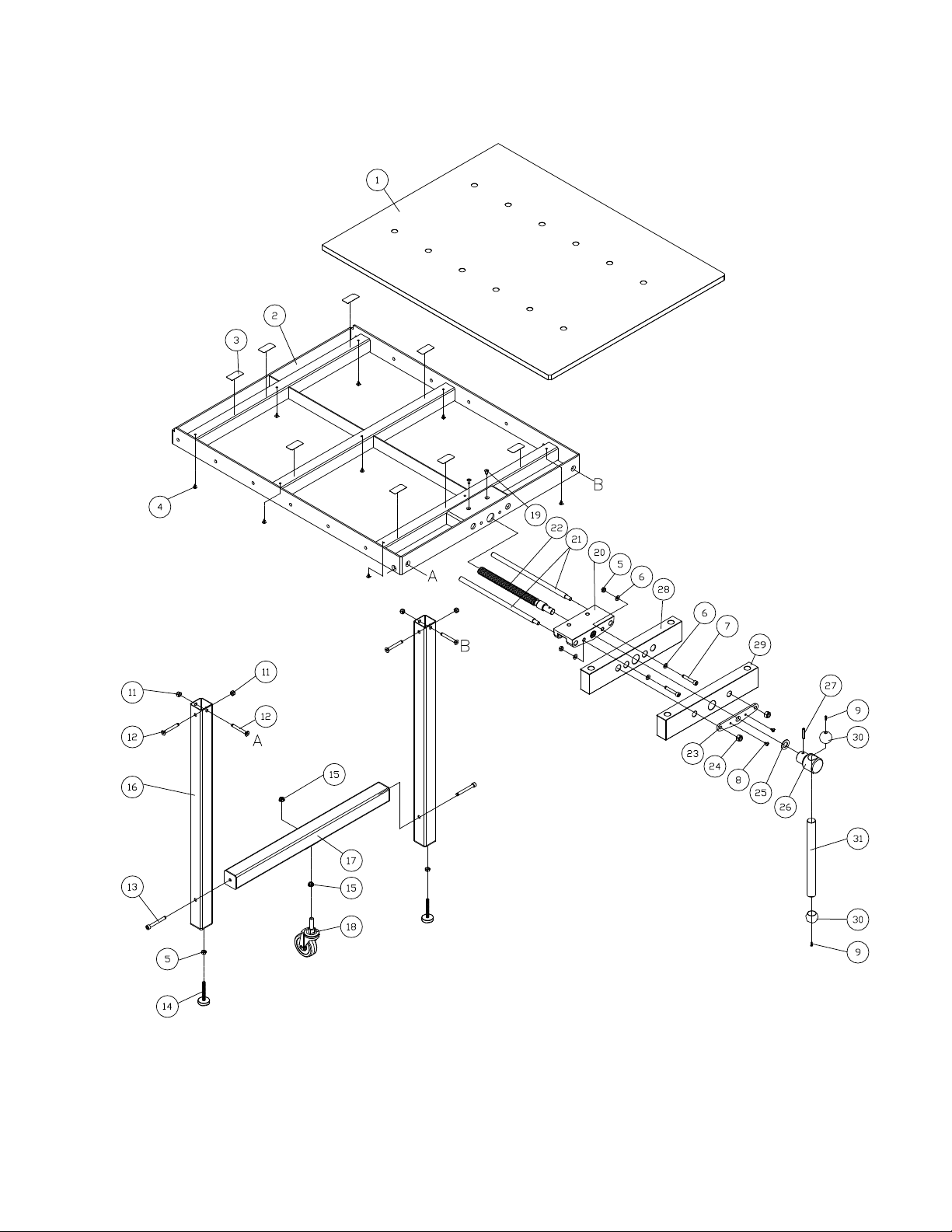

6827045Z PM2000B Accessory Workbench Table – Exploded View
(Refer to parts list on page 8)
6827045Z PM2000B Accessory Workbench Table – Parts List
Index No. Part No. Description Size Qty
................. 6827045Z ................. Workbench Table (complete assembly)
1 ............... 6827045Z-1 .............. Table Board.......................................................... .................................... 1
................. 6827045Z-SFA ......... Steel Frame Assembly (index #2,19,20) .............. .................................... 1
2 ............... 6827045Z-2 .............. Steel Frame.......................................................... .................................... 1
3 ............... 6827045Z-3 .............. Shim ..................................................................... .................................... 8
4 ............... 6827045Z-4 .............. Wood Screw ......................................................... M5 x 16L ..................... 9
5 ............... TS-2311081 ............. Hex Nut ................................................................ M8-1.25 ....................... 4
6 ............... TS-1550061 ............. Flat Washer .......................................................... M8 ............................... 4
7 ............... TS-1504101 ............. Socket Head Cap Screw ...................................... M8-1.25 x 50 ............... 2
8 ............... 6827045Z-8 .............. Wood Screw ......................................................... M5 x 30L ..................... 2
9 ............... 6827045Z-9 .............. Wood Screw ......................................................... M3 x 16L ..................... 2
11 ............. TS-1541031 ............. Nylon Lock Hex Nut ............................................. M8-1.25 ....................... 4
12 ............. F010989 ................... Socket Head Flat Screw ...................................... M8-1.25 x 65 ............... 4
13 ............. TS-1504131 ............. Socket Head Cap Screw ...................................... M8-1.25 x 70 ............... 2
14 ............. 6827045Z-14 ............ Adjustable Foot .................................................... .................................... 2
15 ............. F003129 ................... Flanged Hex Nut .................................................. 7/16”-14UNC ............... 2
16 ............. 6827045Z-16 ............ Leg ....................................................................... .................................... 2
17 ............. 6827045Z-17 ............ Cross Brace ......................................................... .................................... 1
18 ............. 6827045Z-18 ............ Omni-Directional Caster ....................................... .................................... 1
19 ............. TS-1514011 ............. Socket Head Flat Screw ...................................... M6-1.0 x 12 ................. 2
20 ............. 6827045Z-20 ............ Mounting Bracket ................................................. .................................... 1
................. 6827045Z-VA ........... Vise Assembly (index #8, 21 thru 27) .................. .................................... 1
21 ............. 6827045Z-21 ............ Spindle ................................................................. .................................... 1
22 ............. 6827045Z-22 ............ Lead Screw .......................................................... .................................... 2
23 ............. 6827045Z-23 ............ Face Bracket ........................................................ .................................... 1
24 ............. TS-2342101 ............. Nylon Lock Hex Nut ............................................. M10-1.5 ....................... 2
25 ............. TS-2360181 ............. Flat Washer .......................................................... 18 x 32 x 2.0T mm ...... 1
26 ............. 6827045Z-26 ............ Handle Hub .......................................................... .................................... 1
27 ............. F012090 ................... Roll Pin ................................................................. 6 x 36 mm ................... 1
28 ............. 6827045Z-28 ............ Vise Face-1 .......................................................... .................................... 1
29 ............. 6827045Z-29 ............ Vise Face-2 .......................................................... .................................... 1
30 ............. 6827045Z-30 ............ Vise Handle Cap .................................................. .................................... 2
31 ............. 6827045Z-31 ............ Vise Handle Shaft ................................................ .................................... 1
Ordering Replacement Parts
Replacement parts are listed on the following pages. To order parts or reach our service department, call
1-800-274-6848 Monday through Friday, 8:00 a.m. to 5:00 p.m. CST. Having the Model Number and
Serial Number of your machine available when you call will allow us to serve you quickly and accurately.
Non-proprietary parts, such as fasteners, can be found at local hardware stores, or may be ordered from
Powermatic. Some parts are shown for reference only, and may not be available individually.
8
Loading...
