Pioneer X-HM71-S User Manual

Operating Instructions

Discover the benefits of registering your product online at

http://www.pioneer.co.uk

(or http://www.pioneer.eu).

NETWORK CD RECEIVER

XC-HM81-S/-K

X-HM81-S/-K X-HM71-S/-K

NETWORK CD RECEIVER SYSTEM

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

CAUTION:

TO PREVENT THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

IMPORTANT

D3-4-2-1-1_A1_En

WARNING

This equipment is not waterproof. To prevent a fire or shock hazard, do not place any container filled with liquid near this equipment (such as a vase or flower pot) or expose it to dripping, splashing, rain or moisture.

D3-4-2-1-3_A1_En

Before plugging in for the first time, read the following section carefully.

The voltage of the available power supply differs according to country or region. Be sure that the power supply voltage of the area where this unit will be used meets the required voltage (e.g., 230 V or 120 V) written on the rear panel.

D3-4-2-1-4*_A1_En

VENTILATION CAUTION

When installing this unit, make sure to leave space around the unit for ventilation to improve heat radiation (at least 10 cm at top, 10 cm at rear, and 10 cm at each side).

WARNING

Slots and openings in the cabinet are provided for ventilation to ensure reliable operation of the product, and to protect it from overheating. To prevent fire hazard, the openings should never be blocked or covered with items (such as newspapers, table-cloths, curtains) or by operating the equipment on thick carpet or a bed.

D3-4-2-1-7b*_A1_En

To prevent a fire hazard, do not place any naked flame sources (such as a lighted candle) on the equipment.

D3-4-2-1-7a_A1_En

Operating environment temperature and humidity: +5 °C to +35 °C (+41 °F to +95 °F); less than 85 %RH (cooling vents not blocked) Do not install this unit in a poorly ventilated area, or in locations exposed to high humidity or direct sunlight (or strong artificial light)

D3-4-2-1-7c*_A1_En

This product is for general household purposes. Any failure due to use for other than household purposes (such as long-term use for business purposes in a restaurant or use in a car or ship) and which requires repair will be charged for even during the warranty period.

K041_A1_En

This unit uses a 2.4 GHz radio wave frequency, which is a band used by other wireless systems (Microwave ovens and Cordless phones, etc.). In this event noise appears in your television image, there is the possibility this unit (including products supported by this unit) is causing signal interference with the antenna input connector of your television, video, satellite tuner, etc. In this event, increase the distance between the antenna input connector and this unit (including products supported by this unit).

) Pioneer is not responsible for any malfunction of the

compatible Pioneer product due to communication error/malfunctions associated with your network connection and/or your connected equipment. Please contact your Internet service provider or network device manufacturer.

)A separate contract with/payment to an Internet

service provider is required to use the Internet.

STA

NDBY/ON

INPU

PHONES

AUD

IO IN

USB

NET

ANDB

POWER

CHA

RGE TIME

VOLUME

Notice

PIONEER hereby declares that this/these product(s) is/are in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC, 2004/108/EC, 2006/95/EC and 2009/125/EC.

WARNING

Operating Environment

Radio wave caution

For Wireless product European Union

If the AC plug of this unit does not match the AC outlet you want to use, the plug must be removed and appropriate one fitted. Replacement and mounting of an AC plug on the power supply cord of this unit should be performed only by qualified service personnel. If connected to an AC outlet, the cut-off plug can cause severe electrical shock. Make sure it is properly disposed of after removal. The equipment should be disconnected by removing the mains plug from the wall socket when left unused for a long period of time (for example, when on vacation).

D3-4-2-2-1a_A1_En

Information for users on collection and disposal of old equipment and used batteries

These symbols on the products, packaging, and/or accompanying documents mean that used electrical and electronic products and batteries should not be mixed with general household waste.

For proper treatment, recovery and recycling of old products and used batteries, please take them to applicable collection points in accordance with your national legislation.

By disposing of these products and batteries correctly, you will help to save valuable resources and prevent any potential negative effects on human health and the environment which could otherwise arise from inappropriate waste handling.

For more information about collection and recycling of old products and batteries, please contact your local municipality, your waste disposal service or the point of sale where you purchased the items.

These symbols are only valid in the European Union.

For countries outside the European Union:

If you wish to discard these items, please contact your local authorities or dealer and ask for the correct method of disposal.

K058a_A1_En

Symbol examples

for batteries

Symbol for

equipment

POWER-CORD CAUTION

Handle the power cord by the plug. Do not pull out the plug by tugging the cord and never touch the power cord when your hands are wet as this could cause a short circuit or electric shock. Do not place the unit, a piece of furniture, etc., on the power cord, or pinch the cord. Never make a knot in the cord or tie it with other cords. The power cords should be routed such that they are not likely to be stepped on. A damaged power cord can cause a fire or give you an electrical shock. Check the power cord once in a while. When you find it damaged, ask your nearest PIONEER authorized service center or your dealer for a replacement.

S002*_A1_En

CAUTION

The STANDBY/ON switch on this unit will not completely shut off all power from the AC outlet. Since the power cord serves as the main disconnect device for the unit, you will need to unplug it from the AC outlet to shut down all power. Therefore, make sure the unit has been installed so that the power cord can be easily unplugged from the AC outlet in case of an accident. To avoid fire hazard, the power cord should also be unplugged from the AC outlet when left unused for a long period of time (for example, when on vacation).

D3-4-2-2-2a*_A1_En

CAUTION

This product is a class 1 laser product classified under the Safety of laser products, IEC 60825-1:2007.

CLASS 1 LASER PRODUCT

D58-5-2-2a_A1_En

Condensation

If the player is moved suddenly from a cold place into a warm room (in winter, for example) or if the temperature in the room in which the player is installed rises suddenly due to a heater, etc., water droplets (condensation) may form inside (on operating parts and the lens). When

condensation is present, the player will not operate properly and playback is not possible. Let the player stand at room temperature for 1 or 2 hours with the power turned on (the time depends on the extent of condensation). The water droplets will dissipate and playback will become possible. Condensation can

also occur in the summer if the player is exposed to the direct wind from an air-conditioner. If this happens, move the player to a different place.

S005_A1_En

Contents

Thank you for buying this Pioneer product. Please read through these operating instructions so you will know how to operate your model properly.

About this product . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Detatching and replacing the front grille . . . . . . . . . . . . . . 5

Checking what’s in the box. . . . . . . . . . . . . . . . . . . . . . . . . 5

Loading the batteries . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Operating range of remote control . . . . . . . . . . . . . . . . . . . 5

01 Controls and displays

Front panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Remote control. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

02 Connecting your equipment

Antenna connection. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

WLAN antenna connection . . . . . . . . . . . . . . . . . . . . . . . . 9

Speaker connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Using other subwoofer . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Connecting a TV, etc. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Connecting USB storage devices . . . . . . . . . . . . . . . . . . . 10

Connecting to the network through the LAN interface or

WLAN antenna. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Connecting to auxiliary component . . . . . . . . . . . . . . . . . 10

Plugging in. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

03 Getting started

Setting the receiver . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Setting the clock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Setting the wake-up timer. . . . . . . . . . . . . . . . . . . . . . . . . 11

Sleep operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

General control. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Listening to auxiliary component . . . . . . . . . . . . . . . . . . . 12

Headphones. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Sound Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

04 iPod/iPhone/iPad playback

Confirming what iPod/iPhone/iPad models are

supported. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

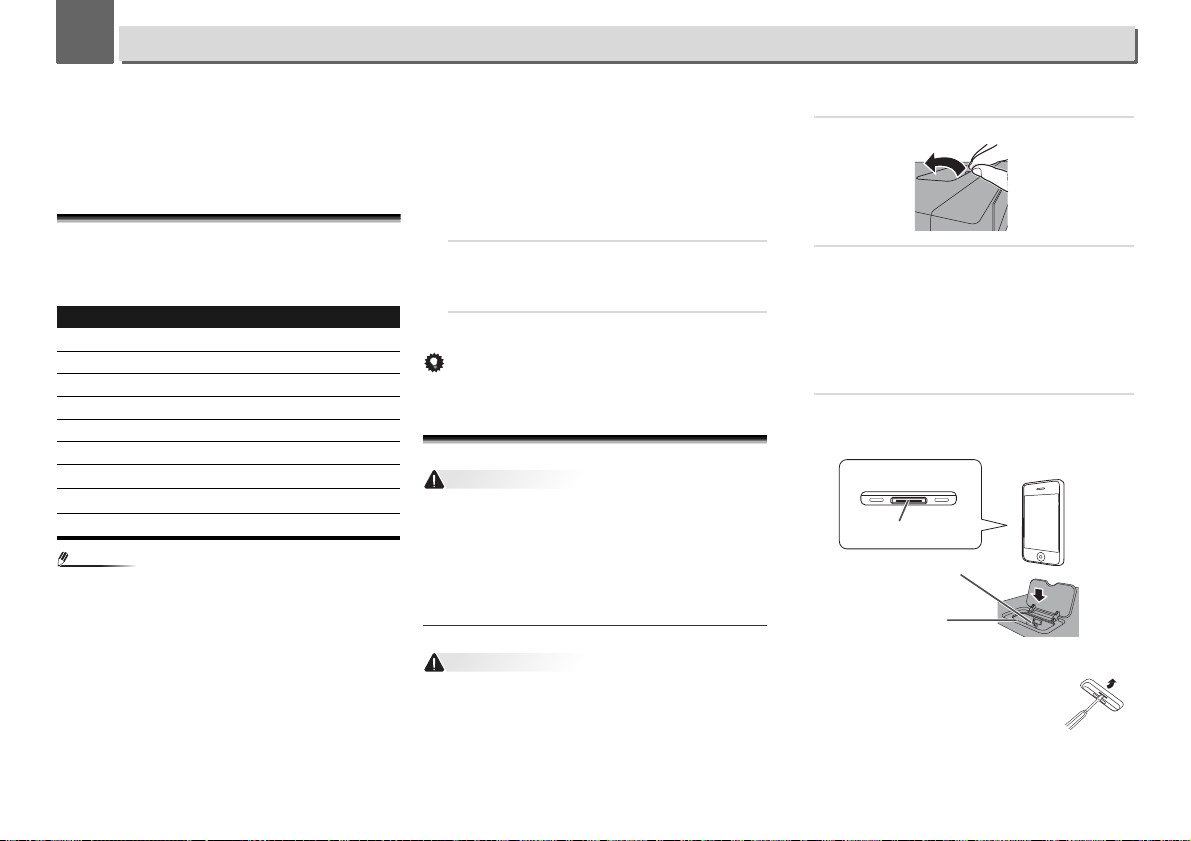

Connecting your iPod/iPhone/iPad. . . . . . . . . . . . . . . . . . 14

Playing your iPod/iPhone/iPad . . . . . . . . . . . . . . . . . . . . . 15

05 Music playback using technology

Connecting Bluetooth® wireless technology ADAPTER . . 16

Setting the PIN code. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Pairing Bluetooth® wireless technology ADAPTER and

Bluetooth wireless technology device . . . . . . . . . . . . . . . . 16

Listening to music contents of Bluetooth wireless

technology device . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

AIR JAM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

06 Disc playback

Playing discs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Advanced CD or MP3/WMA disc playback . . . . . . . . . . . . 18

MP3/WMA folder mode (only for MP3/WMA files) . . . . . . 20

07 USB playback

Playing files stored on USB storage devices . . . . . . . . . . . 22

08 Internet radio

Listening to the Internet radio. . . . . . . . . . . . . . . . . . . . . . 23

Advanced operations for the Internet radio . . . . . . . . . . . . 23

Network setting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

WPS connection setting . . . . . . . . . . . . . . . . . . . . . . . . . . 25

Connecting to a router without WPS-PBC function. . . . . . 26

Connection settings using an iOS device . . . . . . . . . . . . . 27

Friendly Name . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

Parental lock setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

09 Music server

Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

Playing audio files stored on PCs or other components . . 28

10 Using the tuner

Listening to the radio broadcasts . . . . . . . . . . . . . . . . . . . 30

Using the Radio Data System (RDS). . . . . . . . . . . . . . . . . 31

Bluetooth

® wireless

11 Additional information

Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

Firmware Update . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

Resetting this receiver . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

Cautions on use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

Handling discs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

Caution for when the receiver is installed in a rack with

a glass door . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

About network playback . . . . . . . . . . . . . . . . . . . . . . . . . . 36

Radio wave caution. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

Precautions regarding connections to products

supported by this receiver . . . . . . . . . . . . . . . . . . . . . . . . . 39

About playable music file formats. . . . . . . . . . . . . . . . . . . 39

About iPod/iPhone/iPad . . . . . . . . . . . . . . . . . . . . . . . . . . 39

About Wi-Fi® . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40

Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40

Before you start

Grab the bottom of the grille, and gently pull it toward you to remove the bottom portion.

Next, grab the top part of the grille and gently pull it toward you to remove the top portion.

To install the grille, align the projections on the speaker with the receptacles on the top and at the base of the grille and push them into place.

CAUTION

STANDBY/ON

INPUT

PHONES AUDIO IN

USB

NET STANDBY/

POWER

CHARGE TIMER

VOLUME

30°

7 m

30°

About this product

X-HM81 or X-HM71

X-HM81 or X-HM71 Network CD Receiver System consists of the main unit and speaker system.

STANDBY/ON

NET STANDBY/

INPUT

POWER

PHONES AUDIO IN

XC-HM81

XC-HM81 Network CD Receiver consists of the main unit.

STANDBY/ON

NET STANDBY/

INPUT

POWER

PHONES AUDIO IN

Detatching and replacing the front grille

The front grille of this speaker system is removable. Proceed as follows:

VOLUME

CHARGE TIMER

USB

iPod/iPhone/iPad

VOLUME

CHARGE TIMER

USB

iPod/iPhone/iPad

Checking what’s in the box

Please check that you’ve received the following supplied accessories:

•

Remote control

•

AAA size IEC R03 dry cell batteries (to confirm system operation) x 2

•

AM loop antenna

•

FM wire antenna

•

WLAN antenna

•

Speaker x 2 (X-HM81 and X-HM71 only)

•

Speaker wires x 2 (X-HM81 and X-HM71 only)

•

Non skid pad x 8 (X-HM81 only)

•

Warranty card

•

Quick Start Guide

•

These operating instructions (CD-ROM)

Loading the batteries

The batteries included with the receiver have been provided to allow you check product operation and may not last long. We recommend using alkaline batteries that have a longer life.

•

Incorrect use of batteries may result in such hazards as leakage and bursting. Observe the following precautions:

Never use new and old batteries together.

Insert the plus and minus sides of the batteries properly according to the marks in the battery case.

Batteries with the same shape may have different voltages. Do not use different batteries together.

When disposing of used batteries, please comply with governmental regulations or environmental public institution’s rules that apply in your country or area.

Do not use or store batteries in direct sunlight or other excessively hot place, such as inside a car or near a heater. This can cause batteries to leak, overheat, explode or catch fire. It can also reduce the life or performance of batteries.

Operating range of remote control

The remote has a range of about 7 m at an angle of about 30° from the remote sensor.

Keep in mind the following when using the remote control:

•

Make sure that there are no obstacles between the remote and the remote sensor on the receiver.

•

Remote operation may become unreliable if strong sunlight or fluorescent light is shining on the receiver's remote sensor.

•

Remote controllers for different devices can interfere with each other. Avoid using remotes for other equipment located close to this receiver.

•

Replace the batteries when you notice a fall off in the operating range of the remote.

STANDBY/ON

INPUT

PHONES AUDIO IN

USB

iPod/iPhone/iPad

NET STANDBY/

POWER

CHARGE TIMER

VOLUME

141210

256

11 13

iPod

Song 1 Artist Album

44:38 - 44:02

1 32 4

Controls and displays

Front panel

Remote sensor

Receives the signals from the remote control (page 5).

Network Standby and power indicator

When turning on the receiver, this indicator flashes slowly for thirty seconds or more. After thirty seconds or more, this indicator lights. This indicator also lights in the Network Standby mode. In the Network Standby mode, during AirPlay or DMR, the receiver automatically turns on (page 7

Display

See Display below.

iPod or iPhone docking station

Connect iPod/iPhone (page 14).

Lights when iPod/iPhone connected to the docking station is charged (page 14

Lights when the timer is set (page 11).

Use to adjust the listening volume (page 13).

Charge indicator

Timer indicator

Volume control

STANDBY/ON button

Switches the receiver between standby and on (page 11).

INPUT button

Select the input source (page 12).

Headphone socket

Use to connect headphones. When the headphones are connected, there is no sound output from the speakers (page 12

AUDIO IN jack

Use to connect an auxiliary component using a stereo minijack cable (page 12

USB terminal

Use to connect your USB mass storage device or iPod/ iPhone/iPad as an audio source (page 10

Disc tray

Place the disc, label side up (page 18).

Playback control buttons

Select the desired track or folder to be played back. Use  to stop the playback. Use playback from the pause point (page 18

Disc Tray Open/Close button

Use to open or close the disc tray (page 18).

/

to stop playback or resume

, 22).

Display

Input source

Mute

Displayed during the mute operation (page 13).

Sleep timer

When the sleep timer is set, the remaining time until power off is displayed (page 11

Network connection status

When the receiver is connected to the wired network,

this indicator lights (page 10

When the receiver that is connected to the LAN cable is not connected to the network, this indicator lights. When the LAN cable is not connected to this receiver, this indicator does not light (page 10

When the receiver is connected to the wireless network, this indicator lights. Depending on the strength of wireless signal, the icon changes in five steps (page 10

When the receiver is not connected to the wireless

network, this indicator lights (page 10

Name of file/track/artist/album/station, etc.

Artwork

Displayed when the currently playing file includes an album jacket image, etc.

Repeat and Shuffle

Repeat all files.

Repeat a file.

Shuffle

Play status

Displays the play status. The play status differs depending on the input source.

STANDBY/ON

OPEN/CLOSE

NET STANDBY

SLEEP

TIMER

SOUND

P.BASS

TREBLE

BASS

DIMMER

CD DISP

BAND

BT Audio

iPod

USB

TUNER

AUDIO IN

NETWORK

LINE

Favorite

VOLUME

RETURN

MUTEPTY

SETUP

TUNER EDIT

REPEAT

SHUFFLE

PLAY MODE

FOLDER

CLEAR

iPod

CONTROL

TOP

123

456

789

100

ENTER

RDS DISP

ENTER

6 7

4 5

13 14

Remote control

Switches the receiver between standby and on (page 18).

STANDBY/ON

CD Receiver control buttons NET STANDBY– Switches the receiver to the Network

Standby mode. During AirPlay or DMR, the receiver automatically turns on.

TIMER – Use for setting the clock, as well as for setting and checking the timers (page 11

Controls and displays

SLEEP – Press to change the amount of time before the receiver switches into standby (30 min. – 60 min. – 90 min. – Off). You can check the remaining sleep time at any time by pressing SLEEP once (page 12

Input function buttons

Use to select the input source to this receiver.

BT Audio – Use to set up or play the audio file using the Bluetooth network (page 16

BAND

Switches between AM, FM STEREO and FM MONO radio bands (page 30

CD DISP

Displays the disc information (page 20).

CD Receiver control buttons TOP MENU – Displays the top menu of each input source.

Displays the Noise Cut menu in Tuner. Displays BT menu in BT Audio.

iPod CONTROL – Switches between the iPod controls and the receiver controls (page 15

SETUP – Press to access the receiver setup menu (page 11

). (X-HM81 and XC-HM81 only)

RETURN – Exit the current menu screen.

///

Use to select/switch system settings and modes, and to confirm actions.

(TUNE

/

, PRESET

/

), ENTER

Sound control buttons

Adjust the sound quality (page 13).

+Favorite

Use to add an audio file or a station to Favorites function (page 23

DIMMER

Dims or brightens the display. The brightness can be controlled in three steps (page 12

Volume control buttons

Use to adjust the listening volume (page 13).

MUTE

Mutes/unmutes the sound (page 13).

TUNER EDIT

Memorizes/names stations for recall (page 30).

Playback mode buttons REPEAT – Press to change repeat play setting from a CD,

iPod, USB, Internet Radio, Music Server or Favorites. SHUFFLE – Press to change shuffle play setting from a CD,

iPod, USB, Internet Radio, Music Server or Favorites. PLAY MODE – Press to change the playback mode

between CD and MP3/WMA disc (page 19

FOLDER +/-

Use to select the folder of the MP3/WMA disc (page 20).

TUNE / can be used to find radio frequencies and PRESET / can be used to select preset radio stations

(page 30

Playback control buttons

The main buttons (, , etc.) are used to control each function after you have selected it using the input function buttons (page 18

PTY – Use to search for RDS program types (page 31 RDS DISP – Use to display the RDS information (page 31

Numeric buttons

Use to enter the number.

ENTER, CLEAR

Use to select/switch system settings.

OPEN/CLOSE

Use to open or close the disc tray (page 18).

CAUTION

Note

CAUTION

Right

speaker

To AC outlet

Left

speaker

To video input

socket

Red tube

Supplied

speaker wire

Incorrect

FM wire antenna

AM loop antenna

Supplied

WLAN antenna

Power cord

Video cable

(commercially available)

Connect Bluetooth® wireless technology ADAPTER AS-BT100 or AS-BT200 (sold separately)

• The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by PIONEER CORPORATION is under license. Other trademarks and trade names are those of their respective owners.

Connecting your equipment

•

Be sure to turn off the power and unplug the power cord from the power outlet whenever making or changing connections.

•

Connect the power cord after all the connections between devices have been completed.

WLAN ANTENNA

OUT

ADAPTER PORT

(OUTPUT 5V 0.1 A MAX)

WLAN ANTENNA

LINEVIDEO SUBWOOFER

PRE OUT

ANTENNA

AM LOOP

FM UNBAL 75Ω

WLAN ANTENNA

XC-HM81

X-HM81

External FM wire antenna:

Use an external FM wire antenna (75 ohms coaxial cable) for better reception. When an external FM wire antenna is used, disconnect the supplied FM wire antenna.

Supplied AM loop antenna:

Connect the AM loop antenna to the AM terminal. Position the AM loop antenna for optimum reception. Place the AM loop antenna on a shelf, etc., or attach it to a stand.

Antenna connection

Supplied FM wire antenna:

Connect the FM wire antenna to the FM 75 ohms socket and position the FM wire antenna in the direction where the strongest signal can be received.

SPEAKERS

LAN (10/100)

X-HM81

X-HM71

•

Placing the antenna on the receiver or near the AC power cord may cause noise pickup. Place the antenna away from the receiver for better reception.

•

Do not connect the supplied speakers with any other receiver. This may result in malfunction or fire.

CAUTION

Note

Non skid pad

12 3

10 mm

PREOUT

OUT

AM LOOP

FM UNBAL 75Ω

ANTENNA

SPEAKERS

WLAN ANTENNA

LINEVIDEO SUBWOOFER

Audio cable

(commercially

available)

Audio signal

To audio input

socket

To SUBWOOFER

PREOUT socket

Commercially

available subwoofer

(amplifier built in)

Audio

signal

To audio

output sockets

Audio cable

(commercially

available)

To LINE

input

sockets

Connecting your equipment

WLAN antenna connection

Connect the WLAN antenna to the WLAN ANTENNA terminal. Please always use the supplied WLAN antenna.

Speaker connection

•

The provided speaker wire with the red tube is for the plus (+) terminal. Connect the wire with red tube to the plus (+) terminal, and other wire to the minus (–) terminal.

•

Use speakers with an impedance of 4 ohms as lower impedance speakers can damage the receiver.

•

The receiver is not magnetically shielded and so should not be placed near a TV or monitor, as the interaction of magnetic materials can cause distortion of the colors on your TV screen. Magnetic storage media (such as floppy discs and tape or video cassettes) should also not be kept close to the receiver.

•

These speaker terminals carry HAZARDOUS LIVE voltage. To prevent the risk of electric shock when connecting or disconnecting the speaker cables, disconnect the power cord before touching any uninsulated parts.

•

Do not mistake the right and the left channels. The right speaker is the one on the right side when you face the receiver.

•

Do not let the bare speaker wires touch each other.

•

Make sure that all the bare speaker wire is twisted together and inserted fully into the speaker terminal. If any of the bare speaker wire touches the back panel, it may cause the power to cut off as a safety measure.

Cleaning the glossy finish of the speaker (X-HM81 only)

•

If you use a dusty or hard cloth or if you rub the screen hard, the finish of the product will be scratched.

•

If you clean the surface of the speaker system with a wet cloth, water droplets on the surface may enter into the product, resulting in malfunction.

•

When cleaning the finish of the speaker system, gently wipe it with a dry soft cloth.

Applying non skid pads (X-HM81 only)

The use of non skid pads is recommended depending on the installation location. Apply the pads to the four corners of the side of the speaker which will be on the bottom. Note that depending on the location, the pads may not provide fully sufficient traction to prevent slipping, so care should be taken not to install the speakers in conditions where they may be prone to side.

•

When applying non skid pads, laid down the speaker on the soft cloth etc. to avoid working with unstable position.

If not using the provided speaker wire

Twist exposed wire strands together.

Loosen terminal and insert exposed wire.

Tighten terminal.

X-HM81 and X-HM71 only:

•

Do not install your speakers overhead on the ceiling or wall. The grill is designed to be detachable, and as such it may fall and cause damage or personal injury if installed overhead.

•

Do not allow any objects to fall into or to be placed in the bass reflex ducts.

•

Do not stand or sit on the speakers. You may be injured.

Using other subwoofer

You can connect a subwoofer with an amplifier to the SUBWOOFER PREOUT socket.

•

No sound is heard from the subwoofer without a built-in amplifier.

Connecting a TV, etc.

Connect to the TV using an audio cable.

WLAN ANTENNA

LINEVIDEO SUBWOOFER

SPEAKERS

ANTENNA

AM LOOP

FM UNBAL 75Ω

Note

STANDBY/ON

INPUT

PHONES AUDIO IN

USB

iPod/iPhone/iPad

NET STANDBY/

POWER

CHARGE TIMER

VOLUME

USB storage device (commercially available)

Internet

Modem

Router

PC2

PC1

This receiver’s rear

panel

LAN cable

(commercially

available)

WAN

321

LAN

STANDBY/ON

INPUT

PHONES AUDIO IN

USB

iPod/iPhone/iPad

NET STANDBY/ POWER

CHARGE TIMER

VOLUME

Internet

Router

Modem

STANDBY/ON

INPUT

PHONES AUDIO IN

USB

iPod/iPhone/iPad

NET STANDBY/

POWER

CHARGE TIMER

VOLUME

Digital audio player, etc.

Stereo mini-plug cable

(commercially available)

To AC outlet

This receiver’s rear panel

Power cord

To select Line function:

•

On main unit: Press INPUT button repeatedly until Line is displayed.

•

On remote control: Press LINE button.

Connecting USB storage devices

It is possible to listen to two-channel audio using the USB/ iPod/iPhone/iPad terminal on the front of this receiver.

Connect your USB device to the USB/iPod/iPhone/iPad

terminal on the front panel of this receiver.

•

This receiver does not support a USB hub.

•

With Windows Media Player 11 or 12, you can even play back copyrighted audio files on this receiver.

Connecting using LAN cable

LAN

321

WAN

Connecting your equipment

Connecting to auxiliary component

Connect the front panel AUDIO IN mini-plug jack to your auxiliary playback component. This method can be used to play music on this receiver from iPod/iPhone/iPad that do not support use of an iPhone dock.

Connecting to the network through the LAN interface or WLAN antenna

By connecting this receiver to the network via the LAN interface, you can play back audio files stored on components on the network, including your PC, and listen to Internet radio stations. Connect the LAN terminal on this receiver to the LAN terminal on your router (with or without the built-in DHCP server function) with a straight LAN cable (CAT 5 or higher). Also wireless connection to the network is possible.

Tu rn o n th e DHC P se rve r fu nct ion of your router. If your router does not have a built-in DHCP server function, you have to set up the network manually. For details, see page 24

•

To use services such as Internet radio, you must conclude a contract with an Internet service provider. Photo or video files cannot be played back.

LAN (10/100)

Connecting using wireless LAN

If the AUDIO IN mini-plug jack is connected to auxiliary phones jack, the volume of the receiver will be adjusted by the volume on the playback component. If the sound is distorted after you lower the volume of the receiver, try lowering the volume on the auxiliary playback component.

Plugging in

Before making or changing the connections, switch off the power and disconnect the power cord from the AC outlet.

After you’ve finished making all connections, plug the receiver into an AC outlet.

STANDBY/ON

OPEN/CLOSE

NET STANDBY

SLEEP

TIMER

SOUND

iPod

USB

VOLUME

RETURN

SETUP

iPod

CONTROL

TOP

ENTER

The 24-hour display will appear. (00:00 - 23:59)

The 12-hour display will appear. (AM 00:00 - PM 11:59)

STANDBY/ON

OPEN/CLOSE

NET STANDBY

SLEEP

TIMER

SOUND

iPod

USB

VOLUME

RETURN

SETUP

iPod

CONTROL

TOP

ENTER

Getting started

Setting the receiver

When you use the receiver for the first time, the following screens will be displayed. Set up the following items to customize the receiver.

Press

STANDBY/ON

The power indicator flashes slowly. About twenty seconds after turning on the power, the following screen appears. About thirty seconds are required between turning the power on and completion of startup.

Auto power off setup

Set to automatically turn off the receiver after a specified time has passed (when the power has been on with no operation for several hours).

•

Default setting: 6 H

Press

NETWORK

control.

, then press

The Initial Setup menu is shown on the display.

Select 'Option Setting' from Initial Setup menu.

Select 'Auto Power Off' from Option Setting menu.

Use

/

to specify the amount of time to allow before the power is turned off (when there has been no operation), then press

You can select 2, 4 or 6 hours, or OFF (if no automatic shutoff is desired).

When you’re finished, press

SETUP

on the remote

ENTER

RETURN

Setting the clock

Setting the clock allows you to use the timer.

Press

TIMER

The day of the week and time are displayed. The first time you use the clock, you are taken to the clock adjust mode.

Press

Use

press

Use

confirm.

To confirm the time display:

Press TIMER button. The time display will appear for about 10 seconds.

button on the remote control.

ENTER

button.

/

to set the day of the week, then press

/

to select 24-hour or 12-hour display, then

ENTER

/

to set the hour, then press

/

to set the minute, then press

ENTER

Setting the wake-up timer

Timer playback:

The receiver turns on and plays the desired source (CD, AM, FM, USB, Internet Radio, AUDIO IN, LINE or iPod) at a

preset time.

Before setting timer:

•

Check that the clock is set to the correct time (Setting the clock on page 11). If it is not set, you cannot use the timer function.

•

For timer playback: Plug in USB or load discs or iPod to be played.

Press

STANDBY/ON

Press and hold

seconds.

Use

/

press

ENTER

Select the source you want to play.

Use / to select CD, TUNER, USB, Internet Radio, AUDIO IN, LINE or iPod function.

Press

ENTER

Set the day(s) of the week.

Use / to choose the day(s).

button to turn the power on.

TIMER

button for more than two

to select ‘Timer Set’ within ten seconds, then

The timer can be set as follows. EVERYDAY SUNDAY MONDAY TUESDAY WEDNESDAY THURSDAY FRIDAY SATURDAY MON-FRI TUE-SAT SAT-SUN

Press

ENTER

Set the switch-on time.

Use / to set the hour, then press ENTER.

Set the minute in the same way, pressing ENTER when

you’re done.

Set the switch-off time.

Set as above, pressing ENTER when done.

Note

USB CDiPod

Line Audio In

Music Server

Internet Radio

BT Audio (Air Jam)

Favorites

FMAM

Music Server

Internet Radio

Favorites

Audio In

Use

/

10 11

to adjust the volume.

Press

ENTER

The TIMER indicator lights, and the settings are confirmed on the display.

Press

STANDBY/ON

to enter the power standby mode.

Sleep operation

Press

SLEEP

receiver switches into standby (30 min. – 60 min. – 90 min. – Off).

You can check the remaining sleep time at any time by pressing SLEEP once.

to change the amount of time before the

Getting started

Listening to auxiliary component

Press

AUDIO IN

to select

Audio In

is shown on the display.

•

If you select USB function for the wake-up timer, check there is the playable file in the root folder.

•

Internet Radio function is not recommended for the wakeup timer because Internet Radio is not always connected by the wireless connection.

•

If Internet Radio function is selected for the wake-up timer, the last tuned station is selected.

Turning the wake-up timer on/off

If you have already set the wake-up timer, you can switch it on/ off.

When the power is on, press and hold

two seconds.

Press

/

to select ‘

Timer On

seconds, then press

When ‘Timer On’ is selected, the timer indicator lights, and the settings are confirmed on the display.

When ‘

Timer On

the standby mode.

’ is selected, press

ENTER

’ or ‘

Configuring the memorised timer setting

The timer setting is memorised once it is entered. To configure the setting, perform the following operations.

When the power is on, press and hold

two seconds.

Press

/

to select ‘

Timer Call

then press

The TIMER indicator lights, and the settings are confirmed on the display.

ENTER

’ within ten seconds,

TIMER

button for

Timer Off

’ within ten

STANDBY/ON

TIMER

button for

to set

General control

Input function

When pressing INPUT button on the receiver, the current function will change to different mode. Press INPUT button repeatedly to select desired function. The selected input is displayed on the front panel display.

*1 This function is available for X-HM81 and XC-HM81. *2 This function is available when Parental Lock is OFF.

•

The backup function will protect the memorised function mode should there be a power failure or the AC power cord becomes disconnected.

Network function

When pressing NETWORK button on the remote control, the current network function will change to different network mode. Press the NETWORK button repeatedly to select desired network function. The selected function is displayed on the front panel display.

*1 This function is available when Parental Lock is OFF.

Start playback of the auxiliary component.

Headphones

•

Do not turn the volume on to full at switch on and listen to music at moderate levels. Excessive sound pressure from earphones and headphones can cause hearing loss.

•

Before plugging in or unplugging the headphone, reduce the volume.

•

Be sure your headphone has a 3.5 mm diameter plug and impedance between 16 and 50 ohms. The recommended impedance is 32 ohms.

•

Plugging in the headphone disconnects the speakers automatically. Adjust the volume using the VOLUME control.

Display brightness control

Press DIMMER button to dims the display brightness. The brightness can be controlled in three steps.

CAUTION

POPS

VOCAL

JAZZ

FLAT

GAME

CLASSIC

For rock music.

For pop music.

No equalization.

For classical music.

For jazz.

Vocals are enhanced.

Equaliser off.

For game.

For classical music.

For pop music.

Vocals are enhanced.

For jazz.

Getting started

Auto volume

If you turned off this receiver with the volume set to 41 or higher, the volume starts at 40 when the receiver turns on next time.

Volume control

Turn the volume (on this receiver) or press VOLUME +/- (on remote control) to increase or decrease the volume.

•

The sound level at a given volume setting depends on speaker efficiency, location, and various other factors. It is advisable to avoid exposure to high volume levels. Do not turn the volume on to full at switch on. Listen to music at moderate levels. Excessive sound pressure from earphones and headphones can cause hearing loss.

Muting

The volume is muted temporarily when pressing the MUTE button on the remote control. Press again to restore the volume.

Sound Controls

P.bass control

When the P.BASS button on the remote is pressed, the P.Bass mode turns ON and powerful music emphasizing low bass

can be enjoyed. To cancel the P.bass mode, press the P.BASS button.

Bass control

Press the BASS button, then press / to adjust the bass.

Treble control

Press the TREBLE button, then press / to adjust the treble.

Equaliser

When the SOUND button is pressed, the current mode setting will be displayed. To change to a different mode, press the SOUND button repeatedly to select the desired sound.

+ 29 hidden pages
