X-HM51DAB

CD Receiver System

-K

XC-HM51DAB

CD Receiver

Discover the benefits of registering your product online at

http://www.pioneer.co.uk

(or http://www.pioneer.eu).

-K

Operating Instructions

CAUTION

TO PREVENT THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

D3-4-2-1-1_B1_En

WARNING

This equipment is not waterproof. To prevent a fire or shock hazard, do not place any container filled with liquid near this equipment (such as a vase or flower pot) or expose it to dripping, splashing, rain or moisture.

D3-4-2-1-3_A1_En

WARNING

To prevent a fire hazard, do not place any naked flame sources (such as a lighted candle) on the equipment.

D3-4-2-1-7a_A1_En

VENTILATION CAUTION

When installing this unit, make sure to leave space around the unit for ventilation to improve heat radiation (at least 25 cm at top, 10 cm at rear, and 5 cm at each side).

WARNING

Slots and openings in the cabinet are provided for ventilation to ensure reliable operation of the product, and to protect it from overheating. To prevent fire hazard, the openings should never be blocked or covered with items (such as newspapers, table-cloths, curtains) or by operating the equipment on thick carpet or a bed.

D3-4-2-1-7b*_A1_En

Operating Environment

Operating environment temperature and humidity: +5 °C to +35 °C (+41 °F to +95 °F); less than 85 %RH (cooling vents not blocked) Do not install this unit in a poorly ventilated area, or in locations exposed to high humidity or direct sunlight (or strong artificial light)

D3-4-2-1-7c*_A1_En

WARNING

Store small parts out of the reach of children and infants. If accidentally swallowed, contact a doctor immediately.

D41-6-4_A1_En

This product is for general household purposes. Any failure due to use for other than household purposes (such as long-term use for business purposes in a restaurant or use in a car or ship) and which requires repair will be charged for even during the warranty period.

K041_A1_En

CAUTION

The STANDBY/ON switch on this unit will not completely shut off all power from the AC outlet. Since the power cord serves as the main disconnect device for the unit, you will need to unplug it from the AC outlet to shut down all power. Therefore, make sure the unit has been installed so that the power plug can be easily unplugged from the AC outlet in case of an accident. To avoid fire hazard, the power cord should also be unplugged from the AC outlet when left unused for a long period of time (for example, when on vacation).

D3-4-2-2-2a*_A1_En

POWER-CORD CAUTION

Handle the power cord by the plug. Do not pull out the plug by tugging the cord and never touch the power cord when your hands are wet as this could cause a short circuit or electric shock. Do not place the unit, a piece of furniture, etc., on the power cord, or pinch the cord. Never make a knot in the cord or tie it with other cords. The power cords should be routed such that they are not likely to be stepped on. A damaged power cord can cause a fire or give you an electrical shock. Check the power cord once in a while. When you find it damaged, ask your nearest PIONEER authorized service center or your dealer for a replacement.

S002*_A1_En

Do not install your speakers overhead on the ceiling or wall. The grill is designed to be detachable, and as such it may fall and cause damage or personal injury if installed overhead.

SGK004_A1_En

CAUTION

This product is a class 1 laser product classified under the Safety of laser products, IEC 60825-1:2007.

CLASS 1 LASER PRODUCT

D58-5-2-2a_A1_En

Information for users on collection and disposal of old equipment and used batteries

These symbols on the products, packaging, and/or accompanying documents mean that used electrical and electronic products and batteries should not be mixed with general household waste.

For proper treatment, recovery and recycling of old products and used batteries, please take them to applicable collection points in accordance with your national legislation.

By disposing of these products and batteries correctly, you will help to save valuable resources and prevent any potential negative effects on human health and the environment which could otherwise arise from inappropriate waste handling.

For more information about collection and recycling of old products and batteries, please contact your local municipality, your waste disposal service or the point of sale where you purchased the items.

These symbols are only valid in the European Union.

For countries outside the European Union:

If you wish to discard these items, please contact your local authorities or dealer and ask for the correct method of disposal.

K058a_A1_En

Symbol examples

for batteries

Symbol for

equipment

Radio wave caution

This unit uses a 2.4 GHz radio wave frequency, which is a band used by other wireless systems (Microwave ovens and Cordless phones, etc.). In this event noise appears in your television image, there is the possibility this unit (including products supported by this unit) is causing signal interference with the antenna input connector of your television, video, satellite tuner, etc. In this event, increase the distance between the antenna input connector and this unit (including products supported by this unit).

• Pioneer is not responsible for any malfunction of the

compatible Pioneer product due to communication error/malfunctions associated with your network connection and/or your connected equipment. Please contact your Internet service provider or network device manufacturer.

• A separate contract with/payment to an Internet service provider is required to use the Internet.

Thank you for buying this Pioneer product.

Please read through these operating instructions so that you will know how to operate your model properly. After you have finished reading the instructions, put them in a safe place for future reference.

Contents

01 Before you start

What’s in the box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Loading the batteries in the remote control . . . . . . . . . 6

Using the remote control . . . . . . . . . . . . . . . . . . . . . . . . . 6

02 Part names and functions

Remote control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Detatching and replacing the front grille

(X-HM51DAB only) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Front panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

03 Connections

Speaker connection (X-HM51DAB only) . . . . . . . . . . . 11

Using other subwoofer . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Connecting antennas . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Using external antennas . . . . . . . . . . . . . . . . . . . . . . . . . 12

Plugging in . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

04 Getting started

To turn the power on . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Setting the clock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

General control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Input function. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Display brightness control . . . . . . . . . . . . . . . . . . . . . . . 14

Volume auto setting. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Volume control. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Muting. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Sound controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Equalizer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

P.BASS control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Bass/treble control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Setting the wake-up timer . . . . . . . . . . . . . . . . . . . . . . . 15

Calling the wake-up timer . . . . . . . . . . . . . . . . . . . . . . . . 16

Cancelling the wake-up timer. . . . . . . . . . . . . . . . . . . . . 16

Using the wake-up timer. . . . . . . . . . . . . . . . . . . . . . . . . 16

Using the sleep timer . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Using Headphones . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

05 iPod/iPhone/iPad playback

Confirming what iPod/iPhone/iPad models are

supported . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Connecting your iPod/iPhone/iPad . . . . . . . . . . . . . . . 17

Connecting iPod/iPhone/iPad using supplied

iPad stand. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Playing iPod/iPhone/iPad . . . . . . . . . . . . . . . . . . . . . . . 18

06 Disc playback

Playing discs or files . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Advanced CD or MP3/WMA disc playback . . . . . . . . . 20

Direct track search . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Repeat play. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Random play . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Programmed play (CD or MP3/WMA). . . . . . . . . . . . . . 21

About downloading MP3/WMA . . . . . . . . . . . . . . . . . . . 21

About folder playback order . . . . . . . . . . . . . . . . . . . . . . 21

Specify the folder to play. . . . . . . . . . . . . . . . . . . . . . . . . 22

Switch the display contents . . . . . . . . . . . . . . . . . . . . . . 22

07 USB playback

Playing USB storage devices . . . . . . . . . . . . . . . . . . . . 23

Repeat play. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Random play . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Specify the folder to play. . . . . . . . . . . . . . . . . . . . . . . . . 24

Switch the display contents . . . . . . . . . . . . . . . . . . . . . . 24

Playing in the desired order (Programmed Play) . . . . 24

08 Using the tuner

Listening to the radio broadcasts . . . . . . . . . . . . . . . . 25

Tuning. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

Saving station presets. . . . . . . . . . . . . . . . . . . . . . . . . . . 25

To recall a memorised station . . . . . . . . . . . . . . . . . . . . 26

To scan the preset stations. . . . . . . . . . . . . . . . . . . . . . . 26

To erase entire preset memory. . . . . . . . . . . . . . . . . . . . 26

Using the Radio Data System (RDS) . . . . . . . . . . . . . . 26

An introduction to RDS. . . . . . . . . . . . . . . . . . . . . . . . . . 26

Searching for RDS programs. . . . . . . . . . . . . . . . . . . . . 26

Information provided by RDS . . . . . . . . . . . . . . . . . . . . . 27

Using the Auto Station Program Memory (ASPM). . . . 27

Notes for RDS operation. . . . . . . . . . . . . . . . . . . . . . . . . 27

Listening to the DAB+ . . . . . . . . . . . . . . . . . . . . . . . . . 28

About DAB+ (Digital Audio Broadcasting) . . . . . . . . . 28

Auto Scan. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

Selecting a station in the station list . . . . . . . . . . . . . . . 28

Manual tune. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

Changing the information display . . . . . . . . . . . . . . . . . 29

Memorising a station . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

DAB Frequency table (BAND III) . . . . . . . . . . . . . . . . . . 29

09 Other connections

Connecting auxiliary components . . . . . . . . . . . . . . . . 30

Bluetooth

Music playback using Bluetooth wireless

technology . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

Pairing with the unit (Initial registration) . . . . . . . . . . . 31

Listen to music on the unit from a Bluetooth capable

device . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .32

Radio wave caution . . . . . . . . . . . . . . . . . . . . . . . . . . . .32

Scope of operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

Radio wave reflections . . . . . . . . . . . . . . . . . . . . . . . . . . 33

Precautions regarding connections to products

supported by this unit. . . . . . . . . . . . . . . . . . . . . . . . . . . 33

® Audio playback

11 Additional information

Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .34

Playable discs and formats . . . . . . . . . . . . . . . . . . . . . . 37

Regarding copy protected CDs . . . . . . . . . . . . . . . . . . . 37

Supported audio file formats . . . . . . . . . . . . . . . . . . . . . 37

Cautions on use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .37

When moving this unit . . . . . . . . . . . . . . . . . . . . . . . . . . 37

Place of installation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

Do not place objects on this unit. . . . . . . . . . . . . . . . . . 38

About condensation . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

Cleaning the product . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

Cleaning the lens . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

Handling discs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

Storing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

Cleaning discs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

About specially shaped discs. . . . . . . . . . . . . . . . . . . . . 38

About iPod/iPhone/iPad . . . . . . . . . . . . . . . . . . . . . . . .39

Restoring all the settings to the defaults . . . . . . . . . . .39

Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .40

Before you start01

INPUT

30°

7 m

30°

Chapter 1:

Before you start

What’s in the box

Please confirm that the following accessories are in the box when you open it.

•Remote control

•Power cord

• DAB/FM wire antenna

• AAA batteries (R03) x 2

• Speaker cord x 2 (X-HM51DAB only)

•iPad stand

• Warranty card

• Operating instructions (this document)

Loading the batteries in the remote control

1 Open the rear lid and load the batteries as illustrated below.

• Do not heat batteries, disassemble them, or throw them into flames or water.

• Batteries may have different voltages, even if they are the same size and shape. Do not use different types of batteries together.

• To prevent leakage of battery fluid, remove the batteries if you do not plan to use the remote control for a long period of time (1 month or more). If the fluid should leak, wipe it carefully off the inside of the case, then insert new batteries. If a battery should leak and the fluid should get on your skin, flush it off with large quantities of water.

• When disposing of used batteries, please comply with governmental regulations or environmental public institution’s rules that apply in your country/area.

• WARNING Do not use or store batteries in direct sunlight or other excessively hot place, such as inside a car or near a heater. This can cause batteries to leak, overheat, explode or catch fire. It can also reduce the life or performance of batteries.

Using the remote control

The remote has a range of about 7 m at an angle of about 30º from the remote sensor.

2 Close the rear lid.

CAUTION

• When inserting the batteries, make sure not to damage the springs on the battery’s  terminals. This can cause batteries to leak or over heat.

• Do not use any batteries other than the ones specified. Also, do not use a new battery together with an old one.

• When loading the batteries into the remote control, set them in the proper direction, as indicated by the polarity marks ( and ).

Keep in mind the following when using the remote control:

• Make sure that there are no obstacles between the remote and the remote sensor on the unit.

• Remote operation may become unreliable if strong sunlight or fluorescent light is shining on the unit’s remote sensor.

• Remote controllers for different devices can interfere with each other. Avoid using remotes for other equipment located close to this unit.

• Replace the batteries when you notice a fall off in the operating range of the remote.

Part names and functions 02

STANDBY/ON





CD USB TUNER AUDIO IN

DISPLAY FOLDER

PRESET VOLUME

ST/MONO ASPM PTY DISPLAY

MUTE

TUNE–

TUNE+

DIMMER

 







–

MEMORY

/PROGRAM

123

456

789

BT AUDIO

CLOCK/TIMER

SLEEP

EQUALIZER

P.B A S S

BASS/TREBLE

RANDOM

CLEAR REPEAT

OPEN/CLOSE

RDS

ENTER

SCAN ENTER DISPLAY

DAB

Chapter 2:

Part names and functions

1  STANDBY/ON

Remote control

Switches the receiver between standby and on (page 14).

2 Input function buttons

Use to select the input source to this receiver (pages 18, 19, 23, 25, 30 and 31).

3 CD Receiver control buttons

CLOCK/TIMER

Use for setting the clock, as well as for setting and checking the timers (page 14).

SLEEP

See Using the sleep timer on page 16.

4 Numeric buttons (0 to 9)

Use to enter the number (page 20).

CLEAR

Use to clear the programmed play (page 21).

6 CD Receiver control buttons

DISPLAY

Press to change the display for songs playing back from CD or USB (page 22).

FOLDER

Use to select the folder of the MP3/WMA disc or USB mass storage device (page 21).

Use to access the menu.

MEMORY/PROGRAM

Use to memory or program the MP3/WMA disc (page 21).

7/// (TUNE +/–), ENTER

Use to select/switch system settings and modes, and to confirm actions.

Use TUNE +/– can be used to find radio frequencies (page 25).

PRESET +/–

Use to select preset radio stations (page 26).

MUTE

Mutes/unmutes the sound (page 14).

10 Playback control buttons

Use to control each function after you have selected it using the input function buttons (page 19).

Part names and functions02

Tuner

control buttons

ST/MONO

Use to switch the sound mode between stereo and monaural. (page 25)

RDS ASPM

Use to search for RDS Auto station program memory (page 26).

RDS PTY

Use to search for RDS program types (page 26).

RDS DISPLAY

Press to change the RDS display for information mode (page 26).

DAB SCAN

Use to scan for DAB radio station (page 28).

DAB ENTER

Use to confirm the DAB radio station (page 28).

DAB DISPLAY

Press to change the DAB display for information mode (page 29).

12 OPEN/CLOSE

Use to open or close the disc tray (page 19).

13 Sound control buttons

Adjust the sound quality (page 15).

14 RANDOM

Randomize order of track playback from a CD, iPod or USB (page 20).

REPEAT

Press to change the repeat play setting from a CD, iPod or USB (page 20).

16 Volume control buttons

Use to set the listening volume (page 14).

DIMMER

Dims or brightens the display. The brightness can be controlled in four steps (page 14).

Detatching and replacing the front grille (X-HM51DAB only)

The front grille of this speaker system is removable. Proceed as follows:

1 Grab the bottom of the grille, and gently pull it toward you to remove the bottom portion.

2 Next, grab the top part of the grille and gently pull it toward you to remove the top portion.

3 To install the grille, align the projections on the speaker with the receptacles on the top and at the base of the grille and push them into place.

Part names and functions 02

 STANDBY/ON

INPUT

VOLUME

PHONES AUDIO IN

  

TIMER

7 86 9 11 1210

2 51 3 4

Front panel

1  STANDBY/ON button

Switches the receiver between standby and on (page 14).

2 Remote sensor

Receives the signals from the remote control.

3TIMER

Lights when the unit power is off but when the timer setting is activated.

4 Character display

See Display on page 10.

5 Volume control

Use to set the listening volume (page 14).

indicator

6 INPUT button

Selects the input source.

7 Headphone socket

Use to connect headphones. When the headphones are connected, there is no sound output from the speakers (page 16).

8 AUDIO IN socket

Use to connect an auxiliary component using a stereo minijack cable (page 30).

9 USB terminal

Use to connect your USB mass storage device or Apple iPod/ iPhone/iPad as an audio source (pages 18 and 23).

10 Disc tray

Place the disc, label side up (page 19).

11 Playback control buttons

Select the desired track or file to be played back. Stop current playback. Stop playback or resume playback from the point where it was paused.

12 Disc tray open/close button

Use to open or close the disc tray (page 19).

Part names and functions02



1 32 4

Display

Lights when the sound is muted.

Note

• The mute icon will be displayed in red.



Start playback.

3 

Pause playback.

Timer function is set.

5 Character display

Displays various system information.

Connections 03

This unit’s rear panel

Red tube

Supplied

speaker wire

Left speakerRight speaker

Chapter 3:

Connections

CAUTION

• Be sure to turn off the power and unplug the power cord from the power outlet whenever making or changing connections.

• Connect the power cord after all the connections between devices have been completed.

Speaker connection (X-HM51DAB only)

• The provided speaker wire with the red tube is for the (+) terminal. Connect the wire with red tube the (+) terminal, and other wire to the (–) terminal.

SPEAKERS

SUBWOOFER

PREOUT

X-HM51DAB

CAUTION

• These speaker terminals carry HAZARDOUS LIVE voltage. To prevent the risk of electric shock when

connecting or disconnecting the speaker cables, disconnect the power cord before touching any uninsulated parts.

• Make sure that the speaker cable cores do not become exposed and make contact with other cable cores. This may cause malfunction of the product.

• Do not allow the speaker cable core to come into contact with the receiver body.

- If the speaker cable core comes into contact with any

metal portion of the receiver’s body, it may damage the speakers and cause smoke and fire. Insert speaker cables securely into the terminals and check that the cable does not come out of easily.

X-HM51DAB only

• Do not connect any speakers other than those supplied to this system.

• Do not connect the supplied speakers to any amplifier other than the one supplied with this system. Connection to any other amplifier may result in malfunction or fire.

• Do not attach these speakers to the wall or ceiling. They may fall off and cause injury.

• These speakers are magnetically shielded. However, depending on the installation location, color distortion may occur if the speaker system is installed extremely close to the screen of a television set. If this happens, turn off the television set, and then turn it on after 15 to 30 minutes. If the problem persists, move the speaker system away from the television set.

XC-HM51DAB only

• You can use speakers with a nominal impedance between 4  and 16 .

Note

• There is no difference between L and R speakers.

Cleaning the glossy finish of the speaker (XHM51DAB only)

• If you use a dusty or hard cloth or if you rub the screen hard, the finish of the product will be scratched.

• If you clean the surface of the speaker system with a wet cloth, water droplets on the surface may enter into the product, resulting in malfunction.

• When cleaning the finish of the speaker system, gently wipe it with a dry soft cloth.

Connections03

12 3

10 mm

LINE

SUBWOOFER

PREOUT

ANTENNA

DAB/FM

This unit’s rear panel

Audio cable (commercially available)

Commercially available subwoofer (amplifier built in)

To audio input socket

ANTENNA

DAB/FM

One-touch PAL connector

75 coaxial cable

If not using the provided speaker wire

1 Twist exposed wire strands together.

2 Loosen terminal and insert exposed wire.

3 Tighten terminal.

X-HM51DAB only

• Do not install your speakers overhead on the ceiling or wall. The grill is designed to be detachable, and as such it may fall and cause damage or personal injury if installed overhead.

• Do not allow any objects to fall into or to be placed in the bass reflex ducts.

• Do not stand or sit on the speakers. You may be injured.

Using other subwoofer

You can connect a subwoofer with an amplifier to the SUBWOOFER PREOUT socket.

Connecting antennas

Connect the DAB/FM wire antenna as shown below. To improve reception and sound quality, connect external antennas (see Using external antennas below).

ANTENNA

DAB/FM

1 Connect the DAB/FM wire antenna into the DAB/FM antenna socket.

For best results, extend the DAB/FM antenna fully and fix to a wall or door frame. Don’t drape loosely or leave coiled up.

To customers in Norway and Sweden

CAUTION

• “Apparater som er koplet til beskyttelsesjord via nettplugg og/eller via annet jordtilkoplet utstyr - og er tilkoplet et koaksialbasert kabel-TV nett, kan forårsake brannfare. For å unngå dette skal det ved tilkopling av apparater til kabel-TV nett installeres en galvanisk isolator mellom apparatet og kabel-TV nettet.”

• “Apparater som är kopplade till skyddsjord via jordat vägguttag och/eller via annan utrustning och samtidigt är kopplad till kabel-TV nät kan i vissa fall medföra risk för brand. För att undvika detta skall vid anslutning av apparaten till kabel-TV nät galvanisk isolator finnas mellan apparaten och kabel-TV nätet.

Using external antennas

To improve DAB/FM reception

Use a PAL connector (not supplied) to connect an external DAB/FM antenna.

Note

• No sound is heard from the subwoofer without a built-in amplifier.

• Subwoofer Pre-out (audio signal): 350 mV / 10 k at 70 Hz.

Connections 03

AC IN

SPEAKER

To AC outlet

This unit’s rear panel

Power cord

Plugging in

CAUTION

• Do not use any power cord other than the one supplied with this unit.

• Do not use the supplied power cord for any purpose other than that described below.

Before making or changing the connections, switch off the power and disconnect the power cord from the AC outlet. After you’ve finished making all connections, plug the unit into an AC outlet.

Getting started04

STANDBY/ON





CD USB TUNER AUDIO IN

BT AUDIO

CLOCK/TIMER

SLEEP

EQUALIZER

OPEN/CLOSE

DISPLAY FOLDER

PRESET VOLUME

TUNE–

TUNE+

MEMORY

/PROGRAM

ENTER

CD FM USB/iPodDAB

AUDIO IN

LINE

BT AUDIO

Chapter 4:

Getting started

To turn the power on

Press the  STANDBY/ON to turn the power on.

After use:

Press the  STANDBY/ON to enter the power stand-by mode.

Note

• In standby mode, if iPod/iPhone/iPad is connected, the unit turns charge mode.

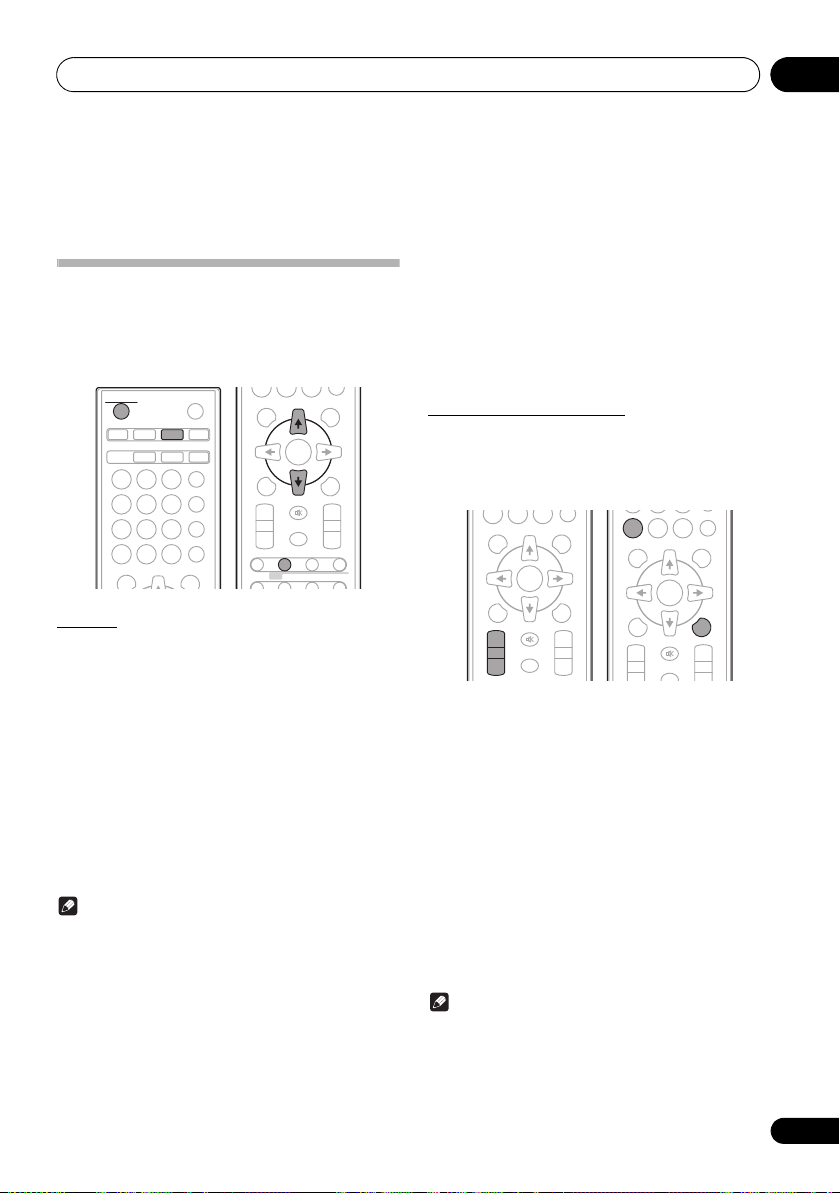

Setting the clock

1 Press

2 Press

“CLOCK” is shown on the main display.

3 Press

4 Press

5 Press ENTER.

6 Press ENTER to confirm.

7 Press

To confirm the time display:

Press the CLOCK/TIMER. The time display will appear for about 10 seconds.

To readjust the clock:

Perform “Setting the clock” from step 1.

 STANDBY/ON

CLOCK/TIMER

ENTER

/

to set the day, then press ENTER.

/

to set the hour, then press

/

to set the minute, then press

ENTER

Note

• When power supply is restored after unit is plugged in again or after a power failure, reset the clock.

to turn the power on.

on the remote control.

General control

Input function

When the INPUT on main unit is pressed, the current function will change to different mode. Press the INPUT repeatedly to select desired function.

Display brightness control

Press DIMMER to dims the display brightness. The brightness can be controlled in four steps.

Volume auto setting

If you turn off and on the main unit with the volume set to 31 or higher, the volume starts at 30.

Volume control

Turn the VOLUME on the unit or press VOLUME +/– on the remote control to increase or decrease the volume.

CAUTION

• The sound level at a given volume setting depends on speaker efficiency, location, and various other factors. It is advisable to avoid exposure to high volume levels. Do not turn the volume on to full at switch on. Listen to music at moderate levels. Excessive sound pressure from earphones and headphones can cause hearing loss.

Muting

The volume is muted temporarily when pressing the MUTE on the remote control. Press again to restore the volume.

Getting started 04

NIGHT

FLAT A flat and basic sound.

ACTIVE

DIALOGUE

A sound that can be enjoyed at night even with lower volume.

A powerful sound that emphasizes low and high tones.

A sound that allows the radio or vocals to be heard more easily.

Sound controls

Equalizer

When the EQUALIZER is pressed, the current mode setting will be displayed. To change to a different mode, press the EQUALIZER repeatedly until the desired sound mode appears.

P.BASS control

When the power is first turned on, the unit will enter the P.BASS mode which emphasises the bass frequencies. To cancel the P.BASS mode, press the P.BASS on the remote control.

Bass/treble control

Press the BASS/TREBLE, then press /// to adjust the bass or treble.

Note

•The EQUALIZER and P.BASS cannot operate simultaneously. The most recently selected of these two functions will be the one used.

• BASS/TREBLE can operate alongside either the EQUALIZER or P.BASS.

When one of the above two functions is selected, the function that is not selected will be displayed as follows.

1When

• EQUALIZER : FLAT

2When

• P.BASS : OFF

P.BASS

setting (ON/

EQUALIZER

OFF

) is changed

setting is changed

Setting the wake-up timer

Used to change the existing timer setting, or to set a new timer.

1 Press

2 Press and hold

3 Press then press ENTER.

4 Press press ENTER.

5 Press source, then press

6 Press press ENTER.

7 Press ENTER.

8 Press ENTER.

9 Adjust the volume press press ENTER.

10 Press standby mode.

 STANDBY/ON

/

to select “ONCE” or “DAILY”,

ONCE – Works once only at a preset time. DAILY – Works at the preset time on a preset day.

/

to select “TIMER SET”, then

/

to select the timer playback

• CD, DAB, FM, USB/iPod, BT AUDIO, AUDIO IN and LINE can be selected as the playback source.

/

to select the timer day, then

/

to set the hour, then press

/

to set the minute, then press

• Set the time to finish as in steps 7 and 8 above.

 STANDBY/ON

•The TIMER indicator lights up.

to turn the power on.

CLOCK/TIMER

ENTER

VOLUME +/–

to enter the power

, then

Getting started04

Calling the wake-up timer

An existing timer setting can be reused.

1 Follow steps 1 to 3 in “Setting the wake-up timer”.

/

2 Press

to select “TIMER ON”, then press

ENTER.

Cancelling the wake-up timer

Turn off the timer setting.

1 Follow steps 1 to 3 in “Setting the wake-up timer”.

/

2 Press

to select “TIMER OFF”, then

press ENTER.

Using the wake-up timer

1 Press off.

2 At the wake-up time, this unit will turn on automatically and play the selected input function.

 STANDBY/ON

Note

• If at the wake-up time an iPod/iPhone/iPad is not connected to the unit or a disc is not inserted, the unit will be turned on but will not play back the track.

• Some discs may not be played automatically at the wakeup time.

• When setting the timer set at least one minute between the start and end time.

to turn the power

Using Headphones

Connect the headphones plug to the PHONES terminal. When the headphones are connected, there is no sound

output from the speakers.

 STANDBY/ON

TIMER

INPUT

PHONES AUDIO IN

• Do not turn the volume on to full at switch on and listen to music at moderate levels. Excessive sound pressure from earphones and headphones can cause hearing loss.

• Before plugging in or unplugging the headphone, reduce the volume.

• Be sure your headphone has a 3.5 mm diameter plug and impedance between 16 recommended impedance is 32

• Audio from the iPod/iPhone/iPad cannot be heard via the headphones connected to the unit. “HP MUTE” will be displayed if you connect the headphones when the iPod/iPhone/iPad function is selected.

 and 50 . The

VOLUME

  

.

Using the sleep timer

The sleep timer switches off the unit after a specified time so you can fall asleep without worrying about it.

1 Press time.

Choose between 10 min, 20 min, 30 min, 60 min, 90 min, 120 min, 150 min, 180 min or OFF. The newly set value displays for 3 seconds, and then the setting is completed.

SLEEP

repeatedly to select a switch off

Note

• The sleep timer can be set by pressing SLEEP while the remaining time is displayed.

iPod/iPhone/iPad playback 05

Chapter 5:

iPod/iPhone/iPad playback

Merely by connecting your iPod/iPhone/iPad to this unit, you can enjoy high-quality sound from your iPod/iPhone/iPad. Playback setting for iPod/iPhone/iPad music can be performed from this unit or the iPod/iPhone/iPad itself.

Confirming what iPod/iPhone/iPad models are supported

The iPod/iPhone/iPad playable on this unit are shown below.

iPod/iPhone/iPad USB Terminal (Audio only)

iPod nano (3/4/5/6/7G) 

iPod touch (1/2/3/4/5G) 

iPhone 5 

iPhone 4S 

iPhone 4 

iPhone 3GS 

iPhone 3G 

iPhone 

iPad mini 

iPad (3/4G) 

iPad/iPad 2 

• This unit cannot be used to record CD, tuner or other content on an iPod/iPhone/iPad.

Connecting your iPod/iPhone/iPad

Connecting iPod/iPhone/iPad using supplied iPad stand

1 Connect the iPod/iPhone/iPad cable to the unit.

2 Pass the iPod/iPhone/iPad cable through the bottom of the stand and connect it to the iPod/ iPhone/iPad.

3 Set the iPod/iPhone/iPad on the stand.

Note

• Pioneer does not guarantee that this unit plays iPod/ iPhone/iPad models other than the ones specified.

• Some functions may be restricted depending on the model or software version.

• iPod/iPhone/iPad is licensed for reproduction of noncopyrighted materials or materials the user is legally permitted to reproduce.

• Features such as the equalizer cannot be controlled using this system, and we recommend switching the equalizer off before connecting.

• Pioneer cannot under any circumstances accept responsibility for any direct or indirect loss arising from any inconvenience or loss of recorded material resulting from iPod/iPhone/iPad failure.

• For detailed instructions on using the iPod/iPhone/iPad, please refer to the manual supplied with the iPod/ iPhone/iPad.

• This system has been developed and tested for the software version of iPod/iPhone/iPad indicated on the website of Pioneer (http://pioneer.jp/homeav/support/ ios/eu/).

• Installing software versions other than indicated on the website of Pioneer to your iPod/iPhone/iPad may result in incompatibility with this system.

iPod/iPhone/iPad playback05

Playing iPod/iPhone/iPad

1 Connect your iPod/iPhone/iPad.

• If an iPod/iPhone/iPad is connected while the unit is turned on, playback of the iPod/iPhone/iPad will not begin.

2 Press

“USB/iPod” is shown on the main display.

3 When the recognition is completed, will begin playing automatically.

If this unit cannot play your iPod/iPhone/iPad, perform the following troubleshooting checks:

If the iPod/iPhone/iPad cannot be operated, check the following items:

USB

as the input source.

• The available iPod/iPhone/iPad playback controls from the unit are /,  ,  .

• In the following case, operate your iPod/iPhone/iPad directly:

- Searching a file by artist name or genre.

- Playing in the repeat or random mode.

CAUTION

• When your iPod/iPhone/iPad is connected to this unit and you wish to operate the iPod/iPhone/iPad directly, be sure to steady the iPod/iPhone/iPad with the other hand to prevent malfunctions due to faulty contacts.

Note

• For detailed instructions on using the iPod/iPhone/iPad, please refer to the manual supplied with the iPod/ iPhone/iPad.

• iPod/iPhone/iPad recharging occurs whenever an iPod/ iPhone/iPad is connected to this unit. (This function is supported in standby mode as well.)

• When input is switched from USB/iPod to another function, iPod/iPhone/iPad playback is temporarily stopped.

Important

• Check whether the iPod/iPhone/iPad is supported by this unit.

• Reconnect the iPod/iPhone/iPad to the unit. If this doesn’t seem to work, try resetting your iPod/iPhone/ iPad.

• Check that iPod/iPhone/iPad software is supported by the unit.

• Is the iPod/iPhone/iPad connected correctly? Reconnect the iPod/iPhone/iPad to the unit.

• Is the iPod/iPhone/iPad experiencing a hangup? Try resetting the iPod/iPhone/iPad, and reconnect it to the unit.

Disc playback 06



























Chapter 6:

Disc playback

This system can play back a standard CD, CD-R/RW in the CD format and CD-R/RW with MP3 or WMA files, but cannot record on them. Some audio CD-R and CD-RW discs may not be playable due to the state of the disc or the device that was used for recording.

MP3:

MP3 is a form of compression. It is an acronym which stands for MPEG Audio Layer 3. MP3 is a type of audio code which is processed by significant compression from the original audio source with very little loss in sound quality.

• This system supports MPEG-1/2 Audio Layer 3 (Sampling rates: 8 kHz to 48 kHz; Bit rates: 64 kbps to 384 kbps).

• During VBR file playback, time counter in the display may differ from its actual playback time.

WMA:

WMA (Windows Media Audio) files are Advanced System Format files that include audio files which are compressed with Windows Media Audio codec. WMA is developed by Microsoft as an audio format file for Windows Media Player.

• This system supports WMA (Sampling rates: 32 kHz/44.1 kHz/48 kHz; Bit rates: 64 kbps to 320 kbps).

• During VBR file playback, time counter in the display may differ from its actual playback time.

Playing discs or files

1 Press

2 Press repeatedly on the main unit to select CD input.

3 Press

4 Place the disc on the disc tray, label side up.

5 Press

6 Press

After the last track is played, the unit will stop automatically.

 STANDBY/ON

on the remote control or

 OPEN/CLOSE

/

to start playback.

to turn the power on.

to open the disc tray.

to close the disc tray.

INPUT

CAUTION

• Do not place two discs in one disc tray.

• Do not play discs of special shapes (heart, octagon, etc). It may cause malfunctions.

• Do not push the disc tray whilst it is moving.

• If the power fails whilst the tray is open, wait until the power is restored.

• Be sure to place 8 cm disc in the middle of the disc tray.

Note

• Due to the structure of the disc information, it takes longer to read an MP3/WMA disc than a normal CD (approximately 20 to 90 seconds).

• When the beginning of the first tr ack is reached during fast reverse, the unit will enter the playback mode (only for CD).

• Rewritable multi-session discs with unfinished writing, can still be played.

• If TV or radio interference occurs during CD operation, move the unit away from the TV or radio.

Tip

• When no operation has done in CD mode and the audio file is not played for more than 30 minutes, the power will automatically turn off.

Various disc functions

Function Main

Play

Stop

Pause

Track up/ down

Fast forward/ reverse

unit

Remote control

Press in the stop mode.

Press in the playback mode.

Press in the playback mode. Press

/

playback from the paused point.

Press in the playback or stop mode. If you press the button in the stop mode, press the desired track.

Press and hold down in the playback mode.

Release the button to resume playback.

Operation

to resume

/

to start

Disc playback06

DISPLAY FOLDER

PRESET VOLUME

ST/MONO ASPM PTY DISPLAY

MUTE

TUNE–

TUNE+

DIMMER

 







–

MEMORY

/PROGRAM

RDS

ENTER

STANDBY/ON





CD USB TUNER AUDIO IN

DISPLAY FOLDER

TUNE+

123

456

789

BT AUDIO

CLOCK/TIMER

SLEEP

EQUALIZER

P.B AS S

BASS/TREBLE

RANDOM

CLEAR REPEAT

OPEN/CLOSE

Advanced CD or MP3/WMA disc playback

Direct track search

By using the numeric buttons, the desired tracks on the current disc can be played.

Use the numeric buttons on the remote control to select the desired track whilst playing the selected disc.

Note

• A track number higher than the number of tracks on the disc cannot be selected.

To stop playback:

Press .

Repeat play

Repeat play can play one track, all tracks or a programmed sequence continuously.

To repeat one track:

Press REPEAT repeatedly until “REPEAT ONE” appears. Press ENTER.

To repeat all tracks:

Press REPEAT repeatedly until “REPEAT ALL” appears. Press ENTER.

To repeat desired tracks:

Perform steps 1 to 5 in “Programmed play (CD or MP3/WMA)” section on next page and then press REPEAT repeatedly until “REPEAT ALL” appears. Press ENTER.

To cancel repeat play:

Press REPEAT repeatedly until “REPEAT OFF” appears. Press ENTER.

Note

• After performing repeat play, be sure to press . Otherwise, the disc will play continuously.

• During repeat play, random play is not possible.

Random play

The tracks on the disc can be played in random order automatically.

To random play all tracks:

Press RANDOM repeatedly until “RANDOM ON” appears. Press ENTER.

To cancel random play:

Press RANDOM repeatedly until “RANDOM OFF” appears. Press ENTER.

Note

• If you press the  during random play, you can move to the track selected next by the random operation. On the other hand, the  does not allow you to move to the previous track. The beginning of the track being played will be located.

• In random play, the unit will select and play tracks automatically. (You cannot select the order of the tracks.)

• During random play, repeat play is not possible.

Disc playback 06

ROOT (FOLDER 1)

FOLDER A (FOLDER 2)

FOLDER B (FOLDER 3)

FILE 9 FILE 10

FILE 3 FILE 4 FILE 5

FILE 6 FILE 7 FILE 8 FOLDER E (FOLDER 6)

FOLDER C (FOLDER 4)

FOLDER D (FOLDER 5)

FILE 1 FILE 2

Programmed play (CD or MP3/WMA)

You can choose up to 32 selections for playback in the order you like.

1 Whilst in the stop mode, press PROGRAM

on the remote control to enter the

programming save mode.

 

2 Press

or the numeric buttons on the

remote control to select the desired tracks.

3 Press ENTER to save folder and track number.

4 Repeat steps 2 to 3 for other folder/tracks. Up to 32 tracks can be programmed.

• If you want to check the programmed tracks, press MEMORY/PROGRAM.

• If you make a mistake, the last programmed tracks will be canceled by pressing CLEAR.

5 Press

/

to start playback.

To cancel the programmed play mode:

To cancel the programmed play, press  twice on the remote control. The display will show “PRG CLEAR” and all the programmed content will be cleared.

Adding tracks to the program:

Press the MEMORY/PROGRAM. Then follow steps 2 to 3 to add tracks.

Note

• When a disc is ejected anything programmed is cleared.

• If you press the  STANDBY/ON to enter the standby mode or change the function from CD to another, the programmed selections will be cleared.

• During the program operation, random play is not possible.

MEMORY

About downloading MP3/WMA

There are many music sites on the internet that you can download MP3/WMA music files. Follow the instructions from the website on how to download the music files. You can then play back these downloaded music files by burning them to a CD-R/RW disc.

• Your downloaded song/files are for personal use only. Any other usage of the song without owner’s permission, is against the law.

About folder playback order

If MP3/WMA files are recorded in several folders, a folder number will be set to each folder automatically.

These folders can be selected by the FOLDER on the remote control. If there is no supported file formats inside the selected folder, the folder is skipped and the next folder will be selected.

Example: How the folder numbers are assigned if MP3/WMA format files are recorded are as shown below.

1 ROOT folder is set as FOLDER 1.

2 As for folders inside ROOT folder (FOLDER A and FOLDER B), the folder which is recorded earlier on the disc will be set as FOLDER 2 and FOLDER 3.

3 As for folder inside FOLDER A (FOLDER C and FOLDER D), the folder which is recorded earlier on the disc will be set as FOLDER 4 and FOLDER

4 FOLDER E that is inside FOLDER D will be set as FOLDER 6.

• The folder and file order information which is recorded on the disc depends on the writing software. There maybe possibilities that this unit will playback the files not according to our expected playback order.

• From a disc with MP3/WMA files up to 255 folders and 999 files (including non playable files) can be read.

Disc playback06

STANDBY/ON





CD USB TUNER AUDIO IN

DISPLAY FOLDER

TUNE+

123

456

789

BT AUDIO

CLOCK/TIMER

SLEEP

EQUALIZER

P.B AS S

BASS/TREBLE

RANDOM

CLEAR REPEAT

OPEN/CLOSE

DISPLAY FOLDER

PRESET VOLUME

ST/MONO ASPM PTY DISPLAY

MUTE

TUNE–

TUNE+

DIMMER









–

MEMORY

/PROGRAM

RDS

ENTER

Title/Artist/Album display

Number of track, playback time display

File type display

Number of folder/track display

Specify the folder to play

To specify the folder to play, perform the following steps.

1 Press CD, and load an MP3/WMA disc.

/

2 Press FOLDER, and press desired playback folder.

3 Press ENTER.

Playback will start from the first song of the selected folder.

• Even if it is stopped, it is possible to press /, to select a folder.

to select

Switch the display contents

1 Press

If the title, artist and album name has been written to the file, that information will be displayed. (The unit can only display alphanumeric characters. Non-alphanumeric character are displayed as ”*”.)

• “Copyright protected WMA files” or “Unsupported files”

• There may be cases where no information can be

• Displaying title, artist and album name is only supported

DISPLAY

Note

cannot be played back. In these case the files will be skipped automatically.

displayed.

for MP3 files.

USB playback 07

PHONES AUDIO IN



USB storage device

(commercially available)

Chapter 7:

USB playback

Repeat play

Playing USB storage devices

It is possible to listen to two-channel audio using the USB interface on the front of this receiver.

• Pioneer does not guarantee that any file recorded on a USB storage device will play or that power will be supplied to a USB storage device. Also note that Pioneer will accept no responsibility whatsoever for loss of files on USB storage devices caused by connection to this unit.

1 Press

“USB/iPod” is shown on the main display.

2 Connect the USB storage device.

The number of folders or files stored on the connected USB storage device appear on the main display automatically.

USB

as the input source.

• This receiver does not support a USB hub.

• If an iPod/iPhone/iPad is connected to the unit, the unit will automatically begin charging it.

Repeat play can play one track, all tracks or a programmed sequence continuously.

To repeat one track:

Press REPEAT repeatedly until “REPEAT ONE” appears. Press ENTER.

To repeat all tracks:

Press REPEAT repeatedly until “REPEAT ALL” appears. Press ENTER.

To repeat desired tracks:

Perform steps 1 to 5 in “Programmed play (CD or MP3/WMA)” section on next page and then press REPEAT repeatedly until “REPEAT ALL” appears. Press ENTER.

To cancel repeat play:

Press REPEAT repeatedly until “REPEAT OFF” appears. Press ENTER.

Note

• After performing repeat play, be sure to press . Otherwise, the file of USB storage device will play continuously.

• During repeat play, random play is not possible.

3 When the recognition is completed, press

/

to start playback.

• When changing to a different input source, stop the USB memory playback first before changing.

4 Disconnect USB storage device from the USB terminal.

Turn the power off before removing the USB storage device.

Note

• USB flash drive that supports USB 2.0 can be used.

• This unit may not recognize a USB storage device, play files or supply power to a USB storage device. For details, see When a USB storage device is connected on page 35.

• When a USB storage device is not playing and no operations have been performed for more than 30 minutes, the unit will automatically power off.

Random play

The file of USB storage device can be played in random order automatically.

To random play all tracks:

Press RANDOM repeatedly until “RANDOM ON” appears. Press ENTER.

To cancel random play:

Press RANDOM repeatedly until “RANDOM OFF” appears. Press ENTER.

Note

• In random play, the unit will select and play tracks automatically. (You cannot select the order of the tracks.)

• During random play, repeat play is not possible.

USB playback07

Specify the folder to play

To specify the folder to play, perform the following steps.

1 Press device.

2 Press desired playback folder.

3 Press

Playback will start from the first song of the selected folder.

Switch the display contents

The unit can display the information recorded in the USB storage device. For details, see Switch the display contents on page 22.

USB

, and connect the USB storage

FOLDER

, and press

ENTER

• Even if it is stopped, it is possible to press /, to select a folder.

/

to select

Playing in the desired order (Programmed Play)

The unit can play folders stored on a USB storage device in the desired order. For details, see Programmed play (CD or MP3/WMA) on page 21.

Using the tuner 08

DISPLAY FOLDER

PRESET VOLUME

ST/MONO ASPM PTY DISPLAY

MUTE

TUNE–

TUNE+

DIMMER

  







–

MEMORY

/PROGRAM

RDS

ENTER

STANDBY/ON





CD USB TUNER AUDIO IN

DISPLAY FOLDER

TUNE+

123

456

789

BT AUDIO

CLOCK/TIMER

SLEEP

EQUALIZER

P.B AS S

BASS/TREBLE

RANDOM

CLEAR REPEAT

OPEN/CLOSE

Chapter 8:

Using the tuner

To receive an FM stereo transmission:

Listening to the radio broadcasts

The following steps show you how to tune in to FM radio broadcasts using the automatic (search) and manual (step) tuning functions. Once you are tuned to a station you can memorize the frequency for recall later. See Saving station presets below for more on how to do this.

Tuning

1 Press the on.

2 Press

3 Press TUNE +/– on the remote control to tune in to the desired station.

Automatic tuning:

Press and hold TUNE +/–, scanning will start automatically and the tuner will stop at the first receivable broadcast station.

Manual tuning:

Press the TUNE +/– repeatedly to tune in to the desired station.

Note

• When radio interference occurs, automatic tuning may stop automatically at that point.

• Automatic tuning will skip weak signal stations.

• To stop the automatic tuning, press .

• When an RDS (Radio Data System) station is tuned in, the frequency will be displayed first. Finally, the station name will appear.

• Full auto tuning can be achieved for RDS stations using Auto Station Program Memory (ASPM) mode, see page 27.

TUNER

 STANDBY/ON

to turn the power

• Press ST/MONO to select stereo mode and “AUTO” will be displayed.

Improving poor FM reception:

1 Press ST/MONO repeatedly to select MONO.

This will change the tuner from stereo to mono and usually improve the reception.

Saving station presets

If you often listen to a particular radio station, it’s convenient to have the receiver store the frequency for easy recall whenever you want to listen to that station (Preset tuning). This saves the effort of manually tuning in each time. This unit can memorize up to 30 stations.

DISPLAY FOLDER

TUNE+

ENTER

TUNE–

MUTE

MEMORY

/PROGRAM

–

PRESET VOLUME

–

1 Tune to a station you want to memorize.

See Tuning above for more on this.

2 Press

The preset number will flash.

3 Press

MEMORY/PROGRAM

PRESET +/–

channel number.

4 Press

MEMORY/PROGRAM

station in memory.

If the preset number has changed from flashing to lighting, before the station is memorised, repeat the operation from step 2.

• Repeat steps 1 to 4 to set other stations, or to change a preset station. When a new station is stored in the memory, the station previously memorised for that preset channel number will be erased.

Note

• The backup function protects the memorised stations for a few hours should there be a power failure or the AC power cord become disconnected.

CLEAR REPEAT

DISPLAY FOLDER

TUNE+

ENTER

PRESET VOLUME

TUNE–

MUTE

to select the preset

to store that

RANDOM

MEMORY

/PROGRAM

Using the tuner08

To recall a memorised station

1 Press station.

PRESET +/–

to select the desired

To scan the preset stations

The stations saved in the memory can be scanned automatically. (Preset memory scan)

1 Press and hold

The preset number will appear and the programmed stations will be tuned in sequentially, for 5 seconds each.

2 Press

PRESET +/–

again when the desired

station is located.

To erase entire preset memory

1 Press

2 Press appears.

TUNER

on the remote control.

CLEAR

until “MEMORY CLEAR”

Note

• All stations will be erased.

Using the Radio Data System (RDS)

An introduction to RDS

Radio Data System (RDS) is a system used by most FM radio stations to provide listeners with various kinds of information—the name of the station and the kind of show they’re broadcasting, for example.

One feature of RDS is that you can search by type of program. For example, you can search for a station that’s broadcasting a show with the program type, JAZZ.

You can search the following program types:

News – News Current Affairs – Current

Affairs Information – General Information

Sport – Sport Education – Educational Drama – Radio plays, etc. Cultures – National or regional

culture, theater, etc. Science – Science and technology Varied Speech – Usually talkbased material, such as quiz shows or interviews.

Pop Music – Pop music Rock Music – Rock music Easy Listening – Easy

listening Light Classics M – ‘Light’ classical music Serious Classics – ‘Serious’ classical music Other Music – Music not fitting above categories Weather & Metr – Weather reports

Finance – Stock market reports, commerce, trading, etc. Children’s Progs – Programs for children

Social Affairs – Social affairs Religion – Programs

concerning religion Phone In – Public expressing their views by Phone Travel & Touring – Holidaytype travel rather than traffic announcements Leisure & Hobby – Leisure interests and hobbies

Jazz Music – Jazz Country Music – Country

music National Music – Popular music in a language other than English Oldies Music – Popular music from the ‘50s and’ 60s

Folk Music – Folk music Documentary – Documentary Alarm Test – Broadcasting

when testing emergency broadcast equipment or receivers. Alarm – Alarm!

Searching for RDS programs

You can search a program type listed above.

1Press

2 Press RDS

“SELECT” will appear for about 6 seconds.

3Press want to hear.

Each time the button is pressed, the program type will appear. If the button is held down, the program type will appear continuously.

4 Whilst the selected program type is displayed (within 6 seconds), Press RDS again.

After the selected program type has been lit for 2 seconds, “SEARCH” will appear, and the search operation will start.

TUNER

on the remote control.

PTY

on the remote control.

/

to select the program type you

PTY

Note

• If the display has stopped flashing, start again from step

2. If the unit finds a desired program type, the corresponding channel number will be lit for about 8 seconds, and then the station name will be displayed.

• If you want to listen to the same program type of another station, press the RDS PTY whilst the channel number or station name is flashing. The unit will look for the next station.

Using the tuner 08

STANDBY/ON





CD USB TUNER AUDIO IN

DISPLAY FOLDER

TUNE+

123

456

789

BT AUDIO

CLOCK/TIMER

SLEEP

EQUALIZER

P.B AS S

BASS/TREBLE

RANDOM

CLEAR REPEAT

OPEN/CLOSE

DISPLAY FOLDER

PRESET VOLUME

ST/MONO ASPM PTY DISPLAY

MUTE

TUNE–

TUNE+

DIMMER









–

MEMORY

/PROGRAM

RDS

ENTER

SCAN ENTER DISPLAY

Station name (PS) Programme type (PTY)

Frequency Radio text (RT)

No RDS

FM 98.80 MHz

• If no station can be found, “NOT FOUND” will appear for 4 seconds.

Information provided by RDS

Each time the as follows:

When tuning in to a station other than an RDS station o r to an RDS station which sends weak signal, the display will change in the following order:

RDS

DISPLAY is pressed, the display will switch

Using the Auto Station Program Memory (ASPM)

Whilst in the ASPM operation mode, the tuner will automatically search for new RDS stations. Up to 30 stations can be stored.

If you have already stored some stations in memory, the number of new stations you can store will be less.

1 Press

2 Press and hold down RDS ASPM on the remote control.

After “ASPM” has flashed for about 4 seconds, scanning will start (87.5 MHz to 108 MHz).

After scanning, the number of stations stored in memory will be displayed for 4 seconds, and then “END” will appear for 4 seconds.

To stop the ASPM operation before it is complete:

Press  whilst it is scanning for stations. The stations which are already stored in memory will be kept there.

TUNER

on the remote control.

Note

• If the same station is broadcasting on different frequencies, the strongest frequency will be stored in memory.

• Any station which has the same frequency as the one stored in memory will not be stored.

• If 30 stations have already been stored in memory, the scan will be aborted. If you want to redo the ASPM operation, erase the preset memory.

• If no station have been stored in memory, “END” will appear for about 4 seconds.

• If the RDS signals are very weak, station names may not be stored in memory.

• The same station name can be stored in different channels.

• In a certain area or during certain time periods, the station names may temporarily be different.

Notes for RDS operation

If any of the following events occur, it does not mean that the unit is faulty:

• “PS”, “NO PS” and a station name appear alternately, and properly.

• If a particular station is not broadcasting properly or a station is conducting tests, the RDS reception function may not work properly.

• When you receive an RDS station whose signal is too weak, information like the station name may not be displayed.

• “NO PS”, “NO PTY” or “NO RT” will flash for about 5 seconds, and then the frequency will be displayed.

Notes for radio text:

• The first 16 characters of the radio text will appear and then they will scroll across the display.

• If you tune in to an RDS station which is not broadcasting any radio text, “NO RT” will be displayed when you switch to the radio text position.

• Whilst radio text data is received or when the text contents change, “RT” will be displayed.

Using the tuner08

DAB + SIGNAL

MULTIPLEX (ENSEMBLE)

SERVICES

SERVICES COMPONENTS (STATIONS)

DISPLAY FOLDER

PRESET VOLUME

ST/MONO ASPM PTY DISPLAY

MUTE

TUNE–

TUNE+

DIMMER









–

MEMORY

/PROGRAM

RDS

ENTER

SCAN ENTER DISPLAY

DAB

Listening to the DAB+

About DAB+ (Digital Audio Broadcasting)

Digital Audio Broadcasting is a digital transmission system where audio signals are converted to digital signals for broadcasting. DAB+ is broadcast as a group of data called multiplex (ensemble) which may contain one or more stations (services). Each station contains a primary service and there may be one or more secondary services. This allows several programmes or services to be transmitted on a single frequency.

Auto Scan

After the scan:

The stations will be stored in alphanumeric order and the first station on the list will be selected and you will hear it through the speakers.

• To listen to other stations, see Selecting a station in the station list below.

Note

• If no station is found, "NO SIGNAL" appears.

• Up to 100 appears for total received stations.

Selecting a station in the station list

Once a DAB+ station is received, you can select stations in the station list.

1 Press the

TUNER

until "DAB" appears on the

display.

2 Whilst receiving a DAB+ station, press the TUNE +/–

3 Within 10 seconds, press the

to select the desired station.

DAB ENTER

on the remote control to tune into the desired station.

Manual tune

You can manually store stations which Auto Scan cannot find. If reception is poor, you can adjust the sensitivity. Manual tune is only available after Auto tune. Perform Auto Scan first.

1 Press the display.

2 Press the

3 Within 10 seconds, press the select the DAB+ frequency.

4 Within 10 seconds, press the

• If the level is too low, move the aerial or unit to improve reception.

TUNER

until "DAB" appears on the

DAB SCAN

once.

TUNE +/–

DAB ENTER

When turned on for the first time, the unit scans radio stations automatically to create a station list. You can make the auto scan again when you move the unit to other areas or add multiplex channels to the station list.

1 Press the

TUNER

until "DAB" appears on the

display.

2 Press DAB SCAN on the remote control for more than 3 seconds.

Auto Scan scanning begins.

Using the tuner 08

Changing the information display

You can switch DAB+ display information. Press the DAB DISPLAY button. Each time the button is pressed, the information display

changes in the following order. When "NO SIGNAL" appears, the DAB DISPLAY button does

not allow you to change the display.

[Station Name]

Station name is displayed. (set by default)

[Scrolling text]

Information scrolls across the display when sent from the station.

[Programme type]

A description of the type of content being broadcast by the station.

[Multiplex name]

The name of the multiplex (ensemble) which provides the current service.

[Frequency]

The DAB+ frequency for the station.

[Stereo mode]

Display stereo mode.

[Transfer speed]

The data transfer speed.

[Signal quality]

The signal quality is displayed as a number (0 - 100). [85-100: Good, 70-84: Fair, 0-69: Poor]

Memorising a station

You can store 10 DAB stations in memory and recall them at the push of a button. (Preset tuning)

1 Tune to the desired DAB station.

2 Press the MEMORY/

The preset number will flash.

PROGRAM

3 Within 10 seconds, press the select the preset channel number.

Store the stations in memory, in order, starting with preset channel 1.

4 Within 10 seconds, press the PROGRAM

If the preset number indicators disappear before the station is memorised, repeat the operation from step 2.

to store that station in memory.

5 Repeat steps 1 - 4 to set other stations, or to change a preset station.

When a new station is stored in the memory, the station previously memorised for that preset channel number will be erased.

PRESET +/–

MEMORY

DAB Frequency table (BAND III)

Frequency Label Frequency Label

174.928 MHz 5A 208.064 MHz 9D

176.640 MHz 5B 209.936 MHz 10A

178.352 MHz 5C 211.648 MHz 10B

180.064 MHz 5D 213.360 MHz 10C

181.936 MHz 6A 215.072 MHz 10D

183.648 MHz 6B 216.928 MHz 11A

185.360 MHz 6C 218.640 MHz 11B

187.072 MHz 6D 220.352 MHz 11C

188.928 MHz 7A 222.064 MHz 11D

190.640 MHz 7B 223.936 MHz 12A

192.352 MHz 7C 225.648 MHz 12B

194.064 MHz 7D 227.360 MHz 12C

195.936 MHz 8A 229.072 MHz 12D

197.648 MHz 8B 230.784 MHz 13A

199.360 MHz 8C 232.496 MHz 13B

201.072 MHz 8D 234.208 MHz 13C

202.928 MHz 9A 235.776 MHz 13D

204.640 MHz 9B 237.488 MHz 13E

206.352 MHz 9C 239.200 MHz 13F

Other connections09

 STANDBY/ON

INPUT

VOLUME

PHONES AUDIO IN

  

TIMER

Portable audio player, etc.

Stereo mini-plug cable (commercially available)

LINE

SUBWOOFER

PREOUT

This unit’s rear panel

Audio cable (commercially available)

Chapter 9:

Other connections

CAUTION

• Before making or changing the connections, switch off the power and disconnect the power cord from the AC outlet.

Connecting auxiliary components

Connect the front panel AUDIO IN mini-plug jack to your auxiliary playback component.

• This method can be used to play music on this unit from iPods/iPhones/iPads that do not support use of the USB terminal.

PHONES AUDIO IN

Connect the rear panel LINE IN audio jacks to your auxiliary playback component.

1Press

When LINE is selected “LINE” will be displayed on the main display.

AUDIO IN

twice as the input source.

1 Switch input by pressing the main unit or the

AUDIO IN

on the remote

control.

When INPUT is selected “AUDIO IN” will be displayed on the main display.

Note

•If the AUDIO IN mini-plug jack is connected to auxiliary phones jack, the volume of the unit will be adjusted by the volume on the playback component. If the sound is distorted after you lower the volume of the unit, try lowering the volume on the auxiliary playback component.

INPUT

on the

Bluetooth

 STANDBY/ON

INPUT

VOLUME

PHONES AUDIO IN



 



TIMER

Bluetooth wireless technology

enabled device:

Cell phone

Bluetooth wireless technology

enabled device:

Digital music player

Device not equipped with Bluetooth

wireless technology: Digital music player

Bluetooth

audio transmitter

(commercially available)

Music data

® Audio playback

Chapter 10:

Bluetooth® Audio playback

Music playback using

Bluetooth

wireless

technology

The unit is capable of playing back music stored on Bluetooth capable devices (cell phones, digital music players etc.) wirelessly. You can also use a Bluetooth audio transmitter (sold separately) to enjoy music from devices that do not have Bluetooth functionality. Please refer to the user’s manual for your Bluetooth capable device for more details.

The Bluetooth trademarks owned by Bluetooth SIG, Inc. and any use of such marks by PIONEER CORPORATION is under license. Other trademarks and trade names are those of their respective owners.

word mark and logos are registered

Pairing with the unit (Initial registration)

In order for the unit to playback music stored on a Bluetooth capable device, pairing must first be performed. Pairing should be performed when first using the unit with the Bluetooth capable device, or when the pairing data on the device has been erased for any reason. Pairing is a step required to allow communication using Bluetooth wireless technology to be carried out.

• Pairing is only performed the first time that you use the unit and the Bluetooth capable device together.

• In order to allow communication using Bluetooth wireless technology to take place, pairing must be performed on both the unit and the Bluetooth capable device.

• After pressing the BT AUDIO and switching to BT AUDIO input, perform the pairing procedure on the Bluetooth capable device. If pairing has been performed correctly, you will not need to perform the pairing procedures for the unit as shown below.

Please refer to the user’s manual for your Bluetooth capable device for more details.

Press the  STANDBY/ON and turn the

power to the unit on.

2 Press the

The unit switches to BT AUDIO and PAIRING will be displayed.

3 Turn on the power to the Bluetooth capable device that you wish to pair with, and perform pairing procedure on it.

Note

• This unit will be displayed as “X-HM51” on all Bluetooth capable devices that you have.

Pairing will start.

•Place the Bluetooth capable device close to the unit.

• Please refer to the user’s manual for your Bluetooth capable device for details on when pairing can be performed and the procedures required for pairing.

• When PIN code entry is requested, enter “0000.” (This unit does not accept any PIN code setting other than “0000.”)

4 Confirm on the Bluetooth capable device that pairing has been completed.

If pairing with the Bluetooth capable device has been completed correctly, the name of the Bluetooth capable device will be displayed on the front panel of the unit. (Only single-byte alphanumeric characters can be displayed. Any character that cannot be displayed will be indicated by a “*”.)

BT AUDIO

Bluetooth

® Audio playback

Listen to music on the unit from a

Bluetooth

1 Press the

The unit will switch to BT AUDIO input.

2A Bluetooth connection will be created between the Bluetooth capable device and the unit.

Procedures for connecting to the unit should be performed from the Bluetooth capable device.

• Please refer to the user’s manual for your Bluetooth

3 Playback music from the Bluetooth capable device.

capable device

BT AUDIO

capable device for details of the connection procedures.

Radio wave caution

This unit uses a 2.4 GHz radio wave frequency, which is a band used by other wireless systems (see list below). To prevent noise or interrupted communication, do not use this unit nearby such devices, or make sure these devices are switched off during use.

• Cordless phones

• Cordless facsimiles

• Microwave ovens

• Wireless LAN devices (IEEE802.11b/g)

• Wireless AV equipment

• Wireless controllers for game systems

• Microwave-based health aids

• Some baby monitors Other, less common, equipment that may operate on the same frequency:

• Anti-theft systems

• Amateur radio stations (HAM)

• Warehouse logistic management systems

• Discrimination systems for train or emergency vehicles

Note

• In the event noise appears in your television image, there

is the possibility that a Bluetooth wireless technology enabled device or this unit (including products supported by this unit) are causing signal interference with the antenna input connector of your television, video, satellite tuner, etc. In this event, increase the distance between the antenna input connector and the Bluetooth wireless technology enabled device or this unit (including products supported by this unit).

• If there is something obstructing the path between this

unit (including devices supported by this unit) and the device equipped with Bluetooth wireless technology (such as a metal door, concrete wall, or insulation containing tinfoil), you may need to change the location of your system to prevent signal noise and interruptions.

Scope of operation

Use of this unit is limited to home use. (Transmission distances may be reduced depending on communication environment).

In the following locations, poor condition or inability to receive radio waves may cause the audio to be interrupted or stopped:

• In reinforced concrete buildings or steel framed or iron-

framed buildings.

• Near large metallic furniture.

• In a crowd of people or near a building or obstacle.

• In a location exposed to the magnetic field, static

electricity or radio wave interference from radio communication equipment using the same frequency band (2.4 GHz) as this unit, such as a 2.4 GHz wireless LAN device (IEEE802.11b/g) or microwave oven.

Bluetooth

• If you live in a heavily populated residential area (apartment, townhouse, etc.) and if your neighbor’s microwave is placed near your system, you may experience radio wave interference. If this occurs, move your unit to a different place. When the microwave is not in use, there will be no radio wave interference.

® Audio playback

Radio wave reflections

The radio waves received by this unit include the radio wave coming directly from the device equipped with Bluetooth wireless technology (direct wave) and waves coming from various directions due to reflections by walls, furniture and building (reflected waves). The reflected waves (due to obstacles and reflecting objects) further produce a variety of reflected waves as well as variation in reception condition depending on locations. If the audio cannot be received properly due to this phenomenon, try moving the location of the device equipped with Bluetooth wireless technology a little. Also note that audio may be interrupted due to the reflected waves when a person crosses or approaches the space between this unit and the device equipped with Bluetooth wireless technology.

Precautions regarding connections to products supported by this unit

• Complete connections for all devices supported by this unit, including all audio cords and power cables before connecting them to this unit.

• After completing connections to this unit, check the audio and power cables to confirm that they not twisted together.

• When disconnecting this unit, confirm that you have sufficient working space in the surrounding area.

• When changing connections of audio or other cables for products supported by this unit, confirm that you have sufficient working space in the surrounding area.

Additional information11

Chapter 11:

Additional information

Troubleshooting

Incorrect operations are often mistaken for trouble and malfunctions. If you think that there is something wrong with this component, check the points below. Sometimes the trouble may lie in another component. Investigate the other components and electrical appliances being used. If the trouble cannot be rectified even after exercising the checks listed below, ask your nearest Pioneer authorized service center or your dealer to carry out repair work.

• If the unit does not operate normally due to external effects such as static electricity disconnect the power plug from the outlet and insert again to return to normal operating conditions.

General problem

Problem Check Remedy

Settings you have made have been cleared.

Difference in volume between CDs, MP3, WMA, iPod/iPhone/iPad, Tuner,

AUDIO IN

and

LINE

This unit cannot be operated with the remote control.

Disc cannot be played or disc is ejected automatically.

Folder or file names are not recognized. (WMA, MP3).

The unit turns off automatically.

Was the power cord unplugged? When power cord is unplugged, the settings you have made is

This is not a problem with this unit. The volume may sound differentl y depending on the input source

Are you operating from far away? Operate within 7 m,

Is the remote control sensor exposed to direct sunlight or strong artificial light from a fluorescent bulb, etc.?

Are the batteries dead? Replace the batteries (page 6).

Is the disc scratched? Scratched discs may not play.

Is the disc dirty? Wipe the dirt off the disc (page 38).

Is this unit placed in a humid location?

Have you exceeded the maximum number of folder or file names t his unit can recognize?

cleared. Please set the clock again. If you do not want to clear the settings, do not unplug the power cord.

and recording format.

30º

(page 6).

The remote control signals may not be received properly if the remote control sensor is exposed to direct sunlight or strong artificial light from a fluorescent bulb, etc.

There could be condensation inside. Wait a while for the condensation to evaporate. Do not place this unit near an airconditioner, etc. (page 38).

Up to 255 folders can be recognized on one disc. Up to 999 files can be recognized within one folder. Depending on the folder structure, however, this unit may not be able to recognize certain folders or files.

If no play back and no operation has done for 30 minutes or more, the unit turns off automatically.

of the remote sensor on the front panel

Additional information 11

Problem Check Remedy

Unable to connect to a

Bluetooth

capable device, no sound comes out at all or sound cuts out when connected.

When a USB storage device is connected

Problem Check Remedy

USB storage device is not recognized.

File cannot be played. Is the file copyright-protected (by

Folder or file names are not displayed or are not properly displayed.

Folder or file names are not displayed in alphabetical order.

Much time is required to recognize the USB storage device.

Are there any devices nearby that emit electromagnetic waves in the

2.4 GHz band (microwaves, wireless LAN devices, other devices etc.)?

Is the

Bluetooth

far away from the unit, or is there something between them?

Is the

Bluetooth

a mode that allows for wireless communication?

Has pairing not been completed successfully, or has either the unit or the

Bluetooth

the previous pairing setting?

Does the device you are trying to connect have a supported profile?

Is the USB storage device properly connected?

Is the USB storage device connected via a USB hub?

Is the USB storage device supported by this unit?

This is not a problem with this unit. Turn the power off then back on.

DRM)?

This is not a problem with this unit. Files stored on a computer cannot be played.

Do the folder or file names contain more than 30 characters?

This is not a problem with this unit. The order in which the folder and file names are displayed depends

What is the USB storage devices capacity?

Bluetooth

capable device too

capable device set to

Bluetooth

capable device erased

If so, either move these devices away from the unit, or stop using other devices that emit electromagnetic waves.

capable

Place the

Bluetooth

obstacles between them, and within a range of 10 m *. * Only a suggested range. The actual possible communication range may change depending upon the surrounding environment.

Check the settings on the

Perform the pairing operation again.

Please use a

Connect the device securely (all the way in).

This unit does not support USB hubs. Connect the USB storage device directly.

This unit only supports USB mass storage class devices.

This unit supports portabl e flash memory and digital audio playback devices.

Only the FAT16 and FAT32 file systems are supported. Other file systems (exFAT, NTFS, HFS etc.) are not supported.

USB flash drive that supports USB 2.0 can be used.

This device does not support the use of external hard disc drives.

Some USB storage devices may not be recognized properly.

It may not be possible to play some files.

The maximum number of characters displayable for the folder and file names is 30.

on the order in which the folders or files were recorded on the USB storage device.

Some time may be required to load the data when large capacity USB storage devices are connected (this could take several minutes).

capable device inside the same room, with no

Bluetooth

capable device.

Bluetooth

capable device that supports A2DP.

Additional information11

Problem Check Remedy

Power is not supplied to the USB storage device.

When an iPod/iPhone/iPad is connected

Problem Remedy

Can’t operate the iPod/iPhone/iPad by the remote control. Make sure the iPod/iPhone/iPad is connected correctly (refer to

Can’t operate the iPod/iPhone/iPad. Make sure the iPod/iPhone/iPad is connected correctly (refer to

AUTH ERROR

front panel display? No power is supplied if the power consumption is too high.

displayed on the

Turn the power off then back on.

Turn the power off, then disconnect and reconnect the USB storage device.

Press

INPUT

USB/iPod

Connecting your iPod/iPhone/iPad

If the iPod/iPhone/iPad is experiencing a hangup, try resetting the iPod/iPhone/iPad, and reconnect it to the uni t.

to switch to the other input, then switch again to the

input.

on page 17).

Additional information 11

Playable discs and formats

Audio CD

WMA

MP3

• Only the discs that have been finalized can be played.

• Discs recorded in packet write mode (UDF format) are not compatible with this unit.

• Corporation and product names mentioned herein are trademarks or registered trademarks of the respective corporations.

• Only discs recorded in ISO9660 Level 1, Level 2 and Joliet can be played.

• Files protected by DRM (Digital Rights Management) cannot be played.

Note

• This unit does not support multisession discs or multiborder recording.

• Multisession/multiborder recording is a method in which data is recorded on a single disc in two or more sessions/borders. A “session” or “border” is one recording unit, consisting of a complete set of data fro m lead-in to lead-out.

Regarding copy protected CDs

This unit is designed to conform to the specifications of the audio CD format. This unit does not support the playback or function of discs that do not conform to these specifications.

Supported audio file formats

• This unit does not support lossless encoding.

• Commercially available audio CDs

• CD-R/ -RW/ -ROM discs containing music recorded in the CD-DA format

WMA files recorded on CD-R/ -RW/ -ROM discs or USB storage devices

MP3 files recorded on CD-R/ -RW/ -ROM discs or USB storage devices

Cautions on use

When moving this unit

When moving this unit, be sure to first check that there is no disc loaded and disconnect the iPod/iPhone/iPad. Then press  STANDBY/ON, wait for “STAND BY” disappears on main display to turn off, then unplug the power cord. Damage may occur if the unit is transported or moved with a disc inserted, or when another device is connected to the USB terminal or AUDIO IN mini-plug jack.

Place of installation

• Choose a stable place near the TV or stereo system being used with this unit.

• Do not place this unit on top of a TV or color monitor. Also install it away from cassette decks and other devices easily affected by magnetic forces.

Avoid the following locations:

• Places exposed to direct sunlight

• Humid or poorly ventilated places

•Extremely hot places

• Places exposed to vibrations

• Places in which there is much dust or cigarette smoke

• Places exposed to soot, steam or heat (kitchens, etc.)

Additional information11

Do not place objects on this unit

Do not place any objects on top of this unit.

Do not obstruct the ventilation holes.

Do not use this unit on shaggy rugs, beds, sofas, etc., or wrapped in cloth, etc. Doing so will prevent the heat from dispersing, leading to damage.

Do not expose to heat.

Do not place this unit on top of an amplifier or other component that generates heat. When rack mounting it, to avoid the heat given off by the amplifier or other audio component, place it on a shelf below the amplifier.

• Turn off the unit’s power when not using it.

• Depending on signal conditions, striped patterns may appear on a TV screen and noise may enter the sound of radio broadcasts when the unit’s power is on. If this happens, turn the unit’s power off.

About condensation

If this unit is moved suddenly from a cold place into a warm room (in winter, for example) or if the temperature in the room in which this unit is installed rises suddenly due to heater operation, etc., water droplets (condensation) may form inside (on operating parts and the lens). When condensation is present, this unit will not operate properly and playback is not possible. Let this unit stand at room temperature for 1 or 2 hours with the power turned on (the time depends on the extent of condensation). The water droplets will dissipate and playback will become possible. Condensation can also occur in the summer if this unit is directly exposed to the air flow from an air-conditioner. If this happens, move this unit to a different place.

Cleaning the product

• Unplug the power cord from the power outlet when cleaning this unit.

• Clean this unit using a soft cloth. For tough dirt, apply some neutral detergent diluted in 5 to 6 parts water to a soft cloth, wring out thoroughly, wipe off the dirt, then wipe again with a soft, dry cloth.

• Alcohol, thinner, benzene, insecticides, etc., could cause the print or paint to peel off. Also, leaving rubber or vinyl products in contact with this unit for long periods of time could mar the cabinet.

• When using chemical-impregnated wipes, etc., read the cautions included with the wipes carefully.

Cleaning the lens

• This unit’s lens should not become dirty in normal use, but if for some reason it should malfunction due to dust or dirt, consult your nearest Pioneer authorized service center. Although lens cleaners for players are commercially available, we advise against using them since some may damage the lens.

Handling discs

Storing

• Always place discs in their cases and store them vertically, avoiding hot, humid places, places exposed to direct sunlight and extremely cold places.

• Be sure to read the cautions included with the disc.

Cleaning discs

• Discs may not play if there are fingerprints or dust on them. In this case, use a cleaning cloth, etc., to gently wipe the disc from the inside towards the outside. Do not use dirty cleaning cloths.

• Do not use benzene, thinner or other volatile chemicals. Also do not use record spray or antistatic agents.

• For tough dirt, apply some water to a soft cloth, wring out thoroughly, wipe off the dirt, then wipe off the moisture with a dry cloth.

• Do not use damaged (cracked or warped) discs.

• Do not let the signal surface of discs get scratched or dirty.

• Do not attach pieces of paper or stickers to discs. Doing so could warp discs, making it impossible to play them. Also note that rental discs often have labels attached to them, and the label’s glue may have oozed out. Check that there is no glue around the edges of such labels before using rented discs.

About specially shaped discs

Specially shaped discs (heart-shaped, hexagonal, etc.) cannot be played on this unit. Do not attempt to play such discs, as they could damage this unit.

Additional information 11

About iPod/iPhone/iPad

“Made for iPod,” “Made for iPhone,” and “Made for iPad” mean that an electronic accessory has been designed to connect specifically to iPod, iPhone, or iPad, respectively, and has been certified by the developer to meet Apple performance standards. Apple is not responsible for the operation of this device or its compliance with safety and regulatory standards. Please note that the use of this accessory with iPod, iPhone, or iPad may affect wireless performance.

iPad, iPhone, iPod, iPod nano and iPod touch are trademarks of Apple Inc., registered in the U.S. and other countries.

Restoring all the settings to the defaults

Use the steps below to restore the all settings to their defaults.

1 Press

2 Press the main unit repeatedly to select

3 Press

4 Press

Use the buttons on this unit’s top panel. “DEFAULT” is displayed while the settings are being restored. Power is turned off.

 STANDBY/ON

on the remote control or

 OPEN/CLOSE



STANDBY/ON while pressing .

to turn the power on.

input.

to open the disc tray.

INPUT

Additional information11

Specifications

• Amplifier section

RMS Power Output: . . . . . . . . . . . . . . . . . . . . . . . 50 W + 50 W

• Tuner section

Frequency Range (FM) . . . . . . . . . . . . . . 87.5 MHz to 108 MHz

Frequency Range (DAB). . . . . . .174.928 MHz to 239.200 MHz

Antenna Input (DAB/FM) . . . . . . . . . . . . . . . .75  unbalanced

• Miscellaneous

USB terminal. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 V, 2.1 A

Power source. . . . . . . . . . . . . . AC 220 V to 240 V, 50 Hz/60 Hz

Power consumption

Power on . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36 W

Power stand-by . . . . . . . . . . . . . . . . . . . . . . . . . 0.5 W or less

Dimensions . . . . . 215 mm (W) x 100.5 mm (H) x 325 mm (D)

Weight (without package) . . . . . . . . . . . . . . . . . . . . . . . . 2.3 kg

• Speaker (X-HM51DAB only)

Magnetically shielded speaker system Type

2-way type speaker system

2.5 cm dome Tweeter

12 cm cone Woofer

Maximum input power . . . . . . . . . . . . . . . . . . . . . . . . . . . .50 W

Impedance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 

Dimensions . . . . . 156 mm (W) x 241.5 mm (H) x 243 mm (D)

Weight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3.4 kg/each

• Accessories

Remote control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

DAB/FM wire antenna . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

AAA batteries (R03) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Speaker cord (X-HM51DAB only) . . . . . . . . . . . . . . . . . . . . . . 2

iPad stand . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

Power cord Warranty card Operating instructions (This document)

(1 kHz, 10 %, T.H.D., 4 )

Note

• The specifications are applicable when the power supply is 230 V.

• Specifications and the design are subject to possible modifications without notice, due to improvements.

Additional information 11

Declaration of Conformity with regard to the R&TTE Directive 1999/5/EC

Manufacturer:

PIONEER CORPORATION

1-1, Shin-ogura, Saiwai-ku, Kawasaki-shi, Kanagawa 212-0031, Japan

[*] X-HM51DAB-K,

XC-HM51DAB-K

English:

Hereby, Pioneer, declares that this [*] is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC.

Suomi:

Pioneer vakuuttaa täten että [*] tyyppinen laite on direktiivin 1999/5/EY oleellisten vaatimusten ja sitä koskevien direktiivin muiden ehtojen mukainen.

Nederlands:

Hierbij verklaart Pioneer dat het toestel [*] in overeenstemming is met de essentiële eisen en de andere relevante bepalingen van richtlijn 1999/5/EG

EU Representative’s:

Pioneer Europe NV

Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium

http://www.pioneer.eu

Dansk:

Undertegnede Pioneer erklærer herved, at følgende udstyr [*] overholder de væsentlige krav og øvrige relevante krav i direktiv 1999/5/EF

Deutsch:

Hiermit erklärt Pioneer, dass sich dieses [*] in Übereinstimmung mit den grundlegenden Anforderungen und den anderen relevanten Vorschriften der Richtlinie 1999/5/EG befindet". (BMWi)

Ελληνικά:

ΜΕ ΤΗΝ ΠΑΡΟΥΣΑ Pioneer ΔΗΛΩΝΕΙ

[*] ΣΥΜΜΟΡΦΩΝΕΤΑΙ ΠΡΟΣ ΤΙΣ

ΟΤΙ ΟΥΣΙΩΔΕΙΣ ΑΠΑΙΤΗΣΕΙΣ ΚΑΙ ΤΙΣ ΛΟΙΠΕΣ ΣΧΕΤΙΚΕΣ ΔΙΑΤΑΞΕΙΣ ΤΗΣ ΟΔΗΓΙΑΣ 1999/5/ΕΚ

Français:

Par la présente Pioneer déclare que l’appareil [*] est conforme aux exigences essentielles et aux autres dispositions pertinentes de la directive 1999/5/CE

Svenska:

Härmed intygar Pioneer att denna [*] står I överensstämmelse med de väsentliga egenskapskrav och övriga relevanta bestämmelser som framgår av direktiv 1999/5/EG.

Italiano:

Con la presente Pioneer dichiara che questo [*] è conforme ai requisiti essenziali ed alle altre disposizioni pertinenti stabilite dalla direttiva 1999/5/CE.

Español:

Por medio de la presente Pioneer declara que el [*] cumple con los requisitos esenciales y cualesquiera otras disposiciones aplicables o exigibles de la Directiva 1999/5/CE

Português:

Pioneer declara que este [*] está conforme com os requisitos essenciais e outras disposições da Directiva 1999/5/CE.

Čeština:

Pioneer tímto prohlašuje, že tento [*] je ve shodě se základními požadavky a dalšími příslušnými ustanoveními směrnice 1999/5/ES

Slovenščina:

Pioneer izjavlja, da je ta [*] v skladu z bistvenimi zahtevami in ostalimi relevantnimi določili direktive 1999/5/ES.

Română:

Prin prezenta, Pioneer declara ca acest [*] este in conformitate cu cerintele esentiale si alte prevederi ale Directivei 1999/5/EU.

Eesti:

Käesolevaga kinnitab Pioneer seadme [*] vastavust direktiivi 1999/5/EÜ põhinõuetele ja nimetatud direktiivist tulenevatele teistele asjakohastele sätetele.

Magyar:

Alulírott, Pioneer nyilatkozom, hogy a [*] megfelel a vonatkozó alapvetõ követelményeknek és az 1999/5/EC irányelv egyéb elõírásainak.

Latviešu valoda:

Ar šo Pioneer deklarē, ka [*] atbilst Direktīvas 1999/5/EK būtiskajām prasībām un citiem ar to saistītajiem noteikumiem.

Lietuvių kalba:

Šiuo Pioneer deklaruoja, kad šis [*] atitinka esminius reikalavimus ir kitas 1999/5/EB Direktyvos nuostatas.

Malti:

Hawnhekk, Pioneer jiddikjara li dan [*] jikkonforma mal-ħtiġijiet essenzjali u ma provvedimenti oħrajn fid-Dirrettiva 1999/5/EC

relevanti li hemm

Slovenčina:

Pioneer týmto vyhlasuje, že [*] spĺňa základné požiadavky a všetky príslušné ustanovenia Smernice 1999/5/ES.

български:

С настоящето, Pioneer декларира, че този [*] отговаря на основните изисквания и други съответни постановления на Директива 1999/5/EC.

Polski:

Niniejszym Pioneer oświadcza, że [*] jest zgodny z zasadniczymi wymogami oraz pozostałymi stosownymi postanowieniami Dyrektywy 1999/5/EC

Norsk:

Pioneer erklærer herved at utstyret [*] er i samsvar med de grunnleggende krav og øvrige relevante krav i direktiv 1999/5/EF.

Íslenska:

Hér með lýsir Pioneer yfir því að [*] er í samræmi við grunnkröfur og aðrar kröfur, sem gerðar eru í tilskipun 1999/5/EC

Hrvatski:

Ovime tvrtka Pioneer izjavljuje da je ovaj [*] u skladu osnovnim zahtjevima i ostalim odredbama Direktive 1999/5/EC.

R-TTE-24L_C1_En

Printed in China

http://www.pioneer.co.uk

http://www.pioneer.eu

<YOM200153-0012>

PIONEER CORPORATION

1-1, Shin-ogura, Saiwai-ku, Kawasaki-shi, Kanagawa 212-0031, Japan

PIONEER ELECTRONICS (USA) INC.

P.O. BOX 1540, Long Beach, California 90801-1540, U.S.A. TEL: (800) 421-1404

PIONEER ELECTRONICS OF CANADA, INC.

340 Ferrier Street, Unit 2, Markham, Ontario L3R 2Z5, Canada TEL: 1-877-283-5901, 905-479-4411

PIONEER EUROPE NV

Haven 1087, Keetberglaan 1, B-9120 Melsele, Belgium TEL: 03/570.05.11

PIONEER ELECTRONICS ASIACENTRE PTE. LTD.

253 Alexandra Road, #04-01, Singapore 159936 TEL: 65-6472-7555

PIONEER ELECTRONICS AUSTRALIA PTY. LTD.

5 Arco Lane, Heatherton, Victoria, 3202, Australia, TEL: (03) 9586-6300

PIONEER ELECTRONICS DE MEXICO S.A. DE C.V.

Blvd.Manuel Avila Camacho 138 10 piso Col.Lomas de Chapultepec, Mexico, D.F. 11000 TEL: 55-9178-4270

K002_B3_En

Pioneer X-HM51DAB-K User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
