DVD Receiver System

X-HM30DAB

-K

Operating Instructions

En-1

WARNING

This equipment is not waterproof. To prevent a fire or shock hazard, do not place any container filled with liquid near this equipment (such as a vase or flower pot) or expose it to dripping, splashing, rain or moisture.

D3-4-2-1-3_A1_En

WARNING

Before plugging in for the first time, read the following section carefully.

The voltage of the available power supply differs according to country or region. Be sure that the power supply voltage of the area where this unit will be used meets the required voltage (e.g., 230 V or 120 V) written on the rear panel.

D3-4-2-1-4*_A1_En

WARNING

To prevent a fire hazard, do not place any naked flame sources (such as a lighted candle) on the equipment.

D3-4-2-1-7a_A1_En

Operating Environment

Operating environment temperature and humidity: +5 °C to +35 °C (+41 °F to +95 °F); less than 85 %RH (cooling vents not blocked) Do not install this unit in a poorly ventilated area, or in locations exposed to high humidity or direct sunlight (or strong artificial light)

If the AC plug of this unit does not match the AC outlet you want to use, the plug must be removed and appropriate one fitted. Replacement and mounting of an AC plug on the power supply cord of this unit should be performed only by qualified service personnel. If connected to an AC outlet, the cut-off plug can cause severe electrical shock. Make sure it is properly disposed of after removal. The equipment should be disconnected by removing the mains plug from the wall socket when left unused for a long period of time (for example, when on vacation).

D3-4-2-1-7c*_A1_En

D3-4-2-2-1a_A1_En

VENTILATION CAUTION

When installing this unit, make sure to leave space around the unit for ventilation to improve heat radiation (at least 10 cm at top, 10 cm at rear, and 10 cm at each side).

10 cm 10 cm

10 cm

WARNING

Slots and openings in the cabinet are provided for ventilation to ensure reliable operation of the product, and to protect it from overheating. To prevent fire hazard, the openings should never be blocked or covered with items (such as newspapers, table-cloths, curtains) or by operating the equipment on thick carpe or a bed.

D3-4-2-1-7b*_A1_E

CAUTION

The STANDBY/ON switch on this unit will not completely shut off all power from the AC outlet. Since the power cord serves as the main disconnect device for the unit, you will need to unplug it from the AC outlet to shut down all power. Therefore, make sure the unit has been installed so that the power cord can be easily unplugged from the AC outlet in case of an accident. To avoid fire hazard, the power cord should also be unplugged from the AC outlet when left unused for a long period of time (for example, when on vacation).

This product is for general household purposes. Any failure due to use for other than household purposes (such as long-term use for business purposes in a restaurant or use in a car or ship) and which requires repair will be charged for even during the warranty period.

En-2

D3-4-2-2-2a*_A1_En

K041_A1_En

CAUTION

This product is a class 1 laser product classified under the Safety of laser products, IEC 60825-1:1993 + A1:1997 + A2:2001, but this product contains a laser diode higher than Class 1. To ensure continued safety, do not remove any covers or attempt to gain access to the inside of the product. Refer all servicing

to qualified personnel.

The following caution label appears on your unit. Location: Inside of the unit

Condensation

If the player is moved suddenly from a cold place into a warm room (in winter, for example) or if the temperature in the room in which the player is installed rises suddenly due to a heater, etc., water droplets (condensation) may form inside (on operating parts and the lens). When condensation is present, the player will not operate properly and playback is not possible. Let the player stand at room temperature for 1 or 2 hours with the power turned on (the time depends on the extent of condensation). The water droplets will dissipate and playback will become possible. Condensation can also occur in the summer if the player is exposed to the direct wind from an air-conditioner. If this happens, move the player to a different place.

S005_A1_En

“Made for iPod,” “Made for iPhone,” and “Made for iPad” mean that an electronic accessory has been designed to connect specifically to iPod, iPhone, or iPad, respectively, and has been certified by the developer to meet Apple performance standards. Apple is not responsible for the operation of this device or its compliance with safety and regulatory standards.

Please note that the use of this accessory with iPod, iPhone, or iPad may affect wireless performance.

iPad, iPhone and iPod are trademarks of Apple Inc., registered in the U.S. and other countries.

(Symbol examples for batteries)

These symbols are only valid in the European Union.

K058c_A1_En

En-3

DVD Receiver System consisting of main unit and speaker system

MEMORY/FOLDER

DVD/CD

TUNER/DAB

SCAN

ENTER(DAB)

DISPLAY

Introduction

Thank you for purchasing this PIONEER product. To obtain the best performance from this product, please read this manual carefully. It will guide you in operating your PIONEER product.

Special Note

Supply of this product does not convey a license nor imply any right to distribute content created with this product in revenue-generating broadcast systems (terrestrial, satellite, cable and/or other distribution channels), revenue-generating streaming applications (via Internet, intranets and/or other networks), other revenue-generating content distribution systems (pay-audio or audio-on-demand applications and the like) or on revenue-generating physical media (compact discs, digital versatile discs, semiconductor chips, hard drives, memory cards and the like). An independent license for such use is required. For details, please visit http://mp3licensing.com MPEG Layer-3 audio coding technology licensed from Fraunhofer IIS and Thomson.

Accessories

Please confirm that the following accessories are included.

iPhone adaptors x 3 Remote control x 1 “AAA” size batteries

x 2

Power Cord

These operation instructions

Video cable x 1

(Yellow)

Speaker wire x 2

CONTENTS

Page

General Information

Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Controls and indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 - 7

Types of playable discs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Description of discs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Preparation for Use

System connections . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 - 12

Remote control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Changing the setup menu . . . . . . . . . . . . . . . . . . . . . . . 13 - 17

General operation

General control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17 - 18

Setting the clock (Remote control only) . . . . . . . . . . . . . . . . .18

iPod, iPhone and iPad

Listening to the iPod, iPhone or iPad . . . . . . . . . . . . . . 19 - 21

DVD playback

DVD playback . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21 - 22

Basic operation

Basic operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22 - 23

CD, CD-R and CD-RW Operation

Video CD and Super Video CD playback . . . . . . . . . . . . 27 - 29

CD playback . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

USB

DivX, MP3/WMA (DISC function) and JPEG (DISC/USB Video

function) Play back . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30 - 32

MP3/WMA playback (USB Audio function) . . . . . . . . . . . 32 - 35

Radio Operation

Listening to the FM radio . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

Using the Radio Data System (RDS) . . . . . . . . . . . . . . . 37 - 39

Listening to the DAB+. . . . . . . . . . . . . . . . . . . . . . . . . . . 39 - 41

Advanced Features

Timer and sleep operation (Remote control only) . . . . . 41 - 42

Headphones . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43

References

Troubleshooting chart . . . . . . . . . . . . . . . . . . . . . . . . . . 43 - 45

Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45

Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45 - 46

Notice . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46

Useful operation

Useful operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24 - 26

Various settings

Various settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26 - 27

DAB/FM aerial x 1

Page

En-4

Precautions

n General

l Use the unit on a firm, level surface free from vibration. l Place the speakers at least 30 cm away from any CRT

TV to avoid color variations across the TV screen. If the variations persist, move the speakers further away from the TV. LCD TV is not prone to such variation.

l Keep the unit away from direct sunlight, strong

magnetic fields, excessive dust, humidity and electronic/electrical equipment (home computers, facsimiles, etc.) which generate electrical noise.

l Do not place anything on top of the unit. l Do not expose the unit to moisture, to temperatures

higher than 60°C (140°F) or to extremely low temperatures.

l If your system does not work properly, disconnect the

AC power lead from the wall socket. Plug the AC power lead back in, and then turn on your system.

l In case of an electrical storm, unplug the unit for safety. l Hold the AC power plug by the head when removing it

from the wall socket, as pulling the lead can damage internal wires.

l The AC power plug is used as a disconnect device and

shall always remain readily operable.

l Do not remove the outer cover, as this may result

in electric shock. Refer internal service to your local PIONEER service facility.

Controls and indicators

l The ventilation should not be impeded by covering the

ventilation openings with items, such as newspapers, tablecloths, curtains, etc.

l No naked flame sources, such as lighted candles,

should be placed on the apparatus.

l Attention should be drawn to the environmental

aspects of battery disposal.

l The apparatus is designed for use in moderate

climates.

Warning:

The voltage used must be the same as that specified on this unit. Using this product with a higher voltage other than that which is specified is dangerous and may result in a fire or other type of accident causing damage. PIONEER will not be held responsible for any damage resulting from use of this unit with a voltage other than that which is specified.

n Volume control

The sound level at a given volume setting depends on speaker efficiency, location, and various other factors. It is advisable to avoid exposure to high volume levels. Do not turn the volume on to full at switch on. Listen to music at moderate levels. Excessive sound pressure from earphones and headphones can cause hearing loss.

8 10 11 12 13 14

n Front panel

1. Remote sensor . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

2. Timer indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . 41

3. Disc Tray . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

4. Docking Station for iPod or iPhone . . . . . . . . . . 19

5. Volume Control . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

6. STANDBY/ON Button . . . . . . . . . . . . . . . . 17, 20, 21

7. INPUT Button . . . . . . . . . . . . . . . . . . . . . . . . . 17, 20

8. Headphone Socket . . . . . . . . . . . . . . . . . . . . . . . . 43

9. USB Terminal . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

Page

52 3

10. Tuner Preset Down, CD/USB Track Down,

iPod/iPhone Skip Down . . . . . . . . . . . . . . . . . 21, 34

11. Tuner Preset Up, CD/USB Track Up,

iPod/iPhone Skip Up . . . . . . . . . . . . . . . . . . . 21, 34

12. Disc/USB Stop Button . . . . . . . . . . . . . . . . . . 21, 34

13. Disc/USB/iPod/iPhone Play or

Pause Button . . . . . . . . . . . . . . . . . . . . . . . . . 21, 34

14. Disc Tray Open/Close Button . . . . . . . . . . . . . . . 21

En-5

Page

Controls and indicators (continued)

MEMORY/FOLDER

DVD/CD

TUNER/DAB

SCAN ENTER(DAB) DISPLAY

2 3

21 22

18 20 43

26 27

32 34

10 12

17 19

40 42

29 31

n Remote control

1. Remote Control Transmitter . . . . . . . . . . . . . . . . 12

2. Standby/On Button . . . . . . . . . . . . . . 13, 17, 20, 21

3. A-B Repeat Button . . . . . . . . . . . . . . . . . . . . . . . . 25

4. Random/Repeat Button . . . . . . . . . . . . . . . . . . . . 25

5. P.Bass Button. . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

6. Numeric Buttons . . . . . . . . . . . . . . . . . . . 28, 29, 34

7. Setup/Video Mode Button . . . . . . . . . . . . . . . . . . 13

8. Zoom Button. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

9. Chapter (Track) Skip Down or Preset

Down Button. . . . . . . . . . . . . . . . . . . . . . . . . . 21, 34

10. Slow Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

11. Fast Reverse or Tuning Down Button . . . . . 21, 34

12. Stop Button. . . . . . . . . . . . . . . . . . . . . . . . . . . 21, 34

13. Top Menu Button . . . . . . . . . . . . . . . . . . . . . . . . . 25

14. Cursor Button. . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

15. Subtitle/Digest/Display Button . . . . . . . . . . . 26, 28

16. iPod/iPhone Button . . . . . . . . . . . . . . . . . . . . . . . 20

17. DVD/CD Button. . . . . . . . . . . . . . . . . . . . . . . . . . . 21

18. Tuner/DAB Button . . . . . . . . . . . . . . . . . . . . . . . . 36

19. RDS ASPM/DAB Scan Button . . . . . . . . . . . . . . . 37

20. Mute Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

21. Open/Close Button . . . . . . . . . . . . . . . . . . . . . . . 21

22. Dimmer Button . . . . . . . . . . . . . . . . . . . . . . . . . . 17

23. Bass/Treble Button . . . . . . . . . . . . . . . . . . . . . . . 18

24. Audio Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

25. Direct Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

26. Memory/Folder Button. . . . . . . . . . . . . . . . . . 31, 33

27. Clear Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

28. Sleep Button. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42

29. Clock/Timer Button . . . . . . . . . . . . . . . . . . . . 18, 42

30. OSD/TV OUT Button. . . . . . . . . . . . . . . . . . . . 20, 26

31. Angle Button. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

32. Chapter (Track) Skip Up or Preset

Up Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21, 34

33. Step Button. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

34. Fast Forward or Tuning Up Button . . . . . . . . 21, 34

35. Play and Pause Button . . . . . . . . . . . . . . . . . 21, 34

36. Menu/PBC Button. . . . . . . . . . . . . . . . . . . . . . . . . 27

37. Enter Button . . . . . . . . . . . . . . . . . . . . . . . 13, 21, 34

38. Return Button. . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

39. Line Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

40. USB Button. . . . . . . . . . . . . . . . . . . . . . . . . . .19, 32

41. RDS Display/DAB Display Button. . . . . . . . . . . . 37

42. RDS PTY/DAB Enter Button . . . . . . . . . . . . . . . . 38

43. Volume Up and Down Buttons . . . . . . . . . . . . . . 17

Page

En-6

Controls and indicators (continued)

DVD

Divx

DVD

Divx

1BA

DIGITAL

2 6 7 8 9

101112 1314

30292826 2725242120 2322

1 3 4

1516

n Display

1. USB Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

2. Dolby Digital Signal Indicator . . . . . . . . . . . . . . . 14

3. iPod Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

4. DAB/DAB+ Indicator . . . . . . . . . . . . . . . . . . . . . . . 39

5. DVD Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

6. MP3 Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

7. WMA Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

8. RDM (Random) Indicator . . . . . . . . . . . . . . . . . . . 35

9. MEM (Memory) Indicator . . . . . . . . . . . . . . . . . . . 35

10. Repeat Play Indicator . . . . . . . . . . . . . . . . . . . . . . 34

11. Play/Pause Indicator. . . . . . . . . . . . . . . . . . . . . . . 21

12. Tuning FM Indicator . . . . . . . . . . . . . . . . . . . . . . . 36

13. FM Stereo Mode Indicator . . . . . . . . . . . . . . . . . . 36

14. Stereo Station Indicator . . . . . . . . . . . . . . . . . . . . 36

15. RDS Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

16. PTY Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

17. Divx Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

18. Muting Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . 18

19. CD Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

20. Title Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

21. Artist Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

22. Folder Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . 33

23. Album Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . 33

24. File Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

25. Track Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

26. Daily Timer Indicator . . . . . . . . . . . . . . . . . . . . . . 40

27. Once Timer Indicator . . . . . . . . . . . . . . . . . . . . . . 40

28. Disc Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

29. Total Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

30. Sleep Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . 42

Page

n Speaker system

1. Tweeter

2. Woofer

3. Bass Reflex Duct

4. Speaker Terminal

n Speaker grilles are removable

Make sure nothing comes into contact with the speaker diaphragms when you remove the speaker grilles.

En-7

Types of playable discs

AUX

LINE

S-VIDEO

HDMI

COMPONENT VIDEO

COAXIAL

AC IN

The DVD player can play back discs bearing any of the following marks:

Disc type Disc contents

DVD Video Disc Audio and video

(movies)

Super Video CD Audio and video

(movies)

Video CD Audio and video

(movies)

Audio CD Audio

CD-R/CD-RW (*1)

Or CD-R/CD-RW recorded in JPEG format (*2) (*3)

Video disc Audio and video

DivX

Audio and picture

(movies)

(*1): The CD-R/CD-RW may not be played back properly

depending on the recording equipment or the disc.

(*2): JPEG or JPG picture discs also play on this unit.

However, pictures may not be clear (depends on resolution and recording method).

(*3): Maximum JPEG file size is 10 MBytes.

If photo bigger than this size, it will take some time for the file to be displayed.

l For unplayable discs, see page 9.

Types of playable DVD discs vary depending on the region. This unit can play back only DVDs with the same region number are written on the back of the unit.

ABOUT DIVX VIDEO: DivX created by DivX, Inc. This is an official DivX Certified device that plays DivX video. Visit www.divx.com for more information and software tools to convert your files into DivX video.

ABOUT DIVX VIDEO-ON-DEMAND: This DivX Certified device must be registered in order to play DivX Video-onDemand (VOD) content. To generate the registration code, locate the DivX VOD section in the device setup menu. Go to vod.divx.com with this code to complete the registration process and learn more about DivX VOD.

version cannot be upgraded on this product.)

(DivX

is a digital video format

Icons used in this operation manual

Some functions may not be available depending on discs. The following icons indicate the discs that can be used in the section.

... Indicates DVDs.

... Indicates Super video CDs.

... Indicates video CDs.

... Indicates audio CDs.

... Indicates CD-R/RW with JPEG recording.

... Indicates DivX

Video.

... Indicates MP3 format files.

l Some operations may not be performed depending on

discs even if they are described in this manual.

l During operation, “ ” may be displayed on the screen.

This means that the operations described in this manual are not possible.

l Unauthorised copying, broadcast, public display,

transmission, public performance and rental (regardless of whether or not such activities are for profit) of disc contents are prohibited by law.

l This system is equipped with copy protection

technology that causes substantial degradation of images when the contents of a disc are copied to a videotape.

This item incorporates copy protection technology that is protected by U.S. patents and other intellectual property rights of Rovi Corporation. Reverse engineering and disassembly are prohibited.

En-8

Description of discs

Chapter 1 Chapter 2 Chapter 3 Chapter 1 Chapter 2

Title 1 Title 2

Track 1 Track 2 Track 3 Track 4

Track 5

n Discs that cannot be played

l DVDs without the region

number on the disc.

l DVDs with SECAM system l DVD-ROM l DVD-RAM l DVD-Audio l Blu-ray Disc

l The discs above cannot be played at all, or no sound is

heard although images appear on the screen or vice versa.

l Incorrect operation may damage the speakers and can

have a negative effect on your hearing when played at high volume settings.

l You cannot play illegally produced discs.

Notes:

l A disc which has scratches or fingerprints may not play

properly. Refer to “Care of compact discs” (page 45) and clean the disc.

l Do not play the discs of special shapes (heart or

octagon shaped) as they can be ejected whilst rotating and cause injury.

l HD DVD l CDG l CDV l CD-ROM l SACD l Discs recorded in

special formats, etc.

n Title, chapter and track

DVDs are divided into “titles” and “chapters”. If the disc has more than one movie on it, each movie is a separate “title”. “Chapters” are subdivisions of titles.

Audio CDs consist of “tracks”. A “track” is each tune on an audio CD.

Note:

Title, chapter or track numbers may not be recorded on some discs.

n DivX

l DivX Certified to play DivX video, including premium

content.

l DivX

is a registered trademark of DivX, Inc., and is

used under license.

n Icons used on DVD discs

Check the icons on the DVD case before playing your discs.

Display Description

Region number (playable area number)

Format recorded on the DVD

Recorded in 4:3.

You can enjoy wide images on a wide-screen TV and letterbox size images on the 4:3 size TV.

You can enjoy wide images on a wide-screen TV and 4:3 images with the side edges cut on the 4:3 size TV.

Type of subtitles recorded

Example:

1: English

2: French

Number of camera angles

Number of audio tracks and audio recording systems

Example: 1: Original <English> (Dolby Digital 2 Surround) 2: English (Dolby Digital 5.1 Surround)

DVD discs are programmed with region numbers indicating countries in which they can be played. This system can play discs with region number on the back of the unit.

To adopt the video format to the connected TVs (“wide-screen TV” or “4:3 size TV”).

Recorded subtitle languages. Language can be selected with the SUBTITLE/DIGEST/ DISPLAY button.

Number of angles recorded on th e DVD. Angles can be selected with the ANGLE button.

The number of audio tracks and audio recording systems are indicated.

l The audio recorded on the

DVD can be switched by using the AUDIO button.

l The number of audio tracks

and recording systems vary depending on the DVD. Check them in the DVD's manual.

En-9

System connections

AUX

LINE

S-VIDEO

HDMI

COMPONENT VIDEO

COAXIAL

AC IN

Right

speaker

DAB/FM aerial

To video input socket

Wall socket (AC 220 V to 240 V, 50 Hz/60 Hz)

Video cable

Left

speaker

Incorrect

Before making or changing the connections, switch off the power and disconnect the power cord from the AC outlet.

n DAB/FM aerial connection

Supplied DAB/FM aerial:

Connect the DAB/FM aerial wire to the DAB/FM 75 ohms socket and position the DAB/FM aerial wire in the direction where the strongest signal can be received.

External DAB/FM aerial:

Use an external DAB/FM aerial (75 ohms coaxial cable) for better reception. When an external DAB/FM aerial is used, disconnect the supplied DAB/FM aerial wire.

Note:

Placing the aerial on the unit or near the AC power lead may cause noise pickup. Place the aerial away from the unit for better reception.

n Speaker connection

l Twist exposed wire strands

together.

l Connect the red wire to the plus

(+) terminal, and other wire to the minus (–) terminal.

l Use speakers with an impedance

of 4 ohms, as lower impedance speakers can damage the unit.

l These speaker terminals carry HAZARDOUS LIVE

voltage. To prevent the risk of electric shock when connecting or disconnecting the speaker cables, disconnect the power cord before touching any uninsulated parts.

l Do not attach these speakers to the wall or ceiling, as

they may cause injury in the event of a fall.

l Do not mistake the right and the left channels. The right

speaker is the one on the right side when you face the unit.

l Do not let the bare speaker wires touch each other. l Do not allow any objects to fall into or to be placed in

the bass reflex ducts.

l Do not stand or sit on the speakers. You may be

injured.

l Do not connect the supplied speakers with any other

amplifier. This may result in malfunction or fire.

n Connecting your TV

Photo and video files from iPod, iPhone and DVD videos can be viewed by connecting the system to TV/monitor. If the TV/monitor has a video input, connect it to the VIDEO OUT socket at the back of the unit and set the TV Out on the iPod or iPhone unit to “ON” position.

Notes:

l Please make sure to set iPod unit to either NTSC or

PAL to match your TV signal. Please visit Apple’s homepage for further information.

l You can also use S-Video, component video, or HDMI

cable. (page 11)

En-10

System Connection (continued)

AUX

LINE

S-VIDEO

HDMI

COMPONENT VIDEO

COAXIAL

AC IN

S-video cable (commercially available)

HDMI cable (commercially available)

Component video cable (commercially available)

n AC power connection

After checking all the connections have been made correctly, plug the AC power lead of this unit into the wall socket.

Note:

Unplug the AC power lead from the wall socket if the unit will not be in use for a prolonged period of time.

Caution:

l Handle the power cord by the plug part. Do not pull out

the plug by tugging the cord, and never touch the power cord when your hands are wet, as this could cause a short circuit or electric shock. Do not place the unit, a piece of furniture, or other object on the power cord or pinch the cord in any other way. Never make a knot in the cord or tie it with other cables. The power cords should be routed so that they are not likely to be stepped on. A damaged power cord can cause a fire or give you an electric shock. Check the power cord once in a while. If you find it damaged, ask your nearest Pioneer authorized independent service company for a replacement.

l Do not use any power cord other than the one supplied

with this unit.

l Do not use the supplied power cord for any purpose

other than that described above.

n Connect your TV (Enjoying DVD or iPod

video)

For better quality, you can also connect with S-video using the S-VIDEO OUT jack. If your TV also has a component video input or HDMI input, you can connect this too.

Using the component video jacks:

Component video should deliver superior picture quality when compared to composite video. A further advantage is progressive-scan video, which delivers a very stable, flicker-free picture. See the manuals that came with your TV to check whether they are compatible with progressivescan video.

Using HDMI terminal:

If you have an HDMI or DVI (with HDCP) equipped TV, you can connect it to this receiver using a commercially available HDMI cable.

Note:

If the video signal does not appear on your TV, try adjusting the resolution settings on your TV. Note that some video contents have resolutions that may not be displayed. In this case, use a (analog) composite connection.

En-11

System Connection (continued)

AUX

LINE

S-VIDEO

HDMI

COMPONENT VIDEO

COAXIAL

AC IN

Audio signal

To audio output sockets

Audio cable (commercially available)

Main unit

To L I N E input sockets

7 m

Remote sensor

Remote control

n Connect your TV (For TV audio)

This will allow you to play the sound from the TV‘s built-in tuner.

l Connect the audio output on your TV to the LINE IN on

this receiver.

Use an audio cable.

To select Line In function:

l On main unit: Press INPUT button repeatedly until

Line In is displayed.

l On remote control: Press LINE button.

n Battery installation

1 Open the battery cover. 2 Insert the supplied batteries according to the direction

indicated in the battery compartment.

When inserting or removing the batteries, push them

towards the (–) battery terminals.

3 Close the cover.

WARNNIG:

l Do not use or store batteries in direct sunlight or other

excessively hot place, such as inside a car or near a heater. This can cause batteries to leak, overheat, explode or catch fire. It can also reduce the life or performance of batteries.

Caution:

l Replace all old batteries with new ones at the same

time.

l Do not mix old and new batteries. l Remove the batteries if the unit will not be used for a

long period of time. This will prevent potential damage due to battery leakage.

l Do not use rechargeable batteries (nickel-cadmium

battery, etc.).

l Installing the batteries incorrectly may cause the unit to

malfunction.

Notes concerning use:

l Replace the batteries if the operating distance is

reduced or if the operation becomes erratic. Purchase 2 “AAA” size batteries.

l Periodically clean the transmitter on the remote control

and the sensor on the unit with a soft cloth.

l Exposing the sensor on the unit to strong light may

interfere with operation. Change the lighting or the direction of the unit if this occurs.

l Keep the remote control away from moisture, heat,

shock, and vibrations.

l When disposing of used batteries, please comply with

governmental regulations or environmental public instruction's rules that apply in your country or area.

n Test of the remote control

Check the remote control after checking all the connections. Point the remote control directly at the remote sensor on the unit. The remote control can be used within the range shown below:

STANDBY/ON

MEMORY/FOLDER

En-12

Changing the setup menu

MEMORY/FOLDER

STANDBY/ON

SETUP/VIDEO MODE

ENTER

Turn on the TV, and switch the input to the “VIDEO 1”, “VIDEO 2”, etc. accordingly.

1 Press the STANDBY/ON button to turn the power on.

lThe startup screen appears. lThe startup screen does not appear

when the input is not set to disc or USB video mode. Press the DVD/ CD button or USB button repeatedly on remote control or INPUT button on main unit repeatedly to select DISC or USB Video mode.

Setup menu Selectable parameters (* indicates default setting) Description

GENERAL SETUP PAGE

AUDIO DOLBY VIDEO

GENERAL PREFEREN.

- - GENERAL SETUP PAGE - -

TV DISPLAY

ANGLE MARK

OSD LANGUAGE

ENG

SCREEN SAVER

LAST MEMORY

OFF

GO TO GENERAL SETUP PAGE

TV DISPLAY 4:3 PANSCAN*

ANGLE MARK

2 Press the SETUP/VIDEO MODE button.

3 Press the  or  button to select a menu and press

the ENTER button.

lSee the list on pages 13 - 15 for setup menu.

4 Press the , ,  or  button to change the setting

and press the ENTER button.

lSee the list on pages 13 - 15 for the selectable

parameters.

5 Press the SETUP/VIDEO MODE button.

lThe setting is completed. lTo change other settings, begin from step 2.

Notes:

l During playback, “PREFERENCE” settings cannot be

changed.

l Settings are stored even if the unit is set to the stand-

by mode.

l The backup function protects the stored settings for a

few hours should there be a power failure or the AC power lead disconnection.

l If the startup screen is blurred, change the TV type in

the setup menu.

4:3 LETTERBOX 16:9 WIDE SQUEEZE

ON* OFF

The screen mode should be set according to the connected TV type (for details, see page

16).

AUDIO SETUP PAGE

GENERAL AUDIO

- - AUDIO SETUP PAGE - -

ANALOG AUDIO DIGITAL AUDIO

GO TO AUDIO SETUP PAGE

DOLBY VIDEO

PREFEREN.

OSD LANGUAGE

SCREEN SAVER

LAST MEMORY

ANALOG AUDIO

DIGITAL AUDIO

ENGLISH* GERMAN FRENCH ITALIAN SPANISH

You can select the desired OSD (On Screen Display) language for the setup menu or playback control screen.

ON* A screen saver appears.

OFF The screen saver disabled.

ON* If accidentally push STANDBY/ON or OPEN/

CLOSE button during playback mode, you can resume playback from the point playback is stopped after power on back or you push the OPEN/CLOSE button to close the disc tray.

OFF Last memory not function.

DOWNMIX LT/RT

DIGITAL OUT

LPCM OUT 48KHZ*

STEREO*

SPDIF OFF SPDIF/ RAW* SPDIF/PCM

96KHZ

When playing a disc recorded with Dolby Digital or DTS, the corresponding digital signals will be output. l PCM : Choose this setting if the decorder

cannot support Dolby Digital or DTS.

l RAW : Choose this setting if the decorder

can support Dolby Digital or DTS.

Select the sampling frequency at 48 kHz/16 bit or 96 kHz/24 bit capability after you select SPDIF/PCM at SPDIF SETUP.

En-13

Changing the setup menu (continued)

DIVX (R) VIDEO ON DEMAND

DEREGISTER

EXIT

Setup menu Selectable parameters (* indicates default setting) Description

DOLBY DIGITAL SETUP

VIDEO SETUP PAGE

GENERAL AUDIO DOLBY

- - DOLBY DIGITAL SETUP - -

DUA

L MONO

DYNAMIC

GO TO DOLBY DIGITAL SETUP

AUDIO DOLBY

GENERAL VIDEO

- - VIDEO SETUP PAGE - -

OFF

VIDEO OUTPUT

Resolution COLOR SETTING DivX VOD HDMI Setup

GO TO VIDEO SETUP PAGE

PREFEREN.

DUAL MONO

DYN AM IC (*1)

VIDEO OUT

VIDEO

RESOLUTION 480I

COLOR SETTING

DivX(R) VOD OK PIONEER provide you the DivX

HDMI SETUP HDMI ON*

STEREO* L-MONO R-MONO MIX-MONO

FULL Audio with fully compressed dynamic

3/4 1/2 1/4

OFF* Audio with uncompressed dynamic

SVIDEO* COMPONENT

480P 576I 576P 720P(50HZ)* 1080I(50HZ) 1080P(50HZ) 720P(60HZ) 1080I(60HZ) 1080P(60HZ)

SHARPNESS HIGH

MEDIUM* LOW

range.

Audio with partially compressed dynamic range.

range.

l SVIDEO: Choose this setting for

S-VIDEO output.

l COMPONENT: Choose this

setting for COMPONENT output.

l To set, use the provided video

cable.

l Simultaneous outputs from both

the S-VIDEO OUT and the COMPONENT VIDEO OUT are not possible.

l Check the VIDEO OUT setting

using the provided video cable if there is no output from the SVIDEO OUT or the COMPONENT VIDEO OUT.

BRIGHTNESS -20 –> 0* –> +20

CONTRAST -16 –> 0* –> +16

GAMMA HIGH

MEDIUM* LOW NONE

HUE -9 –> 0* –> +9

SATURATION -9 –> 0* –> +9

LUMA DELAY 0T*

registration code that allows you to rent and purchase videos using the DivX service. Please go to www.divx.com/vod for more information.

OFF

AUD IO SOURCE

AUTO*

PCM

En-14

Changing the setup menu (continued)

TV TYPE

AUDIO SUBTITLE DISC MENU PARENTAL PASSWORD DEFAULT

GO TO PREFERENCE PAGE

- - PREFERENCE PAGE - -

AUDIO DOLBY VIDEO

PAL ENG ENG ENG

GENERAL

PREFEREN.

Setup menu Selectable parameters (* indicates default setting) Description

PREFERENCE PAGE

TV TYPE PAL*

PBC ON*

AUDIO ENGLISH*

SUBTITLE ENGLISH*

DISC MENU ENGLISH*

PARENTAL 1 KID SAFE

PASSWORD PASSWORD

AUTO NTSC(*2)

OFF

GERMAN FRENCH ITALIAN SPANISH

GERMAN FRENCH ITALIAN SPANISH OFF

GERMAN FRENCH ITALIAN SPANISH

2 G 3 PG 4 PG 13 5 PGR 6 R 7 NC 17 8 ADULT*

MODE

PASSWORD CHANGE See page 17 for password setting.

DEFAULT RESET This resets all setting (Except for Parental and

Please refer page 16.

Please refer page 27.

Select the language audible from the speakers.

Select the subtitle displayed on the TV screen.

Set a restriction level for DVD viewing. (For details, see page 17)

ON*

Select the password mode condition.

OFF

Password) to factory default.

(*1) Selects the dynamic range compression to fit the individual listening situation of the audience. This function can be

used in DVD playback. Depending on the disc, sounds may become too loud or inaudible during playback. Dolby Digital’s dynamic range control allows you to adjust the sound range.

(*2) NTSC is default TV TYPE for some countries only.

En-15

Changing the setup menu (continued)

English

French

CHARGEMENT

English

Thank you

French

Merci

English

Thank you

French

Merci

n TV display setting

Indicator Setting

4:3 PANSCAN

4:3 LETTERBOX

When playing a wide image (16:9) disc, the left and right sides of the image are cut (pan scan) to display a natural-looking 4:3 size image. A wide image disc without pan scan is played back in 4:3 letterbox. A 4:3 disc is played in 4:3.

When playing a wide image (16:9) disc, black bands are inserted at the top and bottom and you can enjoy full wide images (16:9) on a 4:3 size TV.

A 4:3 disc is played in 4:3.

16:9 A wide image (16:9) is

WIDE SQUEEZE

displayed when playing a wide image (16:9) disc.

l When playing a 4:3 image disc, the

image size depends on the setting of the connected TV.

l If you play back a wide image (16:9)

disc with this unit connected to a 4:3 TV, the vertically shrunk image is displayed.

When play 4:3 disc with this unit connected to a 16:9 TV (wide screen TV), the horizontally expended image is displayed. If you use this setting, a natural looking image 4:3 size can be viewed with the black bands are inserted at the left and right of the screen.

l If you playback a wide image (16:9)

disc with 4:3 TV, the vertically shrunk image is displayed.

Note:

When playing the disc with a fixed video format, it will not change even if the TV screen size is changed.

n TV type setting

Indicator Setting

AUTO Select this mode for the multi-system TV. NTSC Select this mode for the NTSC TV. PAL Select this mode for the PAL TV.

n Language setting

Indicator Setting

OSD LANGUAGE

AUDIO A language for audio can be set.

SUBTITLE A language for subtitle can be set.

DISC MENU

A language for screen display can be set for the setup menu, messages, etc.

You can specify a language for conversation and narration.

The subtitles are displayed in a specified language.

A language for disc menus can be set. Menu screens are displayed in a specified language.

English

CAST

STAFF

French

ACTEURS

PERSONNEL

En-16

Changing the setup menu (continued)

PASSWORD

- - PREFERENCE PAGE - -

AUDIO DOLBY VIDEO

PAL ENG ENG ENG

GENERAL

TV TYPE

AUDIO SUBTITLE DISC MENU PARENTAL PASSWORD DEFAULT

CHANGE PASSWORD

PASSWORD MODE ON

- - PASSWORD SETUP PAGE - -

AUDIO DOLBY VIDEO

GENERAL

PREFEREN.

PASSWORD

OLD PASSWORD

NEW PASSWORD

CONFIRM PWD

CHANGE

PASSWORD

AUDIO DOLBY VIDEO

GENERAL

PREFEREN.

MEMORY/FOLDER

DVD/CD

TUNER/DAB

SCAN

ENTER(DAB)

DISPLAY

STANDBY/ON

VOL

VOLUME

MUTE

BASS/TREBLE

P.B A SS

DIMMER

Dimmer 1

Dimmer 2

Dimmer Off

(Display is dim). (Display gets dimmer). (Display is bright).

n Parental setting

1 Select “PREFERENCE” on the setup menu screen (see

steps 1 - 4 on page 13).

2 After selecting “PARENTAL” in step 4 on page 13, select

the parental level and press the ENTER button.

3 Enter a 6-digit password using the Numeric buttons and

press the ENTER button. * If this is the first time, enter “000000”.

Indicator Setting

1 KID SAFE Only DVD software intended for children

2 G to 7 NC-17Only DVD software intended for general

8 ADULT DVD software of any grade (adult/

Note:

Whilst playing a disc with parental lock, the display may appear requesting a password in order to watch some restricted scenes. In such case, enter the password to temporarily change the parental level.

n Password setting

From the setup menu, select “PREFERENCE”, “PASSWORD” and then “CHANGE”. A screen appears.

can be played back.

use and children can be played back.

general/children) can be played back.

General control

n To turn the power on

Press the STANDBY/ON button to turn the power on.

After use:

Press the STANDBY/ON button to enter the power stand-by mode.

n Display brightness control

To dim the display brightness, press the DIMMER button on the remote control.

1 Enter the old password using the Numeric buttons.

(If this is the first time, enter “000000”).

2 Enter the new password using the Numeric buttons. 3 Enter the new password again for confirmation. 4 Press ENTER button again to confirm password

changed.

Note:

l When you forget your password, follow below

sequence.

l At setup menu, select “PREFERENCE”,

“PASSWORD” and then “CHANGE”.

1 Enter the old password as “000000” using the Numeric

buttons.

2 Enter the new password. 3 Enter the new password again for confirmation.

n Volume auto set-in

If you turn off and on the main unit with the volume set to 17 or higher, the volume starts at 16.

n Volume control

Turn the volume knob towards VOLUME (on main unit) or press VOL +/– (on remote control) to increase or decrease the volume.

n Auto power on function

When you press any of the following buttons, the unit turns on.

l iPod/iPhone, DVD/CD, USB, LINE, TUNER on the

remote control: Selected function is activated.

l / button on the main unit: The unit turns on and

playback of the last function will start (DISC, Tuner, USB Audio, USB Video, iPod, Line In).

En-17

General control (continued)

-5 -4 +4 +5

........

-5 -4 +4 +5

........

FM STEREO

FM MONO

iPodLine In

DISC (DVD/CD)

DAB

USB Video USB Audio

n Auto power off function

The main unit will enter the stand-by mode (when iPod or iPhone is not docked) after 15 minutes of inactivity during: iPod or iPhone: No connection. Line In: No detection of input signal or very low sound audibility. DISC/USB Audio/USB Video: In the stop mode.

Note:

However, if iPod or iPhone is docked, the unit will begin charging. "Charge Mode" will be displayed.

n Muting

The volume is muted temporarily when pressing the MUTE button on the remote control. Press again to restore the volume.

n P.Bass control

When the power is first turned on, the unit will enter P.Bass mode which emphasises the bass frequencies. To cancel the P.Bass mode, press the P.BASS button on the remote control.

n Bass control

1 Press the BASS/TREBLE button to select “BASS”. 2 Within 5 seconds, press the VOL (+ or –) button to

adjust the bass.

Setting the clock (

STANDBY/ON

In this example, the clock is set for the 24-hour (00:00) display.

Remote

MEMORY/FOLDER

DVD/CD

TUNER/DAB

ENTER(DAB)

SCAN

DISPLAY

control only)

CLOCK/TIMER

PRESET PRESET

ENTER

1 Press the STANDBY/ON button to turn the power on. 2 Press the CLOCK/TIMER button. 3 Within 10 seconds, press the ENTER button. To adjust

the day, press the or button and then press the ENTER button.

4 Press the or button to select 24-hour or 12-

hour display and then press the ENTER button.

The 24-hour display will appear. (00:00 - 23:59)

The 12-hour display will appear. (AM 12:00 - PM 11:59)

n Treble control

1 Press the BASS/TREBLE button to select “TREBLE”. 2 Within 5 seconds, press the VOL (+ or –) button to

adjust the treble.

n Function

When the INPUT button on main unit is pressed, the current function will change to different mode. Press the INPUT button repeatedly to select desired function.

Note:

The backup function will protect the memorised function mode for a few hours should there be a power failure or the AC power lead becomes disconnected.

5 To adjust the hour, press the or button and then

press the ENTER button. Press the once to advance the time by 1 hour. Hold it down to advance continuously.

6 To adjust the minutes, press the

then press the ENTER button. Press the button once to advance the time by 1 minute.

To confirm the time display:

Press the CLOCK/TIMER button. The time display will appear for about 5 seconds.

Note:

When power supply is restored after unit is plugged in again or after a power failure, reset the clock (page 43).

To readjust the clock:

Perform “Setting the clock” from step 1. If the “Clock” does not appear in step 2, step 4 (for selecting the 24-hour or 12-hour display) will be skipped.

To change the 24-hour or 12-hour display:

1 Clear all the programmed contents. [Refer to “Factory

reset, clearing all memory” on page 45 for details.]

2 Perform “Setting the clock” from step 1 onwards.

En-18

button

button and

Listening to the iPod, iPhone or iPad

iPhone

Dock connector

iPhone (bottom)

Connector for iPhone

Dock for iPhone

Adaptor for iPhone

Supported iPod, iPhone and iPad models:

l iPad l iPhone 4 l iPhone 3GS l iPhone 3G l iPhone l iPod touch (4 l iPod touch (3 l iPod touch (2 l iPod touch (1 l iPod classic l iPod nano (6 l iPod nano (5 l iPod nano (4 l iPod nano (3 l iPod nano (2

Notes:

l This system has been developed and tested for the

software version of iPod/iPhone/iPad indicated on the website of Pioneer (http://pioneer.jp/homeav/support/ ios/ao/).

l Installing software versions other than indicated on the

website of Pioneer to your iPod/iPhone/iPad may result in incompatibility with this system.

l The iPad is only supported by the USB terminal. l Charging terminal for iPod, iPhone and iPad:

USB Audio function NO YES Other function YES NO Stand-by YES NO

l The message “This accessory is not made to work with

iPhone” or similar, may appear on the iPhone screen when:

- battery is low.

- the iPhone is not properly docked (eg. slanting). if this occure, remove and re-dock the iPhone.

This product is made for iPhone. To prevent random interference when iPod/iPhone is docked, the headphone output is disabled and "HP INVALID" will be displayed. You may also experience brief audio interference during incoming calls.

n iPad connection (USB Terminal)

1 Insert the connector to the the iPod, iPhone or iPad.

th rd nd st

th th th rd nd

Condition

generation) generation)

generation)

generation) generation) generation) generation)

generation)

Docking

station

USB terminal

n iPod, iPhone or iPad Playback

(USB Terminal)

1 Press the STANDBY/ON button to turn the power on. 2 Press the USB button on the remote control or INPUT

button repeatedly on the main unit to select USB Audio function.

3 Connect iPod, iPhone or iPad to the unit. "USB/iPod"

will appear.

4 Press the  button to start playback.

Note:

Stop button ( ) is invalid during iPod, iPhone or iPad playback.

n iPhone adaptor connection

(Docking Station)

Note:

Please use the adaptor supplied with your iPod or iPhone unit.

iPhone

Adaptor No.

12 iPhone 4GB & 8GB & 16GB 15 iPhone 3G,

19 iPhone 4 16GB & 32GB

n To insert adaptor for iPod or iPhone

(Docking Station)

1 Open the docking station for iPod and iPhone by pulling

up.

2 Insert the adaptor for iPod and iPhone into unit and

connect your iPod or iPhone.

iPhone

Description

iPhone 3GS

Capacity

8GB & 16GB & 32GB

2 Connect the iPad to the unit via USB connector.

Note:

USB connector do not support VIDEO out.

Caution:

Unplug all accessories from the iPod or iPhone before inserting it into the dock.

En-19

Listening to the iPod, iPhone or iPad

MEMORY/FOLDER

DVD/CD

TUNER/DAB

SCAN

ENTER(DAB)

DISPLAY

INPUT

STANDBY/ON

OSD/TV OUT

ENTER

PRESET PRESET

iPod/iPhone

(continued)

n To remove adaptor for iPod or iPhone

(Docking Station)

Insert the tip of a screwdriver (“–” type, small) into the adaptor hole as shown and lift upward to remove.

n iPod or iPhone playback

1 Press the STANDBY/ON button to turn the power on. 2 Press the iPod/iPhone button on the remote control or

INPUT button repeatedly on the main unit to select iPod function.

3 Insert iPod or iPhone unit in iPod dock of main unit.

"Dock Ok" will appear.

4 Press the  button to start playback.

n iPhone playback

l Sound will only switch from iPhone to the main unit

after authentication process is completed in approximately 10 seconds.

l Incoming calls will pause the playback. l Once the calls are answered, the conversation can

only be heard through the built-in iPhone speaker. Turn on the iPhone speaker or undock the iPhone to start conversation.

n To disconnect iPod, iPhone or iPad

Simply remove the iPod or iPhone from the the docking station or iPad from USB terminal. It is safe to do so even during playback.

n Watching videos on a TV connected to

iPod or iPhone (Docking Station)

1 Press the OSD/TV OUT button for more than 2

seconds. “TV Display” will appear on display.

2 Press the ENTER button to start playback.

Notes:

l If the TV Out setting is already turned on at video

menu, the video is automatically displayed on the TV screen when ENTER key is pressed.

l TV out display is not support through USB terminal.

(iPad)

l To return to watching video on iPod or iPhone screen,

press the ENTER button to enter video menu. Then press the OSD/TV OUT button for more than 2 seconds until “iPod Display” appears.

l During iPod or iPhone video playback, pressing the

OSD/TV OUT button will not toggle video out display between iPod and TV.

Caution:

l The video images from the iPod and iPhone will only be

output from the VIDEO OUT terminal. They will not be output from the S-VIDEO OUT, COMPONENT VIDEO OUT, and the HDMI OUT terminals.

l Unplug all accessories for the iPod or iPhone before

inserting it into the iPod docking station.

l Stop button () at main unit is invalid during iPod

function.

n Navigating the iPod, iPhone or iPad

menus

Press the TOP MENU button to view the menu on iPod, iPhone or iPad unit. Press it again to go back to previous

2 Use the  or  button to select an item on the menu

and then press ENTER button.

Note:

When navigating the iPod, iPhone or iPad menu with remote control, do not operate any of the buttons on the iPod or iPhone unit. The volume level is adjusted by pressing the VOL (+ or –) button on the main unit or the remote control. Adjusting the volume on the iPod, iPhone or iPad units give no effect.

iPod and iPhone operations:

The operations described below depend on the generation iPod and iPhone you are using.

System on operation:

When the main unit is powered on, iPod, iPhone or iPad units will automatically power on when docked in the unit.

System off (stand-by operation):

When the main unit is turned to stand-by mode, the docked iPod, iPhone or connected iPad unit will automatically turn to stand-by mode.

En-20

Listening to the iPod, iPhone or iPad

PRESET PRESET

TUNING TUNING

RANDOM/

REPEAT

RANDOM/

REPEAT

TOP MENU

MEMORY/FOLDER

DVD/CD

TUNER/DAB

STANDBY/ON

OPEN/CLOSE

(continued)

n Various iPod, iPhone and iPad functions

DVD playback

Function

Play Press in the

Pause Press in the

Track up/ down

Main

unit

Remote control

Dock USB

Audio

Operation

pause mode.

playback mode.

Press in the playback or pause mode. If you press the button in the pause mode, press the / button to start the desired track.

Fast forward/ reverse

Press and hold down in the playback mode.

Release the button to resume playback.

Display

Repeat

Shuffle

iPod Menu

iPod Enter

iPod Cursor Up/ Down

____ ____

____

OSD/TV OUT

RANDOM/

REPEAT

RANDOM/

REPEAT

____

Press for more than 2 seconds to toggle the video out display between iPod or TV.

Press to toggle repeat mode.

Press and hold down to toggle shuffle mode.

Press to view the iPod menu during iPod function.

Press to confirm the selection.

Press to select the iPod menu.

n Playback

1 Press the STANDBY/ON button to turn the power on. 2 When the input is not set to the disc

mode, press the DVD/CD button on the remote control or INPUT button on the main unit repeatedly to display the startup screen. The startup screen appears.

3 Press the  button to open the disc tray. 4 Place the disc on the disc tray, label side up.

Be sure to place 8 cm discs in the middle of the disc position.

5 Press the  button to close the disc tray.

Discs supporting auto start will start to play once you close the disc tray even if you do not press the  button.

6 If playback does not start in step 5, press the 

button.

To interrupt playback:

Press the  button. To resume playback from the same point, press the  button.

To stop playback completely: DVD/CD/DivX

Press the  button twice.

MP3

Press the  button.

JPEG

To return to the main menu screen whilst playback, press the MENU/PBC button. When the unit is left unoperated for more than 5 minutes after stopped, a screen saver appears (see page 13 when the screen saver setting is “ON”). Press any button on the main unit or remote control. The startup screen returns.

En-21

DVD playback (continued)

NO DISC

MEMORY/FOLDER

DVD/CD

TUNER/DAB

SCAN

ENTER(DAB)

DISPLAY

DIRECT

PRESET

TUNING

PRESET

TUNING

ENTER

MEMORY/FOLDER

2 X 4 X 8 X 16 X 32 X

PLAY (Normal play)

Caution:

l Close the disc tray when not in use. Otherwise, dust

may accumulate inside and cause malfunction.

l The unit gets slightly warm when used for a long time.

It does not mean the unit is damaged.

l When attempting to play discs with scratches or of a

different region number, or unplayable or restricted (*1) discs, an error message will appear on the TV display

and the disc will not play. (*1) Viewing is prohibited on some DVDs according to the audience age.

Notes:

l Stop positions may be recorded on some discs. When

you play such a disc, playback stops there.

l During an operation, “ ” may appear indicating that

the operation is disabled by the disc.

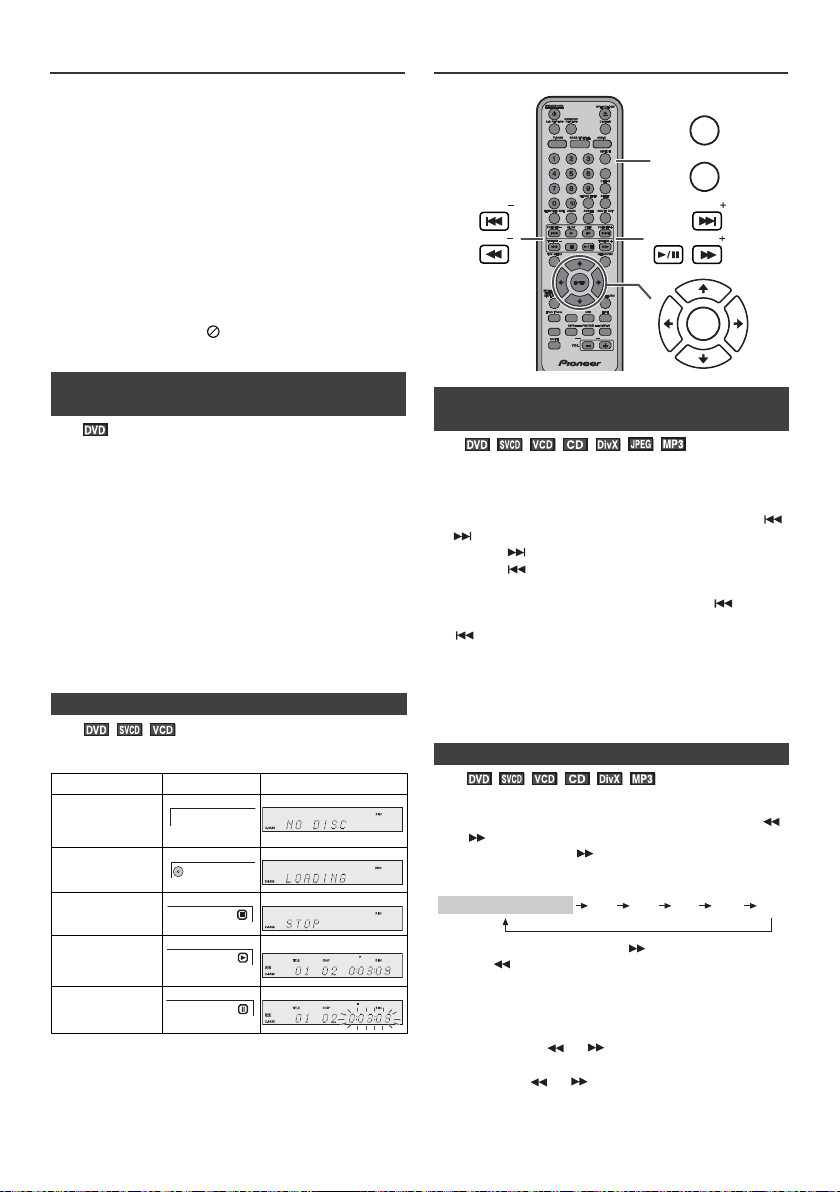

Basic operation

n To resume playback after stopping

(resume play)

You can resume playback from the point playback is stopped.

1 Whilst a disc is playing, press the  button.

The system stores the point you stopped.

2 To restart play, press the  button.

Play resumes from the point you stopped.

To cancel the resume playback:

Press the  button twice.

Notes:

l The resume playback feature is disabled on some

discs.

l Depending on the disc, playback may resume from

slightly before the stopped position.

n DVD mode operation indicators

The following are examples of operation indicators that appear during DVD playback.

Operation TV screen Unit display

When the power is on without a disc.

Disc data is being read.

Stop

Play

Pause

n To locate the beginning of a chapter

(track) (skip)

You can move to other tracks with simple operations. When playing SVCD or VCD, cancel the P.B.C. (playback control) (see page 27).

Whilst a disc is playing, press the PRESET + or – ( or ) button.

l Use the button to skip to the next chapter (track). l Use the button to skip to the previous chapter

(track).

l On SVCD, VCD and Audio CD, press the button

to skip to the beginning of the current track. Press the

button again (twice) to skip to the beginning of the

previous track.

Notes:

l Some discs do not display the chapter (track) and the

skip feature is disabled.

l On a DVD, skip does not operate between titles.

n Fast forward/Fast backward (search)

You can search the desired point as you play the disc.

1 Whilst a disc is playing, press the TUNING + or – (

or ) button. Example: When the button is pressed. On DVD/DivX/SVCD/VCD/Audio CD/MP3, the speed changes as follows:

The disc is forwarded by the button and backward by the button.

2 Press the  button to return to the normal playback.

To playback MP3 files through USB terminal 1 Whilst a MP3 track is playing via USB Audio function,

press and hold or button on the remote control to fast forward or fast reverse.

2 Release the or button to return to normal

playback.

En-22

Basic operation (continued)

01:18

TT: CH:

Exit Next

DVD TV screen

EXIT

CD TV screen

TITLE 01/03 CHAPTER 10/19

TV screen

Notes:

l On some discs, the search function is disabled. l On a DVD, search does not operate between titles. l On SVCD, VCD, Audio CD and MP3, the search does

not operate between tracks.

l Whilst searching on a DVD, the sound is not heard and

the subtitles do not appear.

l Whilst searching on a SVCD or a VCD, the sound is not

heard.

l When search is performed during the DVD playback,

pictures may not be forwarded or reversed in the

search speed specified in this manual, depending on

the disc or the scene being played.

l The search does not operate on JPEG discs.

n To play in the desired order (programmed

play)

You can playback the desired tracks with titles or chapters in a specific order. Maximum of 20 tracks can be programmed.

1 Whilst in the stop or playback mode, press the

MEMORY/FOLDER button.

2 Enter title or chapter number or track number with the

Numeric buttons.

lIf you enter the wrong numbers, press  or  button

to select the concerned track and then reenter the new numbers.

3 Press  button to select “Start” and then press

ENTER button to start playback the programmed track(s).

To change the programmed contents:

Repeat the above procedures from step 1.

Programmed contents will be cleared when you perform the following operations:

l Change to another function or remove the discs. l Set to the stand-by mode.

n To start playback from the desired point

(direct play)

To select and play the desired title and chapter: In the stop mode

1 Whilst in the stop mode, press the DIRECT button.

2 Within 10 seconds, enter the title number first then only

can enter the chapter number by using the Numeric buttons. Press  or  button for title or chapter selection. Example: To select title or chapter 1: Press “1”. To select title or chapter 12: Press “+10” and “2”. To select title or chapter 22: Press “+10” twice and “2”.

In the playback mode

1 Whilst in the playback mode, press the DIRECT button.

2 Select the title or chapter by pressing the  or 

button and press the ENTER button.

3 Enter the title or chapter number using the Numeric

buttons. To select chapter 1: Press “0” and “1”. To select chapter 12: Press “1” and “2”. Playback starts after you complete enter the number(s).

4 Press the DIRECT button to return to the actual size of

image (standard screen).

Notes:

l Direct play feature is disabled on some discs. l Some discs may not display the chapter number. l With DVDs, you can specify the desired point only in

the current title and not in another title.

To play by specifying time (time search):

You can playback from the desired point by specifying the time.

1 Whilst in the playback mode, press the DIRECT button.

2 Press  or  button to select "TT Time" then press the

ENTER button.

3 Specify the time with the Numeric buttons.

TT Time

lTo specify 1 hour 23 minutes and 40 seconds, enter

"12340".

lIf you enter the wrong number, start over from step 1. lPlayback starts after you complete enter the

number(s).

1:23:40

4 Press the DIRECT button to return to the actual size of

image (standard screen).

Notes:

l Some discs cannot play from the specified point. l Time search feature is disabled on some discs.

En-23

Useful Operation

MEMORY/FOLDER

DVD/CD

TUNER/DAB

SCAN

ENTER(DAB)

DISPLAY

ZOOM ANGLE

SLOW STEP

RETURN

RANDOM/

REPEAT

ENTER

A-B REPEAT

TOP MENU

1/2 1/4 1/8 1/16

1/16

1/8 1/4 1/2

SLOW forward play

PLAY (Normal play)

SLOW reverse play

1/2 1/4 1/8 1/16

PLAY (Normal play)

50 % 75 % 100 % 125 % 150 % 200 %

n Still picture

You can freeze the picture during playback.

1 Whilst a disc is playing, press the  button.

2 The image or picture will freeze on TV screen.

“II” appears on the TV screen.

lThe unit display counter will blink.

Note:

The sound is muted during still picture.

n Step function (Frame by frame advance

playback)

You can advance frame by frame.

1 Whilst a disc is playing, press the STEP button.

Each press of the STEP button advances the frame.

2 Pre ss the  button to return to the normal playback.

Notes:

l Frame playback operates forward only. l Still picture and frame advance features are disabled

on some discs.

l The sound is muted during step function.

n Slow-motion play

You can slow down the playback speed.

Whilst a disc is playing, press the SLOW button

repeatedly to select the desired speed. On DVD, the speed changes as follows:

On SVCD/VCD/DivX, only forward play is possible and the speed changes as follows:

2 Press the  button to return to the normal playback.

Note:

On some discs, the slow-motion play functions are disabled.

n To change the angle

You can change the angle of view when playing a DVD disc that contains scenes recorded from multiple angles.

When “ ” is displayed in the upper right corner of the TV screen, press the ANGLE button repeatedly to select the desired angle number.

Notes:

l The angle number is not displayed if angles are not

recorded on the disc.

l Refer to the manual of the disc as the operation may

vary depending on the disc.

n To zoom images (zoom)

You can magnify images during playback.

1 Whilst a disc is playing, press the ZOOM button.

lDVD, SVCD, VCD, DivX

Each press of the ZOOM button cycles through the zoom setting as follows:

2 X 3 X 4 X 1/2 1/3 1/4 OFF

lJPEG

Each press the setting as follows:

2 To shift the view and display the

desired part of a zoomed image, press the , ,  or  button repeatedly.

To return to normal view:

Press the ZOOM button repeatedly.

Notes:

l Images may become distorted when zoomed. l Subtitles cannot be zoomed.

button switches the zoom

En-24

Useful Operation (continued)

CHAPTER

TV screen

CHAPTER

TITLE

ALL

Repeat the currently playing chapter.

Repeat the currently playing title.

Repeat the currently playing disc.

The normal playback.

ONE

ALL

Repeat the currently playing track.

Repeat the currently playing disc.

The normal playback.

ONE

ALL

RANDOM

Repeat the currently playing track.

Repeat the currently playing disc.

Randomly play the track.

The normal playback.

TV screen

3SF

Drama Action

Comedy

Example

n To play repeatedly (repeat play)

You can play a chapter (track) or a title repeatedly by specifying it during playback. When playing SVCD or VCD, cancel the P.B.C. (playback control) (see page 27).

Whilst a disc is playing, press the RANDOM/ button.

Each time the button is pressed, the repeat play mode changes in the following order. The repeat play mode changes as follows on DVD:

The repeat play mode changes as follows on SVCD/ VCD:

The repeat play mode changes as follows on audio CD:

REPEAT

n To play the contents between the

specified points repeatedly (A-B repeat)

You can play the desired portion repeatedly by specifying it during playback.

1 Whilst a disc is playing, press the A-B REPEAT button.

This registers the start point (A).

the A-B REPEAT

2 Press

point (B).

This starts A-B repeat play from the start point (A) to the end point (B).

the A-B REPEAT

3 Press

playback.

button again to enter the end

button to return to the normal

Notes:

l A-B repeat play is disabled on some discs. l A-B repeat play for DVD is possible only within a title. l A-B repeat play for SVCD/VCD is possible only within

a track.

l Some scenes on DVD may not allow A-B repeat play.

n To select a title from the top menu of the

disc

On a DVD with multiple titles, you can select a title from the top menu.

MP3, DivX and JPEG are displayed when menu screen is “ON” (see page 30).

2 To return to the normal playback, press the RANDOM/

REPEAT button repeatedly until no display on TV screen.

Caution:

After performing repeat play, be sure to press the  button. Otherwise, the disc will play continuously.

Note:

On some discs, the repeat play function is disabled.

1 Whilst in the stop or

playback mode, press the TOP MENU button to display the title menu.

2 Us e t he , ,  or  button to select a title, and then

press the ENTER button.

lThe selected title plays. lOr use the Numeric buttons for some discs.

Note:

The procedure shown here provides only general steps. The actual procedure for using the title menu depends on the disc. See the disc jacket for details.

En-25

Useful Operation (continued)

1.Highlights

2.Start Movie

Main Menu

1.Hightlights

2.Start Movie

Example

MEMORY/FOLDER

DVD/CD

SUBTITLE/

DIGEST/ DISPLAY

OSD/TV OUT

AUDIO

SUBTITLE 01/03 ENGLISH

AUDIO 1/2: AC3 5 CH ENGLISH

AUDIO 2/2: AC3 2 CH ENGLISH

AUDIO 1 AUDIO 2 AUDIO 3 AUDIO 4

MONO LEFT

MONO RIGHT

STEREO

Current title number

Current chapter number

Playback time

Total number of chapters

Total number of titles

TT 01/03 Ch 01/29 1:26:54

TITLE REMAIN

TITLE ELAPSED

TT 01/03 Ch 01/29 0:15:01

Elapsed playback time for current title

Remaining playback time for current title

n To change the audio channel

n To select a subtitle or audio language from

the disc menu

You can select the desired subtitle or audio language and sound system on your DVD if it has a disc menu.

1 Whilst in the stop or

playback mode, press the MENU/PBC button to display the disc menu.

2 Press the , ,  or  button to change the setting

and press the ENTER button. Or use the

Note:

The procedure shown here provides only general steps. The actual procedure for using the disc menu depends on the disc. See the disc jacket for details.

Numeric

buttons for some discs.

Various settings

The subtitle language, audio language and TV type you select during playback are reset each time you set this unit to the stand-by mode or switch the input. To keep your own settings, set them in the Set up menu (see page 13).

You can select an audio channel. Whilst a disc is playing, press the AUDIO button

repeatedly to select the desired audio channel. E.g.: The audio channel changes as follows on DVD:

The audio channel changes as follows on SVCD:

The audio channel changes as follows on VCD:

Note:

The audio channel may not be changed on some discs.

n To change the display on TV screen

You can display or hide the operation indicators on the TV screen.

Whilst a disc is playing, press the OSD/TV OUT button. (The display is changed at each press.)

Ch 01/29

TT 01/03 0:17:17

DVD:

n To change the subtitle language

You can change the subtitle language or hide subtitles during playback.

Whilst a disc is playing, press the SUBTITLE/DIGEST/ DISPLAY button repeatedly to select the desired subtitle language.

Notes:

l On some discs, the subtitle language cannot be

changed.

l If no subtitles are recorded on the disc, “ ” is

displayed.

l It may take time to switch the subtitle language to the

l Subtitles cannot be hidden on some DVDs.

selected one.

En-26

Various settings (continued)

CHAPTER ELAPSED

TT 01/03 Ch 01/29 0:15:01

CHAPTER REMAIN

TT 01/03 Ch 01/29 0:20:10

DISPLAY OFF

Elapsed playback time for current chapter

Remaining playback time for current chapter

SINGLE ELAPSED

SINGLE REMAIN

DISPLAY OFF

TRACK:01/30

TRACK 01/30

00:40

TRACK 01/30

00:54

TRACK 01/30

00:50

00:54

TOTAL ELAPSED

TOTAL REMAIN

Elapsed playback time for the current track

Remaining playback time for the current track

Total elapsed playback time for the disc

Total remain playback time for the disc

Total track number Current track number

Elapsed playback time for the current track

Remaining playback time for the current track

MEMORY/FOLDER

DVD/CD

TUNER/DAB

SCAN

ENTER(DAB)

DISPLAY

MENU/PBC

RETURN

PRESET

DIRECT

1 2

Example

SVCD/VCD/CD:

Video CD and Super Video CD playback

The following playback functions are the same as DVD or CD operations.

To locate the beginning of a chapter

(track) (skip) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Fast forward/Fast backward (search). . . . . . . . . . . .22

Still picture . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

Slow-motion play . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

To zoom images (zoom). . . . . . . . . . . . . . . . . . . . . . . 24

To play repeatedly (repeat play) . . . . . . . . . . . . . . . .25

To play the contents between the specified points

repeatedly (A-B repeat) . . . . . . . . . . . . . . . . . . . . . . .25

To change the audio channel . . . . . . . . . . . . . . . . . . 26

n Playback of a video CD (super video CD)

with P.B.C. ON

Page

DivX:

SINGLE ELAPSED

0:01:06

SINGLE REMAIN

0:20:05

DISPLAY OFF

Note:

When P.B.C. is set to ON for SVCD or VCD, total elapsed playback time and total remaining playback time do not appear.

This unit handles video CDs that support P.B.C. (version

2.0). P.B.C. is an abbreviation of “Playback control”. These discs have a menu that is displayed on the TV screen. You can play interactive games and make use of other software with the retrieval function (menu playback).

1 Press the MENU/PBC button with PBC ON.

The menu will appear on the TV and playback will be paused.

2 Select the desired menu number using the Numeric

buttons.

lPlayback starts. lAfter playback stops, the menu will reappear. Select

the menu number to play.

En-27

Video CD and Super Video CD playback (continued)

DISC GO TO: -- : - -

1:23:40

Tra c k T im e

To interrupt playback:

Press the  button. To resume playback from the same point, press the  button.

To stop playback:

Press the  button twice.

To stop the current operation and return to the menu:

Press the RETURN button.

The P.B.C. function will not work in the following conditions.

Repeat/programmed/direct play or the skip feature is in operation.

Note:

The menu screen cannot be scrolled on some discs.

n To play without activating the playback

control function

You can play a video CD (super video CD) with P.B.C. without activating the playback control function. In this case, the menu screen will not appear, and the disc will play in the same way as a video CD (super video CD) without P.B.C.

Whilst in the stop or playback mode, press the MENU/PBC button to cancel the P.B.C. mode.

l TV screen will show “PBC OFF”

then playback will start.

In the playback mode:

1 Whilst in the playback mode, press the DIRECT button.

2 Press  or

the ENTER button.

 button to select “Track Time” then press

3 Specify the time with the Numeric buttons.

lTo specify 1 hour 23 minutes and 40 seconds, enter

“12340”.

lIf you enter the wrong number, start over from step 1. lPlayback starts (automatically) after you complete

enter the number(s).

4 Press the DI RECT button to retu rn to the actu al siz e of

image (standard screen).

Notes:

l Some discs cannot play from the specified point. l Time search feature is disabled on some discs. l Time search feature is not available on MP3 and JPEG

discs.

n Disc digest selection

TRACK DISC TIME TRACK TIME REPEAT

02/30 1:06:06 0:01:57 OFF

Note:

Some video CDs (super video CDs) with P.B.C. cannot be played back when the P.B.C. mode is off.

n To start playback from the desired point

(direct play)

To play by specifying time (time search):

Cancel the P.B.C. (playback control).

1 During stop, press the DIRECT button.

2 Specify the time with the Numeric buttons.

lEnter minutes and seconds.

lTo specify 1 hour 23 minutes and 40 seconds, enter

“8340”.

lIf you enter the wrong number, start over from step 1.

lPlayback starts (automatically) after you complete

enter the number(s).

1 2 3

5 6

+10

PRESET

SUBTITLE/ DIGEST/ DISPLAY

MEMORY/FOLDER

DVD/CD

TUNER/DAB

SCAN

MENU/PBC

ENTER(DAB)

DISPLAY

You can playback a desired track by selecting one from the 6 displayed tracks on the screen. 1 During stop mode, press the SUBTITLE/DIGEST/

DISPLAY button.

En-28

PRESET

Video CD and Super Video CD

14253

TV screen

Select Digest Type

14253

TV screen

Select Digest Type

MEMORY/FOLDER

1 2 3

5 6

+10

DIRECT

TV screen

Unit display

TV screen

DISC GO TO: -- : - -

playback (continued)

2 Select digest type by using cursor  or  button and

then press ENTER button.

lTrack digest (disc will be divided by tracks).

lDisc Interval (disc will be divided into 10 minutes

interval).

lUp to 6 tracks will be displayed on the screen.

3 Press the Numeric buttons on the remote control to

select the desired track. Playback will be started from the selected track after pressing the  button.

When there are more than 6 tracks on the video CD:

Each press of the button will display the next 6 tracks. Press the button to return to the previous display.

To cancel the disc digest:

Select EXIT and press ENTER button.

n Track digest selection

You can look at the sections and select the scene you want to start watching from. This function is convenient when you want to start from the middle of an undivided track, for example, a movie.

1 During playback, press the SUBTITLE/DIGEST/

DISPLAY button.

2 Select “Track Interval” by using cursor  or  button

and then press ENTER button.

l The current track will be divided into 10 minutes

interval.

The track being played will be divided into 6 sections and playback will be paused.

CD playback

This system can play back a standard CD, CD-R/RW in the CD format, but cannot record on them. Some audio CD-R and CD-RW discs may not be playable due to the state of the disc or the device that was used for recording.

The following playback functions are the same as DVD operations.

Playback . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

To locate the beginning of a chapter

(track) (skip) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Fast forward/Fast backward (search) . . . . . . . . . . .22

To play in the desired order

(programmed play) . . . . . . . . . . . . . . . . . . . . . . . . . . 23

To play repeatedly (repeat play) . . . . . . . . . . . . . . . .25

To play the contents between the specified points

repeatedly (A-B repeat) . . . . . . . . . . . . . . . . . . . . . . .25

To change the display on TV screen . . . . . . . . . . . 26

n To start playback from the desired point

(direct play)

To select and play the desired track:

Whilst in the stop or playback mode, press the Numeric buttons to select the track number. To select track 14: Press “+10” and “4”.

SELECT TRACK 14/30

Page

3 Press the Numeric buttons on the remote control to

select the scene you want to watch. Playback will start from the selected scene after

pressing the  button.

To cancel the track digest operation:

Select EXIT and press ENTER button.

Notes:

l The track interval function works only during playback. l One track is divided into six frames of equal playing

time.

To play by specifying time (time search):

1 During stop or playback mode, press the DIRECT

button once and “DISC GO TO” appear on TV screen.

2 Specify the time with the Numeric buttons.

lEnter minutes and seconds. lTo specify 1 hour 23 minutes and 40 seconds, enter

“8340”.

lIf you enter the wrong number, start over from step 1.

Notes:

l Direct play feature is disabled on some discs. l Some disc cannot play from the specified point. l Time search feature is disabled on some discs.

En-29

DivX, MP3/WMA (DISC function) and JPEG (DISC/USB Video function) Play

GO TO _: __:__

TV screen

Tota l o f Tr a c k s

Indicates folders.

Indicates MP3 data.

Indicates JPEG data.

Indicates DivX data.

Indicates WMA.

No repeat the currently playing track.

Repeat the currently playing track.

Repeat all the tracks.

TV screen

Repeat play is cancelled.

Randomly repeat play the tracks.

back

MP3: MP3 is a form of compression. It is an acronym which stands for MPEG Audio Layer 3. MP3 is a type of audio code which is processed by significant compression from the original audio source with very little loss in sound quality.

l This system supports MPEG 1 Layer 3 and VBR files. l During VBR file playback, time counter in the display

may differ from its actual playback time.

l Bitrate which is supported by MP3 is 32 kbps to 320

kbps.

WMA: WMA files are Advanced System Format files that include audio files which are compressed with Windows Media Audio codec. WMA is developed by Microsoft as an audio format file for Windows Media Player.

l Bitrate which is supported by WMA is 64 kbps to 160

kbps.

The following playback functions are the same as DVD operations.

Playback. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

To locate the beginning of a chapter

(track) (skip) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Fast forward/Fast backward (search) . . . . . . . . . . . 22

To zoom images (zoom) . . . . . . . . . . . . . . . . . . . . . . 24

To play repeatedly (repeat play) . . . . . . . . . . . . . . . 25

To change the display on TV screen . . . . . . . . . . . 26

n To start playback from the desired point

(direct play)

Page

To play by specifying time (time search):

1 During playback, press the DIRECT button twice.

2 Specify the time with the Numeric Buttons.

lEnter minutes and seconds.

lTo specify 1 hour 23 minutes and 40 seconds, enter

"12340".

lIf you enter the wrong number, start over from step 1.

lYou can check the total playback time of the track by

refer to the page 28.

To select and play the desired track: 1 Whilst in the stop or playback mode, press the Numeric

Buttons or press DIRECT button and then enter the desired track number(s).

n Playback on the MP3 menu screen

You can play CD-R/RW recorded in the MP3/WMA and JPEG formats.

1 Load a disc containing MP3/WMA, JPEG and DivX

files, the menu screen appears.

...

... ...

...

2 Press the  or  button to select a track and press the

ENTER or  button.

l Playback starts when you select a track. l When the format is JPEG, the next file is automatically

displayed after a whilst.Playback starts when you select a track.

l You can use the  or  button to rotate the JPEG

picture (see page 31).

l Using the Numeric Buttons, you can open files or

folders directly. Enter the number on the right of the display.

Caution:

If you convert MP3 data to "audio CD" data to record on a CD-R/RW, play it as an audio CD. The MP3 operation cannot be performed.

Notes:

l Up to 20 characters can be displayed for a folder name

and a track name. Underlines, asterisks, and spaces may not be displayed.

l This function is only visible when unit is connected to

TV.

n To play repeatedly (repeat play)

Repeat play on the DivX menu screen:

Whilst a disc is playing, press the RANDOM/REPEAT button. Each time the button is pressed, the repeat play mode changes in the following order.

---/150

If the desired track is 25, press "0", "2" and "5".

2 Playback will start automatically on selected track.

Notes:

l Direct play feature is disabled on some discs. l Some discs cannot play from the specified point.

En-30

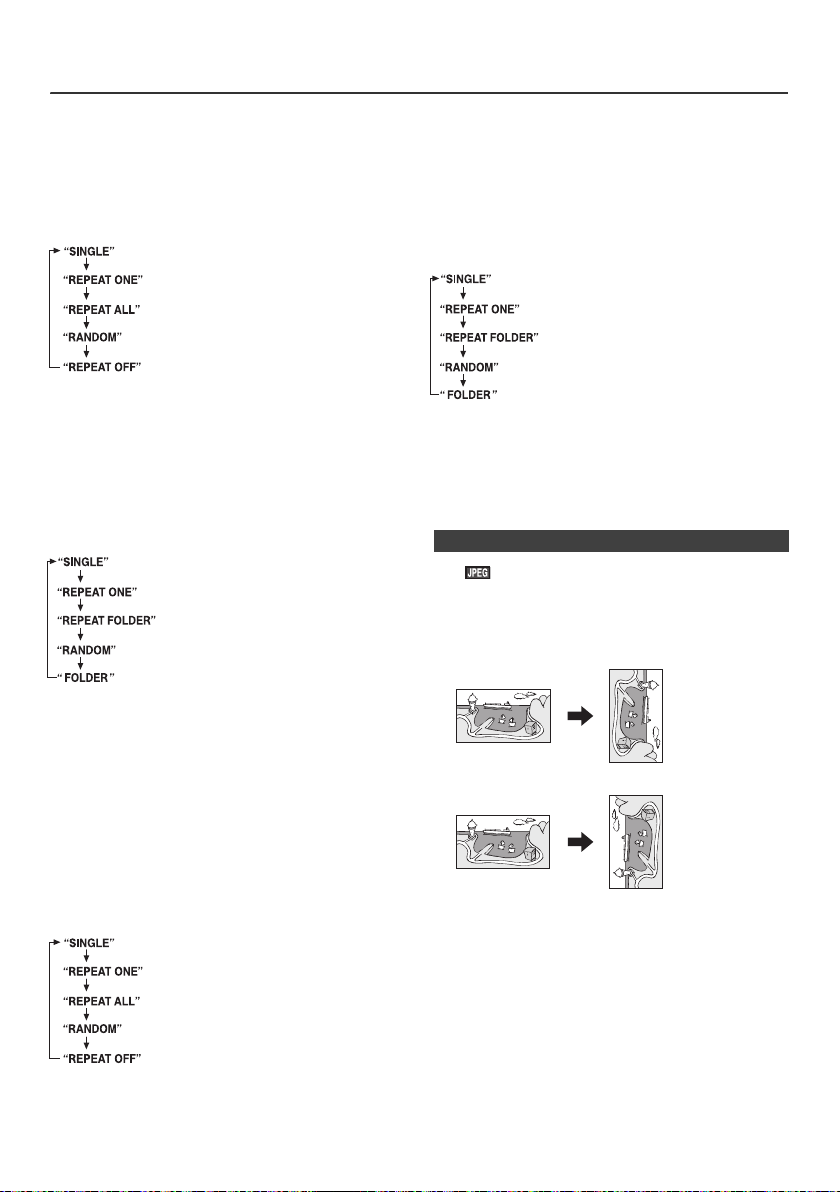

DivX, MP3/WMA (DISC function) and JPEG (DISC/USB Video function) Play

Randomly repeat play the tracks (images).

No repeat the currently playing track (image).

Repeat the currently playing track (image).

Repeat play all the tracks (images) in the disc.

Repeat play is cancelled.

TV screen

No repeat the currently playing track (image). Repeat the currently playing track (image). Repeat play all the tracks (images) in the currently playing folder. Randomly repeat play the tracks (images).

Repeat play is cancelled.

TV screen

Randomly repeat play the tracks (songs).

No repeat the currently playing track (song).

Repeat the currently playing track (song).

Repeat play all the tracks (songs) in the disc.

Repeat play is cancelled.

TV screen

No repeat the currently playing track (song). Repeat the currently playing track (song).

Repeat play all the tracks (songs) in the currently playing folder. Randomly repeat play the tracks (songs).

Repeat play is cancelled.

TV screen

back (continued)

Repeat play on the JPEG menu screen: Condition A

You can play all images in the disc. Playback will stop after complete playback all the images in the disc. To perform repeat play, press the button whilst in the stop mode. Each time the button is pressed, the play mode changes in the following order:

Condition B

You can play images after select each folder inside the disc. Whilst in the main menu screen, press the MEMORY/ FOLDER button. All the folders will be viewed on the TV screen (folder on). The playback will stop after complete playback all the images in the currently playing folder. To perform repeat play, press the RANDOM/REPEAT button whilst in the stop mode. Each time the button is pressed, the play mode changes in the following order:

RANDOM/REPEAT

Condition B

You can play songs after select each folder inside the disc. Whilst in the main menu screen, press the MEMORY/ FOLDER button. All the folders will be viewed on the TV screen (folder on). The playback will stop after complete playback all the songs in the currently playing folder. To perform repeat play, press the button whilst in the stop mode. Each time the button is pressed, the play mode changes in the following order:

Note:

To view back the file list, press the MEMORY/FOLDER button whilst in the main menu screen.

Caution:

After performing repeat or random, be sure to press the  button. Otherwise, it will play continuously.

RANDOM/REPEAT

n Rotating a picture

You can rotate images.

During playback, press the  or  button. The image rotates as shown below.

 button: 90° rotation in a clockwise direction.

Notes:

l To view back the file list, press the MEMORY/FOLDER

button whilst in the main menu screen.

l To return to the main menu screen whilst playback,

press the MENU/PBC button.

Repeat play on the MP3/WMA menu screen: Condition A

You can play all songs in the disc. Playback will stop after complete playback all the songs in the disc. To perform repeat play, press the button whilst in the stop mode. Each time the button is pressed, the play mode changes in the following order:

RANDOM/REPEAT

 button: 90° rotation in an anti-clockwise direction.

En-31

DivX, MP3/WMA (DISC function) and

MEMORY/FOLDER

DVD/CD

INPUT

USB

2.1A

PRESET

USB

MEMORY/FOLDER

SUBTITLE/ DIGEST/ DISPLAY

JPEG (DISC/USB Video function) Play back (continued)

n Simultaneously playback the MP3 and

JPEG

You can enjoy to see images of JPEG files whilst listening to the musics of MP3 at the same time.

1 Playback the desired songs. 2 Select JPEG folder using  or  button. 3 Select the images or pictures those you want to view. 4 Press the ENTER button. 5 Press MENU/PBC button to return to the main menu.

Notes:

l Whilst playing the images, you can not select the MP3/

WMA folder or files.

l JPEG maximum resolution is 10 MBytes of file size.

n Random play (Remote control only)

The tracks/images on the disc(s) can be played in random order automatically.

To random play all tracks/images: During stop mode, press the RANDOM/REPEAT button to select "RANDOM" then press  button to play.

To cancel random playback, press the RANDOM/REPEAT button repeatedly until "REPEAT OFF" / "FOLDER" appear.

Notes:

l Playback will stop after all the tracks is played

randomly.

l In random play, the unit will select and play tracks

automatically. (You cannot select the order of the

tracks.)

l During random play, repeat function is not possible. l When in folder mode, the selected playmode can be

used for the files in the selected folder only.

l This unit only supports "MPEG-1 Audio Layer-3"

format. (Sampling Frequency is 32, 44.1, 48kHz).

l "MPEG-2 Audio Layer-3", "MPEG-2.5 Audio Layer-3"

and MP1, MP2 format are not supported.

l Playback order for MP3 files may differ sometimes

depending on the writing software used during file

downloading.

l Bitrate which is supported by MP3 is 32 to 320 kbps,

WMA is 64 to 160 kbps.

l For MP3/WMA files, please put ".MP3" ".WMA"

extension. Files cannot be played back if there is no

MP3/WMA extension.

l The display playback time may not be displayed

correctly when playing back a variable bitrate file.

l Copyright protected WMA files cannot be played back.

MP3/WMA playback (USB Audio function)

Notes:

l This USB mass storage device or MP3 player is not

compatible with MTP and AAC file systems.

l Some external storage devices may not operate with

this system.

l Operation of external storage devices (USB memory

devices, external hard disks, etc.) is not guaranteed.

n To play back USB/MP3 player with folder

mode off

1 Press the USB button on the remote control or INPUT

button repeatedly on main unit to select USB Audio function. Connect the USB memory device that has MP3/WMA format files on the unit. When the USB memory is connected to the main unit, the device information will be displayed.

2 Select desired file to be played back by pressing the

or button.

3 Press the / button. Playback will start and the file

name will be displayed.

l Title, Artist and Album name are displayed if they are

recorded in the USB memory device.

l Display content can be changed by pressing the

SUBTITLE/DIGEST/DISPLAY button.

Note:

To pause playback:

l Press the / button.

En-32

MP3/WMA playback (USB Audio function) (continued)

MP3 indicator

WMA indicator

TOTAL indicator

Total number of files

Total number of folder

First track number in the folder

FOLDER indicator

FOLDER number

File name display Folder display

Title display

Album display

Counter display

Artist display

n To play back USB/MP3 player with folder

mode on

1 Press the USB button on the remote control or INPUT

2 Press the MEMORY/FOLDER button, and press cursor

 or  button to select desired playback folder. To start playback with folder mode on, go to step 4. To change the playback folder, press cursor  or  button to select another folder.

3 Select desired file to be played back by pressing the

or button.

4 Press the / button. Playback will start and the file

name will be displayed.

l Title, Artist and Album name are displayed if they are

recorded in the USB memory device.

l Display content can be changed by pressing the

SUBTITLE/DIGEST/DISPLAY button.

Note:

If “Not Support” is displayed, it means “Copyright protected WMA file” or “Not supported playback file” is selected.

n To remove USB memory device

1 Press the button to stop playback.

2 Disconnect USB memory device from the USB terminal.

Notes:

l PIONEER will not be held liable for the loss of data

l Files compressed in MP3 and/or WMA format can be

l This USB memory’s format supports FAT 16 or FAT

l PIONEER cannot guarantee that all USB memory

l USB cable is not recommended for use in this audio

l This USB memory cannot be operated via USB hub. l The USB terminal in this unit is not intended for a PC

l External HDD-storage cannot be played back via USB

l If the data inside the USB memory is large, it may take

To play back MP3/WMA (Windows Media Audio) file

There are many music sites on the internet that you can download MP3/WMA (Windows Media Audio) music files. Follow the instructions from the website on how to download the music files. You can then play back these downloaded music files by burning them to a CD-R/RW disc.

l Your downloaded song/files are for personal use only.

n About folder playback order

If MP3/WMA files are recorded in several folders, a folder number will be set to each folder automatically. These folders can be selected by the MEMORY/FOLDER button on the remote control. If there is no supported file formats inside the selected folder, the folder is skipped and the next folder will be selected. Example: How to set folder number if MP3/WMA format files are recorded as below figure.

1 ROOT folder is set as folder 1.

2 As for folders inside ROOT folder (Folder A and Folder

3 As for folder inside Folder A (Folder C and Folder D), the

4 Folder E that is inside Folder D will be set as folder 6.

l The folder and file order information which is recorded

l For CD MP3/WMA, 255 numbers of folders and files

whilst the USB memory device is connected to the audio system.

played back when connected to the USB terminal.

32.

devices will work on this audio system.

system to connect to USB memory device. Use of the USB cable will affect the performance of this audio system.

connection but is used for music streaming with a USB memory device.

terminal.

longer time for the data to be read.

Any other usage of the song without owner’s permission, is against the law.

B), the folder which is recorded earlier on the disc will be set as folder 2 and folder 3.

folder which is recorded earlier on the disc will be set as folder 4 and folder 5.

on the disc depends on the writing software. There maybe possibilities that this unit will playback the files not according to our expected playback order.

inclusive of the folders which have non playable files can be read.

En-33

MP3/WMA playback (USB Audio function) (continued)

ROOT (FOLDER 1)

FOLDER A (FOLDER 2)

FOLDER B (FOLDER 3)

FILE 9 FILE 10

FILE 3 FILE 4 FILE 5

FILE 6 FILE 7 FILE 8 FOLDER E (FOLDER 6)

FOLDER C (FOLDER 4)

FOLDER D (FOLDER 5)

FILE 1 FILE 2

PRESET PRESET

TUNING TUNING

MEMORY/FOLDER

RANDOM/

REPEAT

MEMORY/FOLDER

1 2 3

5 6

+10

CLEAR

PRESET

Selected track number

Folder mode on/off can be operated by the MEMORY/ FOLDER button on the remote control. Files that are played when folder mode is set to the on position, may differ from those played back when folder mode is turned off.

n Various functions

Function Main

Play

Stop

Pause

Track up/ down

Fast forward/ reverse

unit

Remote control

Operation

Press in the stop mode.

Press in the playback mode.

Press in the playback mode. Press the / button to resume playback from the paused point.

Press in the playback or stop mode. If you press the button in the stop mode, press the

/ button to start the

desired track.

Press and hold down in the playback mode.

Release the button to resume playback.

n Direct track search

By using the Numeric buttons, the desired tracks on the current disc can be played.

Use the Numeric buttons on the remote control to select the desired track whilst playing the selected disc.

l The Numeric buttons allow you to select up to number

l When selecting number 10 or higher, use the “+10”

button.

A. For example, to choose 13 1 Press the “+10” button once. 2 Press the “1” button. 3 Press the “3” button.

B. For example, to choose 130 1 Press the “+10” button twice. 2 Press the “1” button. 3 Press the “3” button. 4 Press the “0” button.

Notes:

l A track number higher than the number of tracks on the

disc cannot be selected.

l During random play, Numeric is not possible.

To stop playback:

Press the button.

n Repeat play

Repeat play can play one track, all tracks or a programmed sequence continuously.

To repeat one track:

Press the RANDOM/REPEAT button repeatedly until “Repeat One” appears. Press the / button.

To repeat all tracks:

Press the RANDOM/REPEAT button repeatedly until “Repeat All” appears. Press the / button.

To repeat desired tracks:

Perform steps 1 - 5 in “Programmed play” section on page 35 and then press the RANDOM/REPEAT button repeatedly until “Repeat All” appears.

To cancel repeat play:

Press the RANDOM/REPEAT button repeatedly until “Normal” appears and “ ” disappears.

En-34

MP3/WMA playback (USB Audio function) (continued)

n Random play

The tracks on the disc can be played in random order automatically.

To random play all tracks:

Press the RANDOM/REPEAT button on the remote control until “Random” appears. Press the / button.

To cancel random play:

Press the RANDOM/REPEAT button until “RDM” indicator disappears.

Notes:

l If you press the button during random play, you

can move to the track selected next by the random

operation. On the other hand, the button does not allow

you to move to the previous track. The beginning of the

track being played will be located.

l In random play, the unit will select and play tracks

automatically. (You cannot select the order of the

tracks.)

Caution:

After performing repeat play, be sure to press the button. Otherwise, the disc will play continuously.

n Programmed play (MP3/WMA)

Whilst in the stop mode, press and hold the MEMORY/

FOLDER button to enter the programming save mode.

2 Press cursor  or  button on the remote control to

select the desired folder.

Then press the to select the desired tracks.

or button on the remote control

Adding tracks to the programme:

If a programme has been previously stored, the “MEM” indicator will be displayed. Press the MEMORY/FOLDER button repeatedly to go to the last programme memory. Then follow steps 2 - 3 to add tracks. The new tracks will be stored after the last track of the previous programme.

Notes:

l During the programme operation, random play is not

possible.

l If USB memory device is not connected, “USB No

Media” will be shown on the display.

l This unit only supports “MPEG-1 Audio Layer-3”

format. (Sampling Frequency is 32 kHz, 44.1 kHz, 48 kHz)

l Playback order for MP3 files may differ depending on

the writing software used during file download.

l Bitrate which is supported by MP3 is 32 kbps to 320

kbps, WMA is 64 kbps to 160 kbps.

l For MP3/WMA files, please put “.MP3” “.WMA”

extension. Files cannot be played back if there is no MP3/WMA extension.

l Playlists are not supported on this unit. l This unit can display Folder Name or File Name up to

32 characters.

l Maximum total number of MP3/WMA files is 1024.

Maximum total number of folders is 255 inclusive of root directory.

l Total number of folders read is 999 including folder

with non-playable file. However, the display shows only folder with MP3 files.

l The display playback time may not be displayed

correctly when playing back a variable bitrate file.

l The ID3TAG information supported are TITLE,

ARTIST and ALBUM only. Title name, artist name and album name can be displayed by pressing the SUBTITLE/DIGEST/DISPLAY button during file playback or pause mode.

l WMA meta tag also supports title, artist and album

name which are recorded in WMA files. Copyright protected WMA files cannot be played back.

3 Press the MEMORY/FOLDER button to save the folder

and track number.

4 Repeat steps 2 - 3 for other folder/tracks. Up to 32

tracks can be programmed.

5 Press the / button to start playback.

To cancel the programmed play mode:

During programmed stop mode, press the button. The display will show “Memory Clear” and all the programmed contents will be cleared.

En-35

Listening to the FM radio

STANDBY/ON

INPUT

MEMORY/FOLDER

PRESET

TUNING

TUNER/DAB

DVD/CD

TUNER/DAB

SCAN

PRESET

TUNING

ENTER(DAB)

DISPLAY

n Tuning

1 Press the STANDBY/ON button to turn the power on.

2 Press the TUNER button repeatedly to select the "FM".

3 Press the TUNING – or + button on the remote control

to tune in to the desired station.

l Manual tuning:

Press the TUNING – or + button repeatedly to tune in to the desired station.

l Auto tuning:

When the TUNING – or + button is pressed for more than 0.5 seconds, scanning will start automatically and the tuner will stop at the first receivable broadcast station.

Notes:

l When radio interference occurs, auto scan tuning may

stop automatically at that point.

l Auto scan tuning will skip weak signal stations. l To stop the auto tuning, press the TUNING – or + button

again.

l When an RDS (Radio Data System) station is tuned in,

the frequency will be displayed first, and then the RDS

indicator will light up. Finally, the station name will

appear.

l Full auto tuning can be achieved for RDS stations

"ASPM", see page 37.

To receive an FM stereo transmission:

l Press the TUNER button to select stereo mode and

“ST” indicator will be displayed. “ ” and “ ” will

appear when an FM broadcast is in stereo.

l If the FM reception is weak, press the TUNER button

to extinguish the “ST” indicator. The reception changes

to monaural, and the sound becomes clearer.

n Memorising a station

You can store 40 FM stations in memory and recall them at the push of a button. (Preset tuning)

1 Perform steps 1 - 3 in “Tuning”.

2 Press the MEMORY/FOLDER button.

3 Within 30 seconds, press the PRESET – or + button to

select the preset channel number. Store the stations in memory, in order, starting with preset channel 1.

4 Within 30 seconds, press the MEMORY/FOLDER

button to store that station in memory. If the “MEMORY” and preset number indicators disappear before the station is memorised, repeat the operation from step 2.

5 Repeat steps 1 - 4 to set other stations, or to change a

preset station. When a new station is stored in the memory, the station previously memorised for that preset channel number will be erased.

Note:

The backup function protects the memorised stations for a few hours should there be a power failure or the AC power lead become disconnected.

n To recall a memorised station

1 Press the PRESET – or + button for less than 0.5

seconds to select the desired station.

n To scan the preset stations

The stations saved in the memory can be scanned automatically. (Preset memory scan)

1 Press the PRESET – or + button for more than 0.5

seconds. The preset number will flash and the programmed stations will be tuned in sequentially, for 5 seconds each.

2 Press the PRESET – or + button again when the desired

station is located.

n To erase entire preset memory

1 Press the TUNER button on remote control or press the

INPUT button on main unit repeatedly to select Tuner function.

2 In Tuner function, press the CLEAR button until “Tuner

Clear“ appears.

En-36

Using the Radio Data System (RDS)

DVD/CD

TUNER/DAB

SCAN

ENTER(DAB)

DISPLAY

TUNER/DAB

ASPM PTY(RDS) DISPLAY

TUNING

SCAN ENTER(DAB) DISPLAY

Station name (PS) Programme type (PTY)

Frequency Radio text (RT)

NO PS NO PTY

FM 98.80 MHz

NO RT

RDS is a broadcasting service which a growing number of FM stations provide. These FM stations send additional signals along with their regular programme signals. They send their station names, and information about the type of programme such as sport, music, etc.

When tuned to an RDS station, “RDS” and the station name will be displayed. “PTYI” (Dynamic PTY Indicator) will appear whilst the Dynamic PTY station is received.

You can control the RDS by using the buttons on the remote control only.

n Information provided by RDS

Each time the RDS DISPLAY button is pressed, the display will switch as follows:

n Using the Auto Station Programme

Memory (ASPM)

Whilst in the ASPM operation mode, the tuner will automatically search for new RDS stations. Up to 40 stations can be stored. If you have already stored some stations in memory, the number of new stations you can store will be less.

1 Press the TUNER button on the remote control or

INPUT button repeatedly on the main unit to select TUNER function.

2 Press and hold down the RDS ASPM button on the

remote control.

1 After “ASPM” has flashed for about 4 seconds,

scanning will start (87.50 - 108.00 MHz).

2 When an RDS station is found, “RDS” will appear

for a short time and the station will be stored in memory.

3 After scanning, the number of stations stored in

memory will be displayed for 4 seconds, and then “END” will appear for 4 seconds.

When tuning in to a station other than an RDS station or to an RDS station which sends weak signal, the display will change in the following order:

To stop the ASPM operation before it is complete:

Press the RDS ASPM button whilst it is scanning for stations. The stations which are already stored in memory will be kept there.

Notes:

l Any station which has the same frequency as the one

stored in memory will not be stored.

l If 40 stations have already been stored in memory, the

scan will be aborted. If you want to redo the ASPM operation, erase the preset memory.

l If no station have been stored in memory, “END” will

appear for about 4 seconds.

l If the RDS signals are very weak, station names may

not be stored in memory.

l The same station name can be stored in different

channels.

l In a certain area or during certain time periods, the

station names may temporarily be different.

En-37

Using the Radio Data System (RDS) (continued)

n Notes for RDS operation

If any of the following events occur, it does not mean that the unit is faulty:

l “PS”, “NO PS” and a station name appear alternately,

and the unit does not operate properly.

l If a particular station is not broadcasting properly or a

station is conducting tests, the RDS reception function

may not work properly.

l When you receive an RDS station whose signal is too

weak, information like the station name may not be

displayed.

l “NO PS”, “NO PTY” or “NO RT” will flash for about 5

seconds, and then the frequency will be displayed.

Notes for radio text:

l The first 14 characters of the radio text will appear for

4 seconds and then they will scroll across the display.

l If you tune in to an RDS station which is not

broadcasting any radio text, “NO RT” will be displayed

when you switch to the radio text position.

l Whilst radio text data is received or when the text

contents change, “RT” will be displayed.

n To recall stations in memory

To specify programmed types and select stations (PTY search):

You can search a station by specifying the programme

type (news, sports, traffic programme, etc. ... see page 38)

from the stations in memory.

1 Press the TUNER button on the remote control or

INPUT button repeatedly on the main unit to select TUNER function.

2 Press the RDS PTY button on the remote control.

“SELECT” and “PTY TI” will appear alternately for

about 6 seconds.

3 Within 6 seconds, press the or button to select

the programme type.

Each time the button is pressed, the programme type

will appear.

4 Whilst the selected programme type is flashing (within

6 seconds), press the RDS PTY button again.

After the selected programme type has been lit for 2

seconds, “SEARCH” will appear, and the search

operation will start.

Notes:

l If the display has stopped flashing, start again from

step 2. If the unit finds a desired programme type, the

corresponding channel number will lit for about

8 seconds, and then the station name will remain it.

l If you want to listen to the same programme type of

another station, press the RDS PTY button whilst the channel number or station name is flashing. The unit will look for the next station.

l If no station can be found, “Not Found” will appear for

4 seconds.

Descriptions of the PTY (Programme Type) codes

You can search for and receive the following PTY.

NEWS Short accounts of facts, events and

AFFAIRS Topical programme expanding or

INFO Programmes whose purpose is to impart

SPORT Programme concerned with any aspect

EDUCATE Programme intended primarily to

DRAMA All radio plays and serials. CULTURE Programmes concerned with any aspect

SCIENCE Programmes about the natural sciences

VARIED Used for mainly speech-based

POP M Commercial music, which would

ROCK M Contemporary modern music, usually

EASY M Current contemporary music considered

LIGHT M Classical music for general, rather than

CLASSICS Performances of major orchestral works,

OTHER M Musical styles not fitting into any of the

WEATHER Weather reports and forecasts and

En-38

publicly expressed views, reportage and actuality.

enlarging upon the news, generally in different presentation style or concept, including debate, or analysis.

advice in the widest sense.

of sport.

educate, of which the formal element is fundamental.

of national or regional culture, including language, theatre, etc.

and technology.

programmes usually of lightentertainment nature, not covered by other categories. Examples include: quizzes, panel games, personality interviews.

generally be considered to be of current popular appeal, often featuring in current or recent record sales charts.

written and performed by young musicians.

to be “easy-listening”, as opposed to Pop, Rock or Classical, or one of the specialised music styles, Jazz, Folk or Country. Music in this category is often but not always, vocal, and usually of short duration.

specialist appreciation. Examples of music in this category are instrumental music, and vocal or choral works.

symphonies, chamber music, etc., and including Grand Opera.

other categories. Particularly used for specialist music of which Rhythm & Blues and Reggae are examples.

meteorological information.

Using the Radio Data System (RDS)

DAB + SIGNAL

MULTIPLEX (ENSEMBLE)

SERVICES COMPONENTS (STATIONS)

SERVICES

MEMORY/FOLDER

DVD/CD

TUNER/DAB

SCAN

ENTER(DAB)

DISPLAY

TUNER/DAB

ASPM PTY(RDS) DISPLAY

TUNING

SCAN ENTER(DAB) DISPLAY

The number of received station The scanning progress

(continued)

FINANCE Stock Market reports, commerce,

CHILDREN For programmes targeted at a young

SOCIAL Programmes about people and things

RELIGION Any aspect of beliefs and faiths,

PHONE IN Involving members of the public

TRAVEL Features and programmes concerned

LEISURE Programmes concerned with

JAZZ Polyphonic, syncopated music

COUNTRY Songs which originate from, or continue

NATION M Current Popular Music of the Nation or

OLDIES Music from the so-called “golden age” of

FOLK M Music which has its roots in the musical

DOCUMENT Programme concerned with factual

TEST Broadcast when testing emergency

ALARM Emergency announcement made under

trading, etc.

audience, primarily for entertainment and interest, rather than where the objective is to educate.

that influence them individually or in groups. Includes: sociology, history, geography, psychology and society.

involving a God or Gods, the nature of existence and ethics.

expressing their views either by phone or at a public forum.

with travel to near and far destinations, package tours and travel ideas and opportunities. Not for use for announcements about problems, delays, or roadworks affecting immediate travel where TP/TA should be used.

recreational activities in which the listener might participate. Examples include, Gardening, Fishing, Antique collecting, Cooking, Food & Wine, etc.

characterised by improvisation.

the musical tradition of the American Southern States. Characterised by a straightforward melody and narrative story line.

Region in that country's language, as opposed to International “Pop” which is usually US or UK inspired and in English.

popular music.

culture of a particular nation, usually played on acoustic instruments. The narrative or story may be based on historical events or people.

matters, presented in an investigative style.

broadcast equipment or receivers.

exceptional circumstances to give warning of events causing danger of a general nature.

Listening to the DAB+

n About DAB+ (Digital Audio Broadcasting)

Digital Audio Broadcasting is a digital transmission system where audio signals are converted to digital signals for broadcasting. DAB+ is broadcast as a group of data called multiplex (ensemble) which may contain one or more stations (services). Each station contains a primary service and there may be one or more secondary services. This allows several programmes or services to be transmitted on a single frequency.

n Auto Scan

When turned on for the first time, the unit scans radio stations automatically to create a station list. You can make the Auto Scan again when you move the unit to other areas or add multiplex channels to the station list.

1 Press the TUNER/DAB button until "DAB" appears on

the display.

2 Press DAB SCAN button on the remote control for more

than 3 seconds. Auto Scan scanning begins.

En-39

Listening to the DAB+ (continued)

Display current station

The name of the station being selected

Signal strength [G: Good, B: Bad]

Quality Level [0 to 100]

Transfer speed Channel type

[ST: Stereo, MO: Mono]

After the scan:

The stations will be stored in alphanumeric order and the first station on the list will be selected and you will hear it through the speakers.

l To listen to other stations, see "Selecting a station in

the station list" on page 40.

Notes:

l If no station is found, "NO Service" appears. l Up to 99 appears for total received stations.

n Selecting a station in the station list

Once a DAB+ station is received, you can select stations in the station list. 1 Press the TUNER/DAB button until "DAB" appears on

the display.

2 Whilst receiving a DAB+ station, press the TUNING +

–

to select the desired station.

n Changing the information display

You can switch DAB+ display information. Press the DAB DISPLAY button. Each time the button is pressed, the information display changes in the following order. When "No Service" appears, the DAB DISPLAY button does not allow you to change the display.

[Station Name]

Station name is displayed. (set by default)

[Scrolling text]

Information scrolls across the display when sent from the station.

[Programme type]

A description of the type of content being broadcast by the station.

3 Within 10 seconds, press the DAB ENTER button on

the remote control to tune into the desired station.

n Manual tune

You can manually store stations which Auto Scan cannot find. If reception is poor, you can adjust the sensitivity. Manual tune is only available after Auto tune. Perform Auto Scan first.

1 Press the TUNER/DAB button until "DAB" appears on

the display.

2 Press the DAB SCAN button once.

–

3 Within 10 seconds, press the TUNING + or

the DAB+ frequency.

4 Within 10 seconds, press the DAB ENTER button.

lReception sensitivity appears.

lIf the level is too low, move the aerial or unit to

improve reception.

5 Press the DAB ENTER button again to store the station

and exit manual tune.

to select

[Multiplex name]

The name of the multiplex (ensemble) which provides the current service.

[Channel/Frequency]

The DAB+ channel and frequency for the station. (Frequency is displayed to two decimal places)

[Mode]

The data transfer speed and channel type appear.

[Signal quality]

The signal quality is displayed as a number (0 - 100). [85-100: Good, 70-84: Fair, 0-69: Poor]

n Memorising a station

You can store 40 DAB stations in memory and recall them at the push of a button. (Preset tuning)

1 Tune to the desired DAB station. 2 Press the MEMORY station.

–

3 Within 30 seconds, press the PRESET + or

select the preset channel number. Store the stations in memory, in order, starting with preset channel 1.

button to

En-40

Listening to the DAB+ (continued)

MEMORY/FOLDER

DVD/CD

STANDBY/ON

CLOCK/TIMER

ENTER

SLEEP

PRESET PRESET

TUNER/DAB

SCAN

ENTER(DAB)

DISPLAY

Once timer

Daily timer

Start

Stop

1 minute or more

Start

Stop

4 Within 30 seconds, press the MEMORY button to store

that station in memory. If the "MEMORY" and preset number indicators dissapear before the station is memorised, repeat the operation from step 2.

5 Repeat steps 1 - 4 to set other stations, or to change a

preset station. When a new station is stored in the memory, the station previously memorised for that preset channel number will be erased.

n DAB Frequency table (BAND III)

Frequency Label Frequency Label

174.928 MHz 5A 208.064 MHz 9D

176.640 MHz 5B 209.936 MHz 10A

178.352 MHz 5C 211.648 MHz 10B

180.064 MHz 5D 213.360 MHz 10C

181.936 MHz 6A 215.072 MHz 10D

183.648 MHz 6B 216.928 MHz 11A

185.360 MHz 6C 218.640 MHz 11B

187.072 MHz 6D 220.352 MHz 11C

188.928 MHz 7A 222.064 MHz 11D

190.640 MHz 7B 223.936 MHz 12A

192.352 MHz 7C 225.648 MHz 12B

194.064 MHz 7D 227.360 MHz 12C

195.936 MHz 8A 229.072 MHz 12D

197.648 MHz 8B 230.784 MHz 13A

199.360 MHz 8C 232.496 MHz 13B

201.072 MHz 8D 234.208 MHz 13C

202.928 MHz 9A 235.776 MHz 13D

204.640 MHz 9B 237.488 MHz 13E

206.352 MHz 9C 239.200 MHz 13F

* Frequencies are displayed to two decimal places on this unit.

Timer and sleep operation (Remote control only)

Timer playback:

The unit turns on and plays the desired source (DISC, Tuner, DAB, USB Audio, USB Video, iPod, Line In) at a preset time.

This unit has 2 types of timer: ONCE TIMER and DAILY TIMER. Once timer:

Once timer play works for one time only at a preset time.

(“ ” indicator). Daily timer:

Daily timer play works at the same preset time every day that we set. For example, set the timer as a wake-up call every morning.

(“DAILY” indicator). Using the once timer and daily timer in combination:

For example, use the once timer to listen to a radio programme, and use the daily timer to wake up.

1 Set the daily timer (page 41 - 42).

2 Set the once timer (page 41 - 42).

n Timer playback

Before setting timer:

l Check that the clock is set to the correct time (refer

to page 18). If it is not set, you cannot use the timer function.

l For timer playback: Plug in USB or load discs or dock

iPod to be played.

1 Press the STANDBY/ON button to turn the power on.

2 Press and hold the CLOCK/TIMER button.

3 Within 30 seconds, press the

“Once” or “Daily”, and press the ENTER button.

4 Within 30 seconds, press the

"Timer set", and press the ENTER button.

5 To select the timer playback source (DISC, Tuner, DAB,

USB Audio, USB Video, iPod, Line In), press the PRESET + or – button. Press the ENTER button. When you select the tuner, select a station by pressing

or button, and then press the ENTER

the button. If a station has not been programmed, “No Preset” will be displayed and timer setting will be cancelled.

6 To adjust the day, press the

press the ENTER button.

7 Press the ENTER button to adjust the hour. Press the

8 To adjust the minutes, press the the

or button and then press the ENTER button.

the

and then press the ENTER button.

or button to select

or button and then

9 Set the time to finish as in steps 7 and 8 above.

10Adjust the volume using the VOL + or – button, and then

press the ENTER button. Do not turn the volume up too high.

En-41

or button

Timer and sleep operation (Remote control only) (continued)

Desired time1-99 minutes

Sleep operation will automatically stop

Sleep timer setting

Timer playback setting

End time

Timer playback start time

11Press the STANDBY/ON button to enter the power

stand-by mode. The “TIMER” indicator lights up and the unit is ready for timer playback.

12When the preset time is reached, playback will start.

The volume will increase gradually until it reaches the preset volume. The timer indicator will blink during timer playback.

13When the timer end time is reached, the system will

enter the power stand-by mode automatically.

Once timer:

The timer will be cancelled.

Daily timer:

The timer operates at the same time every day. It will continue until the daily timer setting is cancelled. Cancel the daily timer when it is not in use.

Notes:

l When performing timer playback using external unit

connected to the USB terminal or LINE IN connector,

select related source in step 5.

l This unit will turn on or enter the power stand-by mode

automatically. However, the connected unit will not turn

on or off. To stop the timer playback, follow step

“Cancelling the timer setting” of page 42.

Checking the timer setting:

1 Turn the power on and press and hold down the CLOCK/

TIMER button.

2 Within 30 seconds, press the

“Once” or “Daily”, and press the ENTER button.

3 Within 30 seconds, press the

"Timer Call", and press the ENTER button.

Cancelling the timer setting:

1 Turn the power on and press and hold down the CLOCK/

TIMER button.

2 Within 30 seconds, press the

“Once” or “Daily”, and press the ENTER button.

3 Within 30 seconds, press the

"Timer Off", and press the ENTER button. Timer will be cancelled (the setting will not be cancelled).

or button to select

3 Within 30 seconds, press the or button to select

"Timer On", and press the ENTER button.

4 Press the STANDBY/ON button to enter the power

stand-by mode.

n Sleep operation

The radio, disc, iPod, USB and Line In can all be turned off automatically.

1 Play back the desired sound source.

2 Press the SLEEP button.

3 Within 5 seconds, press the Numeric button to set the

time (1 minute - 99 minutes)

4 “SLEEP” will appear.

5 The unit will enter the power stand-by mode

automatically after the preset time has elapsed.

To confirm the remaining sleep time:

1 Whilst “SLEEP” is indicated, press the SLEEP button.

To cancel the sleep operation:

Press the STANDBY/ON button whilst “SLEEP” is indicated. To cancel the sleep operation without setting the unit to the stand-by mode, proceed as follows.

1 Whilst “SLEEP” is indicated, press the SLEEP button.

2 Within 5 seconds, press the “0” button twice until

“SLEEP 00” appears.

n To use timer and sleep operation together

Sleep and timer playback:

For example, you can fall asleep listening to the radio and wake up to CD in the next morning.

1 Set the sleep time (see above, steps 1 - 5).

2 Whilst the sleep timer is set, set the timer playback

(steps 2 - 9, page 41).

Reusing the memorised timer setting:

The timer setting will be memorised once it is entered. To reuse the same setting, perform the following operations.

1 Turn the power on and press and hold down the CLOCK/

TIMER button.

2 Within 30 seconds, press the

“Once” or “Daily”, and press the ENTER button.

or button to select

En-42

Headphones

l Do not turn the volume on to full at switch on and listen

to music at moderate levels. Excessive sound pressure

from earphones and headphones can cause hearing

loss.

l Before plugging in or unplugging the headphone,

reduce the volume.

l Be sure your headphone has a 3.5 mm diameter plug

and impedance between 16 and 50 ohms. The

recommended impedance is 32 ohms.

l Plugging in the headphone disconnects the speakers

automatically. Adjust the volume using the VOLUME

control.

l Audio from the iPod/iPhone cannot be heard via the

headphones connected to the unit. “HP INVALID” will

be displayed if you connect the headphones when the

iPod/iPhone function is selected.

Troubleshooting chart

Many potential problems can be resolved by the owner without calling a service technician. If something is wrong with this product, check the following before calling your authorized PIONEER dealer or service centre.

n General

Symptom Possible cause

l The clock is not

set to the correct time.

l When a button is

pressed, the unit does not respond.

l No sound is

heard.

l Did a power failure occur? l Reset the clock. (Refer to

page 18)

l Set the unit to the power stand-

by mode and then turn it back on.

l If the unit still malfunctions,

reset it. (Refer to page 45)

l Is the volume level set to

“Min”?

l Are the headphones

connected?

l Are the speaker wires

disconnected?

n DVD/CD Player

Symptom Possible cause

l Playback does

not start.

l Playback stops

in the middle or is not performed properly.

l Playback

sounds are skipped, or stopped in the middle of a track.

l Is the disc loaded upside

down?

l Does the disc satisfy the

standards?

l Is the disc distorted or

scratched?

l Is the unit located near

excessive vibrations?

l Is the disc very dirty? l Has condensation formed

inside the unit?

n Remote control

Symptom Possible cause

l The remote

control does not operate.

l Is the AC power lead of the unit

plugged in?

l Are the batteries polarity

correct?

l Are the batteries dead? l Is the distance or angle

incorrect?

l Does the remote control

sensor receive strong light?

n Tuner

Symptom Possible cause

l The radio makes

unusual noises continuously.

l DAB reception is

poor.

l Is the unit placed near the TV

or computer?

l Is the DAB/FM aerial placed

properly? Move the aerial away from the AC power lead if it is located nearby.

l Check the connections, and

adjust the location and position of aerial. After that, execute Auto Scan function manually (page 39).

l Adjust the location and

position of aerial with Tuning Aid function (page 39).

l If the reception environment

changed by removal, etc., execute Auto Scan function manually (page 40).

En-43

Troubleshooting chart (continued)

n USB

Symptom Possible cause

l Device cannot

be detected.

l Playback does

not start.

l Wrong time

display.

l Wrong file name

display.

l Is there any MP3/WMA file

available?

l Is the device properly

connected?

l Is it an MTP device? l Does the device contain AAC

file only?

l Is it a copyright protected

WMA file?

l Is it a false MP3 file?

l Is Variable Bitrate file being

played back?

l Is the File Name written in

Chinese or Japanese characters?

n iPod and iPhone

Symptom Possible cause

l No sound is

produced. No image appears on the TV/ monitor.

l iPod or iPhone will

not charge.

l “This accessory is

not made to work with iPhone” or “This accessory is not supported by iPhone” appears on iPhone screen.

l The iPod or iPhone is not playing. l The iPod or iPhone is not

properly connected to the unit.

l Is the AC power lead of the unit

plugged in?

l The video cable is not properly

connected.

l The TV/monitor’s input selection

is not properly set.

l The iPod TV out feature has not

been set to output video.

l Audio from the iPod/iPhone

cannot be heard via the headphones connected to the unit.

l The iPod or iPhone is not making

full contact with the connector.

l Using iPod (3 l The iPod or iPhone is not

supported. Refer to page 19 for compatible models.

l The iPod or iPhone unit cannot

be charged whilst the main unit is in USB mode.

l The iPhone battery is low. Please

charge the iPhone.

l iPhone is not properly docked.

generation).

n HDMI

Symptom Possible cause

l No picture. l Video signals that are input from

the analog video terminal will not output from the HDMI terminal. Signals that are input from the HDMI terminal will not output from the analog video terminal. Be consistent with the type of cable between input and output.

l This receiver is HDCP-

compatible. Check that the TV you are connecting are also HDCP-compatible. If they are not, please connect them using the component or composite video jacks.

l If video images do not appear on

your TV, try adjusting the resolution, Deep Color or other setting for your component.

l To output signals in Deep Color,

use an HDMI cable (High Speed

HDMI

Cable) to connect this receiver to TV with the Deep Color feature.

n Condensation

Sudden temperature changes, storage or operation in an extremely humid environment may cause condensation inside the cabinet (CD pickup, etc.) or on the transmitter on the remote control. Condensation can cause the unit to malfunction. If this happens, leave the power on with no disc in the unit until normal playback is possible (about 1 hour). Wipe off any condensation on the transmitter with a soft cloth before operating the unit.

n If problem occurs

When this product is subjected to strong external interference (mechanical shock, excessive static electricity, abnormal supply voltage due to lightning, etc.) or if it is operated incorrectly, it may malfunction.

If such a problem occurs, do the following: 1 Set the unit to the stand-by mode and turn the power on

again.

2 If the unit is not restored in the previous operation,

unplug and plug in the unit again, and then turn the power on.

Note:

If neither operation above restores the unit, clear all the memory by resetting it.

n S-VIDEO/COMPONENT VIDEO

Symptom Possible cause

l No picture. l The VIDEO OUT setting of the

setup menu may be wrong. Use the provided video cable and check the VIDEO OUT setting of the setup menu.

En-44

Troubleshooting chart (continued)

NO YES

Correct

Specifications

n Factory reset, clearing all memory

For DISC/USB Video function:

Please refer "Changing the Setup Menu" on page 13. Select "PREFERENCE", "DEFAULT" and then "RESET".

For others function: 1 Press the STANDBY/ON button to turn the power on.

2 Press the LINE button on the remote control or INPUT

button repeatedly on the main unit to select LINE IN function.

3 In LINE IN function, press the button on the

main unit press and hold the button until "RESET" appears.

Caution:

This operation will erase all data stored in memory including clock, timer settings, tuner preset.

n Before transporting the unit

Remove the iPod, USB memory device and disc from the unit. Then, set the unit to the power stand-by mode. Carrying the unit with iPod or USB memory device left docked or discs left inside might damage the unit.

n Care of compact discs

Compact discs are fairly resistant to damage, however mistracking can occur due to an accumulation of dirt on the disc surface. Follow the guidelines below for maximum enjoyment from your CD collection and player.

l Do not write on either side of the disc, particularly the

non-label side from which signals are read. Do not mark this surface.

l Keep your discs away from direct sunlight, heat, and

excessive moisture.

l Always hold the CDs by the edges. Fingerprints, dirt, or

water on the CDs can cause noise or mistracking. If a CD is dirty or does not play properly, clean it with a soft, dry cloth, wiping straight out from the centre, along the radius.

Maintenance

n Cleaning the cabinet

Periodically wipe the cabinet with a soft cloth and a diluted soap solution, then with a dry cloth.

Caution:

l Do not use chemicals for cleaning (petrol, paint thinner,

etc.). It may damage the cabinet.

l Do not apply oil to the inside of the unit. It may cause

malfunctions.

As part of our policy of continuous improvement, PIONEER reserves the right to make design and specification changes for product improvement without prior notice. The performance specification figures indicated are nominal values of production units. There may be some deviations from these values in individual units.

n General

Power source AC 220 V to 240 V, 50 Hz/60 Hz

Power consumption

Dimensions Width: 215 mm

Weight 3.9 kg

Power on: 50 W Power stand-by: 0.4 W

Height: 99 mm Depth: 300 mm

n Amplifier

Output power RMS: 30 W + 30 W (1 kHz, 10 %

Output terminals Speakers: 4 ohms

Input terminals Line in (Analog input):

T.H.D., 4 ohms)

20 Hz to 20 kHz Coaxial digital output Headphones: 16 ohms (recommended: 32 ohms)

500 mV/47 k ohms

n DVD player

Signal system

Supported disc types

Video signal

Audio signal

PAL/NTSC color

DVD (with the same region number on the back of the unit), SVCD, VCD, audio CD, CD-R, CD-RW, JPEG, DivX (version 3.0)

Horizontal resolution: 500 lines S/N ratio: 70 dB

Frequency characteristic

S/N radio CD: 94 dB (1 kHz)

Dynamic range

To ta l harmonic distortion ratio

Linear PCM DVD: 20 Hz to 20 kHz (sampling rate: 48 kHz) 20 Hz to 20 kHz (sampling rate: 96 kHz) CD: 20 Hz to 20 kHz

Linear PCM DVD: 95 dB CD: 94 dB

0.01 % maximum

En-45

Specifications (continued) Notice

n Video section

Signal level Composite: 1 Vp-p (75 ohms)

HDMI terminal Type A (19-pin)

S-video:

Y: 1 Vp-p (75 ohms), C: 0.286 Vp-p (75 ohms)

Component Video:

Y: 1.0 Vp-p (75 ohms) Pb, Pr: 0.7 Vp-p (75 ohms)

n USB

USB host interface

Support file

Bitrate support

Other

File system support

l Complies with USB 1.1 (Full

Speed)/2.0 Mass Storage Class.

l Support Bulk only and CBI

protocol.

l MPEG 1 Layer 3 l WMA (Non DRM) l JPEG (USB Video function only)

l MP3 (32 kbps to 320 kbps) l WMA (64 kbps to 160 kbps) l Maximum total number of MP3/

WMA files is 1024.

l Maximum total number of

folders is 255 INCLUSIVE of root directory.

l The ID3TAG information

supported are TITLE, ARTIST and ALBUM only.

l Supports ID3TAG version 1 and

version 2.

l Support USB devices with

Microsoft Windows/DOS/FAT 12/FAT 16/ FAT 32.

l 2 kbyte block length for sector.

n Tuner

Frequency range FM: 87.5 MHz to 108 MHz

Preset 40 (FM station) / 40 (DAB station)

DAB: 174.928 MHz to 239.200 MHz

l Unauthorised copying, broadcast, public display,

transmission, public performance and rental (regardless of whether or not such activities are for profit) of disc contents are prohibited by law.

l This system is equipped with copy protection

technology that causes substantial degradation of images when the contents of a disc are copied to a video tape.

Copy Protection:

This unit supports Macrovision copy protection. On DVD discs that include a copy protection code, if the contents of the DVD disc are copied using a VCR, the copy protection code prevents the videotape copy from playing normally.

U.S. Patent Nos. 6,836,549; 6,381,747; 7,050,698; 6,516,132; and 5,583,936.

This item incorporates copy protection technology that is protected by U.S. patents and other intellectual proper ty rights of Rovi Corporation. Reverse engineering and disassembly are prohibited.

Manufactured under license from Dolby Laboratories. Dolby and the double-D symbol are trademarks of Dolby Laboratories.

, DivX Certified® and associated logos are

DivX trademarks of DivX, Inc. and are used under license.

HDMI, the HDMI Logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing, LLC in the United States and other countries.

n Speaker

Type 2-way type speaker system

Impedance 4 ohms

Dimensions Width: 132 mm

Weight 2.0 kg/each

5 cm Tweeter 10 cm Woofer

Height: 260 mm Depth: 173 mm

En-46

En-47

Printed in China

PIONEER CORPORATION

1-1, Shin-ogura, Saiwai-ku, Kawasaki-shi, Kanagawa 212-0031, Japan

PIONEER ELECTRONICS (USA) INC.

P.O. BOX 1540, Long Beach, California 90801-1540, U.S.A. TEL: (800) 421-1404

PIONEER ELECTRONICS OF CANADA, INC.

340 Ferrier Street, Unit 2, Markham, Ontario L3R 2Z5, Canada TEL: 1-877-283-5901, 905-479-4411

PIONEER EUROPE NV

Haven 1087, Keetberglaan 1, B-9120 Melsele, Belgium TEL: 03/570.05.11

PIONEER ELECTRONICS ASIACENTRE PTE. LTD.

253 Alexandra Road, #04-01, Singapore 159936 TEL: 65-6472-7555

PIONEER ELECTRONICS AUSTRALIA PTY. LTD.

5 Arco Lane, Heatherton, Victoria, 3202, Australia, TEL: (03) 9586-6300

PIONEER ELECTRONICS DE MEXICO S.A. DE C.V.

Blvd.Manuel Avila Camacho 138 10 piso Col.Lomas de Chapultepec, Mexico, D.F. 11000 TEL: 55-9178-4270

K002_B3_En

En-48

Pioneer X-HM30DAB-K User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
