Pioneer SC-1525-K User Manual

Operating Instructions

audio/video multi-channel receiver

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

CAUTION:

TO PREVENT THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

IMPORTANT

D3-4-2-1-1_A1_En

WARNING

This equipment is not waterproof. To prevent a fire or shock hazard, do not place any container filled with liquid near this equipment (such as a vase or flower pot) or expose it to dripping, splashing, rain or moisture.

D3-4-2-1-3_A1_En

WARNING

Before plugging in for the first time, read the following section carefully.

The voltage of the available power supply differs according to country or region. Be sure that the power supply voltage of the area where this unit will be used meets the required voltage (e.g., 230 V or 120 V) written on the rear panel.

D3-4-2-1-4*_A1_En

Operating Environment

Operating environment temperature and humidity: +5 °C to +35 °C (+41 °F to +95 °F); less than 85 %RH (cooling vents not blocked) Do not install this unit in a poorly ventilated area, or in locations exposed to high humidity or direct sunlight (or strong artificial light)

D3-4-2-1-7c*_A1_En

WARNING

To prevent a fire hazard, do not place any naked flame sources (such as a lighted candle) on the equipment.

D3-4-2-1-7a_A1_En

Caution

To prevent fire hazard, the Class 2 Wiring Cable should be used for connection with speaker, and should be routed away from hazards to avoid damage to the insulation of the cable.

D3-7-13-67*_A1_En

Read these instructions. Keep these instructions. Heed all warnings. Follow all instructions. Do not use this apparatus near water. Clean only with dry cloth. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

10)

Only use attachments/accessories specified by the manufacturer. Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.

Unplug this apparatus during lightning storms or when unused for long periods of time. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

D3-7-13-69_En

11)

12)

13)

14)

VENTILATION CAUTION

When installing this unit, make sure to leave space around the unit for ventilation to improve heat radiation (at least 20 cm at top, 10 cm at rear, and 20 cm at each side).

WARNING

Slots and openings in the cabinet are provided for ventilation to ensure reliable operation of the product, and to protect it from overheating. To prevent fire hazard, the openings should never be blocked or covered with items (such as newspapers, table-cloths, curtains) or by operating the equipment on thick carpet or a bed.

D3-4-2-1-7b*_A1_En

If the AC plug of this unit does not match the AC outlet you want to use, the plug must be removed and appropriate one fitted. Replacement and mounting of an AC plug on the power supply cord of this unit should be performed only by qualified service personnel. If connected to an AC outlet, the cut-off plug can cause severe electrical shock. Make sure it is properly disposed of after removal. The equipment should be disconnected by removing the mains plug from the wall socket when left unused for a long period of time (for example, when on vacation).

D3-4-2-2-1a_A1_En

CAUTION

The

STANDBY/ON

switch on this unit will not completely shut off all power from the AC outlet. Since the power cord serves as the main disconnect device for the unit, you will need to unplug it from the AC outlet to shut down all power. Therefore, make sure the unit has been installed so that the power cord can be easily unplugged from the AC outlet in case of an accident. To avoid fire hazard, the power cord should also be unplugged from the AC outlet when left unused for a long period of time (for example, when on vacation).

D3-4-2-2-2a*_A1_En

NOTE:

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: — Reorient or relocate the receiving antenna. — Increase the separation between the equipment and receiver. — Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. — Consult the dealer or an experienced radio/TV technician for help.

D8-10-1-2_A1_En

Information to User

Alterations or modifications carried out without appropriate authorization may invalidate the user’s right to operate the equipment.

D8-10-2_A1_En

CAUTION

This product satisfies FCC regulations when shielded cables and connectors are used to connect the unit to other equipment. To prevent electromagnetic interference with electric appliances such as radios and televisions, use shielded cables and connectors for connections.

D8-10-3a_A1_En

FEDERAL COMMUNICATIONS COMMISSION DECLARATION OF CONFORMITY

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Product Name: AUDIO/VIDEO MULTI-CHANNEL RECEIVER Model Number: SC-1525-K Responsible Party Name: PIONEER ELECTRONICS (USA) INC. SERVICE SUPPORT DIVISION Address: 1925 E. DOMINGUEZ ST. LONG BEACH, CA 90810-1003, U.S.A. Phone: 1-800-421-1404 URL: http://www.pioneerelectronics.com

D8-10-4*_C1_En

IMPORTANT NOTICE

THE MODEL NUMBER AND SERIAL NUMBER OF THIS EQUIPMENT ARE ON THE REAR OR BOTTOM. RECORD THESE NUMBERS ON YOUR ENCLOSED WARRANTY PAGE 115 FOR FUTURE REFERENCE.

D36-AP9-1_A1_En

This product is for general household purposes. Any failure due to use for other than household purposes (such as long-term use for business purposes in a restaurant or use in a car or ship) and which requires repair will be charged for even during the warranty period.

K041_A1_En

The Safety of Your Ears is in Your Hands

Get the most out of your equipment by playing it at a safe level – a level that lets the sound come through clearly without annoying blaring or distortion and, most importantly, without affecting your sensitive hearing. Sound can be deceiving. Over time, your hearing “comfort level” adapts to higher volumes of sound, so what sounds “normal” can actually be loud and harmful to your hearing. Guard against this by setting your equipment at a safe level BEFORE your hearing adapts.

ESTABLISH A SAFE LEVEL:

• Set your volume control at a low setting.

• Slowly increase the sound until you can hear it

comfortably and clearly, without distortion.

• Once you have established a comfortable sound

level, set the dial and leave it there.

BE SURE TO OBSERVE THE FOLLOWING GUIDELINES:

• Do not turn up the volume so high that you can’t

hear what’s around you.

• Use caution or temporarily discontinue use in

potentially hazardous situations.

• Do not use headphones while operating a motorized

vehicle; the use of headphones may create a traffic hazard and is illegal in many areas.

S001a_A1_En

Thank you for buying this Pioneer product. Please read through these operating instructions so you will know how to operate your model properly. After you have finished reading the instructions, put them away in a safe place for future reference.

01 Before you start

Our philosophy . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Features. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Checking what’s in the box . . . . . . . . . . . . . . . . . . . . 10

Installing the receiver . . . . . . . . . . . . . . . . . . . . . . . . 10

Loading the batteries . . . . . . . . . . . . . . . . . . . . . . . . . 10

Operating range of remote control unit . . . . . . . . . . . 10

02 Controls and displays

Remote control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Display. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Front panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

03 Connecting your equipment

Rear panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Determining the speakers’ application . . . . . . . . . . . 17

Other speaker connections . . . . . . . . . . . . . . . . . . . 18

Placing the speakers . . . . . . . . . . . . . . . . . . . . . . . . . 18

THX speaker system setup . . . . . . . . . . . . . . . . . . . 18

Some tips for improving sound quality . . . . . . . . . . 18

Connecting the speakers . . . . . . . . . . . . . . . . . . . . . . 19

Installing your speaker system. . . . . . . . . . . . . . . . . . 20

Standard surround connection . . . . . . . . . . . . . . . . 20

Bi-amping your speakers. . . . . . . . . . . . . . . . . . . . . 21

Bi-wiring your speakers . . . . . . . . . . . . . . . . . . . . . . 21

Selecting the Speaker system . . . . . . . . . . . . . . . . . . 22

Front height setup. . . . . . . . . . . . . . . . . . . . . . . . . . 22

Front wide setup . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Spea

ker B setup . . .

Bi-Amping setup . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

ZONE 2 setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

About the audio connection. . . . . . . . . . . . . . . . . . . . 22

About the video converter . . . . . . . . . . . . . . . . . . . . . 22

About HDMI . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Connecting your TV and playback components . . . . . 24

Connecting using HDMI . . . . . . . . . . . . . . . . . . . . . 24

Connecting your DVD player with no HDMI

output . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

Connecting your TV with no HDMI input . . . . . . . . . 26

Connecting an HDD/DVD recorder, BD recorder

and other video sources. . . . . . . . . . . . . . . . . . . . . . . 27

Connecting a satellite/cable receiver or other

set-top box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

Connecting the multichannel analog inputs . . . . . . . 29

Connecting other audio components. . . . . . . . . . . . . 30

About the WMA9 Pro decoder. . . . . . . . . . . . . . . . . 30

Connecting additional amplifie Connect

MULTI-ZONE setup . . . . . . . . . . . . . . . . . . . . . . . . . . 32

Connecting to the network through LAN interface. . . 33

Connecting Optional Bluetooth® ADAPTER . . . . . . . 34

ing AM/FM antennas . . . . . . . . . . . . . . . . . . 31

Connecting external antennas. . . . . . . . . . . . . . . . . 32

Making MULTI-ZONE connections. . . . . . . . . . . . . . 32

. . . . . . . . . . . . . . . . . . . . . . . . 22

rs .

. . . . . . . . . . . . . . . 31

Connecting an HDMI-equipped component to the

front panel input . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

Connecting an XM Radio tuner . . . . . . . . . . . . . . . . . 34

Connecting a SiriusConnect™ tuner . . . . . . . . . . . . . 34

Connecting an iPod . . . . . . . . . . . . . . . . . . . . . . . . . . 35

Connecting a USB device . . . . . . . . . . . . . . . . . . . . . 35

Connecting a USB device for Advanced MCACC

output . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

Connecting an IR receiver . . . . . . . . . . . . . . . . . . . . . 36

Operating other Pioneer components with this

unit’s sensor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

Switching components on and off using the

12 volt trigger. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

Plugging in the receiver. . . . . . . . . . . . . . . . . . . . . . . 37

04 Basic Setup

Changing the OSD display language

(OSD Language) . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

Automatically conducting optimum sound tuning

(Full Auto MCACC) . . . . . . . . . . . . . . . . . . . . . . . . . . 38

Problems when using the Auto MCACC Setup . . . . 40

The Input Setup menu . . . . . . . . . . . . . . . . . . . . . . . . 40

Input function default and possible settings . . . . . . 41

05 Basic playback

Playing a source . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42

Playing a source with HDMI connection . . . . . . . . . 42

Selecting the multichannel analog inp uts . . . . . . . . 42

Playing an iPod . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43

Playing back audio files stored on an iPod . . . . . . . 43

Playing a USB device. . . . . . . . . . . . . . . . . . . . . . . . . 44

Playing back audio files stored on a USB memory

device . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44

Playing back photo files stored on a USB memory

device . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44

About playable file formats . . . . . . . . . . . . . . . . . . . 45

Listening to the radio . . . . . . . . . . . . . . . . . . . . . . . . . 46

Improving FM sound . . . . . . . . . . . . . . . . . . . . . . . . 46

Using the noise cut mode . . . . . . . . . . . . . . . . . . . . 46

Using Neural Surround . . . . . . . . . . . . . . . . . . . . . . 46

Tuning directly to a station . . . . . . . . . . . . . . . . . . . 46

Saving station presets. . . . . . . . . . . . . . . . . . . . . . . 46

Listening to station presets . . . . . . . . . . . . . . . . . . . 46

Naming station presets. . . . . . . . . . . . . . . . . . . . . . 46

Listening to Satellite Radio . . . . . . . . . . . . . . . . . . . . 47

Listening to XM Radio . . . . . . . . . . . . . . . . . . . . . . . . 47

Using XM HD Surround . . . . . . . . . . . . . . . . . . . . . 47

Saving channel presets . . . . . . . . . . . . . . . . . . . . . . 48

Using the XM Menu . . . . . . . . . . . . . . . . . . . . . . . . 48

Listening to SIRIUS Radio . . . . . . . . . . . . . . . . . . . . . 48

Saving channel presets . . . . . . . . . . . . . . . . . . . . . . 49

Using the SIRIUS Menu . . . . . . . . . . . . . . . . . . . . . 49

Listening to Internet radio stations

Programm

ing the Internet radio

. . . . . . . . . . . . . . 49

stations . . . . . . . . 50

Bluetooth ADAPTER for Wireless Enjoyment of

Music . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51

Wireless music play . . . . . . . . . . . . . . . . . . . . . . . . . 51

Pairing the Bluetooth ADAPTER and Bluetooth

wireless technology device. . . . . . . . . . . . . . . . . . . . 51

Listening to music contents of a Bluetooth

wireless technology device with your system . . . . . . 52

06 Listening to your system

Auto playback. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53

Listening in surround sound. . . . . . . . . . . . . . . . . . . . 53

Standard surround sound . . . . . . . . . . . . . . . . . . . . 53

Using the Home THX modes . . . . . . . . . . . . . . . . . . 54

Using the Advanced surround effects . . . . . . . . . . . 54

Listening in stereo . . . . . . . . . . . . . . . . . . . . . . . . . . . 55

Using Front Stage Surround Advance . . . . . . . . . . . . 55

Using Stream Direct. . . . . . . . . . . . . . . . . . . . . . . . . . 55

Selecting MCACC presets . . . . . . . . . . . . . . . . . . . . . 56

Choosing the input signal. . . . . . . . . . . . . . . . . . . . . . 56

Better sound using Phase Control . . . . . . . . . . . . . . . 56

09 Controlling the rest of your system

About the Remote Setup menu . . . . . . . . . . . . . . . . . 67

Operating multiple receivers . . . . . . . . . . . . . . . . . . . 67

Setting the remote to control other components . . . . 68

Selecting preset codes directly. . . . . . . . . . . . . . . . . . 68

Programming signals from other remote controls . . . 68 Erasing one of the remote control button settings . . . 69 Erasing all learnt settings that are in one input

function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69

Direct function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69

Setting the backlight mode . . . . . . . . . . . . . . . . . . . . 70

Multi operation and System off. . . . . . . . . . . . . . . . . . 70

Programming a Multi operation or a shutdown

sequence . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71

Using multi operations. . . . . . . . . . . . . . . . . . . . . . . 71

Using System off . . . . . . . . . . . . . . . . . . . . . . . . . . . 71

Erasing the settings fo

Resetting the remote control settings. . . . . . . . . . . . . 72

Default preset codes . . . . . . . . . . . . . . . . . . . . . . . . 72

Controlling components. . . . . . . . . . . . . . . . . . . . . . . 72

r the m

ulti-operation . . .

. . . . 71

07 Control with HDMI function

Making Control with HDMI connections. . . . . . . . . . . 57

HDMI Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57

Before using synchronization . . . . . . . . . . . . . . . . . . . 58

About synchronized operations . . . . . . . . . . . . . . . . . 58

About connections with a product of a different brand

that supports the Control with HDMI function . . . . . 59

Setting the PQLS function . . . . . . . . . . . . . . . . . . . . . 59

Cautions on the Control with HDMI function . . . . . . . 59

08 Using other functions

Setting the Audio options . . . . . . . . . . . . . . . . . . . . . . 60

Setting the Video options . . . . . . . . . . . . . . . . . . . . . . 62

Switching the speaker terminals . . . . . . . . . . . . . . . . 63

Using the MULTI-ZONE controls . . . . . . . . . . . . . . . . . 63

Making an audio or a video recording. . . . . . . . . . . . . 64

Reducing the level of an analog signal . . . . . . . . . . . . 64

Using the sleep timer . . . . . . . . . . . . . . . . . . . . . . . . . 65

Dimming the display . . . . . . . . . . . . . . . . . . . . . . . . . 65

Switching the HDMI output . . . . . . . . . . . . . . . . . . . . 65

Using the Web Control function . . . . . . . . . . . . . . . . . 65

Checking your system settings . . . . . . . . . . . . . . . . . . 65

Resetting the system . . . . . . . . . . . . . . . . . . . . . . . . . 66

Default system settings . . . . . . . . . . . . . . . . . . . . . . 66

10 The Advanced MCACC menu

Making receiver settings from the Advanced

MCACC menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75

Automatic MCACC (Expert) . . . . . . . . . . . . . . . . . . . . 75

Manual MCACC setup . . . . . . . . . . . . . . . . . . . . . . . . 77

Fine Channel Level. . . . . . . . . . . . . . . . . . . . . . . . . . 78

Fine Speaker Distance . . . . . . . . . . . . . . . . . . . . . . . 78

Standing Wave. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 78

Acoustic Calibration EQ Adjust . . . . . . . . . . . . . . . . 79

Acoustic Calibration EQ Professional . . . . . . . . . . . 79

Checking MCACC Data . . . . . . . . . . . . . . . . . . . . . . . 81

Speaker Setting . . . . . . . . . . . . . . . . . . . . . . . . . . . . 81

Channel Level . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 81

Speaker Distance. . . . . . . . . . . . . . . . . . . . . . . . . . . 81

Standing Wave. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 81

Acoustic Cal EQ. . . . . . . . . . . . . . . . . . . . . . . . . . . . 81

Output MCACC data . . . . . . . . . . . . . . . . . . . . . . . . 82

Data Management . . . . . . . . . . . . . . . . . . . . . . . . . . . 82

Renaming MCACC presets . . . . . . . . . . . . . . . . . . . 82

Copying MCACC preset data . . . . . . . . . . . . . . . . . . 83

Clearing MCACC presets . . . . . . . . . . . . . . . . . . . . . 83

11 The System Setup and Other Setup menus

Making receiver settings from the System Setup

menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 84

Manual speaker setup . . . . . . . . . . . . . . . . . . . . . . . . 84

Speaker system setting . . . . . . . . . . . . . . . . . . . . . . 85

Speaker Setting. . . . . . . . . . . . . . . . . . . . . . . . . . . . 85

Channel Level . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 86

Speaker Distance . . . . . . . . . . . . . . . . . . . . . . . . . . 86

X-Curve . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 87

THX Audio Setting . . . . . . . . . . . . . . . . . . . . . . . . . . 87

Network Setup menu . . . . . . . . . . . . . . . . . . . . . . . . . 87

IP address/Proxy setting . . . . . . . . . . . . . . . . . . . . . 88

Checking the MAC address . . . . . . . . . . . . . . . . . . . 88

Network Standby . . . . . . . . . . . . . . . . . . . . . . . . . . . 88

The Other Setup menu. . . . . . . . . . . . . . . . . . . . . . . . 89

Volume Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 89

Remote Control Mode Setup . . . . . . . . . . . . . . . . . . 89

Flicker Reduction Setup . . . . . . . . . . . . . . . . . . . . . 90

EXTENSION Setup. . . . . . . . . . . . . . . . . . . . . . . . . . 90

Multi Channel Input Setup . . . . . . . . . . . . . . . . . . . 90

12 Additional information

Speaker Setting Guide . . . . . . . . . . . . . . . . . . . . . . . . 91

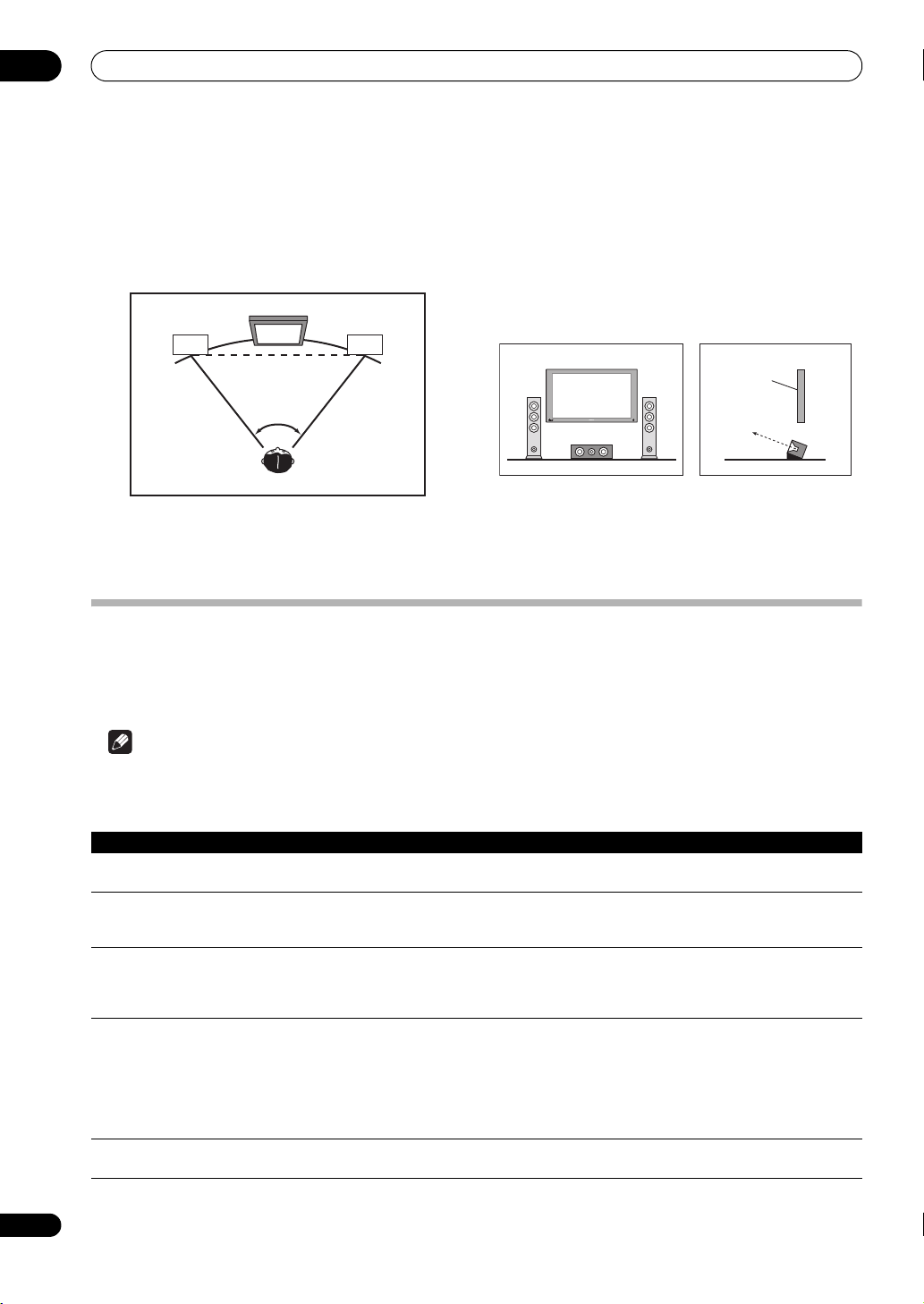

Positional relationship between speakers and

monitor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 92

Troubleshooting. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 92

Power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 92

No sound . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 93

Other audio problems . . . . . . . . . . . . . . . . . . . . . . . 94

ADAPTER PORT . . . . . . . . . . . . . . . . . . . . . . . . . . . 95

Video . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 95

Settings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 96

Professional Calibration EQ graphical output . . . . . 96

Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 97

Remote control . . . . . . . . . . . . . . . . . . . . . . . . . . . . 97

Web Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 98

HDMI . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 98

Important information regarding the HDMI

connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 99

USB interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 99

Internet radio. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 100

XM radio messages. . . . . . . . . . . . . . . . . . . . . . . . 101

SIRIUS radio messages. . . . . . . . . . . . . . . . . . . . . 102

Surround sound formats

lby. . . .

DTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 103

Windows Media Audio 9 Professional . . . . . . . . . . 103

About THX . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 103

About iPod. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 104

About SIRIUS and XM . . . . . . . . . . . . . . . . . . . . . . . 105

Auto Surround, ALC and Stream Direct with

different input signal formats. . . . . . . . . . . . . . . . . . 106

Preset code list . . . . . . . . . . . . . . . . . . . . . . . . . . . . 107

Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 111

Cleaning the unit . . . . . . . . . . . . . . . . . . . . . . . . . . . 111

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 103

. . . . . . . . . . . . . . . . . . . . . 103

Flow of settings on the receiver

The unit is a full-fledged AV receiver equipped with an abundance of functions and terminals. It can be used easily after following the procedure below to make the connections and settings.

The colors of the steps indicate the following:

Required setting item

Setting to be made as necessary

1 Before you start

• Checking what’s in the box (page 10)

• Loading the batteries (page 10)



Determining the speakers’ application (page

17)

• 7.1 channel surround system (Front height)

• 7.1 channel surround system (Front wide)

• 7.1 channel surround system & Speaker B connection

• 5.1 channel surround system & Front Bi-amping connection (High quality surround)

• 5.1 channel surround system & ZONE 2 connection (Multi Zone)



3 Connecting the speakers

• Placing the speakers (page 18)

• Connecting the speakers (page 19)

• Installing your speaker system (page 20)

• Bi-amping your speakers (page 21)



4 Connecting the components

• About the audio connection (page 22)

• About the video converter (page 22)

• Connecting your TV and playback components (page 24)

• Connecting AM/FM antennas (page 31)

• Plugging in the receiver (page 37)



5Power On



6 Changing the OSD display language (OSD

Language) (page 38)



7 MCACC speaker settings

• Automatically conducting optimum sound tuning (Full Auto MCACC) (page 38)



8 The Input Setup menu (page 40)

(When using connections other than the recommended connections)



9 Basic playback (page 42)



10 Switching the HDMI output (page 65)



11 Adjusting the sound and picture quality as desired

• Using the various listening modes (page 53)

• Better sound using Phase Control (page 56)

• Measuring the all EQ type (SYMMETRY/ALL CH ADJ/FRONT ALIGN) (page 75)

• Changing the channel level while listening (Tip on page 86)

• Switching on/off the Acoustic Calibration EQ, Sound retriever or Dialog Enhancement (page 60)

• Setting the PQLS function (page 59)

• Setting the Audio options (Tone, Loudness or Sound delay, etc.) (page 60)

• Setting the Video options (page 62)



12 Other optional adjustments and settings

• Control with HDMI function (page 57)

• The Advanced MCACC menu (page 75)

• The System Setup and Other Setup menus (page

84)



13 Making maximum use of the remote control

• Operating multiple receivers (page 67)

• Setting the remote to control other components (page 68)

Before you start

Note

Chapter 1:

Before you start

Our philosophy

Pioneer is dedicated to making your home theater listening experience as close as possible to the vision of the moviemakers and mastering engineer when they created the original soundtrack. We do this by focusing on three important steps:

1 Achieving the highest possible sound quality

2 Allowing for customized acoustic calibration according to any listening area

3 Fine-tuning the receiver with the help of worldclass studio engineers

* With the cooperation of AIR Studios, this receiver has

been designated AIR Studios Monitor:

Features

• Direct Energy HD Amplifier

Through a collaboration, Pioneer and ICEpower have jointly development a unique class D amplifier called a “Direct Energy HD (High Fidelity Class D) amplifier”. This new generation reference amplifier offers outstanding performance with high sound quality and reproduces the latest in multi-channel digital contents.

• HDMI (Ver.1.4a with 3D, Audio Return Channel)

A compatible component is required to use the above function.

• Remote operation on an iPhone/iPod touch

Operation via LAN is possible from an iPhone or iPod touch by downloading a Pioneer original application (iControlAV) from the iTunes Store.

• iPhone/iPod playback

Your iPhone or iPod can be connected to the receiver’s USB terminal to play the music/video files on the iPhone/ iPod.

•PQLS

Jitterless high quality playback is possible by connecting a PQLS-compatible player with HDMI connections.

• Dolby Pro Logic llz compatible

Adding a pair of speakers above the front left and right speakers adds expressiveness in the vertical direction to the previous horizontally-oriented sound field. The height channel strengthens the sound field’s sense of three- dimensionality and air, producing presence and expansion.

• Internet Radio

By connecting this receiver to the network via the LAN terminal, you can listen to Internet radio stations.

• XM and SIRIUS Ready

With the XM and SIRIUS Radio terminals, you’ll be up and running in no time.

•

Using the Bluetooth ADAPTER (Pioneer Model No. ASBT100)

Bluetooth wireless technology device wirelessly.

• Sound Retriever and Sound Retriever Air

The Sound Retriever feature employs DSP technology to restore sound pressure and smooth jagged artifacts left

over after compression. Sound Retriever Air compensates for reduced sound quality due to compression when sending Bluetooth signals.

• Easy setup using Advanced MCACC

The Auto MCACC Setup provides a quick but accurate surround sound setup, which includes the advanced features of Professional Acoustic Calibration EQ.

• Web control

The receiver can be operated using a browser from a computer connected on the same LAN as the receiver.

• RF two-way communications function

Using the CU-RF1003, the information shown of the receiver’s display can be displayed on the remote control

in your hands and you can operate the remote control without worrying about obstacles or the direction in which the remote control is pointing.

Bluetooth

compatible

lets you enjoy music files on an iPhone or other

1 The PQLS functions supported for the PQLS Multi Surround and PQLS 2ch Audio. 2 The AS-BT100 is sold separately. 3 The CU-RF100 is sold separately.

Note

7 m (23 ft.)

30°

Before you start

Checking what’s in the box

Please check that you’ve received the following supplied accessories:

•Setup microphone (cable: 5 m (16.4 ft.))

• Remote control unit

• AAA size IEC R03 dry cell batteries (to confirm system operation) x2

•AM loop antenna

•FM wire antenna

• iPod cable

•Power cord

•These operating instructions

• Never use new and old batteries together.

•Insert the plus and minus sides of the batteries properly according to the marks in the battery case.

•Batteries with the same shape may have different voltages. Do not use different batteries together.

• When disposing of used batteries, please comply with governmental regulations or environmental public instruction’s rul area.

• WARNING Do not use or store batteries in direct sunlight or other excessively hot place, such as inside a car or near a heater. This can cause batteries to leak, overheat, explode or catch fire. It can also reduce the life or performance of batteries.

at apply in your country or

es th

Installing the receiver

• When installing this unit, make sure to put it on a level and stable surface.

Don’t install it on the following places: – on a color TV (the screen may distort) – near a cassette deck (or close to a device that gives off a magnetic field). This may interfere with the sound. – in direct sunlight – in damp or wet areas – in extremely hot or cold areas – in places where there is vibration or other movement – in places that are very dusty – in places that have hot fumes or oils (such as a kitchen)

• Do not touch this receiver’s bottom panel while the

power is on or just after it is turned off. The bottom panel becomes hot when the power is on (or right after it is turned off) and could cause burns.

Loading the batteries

The batteries included with the unit are to check initial operations; they may not last over a long period. We recommend using alkaline batteries that have a longer life.

CAUTION

Incorrect use of batteries may result in such hazards as leakage and bursting. Observe the following precautions:

Operating range of remote control unit

The remote control may not work properly if:

•There are obstacles between the remote control and the receiver’s remote sensor.

•Direct sunlight or fluorescent light is shining onto the remote sensor.

•The receiver is located near a device that is emitting infrared rays.

•The receiver is operated simultaneously with another infrared remote control unit.

Tip

• By connecting an RF adapter to the RS-232C and EXTENSION terminals, the CU-RF100 omnidirectional remote control can be used for RF two-

way communications with the receiver. way communications, the information of the receiver’s display can be displayed on the remote control in your hands and the remote control can be operated without worrying about obstacles or the

direction in which the remote control is pointing.

With RF tw o-

1 The RF adapter and CU-RF100 omni-directional remote control are sold separately. 2 The maximum line-of-sight distance for RF two-way communications is about 10 meters. This line-of-sight communica tions distance is a rough

indication, and may differ according to the surrounding environment.

Chapter 2:

RECEIVER

ZONE 2 ZONE 3 LIGHT

AUTO

ALC /

DIRECT

D.ACCESS

CH LEVEL A.ATT DIMMER

SIGNAL SEL

MCACC SLEEP

HDMI OUT

DTV MPX PQLS

PHASE

CTRL STATUSTHX

PGM

STEREO

iPod CTRL

HOME MENU

TUNE

TOOLS

LIST

TV CONTROL

INPUT

SELECT TV CTRL

iPod

USB TUNER SIRIUS XM

ADAPTERNET RADIO

CDTV

BD DVD

R.SETUP

SOURCERECEIVER

MULTI OPERATION

DVR/BDR HDMI

RECEIVER

MUTE

MASTER VOLUME

VOL

PRESET

TOP MENU

BAND GUIDE

T.EDIT

VIDEO

PARAMETER

AUDIO

PARAMETER

ENTER

PRESET

RETURN

CATEGORY

MEMORY

STANDARD

ADV SURR

AUDIO

INFO

CLASS

ENTER

DISP

HDD DVD

546

213

/ CLR

1 2

RECEIVER

Controls and displays

Remote control

This section explains how to operate the remote control for the receiver.

Controls and displays

The remote has been conveniently color-coded according to component control using the following system:

• White – Receiver control, TV control

• Blue – Other controls (See page 43, 44, 46, 47, 51 and

72.)

1  RECEIVER

This switches between standby and on for this receiver.

MULTI OPERATION – Use to perform multi

operations (page 70).

R.SETUP – Use to input the preset code when making remote control settings and to set the remote control mode (page 67).

3 Input function buttons

Press to select control of other components (page 67). Use INPUT SELECT to select the input function (page 42).

TV CTRL

Set the preset code of your TV’s manufacturer when controlling the TV (page 68).

TV CONTROL

buttons

These buttons are dedicated to control the TV assigned to the TV CTRL button.

6 Receiver setting buttons

Press first to access:

AUDIO PARAMETER – Use to access the Audio options (page 60).

VIDEO PARAMETER – Use to access the Video options (page 62).

HOME MENU – Use to access the Home Menu (pages 38, 40, 57, 75, 84 and 87).

RETURN – Press to confirm and exit the current menu screen.

////ENTER

Use the arrow buttons when setting up your surround sound system (see page 75) and the Audio or Video options (page 60 or 62).

8 Receiver Control buttons

Press first to access:

AUTO/ALC/DIRECT – Surround

(page 53)

Stream Direct mode

Switches between Auto

, Auto Level Control mode and

(page 55).

STEREO – Switches between stereo playback and Front Stage Surround Advance modes (page 55).

PCM

HDMI DIGITAL ANALOG

L C R

SL SR

XL XR

LFE

AUTO

DIGITAL PLUS

AUTO SURROUND STREAM DIRECT

PROLOGIC x

Neo:6 THX ADV.SURROUND STEREO STANDARD SP AB

SLEEP

DSD PCM

DTS HD ES 96/24

MSTR

S.RTRV SOUND UP MIX

OVER

MONO

MULTI-ZONE

STEREO

TrueHD WMA9Pro

PQLS

ALC

ATT

USB XM

VIDEO

DVD

HDMI

DVR

TUNER

SIRIUS

CD-R

iPod

[ 2 ]

[ 3 ]

[ 4 ]

TUNED

PHONO

21 3 84 95 7 10 11 12

1817 1914 15 16

Controls and displays

STANDARD – Press for Standard decoding and to switch various modes (2 Pro Logic, Neo:6, etc.) (page 53).

ADV SURR – Use to switch between the various surround modes (page 54).

THX – Press to select a Home THX listening mode (page 54).

PHASE CTRL – Press to switch on/off Phase Control (page 56).

STATUS – Press to check selected receiver settings (page 65).

PQLS – Press to select the PQLS setting (page 59). HDMI OUT – Switch the HDMI output terminal

(page 65).

SIGNAL SEL – Use to select an input signal (page 56). MCACC – Press to switch between MCACC presets

(page 56). SLEEP – Use to put the receiver in sleep mode and

select the amount of time before sleep (page 65). CH LEVEL – Press repeated

ly to sele

ct a channel,

then use / to adjust the level (page 86). A.ATT – Attenuates (lowers) the level of an analog

input signal to prevent distortion (page 64).

Display

DIMMER – Dims or brightens the display (page 65).

MULTI-ZONE

select buttons

Switch to perform operations in ZONE 2 and ZONE 3 (page 64).

10 Remote control LED

Lights when a command is sent from the remote control.

RECEIVER

Switches the remote to control the receiver (used to select the white commands).

Switch to perform operations in the main zone.

Also use this button to set up surround sound.

MASTER VOLUME +/–

Use to set the listening volume.

MUTE

Mutes the sound or restores the sound if it has been muted (adjusting the volume also restores the sound).

Press to turn on/off the illumination for the buttons. The way the buttons light can be selected from four modes (page 70).

SIGNAL

indicators

Light to indicate the currently selected input signal. AUTO lights when the receiver is set to select the input signal automatically (page 56).

2 Program format indicators

Light to indicate the channels to which digital signals are being input.

L/R – Left front/Right front channel C – Center channel SL/SR – Left surround/Right surround channel LFE – Low frequency effects channel (the (( )) indicators light

when an LFE signal is being input)

XL/XR – Two channels other than the ones above XC – Either one channel other than the ones above, the mono

surround channel or matrix encode flag

3 Digital format indicators

Light when a signal encoded in the corresponding format is detected.

2 DIGITAL – Lights with Dolby Digital decoding. 2 DIGITAL PLUS – Lights with Dolby Digital Plus

decoding.

2 TrueHD – Lights with Dolby TrueHD decoding. DTS – Lights with DTS decoding. DTS HD – Lights with DTS-HD decoding. 96/24 – Lights with DTS 96/24 decoding. WMA9 Pro – Lights to indicate that a WMA9 Pro

signal is being decoded. DSD PCM – Light during DSD (Direct Stream Digital) to PCM conversion with SACDs.

Controls and displays

PCM – Lights during playback of PCM signals. MSTR – Lights during playback of DTS-HD Master

Audio signals.

MULTI-ZONE

Lights when the MULTI-ZONE feature is active (page 63).

SOUND

Lights when any of the Midnight, Loudness or tone controls features is selected (page 60).

Lights when Dialog Enhancement is switched on.

6 Listening mode indicators

AUTO SURROUND – Lights when the Auto Surround

feature is switched on (page 53). ALC – Lights when the ALC (Auto level control) mode

is selected (page 55). STREAM DIRECT – Lights when Direct/Pure Direct is

selected (page 55). ADV.SURROUND – Lights when one of the

Advanced Surround modes has been selected (page 54).

STEREO – Lights when stereo listening is switched on (page 55).

STANDARD – Lights when one of the Standard Surround modes is switched on (page 53).

THX – Lights when one of the Home THX modes is selected (page 54).

7 (

Lights when the Phase Control is switched on (page 56).

8 Analog signal indicators

Light to indicate reducing the level of an analog signal (page 64).

9 Tuner indicators

Lights when the sound is muted (page 12).

11 Master volume level

Shows the overall volume level. “---” indicates the minimum level, and “+12dB” indicates the maximum level.

12 Input function indicators

Light to indicate the input function you have selected.

13 Scroll indicators

Light when there are more selectable items when making the various settings.

PHASE CONTROL

TUNED – Lights when a broadcast is being received. STEREO –

received in auto stereo mode.

MONO – Lights when the mono mode is set using MPX.

Lights when a stereo FM broadcast is being

)

14 Speaker indicators

Lights to indicate the current speaker system, A and/or B (page 63).

SLEEP

Lights when the receiver is in sleep mode (page 65).

16 Matrix decoding format indicators

2PRO LOGIC IIx – This lights to indicate 2 Pro Logic II / 2 Pro Logic IIx decoding (page 53).

Neo:6 – is on, this lights to indicate Neo:6 processing

S.RTRV

Lights when the Sound Retriever function is (page 60)

18 Character display

Displays various system information.

19 Remote control mode indicator

Lights to indicate the receiver’s remote control mode setting. (Not displayed when set to 1.) (page 67)

When one of the Neo:6 modes of the receiver

(page 53)

active



STANDBY/ON

INPUT SELECTOR

ADVANCED

MCACC

iPod

iPhonePQLS HDMI

MASTER VOLUME

PHONES

SPEAKERS

CONTROL

MULTI-ZONE

ON/OFF

MCACC

SETUP MIC

PARAMETER

ENTER

(TUNE)

(PRESET)(PRESET)

AUDIO VIDEO

TUNER EDIT

USBHDMI 5

VIDEO CAMERA

iPod

iPhone

AUTO SURR/ALC/

STREAM DIRECT

HOME

THX

STANDARD SURROUND

ADVANCED SURROUND

STEREOBAND

HOME MENU RETURN

1723

16 17

9 11 12 151410

4 5 6

20 2118 19

Controls and displays

Front panel

 STANDBY/ON

Switches the receiver between on and standby.

INPUT SELECTOR

dial

Use to select an input function.

3 Indicators

ADVANCED MCACC

the

AUDIO PARAMETER

PQLS – Lights when the PQLS feature is active

–

Lights when EQ is set to ON in

(page 59).

HDMI

– Blinks when connecting an HDMI-equipped component; lights when the component is connected (page 24)

iPod/iPhone – Lights to indicate iPod/iPhone is connected (page 35).

4 Remote sensor

Receives the signals from the remote control (see

Operating range of remote control unit on page 10).

5 Character display

See Display on page 12.

MASTER VOLUME

dial

(page 60)

7 Front panel controls

To access the front panel controls, push gently on the lower third portion of the panel with your finger.

AUDIO PARAMETER

Use to access the Audio options (page 60).

VIDEO PARAMETER

Use to access the Video options (page 62).

/// (TUNE/PRESET

) /

ENTER

Use the arrow buttons when setting up your Home Menu. Use TUNE / to find radio frequencies and use PRESET / to find preset stations (page 46).

Controls and displays

TUNER EDIT

Use with ////ENTER to memorize and name stations for recall (page 46).

BAND

Switches between AM and FM radio bands (page 46).

13 Listening mode buttons

AUTO SURR/ALC/STREAM DIRECT –

between Auto Surround mode and Stream Direct mode

HOME THX – Press to select a Home THX listening mode (page 54).

STANDARD SURROUND – Press for Standard decoding and to switch various modes (2 Pro Logic, Neo:6, etc.) (page 53).

ADVANCED SURROUND – Use to switch between the various surround modes (page 54).

STEREO – Switches between stereo playback and Front Stage Surround Advance modes (page 55).

MULTI-ZONE

If you’ve made MULTI-ZONE connections (see MULTIZONE setup on page 32) use these controls to control the sub zone from the main zone (see Using the MULTI-ZONE controls on page 63).

SPEAKERS

Use to change the speaker terminal (page 63).

HOME MENU

Press to access the Home Menu (pages 38, 40, 57, 75, 84 and 87).

RETURN

Press to confirm and exit the current menu screen.

18 HDMI input connector

Use for connection to a compatible HDMI device (Video camera, etc.) (page 34).

iPod/iPhone/USB

Use to connect your Apple iPod as an audio and video source, or connect a USB device for audio and photo playback (page 35).

MCACC SETUP MIC

Use to connect the supplied microphone (page 38).

PHONES

Use to connect headphones. When the headphones are connected, there is no sound output from the speakers.

controls

jack

(page 53)

terminals

jack

Switches

, Auto Level Control

(page 55)

RS-232C

HDMI

ASSIGNABLE

COAXIAL

COMPONENT VIDEO

ASSIGNABLE

OPTICAL

ASSIGNABLEASSIGNABLE

MONITOR OUT

ZONE 2 OUT

CD-R/TAPE

ANTENNA

FM UNBAL 75 AM LOOP

AC IN

VIDEO

MONITOR

OUT

ZONE2

OUT

ZONE3

OUT

DVDINTV/SATINVIDEOINDVR/BDR PHONO

OUT IN

PRP

INBD

IN2IN

OUT 1 (

CONTROL

)

OUT 2

1 4

(

DVD

)

(

DVR/BDR

)

(

VIDEO

)

(

DVD

)

(

TV/SAT

)

(

DVR/BDR

)

OUT

FRONT CENTER SURROUND SURR BACK

(Single)

FH/FW

(

VIDEO

)

(CD)

CONTROL

EXTENSION

IR 12 V

TRIGGER

OUT

(OUTPUT 12 V TOTAL 150 mA MAX)

SUBWOOFER

LAN

(

10/100

)

(

OUTPUT 5 V

100 mA MAX

)

ADAPTER PORT

PRE OUT

(

OUTPUT 5 V

150 mA MAX

)

SIRIUS

SPEAKERS

Class 2 Wiring

MULTI CH IN

SIGNAL

GND

FRONT CENTER

SUBWOOFER

SURROUND SURR BACK

CAUTION:

SPEAKER IMPEDANCE 6 Ω - 16 Ω .

ATTENTION:

ENCEINTE D'IMPEDANCE DE 6 Ω - 16 Ω .

SURROUND BACK

(Single)

FRONT HEIGHT/WIDE/

LR L R L R L

SURROUND FRONT CENTER

SEE INSTRUCTION MANUAL

SELECTABLE

VOIR LE MODE D'EMPLOI

SELECTABLE

RS-232C

EXTENSION

(

OUTPUT 5 V

150 mA MAX

)

Connecting your equipment

Chapter 3:

Connecting your equipment

This receiver provides you with many connection possibilities, but it doesn’t have to be difficult. This chapter explains the kinds of components you can connect to make up your home theater system.

Rear panel

Note

•The input functions below are assigned by default to

the receiver’s different input terminals. Refer to The Input Setup menu on page 40 to change the assignments if other connections are used.

Input Terminals

(HDMI-1)

(HDMI-3)

(

HDMI-5)

Input function

Digital HDMI

DVD COAX-1 IN 1

BD (BD)

TV/SAT OPT-1

DVR/BDR OPT-2 IN 2

VIDEO OPT-3 IN 3

HDMI 1

HDMI 2 (HDMI-2)

HDMI 3

HDMI 4 (HDMI-4)

HDMI 5

(front panel)

CD COAX-2

CD-R/TAPE

Component

• The CU-RF100 omni-directional remote control (separately sold) can be connected to the RS-232C and EXTENSION terminals. Using the CU-RF100 lets you display the receiver’s display information on the remote control display in your hands and operate it without worrying about obstacles or the direction in which the remote control is pointing.

CAUTION

•Before making or changing the connections, switch off the power and disconnect the power cord from the power o

utlet. Plugging in should be the final step.

Connecting your equipment

Note

Speaker B

Front Bi-Amp

Determining the speakers’ application

This unit permits you to build various surround systems, in accordance with the number of speakers you have.

• Be sure to connect speakers to the front left and right

channels (L and R).

• It is also possible to only connect one of the surround

back speakers (SB) or neither.

Choose one from Plans [A] to [E] below.

[A] 7.1 channel surround system (Front height)

*Default setting

• Speaker System setting: Normal(SB/FH)

This surround system produces a true-to-life sound over a wider area.

[C] 7.1 channel surround system & Speaker B connection

• Speaker System setting: Speaker B

FHR

FHL

SBL

SBR

A 7.1 ch surround system connects the left and right front speakers (L/R), the center speaker (C), the left and right front height speakers (FHL/FHR), the left and right surround speakers (SL/SR), the left and right surround

back speakers (SBL/SBR), and the subwoofer (SW).

This surround system produces a more true-to-life sound from above.

[B] 7.1 channel surround system (Front wide)

• Speaker System

FWL

setting: Normal(SB/FW)

SBL

FWR

SBR

SBL

SBR

With these connections you can simultaneously enjoy

5.1-channel surround sound in the main zone with stereo playback of the same sound on the B speakers. The same connections also allow for 7.1-channel surround sound in the main zone when not using the B speakers.

[D] 5.1 channel surround system & Front Biamping connection (High quality surround)

• Speaker System setting: Front Bi-Amp

Bi-amping connection of the front speakers for high sound quality with 5.1-channel surround sound.

This plan replaces the left and right front height speakers shown in [A] with the left and right front wide speakers

(FWL/FWR).

1 It is not possible to produce sound simultaneously from the front height or front wide speakers and the surround back speakers.

Main zone

Sub zone

ZONE 2

Connecting your equipment

[E] 5.1 channel surround system & ZONE 2 connection (Multi Zone)

• Speaker System setting: ZONE 2

With these connections you can simultaneously enjoy

5.1-channel surround sound in the main zone with stereo playback on another component in ZONE 2. (The selection of input devices is limited.)

Placing the speakers

Refer to the chart below for placement of the speakers you intend to connect.

FHL

FHR

FWL

30 30

SBR

120 120

SBL

FWR

•Place the surround speakers at 120º from the center. If you, (1) use the surround back speaker, and, (2) don’t use the front height speakers / front wide speakers, we recommend placing the surround speaker right beside you.

• If you intend to connect only one surround back speaker, place it directly behind you.

• Place the left and right front height speakers at least

Important

•The Speaker System setting must be made if you

use any of the connections shown above other than [A] (see Speaker system setting on page 85).

• Sound does not come through simultaneously from the front height, front wide, speaker B and surround back speakers. Output speakers are different depending on the input signal or listening mode.

Other speaker connections

•Your favorite speaker connections can be selected even if you have fewer than 5.1 speakers (except front left/right speakers).

• When not connecting a subwoofer, connect speakers with low frequency reproduction capabilities to the front channel. (The subwoofer’s low frequency component is played from the front speakers, so the speakers could be damaged.)

•

After connecting, be sure to conduct the Full Auto MCACC (speaker environment setting) procedure.

See Automatically conducting optimum sound tuning (Full Auto MCACC) on page 38.

one meter (3.3 ft.) directly above the left and right front speakers.

THX speaker system setup

If you are using a THX certified subwoofer, use the THX INPUT jack on the subwoofer (if your subwoofer has one)

or switch the filter position to THX on your subwoofer. See also THX Audio Setting on page 87 to make the

settings that will give you the best sound experience when using the Home THX modes (page 54).

Some tips for improving sound quality

Where you put your speakers in the room has a big effect on the quality of the sound. The following guidelines should help you to get the best sound from your system.

•The subwoofer can be placed on the floor. Ideally, the other speakers should be at about ear-level when you’re listening to them. Putting the speakers on the floor (except the subwoofer), or mounting them very high on a wall is not recommended.

•For the best stereo effect, p lace the front speakers 2 m to 3 m (6 ft. to 9 ft.) apart, at equal distance from the TV.

•If you’re going to place speakers around your CRT TV, use shielded speakers or place the speakers at sufficient d

istance from your CRT TV.

•If you’re using a center speaker, place the front speakers at a wider angle. If not, place them at a narrower angle.

Connecting your equipment

fig. A fig. B fig. C

10 mm (

/8 in.)

• Place the center speaker above or below the TV so that the sound of the center channel is localized at the TV screen. Also, make sure the center speaker does not cross the line formed by the leading edge of the front left and right speakers.

• It is best to angle the speakers towards the listening position. The angle depends on the size of the room. Use less of an angle for bigger rooms.

•Surround and surround back speakers should be positioned 60 cm to 90 cm (2 ft. to 3 ft.) higher than your ears and tilted slightly downward. Make sure the speakers don’t face each other. For DVD-Audio, the speakers should be more directly behind the listener than for home theater pla

•Try no

t to place the surround speakers farther away from the listening position than the front and center speakers. Doing so can weaken the surround sound effect.

yback.

Connecting the speakers

Each speaker connection on the receiver comprises a positive (+) and negative (–) terminal. Make sure to

match these up with the terminals on the speakers themselves.

CAUTION

•These speaker terminals carry HAZARDOUS LIVE voltage. To prevent the risk of electric shock when

connecting or disconnecting the speaker cables, disconnect the power cord before touching any uninsulated parts.

•Make sure that all the bare speaker wire is twisted together and inserted fully into the speaker terminal. If any of the bare speaker wire touches the back panel it may cause the power to

Bare wire connections

1 Twist exposed wire strands together.

2 Loosen terminal and insert exposed wire.

3 Tighten terminal.

cut off as a safety measure.

(fig. A)

(fig. B)

(fig. C)

Banana plug connections

If you want to use speaker cables terminated with banana plugs, screw the speaker terminal fully shut, then plug the banana plug into the end of the speaker terminal.

Important

•Please refer to the manual that came with your speakers for details on how to connect the other end of the speaker cables to your speakers.

• Use an RCA cable to connect the subwoofer. It is not possible to connect using speaker cables.

CAUTION

•Make sure that all speakers are securely installed. This not only improves sound quality, but also reduces the risk of damage or injury resulting from speakers being knocked over or falling in the event of external

shocks such as earthquakes

Front left

Subwoofer

Center

Surround right

Not connectedNot connected

Front right

Surround left

The surround back terminals can also be used for ZONE 2.

5.1 ch surround setting

Surround back

Not connected

Surround back left

ZONE 2 setting

ZONE 2 - Right

ZONE 2 - Left

6.1 ch surround setting

Surround back right

7.1 ch surround setting

Speaker B - leftSpeaker B - right

Speaker B setting

Front wide left

Front wide right

Front height left

Front height setting

Front height right

The front height terminals can also be used for the front wide and Speaker B speakers.

Front wide setting

Connecting your equipment

Installing your speaker system

At the very least, front left and right speakers only are necessary. Note that your main surround speakers should always be connected as a pair, but you can connect just one surround back speaker if you like (it must be connected to the left surround back terminal).

Standard surround connection

HDMI

ASSIGNABLE

1 4

COMPONENT VIDEO

ASSIGNABLE

RS-232C

(

OUTPUT 5 V

)

150 mA MAX

EXTENSION

INBD

1IN2IN3

(

)

DVD

(

)

DVR/BDR

ZONE2

ZONE3

OUT

(

)

VIDEO

MONITOR OUT

ZONE 2 OUT

PRP

ANTENNA

FM UNBAL 75 AM LOOP

CONTROL

OUT

IR 12 V

OUT 1

(

CONTROL

MONITOR

DVDINTV/SATINVIDEOINDVR/BDR PHONO

TRIGGER

(OUTPUT 12 V TOTAL

150 mA MAX)

OUT IN

SPEAKERS

Class 2 Wiring

SELECTABLE

SEE INSTRUCTION MANUAL

SELECTABLE

VOIR LE MODE D'EMPLOI

FRONT HEIGHT/WIDE/

LINE LEVEL

INPUT

OUT 2

(

)

LAN

)

OUT

SIGNAL

GND

10/100

COAXIAL

SIRIUS

(

)

(CD)

DVD

VIDEO

CD-R/TAPE

CD IN

FRONT CENTER SURROUND SURR BACK

OUT

SUBWOOFER

SURROUND BACK

LR L R L R L

CAUTION:

SPEAKER IMPEDANCE 6 Ω - 16 Ω .

ATTENTION:

ENCEINTE D'IMPEDANCE DE 6 Ω - 16 Ω .

OPTICAL

ASSIGNABLEASSIGNABLE

(

TV/SAT

ADAPTER PORT

(

OUTPUT 5 V

)

100 mA MAX

OUT

)

(

)

(

)

DVR/BDR

VIDEO

FRONT CENTER

FH/FW

(Single)

PRE OUT

SURROUND FRONT CENTER

(Single)

SUBWOOFER

SURROUND SURR BACK

MULTI CH IN

AC IN

Connecting your equipment

RS-232C

HDMI

ASSIGNABLE

COAXIAL

COMPONENT VIDEO

ASSIGNABLE

OPTICAL

ASSIGNABLEASSIGNABLE

MONITOR OUT

ZONE 2 OUT

CD-R/TAPE

ANTENNA

FM UNBAL 75 AM LOOP

AC IN

VIDEO

MONITOR

OUT

ZONE2

OUT

ZONE3

OUT

DVDINTV/SATINVIDEOINDVR/BDR PHONO

OUT IN

PRP

INBD

1IN2IN3

OUT 1 (

CONTROL

)

OUT 2

1 4

(

DVD

)

(

DVR/BDR

)

(

VIDEO

)

(

DVD

)

(

TV/SAT

)

(

DVR/BDR

)

OUT

FRONT CENTER SURROUND SURR BACK

(Single)

FH/FW

(

VIDEO

)

(CD)

CONTROL

EXTENSION

IR 12 V

TRIGGER

OUT

(OUTPUT 12 V TOTAL 150 mA MAX)

SUBWOOFER

LAN

(

10/100

)

(

OUTPUT 5 V 100 mA MAX

)

ADAPTER PORT

PRE OUT

(

OUTPUT 5 V 150 mA MAX

)

SIRIUS

SPEAKERS

Class 2 Wiring

MULTI CH IN

SIGNAL

GND

FRONT CENTER

SUBWOOFER

SURROUND SURR BACK

CAUTION:

SPEAKER IMPEDANCE 6 Ω - 16 Ω .

ATTENTION:

ENCEINTE D'IMPEDANCE DE 6 Ω - 16 Ω .

SURROUND BACK

(Single)

FRONT HEIGHT/WIDE/

L RLRLRL

SURROUND FRONT CENTER

SEE INSTRUCTION MANUAL

SELECTABLE

VOIR LE MODE D'EMPLOI

SELECTABLE

High

Low

High

Low

Front left

Subwoofer

Center

Surround right

Front right

Surround left

Bi-amp compatible

speaker

Bi-amp compatible

speaker

Bi-amping your speakers

Bi-amping is when you connect the high frequency driver and low frequency driver of your speakers to different amplifiers for better crossover performance. Your speakers must be bi-ampable to do this (having separate terminals for high and low) and the sound improvement will depend on the kind of speakers you’re using.

CAUTION

•Most speakers with both High and Low terminals have two metal plates that connect the High to the Low terminals. These must be removed when you are bi-amping the speakers or yo damage the amplifier. See your speaker manual for more information.

u could sev

•If your s peakers have a removable crossover network, make sure you do not remove it for bi-amping. Doing so may damage your speakers.

erely

Bi-wiring your speakers

Your speakers can also be bi-wired if they support biamping.

• With these connections, the Speaker System setting

makes no difference.

• To bi-wire a speaker, connect two speaker cords to the speaker terminal on the receiver.

Using a banana plug for the second connection is recommended.

• Don’t connect different speakers from the same terminal in this way.

•When bi-wir ing as well, heed the cautions for bi- amping shown at the left.

CAUTION

Note

Connecting your equipment

Selecting the Speaker system

The front height terminals can be used for front wide and Speaker B connections, in addition to for the front height speakers. Also, the surround back terminals can be used for bi-amping and ZONE 2 connections, in addition to for the surround back speakers. Make this setting according to the application.

Front height setup

*Default setting

1 Connect a pair of speakers to the front height speaker terminals.

See Standard surround connection on page 20.

2 If necessary, select ‘ Speaker System

See Speaker system setting on page 85 to do this.

Front wide setup

1 Connect a pair of speakers to the front height speaker terminals.

See Standard surround connection on page 20.

2 Select ‘ menu.

See Speaker system setting on page 85 to do this.

Normal(SB/FW)

Speaker B setup

You can listen to stereo playback in another room.

1 Connect a pair of speakers to the front height speaker terminals.

See Standard surround connection on page 20.

2 Select ‘

See Speaker system setting on page 85 to do this.

Speaker B

Bi-Amping setup

Bi-amping connection of the front speakers for high sound quality with 5.1-channel surround sound.

1 Connect bi-amp compatible speakers to the front and surround back speaker terminals.

See Bi-amping your speakers on page 21.

2 Select ‘ menu.

See Speaker system setting on page 85 to do this.

Front Bi-Amp

Normal(SB/FH)

menu.

’ from the

Speaker System

’ from the

Speaker System

menu.

Speaker System

ZONE 2 setup

With these connections you can simultaneously enjoy

5.1-channel surround sound in the main zone with stereo playback on another component in ZONE 2.

1 Connect a pair of speakers to the surround back speaker terminals.

See Standard surround connection on page 20.

2 Select ‘

See Speaker system setting on page 85 to do this.

About the

Sound signal priority 

• With an HDMI cable, video and audio signals can be

ZONE 2

’ from the

Speaker System

audio connection

Types of cables and

terminals

HDMI HD audio

Digital (Coaxial) Conventional digital audio

Digital (Optical)

RCA (Analog)

(White/Red)

transferred in high quality over a single cable.

Transferable audio

signals

Conventional analog audio

About the video converter

The video converter ensures that all video sources are output through all of the MONITOR VIDEO OUT jacks. The only exception is HDMI: since this resolution cannot be downsampled, you must connect your monitor/TV to the receiver’s HDMI video outputs when connecting this video source.

menu.

1 • If the video signal does not appear on your TV, try adjusting the resolution settings on your component or display. Note that some

components (such as video game units) have resolutions that may not be converted. In this case, try switching Digital Video Conversion (in Setting the Video options on page 62) OFF.

• The signal input resolutions that can be converted from the component video input for the HDMI output are 480i/576i, 480p/576p, 720p and 1080i. 1080p signals cannot be converted.

• Only signals with an input resolution of 480i/576i can be converted from the component video input for the composite MONITOR OUT terminals.

Connecting your equipment

VIDEO IN

VIDEO

MONITOR OUT

COMPONENT

VIDEO IN

YPBP

COMPONENT VIDEO

MONITOR OUT

HDMI IN HDMI OUT

High picture quality

Terminal for connection with source device

Terminal for connection with TV monitor

Video signals can be output

This product incorporates copyright protection technology that is protected by U.S. patents and other intellectual property rights. Use of this copyright protection technology must be authorized by Rovi Corporation, and is intended for home and other limited viewing uses only unless otherwise authorized by Rovi Corporation. Reverse engineering or disassembly is prohibited.

Note

If several video components are assigned to the same input function (see The Input Setup menu on page 40), the converter gives priority to HDMI, component, then composite (in that order).

•For optimal video performance, THX recommends

switching Digital Video Conversion (in Setting the Video options on page 62) OFF.

About HDMI

The HDMI connection transfers uncompressed digital video, as well as almost every kind of digital audio.

This receiver incorporates High-Definition Multimedia

Interface (HDMI

This receiver supports the functions described below through HDMI connections.

) technology.

•Digital transfer of uncompressed video (contents protected by HDCP (1080p/24, 1080p/60, etc.))

•3D signal transfer

•Deep Color signal transfer

• x.v.Color signal transfer

•Audio Return Channel

•Input of multi-channel linear PCM digital audio signals (192 kHz or less) for up to 8 channels

•Input of the following digital audio formats:

– Dolby Digital, Dolby Digital Plus, DTS, High bitrate audio (Dolby TrueHD, DTS-HD Master Audio, DTSHD High Resolution Audio), DVD-Audio, CD, SACD (DSD signal), Video CD, Super VCD

•Synchronized operation with components using the

Control with HDMI function (see Control with HDMI function on page 57)

HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing, LLC in the United States and other countries.

“x.v.Color” and x.v.Color logo are trademarks of Sony Corporation.

1 • An HDMI connection can only be made with DVI-equipped components compatible with both DVI and High Bandwidth Digital Content

Protection (HDCP). If you choose to connect to a DVI connector, you will need a separate adaptor (DVIHDMI) to do so. A DVI connection, however, does not support audio signals. Consult your local audio dealer for more information.

• If you connect a component that is not compatible with HDCP, an HDCP ERROR message is displayed on the front panel display. Some components that are compatible with HDCP still cause this message to be displayed, but so long as there is no problem with displaying video this is not a malfunction.

• Depending on the component you have connected, using a DVI connection may result in unreliable signal transfers.

• This receiver supports SACD, Dolby Digital Plus, Dolby TrueHD and DTS-HD Master Audio. To take advantage of these formats, however, make sure t

2• Use a High Speed HDMI

• When an HDMI cable with a built-in equalizer is connected, it may not operate properly. 3 Signal transfer is only possible when connected to a compatible component. 4• HDMI format digital audio transmissions require a longer time to be recognized. Due to this, interruption in the audio may occur when

switching between audio formats or beginning playback.

• Turning on/off the device connected to this unit's HDMI OUT terminal during playback, or disconnecting/connecting the HDMI cable during

playback, may cause noise or interrupted audio.

hat the component connected to th

cable. If an HDMI cable other than a High Speed HDMI® cable is used, it may not work properly.

is receiver also supports the corresponding format.

DIGITAL OUT

COAXIAL OPTICAL

ANALOG

AUDIO OUT

HDMI INHDMI OUTHDMI OUT

Other HDMI/DVIequipped component

HDMI/DVI-compatible Blu-ray disc player

HDMI/DVI-compatible monitor

Select one

This connection is required in order to listen to the sound of the TV over the

receiver.

Note

Connecting your equipment

Connecting your TV and playback components

Connecting using HDMI

If you have an HDMI or DVI (with HDCP) equipped component (Blu-ray disc player (BD), etc.), you can connect it to this receiver using a commercially available HDMI cable.

If the TV and playback components support the Control with HDMI feature, the convenient Control with HDMI functions can be used (see Control with HDMI function on page 57).

• When connecting to an HDMI/DVI-compatible

monitor using the HDMI OUT 2 terminal, switch the HDMI output setting to HDMI OUT 2 or HDMI OUT ALL. See Switching the HDMI output on page 65.

•For input components, connections other than HDMI

connections are also possible (see Connecting your DVD player with no HDMI output on page 25).

• If you want to listen to the sound of the TV over the receiver, connect the receiver and TV with audio

cables.

1 When the TV and receiver are connected by HDMI connections, if the TV supports the HDMI Audio Return Channel function, the sound of the

TV is input to the receiver via the HDMI OUT 1 terminal, so there is no need to connect an audio cable. In this case, set TV Audio at HDMI Setup to via HDMI (see HDMI Setup on page 57).

HDMI

ASSIGNABLE

1 4

COMPONENT VIDEO

ASSIGNABLE

RS-232C

(

OUTPUT 5 V

)

150 mA MAX

EXTENSION

MONITOR OUT

ZONE 2 OUT

ANTENNA

CONTROL

OUT

(

)

DVD

(

)

DVR/BDR

(

)

VIDEO

PRP

INBD

1IN2IN3

ZONE2

ZONE3

DVDINTV/SATINVIDEOINDVR/BDR PHONO

OUT

FM UNBAL 75 AM LOOP

IR 12 V

OUT

TRIGGER

(OUTPUT 12 V TOTAL 150 mA MAX)

OUT IN

SPEAKERS

Class 2 Wiring

SELECTABLE

SEE INSTRUCTION MANUAL

SELECTABLE

VOIR LE MODE D'EMPLOI

OUT 1 (

CONTROL

MONITOR

OUT

FRONT HEIGHT/WIDE/

OUT 2

(

)

10/100

LAN

)

COAXIAL

SIRIUS

(

)

DVD

VIDEO

CD-R/TAPE

CD IN

OUT

SIGNAL

GND

LR L R L

CAUTION:

SPEAKER IMPEDANCE 6 Ω - 16 Ω .

ATTENTION:

ENCEINTE D'IMPEDANCE DE 6 Ω - 16 Ω .

OPTICAL

ASSIGNABLEASSIGNABLE

(

)

(

SUBWOOFER

)

TV/SAT

DVR/BDR

(Single)

(CD)

FRONT CENTER SURROUND SURR BACK

SURROUND BACK

ADAPTER PORT

(

OUTPUT 5 V

)

100 mA MAX

OUT

(

)

VIDEO

FRONT CE

FH/FW

(Single)

PRE OUT

SUB

SURROUND

Connecting your equipment

DVD player, etc.

HDMI/DVI-compatible monitor

Select one

Note

Connecting your DVD player with no HDMI output

This diagram shows connections of a TV (with HDMI input) and DVD player (or other playback component with no HDMI output) to the receiver.

HDMI IN

ANTENNA

MONITOR OUT

ZONE 2 OUT

PRP

CONTROL

OUT

(

DVD

(

DVR/BDR

(

VIDEO

INBD

1IN2IN3

)

ZONE2

OUT

)

FM UNBAL 75 AM LOOP

HDMI

ASSIGNABLE

1 4

COMPONENT VIDEO

ASSIGNABLE

RS-232C

(

OUTPUT 5 V

)

150 mA MAX

EXTENSION

ZONE3

DVDINTV/SATINVIDEOINDVR/BDR PHONO

OUT

IR 12 V

TRIGGER

(OUTPUT

12 V TOTAL

150 mA MAX)

OUT

OUT IN

SPEAKERS

Class 2 Wiring

SELECTABLE

SEE INSTRUCTION MANUAL

SELECTABLE

VOIR LE MODE D'EMPLOI

OUT 1 (

CONTROL

MONITOR

OUT 2

)

OUT

VIDEO

SIGNAL

GND

FRONT HEIGHT/WIDE/

AUDIO OUT

ANALOG

SIRIUS

• If you want to listen to the sound of the TV over the receiver, connect the receiver and TV with audio

cables (page 24).

• If you use an optical digital audio cable, you’ll need to tell the receiver which digital input you connected the player to (see The Input Setup menu on page 40).

DIGITAL OUT

COAXIAL OPTICAL

(

)

LAN

10/100

COAXIAL

(

)

(CD)

DVD

CD-R/TAPE

FRONT CENTER SURROUND SURR BACK

OUT

SUBWOOFER

SURROUND BACK

LR L R L

CAUTION:

SPEAKER IMPEDANCE 6 Ω - 16 Ω .

ATTENTION:

ENCEINTE D'IMPEDANCE DE 6 Ω - 16 Ω .

OPTICAL

ASSIGNABLEASSIGNABLE

(

)

(

TV/SAT

DVR/BDR

(Single)

)

ADAPTER PORT

(

OUTPUT 5 V

100 mA MAX

OUT

(

)

VIDEO

FH/FW

(Single)

PRE OUT

)

FRONT CENTER

SURROUND

VIDEO OUT

VIDEO

SUBWOOFE

COMPONENT VIDEO OUT

1 When the TV and receiver a re co nnecte d by HDM I conne ctions, if the TV supports the HDMI Audio Return Channel function, the sound of the

TV is input to the receiver via the HDMI OUT 1 terminal, so there is no need to connect an audio cable. In this case, set TV Audio at HDMI Setup to via HDMI (see HDMI Setup on page 57).

DVD player, etc.

Select one

Connecting your equipment

Connecting your TV with no HDMI input

This diagram shows connections of a TV (with no HDMI input) and DVD player (or other playback component) to the receiver.

• With these connections, the picture is not output to the TV even if the DVD player i s co nnec ted with an H DMI c abl e. Connect the DVD player’s video signals using a composite or component cord.

VIDEO IN

VIDEO

COMPONENT VIDEO IN

HDMI

ASSIGNABLE

1 4

COMPONENT VIDEO

ASSIGNABLE

RS-232C

(

OUTPUT 5 V

)

150 mA MAX

EXTENSION

ANTENNA

(

DVD

(

DVR/BDR

(

VIDEO

MONITOR OUT

ZONE 2 OUT

PRP

CONTROL

OUT

)

INBD

1IN2IN3

)

ZONE2

ZONE3

OUT

)

FM UNBAL 75 AM LOOP

OUT

DVDINTV/SATINVIDEOINDVR/BDR PHONO

IR 12 V

TRIGGER

• Connect using an HDMI cable to listen to HD audio on the receiver. Do not use an HDMI cable to input video signals. Depending on the video component, it may not be possible to output signals connected by HDMI and other methods simultaneously, and it may be necessary to make output settings.

operating instructions

supplied with your component

Please refer to the

for more information.

• If you want to listen to the sound of the TV over the receiver, connect the receiver and TV with audio cables (page 24).

•If you use an optical digital audio cable, you’ll need to tell the receiver which digital input you connected the player to (see The Input Setup menu on page 40).

(OUTPUT 12 V TOTAL 150 mA MAX)

VIDEO OUT

OUT IN

SPEAKERS

Class 2 Wiring

SELECTABLE

SEE INSTRUCTION MANUAL

SELECTABLE

VOIR LE MODE D'EMPLOI

VIDEO

OUT 1 (

CONTROL

MONITOR

OUT

FRONT HEIGHT/WIDE/

COMPONENT VIDEO OUT

OUT 2

(

)

10/100

LAN

)

COAXIAL

SIRIUS

(

)

DVD

VIDEO

CD-R/TAPE

CD IN

OUT

SIGNAL

GND

LR L R L

OPTICAL

ASSIGNABLEASSIGNABLE

(

)

(

(CD)

TV/SAT

DVR/BDR

FRONT CENTER SURROUND SURR BACK

SUBWOOFER

SURROUND BACK

(Single)

CAUTION:

SPEAKER IMPEDANCE 6 Ω - 16 Ω .

ATTENTION:

ENCEINTE D'IMPEDANCE DE 6 Ω - 16 Ω .

HDMI OUT

ADAPTER PORT

)

(

VIDEO

(

OUTPUT 5 V 100 mA MAX

OUT

)

FH/FW

(Single)

PRE OUT

SURROUND

)

FRONT CENTER

DIGITAL OUT

COAXIAL OPTICAL

SUBWOOFE

AUDIO OUT

ANALOG

Connecting your equipment

RS-232C

HDMI

ASSIGNABLE

COAXIAL

COMPONENT VIDEO

ASSIGNABLE

OPTICAL

ASSIGNABLEASSIGNABLE

MONITOR OUT

ZONE 2 OUT

CD-R/TAPE

ANTENNA

FM UNBAL 75 AM LOOP

VIDEO

MONITOR

OUT

ZONE2

OUT

ZONE3

OUT

DVDINTV/SATINVIDEOINDVR/BDR PHONO

OUT IN

PRP

INBD

1IN2IN3

OUT 1 (

CONTROL

)

OUT 2

1 4

(

DVD

)

(

DVR/BDR

)

(

VIDEO

)

(

DVD

)

(

TV/SAT

)

(

DVR/BDR

)

OUT

FRONT CENTER SURROUND SURR BACK

(Single)

FH/FW

(

VIDEO

)

(CD)

CONTROL

EXTENSION

IR 12 V

TRIGGER

OUT

(OUTPUT 12 V TOTAL 150 mA MAX)

SUBWOOFER

LAN

(

10/100

)

(

OUTPUT 5 V 100 mA MAX

)

ADAPTER PORT

PRE OUT

(

OUTPUT 5 V 150 mA MAX

)

SIRIUS

SPEAKERS

Class 2 Wiring

SIGNAL

GND

FRONT CENTER

SUBWOOFER

CAUTION:

SPEAKER IMPEDANCE 6 Ω - 16 Ω .

ATTENTION:

ENCEINTE D'IMPEDANCE DE 6 Ω - 16 Ω .

SURROUND BACK

(Single)

FRONT HEIGHT/WIDE/

LR L R L

SURROUND

SEE INSTRUCTION MANUAL

SELECTABLE

VOIR LE MODE D'EMPLOI

SELECTABLE

DIGITAL OUT

COAXIAL OPTICAL

ANALOG

R L

AUDIO OUTAUDIO IN

VIDEO OUT

VIDEO

VIDEO IN

HDD/DVD recorder, BD recorder, etc.

Select one

Connecting an HDD/DVD recorder, BD recorder and other video sources

This receiver has two sets of audio/video inputs and outputs suitable for connecting analog or digital video devices, including HDD/DVD recorders and BD recorders.

When you set up the receiver you’ll need to tell the receiver which input you connected the recorder to (see also The Input Setup menu on page 40).

• In order to record, you must connect the analog audio cables (the digital connection is for playback only) (page 64).

•If your HDD/DVD recorder, BD recorder, etc., is equipped with an HDMI output terminal, we recommend connecting it to the receiver’s HDMI IN terminal. When doing so, also connect the receiver an

d TV by HDMI (see Connec

page 24).

ting using HDMI on

STB

Select one

Connecting your equipment

Connecting a satellite/cable receiver or other set-top box

Satellite and cable receivers, and terrestrial digital TV tuners are all examples of so-called ‘set-top boxes’. When you set up the receiver you’ll need to tell the receiver which input you connected the set-top box to (see The Input

Setup menu on page 40).

VIDEO OUT

VIDEO

INBD

HDMI

ASSIGNABLE

1 4

COMPONENT VIDEO

ASSIGNABLE

RS-232C

(

OUTPUT 5 V

)

150 mA MAX

EXTENSION

ANTENNA

(

DVD

(

DVR/BDR

(

VIDEO

MONITOR OUT

ZONE 2 OUT

PRP

CONTROL

OUT

IN2IN

)

ZONE2

ZONE3

DVDINTV/SATINVIDEOINDVR/BDR PHONO

OUT

)

FM UNBAL 75 AM LOOP

IR 12 V

OUT

TRIGGER

(OUTPUT 12 V TOTAL

150 mA MAX)

SPEAKERS

Class 2 Wiring

SELECTABLE

SEE INSTRUCTION MANUAL

SELECTABLE

VOIR LE MODE D'EMPLOI

•If your set-top box is equipped with an HDMI output terminal, we recommend connecting it to the receiver’s HDMI IN terminal. When doing so, also connect the receiver and TV by HDMI (see Connecting using HDMI on page 24).

OUT IN

OUT 1 (

CONTROL

MONITOR

OUT

FRONT HEIGHT/WIDE/

AUDIO OUT

ANALOG

)

VIDEO

SIGNAL

GND

OUT 2

DIGITAL OUT

COAXIAL OPTICAL

(

)

LAN

10/100

COAXIAL

SIRIUS

(

)

DVD

CD-R/TAPE

OUT

LR L R L

CAUTION:

SPEAKER IMPEDANCE 6 Ω - 16 Ω .

ATTENTION:

ENCEINTE D'IMPEDANCE DE 6 Ω - 16 Ω .

OPTICAL

ASSIGNABLEASSIGNABLE

(

)

(

(CD)

TV/SAT

DVR/BDR

FRONT CENTER SURROUND SURR BACK

SUBWOOFER

SURROUND BACK

(Single)

ADAPTER PORT

)

(

VIDEO

(

OUTPUT 5 V

)

100 mA MAX

OUT

)

FH/FW

(Single)

PRE OUT

SURROUND

FRONT CENTER

SUBWOOFER

Connecting your equipment

DVD player, etc.

Connecting the multichannel analog inputs

For DVD Audio and SACD playback, your DVD player may have 5.1, 6.1 or 7.1 channel analog outputs (depending on whether your player supports surround ba ck channels) . Make sure that the player is set to output multichannel analog audio.

IN1IN2IN

ZONE2

ZONE3

DVDINTV/SATINVIDEOINDVR/BDR PHONO

OUT

FM UNBAL 75

IR 12 V

TRIGGER

(OUTPUT

12 V TOTAL

150 mA MAX)

OUT

OUT IN

SPEAKERS

Class 2 Wiring

SELECTABLE

SEE INSTRUCTION MANUAL

SELECTABLE

VOIR LE MODE D'EMPLOI

VIDEO OUT

VIDEO

OUT 1 (

CONTROL

OUT 2

)

MONITOR

OUT

VIDEO

SIGNAL

GND

FRONT HEIGHT/WIDE/

SUBWOOFER

OUTPUT

(

10/100

LAN

COAXIAL OPTICAL

SIRIUS

(

)

DVD

CD-R/TAPE

OUT

LR L R L R L

CAUTION:

SPEAKER IMPEDANCE 6 Ω - 16 Ω .

ATTENTION:

ENCEINTE D'IMPEDANCE DE 6 Ω - 16 Ω .

FRONT

OUTPUT

)

ASSIGNABLEASSIGNABLE

(

)

(CD)

TV/SAT

FRONT CENTER SURROUND SURR BACK

SUBWOOFER

SURROUND BACK

(

DVR/BDR

CENTER

OUTPUT

ADAPTER PORT

(

OUTPUT 5 V

)

100 mA MAX

OUT

)

(

)

VIDEO

FH/FW

(Single)

PRE OUT

SURROUND FRONT CENTER

(Single)

FRONT CENTER

SUBWOOFER

SURROUND

OUTPUT

SURROUND SURR BACK

MULTI CH IN

SURROUND BACK

OUTPUT

•If there is a single surround back output, connect it to

the SURROUND BACK L jack on this receiver.

• To use a 5.1-channel speaker set, use the surround speakers for the surround channel, not the surround back channel.

• The audio signal input to MULTI CH IN cannot be downmixed.

COAXIAL OPTICAL

ASSIGNABLEASSIGNABLE

CD-R/TAPE

VIDEO

MONITOR

OUT

TV/SATINVIDEOINDVR/BDR PHONO

OUT IN

OUT 1 (

CONTROL

)

OUT 2

(

DVD

)

(

TV/SAT

)

(

DVR/BDR

)

OUT

FRONT CENTER SURROUND SURR BACK

(Single)

FH/FW

(

VIDEO

)

(CD)

12 V TRIGGER

(OUTPUT 12 V TOTAL 150 mA MAX)

SUBWOOFER

LAN

(

10/100

)

(

OUTPUT 5 V 100 mA MAX

)

ADAPTER PORT

PRE OUT

SIRIUS

SPEAKERS

Class 2 Wiring

SIGNAL

GND

FRONT CENTER

SUBWOOFER

SURROUND

CAUTION:

SPEAKER IMPEDANCE 6 Ω - 16 Ω .

ATTENTION:

ENCEINTE D'IMPEDANCE DE 6 Ω - 16 Ω .

SURROUND BACK

(Single)

FRONT HEIGHT/WIDE/

LR L R L R

SURROUND

SEE INSTRUCTION MANUAL

SELECTABLE

VOIR LE MODE D'EMPLOI

SELECTABLE

DIGITAL OUT

COAXIAL OPTICAL

ANALOG

AUDIO OUT

ANALOG

AUDIO IN

DIGITAL IN

OPTICAL

CD-R, MD, DAT, etc.

Select one Select one

Turntable

Note

Connecting your equipment

Connecting other audio components

This receiver has both digital and analog inputs, allowing you to connect audio components for playback. When you set up the receiver you’ll need to tell the receiver which input you connected the component to (see also The

Input Setup menu on page 40).

•If you’re connecting a recorder, connect the analog audio outputs to the analog audio inputs on the recorder.

• You can’t hear HDMI audio through this receiver’s digital out jack.

Turntables only:

•If your turntable has a grounding wire, secur e it to the ground terminal on this receiver.

About the WMA9 Pro decoder

This unit has an on-board Windows Media™ Audio 9 Professional

(WMA9 Pro) decoder, so it is possible to playback WMA9 Pro-encoded audio using HDMI, coaxial or optical digital connection when connected to a WMA9 Pro-compatible player. However, the connected DVD player, set-top box , etc. mu st be ab le to o utput WMA9 Pro format audio signals through a coaxial or optical digital output.

•If your turntable has line-level outputs (i.e., it has a

built-in phono pre-amp), connect it to the CD inputs instead.

1• Windows Media and the Windows logo are trademarks or registered trademarks of Microsoft Corporation in the United States and/or other

countries.

• With WMA9 Pro, sound problems may occur depending on your computer system. Note that WMA9 Pro 96 kHz sources will be downsampled to 48 kHz.

Connecting your equipment

Powered subwoofer

Front channel amplifier

Center channel amplifier (mono)

Surround channel amplifier

Surround back channel amplifier

Front height or Front wide channel amplifier

Connecting additional amplifiers

This receiver has more than enough power for any home use, but it’s possible to add additional amplifiers to every channel of your system using the pre-outs. Make the connections shown below to add amplifiers to power your speakers.

ANALOG

INPUT

ANALOG

INPUT

ANALOG

INPUT

)

ADAPTER PORT

100

(

OUTPUT 5 V

)

100 mA MAX

ASSIGNABLEASSIGNABLE

L OPTICAL

IN (CD)

FRONT CENTER SURROUND SURR BACK

SUBWOOFER

SURROUND BACK

ION:

IMPEDANCE 6 Ω - 16 Ω .

TION:

D'IMPEDANCE DE 6 Ω - 16 Ω .

(

)

(

)

(

)

CD-R

)

TV/SAT

DVR/BDR

VIDEO

FH/FW

(Single)

PRE OUT

SURROUND

(Single)

LR L

FRONT CEN

SUBW

• You can use the additional amplifier on the surround back channel pre-outs for a single speaker as well. In this case plug the amplifier into the left (L (Single)) terminal only.

•The sound fr om the surround back terminals will depend on how you have configured the Speaker system setting on page 85.

•To hear sound only from the pre-outs, switch the speaker system to OFF, or si speakers that are connected directly to the receiver.

If you’re not using a subwoofer, change the front speaker setting (see Speaker Setting on page 85) to LARGE.

ANALOG

INPUT

ANALOG

INPUT

ANALOG

INPUT

mply disc

onnect any

Connecting AM/FM antennas

Connect the AM loop antenna and the FM wire antenna as shown below. To improve reception and sound quality, connect external antennas (see Connecting external antennas on page 32).

ANTENNA

fig. a fig. b fig. c

1 Pull off the protective shields of both AM antenna wires.

2 Push open the tabs, then insert one wire fully into each terminal, then release the tabs to secure the AM antenna wires.

3 Fix the AM loop antenna to the attached stand.

To fix the stand to the antenna, bend in the direction indicated by the arrow (fig. a) then clip the loop onto the stand (fig. b).

•If you plan to mount the AM antenna to a wall or other

surface, secure the stand with screws (fig. c) before clipping the loop to the stand. Make sure the reception is clear.

4 Place the AM antenna on a flat surface and in a direction giving the best reception.

5 Connect the FM wire antenna into the FM antenna socket.

For best results, extend the FM antenna fully and fix to a wall or door frame. Don’t drape loosely or leave coiled up.

FM UNBAL 75 AM LOOP

ANTENNA

FM UNBAL 75 AM LOOP

75 Ω coaxial cable

ANTENNA

FM UNBAL 75 AM LOOP

Outdoor antenna

Indoor antenna (vinyl-coated wire)

5 m to 6 m (16 ft. to 20 ft.)

Note

Main zoneSub zone (ZONE 2)

Connecting your equipment

Connecting external antennas

To improve FM reception, connect an external FM antenna to FM UNBAL 75 Ω.

To improve AM reception, connect a 5 m to 6 m (16 ft. to 20 ft.) length of vinyl-coated wire to the without disconnecting the supplied AM loop antenna.

For the best possible reception, suspend horizontally outdoors.

AM LOOP

terminals

Making MULTI-ZONE connections

It is possible to make these connections if you have a separate TV and speakers for your primary (ZONE 2) sub zone, and a separate TV and a separate amplifier (and speakers) for your secondary (ZONE 3) sub zone. You will also need a separate amplifier if you are not using the MULTI-ZONE setup using speaker terminals (ZONE 2) on page 33 for your primary sub zone. There are two primary sub zone setups possible with this system. Choose whichever works best for you.

MULTI-ZONE listening options

The following table shows the signals that can be output to ZONE 2 and ZONE 3

Sub Zone Input functions available

ZONE 2 DVD, TV/SAT, DVR/BDR, VIDEO, INTERNET

RADIO, iPod/USB, XM RADIO, CD, CD-R/TAPE, TUNER, ADAPTER PORT, SIRIUS

(Outputs analog audio, composite video and component video.)

ZONE 3 Same as ZONE 2 above.

(Outputs analog audio and composite video.)

Basic MULTI-ZONE setup (ZONE 2)

• Connect a separate amplifier to the jacks and a TV monitor to the

OUT jack, both on this receiver.

You should have a pair of speakers attached to the sub zone amplifier as shown in the following illustration.

AUDIO ZONE 2

VIDEO ZONE 2 OUT2

MULTI-ZONE setup

This receiver can power up to three independent systems in separate rooms after you have made the proper MULTI- ZONE connections. Different sources can be playing in three zones at the same time or, depending on your needs, the same source can also be used. The main and sub zones have independent power (the main zone power can be off while one (or both) of the sub zones is on) and the sub zones can be controlled by the remote or front panel controls.

1For the INTERNET RADIO, XM RADIO, SIRIUS and iPod/USB inputs, it is not possible use the same input in ZONE 2 and ZONE 3

simultaneously.

2• COMPONENT VIDEO ZONE 2 OUT can be used to output clear images.

• The GUI screen is not displayed if only the COMPONENT VIDEO ZONE 2 OUT jack is connected.

• The video convert function does not work for ZONE 2. Connect the composite video and component video to the same types of jacks for the inputs and outputs.

VIDEO IN

AUDIO IN

HDMI

ASSIGNABLE

1 4

COMPONENT VIDEO

ASSIGNABLE

RS-232C

(

OUTPUT 5 V

)

150 mA MAX

EXTENSION

ANTENNA

(

DVD

(

DVR/BDR

(

VIDEO

MONITOR OUT

ZONE 2 OUT

PRP

CONTROL

OUT

)

INBD

1IN2

)

ZONE2

OUT

FM UNBAL 75 AM LOOP

ZONE3 OUT

OUT

Connecting your equipment

Note

MONITOR OUT

ZONE 2 OUT

ANTENNA

FM UNBAL 75 AM LOOP

ZONE2

OUT

ZONE3

OUT

DVD

INBD

1IN2

(

DVD

)

(

DVR/BDR

)

(

VIDEO

)

CONTROL IR 1

OUT

( 1 T 1

COAXIAL OPTICAL

ASSIGNABLEASSIGNABLE

CD-R/TAPE

CD IN

DEO

OUT

(

DVD

)

(

TV/SAT

)

(

DVR/BDR

)

OUT

FRONT CENTER SURROUND SURR BACK

(Single)

FH/FW

(

VIDEO

)

(CD)

SUBWOOFER

LAN

(

10/100

)

(

OUTPUT 5 V 100 mA MAX

)

ADAPTER P

PRE OU

SIRIUS

CAUTION:

SPEAKER IMPEDANCE 6 Ω - 16 Ω .

ATTENTION:

ENCEINTE D'IMPEDANCE DE 6 Ω - 16 Ω .

SURROUND BACK

(Single)

L RLR

VIDEO IN

Main zone

Sub zone (ZONE 2)

A m

Main zone

Sub zone (ZONE 3)

LAN cable

(sold separately)

to LAN port

Router

Modem

Internet

MULTI-ZONE setup using speaker terminals (ZONE 2)

You must select ZONE 2 in Speaker system setting on page 85 to use this setup.

• Connect a TV monitor to the jacks on this receiver.

You should have a pair of speakers attached to the surround back speaker terminals as shown below.

VIDEO ZONE 2 OUT

Connecting to the network through LAN interface

By connecting this receiver to the network via the LAN terminal, you can listen to Internet radio stations.

OUT 1

OUT 2

(

) XM

LAN

VIDEO

COAXIAL OPTICAL

SIRIUS

IN (

DVD

CD-R/TAPE

OUT

10/100

)

(CD)

FRONT CENTER SURROUND

ASSIGNABLEASSIGNABLE

(

)

(

)

TV/SAT

DVR/BDR

(

CONTROL

DVR/BDR PHONO

OUT IN

MONITOR

)

OUT

Secondary MULTI-ZONE setup (ZONE 3)

• Connect a separate amplifier to the OUT jack, both on this receiver.

You should have a pair of speakers attached to the sub zone amplifier as shown in the following illustration.

1• COMPONENT VIDEO ZONE 2 OUT can be used to output clear images.

• The GUI screen is not displayed if only the COMPONENT VIDEO ZONE 2 OUT jack is connected.

• The video convert function does not work for ZONE 2. Connect the composite video and component video to the same types of jacks for the inputs and outputs.

2 To listen to Internet radio stations, you must sign a contract with an ISP (Internet Service Provider) beforehand.

jacks and a TV monitor to the

VIDEO IN

AUDIO IN

AUDIO ZONE 3

VIDEO ZONE 3 OUT

ASSIGNABLE

)

ANTENNA

(

DVD

(

DVR/BDR

(

VIDEO

MONITOR OUT

ZONE 2 OUT

PRP

CONTROL

OUT

)

INBD

)

ZONE2

FM UNBAL 75 AM LOOP

1IN2

OUT

HDMI

ASSIGNABLE

1 4

COMPONENT VIDEO

RS-232C

(

OUTPUT 5 V 150 mA MAX

EXTENSION

ZONE3

OUT

IR 12 V

OUT

DVDINTV

SUBWOOFER

SURROUND BACK

LR L

(Singl

LAN

321

WAN

ERS

iring

ABLE

RUCTION

ABLE

MODE I

FRONT HEIGHT/WIDE/

SIGNAL

GND

Connect the LAN terminal on this receiver to the LAN terminal on your router (with or without the built-in DHCP server function) with a straight LAN cable (CAT 5 or higher).

Turn on the DHCP server function of your router. In case your router does not have the built-in DHCP server function, it is necessary to set up the network manually. For details, see Network Setup menu on page 87.

LAN terminal specifications

LAN terminal . . . . . . . . . . . . . . . . . . . . . . . . . . . . Ethernet jack

TRI

(OU 12 V TOT

150

10BASE-T/100BASE-TX

Note

Bluetooth® ADAPTER (sold separately)

PHONES

SPEAKERS

CONTROL

MULTI-ZONE

ON/OFF

MCACC

SETUP MIC

TUNER EDIT

USBHDMI 5

VIDEO CAMERA

iPod

iPhone

AUTO SURR/ALC/

STREAM DIRECT

HOME

THX

STANDARD SURROUND

ADVANCED SURROUND

STEREOBAND

Video camera, etc.

XM Mini-Tuner and Home Dock

with antenna

COAXIAL OPTICAL

ASSIGNABLEASSIGNABLE

CD-R/TAPE

VIDEO

MONITOR

OUT

TIN

OUT 1 (

CONTROL

)

OUT 2

(

DVD

)

(

TV/SAT

)

(

DVR/BDR

)

OUT

FRONT CENTER SURROUNDSURR BACK

(Single)

FH/FW

(

VIDEO

)

(CD)

SUBWOOFER

LAN

(

10/100

)

(

OUTPUT 5 V 100 mA MAX

)

ADAPTER PORT

PRE OUT

SIRIUS

MULTI CH IN

SIGNAL

GND

FRONT CENTER

SUBWOOFER

SURROUNDSURR BACK

Antenna

SiriusConnect™ HOME tuner

AC adapter

Connecting your equipment

Connecting Optional

Bluetooth

ADAPTER

When the Bluetooth ADAPTER (Pioneer Model No. AS-

BT100)

is connected to this receiver, a product equipped

with Bluetooth wireless technology (portable cell phone, digital music player, etc.) can be used to listen to music wirelessly.

• Switch the receiver into standby and connect

Bluetooth

•For instructions on playing the Bluetooth wireless

• Do not move the receiver with the Bluetooth

OUT 2

(

)

LAN

10/100

COAXIAL OPTICAL

SIRIUS

(

)

(CD)

DVD

VIDEO

CD-R/TAPE

FRONT CENTER SURROUNDSURR BACK

OUT

NAL

SUBWOOFER

ADAPTER to the

ADAPTER PORT

(

OUTPUT 5 V

)

100 mA MAX

ASSIGNABLEASSIGNABLE

(

TV/SAT

OUT

)

(

)

(

)

DVR/BDR

VIDEO

FRONT CENTER

SUBWOOFER

SURROUNDSURR BACK

MULTI CH IN

(Single)

FH/FW

PRE OUT

ADAPTER PORT

technology device, see Pairing the Bluetooth ADAPTER and Bluetooth wireless technology device

on page 51.

Important

ADAPTER connected. Doing so could cause damage or faulty contact.

Connecting an XM Radio tuner

After purchasing an XM Mini-Tuner and Home Dock (both sold separately), you will also need to activate the XM Radio service to begin receiving broadcasts.

(

)

10/100

COAXIAL OPTICAL

(

)

(

(CD)

DVD

TV/SAT

R/TAPE

FRONT CENTER SURROUNDSURR BACK

SUBWOOFER

ADAPTER PORT

(

OUTPUT 5 V

)

100 mA MAX

ASSIGNABLEASSIGNABLE

OUT

)

(

)

(

)

DVR/BDR

VIDEO

FRONT CENTER

SUBWOOFER

SURROUNDSURR BACK

SATELLiTE

RADiO

SATELLiTE RADiO

MULTI CH IN

(Single)

FH/FW

PRE OUT

AC IN

•For instructions on playing the XM Radio, see

Listening to XM Radio on page 47.

Connecting a SiriusConnect™ tuner

To receive SIRIUS Satellite Radio broadcasts, you will need to activate your SiriusConnect™ tuner.

Connecting an HDMI-equipped component to the front panel input

SIRIUS

You will also need to connect the antenna and AC adapter to the SiriusConnect™ tuner.

For instructions on playing the SIRIUS Radio, see Listening to SIRIUS Radio on page 48.

1The Bluetooth ADAPTER (AS-BT100) is sold separately. 2• The Bluetooth wireless technology enabled device must support A2DP profiles.

• Pioneer does not guarantee proper connection and operation of this unit with all Bluetooth wireless technology enabled devices.

Connecting your equipment

PHONES

SPEAKERS

CONTROL

MULTI-ZONE

ON/OFF

MCACC

SETUP MIC

TUNER EDIT

USB

HDMI 5

VIDEO CAMERA

iPod

iPhone

AUTO SURR/ALC/

STREAM DIRECT

HOME

THX

STANDARD SURROUND

ADVANCED SURROUND

STEREOBAND





iPod

iPod cable

(supplied)

Note

USB mass storage device

USB keyboard

Connecting an iPod

This receiver has a dedicated iPod terminal that will allow you to control playback of audio content from your iPod using the controls of this receiver.

• Switch the receiver into standby then use the supplied iPod cable to connect your iPod to the iPod/ iPhone/USB terminal on the front panel of this receiver.

•It is also possible to connect using the cable included with the iPod, but in this case it is not possible to view pictures via the receiver.

•For the cable connection, also refer to the operating instructions for your iPod.

•For instr uctions on playing the iPod, see Playing an iPod on page 43.

• Switch the receiver into standby then connect your USB device to the USB terminal on the front panel of

this receiver.

•For instructions on playing the USB device, see

Playing a USB device on page 44.

CONTROL

ON/OFF

SPEAKERS

iPhone

MULTI-ZONE

STEREOBAND

iPod

MCACC

SETUP MIC

PHONES

TUNER EDIT

AUTO SURR/ALC/

STREAM DIRECT

VIDEO CAMERA

HOME

STANDARD

ADVANCED

THX

SURROUND

USBHDMI 5

Connecting a USB device

It is possible to play audio and photo files by connecting USB devices to this receiver. It is also possible to connect a USB keyboard (US-international layout) to the receiver to enter text in the following GUI screens.

• Change the input name in the Input Setup menu (page 40).

• Add names to radio station presets

•Enter Internet radio station URLs

(page 46).

(page 49)

Connecting a USB device for Advanced MCACC output

When using Full Auto MCACC (page 38), Auto MCACC (page 75) or Acoustic Calibration EQ Professional (page 79) to calibrate the reverb characteristics of your listening room, the 3D graphs of the reverb characteristics in your listening room (before and after calibration) can be checked on a computer screen.

The various MCACC parameters can also be checked on the computer. MCACC data and parameters are transferred from this receiver to a USB device and by connecting the USB device to a computer, the data is imported via

The MCACC softwar from the support area of the Pioneer website (http:// www.pioneerelectronics.com/PUSA/ Home+Entertainment+Custom+Install). Instructions for using the software are also available here. If you have any questions regarding, please contact the Customer Support Division of Pioneer.

See the documentation provided with the Advanced MCACC PC Display Application Software for more information.

•For the USB device connection and operations, see

Output MCACC data on page 82

the MCACC software in the computer.

e to output the results is available

1This receiver does not support a USB hub. 2The various parameters and the reverb characteristics data used for display on the computer are not cleared when the power is turned off (see

Output MCACC data on page 82).

Note

RS-232C

HDMI

ASSIGNABLE

COMPONENT VIDEO

ASSIGNABLE

MONITOR OUT

ZONE 2 OUT

ANTENNA

FM UNBAL 75 AM LOOP

ZONE2

OUT

ZONE3

OUT

DVDINTV/SATINVIDEOINDVR/

OUT

PRP

INBD

1IN2IN3

1 4

(

DVD

)

(

DVR/BDR

)

(

VIDEO

)

CONTROL

EXTENSION

IR 12 V

TRIGGER

OUT

(OUTPUT 12 V TOTAL 150 mA MAX)

(

OUTPUT 5 V 150 mA MAX

)

SPEAKERS

Class 2 Wiring

SEE INSTRUCTIO MANUAL

SELECTABLE

VOIR LE MODE D'EMPLOI

SELECTABLE

IR receiver

Closet or shelving unit

Non-Pioneer component

Pioneer component

MONITOR OUT

Connecting your equipment

Connecting an IR receiver

If you keep your stereo components in a closed cabinet or shelving unit, or you wish to use the sub zone remote control in another zone, you can use an optional IR receiver (such as a Niles or Xantech unit) to control your system instead of the remote sensor on the front panel of this receiver.

1 Connect the IR receiver sensor to the the rear of this receiver.

IR IN

jack on

CONTROL

IN OUT

Operating other Pioneer components with this unit’s sensor

Many Pioneer components have SR CONTROL jacks which can be used to link components together so that you can use just the remote sensor of one component. When you use a remote control, the control signal is passed along the chain to the appropriate component.

Important

• Note that if you use this feature, make sure that you also have at least one set of analog audio, video or HDMI jacks connected to another component for

grounding purposes.

1 Decide which component you want to use the remote sensor of.

When you want to control any component in the chain, this is the remote sensor at which you’ll point the corresponding remote control.

2 Connect the to the

CONTROL IN

CONTROL OUT

jack of that component

jack of another Pioneer component.

Use a cable with a mono mini-plug on each end for the connection.

ZONE 2 OUT

PRP

RS-232C

(

OUTPUT 5 V

150 mA MAX

EXTENSION

ANTENNA

FM UNBAL 75 AM LOOP

CONTROL

)

OUT

IR 12 V

TRIGGER

(OUTPUT 12 V TOTAL

150 mA MAX)

SPEAKERS

SEE INSTRUCTI MANUAL

VOIR LE MODE D'EMPLOI

Class 2 Wiring

SELECTABLE

2 Connect the IR OUT IR receiver.

Please see the manual supplied with your IR receiver for the type of cable necessary for the connection.

• If you want to link a Pioneer component to the IR

receiver, see Operating other Pioneer components with this unit’s sensor below to connect to the

CONTROL jacks instead of the IR OUT jack.

1• Remote operation may not be possible if direct light from a strong fluorescent lamp is shining on the IR receiver remote sensor window.

• Note that other manufacturers may not use the IR terminology. Refer to the manual that came with your component to check for IR compatibility.

• If using two remote controls (at the same time), the IR receiver’s remote sensor takes priority over the remote sensor on the front panel.

2 • If you want to control all your components using this receiver’s remote control, see Setting the remote to control other components on

page 68.

• If you have connected a remote control to the CONTROL IN jack (using a mini-plug cable), you won’t be able to control this unit using the remote sensor.

IR IN

jack on the rear of this receiver to link it to the

jack of another component to the

IN OUT

CONTROL

IN OUT

CONTROL

Continue the chain in the same way for as many components as you have.

Connecting your equipment

12 V TRIGGER

(OUTPUT 12 V TOTAL 150 mA MAX)

RS-232C

HDMI

ASSIGNABLE

COMPONENT VIDEO

ASSIGNABLE

MONITOR OUT

ZONE 2 OUT

ANTENNA

FM UNBAL 75 AM LOOP

VIDE

MONITOR

OUT

ZONE2

OUT

ZONE3 OUT

DVDINTV/SATINVIDEOINDVR/BDR PHONO

OUT IN

PRP

INBD

1IN2IN3

OUT 1 (

CONTROL

)

OUT

1 4

(

DVD

)

(

DVR/BDR

)

(

VIDEO

)

CONTROL

EXTENSION

OUT

(

OUTPUT 5 V 150 mA MAX

)

SPEAKERS

Class 2 Wiring

SIGNAL

GND

FRONT HEIGHT/W

SEE INSTRUCTION MANUAL

SELECTABLE

VOIR LE MODE D'EMPLOI

SELECTABLE

12 V TRIGGER

INPUT

Note

Switching components on and off using the 12 volt trigger

You can connect components in your system (such as a screen or projector) to this receiver so that they switch on or off using 12 volt triggers when you select an input function. However, you must specify which input functions switch on the trigger using the The Input Setup menu on page 40. Note that this will only work with components that have a standby mode.

• Connect the the 12 V trigger of another component.

Use a cable with a mono mini-plug on each end for the connection.

After you’ve specified the input functions that will switch on the trigger, you’ll be able to switch the component on or off just by pressing the input function(s) you’ve set on page 40.

It is also possible to have the component switch not when the input function is switched, but when HDMI OUT is switched. For details, see HDMI Setup on page 57.

12 V TRIGGER

jack of this receiver to

Plugging in the receiver

Only plug in after you have connected all your components to this receiver, including the speakers.

1 Plug the supplied power cord into the on the back of the receiver.

2 Plug the other end into a power outlet.

CAUTION

• Handle the power cord by the plug part. Do not pull out the plug by tugging the cord, and never touch the power cord when your hands are wet, as this could cause a short circuit or electric shock. Do not place the unit, a piece of furniture, or other object on the power cord or pinch the cord in any other way. Never make a knot in the cord or tie it with other cables. The power cords should be routed so that they are not likely to be stepped on. A damaged power cord can cause a fire or give you an electric power cord once in a while. If you find it damaged, ask your nearest Pioneer authorized independent service company for a replacement.

• Do not use any power cord other than the one supplied with this unit.

• Do not use the supplied power cord for any purpose other than that described below.

•The receiver should be disconnected by removing the mains plug from the wall socket when not in regular use, e.g., when on vacation.

•Make sure the blue  STANDBY/ON light has gone out before unplugging.

• If you have connected speakers with a 6 impedance, change the impedance setting before turning on the power.

AC IN

shock. C

socket

heck the

1After this receiver is connected to an AC outlet, a 2 second to 10 second HDMI initialization process begins. You cannot carry out any

operations during this process. The HDMI indicator in the front panel display blinks during this process, and you can turn on this receiver once it has stopped blinking. When you set the Control with HDMI to OFF, you can skip this process. For details about the Control with HDMI feature, see Control with HDMI function on page 57.

Basic Setup

Chapter 4:

Basic Setup

Changing the OSD display language (OSD Language)

The language used on the Graphical User Interface screen can be changed.

•The explanations in these operating instructions are for when English is selected for the GUI screen.

1 Switch on the receiver and your TV.

Make sure that the TV’s video input is set to this receiver (for example, if you connected this receiver to the VIDEO jacks on your TV, make sure that the VIDEO input is now selected).

2 Press on the remote control, then press HOME MENU

A Graphical User Interface (GUI) screen appears on your TV. Use /// and ENTER to navigate through the screens and select menu items. Press RETURN to exit the current menu.

3 Select ‘

4 Select ‘ menu.

5 Select the desired language.

6 Select ‘

The setting is completed and the System Setup menu reappears automatically.

RECEIVER

System Setup

OSD Language

’ to change the language.

’ from the

Home Menu

System Setup

Automatically conducting optimum sound tuning (Full Auto MCACC)

The Full Auto MCACC Setup measures the acoustic characteristics of your listening area, taking into account ambient noise, speaker connection and speaker size, and tests for both channel delay and channel level. After you have set up the microphone provided with your system, the receiver uses the information from a series of test tones to optimize the speaker settings and equalization for your particular room.

Important

•Make sure the microphone and speakers are not moved during the Full Auto MCACC Setup.

• Using the Full Auto MCACC Setup will overwrite any existing settings for the MCACC preset you select.

•Before u headphones should

• The test tones used in the Full Auto MCACC Setup are output at high volume.

THX

1 Switch on the receiver and your TV.

Make sure that the TV’s video input is set to this receiver.

2 Connect the microphone to the jack on the front panel.

• Push down on the lower portion of the front panel door to access the MCACC SETUP MIC jack.

sing the Full Auto MCACC Setup, the

be disconnected.

CAUTION

MCACC SETUP MIC

Basic Setup

Note

PHONES

SPEAKERS

CONTROL

MULTI-ZONE

ON/OFF

MCACC

SETUP MIC

PARAMETER

ENTER

(TUNE)

(PRESET)(PRESET)

AUDIO VIDEO

TUNER EDIT

USBHDMI 5

VIDEO CAMERA

iPod

iPhone

AUTO SURR/ALC/ STREAM DIRECT

HOME

THX

STANDARD SURROUND

ADVANCED SURROUND

STEREOBAND

HOME MENU RETURN

Microphone

Tripod

RECEIVER

Make sure there are no obstacles between the speakers and the microphone.

If you have a tripod, use it to place the microphone so that it’s about ear level at your normal listening position. If you do not have a tripod, use some other object to install the

microphone.

The Full Auto MCACC display appears once the microphone is connected.

3 Select the parameters you want to set.

1a.Full Auto MCACC

Speaker System : Normal(SB/FH EQ Type : SYMMETRY MCACC : M1.MEMORY 1 THX Speaker : NO

START

A/V RECEIVER

Exit Return

)

If the speakers are connected using any setup other than Normal(SB/FH), be sure to set Speaker System before the Full Auto MCACC Setup. See Speaker system setting on page 85.

• Speaker System

– Shows the current settings.

When this is selected and ENTER is pressed, the speaker system selection screen appears. Select the proper speaker system, then press RETURN to return.

• EQ Type – This determines how the frequency

balance is adjusted.

• MCACC – The six MCACC presets are used for storing

surround sound settings for different listening positions. Simply choose an unused preset for now (you can rename it later in Data Management on page 82).

• THX Speaker – Select YES if you are using THX speakers (set all speakers to SMALL), otherwise leave it set to NO.

4 Press on the remote control, then select START

5 Follow the instructions on-screen.

Make sure the microphone is connected, and if you’re using a subwoofer, make sure it is switched on and set to a comfortable volume level.

6 Wait for the test tones to finish, then confirm the speaker configuration in the GUI screen.

A progress report is displayed on-screen while the receiver outputs test tones to determine the speakers present in your setup. Try to be as quiet as possible while

it’s doing this.

If no operations are performed for 10 seconds while the speaker configuration check screen is being displayed, the Full Auto MCACC Setup will resume automatically. In this case, you don’t need to select ‘OK’ and press ENTER in step 7.

•With error messages (such as Too much ambient noise! or Check microphone.), select RETRY after checking for ambient noise (see Problems when using the Auto MCACC Setup on page verif

ying the mic connection. If there doesn’t seem to

40) and

be a problem, you can simply select GO NEXT and continue.

1a.Full Auto MCACC

Now Analyzing... 2/10

Environment Check

A/V RECEIVER

Ambient Noise : OK Microphone : Speaker YES/NO :

Exit Cancel

1a.Full Auto MCACC

L : YES FHL : YES C : YES FHR : YES R : YES SR : YES SBR : YES SBL : YES SL : YES SW : YES

A/V RECEIVER

OK RETRY

Exit Cancel

The configuration shown on-screen should reflect the actual speakers you have.

1 Install the microphone on a stable floor. Placing the microphone on any of the following surfaces may make accurate measurement

impossible:

• Sofas or other soft surfaces.

• High places such as tabletops and sofa tops. 2 If you leave the GUI screen for over five minutes, the screen saver will appear. 3• When data measurement is taken, the reverb characteristics data (both before- and after-calibration) that this receiver had been storing will

ent is taken of the reverb characterist

be overwritten. If you want to save the reverb characteristics data before measuring, connect a USB memory device to this receiver and transfer the data.

• When measurem

you will need to measure after correcting data, take the measurement using the EQ Professional menu in the Manual MCACC setup (page 77).

4 If you are planning on bi-amping your front speakers, or setting up a separate speaker system in another room, read through Speaker system

ics data other than SYMMETRY, the data are not measured after the correction. If

setting on page 85 and make sure to connect your speakers as necessary before continuing to step 4.

Note

Basic Setup

• If you see an ERR message (or the speaker

configuration displayed isn’t correct), there may be a problem with the speaker connection. If selecting RETRY doesn’t work, turn off the power and check the speaker connections. If there doesn’t seem to be a problem, you can simply use / to select the speaker and / to change the setting and continue.

•If Reverse Phase is displayed, the speaker’s wiring

(+ and –) may be inverted. Check the speaker connections. – If the connections were wrong, turn off the power, disconnect the power cord, then reconnect properly. After this, perform the Full Auto MCACC procedure again. – If the connections were right, select GO NEXT and continue.

7 Make sure ‘OK’ is selected, then press

A progress report is displayed on-screen while the receiver outputs more test tones to determine the

optimum receiver settings.

Again, try to be as quiet as possible while this is happening. It may take 3 to 10 minutes.

8 The Full Auto MCACC Setup procedure is completed and the

Home Menu

Be sure to disconnect the microphone from this receiver upon completion of the Full Auto MCACC Setup.

The settings made in the Full Auto MCACC Setup should give you excellent surround sound from your system, but it is also possible to adjust these settings manually using

The Advanced MCACC menu on page 75 or The System Setup and Other Setup menus on page 84.

Problems when using the Auto MCACC Setup

If the room environment is not optimal for the Auto MCACC Setup (to o much bac kground noise, echo off the walls, obstacles blocking the sp eakers from the microphone) the final settings may be incorrect. Check for household appliances (air conditioner, fridge, fan, etc.), that may be affecting the environment and switch them off if necessary. If there are any instructions showing in the front panel display, please follow them.

• Some older TVs may interfere with the operation of the microphone. If this seems to be happening, switch off the TV when doing the Auto MCACC Setup.

menu reappears automatically.

ENTER

The Input Setup menu

You only need to make settings in the Input Setup menu if you didn’t hook up your digital equipment according to the default settings (see Input function default and possible settings on page 41). In this case, you need to tell the receiver what equipment is hooked up to which terminal so the buttons on the remote control correspond to the components you’ve connected.

1 Press on the remote control, then press HOME MENU

A Graphical User Interface (GUI) screen appears on your TV. screens and select menu items. Press RETURN to confirm and exit the current menu.

2 Select ‘

3 Select ‘

4 Select the input function that you want to set up.

The default names correspond with the names next to the terminals on the rear panel (such as DVD or VIDEO) which, in turn, correspond with the names on the remote control.

5 Select the input(s) to which you’ve connected your component.

For example, if your DVD player only has an optical output, you will need to change the DVD input function’s Digital In setting from COAX-1 (default) to the optical input you’ve connected it to. The numbering (OPT-1 to 3) corresponds with the numbers beside the inputs on the back of the receiver.

RECEIVER

Use /// and ENTER to navigate through the

System Setup

Input Setup

4.System Setup 4b.Input Setup

a.Manual SP Setup

b. Input Setup

c. OSD Language d. Network Setup e. Other Setup

A/V RECEIVER

Exit Return

’ from the

Home Menu

System Setup

Input : DVD

Input Name : Rename Input Skip : OFF

Digital In : COAX-1 HDMI Input : Component In : Comp-1 12V Trigger1 : OFF 12V Trigger2 : OFF

Exit Finish

menu.

A/V RECEIVER

---

1If the speaker is not pointed to the microphone (listening position) or when using speakers that affect the phase (dipole speakers, reflective

speakers, etc.), Reverse Phase may be displayed even if the speakers are properly connected.

2• Depending on the characteristics of your room, sometimes identical speakers with cone sizes of around 12 cm (5 inches) will end up with

different size settings. You can correct the setting manually using the Manual speaker setup on page 84.

• The subwoofer distance setting may be farther than the actual distance from the listening position. This setting should be accurate (taking

delay and room characteristics into account) and generally does not need to be changed.

• If Full Auto MCACC Setup mea

recommend adjusting the settings manually.

t results are incorrect due to the interaction of the speakers and viewing environment, we

suremen

Basic Setup

Note

6 When you’re finished, proceed to the settings for other inputs.

There are optional settings in addition to the assignment of the input jacks:

• Input Name – You can choose to rename the input function for easier identification. Select Rename to do so, or Default to return to the system default.

• Input Skip – When set to ON, that input is skipped when selecting the input using INPUT SELECT. (DVD and other inputs can be still be selected directly with the input function buttons.)

• 12V Trigger1/2 – After connecting a component to one of the 12 volt triggers (see Switching components on and off using the 12 volt trigger on page 37), select MAIN, ZONE 2, ZONE 3 or OFF for the corresponding trigger setting to switch it on automatically along

with the (main or sub) zone specified.

7 When you’re finished, press

RETURN

You will return to the System Setup menu.

Input function default and possible settings

The terminals on the receiver generally correspond to the name of one of the input functions. If you have connected components to this receiver differently from (or in addition to) the defaults below, see The Input Setup menu on page 40 to tell the receiver how you’ve connected up. The dots () indicate possible assignments.

Input function

DVD COAX-1 

BD (BD)

TV/SAT OPT-1 

DVR/BDR OPT-2 

VIDEO OPT-3 

HDMI 1 

HDMI 2 (HDMI-2)

HDMI 3

HDMI 4

HDMI 5

(front panel)

INTERNET RADIO

iPod/USB

XM RADIO

CD COAX-2

CD-R/TAPE 

TUNER

ADAPTER PORT

PHONO

MULTI CH IN

SIRIUS 

a.With Control with HDMI set to ON, assignments cannot be made

(see Control with HDMI function on page 57).

Digital HDMI

Input Terminals

(HDMI-1)

(HDMI-3)

(HDMI-4)

(HDMI-5)



Component

IN 1



IN 2

IN 3

1 Devices connected to 12 volt triggers can be associated with HDMI OUT switching. For details, see HDMI Setup on page 57.

Note

Basic playback

Chapter 5:

Basic playback

Playing a source

Here are the basic instructions for playing a source (such as a DVD disc) with your home theater system.

1 Switch on your system components and receiver.

Make sure that the TV’s video input is set to this receiver.

2 Press on the remote control.

3 Select the input function you want to play.

You can use the input function buttons on the remote control, INPUT SELECT, or the front panel INPUT

SELECTOR dial.

4 Press STREAM DIRECT start playback of the source.

If you’re playing a Dolby Digital or DTS surround sound source, you should hear surround sound. If you are playing a stereo source, you will only hear sound from the front left/right speakers in the default listening mode.

• See also Listening to your system on page 53 for

It is possible to check on the front panel display whether or not multi-channel playback is being performed

properly. For details, see Auto Surround, ALC and Stream Direct with different input signal formats on page 106.

When using a surround back speaker, 2D+PLIIx MOVIE is displayed when playing Dolby Digital signals,

an channel signals.

If the display does not correspond to the input signal and listening mode, check the connections and settings.

5 Use the volume control to adjust the volume level.

Turn down the volume of your TV so that all sound is coming from the speakers connected to this receiver.

RECEIVER

AUTO/ALC/DIRECT (AUTO SURR/ALC

) to select ‘

information on different ways of listening to sources.

d DTS+Neo:6 is di

AUTO SURROUND

splayed when playing DTS 5.1-

’ and

Playing a source with HDMI connection

• Press on the remote control, then use INPUT SELECT connected to (for example,

You can also perform the same operation by using the

INPUT SELECTOR dial on the front panel or by pressing HDMI on the remote control repeatedly.

•Set the HDMI parameter in Setting the Audio options

• If the video signal does not appear on your TV, try

RECEIVER

to select the HDMI input you’ve

on page 60 to THROUGH if you want to hear HDMI audio output from your TV (no sound will be heard from this receiver).

adjusting the resolution settings on your component or display. Note that some components (such as video game units) have resolutions that may not be converted. In this case, use an analog video connection.

HDMI 1

Selecting the multichannel analog inputs

If you have connected a decoder or a DVD player as above, you must select the analog multichannel inputs for surround sound playback.

1 Make sure you have set the playback source to the proper output setting.

For example, you might need to set your DVD player to output multichannel analog audio.

2 Press on the remote control, then use INPUT SELECT

You can also use the INPUT SELECTOR dial on the front panel.

•Depending on the DVD player you’re using, the

RECEIVER

to select

analog output level of the subwoofer channel may be too low. In this case, the output level of the subwoofer can be increased by 10 dB in the Multi Ch In Setup in Other Setup. For details, see Multi Channel Input Setup on page 90.

MULTI CH IN

1 If you need to manually switch the input signal type press SIGNAL SEL (page 56). 2 You may need to check the digital audio output settings on your DVD player or digital satellite receiver. It should be set to output Dolby Digital,

DTS and 88.2 kHz / 96 kHz PCM (2 channel) audio, and if there is an MPEG audio option, set this to convert the MPEG audio to PCM.

3• When playback from the multichannel inputs is selected, only the volume and channel levels can be set.

• You can’t listen to your speaker B system during playback from the multichannel inputs.

• With MULTI CH IN inputs, it is possible to play pictures simultaneously. For details, see Multi Channel Input Setup on page 90.

Basic playback

Note

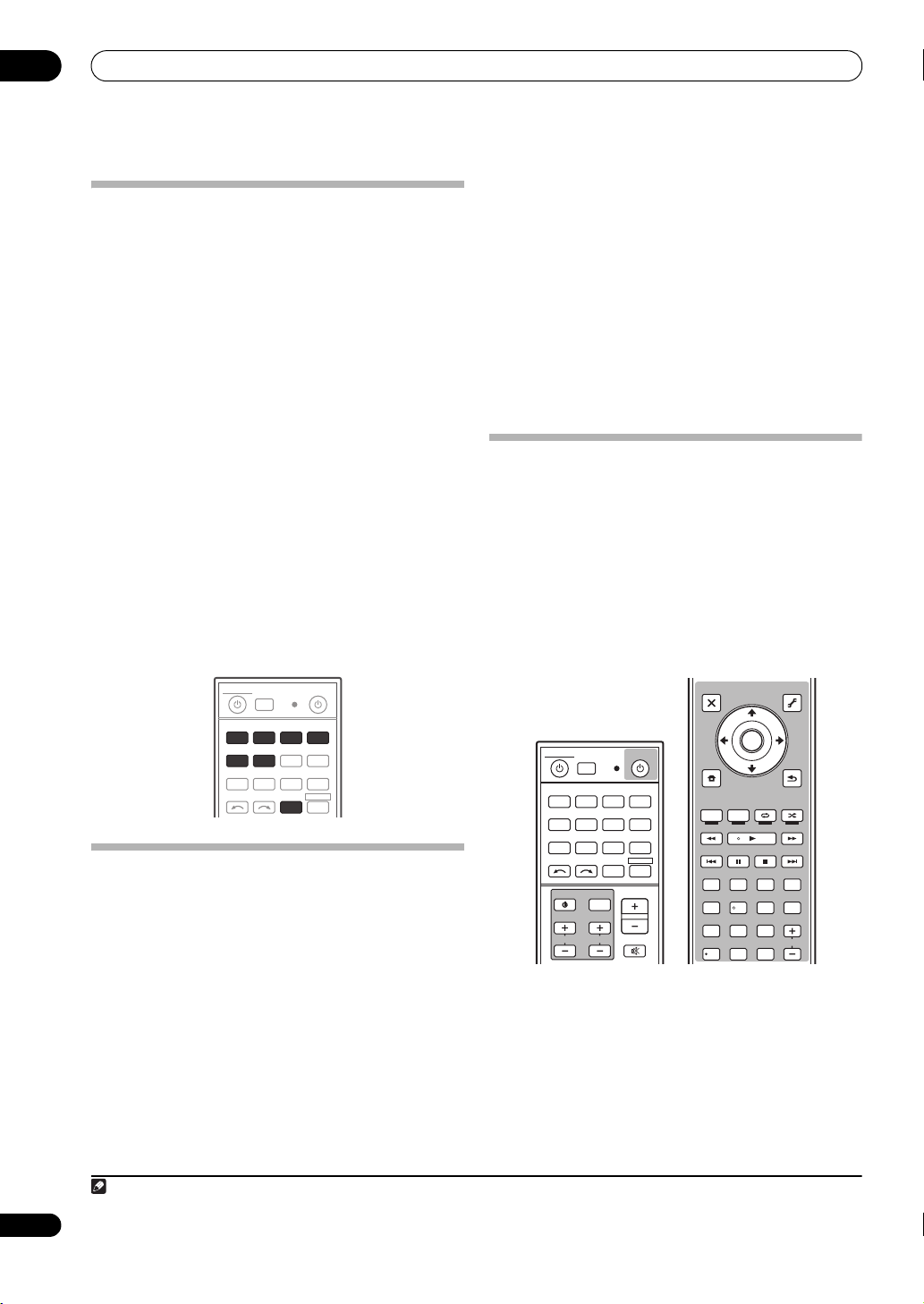

Playing an iPod

This receiver has the iPod/iPhone/USB terminal that will allow you to control playback of audio content from your iPod using the controls of this receiver.

1 Switch on the receiver and your TV.

See Connecting an iPod on page 35.

•It is also possible to operate the iPod on the iPod itself, without using the TV screen. For details, see Switching the iPod controls on page 43.

2Press receiver to the

iPod USB

iPod/USB

on the remote control to switch the

Loading appears in the GUI screen while the receiver

verifies the connection and retrieves data from the iPod. When the display shows the iPod top menu you’re ready

to play music from the iPod.

Playing back audio files stored on an iPod

To navigate songs on your iPod, you can take advantage of the GUI screen of your TV connected to this receiver. You can also control all operations for music in the front panel display of this receiver.

Finding what you want to play

When your iPod is connected to this receiver, you can browse songs stored on your iPod by playlist, artist name, album name, song name, genre or composer, similar to using your iPod directly.

1Use

/

to select ‘Music’ from the iPod top menu.

2Use

/

to select a category, then press

browse that category.

•To return to the previous level any time, press

RETURN.

3Use

/

to browse the selected category (e.g.,

albums).

•Use / to move to previous/next levels.

ENTER

4 Continue browsing until you arrive at what you want to play, then press



to start playback.

Tip

•You can play all of the songs in a particular category

by selecting the All item at the top of each category list. For example, you can play all the songs by a particular artist.

Basic playback controls

This receiver’s remote control buttons can be used for basic playback of files stored on an iPod.

•Press iPod USB to switch the remote control to the

iPod/USB operation mode.

STEREO

DIRECT

AUDIO

PARAMETER

TOP MENU

BAND GUIDE

PRESET

CATEGORY

iPod CTRL

LIST

HOME MENU

TUNE

ENTER

TUNE

TOOLS

Switching the iPod controls

VIDEO

PARAMETER

T.EDIT

PRESET

RETURN

SIGNAL SEL

HDD DVD

PHASE

DTV MPX PQLS

HDMI OUT

MCACC SLEEP

STANDARD

CTRL STATUSTHX

213

546

You can switch over the iPod controls between the iPod and the receiver.

1Press

iPod CTRL

to switch the iPod controls.

This enables operation and display on your iPod, and this receiver’s remote control and GUI screen become

inactive.

2Press

iPod CTRL

again to switch back to the receiver

controls.

ADV SURR

AUDIO

INFO

DISP

1 • This system is compatible with the audio and video of the iPod nano (audio only for the iPod nano 1G/2G), iPod fifth generation (audio only),

iPod classic, iPod touch and iPhone. However, some of the functions may be restricted for some models. The system is not compatible with the iPod shuffle.

•

Compatibility may vary depending on the software version of your iPod and iPhone. Please be sure to use the latest available software

version.

• iPod and iPhone are licensed for reproduction of non-copyrighted materials or materials the user is legally permitted to reproduce.

• Features such as the equalizer cannot be controlled using this receiver, and we recommend switching the equalizer off before connecting.

• Pioneer cannot under any circumstances accept responsibility for any direct or indirect loss arising from any inconvenience or loss of

recorded material resulting from

• When listening to a track on the iPod in the main zone, it is possible to control the sub zone, but not to listen to a different track in the sub

zone from the one playing in the main zone.

2 The controls of your iPod will be inoperable when connected to this receiver. 3 • Note that characters that cannot be displayed on this receiver are displayed as #.

• This feature is not available for photos on your iPod. To display photos, switch iPod operation to the iPod (see Switching the iPod controls on

page 43).

4During Audiobook playback, press / to switch the playback speed: Faster  Normal  Slower 5 You cannot use this function, when an iPod of fifth generation or iPod nano of first genera

the iPod failure.

tion is connected.

Note

Basic playback

Playing a USB device

It is possible to play files1 using the USB interface on the front of this receiver.

1 Switch on the receiver and your TV.

See Connecting a USB device on page 35.

2 Press receiver to the

iPod USB

iPod/USB

on the remote control to switch the

Loading appears in the GUI screen as this receiver starts

recognizing the USB device connected. When the display shows the USB Top menu you’re ready to play from the USB device.

Important

If an Over Current message lights in the display, the power requirements of the USB device are too high for

this receiver. Try following the points below:

• Switch the receiver off, then on again.

• Reconnect the USB device with the receiver switched off.

• Use a dedicated AC adapter (supplied with the device) for USB power.

If this doesn’t remedy the problem, it is likely your USB device is incompatible.

Playing back audio files stored on a USB memory device

The maximum number of levels that you can select in Step 2 (below) is 8. Also, you can display and play back up to 30 000 folders and files within a USB memory

device.

1Use

2Use browse that folder.

/

to select ‘Music’ from the

/

to select a folder, then press

•To return to the previous level any time, press RETURN.

USB Top

ENTER

menu.

3 Continue browsing until you arrive at what you want to play, then press



to start playback.

Basic playback controls

This receiver’s remote control buttons can be used for basic playback of files stored on USB memory devices.

•Press iPod USB to switch the remote control to the

iPod/USB operation mode.

STEREO

DIRECT

STANDARD

TUNE

ENTER

TUNE

TOOLS

VIDEO

PARAMETER

RETURN

AUDIO

PARAMETER

LIST

TOP MENU

BAND GUIDE

PRESET

CATEGORY

HOME MENU

iPod CTRL

T.EDIT

PRESET

HDD DVD

DTV MPX PQLS

HDMI OUT

SIGNAL SEL

ADV SURR

CTRL STATUSTHX

PHASE

AUDIO

213

MCACC SLEEP

INFO

DISP

546

Playing back photo files stored on a USB memory device

1Use menu.

2Use browse that folder.

3 Continue browsing until you arrive at what you want to play, then press

The selected content is displayed in full screen and a slideshow starts.

After a slideshow launches, pressing ENTER toggles between play and pause (only when Theme on the Slideshow Setup is set to Normal (OFF)).

Basic playback controls

a.You can only use this button when Theme on the Slideshow Setup

/

• To return to the previous level any time, press RETURN.

Button(s) What it does

ENTER,  Starts displaying a photo and playing a slideshow.

RETURN, Stops the player and returns to the previous







DISP

is set to Normal (OFF)

to select ‘


s’ from the

USB Top

to select a folder, then press



to start playback.

menu.

Displays the previous photo content.

Displays the next photo content.

Pauses/unpauses the slideshow.

Displays the photo information.

ENTER

1• Compatible USB devices include external magnetic hard drives, portable flash memory drives (particularly key drives) and digital audio

players (MP3 players) of format FAT16/32.

• Pioneer cannot guarantee compatibility (operation and/or bus power) with all USB mass storage devices and assumes no responsibility for

any loss of data that may occur when connected to this receiver. 2Make sure the receiver is in standby when disconnecting the USB device. 3 The iPod/USB function cannot be selected in the main zone when the Internet radio function is selected in the sub zone. Also, the iPod/USB

function cannot be selected in the sub zone when the Internet radio function is selected in the main zone. 4 Note that non-Roman characters in the playlist are displayed as #. 5• Copyrighted audio files cannot be played back on this receiver.

• DRM-protected audio files cannot be played back on this receiver. 6 Photo files cannot be played in the sub zone. 7 If the slideshow is left in the pause mode for five minutes, the list screen reappears.

Basic playback

Slideshow Setup

Make the various settings for playing slideshows of photo files here.

1Use

/

Top

menu.

2 Select the setting you want.

• Theme – Add various effects to the slideshow.

• Interval – Set the interval for switching the photos. This may not be available depending on the Theme setting.

• BGM – Play music files stored on the USB device while displaying photos.

• Music Select – Select the folder containing the music files to be played when BGM is set to ON.

3 When you’re finished, press You will return to the USB Top menu.

About playable file formats

The USB function of this receiver supports the following file formats. Note that some file formats are not available for playback although they are listed as playable file formats.

Music files

Category Extension Stream

to select ‘

MP3

WAV .wav LPCM Sampling frequency 32 kHz, 44.1 kHz, 48 kHz

WMA .wma

a.“MPEG Layer-3 audio decoding technology licensed from Fraunhofer IIS and Thomson multimedia.”

b.Files encoded using Windows Media Codec 9 may be playable but some parts of the specification are not supported; specifically, Pro, Lossless,

Voice.

Photo files

Category Extension

JPEG .jpg

.mp3 MPEG-1, 2, 2.5 Audio Layer-3 Sampling frequency 8 kHz to 48 kHz

.jpeg .jpe .jif .jfif

Slideshow Setup

WMA8/9

Format Meeting the following conditions:

Resolution 30 to 8184 pixels vertical, 40 to 8184 pixels horizontal

’ from the

RETURN

• Baseline JPEG format (including files recorded in Exif/DCF format)

• Y:Cb:Cr - 4:4:4, 4:2:2 or 4:2:0

USB

Quantization bitrate 16 bit

Channel 2 ch

Bitrate 8 kbps to 320 kbps

VBR/CBR Supported/Supported

Quantization bitrate 8 bit, 16 bit

Channel 2 ch, Monaural

Sampling frequency 8 kHz to 48 kHz

Quantization bitrate 16 bit

Channel 2 ch

Bitrate 8 kbps to 320 kbps

VBR/CBR Supported/Supported

Basic playback

Listening to the radio

The following steps show you how to tune in to FM and AM radio broadcasts using the automatic (search) and manual (step) tuning functions. If you already know the frequency of the station you want, see Tuning directly to a station below. Once you are tuned to a station you can memorize the frequency for recall later—see Saving station presets below for more on how to do this.

1 Press

2 Use BAND to change the band (FM or AM), if necessary.

3 Tune to a station.

There are three ways to do this:

Improving FM sound

If the TUNED or STEREO indicator doesn’t light when tuning to an FM station because the signal is weak, press MPX to switch the receiver into mono reception mode. This should improve the sound quality and allow you to enjoy the broadcast.

Using the noise cut mode

The two noise cut modes can be used when receiving AM broadcasts. Press MPX to select the noise cut mode (1 to

2).

Using Neural Surround

This feature uses Neural Surround™ technologies to achieve optimal surround sound from FM radio.

The Neural Surround mode can be selected also with

STANDARD.

TUNER

to select the tuner.

Automatic tuning – To search for stations in the

currently selected band, press and hold TUNE / for about a second. The receiver will start searching for the next station, stopping when it has found one. Repeat to search for other stations.

Manual tuning – To change the frequency one step at a time, press TUNE /.

High speed tuning – Press and hold TUNE / for high speed tuning. Release the button at the frequency you want.

• While listening to FM radio, press AUTO/ALC/ DIRECT for Neural Surround.

Tuning directly to a station

1 Press

2 necessary.

3 Press

4 Use the number buttons to enter the frequency of the radio station.

For example, to tune to 106.00 (FM), press 1, 0, 6, 0, 0. If you make a mistake halfway through, press D.ACCESS

twice to cancel the frequency and start over.

Use

TUNER

to select the tuner.

BAND

to change the band (FM or AM),

D.ACCESS

(Direct Access).

Saving station presets

If you often listen to a particular radio station, it’s convenient to have the receiver store the frequency for easy recall whenever you want to listen to that station. This saves the effort of manually tuning in each time. This receiver can memorize up to 63 stations, stored in seven banks, or classes (A to G) of 9 stations each.

1 Tune to a station you want to memorize.

See Listening to the radio above for more on this.

2 Press

The display shows PRESET MEMORY, then a blinking memory class.

3 Press press want.

You can also use the number buttons to select a station preset.

4 Press

After pressing ENTER, the preset class and number stop blinking and the receiver stores the station.

T.EDIT (TUNER EDIT

CLASS

to select one of the seven classes, then

PRESET /

ENTER

to select the station preset you

Listening to station presets

1 Press

2 Press is stored.

Press repeatedly to cycle through classes A to G.

3 Press want.

TUNER

to select the tuner.

CLASS

to select the class in which the station

PRESET /

• You can also use the number buttons on the remote control to recall the station preset.

to select the station preset you

Naming station presets

For easier identification, you can name your station presets.

1 Choose the station preset you want to name.

See Listening to station presets above for how to do this.

Basic playback

Note

2Press

The display shows PRESET NAME, then a blinking cursor at the first character position.

3 Input the name you want.

Use / to select a character, / to set the position, and ENTER to confirm your selection.

•To erase a station name, simply repeat steps 1 to 3

• Once you have named a station preset, you can pr ess

T.EDIT (TUNER EDIT

Tip

and input eight spaces instead of a name.

DISP when listening to a station to switch the display between name and frequency.

Listening to Satellite Radio

To listen to Satellite Radio, you’ll need to connect either a SIRIUS or XM Satellite Radio tuner (sold separately) to your satellite-ready receiver. Satellite Radio is available to residents of the US (except Alaska and Hawaii) and Canada.

Satellite Radio delivers a variety of commercial-free music from categories ranging from Pop, Rock, Country, R&B, Dance, Jazz, Classical and many more plus coverage of all the top professional and college sports including play by play games from select leagues and teams. Additional programming includes expert sports talk, uncensored entertainment, comedy, family programming, local traffic and weather and news from your most truste

Whether you to activate and subscribe to begin enjoying the service. Easy to follow installation and setup instructions are provided with the satellite tuners. Whichever service you choose, there are a variety of programming packages available, including the option of adding “The Best of SIRIUS” programming to your XM tuner or “The Best of XM” programming to your SIRIUS tuner, enabling you to enjoy the most popular programming among both services. The “Best of” packages are not available to SIRIUS or XM Canada subscribers at this time.

Family friendly packages are channels featuring content that may be inappropriate for children.

To subscribe to XM, U.S. customers should visit xmradio.com or call 1-800-XMRADIO (1-800-967-2346); Canadian customers should visit xmradio.ca or call XM Listener Care at 1-877-GETXMSR (1-877-438-9677).

d sources.

purchase a SIRIUS or XM tuner, you’ll need

also availa

ble to restrict

To subscribe to SIRIUS, U.S. and Canadian customers can call 1-888-539-SIRI (1-888-539-7474) or visit sirius.com (US) or siriuscanada.ca (Canada).

Listening to XM Radio

For details on XM Radio, see About SIRIUS and XM on page 105.

1Press

For best reception, you may need to move the XM MiniTuner antenna near a window (the southernmost window should produce the best results).

After connecting, you will be able to use this receiver to select channels and navigate categories using the GUI

screen.

Selecting channels and browsing by genre

From the XM Channel Guide, you can browse XM Radio channels in the order that they appear, or you can narrow

your channel search by genre.

1Press through the channels one at time with ENTER

Using XM HD Surround

XM HD Surround uses Neural Surround™ technologies to achieve optimal surround sound from XM radio. XM HD Surround Sound is available on select XM channels only.

• While listening to XM Radio, press DIRECT XM HD Surround can be selected also with STANDARD.

to switch to the

•If after pressing XM the display shows Check XM Tuner or Check Antenna, try disconnecting the

receiver and tuner connections, and then plugging them back in.

to listen to the XM radio broadcast.

•To browse by genre, first press CATEGORY, use / to select a genre, then press ENTER.

• To cancel and exit any time, press RETURN.

Tip

• You can select channels directly by pressing D.ACCESS, then the three-digit channel number.

•You can press DISP to change XM Radio information in the front panel display.

•The currently selected channel is automatically chosen (without pressing ENTER) after five seconds.

for XM HD Surround listening.

/

to enter the XM Channel Guide, navigate

XM RADIO

input.

/

, then press

AUTO/ALC/

1 You can check the strength of reception in Using the XM Menu on page 48. 2 It’s easiest if you have your TV switched on to take advantage of the GUI screens. You can, however, use just the front panel display to do

everything if you prefer.

3 Select 0 (RADIO ID) from the GUI to check the Radio ID of the XM Mini-Tuner.

Note

Basic playback

Saving channel presets

This receiver can memorize up to 63 channels, stored in seven banks, or classes (A to G) of 9 channels each.

1 Select the channel you want to memorize.

See Selecting channels and browsing by genre on page 47.

2 Press

T.EDIT

The display shows a blinking memory class.

3 Press press

CLASS

to select one of the seven classes, then

/

to select the channel preset you want.

You can also use the number buttons to select a preset.

• The default for all presets is XM1.

4 Press

ENTER

After pressing ENTER, the preset class and number stop blinking and the receiver stores the XM channel.

Tip

•You can also press MEMORY during reception

display to save the information of up to five songs. See Using the XM Menu below to recall this information.

Listening to channel presets

1 Press

CLASS

to select the class in which the channel

is stored.

Press repeatedly to cycle through classes A to G.

2 Press

/

to select the channel preset you want.

• You can also use the number buttons on the remote control to recall the channel preset.

Using the XM Menu

The XM Menu provides additional XM Radio features.

1 Press

2Use

TOP MENU

/

to select a menu item, then press

Choose from the following menu items:

• Channel Skip/Add – Use / and ENTER to select channels you would like to remove/restore from/to the channel guide.

• Antenna Aiming – Check the strength of satellite and terrestrial reception.

ENTER

• Memory Recall – Use / to browse your saved

song information (see Tip above).

3 When you’re finished press

TOP MENU

to return to

the reception display.

Listening to SIRIUS Radio

For deta ils o n SIRIUS Radio, se e About SIRIUS and XM on page 105.

1 Press

For best reception, you may need to move the SiriusConnect™ tuner antenna near a window (refer to the manual for the SiriusConnect™ Home tuner for

antenna placement recommendations).

After connecting, you will be able to use this receiver to select channels and navigate categories using the GUI

screen display.

Selecting channels and browsing by genre

From the SIRIUS Channel Guide, you can browse SIRIUS Radio channels in the order that they appear, or you can narrow your channel search by genre.

1 Press navigate through the channels one at time with then press broadcast.

SIRIUS

to switch to the SIRIUS input.

•If after pressing SIRIUS the display shows Antenna

Error, try disconnecting the antenna and reconnecting.

If the display shows Check Sirius

Tuner, check the connection of the AC adapter and this receiver to the SiriusConnect™ tuner.

/

to enter the SIRIUS Channel Guide,

ENTER

to listen to the SIRIUS radio

•To browse by genre, first press CATEGORY, use /

to select a genre, then press ENTER.

• To cancel and exit any time, press RETURN.

Tip

• You can select channels directly by pressing

D.ACCESS, then the three-digit channel number.

•You can press DISP to change SIRIUS Radio

information in the front panel display.

/

1 You can reset the channel presets and memory in Resetting the system on page 66. 2 You can reset the Channel Skip/Add settings in Resetting the system on page 66. 3• In order to activate your radio subscription, you will need the SIRIUS ID (SID) which uniquely identifies your tuner. The SID may be found on

a sticker located on the packaging, or on the bottom of the tuner itself. The label will have a printed 12-digit SID number. When you have located the SID, write it down in the space provided near the end of this manual. Contact SIRIUS on the internet at: https:// activate.siriusradio.com Follow the prompts to activate your subscription, or you can also call SIRIUS toll-free at 1-888-539-SIRIUS (1-888-539-7474).

• Select 0 (SIRIUS ID) from the on-screen display to check the Radio ID of the SiriusConnect™ tuner (see Selecting channels and browsing by

genre on page 48).

4 You can check the strength of reception in Using the SIRIUS Menu on page 49. 5 It’s easiest if you have your TV switched on to take advantage of the GUI screens. You can, however, use

everything if you prefer.

just the front panel display to

Basic playback

Note

•The currently selected channel is automatically

chosen (without pressing ENTER) after five seconds.

Saving channel presets

This receiver can memorize up to 63 channels, stored in seven banks, or classes (A to G) of nine channels each.

1 Select the channel you want to memorize.

See Selecting channels and browsing by genre on page 48.

2Press

T.EDIT

The display shows a blinking memory class.

3Press press

CLASS

to select one of the seven classes, then

/

to select the channel preset you want.

You can also use the number buttons to select a preset.

4Press

ENTER

After pressing ENTER, the preset class and number stop blinking and the receiver stores the SIRIUS channel.

Tip

•You can also press MEMORY during reception

display to save the information of up to five songs. See Using the SIRIUS Menu below to recall this information.

Listening to channel presets

1Press

CLASS

to select the class in which the channel

is stored.

Press repeatedly to cycle through classes A to G.

2Press

/

to select the channel preset you want.

• You can also use the number buttons on the remote control to recall the channel preset.

Using the SIRIUS Menu

The SIRIUS Menu provides additional SIRIUS Radio features.

1Press

2Use

Choose from the following menu items:

TOP MENU

/

to select a menu item, then press

ENTER

• Channel Skip/Add – Use / and ENTER to select channels you would like to remove/restore from/to the channel guide.

• Parental Lock – Use / and ENTER to select

channels you would like to place under parental lock. Channels put under parental lock are not displayed in the Channel Guide, but may be accessed by dir ectly inputting their channel number and providing the

parental lock password.

• Antenna Aiming – Check the strength of satellite

and terrestrial reception.

• Memory Recall – Use / to browse your saved

song information (see Tip above).

• Password Set – Set the parental lo

3 When you’re finished press

ck password.

TOP MENU

to return to

the reception display.

Listening to Internet radio stations

Internet radio is an audio broadcasting service transmitted via the Internet. Internet radio stations broadcasting a variety of services from every corner of the world. Some are hosted, managed, and broadcast by private individuals while others are by the corresponding traditional terrestrial radio stations or radio networks. Whereas terrestrial, or OTA (over-the-air), radio stations are geographically restricted on the range of radio waves broadcast from a transmitter through the air, I accessible from anywhere in the world, as long as there is a connection to the Internet, as services are not transmitted through the air but are delivered over the World Wide Web. On this receiver you can select Internet radio stations by genre as well as by region.

Important

•Before listening to Internet radio, you need to program the Internet radio stations you wish to listen

to onto this unit. See Programming the Internet radio stations on page 50 for how to program. Though the

Internet radio stations are programmed in this receiver before it leaves the factory, the link may have

expired. In

that case, preset the st

yourself.

1Press input.

NET RADIO

The Internet Radio list screen is displayed.

There are a large number of

nternet radio station

ations again

to switch to the Internet radio

s are

1 You can reset the Channel presets and memory in Resetting the system on p age 66. 2 You can reset the Channel Skip/Add, Parental Lock and Password settings in Resetting the system on page 66. 3 • To listen to Internet radio stations, you must have high-speed broadband Internet access. With a 56 K or ISDN modem, you may not enjoy

the full benefits of Internet radio.

• The port number varies depending on the Internet radio station. Check the firewall settings.

• Broadcasts may be stopped or interrupted depending on the Internet radio station. In this case, you cannot listen to a radio station selected from the list of Internet radio stations.

4 The Internet radio function cannot be selected in the main zone when the iPod/USB function is selected in the sub zone. Also, the Internet

radio function cannot be selected in the sub zone when the iPod/USB function is selected in the main zone.

Note

Basic playback

2Use

/

to select the Internet radio station to play

back, and then press

ENTER

Press / to scroll up and down the list and select the desired item. When you press ENTER, playback starts with the playback screen being displayed for the selected item. Depending on the Internet line conditions, the sound may not be smooth when playing Internet radio.

To return to the list screen, press RETURN.

Programming the Internet radio stations

By programming the Internet radio stations you wish to listen to onto this receiver, you will be able to select those Internet radio stations. You can program up to 24 stations.

There are two methods of programming: one lets you use the GUI screen on this receiver; the other lets you connect your computer and use that screen.

Programming with the GUI screen

1 Press list is displayed.

The Internet Radio Setup screen is displayed.

2Use screen you wish to edit, and then press

3Use

4 Enter the URL of the Internet radio station you wish to program.

Use / to select a letter and / to move the cursor.

5 Enter the title of the Internet radio station.

Use / to select a letter and / to move the cursor.

Programming on the computer screen

You can enter the Internet radio list on the screen of a computer that is connected to the same LAN as this receiver, and send the list to this unit.

The computer needs to be connected in advance to the network of this receiver and set up.

1 Turn on the computer and launch the Internet browser.

2 In the address bar on the browser, enter the IP address assigned to this receiver.

For example, if the IP address of this receiver is “192.168.0.2”, enter “http://192.168.0.2/”.

TOP MENU

/

to select the Internet Radio station list

/

•If you select “

when the Internet Radio station

to select “Edit“.

Delete

”, information regarding the

ENTER

Internet radio stations programmed into the currently selected memory will be deleted.

• A URL containing up to 192 letters can be entered.

• A title containing up to 22 letters can be entered.

When the connection is made with the receiver, a Top Menu will be displayed.

•This receiver’s IP address can be found in the ‘IP address, Proxy’ menu (page 87).

3 Select ‘Internet Radio Setting’.

The following programming screen will be shown on the browser.

Top Menu

Update

Top Menu

Connection OK

Pioneer

Internet Radio Setting

J-POP

Title

http://www.xxxxxxx.net:9500

URL Title

URL

Rock

Title

http://www.xxxxxxx.com:8096

URL

Classic

Title

http://www.yyyyyyy.com:8800

URL Title

URL

STATION6

Title

http://zzzzzzz.com:7040

URL Title

URL

ENKA

Title

http://www.zyxzyx.com:6000

URL

4 Enter the title and URL of the Internet radio station you wish to program, then press ‘Update’.

The entered information will be transmitted to the receiver.

The connection to the URL designated from the computer will be confirmed:

If connection is successful, ‘Connection OK’ will be displayed on screen, and the selected Internet radio station will begin playing via this receiver.

If the connection failed, ‘Connection NG’ will be displayed. Check to see if the URL you entered is correct.

Important

•‘Connection OK’ and ‘Connection NG’ are only displayed when this receiver is set to the Internet radio function.

• When entering the title and URL of Internet radio station, do not press ‘Update’ while you are connected to other stations (i.e., labelled as “Connecting...”).

1 When the list screen is displayed from the playback screen, the playback screen reappears automatically if no operation is performed for 10

seconds while the list screen is displayed.

2 The URL can also be entered by connecting a USB keyboard (see Connecting a USB device on page 35).

Basic playback

Note

RECEIVER

Bluetooth

ADAPTER for Wireless

Enjoyment of Music

Device not equipped with Bluetooth wireless technology:

Bluetooth wireless technology enabled device: cell phone

This receiver

Bluetooth wireless technology enabled device: Digital music player

Music data

Remote control operation

Wireless music play

When the Bluetooth ADAPTER (Pioneer Model No. AS-

BT100)

is connected to this unit, a product equipped

with Bluetooth wireless technology (portable cell phone, digital music player, etc.) can be used to listen to music wirelessly. Also, by using a commercially available transmitter supporting Bluetooth wireless technology, you can listen to music on a device not equipped with Bluetooth wireless technology. The AS-BT100 model supports SCMS-T contents protection, so music can also be enjoyed on devices equipped with SCMS-T type Bluetooth wireless technology.

Remote control operation

The remote control supplied with this unit allows you to play and stop media, and perform other operations.

Digital music player + Bluetooth audio transmitter (sold commercially)

Bluetooth

ADAPTER

Pairing the

Bluetooth

ADAPTER and

Bluetooth

wireless technology device

“Pairing” must be done before you start playback of

Bluetooth wireless technology content using the Bluetooth ADAPTER. Make sure to perform pairing the

first time you operate the system or any time pairing data is cleared. The pairing step is necessary to register the Bluetooth wireless technology device to enable Bluetooth communications. operating instructions of your Bluetooth wireless technology device.

1 Press on the remote control, then press HOME MENU

2Select ‘

3Select ‘

4Select ‘ ENTER

5 Select the ‘

Select the same passcode as the Bluetooth wireless technology device you wish to connect.

• 0000/1234/8888 – Select the passcode from these

options. These are the passcodes that can be used in most cases.

• Others – Select to use a passcode other than those

mentioned above.

6 If you selected

Use / to select a number and / to move the cursor.

7 Follow the instructions displayed on the GUI screen to conduct pairing with the technology device.

Switch on the Bluetooth wireless technology device that you want to make pair, place it near the receiver and set it to the pairing mode.

8 Check to see that the detected by the

When the Bluetooth wireless technology device is connected:

CONNECTED appears in the receiver display.

When the Bluetooth wireless technology device is not connected:

Go back to the passcode setting in step 5. In this case, perform the connection operation from the Bluetooth

wireless technology device.

For more details, see also the

System Setup

Other Setup

’, then press

Pairing Bluetooth Device

Passcode

’ setting you want.

Others

in step 5, enter the passcode.

Bluetooth

wireless technology device.

ENTER

’, then press

wireless

ADAPTER is

1The Bluetooth ADAPTER (AS-BT100) is sold separately. 2 • It must be necessary that the Bluetooth wireless technology enabled device supports AVRCP profiles.

• Remote control operations cannot be guaranteed for all Bluetooth wireless technology enabled devices.

3• Pairing is required when you first use the Bluetooth wireless technology device and Bluetooth ADAPTER.

• To enable Bluetooth communication, pairing should be done with both your system and Bluetooth wireless technology device.

4 The system can display alphanumeric characters only. Other characters may not be displayed correctly.

Note

Basic playback

9 From the select selected in step 5.

Listening to music contents of a

Bluetooth

wireless technology device list,

ADAPTER and enter the Passcode

Bluetooth

wireless technology device with your system

1 Press receiver to

2From the perform the operation to connect to the ADAPTER.

3 Start playback of music contents stored on the

Bluetooth

This receiver’s remote control buttons can be used for basic playback of files stored on Bluetooth wireless technology devices.

The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Pioneer Corporation is under license. Other trademarks and trade names are those of their respective owners.

ADAPTER

on the remote control to switch the

ADAPTER PORT

Bluetooth

wireless technology device,

input.

wireless technology device.

STANDARD

STEREODIRECT

HDD DVD

DTV MPX PQLS

HDMI OUT

ADV SURR

CTRL STATUSTHX

PHASE

AUDIO

213

Bluetooth

1The passcode may in some cases be referred to as PASSKEY or PIN code. 2 When the Bluetooth ADAPTER is not plugged into the ADAPTER PORT, NO ADAPTER will be displayed if ADAPTER PORT input is selected. 3• Bluetooth wireless technology device should be compatible with AVRCP profile.

• Depending on the Bluetooth wireless technology device you use, operation may differ from what is shown in the remote control buttons.

Listening to your system

RECEIVER

Note

RECEIVER

Chapter 6:

Listening to your system

Important

• The listening modes and many features described in this section may not be available depending on the current source, settings and status of the receiver.

Auto playback

There are many ways to listen back to sources using this receiver, but the simplest, most direct listening option is

the Auto Surround feature. The receiver automatically detects what kind of source you’re playing and selects multichannel or stereo playback as necessary.

1 Press on the remote control.

2 While listening to a source, press DIRECT

(

AUTO SURR/ALC/STREAM DIRECT playback of a source. AUTO SURROUND shows briefly in the display before

showing the decoding or playback format. Check the digital format indicators in the front panel display to see how the source is being processed.

•If the source is Dolby Digital, DTS, or Dolby Surround encoded, the proper decoding format will automatically be selected and shows in the display.

• When listening to the FM radio, the Neural Surround feature is selected automatically (see Using Neural Surround on page 46 for more on this).

• When listening to the ADAPTER PORT input, the SOUND RETRIEVER AIR feature is selected automatically (see Listening in stereo on page 55 for more on this).

• When listening to XM Radio, the XM HD Surround feature is selected automatically (see Using XM HD Surround on page 47 for more on

ALC – In the Auto le equalizes playback sound levels.

Tip

•When ALC is selected, the effect level can be adjusted using the EFFECT parameter in Setting the Audio options on page 60.

vel control (ALC) mode, this receiver

AUTO/ALC/

) for auto

this).

Listening in surround sound

Using this receiver, you can listen to any source in surround sound. However, the options available will depend on your speaker setup and the type of source you’re listening to.

Standard surround sound

The following modes provide basic surround sound for stereo and multichannel sources.

1 Press on the remote control.

2 While listening to a source, press (

STANDARD SURROUND

If necessary, press repeatedly to select a listening mode.

•If the source is Dolby Digital, DTS, or Dolby Surround encoded, the proper decoding format will automatically be selected and shows in the display.

With two channel sources, you can select from:

• 2 Pro Logic IIx MOVIE – (surround back)

• 2 Pro Logic IIx MUSIC – (surround back)

• 2 Pro Logic IIx GAME – Up to 7.1 channel sound (surround back), especially suited to video games

• 2 PRO LOGIC – 4.1 channel surround sound (sound from the surround speakers is mono)

• 2 Pro Logic IIz HEIGHT – Up to 7.1 channel sound (front height)

•

WIDE SURROUND MOVIE

(front wide), especially suited to movie sources

• WIDE SURROUND MUSIC – Up to 7.1 channel sound (front wide), especially suited to music sources

• Neo:6 CINEMA – 7.1 channel sound (surround back), especially suited to movie sources

• Neo:6 MUSIC – 7.1 channel sound (surround back), especially suited to music sources

, especially suited to movie sources

, especially suited to music sources

STANDARD

Up to 7.1 channel sound

– Up to 7.1 channel sound

1If the surround back speakers are not connected or V.SB is switched OFF (page 61), 2 Pro Logic IIx becomes 2 Pro Logic II (5.1 channel

sound).

2 When listening to 2-channel sources in Dolby Pro Logic IIx Music mode, there are three further parameters you can adjust: C.WIDTH,

DIMENSION and PANORAMA. See Setting the Audio options on page 60 to adjust them.

3• This mode can only be selected when Speaker System is set to Normal(SB/FH).

• When listening sources in 2 Pro Logic IIz HEIGHT mode, you can also adjust the H.GAIN effect (see Setting the Audio options on page 60). 4

This mode can only be selected when Speaker System is set to Normal(SB/FW).

5 When listening to 2-channel sources in Neo:6 Cinema or Neo:6 Music mode, you can also adjust the center image effect (see Setting the Audio

options on page 60).

Note

Listening to your system

• Neural Surround – Up to 7.1 channel sound

(surround back), especially suited to music sources

• XM HD Surround – Up to 7.1 channel sound,

especially suited to music sources

With multichannel sources, if you have connected surround back, front height or front wide speakers, you can

select (according to format):

• 2 Pro Logic IIx MOVIE – See above

• 2 Pro Logic IIx MUSIC – See above

• Dolby Digital EX – Creates surround back channel

sound for 5.1 channel sources and provides pure decoding for 6.1 channel sources (like Dolby Digital Surround EX)

• DTS-ES – Allows you to hear 6.1 channel playback

with DTS-ES encoded sources

• DTS Neo:6 – Allows you to hear 6.1 channel playback

with DTS encoded sources

• 2 Pro Logic IIz HEIGHT – See above

• WIDE SURROUND MOVIE – See above

• WIDE SURROUND MUSIC – See above

•Straight Decode – Plays back without the effects above.

Using the Home THX modes

THX and Home THX are technical standards created by THX Ltd. for cinema and home theater sound. Home THX is designed to make home theater audio sound more like what you hear in a cinema.

Different THX options will be available depending on the source and the setting for surround back channel processing (see THX Audio Setting on page 87 for more on this).

1 Press on the remote control.

• Press

With two channel sources, press THX repeatedly to select a matrix-decoding process for the THX CINEMA mode (see THX Audio Setting on page 87 for an explanation of each process):

• THX CINEMA

• THX MUSIC

• THX GAMES

• 2 Pro Logic IIx MOVIE+THX CINEMA

• 2 PRO LOGIC+THX CINEMA

RECEIVER

THX (HOME THX

) to select a listening mode.

• Neo:6 CINEMA+THX CINEMA

• 2 Pro Logic IIx MUSIC+THX MUSIC

• Neo:6 MUSIC+THX MUSIC

• 2 Pro Logic IIx GAME+THX GAMES

• 2 Pro Logic IIz HEIGHT+THX CINEMA

• 2 Pro Logic IIz HEIGHT+THX MUSIC

• 2 Pro Logic IIz HEIGHT+THX GAMES

• THX SELECT2 GAMES

With multichannel sources, press THX (HOME THX) repeatedly to select from:

• THX CINEMA

• THX MUSIC

• THX GAMES

• THX Surround EX – Allows you to hear 6.1 or 7.1

channel playback with 5.1 channel sources

• Neo:6 CINEMA+THX CINEMA

• 2 Pro Logic IIx MOVIE+THX CINEMA

• THX SELECT2 CINEMA

– Allows you to hear 7.1

channel playback with 5.1 channel sources

• 2 Pro Logic IIx MUSIC+THX MUSIC

• 2 Pro Logic IIz HEIGHT+THX CINEMA

• 2 Pro Logic IIz HEIGHT+THX MUSIC

• 2 Pro Logic IIz HEIGHT+THX GAMES

•

THX SELECT2 MUSIC5 – This mode is suited not only

for sources recorded in Dolby Digital and DTS, but also to all multi-channel music sources (DVD-Audio, etc.).

• THX SELECT2 GAMES5 – This mode is suited to

playing the sound of games.

Using the Advanced surround effects

The Advanced surround effects can be used for a variety of additional surround sound effects. Most Advanced Surround modes are designed to be used with film soundtracks, but some modes are also suited for music sources. Try different settings with various soundtracks to see which you like.

1 Press on the remote control.

2 Press repeatedly to select a listening mode.

• ACTION – Designed for action movies with dynamic

• DRAMA – Designed for movies with lots of dialog

RECEIVER

ADV SURR (ADVANCED SURROUND

soundtracks

)

1 Neural Surround can be selected for 2-channel signals for which the input signal is PCM (48 kHz or less), Dolby Digital, DTS or analog 2-

channel sources.

2 XM HD Surround can be selected only with the XM input.

3• This mode can only be selected when Speaker System is set to Normal(SB/FH).

• When listening sources in 2 Pro Logic IIz HEIGHT mode, you can also adjust the H.GAIN effect (see Setting the Audio options on page 60). 4

This mode can only be selected when Speaker System is set to Normal(SB/FW).

5 Unavailable with only one surround back speaker connected or not connected.

Listening to your system

Note

RECEIVER

FOCUS position

(Recommended)

WIDE position

Front left

speaker

Front right

speaker

Front left

speaker

Front right

speaker

RECEIVER

• SCI-FI – Designed for science fiction with lots of

special effects

• MONO FILM – Creates surround sound from mono

soundtracks

• ENT.SHOW – Suitable for musical sources

• EXPANDED – Creates an extra wide stereo field

• TV SURROUND – Provides surround sound for both

mono and stereo TV sources

• ADVANCED GAME – Suitable for video games

• SPORTS – Suitable for sports programs

• CLASSICAL – Gives a large concert hall-type sound

• ROCK/POP – Creates a live concert sound for rock

and/or pop music

• UNPLUGGED – Suitable for acoustic music sources STEREO – Gives m

• EXT.

source, using all of your speakers

• PHONES SURR – When listening through

headphones, you can still get the effect of overall surround.

ultichannel sound to a stereo

Using Front Stage Surround Advance

The Front Stage Surround Advance function allows you to create natural surround sound effects using just the front speakers and the subwoofer.

1 Press on the remote control.

2 While listening to a source, press Front Stage Surround Advance modes.

• STEREO – See Listening in stereo above for more on

this.

• F.S.SURR FOCUS – Use to provide a rich surround

sound effect directed to the center of where the front left and right speakers sound projection area converges.

• F.S.SURR WIDE – Use to provide a surround sound effect to a wider area than FOCUS mode.

STEREO

to select

Tip

• When an Advanced Surround listening mode is selected, the effect level can be adjusted using the

EFFECT parameter in Setting the Audio options on page 60.

Listening in stereo

When you select STEREO, you will hear the source through just the front left and right speakers (and possibly your subwoofer depending on your speaker settings). Multichannel sources are downmixed to stereo.

Using Stream Direct

Use the Stream Direct modes when you want to hear the truest possible reproduction of a source. All unnecessary signal processing is bypassed, and you’re left with the pure analog or digital sound source. Processing differs depending on the input signal and whether or not surround back speakers are connected. For details, see

1 Press on the remote control.

2 While listening to a source, press

STEREO

for stereo

playback.

Press repeatedly to switch between:

• STEREO – The audio is heard with your sound settings and you can still use the audio options.

• F.S.SURR FOCUS – See Using Front Stage Surround Advance below for more on this.

• F.S.SURR WIDE – See Using Front Stage Surround Advance below for more on this.

• SOUND RETRIEVER AIR

– Suitable for listening to

the sound from a Bluetooth wireless technology

Auto Surround, ALC and Stream Direct with different input signal formats on page 106.

1 Press on the remote control.

2 While listening to a source, press DIRECT the mode you want.

Check the digital format indicators in the front panel display to see how the source is being processed.

• AUTO SURROUND – See Auto playback on page 53.

• ALC – Listening in Auto level control mode (page 53).

• DIRECT – Plays back sound from the source with the

device.

1The SOUND RETRIEVER AIR listening mode can only selected when the ADAPTER PORT input.

AUTO/ALC/

(

AUTO SURR/ALC/STREAM DIRECT

) to select

least modification next to PURE DIRECT. With DIRECT, the only modifications added to PURE DIRECT playback are calibration of the sound field by

the MCACC system and the Phase Control effect.

Note

Listening to your system

• PURE DIRECT – Plays back unmodified sound from

source with only minimal digital treatment. No sound is output from the Speaker B in this mode.

Selecting MCACC presets

•Default setting: MEMORY 1

If you have calibrated your system for different listening positions, you can switch between settings to suit the kind of source you’re listening to and where you’re sitting (for example, watching movies from a sofa, or playing a video game close to the TV).

1 Press on the remote control.

2 While listening to a source, press

RECEIVER

MCACC

Press repeatedly to select one of the six MCACC presets1. See Data Management on page 82 to check and manage your current settings.

Choosing the input signal

On this receiver, it is possible to switch the input signals for the different inputs as described below.

1 Press on the remote control.

2 Press

RECEIVER

SIGNAL SEL

to select the input signal

corresponding to the source component.

Each press cycles through the options as follows:

• AUTO – The receiver selects the first available signal in the following order: HDMI; DIGITAL; ANALOG.

• ANALOG – Selects an analog signal.

• DIGITAL – Selects an optical or coaxial digital signal.

• HDMI – Selects an HDMI signal.

• PCM – For PCM input signals.4 The receiver selects the first available signal in the following order: HDMI; DIGITAL.

When set to DIGITAL, HDMI or AUTO (only selected DIGITAL or HDMI), the indicators light according to the signal being decoded (see Display on page 12).

Better sound using Phase Control

This receiver’s Phase Control feature uses phase correction measures to make sure your sound source arrives at the listening position in phase, preventing unwanted distortion and/or coloring of the sound.

Phase Control technology provides coherent sound reproduction through the use of phase matching optimal sound image. The default setting is on and we recommend leaving Phase Control switched on for all sound sources.

1 Press on the remote control.

• Press

RECEIVER

PHASE CTRL (PHASE CONTROL

phase correction.

The PHASE CONTROL indicator on the front panel lights.

for an

) to switch on

1 • These settings have no effect when headphones are connected.

• You can also press / to select the MCACC preset.

2 • This receiver can only play back Dolby Digital, PCM (32 kHz to 192 kHz), DTS (including DTS 96/24) and WMA9 Pro digital signal formats.

The compatible signals via the HDMI terminals are: Dolby Digital, DTS, WMA9 Pro, PCM (32 kHz to 192 kHz), Dolby TrueHD, Dolby Digital Plus, DTS-EXPRESS, DTS-HD Master Audio and SACD.

• You may get digital noise when an LD, CD, DVD or BD player compatible with DTS is playing an analog signal. To prevent noise, make the proper digital connections (page 29) and set the signal input to DIGITAL.

• Some DVD players don’t output DTS signals. For more details, refer to the instruction manual supplied with your DVD player.

3 When the HDMI audio output parameter is set to THROUGH, the sound will be heard t 4 • This is useful if you find there is a slight delay before AUTO recognizes the PCM signal on a CD, for instance.

• When PCM is selected, noise may be output during playback of non-PCM sources. Please select another input signal if this is a problem.

5 • Phase matching is a very important factor in achieving proper sound reproduction. If two waveforms are ‘in phase’, they crest and trough

together, resulting in increased amplitude, clarity and presence of the sound signal. If a crest of a wave meets a trough, then the sound will be ‘out of phase’ and an unreliable sound image will be produced.

• The PHASE CONTROL feature is available even when the headphones are plugged in.

• If your subwoofer has a phase control switch, set it to the plus (+) s

PHASE CONTROL is set to ON on this receiver depends on the type of your subwoofer. Set your subwoofer to maximize the effect. It is also recommended you try changing the orientation or the place of your subwoofer.

• Set the built-in lowpass filter switch of your subwoofer to off. If this cannot be done on your subwoofer, set the cutoff frequency to a higher value.

• If the speaker distance is not properly set, you may not have a maximized PHASE CONTROL effect.

• The PHASE CONTROL mode cannot be set to ON in the following cases: – When the PURE DIRECT mode is switched on. – When MULTI CH IN input is selected. – When the HDMI audio output parameter is set to THROUGH in Setting the Audio options on page 60.

ign (or 0°). However, t

hrough your TV, not

he effect you can actually feel when

from this receiver.

Control with HDMI function

RECEIVER

Chapter 7:

Control with HDMI function

Synchronized operations below with a Control with HDMI-compatible Pioneer TV or Blu-ray disc player or with a component of another make that supports the Control with HDMI functions are possible when the component is connected to the receiver using an HDMI cable.

•The receiver’s volume can be set and the sound can be muted using the TV’s remote control.

•The

receiver’s input switches over automatically

when the TV’s channel is changed or a Control with HDMI-compatible component is played.

•The receiver’s power is also set to standby, when the TV’s power is set to standby.

Important

•With Pioneer devices, the Control with HDMI functions are referred to as “KURO LINK”.

• You cannot use this function with components that do not support Control with HDMI.

• We do not guarantee this receiver will work with Pioneer Control with HDMI-compatible components or components of other makes that support the Control with HDMI function. We do not guarantee that all synchronized operations will work with components of other m with HDMI function.

•Use a High Speed HDMI use the Control with HDMI function. The Control with HDMI function may not work properly if a different type of HDMI cable is used.

•For details about concrete operations, settings, etc., refer to also the operating instructions for each component.

akes that support th

cable when you want to

e Control

Making Control with HDMI connections

You can use synchronized operation for a connected TV and up to five other components.

•Be sure to connect the TV’s audio cable to the audio input of this unit. When the TV and receiver are connected by HDMI connections, if the TV supports the HDMI Audio Return Channel function, the sound of the TV is input to the receiver via the HDMI OUT 1 terminal, so there is no need to connect an audio cable. In this case, set TV Audio at HDMI Setup to via HDMI (see HDMI Setup on page 57).

For details, see Connecting your TV and playback components on page 24.

Important

• When connecting this system or changing connections, be sure to switch the power off and disconnect the power cord from the wall socket. After completing all connections, connect the power cords to the wall socket.

•After this rece second to 10 second HDMI initialization process begins. You cannot carry out any operations during initialization. The HDMI indicator on the display unit blinks during initialization, and you can turn this receiver on once it has stopped blinking.

• To get the most out of this function, we recommend that you connect your HDMI component not to a TV but rather directly to the HDMI terminal on this receiver.

•While the receiver is equipped with six HDMI inputs (BD, HDMI 1 to 5), the Control with HDMI function can only be used with up to three DVD or Blu-ray disc players or up to three DVD or Blu-ray disc recorders.

•The Control with HDMI function can be used with a TV connected to the HDMI OUT 1 terminal, but not with a TV connected to the HDMI OUT 2 terminal.

iver is co

nnected to an AC outlet, a 2

HDMI Setup

You must adjust the settings of this receiver as wel l a s t he connected Control with HDMI-compatible components in order to make use of the Control with HDMI function. For more information see the operating instructions for each component.

1 Press on the remote control, then press HOME MENU

2Select ‘

3Select ‘

4Select ‘

5 Select the ‘

Choose whether to set this unit’s Control with HDMI function ON or OFF. You will need to set it to ON to use the Control with HDMI function.

When using a component that does not support the Control with HDMI function, set this to OFF.

• ON – Enables the Control with HDMI function. When this unit’s power is turned off and you have a supported source begin playback while using the Control with HDMI function, the audio and video outputs from the HDMI connection are output from the TV.

System Setup

Other Setup

HDMI Setup

Control

’ setting you want.

’, then press

ENTER

Control with HDMI function

• OFF – The Control with HDMI is disabled.

Synchronized operations cannot be used. When this unit’s power is turned off, audio and video of sources connected via HDMI are not output.

6 Select the ‘

Choose whether you want to enable HDMI for all linked functions or the PQLS function only. However, Display Power Off will activate the settings set forth in step 7 below.

• ALL – Enabled for all linked functions.

• PQLS – Enabled only for the PQLS function. When PQLS is selected, link functions other than the PQLS function may not work properly. If you wish to use all link functions, select ALL.

7 Select the ‘

If the TV’s power is turned off while using the Control with HDMI function, the receiver’s power is also turned off (all power off function). This function can be disabled.

•

YES

receiver’s power turns off together with the TV’s power. This function only works when the input for a component connected to the receiver by HDMI connection is selected or when watching the TV.

• NO – The all power off function is disabled. The receiver’s power is not affected when the TV’s power is turned off.

8 Select the ‘

It is possible to transfer signals from an HDMI-connected player to the TV when this receiver's power is on standby

as long as Control is ON, but the amount of energy consumed rises. It is, however, possible to minimize energy consumption when power is set to standby.

• Normal – Regular setting. Power-up time from standby is short.

• Eco – Conserves energy while standby. Power-up time is longer than when set to Normal.

9 Select the ‘TV Audio’ setting you want.

When a TV supporting the HDMI Audio Return Channel function is connected to the receiver, the sound of the TV can be input via the HDMI terminal.

• Normal – The TV’s sound is input from the Audio input terminals other than HDMI inputs.

• via HDMI – The TV’s sound is input via the HDMI terminal. This can only be selected when Control is set to ON.

10 Select the ‘12V Trigger’ setting you want.

The component connected to the 12V TRIGGER jack can be turned on and off when HDMI OUT is switched. HDMI OUT 1, HDMI OUT 2 or OFF can be selected. Select OFF when you want the component to switch when the input function is switched.

11 When you’re finished, press

Control Mode

Display Power Off

– The all power off function is enabled. The

Standby Through

’ setting you want.

HOME MENU

Before using synchronization

Once you have finished all connections and settings, you must:

1 Put all components into standby mode.

2 Turn the power on for all components, with the power for the TV being turned on last.

3 Choose the HDMI input to which the TV is connected to this receiver, and see if video output from connected components displays properly on the screen or not.

4 Check whether the components connected to all HDMI inputs are properly displayed.

About synchronized operations

The Control with HDMI-compatible component connected to the receiver operates in sync as described below.

•From the menu screen of the Control with HDMI-

compatible TV, set audio to be played through this receiver, and the receiver will switch to the synchronized amp mode.

• When in the synchronized amp mode, you can adjust the receiver’s volume or mute the sound using the TV’s remote control.

• When in the synchronized amp mode, the synchronized amp mode is canceled when the receiver’s power is turned off. To turn the synchronized amp mode back on, set audio to be played through the receiver from the TV’s menu screen, etc. This receiver wi the synchronized amp mode.

• When the synchronized amp mode is canceled, the receiver’s power turns off if you were viewing an HDMI input or a TV program on the TV.

• When in the synchronized amp mode, the synchronized amp mode is canceled if an operation that produces sound from the TV is performed from the TV’s menu screen, etc.

• When the TV’s power is set to standby, the receiver’s power is also set to standby. (Only when the input for a component connected to the receiver by HDMI connection is selected or when watching the TV.)

•The receiver’s input swi Control with HDMI-compatible component is played.

•The receiver’s input switches automatically when the TV’s channel is switched.

•The synchronized amp mode remains in effect even if the receiver’s input is switched to a component other than one connected by HDMI.

tches

r up and switch to

ll powe

automatically when the

Control with HDMI function

Note

RECEIVER

The operations below can also be used on Pioneer Control with HDMI-compatible TVs.

•When the receiver’s volume is adjusted or the sound is muted, the volume status is displayed on the TV’s screen.

• When the OSD language is switched on the TV, the receiver’s language setting also switches accordingly.

About connections with a product of a different brand that supports the Control with HDMI function

The synchronized operations below can be used when the receiver’s Control with HDMI function is connected to a TV of a brand other than Pioneer that supports the Control with HDMI function. (Depending on the TV, however, some of the Control with HDMI functions may not work.)

•When the TV’s power is set to standby, the receiver’s power is also set to standby. (Only when the input for a component connected to the receiver by HDMI connection is selected or when watching the TV)

•The sound of TV programs or an external input connected to the TV can also be output from the speakers connected to the receiver. (If the TV does not support the HDMI Audio Return Channel function, this requires connection of an opti

able, etc., in addition to the HDMI cable.)

digital c

The synchronized operations below can be used when the receiver’s Control with HDMI function is connected to a player or recorder of a brand other than Pioneer that supports the Control with HDMI function.

•When playback starts on the player or recorder, the receiver’s input switches to the HDMI input to which that component is connected.

See the Pioneer website for the latest information on the models of non-Pioneer brands and products that support the Control with HDMI function.

cal

Setting the PQLS function

PQLS (Precision Quartz Lock System) is a digital audio signal transfer control technology using the Control with HDMI function. It offers higher-quality audio playback by controlling audio signals from the receiver to a PQLS compatible player, etc. This enables removing jitter that has a negative effect on the quality of the sound and is generated upon transmission.

•On players compatible with PQLS Multi Surround, PQLS works for all sources. Set the player’s audio output to Linear PCM.

•On players compatible with PQLS 2 ch Audio, PQLS only works when playing CDs.

Please refer to the operating instructions supplied with your pla

yer for more information.

This f

unction is activated when Control is set to ON.

• Press on the remote control, then press PQLS

to select the PQLS setting.

The setting is displayed on the front panel display.

• PQLS

AUTO – PQLS is enabled. A precision quartz

controller in this receiver eliminates distortion caused by timing errors (jitter), giving you the best possible digital-to-analog conversion when you use the HDMI interface. This is valid as an HDMI function for PQLS-compatible players.

OFF – PQLS is disabled.

Cautions on the Control with HDMI function

• Connect the TV directly to this receiver. Interrupting a direct connection with other amps or an AV converter (such as an HDMI switch) can cause operational errors.

• Only connect components (Blu-ray disc player, etc.) you intend to use as a source to the HDMI input of this receiver. Interrupting a direct connection with other amps or an AV converter (such as an HDMI switch) can cause operational errors.

•When Control is set to ON, HDMI Input in The Input Setup menu on page 40 is automatically set to OFF.

•When the receiver’s Control is turned ON, e receiver’s power is i to output the audio and video signals from a player via HDMI to the TV without producing sound from the receiver, but only when a Control with HDMI- compatible component (Blu-ray disc player, etc.) and compatible TV are connected. In this case, the receiver’s power turns on and the power and HDMI indicators light.

n the standby mode, it is possible

ven if the

1 • If a listening mode other than AUTO SURROUND, ALC, DIRECT, PURE DIRECT or STEREO is selected while the PQLS effect is enabled, the

PQLS effect is disabled.

• When this receiver is connected by HDMI cable to a Pioneer player that is compatible with the PQLS function via HDMI connection and HDMI reauthentication is performed (the HDMI indicator blinks), the PQLS effect is enabled and the listening mode is set to AUTO SURROUND if a listening mode other than AUTO SURROUND, ALC, DIRECT, PURE DIRECT or STEREO is selected.

RECEIVER

Using other functions

Chapter 8:

Using other functions

Setting What it does Option(s)

Setting the Audio options

There are a number of additional sound settings you can make using the AUDIO PARAMETER menu. The defaults, if not stated, are listed in bold.

Important

• Note that if a setting doesn’t appear in the AUDIO PARAMETER menu, it is unavailable due to the

current source, settings and status of the receiver.

1 Press on the remote control, then press AUDIO PARAMETER

2Use

/

to select the setting you want to adjust.

Depending on the current status/mode of the receiver, certain options may not be able to be selected. Check the table below for notes on this.

3Use

/

See the table below for the options available for each setting.

4 Press

Setting What it does Option(s)

MCACC

(MCACC preset)

EQ (Acoustic Calibration EQ)

S-WAVE

(Standing Wave)

DELAY

(Sound Delay)

MIDNIGHT Allows you to hear effective

LOUDNESS Used to get good bass and treble

RETURN

Selects your favorite MCACC preset memory when multiple preset memories are saved. When

an MCACC preset memory has been renamed, the given name is displayed.

Switches on/off the effects of EQ Pro.

Switches on/off the effects of Standing Wave Control.

Some monitors have a slight delay when showing video, so the soundtrack will be slightly out of sync with the picture. By adding a bit of delay, you can adjust the sound to match the presentation of the video.

surround sound of movies at low volumes.

from music sources at low volumes.

to set as necessary.

to confirm and exit the menu.

M1. MEMORY 1

M6. MEMORY 6

Default:

M1. MEMORY 1

OFF

0.0 to 10.0 (frames)

1 second = 30 frames (NTSC)

Default: 0.0

MIDNIGHT/

LOUDNESS

OFF

MIDNIGHT ON

LOUDNESS

TONE

(Tone Control)

BASS

TREBLE

S.RTRV

(Sound Retriever)

DNR

(Digital Noise Reduction)

DIALOG E

(Dialog Enhance ment)

Hi-bit

(High Bit/ High Sampling)

DUAL

(Dual Mono)

DRC

(Dynamic Range Control)

Applies the treble and bass tone controls to a source, or bypasses them completely.

Adjusts the amount of bass. –6 to +6 (dB)

Adjusts the amount of treble. –6 to +6 (dB)

With the Sound Retriever function, DSP processing is used to compensate for the loss of audio data upon compression, improving the sound’s sense of density and modulation.

May improve the quality of sound in a noisy source (for example, video tape with lots of background noise) when switched on.

Localizes dialog in the center channel to make it stand out from other background sounds in a TV or movie soundtrack. By moving from UP1 through UP2 and UP3 up to UP4, you can make the sound source seem to relocate upwards.

Creates a wider dynamic range with digital sources like CDs or DVDs. Smoother, more delicate musical expression can be achieved by requantizing 16 bit PCM or 20 bit compressed audio signals to 24 bit.

Specifies how dual mono encoded Dolby Digital soundtracks should be played. Dual mono is not widely used, but is sometimes necessary when two languages need to be sent to separate channels.

Adjusts the level of dynamic range for movie soundtracks optimized for Dolby Digital, DTS, Dolby Digital Plus, Dolby TrueHD, DTS-HD and DTS-HD Master Audio (you may need to use this feature when listening to surround sound at low volumes).

BYPASS

Default: 0 (dB)

OFF

FLAT

UP1/UP2/UP3/

UP4

OFF

CH1 – Channel

1 is heard only

CH2 – Channel

2 is heard only

CH1 CH2 –

Both channels

heard from

front speakers

AUTO

MAX

MID

OFF

Using other functions

Setting What it does Option(s)

LFE

(LFE Attenuate)

Some audio sources include ultra-low bass tones. Set the LFE attenuator as necessary to prevent the ultra-low bass tones from distorting the sound from

0dB

/ –5dB/

–10dB/ –15dB/

–20dB

OFF

the speakers. The LFE is not limited when set to

0 dB, which is the recommended value. When set to –5 dB, –10 dB, –15 dB or –20 dB, the LFE is limited by the respective degree. When OFF is selected, no sound is output from the LFE channel.

SACD GAIN

HDMI

(HDMI Audio)

Brings out detail in SACDs by

maximizing the dynamic range (during digital processing).

Specifies the routing of the HDMI audio signal out of this receiver (amp) or through to a TV. When THROUGH is selected, no sound

0dB

+6 dB

AMP

THROUGH

is output from this receiver.

A. DELAY

(Auto delay)

This feature automatically corrects the audio-to-video delay between components connected

OFF

with an HDMI cable. The audio delay time is set depending on the operational status of the display connected with an HDMI cable. The video delay time is

C. WIDTH

(Center Width) (Applicable only when using a

automatically adjusted according to the audio delay time.

Provides a better blend of the front speakers by spreading the center channel between the front right and left speakers, making it sound wider (higher settings) or narrower (lower settings).

0 to 7

Default: 3

center speaker)

DIMENSION

Adjusts the depth of the surround sound balance from front to back, making the sound more distant

–3 to +3

Default: 0

(minus settings), or more forward (positive settings).

PANORAMA

C. IMAGE

(Center Image) (Applicable only when using a center

Extends the front stereo image to include the surround speakers for a ‘wraparound’ effect.

Adjusts the center image to create a wider stereo effect with vocals. Adjust the effect from 0 (all center channel sent to front right and left speakers) to 10 (center channel sent to the center speaker only).

OFF

0 to 10

Defaults:

Neo:6 MUSIC:

Neo:6

CINEMA: 10

speaker)

Setting What it does Option(s)

EFFECT Sets the effect level for the

currently selected Advanced Surround or ALC mode (each mode can be set separately).

10 to 90

Defaults:

EXT.STEREO:

Others: 50

H.GAIN

(Height Gain)

Adjusts the output from the front height speaker when listening in DOLBY PLIIz HEIGHT mode. If set to HIGH, the sound from the top

LOW

MID

HIGH

will be more emphasized.

V.SB

(Virtual Surround Back)

When you’re not using surround back speakers, selecting this mode allows you to hear a virtual surround back channel through

OFF

your surround speakers. You can choose to listen to sources with no surround back channel information, or if the material sounds better in the format (for example, 5.1) for which it was originally encoded, you can have the receiver only apply this effect to 6.1 encoded sources like Dolby Digital EX or DTS-ES.

V.HEIGHT

(Virtual Height)

When you’re not using front height speakers, selecting this mode allows you to hear a virtual front height channel through your

front speakers.

a.The adjustment can be made only when TONE is set to ON. b.With the iPod/USB, INTERNET RADIO or ADAPTER PORT input

function, by default S.RTRV is set to ON.

c.UP1 to UP4 can be selected only when the front height speaker is

connected. The presence or absence of effects depends on the listening mode.

d.The initially set AUTO is only available for Dolby TrueHD signals.

Select MAX or MID for signals other than Dolby TrueHD.

e.You shouldn’t have any problems using this with most SACD

discs, but if the sound distorts, it is best to switch the gain setting back to 0 dB.

f. • The HDMI Audio setting cannot be switched while performing

synchronized amp mode operations.

• The synchronized amp mode must be turned on in order to play the receiver’s HDMI audio and video input signals from the receiver’s operations on page 58.

g.This feature is only available when the connected disp lay supports

the automatic audio/video synchronizing capability (‘lipsync’) for HDMI. If you find the automatically set delay time unsuitable, set A. DELAY to OFF and adjust the delay time manually. For more details about the lipsync feature of your display, contact the manufacturer directly.

h.Only when listening to 2-channel sources in Dolby Pro Logic IIx

Music/Dolby Pro Logic II Music mode.

i. Only when listening to 2-channel sources in Neo:6 MUSIC/CINEMA

mode.

power in the standby mode. See About synchronized

OFF

the TV with

RECEIVER

Using other functions

j. • You can’t use the Virtual Surround Back mode when the

headphones are connected to this receiver or when any of the stereo, Front Stage Surround Advance, Sound Retriever Air or Stream Direct modes is selected.

• You can only use the Virtual Surround Back mode if the surround speakers are on and the SB setting is set to NO or if Front Bi-Amp or ZONE 2 is selected at Speaker System. It can also be used when Speaker B is selected at Speaker system and SPAB is selected with the SPEAKERS button.

• When inputting Dolby True HD, DTS-HD or DTS Express audio signals, the Virtual Surround Back mode cannot be used if no surround signals are recorded

You can’t use the Virtual Height mode when the headphones are

k.•

connected to this receiver or when any of the stereo, Front Stage Surround Advance, Sound Retriever Air or Stream Direct modes is selected.

• The Virtual Height mode cannot be used when no surround speaker is connected. It can also not be used when playing signals containing actual front height channel information.

• When inputting certain Dolby TrueHD, DTS-HD or DTS Express audio signals, the Virtual Height mode cannot be used if no surround signals are recorded in the source.

in the source.

Setting the Video options

There are a number of additional picture settings you can make using the VIDEO PARAMETER menu. The defaults, if not stated, are listed in bold.

Important

• Note that if an option cannot be selected on the

VIDEO PARAMETER menu, it is unavailable due to the current source, setting and status of the receiver.

• All of the setting items can be set for each input function.

• Setting items other than V. CONV can only be selected when V. CONV is set to ON.

1 Press on the remote control, then press VIDEO PARAMETER

2Use

/

Depending on the current status/mode of the receiver, certain options may not be able to be selected. Check the table below for notes on this.

3Use

/

See the table below for the options available for each setting.

4 Press

Setting What it does Option(s)

V. CONV

(Digital Video Conversion)

RETURN

Converts video signals for output from the MONITOR OUT jacks (including HDMI OUT connector) for all video types (see page 22).

to select the setting you want to adjust.

to set as necessary.

to confirm and exit the menu.

OFF

Setting What it does Option(s)

RESb

(Resolution)

ASPc

(Aspect)

PCINEMA

(PureCinema)

P.MOTION

(Progressive Motion)

YNR

CNR

BNR

MNR

DETAIL

BRIGHT

(Brightness)

CONTRAST

HUE

CHROMA

(Chroma Level)

BLK SETUP

d,e

Specifies the output resolution of the video signal (when video input signals are output at the HDMI OUT connector, select this according to the resolution of your monitor and the images you wish to watch).

Specifies the aspect ratio when input signals are output at the HDMI output. Make your desired settings while checking each setting on your display (if the image doesn’t match your monitor type, cropping or black bands appear).

This setting optimizes the operation of the progressive scanning circuit for playing film materials. Normally set it to AUTO. If the picture seems unnatural, switch this to ON or OFF.

d,e

Adjusts the motion and still picture quality when video output is set to

progressive.

Reduces noise in the luminance (Y) signal.

Reduces noise in the input’s color (C) signal.

Reduces block noise (blockshaped distortion generated upon MPEG compression) in the picture.

Reduces mosquito noise (distortion generated at the contours of the picture upon MPEG compression) in the picture.

Adjusts how sharp edges appear.0 to +8

Adjusts the overall brightness. –6 to +6

Adjusts the contrast between light and dark.

Adjusts the red/green balance. –6 to +6

Adjusts saturation from dull to bright.

Corrects the black depth in the brightness signal.

Normally select 7.5. If the dark parts of the picture are all black with this setting, select 0.

AUTO

PURE

480p/576p

720p

1080i

1080p

1080/24p

THROUGH

NORMAL

AUTO

OFF

–4 to +4

Default: 0

0 to +8

Default: 0

0 to +8

Default: 0

0 to +8

Default: 0

0 to +8

Default: 0

–6 to +6

Default: 0

–6 to +6

Default: 0

7.5

Using other functions

Note

a.If the video picture deteriorates when this settings is switched ON,

switch it OFF.

b.• When set to a resolution with which the TV (monitor) is not

compatible, no picture is output. Also, in some cases no picture will be output due to copyright protection signals. In this case, change the setting.

• When AUTO is selected, the resolution is selected automatically according to the capacity of the TV (monitor) connected by HDMI. When PURE is selected, the signals are output with the same resolution as when input (see About the video converter on page 22).

• If this is set to something other than AUTO, PURE and 480i/576i analog signals are input, 480p/576p signals are output from the component output terminals.

• When 1080/24p is selected, depending on the source m

ovement may be unnatural or the picture may not be clear. In this

case, set the resolution to something other than 1080/24p.

• 1080/24p is mainly effective for movie source materials.

c.• If the image doesn’t match your monitor type, adjust the aspect

ratio on the source component or on the monitor.

• This setting is only displayed when 480i/p or 576i/p video signals are being input.

d.This setting is only displayed when the video signals below are

being input:

• 480i, 576i, 480p, 576p, 720p, 1080i analog video signals

• 480i, 576i, 480p, 576p, 720p, 1080i, 1080p, 1080p24 HDMI video signals

e.• This setting is valid for component outputs and HDMI output.

• This se interlaced scan format (480i/576i or 1080i signals).

• P.MOTION is disabled when PCINEMA is set to ON.

f. You can’t use this setting when the HDMI or component video

signals are being input.

g have the effect only for pictures recorded in the

ttin

material the

Switching the speaker terminals

If you selected Speaker B at Speaker system setting on page 85, you can switch between speakers using the

SPEAKERS button. If you selected Normal(SB/FH), Normal(SB/FW), Front Bi-Amp or ZONE 2, the button

will simply switch your main speaker terminals on or off. The options below are for the Speaker B setting only.

•Use

SPEAKERS

on the front panel to select a speaker system setting. As mentioned above, if you have selected Normal(SB/ FH) or Normal(SB/FW), the button will simply switch

your main speaker terminal (A) on or off.

Press repeatedly to choose a speaker terminal option:

• SPA – Sound is output from the A-speaker

terminals (up to 7 channels (including surround back channels), depending on the source).

• SPB – Sound is output from the two speakers

connected to the B-speaker terminals. Multichannel sources will not be heard.

• SPAB – Sound is output from the A-speaker

terminals (up to 5 channels, depen

ding on the source), the two speakers connected to the Bspeaker terminals, and the subwoofer. The sound from the B-speaker terminals will be the same as the sound from the A-speaker terminals (multichannel sources will be downmixed to 2 channels).

• SP (off) – No sound is output from the speakers.

Using the MULTI-ZONE controls

The following steps use the front panel controls to adjust the sub zone volume and select sources. See MULTI- ZONE remote controls on page 64.

1Press

Each press selects a MULTI-ZONE option:

The MULTI-ZONE indicator lights when the MULTI-ZONE control has been switched ON.

2Press select the sub zone(s) you want.

If you selected ZONE 2&3 ON above, you can toggle between ZONE 2 and ZONE 3.

1 • The subwoofer output depends on the settings you made in Manual speaker setup on page 84. However, if SPB is selected above, no sound

is heard from the subwoofer (the LFE channel is not downmixed).

• All speaker systems (except Speaker B connections) are switched off when headphones are connected.

MULTI-ZONE ON/OFF

on the front panel.

• ZONE 2 ON – Selects your primary (ZONE 2) sub

zone

• ZONE 2&3 ON – Select both sub zones

• ZONE 3 ON – Selects your secondary (ZONE 3) sub

zone

• MULTI ZONE OFF – Switches the MULTI-ZONE

feature off

MULTI-ZONE CONTROL

on the front panel to

Note

Using other functions

• When the receiver is on,1 make sure that any

operations for the sub zone are done while ZONE and your selected sub zone(s) show in the display. If this is not showing, the front panel controls affect the main zone only.

3Use the for the zone you have selected.

For example, ZONE 2 CD-R sends the source connected to the CD-R inputs to the primary (ZONE 2) sub room.

•If you select TUNER, you can use the tuner controls

to select a preset station (see Saving station presets on page 46 if you’re unsure how to do this).

4 When MASTER VOLUME zone.

5 When you’re finished, press CONTROL

You can also press MULTI-ZONE ON/OFF on the front panel to switch off all output to the sub zone(s).

MULTI-ZONE remote controls

Set the MULTI-ZONE operation switch to 3 to operate the corresponding zone.

The following table shows the possible MULTI-ZONE remote controls:

Button What it does

 Switches on/off power in the sub zone.

INPUT SELECT Use to select the input function in the sub

Input function buttons

MASTER VOLUME +/–

MUTE

a.You can only use this button when

INPUT SELECTOR

Speaker System

dial to select the source

is set to

ZONE 2

, use the

dial to adjust the volume for the sub

MULTI-ZONE

again to return to the main zone controls.

ZONE 2

ZONE

zone.

Use to select the input function directly (this may not work for some functions) in the sub zone.

Use to set the listening volume in the sub

zone.

Mutes the sound or restores the sound if it has been muted (adjusting the volume also restores the sound).

Speaker System

is set to

ZONE 2

Making an audio or a video recording

You can make an audio or a video recording from the built-in tuner, or from an audio or video source connected to the receiver (such as a CD player or TV).

Keep in mind you can’t make a digital recording from an analog source or vice-versa, so make sure the components you are recording to/from are hooked up in the same way (see Connecting your equipment on page 16 for more on connections).

Since the video converter is not available when making recordings (from the video OUT jacks) make sure to use the same type of video cable for connecting your recorder as you used to connect your video source (the one you want to record) to this receiver. For example, you must connect your recorder using Component video if your source ha

s also been connected using Component video.

1 Select the source you want to record. Use the input function buttons (or INPUT SELECT).

2 Prepare the source you want to record.

Tune to the radio station, load the CD, video, DVD etc.

3 Select the input signal according to the signal to be recorded. Use the remote control’s SIGNAL SEL button.

4 Prepare the recorder.

Insert a blank tape, MD, video etc. into the recording device and set the recording levels. Refer to the instructions that came with the recorder if you are unsure how to do this. Most video recorders set the audio recording level automatically—check the component’s instruction manual if you’re unsure.

5 Start recording, then start playback of the source component.

Reducing the level of an analog signal

The input attenuator lowers the input level of an analog signal when it’s too strong. You can use this if you find

that the OVER indicator lights often or you can hear distortion in the sound.

• Press on the remote control, then press A.ATT

1If the receiver is in standby, the display is dimmed, and ZONE and your selected sub zone(s) continue to show in the display. 2 The tuner cannot be tuned to more than one station at a time. Therefore, changing the station in one zone also changes the station in the other

zone. Please be careful not to change stations when recording a radio broadcast.

3 • You won’t be able to switch the main zone off completely unless you’ve switched off the MULTI-ZONE control first.

• If you don’t plan to use the MULTI-ZONE feature for a while, turn off the power in both the sub and main rooms so that this receiver is in standby.

4• The receiver’s volume, Audio parameters (the tone controls, for example), and surround effects have no effect on the recorded signal.

• Some digital sources are copy-protected, and can only be recorded in analog.

• Some video sources are copy-protected. These cannot be recorded.

5 The attenuator isn’t available with digital sources, or when using the Stream Direct (ANALOG DIRECT) modes.

RECEIVER

to switch the input attenuator on or off.

Using other functions

Note

RECEIVER

30 min

60 min

90 minOff

RECEIVER

Using the sleep timer

The sleep timer switches the receiver into standby after a specified amount of time so you can fall asleep without worrying about the receiver being left on all night. Use the remote control to set the sleep timer.

• Press on the remote control, then press SLEEP

repeatedly to set the sleep time.

• You can check the remaining sleep time at any time

by pressing SLEEP once. Pressing repeatedly will cycle through the sleep options again.

Dimming the display

You can choose between four brightness levels for the front panel display. Note that when selecting sources, the display automatically brightens for a few seconds.

• Press on the remote control, then press DIMMER

repeatedly to change the brightness of the

front panel display.

Switching the HDMI output

Set which terminal to use when outputting video and audio signals from the HDMI output terminals.

The HDMI OUT1 terminal is compatible with the Control with HDMI function.

• Press on the remote control, then press HDMI OUT

Please wait a while when Please wait ... is displayed.

The output switches among

and HDMI OUT 2 each time the button is pressed.

HDMI OUT ALL, HDMI OUT

Using the Web Control function

The receiver can be operated using a browser from a computer connected on the same LAN as the receiver.

1 Turn on the computer and launch the Internet browser.

2 In the address bar on the browser, enter the IP address assigned to this receiver.

For example, if the IP address of this receiver is “192.168.0.2”, enter “http://192.168.0.2/”.

When the connection is made with the receiver, a Top Menu will be displayed.

This receiver’s IP address can be found in the ‘IP address, Proxy’ menu (page 87).

3 Once the Top Menu is displayed, click the button for the zone you want to operate.

4 Operate from the screen for the individual zone.

• Even when the receiver is in the standby mode, it can

be turned on using the Web Control function. For details, see Network Standby on page 88.

Web Control

Main ZONE ZONE 3

POWER

DVD

INPUT SELECT

LISTENING MODE STEREO

AUTO SURR/ALC/ STREAM DIRECT

HOME

ZONE 2

VOLUME MUTE-60.0dBON OFF

STANDARD SURROUND

ADVANCED

SURROUND

THX

Top Menu

STEREO

Checking your system settings

Use the status display screen to check your current settings for features such as surround back channel processing and your current MCACC preset.

1 Press on the remote control, then press STATUS

The front panel display shows each of the following settings for three seconds each: Input function,

Sampling Frequency, MCACC preset, ZONE 2 input, ZONE 3 input and HDMI OUT.

2 When you’re finished, press switch off the display.

to check the system settings.

STATUS

again to

1 The sleep timer is valid for all zones. If any zone is on, the sleep timer continues functioning. 2• The synchronized amp mode is canceled when the HDMI output is switched. If you wish to use the synchronized amp mode, switch to HDMI

OUT 1, then select the synchronized amp mode on the TV using the TV’s remote control.

• When the power is turned off then back on after switching the HDMI output, the input is set to a setting between HDMI 1 and HDMI 4, or BD.

Using other functions

Resetting the system

Use this procedure to reset all the receiver’s settings to the factory default. Use the front panel controls to do this. Set MULTI-ZONE to OFF.

• Disconnect the iPod and USB memory device from the receiver beforehand.

1 Switch the receiver into standby.

2 While holding down press

 STANDBY/ON

The display shows RESET  NO .

3 Select ‘ ENTER

RESET

on the front panel.

The display shows RESET? OK.

4 Press

ENTER

to confirm.

OK appears in the display to indicate that the receiver

has been reset to the factory default settings.

• Note that all settings will be saved, even if the receiver is unplugged.

Default system settings

Setting Default

Digital Video Conversion ON

SPEAKERS A

Speaker System Normal (SB/FH)

Speaker Setting Front SMALL

Surround Position IN REAR

Crossover 80 Hz

X-Curve OFF

THX Audio Setting 4 ft<

DIMMER Brightest

Network Standby OFF

Inputs

See Input function default and possible settings on page 41.

HDMI

HDMI Audio Amp

HDMI output HDMI OUT ALL

Control ON

Control Mode ALL

DIsplay Power Off YES

ENTER

on the front panel,

’ using

PRESET /

Center SMALL

FH/FW SMALL

Surr SMALL

SB SMALLx2

SW YES

, then press

Setting Default

DSP

Power On Level LAST

Volume Limit OFF

Mute Level FULL

Phase Control ON

Sound Retriever

Sound Delay 0.0 frame

Dual Mono CH1

DRC AUTO

SACD Gain 0 dB

LFE Attenuate 0 dB

Auto delay OFF

Digital Safety OFF

Effect Level ExtendedStereo 90

2 PL II Music Options

Neo:6 Options Center Image Neo:6 MUSIC: 3

All Inputs Listening Mode

See also Setting the Audio options on page 60 for other default DSP settings.

MCACC

MCACC Position Memory M1: MEMORY 1

Channel Level (M1 to M6) 0.0 dB

Speaker Distance (M1 to M6) 10.00 ft

Standing Wave (M1 to M6)

EQ Data (M1 to M6) All channels/bands 0.0 dB

iPod/USB, INTERNET RADIO, ADAPTER PORT function

Other functions

Other modes 50

Center Width 3

Dimension 0

Panorama OFF

(2 ch/multi ch)

Listening Mode (HP) STEREO

ATT of all channels/ filters

SWch Wide Trim 0.0 dB

EQ Wide Trim 0.0 dB

OFF

Neo:6 CINEMA: 10

AUTO SURROUND

0.0 dB

Controlling the rest of your system

Chapter 9:

Controlling the rest of your system

Setting What it does

About the Remote Setup menu

The Remote Setup mode is set by pressing the number button while pressing R.SETUP. The different items on the Remote Setup menu are described below. For their setting procedures, refer to the explanations for the respective items.

Setting What it does

Preset recall

Code learning

Multi operation

System off This is a function for automatically turning off the

Direct function

Erase learning

Back light The backlight lighting pattern can be selected

Reset function

All reset This is a function for resetting all remote control

Preset codes can be set for the various input functions. The remote control codes of a number of other devices (including products of other brands) are preset in the remote control to allow these devices to be operated. See “Selecting preset codes directly” on page 68.

If the desired operations cannot be performed even though you have set the preset codes, the remote control signals of other devices can be learned directly. See “Programming signals from other remote controls” on page 68.

A series of the remote control operations for starting listening or viewing can be programmed. Multiple remote control codes can be set for the different input functions. See “Multi operation and System off” on page 70.

power of devices connected to the receiver. Multiple remote control codes can be set, as desired. See “Multi operation and System off” on page 70.

This is a setting for changing only the remote control unit’s operation screen, without changing the receiver’s input, when the remote control unit’s input function buttons are pressed. This is convenient for using the remote control unit for devices not connected to the receiver. See “Direct function” on page 69.

This function is used to erase remote control codes that have been learned. Codes learned for the different input functions can be erased individually. See “Erasing one of the remote control button settings” on page 69.

from among four modes, in consideration of convenience and battery service life. See “Setting the backlight mode” on page 70.

This is a function for resetting preset codes that have been set. Key resetting can be done for individual input functions. See “Erasing all learnt settings that are in one input function” on page 69.

unit settings you have made to the defaults set upon shipment from the factory. See “Resetting the remote control settings” on page 72.

Change RC mode

If you have multiple Pioneer receivers, amplifiers, etc., this setting can be used to prevent other units from operating simultaneously when the remote control unit is operated. See “Operating multiple receivers” on page 67.

Note

•You can cancel or exit any of the steps by pressing

R.SETUP.

•After one minute of inactivity, the remote automatically exits the operation.

Operating multiple receivers

Up to four receivers can be operated discretely using this receiver's remote control when using multiple receivers, provided they are of the same model as this receiver. The receiver to be operated is switched by inputting the preset code to set the remote control setting.

• Set the remote modes on the receivers befor e using this function (see Remote Control Mode Setup on page 89).

1 Press and hold seconds.

The LED flashes continuously.

• To cancel the preset setup mode press R.SETUP.

2 Press the number button for the receiver (“ 1

” to “

Receiver 4

For example, to operate “Receiver 2”, press “2”.

If the LED lights for one second, the setting has been successfully completed.

When the preset code is input, the LED flashes three times to indicate that the setting has failed.

R.SETUP

, then press “4” for three

”) you wish to operate.

Receiver

Note

Controlling the rest of your system

Setting the remote to control other components

Most components can be assigned to one of the input function buttons (such as DVD or CD) using the component’s manufacturer preset code stored in the remote.

However, there are cases where only certain functions may be controllable after assigning the proper preset code, or the codes for the manufacturer in the remote control will not work for the model that you are using.

If you can’t find a preset code that matches the component you want to control, you can still teach the remote individual commands from another remote control (see Programming signals from other remote controls on page 68).

•For greater convenience, assign the TV connected to the MONITOR OUT term and assi

gn your satellite/cable receiver or set-top box

inal to the TV CTRL button,

connected to the TV input terminal to the TV input button. If a single device is connected to both terminals, that device should be assigned to both the TV CTRL and TV input buttons.

• Devices may be assigned to the following input function buttons.

MULTI

SOURCERECEIVER

OPERATION

R.SETUP

DVR/BDR HDMI

BD DVD

ADAPTERNET RADIO

CDTV

iPod

USB TUNER SIRIUS XM

INPUT SELECT TV CTRL

RECEIVER

Selecting preset codes directly

1 Press and hold seconds.

The LED flashes continuously.

• To cancel the preset setup mode press R.SETUP.

2 Press the input function button for the component you want to control. When assigning preset codes to TV CONTROL, press TV CTRL here.

The LED blinks once and flashes continuously.

3 Use the number buttons to enter the 4-digit preset code.

See Preset code list on page 107.

R.SETUP

, then press “1” for three

If the LED lights for one second, the setting has been successfully completed.

When the preset code is fully input, the LED flashes three times to indicate that the setting has failed. If this happens, enter the 4-digit preset code again.

4 Repeat steps 2 through 3 for the other components you want to control.

To try out the remote control, switch the component on or off (into standby) by pressing  SOURCE. If it doesn’t seem to work, select the next code from the list (if there is one).

5 Press

R.SETUP

to exit the preset setup mode.

Programming signals from other remote controls

If the preset code for your component is not available, or the available preset codes do not operate correctly, you can program signals from the remote control of another component. This can also be used to program additional operations (buttons not covered in the presets) after assigning a preset code.

Certain buttons represent operations that cannot be learned from other remote controls. The buttons available are shown below:

MULTI OPERATION

R.SETUP

BD DVD

CDTV

iPod

USB TUNER SIRIUS XM

INPUT

SELECT TV CTRL

INPUT

TV CONTROL

VOL

1 Press and hold seconds.

The LED flashes continuously.

• To cancel the preset setup mode press R.SETUP.

2 Press the input function button for the component you want to control.

The LED blinks once and flashes continuously.

SOURCERECEIVER

DVR/BDR HDMI

ADAPTERNET RADIO

RECEIVER

MASTER VOLUME

MUTE

R.SETUP

AUDIO

PARAMETER

LIST

TOP MENU BAND GUIDE

PRESET

CATEGORY

HOME MENU

iPod CTRL

AUTO / ALC /

DIRECT

STEREO

HDD DVD

DTV MPX PQLS

HDMI OUT

SIGNAL SEL

MCACC SLEEP

CH LEVEL A.ATT DIMMER

D.ACCESS

/ CLR

VIDEO

PARAMETER

TOOLS

TUNE

T.EDIT

ENTER

RETURN

TUNE

MEMORY

PGM

STANDARD

ADV SURR

CTRL STATUSTHX

PHASE

AUDIO

213

INFO

DISP

546

8079

CLASS

ENTER

, then press “2” for three

PRESET

1 The remote can store about 120 preset codes from other components (this has been tested with codes of Pioneer format only).

Controlling the rest of your system

Note

3 cm

(1 inch)

This receiver’s remote control

Other remote control

3 Point the two remote controls towards each other, then press the button that will be doing the learning on this receiver’s remote control.

The LED blinks once and flashes continuously.

•The remote controls should be 3 cm (1 inch) apart.

4 Press the corresponding button on the other remote control that is sending (teaching) the signal to this receiver’s remote control.

If the LED lights for one second, the setting has been successfully completed.

5 To program additional signals for the current component repeat steps 3 and 4.

To program signals for another component, exit and repeat steps 2 through 4.

6Press

R.SETUP

to exit the programming mode.

Erasing one of the remote control button settings

This erases one of the buttons you have programmed and restores the button to the factory default.

1 Press and hold seconds.

The LED flashes continuously.

• To cancel the preset setup mode press R.SETUP.

2 Press the input function button corresponding to the command to be erased, then press

The LED flashes once.

3 Press and hold the button to be erased for three seconds.

If the LED lights for one second, the erasing has been successfully completed.

4 Repeat step 3 to erase other buttons.

5Press

R.SETUP

to exit the erasing mode.

, then press “7” for three

ENTER

Erasing all learnt settings that are in one input function

This operation erases all the operational settings of other devices that have been programmed in one input function, and restores the factory default.

This function is handy for erasing all data programmed for devices no longer being used.

1 Press and hold seconds.

The LED flashes continuously.

• To cancel the preset setup mode press R.SETUP.

2 Press and hold the input function button corresponding to the command to be erased for three seconds.

If the LED lights for one second, the erasing has been successfully completed.

R.SETUP

, then press “9” for three

Direct function

• Default setting: On

You can use the direct function feature to control one component using the remote control while at the same time using your receiver to play a different component. This could let you, for example, use the remote control to set up and listen to a CD on the receiver, and then use the remote control to rewind a tape in your VCR while you continue to listen to your CD player.

When direct function is on, any component you select (using the inpu t f unction button s) wi ll be s el ec te d by bo th the receiver and the remote control. When you turn direct function off, you can operate the remote control without affecting the receiver.

1 Press and hold seconds.

The LED flashes continuously.

• To cancel the preset setup mode press R.SETUP.

2 Press the input function button for the component you want to control.

3 Press “1” (On) or “0” (Off) to switch the direct function mode.

If the LED lights for one second, the setting has been successfully completed.

If the LED flashes three times, the setting has failed.

4Press

R.SETUP

to exit the setup.

, then press “5” for three

1 • Note that interference from TVs or other devices will sometimes result in the remote control learning the wrong signal.

• Some commands from other remote controls cannot be learned, but in most cases the remotes just need to be moved closer together or farther apart.

• If the LED flashes for five seconds, it means the memory is full. See Erasing all learnt settings that are in one input function on page 69 to erase a programmed button you’re not using to free up more memory (note that some signals may take more memor y than others).

Note

Controlling the rest of your system

Setting the backlight mode

•Default setting: 1 (normal mode)

The backlight lighting pattern can be selected from among four modes, in consideration of convenience and battery service life.

1 Press and hold seconds.

The LED flashes continuously.

• To cancel the preset setup mode press R.SETUP.

2 Press the number button for the backlight mode you want to set.

•

“1” (normal mode)

off with the light button. After it lights, it turns off automatically if no operation is performed for 10 seconds.

•

“2” (

frequent lighting mode) – The backlight turns

on when any button on the remote control is pressed. It is turned off with the light button. After it lights, it turns off automatically if no operation is performed for 10 seconds.

•

“3” (eco mode)

with the light button. After it lights, it turns off automatically if no operation is performed for 5 seconds.

•

“4” (off mode)

when the light button is pressed.

If the LED lights for one second, the setting has been successfully completed.

If the LED flashes three, the setting has failed.

3 Press

R.SETUP

, then press “6” for three

– The backlight is turned on and

– The backlight is turned on and off

– The backlight does not turn on even

to exit the setup.

Multi operation and System off

The Multi operation feature allows you to program a series of up to 5 commands for the components in your system.

•

Be sure to call up the preset codes of devices or perform programming signals for other remote controls before multi operation memory programming (

The Multi operation feature makes it easy to perform the following operations by pressing just two buttons.

Press MULTI OPERATION and then the DVD input function button to:

1. Switch this receiver on.

2. Switch this receiver’s input to DVD.

3. Transmit a sequence of up to five programmed commands.

Similar to Multi operations, System off allows you to use two buttons to stop and switch off a series of components in your system at the same time. operation sequence may be programmed.

Press

MULTI OPERATION

1. Transmit a sequence of up to five programmed commands.

2. Switch off all Pioneer devices including the receiver (except DVD recorders and VCRs).

For greater convenience, program this receiver to perform power on/off and playback operations on nonPioneer devices as well. described above are not contingent on programming for non-Pioneer devices.)

The buttons that can be programmed using Multi operation or System off are the same buttons as those that can be programmed for other remote controls (see Programming signals from other remote controls on

page 68).

Only one System off

and then

(The signals for Pioneer devices

 SOURCE

to:
