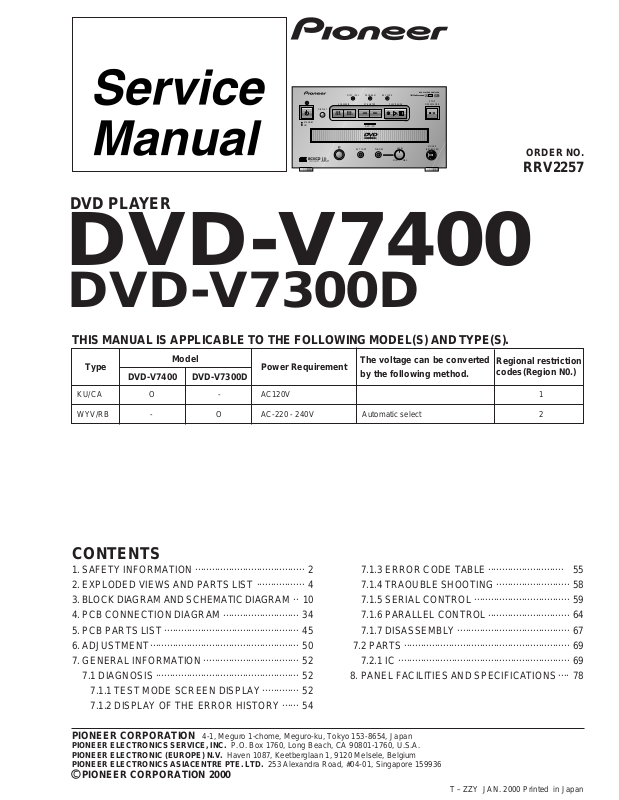

Pioneer DVD-V7400, DVD-V7300D User Manual 2

STANDBY
ON

DISPLAY

SCAN/SKIP

14¡

DVD PLAYER DVD-V7300D

PROGRAM

KEY LOCKNTSC / PAL

STILL/STEP

PLAY/PAUSE

eE

¢

^

DVD / CD

DOLBY

D I G I T A L

STOP

OPEN/CLOSE

§

Î

EXT CONT

PHONES

LEVEL

MIN MAX

MOUSE

/KEY BOARD

DVD PLAYER

DVD-V7400

DVD-V7300D

THIS MANUAL IS APPLICABLE TO THE FOLLOWING MODEL(S) AND TYPE(S).

Type

Model

DVD-V7400 DVD-V7300D

KU/CA O - AC120V 1

WYV/RB - O AC-220 - 240V Automatic select 2

Power Requirement

The voltage can be converted
by the following method.

Regional restriction
codes(Region N0.)

ORDER NO.

RRV2257

CONTENTS

1. SAFETY INFORMATION

2. EXPLODED VIEWS AND PARTS LIST

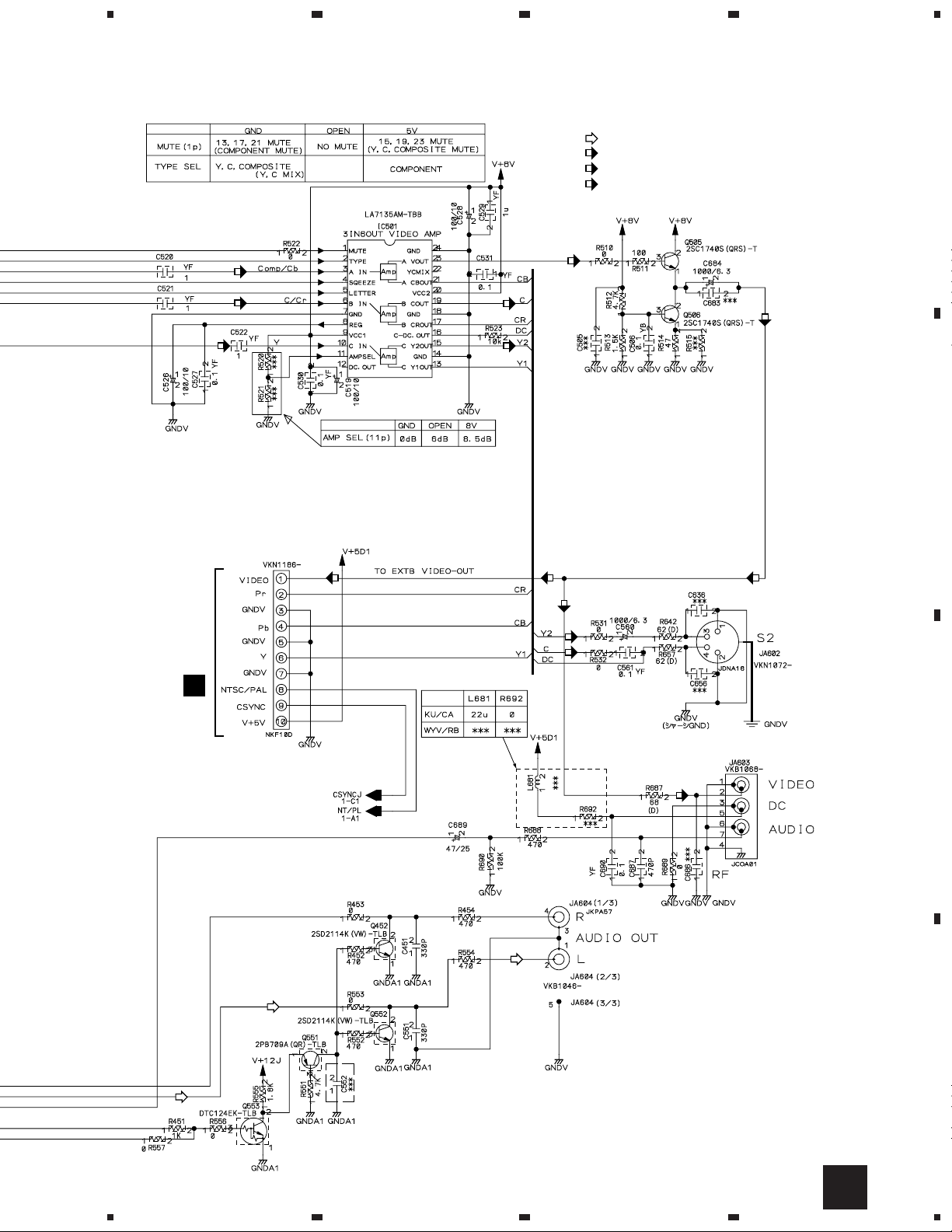

3. BLOCK DIAGRAM AND SCHEMATIC DIAGRAM..10

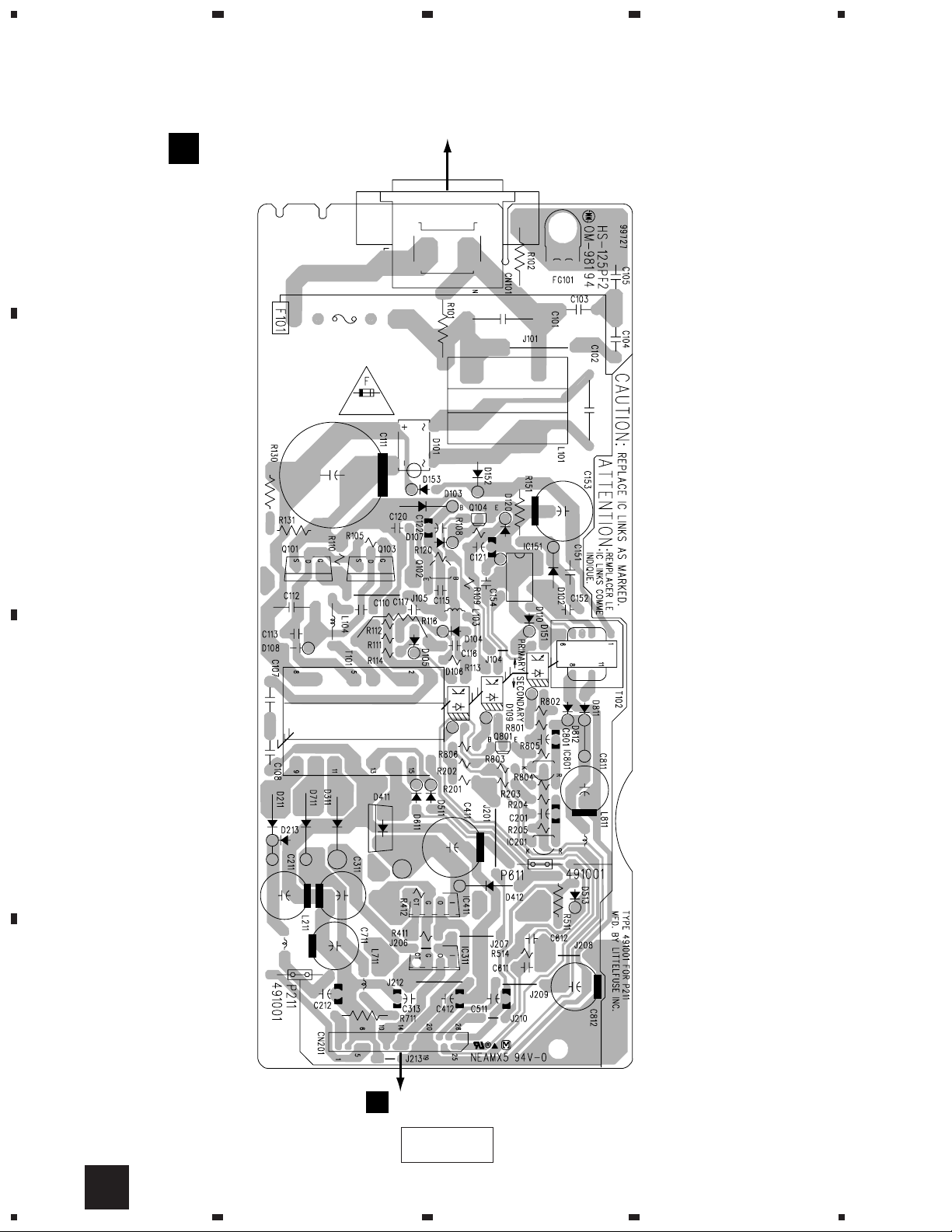

4. PCB CONNECTION DIAGRAM

5. PCB PARTS LIST

6. ADJUSTMENT

................................................

.....................................................

7. GENERAL INFORMATION

7.1 DIAGNOSIS

...................................................

7.1.1 TEST MODE SCREEN DISPLAY

7.1.2 DISPLAY OF THE ERROR HISTORY

PIONEER CORPORATION 4-1, Meguro 1-chome, Meguro-ku, Tokyo 153-8654, Japan

PIONEER ELECTRONICS SERVICE, INC. P.O. Box 1760, Long Beach, CA 90801-1760, U.S.A.
PIONEER ELECTRONIC (EUROPE) N.V. Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium
PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Alexandra Road, #04-01, Singapore 159936

c

PIONEER CORPORATION 2000

.......................................

.................

...........................

..................................

.............

......

34
45
50
52
52
52
54

2
4

7.1.3 ERROR CODE TABLE

7.1.4 TRAOUBLE SHOOTING

7.1.5 SERIAL CONTROL

7.1.6 PARALLEL CONTROL

7.1.7 DISASSEMBLY

7.2 PARTS

7.2.1 IC

...........................................................

.............................................................

8. PANEL FACILITIES AND SPECIFICATIONS

...........................

..........................

..................................

.............................

........................................

55
58
59
64
67
69
69

....

78

T – ZZY JAN. 2000 Printed in Japan

DVD-V7400, DVD-V7300D

1. SAFETY INFORMATION

This service manual is intended for qualified service technicians ; it is not meant for the casual do-it­yourselfer. Qualified technicians have the necessary test equipment and tools, and have been trained
to properly and safely repair complex products such as those covered by this manual.
Improperly performed repairs can adversely affect the safety and reliability of the product and may
void the warranty. If you are not qualified to perform the repair of this product properly and safely, you
should not risk trying to do so and refer the repair to a qualified service technician.

WARNING
This product contains lead in solder and certain electrical parts contain chemicals which are known to the state of California to cause
cancer, birth defects or other reproductive harm.

Health & Safety Code Section 25249.6 – Proposition 65

NOTICE
(FOR CANADIAN MODEL ONLY)
Fuse symbols (fast operating fuse) and/or (slow operating fuse) on PCB indicate that replacement parts must
be of identical designation.

REMARQUE
(POUR MODÈLE CANADIEN SEULEMENT)
Les symboles de fusible (fusible de type rapide) et/ou (fusible de type lent) sur CCI indiquent que les pièces
de remplacement doivent avoir la même désignation.

(FOR USA MODEL ONLY)

1. SAFETY PRECAUTIONS

The following check should be performed for the
continued protection of the customer and service
technician.

LEAKAGE CURRENT CHECK

Measure leakage current to a known earth ground (water
pipe, conduit, etc.) by connecting a leakage current tester
such as Simpson Model 229-2 or equivalent between the
earth ground and all exposed metal parts of the appliance
(input/output terminals, screwheads, metal overlays, control
shaft, etc.). Plug the AC line cord of the appliance directly
into a 120V AC 60Hz outlet and turn the AC power switch
on. Any current measured must not exceed 0.5mA.

Reading should
not be above

0.5mA

Earth
ground

Device
under
test

Also test with
plug reversed
(Using AC adapter
plug as required)

Leakage
current
tester

Test all
exposed metal
surfaces

ANY MEASUREMENTS NOT WITHIN THE LIMITS
OUTLINED ABOVE ARE INDICATIVE OF A POTENTIAL
SHOCK HAZARD AND MUST BE CORRECTED BEFORE
RETURNING THE APPLIANCE TO THE CUSTOMER.

2. PRODUCT SAFETY NOTICE

Many electrical and mechanical parts in the appliance
have special safety related characteristics. These are
often not evident from visual inspection nor the protection
afforded by them necessarily can be obtained by using
replacement components rated for voltage, wattage, etc.
Replacement parts which have these special safety
characteristics are identified in this Service Manual.
Electrical components having such features are identified
by marking with a
in this Service Manual.
The use of a substitute replacement component which does
not have the same safety characteristics as the PIONEER
recommended replacement one, shown in the parts list in
this Service Manual, may create shock, fire, or other hazards.
Product Safety is continuously under review and new
instructions are issued from time to time. For the latest
information, always consult the current PIONEER Service
Manual. A subscription to, or additional copies of, PIONEER
Service Manual may be obtained at a nominal charge from
PIONEER.

on the schematics and on the parts list

AC Leakage Test

2

IMPORTANT
THIS PIONEER APPARATUS CONTAINS
LASER OF CLASS 1.
SERVICING OPERATION OF THE APPARATUS
SHOULD BE DONE BY A SPECIALLY
INSTRUCTED PERSON.

LASER DIODE CHARACTERISTICS
FOR DVD : MAXIMUM OUTPUT POWER : 5 mW

WAVELENGTH : 655 nm

FOR CD : MAXIMUM OUTPUT POWER : 5mW

WAVELENGTH : 785 nm

LABEL CHECK

DVD-V7400, DVD-V7300D

DVD-V7300D/WYV/RB only DVD-V7400/KU/CA only

DRW1995-A

Additional Laser Caution

1. Inside detection switch (S201 on the SMEB assy) and loading­status detection switch (S301 on the LOSB assy) are detected
by the microprocessor (IC11 in the DVDM assy).

• To permit the laser diode to oscillate, it is required to set the
inside detection switch for the inside position (S201 : ON) and to
set the loading-status detection switch for the clamp position (the
center terminal of S301 is shorted to +5V). The 655 nm laser
diode for DVD oscillation will continue if pin 19 of IC1 is shorted
to +5V (fault condition) in the DVDM assy.
The 785 nm laser diode for CD oscillates if pin 20 of IC1 is shorted
to +5V in the DVDM assy.
In the test mode ∗ , the laser diode oscillates when microproces­sor detects a PLAY signal, or when the PLAY key is pressed
(S159 ON in the KEYB assy), with the above requirements satis­fied.

2. When the cover is open, close viewing through the objective lens
with the naked eye will cause exposure to the laser beam.

∗ : See page 50.

3

DVD-V7400D, DVD-V7300D

2. EXPLODED VIEWS AND PARTS LIST

NOTES:• Parts marked by "NSP" are generally unavailable because they are not in our Master Spare Parts List.

The mark found on some component parts indicates the importance of the safety factor of the part.

•

Therefore, when replacing, be sure to use parts of identical designation.

Screws adjacent to mark on the product are used for disassembly.

•

2.1 PACKING

10

DVD-V7400/KU/CA only

1
2
7

8

3
4

6

19

21
5

22

11

11

15

16

9

18

12

13

23

14

22

20

DVD-V7300D/WYV/RB only

17

4

(1) PACKING PARTS LIST

DVD-V7400, DVD-V7300D

Mark No. Description Part No.

NSP 1 Warranty Card See Contrast table (2)

2 Bar Code Sheet VRY1116
3 Audio Cord VDE1033
4 Video Cord VDE1048
5 Nylon Clamp VEC1988

NSP 6 Dry Cell Battery (LR6, AA) VEM-013

7 Operating Instructions See Contrast table (2)

(Basic Operations) (English)

8 Operating Instructions See Contrast table (2)

(Applied Operations) (English)

9 Remote Control Unit DXX2448

NSP 10 Polyethylene Bag See Contrast table (2)

(50×70×0.03)

Mark No. Description Part No.

11 Polyethylene Bag Z21-038

(230×340×0.03)

12 Sheet RHX1006

NSP 13 Cord Bag See Contrast table (2)

14 Pad F VHA1212
15 Pad R VHA1213
16 Partition Plate VHB1062

17 Packing Case See Contrast table (2)

18 Battery Cover VNK4403
19 AC Power Cord See Contrast table (2)
20 AC Power Cord See Contrast table (2)

21 Screw See Contrast table (2)

22 Cord Bag See Contrast table (2)

23 Aircap VHL1048

(2) CONTRAST TABLE

DVD-V7400/KU/CA and DVD-V7300D/WYV/RB are constructed the same except for the following:

Mark

No.

Symbol and Description

DVD-V7400/

KU/CA

Part No.

Remarks

DVD-V7300D/

WYV/RB

NSP 1 Warranty Card ARY7031 Not used

5 Nylon Clamp VEC1988 Not used
7 Operating Instructions (English) DRB1264 Not used

(Basic Operations)

8 Operating Instructions (English) Not used DRB1268

(Applied Operations)

NSP 10 Polyethylene Bag Z21-002 Not used

NSP 13 Cord Bag VEG-012 Not used

19 AC Power Cord Not used ADG1127
20 AC Power Cord Not used ADG7004

(50×70×0.03)

17 Packing Case DHG1958 DHG1963

21 Screw AMZ30P060FZK Not used

22 Cord Bag Not used OHL1007

5

DVD-V7400D, DVD-V7300D

2.2 MAIN SECTION

25

47

65

76

53

76

67
(1/2)

76

78

41

56

52

64

34

66

82

57

63

55

61

74

79

54

33

57

59

67 (2/2)

76

73

69

78

70

72

33

44

45

77

76

68

43

A

26

68

72

76

33

A

76

12

76

3

76

62

58

21

60

6

4

76

76

18

76

49

Refer to
"2.3 LOADING
MECHANISM
ASSY".

16

17

5

76

76

35

42

32

30

19

76

31

46

76

2

37

76

76

49

50

78

15

23

75

22

DVD-V7300D/WYV/RB only

78

40

7

14

11

10

8

32

80

46

76

71

81

76

78

83

27

29

76

51

24

36

1

76

13

76

50

76

28

39

9

20

76

48

80

38

6

DVD-V7400, DVD-V7300D

MAIN SECTION PARTS LIST

•

Mark No. Description Part No. Mark No. Description Part No.

1 DVDM Assy See Contrast table (2)
2 SUBB Assy See Contrast table (2)
3 KEYB Assy DWG1529
4 HPIR Assy DWG1530
5 SPDB Assy DWG1532

6 PS2B Assy DWG1531
7 JACB Assy See Contrast table (2)
8 EXTB Assy DWV1185

9 SYPS Assy DWR1338

10 Flexible Cable (10P) VDA1673

(JACB CN653 – EXTB CN751)

11 Flexible Cable (26P) DDD1168

(SUBB CN102 – JACB CN602)

12 Flexible Cable (17P) DDD1169

(SUBB CN101 – KEYB CN151)

13 Flexible Cable (7P) DDD1174

(DVDM CN106 – SUBB CN201)

14 Flexible Cable (15P) DDD1167

(DVDM CN901 – JACB CN601)

15 Flexible Cable (26P) DDD1173

(DVDM CN110 – SYPS CN201)

16 Flexible Cable (24P) DDD1165

(DVDM CN120 – SPDB CN258)

17 Flexible Cable (12P) DDD1164

(DVDM CN1030 – SPDB CN252)

18 Flexible Cable (15P) DDD1162

(DVDM CN602 – SUBB CN103)

19 Flexible Cable (17P) DDD1166

(DVDM CN905 – SUBB CN302)

20 Flexible Cable (7P) DDD1163

(DVDM CN252 – SPDB CN251)

21 Flexible Cable (6P) VDA1670

(KEYB CN153 – PS2B CN801)
22 AC Power Cord (KU) See Contrast table (2)
23 AC Cord Stopper See Contrast table (2)

24 Housing Assy (2P) DKP3515

(DVDM CN180 – SUBB CN301)

25 DVD Door Assy-S DXX2466

NSP 26 Loading Mechanism Assy VWT1171

27 Bolt DBA1078
28 Fuse (F101: 2A) VEK1049
NSP 29 Nylon Rivet DEC1644

30 Card Spacer DEC1772
NSP 31 PCB Holder PNW2100

32 Foot Assy PXA1201

33 Tape (G) REH1010

34 Tray Stopper Spring VBH1277

35 Radiation Sheet VEB1279

NSP 42 Main Chassis VNB1037

NSP 70 Label VRW-348
71 AC Inlet AssY See Contrast table (2)

NSP 74 Label See Contrast table (2)

(2) CONTRAST TABLE

DVD-V7400/KU/CA and DVD-V7300D/WYV/RB are constructed the same except for the following:

Part No.

Mark

No.

Symbol and Description

DVD-V7400/

KU/CA

1 DVDM ASSY DWS1299 DWS1305
2 SUBB ASSY DWG1528 DWG1527

7 JACB ASSY DWV1184 DWV1189
22 AC Power Cord (KU) VDG1073 Not used
23 AC Cord Stopper VEC-201 Notu sed

36 Radiation Sheet (SILICON) DEB1444
37 Clamp DEC2383
38 Sheet VEC1999
39 Cushion DEB1199
40 Rear Panel See Contrast table (2)

41 Bonnet VNA1931
43 Sub Chassis VNB1038

44 Clamper Plate VNE2068
45 Bridge VNE2069

46 SYPS Stay See Contrast table (2)
47 Shield Stay F VNE2129
48 Shield Stay R VNE2130
49 Center Stay VNE2131
50 PCB Stay DNE1384

51 Heat Sink DNE1389
52 Cover VNE2147
53 Tray VNL1731
54 Clamper VNL1738
55 Tray Stopper VNL1739

56 Lens PNW1257
57 LED Lens PNW2019
58 Earth Spring VBH1301
59 Screen VEC1977
60 Earth Plate VNE2027

61 IR Window VNK2246
62 Volume Knob VNK3124
63 Illumination Holder VNK3917
64 Illumination Lens VNK4168
65 Front Panel See Contrast table (2)

66 DVD Door VNK4224
67 Operation Key Assy VXA2360
68 Loading Base Spacer DNK3755
69 65 Label See Contrast table (2)

72 Caution Label See Contrast table (2)
73 Caution Label See Contrast table (2)

75 Screw BCZ30P080FZK
76 Screw BBZ30P080FMC

77 Screw BBZ30P100FMC
78 Screw BCZ40P060FZK
79 Screw BPZ26P080FZK
80 Screw PMZ40P080FMC

81 Screw AMZ30P060FZK
82 Door Filter DEC2382
83 GND Terminal See Contrast table (2)

Remarks

DVD-V7300D/

WYV/RB

40 Rear Panel DNA1255 DNA1257
46 SYPS Stay DNE1386 DNE1385
65 Front Panel DNK3749 DNK3753
69 65 Label ARW7050 Not used
71 AC Inlet AssY Not used VKP2116

72 Caution Label Not used VRW1699
73 Caution Label Not used DRW1995

NSP 74 Label DRW1986 Not used

83 GND Termina Not used DKE-102

7

DVD-V7400D, DVD-V7300D

2.3 LOADING MECHANISM ASSY

• Top View • Bottom View

20

Refer to
"2.4 TRAVERSE MECHANISM ASSY-S".

4

5

1

19

3

1

*

23

1

*

1

*

1

*

21

2

22

24

18

10

6

9

17

11

13

7

8

16

15

14

12

1: Froil (PN-397)

*

LOADING MECHANISM ASSY PARTS LIST

Mark No. Description Part No. Mark No. Description Part No.

1 Traverse Mechanism Assy-S VXX2688
2 Screw DBA1006
3 Drive Cam VNL1736
4 Drive Gear VNL1735
5 Lock Plate VNL1820

6 Loading Base VNL1844
7 Belt VEB1260
8 Gear Pulley VNL1733

NSP 9 LOSB Assy VWG1885

10 Loading Gear VNL1734
11 Loading Motor Assy VXX2505

12 DC Motor / 0.3W PXM1027
13 Motor Pulley PNW1634

NSP 14 LOMB Assy VWG1886

15 Connector Assy VKP2198

(LOMB CN401 ↔ LOSB CN303)

8

16 Screw VBA1055
17 Screw Z39-019
18 Flexible Cable (08P) VDA1698

(LOSB CN302 ↔ SMEB CN202)

19 Float Base VNL1867
20 Floating Rubber VEB1286

21 Flexible Cable (24P) VDA1701

(Pickup Assy ↔ SPDB CN257)
22 Cushion VEB1312
23 Flexible Cable (11P) DDD1161

(SPINDLE MOTOR Assy ↔ SPDB CN255)
24 Flexible Cable (12P) DDD1172

(LOSB CN301 ↔ SPDB CN253)

2.4 TRAVERSE MECHANISM ASSY-S

• Top View

DVD-V7400, DVD-V7300D

37

37

17

31

30
16

35

33

28

5

22

33

23

10

15

10

10

14

1

*

7

7

34

19
8
6

20

12

37

4

10

1

*

13

37
18

32

1

18

26

11

25

27

1

*

7

29

36

3

1: Froil (PN-397)

*

TRAVERSE MECHANISM ASSY-S PARTS LIST

Mark No. Description Part No. Mark No. Description Part No.

NSP 1 SMEB Assy VWG2048

2 • • • • •
NSP 3 Motor VXM1079
NSP 4 Motor VXM1073

NSP 5 Pickup Assy VWY1055

6 Table Sheet DEC2040

7 Screw VBA1058

8 Centering Spring VBH1278

9 • • • • •

10 Skew Spring VBH1303
11 Gear Spring VBH1308

NSP 12 Reflected Sheet VEC1959

13 Guide Bar VLL1504
14 Sub-guide Bar VLL1505
15 Hold Spring VNC1017

NSP 16 Magnet Holder VNE2070
NSP 17 Motor Base VNE2218
NSP 18 Cover VNE2155

19 Centering Ring VNL1746

NSP 20 Disc Table VNL1747

NSP 30 Magnet VYM1024

NSP 37 Screw PBA1069

21 • • • • •
22 FFC Holder VNL1802
23 Mechanism Base VNL1806
24 • • • • •
25 Gear A VNL1808

26 Gear B VNL1809
27 Gear C VNL1810
28 Slider VNL1811
29 Gear D VNL1814

31 Screw JGZ20P030FMC
32 Screw JGZ17P028FMC
33 Screw VBA1051
34 Magnet Holder Assy VXX2507
35 Spindle Motor Assy VXX2580

36 Carriage Motor Assy VXX2650

9

1

23

DVD-V7400, DVD-V7300D

3. BLOCK DIAGRAM AND SCHEMATIC DIAGRAM

3.1 BLOCK DIAGRAM

A

SPDL

MOTOR

FCS

OEIC

TRKG

PICKUP
ASSY

LOSB

(24P)

10

7,6,

3,2
21

24
22
23

CN255

U-, U+
V-, V+

W-, W+

WOUT
VOUT
UOUT

10

7,6,
3,2

21
24
22
23

4, 6
5, 8

9, 10

1
2
3

F_RTN
F_DRV
T_DRV

T_RTN

IC251

BA6849FP

9,10

22

11.12

24

13.14

21
2
4

7

VREF

SPDO

CN251

FG

ASSY

CN302

(8P)

2

7

1

8

M

MOTOR

5
3

CN202

(8P)

B

CARRIAGE

B

4
6

C

SMEB
ASSY

LOADING MOTOR

M

21

21

(12P)

CN301

6
4

7
9

CN303
CN401

(12P)

CN253

7
9

6
4

SPDB
ASSY

SLDR_R
SLDR_F

K

LOAD+
LOAD-

(12P)

CN252

7,6,

(24P)(24P)(24P)

CN120CN257 CN258

10

10

7,6,
3,2

3,2
21

21

24

24

22

22

23

23

CN252

1

1

2

2

4

4

(12P)

CN1030

7

7

9

9

6

6

4

4

VREF

D

B1-B4

13 12 10 9

14

SPDL & FTS

15
34

M56788FP

35

DVDM ASSY

RFRF

3 54

RF IC

6-9

IC101

LA9701M

3
20
17

DRIVER

IC352

37

LODDRV

46
56
57
42
35

FG

SPDO

FDO
TDO

SLDO

RFO

DSPRF

BH
PH
FE
TE

32 33 30 31 39

55
46

47
48

45

SERVO DSP

LC78652W

Q105

IC201

14

16M

16M

33M

107

4

170

DVD

DECODER

MY CHIP

IC701

PD4995A

SYSTEM

CONTROL CPU

SH1 BASE ASIC

IC601

PD3410A

42

87

72

4

SD0-SD7
57-60
63-66

SREQ

56

CDDATA

111

4M DRAM

IC702

MN414800CSJ-07

WORK SRAM

TC55V2001F-85L

149,150,
152-155,

158,159

162

48

(2M)

IC604

27M

36/16M

55 64

LOMB

A

ASSY

: RF Signal Route
: Audio Signal Route (L ch)

(HP)

: HEAD PHONE Signal Route (L ch)

(V)

: V Signal Route

(Y)

: Y Signal Route

C

D

(C)
(R)
(G)
(B)

JA751

VIDEO

R-Y

JA752

B-Y

NTSC
/PAL

S750

SYNC IN

JA753

: C Signal Route

: R Signal Route
: G Signal Route
: B Signal Route

J

Y

V+5D2

V+5D2

ON/OFF

EXTB
ASSY

75Ω

S901

Q901

CN751

10

9
7
5
3
2

(10P)

VIDEO
Pr
Pb
Y
NTSC/PAL
CSYNC

DOUT0

ADATA

16M

5

IC22
TC7WH74FU

1

27M

33M

36/16M

6

5

1

CLOCK GENERATOR

IC21

CY2081SL-655

1

13.824M

IC73

TC7SHU04F

(2P)

CN71

1 2

3-5 CONVERTER

IC807

TC74VHCT541ADT

4716

14

VIDEO ENCODER

IC806

MC44724A

39-46

VIDEO

FILTER

Q807

OUTV

1

Q809

OUTY

4

Q811

OUTC

7

F852

Q808

Q810

Q812

1
I
4

6

7

10

12

8

7

1

CN106

CN905

CN901

(7P)

TXD, RXD
DTR, CTS

(17P)

AODTIAAC3J

ADTA0ADA0

(15P)

(V)

V

(Y)

Y

(C)

C

NTSC/PAL

VSEL_SW

10

1234

5

678

DVD-V7400, DVD-V7300D

MPEG2

DECODER

MITUBISHI

AV-1

IC801

M65773AFP

16M SDRAM

IC802

MB811171622A

-100FN

FLASH

MEMORY

IC603

DYW1662

YCBR0-7

(Y0-Y7)

95-98,

100-103

DOUT0

74

AD0,ADD

71

EDO DRAM

IC803

M5M4V18165

DTP-6S

M + 6V

+12V
+12V

+5V

+3.3V

EV+5V

(26P)

CN110

(26P)

1,2

10
12

13
16

22

CN201

1,2

5

5

7

7

10

|

|

12

13

|

|

16

22

L

SYPS ASSY

F

KEYB ASSY

CN101

LIVE

1
2

NEUTRAL

(7P)

CN152

4
6
7

HP L

EVER +5

SEL IR

CHASSIS GND

(7P)

CN191

4
2
1

AC INLET

DVD-V7300D
WYV/RB only

G

HPIR ASSY

V+5R

AC Power Cord

DVD-V7400
KU/CA only

VR181

JA181
HP. OUT

A

JA191

(6P)

CN153

MCLK

KCLK
SW+5V
MDATA
KDATA

5
4
3
2
1

MCLK

KCLK
SW+5V
MDATA
KDATA

2
3
4
5
6

(6P)

CN801

V+5R

VOUT

VCC

EXT CONTROL

Q191

REM. RECIVER

JA801

MOUSE
and
KEY BOARD

B

4
I
7

12

11

2
1

10

12

8

7

1

CN601

(15P)

(7P)

CN201

TXD, RXD
DTR, CTS

(17P)

SUBB ASSY

CN302

AC3

ADTA0

DIN

(2P)

CN301

VCXO
X230

V

Y

C

NTSC/PAL

V+5D1

E

IC300

PCM1716E

S401

VIDEO OUT

SELECT

VOUT L

Mode

Control IC

IC101

PD4954

IC302

NJM4556AM

IC230

NJM2100M

(V)

(Y)

(C)

44

I

45

IC303

NJM4556AM

3

VIDEO

10

AMP

IC501

LA7135AM

6

H

MCLK

MCLK

MDATA

MDATA

CN102

21

(Y)

(17P)

SW+5V

CN151

(17P)

SW+5V

CN101

V+5DV+5E

(26P)

(C)

19

I

26

11

I

14

2

16

JAMMAJAMM A, B, C, D, E

TXD, RXD
DTR, CTS

LOUT

AC3

MONO

CSYNC

NTSC/PAL

(26P)

CN602

1
I
8

13

I

16

207

25
225
11

CSYNC

8

KCLK

KDATA

13 1454 12 15 16 17

HP L

SEL IR

KCLK

KDATA

EVER +5

(HP)

Q201

23
15
19

17
21
13

5 414 13 6 3 2 1

JAMM X, Y, Z

SYNC SEP

IC201

LM1881M

(V)

49

I

50
27

I

28
21

I

24
67

I

68
39

PS2B ASSY

I

JACB ASSY

JAA- E, JAX- Z

IC701

MAX202ESE

IC611 L611

Q505,
Q506

(V)

VIDEO

CB

Y1

CR
246 1

9

(V)

(Y)

(C)

CN653

(10P)

C

JA702

RS-232C

JA604

AUDIO OUT LCH

JA610

AC-3/PCM
DIGITAL
AUDIO
OUT

JA603

AUDIO OUT
(MONO)

COMPOSITE
VIDEO OUT

(Y)

(C)

JA602

S VIDEO
OUTPUT

D

11

5

6

7

8

1

23

4

DVD-V7400, DVD-V7300D

3.2 LOMB, LOSB, SMEB ASSYS and OVERALL WIRING DIAGRAM

A

Note : When ordering service parts, be sure to refer to "EXPLODED VIEWS and P ARTS LIST" or "PCB PARTS LIST".

HPIR ASSY
(DWG1530)

CN191

CN152

CN602CN103CN101CN151

D

G

B

PS2B ASSY
(DWG1531)

CN153CN801

F

D 1/4- D 4/4

CN106CN201

KEYB ASSY
(DWG1529)

H

SUBB ASSY

(DVD-V7400/KU/CA: DWG1528)

(DVD-V7300D/WYV/RB: DWG1527)

CN602

CN102

CN302

CN905

DVDM ASSY

(DVD-V7400/KU/CA: DWS1299)

(DVD-V7300D/WYV/RB :DWS1305)

E

C

(MONO)

JACB ASSY

(DVD-V7400/KU/CA: DWV1184)

(DVD-V7300/WYV/RB: DWV1189)

CN601 CN901CN653CN751

E 1/2- E 2/2

CN71CN301

I

EXTB ASSY

D

(DWV1185)

J

12

1234

5

678

DVD-V7400, DVD-V7300D

CN252

SPINDLE

CN1030

LOADING
SLIDER

CN120 CN258

CN251

CN252

LOSB ASSY

B

CN253

CN255

Short Open

CN301

(S)

(S)

SPINDLE MOTOR
VXM1073

(VWG1885)

VSK1011

CN303

A

SPDB ASSY(DWG1532)

K

CN257 CN000

(T)
(F)
(F)

(F)
(F)

(T)

S301

CN302

CN401

LOMB ASSY
(VWG1886)

(T)

(F)
(F)

(T)

CN201

S201

DSG1016

CN202

C

SMEB ASSY
(VWG2048)

: RF SIGNAL ROUTE
: FOCUS SERVO LOOP LINE

(F)

: TRACKING SERVO LOOP LINE

(T)

: SLIDER SERVO LOOP LINE

(S)

A

B

CN110 CN201

5

(F)
(T)
(T)
(F)

L

SYPS ASSY
(DWR1338)

CN101

6

(F)
(T)
(T)
(F)

CHASSIS GND

AC INLET

VKP2116

AC Power Cord
DVD-V7400/KU/CA: VDG1073
AC120V 60Hz

DVD-V7300D
WYV/RB only

DVD-V7400
KU/CA only

7

C

D

CBA

8

13

1

DVD-V7400, DVD-V7300D

3.3 DVDM ASSY (1/4)

D 1/4

A

CN110

VKN1479

B

23

DVDM ASSY (DVD-V7400/KU/CA: DWS1299)

(DVD-V7300D/WYV/RB: DWS1305)

1

D

2/4

D

2/4

(DVD) (DVD)

D

2/4

(CD)

4

CN201

VKN1324

2

D

2/4

4

UMX1N

(CD)

(F)

D

2/4

UMX1N

D

2/4

UMX1N

D

2/4

CN201

D

L

CN120

VKN1484

C

CN258

K

2/4

(F)

(F)
(F)
(T)

(T)

(T)
(F)
(F)

D

(F)
(T)

(F)
(T)
(T)
(F)

2/4

HN1A01F

(T)

(T)

IMX1IMX1

HN1A01F

(DVD)

(CD)

(T) (T)

D

D

2/4

2/4

D

UMX1N

2/4

CN1030

VKN1471

D

CN252

K

14

1/4

D

1234

(S)

(S)

D

2/4

D

2/4

IC352 :

SPDL & FTS

DRIVER

(F)

(T)

(T)

(F)

(S)

(F)

(S)

(T)

(S)

5

678

DVD-V7400, DVD-V7300D

(DVD)

(DVD)

: The power supply is shown with the marked box.

: RF SIGNAL ROUTE
: ROM DATA SIGNAL ROUTE

(F)

: FOCUS SERVO LOOP LINE

(T)

: TRACKING SERVO LOOP LINE

(S)

: SLIDER SERVO LOOP LINE

V+5E

D

2/4

FOR CHECKER

D

3/4

6

10K

10K

A

B

D

2/4

D

2/4

(CD) (CD)

(S)

(F)

(T)

D

2/4

D

7

2/4

5

C

IC751

D

2/4

8

D

D

2/4

4/4

9

10

11

CN252

VKN1575

K

CN251

D

2/4

D

2/4

D

2/4

D

1/4

D

5

6

7

8

15

1

DVD-V7400, DVD-V7300D

3.4 DVDM ASSY (2/4)

23

4

D 2/4

A

B

DVDM ASSY (DVD-V7400/KU/CA: DWS1299)

(DVD-V7300D/WYV/RB: DWS1305)

DYW1662

TC55V2001F-85L

3 TO 5
CONVERTER

D

1/4

D

1/4

D

4/4

MC74VHCT541ADT

D

3/4

5 TO 3
CONVERTER

MC74VHCT541DT

CN106

CN201

E 1/2

CSYNC

D

4/4

D

3/4

D

3/4

D

4/4

(V_SEL)

X601
20MHz
DSS1110

C

D

3/4

D

D

D

1/4

D

1/4

D

D

D

1/4

D

1/4

1/4

D

D

D

1/4

D

1/4

3/4

D

1/4

4/4

1/4

1/4

D

1/4

RB521S-30

D

1/4

D

3/4

RB521S-30

16

2/4

D

1234

5

678

DVD-V7400, DVD-V7300D

: The power supply is shown with the marked box.

: AUDIO SIGNAL ROUTE
: ROM DATA SIGNAL ROUTE

A

MN414800CSJ-07

D

2/4

D

3/4

DVD ENCODER

D

4/4

D

3/4

D

4/4

B

D

1/4

D

1/4

D

1/4

D

1/4

3

D

3/4

D

3/4

D

1/4

D

1/4

D

1/4

CN103

D

3/4

D

D

1/4

1/4

C

D

E 1/2

CN602

2/4

D

5

6

7

8

17

1

DVD-V7400, DVD-V7300D

3.5 DVDM ASSY (3/4)

23

4

D 3/4

A

B

DVDM ASSY (DVD-V7400/KU/CA: DWS1299)

(DVD-V7300D/WYV/RB: DWS1305)

D

2/4

100/10

C

MPEG2 DECODER

MITSUBISHI AV1

3 - 5 CONVERTER

D

18

3/4

D

1234

100/10

D

2/4

D

D

2/4

2/4

TC74VHCT541ADT

5

678

DVD-V7400, DVD-V7300D

: AUDIO SIGNAL ROUTE
: ROM DATA SIGNAL ROUTE

(V)

: VIDEO SIGNAL ROUTE

(Y)

: Y SIGNAL ROUTE

(C)

: C SIGNAL ROUTE

(R)

: R SIGNAL ROUTE

(G)

: G SIGNAL ROUTE

(B)

: B SIGNAL ROUTE

D

2/4

D

2/4

CLOCK GENERATOR

PXCLK

27MVE

AV1_VENC

D

4/4

D

2/4

D

1/4

D

4/4

A

B

D

2/4

C

D

2/4

D

4/4

D

D

4/4

3/4

D

5

6

7

8

19

1

DVD-V7400, DVD-V7300D

3.6 DVDM ASSY (4/4)

DVDM ASSY

D 4/4

A

B

(DVD-V7400/KU/CA: DWS1299)
(DVD-V7300D/WYV/RB: DWS1305)

23

D

2/4

D

2/4

MC74VHCT541ADT

3 TO 5 CONVERTER

D

3/4

D

3/4

: AUDIO SIGNAL ROUTE

(V)

: VIDEO SIGNAL ROUTE

(Y)

: Y SIGNAL ROUTE

(C)

: C SIGNAL ROUTE

(R)

: R SIGNAL ROUTE

(G)

: G SIGNAL ROUTE

(B)

: B SIGNAL ROUTE

(L9390: QTL1015)
(L9400: QTL1015)

HIBSLA1

(L9430: QTL1015)
(L9440: QTL1015)
(L9450: QTL1015)
(L9460: QTL1015)
(L9470: QTL1015)

(L9480: QTL1015)

CN905

VKN1503

4

NC
NC
PD

NC

E 2/2

CN302

CN901

(Y)

(V)

D

2/4

(C)

I

CN601

D

2/4

D

2/4

C

D

2/4

(C)
(Y)

(V)

D

1/4

R891: DVD-V7400/KU/CA 360
DVD-V7300D/WYV/RB 560

(Y)

(Y)

(Y)

D

3/4

(V)

D

(C)

20

4/4

D

1234

(V)

(C)

(V)

(C)

(V)

(C)

WAVEFORMS

Note : The encircled numbers denote measuring point in the schematic diagram.

Measurement condition : No. 1 to 4 and 6 to 11 : Disc MA1, Title 1-chp 1

DVDM ASSY

Foot of R169 (RF)

1

V: 100mV/div. H: 0.2µsec/div.

No. 5 : CD, ABEX-784 Track 1
No. 12 to 14 : MJK1, Title 1-chp 4 or T2-1
No. 15 to 17 : MJK1, Title 1-chp 5 or T2-19
No. 18 to 20 : T2-19, Color-bar (WY and WV Types only)

Q281 - Collector (FG)

7

V: 1V/div. H: 5msec/div.

GND

GND

DVD-V7400, DVD-V7300D

CN201 - pin 5, 6 (RFO)

2

V: 500mV/div. H: 0.1µsec/div.

IC701 - pin 170 (MY CHIP input)

3

V: 1V/div. H: 0.2µsec/div.

CN201 - pin 9, 10 (Tracking Error)

4

(AI-Inner Tracking Off)

V: 500mV/div. H: 2msec/div.

GND

GND

Foot of R261 (FPWM)

8

V: 1V/div. H: 5msec/div.

Foot of R262 (VPWM)

9

V: 1V/div. H: 5msec/div.

Foot of R263 (PPWM)

10

V: 1V/div. H: 5msec/div.

GND

GND

GND

IC201 - pin 39 (EFM before slice)

5

V: 1V/div. H: 1µsec/div.

IC201 - pin 1 (EFM)

6

V: 1V/div. H: 0.2µsec/div.

GND

GND

Foot of R264 (RPWM)

11

V: 1V/div. H: 5msec/div.

GND

21

1

DVD-V7400, DVD-V7300D

3.7 SUBB ASSY (1/2)

A

E 1/2

SUBB ASSY
(DVD-V7400/KU/CA: DWG1528)
(DVD-V7300D/WYV/RB: DWG1527)

B

23

4

(DOWN)

(UP)

CN151

F

(HP)

CN101

E

2/2

(HP)

C

MODEL

DVD-V7400/KU/CA
DVD-V7300D/WYV/RB

***

No Parts

R1002

DCN1094

Dorein

R1003

DCN1094

CN602

I

CN106

E

2/2

D

E

2/2

CN102

22

1/2

E

1234

CN201

D 2/4

E

2/2

5

678

DVD-V7400, DVD-V7300D

A

: AUDIO SIGNAL ROUTE
: H.PHONE SIGNAL ROUTE

(HP)

CAUTION:FOR CONTINUED PROTECTION AGAINST RISK OF FIRE.
REPLACE ONLY WITH SAME TIME NO. ICP-N15, MFD BY
ROHM CO., LTD. FOR IC100.

DCN1094

E

2/2

SYSTEM RESET IC

B

CN602

D 2/4

CN103

C

D

1/2

E

5

6

7

8

23

1

DVD-V7400, DVD-V7300D

3.8 SUBB ASSY (2/2)

A

23

4

E 2/2

SUBB ASSY (DVD-V7400/KU/CA: DWG1528)
(DVD-V7300D/WYV/RB: DWG1527)

CN302

B

E

1/2

CN905

D 4/4

E

1/2

C

VCXO F0 ADJ

E

YB

D

1/2

24

2/2

E

1234

5

678

DVD-V7400, DVD-V7300D

A

: AUDIO SIGNAL ROUTE
: H.PHONE SIGNAL ROUTE

(HP)

(HP)

(HP)

B

CN301

CN71

D 3/4

(HP)

E

1/2

C

E

1/2

(HP)

D

2/2

E

5

6

7

8

25

1

DVD-V7400, DVD-V7300D

3.9 HPIR, KEYB, PS2B ASSYS

A

G

HPIR ASSY
(DWG1530)

Earth Lead Hole

23

CN191

4

B

CN151

CN152

KEYB ASSY

F

(DWG1529)

CN153

CN101

E 1/2

EARTU METAL ASSY

S151: STANDBY/ON
S152: STILL/STEP REV

C

S153: STEL/STEP FWD
S154: DISP
S155: OPEN/CLOSE
S156: SCAN/SKIP REV
S157: SCAN/SKIP FWD
S159: PLAY/PAUSE

(GRN)

(RED)

(ORANGE)

(GREEN)

(GRN)

(GRN)

(RED)

(GRN)

D

STANDBY

26

F

(GRN)

POWER IND.

(RED)

G

1234

5

678

DVD-V7400, DVD-V7300D

A

CHASSIS GND

Baristor

CN801

PS2B ASSY

H

(DWG1531)

Earth Lead Hole

F801

VTH1039

GND GND

13

F802

24

GND GND

13

24

VTH1039

F803

VTH1039

GND GND

13

F804

24

GND GND

13

24

VTH1039

B

C

D

G

5

6

7

H

8

27

1

DVD-V7400, DVD-V7300D

3.10 JACB ASSY

JACB ASSY

I

A

(DVD-V7400/KU/CA: DWV1184)
(DVD-V7300D/WYV/RB: DWV1189)

CN601

CN901

D 4/4

(Y)

B

23

(C)

(V)

4

(V)

(C)

(Y)

JA610

CHASSIS GND

CN602

C

VTH1039

F701

1

GNDGND

24

VTH1039

F702

1

GNDGND

24

1

GNDGND

24

F703

CN102

VTH1039

VTH1039

1

GNDGND

24

F704

E 1/2

JA702

3

3

3

3

(RIGHT)

(UP)

(DWN)

(LEFT)

DCN1092

D

28

I

1234

5

678

DVD-V7400, DVD-V7300D

LEVEL

(VIDEO OUT)

: AUDIO SIGNAL ROUTE

(V)

: VIDEO SIGNAL ROUTE

(Y)

: Y SIGNAL ROUTE

(C)

: C SIGNAL ROUTE

(V)

(C)

(Y)

LEVEL

(C)

(Y)

(V)

(V)

A

B

CN653

CN751

J

(V) (V)

MODEL

(YB) (YB)

(V)

(Y)

(C)

(V)

(CHASSIS GND)

C

(V)

(CHASSIS GND)

(CHASSIS GND)

(CHASSIS GND)

29

I

5

6

7

8

D

1

DVD-V7400, DVD-V7300D

3.11 EXTB ASSY

23

4

A

CN653

CN751

(Y)

(CHASSIS GND)

I

(CHASSIS GND)

B

EXTB ASSY
(DWV1185)

J

(Y) (Y)

(CHASSIS GND)

(Y)

: Y SIGNAL ROUTE

(CHASSIS GND)

C

D

(CHASSIS GND)

30

J

1234

1

3.12 SPDB ASSY

234

DVD-V7400D, DVD-V7300D

CN255

To. SPINDLE MOTOR

: RF SIGNAL ROUTE
: FOCUS SERVO LOOP LINE

(F)

: TRACKING SERVO LOOP LINE

(T)

: SLIDER SERVO LOOP LINE

(S)

:
:

Short Open

(F)
(T)

(T)
(F)

2SC2412K(QRS)

A

CN251

CN252

D 1/4

B

(F)
(T)

(T)
(F)

To. PICKUP ASSY

CN301

B

(T)
(F)
(F)

(F)
(F)
(T)

CN257 CN258

K

SPDB ASSY
(DWG1532)

(S)

(S)

CN120

D 1/4

(T)
(F)
(F)

(F)
(F)
(T)

CN252

(S)

(S)

CN1030

D 1/4

C

D

CN253

K

1

2

3

4

31

1

DVD-V7400, DVD-V7300D

3.13 SYPS ASS

NOTE OF SPARE PARTS IN POWER SUPPLY (SYPS) ASSY

A

• In case of repairing, use the described parts only to prevent an accident.

• Please write the red mark on the board when the primary section of POWER SUPPLY (SYPS) Assy is repaired.

• Please take care to keep the space, not touching other parts when replacing the parts.

SYPS ASSY (DWR1338)

L

C112

0.047/630V

D108
D1N60

23

4

T101

7

9

1

2

3

5

6

10

11

14

12

GND2

13
16

15

T102

10

8

D106
(1/2)
TLF721F

D110
1SS270A

C121
100/35

6

5

4

2

1

Q103
2SK2700

R105

15k

R130
1/2W
390k

R131

CN101

3-176976-4

1

AC IN

2

1/2W
390k

LIVE

NEUTRAL

B

C

C111
150/470

C120
100pF

2A/250V

F101

0.1/250

R102
1/2W

6.8M

Q101
2SK2700

R110
10k

C101

C117
2200pF
/50

R101
1/2W
1M

C104

2200pF/250

D103
RD24FB2

L101

27mH/0.6A

413

C103
2200pF/250

C105
2200pF/250

FG101

C122

D107
1SS270A

2SC1740S

2

Q104

C102

0.1/250

R120

2.2k

R108

R109

D109
(1/2)
TLP721F

D101
S1WBA60

C110

0.01/50V

Q102
2SC3377

D152

D1N60

C153
22/400

S

BP FB

C154

0.1/50

RS204 0.01/50 2W

C115

0.033/50

L104

FBA04HA450

L103

C116

R116

D104
MTZJ2.4B

680 2.2k

SD

IC151

SS

D153
D1N60

R151
1W
100k

R111

3.3k

R112R113

D120
MTZJ22B

D151(1/2)
TLP721F

270

D105
1SS270A

C151
3300pF

D102
EG01C

R114

3.3k

C107
2200pF/250

C108
220pf/250

D

32

L

1234

5

• NOTE FOR FUSE REPLACEMENT

CAUTION -

FOR CONTINUED PROTECTION AGAINST RISK OF FIRE.
REPLACE WITH SAME TYPE AND RATINGS ONLY.

678

DVD-V7400, DVD-V7300D

A

D211

S2L20U

D711

S2L20U

D311

D3S4M

D411

D5S4M

D412

RD43FB

D511

10ELS2

D213

MTZJ15B

C311
330/35

C711
330/35

TLP721F

C411
1000/35

C211
330/35

D106

(2/2)

IC201

AN1431T

L711

39µH/1.3A

R201

L211

39µH/1.3A

47

R202
1k

C201

0.47/50

R711

0.51 1/2W

R203

1.5k

R204
330

R205

1.5k

IC311

PQ05RD11

IIO

GCT

PQ30RV21

GCT

IC411

O

R412
680

R411

1.2k

C412

100/25

C212
100/25

P211

VEK1041

1.0A/60V

C313
100/25

CN201

52806-2610

1 M+6V

M+6V

2

GND (M+6V, M+12V)

3

GND (M+6V, M+12V)

4

M+12V

5

GND (D+12V)

6

D+12V

7

GND (+5V)

8

GND (+5V)

9

+5V

10

+5V

11

+5V

12

+3.3V

13

+3.3V

14

+3.3V

15

+3.3V

16

GND

17

GND

18

GND

19

GND

20

GND

21
22

EV. +5V
P ON/OFF

23

FLAC

24

FLAC

25

-27V

26

CN110

1/4

D

B

D811

D2S4M

C811
330/35

D151

(2/2)

TLP7211F

IC801

AN1431T

39µH/1.3A

R801
47

L811

R802
1k

C801

0.47/50

R803

1.5k

R804
47

R805

1.5k

D109

(2/2)

TLP721F

Q801

DTC143ES

R806
680

C812
330/35

C

D

L

5

6

7

8

33

1

23

DVD-V7400, DVD-V7300D

4. PCB CONNECTION DIAGRAM

A

NOTE FOR PCB DIAGRAMS :

1. Part numbers in PCB diagrams match those in the schematic
diagrams.

2. A comparison between the main parts of PCB and schematic
diagrams is shown below.

Symbol In PCB
Diagrams

BCE

BCE

D

Symbol In Schematic
Diagrams

BCEBCE

BCE

DGGSS

BCE

DGS

Part Name

Transistor

Transistor
with resistor

Field effect
transistor

4

3. The parts mounted on this PCB include all necessary parts for
several destinations.
For further information for respective destinations, be sure to
check with the schematic diagram.

4. View point of PCB diagrams.

Connector

Capacitor

SIDE A

P.C.Board

Chip Part

SIDE B

B

C

Resistor array

3-terminal
regulator

D

34

1234

1

234

4.1 LOMB, LOSB and SMEB ASSYS

DVD-V7400, DVD-V7300D

A

B

LOSB ASSY

B

(VNP1628-A)

CARRIAGE
MOTOR

M

(VNP1695-A)

SMEB ASSY

C

K

CN253

LOMB ASSY

A

(VNP1628-A)

LOADING
MOTOR

C

SIDE A

CBA

1

2

3

4

35

D

1

DVD-V7400, DVD-V7300D

23

4

4.2 DVDM ASSY

A

D

E

CN301

B

DVDM ASSY

CN302

E

CN601

I

• This PCB is a four-layered board.

IC23

IC26
IC31

Q810 Q808

IC25
IC54

Q809 Q807 Q811
IC21
IC801

IC807

VR851
VC21

IC22

IC806

IC903

Q812

C

K

CN258

K

CN252

K

CN251

IC261

CN201

E

IC302

Q112

IC101 IC601

Q112 Q102

Q281

IC352 IC603

IC303

IC702

IC610

Q111

Q107

IC761

IC606

Q601
Q602

D

CN201

L

CN103

E

(VNP1706-B)

SIDE A

36

D

1234

1

234

DVD-V7400, DVD-V7300D

• This PCB is a four-layered board.

DVDM ASSY

D

IC905

IC803

IC27

IC805
IC802

IC201
IC701

A

IC73

B

IC701

IC701

(VNP1706-B)

Q542

IC608

Q106
IC299
Q543
IC904
IC609
IC611
IC612

IC751

IC792

IC604

IC607

IC231

Q179

Q105 Q237

Q113
Q114

Q101

Q103

IC791

C

Q106

Q251

D

SIDE B

D

1

2

3

4

37

1

DVD-V7400, DVD-V7300D

4.3 SUBB ASSY

23

4

A

B

IC102

IC101
IC103

IC201

VR230

IC231
IC232

IC230

SUBB ASSY

E

F

CN151

D

CN602

D

CN106

D

CN71

SUBB ASSY

E

Q201
Q202

Q300

C

D

CN905

IC303

IC302

K

D

SIDE A

CN602

(DNP1937-B)

SIDE B

38

E

1234

1

4.4 SPDB ASSY

234

DVD-V7400, DVD-V7300D

D

CN1030

K

SPDB ASSY

(DNP1937-B)

CN120

D

SPINDLE

MOTOR

ASSY

PICKUP

ASSY

CN252

D

Q250 Q251 IC251

B

A

B

CN301

SPDB ASSY

K

C

D

SIDE A

K

1

2

3

4

39

1

DVD-V7400, DVD-V7300D

4.5 KEYB, HPIR and PS2B ASSYS

23

4

A

KEYB ASSY

F

G

HPIR ASSY

E

CN101

B

PS2B ASSY

H

SIDE A

C

D

(DNP1937-B)

40

F

G

1234

H

1

234

DVD-V7400, DVD-V7300D

G

HPIR ASSY

KEYB ASSY

F

IC151

PS2B ASSY

H

A

B

Q150

Q150

SIDE B

Q151

C

D

(DNP1937-B)

F

1

2

3

G

H

4

41

1

(DNP1937-B)

JACB ASSY

I

CN901

D

CN102

E

Q505
Q506

Q901

IC220

Q683

Q701
Q708

EXTB ASSY

J

DVD-V7400, DVD-V7300D

4.6 JACB and EXTB ASSYS

A

B

23

4

C

D

42

I

J

1234

SIDE A

1

234

DVD-V7400, DVD-V7300D

JACB ASSY

EXTB ASSY

J

I

A

Q222

IC501

B

(DNP1937-B)

SIDE B

IC611

C

Q551
Q552

Q553
Q452

D

I

1

2

3

J

4

43

1

DVD-V7400, DVD-V7300D

4.7 SYPS ASSY

SYPS ASSY

A

L

23

AC IN

4

LIVE

DWR1338

TYPE 215002 FOR F101
MFD.BY LITTELFUSE INC.

B

NEUTRAL

C

D

CN110

D

SIDE A

44

L

1234

DVD-V7400, DVD-V7300D

5. PCB PARTS LIST

NOTES:•Parts marked by "NSP" are generally unavailable because they are not in our Master Spare Parts List.

5.1 LIST OF WHOLE PCB ASSEMBLIES

Mark

NSP LOAB ASSY VWM1798 VWM1798
NSP LOMB ASSY VWG1886 VWG1886
NSP LOSB ASSY VWG1885 VWG1885

NSP TRAVERSE MECHANISM ASSY VWT1170 VWT1170
NSP SMEB ASSY VWG2048 VWG2048

The mark found on some component parts indicates the importance of the safety factor of the part.

•

Therefore, when replacing, be sure to use parts of identical designation.
When ordering resistors, first convert resistance values into code form as shown in the following examples.

•

Ex.1 When there are 2 effective digits (any digit apart from 0), such as 560 ohm and 47k ohm (tolerance is shown by J=5%,
and K=10%).

560 Ω→56 × 10
47k Ω→47 × 10

0.5 Ω→R50 .....................................................................................RN2H R 5 0 K

1 Ω→1R0 .....................................................................................RS1P

Ex.2 When there are 3 effective digits (such as in high precision metal film resistors).

5.62k Ω→ 562 × 10

Symbol and Description

1

→ 561 ........................................................ RD1/4PU 5 6 1 J

3

→ 473 ........................................................ RD1/4PU 4 7 3 J

1 R 0

1

→ 5621 ...................................................... RN1/4PC 5 6 2 1 F

Part No.

DVD-V7400

/KU/CA

DVD-V7300D

/WYV/RB

Remarks

K

DVDM ASSY DWS1299 DWS1305

NSP FCJB ASSY DWM2107 DWM2111

SUBB ASSY DWG1528 DWG1527
KEYB ASSY DWG1529 DWG1529
HPIR ASSY DWG1530 DWG1530
PS2B ASSY DWG1531 DWG1531
JACB ASSY DWV1184 DWV1189
EXTB ASSY DWV1185 DWV1185
SPDB ASSY DWG1532 DWG1532

SYPS ASSY DWR1338 DWR1338

CONTRAST OF PCB ASSEMBLIES
DVDM ASSY

D

DWS1299 and DWS1305 are constructed the same except for the following:

Mark

SUBB ASSY

E

Symbol and Description

DWG1299 DWS1305

R891 RS1/16S5600F RS1/16S3600F

DWG1528 and DWG1527 are constructed the same except for the following:

Mark

Symbol and Description

DWG1528 DWG1527

R104 Not used RS1/10S103J
R105 RS1/10S103J Not used

Part No.

Part No.

Remarks

Remarks

JACB ASSY

I

DWV1184 and DWV1189 are constructed the same except for the following:

Mark

Symbol and Description

DWV1184 DWV1189

L681 LFA220J Not used
R692 RS1/10S0R0J Not used

Part No.

Remarks

45

DVD-V7400, DVD-V7300D

PCB PARTS LIST FOR DVD-V7400/KU/CA UNLESS OTHERWISE NOTED

Mark No. Description Part No.

LOMB ASSY

A

OTHERS

CN401 KR CONNECTOR B2B-PH-K-S

LOSB ASSY

B

SWITCH

S301 VSK1011

OTHERS

CN303 KR CONNECTOR B2B-PH-K-S
CN302 8P FFC CONNECTOR VKN1268
CN301 12P FFC CONNECTOR VKN1272

SMEB ASSY

C

SWITCH

S201 DSG1016

OTHERS

CN201 3P FFC CONNECTOR 52044-0345
CN202 8P FFC CONNECTOR VKN1212

DVDM ASSY

D

SEMICONDUCTORS

IC21 CY2081SL-655
IC603 DYW1662
IC101 LA9701M
IC201 LC78652W
IC352 M56788FP

IC803 M5M4V18165DTP-6S
IC801 M65773AFP
IC802 MB811171622A-100FN
IC806 MC44724A
IC612 MC74VHC541DT

IC611, IC807, IC905 MC74VHCT541ADT
IC702 MN414800CSJ-07
IC261, IC302 NJM2100M
IC601 PD3410A
IC701 PD4995A

IC604 TC55V2001F-85L
IC751 TC7SH32FU
IC24–IC27, IC303, IC73 TC7SHU04F
IC610 TC7W53FU
IC22 TC7WH74FU

Q106, Q109, Q807–Q812 2SA1576A
Q105, Q114 2SC4081
Q602 DTA114EUA
Q107, Q111, Q601 DTC114EUA
Q103, Q281, Q542, Q543 HN1B04FU

Q108 HN1K03FU
Q101 IMX1
Q102 HN1A01F
Q503 RN1911

Mark No. Description Part No.

Q112, Q113 UMX1N
D302 KV1470
D601 RB501V-40
D501, D502 RB521S-30

COILS AND FILTERS

F5050, F5090 DTF1067
F4010, F4020, F4030, F4040, F4050 DTF1070
F4060, F8330, F8510, F8520, F9590 DTF1070
L9390, L9400, L9430, L9440, L9450 QTL1015
L9460, L9470, L9480 QTL1015

F852 VTF1155
L304 VTL1059
L151 VTL1061
L1400 VTL1088
L9490, L9500, L9510 VTL1105

L101, L330 VTL1125

CAPACITORS

C612 CCSRCH100D50
C123, C145, C21, C282, C617 CCSRCH101J50
C126, C333 CCSRCH150J50
C206, C210, C211 CCSRCH151J50
C322 CCSRCH180J50

C116, C151, C314 CCSRCH220J50
C152 CCSRCH221J50
C632 CCSRCH330J50
C209 CCSRCH331J50
C104–C108, C128, C134, C297 CCSRCH470J50

C335 CCSRCH470J50
C122, C208 CCSRCH471J50
C73 CCSRCH560J50
C127, C334 CCSRCH5R0C50
C124, C146 CCSRCH680J50

C117, C240, C352, C360 CCSRCH681J25
C129, C142, C22, C405, C601 CEV101M10
C701, C763, C801, C802, C804 CEV101M10
C857 CEV101M10
C113, C139, C358, C368, C411 CEV220M16

C111, C147, C149, C205, C207 CEV470M6R3
C401, C403, C407 CEV470M6R3
C502 CKSQYB103K50
C140, C223, C224, C264, C312 CKSQYB105K10
C229 CKSQYB224K16

C217 CKSQYF105Z16
C216, C313 CKSRYB102K50
C133, C136, C203, C220, C225 CKSRYB103K50
C239, C320, C321, C619, C703 CKSRYB103K50
C722 CKSRYB103K50

C101, C102, C114, C118, C119 CKSRYB104K16
C121, C130, C138, C204 CKSRYB104K16
C212, C213, C227, C228, C231 CKSRYB104K16
C24, C263, C315–C317, C332 CKSRYB104K16
C75 CKSRYB104K16

C354 CKSRYB222K50
C153, C266 CKSRYB223K25
C214, C261 CKSRYB472K50
C357 CKSRYB473K16
C330 CKSRYB682K50

46

DVD-V7400, DVD-V7300D

Mark No. Description Part No. Mark No. Description Part No.

C109, C110, C120, C131, C148 CKSRYF104Z16
C150, C202, C215, C221, C222 CKSRYF104Z16
C226, C230, C235, C265, C29 CKSRYF104Z16
C31, C33, C35, C359, C367 CKSRYF104Z16
C369–C372, C402, C404, C406 CKSRYF104Z16

C408, C410, C412, C501 CKSRYF104Z16
C602–C611, C613–C616 CKSRYF104Z16
C621–C623, C625–C627 CKSRYF104Z16
C630, C631, C702, C704–C714 CKSRYF104Z16
C716–C721, C723–C725 CKSRYF104Z16

C761, C762, C822, C827, C829 CKSRYF104Z16
C832–C834, C836, C838, C840 CKSRYF104Z16
C856, C858–C864, C872 CKSRYF104Z16
C875, C876, C879–C881, C921 CKSRYF104Z16
C143, C319, C806–C819 CKSRYF105Z10

C328, C821, C824, C825, C828 VCG1030
(2.2µF)
C830, C837 (2.2µF) VCG1030
C23, C299 (0.47µF) VCG1032

SUBB ASSY

E

SEMICONDUCTORS

IC100 (0.6A/50V) ICP-N15

IC201 LM1881M
IC103 M51953BFP
IC230 NJM2100M
IC302, IC303 NJM4556AM

IC300 PCM1716E
IC101 PD4954A
IC102 S-3511AEFS
IC232 TC4W53F
IC301 TC7SU04F

IC231 TC7WU04FU
Q300 2SC1740S
Q201 DTC124EK
D102, D300, D301 1SS355
D230 KV1851
D302, D303 UDZS6.2B

RESISTORS

R123 (39Ωx4) ACN7047
R715, R716 (47Ωx4) ACN7077
R531, R543, R545, R613 (10kΩx4) DCN1094
R648, R649, R706, R707, R748 DCN1094
(10kΩx4)
R751 (10kΩx4) DCN1094

R121, R532, R732, R736 (22Ωx4) DCN1104
R785, R786, R818–R820, R825 DCN1104
(22Ωx4)
R848, R849 (22Ωx4) DCN1104
R1020, R162, R2010, R2020, R2030 RS1/10S0R0J
R2040, R3050, R3520, R506, R510 RS1/10S0R0J

R520, R601, R701, R801, R9220 RS1/10S0R0J
R9230, R9240, R941, R942 RS1/10S0R0J
R952–R958, R960, R964 RS1/10S0R0J
R864 RS1/16S1001F
R361, R364 RS1/16S1203F

R861 RS1/16S1501F
R363, R365 RS1/16S1503F
R837–R839 RS1/16S1800F
R860, R863 RS1/16S1801F
R829, R888, R895 RS1/16S4700F

R164, R891 RS1/16S5600F
R3510 (100Ω) VCN1120
Other Resistors RS1/16S&&& J

OTHERS

CN71 CONNECTOR B2B-ZR-SM3
X601 (20MHz) DSS1110
CN106 7P CONNECTOR VKN1299
CN201 14P CONNECTOR VKN1324
CN120 24P CONNECTOR VKN1464
CN1030 12P CONNECTOR VKN1471
CN602, CN901 15P CONNECTOR VKN1474
CN110 26P CONNECTOR VKN1479
CN905 17P CONNECTOR VKN1503
CN252 7P CONNECTOR VKN1575

LABEL VRW1773

COILS AND FILTERS

L303 LAU220J-TA
L230, L231, L306, L307, L803 QTL1015
L901–L906 QTL1015
F300, F301, F304, F305 VTF1096
L804 VTL1019

CAPACITORS

C236 CCSQCH200J50
C322, C328 CCSQCH221J50
C323, C333 CCSQCH330J50
C238 CCSQCH470J50
C207 CCSQCH471J50

C107 CCSQCH4R0C50
C304, C317, C327, C337 CEJA101M10
C302, C325, C331, C342, C343 CEJA101M16
C307 CEJA331M6R3
C105, C203, C310, C313 CEJA470M16

C311, C320, C326, C329, C332 CEJA470M25
C334, C335, C339 CEJA470M25
C206 CEJANP1R0M50
C201 CEV100M16
C101 CEV470M16

C239 CKSQYB472K50
C103, C104 CKSQYB102K50
C102, C106, C121, C234 CKSQYF103Z50
C109, C111, C115, C202 CKSQYF104Z25
C204, C205, C232, C233, C237 CKSQYF104Z25

C300, C303, C308, C309, C312 CKSQYF104Z25
C314, C315, C321, C324, C330 CKSQYF104Z25
C338, C341, C344, C231 CKSQYF104Z25
C208, C305, C306, C316 CKSQYF105Z16
C318, C319 CKSQYF105Z16

C340 CKSQYF473Z50
C230 CQMBA332J50
C110, C112 (0.22F/25V) DCH1037

RESISTORS

R1001–R1003 (10kΩ) DCN1094
R326, R337 RN1/10SE1602D
R324, R333 RN1/10SE8201D
VR230 (10kΩ) VCP1156
Other Resistors RS1/10S&&& J

47

DVD-V7400, DVD-V7300D

Mark No. Description Part No. Mark No. Description Part No.

OTHERS

CN301 2P CONNECTOR B2B-ZR-SM3
X230 (13.824MHz) DSS1117
CN201 7P CONNECTOR VKN1183
CN103 15P FFC CONNECTOR VKN1191

CN101, CN302 17P CONNECTOR VKN1193
CN102 26P FFC CONNECTOR VKN1202
KN100–KN102 VNF1084

X102 (32.768KHz) VSS1122
X101 (5MHz) VSS1142

KEYB ASSY

F

PCB BINDER DEF1012
PCB BINDER VEF1040

EARTH METAL FITTING

SEMICONDUCTORS

IC151 BU2090F
IC152 NJM2930L05
Q150–Q152 DTA124EK
D159 BR1112H
D158, D160 PG1112H-430

D153 SLR-343DC
D154, D157 SLR-343MC
D152, D155 SPR-505MVW

COILS AND FILTERS

L151 VTL1019

SWITCHES AND RELAYS

S151–S157, S159 ASG7013

CAPACITORS

C155 CEV101M10
C151 CEV470M6R3
C152, C153, C156, C157 CKSQYF104Z25

RESISTORS

Other Resistors RS1/10S&&& J

OTHERS

CN152 7P CONNECTOR 07PL-FJ
CN153 6P CONNECTOR 52492-0620
CN151 17P FFC CONNECTOR VKN1309

HPIR ASSY

G

SEMICONDUCTORS

D191 1SS355

COILS AND FILTERS

L181–L183, L187, L191–L193 QTL1015
F191 VTH1009

CAPACITORS

C182, C183 CCSQCH101J50
C192 CEJA101M10
C193 CKSQYF104Z25
C181, C191 (1000PF/18V) VCX1001

RESISTORS

VR181 (0.5kΩ-B) VCS1042
Other Resistors RS1/10S&&& J

OTHERS

CN191 7P CONNECTOR 07R-FJ
JA191 JACK AKN7008
191 REMOTE RECEIVER UNIT GP1U26X
JA181 JACK VKN1449

PS2B ASSY

H

SEMICONDUCTORS

D801–D80 1SS355

COILS AND FILTERS

F801–F804 VTH1039

CAPACITORS

C801–C804 CKSQYB152K50
C805 CKSQYF104Z25

RESISTORS

Other Resistors RS1/10S&&& J

OTHERS

CN801 6P CONNECTOR 52044-0645
JA801 SOCKET VKN1450

JACB ASSY

I

PCB HOLDER DNE1391

SEMICONDUCTORS

IC501 LA7135AM
IC701 MAX202ESE
IC220 NJM78M08FA
IC611 TC74HCU04AF
Q551 2PB709A

Q222 2PD601A
Q221 2SB1260
Q505, Q506 2SC1740S
Q452, Q552 2SD2114K
Q701–Q708 DTA124EK

Q553 DTC124EK
D702 1SS355
D701 UDZS5.1B

COILS AND FILTERS

L610, L681 LFA220J
L611 PTL1003
L802 RTF1167
F701–F704 VTH1039
L701 VTL1019

SWITCHES AND RELAYS

S401 VSH1009

CAPACITORS

C400 CCSQCH101J50
C687 CCSQCH471J50
C228, C519, C528, C611, C613 CEAT101M10
C226 CEAT101M16
C560, C684 CEAT102M6R3

48

DVD-V7400, DVD-V7300D

Mark No. Description Part No. Mark No. Description Part No.

C689 CEAT470M25
C526 CEJA101M10
C701 CEV101M10
C451, C551 CKCYB331K50
C506, C520–C522, C561 CKSQYB104K25

C224, C614 CKSQYF103Z50
C225, C227, C527, C530, C531 CKSQYF104Z25
C612, C616, C617, C690 CKSQYF104Z25
C702–C707 CKSQYF104Z25
C209, C210, C529 CKSQYF105Z16

RESISTORS

R701 (100Ω) DCN1092
R642, R657 RN1/10SC62R0D
R687 RN1/10SC68R0D
Other Resistors RS1/10S&&& J

OTHERS

JA702 D-SUB SOCKET 15P DKN1111
JA604 JACK VKB1046
JA603 JACK VKB1068
JA610 JACK VKB1077
JA602 SOCKET VKN1072

CN653 10P CONNECTOR VKN1186
CN601 15P CONNECTOR VKN1307
CN602 26P CONNECTOR VKN1318

EXTB ASSY

J

SCREW PLATE VNE1948

SEMICONDUCTORS

Q901 2SC1740S
D901, D902 1SS355

SPDB ASSY

K

SEMICONDUCTORS

IC251 BA6849FP
Q251 2SC2412K
Q250 DTC114YK

SWITCHES AND RELAYS

S251 VSH1009

CAPACITORS

C253, C255 CEAT470M16
C262–C264 CKSQYB333K50
C257 CKSQYB821K50
C258 CKSQYB822K50
C251 CKSQYF103Z50

C252, C254, C256 CKSQYF104Z25
C259–C261 CKSQYF105Z16

RESISTORS

R256–R258 RS1/4S2R2J
Other Resistors RS1/10S&&& J

OTHERS

CN255 11P CONNECTOR VKN1187
CN253 12P CONNECTOR VKN1188
CN251 7P CONNECTOR VKN1211
CN252 2P CONNECTOR VKN1216

CN257 24P CONNECTOR VKN1464

PCB BINDER DEF1012

SWITCHES AND RELAYS

S901 VSH1009
S750 VSH1020

CAPACITORS

C902 CEAT470M16
C774, C776, C795 CEAT471M6R3
C901 CEJANP220M10
C753, C903 CKSQYF104Z25

RESISTORS

R762, R780, R798 RN1/10SC62R0D
R811 RN1/10SC68R0D
Other Resistors RS1/10S&&& J

OTHERS

CN751 10P CONNECTOR VKN1302
JA751–JA753 BNC JACK VKN1447

SCREW VNE1948

49

DVD-V7400, DVD-V7300D

6. ADJUSTMENT

6.1 ADJUSTMENT ITEMS AND LOCATION

Note : When the Traverse mechanism adjustment is prnot operly adjusted, jitter, error rate and play ability are defective.

The noise may come out by the case.

Adjustment Points (PCB Part)
TP-Point

DVDM ASSY SUBB ASSY

CN703

IC21

Pin 6
(TP- Point)

CN120

IC801

Adjustment Point

Adjustment Items

[Electrical Part]

13.824MHz VCXO F0 Adjustment

1

IC601

CN1030

CN252

IC101

CN110

SIDE A

6.3 NECESSARY ADJUSTMENT POINTS

When

EXCHANGE PCB ASSY

Exchange board
SUBB ASSY

Mechanical

point

Electric

point

6.2 JIGS AND MEASURING
INSTRUMENTS

Frequency counter
Display digit ≥ 8-digit

Screwdriver (small)

Adjustment Points

Exchange board
DVDM ASSY

50

Mechanical

point

Electric

point

Note : is adjusted already.

6.4 ELECTRICAL ADJUSTMENT

1

13.824MHz VCXO F0 Adjustment

• When not properly adjusted : Uneven color

DVD-V7400, DVD-V7300D

• Normal mode

• Power ON

START

DVDM ASSY

IC21

Pin 6

SUBB ASSY

27.000MHz ± 20Hz

VR230

Player

Frequency counter

51

DVD-V7400, DVD-V7300D

7. GENERAL INFORMATION

7.1 DIAGNOSIS

7.1.1 TEST MODE SCREEN DISPLAY

Consecutive double-OSD display is supported during test mode. The screen is composed 10 lines with a maximum of 32 characters per line.
It can't be used with the debugging display mode together.

• Screen Composition

Character in bold : Item name

: Information display

Address

Background color

Tracking status

Spindle status and AFB status

AGC setting

FTS servo IC information

C1 error value of CD and DVD

Internal operation mode of

the mechanism control

Disc judgment and

CD 1/3 beam switch

Equalizer value and

jitter value

First Screen Display

Caution :

•The first screen and second screen switch by pressing [DISPLAY]

key of the remote control unit.

•It is only a version display part on the lower right of the screen

those contents of display change.

•MDL: V730/ (All modells of DVD-V730,DVD-V7400 and DVD-

V7300D are displayed like the left.)

•The displays of Tilt error value, Tilt servo status and pickup

DVD/CLD display deleted .

Remote control code
Key code

Mechanism position value and
slider position

Output video system and
Skirt terminal output
AV1 chip version

FL controller version and
region setting for the player

FL controller destination setting
Port No. of Flash ROM and

system controller
Flash ROM version and Flash ROM size

System controller revision
DVD mechanism controller revision

(Control and part No. of GUI-ROM)

• Description of Each Item on the Display

(1) Address indication

The address being traced is displayed in number.

DVD : ID indication (hexadecimal number, 8 digits)

[ ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ ]

CD : A-TIME (min. sec.) [ 0 0 0 0 ∗ ∗ ∗ ∗ ]

(Note : For DVDs, decimal-number indication is possible.)

(2) Code indication of the remote control unit
[R – ∗ ∗ ∗ ∗]

The code for the key pressed on the remote control unit, which is
received by the FL controller, is displayed while the key is pressed.
In the case of the double code, the second code will be displayed.

(3) Key code indication for the main unit [K – ∗ ∗ ]

The code for the key pressed on the main unit, which is received by
the system controller, is displayed while the key is pressed.

(4) Background color indication [C – R∗ ∗ G∗ ∗ B∗ ∗]

(5) Tracking status [TRKG – ∗∗∗]

Tracking on [ON ]
Tracking off [OFF]

(6) 1 Spindle status [SPDL – ∗ ∗ ∗]

Spindle accelerator and brake, free-runnimg [A/B]
FG servo [FG]
Rough, velocity phase servo [SRV]
Offset addition, rough, velocity phase servo [O_S]

2 AFB status [AFB – ∗ ∗]

ON [ON ]
OFF [OFF]

(7) Mechanism position value [M – ∗]

Position code [1] to [3]

(8) Slider position [S – ∗ ∗ ∗ ∗]

CD TOC area [IN ]
CD active area [CD ]

(9) AGC setting [AGC – ∗ ∗]

AGC on [AGC-ON]
AGC off [AGC-OFF]

52

DVD-V7400, DVD-V7300D

(10) Output video system [V – ∗ ∗ ∗ ∗]

NTSC system [NTSC]
PAL system [PAL ]
Auto-setting [AUTO]

Skirt terminal output [SK – ∗ ∗]

VIDEO [00]
S-VIDEO [01]
RGB [02]

∗ : Display only the model which can do the output setting of skirt

terminal.

(11) FTS servo IC information

DSP coefficient indication [KS – [∗ ∗ ∗ ∗] ∗ ∗ ∗ ∗ ]
Displays the address (four digits) of the specified coefficient
and the setting value (four digits) with [TEST] and [9] keys.

(12) Error rate indication

1 C1 error value of CD [ER – C1 ∗ ∗ ∗ ∗ ]
2 C1 error value of DVD [ER – ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ ]

(13) Internal operation mode of mechanism controller

[MM – ∗ ∗ : ∗ ∗]

Internal mechanism mode (2 digits) and internal mechanism step (2
digits) of the mechanism controller

(14) 1 Disk sensing [DSC – ∗ ∗ ∗]

The type of discs loaded is displayed.
[DVD], [CD ], [VCD], [ ]

2 CD 1/3 beam switch [BM – ∗ ∗]

(19)The part number of the flash ROM and system

controller [∗ ∗ ∗ ∗ ∗ ∗ / ∗ ∗ ∗ ∗ ∗ ∗ ∗ ]

1 Part number of the flash ROM <Front>

(Example) VYW1536-A = W1536A
(Example) PD6256A9 = 6256A9

2 Part number of the system controller <Rear>

(Example) PD3381T1 = 3381T1

(20) 1 Version of the flash ROM [V : ∗ . ∗ ∗ ∗]

2 Flash ROM size [FLSH = ∗]

(21) Revision of the system controller
[S : ∗ . ∗ ∗ ∗ / ∗ . ∗ ∗ ]

1 Revision number of the external ROM part (flash ROM) of the

system controller <Front>

2 Revision of the internal ROM part of the system controller

<Rear>

(22) Revision of the DVD mechanism controller

[M : ∗ . ∗ ∗ ∗ ]

Revision number of the external ROM part (flash ROM) of the DVD
mechanism controller

(23) Control and part numbers of the GUI-ROM
[GUI : ∗ ∗ ∗ ∗ ]

No GUI model displays as "––– / ––––".
OEM model displays the part number of GUI-ROM [GUI : ∗ ∗ ∗ ∗]

(15) 1 Equalizer value [E – ∗ ∗]

2 Jitter value [J – ∗ ∗]

nake the jitter four times, and renew it in every one second.
[4 – ∗ ∗]
CD is effective only in the jitter value.

(16) Version of the AV-1 chip [ AV : ∗ . ∗ ∗' ∗' ]

(17) 1 Version of the FL controller

[FL : ∗ ∗ ∗ ∗]

2 Region setting of the player [REG : ∗ ]

Setting value [1] to [6]

(18) Destination setting of the FL controller

[MDL : ∗ ∗ ∗ ∗ / ∗ ∗ ∗ ]

For charactors in front represent the type of model :
There charactors that follow represent the destination code.
J : /J, K : /KU, /KC, /KU/KC, R : /RAM, /RL, /RD, /LB,
WY : /WY

53

DVD-V7400, DVD-V7300D

7.1.2 Display of the Error History

• The type, date and time, and the number of occurrences of errors
of the player can be recorded.
Up to 8 types of errors can be recorded, and the number of
occurrences can be counted up to 255 per error type.
The date and time of the latest error is recorded per type. The date
and time are based on the real-time clock built into the player.

If the real-time clock has not been set or the setting is wrong, the
dates and times of occurrence recorded will be those of the clock
at that time.

• An example of the error history display is shown below:
Example of the error history display

Date and time of occurrence of
the latest error: 16:02, Nov. 5

Error count: Up to 255

Error code

11 11111337 0E
C3 11051602 03

00 00000000 00
00 00000000 00
00 00000000 00
00 00000000 00
00 00000000 00

("FF"), in hexadecimal

How to display the error history

• Press the ESC, TV/LDP, then SIDE A keys on the remote control
unit for service use, in that order.

How to clear the data of the error history

• While the error history is displayed, press the CLEAR key on the
remote control unit for service use.

Display of power-on and playback duration

• The power-on duration and playback duration of the player can be
recorded.

See below for how to display power-on and playback
duration.

• Power-on duration: Accumulated power-on duration of the player.

• Playback duration: Accumulated playback duration of the player.
Duration is counted even in Pause and Still modes. This playback
duration can be considered to be the spindle motor's duration of
rotation or duration of use of the laser diode.

Note: The power-on duration and playback duration are measured

using the CPU clock of the player, so you should allow for
about 2% error. Use these displays merely as a guide for
servicing.

• The data of the power-on and playback duration are not cleared if
the player's software upgrade is downloaded from the dedicated
web site.
(As for the DVD-V700, the data of the power-on and playback
duration are cleared when the player's software is upgraded.)

• In the above example, two types of errors are recorded, and six
other types of errors can be further recorded. In the above two
cases (error codes "11" and "C3"), the error history will be recorded
until their error count becomes "FF."

• The data of the error history can be cleared if the number of error
types reaches eight or the number of errors reaches 255. After the
data of the error history are cleared, new errors can be recorded.
(Cleared data of the error history cannot be restored. It is
recommended that the data of the error history be written down
before clearing.)

How to display power-on and playback duration

• While pressing the DISPLAY key of the main unit, set the POWER
switch to ON. (This is also explained in the Operating Manual.)

54

7.1.3 ERROR CODE TABLE

• ERRORE CODE

DVD-V7400, DVD-V7300D

rorrE

edoc

11tuoemithcraeS

21

91

B1

22

32

33

83

noitpircseD

rorrEfo

.sdnoces

yrterhcraeS

rorre

tuoemitgnicarT

elihw

gnigrevnoc

hcraes0xednI

rorre

fotuoemiT

renniredils

ecnerefmucric

fotuoemiT

retuoredils

ecnerefmucric

eslupKOFoN

kcabyalpgnirud

AVLC

-isnes-epyt-csiD

rorregn

.epytcsideht

DVDahtiwfisesuaCDCahtiwfisesuaCtinUehtfonoitarepO

7nihtiwetelpmocebtondluochcraeS

.nacs

3retfadetelpmocebtondluochcraesA

4detucexesawpukcabhcraes,seirter

6(tuoemitfoesacaniro,semit

11gnicartsawtinuehtelihw)sdnoces
elihwtegratehtdnoyeberomroskcart

.gnigrevnocsawnoitarepohcraeseht

tagnicartelihw)sdnoces5.01(tuoemiT

.hcraesafoecnegrevnocfoegatseht

.tniopni

.detelpmocsaw

.sdnoces3nihtiwNOtondluochctiwsedisnI potS

.sdnoces2nihtiwFFOtondluochctiwsedisnI potS

.semit02ylsuounitnocdetaivedsawsucofehtnehW

7nihtiwetelpmocebtondluochcraeS

ehtretnetondluoctidna,sdnoces

DCVybsdnoces7nihtiwaerategrat

detucexesawpiksredilstsniagapukcaB

piksredilsro,hcraesagnirudsemit4

-daerehtmorfgnitratsnidetlusereciwt

hcraeseht,hcraeS)xednI(kcarTgniruD

tondluocmargorpafogninnigebehtrof

02(sdnoces3nihtiwdetelpmoceb

)hcraeSxednIfoesacehtnisdnoces

atadCOTehtnodesabgninoitisopretfa

lliwgnisnesepyt-csid,sesaceerhtgniwollofehtnielbissopmisawgnitratslamronfI

rorresucofehtnehw,revewoH.rorre5Cgnitpecxeeruccosrorrerehtofideirtereb

:tnemomehtta"rorre83"sadehsinifsiti,semit3ylsuounitnocderuccosaw"33"

csidrehtonahtiwputratsdecrof)2(,tlusergnisnes-epyt-csidtsrifehthtiwputrats)1(

gnitangisedybcsidlanigiroehthtiwputratsdecrof)3(,epytcsidehtgnitangisedyb

,spotS:DC

noitareposeunitnoC:DVD

,spotS:DC

noitareposeunitnoC:DVD

potS

potS

ehttasucofstsujdA

ecnerefmucrictsomrenni

stiotnruterotseirtdna

rorreehterehwnoitisop

3rof(detarenegsaw

.sneponeht,)semit

stsisreprorreemasehtfI

yarteht,yrterenoretfa

)eslupKOFoN(.snepo

nepO

55

DVD-V7400, DVD-V7300D

rorrE

edoc

93
14tuoemiteldnipS .dnammocpotSafoecnaussifosdnoces01nihtiwedompotSretnetondidtinuehT potS

84

94

A4tuoemitkcoleldnipS .BFAehttratserofebsdnoces5.1nahteromkcoltondluoceldnipS

15

25

35

45

55

65

75

85

95

A5

B5

C5

D5

F5

26rorreyrteresuaP

tuoemit

GFeldnipS

noitceted

nwodpmuj

pupmuj

gnisnes

NOovres

fotuoemit

saibsucof

fonoitpircseD

rorrE

egrevnocCGS

.kcikeldnips

tuoemitnoitisnart

LLPeldnipS

tuoemitnoitisnart

ecneuqesotuA

kaepfotuoemit

ecneuqesotuA

sucoffotuoemit

ecneuqesotuA

sucoffotuoemit

ecneuqesotuA

CGAyalpfotuoemit

ecneuqesotuA

-epyt-csidfotuoemit

ecneuqesotuA

2BTAfotuoemit

ecneuqesotuA

gnikcartfotuoemit

ecneuqesotuA

1BTAfotuoemit

ecneuqesotuA

sucoffotuoemit

tnemtsujdaniag

ecneuqesotuA

gnikcartfotuoemit

tnemtsujdaniag

ecneuqesotuA

tesffofotuoemit

tnemtsujda

ecneuqesotuA

rotcafnoitaludom

tnemerusaem

ecneuqesotuA
otuafotuoemit

ecneuqesotuA

ysubydaerla

.sdnocesevifnihtiwnoitator

.sdnocesevifnihtiwnoitator

.tnessawdnammoc)BTA

.tnessawdnammoc

.desaelerneebdahtiretfa

DVDahtiwfisesuaCDCahtiwfisesuaC

kaepehtstcetedgnirudegrevnoctondluocCGS nepO

nihtiwotniegrevnoctondluoceldnipsehT ± fo%21

retfasdnoces01nihtiwdeepsnoitatorGFtegrateht

csidretfaemittsrifeht(putratsretfaemittsrifehT

tegratehtforebmunehtemocebt'nseodti,)noitcnitsid

lamronbaehtstceted,putratsretfaemittsrifehT

.spool3ylsuounitnocdeeps-hgihforebmunnoitator

Sm06ot04:DC,Sm9ot5:DVD

tegratehtforebmunehtemocebt'nseodti,putratsretfasemitdnocesehtretfA

.snoitatordeeps-wolrodeeps-hgihlamronbaehtstceteD

Sm06ot04:DC,Sm9ot5:DVD

ehtretfadnoces1nihtiwnrutertondidYSUBA

.tnessawdnammoc)noitcetedkaep(TCTDD

DPMJFehtretfaSm03nihtiwnrutertondidYSUBA

.tnessawdnammoc)0ot1pmujsucoF(

UPMJFehtretfaSm03nihtiwnrutertondidYSUBA

.tnessawdnammoc)1ot0pmujsucoF(

ehtretfaSm05nihtiwnrutertondidYSUBA

.tnessawdnammoc)gnirusaem-CGA-yalp(NOMUSG

ehtretfasdnoces2nihtiwnrutertondidYSUBA

.tnessawdnammoc)gnisnes-csid(TRSJD

ehtretfadnoces1nihtiwnrutertondidYSUBA

lanretxefonoitelpmocehtretfaBTAlanretnI(SFOLBT

NOSTehtretfaSm005nihtiwnrutertondidYSUBA

.tnessawdnammoc)NOovresgnikcart(

LBTehtretfaSm002nihtiwnrutertondidYSUBA

.tnessawdnammoc)BTAlanretxe(

NGFehtretfasdnoces2nihtiwnrutertondidYSUBA

.tnessawdnammoc)tnemtsujdaniagsucof(

NGTretfasdnoces2nihtiwnrutertondidYSUBA

.tnessawdnammoc)tnemtsujdaniaggnikcart(

ehtretfadnoces1nihtiwnrutertondidYSUBA

.tnessawdnammoc)tnemtsujdatesffo(EVADMC

RIMJDAehtretfaSm002nihtiwnrutertondidYSUBA

.tnessawdnammoc)tnemerusaemrotcafnoitaludom(

BFAehtretfasdnoces2nihtiwnrutertondidYSUBA

.tnessawdnammoc)saibsucofotua(

sawYSUBAesuacebtnesebtondluocdnammocA

VLTretfaSm002nihtiwnrutertondidYSUBA.wol

seirtereerhtnihtiwderotserebtondluocedomesuaP

ehtfonoitarepO

tinU

)tuoemitGF(.spotS

.spotS

deyalpsidsi"37"(

gnitratsgnirud

).ssecorp

.spotS

deyalpsidsi"37"(

gnitratsgnirud

).ssecorp

potS

potS

potS

potS

potS

potS

potS

potS

potS

potS

potS

potS

potS

potS

noitareposeunitnoC

56

DVD-V7400, DVD-V7300D

rorrE

edoc

17

27

37

47

18

28

1A

2A

3A

4A

1B

2B

3BecartrofrorreyrteR

3C

)5C(

3E

5FdehsupgniebyarT

8FtuoemitgnidaoL

CFsucoF

fonoitpircseD

rorrE

daertonnacDI

gnicartgnirud

kcehcedocbuS

gniruderuliaf

kcabyalp

tadaertonnacDI

putratseht

kcehcedocbuS

putratsgniruderuliaf

foCOT

rellortnoc

rellortnoc

dnammoc

roftuoemit

pukcab

pukcab

gnidaerroftuoemiT

msinahcemeht

gnidaerroftuoemiT

metsysehtfoCOT

noitacinummoC

PSDfotuoemit

002 µ .)S

noitacinummoC

gnidaerroftuoemit

tneiciffeocPSD

noitacinummoC

gnitirwroftuoemit

tneiciffeocPSD

noitacinummoC

tneiciffeocPSD

rofrorretuoemiT

rofrorreyrteR

tnerrucrevo

tsettiucric-trohS

tsniaganoitaloiV

draugypoclatigid

.PSD

µ ro,gnitirwtneiciffeocsuounitnocgnirudS

gnitirwylsuounitnoc

gnikcartfonoitceteD

rorregnidnopserroc

.ylsuounitnoc

.ylsuounitnoc

.)sdnoces5

002tuoba(emitdeificeps µ aretfadnaerofeb)S

.PSDotdeussisaw

.eromrodnoces

.yawanurgnitceted

.ecroflanretxenaybnepO

DVDahtiwfisesuaCDCahtiwfisesuaC

.eromrodnoces1rofdaerebtondluocDInA potS

retfadnoces1nihtiwdaerebtondluocDInA

.dehsinifneebdahtnemtsujdaBFAeht

PSDotdeussiebtondluocdnammocA

nisaw)YSUBCX(ysuBdnammoCesuaceb

tuoba(emitdeificepsarof)L=YSUBCX(ecrof

arofecrofnisaw)YSUBCX(ysuBdnammoC

ro,PSDotdeussisawdnammocdaertneiciffeoc

ecnaussidnammocretfakcab-ohcesserddaeht

.sserddaputesehthctamtondid

arofecrofnisaw)YSUBCX(ysuBdnammoC

retfadnaerofeb)Sm4201tuoba(emitdeificeps

otdeussisawdnammocetirwtneiciffeoceht

002rofecrofnisaw)YSUBCX(ysuBdnammoC

dnammocetirwsuounitnocaretfadnaerofeb

.semitthgiederuccororregniwollofehT

.eromrosdnoces

3rofdaerebdluocemarfoN

.dehsinifneeb

.erom

metsysehtfoCOTgnidaeR

1rofdaerebtondluocsedoc,ecneuqespukcabehtgnirudetatsgnicartehtnI
ebtondluocPSDovresehtfoecneuqesNOgnikcart,ecneuqespukcabehtnI

.deussisawdnammocNOgnikcartehtretfaSm005nahteromfinevedetelpmoc

eromrosm003rofLtasawtropnoitcetedtnerrucrevoeht,kcabyalpgniruD

eromrosm04rofLtasawtropnoitcetedtnerrucrevoeht,nosawrewopehtelihW

.tnessaw)PSDovresehtot(dnammocNOsucofeht

.detelpmoctonsawNIsucofyllautca,dehsinifsawecneuqesNIsucoF)2(

3nihtiwdaerebdluocedocbusoN

dahtnemtsujdaBFAretfasdnoces

rosdnoces03koottuodaerCOT

.ecneuqespukcabehtnisemit3rofNOgnikcartehtgnirterretfaelbissopmignicarT spotS

rofsnoitarepopukcabfosnoitaretieerhtretfadetcetedsawyawanur,gnicartgniruD

nahtrehtoedomaotdegnahcylbicrofsawedomnepOneebdahtahthctiwsyartehT

tuoba(emitdeificepsanihtiwdetelpmocebtondluocgnipmalcrognidaolnu,gnidaoL

retfasdnocesowtnahteromfinevedetelpmocebtondluocecneuqesNOsucoF)1(

potS

snepO

potS

potS

.eromrosdnoces03kootrellortnoc

noitarepooN

noitarepooN

noitarepooN

noitarepooN

spotS

spotS

)yromem

spotS

sesolC

.)Bedis

ehtfonoitarepO

tinU

)eruliaftuodaerDI(

edocbuS(snepO

.)eruliaftuodaer

lacinahcemeht(spotS

setareporellortnoc

.)yltnednepedni

rewopehtffosnruT

noitacidnioN(yltnatsni

dnayalpsidLFehtno

hsalfotgnitirwon

gnidaolehtsesreveR

situoemittI.noitcerid

,yrternopudetaeper

.spotstinueht

reverehwspotS

sneponehtelbissop

foesacehtnispots(

57

DVD-V7400, DVD-V7300D

7.1.4 TROUBLE SHOOTING

• No Power ON

START

Turn on the power again
after 2 - 3 minutes.

Is tray open ?

Yes

Do the video and

sound come on ?

Yes

Power ON

No

No

• Blow out fuse of the primary side

• Blow out micro-fuse on the POWER SUPPLY Assy. (Check the each voltage.)
(P211, R711)

• MODE controller IC (IC101) on the SUBB Assy is damaged.

• Blow out micro-fuse on the POWER SUPPLY Assy.
(R711)

• Check the connection between LOSB Assy and DVDM Assy.
(12P flexible cable)

• Check the +6V power supply voltage (above micro fuse).

Check the connection between JACB Assy and DVDM Assy.

58

OK

7.1.5 SERIAL CONTROL

1. Serial Interface Specifications

Signal Interface

The signal interface is a standard RS-232C connection.

Data Type

Data Length: 8 bit
Stop Bit: 1 bit
Parity bit: No Parity

Data Transfer Speed (Baud Rate)

The data transfer speed may be set to either 4800 or 9600 baud
through the Industrial player menu screen and/or with the Advanced
Feature Menu Set command (please refer to the DVD-V7400/
V7300D Operating Instructions and the Advanced Feature Menu
Set command description).

NOTE: The factory default is 4800 baud; however, the player

memorizes the transfer speed each time the power is
cycled.

2. Communication with a Computer

The DVD-V7400/V7300D communicates to the computer through
the player's RS-232C port using pins 2 and 3 for communication
and Pin 1 for grounding. Control or "handshaking" lines other than
the TxD and RxD connections are not required. Please refer to the
diagram below for clarification.

Computer DVD-V7400/7300D

TxD
RxD

GND

Some computers require the CTS port to be set to HIGH during
communication. It is best to connect the CTS port on the computer
to the DTR port on the player. During normal operation the player's
DTR is set to HIGH thus the unit is able to receive a command at
any time.

3. Command and Status

During normal operation, a computer transmits commands to a
DVD-V7400/V7300D and the player responds with the status
message, 'execution complete'.

Example:

COMPUTER DVD-V7400/V7300D
(1) "Search to Frame 1000" \ (2) Search Execution

| (3) Complete

(4) "Play to Frame 2000" \ (5) Play Execution

| (6) Complete

NOTE:The length of a command string is limited to 32 characters.

Please refer to COMMAND STRUCTURE for additional
information.

RxD (Pin 3)
TxD (Pin 2)
GND (Pin 1)

DVD-V7400, DVD-V7300D

When using a computer to control the DVD-V7400/V7300D player,
follow the command protocols listed below:

ASCII characters are used for actual commands and status
response

Command mnemonic is expressed as two (2) ASCII characters

Uppercase letters are recommended; however, usually there are
no distinctions between the uppercase and lowercase letters

Some commands require an argument

(e.g. chapter number or speed)

Use a command as the terminator of an argument

The player executes a command as soon as the carriage return
<CR> is received. The <CR> acts as the command line terminator.

Example:

CH<CR> : Set chapter for address mode
10SE<CR> : Search to chapter 10

The player has a command buffer, which stores a command string
of up to 32 characters in length.

Example:

10SE 20PL<CR> : Search to chapter 10 then play to 20

The command string enters the buffer with the left character and
continues sequentially from left to right. When the <CR> is
entered, the commands are executed sequentially beginning with
the first command in the buffer. In the example above, the first
command is 10SE.

NOTE:The player ignores codes in the command string such as

<SPACE> or <LF> (line feed) which do not affect the
player's operation.

NOTE:Some commands, sent after a specialty command which

includes an AUTOSTOP setting, (PL, MF, MR, etc.), cause
the player to execute the new command before the
AUTOSTOP is enacted.

When all the commands in a string have finished executing, the
player transmits or returns the "complete" message.

The player returns an R after a command has been executed. This
response is called the Automatic Status. The Automatic Status
signals the computer program to send the next command. If this
function is not used, the command processing time must be taken
into consideration before the next command is sent.

If an error occurs, the player returns an error message such as E04.
The message indicates an error has occurred as well as the type of
error. Error messages are in the form of EXX where XX represents
a 2-digit error code.

In some cases, an incorrect command sends the player to search
within a non-recorded area and the player returns an error message.
Use the Request Status function to determine the unit's current
status (actual player hardware failures are rare).

59

DVD-V7400, DVD-V7300D

Apply one of the following methods to reset the player after an error

The status functions are summarized below:

has occurred:

Use ?P to determine the Active mode of the player
Use ?X, ?W, ?M, ?H, ?H ?S to determine the player information,
model name, clock time, player region code, the setting of
Industrial Player Menu, etc.
Use ?F, ?T, ?C, or ?R to determine the current frame, time,

Status Reporting

Auto Status

Auto Completion Message
Error Indication Message

Request Status

chapter, title/track number, respectively.
Use ?V, ?D, ?K, ?G, ?Y, or ?Q to determine the disc information,
disc type, total frame number, TOC information, etc.

4. Error Messages

If an error occurs during a command execution, the player returns an error code. The table below lists each code with a description of the error:

Code Message Description

E00 Communication error Communication Line Error due to framing error or buffer overflow
E04 Feature not available Non-Usable Function has been tried - either the command mnemonic is wrong or the

command can not be used in this mode
E06 Missing argument Correct parameter is not specified
E11 Disc does not exist There is no disc in the tray
E12 Search error Search address is missing

Read error of Text File; (When the command [UU] is executed)
E15 Picture stop Playback has been stopped by a picture stop code while in the Auto Play mode
E16 Interrupt by other device The command(s) sent via the serial line were not executed before commands were sent

E99 Panic Unrecoverable Error occurred - possible that a disc cannot be loaded and/or playing does

from the front panel buttons and/or remote control

Forced end of the data transfer while Text File sends to PC (When the command [UU] is

executed)

not continue

5. Initial Setting

The following table provides the default internal register and switch settings. Take care to set each to the required parameters when creating
an application program.

Register/Switch Setting at Power ON

Key Lock 2 : If set to 2 power is OFF

0 : All other cases
Video Switch 1 : ON
Audio Switch 3 : Audio 1
Display Switch 0 : OFF
Address mode 1 : Time
Speed Parameter 30 : 1/2 Speed
CCR 3 : Mode 3
Register A 3 : Title/Chapter and Frame Display (DVD)

Track/Time Display (CD, VCD)
Register B 0 : Normal Squelch
Register D 0 : CR

60

6. COMMAND STRUCTURE

The DVD-V7400/V7300D supports the commands listed below.

DVD-V7400, DVD-V7300D

COMMAND

Name

Open OP X X X X
Close CO X X X X
Reject RJ X X X X
Start SA X X X X
Play (adrs) PL X X X X
Pause PA X X X X
Still ST X X X
Step Forward SF X X X
Step Reverse SR X X
Scan Forward NF X X X X
Scan Reverse NR X X X X
Scan Stop NS X X X X
Multi-Speed Forward (adrs) MF X X X
Multi-Speed Reverse (adrs) MR X X
Speed arg SP X X X
Search adrs SE X X X X
Search & Play *1 adrs SL X X X X
Stop Marker adrs SM X X X X
Lead Out Symbol LO X X X X
Clear CL X X X X
Frame FR X X
Block Number BK X X
Time TM X X X X
Chapter CH X X
Title TI X X
Index IX X X
Track TR X X
Select Subtitle arg SU X X
Select Audio arg AU X X
Select Aspect arg AP X X
Select Angle arg AG X X
Select Parental-Level arg PT X X
Audio Control arg AD X X X X
Video Control arg VD X X X X
Display Control arg DS X X X X
Keylock arg KL X X X X

Mnemonic

SUPPORTING FORMATS

DVD

LB comp.

DVD

CD VCD

COMMAND

Name

Stack Group Set arg GP X X
Barcode / Command Stack Play
Video Blackboard Display arg VS X X
Video Blackboard Clear arg CB X X
Blackboard/Stack Data Upload*1
Blackboard/Stack Data Download*1
Weekly Timer Data Upload*1
Weekly Timer Data Download*1
Text File Data Upload*1 UU X X
Current Address Request ?A X X X X
Title/Track Number Request ?R X X X X
Chapter Number Request ?C X X
Time Code Request ?T X X X X
Index Number Request ?I X X
Frame Number Request ?F X X
Block Number Request ?B X X
Total Frame Request ?Y X X
TOC Information Request ?Q X X
Disc Region Code Request ?G X X
DVD Disc Status Request ?V X X
LD Disc Status Request ?D X
CD Disc Status Request ?K X X
Register A Set (Display) arg RA X X X X
Register B Set (Squelch) arg RB X X X X
Register D Set (TxD Term) *1
Print Character arg PR X X X X
Clear Screen CS X X X X
Real Time Clock Set WW X X X X
Advanced Feature Menu Set *1
Communication Control Set arg CM X X X X
Player Active Mode Request
Player Model Name Request
Real Time Clock Request ?W X X X X
Advanced Feature Menu Request*1
Player Region Code Request
CCR Mode Request ?M X X X X

Mnemonic

arg BS X X

BU XXXX
BD XXXX
WU XXXX
WD XXXX

arg RD X X X X

arg MS X X X X

?P XXXX
?X XXXX

?S XXXX
?H XXXX

SUPPORTING FORMATS

DVD

LB comp.

DVD

CD VCD

61

DVD-V7400, DVD-V7300D

COMMAND

Name

Input Number Request ?N X X X X
Error Code Request ?E X X X X
Input Unit Request #I X X X X
Input Barcode Data Request
Register A Request $A X X X X
Register B Request $B X X X X
Register D Request*1 $D X X X X
Menu Call*2 arg MC X X
Numeric Button*2 arg NB X X
Button Select*2 arg CU X X

Mnemonic

#B XXXX

SUPPORTING FORMATS

DVD

LB comp.

DVD

CD VCD

COMMAND

Name

ENTER Button*2 (arg) ET X X
Get Information*2 arg GI X X

Mnemonic

SUPPORTING FORMATS

DVD

LB comp.

DVD

CD VCD

NOTE: Commands prefaced with an *1 are supported by firmware

Version 2.00

NOTE: Commands prefaced with an *2 are supported by firmware

Version 2.20

NOTE: A command with an argument or address parameter is prefaced

by arg (argument) or ards (address). If the arg or ards is in
parentheses ( ), the parameter is optional.

Command Mnemonic

Each command is expressed as two (2) ASCII characters. There is no distinction between uppercase and lowercase letters except when the
Character strings are in a PR command.

NOTE: Do not issue a command without a Text File Data Upload [UU], Reject [RJ] or Open [OP] sequence while the video text is displayed.

A command issued without one of these sequences causes the player to return an error code E04.

Argument

An argument is expressed in either ASCII characters or ten digits and consists of either an address or an integer. A Control Register uses an
integer value to set a specified value or condition.

If a command requires an argument, it is always placed before the command.

Example : N1N2N3

Minimum 000 ~ Maximum 300 (except MS command)
Minimum 000 ~ Maximum 520703 (Only MS command)

NOTE: If a command requires an argument but one is not supplied, the player returns an error message.

An Address can be a title, a chapter, a track, an index number, a frame number, or a time code depending upon how the address flag is set.
The Address must not exceed ten characters and/or digits.

Address Type Media Type Format Range (Min – Max)

Title Number DVD N1 N2 0 – 99
Chapter Number DVD N1 N2 0 – 99
Frame Number DVD/VCD N1 N2 N3 N4 N5 N6 N7
Time Code DVD N1 N2 N3 N4 N5

CD/VCD N1 N2 N3 N4
Track Number CD/VCD N1 N2 1 – 99
Index Number CD/VCD N1 N2 1 – 99
Block Number CD/VCD N1 N2 N3 N4 N5 N6

a

Na Nb Nc minutes Nd Ne seconds are calculated into frame number.

b

N1 N2 N3 minutes N4N5 seconds.

c

N1 N2 minutes N3 N4 seconds.

d

N1 N2 minutes N3 N4 seconds N5 N6 block.

c

a

0 – 1079999

b

d

0 – 59959
0 – 9959

0 – 995974

62

DVD-V7400, DVD-V7300D

2nd Field

1st Field

3 Field

Indeterminate

area

(7 msec)

Period of inputting

the PLAY command

Playback

starts

Command String

A command string consists of multiple commands on one line. The
maximum length of a command string is 32 characters. All
command strings are terminated by the Carriage Return <CR> code
(0DH hex).

Example : FR2000SE 2300PL<CR>
NOTE: The Real Time Clock Set [WW] , Print Character [PR],

Blackboard/Stack Data Upload [BU], Blackboard/Stack
Data Download [BD], Weekly Timer Data Upload [WU],
Weekly Timer Data Download [WD], Text File Data
Upload [UU] commands should be assigned individually.

Once the <CR> termination command is added to the string, the
command string is evaluated and executed from left to right in
sequential order.

If an error occurs during the execution of a String, the remainder of
the string following that command is not executed.

If a new command string is input before the execution of the current
string is complete, the current string is aborted and the remaining
commands are cleared.

To cancel a currently executing string, send the termination command
<CR> alone.

If a new command without Text File Data Upload [UU] is input
while playing the current command stack, the remaining commands
are cleared.

Status Returns

The completion message used in the Automatic Status is "R".

Example: R<CR>

Error Message

An error message is indicated by the letter E and followed by a two­character error code.

Example: EN1N2<CR>
The error message occurs when the given command cannot be

processed.

Timing

The time it takes to receive a command and return a Status Value
is defined as follows:

T1 represents the time from when the termination of the String
<CR> is received to the beginning of the execution of the
command extension. The maximum is approximately 24ms.

T2 represents the time it takes to execute the command.
Depending upon the command type and the player's condition,
the minimum is 14ms.

RxD

L

P

TxD

<CR>

T1 T2

Execute

R

= +

T3

<CR>

Playback in External Sync Mode

In External Sync mode, the player synchronizes the transition from
the reception of a PL (PLAY) command to playback or from Still
mode to playback with a Vertical Sync signal for simultaneous start
of multiple players. Therefore, the timing for starting playback can
be controlled by the timing of sending the PL command to the
players, as described below.

Playback starts from the first field, which is located three fields
after the PL command was received in video Still mode. The
indeterminate area is a 7-msec period from the beginning of a
second field. If a CR at the end of the PL command falls into this
indeterminate area, the timing of the start of playback will be either
as shown below or one frame before.

Request Status Return

In response to a single request command, the status returns as a line
of letters terminated by <CR>.

If multiple request commands are sent to the player within the same
String, the player returns a separate status value upon completion
of each command. A status value is a character string with a <CR>
termination code.

Example: ?C?F<CR> \ 02<CR>

10260<CR>

When the request command is at the end of the command string, the
R within the completion message is omitted.

Example:

ST?F<CR> \ 23005<CR> (completion omitted)

Example:

?FST<CR> \ 23005<CR>R<CR> (not omitted)

The PL command in External Sync mode is the only command to
be executed in synchronization with the Vertical Sync signal.

63

DVD-V7400, DVD-V7300D

7.1.6 PARALLEL CONTROL

1. External Switch Control

To control the player through the Serial Interface Connector, use a
switching circuit with pins terminated to a +5 volts DC / internal
20,000 ohms resistor.
To activate a function, create a switch contact with an electrical
ground (Pin 1). Check Chapter 2 to verify pin (Pin 6 through Pin

13) and terminal (SW1 ~ SW8) assignments.

2. Function Assignment

Each function of the external option switch is greatly classified into
three.

1. Key which calls and executes group of bar code/command stack

• Stack grop1-27 of the function is key which executes command
stack which registers (MEMORY key + ENTER) in the remote
control key.

Diode Assignment List

SW1 SW2 SW3 SW4 SW5 SW6 SW7 SW8

Function ±≠+=ENTER X Y Z

± X
≠ X
+ X
= X

ENTER X
STACK GROUP1 X
STACK GROUP2 X
STACK GROUP3 X

XX

XX
XX

XX
PLAY XX
STOP XX
PAUSE XX
STEP FORWARD XXX
STEP REVERSE XX X
RETURN XXX
OPEN/CLOSE X X
DISPLAY X X
SCAN FORWARD X X X
SCAN REVERSE X X X
SKIP FORWARD X X X
SKIP REVERSE X X X
1X X
2 X X
3 X X
4 XX
5X X
6X X
7XX
8 XX
9X X
10 X X
11 X X
12 XX
13 X X X
14 X X X
15 X X X

64

2. The one to do the same function as key to remote control unit.
(± ≠ = + ENTER,PLAY,STOP,PAUSE,STEPFORWARD,STEP
REVERSE,SCANFORWARD,SCAREVERSE,SKIPFORWARD,SKIP
REVERSE,DISPLAY,RECALL,MEMORY,REPEAT ,REPEAT
A-B,AUDIO,ANGLE,SUBTITLE,MENU,TOP MENU,SETUP,0­ 9,>10,CLEAR RETURN,TITLE/CHP/FRM/TIME)
However, scan fwd/rev is different from a remote control, and the
function of the scanning lock is not provided.

3. The one that key to remote control unit was extension

• Function key

(movable of diagonal cursor at video

Blackboard).

• 10-20 of function keys (When the menu is selected the search, f
igures up to 20 are specified directly).

• Open/close of function key.

DVD-V7400, DVD-V7300D

SW1 SW2 SW3 SW4 SW5 SW6 SW7 SW8

Function ±≠+=ENTER X Y Z

16 X X X
17 X X X
18 X X X
19 X X X
20 X X X
STACK GROUP4
STACK GROUP5
STACK GROUP6
STACK GROUP7 X X X
STACK GROUP8 X X X
STACK GROUP9 X X X
STACK GROUP10 X X X
STACK GROUP11 X X X
STACK GROUP12 X X X
STACK GROUP13 X X X
STACK GROUP14 X X X
STACK GROUP15 X X X
STACK GROUP16 X X X
STACK GROUP17 X X X
STACK GROUP18 X X X
STACK GROUP19 X X X
STACK GROUP20 X X X
STACK GROUP21 X X X
STACK GROUP22 X X X
STACK GROUP23 X X X
STACK GROUP24 X X X
STACK GROUP25 X X X
STACK GROUP26 XX
STACK GROUP27 XX
TOP MENU
MENU

∗

RECALL X X X
SETUP X X X
MEMORY X X X
>10 X X X
REPEAT X X X
REPEAT A–B X X X
AUDIO X X X
ANGLE X X X
SUBTITLE X X X
TITLE/CHP/FRM/TIME X X X
0 XX X
CLEAR XX X

∗
∗
∗

XX X

∗

XXX

XXX

XX

XXX

65

DVD-V7400, DVD-V7300D

Controller

Examples of Switch and Diode specifications are charted below.

Simple Circuit

SW1
SW2

SW3
SW4
SW5
SW6
SW7
SW8

Diode Matrix Circuit

SW1
SW2

SW3
SW4
SW5
SW6
SW7
SW8

ENTER
STACK GROUP 1
STACK GROUP 2
STACK GROUP 3

Switch Specifications

On Resistance ............................................................. Less than 1 Ω

Off Resistance ......................................................... More than 1 MΩ

Type ............................................................................ Non-Locking

Diode Specifications

Forward Voltage Drop (VF)............................ Less than 0.7 (IF 1ma)

Surge Forward Current (IFSM) ...............................Less than 100ma

Forward Current ..........................................................Less than 10a

ENTER
GROUP 1
GROUP 2
GROUP 3

1
2
3

4
5
6
7
8
9
10
11
12

66

7.1.7 DISASSEMBLY

DVD-V7400, DVD-V7300D

1

1

2

×2

Bonnet

×3

1

PCB Stay

PCB Stay

1

8

DVDM ASSY

2

×2

1

2

1

STOP

OPEN/CLOSE

6

7

Slit

Center Stay

SUBB ASSYSUBB ASSY

DVD Door

4

× 5

9

Cover

Bridge

3

×3

5

×3

5

Tray

11

10

12

14

13

67

DVD-V7400, DVD-V7300D

3

Notes when unit is exchanged.
Be short-circuited of Short SW before connected in mechanism
cable is removed. The laser diode is protected from static
electricity.

Please open Short SW before the player does power supply on
when the repair of the unit exchange etc. is completed.
The player cannot reproduce when Short SW is short.

Short

2

Short SW

3

Loading
Mechanism
Assy

×2

4

×2

3

5

1

×2

Rear Panel

×2

1

2

Short

1

Short SW

4

TRAVERSE MECHANISM ASSY-S

Unhook

× 4

1

2

Loading Mechanism Assy

SPDP ASSY

3

Diagnose the SYPS ASSY

68

7.2 PARTS

.oNemaNniPnoitcnuFniP

1AKLCtuptuokcolcelbarugifnoC
2DNGdnuorG

3NILATX

lanretxefotupnilatsyrcecnerefeR

tupnikcolcecnerefer
4TUOLATXkcabdeeflatsyrcecnerefeR
5BKLCtuptuokcolcelbarugifnoC
6CKLCtuptuokcolcelbarugifnoC
7DDVylppusegatloV

8

/SF/DP/EO

DNEPSUS

HGIH-evitcarehtie;niplortnoctuptuO

,nwodrewopWOL-evitca,elbanetuptuo

WOL-evitcaro,tcelesycneuqerfAKLC

tupnidnepsus

7.2.1 IC

• The information shown in the list is basic information and may
not correspond exactly to that shown in the schematic diagrams.

List of IC

•

CY2081SL-655, PD3410A, DYW1662, M65773AFP

CY2081SL-655 (DVDM ASSY : IC21)

• Clock Generate IC

Block Diagram

•

3

XTALIN

XTALOUT

4

Reference

Oscillator

PLL1
PLL2
PLL3

EPROM

Configurable

Multiplexer

and

Divide Logic

1

5

6

CLKA
CLKB

CLKC

Pin Function

•

DVD-V7400, DVD-V7300D

8

CE/PD/FS/SUSPEND

69

DVD-V7400, DVD-V7300D

PD3410A (DVDM ASSY : IC601)

• System Control IC
Pin Function

•

.oNkraMemaNniPO/InoitcnuF

1LSACX/3SCX3SCXO tuptuolangistcelespihc)PIHCYM(A5994DP
2DNGDNG
3KCKCUPCHO
4CCVD3+V
5KLCIP
6ATADIP
7DNGDNG
80HTROP0PSSCXO )hctaltuptuohtiwretsigertfihS(TF595TCHV47CH
91HTROPHVM33O )rotarenegkcolC(173-LSA1702YC

012HTROPHVM63O )rotarenegkcolC(F5812UB
113HTROP2LES_VO lanimrettriksehtfotuptuolangisgnihctiwsS/etisopmoC
21CCVD3+V
314HTROPNOATCSO
415HTROPHVM72O tiucriclortnocnoitallicsozHM72
516HTROPDPSSCXO )hctaltuptuohtiwretsigertfihS(TF595TCHV47CH

617HTROP

71DNGDNG
81LATXELATXEI
91LATXLATXO
02CCVD3+V
120GTROP0FDSCXO tuptuolangistcelespihcCAD

221GTROP

322GTROP

423GTROPLESBIHOMA63200DP
524GTROP
62DNGDNG
725GTROP

826GTROP

927GTROP
030FTROP84X44O tuptuolangisgnihctiwsSF84/44CAD
131FTROP

232FTROP

33CCVD3+V
433FTROP

534FTROP

635FTROP

−

−

/TSRDUAX

/FFOPV

OHCE

/1FDSCX

PSADSCX

/2FDSCX
/1TSRFD
NO_CIMX

/NOEFL
0TSRFD

/DMHC6
FFOAMX

/DMSTD

/TSRMX

PSADX

/ETUMAX

MTUMX

/RRE_ID

OIGIDX

/NOD3

/ETUMMX

44X84

/0PSDASCX

1CNYS

/1PSDASCX

/TR_SVAX

CSID

/2PSDASCX

DDO/SOPD

70

DNG

−

D3+V

−

O/I.C.N
O/I.C.N

DNG

−

D3+V

−

O

DNG

−

D3+V

−

O

O

O

−

OreffuB → rotcelesCADtnorF

O)tiucrichctiwS(WS

OoiduaehtfotuptuolangisetumegatstsaL

I)reviecerecafretnioidualatigiD(0071RID

Otuptuolangisgnihctiwsssapyb/NOoiduaD3

−

O)PSDoiduA(26365PSD

O)PSDoiduA(26365PSD

O)PSDoiduA(26365PSD

reffuB → pmaoiduA

DNG

D3+V

metsysoediV

rotanosercimarecatcennoC

)PSAD(229SSY

)hcMrofCAD(FA7485MS

)hcMrofCAD(FA7485MS

)redocedSTDni-tliubPSDoidua,cigolorP/3-CAybloD(229SSY

)redocedSTDni-tliubPSDoidua,cigolorP/3-CAybloD(219SSY

)lellarap/laireS(TF595CHV47CT)rossecorpoiduaD3(3581DA → )hcMrofCAD(FA7485MS

)redocedSTDni-tliubPSDoidua,cigolorP/3-CAybloD(219SSY

.oNkraMemaNniPO/InoitcnuF

736FTROP

837FTROP
93DNGDNG

04SSVADNG
14CCVAD3+V
24P_ATUOVRDOLO tuptuoevirdgnidaoL
34FERVD3+V
44P_BTUOIETO tuptuolangistesffognikcarT
54SSVADNG
64SSVADNG
740ETROPLES_VO tuptuolangisgnihctiwsetisopmoc/tnenopmoC
841ETROPMGDCI )CIcihparG(A610CDP
942ETROP???MEOI
053ETROP1TSFOFO/I1tuptuotnemtsujdatesffosucoF
154ETROP2TSFOFO/I2tuptuotnemtsujdatesffosucoF
255ETROPHNIFDXO/ItuptuolangistnuhstcefeD
356ETROPDCX/DVDO tuptuolangisgnihctiwsDC/DVD
457ETROPNO_1DLO tuptuolangisNOedoidresalmn056
550DTROPNO_2DLO tuptuolangisNOedoidresalmn087
65CCVD3+V
751DTROPET/DPDO tuptuolangisgnihctiwssmaeb3/maeb1
852DTROPFFOGAO CIFRfotuptuolangisgnihctiwsFFO/NOCGA
953DTROPX2DCXO kcabyalpdeepselbuodehtgnihctiwsroftuptuolangiS
064DTROPGCIEOO tuptuolangisgnihctiwsniagCIEO
16DNGDNG
265DTROPNOMXO rotomeldnipsehtfotuptuognihctiwsFFO/NOtuptuolortnoC
366DTROPACBXO

467DTROP
560JTROPTUMVRDXO tuptuoetumrevirD

661JTROPDLX/RDO )WSgolanA(F35W7CT
762JTROPTSRPSDXO )PSDovreS(W25687CL

863JTROP
96CCVD3+V

074JTROPTNE_MTI tupniedomtseT
175JTROPEPXEXO )reffubetats-3(SF/F475TCHV47CT
276JTROPWS_LESVI tupniWSetisopmoc/tnenopmoC
377JTROPYSQDI
472ACOIT/0BPYSUBCXI tupniysubdnammoC
572BCOIT/1BPYSUBAXI tupniysubecneuqes-otuA

673ACOIT/2BP
77CCVD3+V

873BCOIT/3BP1TLO rellortnocLFehtottuptuolangisesnopsernoitacinummoC
974ACOIT/4BPYSBSI tupni.cnyskcolbedocbuS
08TSETMX
18DMUPCX
28SERXTESERXItupniteseR

−

−

/TSREQVX

RNAX

/EVSCX
EQVSCX

TSR???X

OM_CM

/2TNIX

2QRIVAX

OtuptuolangisgnihctiwsFFO/NORNgolanA

OredocneoedivehtfotuptuolangiselbanenoitacinummoclaireS

DNG

−

DNG

−

D3+V

−

D3+V

−

DNG

−

DNG

−

D3+V

−

DNG

−

/WS_NEPO

IrotcennocmsinahceM

/KCAJNM

InipkcehcnoitcennockcajiniM

D3+V

−

I)1-VA(2tupnitpurretnI

D3+V

−

ID3+V
ID3+V

DVD-V7400, DVD-V7300D

71

DVD-V7400, DVD-V7300D

.oNkraMemaNniPO/InoitcnuF

38DNGDNG
480NASOPDOLI tupninoitisopgnidaoL
581NASOPDLSI tupninoitisopredilS
682NAWSROODI rotcennoc.ahceM
783NAWS_PANI tupniWSLAP/OTUA/CSTN
884NAI
985NAI
096NAI
197NAWS_PI525I
29fervAD3+V
39CCVAD3+V
49SSVADNG

594BCOIT/5BP
69CKLCT/4AXCOIT/6BPF2CItupnirorre2C

79DKLCT/4BXCOIT/7BPYDRXI rellortnocLFehtmorftupnitseuqeroitacinummoC
890DxR/8BPISSI )rellortnocLF(tupniatadlaireS
990DxT/9BPOSSO )CAD,rellortnocLF(tuptuoatadlaireS

001CCVD3+V
1011DxR/01BPDXRI C232-SRehtfotupniataD
2011DxT/11BPDXTO C232-SRehtfotuptuoataD
3010KCS/4QRIX/21BPKCSSO/I)CAD,rellortnocLF(tuptuokcolclaireS
4011KCS/5QRIX/31BP01LQRIXI )PIHCYM(1tupnitpurretnI
501DNGDNG
6016QRIX/41BP11LQRIXI )PIHCYM(2tupnitpurretnI

7017QRIX/51BP
8010ACOIT/4SCX/0AP4SCXO tuptuolangistcelespihcPSDovreS

901SARX/5SCX/1AP.C.NO noitcennocnoN
0110BCOIT/6SCX/2AP6SCXO tuptuolangistcelespihc1-VA
111TIAWXTIAWXI tupnilangistiaW
211LRWXLRWXO LtuptuoeslupetirW
311DNGDNG
411HRWXHRWXO HtuptuoeslupetirW
511DRXDRXO tuptuoeslupdaeR
611KCABX/7APTEDRUCXI tupnilangisnoitcetedtnerruc-revO
711QERBX/8APSTCI tupnitimreprefsnartC232-SR

811

9111ACOIT/LPD/01AP
0211BCOIT/HPD/11APDLHTI tupnilangisdlohgnikcarT

121CCVD3+V
221

321
4211KCADX/2QRIX/41AP1KCADXO )1-VA(tuptuoesnopserAMD

5211QERDX/3QRIX/51AP1QERDXI )1-VA(tupnitseuqerAMD
6210DA0DO/I0subataD

GRTDAX

AKLCT

/TUOQRIX/HAX/9AP

/0KCAD/0QRIX/21AP

/1QRIX/31AP

BKLCT/0QERDX

/LFH/KLBID

2TNCD

/0TNIX

0QRIVAX

RTDO tuptuotimreprefsnartC232-SR

/1QRIVAX

1TNIX

0KCADO )PIHCYM(tuptuoesnopserAMD

0QERDXI )PIHCYM(tupnitseuqerAMD

−

−

−

−

I

−

−

I)1-VA(0tupnitpurretnI

−

I)1-VA(1tupnitpurretnI

−

DNG

D3+V
D3+V

DNG

)PSDovreS(W25687CL

D3+V

DNG

DNG

D3+V

)reviecerecafretnioidualatigiD(0071RID

72

.oNkraMemaNniPO/InoitcnuF

721DNGDNG
8211DA1DO/I1subataD
9212DA2DO/I2subataD
0313DA3DO/I3subataD
1314DA4DO/I4subataD
2315DA5DO/I5subataD
3316DA6DO/I6subataD
431CCVD3+V
5317DA7DO/I7subataD
6318DA8DO/I8subataD
7319DA9DO/I9subataD
83101DA01DO/I01subataD
931DNGDNG
04111DA11DO/I11subataD
14121DA21DO/I21subataD
24131DA31DO/I31subataD
34141DA41DO/I41subataD
441CCVD3+V
54151DA51DO/I51subataD

641)SBHX(0A0AO0subsserddA
7411A1AO1subsserddA
8412A2AO2subsserddA
941DNGDNG
0513A3AO3subsserddA
1514A4AO4subsserddA
2515A5AO5subsserddA
3516A6AO6subsserddA
4517A7AO7subsserddA
5518A8AO8subsserddA
6519A9AO9subsserddA
75101A01AO 01subsserddA
85111A11AO 11subsserddA
95121A21AO 21subsserddA
06131A31AO 31subsserddA
16141A41AO 41subsserddA
26151A51AO 51subsserddA
36161A61AO 61subsserddA
46171A71AO 71subsserddA
561CCVD3+V
66181A81AO 81subsserddA
76191A91AO 91subsserddA
86102A02AO 02subsserddA
96112A12AO.C.N
071IMNXIMNXID3+V
171DNGDNG
27101SCX01SCXO )reffubetats-3(SF/F475TCHV
37102SCX02SCXO MORhsalfehtfotuptuolangistcelespihC
47122SCX22SCXO)MORIUG(
57132SCX32SCXO MARSehtfotuptuolangistcelespihC
6712SCXO.C.N

DNG

−

D3+V

−

DNG

−

D3+V

−

DNG

−

D3+V

−

DNG

−

DVD-V7400, DVD-V7300D

73

DVD-V7400, DVD-V7300D

DYW1662 (DVDM ASSY : IC603)

• 16M bit Flash Memory IC
Block Diagram

•

15

RY/BY

37

VCC

V

WE

BYTE

RESET

CE
OE

SS

27

11
47
12

26
28

RY/BY

Buffer

State

Control

Command

Register

Erase Voltage

Generator

Program Voltage

Generator

Chip Enable

Output Enable

Logic

Input/Output

STB

DQ0 - DQ15

29-36,38-45

Buffers

Data Latch

Latch

Y-Decoder

X-Decoder

Pin Function

•

A0 - A19

9,16-25

A-1

STB

Low VCC Detector

45

Time for

Program/Erase

Address

.oNemaNniPO/InoitcnuFniP.oNemaNniPO/InoitcnuFniP

151A
241A62
331A72SSV
421A82
511A920QD
601A038QD
79A131QD
88A239QD
991A332QD

01.C.N
11

EW

21

31.C.N

41.C.N
51
6181A
7171A1431QD
817A246QD
916A3441QD
025A447QD
124A541-A/51QDO/ItupnisserddA/stuptuo/stupniataD
223A64SSV
322A74
421A8461AI tupnisserddA

TESER

YB/YR

IstupnisserddA

−

IelbaneetirW533QD
I

−

−

OtuptuoysuB/ydaeR9321QD

IstupnisserddA

noitcennocnoN4301QD

rotcesyraropmeT/niptesererawdraH

noitcetorpnu

noitcennocnoN73CCV
noitcennocnoN834QD

520AI tupnisserddA

EC

EO

6311QD

045QD

ETYB

IelbanepihC

−

IelbanetuptuO

O/Istuptuo/stupniataD

−

O/Istuptuo/stupniataD

−

Iedomtib-61rotib-8stceleS

Y-Gating

Cell Matrix

dnuorG

ylppusrewoP

dnuorG

74

M65773AFP (DVDM ASSY : IC801)

• MPEG2 Decoder IC
Block Diagram

•

DVD-V7400, DVD-V7300D

16M bit SDRAM

SDRAM

Controller

Write BUS

H BUS

Video Decoder

Read BUS

Sub-picture

Decoder

Display

Processor

Special Playback

Processor

Video Output

Interface

Audio Output

Interface

Pin Function

•

Bit Streem

Host CPU

Descrambler

Bit Streem

Input Interface

ROM RAM

Internal

CPU

Host

Interface

.oNemaNniPO/InoitcnuFniP.oNemaNniPO/InoitcnuFniP

1DNGIdnuorG12DDV5I ylppusrewopV5
20DH
31DH32SCI tupnilangistcelespihC
42DH42ERI tupnilangiselbanEdaeR

O/ItroptuptuodnatupniataD
53DH52EWI tupnilangiselbanEetirW
64DH62EHBI tupnilangiselbanEhgiHetyB

7DDV5I ylppusrewopV572YDRO

8DDVI ylppusrewoP82RTNIO
95DH

016DH030AH
117DH131AH

O/ItroptuptuodnatupniataD

218DH232AH
319DH333AH
41DNGIdnuorG434AH
5101DH
6111DH63DDV5I ylppusrewopV5
7121DH735AH

O/ItroptuptuodnatupniataD

8131DH836AH
9141DH937AH
02DDVI ylppusrewoP048AH

2251DHO/ItroptuptuodnatupniataD

sub

92DNGIdnuorG

ItroptupnisserddA

53DDVI ylppusrewoP

ItroptupnisserddA

16M DRAM

Video Output

PCM Audio Output
IEC958 Output

ehtdetacidnisihcihwlangisegdelwonkcA

tsohehtaivgnitirwrognidaeratadfohsinif

ehtottsniagalangistseuqertpurretnI

PF37756MmorfUPClanretxe

75

DVD-V7400, DVD-V7300D

.oNemaNniPO/InoitcnuFniP.oNemaNniPO/InoitcnuFniP

149AHI troptupnisserddA38DDVI ylppusrewoP
24DNGIdnuorG48CNYSVO tuptuolangis.cnyslcaitreV
34KCMDCI dnuorgottcennoC58CNYSHO tuptuolangis.cnyslatnoziroH
44KCRLDCI PSDDCmorftupnikcolckcolcR/L68TRTSCIP
54KCBDCI PSDDCmorftupnikcolctibMCP78TRTSBM
64ATADDCI tupniecafretnioidualatigiD88ATADBM
74DDVI ylppusrewoP98DNGIdnuorG

84NIDDCI PSDDCmorftupniatadoiduaMCP09DWPO
942TNI

053TNI29YEKDSOO tuptuogalfyekDSO
15QERDO refsnartpamtibDSOroflangistseuqerAMD39KLCXPO )kcolcgninnur-eerfzHM72(kcolclexiP

25KCADI
35DNGIdnuorG597DP

45OKLCO tuptuokcolczHM72696DP
55NIKLCI tupnikcolcmetsyS795DP
651DDVAI ylppusrewopgolanA894DP
751DNGA
853DNGA0013DP
953DDVAI ylppusrewopgolanA1012DP
06PACCI dnuorgottcennoC2011DP
162DNGAI dnuorggolanA3010DP
262DDVAI ylppusrewopgolanA401DDVI ylppusrewoP
36OKLCA
46IKLCAI tupnikcolcoiduA601TESERI tupnitesererawdraH
561EDOMHI edomgnitarepoecafretnitsohfonipgnitteS7010TSET

76DDVI ylppusrewoP9012TSET
86DOA
962OA1110DMN
071OA21151DMN
170OA3111DMN
27DNGIdnuorG41141DMN
371TUOD
470TUOD6112DMN
57ADS
67LCS
77DDVI ylppusrewoP91121DMN
87DNGIdnuorG021DDVI ylppusrewoP
97KLCCADO tuptuokcolcgnitarepognilpmas-revO1214DMN
08KLCODO tuptuokcolctibMCP22111DMN

18KLCRLO
280EDOMHI edomgnitarepoecafretnitsohfonipgnitteS42101DMN

O

refsnart

IdnuorggolanA

nepO501DNGIdnuorG

−

OatadoiduafotuptuoMCP

OtuptuoecafretnioidualatigiD

nepO71131DMN

−

nepO8113DMN

−

atadoiduaMCPfo)R/L(

ehtottsniagalangistseuqertpurretnI

PF37756MmorfUPClanretxe

pamtibDSOroflangisegdelwonkcaAMD

19CNYSCI tupnilangisCNYSetisopmoC

49DDVI ylppusrewoP

99DNGIdnuorG

011DDVI ylppusrewoP

511DNGIdnuorG

lennahcehtgnitanimircsidroftuptuokcolC

3215DMN

OatadlexiplatigiD

OatadlexiplatigiD

IyllamrondnuorgottcennoC66DNGIdnuorG8011TSET

O/IMARDhtiwenilrefsnartataD

O/IMARDhtiwenilrefsnartataD

O/IMARDhtiwenilrefsnartataD

noitarepo

.cnyslanretxeroftuptuorotarapmocesahP

76

DVD-V7400, DVD-V7300D

.oNemaNniPO/InoitcnuFniP.oNemaNniPO/InoitcnuFniP

521DNGIdnuorG7615AMO MARDShtiwenilsserddA
6216DMN
7219DMN9611AM
8217DMN0716AM
9218DMN1710AM
031DDVI ylppusrewoP2717AM

1310SACNO
231EWNO MARDfoenillortnocEW47101AM
3311SACNO

431SARNO
531DNGIdnuorG7719AM

6319AMN
7318AMN971SCDO MARDSfotcelespihC

831DDVI ylppusrewoP081SARO

9310AMN
0417AMN281DDVI ylppusrewoP

1411AMN381KLCMO MARDSfokcolcnoitarepO
2416AMN481DNGIdnuorG
341DNGIdnuorG581EWDO MARDSfoenillortnocEW

4412AMN

5415AMN781LMQDO
6413AMN881DDVI ylppusrewoP

7414AMN9817DM
841DDVI ylppusrewoP0918DM
9417DB
0516DB2919DM
151DNGIdnuorG391DNGIdnuorG
2515DB
3514DB59101DM
4513DB6914DM
5512DB79111DM
651DDVI ylppusrewoP891DDVI ylppusrewoP
751DNGIdnuorG9913DM
8511DB
9510DB1022DM
061KLCBI tropDBfo)kcolc(langisebortS20231DM

161NEDBI

261QERDBO

361DDVI ylppusrewoP50241DM
4613AM
5614AM70251DM
6612AM802DDVI ylppusrewoP

O/IMARDhtiwenilrefsnartataD

MARD

MARD

foenillortnoc)ebortSsserddAwoR(SAR

MARD

OMARDhtiwenilsserddA

OMARDhtiwenilsserddA

OMARDhtiwenilsserddA

ItroptupnimaertstiB

ItroptupnimaertstiB

ItroptupnimaertstiB

tropDBmorfdelpmas

ehtottsniagalangisnoissimreptuptuO

tropDBot

OMARDShtiwenilsserddA

861DNGIdnuorG

foenillortnoc)ebortSsserddAnmuloC(SAC

371DDVI ylppusrewoP

foenillortnoc)ebortSsserddAnmuloC(SAC

5718AM

67111AM

871DNGIdnuorG

181SACO

681UMQDO

1916DM

4915DM

00221DM

sihcihwataddilavniroevitceffeehtsetacidnI

302DNGIdnuorG

gnitcennochcihw)redocedlennahc(ecived

4021DM

6020DM

OMARDShtiwenilsserddA

OMARDShtiwenilsserddA

MARDS

MARDSfo

O/IMARDShtiwenilrefsnartataD

O/IMARDShtiwenilrefsnartataD

O/IMARDShtiwenilrefsnartataD

O/IMARDShtiwenilrefsnartataD

foenillortnoc)ebortSsserddAwoR(SAR

enillortnoc)ebortSsserddAnmuloC(SAC

MARDSfoenillortnocMQD

.tuptuoetybreppufoksamrofesU

MARDSfoenillortnocMQD

.tuptuoetybrewolfoksamrofesU

77

DVD-V7400, DVD-V7300D

8. PANEL FACILITIES AND SPECIFICATIONS

8.1 PANEL FACILITIES (FOR DVD-V7400/KU/CA)

Front Panel

SCAN/SKIP

PROGRAM

STILL/STEP

KEY LOCKNTSC / PAL

PLAY/PAUSE

DVD PLAYER DVD-V7400

DOLBY

D I G I T A L

STOP

OPEN/CLOSE

DISPLAY

STANDBY
ON

Forward button [¡ ¢ ]
Reverse button [4 1 ]

1
4

Î

DISPLAY button

¡
¢

eE

DVD / CD

EXT CONT

NTSC/PAL indicator

Indicates the TV type of the current disc.
Lights green during NTSC disc playback, orange during PAL disc playback

§

MOUSE

/KEY BOARD

PHONES

^

LEVEL

MIN MAX

STEP [e, E] button
PROGRAM indicator Lights when repeat play, program play

KEY LOCK indicator

When this indicator is lighted, the unit cannot be operated using the
front-panel controls or the remote control unit. Settings can be changed
by RS-232C.

or command stack function is operated

PLAY/PAUSE [^] button

STANDBY Indicator

78

Power button

Disc table

Remote sensor

DISPLAY

STANDBY
ON

External control jack
(EXT. CONT)

SCAN/SKIP

14¡

¢

Î

PROGRAM

STILL/STEP

eE

DVD / CD

EXT CONT

PHONES

Headphone jack

DVD PLAYER DVD-V7400

KEY LOCKNTSC / PAL

PLAY/PAUSE

^

LEVEL

MIN MAX

DOLBY

D I G I T A L

STOP

OPEN/CLOSE

§

MOUSE

/KEY BOARD

Headphone volume control

STOP OPEN/CLOSE
button

Disc illumination

Lights green during DVD
playback, orange during CD
or video CD playback.

MOUSE/KEYBOARD
connector

Rear Panel

DVD-V7400, DVD-V7300D

DC OUT 5V 40mA

INTERFACE CONNECTOR

R

AUDIO OUT

L

PCM/
DIGITAL OUT

OFF ON

BLACK BURST

EXIT SYNC IN

Your amp

Regular AV amp

Dolby Digital com­patible amp

DIGITAL OUT
connector

Noise may result if output setting s are not correct. Set as noted
in the above table

AUDIO OUT
jack

INTERFACE
CONNECTOR

Video terminator switch

INTERFACE CONNECTOR

OFF ON

EXIT SYNC IN

R
AUDIO OUT

BLACK BURST

(MONO)

AUDIO

OUT

YP

B

COMPONENT VIDEO OUT

VIDEO 1

VIDEO 2

P

COMPOSITE

R

VIDEO OUT

Settings

Select [Dolby Digital 3 PCM] from the
SETUP MENU.
Select [Dolby Digital] from the SETUP
MENU.

Monaural audio out connector

VDF ADAPTER power output

Video output pin-connector

S-Video output connector

DC OUT 5V 40mA

L

PCM/
DIGITAL OUT

YP

COMPONENT VIDEO OUT

(MONO)

VIDEO 1

AUDIO

OUT

VIDEO 2

B

COMPOSITE

P

R

VIDEO OUT

S-VIDEO

TV SYSTEM

AUTO
PAL
NTSC

COMPONENT
COMPOSITE

S-VIDEO

AUTO

PAL
NTSC

TV SYSTEM

Video output
selector

TV system selector

COMPONENT
COMPOSITE

External Sync input

Video output
connector (BNC)

Component video output

Power code

79

DVD-V7400, DVD-V7300D

REMOTO CONTROL UNIT

STD-BY (Stand by)/ON button

REPEAT button

DISPLAY button

RPT (Repeat) A-B button
RECALL button

AUDIO button
MEMORY button

ANGLE button
SUBTITLE button
MENU button

TOP MENU button

SETUP button

Number buttons (0-9, >10)

STD-BY/ON

REPEAT

RPT A-B

STOP

PAUSEDISPLAY

AUDIO SCAN

MEMORY

SUBTITLE PREV

ANGLE

MENU

TOP

MENU

SETUP

12

456

7

010

ENTER

3

9

8

>

CLEAR

STEPRECALL

RETURN

TITLE/CHP

FRM/TIME

PLAY

NEXT

FRM/TIME

SEARCH

STOP button (7)

PLAY button (3)

PAUSE button (8)

STEP buttons (e, E)

SCAN buttons (1, ¡)

Chapter skip/Next button
(¢, NEXT)

Chapter skip/Previous button
(4, PREV)

Direction buttons (5, 3, ∞, 2)
ENTER button
RETURN button

Title/Chapter/Frame/Time Button
(TITLE/CHP/FRM/TIME)

Frame/Time button
(FRM/TIME)

SEARCH button
CLEAR button

80

8.2 SPECIFICATIONS

SPECIFICATIONS (FOR DVD-V7400/KU/CA)

General

System ............................ DVD system , Compact Disc digital video

and Compact Disc digital audio system

Power requirements .......................................... AC 120 V, 50/60 Hz

Power consumption ................................................................. 16 W

Power consumption in standby mode ...................................... 0.5W

Weight....................................................................... 4.7 kg (10.6 lb)

Dimensions .................................... 210 (W) x 408 (D) x 119 (H) mm

..........................................................(8 1/

......................................... (Not including protruding cables, etc.)

Operating temperature ...................+5°C to +35°C (+41°F to +95°F)

Operating humidity ................ No more than 85% (no condensation)

Video Output

Output level ............................................................................ 1 Vp-p

................................... (75Ω when loaded, synchronous negative)

Jacks ................................................................................BNC, RCA

S-Video Output

Y (luminance) - Output level......................................... 1 Vp-p (75Ω)

C (color) - Output level .......................................... 286 mVp-p (75Ω)

Component video Output

Y - Output level ................................................... 1 Vp-p (75Ω) BNC

PB - Output level............................................... 0.7 Vp-p (75Ω) BNC

PR - Output level............................................... 0.7 Vp-p (75Ω) BNC

S/N ratio ................................................................. more than 60 dB

Horizontal resolution ..................................................more than 500

External synchronizing input

Input signal level ............................................................. Black burst

......................................... 0.3 Vp-p (75Ω) BNC x 2 (loop through)

✕ 16 1/8 ✕ 4 11/16 in.)

4

DVD-V7400, DVD-V7300D

Audio Output

Output level

During audio output............................... 200 mVrms (1 kHz, –20 dB)

Number of channels ........................................................................ 2

Frequency response ..................... 4 Hz to 22 kHz (DVD fs: 48 kHz)

.......................................................................4 Hz to 20 kHz (CD)

S/N ratio ......................................................................115 dB (EIAJ)

Dynamic range ............................................................. 98 dB (EIAJ)

Wow and flutter .......................... ±0.001% W. PEAK or lower (EIAJ)

Other Terminals

Coaxial digital output (PCM/ ) ....................................... RCA jack

Communication interface (RS-232C) ......................... D-SUB, 15-pin

Accessories

Audio cord .......................................................................................1

Video cord ....................................................................................... 1

Remote control unit......................................................................... 1

AA (R6P) dry cell batteries .............................................................. 2

Laser barcode Sheet....................................................................... 1

RF adaptor set clamp...................................................................... 1

Screw .............................................................................................. 1

Operating Instructions..................................................................... 1

Warranty card..................................................................................1

NOTES:

÷ All values listed in these specifications are standard values.
÷ The specifications and design of this product are subject to change

without notice, due to improvement.

Accessories

Audio cord (L=1.5m)

(VDE1033)

Video cord (L=1.5m)
(VDE1048)

Yellow

White

Red

AA/R6P batteries

(VEM-013)

Operating instructions
Warranty card

Remote control unit

(CU-V162): DXX2448

STD-BY/ON

REPEAT

RPT A-B

AUDIO SCAN

MEMORY

SUBTITLE PREV

ANGLE

MENU

TOP

MENU

SETUP

12

456

7

010

PLAY

STOP

PAUSEDISPLAY

STEPRECALL

NEXT

ENTER

RETURN

3

TITLE/CHP
FRM/TIME

FRM/TIME

9

8

>

CLEAR

SEARCH

81
