Pioneer DEH-X6810BT, DEH-X6800BT, DEH-X4800BT, DEH-X4810BT, DEH-X3800S User Manual
CD RDS RECEIVER
AUTORADIO CD RDS
REPRODUCTOR DE CD CON RECEPTOR RDS
DEH-X6800BT
DEH-X6810BT
English Français Español
DEH-X4800BT
DEH-X4810BT
DEH-X3800S
Owner’s Manual
Mode d’emploi
Manual de instrucciones
Important (Serial number)
The serial number is located on the bottom of th is unit. For your own se curity and
convenience, be sure to record this number on the enclosed warranty card.
Important (Numéro de série)
Le numéro de série se trouve au bas de cet appareil. Pour votre sécurité et votre commodité,
veillez à noter ce numéro sur la carte de garantie fournie.
Importante (Número de serie)
El número de se rie se encuentra en la pa rte inferior de esta unidad. Por su propia seguri dad
y comodidad, asegúrese de anotar este número en la tarjeta de garantía que se adjunta.
About this manual:
Table of Contents
Before You Start....................................................................................... 2
Getting Started........................................................................................ 3
Radio.......................................................................................................... 6
CD/USB/iPod/AUX................................................................................... 6
Bluetooth.................................................................................................. 8
App Mode............................................................................................... 11
Pandora®................................................................................................. 12
SiriusXM Satellite Radio....................................................................... 12
Car Remote Mode ................................................................................. 14
Settings................................................................................................... 15
FUNCTION settings .............................................................................. 15
AUDIO settings...................................................................................... 16
SYSTEM settings ................................................................................... 17
ILLUMINATION settings ....................................................................... 18
MIXTRAX settings................................................................................. 18

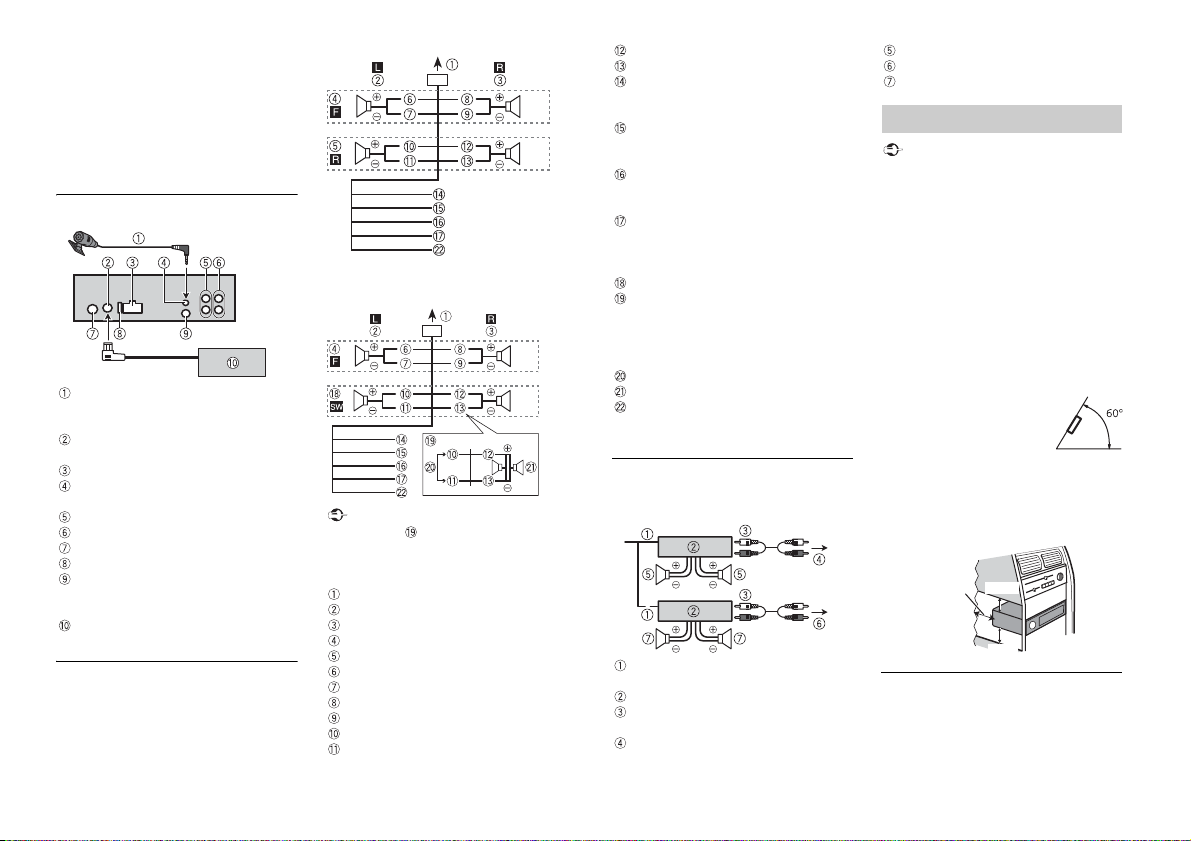

Connections/Installation..................................................................... 19
Additional Information........................................................................ 22
• In the following instructions, a USB memory or USB audio player are referred to as
“USB device”.
• In this manual, iPod and iPhone are referred to as “iPod”.
Before You Start
Thank you for purchasing this PIONEER product
To ensure proper use, please read through this manual before using this product. It is especially
important that you read an d observe WARNI NGs and CAUTIONs in this manual. Please keep the
manual in a safe and accessible place for future reference.
FCC ID: AJDK071
MODEL NO.: DEH-X6800BT/DEH-X6810BT/DEH-X4800BT/DEH-X4810BT
IC: 775E-K071
This device complies with Part 15 of FCC Rules and Industry Canada licence-exempt RSS standard(s ).
Operation is subject to the following two conditions: (1) this device may not cause interference, and
(2) this device must accept any interference, including interference that may cause undesired
operation of this device.
This transmitter must not be co-located or operated in conjunction with any other antenna or
transmitter.
The Bluetooth antenna cannot be removed (or replaced) by user.
This equipment complies with FCC/IC radiation exposure limits set forth for an uncontrolled
environment and meets the FCC radio frequency (RF) Exposure Guidelines in Supplement C to
OET65 and RSS-102 of the IC radio frequency (RF) Exposure rules. This equipment has very low levels
of RF energy that it deemed to comply without maximum permissive exposure evaluation (MPE). But
it is desirable that it should be installed and operated keeping the radiator at least 20cm or more
away from person’s body (excluding extremities: hands, wrists, feet and ankles).
MODEL NO.: DEH-X3800S
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions:
(1) this device may not cause harmful inter ference, and (2) this device must accept any inter ference
received, including interference that may cause undesired operation.
Alteration or modifications carr ied out without ap propriate authoriza tion may invalidate the user’s
right to operate the equipment.
Note
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or more of the following
measures:
–Reorient or relocate the receiving antenna.
–Increase the separation between the equipment and receiver.
–Connect the equipment in to an outlet on a circuit different from that to whic h the receiver is
connected.
–Consult the dealer or an experienced radio/TV technician for help.
2En
English
The Safety of Your Ears is in Your Hands
WARNING
CAUTION
SRC (source)/OFF
Detach button
Display window
M.C. (multi-control) dial
BAND/
/DIMMER *
DISP (display)*
Get the most out of your equipment by playing it at a safe level—a level that lets the sound come
through clearly without annoying blaring or distortion and, most importantly, without affecting your
sensitive hearing. Sound can be deceiving.
Over time, your hearing “comfort level” adapts to higher volumes of sound, so what sounds “normal”
can actually be loud and harmful to your hearing. Guard against this by setting your equipment at a
safe level BEFORE your hearing adapts.
ESTABLISH A SAFE LEVEL:
• Set your volume control at a low setting.
• Slowly increase the sound until you can hear it comfortably and clearly, without distortion.
• Once you have established a comfortable sound level, set the dial and leave it there.
BE SURE TO OBSERVE THE FOLLOWING GUIDELIN ES:
• Do not turn up the volume so hi gh that you can’t hear what’s around you.
• Use caution or temporarily di scontinue use in potentially ha zardous situations.
• Do not use headphones while operating a motorized vehicle; the use of headphones may create a
traffic hazard and is illegal in many areas.
• Do not attempt to install or service this product by yourself. Installation or servicing of this
product by persons without training and experience in el ectronic equipment and automotive
accessories may be dangerous a nd could expose you t o the risk of elec tric shock, in jury or other
hazards.
• Do not attempt to operate the uni t while driving. Make sure to pull off the road and park your vehicle
in a safe location before attempting to use the controls on the device.
• This product contains chemicals known to the State of California and other governmental entities to
cause cancer and birth de fects or other reproductive harm. Wash hands after handling.
CAUTION:
USE OF CONTROL OR ADJUSTMENT OR PERFORMANCE OF PROCEDURES OTHER THAN THOSE
SPECIFIED HEREIN MAY RESULT IN HAZARDOUS R ADIATION EXPOSURE.
CAUTION:
THE USE OF OPTIC AL INSTRUMENTS WITH THIS PRODUCT WIL L INCREASE EYE HAZARD.
• Do not allow this unit to come into contact with moisture and/or liquids. Electrical shock could result.
Also, damage to this unit, smoke, and overheating could result from contact with liquids.
• Always keep the volume low enough to hear outside sounds.
CAUTION
This product is a class 1 laser product classified under the Safety of laser products, IEC 60825-1:2007.

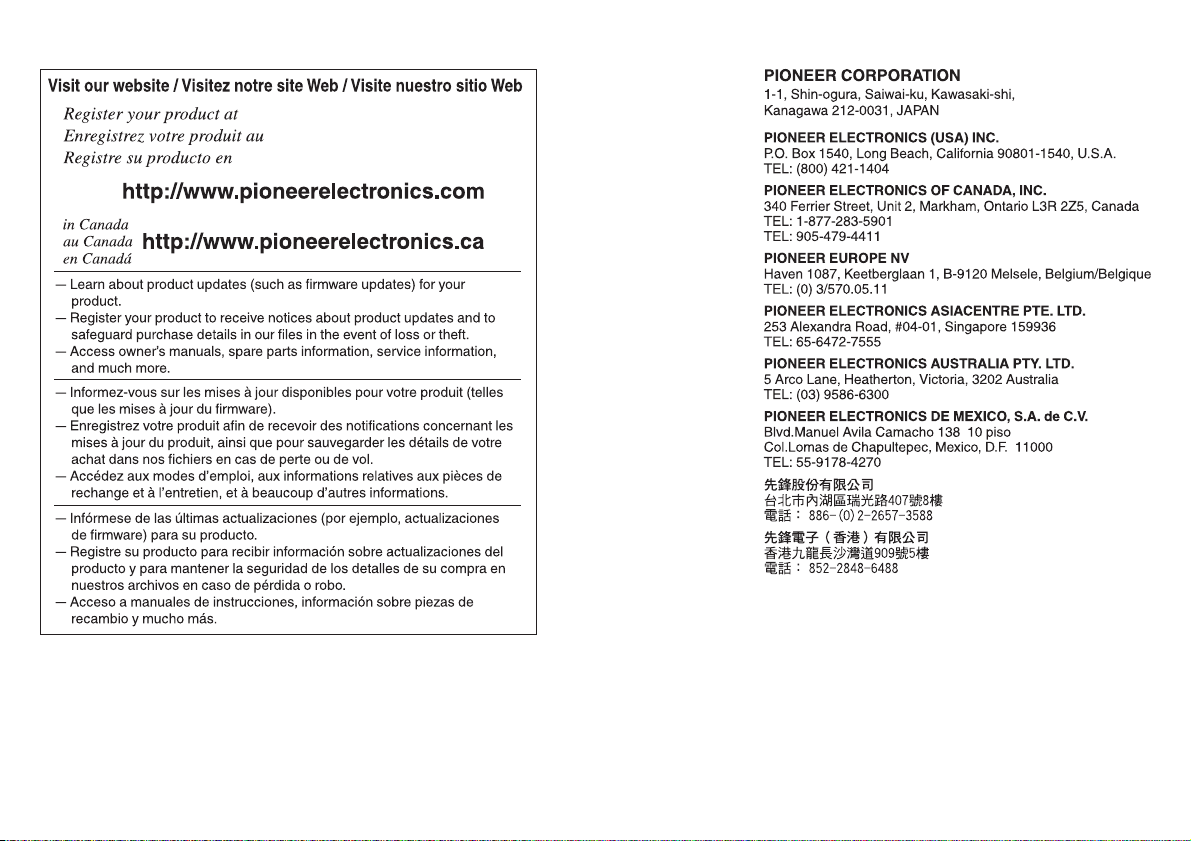

After-sales service for Pioneer products
Please contact the dealer, distributor from where you purchased this unit or the authorized PIONEER
Service Station for after-sales se rvice or any other information. In case the necessary i nformation is not
available, please contact the companies listed below:
Please do not ship your unit to the companies at the addresses listed below for repair without
contacting them in advance.
U.S.A.
Pioneer Electronics (USA) Inc.
CUSTOMER SUPPORT DIVISION
P.O. Box 1760
Long Beach, CA 90801-1760
800-421-1404
CANADA
Pioneer Electronics of Canada, Inc.
CUSTOMER SATISFACTION DEPARTMEN T
340 Ferrier Street
Unit 2
Markham, Ontari o L3R 2Z5, Canada
1-877-283-5901
905-479-4411

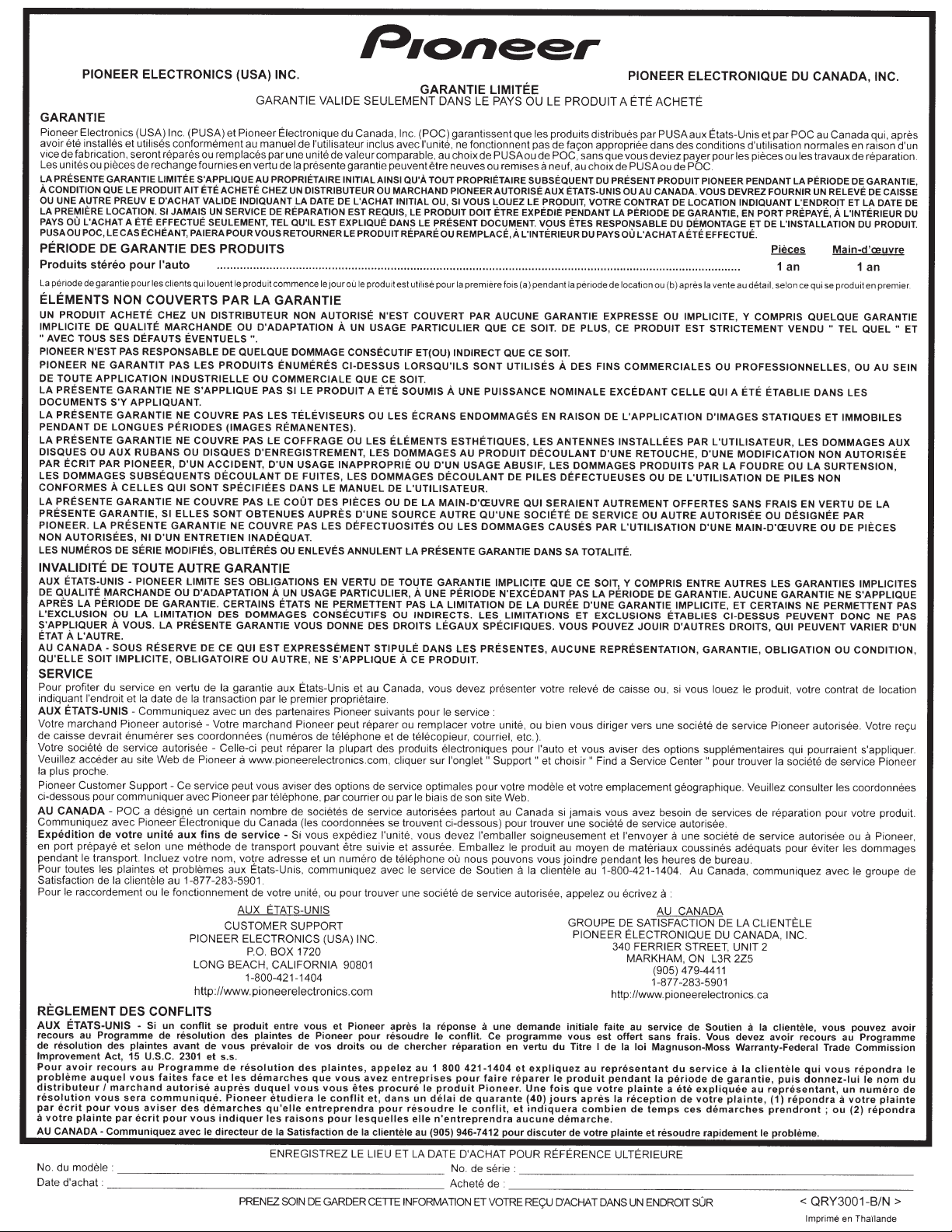

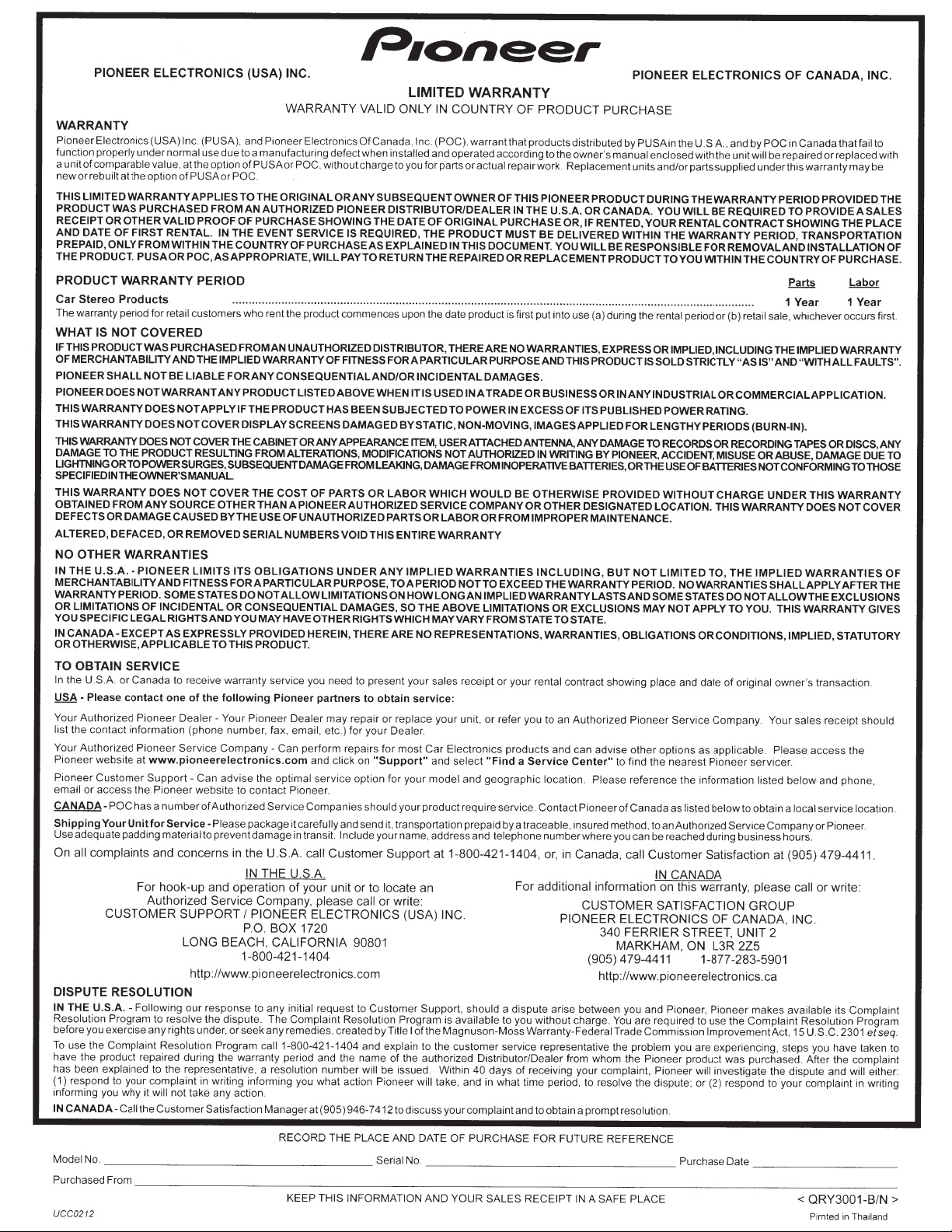

For warranty information please see the Limited Warranty sheet included with this unit.
Getting Started
Basic operation
DEH-X6800BT/X6810BT/X3800S
* DEH-X3800S has differe nt indications for these button s.
3En
DEH-X4800BT/X4810BT
SRC (source)/OFF
Detach button
Display window
M.C. (multi-control) dial
BAND/
DISP (display)
/
SRC (source)
VOLUME +/–
MUTE
DISP (display)
*
*
Purpose
Change the display
information
Return to th e previous
display/list
Return to the normal display
from the menu
Answering a call Press . Press .
Ending a call Press . Press .
* When this unit’s blue/white lead is connected to the vehicle’s auto-antenna relay control terminal,
the vehicle’s antenn a extends when this unit’s source is turne d on. To retract the anten na, turn the
source off.
Head Unit Remote Control
Press DISP repeatedly. Press DISP repeatedly.
Press /DIMMER or
BAND/ .
Press BAND/ , or press
and hold BAND/.
Operation
Press / to select the
next/previous folder.
–
Remote Control
* DEH-X3800S has different indications for these buttons.
Frequently used operations
The available buttons vary depending on the unit.
Purpose
Turn on the power* Press SRC/OFF to turn on
Adjust the volume Turn the M.C. dial. Press VOLUME + or –.
Select a source Press SRC/OFF repeatedly. Press SRC repeatedly.
Head Unit Remote Control
the power.
Press and hold SRC/OFF to
turn off the power.
4En
Operation
Press SRC to turn on the
power.
Press and hold SRC to turn
off the power.
Press MUTE to mute the
unit. Press again to unmute.
Display indication
The following indication may vary depending on the unit.
Indication Description
Appears when a lower tier of the menu or folder exists.
Appears when the automatic answering function is set (page 10).
(Only for Bluetooth-compatible models.)
Appears when a Bluetooth telephone is connected to this unit by HFP
(Hands Free Profile) (page 8) and flashes while the telephone is on hold.
(Only for Bluetooth-compatible models.)
Appears when a Bluetooth audio player is connected to this unit by A2DP
(Advanced Audi o Distribution Profile) (page 8).
(Only for Bluetooth-compatible models.)
Appears when the button is pressed.
Appears when the local seek tuning function is set (page 15).
Appears when the sound retriever function is set (page15).
Appears when random/shuffle play is set (except when BT AUDIO is
selected as the source).
Appears when repeat play is set (except when BT AUDIO is selected as the
source).
Appears when the iPod control function is set (page 8).
Appears when a Bluetooth connection is made (page 8).
(Only for Bluetooth-compatible models.)
English
Important
WAR NING
CAUTION
Detaching the front panel
Detach Attach
How to replace the battery
Insert the CR2025 (3 V ) battery with the plus (+) and
minus (–) poles orientated properly.
Important
NOTES
Detach the front panel to prevent theft. Remove any cables and devices attached to the
front panel and turn off the unit before detaching it.
• Avoid subjecting the f ront panel to excessiv e shock.
• Keep the front panel out of direct sunlight and high temperatures.
• Always store the detac hed front panel in a protective case or b ag.
Preparing the remote control
Remove the insulation sheet before use.
• Keep the battery out of the reach of children. Should the battery be swallowed, consult a doctor
immediately.
• Do not expose the battery or remote control to excessive heat such as direct sunlight or fire.
• There is a potential danger of explosion if the battery is incorrectly replaced. When replacing the
battery, replace it with the same type.
• Do not handle or store the battery with metallic tools or objects.
• If the battery leaks, remove the battery and wipe the remote control completely clean. Then install a
new batter y.
• When disposing of used batteries, please comply with governmental regulations or environmental
public instit utions’ rules that apply in your country/area.
• “Perchlorate Material - special handling may apply.
See www.dtsc.ca.gov/hazardouswaste/perchlorate. (Applicable to California, U.S.A.)”
• Do not store the remote control in high temperatures or direct sunlight.
• Do not let the remote control fall onto the floor, where it may become jammed under the brake or
accelerator pedal.
Setting the clock (CLOCK SET)
When you turn the ignition switch to ON after installation, [SET UP :YES] appears in the
display.
1 Press the M.C. dial.
The setup menu disappears after 30 seconds of no operation. If you prefer not to set
at this time, turn the M.C. dial to select [NO], then press to confirm.
2 Tur n the M.C. dial to adjust the hour, then press to confirm.
The indicator moves to the minute setting automatically.
3 Tur n the M.C. dial to adjust the minute, then press to confirm.
[QUIT] appears.
4 Tur n the M.C. dial to select [YES], then press to confirm.
• You can cancel the menu setting by pressing SRC/OFF.
• This setting can be made at any time. See page 17 for more details.
Canceling the demonstration display (DEMO OFF)
1 Press the M.C. dial to display the main menu.
2 Tur n the M.C. dial to select [SYSTEM], then press to confirm.
3 Tur n the M.C. dial to select [DEMO OFF], then press to confirm.
4 Tur n the M.C. dial to select [YES], then press to confirm.
INITIAL settings
1 Press and hold SRC/OFF until the unit turns off.
5En
2 Press the M.C. dial to display the main menu.
NOTE
TIP
NOTE
3 Turn th e M.C. dial to select [INITIAL], then press to confirm.
4 Turn th e M.C. dial to select an option, then press to confirm.
3 Press a number button (1/ to 6/).
The / buttons can be also used to select a preset station when [SEEK] is set to [PCH] in the
FUNCTION settings (page15).
The options v ary depending on t he unit.
Menu Item Description
SP-P/O MODE Select when there is a full-range speaker connected to the rear
[REAR/SUB.W]
[SUB.W/SUB.W] Select when there is a passive subwoofer connected directly to
[REAR/REAR] Select when there are full-range speakers connected to the rear
S/W UPDATE Select to update the unit to the lates t Bluetooth software. For
SXM RESET Select to initialize the SiriusXM settings.
[YES], [CANCEL]
SYSTEM RESET Select [YES] to initialize the unit settings. The unit will be
[YES], [CANCEL]
speaker output leads and there is a subwoofer connected to the
RCA output.
the rear speaker output leads and there is a subwoofer
connected to the RCA output.
speaker output leads and RCA output. If there is a full-range
speaker connected to the rear speaker output leads, and the
RCA output is not used, you may select either [REAR/SUB.W] or
[REAR/REAR].
details on Bluetooth software and updating, visit our website.
restarted automatically.
(Some of the settings will be retained even after resetting the
unit, such as Bluetooth pairing information, etc.)
Radio
The tuner frequencies on this unit are allocated for use in North America. Use in other
areas may result in poor reception.
Receiving preset stations
1 Press SRC/OFF to select [RADIO].
2 Press BAND/ or BAND/ to select the band from [FM1], [FM2], [FM3] or [AM].
Best stations memory (BSM)
The six strongest stations are stored on the number buttons (1/ to 6/).
1 After selecting the band, press the M.C. dial to display the main menu.
2 Tur n th e M.C. dial to select [FUNCTION], then press to confirm.
3 Tur n th e M.C. dial to select [BSM], then press to confirm.
To seek a station manually
1
After selecting the band, press / to select a station.
Press and hold / then release to seek an available station. Scanning stops
when the unit receives a station. To cancel seek tuning, press / .
[SEEK] needs to be set to [MAN] in the FUNCTION settings (page 15).
To store stations manually
1
While receiving the station you want to store, press and hold one of the number
buttons (1/ to 6/ ) until it stops flashing.
CD/USB/iPod/AUX
Playing back
Disconnect headphones from the device before connecting it to the unit.
6En
English
NOTE
The arrangement of the buttons varies depending on the unit.
NOTE
CAUTION
AUX input jack (3.5 mm stereo jack)
(eject)
Disc loading slot USB por t
SRC (source)/OFF
M.C. (multi-control) dial
NOTE
NOTE
CD
1
Insert a disc into the disc loading slot with the label side up.
To eject a disc, stop playback first then press .
USB devices (including Android)/iPod
1
Open the USB port cover.
2 Plug in the USB device/iPod using an appropriate cable.
To automatically switch to [USB] source when a USB device/iPod is connected to the uni t, set [USB
AUTO] to [ON] in the SYSTEM settings (page 17).
Use an optional Pioneer USB cable (CD-U50E) to connect the USB device as any device connected
directly to the unit will protrude out from the unit, which could be dangerous.
Before removing the device, stop playback.
AOA connections
For details on AOA connection, see page 14.
MTP connection
A device installed with Android OS 4.0 or later can be connected to the unit via MTP, using the cable
supplied with the device. However, depending on the connected device and the numbers of the files in
the device, audio files/songs may not be able to be played back via MTP. Note that MTP connection is
not compatible with WAV file formats, and cannot be used with the MIXTRAX function.
If you use an MTP connection, [ANDROID WIRED] needs to be set to [MEMORY] in the SYSTEM settings
(page 17).
AUX
1
Insert the stereo mini plug into the AUX input jack.
2 Press SRC/OFF to select [AUX] as the source.
If [AUX] is set to [OFF] in the SYSTEM set tings, [AUX] cannot be selected as a source (page 17).
Operations
You can make various adjustments in the FUNCTION settings (page 15).
Note that the following operations do not work for an AUX device. To operate an AUX
device, use the device itself.
Purpose Operation
Select a folder/album*1 Press 1/ or 2/.
Select a track/song (chapter) Press or .
Fast forward or reverse Press and hold or .
Search for a file from a list 1 Press to display the list.
View a list of the files in the selected folder/
category*1
Play a song in the selected folder/
category*1
Alphabetical search (iPod only) 1 Press to display the list.
2 Turn t he M.C. dial to select the desired
file (folder) name or category, then press
to confirm.
3 Turn t he M.C. dial to select the desired
file, then press to confirm.
Playback starts.
Press the M.C. dial when a folder/category
is selected.
Press and hold the M.C. dial when a folder/
category is selected.
2 Turn t he M.C. dial to select the desired
category list, then press to enter the
alphabetical search mode.
(Turning the M.C. dial twice also enters
the alphabetical search mode.)
3 Turn t he M.C. dial to select a letter, then
press to display the alphabetical list.
To cancel alphabetical search, press /
DIMMER or BAND/.
7En
NOTE
Purpose Operation
NOTES
NOTES
Important
Repeat play Press 6/.
Random/shuffle play Press 5/.
Shuffle all play (iPod only) Press and hold 5/.
Pause/resume playback Press 4/PAU SE .
Sound retriever*1*2* 3 Press 3/S.Rtrv.
Return to root folder (CD/USB only)*1 Press and hold BAND/ or .
Switch between compressed audio and CD-
DA (CD o nly)
Change drives in USB device
(Devices that support the USB mass storage
device class protocol only)
*1 Compressed audio files only
*2 This function is disabled when USB is selected as a source and the MIXTRAX funct ion is on.
*3 When there is no 3/S.Rtrv. button on the unit, the sound retriever function can be set by the
FUNCTION se ttings.
[1]: Effective for low compression rates
[2]: Effective for high compression rates
Press BAND/ or BAND/.
Press BAND/ or BAND/.
Useful functions for iPod
Link play mode
You can access songs based on the artist, album, or genre currently playing.
1 While listening to a song, press and hold to enter the link play mode.
2 Tur n the M.C. dial to select the mode ([ARTIST], [ALBUM], [GENRE]), then press to
confir m.
The selected song/album will be played after the currently playing song.
The selected song/album may be canceled if you use functions other than those from the link play
mode (e.g. fast forward and reverse).
iPod control
You can control the unit via a connected iPod.
The following iPod models are not compatible with this function.
– iPod nano 1st generation, iPod with video
1 Press BAND/ or BAND/ during playback, then select the control mode.
[CONTROL iPod/CTRL iPod]: The unit’s iPod function can be operated from the
connected iPod.
[CONTROL AUDIO/CTRL AUDIO]: The unit’s iPod function can only be operated by
the buttons on the unit or supplied remote control. In this mode, the connected iPod
cannot be turned on or off.
• Switching the control mode to [CONTROL iPod/CTRL iPod] pauses song playback. Use the connected
iPod to resume playback.
• The following operations are still accessible from the unit, even if the control mode is set to
[CONTROL iPod/CTRL i Pod].
– Pause, fast forward/reverse, song/chapter selection
• The volume can only be adjusted from the unit.
About MIXTRAX (USB/iPod only)
The MIXTRAX function creates a non-stop mix of your music library, accompanied by
illumination effects. For details on MIXTRAX settings, see page 18.
• This function is not compatible with an Android device connected via MTP.
• When USB is selected as a source and the MIXTRAX function is in use, the sound retriever function is
disabled.
• Depending on the file/song, sound effects may not be available.
• Turn the MIXTRAX function off if the illumination effects it produces interfere with driving.
1 Press 3/MIX or MIX to turn MIXTRAX on/off.
The button varies depending on the unit.
Bluetooth
(Only for DEH-X6800BT/X6810BT/X4800BT/X4810BT)
Bluetooth connection
If three or more Bluetooth devices (e.g. a phone and separate audio player) are connected, they may
not work properl y.
1 Turn on the Bluetooth function of the device.
2 Press to display the phone menu.
3 Tur n th e M.C. dial to select [BT SETTING], then press to confirm.
4 Tur n th e M.C. dial to select [ADD DEVICE], then press to confirm.
The unit starts to search for available devices, then displays them in the device list.
8En
English
• To cancel searching, press the M.C. dial.
NOTES
TIP
Important
• If the desired device is not in the list, select [RE-SEARCH].
• If there is no device available, [NOT FOUND] appears in the display.
5 Tur n the M.C. dial to select a device from the device list, then press to confirm.
Press and hold the M.C. dial to switch the displayed device information between the
Bluetooth device address and device name.
6 Select [Pioneer BT Unit] shown in the device display.
7 Make sure the same 6-digit number appears on this unit and the device, then
select “Yes” on the device.
• [DEVICE FULL] appears if the unit has already been paired with three other devices. In this case, delete
one of the paired devices. See [DEL DEVICE] or [GUEST MODE] in the Bluetooth settings (page 9).
• Depending on the device, the PIN code is required in step 7. In this case, input [0000].
The Bluetooth co nnection can be also m ade by detecting the uni t from the Bluetooth devi ce. To do so,
[VISIBLE] in the Bl uetooth settings needs to be set to [ON]. For details on a Bluetooth dev ice operations,
refer to the operating instructions supplied with the Bluetooth device.
Bluetooth settings
Menu Item Description
DEVICELIST Display the list of paired Bluetooth devices. “*” appears on the
DEL DEVICE Delete the device information.
[DELETE YES],
[DELETE NO]
ADD DEVICE Register a new device.
A.CONN Select [ON] to connect to a Bluetooth device automatically.
[ON], [OFF]
VISIBLE Select [ON] so that a Bluetooth device can detect the unit when
[ON], [OFF]
device name when the Bluetooth connection is established.
the unit is conn ected via Bluetooth to another device.
Menu Item Description
PIN CODE Change the PIN code.
DEV. INFO Switch the device information on the display between the
GUEST MODE Select [ON] to move to the [DEL DEVICE] scree n automatically
[ON], [OFF]
A.PAIRING Select [ON] to pair the unit and iPhone automatically when an
[ON], [OFF]
1 Press the M.C. dial to display the setting mode.
2 Turn the M. C. dial to select a number.
3 Press the M.C. dial to move the cursor to the next position.
4 After inputting the PIN code, press and hold the M.C. dial.
After inputting the PIN code, pressing the M.C. dial returns you
to the PIN code input display, and you can change the PIN code.
device name and Bluetooth device address.
when the unit has already been paired with three devices.
iPhone is connected to the unit via USB. (This function may not
be available depending on the version of iOS you are using.)
Bluetooth telephone
First, make a Bluetooth connection with the Bluetooth telephone (page 8). Up to two
Bluetooth telephones can be connected simultaneously.
• Leaving the u nit on standby to con nect to your phone via Bluetooth whil e the engine is not running
can drain the vehicle’s battery.
• Be sure to park your vehicle in a safe place and apply the parking brake before operation.
To make a phone ca ll
1
Press to display the phone menu.
When two phones are connected, a phone name appears first then a phone menu
will display. To switch to another phone, press again.
2 Tur n the M.C. dial to select [RECENTS] or [PHONE BOOK], then press to confirm.
If you select [PHONE BOOK], proceed to step 4.
3 Tur n the M.C. dial to select [MISSED], [DIALED] or [RECEIVED], then press to
confirm.
4 Tur n the M.C. dial to select a name or phone number, then press to confirm.
The phone call starts.
To answer an incoming call
1
Press when a call is received.
9En
Loading...
