Philips MDV530VR QUICK START GUIDE

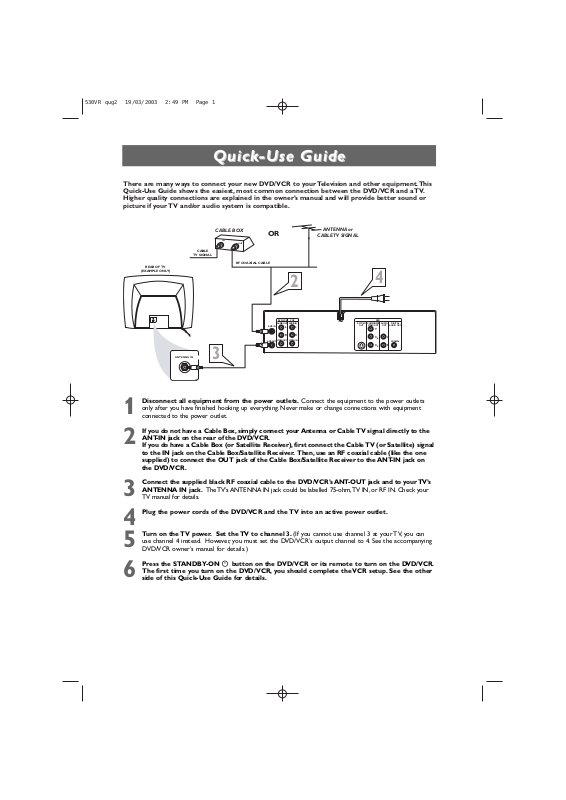

There are many ways to connect your new DVD/VCR to your Television and other equipment.This Quick-Use Guide shows the easiest, most common connection between the DVD/VCR and a TV. Higher quality connections are explained in the owner’s manual and will provide better sound or picture if your TV and/or audio system is compatible.

ANT-IN

ANT-OUT

DVD/VCR VCR

AUDIO OUT AUDIO IN

VIDEO OUT VIDEO IN

COAXIAL

DVD

S-VIDEO

OUT

COMPONENT

VIDEO OUT

AUDIO

OUT

DIGITAL

AUDIO OUT

REAR OF TV

(EXAMPLE ONLY)

ANTENNA IN

OUT

RF COAXIAL CABLE

CABLE

TV SIGNAL

ANTENNA or

CABLE TV SIGNAL

CABLE BOX

Disconnect all equipment from the power outlets. Connect the equipment to the power outlets only after you have finished hooking up everything. Never make or change connections with equipment connected to the power outlet.

If you do not have a Cable Box, simply connect your Antenna or Cable TV signal directly to the ANT-IN jack on the rear of the DVD/VCR. If you do have a Cable Box (or Satellite Receiver), first connect the Cable TV (or Satellite) signal to the IN jack on the Cable Box/Satellite Receiver. Then, use an RF coaxial cable (like the one supplied) to connect the OUT jack of the Cable Box/Satellite Receiver to the ANT-IN jack on the DVD/VCR.

Connect the supplied black RF coaxial cable to the DVD/VCR’s ANT-OUT jack and to your TV’s ANTENNA IN jack. The TV’s ANTENNA IN jack could be labelled 75-ohm,TV IN, or RF IN.Check your

TV manual for details.

Plug the power cords of the DVD/VCR and the TV into an active power outlet.

Turn on the TV power. Set the TV to channel 3. (If you cannot use channel 3 at your TV, you can use channel 4 instead. However, you must set the DVD/VCR’s output channel to 4. See the accompanying DVD/VCR owner’s manual for details.)

Press the STANDBY-ON 2 button on the DVD/VCR or its remote to turn on the DVD/VCR. The first time you turn on the DVD/VCR, you should complete the VCR setup. See the other side of this Quick-Use Guide for details.

Quick-Use Guide

530VR qug2 19/03/2003 2:49 PM Page 1

Playing a Disc

With the TV and DVD/VCR on, press the DVD button to put the DVD/VCR in DVD mode.

Press OPEN/CLOSE / to open the disc tray. Put a Disc in the tray with the label facing up and the

shiny side facing down.

Press OPEN/CLOSE / again to close the tray.

Playback may start automatically. If not, press PLAY B. If a DVD Disc menu appears, use the 1 234,

OK, or Number buttons to select features or start playback. Follow the instructions in the menu.

To stop playing the Disc, press STOP 9.

MDV530VR / 8239 300 26712

H9460UD/0VMN03997*****

Setting Up the VCR the First Time

Turn on the TV and set it to channel 3.

Press VCR, then press STANBDY-ON 2 to turn on the DVD/VCR. This display will appear.

Press 3 or 4 to select English, French, or Spanish as the language for VCR displays. Then, press 2.

The AUTO SET UP message will appear. Press 2 to set up TV channels for the VCR. When setup is

complete, the lowest TV channel will appear on the TV.

AUTO SET UP

LANGUA

GE SELECT

2 ENGLISH [ON]

FRANCAIS ESPANOL

Playable Discs

The DVD Player of the DVD/VCR will play the following Discs.

DVDs must have a Region Code of ALL regions or Region 1.

DVDs must be recorded in the NTSC Color System.

Turn on the TV to channel 3.

Quick-Use Guide (cont’

3-4

TIMER SET

STANDBY-ON

530VR qug2 19/03/2003 2:49 PM Page 2

TIMER SET

STANDBY-ON

ALL

Recordable

ReWritable

STOP PLAY

OPEN CLOSE

TIMER

REC

RECORD STOP/EJECT PLAY

DVD VCR

REC

OUTPUT

STANDBY-ON

VIDEO AUDIO L AUDIO R
