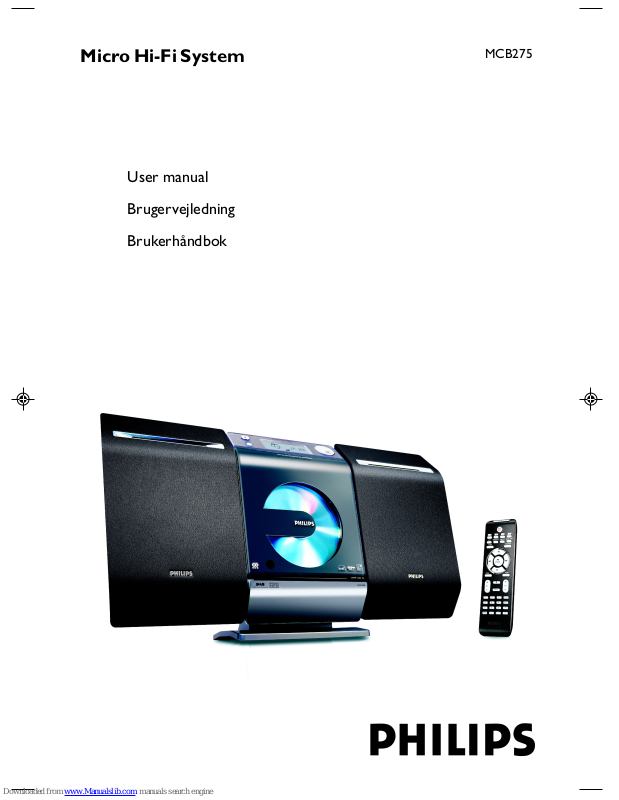

Micro Hi-Fi System
User manual
Brugervejledning
Brukerhåndbok
MCB275
Important notes for users in the
U.K.
Mains plug
This apparatus is fitted with an approved 13
Amp plug. To change a fuse in this type of plug
proceed as follows:
1 Remove fuse cover and fuse.
2 Fix new fuse which should be a BS1362 3 Amp,
A.S.T.A. or BSI approved type.
3 Refit the fuse cover.
If the fitted plug is not suitable for your socket
outlets, it should be cut off and an appropriate
plug fitted in its place.
If the mains plug contains a fuse, this should
have a value of 3 Amp. If a plug without a fuse
is used, the fuse at the distribution board
should not be greater than 3 Amp.
Note: The severed plug must be disposed of to
avoid a possible shock hazard should it be
inserted into a 13 Amp socket elsewhere.
Norge
Typeskilt finnes på apparatens underside.
Observer: Nettbryteren er sekundert
innkoplet. Den innebygde netdelen er
derfor ikke frakoplet nettet så lenge
apparatet er tilsluttet nettkontakten.
For å redusere faren for brann eller elektrisk
støt, skal apparatet ikke utsettes for regn
eller fuktighet.
How to connect a plug
The wires in the mains lead are coloured with
the following code: blue = neutral (N),
brown = live (L).
¶ As these colours may not correspond with the
colour markings identifying the terminals in
your plug, proceed as follows:
– Connect the blue wire to the terminal
marked N or coloured black.
– Connect the brown wire to the terminal
marked L or coloured red.
– Do not connect either wire to the earth
terminal in the plug, marked E (or e) or
coloured green (or green and yellow).
Before replacing the plug cover, make certain
that the cord grip is clamped over the sheath
of the lead - not simply over the two wires.
Copyright in the U.K.
Recording and playback of material may
require consent. See Copyright Act 1956 and
The Performer’s Protection Acts 1958 to 1972.
2
1
2
3
8
7
6
5
9
0
!
@
#
SCAN/PROGRAM
4
MENU
OK
%
$
3
4
Index
English ------------------------------------------------ 6
Dansk ----------------------------------------------- 31
Bokmål --------------------------------------------- 56
English
Dansk
Bokmål
5
Contents
English
General Information
Supplied accessories ............................................ 7
Environmental information ................................ 7
Safety Information ................................................ 7
About Digital Audio Broadcasting (DAB) ....... 8
Hearing Safety ....................................................... 8
Controls
Controls on the set ............................................. 9
Remote control ............................................ 10-11
Installation
Placing MCB275 .................................................. 11
Mounting stand onto the set
Mounting MCB275 onto walls
Rear connections ............................................... 12
Connecting an additional appliance .................... 13
Connecting a USB device
Connecting a non-USB device
Using AC power .................................................. 14
Different play modes: REPEAT, SHUFFLE ...... 19
Display track information
(MP3 only)............................................................ 19
DAB Reception
Tuning to DAB for the first time .................... 20
Re-tuning .............................................................. 20
Manual tuning ...................................................... 20
DAB information display ................................... 21
Menu operation .................................................. 21
Programming DAB stations ............................. 21
Tuning to preset DAB stations ........................ 21
Tuner
Tuning to radio stations .................................... 22
Programming radio stations ............................. 22
Autostore: Automatic programming
Manual programming
To listen to a preset station
RDS (Radio Data System) ................................ 23
Switching through RDS information
Automatic clock setting via RDS
Preparations
Before using the remote control .................... 15
Replacing battery (lithium CR2025) into the
remote control ................................................... 15
Setting the clock ................................................. 15
Basic Functions
Switching on/off the set and
selecting functions .............................................. 16
Switching between Standby and
ECO POWER mode.......................................... 16
Auto-standby ....................................................... 16
Volume control ................................................... 16
Volume adjustment
MUTE
Sound control ............................................................ 16
DSC
DBB
Displaying the clock ....................................................... 17
CD
Discs for playback .............................................. 17
Playing discs ................................................... 17-18
Selecting and searching ..................................... 18
Selecting a different track
Finding a passage within a track during playback
Programming tracks .................................... 18~19
Erasing the program
External Sources
Using a USB mass storage device ............. 24-25
Playing a USB mass storage device
AUX (Listening to an external source) ......... 25
Timer
Setting the timer ................................................. 26
Activating and deactivating TIMER ................. 26
SLEEP
................................................................................ 26
Specifications ........................................... 27
Maintenance .............................................. 27
Troubleshooting .............................. 28-29
Appendix ...................................................... 30
6
General Information
Supplied accessories
–2 speaker boxes including 2 speaker cables
– remote control (with 1 x CR2025 battery)
– stand
– mounting kit
–1 X certified AC/DC adapter (Input: 100-
240V ~ 50-60Hz 0.8A MAX., Output:14V
1.8A)
Environmental Information
All unnecessary packaging has been omitted. We
have tried to make the packaging easy to
separate into three materials: cardboard (box),
polystyrene foam (buffer) and polyethylene (bags,
protective foam sheet).
Your system consists of materials which can be
recycled and reused if disassembled by a
specialized company. Please observe the local
regulations regarding the disposal of packaging
materials, exhausted batteries and old
equipment.
Disposal of your old product
Your product is designed and
manufactured with high quality materials
and components, which can be recycled
and reused.
When this crossedout wheeled bin
symbol is attached to
a product it means
the product is
covered by the
European Directive
2002/96/EC
Safety Information
English
● Place the system on a flat, hard and stable
surface.
● Place the system in a location with adequate
ventilation to prevent internal heat build-up in
your system. Allow at least 10 cm (4 inches)
clearance from the rear and the top of the unit
and 5 cm (2 inches) from each side.
● The ventilation should not be impeded by
covering the ventilation openings with items,
such as newspapers, table-cloths, curtains, etc.
● Do not expose the system, batteries or discs to
excessive moisture, rain, sand or heat sources
caused by heating equipment or direct sunlight.
● No naked flame sources, such as lighted candles,
should be placed on the apparatus.
● No objects filled with liquids, such as vases, shall
be placed on the apparatus.
● Install this unit near the AC outlet and where the
AC power plug can be reached easily.
● If the system is brought directly from a cold to a
warm location, or is placed in a very damp room,
moisture may condense on the lens of the disc
unit inside the system. Should this occur, the CD
player would not operate normally. Leave the
power on for about one hour with no disc in the
system until normal playback is possible.
● The mechanical par ts of the set contain self-
lubricating bearings and must not be oiled or
lubricated.
● When the system is switched to Standby
mode, it is still consuming some power.
To disconnect the system from the
power supply completely, remove the AC
power plug from the wall socket.
Please inform yourself about the local
separate collection system for electrical
and electronic products.
Please act according to your local rules
and do not dispose of your old products
with your normal household waste. The
correct disposal of your old product will
help prevent potential negative
consequences for the environment and
human health.
7
General Information
English
About Digital Audio
Broadcasting (DAB)
DAB digital radio is a new way of broadcasting
radio via a network of terrestrial transmitters. It
provides listeners with more choice and
information delivered in crystal clear, crackle-free
sound quality.
– The technology allows the receiver to lock
on to the strongest signal it can find.
–With DAB digital stations there are no
frequencies to remember, and sets are tuned by
station name, so there's no retuning on the
move.
What is a multiplex?
Digital radio operation is made up of a single
block of frequencies called a multiplex. Each
multiplex works within a frequency spectrum,
such as Band III for DAB broadcasts.
Note:
–You will receive only those stations within
your transmission area.
DAB Broadcasters and DLS
Each DAB broadcaster (or multiplex operator)
also provides text and audio data services. Some
programmes are suppor ted by Dynamic Label
Segments (DLS). This is data which you can read
as scrolling text on your DAB radio display.
Some stations transmit the latest news, travel,
and weather, what's on now and next, website
addresses and phone numbers.
For more information on digital radio coverage
and services, please visit: www.drdb.org.
Hearing Safety
Listen at a moderate volume.
● Using headphones at a high volume can impair
your hearing. This product can produce sounds
in decibel ranges that may cause hearing loss for
a normal person, even for exposure less than a
minute. The higher decibel ranges are offered
for those that may have already experienced
some hearing loss.
● Sound can be deceiving. Over time your hearing
"comfort level" adapts to higher volumes of
sound. So after prolonged listening, what sounds
"normal" can actually be loud and harmful to
your hearing. To guard against this, set your
volume to a safe level before your hearing
adapts and leave it there.
To establish a safe volume level:
● Set your volume control at a low setting.
● Slowly increase the sound until you can hear it
comfortably and clearly, without distortion.
Listen for reasonable periods of time:
● Prolonged exposure to sound, even at normally
"safe" levels, can also cause hearing loss.
● Be sure to use your equipment reasonably and
take appropriate breaks.
Be sure to observe the following
guidelines when using your headphones.
● Listen at reasonable volumes for reasonable
periods of time.
● Be careful not to adjust the volume as your
hearing adapts.
● Do not turn up the volume so high that you
can't hear what's around you.
● You should use caution or temporarily
discontinue use in potentially hazardous
situations.
● Do not use headphones while operating a
motorized vehicle, cycling, skateboarding, etc.; it
may create a traffic hazard and is illegal in many
areas.
8
Controls
Controls on the set (illustrations
on page 3)
1 STANDBY-ON/ ECO POWER
– press briefly to switch the set on or off (standby/
ECO POWER);
– In standby or Eco Power mode: press and
hold to toggle between Standby and ECO
POWER mode (power-saving mode).
– Red indicator: lights up red when the set is
switched to ECO POWER mode.
2 SOURCE
– selects sound source DAB, FM, DISC, USB or
AUX.
– In standby or Eco Power mode: switches the
set on and selects sound source DAB, FM,
DISC, USB or AUX.
3 IR
– sensor for the infrared remote control
Helpful hints: Always point the remote control
towards this sensor.
4 PUSH OPEN
– push to unfold or fold the control panel.
5 CD OPEN • CLOSEç
– opens/closes the CD door.
6 CD door
7 VOLUME
– adjusts the volume level.
0 DBB (Dynamic Bass Boost)
– turns the bass enhancement on/off.
! MENU
– selects DAB full scan, quick scan, manual tuning,
language and DRC value.
@ SCAN/PROGRAM
– CD/USB: programs tracks.
– FM: programs preset radio stations.
– DAB: starts DAB service scanning.
# STOP
– CD/USB: stops playback; erases a program
$ AUX-IN
– connects to the AUDIO OUT jack on the
external appliance
%
– jack for the external USB mass storage device
English
nn
8
n
nn
– 3.5 mm headphone socket
Helpful hints:
– Adjust the volume to a moderate level
before you plug in the headphones.
– Connecting headphones will switch off the
speakers.
9 ALBUM/ PRESET + /-
– CD/USB: selects albums (for MP3/WMA only).
– FM/DAB: selects a preset radio station.
4 / ¢
– CD/USB: skips or searches CD tracks/titles
backwards/forwards.
– FM/DAB: tunes to radio stations.
– Clock/Timer: adjusts the hours and minutes.
OK / ÉÅ
– CD/USB: star ts or pauses playback.
– DAB: press to select an option.
– DAB: press and hold to star t manual tuning.
9
Controls
English
Remote control
1
2
3
7
9
0
!
™
@
#
$
1 B
– switches the system on or to Eco Power
standby/normal standby with clock display.
2 SOURCE
– selects the respective sound source for DAB/
FM/DISC/USB/AUX.
3 CLOCK
– sets the clock function.
4 INFO./RDS
–for FM, displays RDS information.
5 SCAN
– starts auto-scanning for DAB frequencies.
5
4
6
9
8
¡
)
£
(
*
&
^
%
6 SHUFFLE
– plays disc tracks randomly.
7 REPEAT/ST.
for CD/MP3/USB selects a repeat playback
mode.
for FM .................. sets stereo or mono sound
mode.
8 ¡ / ™
for CD/MP3-CD/USB
................................. skips to the beginning of a
current/previous/subsequent
track.
for clock/timer
................................. adjusts the hours and minutes.
for FM and DAB
................................. tunes to preset FM radio station
or DAB frequency.
9 5 /6
for CD/MP3-CD/USB
fast searches back and forward
within a track/disc (press and
hold).
0 ENTER/ÉÅ
– starts or interrupts playback.
– press to select an option (DAB only).
! TIMER
– sets the timer function.
@ ALB +/-
for MP3-CD/USB skips to the beginning of a
current/previous/subsequent
album.
# Numerical Keypad (0~9)
–(for CD/MP3/USB) selects a track directly.
–(for FM) selects a preset FM radio station
directly.
$ PROG
for CD/MP3/USB programs tracks.
for FM/DAB ...... programs radio stations.
% SHIFT
– inputs a number larger than 10 (used together
with the Numerical Keypad).
^ DBB (Dynamic Bass Boost)
– enhances the bass.
& DSC (Digital Sound Control)
– selects sound characteristics: CLASSIC/POP/
JAZZ/ROCK.
10
Controls Installation
PR
ES
S
F
R
O
N
T
FRONT
PRE
SS
* INTRO
for CD/MP3/USB starts scanning of all tracks.
( DISPLAY
for CD/MP3/USB displays track information
during playback.
) VOL +/-
– adjusts the volume level.
– adjusts the hours and minutes for the clock/timer
function.
¡ SLEEP
– selects the sleeper time.
™ 9
– stops disc playback or erases a disc/USB
program.
£ MUTE
– interrupts and resumes sound reproduction.
Notes for remote control:
– First select the source you wish to
control by pressing one of the source select
keys on the remote control (for example
DISC, FM).
– Then select the desired function (for
example
ÉÅ,à
, á).
Placing MCB275
English
With the detachable stand, MCB275 allows you
to place it in two ways: on desktops with
stand or on walls without stand.
Mounting stand onto the set
MCB275 is equipped with a stand. To mount the
stand onto the set,
1 Put MCB275 on a flat and firm surface, rear side
facing up.
2 As shown, align the stand to the slots at set’s
bottom, 4 FRONT facing down.
3 Push the stand down into the slots.
➜ When the stand is in place, you will hear a
click.
Mounting MCB275 onto walls
See Appendix: How to mount your
MCB275 onto walls to learn more about
wall mounting.
11
Installation
English
DAB/FM T-type antenna
Speaker
(right)
Rear connections
Warning:
– Never make or change connections with
the mains supply switched on.
– Install your set near the AC outlet and
where the AC power plug can be reached
easily.
Speaker
(left)
AC power
b. Press the clip of the black terminal and fully
insert the stripped portion of the black (or
unmarked) speaker cable into the socket, then
release the clip
Speaker connections
Use the supplied speakers only. Using other
speakers can damage the set or the sound
quality will be negatively affected.
● Connect the cable of the left speaker to LEFT
(red and black) and the cable of the right
speaker to RIGHT (red and black) as follows:
a. Press the clip of the red terminal and fully
insert the stripped portion of the colored (or
marked) speaker cable into the socket, then
release the clip
12
Installation
Connecting an additional
appliance
Connecting a USB device or memory
card
By connecting a USB mass storage device
(including USB flash memory, USB flash players
or memory cards) to the Hi-Fi system, you can
enjoy the device’s stored music through the
powerful speakers of Hi-Fi system.
1 Check you have unfolded the control panel.
Connecting a non-USB device
It is possible to use an additional appliance, e.g.
TV, VCR or CD recorder with the set. On
MCB275, you can playback music from an
external source.
1 Follow Step 1 under Connecting a USB
device.
2 Insert one plug of the audio cable (not supplied)
to the socket AUX IN on the set ‘s foldable
control panel.
3 Connect the other end of the audio cable to the
AUDIO OUT terminal of the additional
appliance.
English
2 Insert the USB device’s USB plug into the socket
on the set ‘s foldable control panel.
or
for the devices with USB cable:
a. Insert one plug of the USB cable (not
supplied) to the socket on the set ‘s
foldable control panel.
b. Insert the other plug of the USB cable to the
USB output terminal of the USB device.
or
for the memory card:
a. Insert the memory card into a card reader
(not supplied).
b. Use a USB cable (not supplied) to connect
the card reader to the socket
on the set ‘s foldable control panel.
4 Select AUX mode on the set.
Helpful hints:
– Always refer to the owner’s manual of other
equipment for complete connection.
13
Installation
English
Using AC power
Make sure all the connections have been made
1
before switching on the power supply.
2 Connect the AC power adaptor to the wall
socket. This switches on the power supply.
When MCB275 is switched to standby, it is still
consuming some power. To disconnect the
system from the power supply completely,
remove the power plug from the wall
socket.
The type plate is located on the rear of the
set.
For users in the U.K.: please follow the
instructions on page 2.
Warning!
To avoid overheating of the system, a safety
circuit has been built in. Therefore, your
system may switch to Standby mode
automatically under extreme conditions. If
this happens, let the system cool down
before reusing it (not available for all versions).
14
Preparation
Before using the remote control
1 Pull out the plastic protective sheet.
2 Select the source you wish to control by
pressing one of the source select keys on the
remote control (for example DISC, FM).
3 Then select the desired function (for example
ÉÅ , à , á).
Remove the plastic protective sheet
Replacing battery (lithium
CR2025) into the remote
control
1 Press the slot on the battery compar tment.
2 Pull out the battery compar tment.
3 Replace a new battery and fully insert the
battery compartment back to the original
position.
Setting the clock
After connecting MCB275 to the power supply,
set the clock first.
1 Press and hold STANDBY-ON/ ECO
POWER to switch the set to Standby mode.
➜ The display shows the set time.
2 In the standby mode, press and hold CLOCK
on the remote control.
➜ The hours digits star t flashing.
3 Press 4 / ¢ (or ¡ / ™ on the remote
control) repeatedly to set the hours.
4 Press CLOCK to confirm.
➜ The minute digits star t flashing.
5 Press 4 / ¢ (or ¡ / ™ on the remote
control) repeatedly to set the minutes.
6 Press CLOCK to confirm.
– To exit without storing the clock setting press
STOP 9.
Helpful hints:
– The clock setting will be erased when the system
is disconnected from the power supply.
– The set will exit from the clock setting mode if
no button is pressed within 90 seconds.
–To set the clock automatically by using a time
signal which is broadcast together with the RDS
signal see chapter RDS: Automatic clock
setting via RDS.
English
1
CR2025
2
CAUTION!
Batteries contain chemical substances, so
they should be disposed of properly.
3
15
Basic Functions
English
Switching on/off the set and
selecting functions
1 To switch on, press STANDBY-ON/ ECO
POWER or SOURCE on the set (or y on
the remote control).
➜ The set switches to the last source selected.
OR
On the remote control, press the source button
(e.g. DAB, FM, DISC, USB, AUX).
Volume control
Volume adjustment
● Adjust the volume by using the VOLUME
rotary on the set or by pressing VOLUME +/-
on the remote control.
➜ VOL and the actual value (between 1 and 31)
are displayed.
➜ VOL MIN is the minimum volume level.
➜ VOL MAX is the maximum volume level.
2 When the set is on, press STANDBY-ON/
ECO POWER to switch off (or y on the
remote control).
3 To select your function, press SOURCE once
or more on the set (or DAB, FM, DISC, USB,
AUX on the remote control).
Helpful hints:
–You can also switch on the set by pressing
CD OPEN • CLOSEç.
Switching between Standby and
ECO POWER mode
1 When the set is switched off, press and hold
STANDBY-ON/ ECO POWER to switch
between Standby and ECO POWER mode (or
y on the remote control)
In ECO POWER mode (power-saving mode):
➜ The display is switched off.
➜ The Red indicator lights up.
In Standby mode: ➜ The clock is displayed.
MUTE
You can temporarily switch off the sound
without switching off the set.
1 Press MUTE on the remote control to switch
off the sound.
➜ MUTE appears. Playback continues without
sound.
2 To switch on the sound, you can:
– press MUTE again;
– adjust the volume controls;
– change source
Sound control
DSC
Digital Sound Control enables you to select
predefined sound settings.
● Press DSC repeatedly to select the desired
sound setting: CLASSIC, POP, JAZZ, ROCK.
DBB
Helpful hints:
– In the standby/Eco power mode, the tone, sound
settings, tuner presets and the volume level (up to
a maximum volume level of 12) will be retained in
the set’s memory.
Auto-standby
When the set has reached the end of CD
playback and remains in the stop position for
more than 15 minutes, the set will switch off
automatically to save power.
16
● Press DBB (Dynamic Bass Boost) once or
more to switch bass enhancement on or off.
➜ DBB appears if DBB is activated.
Displaying the clock
● During playback, press CLOCK on the remote
control repeatedly to switch between the clock
display and the playback display.
CD
Discs for playback
With this system, you can play
– all pre-recorded audio CDs (CDDA)
– all finalized audio CD-Rs and CD-RWs
– MP3/WMA-CDs (CD-Rs/CD-RWs with
MP3/WMA files)
IMPORTANT!
– This system is designed for regular
discs. Therefore, do not use any
accessories such as disc stabilizer rings or
disc treatment sheets, etc.
About MP3/ WMA
The music compression technology MP3
(MPEG1 Audio Layer 3) and WMA (Windows
Media Audio) significantly reduces the digital data
of an audio CD while maintaining CD quality
sound.
Windows Media Audio® is a registered
trademark of Microsoft Corporation.
IMPORTANT!
– Make sure that the file names of MP3 files end
with .mp3.
– For DRM protected WMA files, use Windows
Media Player 10 (or later) for CD burning/
conversion. Visit www. microsoft.com for details
about Windows Media Player and WM DRM
(Windows Media Digital Rights Management).
Playing discs
1 Press SOURCE once or more to select CD (or
CD on the remote control)
➜ The CD icon appears
2 Press CD OPEN•CLOSEç to open the CD
compartment.
➜ OPEN is displayed
English
Supported formats:
– Disc format ISO9660, Joliet, UDF (created on
Adaptec Direct CD) and multi-session CDs
– MP3 bit rate (data rate): 32-320 Kbps and
variable bit rate
– Directory nesting up to a maximum of 8
levels
– Max. track number plus album: 500
– WMA v9 or earlier
The system will not play or support the
following:
•Empty albums: an empty album is an album
that does not contain MP3/WMA files, and will
not be shown in the display.
• Non-supported file formats are skipped. This
means that e.g.: Word documents .doc or MP3
files with extension .dlf are ignored and will not
be played.
• DRM protected WMA files
• WMA files in Lossless or VBR format
3 Insert a disc with the printed side facing up.
Press CD OPEN•CLOSEç again to close the
compartment
➜ READING is displayed as the CD player scans
the contents of a disc
➜ Audio CD: the total number of tracks and
playing time are shown
MP3: Display shows current album
number “A x x “and current track number
“T x xx”
17
CD
English
Helpful hints:
– If you have not organized MP3/WMA files into
any albums on your disc, an album “00” will be
automatically assigned for all those files.
4 Press ÉÅ to star t playback.
➜ Display shows current track number and
elapsed playing time.
5 To pause playback, pressÉÅ. To resume
playback, press the button again.
6 To stop playback, press STOPÇ.
Helpful hints:
CD playwill also stop when
– the CD door is opened
– the disc has reached the end
– you select another source: DAB, FM, USB or
AUX
Selecting and searching
Selecting a different track
● Press 4 / ¢ (or ¡ / ™ on the remote
control) once or repeatedly until the desired
track number appears in the display.
MP3: ➜ Tr ack information scrolls briefly.
MP3:
● Press ALBUM/ PRESET +/- (or ALB +/- on
the remote control) once or more to select the
next or previous album.
➜ Tr ack information scrolls briefly.
or
● In the stop position, press ALBUM/ PRESET
+/- (or ALB +/- on the remote control) and
4 / ¢ (or ¡ / ™ on the remote control)
to select the desired album and track.
➜ MP3: Display shows current album/
track number.
Finding a passage within a track
during playback
1 During playback, press and hold 4 / ¢
(or 5 /6 on the remote control).
➜ The CD plays at a high speed.
2 When you recognize the passage you want,
release 4 or ¢ (or 5 /6 on the remote
control).
➜ Normal playback resumes.
Programming tracks
You may store up to 32 tracks in the desired
sequence. If you like, store any track more than
once.
1 In the stop position, press SCAN/PROGRAM
(or PROG on the remote control) to start
programming.
➜ Audio CD: Display shows PROG and current
track number.
MP3: Display shows current album/track
number.
2 Press 4 / ¢ (or ¡ / ™ on the remote
control) once or repeatedly until the desired
track number appears in the display.
● MP3: press ALBUM/ PRESET +/- (or ALB
+/- on the remote control) and 4 / ¢ (or
¡ / ™ on the remote control) to select the
desired album and track.
3 Press SCAN/PROGRAM (or PROG on the
remote control) to confirm.
➜ Display shows briefly the number of tracks
programmed.
➜ Then, the display shows the track number
you just stored.
18
4 Repeat steps 2-3 to select and store all desired
tracks.
➜ FULL is displayed if you attempt to program
more than 32 tracks.
5 Press ÉÅ play the program.
Helpful hints:
– The set will return to the stop position if no button
is pressed within 90 seconds.
PROG disappears. To resume programming, press
SCAN/PROGRAM (or PROG on the
remote control).
– MP3: When playing a program, use of
ALBUM/ PRESET +/- (or ALB +/- on the
remote control) is void.
Erasing the program
You can erase the contents of the memor y by:
● Press STOP 9
– once if in the stop position;
– twice during playback;
● Press STANDBY-ON/ ECO POWER y
● Select another sound source
● Open the CD door
➜ PROG disappears while PROGRAM CLEAR
scrolls.
CD
Different play modes: REPEAT,
SHUFFLE
REPEAT TRACK– plays the current track
continuously.
REPEAT ALL– plays the entire disc/program
continuously.
SHUFFLE – plays all the tracks in random order.
1 During playback, press once or more REPEAT/
ST. or SHUFFLE to select play modes.
2 To return to normal playback, press REPEAT/
ST. or SHUFFLE repeatedly until the various
modes are no longer displayed.
Helpful hints:
– In the shuffle mode, press
remote control) to select tracks.
Display track information
(MP3 only)
The ID3 tag is part of an MP3 file and
contains various track information such as the
track´s title or the artist´s name.
● During playback, press DISPLAY repeatedly on
the remote control.
➜ Display show title name, album name and ID3
tag information.
¢
(or ™ on the
English
19
DAB Reception
English
Re-tuning
By re-tuning, you can update your DAB multiplex
(ensemble) list all over again. At the completion
of scanning, the system will tune to the first
service of the first multiplex (ensemble) in the
updated multiplex (ensemble) list.
During scanning, the system will initially display
the following the following, where "CH" is the
DAB channel and "N" is the number of the
current multiplex (ensemble).
CH N
● Press SCAN briefly.
➜ The display panel shows "FULL SCAN" and
the system will start full scan to search for all
available Band III channels again automatically.
● Press and hold SCAN for more than 2 seconds.
➜ The display panel shows "QUICK SCAN" and
the system will start a quick scan process to
search for Band III channels again automatically.
● If you press 9 during scanning, the scanning
process will stop and the system will return to
the DAB frequency before scanning starts.
➜ The other DAB operation buttons will be
locked.
Tuning to DAB for the first time
1 Press SOURCE on the top of the system to
select DAB (or press DAB on the remote
control).
➜ The system will star t full scan to search for all
available Band III channels automatically.
➜ If no DAB service is available, “station not
available" will appear on the display panel.
➜ If there are available DAB services, the system
will store all detected stations.
Note:
– If no DAB service is detected during the above
processes, the display panel will show "NO
SIGNAL".
Manual tuning
1 Press and hold OK/ÉÅ (or ENTER/ÉÅ
on the remote control) for more than 2 seconds
to start manual tuning.
➜ The current DAB channel and frequency will
be displayed.
2 Press ¡ / ™ on the remote control to select your
desired DAB channels backward/forward.
● Press OK/ÉÅ (or ENTER/ÉÅ on the
remote control) to confirm and tune to your
selected channel.
20
DAB Reception
DAB information display
You can view the DAB service information in the
following 3 information modes. Depending on
the DAB radio station you are tuning to, some
information modes may be unavailable.
● Press INFO./RDS repeatedly to view the
following information.
Channel & Frequency
Displays the channel and central frequency of
the current multiplex (ensemble).
12B 225 648
Date and Time
Shows the date & time of the current multiplex
(ensemble) in the format of MM-DD HH:MM
(MM: month; DD: day; HH: hour; MM: minute).
MM•DD HH:MM
Bit Rate and Audio Status
Programming DAB stations
You can save up to 20 DAB stations in the
system memory.
1 Press PROG on the remote control.
➜ The display shows "PN", where N stands for
the preset number.
2 Press ALBUM/PRESET +/- (or ¡ / ™ on the
remote control) to select your desired preset
number. Then, press PROG on the remote
control again.
● You can also use the Numerical Keypad
(0~9) to input a number directly and tune to the
service associated with this number.
● To input a number larger than 10, press SHIFT
once or more to select the first digit you want
and then use the Numerical Keypad (0~9) to
input the second digit.
➜ The display shows "PN SAVED" briefly,
indicating the preset is saved.
Note:
– If no service is associated with the number you
input, the display will show "PN EMPTY" briefly,
where "N" stands for the input preset number.
English
Displays the transmission rate of broadcasting in
bits per second (kbps) and the audio status of
the current service in stereo or mono.
Menu operation
You can also select DAB full scan, quick scan,
manual tuning, language and DRC value through
the DAB menu.
1 Press MENU on the set.
➜ A DAB menu appears on the display panel.
2 Press 4 / ¢ (or 5 /6 on the remote
control) to select an item you want.
3 Press OK/ÉÅ (or ENTER/ÉÅ on the
remote control) to confirm.
Tuning to preset DAB stations
● Press ALBUM/PRESET +/- (or ¡ / ™ on the
remote control) until the desired preset station is
displayed.
21
Tuner
English
Tuning to radio stations
Manual programming
1 Press SOURCE once or more to select FM
(or FM on the remote control) .
2 Press and hold 4 / ¢ (or 5 /6 on the
remote control) until SEARCH appears
➜ The radio automatically tunes to a station
with sufficient reception. Display shows SEARCH
during automatic tuning.
3 Repeat step 2 if necessary until you find the
desired station.
● To tune to a weak station, press 4 / ¢
(or 5 /6 on the remote control) briefly and
repeatedly until you have found optimal
reception.
Programming radio stations
You can store up to a total of 20 FM radio
stations in the memory, manually or
automatically (Autostore).
Autostore: Automatic programming
Automatic programming will start from preset 1
or a chosen preset number. From this preset
number upwards, former programmed tuner
stations will be erased. The set will only program
stations which are not in the memory already.
1 Press the ALBUM/PRESET +/- (or ¡ / ™ on
the remote control) buttons once or more to
select the preset number where programming
should start.
1 Tune to your desired station (see Tuning to
radio stations).
2 Press SCAN/PROGRAM (or PROG on the
remote control) to activate programming.
3 Press ALBUM/PRESET +/- (or ¡ / ™ on the
remote control) to allocate a number from 1 to
20 to this station.
4 Press SCAN/PROGRAM (or PROG on the
remote control) to confirm.
➜ Display shows the preset number, waveband
and the frequency of the preset station.
5 Repeat steps 1-4 to store other stations.
● You can erase a preset station by storing
another frequency in its place.
To listen to a preset station
● Press the ALBUM/PRESET +/- (or ¡ / ™ on
the remote control) buttons once or more until
the desired preset station is displayed.
● You can also use the Numerical Keypad
(0~9) to input a number directly and tune to
the station associated with this number.
● To input a number larger than 10, press SHIFT
once or more to select the first digit you want
and then use the Numerical Keypad (0~9)
to input the second digit.
Note:
– If no tuner preset number is selected, default is
preset 1 and all your presets will be erased.
2 Press and hold SCAN/PROGRAM (or
PROG on the remote control) until AUTO
appears.
➜ Available stations are programmed: RDS
stations followed by FM stations (See RDS).
➜ After all stations are stored, the last preset
station will then be played.
22
RDS
The feature RDS (Radio Data System) is a
service that allows FM stations to send additional
information along with the regular FM radio
signal. When you are receiving an RDS station,
and the station name are displayed.
Switching through RDS information
1 Tune to the desired RDS radio station on the
FM waveband (see Tuning to radio stations)
2 Press INFO./RDS on the remote control
repeatedly to switch through the following
information (if available):
– Station name
– Program type (for example: News, Sport, etc.)
– Radio text messages
– Frequency
Note:
– NO PS, NO TYPE or NO TEXT is displayed if
you press INFO./RDS and no RDS signal is
available.
Tuner
English
Automatic clock setting via RDS
When the set is on, the clock can be
automatically set by a time signal broadcast
together with the RDS signal. This only works if
the RDS station is sending this time signal.
Note:
– The time signal broadcast from certain RDS
stations may not always be accurate.
23
External Sources
English
Using a USB mass storage
device
By connecting a USB mass storage device to the
Hi-Fi system, you can enjoy the device’s stored
music through the powerful speakers of Hi-Fi
system.
Playing a USB mass storage device
Compatible USB mass storage devices
With the Hi-Fi system, you can use
– USB flash memory (USB 2.0 or USB1.1)
– USB flash players (USB 2.0 or USB1.1)
– memory cards (requires an additional card
reader to work with this Hi-Fi system)
Notes:
– In some USB flash players (or memory devices),
the stored contents are recorded using copyright
protection technology. Such protected contents will
be unplayable on any other devices (such as this
Hi-Fi system).
– Compatibility of the USB connection on this
product:
a) This product supports most USB Mass storage
devices (MSD) that are compliant to the USB
MSD standards.
i) Most common Mass storage class devices are
flash drives, memory sticks, jump drives and
etc.
ii) If you see a "Disc Drive" show up on your
computer after you plugged the mass storage
device into your computer, most likely it is MSD
compliant and it will work with this product.
b) If your Mass storage device required a battery/
power source. Please make sure you have a fresh
battery in it or charge the USB device first and
then plug it into the product again.
– Supported Music type:
a) This device only supports unprotected music
with the following file extension:
.mp3
.wma
b) Music bought from on-line music stores are
not supported because they are secured by
Digital Rights Management protection (DRM).
c) File name extensions that end with the
following are not supported:
.wav; .m4a; .m4p; mp4; .aac and etc.
– No Direct connection can be made from
Computer USB port to the product even you have
either or both mp3 or wma files in your computer.
Supported formats:
– USB or memory file format FAT12, FAT16,
FAT32 (sector size: 512 - 4096 bytes)
– MP3 bit rate (data rate): 32-320 Kbps and
variable bit rate
– WMA v9 or earlier
– Directory nesting up to a maximum of 8
levels
– Number of albums/ folders: maximum 99
– Number of tracks/titles: maximum 999
– ID3 tag v2.0 or later
– File name in Uicode UTF8 (maximum length:
128 bytes)
The system will not play or support the
following:
• Empty albums: an empty album is an album
that does not contain MP3/WMA files, and will
not be shown in the display.
• Non-supported file formats are skipped. This
means that e.g.: Word documents .doc or MP3
files with extension .dlf are ignored and will not
be played.
•AAC, WAV, PCM audio files
• DRM protected WMA files
• WMA files in Lossless format
How to transfer music files from PC to a
USB mass storage device
By dragging and dropping music files, you can easily
transfer your favorite music from PC to a USB mass
storage device.
For the flash player, you can also use its music
management software for the music transfer.
However, those WMA files may be unplayable
for compatibility reasons.
24
External Sources
How to organize your MP3/WMA files on
the USB mass storage device
This Hi-Fi system will browse the MP3/WMA files
in the folders/sub-folders/titles order.
Example:
Root
Title 001
Title 002
Title 003
Album 01
Title 001
Title 002
Title 003
Album 02
Title 001
Title 002
Title 003
Album 03
Title 001
Title 002
Title 003
1 Check the USB device has been properly
connected. (See Installation: Connecting an
additional appliance).
2 Press SOURCE once or more to select USB
(or USB on the remote control).
– NO AUDIO appears if no audio file is found in
the USB device
3 Play the USB’s audio files as you do with the
albums/tracks on a CD (See CD).
Notes:
– For compatibility reasons, the album/track
information may differ from what it is displayed
through flash players’ music management software.
– File names or ID3 tags will be displayed as --- if
they are not in English.
AUX (Listening to an external
source)
You can listen to the sound of the connected
external device through your MCB275.
1 Check the external device has been properly
connected (See Installation, Connecting an
additional appliance).
English
Organize your MP3/WMA files in different folders
or subfolders as required.
Note:
– If you have not organized MP3/WMA files into any
albums on your disc, an album “00” will be
automatically assigned for all those files.
– Make sure that the file names of MP3 files end with
.mp3. and the file names of WMA files end with .wma.
– For DRM protected WMA files, use Windows Media
Player 10 (or later) for conversion. Visit www.
microsoft.com for details about Windows Media Player
and WM DRM (Windows Media Digital Rights
Management).
2 Press SOURCE once or more to select AUX
(or AUX on the remote control).
3 To avoid noise distortion, turn down the volume
on your external device.
4 Press the PLAY key on the connected device to
start playback.
5 To adjust the sound and volume, use the sound
controls on your external device and the
MCB275.
25
Timer SLEEP
English
Setting the timer
The set can be used as an alarm clock, whereby
the selected source (DAB, FM, DISC or USB)
starts playback at a preset time. Make sure the
clock is set before using the timer.
1 Press and hold TIMER on the remote control.
➜ TIMER ON and the hours digits start flashing.
2 Press 4 / ¢ (or ¡ / ™ on the remote
control) repeatedly to set the hours.
3 Press TIMER to confirm.
➜ The minutes digits start flashing.
4 Press 4 / ¢ (or ¡ / ™ on the remote
control) repeatedly to set the minutes.
5 Press TIMER to confirm .
➜ TIMER OFF and the hours digits start
flashing.
6 Press 4 / ¢ (or ¡ / ™ on the remote
control) repeatedly to set the hours.
7 Press TIMER to confirm.
➜ The minutes digits start flashing.
8 Press 4 / ¢ (or ¡ / ™ on the remote
control) repeatedly to set the minutes.
9 Press TIMER again.
➜ The source mode now is available for
selection.
0 Press 4 / ¢ (or ¡ / ™ on the remote
control) repeatedly to select the wake-up
source (DAB, FM, DISC or USB).
! Press TIMER again and then press 4 / ¢
(or ¡ / ™ on the remote control) repeatedly
to set the wake-up volume.
Helpful hints:
The timer will not work at the set time if
- the set is switched on;
- the timer is deactivated.
The set will switch to Tuner source
automatically if :
- no CD is inserted when the selected source is CD;
- no USB device is connected when the selected
source is USB.
SLEEP
You can set a certain period of time after which
the set will switch off.
● On the remote control, press SLEEP
repeatedly to select the desired time period
options (in minutes):
➜ Display shows in sequence: SLEEP OFF,
120, 90, 60, 45, 30, 15, 5, SLEEP OFF...
➜ Display shows the selected option briefly and
returns to its previous status. The icon
appears.
To deactivate the sleep timer, press
SLEEP again.
➜ The icon disappears.
or
Press STANDBY-ON/ ECO POWER to
switch off the set (or y on the remote control).
Helpful hints:
– The SLEEP function does not affect your alarm
time setting.
& Press TIMER to confirm.
➜ The timer is now set and activated.
Note:
– The set will exit from the timer setting mode if
no button is pressed within 90 seconds.
Activating and deactivating
TIMER
● Press TIMER on the remote repeatedly to
activate or deactivate the timer.
➜ If activated, the last set source and start time
are displayed.
➜ If deactivated, “TIMER OFF” appears.
26
Specifications
AMPLIFIER
Output power .......................................... 2 x 5 W RMS
............................................................ 10 W + 10 W MPO
Signal-to-noise ratio ....................................... ≥ 75 dBA
Frequency response ........ 50 – 20,000 Hz, ± 3 dB
Input sensitivity AUX ....................... 0.5 V (max. 2 V)
Impedance loudspeakers .....................................≥ 4 Ω
Impedance headphones .................... 32 Ω -1000 Ω
......................................................................................... <0.5W
CD PLAYER
Frequency range .................................. 30 – 18000 Hz
Signal-to-noise ratio ............................................ 75 dBA
TUNER
FM wave range ................................... 87.5 – 108 MHz
DAB wave range ................................ 174 – 240 MHz
Number of presets ........................................................ 40
Antenna
FM .................................................................... 75 Ω wire
USB PLAYER
USB ................................................................... 12Mb/s, V1.1
......................................... support MP3 and WMA files
Number of albums/ folders ................ maximum 99
Number of tracks/titles ...................... maximum 999
SPEAKERS
Bass reflex system
Dimensions (w x h x d) ....160 x 270 x 90 (mm)
GENERAL INFORMATION
AC Power ..................................... 220 – 240 V / 50 Hz
Dimensions (w x h x d, with/without the stand)
.................. 194 x 285 x 118/194 x 270 x 92 (mm)
Weight(with/without speakers) ........... 3.8 / 2.2 kg
Standby power consumption ............................ <5 W
Eco power standby ........................................... <0.5 W
Specifications and external appearance are
subject to change without notice.
English
Cleaning the Cabinet
● Use a soft cloth slightly moistened with a mild
detergent solution. Do not use a solution
containing alcohol, spirits, ammonia or abrasives.
Cleaning Discs
● When a disc becomes dirty,
clean it with a cleaning cloth.
Wipe the disc from the centre
out.
● Do not use solvents such as
benzene, thinner, commercially
available cleaners, or antistatic spray intended for
analogue records.
Maintenance
Cleaning the disc lens
● After prolonged use, dirt or dust may
accumulate at the disc lens. To ensure good
playback quality, clean the disc lens with Philips
CD Lens Cleaner or any commercially available
cleaner. Follow the instructions supplied with
cleaner.
27
Troubleshooting
English
WARNING
Under no circumstances should you try to repair the system yourself, as this will invalidate the
warranty. Do not open the system as there is a risk of electric shock.
If a fault occurs, first check the points listed below before taking the system for repair. If you
are unable to remedy a problem by following these hints, consult your dealer or Philips for
help.
Problem
“NO DISC” is displayed.
Some files on the USB device are not
displayed.
Radio reception is poor.
The system does not react when buttons
are pressed.
Sound cannot be heard or is of poor
quality.
Solution
✔ Insert a disc.
✔ Wait until the moisture condensation at the lens
has cleared.
✔ Replace or clean the disc, see “Maintenance”.
✔ Use a finalised CD-RW or a correct MP3/WMA
-CD format disc.
✔ Check if the number of folders exceeds 99 or
the number of titles exceeds 999
✔ Hang up one end of the T-shape antenna and
keep the other end at horizontal angle to it.
✔ Increase the distance between the Micro HiFi
System and your TV or VCR.
✔ Remove and reconnect the AC power plug and
switch on the system again.
✔ Adjust the volume.
✔ Disconnect the headphones.
✔ Check that the speakers are connected correctly.
✔ Check if the stripped speaker wire is clamped.
✔ Make sure the MP3-CD was recorded within
32~256 kbps bit rate with sampling frequencies
at 48 kHz, 44.1 kHz or 32 kHz.
The left and right sound outputs are
reversed.
28
✔ Check the speaker connections and location.
Troubleshooting
The remote control does not function
properly.
The timer is not working.
The Clock/Timer setting is erased.
✔ Select the source (CD or TUNER, for example)
before pressing the function button (ÉÅ,í,
ë).
✔ Reduce the distance between the remote
control and the system.
✔ Insert the batter y with its polarities
(+/– signs) aligned as indicated.
✔ Replace the battery.
✔ Point the remote control directly toward
IR sensor on the front of the system.
✔ Check the set is switched off
✔ Set the clock correctly.
✔ Press TIMER to switch on the timer.
✔ Power has been interrupted or the power cord
has been disconnected. Reset the clock/timer.
English
29
Appendix
140 mm (5.51")
PRESS
PRESS
Speaker Right
Main Unit
Holes
Speaker Left
English
How to mount your MCB275
onto walls
IMPORTANT!
– The wall mounting instructions are for
the use of the qualified wall mounting
person only!
– Ask a qualified person to help you
with the wall mounting, which includes
drilling holes on the wall and
mounting the set onto walls.
What’s in the supplied mounting kits
Mounting your MCB275
1 Align the template in the chosen location on a
wall. Use a pencil to mark the drilling positions
(as shown)
2 Drill two 6mm diameter holes as marked
3 Secure the dowels and screws in the holes
respectively, leaving the screws 5mm proud of
the wall
140 mm (5.51")
1 x template
2 x screws
What else you’ll need
– Drilling tools (e.g. electric drill)
Preparation
1 To find a suitable location for mounting, tr y
your necessary rear connections (see
the chapter Installation).
2 Ask a qualified person to help you with the
wall mounting, who should:
– to avoid unexpected damage, learn about the
piping, wiring and other relevant information
inside your walls;
– according to the drilling requirements, choose
suitable drilling tools;
– take other precautions necessary for the wall
mounting work.
4 To detach the stand,
a. As shown, hold down the 3 PRESS buttons
b. Move out the stand to detach
5 Hang the unit on the fastening screws
6 As shown, hook and mount the speakers in
place
30
Loading...
