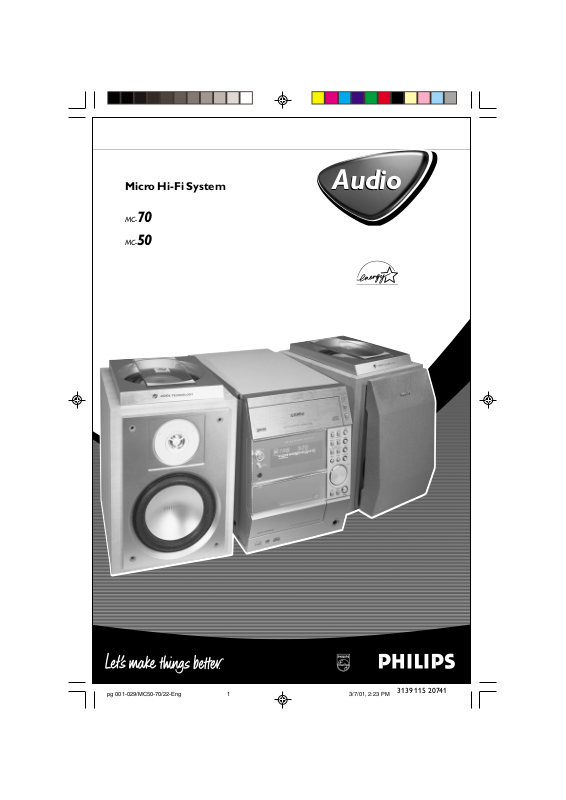

Philips MC50-70 User Manual

Micro Hi-Fi System
MC-
70
MC-
50
Audio
Audio
pg 001-029/MC50-70/22-Eng 3/7/01, 2:23 PM1
1
3139 115 20741
Important notes for users in the U.K.
Mains plug
This apparatus is fitted with an approved 13 Amp plug. To change a fuse in this type of plug proceed as follows:
1 Remove fuse cover and fuse.
2 Fix new fuse which should be a BS1362 5 Amp,
A.S.T.A. or BSI approved type.
3 Refit the fuse cover.
If the fitted plug is not suitable for your socket outlets, it should be cut off and an appropriate plug fitted in its place. If the mains plug contains a fuse, this should have a value of 5 Amp. If a plug without a fuse is used, the fuse at the distribution board should not be greater than 5 Amp.
Note: The severed plug must be disposed of to avoid a possible shock hazard should it be inserted into a 13 Amp socket elsewhere.
How to connect a plug
The wires in the mains lead are coloured with the following code: blue = neutral (N), brown = live (L).
As these colour s may not correspond with the
colour markings identifying the terminals in your plug, proceed as follows: – Connect the blue wire to the terminal marked N or coloured black. – Connect the brown wire to the terminal marked L or coloured red. – Do not connect either wire to the earth terminal in the plug, marked E (or e) or coloured green (or green and yellow).
Before replacing the plug cover, make certain that the cord grip is clamped over the sheath of the lead - not simply over the two wires.
Italia
DICHIARAZIONE DI CONFORMITA’
Si dichiara che l’apparecchio MC-50, MC-70 Philips risponde alle prescrizioni dell’ar t. 2 comma 1 del D.M. 28 Agosto 1995 n. 548.
Fatto a Eindhoven
Philips Consumer Electronics
Philips, Glaslaan 2
5616 JB Eindhoven, The Netherlands
Norge
Typeskilt finnes på apparatens underside.
Observer: Nettbryteren er sekundert innkoplet. Den innebygde netdelen er derfor ikke frakoplet nettet så lenge apparatet er tilsluttet nettkontakten.
For å redusere faren for brann eller elektrisk støt, skal apparatet ikke utsettes for regn eller fuktighet.
CAUTION
Use of controls or adjustments or performance of procedures other than herein may result in hazardous radiation exposure or other unsafe operation.
Copyright in the U.K.
Recording and playback of material may require consent. See Copyright Act 1956 and The Performer’s Protection Acts 1958 to 1972.
2
pg 001-029/MC50-70/22-Eng 3/7/01, 2:23 PM2
3139 115 20741
CD
OPEN•CLOSE
$
%
1 2 3
4
3
CHANGER
STANDBY-ON
iR
OPEN
DC
ECO POWER
CD/ CD-R/CD-RW COMPATIBLE
MICRO SYSTEM
CD 1
#
CD 2
CD 3
@
!
0
PRESET
CD 1•2•3
STOP
DEMO STOPPAUS E
TUNER
NEXT
TAPE
AUX/CDR
REC
VOL
PLAY
NEWS
PREV
SEARCH/TUNE
PROG
9
BASS TREBLE
8 7 6
PHONES
5
3
pg 001-029/MC50-70/22-Eng 3/7/01, 2:23 PM3
3
3139 115 20741
DK
Advarsel: Usynlig laserstråling ved åbning når sikkerhedsafbrydere er ude af funktion. Undgå utsættelse for stråling.
Bemærk: Netafbryderen er sekundært indkoblet og ofbryder ikke strømmen fra nettet. Den indbyggede netdel er derfor tilsluttet til lysnettet så længe netstikket sidder i stikkontakten.
S
Klass 1 laseraparat Varning! Om apparaten används på annat sätt än i denna bruksanvisning specificerats, kan användaren utsättas för osynlig laserstrålning, som överskrider gränsen för laserklass 1.
Observera! Stömbrytaren är sekundärt kopplad och bryter inte strömmen från nätet. Den inbyggda nätdelen är därför ansluten till elnätet så länge stickproppen sitter i vägguttaget.
SF
Luokan 1 laserlaite
Varoitus! Laitteen käyttäminen muulla kuin tässä käyttöohjeessa mainitulla tavalla saattaa altistaa käyttäjän turvallisuusluokan 1 ylittävälle näkymättömälle lasersäteilylle.
Oikeus muutoksiin varataan. Laite ei saa olla alttiina tippu-ja roiskevedelle.
Huom. Toiminnanvalitsin on kytketty toisiopuolelle, eikä se kytke laitetta irti sähköverkosta. Sisäänrakennettu verkko­osa on kytkettynä sähköverkkoon aina silloin, kun pistoke on pistorasiassa.
4
pg 001-029/MC50-70/22-Eng 3/7/01, 2:23 PM4
3139 115 20741
Index
English ------------------------------------------------ 6
Français -------------------------------------------- 30
Español --------------------------------------------- 55
Deutsch --------------------------------------------- 80
Nederlands -------------------------------------- 105
Italiano -------------------------------------------- 130
English
Français
Español
DeutschNederlandsItalianoSvenskaDanskSuomi
pg 001-029/MC50-70/22-Eng 3/7/01, 2:23 PM5
Svenska ------------------------------------------- 155
Dansk --------------------------------------------- 180
Suomi --------------------------------------------- 205
Português ---------------------------------------- 230
Português
∂ППЛУИО¿ ----------------------------------------- 255
∂ППЛУИО¿Polski
Polski ---------------------------------------------- 280
5
3139 115 20741
Contents
English
General Information
Environmental Information ................................ 7
Acknowledgement ............................................... 7
Supplied Accessories ........................................... 7
Safety Information ................................................ 7
Preparations
Rear Connections ............................................ 8–9
Optional Connections ........................................ 9
Inserting batteries into the remote
control .................................................................... 9

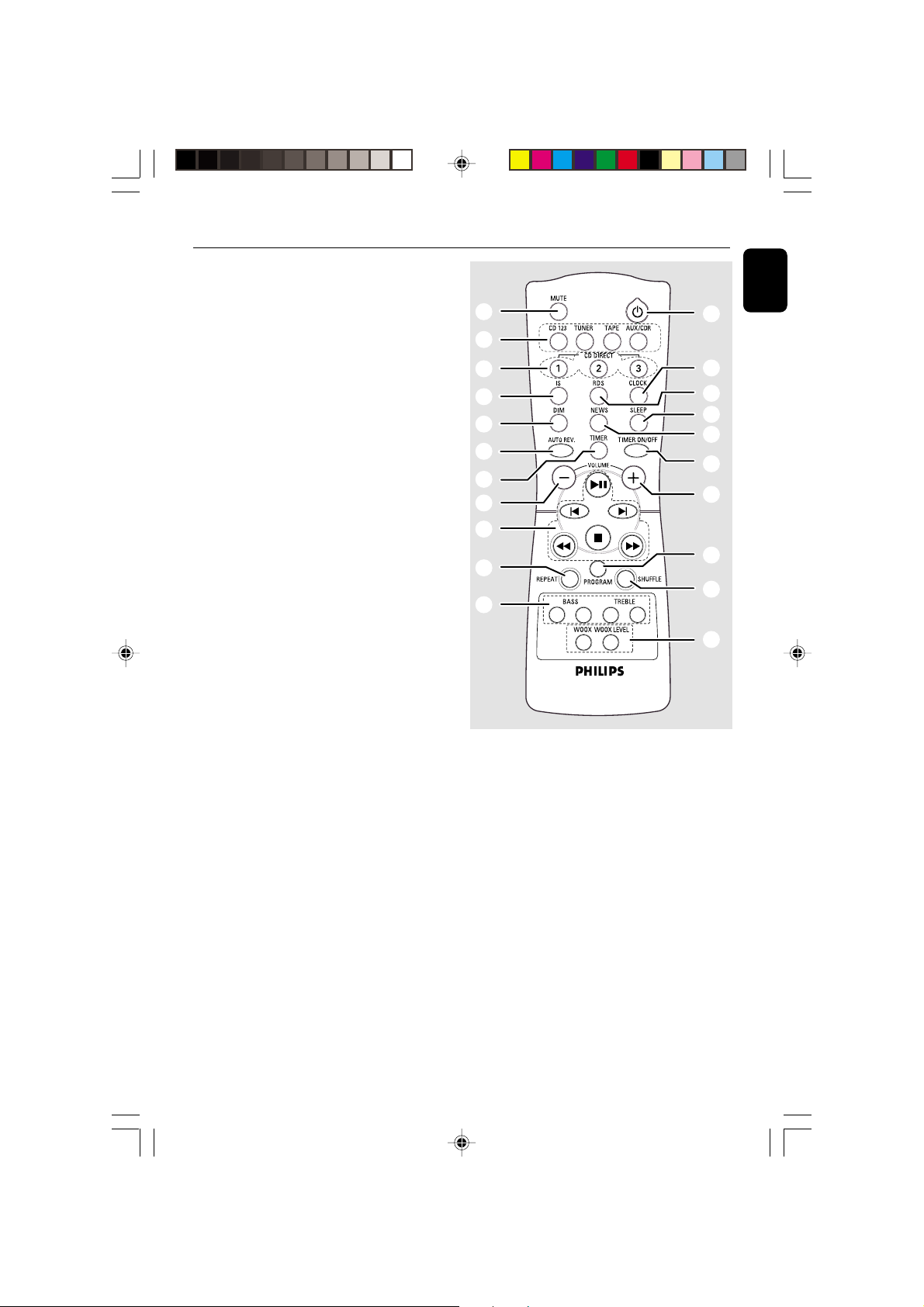

Controls

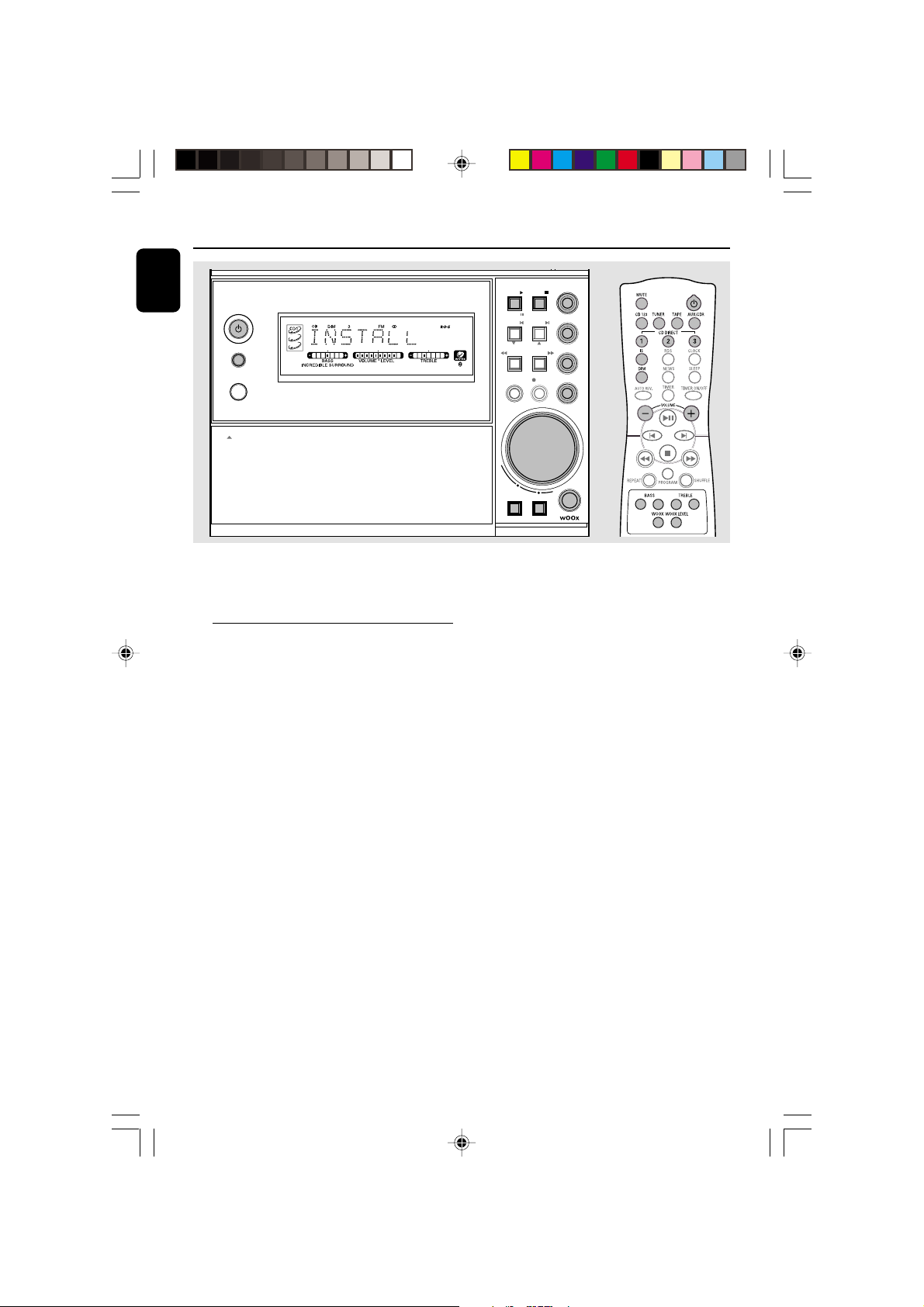

Controls on the system and remote
control ........................................................... 10–11
Basic Functions
Plug and Play ................................................. 12–13
Demonstration mode ........................................ 13
Switching the system on ................................... 13
Switching the system to Standby mode ........ 13
Switching the system to Eco Power
Standby mode ..................................................... 13
Power Saving Automatic Standby .................... 13
Dim mode ............................................................ 14

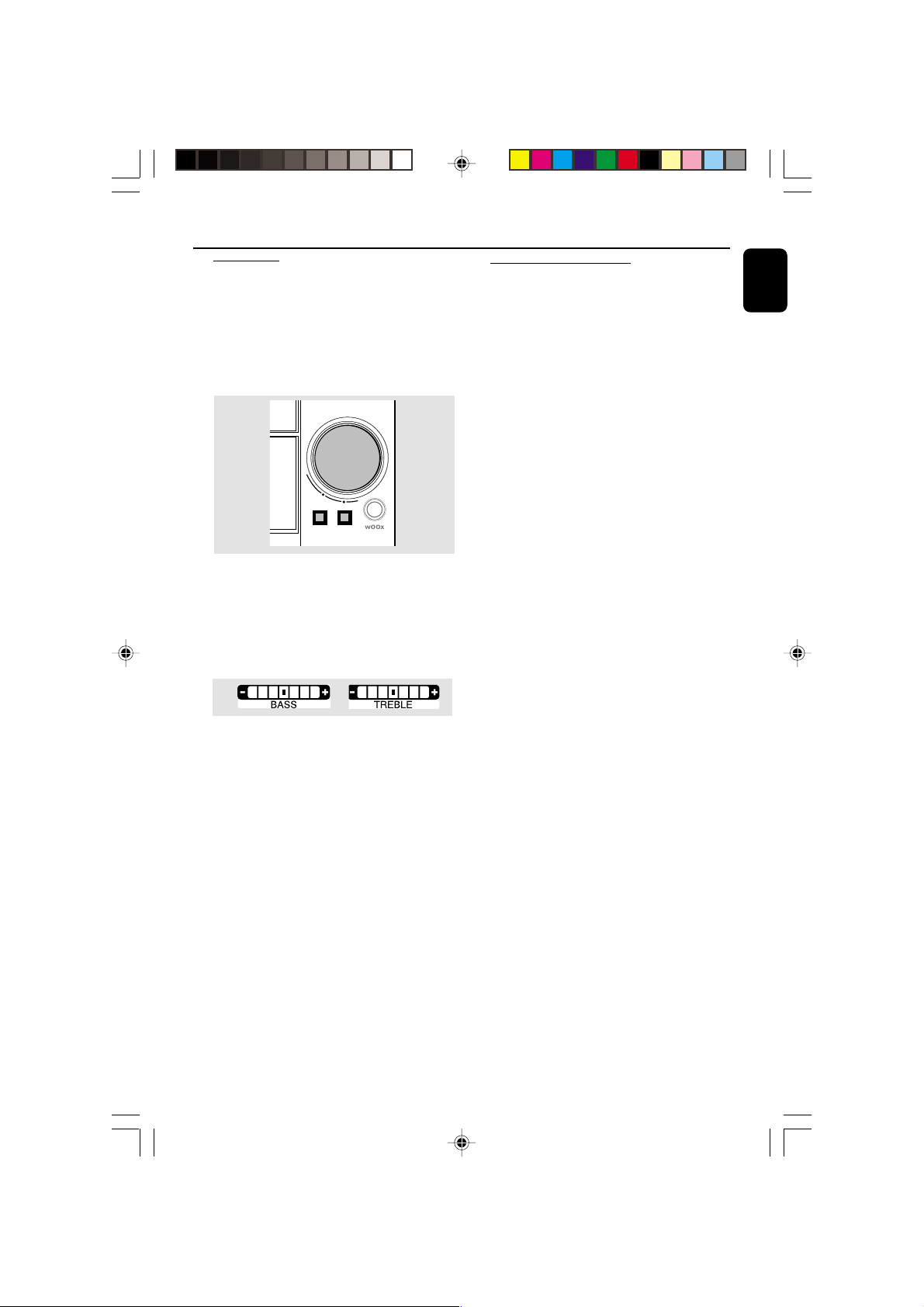

Volume Control .................................................. 14
Interactive Sound Control ........................ 14–15
Tape Operation/Recording

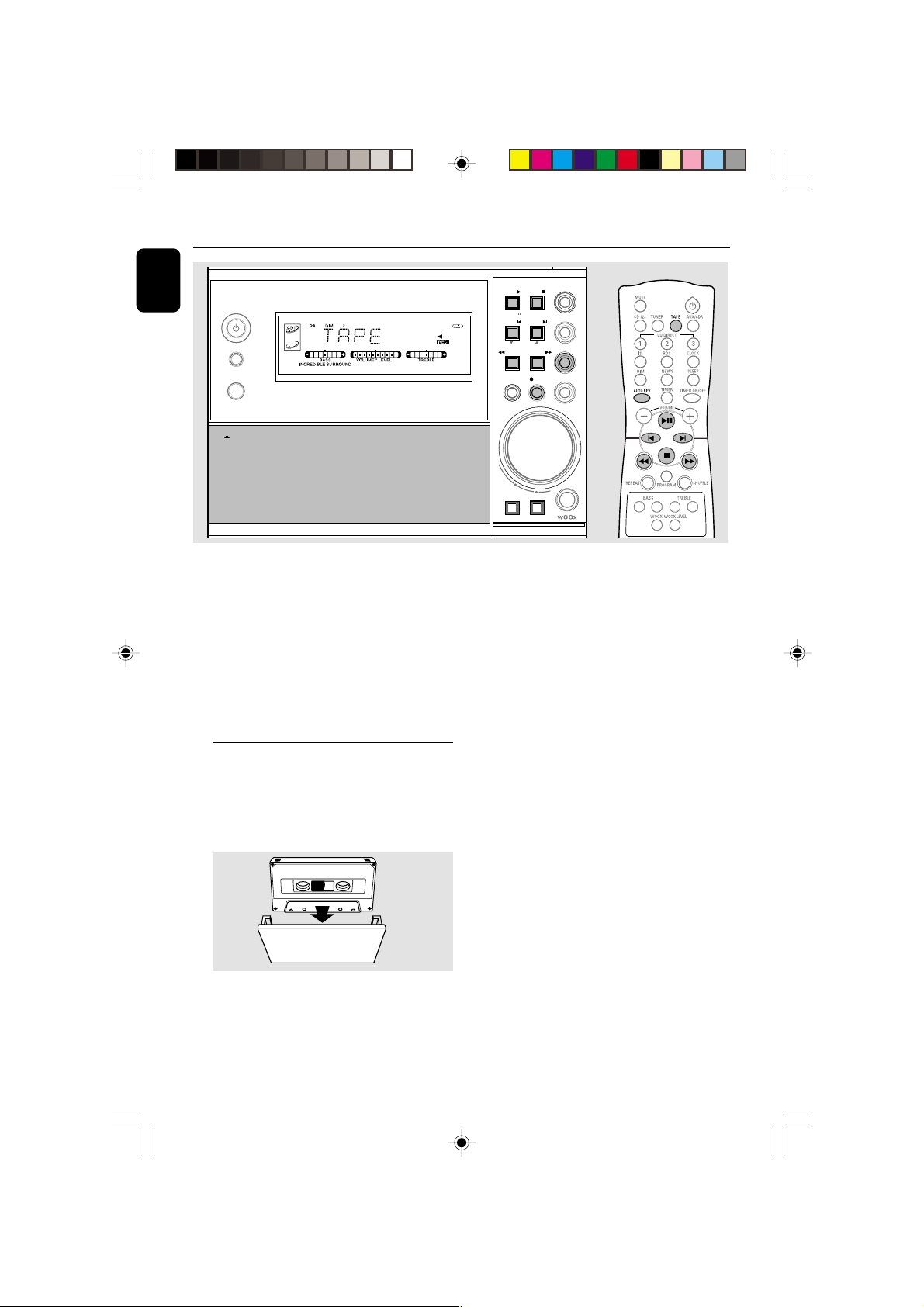

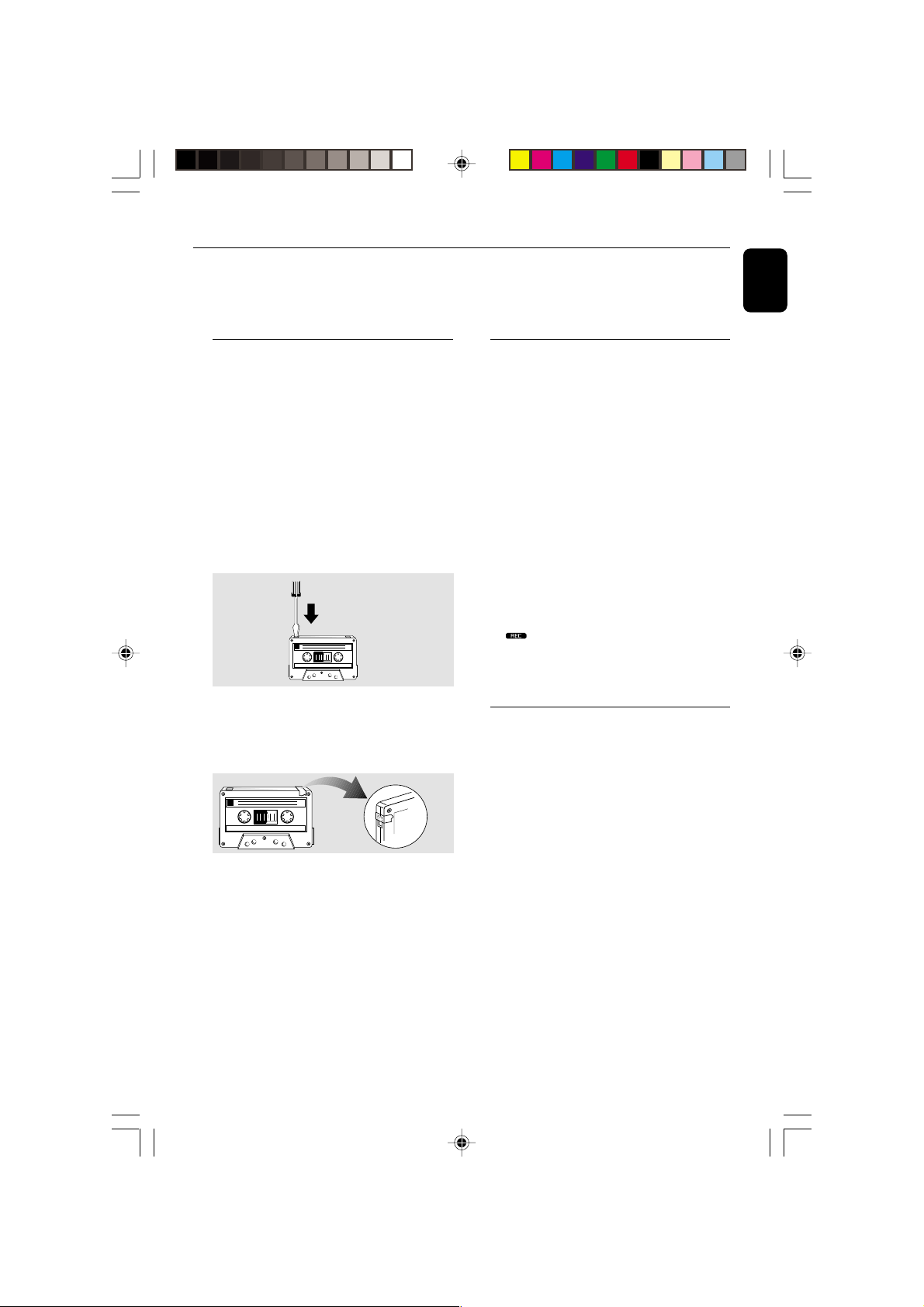

Tape Playback ............................................... 22–23
General Information on Recording ................ 23
Preparation for Recording ............................... 23
One Touch Recording ........................................ 23
CD Synchro Recording ..................................... 24
Digital Recording via Digital Out .................... 24
External Sources

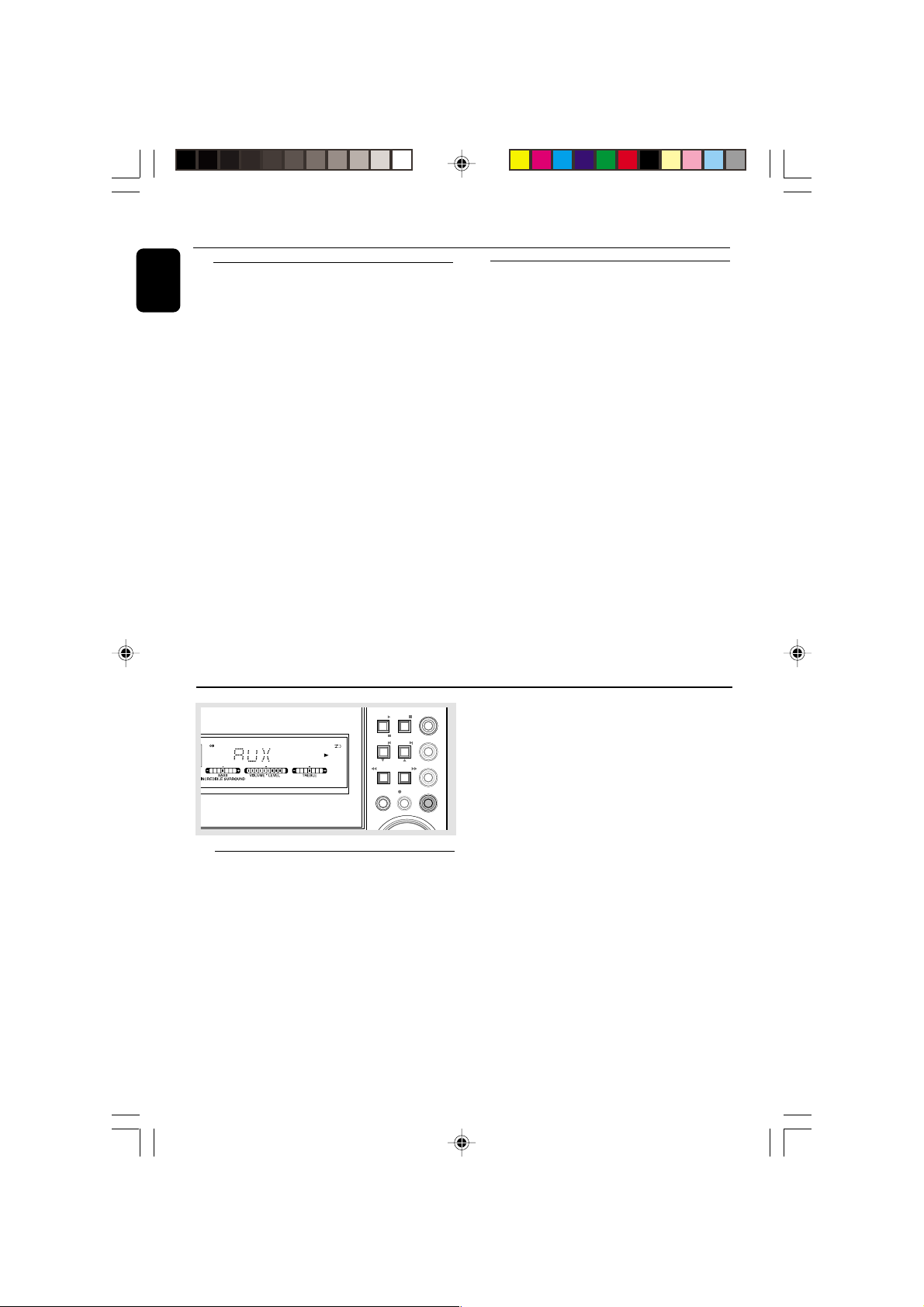

Listening to External Sources .......................... 24

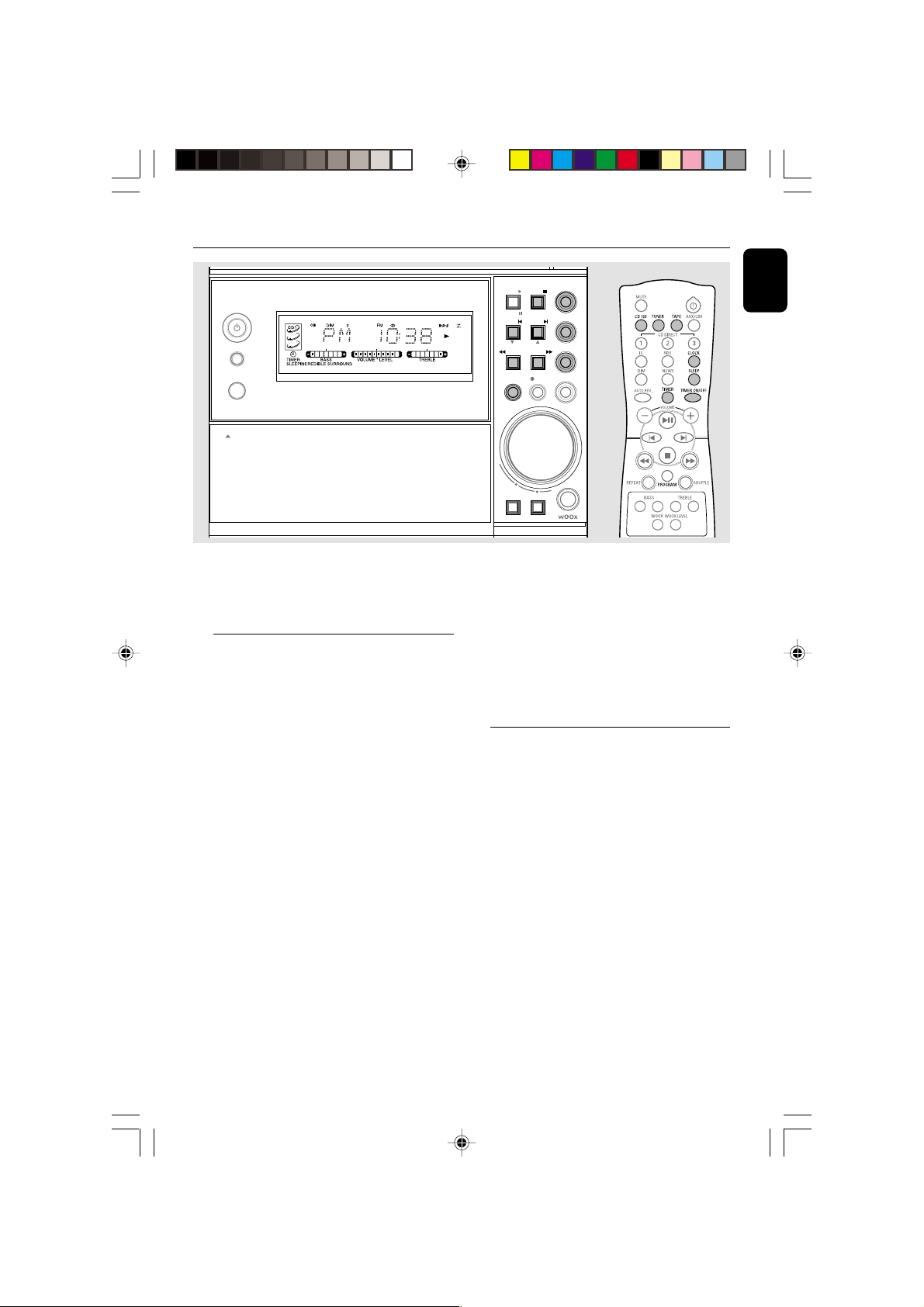

Clock/Timer
Clock Setting ....................................................... 25
Display Clock ...................................................... 25
Timer Setting ....................................................... 26
Sleep Timer Setting ............................................ 26
Specifications ........................................... 27

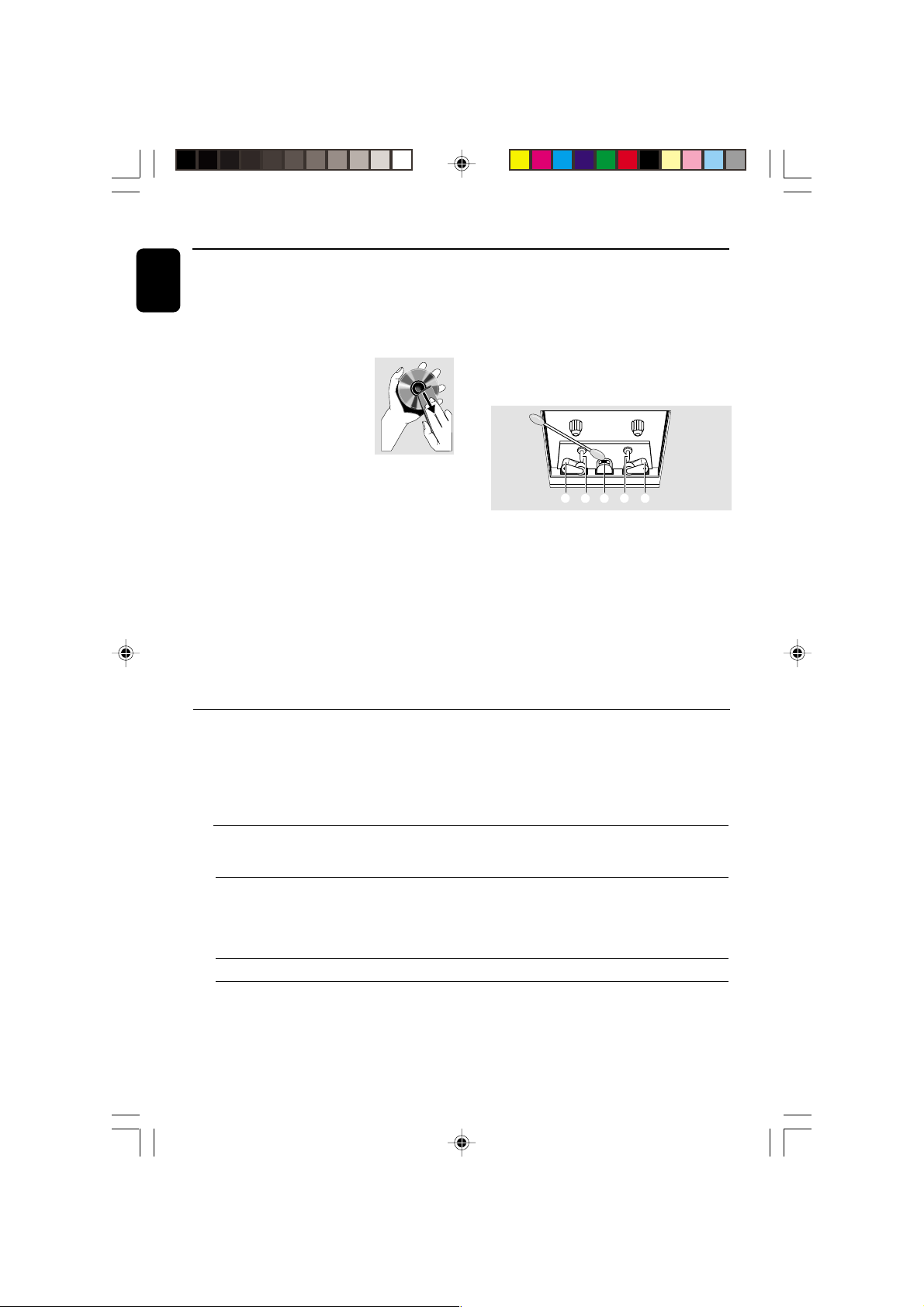

Maintenance.............................................. 28
Troubleshooting ............................. 2829

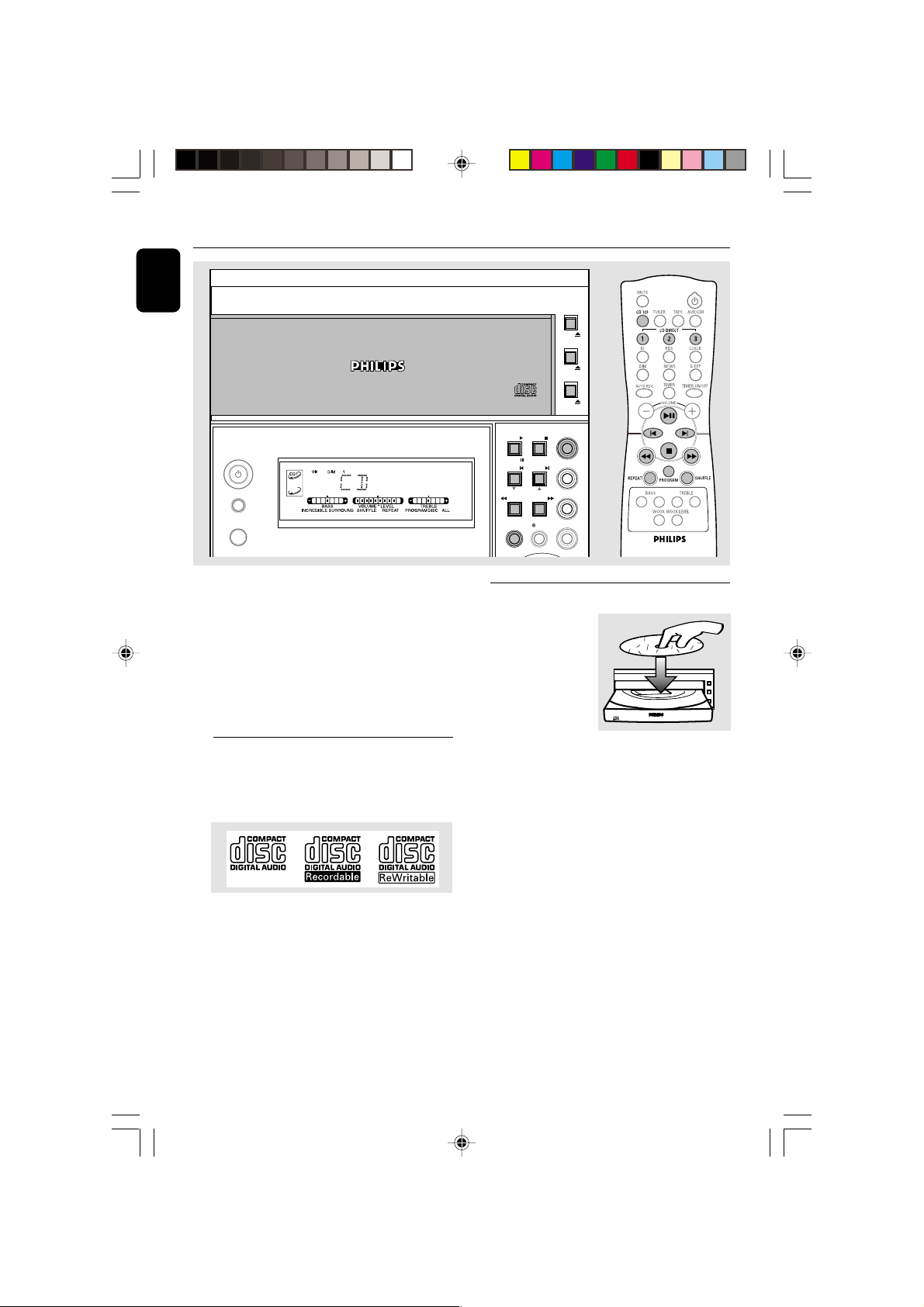

CD Operation
Discs for Playback .............................................. 16
Loading Disc ........................................................ 16
Disc Playback ....................................................... 17
Programming the disc tracks .................... 17–18
Repeat ................................................................... 18
Shuffle .................................................................... 18

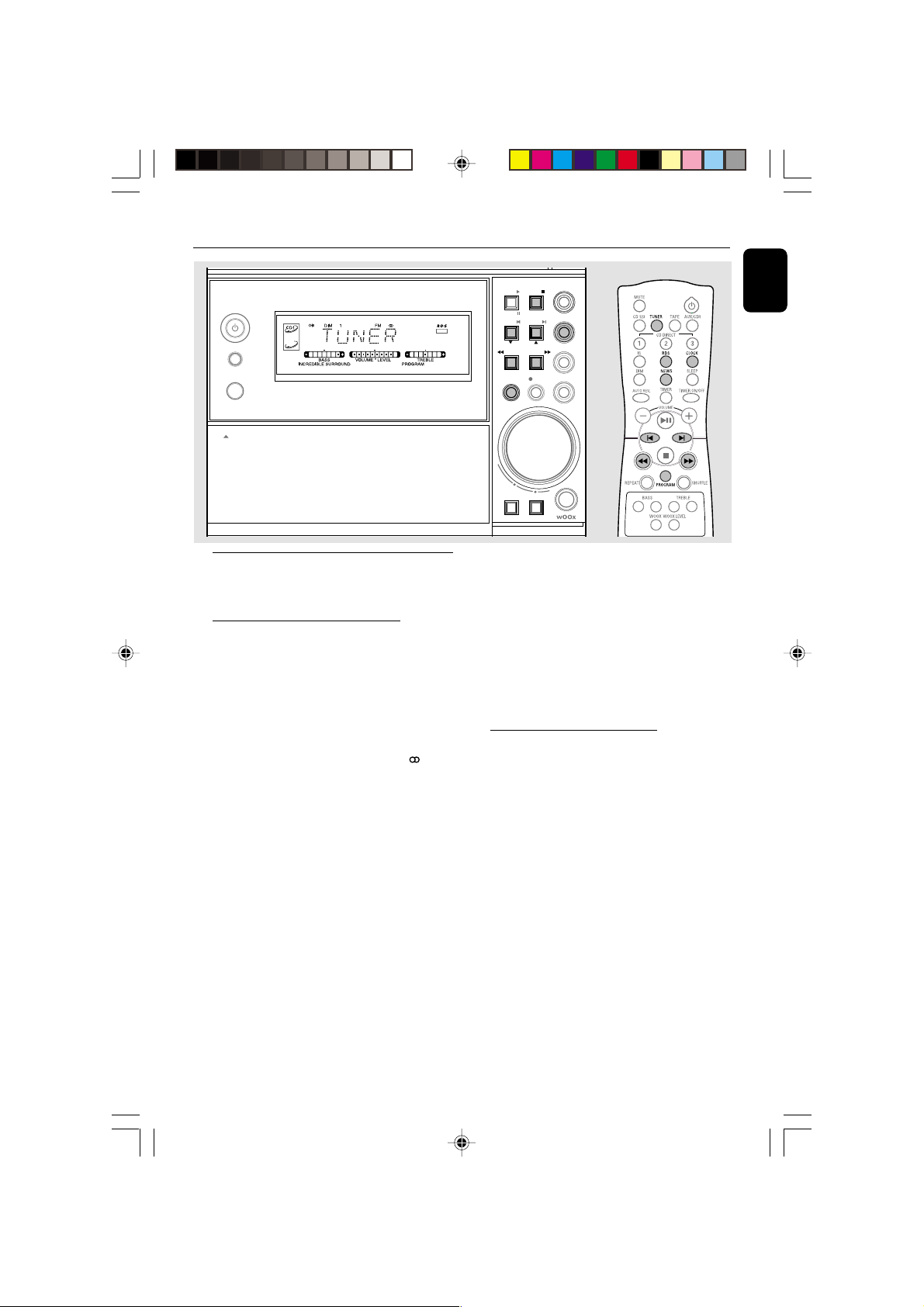

Radio Reception
Storing Preset Radio Stations ................... 19–20
Tuning to Preset Radio Stations ...................... 20
Erasing a Preset Radio Station ........................ 20
RDS ................................................................ 20–21
NEWS ................................................................... 21
6
pg 001-029/MC50-70/22-Eng 3/7/01, 2:23 PM6
3139 115 20742
General Information
This product complies with the radio interference requirements of the European Community.
Environmental Information
All unnecessary packaging has been omitted. We have tried to make the packaging easy to separate into three materials: cardboard (box), polystyrene foam (buffer) and polyethylene (bags, protective foam sheet).
Your system consists of materials which can be recycled and reused if disassembled by a specialised company. Please observe the local regulations regarding the disposal of packaging materials, exhausted batteries and old equipment.
Acknowledgement
Energy Star
As an ENERGY STAR Partner, Philips has determined that this product meets the ENERGY STAR guidelines for energy efficiency.
R
R
Supplied accessories
– Remote control – Batteries (two AA size) for remote control – AM loop antenna – FM wire antenna – AC power cord
Safety Information
Before operating the system, check that the
operating voltage indicated on the typeplate (or the voltage indication beside the voltage selector) of your system is identical with the voltage of your local power supply. If not, please consult your dealer.
Place the system on a flat, hard and stable
surface.
Place the system in a location with adequate
ventilation to prevent internal heat build-up in your system. Allow at least 10 cm (4 inches) clearance from the rear and the top of the unit and 5 cm (2 inches) from each side.
Do not expose the system, batteries or discs to
excessive moisture, rain, sand or heat sources caused by heating equipment or direct sunlight.
If the system is brought directly from a cold to a
warm location, or is placed in a very damp room, moisture may condense on the lens of the disc unit inside the system. Should this occur, the CD player would not operate normally. Leave the power on for about one hour with no disc in the system until normal playback is possible.
The mechanical par ts of the set contain self-
lubricating bearings and must not be oiled or lubricated.
When the system is switched to Standby
mode, it is still consuming some power. To disconnect the system from the power supply completely, remove the AC power plug from the wall socket.
English
pg 001-029/MC50-70/22-Eng 3/7/01, 2:23 PM7
7
3139 115 20742
Preparations
AM ANTENNA
Fix the claw to the slot
English
AM loop
antenna
speaker
DIGITAL
OUT
(right)
R
AUX/CDR IN
SUB WOOFER OUT
R
L
SPEAKERS 6
Rear Connections
The type plate is located at the rear of the system. For users in the U.K.: please follow the instructions on page 2.
A Pow er
Before connecting the AC power cord to the wall outlet, ensure that all other connections have been made.
WARNING! – For optimal performance, use only the original power cable. – Never make or change connections with the power switched on.
+
– –
+
L
C
FM wire antenna
AC
MAINS
B
AM ANTENNA
FM ANTENNA 75
B Antennas Connection
Connect the supplied AM loop antenna and FM antenna to the respective terminals. Adjust the position of the antenna for optimal reception.
AM Antenna
speaker
(left)
A
AC power cord
To avoid overheating of the system, a safety circuit has been built in. Therefore, your system may switch to Standby mode automatically under extreme conditions. If this happens, let the system cool down before reusing it (not available for all versions).
8
pg 001-029/MC50-70/22-Eng 3/7/01, 2:23 PM8
Position the antenna as far as possible from a TV,
VCR or other radiation source.
3139 115 20742
Preparations
1
2
FM Antenna
For better FM stereo reception, connect an
outdoor FM antenna to the FM ANTENNA terminal.
C Speakers Connection
Front Speakers
Connect the speaker wires to the SPEAKERS (FRONT) terminals, right speaker to "R" and left speaker to "L", coloured (marked) wire to "+" and black (unmarked) wire to "-".
1
Fully inser t the stripped portion of the speaker
wire into the terminal as shown.
Notes: – For optimal sound performance, use the supplied speakers. – Do not connect more than one speaker to any one pair of +/- speaker terminals. – Do not connect speakers with an impedance lower than the speakers supplied. Please refer to the SPECIFICATIONS section of this manual.
2
Connecting other equipment to your system
Connect the audio left and right OUT terminals of a TV, VCR, Laser Disc player, DVD player or CD Recorder to the AUX/CDR IN terminals.
Note: – If you are connecting equipment with a monaural output (a single audio out terminal), connect it to the AUX/CDR IN left terminal. Alternatively, you can use a “single to double” cinch cable (still be monaural sound).
Digital Out Connection
Connect this digital output when recording on any audio equipment with digital input (CD Recorder, Digital Audio Tape [DAT] deck, Digital to Analogue Converter and Digital Signal Processor, for example). Use a cinch cable to connect the DIGITAL OUT terminal to the digital input terminal of the equipment.
Inserting batteries into the Remote Control
Insert two batteries (Type R06 or AA) into the remote control with the correct polarity as indicated by the + and - symbols inside the battery compar tment.
English
Optional Connections
The optional equipment and connecting cords are not supplied. Refer to the operating instructions of the connected equipment for details.
Subwoofer Out Connection Connect the subwoofer to the SUBWOOFER OUT terminal. The subwoofer reproduces just
the low bass sound effect (explosions or the rumble of spaceships, for example).
pg 001-029/MC50-70/22-Eng 3/7/01, 2:23 PM9
CAUTION! – Remove batteries if they are exhausted or will not be used for a long time. – Do not use old and new or different types of batteries in combination. – Batteries contain chemical substances, so they should be disposed off properly.
9
3139 115 20742
