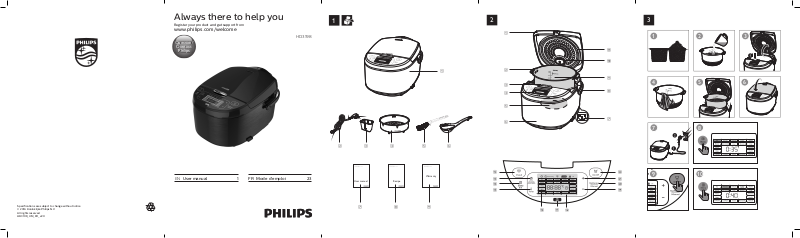

Philips HD3198 User Manual

HD3198

Always there to help you

Question?

Contact

Philips

www.philips.com/welcome

1 2

EN User manual 1 FR Mode d’emploi

m n

u t

4 5

http://www.philips.com/welcome

User manual

d e f

http://www.philips.com/welcome

Recipe

http://www.philips.com/welcome

Warranty

ihg

11 12

19 20

2827

13 14

15 16

3029

English

Contents

1 Your multicooker 2

2 Important 2

Safety 2 Electromagnetic elds (EMF) 5

3 What’s in the box (g. 1) 6

4 Overview (g. 2) 6

Product overview 6 Controls overview 6 Menus overview 7

5 Using the multicooker (g. 3) 8

Before rst use 8 Cooking rice (Riz) 8 Making risotto (Risotto) 9 Cooking cereal (Céréales) 9 Making soup (Soupe/Sauce) 10 Steam (Vapeur) 10 Stew (Mijoter) 10 Slow cooking (Slow cooking) 11 Baking (Four) 11 Roasting (Rissoler) 12 Frying (Frire) 12 Making pizza (Pizza) 12 Making omelette (Omelette) 13 Boiling pasta (Pâtes) 13 Boiling (Bouillir) 14 Making beverage (Compote) 14 Making conture (Conture) 14 Making yogurt (Yaourt) 15 Reheating (Réchauer) 15 Manual (Manuel) 15

Multi-stage cooking 16 MyRecipe (MyRecipe) 16 Warm keeping 17 Setting up the cooking time 17 Preset time for delayed

cooking 18

Setting up the WiFi

connection 18

Setting up the child lock 18

6 Cleaning and Maintenance 19

Interior 19 Exterior 19 Accessories 19

7 Recycling 19

8 Guarantee and service 19

9 Specications 20

10 Troubleshooting 21

1 Your

multicooker

Congratulations on your purchase, and welcome to Philips! To fully benefit from the support that Philips offers, register your product at www.philips.com/welcome.

2 Important

Safety

Read this user manual carefully before you use the appliance, and save it for future reference.

Danger

• Do not immerse the

multicooker in water, nor rinse it under the tap.

Warning

• This appliance shall not

be used by children from 0 year to 8 years. This appliance can be used by children aged from 8 years and above if they are continuously supervised. This appliance can be used by people with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use

of the appliance in a safe way and understand the hazards involved. Keep the appliance and its cord out of reach of children aged less than 8 years. Cleaning and user maintenance shall not be made by children.

• Children shall not play with

the appliance.

• Cooking appliances should

be positioned in a stable situation with the handles (if any) positioned to avoid spillage of the hot liquids.

• This appliance is intended

to be used in household and similar applications such as:

• staff kitchen areas in

shops, offices and other working environments;

• farm houses;

• by clients in hotels,

motels and other residential type environments;

• bed and breakfast type

environments.

• Make sure that the

damaged power cord is replaced by Philips, a service center authorized by Philips or similarly qualified persons in order to avoid a hazard.

• The appliance is not

intended to be operated by means of an external

English

timer or a separate remote-control system.

• Check if the voltage

indicated on the multicooker corresponds to the local power voltage before you connect it.

• Check if the steam valve is

clear before every cooking and becomes block during the cooking.

• If the steam valve is

blocked, the pressure will increase in the appliance and the jet of steam could hurt and scald users.

• During cooking, steam can

only come out from the steam valve. If steam starts to come out between the top lid and main body, immediately power off the multicooker. Check if the sealing ring is in place, in good condition and stacked with foreign objects/food residues. If there are foreign objects/ food residues, clean them up. If there is no foreign object, return it to the service center for checking and sealing ring replacement if necessary. Note that sealing ring lifetime is limited and depend on cooking and maintenance frequency.

• During cooking, water or

liquid food can’t come

out from the inner pot. The only exception is that water condenses around the steam valve and small amount of water condensate leaks on the back side of the multicooker if top lid was opened during cooking, this can be easily wiped off by clean cloth and continuous cooking. If any water/liquid food starts to come out directly from the steam valve or between the top lid and main body, immediately power off the multicooker. Check if the amount of water in inner pot doesn’t exceed allowed limit, amount of food corresponds to the recipe, cooking mode and timing selection are correct and the multicooker is used according to the user manual. Check if the sealing ring is in place, in good condition and stacked with foreign objects/food residues. If there are foreign objects/ food residues, clean them up. If there is no foreign object and the multicooker is used according to the user manual, return it to the service center for checking and repair if necessary.

• Only connect the

multicooker to a grounded power outlet. Always make sure that the plug is inserted firmly into the power outlet.

• Do not use the appliance

if the plug, the power cord, the inner pot, the sealing ring, or the main body is damaged.

• Do not let the power cord

hang over the edge of the table or worktop on which the multicooker stands.

• Make sure the heating

element, the temperature sensor, and the outside of the inner pot are clean and dry before you put the plug in the power outlet.

• Do not plug in the

multicooker or touch any of the buttons on the control panel with wet hands.

• Make sure to avoid spillage

on the power connector to avoid a potential hazard.

• Always follow the

instructions and use the appliance properly to avoid potential injury.

• Do not put too much

cooking oil in the inner pot to deep fry ingredients.

• To satisfy RF exposure

requirements, this device should be operated with a

separation distance of at least 20 centimeters from all persons when the WiFi router is switched on. The antenna used for the transmitter must not be co-located in conjunction with any other antenna or transmitter.

Caution

• Never use any accessories

or parts from other manufacturers or that Philips does not specifically recommend. If you use such accessories or parts, your guarantee becomes invalid.

• Do not expose the

multicooker to high temperatures, nor place it on a working or still hot stove or cooker.

• Do not expose the

multicooker to direct sunlight.

• Place the multicooker on

a stable, horizontal, and level surface.

• Always put the inner pot in

the multicooker before you put the plug in the power outlet and switch it on.

• Do not place the inner pot

directly over an open fire to cook dishes.

• Do not use the inner pot if

it is deformed.

English

• The accessible surfaces

may become hot when the multicooker is operating. Take extra caution when touching the multicooker.

• Beware of hot steam

coming out of the steam vent during cooking or out of the multicooker when you open the lid. Keep hands and face away from the multicooker to avoid the steam.

• The inner pot and steamer

during and after cooking process, may be hot and heavy.

• Do not lift and move the

multicooker while it is operating.

• Do not exceed the

maximum water level indicated in the inner pot to prevent overflow.

• Do not place the cooking

utensils inside the pot during cooking, warm keeping or reheating.

• Only use the cooking

utensils provided. Avoid using sharp utensils.

• To avoid scratches, it is

not recommended to cook ingredients with crustaceans and shellfish. Remove the hard shells before cooking.

• Do not insert metallic

objects or alien substances into the steam vent.

• Do not place a magnetic

substance on the lid. Do not use the multicooker near a magnetic substance.

• Always let the multicooker

cool down before you clean or move it.

• Always clean the

multicooker after use. Do not clean the multicooker in dishwasher.

• Always unplug the

multicooker if not used for a longer period.

• If the multicooker

is used improperly or for professional or semiprofessional purposes, or if it is not used according to the instructions in this user manual, the guarantee becomes invalid and Philips refuses liability for any damage caused.

• Surface of the heating

element is subject to residual heat after use.

Electromagnetic fields (EMF)

This Philips appliance complies with all applicable standards and regulations regarding exposure to electromagnetic fields.

3 What’s in the

box (fig. 1)

4 Overview (fig. 2)

Product overview

a Multicooker main unit b Power cord c Measuring cup d Detachable steam tray e Rice scoop f Soup ladle g User manual h Recipe booklet i Warranty card

Top lid

Inner pot

Lid release button

Control panel

Heating element

Main body

Power socket

Cooker handle

Water level indications

Detachable steam vent cap

Sealing ring

Controls overview

Keep-warm button

Cooking time/preset button

Menu button

Temperature button

Cooking functions

WiFi indicator

Display screen

Decrease button

MyRecipe/Multi-stage cooking

button

Increase button

Start/Off button

English

Menus overview

Menus

Default cooking time

Cooking time regulating range

Preset time

Default cooking temperature

Temperature regulating range

Rice (Riz) 40 min / 1-24 hr 130-140°C / Risotto (Risotto) 40 min / 1-24 hr 130-140°C / Cereal (Céréales) 10 min 5 min - 2 hr 1-24 hr 90-100°C / Soup (Soupe/

Sauce) 1 hr 20 min-4 hr 1-24 hr 90-100°C / Steam (Vapeur) 20 min 5 min - 2 hr 1-24 hr 100°C / Stew (Mijoter) 1 hr 20 min - 10 hr 1-24 hr 95°C / Slow cooking

(Slow cooking) 5 hr 1-15 hr 1-24 hr 80°C / Bake (Four) 45 min 20 min - 2 hr / 130°C 40-160°C Roast (Rissoler) 1 hr / / 130°C / Fry (Frire) 15 min 5-60 min / 145-160°C / Pizza (Pizza) 35 min 10-60 min / 130°C / Omelette

(Omelette) 10 min 5-20 min / 120°C / Pasta (Pâtes) 4 min 1-15 min / 100°C / Boil (Bouillir) 4 min 1-15 min / 100°C /

Beverages

(Compote) 10 min 5-40 min 1-24 hr 100°C / Confiture

(Confiture) 6 hr 4-10 hr 1-24 hr 90-100°C / Yogurt (Yaourt) 8 hr 6-12 hr 1-24 hr 40±3°C / Reheat

(Réchauffer) 25 min 5-60 min / 85°C / Manual (Manuel) 2 hr 5 min - 10 hr 1-24 hr 100°C 30-160°C Multi-stage

cooking (MyRecipe) 10 min 5 min - 15 hr / 120°C 30-160°C

Note

• You can adjust the cooking temperature for the baking and manual functions. For baking, the temperature is available from 40°C to 160°C; for the manual function, the temperature is available from 30°C to 160°C.

• After the cooking has started, you can touch the Start/Cancel button (On/Off) to deactivate the current cooking process, and the multicooker will switch to the standby mode.

5 Using the

multicooker (fig. 3)

Tip

• To select a certain menu, touch the menu button (Menu) repeatedly. You can also touch the menu button (Menu) once, and then touch the increase (+) or decrease (-) button to do so.

Note

• For all menus, do not exceed the MAX indication on the inside of the inner pot when putting food, liquid or ingredients in it, otherwise the food may overflow during cooking.

• The cooking time does not display straight from the beginning for rice (Riz) and risotto (Risotto). displays on the screen during most of the cooking time as the multicooker needs to detect the water/liquid and ingredient volume in the initial preparation stage. When the multicooker detects the actual cooking time needed, the remaining cooking time displays on the screen. For cereal (Céréales), steam (Vapeur), soup (Soupe/Sauce), confiture (Confiture), beverage (Compote), boil (Bouillir) and pasta (Pâtes), displays on the screen before the water/liquid is brought to boil. When the water/liquid starts boiling, the set cooking time displays on the screen.

• Refer to the recipe booklet for more details on cooking with each menu.

• Within 30 seconds after the multicooker is plugged in, you can reset the multicooker including the WiFi module to factory mode. To do so, touch increase "+" for 5 to 10 seconds and "--:--" displays on the screen. All the saved recipes and the previous WiFi connection will be removed after reset.

Before first use

1 Take out all the accessories from

the inner pot, and remove the packaging material of the inner pot.

2 Clean all parts of the multicooker

thoroughly before using it for the first time (see chapter ‘Cleaning and Maintenance’).

Note

• Make sure all parts are completely dry before you start using the multicooker.

Cooking rice (Riz)

Note

• If the voltage is unstable at the area you live, it is possible that food in the multicooker overflows.

• After the cooking is finished, stir the rice and loosen it immediately to release excessive moisture for fluffy rice.

• Depending on the cooking conditions, the bottom portion of the rice may become slightly browned.

1 Measure the rice using the

measuring cup provided (fig. a).

2 Rinse rice, put the washed rice

in the inner pot, and fill in water (fig. b).

English

Note

• For details about the ratio of rice and water, refer to the recipe booklet.

3 Touch the lid release button to

open the lid (fig. c).

4 Wipe the outside of the inner pot

dry (fig. d), and then put it in the multicooker (fig. e).

Note

• Make sure that the inner pot is in proper contact with the heating element.

• Make sure that the outside of the inner pot is clean and dry, and that there is no foreign residue on the heating element.

5 Close the lid of the multicooker

(fig. f), and put the plug in the power socket (fig. g).

6 Touch the menu button (Menu) to

select rice (Riz) (fig. h).

7 Touch and hold the start button

(On/Off) for 3 seconds to confirm and start cooking (fig. i).

8 When the cooking is finished, the

appliance beeps and turns into warm keeping automatically.

Note

• The appliance remains at warm keeping for 12 hours, after that it beeps and cease warm keeping process.

Making risotto (Risotto)

1 Put the ingredients for the risotto

into the inner pot.

2 Wipe the outside of the inner pot

dry (fig. d), and then put it in the multicooker (fig. e).

3 Close the lid of the multicooker

(fig. f), and put the plug in the power socket (fig. g).

4 Touch the menu button (Menu) to

select risotto (Risotto) (fig. j).

5 Touch and hold the start button

(On/Off) for 3 seconds to confirm and start cooking (fig. i).

6 When the cooking is finished, the

appliance beeps and turns into warm keeping automatically.

Cooking cereal (Céréales)

1 Put ingredients for the cereal into

the inner pot and stir a little bit.

2 Wipe the outside of the inner pot

dry (fig. d), and then put it in the multicooker (fig. e).

3 Close the lid of the multicooker

(fig. f), and put the plug in the power socket (fig. g).

4 Touch the menu button (Menu) to

select cereal (Céréales) (fig. k).

» To choose a different cooking

time, refer to chapter "Setting up the cooking time".

5 Touch and hold the start button

(On/Off) for 3 seconds to confirm and start cooking (fig. i).

6 When the cooking is finished, the

appliance beeps and turns into warm keeping automatically.

Note

• For details about the ratio of food and liquid, refer to the recipe booklet.

Making soup (Soupe/ Sauce)

1 Put food and ingredients for the

soup into the inner pot.

2 Wipe the outside of the inner pot

dry (fig. d), and then put it in the multicooker (fig. e).

3 Close the lid of the multicooker

(fig. f), and put the plug in the power socket (fig. g).

4 Touch the menu button (Menu) to

select soup (Soupe/Sauce) (fig. l).

» To choose a different cooking

time, refer to chapter "Setting up the cooking time".

5 Touch and hold the start button

(On/Off) for 3 seconds to confirm and start cooking (fig. i).

6 When the cooking is finished, the

appliance beeps and turns into warm keeping automatically.

Steam (Vapeur)

1 Pour some water into the inner pot. 2 Put the steam tray in the inner pot,

put the food in a bowl, and then put the bowl on the steam tray.

3 Wipe the outside of the inner pot

dry (fig. d), and then put it in the multicooker (fig. e).

4 Close the lid of the multicooker

(fig. f), and put the plug in the power socket (fig. g).

5 Touch the menu button (Menu) to

select Steam (Vapeur) (fig. m).

» To choose a different cooking

time, refer to chapter "Setting up the cooking time".

6 Touch and hold the start button

(On/Off) for 3 seconds to confirm and start cooking (fig. i).

7 When the water is brought to boil,

the appliance beeps, the remaining steaming time displays on the screen and starts counting down.

8 When the cooking is finished, the

appliance beeps and turns into warm keeping automatically.

Note

• When steaming food, do not immerse the steam tray in water.

• displays on the screen before the water/liquid is brought to boil. When the water/liquid starts boiling, the remaining steaming time displays on the screen.

• After the steaming is finished, use a kitchen glove or a cloth to remove the bowl and steam basket, as they could be very hot.

Stew (Mijoter)

1 Put the food and ingredients for the

stew in the inner pot.

2 Wipe the outside of the inner pot

dry (fig. d), and then put it in the multicooker (fig. e).

3 Close the lid of the multicooker

(fig. f), and put the plug in the power socket (fig. g).

4 Touch the menu button (Menu) to

select stew (Mijoter) (fig. n).

» To choose a different cooking

time, refer to chapter "Setting up the cooking time".

English

5 Touch and hold the start button

(On/Off) for 3 seconds to confirm and start cooking (fig. i).

6 When the cooking is finished, the

appliance beeps and turns into warm keeping automatically.

Slow cooking (Slow cooking)

1 Put the food for slow cooking in the

inner pot.

2 Wipe the outside of the inner pot

dry (fig. d), and then put it in the multicooker (fig. e).

3 Close the lid of the multicooker

(fig. f), and put the plug in the power socket (fig. g).

4 Touch the menu button (Menu) to

select slow cooking (Slow cooking) (fig. o).

» To choose a different cooking

time, refer to chapter "Setting up the cooking time".

5 Touch and hold the start button

(On/Off) for 3 seconds to confirm and start cooking (fig. i).

6 When the cooking is finished, the

appliance beeps and turns into warm keeping automatically.

Baking (Four)

Note

• If you bake other food with a temperature above 140°C, keep the lid open.

4 Touch the menu button (Menu) to

select bake (Four) (fig. p).

» To choose a different baking

temperature, touch the temperature button (Temp) first, and then touch the increase (+) or decrease (-) button to select the temperature you need. (fig. q)

» To choose a different cooking

time, refer to chapter "Setting up the cooking time".

5 Touch and hold the start button

(On/Off) for 3 seconds to confirm and start cooking (fig. i).

6 When the cooking is finished, the

appliance beeps and turns into warm keeping automatically.

Note

• If the baking temperature is set below 80°C, when the cooking is finished, the appliance turns into standby automatically.

• When removing the inner pot from the multicooker after cooking, use a kitchen glove or a cloth, as the inner pot could be very hot.

1 Put the food and ingredients to

bake in the inner pot.

2 Wipe the outside of the inner pot

dry (fig. d), and then put it in the multicooker (fig. e).

3 Close the lid of the multicooker

(fig. f), and put the plug in the power socket (fig. g).

Roasting (Rissoler)

Frying (Frire)

1 Put food and ingredients into the

inner pot.

2 Wipe the outside of the inner pot

dry (fig. d), and then put it in the multicooker (fig. e).

3 Close the lid of the multicooker

(fig. f), and put the plug in the power socket (fig. g).

4 Touch the menu button (Menu) to

select roast (Rissoler) (fig. r).

5 Touch and hold the start button

(On/Off) for 3 seconds to confirm and start cooking (fig. i).

6 There are 2 stages of roasting. When

the first stage (about 35 minutes) is over, the multicooker beeps as a reminder for you to open the lid, and turn the food over in the inner pot.

» The remaining cooking time

displays on the screen.

7 Touch the menu button (Menu)

to start the second stage (about 25 minutes).

» If the menu button (Menu) is

not touched after the first stage is over, the multicooker will turn into warm keeping until the cooking time is over.

8 When the cooking is finished, the

appliance beeps and turns into standby automatically.

1 Put food and ingredients into the

inner pot.

2 Wipe the outside of the inner pot

dry (fig. d), and then put it in the multicooker (fig. e).

3 Put the plug in the power socket

(fig. g).

4 Touch the menu button (Menu) to

select fry (Frire) (fig. s).

5 Touch and hold the start button

(On/Off) for 3 seconds to confirm and start cooking (fig. i).

6 Keep the lid open and stir the food

constantly with a spatula.

7 When the cooking is finished, the

appliance beeps and turns into standby automatically.

Note

• Do not put too much cooking oil in the inner pot to deep fry ingredients.

Making pizza (Pizza)

1 Put the ingredients for the pizza in

the inner pot.

2 Wipe the outside of the inner pot

dry (fig. d), and then put it in the multicooker (fig. e).

3 Close the lid of the multicooker

(fig. f), and put the plug in the power socket (fig. g).

4 Touch the menu button (Menu) to

select pizza (Pizza) (fig. t).

» To choose a different cooking

time, refer to chapter "Setting up the cooking time".

English

5 Touch and hold the start button

(On/Off) for 3 seconds to confirm and start cooking (fig. i).

6 When the cooking is finished, the

appliance beeps and turns into warm keeping automatically.

Boiling pasta (Pâtes)

1 Fill the inner pot with some water.

Note

• If you cook with frozen pizza, you can adjust the cooking time according to your own preference. The pizza gets browner as the cooking time increases.

Making omelette (Omelette)

1 Put the ingredients for the omelette

in the inner pot.

2 Wipe the outside of the inner pot

dry (fig. d), and then put it in the multicooker (fig. e).

3 Close the lid of the multicooker

(fig. f), and put the plug in the power socket (fig. g).

4 Touch the menu button (Menu) to

select omelette (Omelette) (fig. u).

» To choose a different cooking

time, refer to chapter "Setting up the cooking time".

5 Touch and hold the start button

(On/Off) for 3 seconds to confirm and start cooking (fig. i).

6 When the cooking is finished, the

appliance beeps and turns into standby automatically.

• Do not exceed the MAX indication on the inside of the inner pot.

2 Wipe the outside of the inner pot

dry (fig. d), and then put it in the multicooker (fig. e).

3 Close the lid of the multicooker

(fig. f), and put the plug in the power socket (fig. g).

4 Touch the menu button (Menu) to

select pasta (Pâtes) (fig. v).

» To choose a different cooking

time, refer to chapter "Setting up the cooking time".

5 Touch and hold the start button

(On/Off) for 3 seconds to confirm and start cooking (fig. i).

6 When the water is brought to

boil, the multicooker beeps as a reminder for you to open the lid and put the pasta in the inner pot.

7 After the pasta is put in the inner

pot, touch the menu button (Menu) to resume the cooking process.

8 Keep the lid open and constantly

stir the pasta with a spatula.

9 When the cooking is finished, the

appliance beeps and turns into standby automatically.

+ 35 hidden pages
