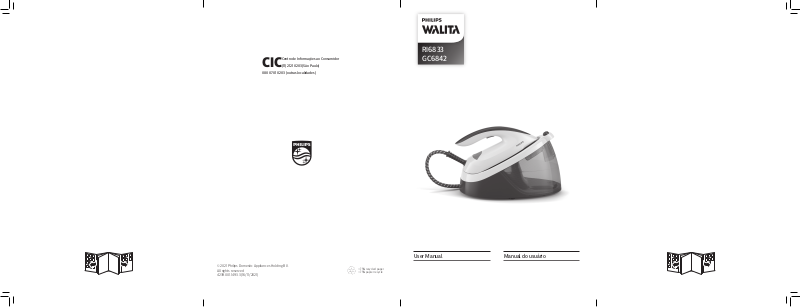

RI6833
Centro de Informações ao Consumidor
CIC
0800 701 0203 (outras localidades)
(11) 2121 0203 (São Paulo)
GC6842
© 2021 Philips Domestic Appliances Holding B.V.
All rights reserved
4239.001.1493.3 (16/11/2021)
>75% recycled paper
>75% papier recyclé
User Manual Manual do usuário
1
2
3 4 5
32 41
5 6 7
8 9
10
2x
10
14
18
6
7 8 9
11 12 13
15 16 17
2 min.
2 sec.
19 20 21
12
11
22 23 24 25
English 6
Português do Brasil 13
English
6
Introduction
Congratulations on your purchase and welcome to Philips! To fully benet from the support that Philips oers, register
your product at https://www.philips.com.br/myphilips/login.html.
Read this user manual, the important information leaet, and the quick start guide carefully before you use the appliance.
Save them for future reference.
Important
This appliance has been designed for domestic use only. Any commercial use, inappropriate use or failure to comply with
the instructions, the manufacturer accepts no responsibility and the guarantee will not apply.
Danger
- Never immerse the appliance in water.
Warning
- Do not use the appliance if the plug, the mains cord, the supply hose or the appliance itself shows visible damage or
if the appliance functions abnormally in any way, or if the appliance has been dropped or leaks. For repair or service,
you must have the appliance inspected by Philips, a service centre authorised by Philips or similarly qualied persons.
- Check if the voltage indicated on the type plate corresponds to the local mains voltage before you connect the
appliance.
- Do not immerse the iron or the steam generator in water.
- Do not leave the appliance unattended when it is connected to the mains.
- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or
mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning
use of the appliance in a safe way and understand the hazards involved.
- Children aged 8 or over are only allowed to clean the appliance and perform the Calc-Clean procedure under
supervision.
- Keep the iron and its cord out of reach of children less than 8 years of age when it is switched on or cooling down.
- The appliance must be used and placed on a at, stable, heat-resistant surface. When you place the iron on its heel or
its stand, make sure that the surface on which you place it is stable.
- Handle your iron carefully and never direct the steam towards persons or animals as your appliance gives o steam
which can cause burns.
- Specic types only: When engaging/dis-engaging the water tank, do not touch the tip of the iron as the system is in
operation.
- Do not let the mains cord and supply hose come into contact with the hot soleplate of the iron.
- Do not leave the appliance unattended during the Calc-Clean process.
- Always perform the Calc-Clean process with the Calc-Clean container and do not interrupt the process.
- Do not allow children to play with the appliance.
Caution: Hot water and steam comes out from the soleplate.
- Iron with heel rest & iron stand: Do not conduct Calc-Clean process on heel rest or stand position as hot water will
ow out. Kindly use De-Calc tray to perform the cleaning
- Iron platform (stand) can be extremely hot , may cause burn if touched. Let it cool down for 5 minutes before touching
the surface.
CAUTION: Hot surface.
- Surfaces are liable to get hot during use (for irons with hot symbol marked on the appliance).
Caution
- Only connect the appliance to an earthed wall socket.
- Fully unwind the mains cord before you put the plug in the wall socket.
- The iron platform and the soleplate of the iron can become extremely hot and may cause burns if touched. If you want
to move the steam generator, do not touch the iron platform.
English
- Always put the iron back on the iron platform, switch o the appliance and remove the plug from the wall socket after
you have nished ironing, when you clean the appliance, ll or empty the water tank, or even when you leave the
appliance even for a short while.
- Do not add perfumed water, water from the tumble dryer, vinegar, starch, descaling agents, ironing aids, chemically
descaled water or other chemicals, as they may cause water leakage, brown staining or damage to your appliance.
- The plug must only be connected to a socket with the same technical characteristics as plug.
- The lling hole must not be open during operation.
Electromagnetic elds (EMF)
This Philips appliance complies with all applicable standards and regulations regarding exposure to electromagnetic
elds.
Product overview (Fig. 1)
1 Soleplate
2 ‘Iron ready’ light
3 Steam trigger/Steam boost
4 Water supply hose
5 Water tank lling door
6 Carry lock release button
7 Iron platform
8 On/o button with pwer on and shut-o light
9 CALC-CLEAN button with light
10 Mains cord with plug
11 Water supply hose and mains cord storage compartment
12 Smart Calc-Clean container
Exclusive technology from Philips
7
OptimalTEMP technology
The OptimalTEMP technology enables you to iron all types of ironable fabrics, in any order, without adjusting the iron
temperature and without sorting your garments.
It is safe to just rest the hot soleplate directly on the ironing board (Fig. 2) without putting back to the iron platform. This
will help reduce the stress on your wrist.
Compact ProVelocity technology
This technology delivers continuous steam that penetrates deeply to remove creases easily. At the same time, it keeps
the appliance more compact and lighter than traditional steam generators, for easier storage.
Preparing for use
Type of water to use
This appliance has been designed to be used with tap water. However, if you live in an area with hard water, fast scale
build-up may occur. Therefore, it is recommended to use distilled or demineralized water to prolong the lifetime of the
appliance.
Warning: Do not use perfumed water, water from the tumble dryer, vinegar, starch, descaling agents, ironing aids,
chemically descaled water or other chemicals, as they may cause water spitting, brown staining or damage to your
appliance.
Filling the water tank
Fill the water tank before every use or when the water level in the water tank drops below the minimum level. You can
rell the water tank at any time during use.
8
English
1 Open the water tank lling door (Fig. 3).
2 Fill the water tank up to the MAX indication (Fig. 4).
3 Close the water tank lling door (‘click’).
Using the appliance
Ironable fabrics
Do not iron non-ironable fabrics.
- Fabrics with these symbols (Fig. 5) are ironable, for example linen, cotton, polyester, silk, wool, viscose and rayon.
- Fabrics with this symbol (Fig. 6) are not ironable. These fabrics include synthetic fabrics such as Spandex or elastane,
Spandex-mixed fabrics and polyolens (e.g. polypropylene). Prints on garments are not ironable either.
Ironing
1 Place the appliance on a stable and even surface.
Note: In order to ensure safe ironing we recommend to always place the base on a stable ironing board.
2 Make sure that there is enough water in the water tank.
3 Remove the mains cord and water supply hose from the storage compartment.
4 Put the mains plug in an earthed wall socket and press the on/o button to switch on the appliance.Wait until the
‘iron ready’ light lights up continuously (Fig. 7). This takes about 2 minutes.
5 Press the carry lock release button to unlock the iron from the iron platform (Fig. 8).
6 Press and hold the steam trigger to start ironing (Fig. 9).
Note: For best ironing results, after ironing with steam, perform the last strokes without steam.
Warning: Never direct steam at people.
Note: When you use the appliance for the rst time, it may take 30 seconds for steam to come out of the appliance.
Note: The pump is activated each time you press the steam trigger. It produces subtle rattling sound, which is normal.
When there is no water in the water tank, the pump sound is louder. Fill up the water tank with water when the water
level drops below the minimum level.
Steam boost function
1 Press the steam trigger twice quickly to release a powerful boost of steam for 3 seconds (Fig. 10).
Note: It is recommended to use the steam boost function only for stubborn crease.
Vertical ironing
Warning: Hot steam is emitted from the iron. Never attempt to remove wrinkles from a garment while someone is
wearing it (Fig. 11). Do not apply steam near your or someone else’s hand.
You can use the steam iron in vertical position to remove wrinkles from hanging fabrics.
1 Hold the iron in vertical position, press the steam trigger and touch the garment lightly with the soleplate and move
the iron up and down (Fig. 12).
Safe rest
Resting the iron while rearranging your garment
While rearranging your garment, you can rest the iron either on the iron platform or horizontally on the ironing board
(Fig. 2). The OptimalTEMP technology ensures the soleplate will not damage the ironing board cover.
