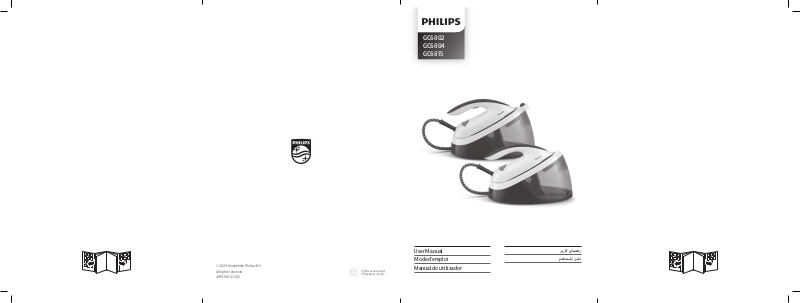

GC6802 GC6804 GC6815
© 2020 Koninklijke Philips N.V. All rights reserved 4239 001 07202
>75% recycled paper >75% papier recyclé
User Manual Mode d’emploi Manual do utilizador
ﻡﺪﺨﺘﺴﳌﺍ ﻞﻴﻟﺩ
1
2
3 4 5
32 41
5 6 7
8 9
10
2x
10
14
18
6
7 8 9
11 12 13
15 16 17
2 min.
2 sec.
19 20 21
12
11
22 23 24 25
English 6 Français 11 Português 17
یسﺭاف 27 ﺔﻴﺑﺮﻌﻟﺍ 32
English
6
Introduction
Congratulations on your purchase and welcome to Philips! To fully benet from the support that Philips oers, register your product at www.philips.com/welcome.
Read this user manual, the important information leaet, and the quick start guide carefully before you use the appliance. Save them for future reference.
Product overview (Fig. 1)
1 Soleplate 2 ‘Iron ready’ light 3 Steam trigger/Steam boost 4 Water supply hose 5 Water tank lling door 6 Carry lock release button (GC6819, GC6820, GC6830 and GC6840 series only) 7 Iron platform 8 On/o button with pwer on and shut-o light 9 CALC-CLEAN button with light 10 Mains cord with plug 11 Water supply hose and mains cord storage compartment 12 Smart Calc-Clean container
Exclusive technology from Philips
OptimalTEMP technology
The OptimalTEMP technology enables you to iron all types of ironable fabrics, in any order, without adjusting the iron temperature and without sorting your garments.
It is safe to just rest the hot soleplate directly on the ironing board (Fig. 2) without putting back to the iron platform. This will help reduce the stress on your wrist.
Compact ProVelocity technology
This technology delivers continuous steam that penetrates deeply to remove creases easily. At the same time, it keeps the appliance more compact and lighter than traditional steam generators, for easier storage.
Preparing for use
Type of water to use
This appliance has been designed to be used with tap water. However, if you live in an area with hard water, fast scale build-up may occur. Therefore, it is recommended to use distilled or demineralized water to prolong the lifetime of the appliance.
Warning: Do not use perfumed water, water from the tumble dryer, vinegar, starch, descaling agents, ironing aids, chemically descaled water or other chemicals, as they may cause water spitting, brown staining or damage to your appliance.
Filling the water tank
Fill the water tank before every use or when the water level in the water tank drops below the minimum level. You can rell the water tank at any time during use.
1 Open the water tank lling door (Fig. 3). 2 Fill the water tank up to the MAX indication (Fig. 4). 3 Close the water tank lling door (‘click’).
English
Using the appliance
Ironable fabrics
Do not iron non-ironable fabrics.
- Fabrics with these symbols (Fig. 5) are ironable, for example linen, cotton, polyester, silk, wool, viscose and rayon.
- Fabrics with this symbol (Fig. 6) are not ironable. These fabrics include synthetic fabrics such as Spandex or elastane, Spandex-mixed fabrics and polyolens (e.g. polypropylene). Prints on garments are not ironable either.
Ironing
1 Place the appliance on a stable and even surface.
Note: In order to ensure safe ironing we recommend to always place the base on a stable ironing board.
2 Make sure that there is enough water in the water tank. 3 Remove the mains cord and water supply hose from the storage compartment. 4 Put the mains plug in an earthed wall socket and press the on/o button to switch on the appliance.Wait until the
‘iron ready’ light lights up continuously (Fig. 7). This takes about 2 minutes.
5 For GC6819, GC6820, GC6830 and GC6840 series only: press the carry lock release button to unlock the iron from the
iron platform (Fig. 8).
6 Press and hold the steam trigger to start ironing (Fig. 9).
Note: For best ironing results, after ironing with steam, perform the last strokes without steam.
Warning: Never direct steam at people.
Note: When you use the appliance for the rst time, it may take 30 seconds for steam to come out of the appliance.
Note: The pump is activated each time you press the steam trigger. It produces subtle rattling sound, which is normal. When there is no water in the water tank, the pump sound is louder. Fill up the water tank with water when the water level drops below the minimum level.
7
Steam boost function
1 Press the steam trigger twice quickly to release a powerful boost of steam for 3 seconds (Fig. 10).
Note: It is recommended to use the steam boost function only for stubborn crease.
Vertical ironing
Warning: Hot steam is emitted from the iron. Never attempt to remove wrinkles from a garment while someone is wearing it (Fig. 11). Do not apply steam near your or someone else’s hand.
You can use the steam iron in vertical position to remove wrinkles from hanging fabrics. 1 Hold the iron in vertical position, press the steam trigger and touch the garment lightly with the soleplate and move
the iron up and down (Fig. 12).
Safe rest
Resting the iron while rearranging your garment
While rearranging your garment, you can rest the iron either on the iron platform or horizontally on the ironing board (Fig. 2). The OptimalTEMP technology ensures the soleplate will not damage the ironing board cover.
Auto shut-o
- The appliances enters the standby mode if it has not been used for 5 minutes. The light of the on/o button starts to ash.
English
8
- To activate the appliance again, press the on/o button or the steam trigger. The appliance starts to heat up again.
- The appliance switches o automatically if it has not been used for another 10 minutes after it enters the standby mode. The light in the on/o button goes o.
Warning: Never leave the appliance unattended when it is connected to the mains. Always unplug the appliance after use.
Cleaning and maintenance
Smart Calc-Clean System
Your appliance has been designed with a Smart Calc-Clean system to ensure that descaling and cleaning is done regularly. This helps to maintain a strong steam performance and prevents dirt and stains coming out of the soleplate over time. To ensure that the cleaning process is performed, the appliance gives regular reminders.
Sound and light Calc-Clean reminder
After 1 to 3 months of use, the Calc-Clean light starts ashing and the appliance starts beeping to indicate that you have to perform the Calc-Clean process (Fig. 13).
Besides that, a second defense step to protect the appliance from scale is integrated: the steam function gets disabled if descaling is not done (Fig. 14). After descaling is done, the steam function will be restored. This takes place regardless of the type of water used.
Note: The Calc-Clean process can be performed at any time, even when the sound and light reminder is not activated yet.
Performing the Calc-Clean process with the Calc-Clean container
Warning: Do not leave the appliance unattended during the Calc-Clean process.
Caution: Always perform the Calc-Clean process with the Calc-Clean container. Do not interrupt the process by lifting the iron up from the Calc-Clean container, as hot water and steam will come out of the soleplate.
1 Fill up the water tank halfway.
Note: Make sure that the appliance is plugged in and switched ON during the Calc-Clean process.
2 Place the Calc-Clean container on the ironing board or any other even, stable surface. 3 Place the iron stably on the Calc-Clean container (Fig. 15). 4 Press and hold the CALC-CLEAN button for 2 seconds until you hear short beeps (Fig. 16).
Note: The Calc-Clean container has been designed to collect scale particles and hot water during the Calc-Clean process. It is perfectly safe to rest the iron on this container during the entire process.
5 During the Calc-Clean process, you hear short beeps and a pumping sound (Fig. 17). 6 Wait approximately 2 minutes for the appliance to complete the process (Fig. 18). When the Calc-Clean process is
completed, the iron stops beeping and the CALC-CLEAN light stops ashing.
7 Wipe the iron with a piece of cloth and put it back on the base station (Fig. 19).
Caution: The iron is hot.
8 As the Calc-Clean container becomes hot during the Calc-Clean process, wait about 5 minutes before you touch it.
Then carry the Calc-Clean container to the sink, empty it and store it for future use (Fig. 20).
9 If necessary, you can repeat steps 1 to 8. Make sure that you empty the Calc-Clean container before you start the Calc-
Clean process. Note: During the Calc-Clean process, clean water may come out of the soleplate if no scale has accumulated inside
the iron. This is normal.
For more information on how to carry out the Calc-Clean process, refer to the videos in this link: http://www.philips.com/ descaling-iron.
English
Cleaning the soleplate
To properly maintain your appliance, clean it regularly.
1 Clean the appliance with a moist cloth. 2 To easily and eectively remove stains, let the soleplate heat up and move the iron over a moist cloth (Fig. 21).
Tip: Clean the soleplate regularly to ensure smooth gliding.
Storage
1 Switch o the appliance and unplug it. 2 Pour the water out of the water tank into the sink (Fig. 22). 3 Fold the mains cord and water supply hose together. Push them into the storage compartment (Fig. 23). 4 For GC6819, GC6820, GC6830 and GC6840 series only: push the carry lock to lock the iron onto the iron platform
(Fig. 24). You can carry the appliance by the handle of the iron when it is locked onto the iron platform (Fig. 25).
Troubleshooting
This chapter summarizes the most common problems you could encounter with the appliance. If you are unable to solve the problem with the information below, visit www.philips.com/support for a list of frequently asked questions or contact the Consumer Care Center in your country.
Problem Possible cause Solution
The iron does not produce any steam.
The light of the CALC CLEAN button ashes and the appliance beeps.
No steam comes out of the soleplate, the light of the CALC CLEAN button ashes and the appliance beeps.
The appliance has switched o.
The appliance produces a loud pumping sound.
There is not enough water in the water tank.
You did not press the steam trigger. Press and hold the steam trigger until steam
The steam function has been disabled until you have performed the Calc-Clean process.
At the start of your ironing session, the steam trigger has not been pressed long enough.
This is the Calc-Clean reminder. Perform the Calc-Clean after the Calc-Clean
You have not done or have not completed the Calc-Clean process.
The auto shut-o function is activated automatically. The appliance enters the standby mode if has not been used for 5 minutes and swiches o if it has not been used for another 10 minutes.
The water tank is empty. Fill the water tank with water and press the
Fill the water tank beyond the MIN indication. Press and hold the steam trigger until steam comes out. It may take up to 30 seconds until steam comes out.
comes out. Perform the Calc-Clean process to restore the
steam function. (see chapter ' Cleaning and maintenance')
Press and hold the steam trigger until steam comes out. It may take up to 30 seconds until steam comes out.
reminder is given (see chapter ‘Cleaning and maintenance’).
Perform the Calc-Clean process to enable the steam function again (see chapter ‘Cleaning and maintenance’).
To activate the appliance again, press the on/o button. The appliance starts to heat up again.
steam trigger until the pumping sound becomes softer and steam comes out of the soleplate.
9
English
10
Problem Possible cause Solution
Water droplets come out of the soleplate.
Dirty water and impurities come out of the soleplate.
Water ushes out of the soleplate.
The Calc-Clean process does not start.
The iron leaves a shine or an imprint on the garment.
The ironing board cover becomes wet, or there are water droplets on the oor/ garment.
After the Calc-Clean process remaining water may drip out of the soleplate.
You have used the steam boost function too frequently.
The Calc-Clean process has not been completed.
Steam condenses into water in the hose when you use steam for the rst time or have not used it for a long time.
Impurities or chemicals present in the water have deposited in the steam vents and/or soleplate.
Steam condenses into water in the hose when you use steam for the rst time or have not used it for a long time.
You have accidentally started the Calc-Clean process (see chapter 'Cleaning and maintenance').
You have not pressed the CALC­CLEAN button for 2 seconds until the appliance started beeping.
The surface to be ironed was uneven, for instance because you were ironing over a seam or a fold in the garment.
There was not enough felt in the ironing board cover.
Steam has condensed on the ironing board cover after a long ironing session.
You have an ironing board that is not designed to cope with the high steam rate of the appliance.
Wipe the soleplate dry with a piece of cloth. If the Calc-Clean light still ashes and the appliance still beeps, perform the Calc­Clean process (see chapter ‘Cleaning and maintenance’).
Use the steam boost function only for stubborn creases. It is recommended not to use it for more than 5 times within 3 minutes.
You have to perform the Calc-Clean process again (see chapter ‘Cleaning and maintenance’).
This is normal. Hold the iron away from the garment and press the steam trigger.Wait until steam instead of water comes out of the soleplate.
Perform the Calc-Clean process regularly (see chapter ‘Cleaning and maintenance’).
This is normal. Hold the iron away from the garment and press the steam trigger.Wait until steam instead of water comes out of the soleplate.
Switch o the appliance. Then switch it back on again. Let the iron heat up until the ‘iron ready’ light lights up steadily.
See chapter ‘Cleaning and maintenance’.
PerfectCare is safe on all garments. The shine or imprint is not permanent and will come o if you wash the garment.Avoid ironing over seams or folds or you can place a cotton cloth over the area to be ironed to avoid imprints.
Put an extra layer of felt material under the ironing board cover.
Replace the ironing board cover if the foam or felt material has worn out. You can also add an extra layer of felt material under the ironing board cover to prevent condensation on the ironing board.
Put an extra layer of felt material under the ironing board cover to prevent condensation on the ironing board.
Français
Introduction
Félicitations pour votre achat et bienvenue dans l'univers Philips ! Pour proter pleinement de l'assistance oerte par Philips, enregistrez votre produit à l'adresse www.philips.com/welcome.
Lisez attentivement ce mode d’emploi, la brochure « Informations importantes » et le guide de mise en route avant d’utiliser l’appareil. Conservez-les pour un usage ultérieur.
Présentation du produit (g. 1)
1 Semelle 2 Voyant « Fer prêt » 3 Gâchette vapeur/Eet pressing 4 Tuyau d'arrivée d'eau 5 Ouverture de remplissage du réservoir d'eau 6 Bouton de déverrouillage du fer (séries GC6819, GC6820, GC6830 et GC6840 uniquement) 7 Support du fer à repasser 8 Bouton marche/arrêt avec voyant d’arrêt et d’alimentation 9 Bouton CALC CLEAN avec voyant 10 Cordon d’alimentation avec che secteur 11 Tuyau d’arrivée d’eau et compartiment de rangement du cordon d’alimentation 12 Réservoir anticalcaire intelligent
Technologie exclusive de Philips
Technologie OptimalTEMP
La technologie OptimalTEMP vous permet de repasser tous les types de tissus repassables, dans l'ordre que vous souhaitez, sans avoir à régler la température du fer ni à trier vos vêtements.
Vous pouvez laisser la semelle reposer directement sur la planche à repasser (g. 2) sans remettre le fer en place sur son support. Cela permettra de réduire la pression exercée sur votre poignet.
11
Technologie Compact ProVelocity
Cette technologie ore un débit vapeur continu qui pénètre en profondeur pour éliminer facilement les faux plis. Simultanément, il permet à l'appareil d'être plus compact et plus léger que les centrales vapeur traditionnelles, pour un rangement facilité.
Avant utilisation
Type d'eau à utiliser
Cet appareil a été conçu pour être utilisé avec de l'eau du robinet. Cependant, si vous habitez dans une zone où l'eau est très calcaire, des dépôts peuvent se former rapidement. Par conséquent, il est recommandé d'utiliser de l'eau distillée ou déminéralisée pour prolonger la durée de vie de l'appareil.
Avertissement : n'utilisez pas d'eau parfumée, d'eau provenant du sèche-linge, de vinaigre, d'amidon, de détartrants, de produits d'aide au repassage ou d'autres agents chimiques dans le réservoir d'eau car ils peuvent entraîner des projections d'eau, des taches marron ou des dommages à votre appareil.
Remplissage du réservoir
Remplissez le réservoir d'eau avant chaque utilisation ou lorsque le niveau d'eau dans le réservoir descend sous le niveau minimal. Vous pouvez remplir le réservoir d'eau à tout moment pendant le repassage.
1 Ouvrez l'ouverture de remplissage du réservoir d'eau (g. 3). 2 Remplissez le réservoir d'eau jusqu'au niveau MAX (g. 4). 3 Fermez l’ouverture de remplissage du réservoir d’eau (clic).
