Philips FWM576/BK instructions for use

MP3-CD Mini Hi-Fi System

FWM576

México

Es necesario que lea cuidadosamente su instructivo de
manejo.

PRECAUCIÓN - ADVERTENCIA

No abrir, riesgo de choque eléctrico

Verifique que el voltaje de alimentación

sea el requerido para su aparato

Para evitar el riesgo de choque eléctrico, no quite la tapa.

En caso de requerir servicio, dirijase al personal calificado.

Descripción: Minisistema de Audio
Modelo : FWM576/55
Alimentación: 110–127 / 220–240V~; 50–60 Hz
Consumo: 165W
Importador: Philips Mexicana, S.A. de C.V.
Domicilio: Av. La Palma No.6

Localidad y Tel: Edo. de México C.P. 52784

Exportador: Philips Electronics HK, Ltd.
País de Origen: China
Nº de Serie: ______________________________

ATENCIÓN

Col. San Fernando La Herradura
Huixquilucan

Tel.[phone]

LEA CUIDADOSAMENTE ESTE INSTRUCTIVO

ANTES DE USAR SU APARATO.

AVISO IMPORTANTE

Philips Mexicana, S.A. de C .V. no se hace

responsable por daños o desperfectos causados por:

– Maltrato, descuido o mal uso, presencia de

insectos o roedores (cucarachas, ratones etc.).

– Cuando el aparato no haya sido operarado

de acuerdo con el instructivo del uso, fuera
de los valores nominales y tolerancias de las
tensiones (voltaje), frecuencia (ciclaje) de
alimentación eléctrica y las características
que deben reunir las instalaciones auxiliares.

– Por fenómenos naturales tales como:

temblores, in
eléctricas, rayos etc. o delitos causados por
terceros (choques asaltos, riñas

2

undaciones, incendios, descargas

, etc.).

CAUTION

Use of controls or
adjustments or performance
of procedures other than
herein may result in
hazardous radiation
exposure or other unsafe
operation.

1

3

2

5

6

%

4

2

1

™

#

6
@
7

ª
≥

9
#
&
*
7
!
8

§
0
∞
ª
≤
£
3

¡

)
(

*
&

^

%
$

4
8

3
@

5

•

33

PLUG & PLAY

1

-for tuner installation

4

Index

English ------------------------------------------------ 6

Español --------------------------------------------- 30

Português ------------------------------------------ 54

English

Español

Por tuguês

5

Contents

English

General Information

Supplied accessories ............................................ 7

Environmental information ................................ 7

Safety information ................................................ 7

Preparations

Rear connections ............................................. 8–9

Optional connection ........................................... 9

Inserting batteries into the remote control... 9

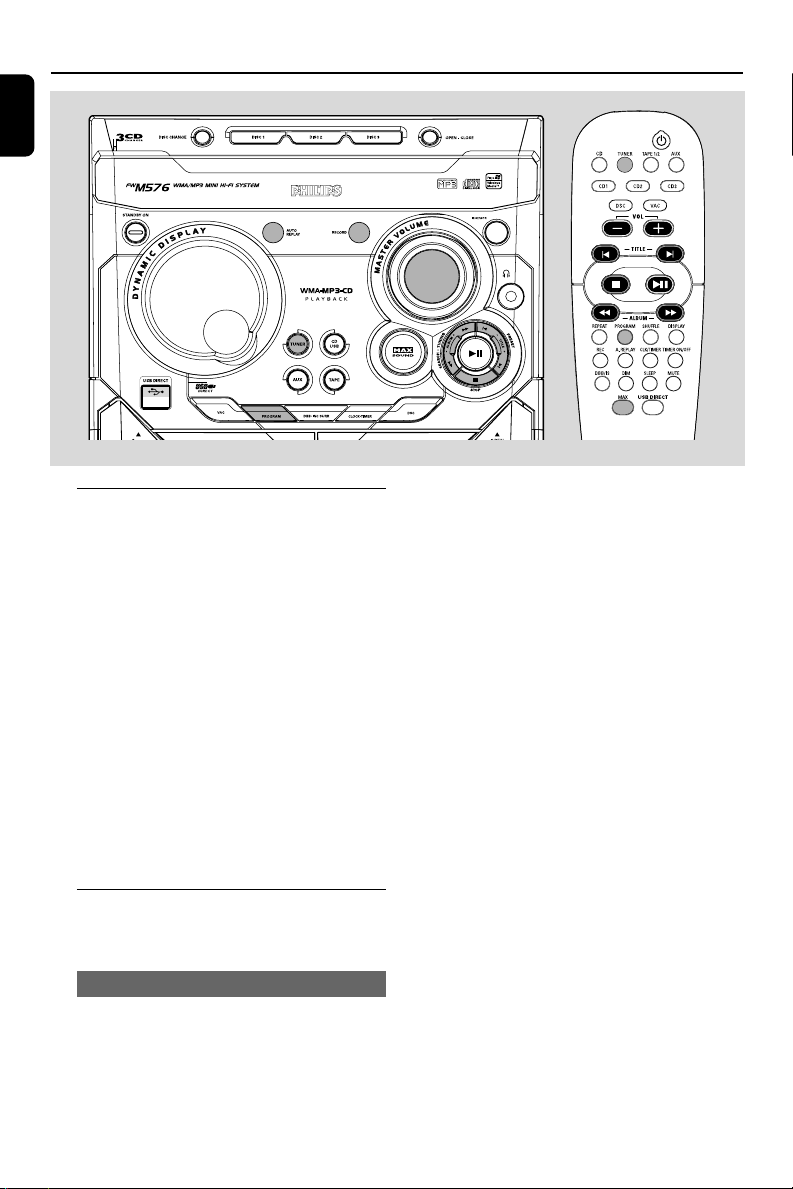

Controls

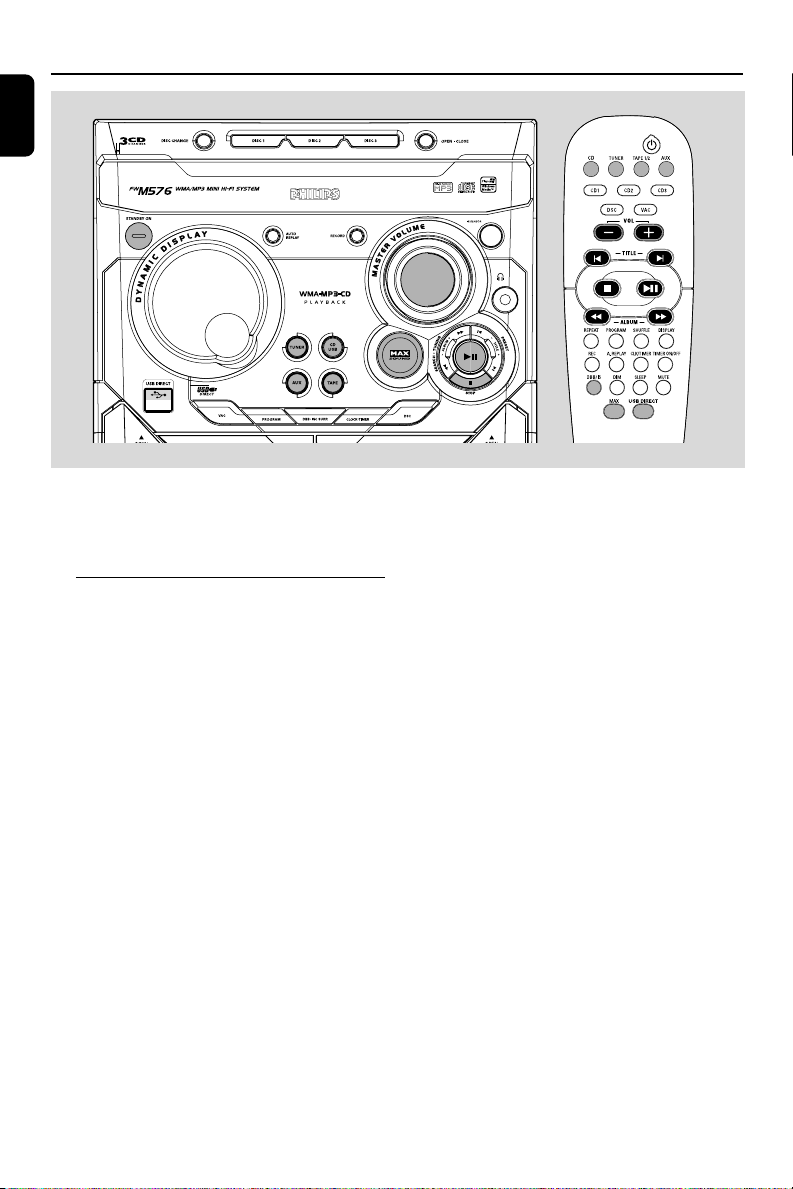

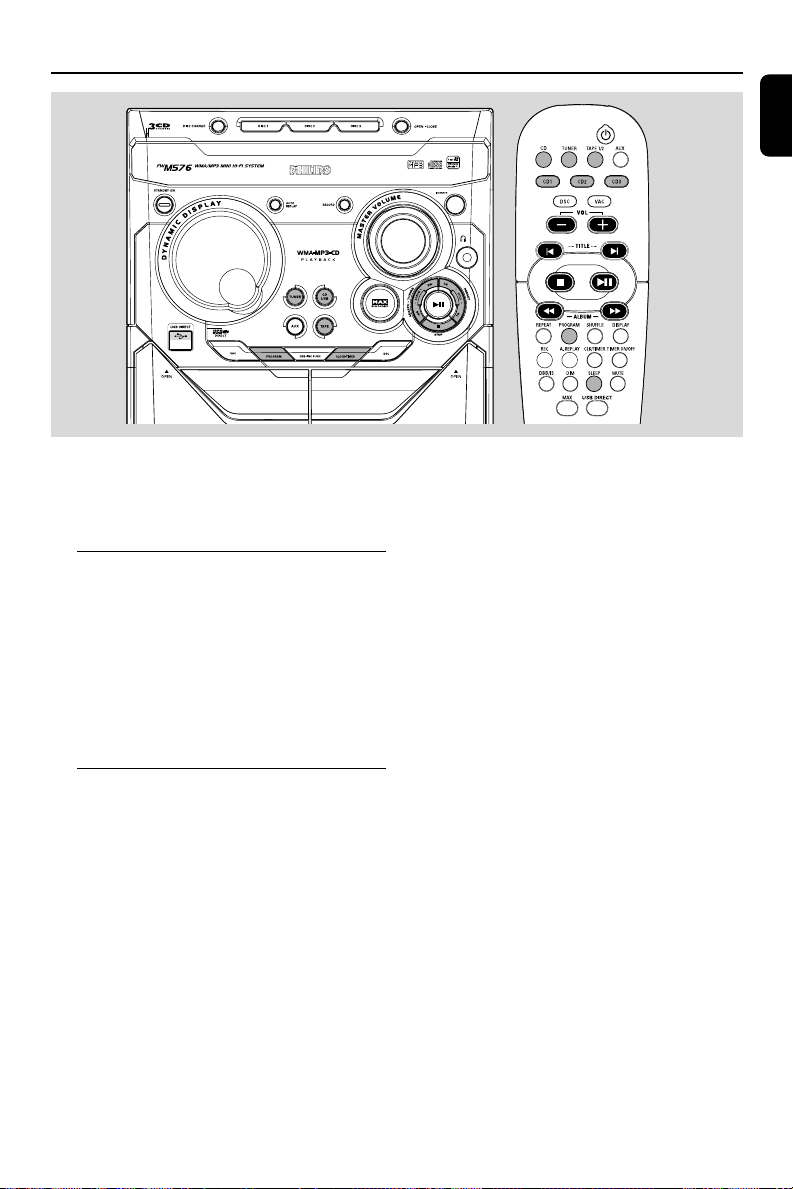

Controls on the system and remote control ...

Power
Antennas Connection
Speakers Connection

Connecting a USB device or memory card

......................................................................... 10–11

Radio Reception

Tuning to radio stations .................................... 18

Storing preset radio stations .................... 18–19

Automatic Preset Programming

Manual Preset Programming

Tuning to preset radio stations ....................... 19

Changing tuning grid .......................................... 19

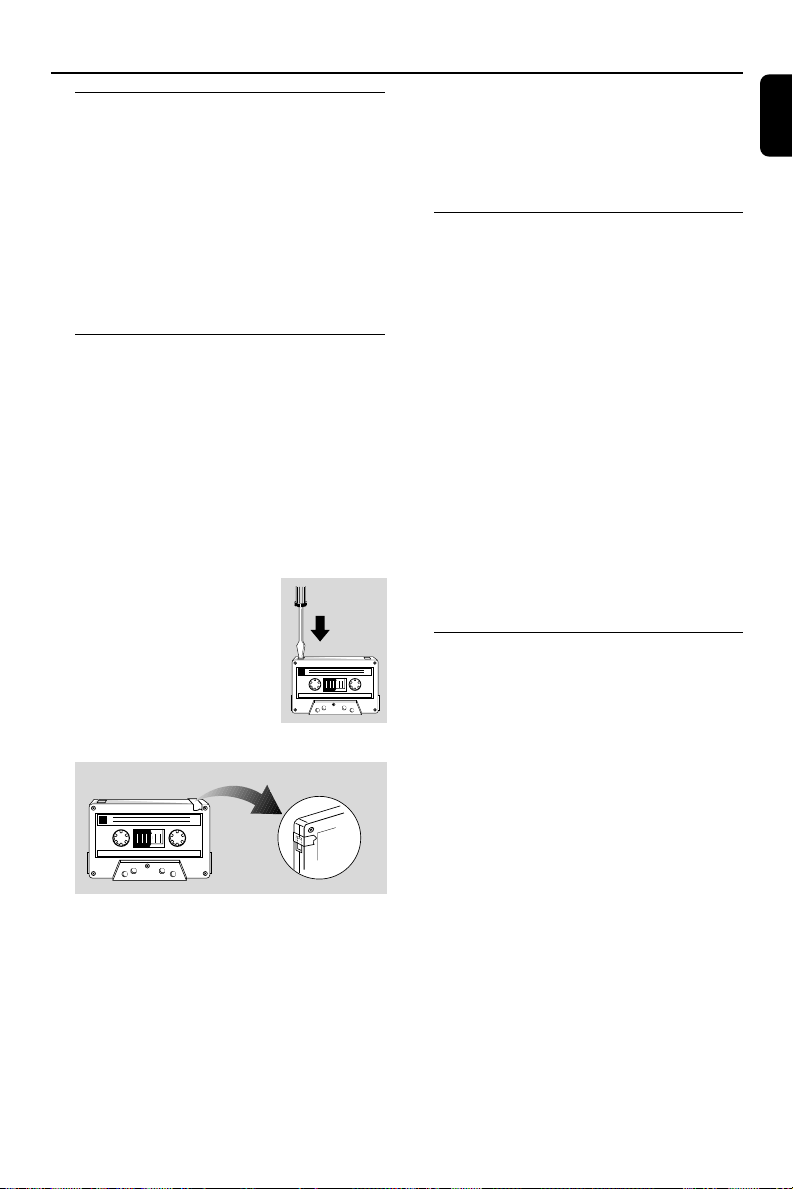

Ta pe Operation/Recording

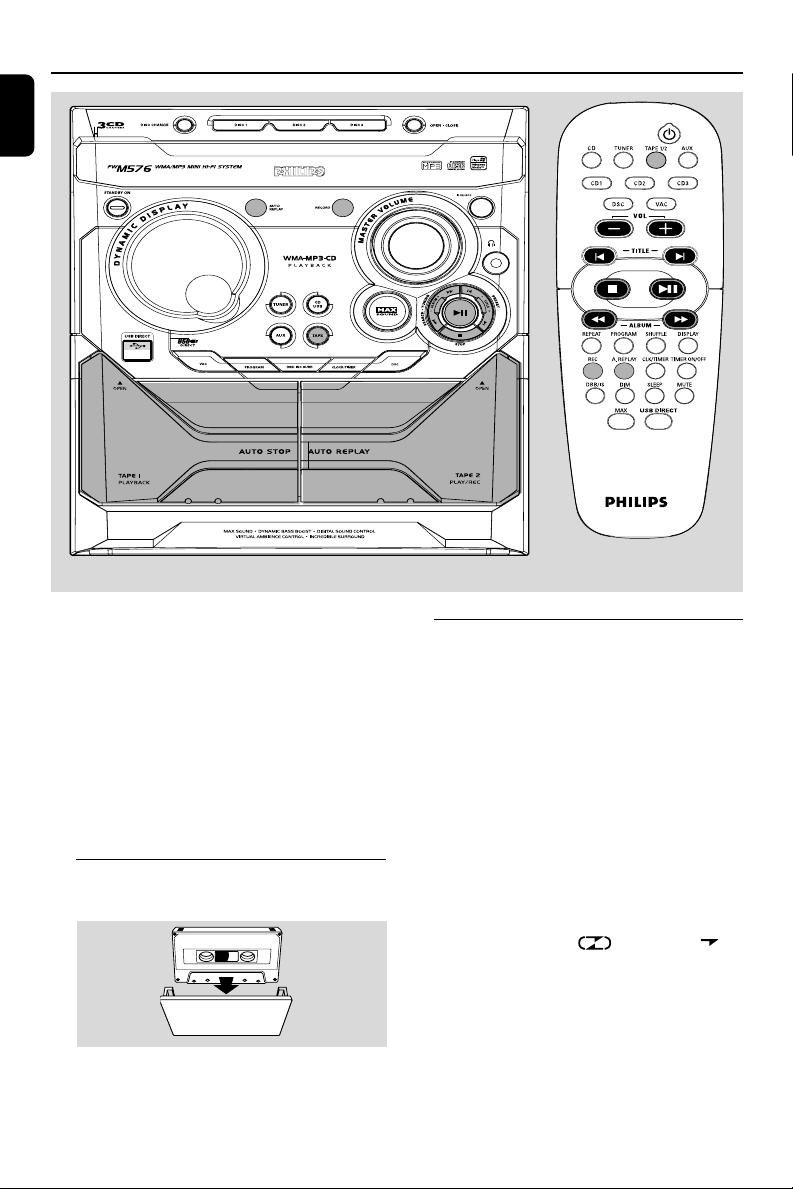

Loading tape ........................................................ 20

Playing tapes ........................................................ 20

Rewinding / Fast forwarding ............................ 21

General information on recording ................. 21

Preparation for recording ................................ 21

One touch recording......................................... 21

CD/USB Synchronised start recording ......... 22

Dubbing tapes ..................................................... 22

Basic Functions

Plug and Play ........................................................ 12

Demonstration mode ........................................ 13

Switching the system on ................................... 13

Switching the system to standby mode ........ 13

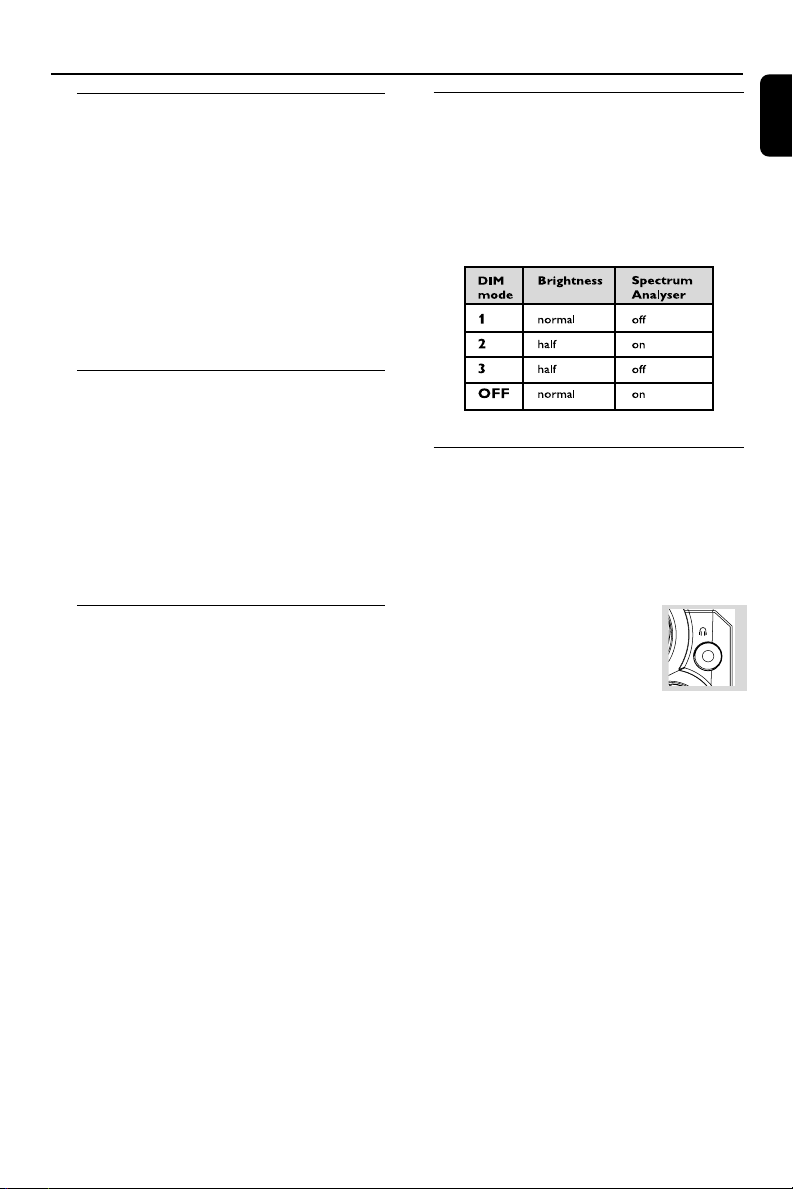

Dim mode ............................................................ 13

Volume control ................................................... 14

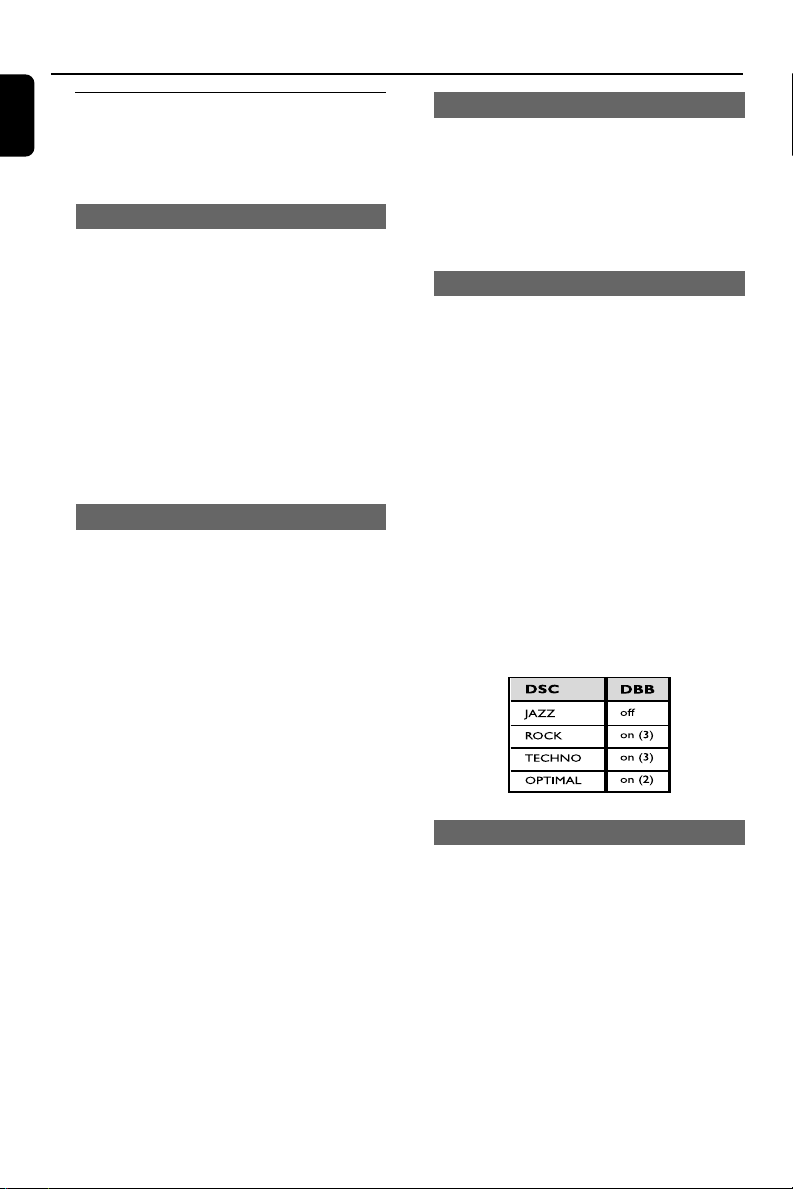

Sound control ..................................................... 14

MAX Sound
VAC (Virtual Ambience Control)
DSC (Digital Sound Control)
DBB (Dynamic Bass Boost)
Incredible Surround

CD/MP3-CD Operations

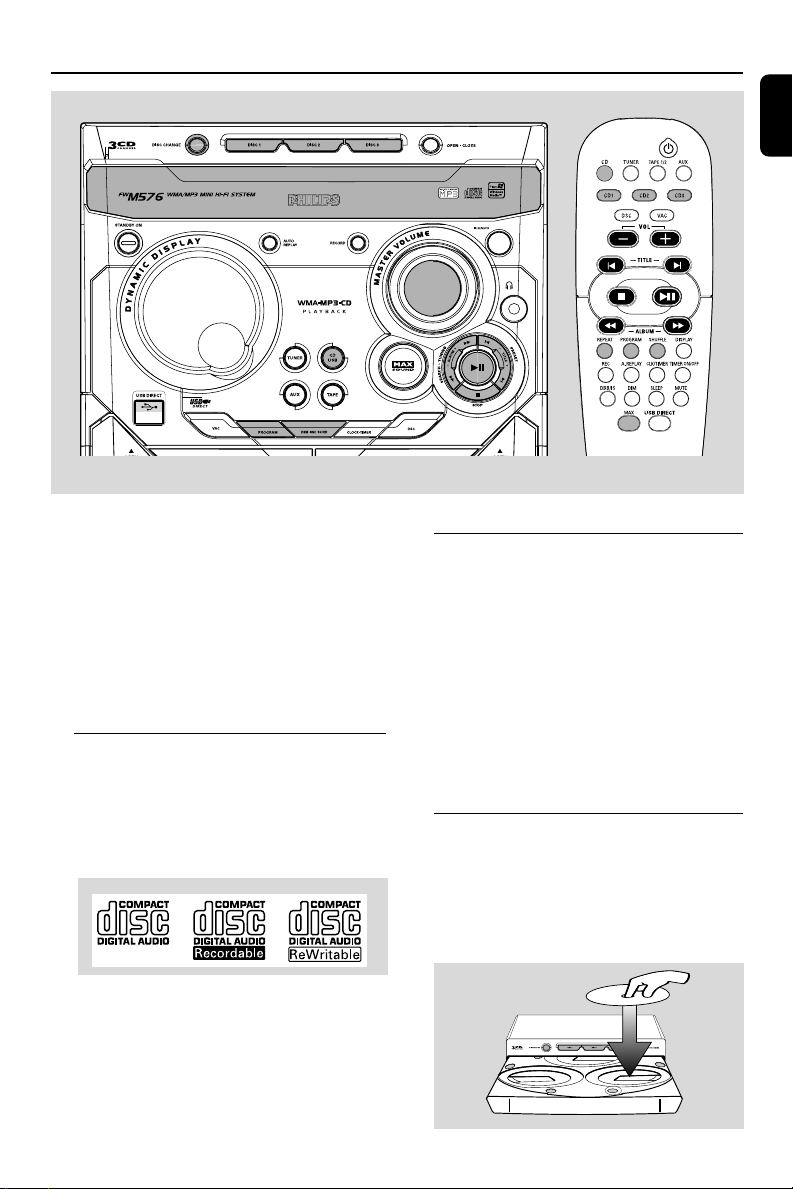

Discs for playback .............................................. 15

About MP3 disc .................................................. 15

Loading discs ....................................................... 15

Playing discs ......................................................... 16

Replacing discs during playback ...................... 16

Selecting a desired track/passage.................... 16

Selecting a desired Album/Title ....................... 16

Different play modes: SHUFFLE and REPEAT ...

................................................................................ 17

Programming the disc tracks ........................... 17

Erasing the programme ..................................... 17

External Sources

Connecting external equipment ..................... 22

Using a USB mass storage device ................... 22

Clock/Timer

View clock............................................................ 23

Clock setting ....................................................... 23

Timer setting ....................................................... 24

To deactivate the TIMER
To activate the TIMER

Sleep timer setting ............................................. 24

Specifications ........................................... 25

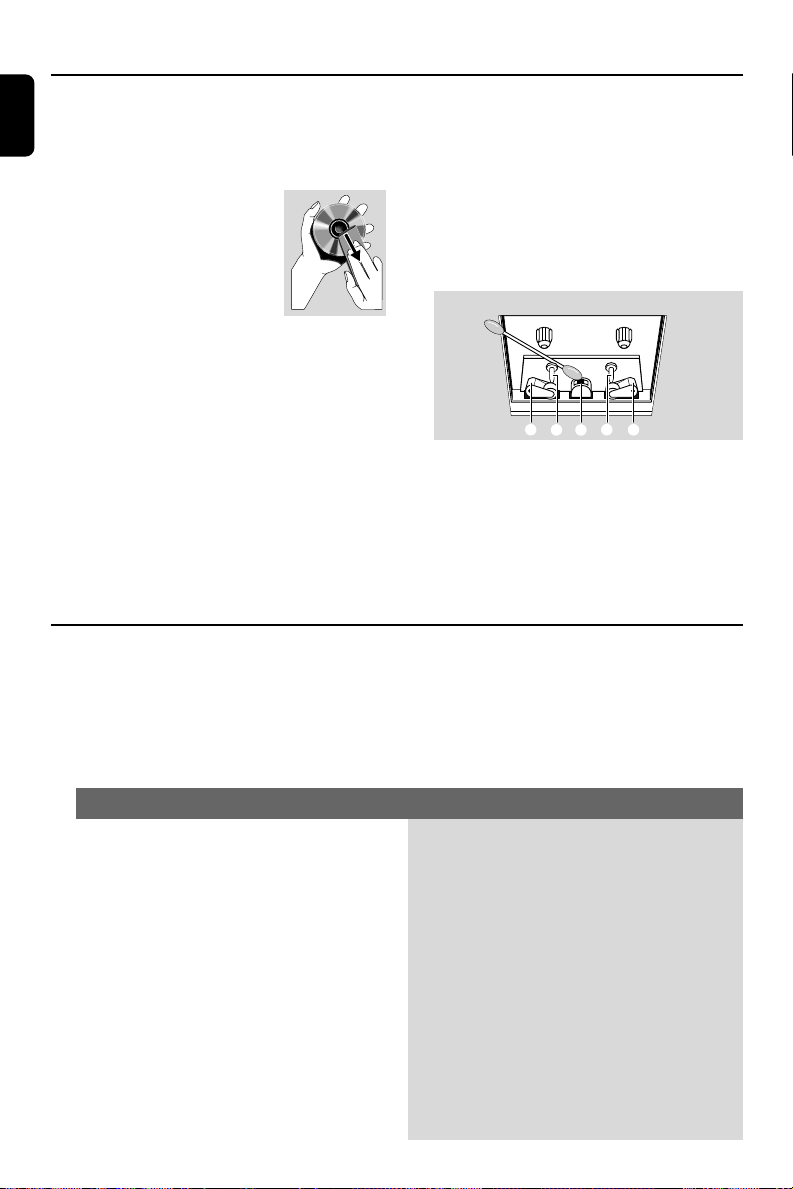

Maintenance.............................................. 26

Tr oubleshooting ............................. 26–27

6

General Information

IMPORTANT!
PLEASE NOTE THAT THE VOLTAGE
SELECTOR LOCATED AT THE REAR OF
THIS SYSTEM IS PRESET AT 220V FROM
THE FACTORY. FOR COUNTRIES THAT
OPERATE AT 110V-127V, PLEASE ADJUST
TO 110V-127V BEFORE YOU SWITCH ON
THE SYSTEM.

Supplied accessories

–2 speaker boxes
– remote control
– MW loop antenna
– FM wire antenna
–AC power cord

Environmental information

All unnecessary packaging has been omitted. We
have tried to make the packaging easy to
separate into three materials: cardboard (box),
polystyrene foam (buffer) and polyethylene (bags,
protective foam sheet).

Your system consists of materials which can be
recycled and reused if disassembled by a
specialised company. Please observe the local
regulations regarding the disposal of packaging
materials, exhausted batteries and old
equipment.

Safety information

● Before operating the system, check that the

operating voltage indicated on the typeplate (or
the voltage indication beside the voltage
selector) of your system is identical with the
voltage of your local power supply. If not, please
consult your dealer.

● Place the system on a flat, hard and stable

surface.

● Place the system in a location with adequate

ventilation to prevent internal heat build-up in
your system. Allow at least 10 cm (4 inches)
clearance from the rear and the top of the unit
and 5 cm (2 inches) from each side.

● The ventilation should not be impeded by

covering the ventilation openings with items,
such as newspapers, table-cloths, curtains, etc.

● Do not expose the system, batteries or discs to

excessive moisture, rain, sand or heat sources
caused by heating equipment or direct sunlight.

● No naked flame sources, such as lighted candles,

should be placed on the apparatus.

● No objects filled with liquids, such as vases, shall

be placed on the apparatus.

● Don’t expose the system to dripping or

splashing.

● Install this unit near the AC outlet and where the

AC power can be reached easily.

● The lens may cloud over when the system is

suddenly moved from cold to warm
surroundings, making it impossible to play a disc.
Leave the system in the warm environment until
the moisture evaporates.

● The mechanical parts of the set contain self-

lubricating bearings and must not be oiled or
lubricated.

● When the system is switched to Standby

mode, it is still consuming some power.
To disconnect the system from the
power supply completely, remove the AC
power plug from the wall socket.

English

7

Preparations

English

MW

Rear connections

The type plate is located at the rear of the
system.

A Pow e r

– Before connecting the AC power cord to the
wall outlet, ensure that all other connections
have been made.
– If your system is equipped with a Voltage
Selector, set the VOLTAGE SELECTOR to the
local power line voltage.

Warning!
–For optimal performance, use only the
original power cable.
–Never make or change any connections
with the power switched on.

To avoid overheating of the system, a safety
circuit has been built in. Therefore, your
system may switch to Standby mode
automatically under extreme conditions. If
this happens, let the system cool down
before reusing it (not available for all versions).

8

B Antennas Connection

Connect the supplied MW loop antenna and FM
antenna to the respective terminals. Adjust the
position of the antenna for optimal reception.

MW Antenna

● Position the antenna as far as possible from a TV,

VCR or other radiation source.

Preparations

FM Antenna

● For better FM stereo reception, connect an

outdoor FM antenna to the FM ANTENNA
terminal.

C Speakers Connection

Front Speakers

Connect the speaker wires to the SPEAKERS

terminals, right speaker to "R" and left speaker to
"L", red wires to "+" and black wires to "-" of
the woofer connection terminals, gray wires to
"+" and blue wires to "-" of the tweeter
connection terminals.

1

● Fully insert the stripped por tion of the speaker

wire into the terminal as shown.

Notes:
–For optimal sound performance, use the
supplied speakers.
– Do not connect more than one speaker to any
one pair of +/- speaker terminals.
– Do not connect speakers with an impedance
lower than the speakers supplied. Please refer to
the SPECIFICATIONS section of this manual.

2

● Insert the USB device's USB plug into the

socket on the set.

OR

for the devices with USB cables:

1 Insert one plug of the USB cable (not supplied)

to the socket on the set.

2 Insert the other plug of the USB cable to the

USB output terminal of the USB device.

OR

for the memory card:

1 Insert the memory card into a card reader (not

supplied).

2 Use a USB cable (not supplied) to connect the

card reader into the socket on the set.

Connecting a non-USB device

Use a cinch cable to connect AUX to the
analogue audio out terminals of an external
equipment (TV, VCR, Laser Disc player, DVD
player or CD Recorder).

Note:
– If you are connecting equipment with a mono
output (a single audio out terminal), connect it to
the AUX left terminal. Alternatively, you can use a
“single to double” cinch cable (the output sound
still remain mono).

Inserting batteries into the
remote control

Insert two batteries (Type R06 or AA) into the
remote control with the correct polarity as
indicated by the "+" and "-" symbols inside the
battery compartment.

English

Optional connection

The optional equipment and connecting cords
are not supplied. Refer to the operating
instructions of the connected equipment for
details.

Connecting a USB device or memory

card

By connecting a USB mass storage device
(including USB flash memory, USB flash players
or memory cards) to the Hi-Fi system, you can
enjoy the device's stored music through the
powerful speakers of Hi-Fi system.

CAUTION!
– Remove batteries if they are exhausted
or will not be used for a long time.
– Do not use old and new or different
types of batteries in combination.
– Batteries contain chemical substances, so
they should be disposed of properly.

9
