Philips FW-C80 User Manual

FW-

C80

Mini Hi-Fi System

with 3 CD changer

pg 01-26/C80/22-Eng 3/6/00, 2:22 PM1

3139 116 19681

Important notes for users in the U.K. Mains plug

FrançaisEnglish

This apparatus is fitted with an approved 13 Amp plug. To change a fuse in this type of plug proceed as follows:

1 Remove fuse cover and fuse.

Español

2 Fix new fuse which should be a BS1362 5 Amp, A.S.T.A. or BSI approved type. 3 Refit the fuse cover.

If the fitted plug is not suitable for your socket outlets, it should be cut off and an

Deutsch ∂ППЛУИО¿PortuguêsSuomiDanskSvenskaItalianoNederlands

appropriate plug fitted in its place. If the mains plug contains a fuse, this should have a value of 5 Amp. If a plug without a fuse is used, the fuse at the distribution board should not be greater than 5 Amp.

Note: The severed plug must be disposed of to avoid a possible shock hazard should it be inserted into a 13 Amp socket elsewhere.

How to connect a plug

The wires in the mains lead are coloured with the following code: blue = neutral (N), brown = live (L). As these colours may not correspond with the colour markings identifying the terminals in your plug, proceed as follows:

• Connect the blue wire to the terminal marked N or coloured black.

• Connect the brown wire to the terminal marked L or coloured red.

• Do not connect either wire to the earth terminal in the plug, marked E (or e) or coloured green (or green and yellow).

Before replacing the plug cover, make certain that the cord grip is clamped over the sheath of the lead - not simply over the two wires.

Recording and playback of material may require consent. See Copyright Act 1956 and The Performer’s Protection Acts 1958 to 1972.

Italia

DICHIARAZIONE DI CONFORMITA’

Si dichiara che l’apparecchio FW-C80 Philips risponde alle prescrizioni dell’art. 2 comma 1 del D.M. 28 Agosto 1995 n. 548.

Fatto a Eindhoven

Philips Consumer Electronics

5616 JB Eindhoven, The Netherlands

Philips, Glaslaan 2

Norge

Typeskilt finnes på apparatens underside.

Observer:

Den innebygde netdelen er derfor ikke frakoplet nettet så lenge apparatet er tilsluttet nettkontakten.

For å redusere faren for brann eller elektrisk støt, skal apparatet ikke utsettes for regn eller fuktighet.

Nettbryteren er sekundert innkoplet.

pg 01-26/C80/22-Eng 3/6/00, 2:22 PM2

3139 116 19681

INDEX

CLASS 1

LASER PRODUCT

English .....................................5

Français .................................27

Español ..................................51

Deutsch ..................................75

Nederlands..........................101

Italiano .................................125

Svenska ...............................149

Dansk ...................................171

Suomi ...................................195

Português ............................217

∂ППЛУИО¿

............................ 241

EnglishFrançais

Español

NederlandsItalianoSvenskaDanskSuomiPortuguês∂ППЛУИО¿ Deutsch

pg 01-26/C80/22-Eng 3/6/00, 2:22 PM3

3139 116 19681

English

pg 01-26/C80/22-Eng 3/6/00, 2:22 PM4

3139 116 19681

CONTENTS GENERAL INFORMATION SAFETY INFORMATION

General Information .................5

Safety Information ....................5

Preparation .......................... 6 - 7

Controls............................... 8 - 10

Operating The System .... 10 - 12

CD....................................... 13 - 15

Tuner .................................. 16 - 18

AUX/CDR ...................................18

Tape ................................... 19 - 20

Recording ......................... 20 - 21

Clock .........................................22

Timer................................. 22 - 23

Sleep Timer ..............................23

Specifications .........................24

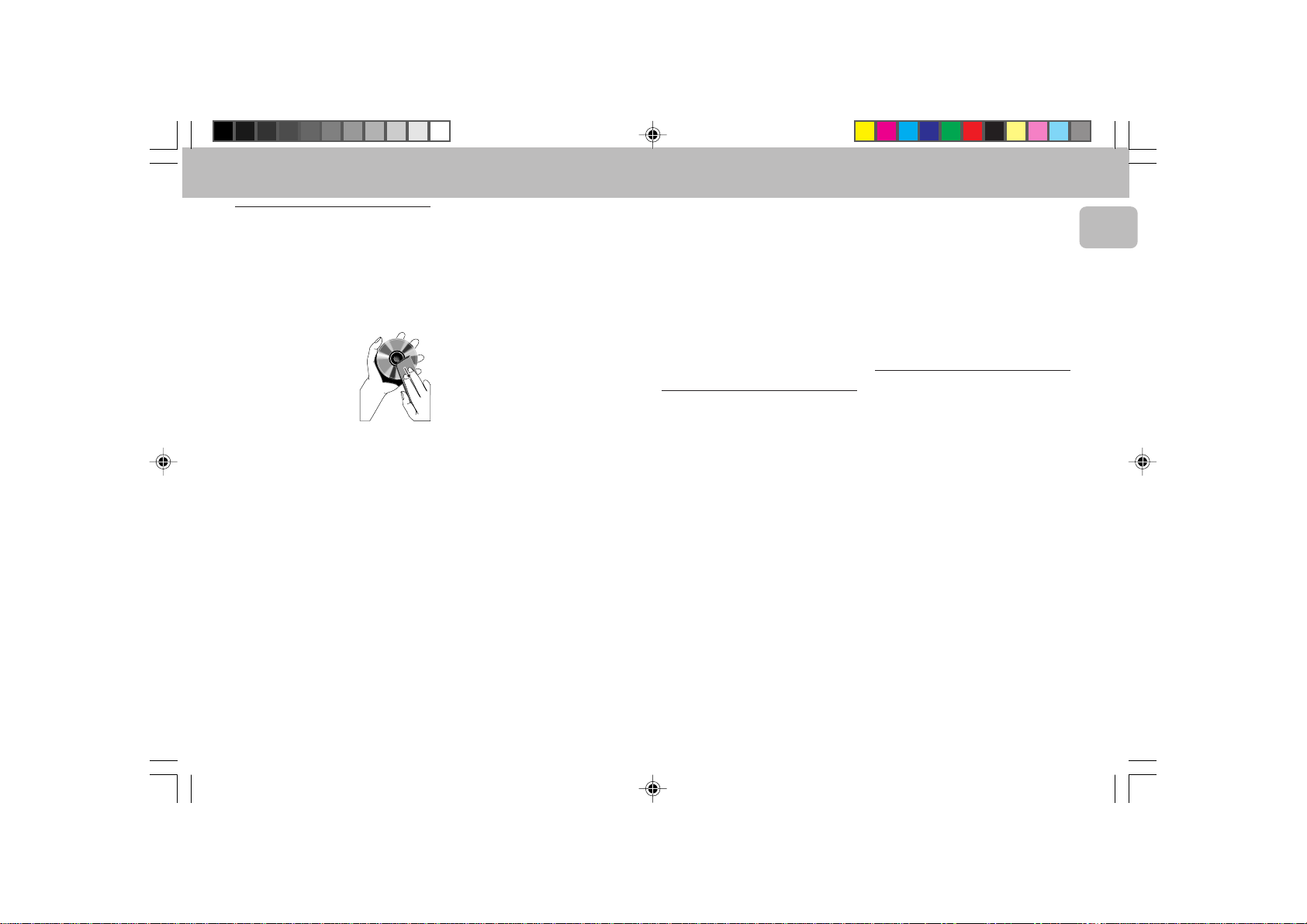

Maintenance............................ 25

Troubleshooting .............. 25 - 26

General Information

• The type plate (which contains the serial number) is located at the rear of the system.

• Recording is permissible if copyright or other rights of third parties are not infringed.

• This product complies with the radio interference requirements of the European Community.

Environmental Information

All unnecessary packaging has been omitted. We have tried to make the packaging easy to separate into three materials: cardboard (box), polystyrene foam (buffer) and polyethylene (bags, protective foam sheet).

Your system consists of materials which can be recycled and reused if disassembled by a specialized company. Please observe the local regulations regarding the disposal of packaging materials, exhausted batteries and old equipment.

Energy Star

As an ENERGY STARR Partner; Philips has determined that this product meets the ENERGY STARR guidelines for energy efficiency.

Accessories

– Remote control – Batteries (two AA size) for remote

control – AM loop antenna – FM wire antenna – AC power cord

(Supplied)

Safety Information

• Before operating the system, check that

the operating voltage indicated on the

typeplate (or the voltage indication

beside the voltage selector) of your

system is identical with the voltage of

your local power supply. If not, please

consult your dealer. The typeplate is

located at the rear of your system.

• When the system is switched on, do not

move it around.

• Place the system on a solid base (e.g. a

cabinet).

• Place the system in a location with adequate ventilation to prevent internal heat build-up in your system. Allow at least 10 cm clearance from the rear and the top of the unit and 5 cm from the each side.

• The system incorporates a built-in safety feature that prevents overheating.

• Do not expose the system to excessive moisture, rain, sand or heat sources.

• Under no circumstances should you repair the system yourself, as this will invalidate the warranty!

• If the system is brought directly from a cold to a warm location, or is placed in a very damp room, moisture may condense on the lens of the CD unit inside the system. Should this occur, the CD player will not operate normally. Leave the power on for about one hour with no disc in the system until normal playback is possible.

• Electrostatic discharge may cause unexpected problems. See whether these problems disappear if you unplug the AC power cord and plug it in again after a few seconds.

• To disconnect the system from the power supply completely, remove the AC power plug from the wall socket.

English

pg 01-26/C80/22-Eng 3/6/00, 2:22 PM5

3139 116 19681

PREPARATION

English

Rear Connections

A AM Loop Antenna

Connection

Connect the supplied loop antenna to the

STANDBY ON

MIN MAX

CUT OFF FREQUENCY

HIGH POWER SUBWOOFER

60Hz 150Hz

AUDIO OUT

AM ANTENNA terminal. Place the AM loop antenna far away from the system and adjust its position for the best reception.

B FM Wire Antenna

Connection

Connect the supplied FM wire antenna to the FM ANTENNA 75 Ω terminal. Adjust the position of the FM antenna for the best reception.

Outdoor Antenna

For better FM stereo reception connect an outdoor FM antenna to the FM ANTENNA 75 Ω terminal using a 75 Ω coaxial wire.

C Speakers Connection

• Connect the right speaker to Front terminal R, with the colored wire to + and the black wire to -.

• Connect the left speaker to Front terminal L, with the colored wire to + and the black wire to -.

• Clip the stripped portion of the speaker wire as shown.

MAINS

AUDIO IN

LRLR

DIGITAL

SUB-

WOOFER

OUT

AM ANTENNA

AUX/CDR IN

FM ANTENNA 75Ω

LINE OUT

FRONT

– –

–

pg 01-26/C80/22-Eng 3/6/00, 2:22 PM6

12 mm

unlock lock

3139 116 19681

PREPARATION

CAUTION:

– For optimal sound performance, it is

recommended to use the supplied speakers.

– Do not connect more than one speaker

to any one pair of +/- speaker terminal.

– Do not connect speakers with

impedance lower than the speakers supplied. Please refer to SPECIFICATION section of this manual.

D Line Out Connection

(wireless

ready)

You can connect the audio left and right LINE OUT terminals to a optional CD Recorder ANALOG IN terminals. This allows you to record in an analogue format.

You can also install additional optional front active speakers away from the system (e.g. in another room) to reduce the inconvenience of running long speaker wires across rooms. You can place as many remote speakers as you like provided they operate at the same radio frequency. Connect the wireless radio frequency transmitter to the LINE OUT terminals.

Place the active speakers at your preferred location. Be sure to follow the instructions supplied with the active speakers.

Note: – Availability of wireless transmitter and

its peripherals are subjected to the approval of local authorities. Please check with respective local safety or approving authority.

E Connecting other

equipment to your system

You can connect the audio left and right OUT terminals of a TV, VCR, Laser Disc player, DVD player or CD Recorder to the AUX/CDR IN terminals at the rear of the system.

F Subwoofer Out Connection

Connect the optional active subwoofer to the SUBWOOFER OUT terminal. The subwoofer reproduces just the low bass sound effect (e.g. explosions, the rumble of spaceships, etc.). Be sure to follow the instructions supplied with the subwoofer.

G Digital Out Connection

You can record the digital sound from the CD, through this output, on any audio equipment with digital input (e.g. CD Recorder, Digital Audio Tape (DAT) deck, Digital to Analog Converter and Digital Signal Processor).

Connect one end of the cinch cable (not supplied) to the DIGITAL OUT socket and the other end to the audio equipment with digital input.When connecting the cinch cable, make sure it is fully inserted.

H AC Power Supply

After all other connections have been made, connect the AC power cord to the system and to the wall outlet.

Inserting batteries into the Remote Control

• Insert the batteries (Type R06 or AA) into the remote control as shown in the battery compartment.

• To avoid damage from possible battery leakage, remove dead batteries or batteries that will not be used for a long time. For replacement, use type R06 or AA batteries.

English

pg 01-26/C80/22-Eng 3/6/00, 2:22 PM7

3139 116 19681

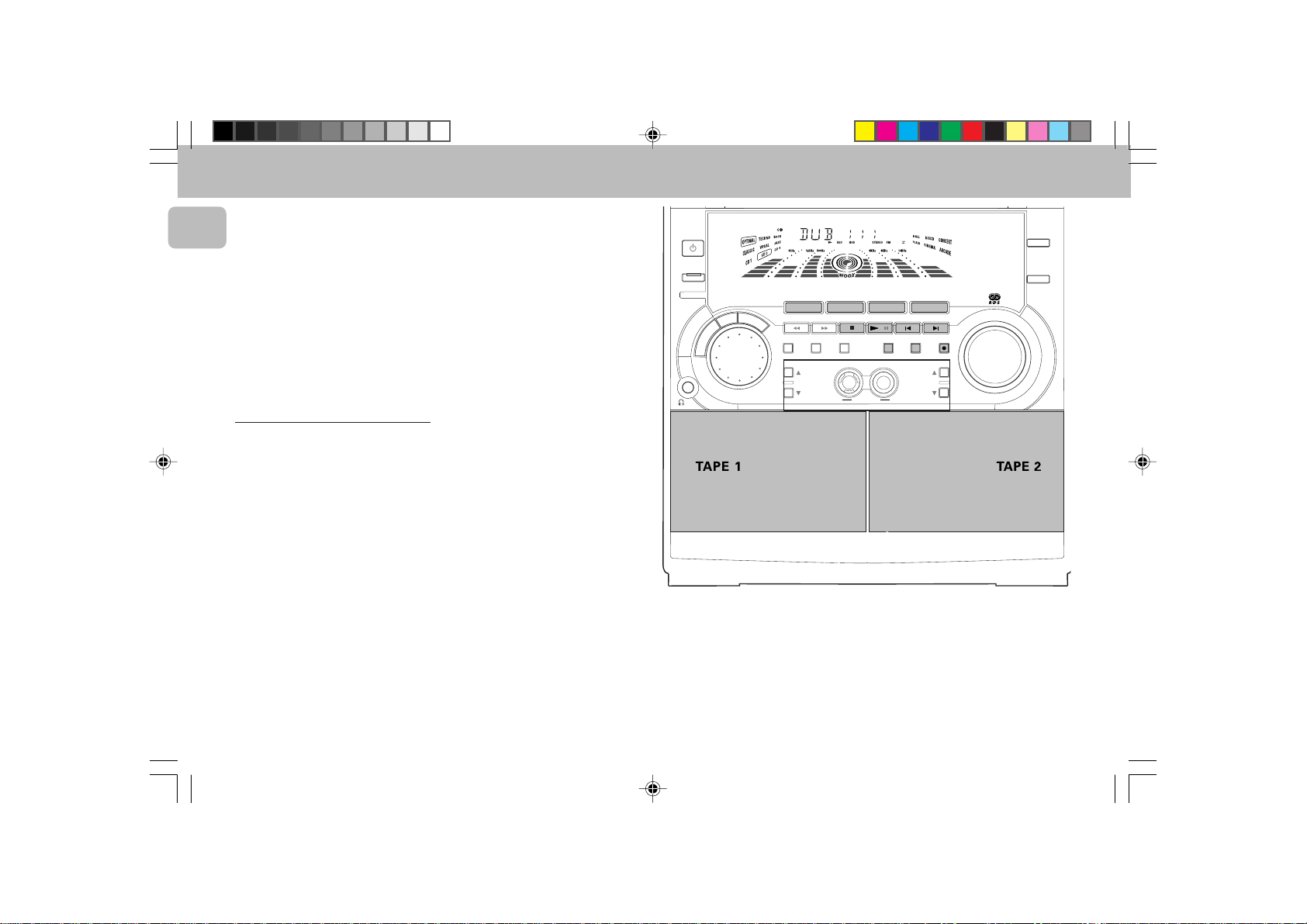

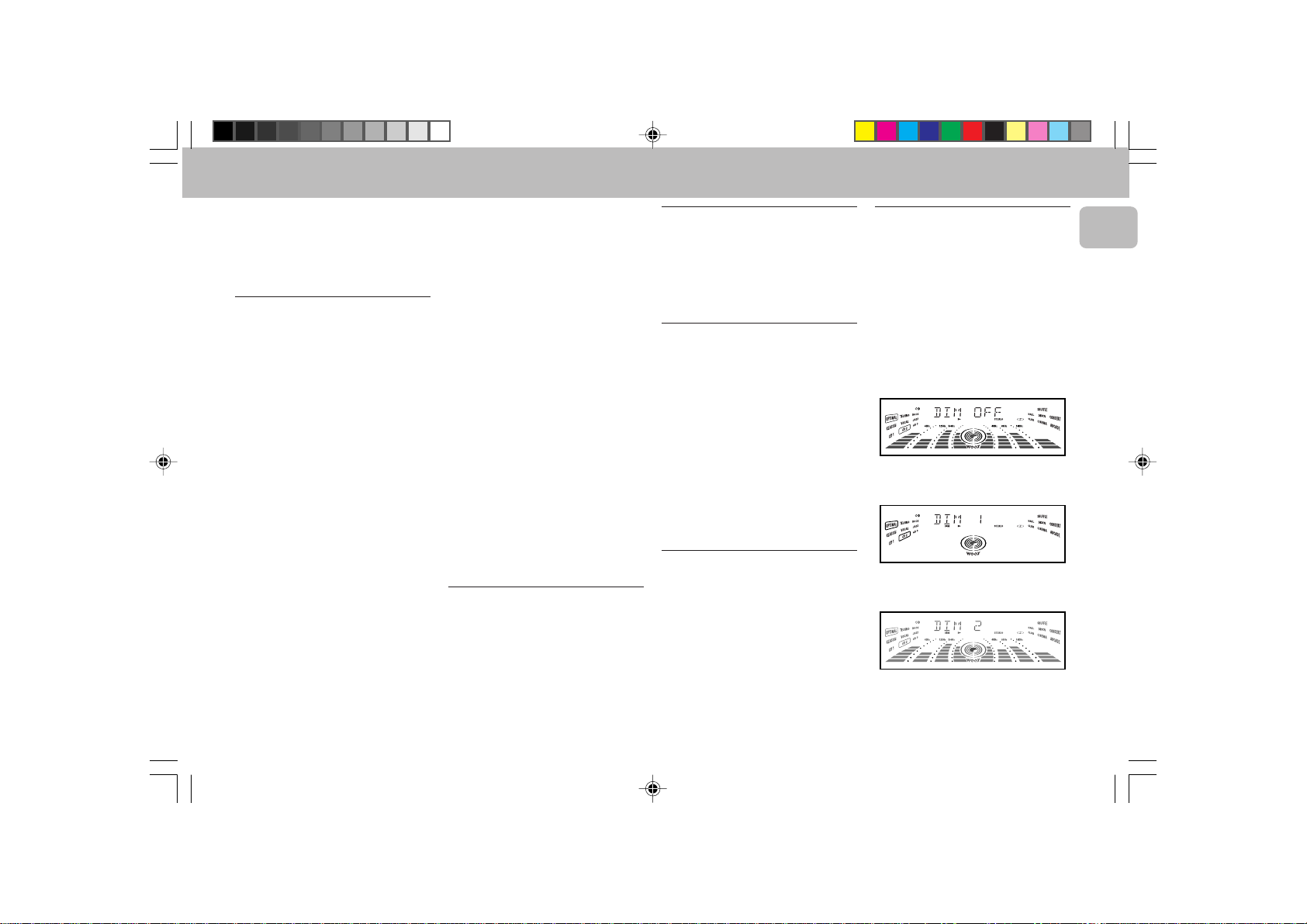

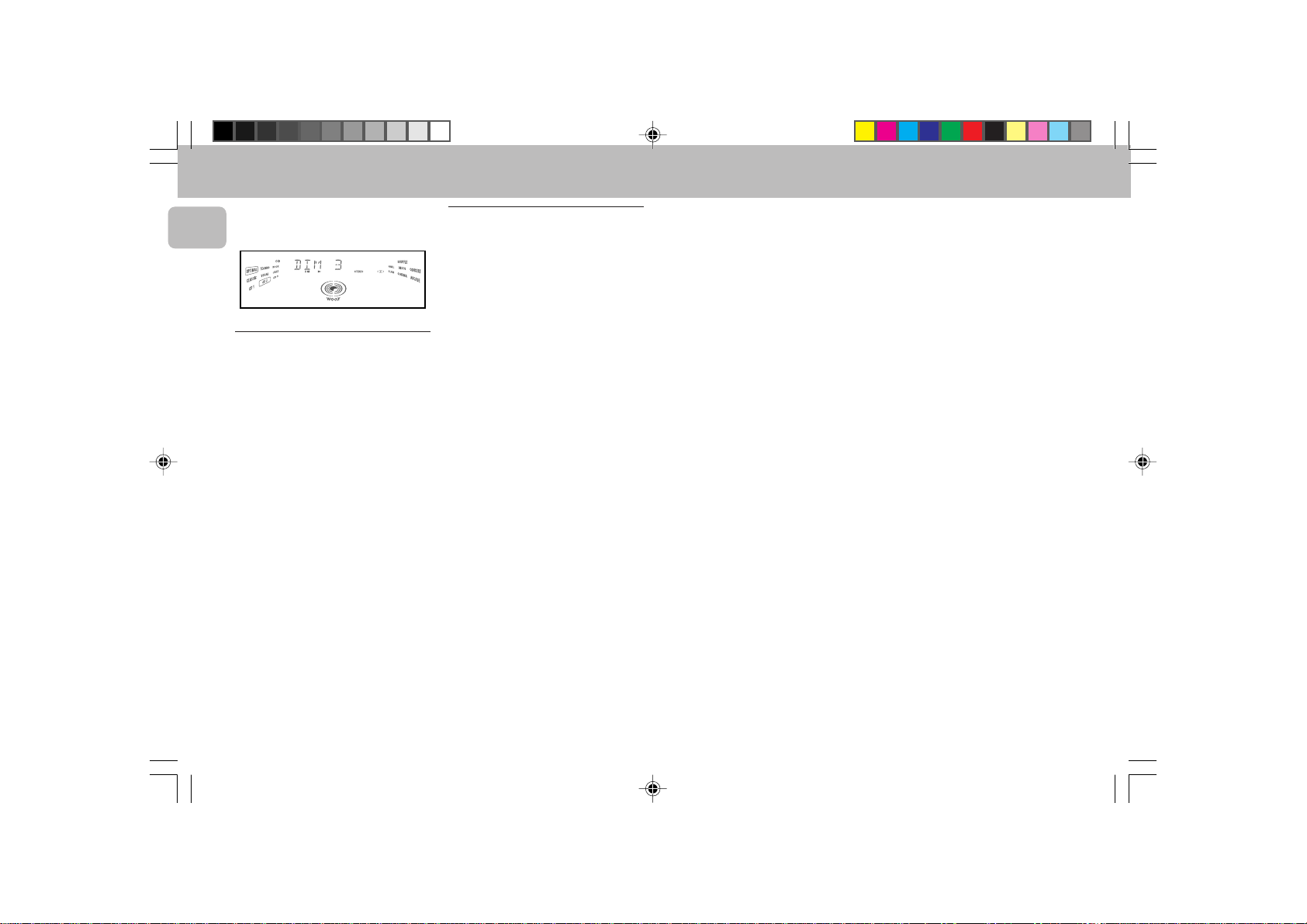

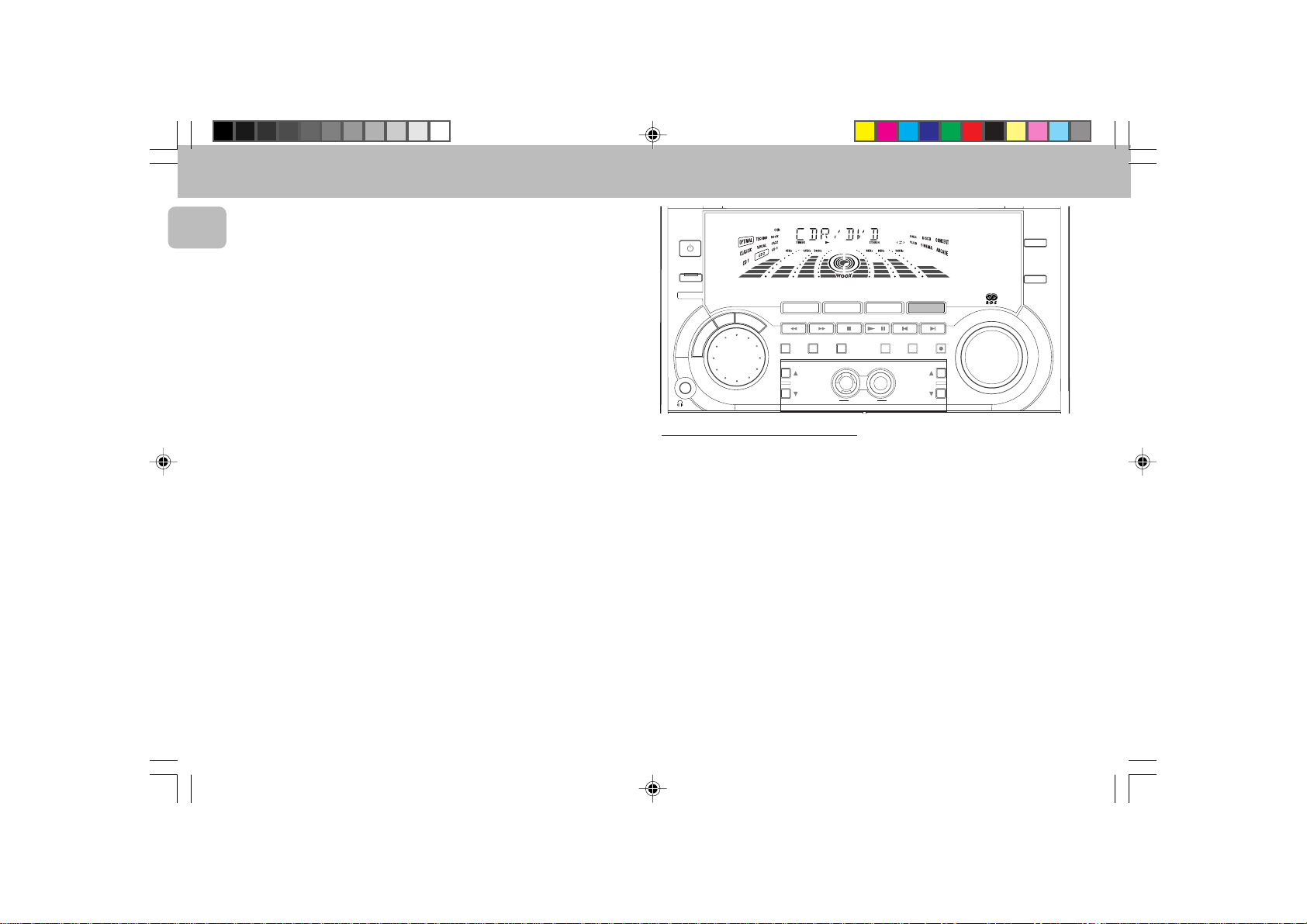

CONTROLS

English

CDR/DVD

AUX

▲

PRESET

SIDE

RECORD

TREBLE

OPEN•CLOSE

CHANGER

NEWS/TA

RDS

(

)

CDR

▲

¡

7 6

º ∞

ª

MUTE

AUTO REV.

™

)

£

⁄

≤

∞

§

≥

≤

§

à

REPEAT

BASS TREBLE

í

TAPE 1/2 AUX/CDRTUNERCD 123

CD DIRECT

PAUSE

Å

VOLUME

É

Ç

PROGRAM

REAR

WOOX LEVEL

WOOX

BASS/TREBLEDSC VEC

SLEEPCLOCK DIM

TIMER ON/OFF

ë

á



SHUFFLE

ﬁ

› ! ‹

) ™

)

¤

DISC CHANGE

DISC 1 DISC 2 DISC 3

STANDBY

MINI HIFI SYSTEM

2 3

4 5 6

7 8 9 0 !

POWER SAVE

IR SENSOR

CD 1•2•3

BAND

TAPE 1•2

BANDC1 • 2 • 3

TUNER

SEARCH•TUNING PLAY PAUSE

PROG

BASS

CLOCK/ TIMER

PLUS

STOP•CLEAR

wOOx

TECHNOLOGY

A. REVDIM

TAPE

PREV NEXT

DUB

(HSD)

LEVEL

≤

•

pg 01-26/C80/22-Eng 3/6/00, 2:22 PM8

3139 116 19681
