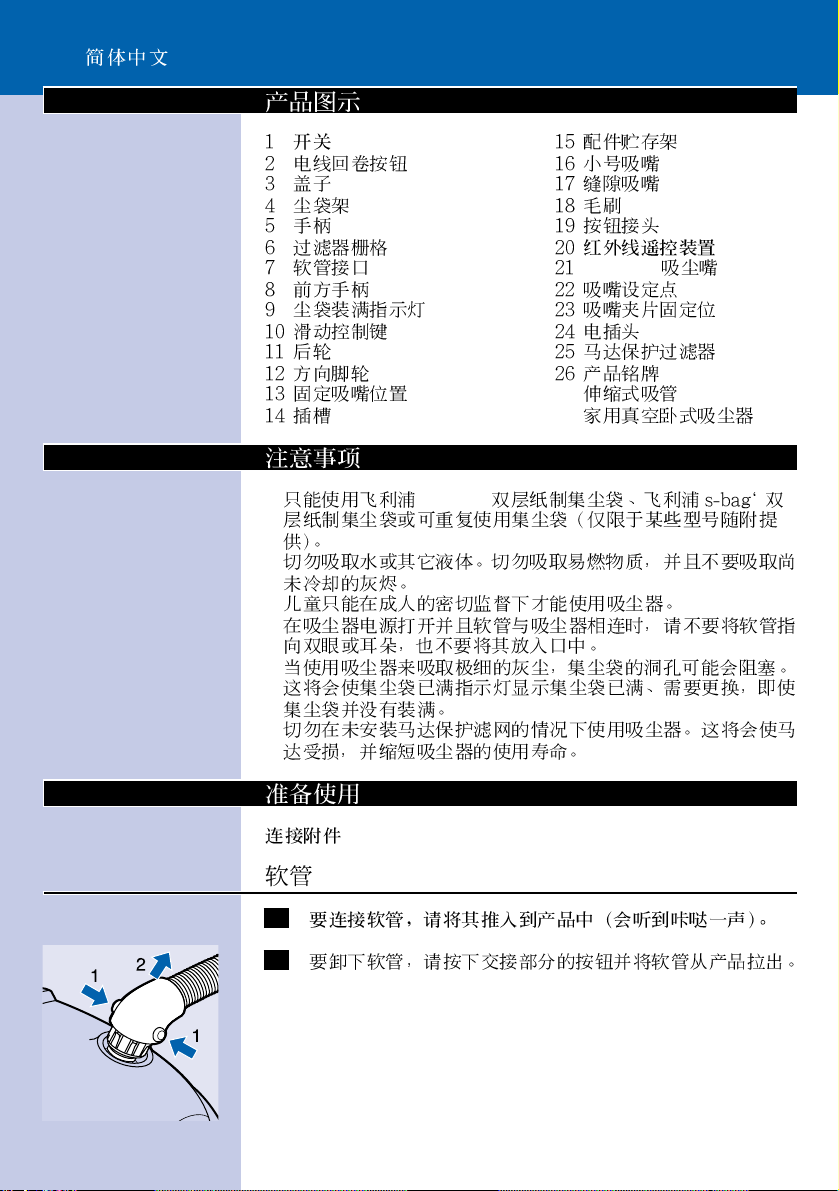

General description

Important

◗ Only use Philips Sydney+ double-layer paper dustbags, Philips

s-bag` double-layer paper dustbags or the re-usable dustbag, if

provided (some versions only).

◗ Never suck up water or any other liquid. Never suck up flammable

substances and do not suck up ashes until they are cold.

◗ Only allow children to operate the vacuum cleaner under close

supervision.

◗ Do not point the hose at the eyes or ears nor put it in your

mouth when the vacuum cleaner is switched on and the hose is
connected to the vacuum cleaner.

◗ When the vacuum cleaner is used to suck up fine dust, the pores

of the dustbag may become clogged, causing the passage of air
through the dustbag to become obstructed.As a result, the
dustbag-full indicator will indicate that the dustbag needs to be
replaced, even though the dustbag is not full at all.

◗ Never use the appliance without the Motor Protection Filter.This

could damage the motor and shorten the life of the appliance.

Preparing for use

Connecting accessories

Hose

1 To connect the hose, push it firmly into the appliance ('click').

C

2 To disconnect the hose, push the buttons on the swivel and

pull the hose out of the appliance.

ENGLISH4

1 On/Off button
2 Cordwinder button
3 Opening dustcover
4 Clean comfort cassette
5 Hinging handle
6 Opening filtercover
7 Swivel opening
8 Front grip
9 Dustbag full indicator
10 Power Slide
11 Rearwheels
12 Castor wheel
13 Park position
14 Storage position

15 Accessory bridge
16 Small nozzle
17 Crevice tool
18 Small brush
19 Button coupling
20 Infra Red Remote Control
21 Brush indications
22 Turning switch mechanism

hard/soft floors
23 Parking ridge
24 Plug
25 Triple motor inlet filter

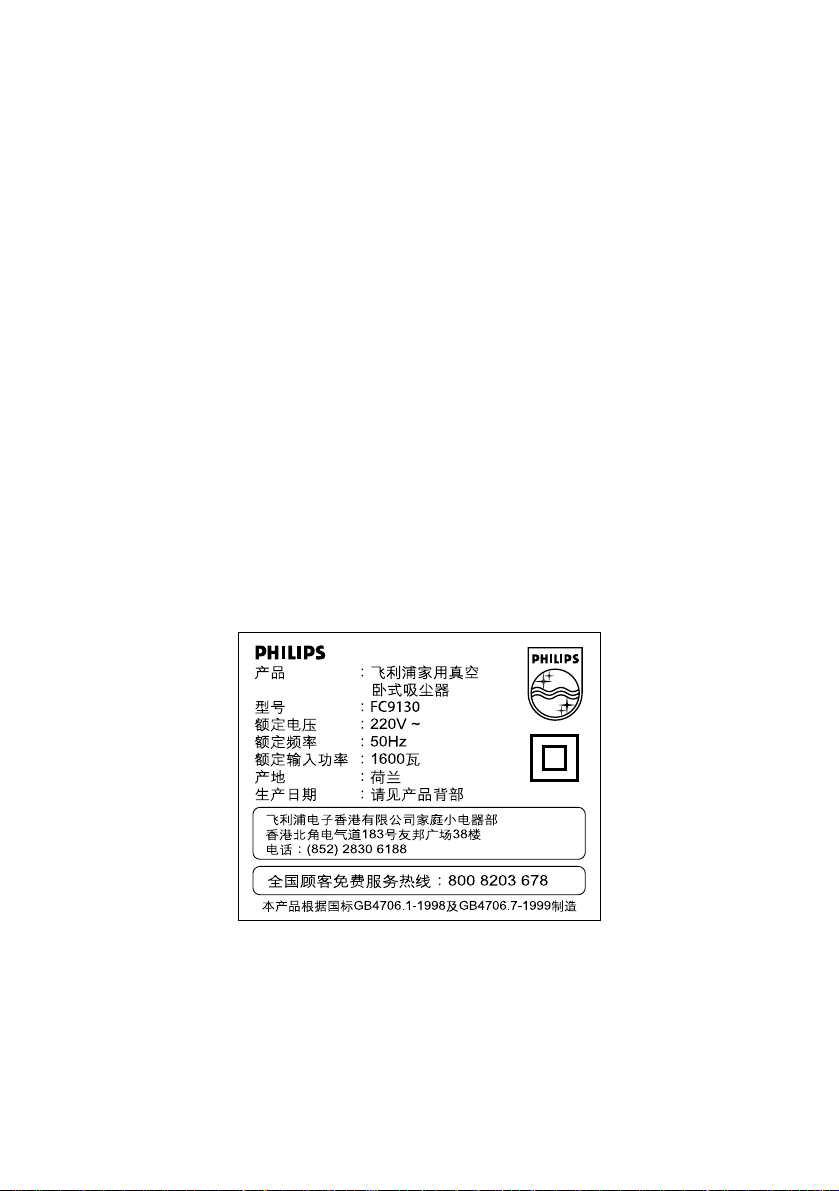

26 Type plate

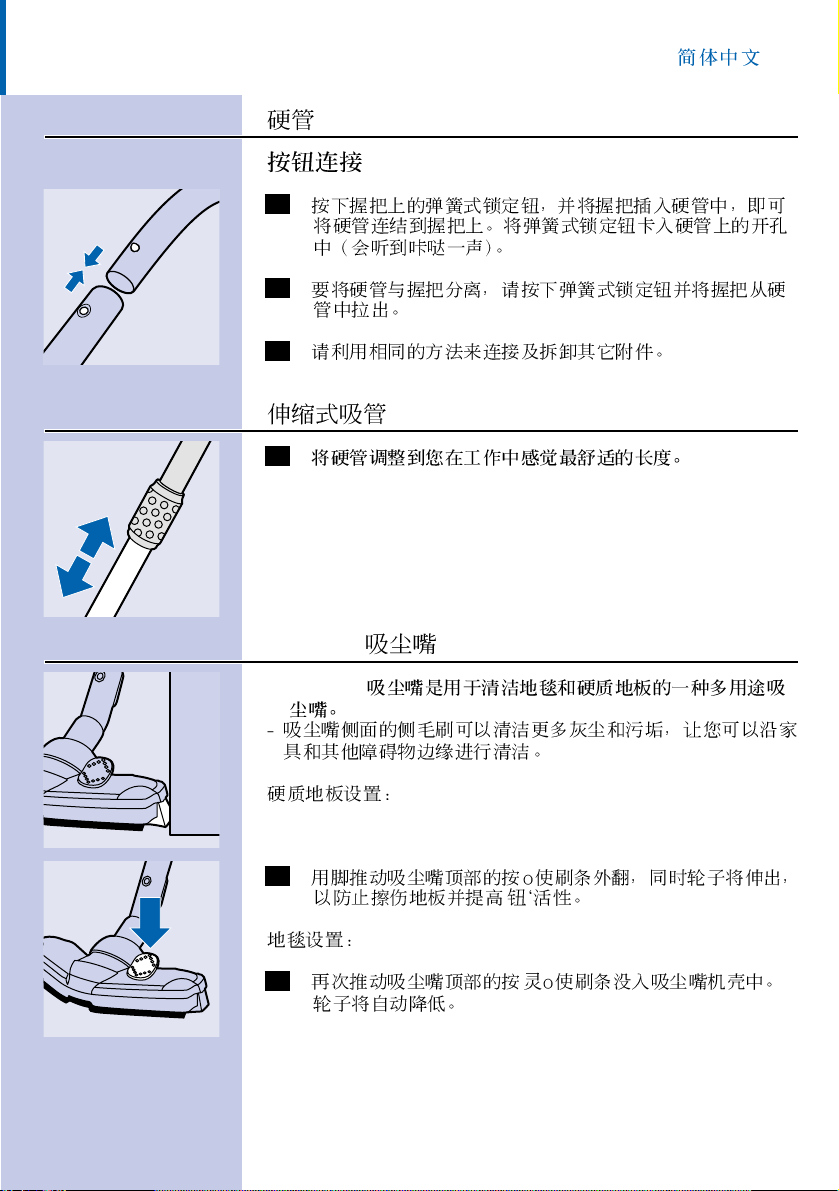

Tube

Button coupling

C

1 Connect the tube to the handgrip by pressing the spring-

loaded lock button on the handgripand inserting the handgrip
into the tube. Fit the spring-loaded lock button into the
opening in the tube (‘click’).

2 To disconnect the tube from the handgrip, press the spring-

loaded lock button and pull the handgrip out of the tube.

3 Use the same method to connect and disconnect the other

accessories.

Telescopic tube

C

1 Adjust the tube to the length you find most comfortable during

vacuum cleaning.

Tri-Active nozzle

C

◗ The Tri-Active nozzle is a multi-purpose nozzle for carpets and

hard floors.

- The side brushes catch more dust and dir t at the sides of the nozzle
and allow you to clean better along furniture and other obstacles.

Hard floor setting:

C

1 Push the rocker switch on top of the nozzle with your foot to

make the brush strip come out of the housing.At the same
time the wheel will be lifted to prevent scratching and to
increase manoeuvrability.

ENGLISH 5

Carpet setting:

2 Push the rocker switch again to make the brush strip disappear

into the nozzle housing.The wheel will be lowered
automatically.

C

◗ The opening at the front of the nozzle allows you to effectively

suck up larger particles.

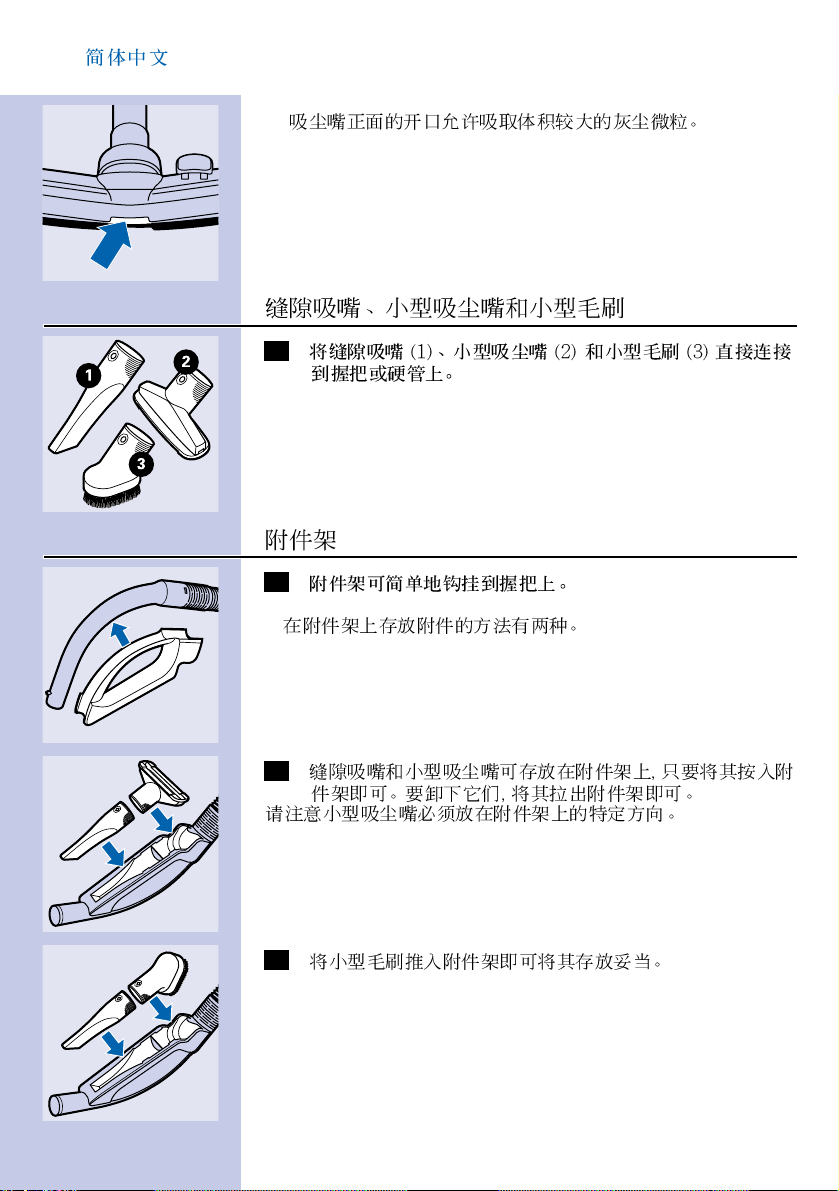

Crevice tool, small nozzle and small brush

C

1 Connect the crevice tool (1), the small nozzle (2) or the small

brush (3) directly to the handgrip or to the tube.

Accessory holder

C

1 The accessory holder can simply be snapped onto the

handgrip.

◗ There are two ways to store accessories in the accessory holder.

C

2 The crevice tool and small nozzle can be stored in the

accessory holder by pushing them into the holder.To detach
them, pull them out of the holder.

Please note the way in which the small nozzle must be placed in the
accessory holder.

C

3 Instead of the small nozzle, the small brush can be stored in the

accessory holder by pushing it into the holder.

ENGLISH6

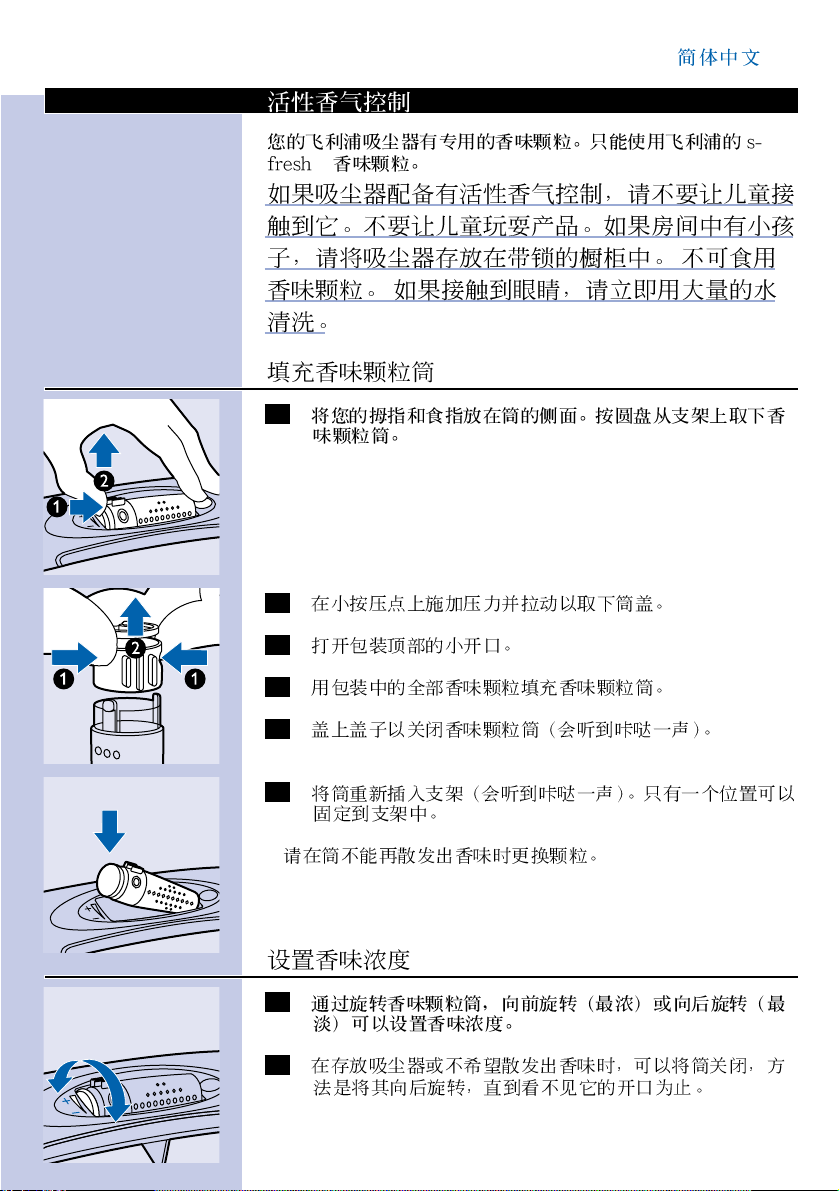

Active Fragrance Control

The scent granules have been specially developed for use in your
Philips vacuum cleaner. Only use the s-fresh` scent granules from
Philips in your vacuum cleaner. If the vacuum cleaner is equipped with
Active Fragrance Control, keep it out of the reach of children. Don't let
children play with the appliance. Store the vacuum cleaner in a locked
cupboard if there are small children in the house.These granules are
not edible. In case of eye contact, flush immediately with plenty of
water.

Filling the cartridge

C

1 Place your thumb and index finger on the sides of the

cartridge. Remove the cartridge from the holder by pressing
on the disc.

C

2 Remove the cap of the cartridge by pulling while applying

pressure on the small pressing points.

3 Open the package at the small opening at the top.

4 Fill the cartridge with the content of one whole package of

scent granules.

5 Close the cartridge by putting the cap back onto it ('click').

C

6 Re-insert the cartridge into the holder ('click'). It only fits into

the holder in one way.

◗ Replace the granules when the cartridge no longer emits any

fragrance.

Setting the amount of fragrance

C

1 You can set the amount of fragrance by turning the cartridge

forwards (maximum emission) and backwards (minimum
emission).

2 When you store the vacuum cleaner or don't want any

fragrance to be emitted, close the cartridge by turning it
backwards until the openings of the cartridge are no longer
visible.

ENGLISH 7

Using the appliance

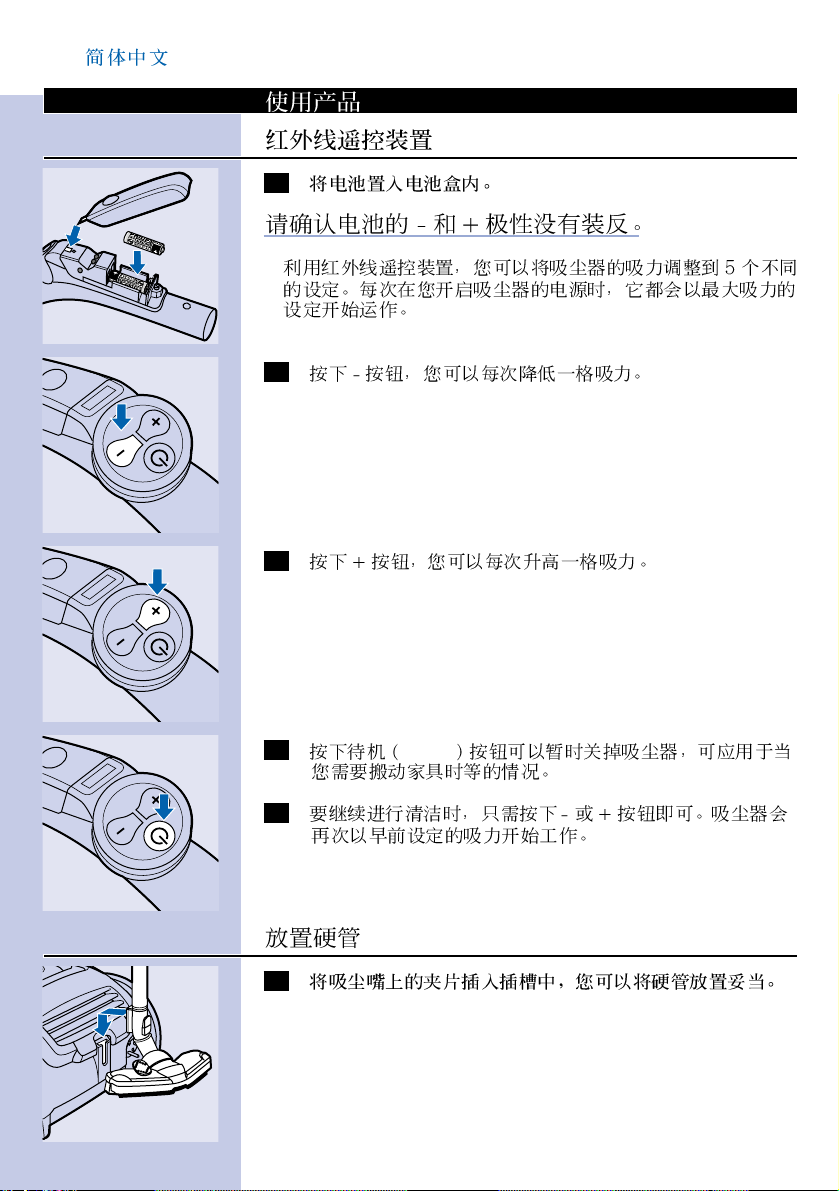

Infrared remote control

C

1 Place the batteries in the battery compartment.

Make sure the - and + poles are pointing in the right direction.

◗ With the infrared remote control you can set the suction power

to one of 5 different suction power settings.When you switch the
appliance on, it will always start running at the highest suction
power setting.

C

2 By pushing the - button, you will reduce the suction power by

one setting.

C

3 By pushing the + button, you will increase the suction power

by one setting.

C

4 Push the standby button to temporarily switch the vacuum

cleaner off, for instance when you have to move some
furniture.

5 To continue vacuum cleaning, simply press the - button or the

+ button.The appliance will start operating at the previously
selected suction power setting again.

Parking the tube

C

1 By inserting the ridge on the nozzle in the parking slot, you can

park the tube in a convenient position.
