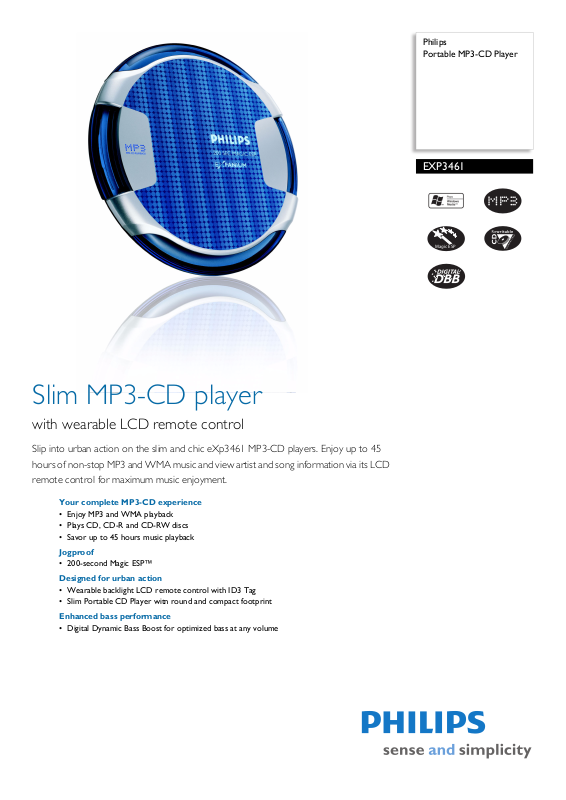

Philips EXP3461-07 User Manual

Philips Portable MP3-CD Player

EXP3461

Magic ESP

Slim MP3-CD player

with wearable LCD remote control

Slip into urban action on the slim and chic eXp3461 MP3-CD players. Enjoy up to 45 hours of non-stop MP3 and WMA music and view artist and song information via its LCD remote control for maximum music enjoyment.

Your complete MP3-CD experience

• Enjoy MP3 and WMA playback

• Plays CD, CD-R and CD-RW discs

• Savor up to 45 hours music playback

Jogproof

• 200-second Magic ESP™

Designed for urban action

• Wearable backlight LCD remote control with ID3 Tag

• Slim Portable CD Player witn round and compact footprint

Enhanced bass performance

• Digital Dynamic Bass Boost for optimized bass at any volume

Portable MP3-CD Player

EXP3461/07

Specifications Product highlights

Sound

• D/A converter: 1-bit

• Frequency response: 20 - 20 000 Hz

• Signal to noise ratio: > 85dB

• Sound Enhancement: Digital Dynamic Bass Boost

• Output Power: 2 x 5mW RMS

• Volume Control: digital

• Acoustic Feedback

Audio Playback

• Playback Media: MP3-CD, WMA, CD, CD-R, CDRW

• Disc Playback Modes: 50-Track Programmable, Fast Forward/Backward, Hold, Next/Previous Album Search, Next/Previous Track Search, Repeat one/album/all, Resume Playback from stop, Shuffle album/all

• Magic ESP (MP3-CD): 100 seconds

• Electronic Skip Protection(CD): 45 seconds

• File systems supported: ISO-9660, Jolliet, UDF

• ID3-tag support

• MP3 bit rates: 32 - 320 kbps

• WMA bit rates: 32 - 192 kbps

Connectivity

• DC in: 4.0 mm, 4.5V, centre +

• Headphone: 3.5 mm

• Line-out: 3,5 mm

Convenience

• Remote control: Wearable LCD remote control

• Display Type: LCD

• Backlight

• Backlight color: Amber

• Indications: album name, album number, artis name, battery status, Cd functions, DBB, ESP, file name, sound titles, time, track

Accessories

• Remote control: AY3802(LCD RC)

• Headphones: SBC HS383(neckband)

• Included Accessories: User Manual, AAA battery door

Dimensions

• Housing: Heat Resistant Body

• Master carton dimensions: 215 x 345 x 244 mm

• Master carton weight: 1.65 kg

• Master carton quantity: 3

• Packaging dimensions (W x H x D): 208

x 309 x 51 mm

• Packaging type: Clamshell

• Product dimensions (WxDxH): 137X137X21mm

• Product weight: 0.18 kg

Power

• Battery Playing time (WMA): 45h(2xAA alkaline batteries)

• Battery Playing Time MP3-CD: 45h(2xAA alkaline batteries)

• Battery Playing Time CD: 30h(2xAA alkaline batteries)

• Battery type: AA, AAA, LR03, LR6, UM3, UM4

•

200-second Magic ESP™

Magic Electronic Skip Protection™ is a convenient feature that ensures skip-free music even when your MP3-CD player i s subjecte d to knoc ks and jolt s while y ou are jogging or on the move. Devices with Magic Electronic Skip Protection™ have an intelligent electronic buffer that can store different digital music formats such as MP3, WMA and CDDA. The buffer adjusts both its contents and laser spin speeds automatically to guarantee uninterrupted music listening.

Digital Dynamic Bass Boost

Digital Dynamic Bass Boost is an intelligent bass booster that delivers maximum bass enhancement at high volumes without sound distortion and at low volumes without compromising on bottom-end bass frequencies. Technologically advanced electronics constantly monitor volume and bass levels, precisely calibrating both to prevent sound distortion, thus producing optimized bass. Digital Dynamic Bass Boost enables the enjoyment of superb bass performance - regardless of the chosen volume level.

Issue date 2008-11-15

Version: 6.0.8

12 NC: 9073 101 01645

Specifications are subject to change without notice. Trademarks are the property of Koninklijke Philips Electronics N.V. or their respective owners.

www.philips.com

* Battery life varies by use and settings. * Windows Media and the Windows logo are trademarks, or

registered trademarks of Microsoft Corporation in the United States and/or other countries.

* Based on 64 kbps WMA encoding.
