Philips EXP 103, EXP 101 User Manual

Portable MP3-CD player

PROGRAM

REPEAT ALL

ESP

MP3

PROGRAM

REPEAT ALL

ESP

MP3

CD REWRITABLE COMPATIBLE

MAGIC ELECTRONIC SKIP PROTECTION

DIGITAL AUDIO

COMPACT

MODE

PROGRAM

MP3-CD PLAYBACK

Toll Free Help Line

Ligne d'assistance en service libre Linea de ayuda telefónica sin cargo

800-531-0039

EXP 101 EXP 103

• Once your Philips purchase

is registered, you’re eligible to receive all the privileges of owning a Philips product.

• So complete and return the Warranty Registration Card enclosed with your purchase at once. And take advantage of these important benefits.

Return your Warranty Registration card today to

ensure you receive all the benefits you’re entitled to.

Warranty

Verification

Registering your product within 10 days confirms your right to maximum protection under the terms and conditions of your Philips

warranty.

Owner

Confirmation

Your completed Warranty Registration Card serves as verification of ownership in the event of product theft or loss.

Model

Registration

Returning your Warranty Registration Card right away guarantees you’ll receive all the information and special offers which you qualify for as the owner of your model.

This “bolt of lightning” indicates uninsulated

material within your unit may cause an electrical shock. For the safety of everyone in your household, please do not remove product covering.

The “exclamation point” calls

attention to features for

which you should read the enclosed literature closely to prevent operating and maintenance problems.

WARNING: TO PREVENT

FIRE OR SHOCK HAZARD,DO NOT EXPOSE THIS EQUIPMENT TO RAIN OR MOISTURE.

CAUTION: To prevent electric

shock, match wide blade of plug to wide slot, and fully insert.

For Customer Use

Enter below the Serial No. which is located on the bottom of the cabinet. Retain this information for future reference.

Model No. _______________________

Serial No. ________________________

MAC5097

Know these

ssaaffeettyy symbols

CAUTION

RISK OF ELECTRIC SHOCK

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT

REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS

INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

DO NOT OPEN

English

IMPORTANT SAFETY INSTRUCTIONS –

Read before operating equipment

This product was designed and manufactured to meet strict quality and safety standards. There are, however, some installation and operation precautions which you should be particularly aware of.

1. Read these instructions – All the

safety and operating instructions should be read before the appliance is operated.

2. Keep these instructions – The

safety and operating instructions should be retained for future reference.

3. Heed all warnings – All warnings

on the appliance and in the operating instructions should be adhered to.

4. Follow all instructions – All

operating and use instructions should be followed.

5. Do not use this apparatus near water – for example, near a bathtub,

washbowl, kitchen sink, laundry tub, in a wet basement or near a swimming pool, etc.

6. Clean only with a damp cloth. The appliance should be cleaned only as recommended by the manufacturer.

7. Do not install near any heat sources such as radiators, heat

registers, stoves, or other apparatus (including amplifiers) that produce heat

8. Only use attachments/ accessories specified by the

manufacturer.

9. Use only with a cart,

10. Unplug this apparatus during

lightning storms or when unused for long periods of time.

11. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

12. B

prevent battery leakage which may result in bodily injury or damage to the unit:

• Install all batteries correctly, + and -

as marked on the unit.

• Do not mix batteries (old and new or

carbon and alkaline, etc.).

• Remove batteries when the unit is not

used for a long time.

stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.

attery usage CAUTION – To

EL 6474-E001: 00/8

English

Safety instructions .........................2 & 4

Controls/Quick start...........................6-7

Power supply/Line out ......................8–9

Headphones/remote control ...............10

General information ............................11

In-car connection.................................12

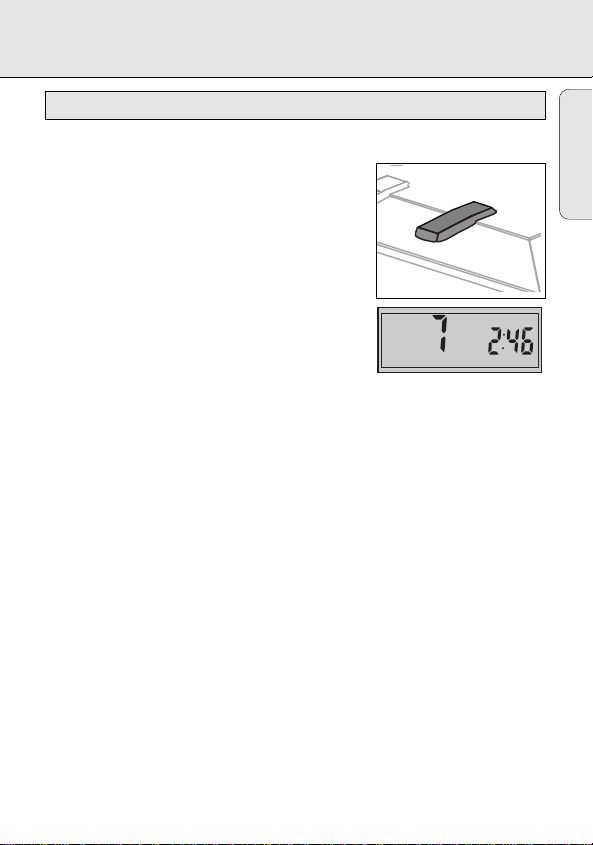

CD play..........................................13–14

Features.........................................15–19

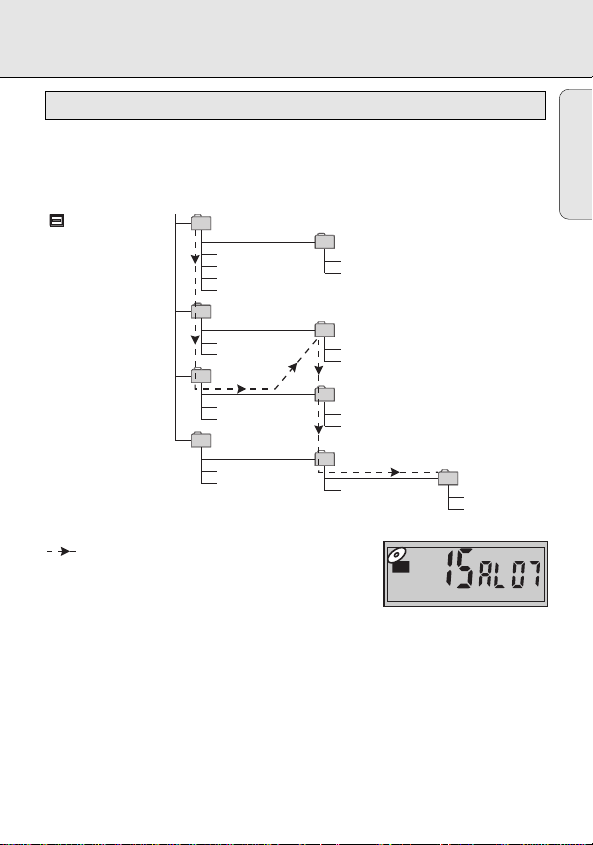

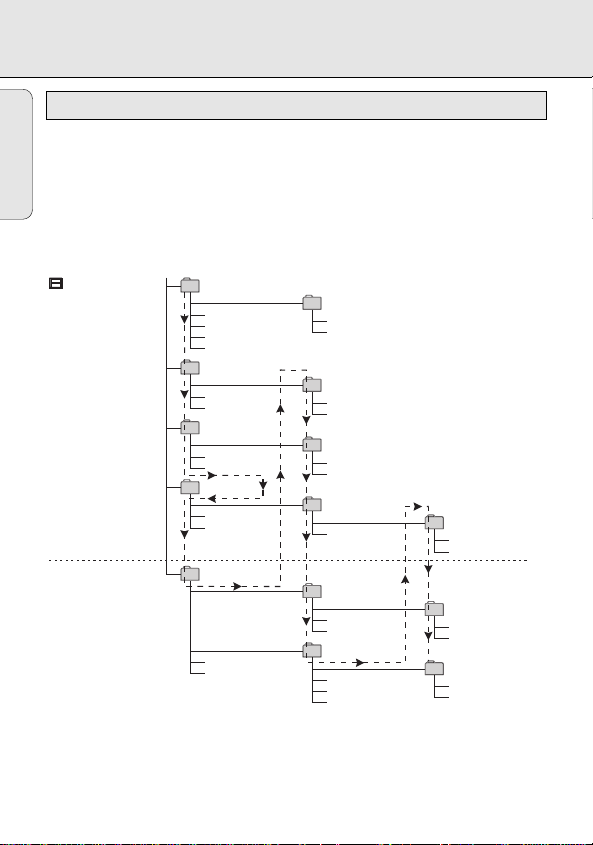

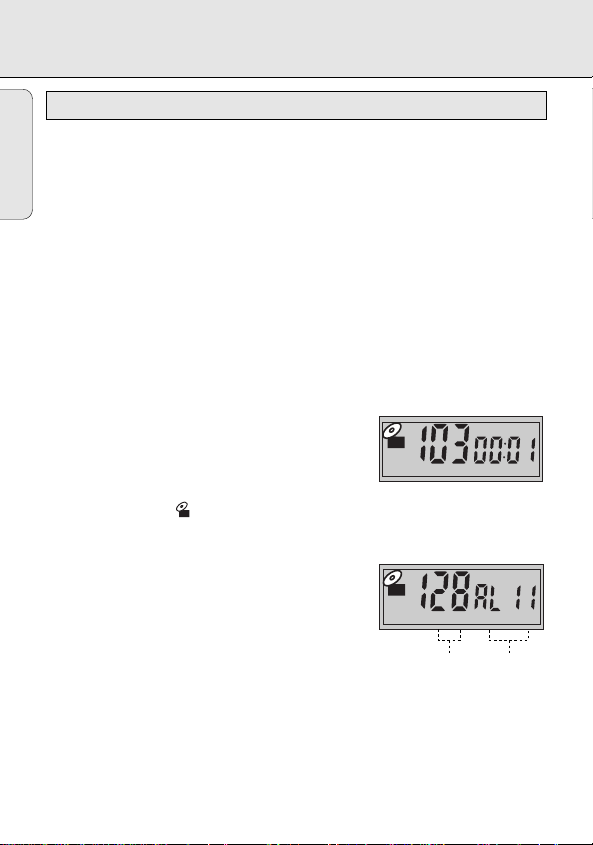

MP3-CD playback..........................20–25

Troubleshooting.............................26–27

Limited warranty...........................28–29

English

Français

Conseils de sécurité......................30–31

Commandes.........................................32

Mise en service rapide........................33

Alimentation électrique/Line out...34-35

Ecouteurs/Télécommande...................36

Informations générales .......................37

Español

Instrucciones sobre seguridad......56–57

Controles/Descripción rápida .......58–59

Suministro eléctrico......................60–61

Auriculares/control remoto.................62

Información general ............................63

Raccordement en voiture ....................38

Lecture CD.....................................39–40

Fonctions spéciales.......................41–45

Lecture d’un CD MP3....................46–51

Pannes et remèdes .......................52–53

Garantie limitée ............................54–55

Conexiòn para el automóvil ................64

Reproducción de CD......................65–66

Características ..............................67–71

Reproducción de CD MP3.............72–77

Localización de averías.................78–79

Garantia limitada ..........................80–81

Canada

English: This digital apparatus does not exceed the Class B limits

for radio noise emissions from digital apparatus as set out in the Radio Interference Regulations of the Canadian Department of Communications.

Français: Cet appareil numérique n'émet pas de bruits radioélectriques dépassant les limites applicables aux appareils numériques de Classe B prescrites dans le Règlement sur le Brouillage Radioélectrique édicté par le Ministère des Communications du Canada.

Français

Español

CONTROLS, refer to the illustration on page 3

1 ..........................display

2 9.......................stops CD play, erases a program and switches the set off

English

3 2 ......................switches the set on, starts and interrupts CD play

4 6 .....................CD Audio : skips or fast search tracks forwards

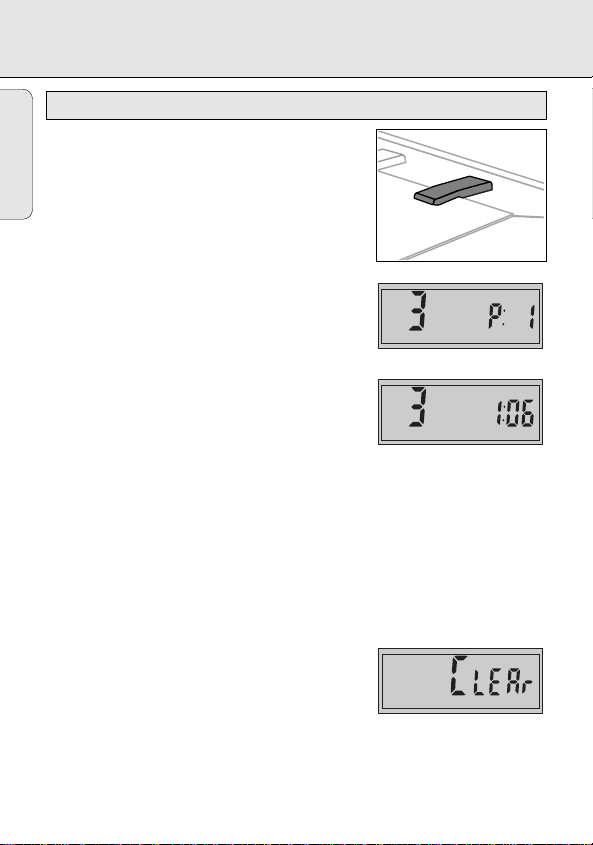

5 PROGRAM ........programs tracks and reviews the program

6 5 .....................CD Audio : skips or fast search tracks backwards

7 MODE ...............selects the different playing possibilities: SHUFFLE,

8 4.5V DC.............jack for external power supply

9 LINE OUT .........3.5mm line out jack to connect the set to an audio input

0 p .......................3.5 mm headphone and remote control jack

! OPEN ...............opens the CD lid

@ VOL E..........adjusts the volume

# OFF/DBB ...........DYNAMIC BASS BOOST switches the bass enhancement on/off

$ OFF/ESP ............ELECTRONIC SKIP PROTECTION ensures continuous playback

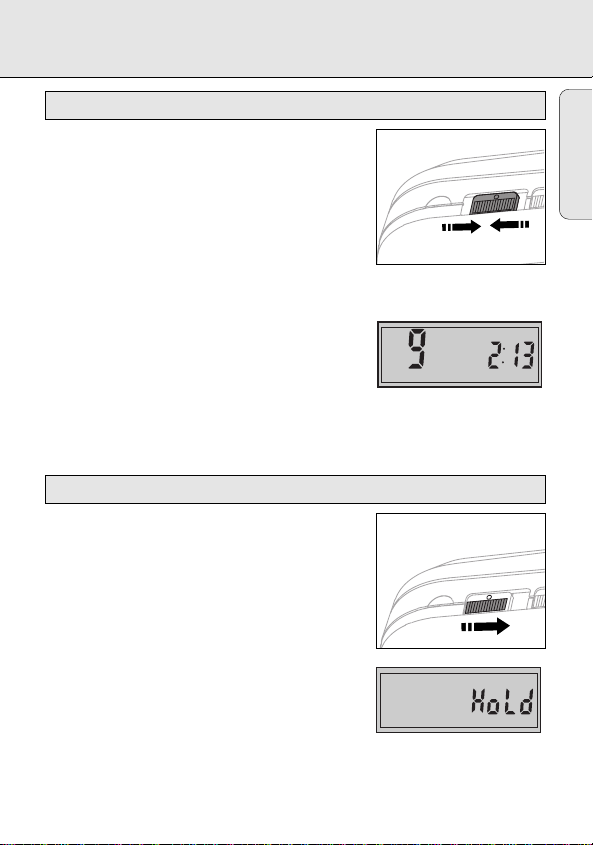

% OFF ....................switches RESUME and HOLD off

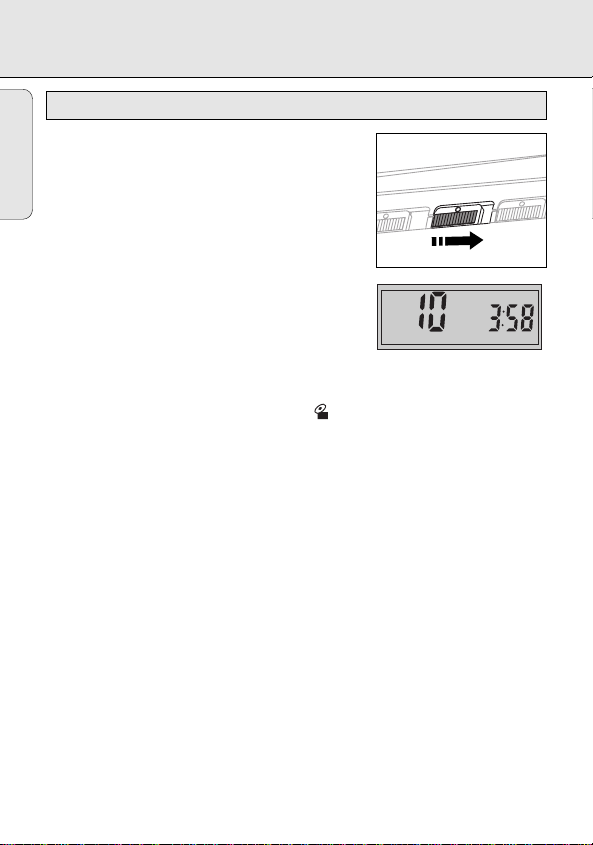

RESUME.................CD Audio : stores and continues playback from the last position

HOLD.....................locks all buttons

^ ..........................battery compartment

& ..........................typeplate

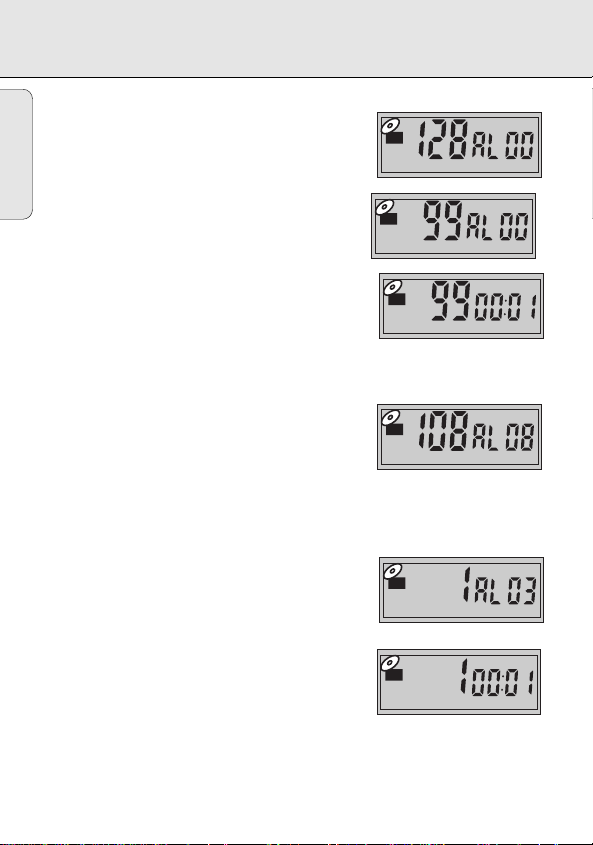

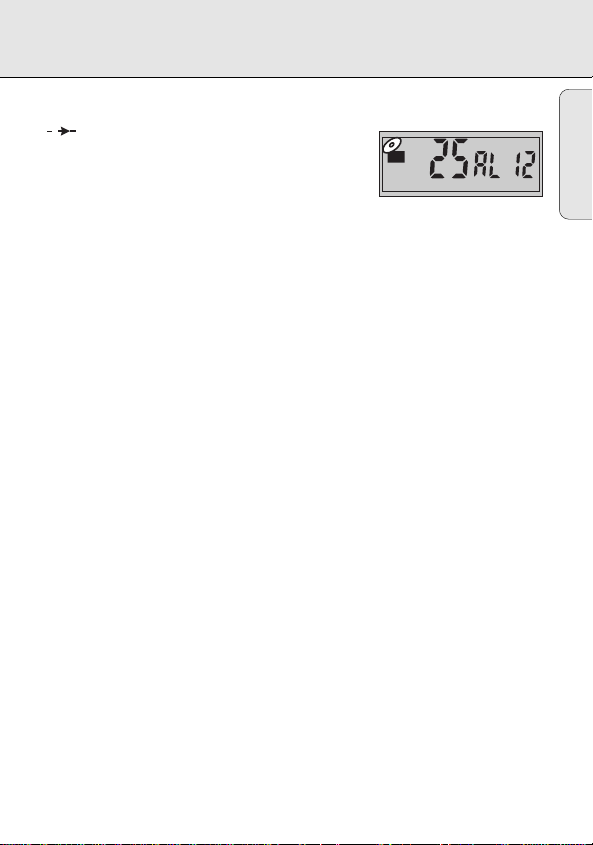

MP3 : skips or search a previous track or album (AL)

MP3 : skips or search a next track or album (AL)

SHUFFLE REPEAT ALL, REPEAT, REPEAT ALL and SCAN

of an additional appliance

regardless of vibrations and shocks

played MP3 : stores and continues playback from the last track played

CAUTION

Use of controls or adjustments or performance of procedures other than herein may result in hazardous radiation exposure.

QUICK START

MODE

CD REWRITABLE COMPATIBLE

MAGIC ELECTRONIC SKIP PROTECTION

MODE

CD REWRITABLE COMPATIBLE

MAGIC ELECTRONIC SKIP PROTECTION

AA LR6 UM3

3 CD 4 5

HOLD➟OFF

6 PLAY 7 VOLUME

!!!

~1sec

2 OPEN

ODE

PROGRAM

CD REWRITABLE COMPATIBLE

MAGIC ELECTRONIC SKIP PROTECTION

M O D E

P R O G

R A M

CD REW

RITABLE COMPATIBLE

MAGIC ELECTRONIC SKIP PRO

TECTION

English

OMPATIBLE

C SKIP PROTECTION

PROGRAM

The player complies with the FCC-Rules, Part 15 and with 21 CFR 1040.10. Operation is subject to the following two conditions:

1. This device may not cause harmful interference, and

2. This device must accept any interference received, including interference that may cause undesired operation.

OFF/RESUME/HOLD

POWER SUPPLY

Batteries (not included)

English

With this set you can use :

• alkaline batteries (type LR6, UM3 or AA)

Inserting batteries 1 Open the battery compartment and insert

2 alkaline batteries.

Notes: – Old and new or different types of batteries

should not be used in combination.

– Remove batteries if they are empty or if the

set will not be used for a long time.

Batteries contain chemical substances, so they should be disposed of properly.

Battery indication

• The battery symbol on the display is divided into 3 segments which indicate the approximate power capacity of the batteries. Full battery capacity is shown by three segments.

Indication of empty batteries

• Replace the batteries or connect the power adapter as soon as A flashes and bAtt is displayed.

Notes: The average playing time of batteries under normal conditions.

Battery type ESP on ESP off CD Normal 6 hours 7 hours CD Alkaline 14 hours 18 hours MP3 Normal 4 hours N/A MP3 Alkaline 10 hours N/A

POWER SUPPLY/LINE OUT

Power adapter (supplied or optionally available)

Only use the AY 3170 power adapter (4.5 V/300mA direct current, positive pole to the center pin). Any other product may damage the set.

1 Make sure the local voltage corresponds to the

adapter’s voltage.

2 Connect the power adapter to the 4.5V DC jack

of the player and to the wall outlet.

Note: Always disconnect the adapter when you are not using it.

Line out

You can connect the CD player to an additional appliance, E.g. amplifier, radio cassette recorder, etc., with a LINE IN jack.

1 Turn down the volume on the additional appliance.

2 Connect an audio signal cable (not supplied,) to the

LINE OUT jack of the CD player and the CD IN, AUX IN or LINE IN jack of the additional appliance.

3 To adjust the sound and volume, use the controls on

the connected appliance.

CD REWRITABLE COMPATIBLE

MAGIC ELECTRONIC SKIP PROTECTION

English

MODE
