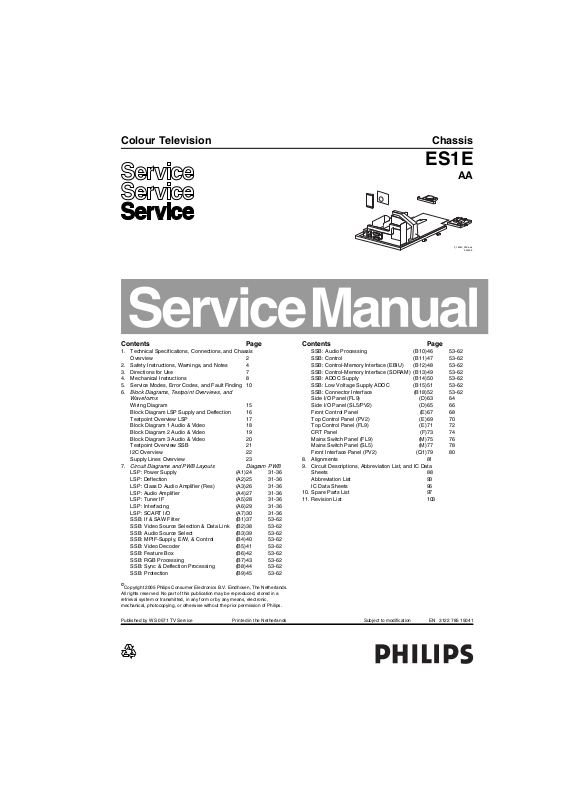

Philips ES1E AA Schematic

Colour Television Chassis

ES1E

AA

F_15040_000.eps

040405

Contents Page Contents Page

1. Technical Specifications, Connections, and Chassis
Overview 2

2. Safety Instructions, Warnings, and Notes 4

3. Directions for Use 7

4. Mechanical Instructions 8

5. Service Modes, Error Codes, and Fault Finding 10

6. Block Diagrams, Testpoint Overviews, and

Waveforms

Wiring Diagram 15
Block Diagram LSP Supply and Deflection 16
Testpoint Overview LSP 17
Block Diagram 1 Audio & Video 18
Block Diagram 2 Audio & Video 19
Block Diagram 3 Audio & Video 20
Testpoint Overview SSB 21
I2C Overview 22
Supply Lines Overview 23

7. Circuit Diagrams and PWB Layouts Diagram PWB
LSP: Power Supply (A1)24 31-36
LSP: Deflection (A2)25 31-36
LSP: Class D Audio Amplifier (Res) (A3)26 31-36
LSP: Audio Amplifier (A4)27 31-36
LSP: Tuner IF (A5)28 31-36
LSP: Interfacing (A6)29 31-36
LSP: SCART I/O (A7)30 31-36
SSB: If & SAW Filter (B1)37 53-62
SSB: Video Source Selection & Data Link (B2)38 53-62
SSB: Audio Source Select (B3)39 53-62
SSB: MPIF-Supply, E/W, & Control (B4)40 53-62
SSB: Video Decoder (B5)41 53-62
SSB: Feature Box (B6)42 53-62
SSB: RGB Processing (B7)43 53-62
SSB: Sync & Deflection Processing (B8)44 53-62
SSB: Protection (B9)45 53-62

©

Copyright 2005 Philips Consumer Electronics B.V. Eindhoven, The Netherlands.
All rights reserved. No part of this publication may be reproduced, stored in a
retrieval system or transmitted, in any form or by any means, electronic,
mechanical, photocopying, or otherwise without the prior permission of Philips.

SSB: Audio Processing (B10)46 53-62
SSB: Control (B11)47 53-62
SSB: Control-Memory Interface (EBIU) (B12)48 53-62
SSB: Control-Memory Interface (SDRAM) (B13)49 53-62
SSB: ADOC Supply (B14)50 53-62
SSB: Low Voltage Supply ADOC (B15)51 53-62
SSB: Connector Interface (B18)52 53-62
Side I/O Panel (FL9) (D)63 64
Side I/O Panel (SL5/PV2) (D)65 66
Front Control Panel (E)67 68
Top Control Panel (PV2) (E)69 70
Top Control Panel (FL9) (E)71 72
CRT Panel (F)73 74
Mains Switch Panel (FL9) (M)75 76
Mains Switch Panel (SL5) (M)77 78
Front Interface Panel (PV2) (Q1)79 80

8. Alignments 81

9. Circuit Descriptions, Abbreviation List, and IC Data
Sheets 88
Abbreviation List 93
IC Data Sheets 96

10. Spare Parts List 97

11. Revision List 103

Published by WS 0571 TV Service Printed in the Netherlands Subject to modification EN 3122 785 15041

EN 2 ES1E1.

Technical Specifications, Connections, and Chassis Overview

1. Technical Specifications, Connections, and Chassis Overview

Index of this chapter:

1.1 Technical Specifications

1.2 Connection Overview

1.3 Chassis Overview

Note: Data below can deviate slightly from the actual situation,
due to the different set executions.

1.1 Technical Specifications

1.1.1 Vision

Display type : CRT, DV, RF
Screen size : 28” (70 cm), 4:3

: 28” (70 cm), 16:9
: 29” (72 cm), 4:3

: 32” (82 cm), 16:9
Tuning system : PLL
TV Colour systems : PAL B/G, D/K, I

Video playback : NTSC M/N 3.58, 4.43

Presets/channels : 100/125 presets
Tuner bands : VHF

1.1.2 Sound

Sound systems : FM-mono

Maximum power (W

) : 2 x 10

RMS

1.1.3 Miscellaneous

Power supply:

- Mains voltage (V

) : 230

AC

: SECAM B/G, D/K, L/L’

: PAL B/G

: SECAM L/L’

: UHF

: S-band

: Hyper-band

: AM-mono

: FM-stereo B/G

: NICAM B/G, D/K, I, L

: AV Stereo

1.2 Connection Overview

Note: The following connector colour abbreviations are used

(acc. to DIN/IEC 757): Bk= Black, Bu= Blue, Gn= Green, Gy=
Grey, Rd= Red, Wh= White, and Ye= Yellow.

1.2.1 Front / Side Connections

TOP CONTROL

P+

V+V-

RED

IR

P-

Figure 1-1 Front and top control, side I/O connections

Cinch: Video CVBS - In, Audio - In

Ye -Video CVBS 1 V
Wh - Audio L 0.5 V
Rd - Audio R 0.5 V

/ 75 ohm jq

PP

/ 10 kohm jq

RMS

/ 10 kohm jq

RMS

SVHS (Hosiden): Video Y/C - In

1 - Ground Y Gnd H
2 - Ground C Gnd H
3 - Video Y 1 V
4 - Video C 0.3 V

/ 75 ohm j

PP

P / 75 ohm j

PP

Mini Jack: Audio Headphone - Out

Bk - Head phone 32 - 600 ohm / 10 mW ot

1.2.2 Rear Connections

AUDIO

75 Ohm

OUT

SIDE I/OFRONT CONTROL

S-Video

Video

L
Audio
R

CL 06532130_002.eps

031000

- Mains frequency (Hz) : 50 / 60

Ambient conditions:

- Temperature range (°C) : -5 to +40

- Maximum humidity : 95% R.H.

Power consumption

- Normal operation (W) : ≈ 160

- Stand-by (W) : < 1

Dimensions (WxHxD cm) : ?x?x?

Weight (kg) : ?

L

EXTERNAL 2

R

SERVICE

CONNECTOR

Figure 1-2 Rear connections

Aerial - In

- - IEC-type (EU) Coax, 75 ohm D

Cinch: Video CVBS - Out, Audio - Out

Ye -Video CVBS 1 V
Wh - Audio L 0.5 V
Rd - Audio R 0.5 V

Service Connector (ComPair)

1 - SDA-S I
2-SCL-S I
3 - Ground Gnd H

PP

2

C Data (0 - 5 V) jk

2

C Clock (0 - 5 V) j

EXTERNAL 1

F_15040_052.eps

/ 75 ohm kq

/10 kohm kq

RMS

/ 10 kohm kq

RMS

040405

Technical Specifications, Connections, and Chassis Overview

EN 3ES1E 1.

EXT1: Video RGB - In, CVBS - In/Out, Audio - In/Out

21

20

E_06532_001.eps

2

1

050404

Figure 1-3 SCART connector

1 - Audio R 0.5 V
2 - Audio R 0.5 V
3 - Audio L 0.5 V

/ 1 kohm k

RMS

/ 10 kohm j

RMS

/ 1 kohm k

RMS

4 - Ground Audio Gnd H
5 - Ground Blue Gnd H
6 - Audio L 0.5 V
7 - Video Blue/U 0.7 V
8 - Function Select 0 - 2 V: INT

/ 10 kohm j

RMS

/ 75 ohm j

PP

4.5 - 7 V: EXT 16:9

9.5 - 12 V: EXT 4:3 j

9 - Ground Green Gnd H
10 - n.c.
11 - Video Green/Y 0.7 V
12 - n.c.

/ 75 ohm j

PP

13 - Ground Red Gnd H
14 - Ground FBL Gnd H
15 - Video Red/V 0.7 V
16 - Status/FBL 0 - 0.4 V: INT

/ 75 ohm j

PP

1 - 3 V: EXT / 75 ohm j
17 - Ground Video Gnd H
18 - Ground Video Gnd H
19 - Video CVBS 1 V
20 - Video CVBS 1 V
21 - Shield Gnd H

/ 75 ohm k

PP

/ 75 ohm j

PP

EXT2: Video YC - In, CVBS - In/Out, Audio - In/Out

21

20

E_06532_001.eps

2

1

050404

Figure 1-4 SCART connector

1 - Audio R 0.5 V
2 - Audio R 0.5 V
3 - Audio L 0.5 V

/ 1 kohm k

RMS

/ 10 kohm j

RMS

/ 1 kohm k

RMS

4 - Ground Audio Gnd H
5 - Ground Blue Gnd H
6 - Audio L 0.5 V
7 - C-FRONT 0.7 V
8 - Function Select 0 - 2 V: INT

/ 10 kohm j

RMS

/ 75 ohm j

PP

4.5 - 7 V: EXT 16:9

9.5 - 12 V: EXT 4:3 j
9 - Ground Green Gnd H
10 - Easylink P50 0 - 5 V / 4.7 kohm jk
11 - n.c.
12 - n.c.
13 - Ground Red Gnd H
14 - Ground Data Gnd H
15 - C 0.7 V
16 - n.c.

/ 75 ohm j

PP

17 - Ground Video Gnd H
18 - Ground FBL Gnd H
19 - Video CVBS 1 V
20 - Video CVBS/Y 1 V
21 - Shield Gnd H

/ 75 ohm k

PP

/ 75 ohm j

PP

1.3 Chassis Overview

CRT/SCAVEM PANEL

F

SIDE I/O PANEL

D

SMALL SIGNAL BOARD

B

Figure 1-5 PWB location

TOP CONTROL PANEL

LARGE SIGNAL PANEL

FRONT INTERFACE PANEL (PV2)

MAINS SWITCH PANEL (FL9 & SL5)

F_15040_053.eps

E

A

Q

M

290405

3. Directions for Use

You can download this information from the following websites:

http://www.philips.com/support
http://www.p4c.philips.com

Directions for Use

EN 7ES1E 3.

EN 8 ES1E4.

Mechanical Instructions

4. Mechanical Instructions

Index of this chapter:

4.1 Service Connector (for ComPair)

4.2 Set Disassembly

4.3 Service Positions

4.4 Assy / Board Removal

4.5 Set Re-assembly

Note: Figures below can deviate slightly from the actual
situation, due to the different set executions.

4.1 Service Connector (for ComPair)

For service diagnostics with ComPair, it is not necessary to
disassemble the set. You only have to connect the ComPair
interface box, via the appropriate cable, to the service
connector (on the rear of the set, see figure 1-2), and start the
program (see also chapter 5 "Service Modes, Error Codes, and
Fault Finding ").

4.2 Set Disassembly

Follow the disassemble instructions in described order.

4.2.1 Rear Cover Removal

Warning: disconnect the mains power cord before you remove

the rear cover.

1. Remove all the fixation screws of the rear cover.

2. Now the rear cover can be removed.

Solder Side LSP

To get access to the bottom side (solder side) of the LSP, do
the following (see figure 4-1):

1. Remove the connector of the mains cable (coming from the
mains switch-module) from the LSP.

2. Remove the cable (connector) from the side I/O panel.

3. Release some wiring from their fixation clamps, in order to
get room for repositioning the LSP.

4. Flip the LSP 90 degrees clockwise [2], and place it in the
fixation hole at the left side of the bottom tray [3].

5. Push the LSP forward to fix it. (Alternatively, the LSP may
also be placed on your work bench without being
positioned in its fixation hole, or it may even be removed
from the bracket for better accessibility, see “Assy / Board
Removal: Large Signal Panel (LSP)” on the next pages.)

2

1

4

4.3 Service Positions

This chassis has several predefined service positions, for
better accessibility. They are explained below in more detail.

4.3.1 Large Signal Panel (LSP)

Component Side LSP

For better accessibility of the LSP, do the following (see Figure
“Service position 1”):

1. Simultanuously do the following: a) pull the two plastic
locking handles at the mid left and mid right side of the
bracket gently backwards to unlock the bracket, and b)
loosen the bracket from the bottom tray, by pulling it
backwards. N.B.: You do not need to pull the other two
locking handles backwards.

2. Remove the LSP-bracket from the bottom tray by lifting it
upwards.

3. Hook the bracket in the first row of fixation holes of the
bottom tray. In other words, reposition the bracket from [1]
to [2].

CL 36532058_078.eps

3

Figure 4-2 Service position 2

4.3.2 Small Signal Board (SSB)

In fact, there is no predefined service position for the SSB. Most
test points are located on the A-side (side that is facing the
tuner). If you have to replace ICs, you must take the complete
SSB module out of the SIMM-connector.

Notes:

• For better access to the SSB, it is possible to order an
“extension tool” with cables. You can use this service
extension tool to connect a Small Signal Board (SSB) of an
ES1E, A02, A10, or EMG (EMx) chassis, via two “IDE”
cables to the SIMM connector in the set. In this way, you
can service the SSB more easily outside the TV set. You
can order this tool under 12nc: 9965 000 14526.

• If necessary for the measurement, you can put the LSP in
“service position 2” (as described above).

4.4 Assy / Board Removal

Sometimes, it can be necessary to swap a complete assy or
Printed Wiring Board (PWB). How that can be done is
explained below.

081003

2

1

1

2

Figure 4-1 Service position 1

Bottom tray

CL 36532058_079.eps

081003

Mechanical Instructions

EN 9ES1E 4.

4.4.1 Top Control Assy/Panel

M

Figure 4-3 Top control panel

1. Remove the two fixation screws that hold the panel.

2. Pull the board backwards (i.e., release it from the front
hinge).

3. The board can be lifted out of the bracket after releasing
the two fixation clamps at the connector side.

4.4.2 Side I/O Assy and Panel

Top control board

CL 06532012_003.eps

030200

1. Release the two fixation clamps (1) by pushing them
upward.

2. At the same time, the complete assy must be pulled
backward (2).

3. If the board has to be removed, release the two clamps at
the sides of the bracket and lift the panel out (3).

4.4.5 Small Signal Board (SSB)

1

1

3

3

2

2

CL 06532153_002.eps

211103

Figure 4-6 SSB removal

1. Push the top of the SSB towards the LOT [1].

2. Due to the pressure, the two metal clamps at both sides of
the SIMM-connector will release [2].

3. Take the complete SSB out [3].

CL 06532012_004.eps

030200

Figure 4-4 Side-I/O panel

1. The complete side I/O-assembly can be removed by
unscrewing the two fixation screws.

2. The board can be lifted out of the bracket after releasing
the two fixation clamps.

4.4.3 Mains Switch Assy/Panel

4.4.4 Accessing the Mains Switch/LED panel

111

2

4.4.6 Large Signal Panel (LSP)

1. Remove the SSB (see paragraph “Small Signal Board
(SSB)” above).

2. Remove the two fixation screws from the large plastic
bracket on the right hand side of the LSP (above the EHT
shield), and remove the bracket, after releasing the EHT
cable and the CRT cables from the fixation clamps on this
bracket.

3. Disconnect the other cables (loudspeaker, mains, etc.)
from the LSP, and release some cables from their fixation
clamps.

4. Press the fixation clamp on the left front side of the LSP­bracket (close to the white arrow/loudspeaker connector)
to unlock the LSP, and tilt it upwards (the board hinges at
the right side).

5. Remove the board from the bracket by unhooking it from its
fixation clamps on the right side.

4.5 Set Re-assembly

To re-assemble the whole set, do all processes in reverse
order.
Be sure that, before the rear cover is mounted:

• The mains cord is postioned correctly in its guiding
brackets (make sure that the strain relief will function
correctly!).

• All wires/cables are returned in their original positions. This
is very important, in view of the “hot” and “EHT” areas of the
set.

3

3

Figure 4-5 Mains Switch/LED panel

CL 06532012_005.eps

030200

EN 10 ES1E5.

Service Modes, Error Codes, and Fault Finding

5. Service Modes, Error Codes, and Fault Finding

Index of this chapter:

5.1 Test Points

5.2 Service Modes

5.3 Problems and Solving Tips (related to CSM)

5.4 ComPair

5.5 Error Codes

5.6 The Blinking LED Procedure

5.7 Software Downloading

5.1 Test Points

See chapter 6 " Block Diagrams, Testpoint Overview, and
Waveforms".

Perform measurements under the following conditions:

• Service Default Mode.

• Video: colour bar signal.

• Audio: 3 kHz left, 1 kHz right.

5.2 Service Modes

Service Default Mode (SDM) and Service Alignment Mode
(SAM) offer several features for the service technician, while
the Customer Service Mode (CSM) is used for communication
between a Philips Customer Care Centre (P3C) and a
customer.

There is also the option of using ComPair, a hardware interface
between a computer (see requirements below) and the TV
chassis. It offers the ability of structured troubleshooting, test
pattern generation, error code reading, software version
readout, and software upgrading.
Minimum requirements: a Pentium processor, Windows 95/
98, and a CD-ROM drive (see also paragraph “ComPair”).

5.2.1 Service Default Mode (SDM)

Purpose

• To create a pre-defined setting for measurement purposes.

• To override SW protections (only when SDM is activated
via shorting the SDM pins on the SSB).

• To start the blinking LED procedure.

• Inspection of error buffer, life timer, and software version.

Specifications

• Tuning frequency: 475.25 MHz for PAL/SECAM.

• Colour system: SECAM L for France or PAL B/G for the
rest of Europe.

• All picture settings at 50 % (brightness, colour, contrast).

• All sound settings at 50 %, except volume at 25 %.

• All service-unfriendly modes (if present) are disabled, like:
– (Sleep) timer.
– Child/parental lock.
–Blue mute.
– Automatic volume limiter (AVL).
– Auto switch-off (when no video signal was received for

10 minutes).
– Skip/blank of non-favourite pre-sets.
– Hotel or hospital mode.
– Local keyboard block.
– Smart modes.
– Auto store of personal presets.
– Auto user menu time-out.

How to Activate SDM

Use one of the following methods:

• Use the standard RC-transmitter and key in the code
“062596”, directly followed by the “MENU” button.

Note: It is possible that, together with the SDM, the main
menu will appear. To switch it "off", push the “MENU”
button again.

• Short circuit, during switch "on" of the set, the two solder
pads on the SSB with the indication “FOR SERVICE”.
These solder pads are located at the "tuner" side of the
SSB (just above the large BGA IC).
Caution: If the SDM is activated via these pins, all the
software-controlled protections are de-activated for 15 s.
When these 15 s are expired, the set will shutdown to
protection mode.

• Use the DST-emulation feature of ComPair.

After activating this mode:

• “SDM” will appear in the upper right corner of the screen.

• Also, the error buffer, operating hours, and software
version are displayed (can be toggled "on/off" with the
"STATUS / OSD / [i+]" button).

• Blinking LED procedure will be started.

• All software-controlled protections are overridden for 15 s.
When these 15 s are expired, the set will shutdown to
protection mode.

Contents of SDM:

• HRS. Displays the accumulated total of operation hours
(not the standby hours) in hexadecimal value.

• SW. Displays the date of the software and the software
version of the ROM;
example: A2EU04-5.10 = AAABBC-X.YY.
– AAA= chassis name.
– BB= region and/or function name: E= Europe, A= Asia

Pacific, U= NAFTA, L= LATAM, B= Basic, T= Top, P=

PAL, N= NTSC, S= Stereo, M= Mono.
– C= the language cluster number.
– X.Y= the software version, where X is the main version

number (different numbers are not compatible with one

another) and Y is the sub version number (a higher

number is always compatible with a lower number).

• ERR (followed by maximal 8 errors). The most recent error
is displayed at the upper left (for an error explanation see
paragraph “Error Codes”).

How to Navigate

• When you press the “MENU” button on the RC transmitter,
the set will toggle between the SDM and the normal user
menu (with the SDM mode still active in the background).

• When you press the “STATUS / OSD / [i+]” button on the
RC transmitter, the set will toggle between the full SDM
screen or a screen with only the text "SDM" displayed on it.
This mode is useful when performing measurements, then
the OSD info will not generate interference.

How to Exit SDM

Use one of the following methods:

• Switch the set to STANDBY via a standard customer RC­transmitter (the error buffer is erased).

• Via a standard customer RC-transmitter: key in “00”­sequence (the error buffer is not erased).

5.2.2 Service Alignment Mode (SAM)

Purpose

• To perform alignments.

• To change option settings.

• To easily identify the used software version.

• To view operation hours.

• To display / clear the error code buffer.

Specifications

• Operating hours counter.

• Software version.

Service Modes, Error Codes, and Fault Finding

EN 11ES1E 5.

• Option settings.

• Error buffer reading and erasing.

• Software alignments.

• Disable service unfriendly modes.

How to Activate SAM

Use one of the following methods:

• Via a standard RC transmitter: key in the code “062596”
directly followed by the “STATUS / OSD / [i+]” button.

• Use the DST-emulation feature of ComPair.

After activating this mode, “SAM” will appear in the upper right
corner of the screen.

Contents of SAM:

• HRS. Displays the accumulated total of operation hours
(not the standby hours) in hexadecimal value
Note: every time the set is switched "on" by the mains
switch or the RC, the timer is increased by 0.5.

• SW ID. Displays the software version of the ROM
example: A2EU04-5.10 = AAABBC-X.YY.
– AAA= chassis name.
– BB= region and/or function name: E= Europe, A= Asia

Pacific, U= NAFTA, L= LATAM, B= Basic, T= Top, P=

PAL, N= NTSC, S= Stereo, M= Mono.
– C= the language cluster number.
– X.Y= the software version, where X is the main version

number (different numbers are not compatible with one

another) and Y is the sub version number (a higher

number is always compatible with a lower number).

• ERR (followed by maximal 8 errors). The most recent error
is displayed at the upper left (for an error explanation see
paragraph “Error Codes”).

• OPTIONS. Extra features for Service.

• CLEAR ERRORS. When you press the “OK” button, the
error buffer is reset.

• AKB. Disable (off) or enable (on) the "black current loop"
(AKB= Auto Kine Bias). For Vg2 alignment.

• TUNER. This will activate the “TUNER” alignments sub­menu.

• WHITE TONE. This will activate the “WHITE TONE”
alignments sub-menu.

• GEOMETRY. This will activate the “GEOMETRY”
alignments sub-menu.

• SOUND. This will activate the “SOUND” alignments sub­menu.

• SMART SETTINGS. This will activate the “SMART
SETTINGS” alignments sub-menu.

• STORE. This will save the new settings/alignments.

• EEPROM TEST. This will report if the SW checksum is OK.
Convenient after SW upgrading.

• VID RAM TEST. This will check the continuity of the
address bus and data bus of the Video RAM.

• VG2. This feature is not implemented yet. Do not use.

Note: Alignments are described in chapter 8 "Alignments".

How to Navigate

• In SAM, you can select the menu items with the “CURSOR
UP/DOWN” key on the RC-transmitter. The selected item
will be highlighted. When not all menu items fit on the
screen, move the “CURSOR UP/DOWN” key to display the
next/previous menu items.

• With the “CURSOR LEFT/RIGHT” keys, it is possible to:
– (De) activate the selected menu item.
– Change the value of the selected menu item.
– Activate the selected submenu.

• When you press the “MENU” button on the RC transmitter,
the set will toggle between the SAM and the normal user
menu (with the SAM mode still active in the background).

How to Exit SAM

Use one of the following methods:

• Switch the set to STANDBY via the RC-transmitter (the
error buffer is erased).

• Via a standard customer RC-transmitter: key in “00”­sequence (the error buffer is not erased).

5.2.3 Customer Service Mode (CSM)

Purpose

When a customer is having problems with his TV-set, he can
call his dealer or the Philips helpdesk (P3C). The service
technician can than ask the customer to activate the CSM, in
order to identify the status of the set. Now, the service
technician can judge the severity of the complaint. In many
cases, he can advise the customer how to solve the problem,
or he can decide if it is necessary to visit the customer.
The CSM is a read only mode; therefore, modifications in this
mode are not possible.

How to Activate CSM

Use one of the following methods:

• Press the “MUTE” button on the RC-transmitter
simultaneously with any key on the TV for at least 4
seconds.

• Key in the code “123654” via the standard RC transmitter.

Notes:

• Activation of the CSM is only possible if there is no (user)
menu on the screen!

• During CSM, sound volume is set to 25% of the scale,
"Smart Sound" is set to "Theatre" mode, and "Smart
Picture" is set to "Rich/Movies" mode temporarily to ensure
a good picture and sound of the working set. After leaving
CSM, the original settings are restored.

How to Navigate

By means of the “CURSOR-DOWN/UP” knob on the RC­transmitter, you can navigate through the menus.

Contents of CSM

The following information is displayed on screen:

• Text “CSM” on the first line.

• Line number for every line (to make CSM language
independent).

• Option code information.

• Configuration information.

• Service-unfriendly modes.

1. SET TYPE. Type/model number (if present) according to
the Philips standard (example: 28PW8720/12).

2. SOFTWARE. Software version AAABBC-X.YY.

3. HOURS ON. Operating hours (in hexadecimal code).

4. CODE1. Shows the contents of the error buffer (the word
“error” may not be used on this screen, instead “code1” and
“code2” is used).

5. CODE2. Idem.

6. OPTION1. Option code information.

7. OPTION2. Idem.

8. OPTION3. Idem.

9. OPTION4. Idem.

10. SIGNAL. "Ident" signal present or not present (VID status
bit in MPIF) on selected source.

11. TIMER. Timer is activated (in "FEATURE" menu) or
deactivated.

12. CHANNEL. Child Lock (if present) is activated or
deactivated (i.e. when local keyboard is locked).

13. PRESET. (If present). Current channel is defined as
skipped or non-preferred.

14. HOTELMODE. Shows if the HOTEL mode is activated or
deactivated (only for Europe and AP).

15. SOURCE. Selected source before entry of CSM; XXX
(channel no.), external source name (i.e. AV1, CVI, EXT1,
etc...).

EN 12 ES1E5.

Service Modes, Error Codes, and Fault Finding

16. SOUND. Selected SOUND mode; "XX"= MONO, NICAM,
STEREO, L1 (Language 1), L2 (Language 2), SAP,
VIRTUAL, or DIGITAL prior entry to CSM.

17. VOLUME. Volume level before entry of CSM (typ. 00..100).

18. BALANCE. Balance level before entry of CSM (typ. -

50..50).

19. BRIGHTNESS. Brightness level before entry of CSM (typ.

00..100).

20. COLOUR. Colour level before entry of CSM (typ. 00..100).

21. CONTRAST. Contrast level before entry of CSM (typ.

00..100).

22. HUE (if present). Hue level before entry of CSM (typ. -

50..100).

How to exit CSM

Use one of the following methods:

• After you press a key on the RC-transmitter (with exception
of the “CHANNEL”, “VOLUME” and digit (0-9) keys), or

• After you switch the TV-set “OFF” with the mains switch.

• After 15 min. no RC or local keyboard actions.

5.3 Problems and Solving Tips (related to CSM)

Note: The problems described below are all related to the TV

settings. The procedures to change the value (or status) of the
different settings are described above. New value(s) are
automatically stored.

5.3.1 Picture Problems

Picture too Dark

1. Press SMART PICTURE on the RC. In case the picture
improves, increase the “Brightness” or the “Contrast”
value. The new value(s) are automatically stored (in
“personal” pre-set) for all TV channels.

2. Check in CSM lines BRIGHTNESS and/or CONTRAST. If
the value of line BRIGHTNESS is low (< 10) or the value of
line CONTRAST is low (< 10), increase them.

Picture too Bright

1. Press SMART PICTURE on the RC. In case the picture
improves, decrease the “Brightness” or the “Contrast”
value. The new value(s) are automatically stored (in
“personal” pre-set) for all TV channels.

2. Check in CSM lines BRIGHTNESS and/or CONTRAST. If
the value of line BRIGHTNESS is high (> 50) or the value
of line CONTRAST is high (> 50), decrease the
“Brightness” or the “Contrast” value.

White Line Around Picture Elements and Text

1. Press SMART PICTURE on the RC. In case the picture
improves, decrease the “Sharpness” value. The new value
is automatically stored (in “personal” pre-set) for all TV
channels.

2. Check in CSM line SHARPNESS. Decrease the
“Sharpness” value. The new value is automatically stored
for all TV channels.

No Picture

Check in CSM line 10 (SIGNAL). In case this line shows NO
SIGNAL, check the aerial cable/aerial system.

Blue Picture

No proper signal is received. Check the aerial cable/aerial
system.

Blue Picture and/or Unstable Picture

A scrambled or coded signal is received.

Black and White Picture

Check in CSM line COLOR. In case the value is low (< 10),
increase the “Color” value. The new value is automatically
stored for all TV channels.

No Colours/colour Lines around Picture Elements or Colours not Correct or Unstable Picture

1. Check in CSM line SYSTEM. If a “strange” system pops up,
something has gone wrong during installation. Re-install
the channel.

2. In case line SYSTEM is “FRANCE”, the installed system for
this pre-set is SECAM, while PAL is required. Install the
required program again: open the installation menu and
perform manual installation. Select system “West Europe”.

Menu Text not Sharp Enough

1. Press “SMART PICTURE”. In case picture improves,
decrease the "Contrast" value. The new value(s) are
automatically stored for all TV channels.

2. Check in CSM line CONTRAST. If the value of this line is
high (> 50), decrease the "Contrast" value.

5.3.2 Sound Problems

No Sound from Left and Right Speaker

Check in CSM line VOLUME. If the value is high, increase the
value of “Volume”. The new value(s) are automatically stored
(in “personal” pre-set) for all TV channels.

Sound too Loud for Left and Right Speaker

Check in CSM line VOLUME. If the value is low, decrease the
value of “Volume”. The new value(s) are automatically stored
(in “personal” pre-set) for all TV channels.

5.4 ComPair

5.4.1 Introduction

ComPair (Computer Aided Repair) is a service tool for Philips
Consumer Electronics products. ComPair is a further
development on the European DST (service remote control),
which allows faster and more accurate diagnostics. ComPair
has three big advantages:

• ComPair helps you to quickly get an understanding on how
to repair the chassis in a short time by guiding you
systematically through the repair procedures.

• ComPair allows very detailed diagnostics (on I
is therefore capable of accurately indicating problem areas.
You do not have to know anything about I
yourself because ComPair takes care of this.

• ComPair speeds up the repair time since it can
automatically communicate with the chassis (when the
microprocessor is working) and all repair information is
directly available. When ComPair is installed together with
the SearchMan electronic manual of the defective chassis,
schematics and PWBs are only a mouse click away.

5.4.2 Specifications

ComPair consists of a Windows based faultfinding program
and an interface box between PC and the (defective) product.
The ComPair interface box is connected to the PC via a serial
or RS232 cable.
For this chassis, the ComPair interface box and the TV
communicate via a bi-directional service cable via the service
connector.

The ComPair faultfinding program is able to determine the
problem of the defective television. ComPair can gather
diagnostic information in two ways:

• Automatically (by communicating with the television set):
ComPair can automatically read out the contents of the

2

C level) and

2

C commands

Service Modes, Error Codes, and Fault Finding

EN 13ES1E 5.

entire error buffer. Diagnosis is done on I2C level. ComPair
can access the I
and receive I

2

C bus of the television. ComPair can send

2

C commands to and from the micro controller
of the television set. In this way, it is possible for ComPair
to communicate (read and write) to devices on the I
busses of the TV-set.

• Manually (by asking questions to you): This option is
helpful, because automatic diagnosis is only possible if the
micro controller of the television is working correctly (also,
the diagnostic possibilities of automatic diagnosis are more
limited). When you choose manual diagnosis, ComPair will
guide you through the faultfinding tree by asking you
questions (e.g. Does the screen give a picture? Click on
the correct answer: YES / NO) and by showing you
examples (e.g. Measure test-point I7 and click on the
correct oscillogram you see on the oscilloscope). You can
answer by clicking on a link (e.g. a piece of text or a
waveform picture) that will bring you to the next step in the
faultfinding process.

By a combination of automatic diagnostics and an interactive
question / answer procedure, ComPair will enable you to find
most problems in a fast and effective way.

Besides fault finding, ComPair provides some additional
features like:

• Up- or downloading of pre-sets.

• Managing of pre-set lists.

• Emulation of the Dealer Service Tool (DST).

• If both ComPair and SearchMan (Electronic Service
Manual) are installed, all the schematics and the PWBs of
the set are available by clicking on the appropriate
hyperlink.

Example: Measure the DC-voltage on capacitor C2568
(Schematic/Panel) at the Mono-carrier.

– Click on the “Panel” hyperlink to automatically show

the PWB with a highlighted capacitor C2568.

– Click on the “Schematic” hyperlink to automatically

show the position of the highlighted capacitor.

• SW upgrading

5.4.3 How To Order

When multiple errors occur (errors occurred within a short time
span), there is a high probability that there is some relation
between them.

2

C

5.5.2 How to Read the Error Buffer

Use one of the following methods:

• On screen via the SAM (only if you have a picture).
Examples:
– 0 0 0 0: No errors detected
– 6 0 0 0: Error code 6 is the last and only detected error
– 9 6 0 0: Error code 6 was first detected and error code

9 is the last detected error

• Via the blinking LED procedure (when you have no
picture). See next paragraph.

•Via ComPair.

5.5.3 How to Clear the Error Buffer

Use one of the following methods:

• By activation of the “CLEAR ERRORS” command in the
SAM menu.

• With a normal RC, key in sequence “MUTE” followed by
“062599” and “OK”.

• When you transmit the commands “DIAGNOSE” - “99” ­“OK” with ComPair (or with a DST).

• If the content of the error buffer has not changed for 50+
hours, it resets automatically.

5.5.4 Error Codes

The function of error codes is to indicate failures in the TV set.
In principle a unique error code is available for every:

2

•I

C device error.

2

•I

C bus error (for every bus containing two or more I2C

devices).

• Protection error (e.g. +8V protection or Horizontal
protection).

• Error not related to an I

2

C device, but of importance (e.g.

BC-loop, RAM error).

ComPair order codes:

• Starter kit ComPair32/SearchMan32 software and
ComPair interface (excl. transformer): 3122 785 90450.

• ComPair interface (excluding transformer): 4822 727

21631.

• Starter kit ComPair32 software (registration version): 3122
785 60040.

• Starter kit SearchMan32 software: 3122 785 60050.

• ComPair32 CD (2003 update): 3122 785 60110.

• SearchMan32 CD (2003 update): 3122 785 60120.

• ComPair interface cable: 3122 785 90004.

• ComPair firmware upgrade IC: 3122 785 90510.

• Transformer Europe: 4822 727 21632.

• Transformer UK: 4822 727 21633.

5.5 Error Codes

5.5.1 Introduction

The error code buffer contains all detected errors since the last
time the buffer was erased. The buffer is written from left to
right, new errors are logged at the left side, and all other errors
shift one position to the right.
When an error has occurred, the error is added to the list of
errors, provided the list is not full or the error is a protection
error.
When an error occurs and the error buffer is full, then the new
error is not added, and the error buffer stays intact (history is
maintained), except when the error is a protection error.
To prevent that an occasional error stays in the list forever, the
error is removed from the list after 50+ operation hours.

EN 14 ES1E5.

Service Modes, Error Codes, and Fault Finding

Table 5-1 Error Table

Error Description

0 No error
1 Horizontal Protection (via NOHFB bit in ADOC)
3 +8V error (missing/protection active by checking

MPIF ASUP bit))

4 X-ray/High beam current protection signal (via

XPROT bit in ADOC)
5 Highbeam protection
7 Under-voltage protection

2

11 MPIF I

C communication failure / MPIF test failed

12 BC-loop not stabilised within the time limit (i.e. after

timer is expired)

2

13 NVM I
14 Main tuner 1232 I
17 3D Y/C 7823 Combfilter I
18 PIP Tuner I
19 2fH component input I

C communication failure

2

C failure UV13xx

2

2

C failure

C communication failure

2

C failure (PCF8574)

21 PIP IF demodulator IC TDA988x communication

failed (only for PIP/DW sets)
22 Flash over protection error (to register CRT flash-

overs, via FPR status bit in ADOC)

Service Tips:

• In case of non-intermittent faults, clear the error buffer
before you begin the repair. This to ensure that old error
codes are no longer present. Before clearing the buffer,
write down the content, as this history can give you
significant information.

• If possible, check the entire contents of the error buffer. In
some situations, an error code is only the result of another
error code and not the actual cause (e.g., a fault in the
protection detection circuitry can also lead to a protection).

operation” mode and in “protection” mode). In order to
avoid confusion with RC5 signal reception blinking, this
LED blinking procedure is terminated when an RC5
command is received.

• Transmit the commands “MUTE”, “06250x”, and “OK” with
a normal RC (where “x” is the position in the error buffer
that has to be displayed). With x= 1, the last detected error

is shown, x= 2 the second last error, etc.... When x= 0, all

errors are shown.

• “DIAGNOSE X” with the DST (where “x” is the position in
the error buffer that has to be displayed). With x= 1, the last

detected error is shown, x= 2 the second last error, etc....

When x= 0, all errors are shown.

Note: It can take some seconds before the blinking LED starts.

5.7 Software Downloading

In this chassis, you can upgrade the software via ComPair.
You can find more information on how this procedure works in
the ComPair file. It is possible that not all sets are equipped
with the hardware, needed to make software upgrading
possible. To speed up the programming process the firmware
of the ComPair interface can be upgraded. See paragraph
“How To Order” for the order numbers.

5.6 The Blinking LED Procedure

5.6.1 Introduction

Via this procedure, you can make the contents of the error
buffer visible via the front LED. This is especially useful for fault
finding, when there is no picture.

When the SDM is activated, the front LED will show (by
blinking) the contents of the error-buffer. Error-codes > 10 are
shown as follows:

1. A long blink of 750 ms (which is an indication of the decimal
digit),

2. A pause of 1500 ms,

3. “n” short blinks (where “n” = 1 - 9),

4. When all the error-codes are displayed, the sequence
finishes with a LED blink of 3000 ms,

5. The sequence starts again.

Example: Error 12 9 6 0 0.
After activation of the SDM, the front LED will show:

1. 1 long blink of 750 ms (which is an indication of the decimal
digit) followed by a pause of 1500 ms,

2. 2 short blinks of 250 ms, followed by a pause of 3000 ms,

3. 9 short blinks of 250 ms, followed by a pause of 3000 ms,

4. 6 short blinks of 250 ms, followed by a pause of 3000 ms,

5. 1 long blink of 3000 ms to finish the sequence,

6. The sequence starts again.

5.6.2 How to Activate

Use one of the following methods:

• Activate the SDM (only via soldering pads marked “FOR
SERVICE” on the SSB). The blinking front LED will show
the entire contents of the error buffer (this works in “normal

Block Diagrams, Testpoint Overviews, and Waveforms

6. Block Diagrams, Testpoint Overviews, and Waveforms

Wiring Diagram

TOP CONTROL PANEL

E

0215
3p

CRT PANEL

(COMPONENT VIEW)

F

15ES1E AA 6.

DEGAUSSING COIL

AQUADAG

CRT

ROTATING

COIL

EHT

CVBS (YELLOW)

LEFT (WHITE)

RIGHT (RED)

HEADPHONE

SVHS

D

SPEAKER R

SIDE
I/O PANEL

0240

11p

1382

1336

2p

1335

7p

1351

CRT

SOCKET

WHITE

RED

1340

7p

LSP(LARGE SIGNAL PANEL)

A

1911

4p

1361

3p

1502

2p

FRONT

M

Q1

INTERFACE
PANEL

0203

5p

1951

MAINS

SWITCH

F

3p

SCAVEM
COIL

SPEAKER L

CRT PANEL

0202

1505

2p

2p

0201

2p2p

MAINS
CORD

SSB

B

SMALL SIGNAL BOARD

1943

Compair

connector

1620

11p

TUNER
TUNER

80p

B

CINCH

2p

5p

3p

5p

1629

1645

1624

1401

SCART

2p

7p

1452

3p

2p

1404

LOT

F_15040_054.eps

250405

Block Diagrams, Testpoint Overviews, and Waveforms

Block Diagram LSP Supply and Deflection

FRONT INTERFACE

M Q1

0201

1

2

A1

1505

or

1051
1031
1951

MAINS

SWITCH

POWER SUPPLY

Degaussing

1500

T4E

I511

Coil

2511

1504

7511
TEA1507

2

Vcc

CONTROL

6

CTRL

3598

0202

1

2

5500 :
5502

1

2

DRAIN

IC

DRIVER

SENSE

DEMAG

3523

6500

AC

3513

14

3514

11

3522

9

3517

7

3518

F508

2505

DC

7512

D

G

S

3516

6511

7517

VDC

VDC

16ES1E AA 6.

LINE + FRAME DEFLECTION

A2

7541

1503

24

ENERGIZING

CIRCUIT

1

3

5512

9

8

4

5

3

2

4

3

17

18

13

14

10

11,12

1

7513
TCET1103

2

(optional)

5551

5562

5561

6563

6562

6536

3571

+Vaudio

6551

7571

REFERENCE

CIRCUIT

+3V3

7573

STANDBY

CIRCUIT

5505

5552

F563

F561

3575

3576

STANDBY

+9VA

Vbatt

-Vaudio

+Vaudio

+9VA

A6

MPIF-SUPPLY, E/W &CONTROL

B4

7300-D
ADOC

EWVIN

EWIOUT

LINE

6465

+5V

5402

7404

EW_DRIVE

36

37

7405

BU4508DX

LINE
OUTPUT
CIRCUIT

E/W

CORR.

+

Vbatt

1404
1

2

3

1

HOR.
DEFL.
COIL

5450

EHT

FOCUS G2

10

7

12

5

6
8

11

9

6453

6461

2477

6469

CRT

TO

B1

EHTinfo

F453

HFB

Filament

-14V

VideoSupply

+12V_LOT

3477

3485

3456

3458

3450

6452

3519

3527

7510

2

SUPPLY

CONTROL

6

7532

6581

1532

5504

6

14

11

3536

5

7525

3526

9

7

4

2

1

3

4

HOT GROUND COLD GROUND

8

9

10

11

12
13

14

1

7516
TCET1103

2

6535

7535

3537

7542

REFERENCE

CIRCUIT

STANDBY

CIRCUIT

+Vaux

5564

3545

3544

3546

+5V2

7545

STANDBY

CIRCUIT

+5V

STANDBY

EW_DRIVE

HDRIVE

B8

SYNC & DEFLECTION PROCESSING

7300-F
ADOC

HDROUT

VDRP

VDRN

EWP

HFB

EHT

BCL

A4

+5V

3358

3353

+8V

7361

7365

3350

3374

3375

3354

+5V

L1

R1

R2

T2

L3

N3

N2

SSB

B18

CONNECTOR
INTERFACE

LINEDRIVE1

FRAMEDRIVE+

FRAMEDRIVE-

EW_DRIVE

HFB_XRAY_PROT

EHT-INFO

0230

26

28

29

31

32

34

INTERFACING

A6

1670

26

28

29

31

32

34

HDRIVE

INN

INP

EW_DRIVE

HFB_XRAY_PROT

EHT-INFO

SVM_ROT

EHTinfo

Filament

7455
TDA4863J

7

INP

FRAME

6

INN

+13V

VP1

1

GND

VideoSupply

3

VP2

4

+12V_LOT

Vbatt

F466

5V-OUT

F_15040_060.eps

3471

1452
1

3

F459

1401

VER.
DEFL.
COIL

290405

7

6

TO 1351

5

F

4

CRT

3

2

1

Block Diagrams, Testpoint Overviews, and Waveforms

Testpoint Overview LSP

F232 A8

F246 B8

F404 F8

F233 A8

F247 A8

F234 A9

F248 A8

F235 A10

F249 A7

F241 A10

F250 A6

F242 A10

F401 D6

F243 A10

F402 E7

3139 123 5895.4

F416 G6
F418 G7
F419 G8
F451 F9
F452 G10
F453 C7

F455 C7
F456 G10
F457 G10
F458 D8
F459 G7
F462 F9
F464 F6

F465 F6
F466 D9
F469 D9
F472 C8
F475 C8
F476 D8
F478 D9

F481 E9
F482 C8
F483 D8
F500 D1
F501 F2
F502 E2
F503 G1

F504 F1
F506 G1
F507 G1
F508 F3
F509 G4
F535 C3
F537 C5

F541 D3
F542 D3
F552 E5
F561 D4
F562 D5
F563 D5
F573 D6

F574 D4
F575 F5
F576 C4
F578 C4
F580 D6
F581 C4
F582 C3

F583 E5
F620 C8
F627 A5
F628 A5
F629 B8
F630 B8
F631 B8

F632 B8
F672 A6
F673 B8
F674 C6
F675 B6
F676 B6
F677 B9

F678 C6
F679 C7
F701 D9
F702 D10
F703 D10
F704 D10
F705 C9

F706 C10
F708 C10
F710 C10
F711 B10
F712 C10
F713 C9
F714 B10

F715 B9
F716 B10
F717 C10
F718 B9
F719 B10
F720 B10
F721 B9

F722 B10
F723 B10
F724 B10
F901 B4
F903 A4
F904 B3
F905 C3

F910 B3
F911 B4
F912 A5
F913 B2
F950 A5
F951 B5
F952 A4

17ES1E AA 6.

F955 B4
F956 C3
F958 A5
F959 A5
I232 A9
I239 A9
I240 A9

I241 A6
I242 A6
I247 A6
I248 B8
I249 A7
I253 A7
I254 A7

I255 A7
I256 B6
I259 A7
I260 A9
I261 A9
I402 G9
I410 F10

I413 D6
I414 C7
I415 D7
I418 G6
I419 G6
I420 E6
I423 D7

I428 F7
I432 E8
I435 D8
I436 D8
I437 D6
I438 D9
I439 E8

I440 E8
I442 E10
I443 F9
I445 D7
I446 D7
I447 D6
I448 D6

I449 D6
I450 F6
I453 G9
I455 F9
I457 F8
I458 F8
I459 F9

I460 D8
I462 G7
I463 G10
I464 F10
I466 E8
I468 E8
I469 E9

I470 D8
I473 E7
I475 F9
I476 D9
I480 D9
I481 D9
I482 G10

I487 D7
I488 G6
I489 G7
I490 D7
I491 D7
I492 E9
I493 G10

I494 E8
I495 D9
I496 E7
I497 F6
I499 D7
I500 F3
I501 G3

I502 G2
I503 G1
I504 G1
I506 F3
I507 E2
I509 F4
I510 E3

I511 G5
I512 E4
I513 F5
I514 F5
I515 F5
I516 G5
I517 G5

F_15040_010.eps

I518 F5
I519 G5
I520 F6
I521 G5
I522 D6
I523 F6
I525 E3

220305

I526 F3
I527 G6
I528 E4
I529 D4
I530 F3
I531 E3
I532 E3

I533 E4
I534 F2
I536 E3
I537 E3
I538 D4
I539 D3
I540 D3
I542 D2
I543 C3
I544 E4
I545 C3
I546 F5
I547 C4
I548 F5
I550 E3
I551 E5
I552 E5
I553 F3
I554 F3
I555 E4
I557 E2
I558 D4
I559 G2
I560 F4
I561 E4
I562 E4
I563 E2
I564 F6
I565 D4
I566 D4
I568 D3
I569 D5
I570 D5
I571 E6
I572 F1
I573 D5
I574 D6
I575 E6
I577 C4
I578 E6
I579 E5
I580 D5
I581 D4
I582 G5
I583 F1
I586 E5
I587 D4
I588 C4
I589 D5
I590 D4
I591 D4
I592 D4
I593 D4
I596 D6
I597 D5
I599 D5
I602 A9
I603 C6
I604 B7
I605 C7
I606 C6
I608 C6
I609 C9
I610 B9
I611 C9
I612 A7
I616 B8
I621 A6
I622 A6
I623 A5
I624 A5
I625 A5
I626 A5
I627 C6
I628 C6
I629 C6
I630 B6
I631 C6
I632 A8
I633 B8
I634 C7
I635 A7
I636 B8
I637 B8
I638 C8
I639 C8
I640 B7
I650 C7
I672 B8
I674 A7
I677 B7
I678 B9
I680 B7
I685 B6
I686 B6
I687 B6
I688 B7
I689 B7
I690 B7
I691 A5
I693 C7
I694 C7
I695 B7
I696 A6
I701 D9
I702 D10
I703 C9

I704 D10
I705 C9
I707 C10
I708 C10
I709 C9
I710 C9
I711 B9
I712 B10
I713 B10
I714 B10
I715 B10
I716 B10
I717 C10
I719 D9
I720 C9
I721 D9
I722 C10
I723 B9
I724 B9
I725 B9
I726 C9
I727 A10
I728 B10
I729 A10
I731 D9
I732 D9
I733 C9
I734 C9
I735 C9
I736 B10
I737 B9
I738 C10
I739 D10
I740 C10
I741 C10
I901 B4
I902 C2
I903 A3
I904 A3
I908 A3
I909 A3
I913 A4
I914 A4
I915 B4
I916 B4
I918 B4
I920 C4
I921 A3
I922 B3
I924 B3
I925 A3
I926 B3
I927 A3
I928 B4
I930 B4
I934 B4
I935 C3
I936 A3
I938 B3
I941 A3
I943 A3
I945 B4
I948 A3
I951 B5
I952 B5
I953 A5
I954 B5
I956 B4
I957 B5
I958 C5
I959 B4
I960 B5
I962 B5
I963 B4
I964 C4
I965 B5
I967 C4

Block Diagrams, Testpoint Overviews, and Waveforms

Block Diagram 1 Audio & Video

TUNER

A5

SDA

SCL

B18

SIMM

CONN

INPUTS/OUTPUTS

A11

16

MON-Out

15

C-In

C-Out

12

L-Out

11

R-Out

TER-Out

9

7

R-In

6

G-In

B-In

5

L-Out

2

R-Out

1

AUDIO-L OUT

AUDIO-R OUT

AUDIO-SL OUT

+5V

1232

451

SCL0

SCART 2

21

SCART 1

21

VTUN

7,3 9

SDA0

Y/CVBS-In

20

P50
Status

L-In

2

R-In

1

20

CVBS-In

FBL-In

Status

L-In

2

R-In

1

154849

0230

11 13

(1) Present for China only
(2) Present for AP-Multi, China & EU only

6200

0230

AGC

SEL-IF-LL

B11

14

IF-TER

+8Va

2101

3132

3102

3101

B18

0230

15

7

SEL-SVHS-RR_STATUS2

14

17

8

9

14

10

17

4

13

3

13

10

7

6

8

5

16

12

4

11

3

2

1

19

4

20

10

6

52

60

53

58

3

2

1

9

STATUS1_PIP-AFT-5 0-60HZ18

55

56

61

69

70

72

6101

Y-CVBS-SC2_AV2-IN

CVBS-SC2_MON-OUT

1113

4101

2

4102
4103

3

4104

1114

6102

2

3

1112

2

4107

3

4108

7101//7104

SIMM CONNECTOR

C-SC2_SVHS-IN

FBL-SC1-IN

CVBS_TER_OUT

COMM_LINE

CVBS-SC1_AV1-IN

L-SC1_AV1-IN

R-SC1_AV1-IN

L-SC2_AV2-IN

R-SC2_AV2-IN

R-SC1-IN_V-IN

G-SC1-IN_Y-IN

B-SC1-IN_U-IN

L-SC2-OUT

R-SC2-OUT59

L-SC1_AV-O UT

R-SC1_AV-O UT

L-CL_VL-OUT

R-CL_VL-OUT

AUDIO-SURR

B10

(1)

(2)

B11

B5

B11

B2

B11

7

8

7

8

7

8

IF & SAW FILTER

B1

7100-C

VIFINP

107

VIFIN N

108

TUNER_AGC

105

99

SIFINP

100

SIFIN N

SIDE IO PANEL

D A6

3242

C

AV3

HP

Y

CVBS

L

R

3242

SVHS 2

MPIF IF + QSS

QSS Mixer

AM De mod.

10

11

AM Int

122 125

+5Va +5Vd

1936 OR 0240

4

7

2

6

8

Sound

Tra p s

1620

4

7

2

6

8

10

11

+5Vb

110

SIF A/D

LPF

118

INTER­FACING

HEADPH-L

HEADPH-R

B18

120

116

18ES1E AA 6.

B18

0230

64

62

63

65

66

B2

7060

7131

EF

SIF_MAIN

(PIP/DW)

SIMM CONN

C-FRONT-IN

FRONT-DETECT

B11

Y-CVBS-FRO NT-IN

L-FRONT-IN

R-FRONT-IN

VIDEO SOURCE SELECT & DATA LINK

7100-B

2062

123

CVBS-IF

B17

CVBS-SC1_AV1-IN

CVBS2_PIP_TUN2

Y-CVBS-SC2_AV2-IN

C-SC2_SVHS-IN

Y-CVBS-FRO NT-IN

C-FRONT-IN

YOU T-C O MB

COUT-C OMB

CVBS-SC3

CVBS_TER_O

R-SC1_V-IN

G-SC1-IN_Y-IN

B-SC1-IN_U-IN

+5V

AUDIO SOURCE SELECT

B3

+5V

+8V

PIP-AUDIO

L-SC1_AV1-IN

R-SC1_AV1-IN

AUD-L1

AUD-R1

L-SC2_AV2-IN

R-SC2_AV2-IN

L-FRONT-IN

R-FRONT-IN

AUD_ L2

AUD_ R2

126

1

4

5

8

9

15

16

4152 CVBS-DTV

12

7062

UT

DSNDL1

DSNDR1

DSNDL2

DSNDR2

22

25

26

27

49

64

91,77

98,88

17

86

85

84

83

82

81

80

79

127

128

75

74

73

72

B10

CVBS-1

CVBS-2

CVBS/Y-3

C3

CVBS/Y-4

C4

Y-COMB

C-COMB

CVBS-outB

R/Pr/V1

G/Y/Y-1

B/Pb/U1

VCC-DIG

VCC-I2D

7100-A

AM EXT

L1

R1

L2

R2

L3

R3

L4

R4

L5

R5

DSNDL1

DSNDR1

DSNDL2

DSNDR2

7063

Ident

+

YUV

RGB

Source

Switch

CVBS/Y prim

CVBS sec

CLAMP LPF

CLP Yyuv

MPIF VIDEO SWITCH

CLAMP

LPF

A

A

A

A

54MHz

SIFA/D

D

D

D

CLP prim

CLP sec

CLP Yyuv

CLP prim

C prim

CLP sec

LPF

LPFCLAMP

Yyuv

U

V

27/54 MHz

Yyuv

2Fh

A

54MHz

LR prim

Dig

D

Yyuv

U,V

Mono Sec.

Dig.

2Fh

Data
Link

Data
Link

Data
Link

Timing
Circuit

CVBS-outA

STROBE1N

STROBE1P

1

STROBE3N

STROBE3P

3

STROBE2N

STROBE2P

2

B4

MPIF AUDIO SWITCH

LPF

LPF

LPF

A

D

LR prim

A

A

Dig

D

Mono sec

Dig

D

I2C

EW

V

I

AM

Int

+

LR

Mono

sec
A/D

LR

LineLRScart

prim

A/D

AUDI O

AMPs

L prim

R prim

Mono sec

19

60

61

DATA1N

62

DATA 1P

63

50

51

DATA3N

53

DATA 3P

54

55

56

57

DATA2N

58

DATA 2P

46

HV-PRIM

45

HV-SEC

MPIF-SUPPLY
EW & CONTROL

7100-D

2

3

Supply

+

Ref.

20

21

14,28,35

IRQ

42

SDA

43

SCL

44

XREF 40

EWVIN

36

EWIOUT

37

SCART2R

65

SCART2L

66

69

SCART1R

70

SCART1L

LINER

67

68

LINEL

STROBE1N

STROBE1P

DATA1N

DATA 1P

STROBE3N

STROBE3P

DATA3N

DATA 3P

STROBE2N

STROBE2P

DATA2N

DATA 2P

HV_PRIM

HV_SEC

3150

3151

3152

3153

R-SC1_AV-O UT

L-SC1_AV-O UT

+5V

7150-A

+5V

7150-B

VREF_DEFL

+5V

EW_MPIF

EW-DRIVE

R-SC2-OUT

L-SC2-OUT

R-CL_VL-OUT

L-CL_VL-OUT

CVBS_SC2_MON_OUT

B5

VREF_AUD_POS

B8

MPIF-IRQ

SDA1

SCL1

F_REF

EUROPE ONLY

ND

2

SCART

ST

1

& 3RD SCART

AUDIO-OUT OR
MONITOR-OUT

B18

B10

B11

F_15040_055.eps

250405

Block Diagrams, Testpoint Overviews, and Waveforms

Block Diagram 2 Audio & Video

CONTROL

B11

7300-A,C,E & K

VDDCO

VDDE

2581

2582

RB

KEYBOARD

B18

(FROM 0223)

SEL-2FH-SRC_STATU S3

B8

B15

LIGHT-SEN SOR

RC5

STATUS1_PIP-AFT-5 0-60HZ

SEL-SHVS-RR_STATUS2

DTV_EXPENSION

FRONT-DETECT

B4

POR_FLASH

(SCART)

SDM

FOR 2FH I/P or SCART-3

MPIF-IRQ

LOW VOLTAGE SUPPLY - ADOC

81

Vc

6

+3V3

Vcc

VDDE

7651

Gnd

4

5583

5570

Vgate

ADOC-uP & CONTROL

XVDD

ADC-

VDDA

FAST

PI_BUS

XIN

1581

XOUT

SLOW

PI_BUS

P0-2

ADC0

ADC4

P2-6

ADC2

ADC3

P0-3

ADC1

ADC5

P0-7

P0-1

3590

7581

SYSTEM

1

RESET

(50ms)

5

3582

+5V2

5600

6651

7650

Vfb

3651

5

3652

MIPS

PI-PI

BRIDGE

4

2651

TIME R

VDDCO

+1V8+5V2

I2C

GPIO

SRAM

128KB

GFX
GEN

A/DADC

RESET_

3583

3586

EBIU

B7

GFX

MPIFCLK

P1-2

P1-3

P1-5

P1-0

P1-1

P0-5

P2-2

P2-4

P0-4

P0-6

P3-0

P3-2

MEMORY INTERFACE

B12

EBIU BUS

A1..A21 D0..D15

F_REF

B4

SDA1

SCL1

RES

4565

4564

SDA0

SCL0

B1

SEL-IF-LL

COMM_LINE (SCART)

SEL-2FH-SRC_STATU S3

ON-OFF-LED

SOUND-ENABLE

VREF_AUD_POS

B4

B4

VREF_AUD_NEG

7790

FLASH

W

E

G

RP

16

7525

5

SDA

6

SCL

7

WC_

DEGAUSS

STANDBY

POR_FLASH

FLASH_RST

9,37

VDD

43

VDDQ

15

VPP

RB

FLASH_RST

VDDE

8

NVM

VDDE

B18

2447

19ES1E AA 6.

RGB PROCESSING

B7 A6 F

VDDE

RB53

7300-H

VDDA

VDDA

CDAC2-

B11

FROM

B6

SSB CONN

B18

INTERFACE

KEYBOARD

LIGHT-SEN SOR

RC5

ON-OFF-LED

AUDIO PROCESSING

B10

7300-x

GFX

R

G

B

CDAC1-

BLENDER

BLENDER

BLENDER

CONTROL

CONTROL

0230

79

37

78

77

0230

51

80

36

50

A6

1670

79

37

78

77

1670

51

80

36

50

FIXED
BEAM

CURRENT

SWITCH

OFF

N.C.

ADOC SOUND & AUDIO PROCESSING

Demodulation and Decoding DSP

Down

Preprocessing SRC

Mix

Decimation

Filter

Level

I/P
X-

Adj.

Bar

I2SIN

WSI

SCKI

SDI

N.C. N.C.

Audio Processing DSP

B5

7300-B

SSIF

EXT. STER EO

EXT. MONO

BLANKING

SCAVEM

INTERFACING

VOL_MUTE

DEGAUSSING

STANDBY

A3

POR

DDEP

WS PLL

I2SOUT

SCK02

SD02

ADOC RGB

ADJUST

ADJUST

2

A1

A2

Dematrix

and Select

WS02

DRIVE

DRIVE

RGB

GAIN

LEAKAGE

LEAKAGE

COMPASATOR

COMPASATOR

E

02151645

2

O/P

X-

Bar

RGB

CUTOFF

TOP CONTROL

1091~4

+5V2

VDDCO VDDE

DAC

Noise Shaper

SVMP

CDAC
CDAC

ADC

ADC

M

02150215

3

3

4

4

1

1

SDAC1-VDDA

AUD_SPK_R

AUD_SPK_L

AUD_SPK_SW

AUD_SPK_C

AUD_SPK_SL

AUD_HP_R

AUD_HP_L

DSNDR2

DSNDL2

DSNDR1

DSNDL1

7310

ROUTP

ROUTP

7320

GOUTP

7330

BOUTP

BOUTP

IBC

IBCRANGE

B8

MAINS SWITCH
PANEL

SDAC1-3V3

B3

7346

7356

TILT

Q1

7433

7432

7480

2

6

R-CRT

G-CRT

B-CRT

CUTOFF

FRONT
INTERFACE

1008

1002

1

8

7

0230

25

24

23

21

+5V

INTER­FAC E

1670

25

1629

24

1

2

23

3

21

5

A2

OF LSP

TO/FROM 14

AUDIO

A4

AMPLIFIER

AUDI O-R

76

AUDIO-L

75

SSB CONN

B18

INTERFACE

B3

HEADPHONE-R

HEADPHONE-L

1340

1351

1

2

3

5

1

2

3

4

5

6

7

68

67

CRT PANEL

+8V_+12V

7307

3

2

1

CUTOFF

DC_FILAMMENT

200V

EHT-INFO

+141V

+8V_+12V

SVM_ROT

7991

SOUND

ENABLE

INTERFACING

A6

1670

0230700230

70

69

69

72

72

1670 1620

0230

68

67

HEADPH-R

HEADPH-L

200V

5

6

3307

3306

SCAVEM

PROC.

7

8

9

9

+141V

12

3

5

11

10

R

G

B

7366
TDA8941P

SCAVEM

PROC.

IN-

IN+

7990

9

10

1

A7

1705-1

1705-2

1705-3

1936
0240

VG2

FOCUSA

OUT-

OUT+

SCART I/O

AUDIO-R

AUDIO-L

AUDIO-SURROUND

SIDE I/O

D

11

1254

10

1361
1

3

FOCUSB

FROM LOT

5

5

7

6

4

A3

1382

1

3

SCAVEM

COIL

CRT

EHT

+Vaudio

ROTATION

COIL

1911

4

RIGHT

1

LEFT

F_15040_056.eps

250405

Block Diagrams, Testpoint Overviews, and Waveforms

Block Diagram 3 Audio & Video

VIDEO DECODER

B 5

7300-J

EXT. STEREO

I2D1

PRI

I2D3

SSIF

SEC

I2D2

EXT. MONO

B2

FEATURE BOX

B 6

7300 7300

DATA SYNC

Sync
Mux.

SAMPLE RATE CONVERTER

Ext
Syn

c

Mux

ADOC FEF

VIDDEC2

(YUV)

B5

VIDDEC1

(YUV)

CONVERTER

SAMPLE RATE

INPUT

SWITCH

MATRIX

BLACK

STRETCH

BLACK

STRETCH

HISTOG.

MEAS.

BLACK

LEVEL DET

FROM

1116

B18

STROBE1N
STROBE1P

DATA1N
DATA 1P
STROBE3N
STROBE3P

DATA3N

DATA 3P
STROBE2N

STROBE2P
DATA2N

DATA 2P
H-2FH

V-2FH

FBL-SC1-IN

HV_PRIM
HV_SEC

DMSD=Digital Multi Standard Decoder

ADOC VIDDEC (PRI & SEC)

DMSD

CHR.
MUX

AGC_AMP

FAST-

BLANK

FIFO

SRC for

HFB1/

H-Sync

MEASUREMENT

BLOCKS

HISTOG.
MODIFY

BLACK

BAR DET.

NOISE
MEAS.

SYNC

2Fh

SUB

CH.

MAIN

CH.

DE-

MUX

FAST

BLANK

SWITCH

7300

SUB

CH.

(YUV)

MAIN

CH.

(YUV)

FOR-

MATER

HV

INFO

VID1-DTC-VDDA

VID1-DTC-VDD3

HOR.

COMPRESS

HOR.

COMPRESS

DLINK-VDDA

DLINK-VDDD

PLLVDDA

B8

HVSYNC

VIDDEC2

B6

VIDDEC1

COMPRESS

CACHE

VERT .

SUB
FIFO

MAIN

FIFO

CACHE

VDDCO

VDDE

ADOC MBF

NOISE

SHAPER

NOISE

SHAPER

DNR

20ES1E AA 6.

B4

VREF_DEFL

B13

VDDE

MEMORY

BUS
DEVICE
INTERF.

B7

EHT-INFO

KEYBOARD

+8V

7383-B

3384

HFB_X-RAY-PROT

SYNC & DEFLECTION PROCESSING

B 8

7300-F

1,14,27

3,9,43,49

UNDI­THER

UNDI­THER

UNDI­THER

HVSYNC

3341

SEL2FH

BPA
DOP-DTC-VDDA
DOP-DTC-VDD3
IMEAS-VDDA
SDAC-3V3

SDAC-VDDA

7730

VDD

VDDQ

FIELD MEMORY & TXT PG

VDDE

3340

VDDE

3346

VDDCO

VDDE

MEMORY INTERFACE

7300-I

DTL I/F

DISPLAY CONTROLMODE CONTROL

B 9

3387

3398

2397

B5

SDRAM

MMI BUS

MEMORY

CTRL/SWI.

SCAN
RATE

CONVERT

OUTPUT

MUX.

PROTECTION

7383-A

6397

ADOC DOP

1st

1st

CONTROL

CONTROL

LOOP

LOOP

VERT .

DRIVER

SA0...SA11

SD0...SD15

INTERFACING

A 6

TILT

R

G

B

40

45

43

47

46

44

26
34

3367

6367

2
8

2
9

31

35

TO

B7

0230

2455

A2

A8

FROM

TUNER
CONN.

A3

EHT-INFO

A4

A4

A5

FROM

BLOCK

DIAGRAM

STAND-BY

SUPPLY

SIMM

TO BLOCK

DIAGRAM

DEFLECTION

TO
ROTATION
CIRCUITRY

F_15040_059.eps

290405

3380

+8V

6382

+3V3

7393

CONTROL

LOOP

Y

Y

UV

UV

6381

6384

2nd

Hor. TIMEBASE GEN.

HOR. TIMEBASE GEN.

DTO & CONTROL LOOP

DTO & CONTROL LOOP

VERT .

SAWTOOTH

13.5 / 27 MHz
@ 720 ppl

DCTI

DCTI=Digital Color

Transient Imrpovement

7382

6385

3385

X-PROT

SLOW START/STOP

SLOW START/STOP

L0W POWER STARTUP

L0W POWER STARTUP

U

V

FLASH

EAST-WEST
WAVEFORM

VERT .

WAVEFORM

27 / 54 MHz
@ 1440 ppl

PAN O­RAMA

3354

3353

LUMINANCE SHARPNESS

SHARPNES

F
I

MEASURE

L
T
E

Y

R

PEAKING

Y

SKIN

U

TONE

V

CONTROL

+3V3

6353

HFB

HIRES.

HIRES.
TIMING

TIMING

GEN.

GEN.

ADC

SDAC

SDAC

S

LTI

DYN.

HDROUT

BLUE

STRETCH

COLOUR FEATURES

EHT

BCL

FBCIN

VDRP
VDRN

EWP

ADOC BEF

GREEN

ENHANCE

+5V

7361

3361

+8V

7365

3373

POR_FLASH

Y

U
V

3364

3350

3372

2361

EW_MPIF

B4

RGB

MATRIX

B11

+5V2

+5V

+8V

+3V3

VDDE

6368

FRAME

PROC.

5601

LINEDRIVE1

EHT-INFO

3368

6365

FRAMEDRIVE+

FRAMEDRIVE-

EW-DRIVE

B7

Block Diagrams, Testpoint Overviews, and Waveforms

Testpoint Overview SSB

1009 A2
F014 A3
F015 A3
F016 A4
F017 A4
F020 C1
F021 A2
F041 A1
F042 A1
F045 A1
F046 B1
F047 B1
F060 C2

F064 B1
F074 A2
F075 A2
F076 A1
F077 B1
F078 A1
F080 B1
F088 A2
F089 A2
F114 C2
F115 D2
F116 C1
F132 C1

F134 B2
F135 B2
F137 C2
F138 C2
F139 B2
F150 A1
F152 C1
F159 A2
F281 B4
F282 A4
F341 C4
F346 C4
F348 A1

F351 C4
F354 C3
F355 C5
F357 D5
F358 C5
F381 C3
F382 C4
F383 C3
F384 C3
F385 C3
F386 C4
F387 C3
F389 C3

F390 C3
F391 C3
F437 B4
F438 B3
F439 B4
F448 B4
F449 B4
F480 A5
F481 A5
F508 B4
F509 B4
F510 A3
F511 B3

F512 B3
F513 B3
F514 B3
F515 A7
F516 B4
F517 B4
F518 B4
F519 B3
F520 B4
F521 B3
F522 B3
F523 B3
F524 C4

F527 C2
F532 B3
F533 B4
F534 B4
F537 C4
F538 B4
F539 B4
F540 B4
F541 B4
F542 B4
F543 B4
F544 B4
F550 B3

F551 B3
F570 A5
F582 B6
F584 A7
F601 B5
F650 C6
F651 B6
F652 C6
F730 B5
F790 C5
F791 B5
F792 B5
F793 C5

F794 C5
F795 C5
F797 C6
F798 C6
F799 C6
F901 D1
F902 D1
F903 D1
F904 D2
F905 D2
F906 D2
F907 C2
F909 D2

F910 D2
F911 D2
F913 C2
F915 D2
F918 D2
F919 D3
F920 D3
F921 D3
F923 D3
F924 D3
F925 D3
F926 D3
F928 D3

F929 D3
F931 D3
F932 D3
F933 D4
F935 D3
F936 D3
F937 D3
F938 C4
F939 D2
F940 D4
F941 D4
F943 D4
F944 D4

F947 C5
F948 D5
F949 D5
F950 D5
F951 D5
F952 D5
F953 D5
F955 D5
F956 D5
F958 D5
F959 D5
F960 D5
F961 D6

F962 D5
F963 D6
F964 D6
F965 D6
F966 D6
F967 D6
F968 D6
F969 D6
F970 D6
F972 D7
F973 D6
F974 D6
F975 D7

21ES1E AA 6.

F976 D7
F977 D6
F978 D7
F979 D7
F980 D7
I001 C1
I002 A2
I003 A2
I004 B2
I005 B1
I006 A2
I007 A2
I008 A2

I009 B2
I010 A2
I061 C2
I062 B1
I063 C1
I064 B1
I101 C2
I102 B2
I103 B2
I104 C2
I105 B2
I106 B3
I107 B2

I108 B2
I151 B1
I152 B1
I153 B2
I154 B2
I281 C2
I301 C4
I302 C4
I303 C4
I304 C4
I305 C4
I306 C4
I307 C4

I308 D4
I309 C4
I310 D4
I341 B5
I342 C5
I343 C5
I344 C5
I345 C6
I346 C5
I347 C5
I348 C5
I349 C5
I350 C5

I381 C3
I382 C3
I431 A4
I432 A4
I433 A3
I434 A3
I435 A4
I436 A4
I437 A4
I438 A4
I439 A3
I440 A4
I441 A4

I442 A4
I443 A5
I444 A5
I445 A5
I446 A5
I447 A6
I448 A6
I501 C4
I502 C6
I601 B5
I651 C7

2582

SIDE A SIDE B

2583

S5

63 62 61 60

S4

S3 S2 S1

3139 123 5536.2

F014

1 V / div DC

1ms / div

F923

1 V / div DC

10µs / div

F015

1 V / div DC

1ms / div

F924

1 V / div DC

10µs / div

F016

500mV / div DC

1ms / div

F925

1 V / div DC

10µs / div

F017

500mV / div DC

1ms / div

F926

1 V / div DC

10µs / div

F060

500mV / div DC

20µs / div

F928

500mV / div DC

5ms / div

F080

500mV / div DC

20µs / div

F929

500mV / div DC

5ms / div

F064

500mV / div DC

20µs / div

F931

1 V / div DC

5ms / div

F088

1 V / div DC

20µs / div

F941

2 V / div DC

20µs / div

F089

1 V / div DC

20µs / div

F967

200mV / div AC

1ms / div

F150: 3V2 DC
F152: 3V2 DC
F281: 3V2 DC
F381: 0V DC
F382: 0V DC
F383: 0V DC

F968

200mV / div AC

1ms / div

F480

100mV / div AC

1ms / div

F969

500mV / div AC

1ms / div

F481

100mV / div AC

1ms / div

F970

500mV / div AC

1ms / div

F508

1 V / div DC

500µs / div

I306

200mV / div DC

10µs / div

S1

100mV / div DC

20µs / div

F509

1 V / div DC

200µs / div

I308

200mV / div DC

10µs / div

S2

100mV / div DC

20µs / div

F601: 1V8 DC
F650: 3V2 DC
F651: 1V8 DC

I310

200mV / div DC

10µs / div

S3

100mV / div DC

20µs / div

F652

500mV / div DC

500ns / div

I436

20mV / div AC

500µs / div

S4

100mV / div DC

20µs / div

F911

500mV / div DC

20µs / div

I437

20mV / div AC

200µs / div

S5

500mV / div DC

50ns / div

F913

500mV / div AC

10µs / div

I438

100mV / div AC

1ms / div

CL 36532058_008.eps

211103

I2C Overview

I2C Overview

CONTROL

B11

Block Diagrams, Testpoint Overviews, and Waveforms

+5V2 +5V2

ADOC

3509 3510

AF6

AE6

SDA0

SCL0

B1

SSB.
CONN.

0230

22ES1E AA 6.

A7

A6

1205

48

49

A7

A5B18

TUNER

SDA-S

SCL-S

7300-C

7300-k

AF7

AD6

AF8

A26

AF2

VDDE

VDEE

3523

3513

3581

WC

VDDE

7

3515

7025

M24C64

(NVM)

EEPROM

3239

MPIF

B1

B4

F508

5

ERR

13

6

F509

3511

3512

SDA1

SCL1

F-REF

IRQ-MPIF

40

42

43

7100-D

MPIF

DIGITAL

BLOCK

ERR

11

44

3240 3241 3242

54

1232

TUNER

TEDE9

ERR

14

1241

1

2

3

COMPAIR
CONNECTOR
FOR SERVICE
(REACHABLE VIA
HOLE IN REAR
COVER)

B12

MEMORY
INTERFACE

7300-E

DATA

ADDRESS

7790

M58LW032A

RAM

FLASH
CONN.

DATA

FLASH
CONN.

ADDRESS

0291

0290

F_15040_057.eps

250405

Block Diagrams, Testpoint Overviews, and Waveforms

Supply Lines Overview

SUPPLY LINES OVERVIEW

FRONT INTERFACE

M Q1

0201

1

2

A1

1505

or

1051
1031
1951

MAINS

SWITCH

POWER SUPPLY

SUPPLY

PRIMARY

SIDE

SUPPLY

CONTROL

0202

1

2

VDC

VDC

1532

6

7525

HOT GROUND COLD GROUND

23ES1E AA 6.

LINE + FRAME DEFLECTION

A2

+Vbatt

5450

1

2

7673

IN

LINE
OUTPUT
CIRCUIT

+

E/W

CORR.

+200VA

OUT

3

1

-Vaudio

+Vaudio

+5V

+33V

3670

+8VS

5402

A5

5681

9686

EW_DRIVE

HOR.
DEFL.
COIL

7674

VI

VDIS

7405

1404

3351

VO

7404

HD

A5

3401

+33V

5512

9

8

4

5

3

2

4

3

5504

5

4

2

1

3

4

17

18

13

14

10

11,12

1

7513
TCET1103

2

8

9

10

11

12
13

14

1

7516
TCET1103

2

5551

5562

5561

6563

6562

6536

3571

6551

+9VA

7571

REFERENCE

CIRCUIT

+3V3

7573

STANDBY

CIRCUIT

5505

6535

7535

3537

7542

REFERENCE

CIRCUIT

STANDBY

CIRCUIT

+Vaux

5552

F563

F561

3575

3576

STANDBY

5564

3546

3545

3544

STANDBY

Vbatt

A6

7545

STANDBY

CIRCUIT

A4

-Vaudio

+Vaudio

+9VA

+9VA

+5V2

+5V

CRT

F

1351

1

Filament

2

+200V

3

EHTinfo

4

+141V

5

+12V_LOT

6

SVM_ROT

7

AUDIO AMPLIFIER

A4

-Vaudio

+Vaudio

TUNER / IF

A5

+5V

+33V

INTERFACING

A6

+8V

+9VA

+5V

+8VS

+3V3

+5V2

+5V

9675

SCART I/O

A7

+8VS

EHT

FOCUS VG2

10

12

5

6

8

9

A3

-Vaudio

+Vaudio

TO

CRT

B1

3456

6452

-14V

3458

6453

6467

6461

6456

3485

3450

3455

VideoSupply

Filament

+14V

CLASS D - AUDIO AMP (RES)

5914

5910

5913

Vaudio-

-V

Vaudio+

Filament

VideoSupply

EHTinfo

Vbatt

+12V_LOT

SVM_ROT

A5

+33V

1401

6

7

1

2

3

4

5

4x

8x

LOW VOLTAGE SUPPLY-ADOC

B15

5654 5651

+5V2 +1V8

7651
STS5PF30L

F650

5659

+3V3

B14 ADOC SUPPLY

B14

+1V8

+3V3

VDDCO
VDDE

IF & SAW FILTER

B1

+5V

+8V

VIDEO SOURCE

B2

SELECTION

+5V

AUDIO SOURCE

B3

SELECTION

+5V

+8V

MPIF - SUPPLY

B4

+5V

VIDEO DECODER

B5

VDDCO

VDDE

3018

3019

5600

5601

5135

5134

5112

5102

3134

5060

5061

5150

5151

5152

5281

5282

5285

5283

CONTROL

F601

3010

3011

F651

7650
CS51033YDR8

VDDCO

VDDE

+5V

+5Va

+5Vb

+5Vd

+8Va

(For PIP D/W Only)

+8Vc

+5V

To 49 7100-B (MPIF)

To 64 7100-B (MPIF)

+5V

To 77 7100-A (MPIF)

To 98 7100-A (MPIF)

To 88 7100-A (MPIF)

+5V

To 14 7100-D (MPIF)

To 28 7100-D (MPIF)

To 35 7100-D (MPIF)

To F23 7300-J (ADOC)

To P23 7300-J (ADOC)

To AF3 7300-J (ADOC)

To N23 7300-J (ADOC)

RGB PROCESSING

B7

+3V3

+5v

+8v

VDDE

B8

+3V3

+5v

+8v

VDDCO

VDDE

B9

+3V3

+8v

VDDE

B10

+5V

+8v

VDDCO

VDDE

B11

+5V

+5V2

VDDCO

VDDE

B12

VDDE

B13

VDDE

5300

SYNC & DEFLECTION

3358

5342

3340

5345

5344

5343

5342

PROTECTION

3388

AUDIO PROCESSING

5480

5452

5450

CONTROL

CONTROL MEMORY (RAM)

VDDE

CONTROL MEMORY (SDRAM)

5730

5731

+3V3

+5V

+8V

To W4-7300-H (ADOC)

+3V3

To L1 - 7300-F (ADOC)

+8V

To M1-7300-F (ADOC)

To AA4 - 7300-F (ADOC)

To R3 - 7300-F (ADOC)

To N4 - 7300-F (ADOC)

To L2 - 7300-F (ADOC)

To M1 - 7300-F (ADOC)

3V3

+8V

To W1-7300-G (ADOC)

To 8 - 7480 (HP AMPL.)

+8V

To AD22-7300-B (ADOC)

To AC22-7300-B (ADOC)

+5V

+5V2

VDDCO

VDEE

To 9, 37, 43, - 7790 (RAM)

To 1, 14, 27, 7730

To 3, 9 43, 49, 7730

F_15040_058.eps

290405

Circuit Diagrams and PWB Layouts

7. Circuit Diagrams and PWB Layouts

LSP: Power Supply

123456789101112

A1

A

B

230V AC

MAINS

OR

FROM

0202 OF

FRONT INTERFACE

C

OR

FROM 0220 OF

MAINS SWITCH

PANEL

2528

D

E

F

G

I565

H

1u0

2585

2582

I500

I

3139 123 5895.4

POWER SUPPLY

DEGAUSSING COIL

1504

1

F500
F501

2

T4E.250V

*

34

1500

12

9500

for ITV only

I511

14V

2

3

22u

2511

6

1V

1n0

2517

RGP10D

1K2

3512

15V

2

I546

3

22u

2510

6

1V

1n0

2509

RGP10D

3521
1K2

2

1502

PFC5000

7511
TEA1507

Vcc

Gnd

Ctrl

7510
TEA1507

Vcc

Gnd

Ctrl

2512

I512

3504

INPUT

CONTROL

CIRCUIT

BURST

DETECTOR

I527

100n

INPUT

CONTROL

CIRCUIT

BURST

DETECTOR

2521
47n

FREQUENCY

CONTROL

FREQUENCY

CONTROL

I553

3528

470n

I564

3519

1u0

BAV21WS

1501

PFC5000

I503

2586

F503

2
1

F504

I504

3598

330K

6511

I510

47K

3527

I509

12V

7532
BC857B

0V

330p

6509

1M0

15K

6581

1505

6538

BAS316

I554

UDZS-13B

13V

3529

1M5

6539
3580

220K

1

F506

2500

1M5

470n

F507

SMPS CONTROL

SUPPLY

MANAGEMENT

3518 3K3

SUPPLY

MANAGEMENT

10K

3593

0V6

22K

3594

2501

*

*

1

3505

*

V

2

*

DMF2405H60

9503

*

VOLTAGE
CONTRLLED
OSCILLATOR

OVER

TEMPERATURE

PROTECTIOM

POWER-ON

RESET

SMPS CONTROL

VOLTAGE
CONTRLLED
OSCILLATOR

OVER

TEMPERATURE

PROTECTIOM

POWER-ON

RESET

I544

7549-1

3

IMX1

5

4

*

3507

+t

10R - PTC

*

3509

+t

10R - PTC

2n2

9501

5501

3523

T890-B60-A110

+T

4R5

Rs

Rh

4R5

21

I534

3502

*

PROTECTION

PROTECTION

3596

*

DSP-301N

I572

*

4

*

1

I583

23

3

14

23

3501

LOGIC

CONTROL

CIRCUIT

MAXIMUM

ON-TIME

7567

BC847B

LOGIC

CONTROL

CIRCUIT

MAXIMUM

ON-TIME

3524

3K3

3595

100K

2

0V5

10u

10K

2583

3503

9502

5500

DMF28

9504

*

5506

DMF35

3M3

CURRENT SOURCE

VALLEY

CURRENT SOURCE

OUTPUT
DRIVER

1V

CURRENT SOURCE

VALLEY

CURRENT SOURCE

OUTPUT
DRIVER

13V

PROTECTION

0V

START-UP

PROTECTION

43

I563

3

4

Audio_Gnd

START-UP

START-UP

CURRENT
SENSING

OVER

POWER

3568 47K

START-UP

CURRENT
SENSING

OVER

POWER

6

7549-2
IMX1

1

I560

BAS3166567

F502

Demag

Sense

Driver

Demag

Sense

Driver

220K

Drain

Drain

3597

I559

I506

2506

33n

*

3510

-T

4R7

9511

100n

2502

2508

*

I507

7517

BC847B

1V5

14

HVS

7

9

11

7512

300V

*

1V5

I513

G

I517

3514

*

3522

56K

2516

I519

100n

2513

300K3517

470p

I520

HEATSINK

3K3

3567

HVS

3536

I525

220R

7525

*

1V5

14

G

I526

300V

3526

330K

7

9

11

3530

56K

2520

I530

3588

470K

BAS316

I555

3525

300K

I528

5502

SP48012-00

9506

*

3508

220R

300V

D

S
0V

I518

2526
100p

1550

12

I568

300V

D

0V

S

3531
1K0

I531

100n

6578

2519

81

45

I501

2n2

2503

1

2n2

2504

I502

3513

2K2

0V

47K3549

3550

6514 BAS316

I516

2514

1n5

3515

I521

1K0

3516

3520

6575

1N5392

*

*

I532

*

3532

6532

BAV21WS

I550

6533

470p

BAV21WS

56

I582

6582

2523

3533

24ES1E AA 7.

13

+Vaudio

1503

*

LKS1AF

6500
GBU4J

2

F508

"$"

4

*

3

I514

3K3

I536

*

330p

5511

3511

4R7

3538

5532

2507

2505

*

330u

F574

F509

*

5512

F575

2

3

I515

6

7

8

9

1n0

2515

15V

I523

3

3V4

7513
TCET1103(G)

T

1532

3535

315mA

2544

5504

2n2

I557

I537

2522

470p

7516
TCET1103(G)

I529

6

5

4

2

1

15V

5V4

SS25113-00

4

3

2580

2n2
3592

33K

I533

33R

3534

*

HOT GROUND

"$"

FOR MAINS 120V AC 170V (177V)

..V.. Normal Operation
(..V..) Standy Mode

HOT GROUND

COLD GROUND

I543

3541

I542

7541
BC857B

*

16V

16V

2542

1n5

2570

2588

Vaux_GND

14

7V4

2

6V5

1

2

7V4

F542

Audio_Gnd

1246 OF

TUNER/IF

18

17

14

13

12

11

10

I575

I558

8

9

10

11

12

13

14

8V5

3548

3587

2541

1544

TO

AUDIO_GND1

AUDIO_GND2

I539

I592

Audio_Gnd

4R7

COLD GROUND

220V AC 309V (317V)

F541

1543

1542

Vaux_GND1

1K0

2K2

47K

6541

47u

I586

I571

Vaux_GND1

Vaux_GND

BZX384-C12

I551

5562

5561

I561

I540

HEATSINK

1551

12

3542

680R

TL431CZ-AP

6551

5551

I579

I562

3571

680R

7571

TL431CZ-AP

3563

220R

STPS10L60D

Vaux_GND1

7542

Vaux_GND

BYT28

I552

2551

1n0

BYV29X-500

6549
6563

SB360L

2565

1n0

6550

BYV29X-500

6562

SB360L

2561

1n0

AUDIO_GND2

F576

3579

2K2

2571

15n

2587

1n0

KA

3

REF

21

I548

I587

6564

BAS316

I538

2538

1n0

6548

6535

SB340L-7010

1552

12

I590

SB260

2539

HEATSINK

6537

STPS10L60D

2540

1n0

Vaux_GND1

3543

10K

2578

2n2

KA

3

REF

21

I581

7V4

7575

BC847B

10n

0V

2575

Vaux_GND

Vaux_GND

2552

2563

F562

AUDIO_GND1

2562

3573

3574
180K

I588

2564

6536

470p

Vaux_GND

2m2

I591

I593

F583

15K

Vaux_GND

2535

4m7

2537

2543

100n

F552

100u

2m2

2m2

3575

6565

100n

7573
PDTC114ET

82K

I578

3576
1K5

*

F535

*

I545

3545
2K2

*

5564

470U

Vaux_GND

9512

5V

3553

27K

Vaux_GND

3544

2K2

Vaux_GND

3584

F563

F561

I574

6V6

I577

1m0

Vaux_GND

3

S

D

2

3537

68K

2589

2u2

I589

10K

7576-2

2536

2584

5V

G

3583

6

IMX1

1

Vaux_GND

470u

0V

5552

+9VA

F578

1

2V5

5K6

27u

*

*

I547

5566

9532

5567

9533

0V

27K

3565

*

F582

3546
68K

2546

2u2

7535

SI2307DS

2579

47n

0V

BAS316

6512

5505

5u6

9507

I597

2

F573

3566

RT-01T-1.0B

9553

Vbatt

-Vaudio

+Vaudio

22K

4550

*

7562

BC847BW

1

0V7

Vaux_GND

+5.2V

+5V

Vaux

Vaux_GND

3586

8V6

3

F581

4

Vaux_GND

5

0V

+9VA

5K6

Vaux_GND

Audio_Gnd

I569

3552

3

2

Vaux

Vaux_GND1

+9VA

3585

7583-2

IMX1

Vaux_GND

I599

+5.2V

0V

10K

0V

56K

AUDIO_GND1

Vaux_GND

7547
PDTC114ET

+9VA

Vaux_GND

Vaux_GND

2553

82p

Vaux_GND

+9VA

10n

2572

3551

0V7

3

10K

3

7545
SI2305DS

F537

I570

3590

10K

BAW56W

Vaux_GND

0V5

IMX1

7583-1

7561
BC847BW

2

Vaux_GND

2524

22u

Vaux_GND

F580

3540

68K

82K

2576

100n

5

IMX1
7576-1

3

4

Vaux_GND

I566

0V

1

3589

Vaux_GND

2

1

68K

6576

I573

3591

I580

6574

TO

1506 OF

1506

INTERFACING

5565

9513

AUDIO_GND2

POWER_DOWN

1538

11
10
9

8
7

6
5
4
3
2
1

B11B-PH-K

+5.2V

10K

3554

I596

2V9

2V9

100n

2591

PDTC114ET
7548

Vaux_GND

22K

3581

I522

0V

7584

PDTC114ET

10u

10u

2590

2577

Vaux_GND

ATSC

+5.2V

4K7

3547

0V

STANDBY

0V

Vaux_GND

F_15040_001.eps

A1

A6

STANDBY

A1,A6

A1

+5V

230305

A

B

C

D

E

F

G

H

I

1500 B2
1501 B2
1502 B2
1503 A7
1504 A2
1505 C1
1506 A13
1532 E7
1538 E12
1542 B8
1543 B8
1544 B8
1550 F6
1551 F8
1552 F9
2500 C3
2501 A3
2502 C5
2503 B6
2504 B6
2505 B6
2506 B5
2507 B7
2508 C5
2509 H2
2510 G2
2511 D2
2512 F2
2513 E5
2514 D6
2515 D7
2516 E5
2517 E2
2519 H6
2520 H5
2521 I3
2522 G7
2523 G6
2524 F11
2526 E6
2528 D1
2535 F9
2536 F10
2537 G9
2538 F9
2539 F9
2540 G9
2541 B8
2542 B7
2543 H9
2544 F7
2546 F10
2551 B9
2552 B9
2553 A11
2561 C9
2562 C9
2563 B9
2564 E9
2565 B9
2570 D7
2571 D9
2572 D11
2575 I9
2576 H11
2577 I12
2578 H9
2579 I10
2580 F7
2582 H1
2583 I4
2584 F10
2585 H1
2586 H1
2587 D9
2588 G7
2589 G10
2590 I12
2591 H12
3501 C4
3502 B4
3503 B4
3504 C2
3505 C3
3507 A4
3508 B6
3509 A4
3510 B5
3511 E6
3512 F2
3513 C6
3514 D5
3515 D6
3516 E6
3517 E5
3518 F3
3519 E1
3520 E6
3521 I2
3522 D5
3523 A4
3524 I4
3525 H5
3526 G5
3527 G2
3528 D1
3529 C1
3530 G5
3531 G6
3532 H6
3533 H6
3534 G6
3535 E7
3536 F5
3537 G10
3538 H6
3540 F11
3541 A8

3542 H8
3543 H9
3544 H10
3545 G10
3546 F10
3547 G13
3548 H8
3549 C6
3550 C6
3551 D11
3552 D12
3553 H10
3554 G12
3563 E8
3565 E10
3566 G10
3567 F5
3568 F4
3571 C8
3573 D9
3574 E9
3575 D9
3576 E10
3579 D9
3580 G1
3581 I12
3583 H10
3584 I10
3585 H12
3586 H11
3587 H8
3588 H5
3589 E11
3590 H11
3591 H11
3592 F7
3593 I3
3594 I3
3595 I4
3596 I4
3597 H5
3598 D2
4550 E11
5500 C4
5501 C3
5502 A6
5504 F7
5505 F10
5506 C4
5511 D6
5512 C7
5532 F7
5551 A8
5552 B10
5561 C8
5562 B8
5564 F10
5565 A12
5566 B10
5567 C10
6500 B6
6509 H2
6511 E2
6512 E10
6514 D6
6532 H6
6533 H6
6535 F9
6536 F9
6537 G9
6538 D1
6539 G1
6541 A8
6548 F9
6549 B9
6550 C9
6551 A9
6562 C9
6563 B9
6564 E9
6565 E9
6567 F4
6574 I11
6575 E6
6576 H11
6578 H5
6581 H1
6582 F6
7510 G2
7511 D2
7512 D5
7513 E7
7516 H7
7517 C5
7525 G5
7532 H2
7535 G10
7541 A8
7542 H8
7545 F11
7547 G12
7548 H13
7549-1 I3
7549-2 I4
7561 E11
7562 E11
7567 F4
7571 D8
7573 D10
7575 I9
7576-1 I11
7576-2 I10
7583-1 I11
7583-2 I12
7584 I12
9500 C2
9501 B3
9502 B4

9503 C3
9504 C4
9506 B6
9507 F10
9511 B5
9512 G10
9513 A12
9532 B10
9533 C10
9553 A12
F500 A2
F501 A2
F502 A5
F503 C2
F504 C2
F506 B3
F507 C3
F508 B7
F509 B7
F535 F10
F537 G11
F541 A8
F542 B8
F552 B9
F561 C10
F562 C9
F563 B10
F573 D10
F574 B7
F575 C7
F576 D9
F578 F10
F580 F11
F581 I11
F582 F10
F583 B9
I500 I1
I501 A6
I502 C6
I503 B2
I504 C2
I506 A5
I507 C5
I509 G2
I510 G2
I511 D2
I512 I2
I513 D5
I514 C6
I515 D7
I516 D6
I517 D5
I518 D6
I519 E5
I520 E5
I521 D6
I522 I12
I523 E7
I525 F5
I526 G5
I527 F2
I528 I5
I529 I7
I530 H5
I531 G6
I532 G6
I533 G7
I534 B4
I536 F6
I537 F7
I538 F9
I539 G8
I540 F8
I542 A7
I543 A8
I544 H3
I545 G10
I546 G2
I547 G10
I548 E9
I550 H6
I551 B8
I552 B9
I553 C1
I554 D1
I555 H5
I557 F7
I558 F8
I559 A5
I560 I4
I561 D8
I562 C8
I563 A4
I564 E1
I565 H1
I566 E11
I568 F6
I569 D12
I570 G11
I571 E8
I572 B4
I573 H11
I574 D10
I575 E8
I577 E10
I578 D10
I579 B8
I580 I11
I581 I9
I582 C6
I583 C4
I586 B8
I587 E9
I588 E9
I589 I10
I590 H9
I591 H9
I592 H8

I593 H9
I596 G12
I597 I10
I599 I12

7 8 9 10 11 12 13

LSP: Deflection

Circuit Diagrams and PWB Layouts

25ES1E AA 7.

A2

Vbatt

A

B

C

D

E

F

G

+33V

A6

SVM-ROT

+12V_LOT

A2

EHT-INFO

VideoSupply

A2

Filament

F455

A6

HDRIVE

Vbatt

A6

EW_DRIVE

A2,A6

EHT-INFO

3139 123 5895.4

1 2345678910

DEFLECTION

*

9410

3

3493

1R0

2410

*

5406

4

1

1

5408

4

2427

6n8

5401

L.LIN

F464

1

2

I450

*

9401

5409

11V

3488

GND_DEF

2

2

GND_HOR

3

I443

220K

GND_EW

5410

12u

I432

9402

3

*

2419

*

2457

100p

6403

GND_DEF

I449

3417

3473

3433

1K0

2417

I428

*

9412

560n

2495

150K

GND_EW

2418

F465

I455

*

5411

I475

100n

I497

BAS316

6405

2459 470p

6456

RGP10G

6469

BYV29X-500

2466

470p

3477
820R

I494

3465

8K2

CRT_GND

GND_DEF

GND_DEF

6459

2490

12V2

2476

47u

+12V_LOT

F462

I468

BZX79-C22

I460

10n

CRT_GND

F478

12V2

3485

F472

6474

CRT_GND

3K9

3474

3443

I436

0V

GND_DEF

2487

*

2489

4u7

HFB_X-RAY-PROT

100K

GND_DEF

7456
PDTC144ET

F458

5450

*

JF0101

10K

1

EHT

TO PICTURE TUBE

FOCUS

5

3

12

1K0

3479

+13V

F456

I493

3455

1R0

2460

2471

1m0

2n2

-14V

GND_DEF

INP

A6

GND_DEF

A6

INN

2479

GND_DEF

3463

1K5

12n

1K5

3476

3461

*

3471

GND_DEF

F482

*

220K

F451

BZX384-C27

+13V

F483

220n

220n

2462

2463

3472

SCREEN

GND_DEF

11

10

6

7

89

6458

BYV27-200-TAP

2473

2n2

2452

GND_DEF

*

1R

3470

CRT_GND

220K

10K

3480

3491

1403

GND_DEF

1405

1406

I458

470p2492

I492

3

VP2

V-OUT

VFB

4

I469

3450

1R0

2449
470u

CRT_GND

F457

GND_DEF

I495

2

2468

100n
2464

100n

2465

100n

3486

1R0

3487
1K0

24702n2

2461

10u

3466

GND_DEF

6466

9447

GND-LINEDRIVE

470p2448

6461

I459

BYG10

13V5

I476

6457

7455
TDA4863J

1

VP1

75

INP

2n2

6

INN

GND

-15V2

GND_DEF

GND

I482

2n2

2453

FRAME

3453

GND_DEF

10u

6476

BZV85-C6V8

GND_DEF
GND_DEF

5R6

I438

I480

BZX384-C27

6478

*

GND_DEF

F481

I439

2469

3469
8K2

GND_DEF

5453

3452

I481

2499 2498

2451

I437

F466

5R6

100n

100n

I487

*

GND_DEF

6480

BZX79-B33

7408

BC857B

48V

0V

3467

220R

3468

220R

2450

GND_DEF

2432

100n

3459

1K0

F469

3492

10K

*

2477

3462
6K8

50V

3460
8K2

7407
PDTC144ET

0V

I435

1452
1
2
3

FRAME

DEFLECTION

COIL

8n2

I440

RES

BZX384-C18

F402

F401

CRT_GND

47K3401

F404

FROM LOT

5450

5456

1402

2405

1401

7

TO 1351 OF
CRT BOARD

6
5
4
3
2

GND_HOR

1

2406

470p

470p

I402

2402

2403

5455

CD25405-00

99

7

7

NC

1

5

F459

22

*

9411

F416

44

HORIZONTAL

I489

2404
47u

GND_HOR

3412

150R

2431

2n2

B2P-VA-BF

1404

DEFLECTION

VideoSupply

-14V

F475

330R

I414

3408

F476

3422

100K

I491

GND_EW

F453

7404
BSH103

3402

I413

G

2V3

220p

2497

100K

GND_HOR

3423
680K

6424

BZX384-C6V8

2422

100n

I445

680K3435

22K3437

5452

10u

GND_HOR

D

S

3424 22K

6464

I446

I447

2458

100n

6V6

I470

3490

150R

I488

BZX384-C27

33n

2409

6425

BAS316

2437

15n

GND_EW

I418

I419

GND_HOR

I420

+5V

GND_HOR

4R7 3458

LINE

5402

1

3

PSD10-204B

2488
1u0

3414

3418

1K0

10n

2496

GND_EW

I466

F452

2454

470u

GND_DEF

5

6

I462

3421

15R

I496

1M0

6426

BZX79-C5V6

GND_HOR

F418

3415

3499

470p 2494

RGP10G

470p 2493

6452

RGP10D

7405

BU2520DX

0V

3416
47R

I463

BYG10

E/W

7406

G

4V8

GND-LINEDRIVE

6453

I453

0V

3432

330p

2478

I490

D

S

I499

3426

GND_HOR

MainSupplyGnd

I457

140V

F419

27V

0V

2411

*

I410

6471

RGP10D

3434

2K2

3R3

2414

3419

BAW56W

6465

3425

82K

I415

2425

RES

GND_EW

GND_EW

COIL

1K0

3403

MainSupplyGnd

K

2n2

A

I464

I423

2407

6404

GND_HOR

BAS316

2

C948

1

3456

1R0

*

2412

DMV1500M
J

I473

2413

*

3451

6V6

I448

BC557B

7403

6427
3436

2K2

CRT_GND

4

312813831423

*

2416

312813834922

I442

100n

0V

1 2345678910

A2

A2

EHT-INFO

CRT_GND

A2

Filament

A2,A6

+12V_LOT

3V

7486
PDTC143ZT

A6

VGUARD

Frame_FB

F_15040_002.eps

220305

A

B

C

D

E

G

1401 A1
1402 B1
1403 B7
1404 B4
1405 B7
1406 B7
1452 E9
2402 B2
2403 B2
2404 A4
2405 B1
2406 B2
2407 C4
2409 E2
2410 E4
2411 D3
2412 D4
2413 D4
2414 D3
2416 D4
2417 D5
2418 D5
2419 D4
2422 G1
2425 G3
2427 A4
2431 B4
2432 E9
2437 G2
2448 D7
2449 D8
2450 B9
2451 B8
2452 F7
2453 F7
2454 C2
2457 E5
2458 C2
2459 E5
2460 E6
2461 E8
2462 F6
2463 F6
2464 F8
2465 G8
2466 C9
2468 F8
2469 C8
2470 E8
2471 E6
2473 F7
2476 C9
2477 C9
2478 E3
2479 F6
2487 B10
2488 D2
2489 B10
2490 D9
2492 C7
2493 C3
2494 B3
2495 F5
2496 G2
2497 D1
2498 F8
2499 F8
3401 A1
3402 D1

F

3403 C3
3408 D1
3412 B4
3414 E2
3415 E2
3416 D3
3417 F5
3418 F2
3419 E3
3421 E2
3422 F1
3423 F1
3424 F1
3425 F3
3426 G3
3432 E3
3433 A5
3434 F3
3435 F1
3436 G4
3437 G1

3443 D10
3450 D8
3451 E4
3452 F8
3453 B8
3455 E6
3456 C4
3458 C2
3459 E9
3460 D9
3461 F6
3462 C9
3463 F6
3465 D9
3466 F8
3467 F8
3468 F8
3469 D8
3470 G7
3471 G6
3472 G6
3473 F5
3474 C10
3476 F6
3477 C9
3479 D5
3480 B7
3485 B10
3486 C8
3487 D8
3488 F4
3490 D2
3491 B7
3492 B9
3493 E4
3499 F2
5401 B4
5402 D2
5406 C4
5408 D4
5409 C4
5410 A5
5411 D5
5450 A6
5452 B1
5453 E8
5455 A2
5456 B1
6403 E5
6404 D4
6405 D5
6424 F1
6425 F2
6426 G2
6427 F4
6452 C3
6453 C3
6456 E5
6457 E7
6458 E7
6459 E9
6461 D7
6464 D2
6465 E3
6466 C7
6469 B9
6471 F3
6474 C10
6476 C8
6478 B8
6480 C9
7403 E4
7404 D1
7405 D3
7406 F3
7407 D9
7408 C9
7455 E7
7456 E10
7486 E10
9401 C4
9402 B5
9410 A5
9411 B3
9412 D5
9447 C7
F401 A1
F402 A1
F404 B1
F416 B4

F418 D3
F419 D3
F451 G6
F452 C2
F453 B1
F455 B1
F456 E6
F457 E8
F458 F10
F459 A3
F462 B10
F464 B4
F465 C5
F466 E8
F469 F9
F472 C10
F475 D1
F476 F1
F478 D10
F481 C8
F482 F6
F483 F6
I402 B2
I410 E3
I413 D1
I414 D1
I415 F3
I418 D2
I419 D2
I420 E2
I423 F3
I428 D5
I432 A5
I435 E9
I436 E10
I437 E8
I438 F8
I439 C8
I440 C9
I442 E4
I443 E4
I445 F1
I446 F2
I447 G2
I448 E4
I449 E5
I450 B4
I453 C3
I455 C5
I457 B3
I458 B7
I459 D7
I460 C10
I462 E2
I463 E3
I464 E4
I466 C2
I468 B10
I469 C8
I470 B2
I473 D4
I475 E5
I476 E7
I480 F8
I481 F8
I482 F7
I487 B8
I488 D2
I489 B4
I490 F3
I491 G1
I492 D7
I493 E5
I494 C9
I495 E8
I496 F2
I497 F5
I499 F3

Circuit Diagrams and PWB Layouts

LSP: Class D Audio Amplifier (Res)

1234

CLASS D - AUDIO AMP(RES)

A

A6

A6

B

A4

C

A3,A6

D

Vaudio-

E

F

A3,A6

A3,A6

A3

A3

A3

A3

3139 123 5895.4

AUDIO-SW

AUDIO-L

SUB_MUTE

VOL_MUTE

AUDIO-C

AUDIO-R

VOL_MUTE

AUDIO-R

Audio_Gnd

AUDIO-L

AUDIO-C

AUDIO-SW

F910

*

4930

*

9917

F901

1904

B6B-PH-K

3930

3K9

Audio_Gnd

3962

33K

9918

4931

1
2
3
4

And

5

For ITV

6

From Hybrid board

Audio_Gnd

I909

3932

1K0

2933

6n8

I920

3936

3K9

3938

1K0
2938

6n8

Audio_Gnd

2930

2934

100n

3n3

I908

I913

7904
BC857B

Audio_Gnd

Audio_Gnd

I925

2939

3n3

I903

2931

3n3

3931

220K

3933

120R

BZX384-C33

2936

3n3

3937

220K

2935

100n

3939

100R

I918

6962

7901-1
LM393N

3

2

3K9

3934

3935

I914

10K

+Vaudio

3959

3961

Vaudio-

7903
PDTC143ZT

5

I904

6

3K9

3940

3941

I948

10K

3K9

I915

470R

Vaudio+

3973

-V

-V

10K

2914

8

100n

4

-Vaudio

3947

39K

6904

BZX384-C27

8

7901-2

LM393N

4

I941

1

7

Audio_Gnd

Vaudio-

3949

-V

22K

2977

22u

2960

22u

2942

100n

3943

Audio_Gnd

I916

3942

2K2

3974

2K2

4K7

I921

I922

Vaudio-

F912

Audio_Gnd

Vaudio-

I945

TDA8925J

F913

Audio_Gnd

7902

1
2
4

9

15

17
16
14

2951

2950

2949

470u

2948

2947

2945

2946

220n

47n

47n

22u

47n

470u

26ES1E AA 7.

Vaudio+

I924

5

VDD1

CLASS-D

AMPLIFIER

SW1
REL1
EN1

STAB

POWERUP

SW2
REL2
EN2

VSS1

8

Φ

I928

3958

I901

1

13

VDD2

BOOT1

BOOT2

VSS2

10

2K2

OUT1

DIAG

OUT2

2961

10u

3960

100K

P0102DA

3

6905

Vaudio-

65897

1901 C9
1902 D9
1904 F1
2911 A8

A3A3

2913 B8
2914 A3
2930 B2

A

B

2931 A2
2933 B2
2934 B2
2935 E2
2936 D2
2938 F2
2939 E2
2942 C4
2945 D5
2946 D5
2947 B5
2948 B5
2949 B5
2950 A5
2951 A5

6906

Vaudio-

BAV99

I930

2

2963

10p

-Vaudio

+Vaudio

100n

2965

100n

2964

Audio_Gnd

Audio_Gnd

I902

2911

Audio_Gnd

5914

5910

100n

5913

I926

I927

Vaudio+

Vaudio-

-V

2952 C6
2953 D6
2954 D7
2955 C7
2957 C8

Vaudio+

2913

Audio_Gnd

100n

2978

22u

2979

47n

2960 C4

C

D

2961 A5
2963 B6
2964 A7
2965 B7
2970 D7
2971 D7
2977 A4
2978 B8
2979 B8
2982 C8
2983 E8
2984 E8
3930 B2
3931 A2
3932 B2
3933 B2
3934 B3
3935 B3
3936 E2
3937 E2
3938 F2
3939 F2
3940 F3

Audio_Gnd

39K

3952

3953

Vaudio+

39K

2953

1u0

2952

1u0

I938

I934

3955

4R7

3971

4R7

I936

I943

5901

33u

2955

680p

2954

680p
2971

680p

2970

680p

5902

33u

I935

Vaudio-

Vaudio+

Vaudio-

Vaudio+

Audio_Gnd

6

7

3

12

11

2957

3956

470n

Audio_Gnd

GND-AUD

V

2982

Audio_Gnd

Audio_Gnd

F904

15n

F905

Audio_Gnd

F903

1901

B3B-EH-A

1902
1
2
3
4

1
2
3

PASSIVE

SUBWOOFER

L

R

5913 A8
5914 B8
6904 E3
6905 B6
6906 A6
6962 C3
7901-1 A3
7901-2 E3
7902 C5
7903 D3
7904 C2
9917 B1
9918 E1
F901 C1
F903 D9
F904 C9
F905 D9
F910 F1
F912 B4
F913 D5
I901 A5
I902 A8
I903 F2
I904 E3
I908 B2
I909 A2
I913 B2
I914 B3
I915 C3
I916 B4
I918 D2
I920 C2
I921 C4
I922 D4
I924 A5
I925 E2
I926 B8
I927 B8
I928 A5
I930 A6
I934 C6
I935 C7
I936 C7
I938 D6
I941 A3
I943 D7
I945 D4
I948 F3

3941 F3

E

3942 B4
3943 C4
3947 C3
3949 C4
3952 C6

2984

Audio_Gnd

470n

2983

15n

3972

V

3953 D6
3955 C7
3956 C8
3958 A5
3959 C3
3960 B5
3961 C3
3962 C1
3971 D7
3972 E8
3973 A3

F

3974 C4
4930 A1
4931 E1
5901 C7

F_15040_003.eps

230305

5902 D7
5910 B8

14

25

3

6789
