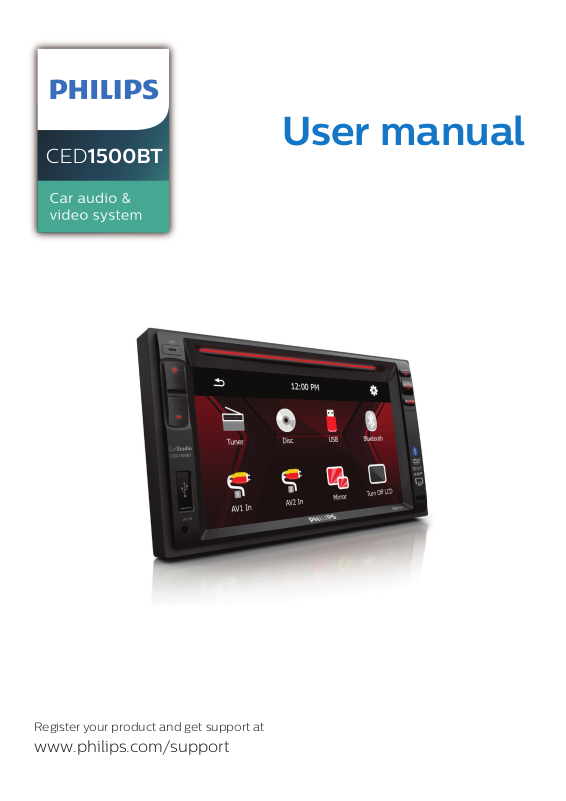

Philips CED1500BT/98 User Manual

Download

User manual

www.philips.com/support

Contents

1 Safety 2

2 Your car

Introduction 3 Playable media 3 What's in the box 3 Overview of the main unit 4 Overview of the remote control 5

3 Install the car

entertainment

system 3

system 6

Connect wires 6 Mount into the dashboard 10

4 Get started 11

Prepare the remote control 11 Turn on 11 Use the home menu 11 Set the time 12 Adjust the screen brightness 12

5 Play from hard media 13

Load a disc 13 Connect a USB storage device 13 Control play 14 Browse recorded les 14

Make a call 18 Adjust Bluetooth settings 19

8 Smart Connect Link 20

9 Universal USB Charging 21

10 Adjust sound 21

Adjust the volume level 21 Mute sound 21 Enable the MAX Sound feature 21 Enable the DBB sound eect 21 Select a preset sound equalizer 22 Others 22

11 Adjust settings 23

Access system setup menus 23 Adjust general settings 24 View system information 24

12 Others 25

Play external audio/video input 25 Use buttons on the steering wheel 25 Reset the system 26 Replace the fuse 26 Upgrade the rmware 26

6 Listen to radio 15

Switch to radio mode 15 Set up 15 Tune to a radio station 15 Store radio stations in memory 15 Tune to a preset radio station 16 Use RDS related features 16

7 Use Bluetooth devices 17

Pair a device 17 Play audio from a connected

device 18

13 Product information 27

14 Trouble shooting 29

General 29 About the Bluetooth device 30

15 Notice 31

Compliance 31 Care of the environment 31 Trademark notice 31 Copyright 32

1EN

1 Safety

Read and understand all instructions before you use the device. If damage is caused by failure to follow instructions, the warranty does not apply.

• Use of controls or adjustments or performance of procedures other than herein may result in hazardous radiation exposure or other unsafe operation.

• The device is designed for negative ground (earth) 12 V DC operation only.

• To reduce the risk of trac accidents, do not watch video when driving.

• To ensure safe driving, adjust the volume to a safe and comfortable level.

• Improper fuses can cause damage or re. When you need to change the fuse, consult a professional.

• Use only the supplied mounting hardware for a safe and secure installation.

• To avoid short circuits, do not expose the device, remote control or remote control batteries to rain or water.

• The device shall not be exposed to dripping or splashing.

• Do not place any sources of danger on the device (e.g. liquid lled objects, lighted candles).

• Never insert objects into the ventilation slots or other openings on the device.

• Never place any objects other than discs into the disc tray/slot.

• To avoid exposure to laser radiation, do not disassemble the device.

• Risk of damage to the screen! Never push, rub, or strike the screen with any object.

• Never use solvents such as benzene, thinner, cleaners available commercially, or anti-static sprays intended for discs.

• Clean the device with soft, damp cloth. Never use substances such as alcohol, chemicals or household cleaners on the device.

• Risk of swallowing coin battery!

• The product/remote control

may contain a coin/button type battery, which can be swallowed. Keep the battery out of reach of children at all times! If swallowed, the battery can cause serious injury or death. Severe internal burns can occur within two hours of ingestion.

• If you suspect that a battery

has been swallowed or placed inside any part of the body, seek immediate medical attention.

• When you change the batteries,

always keep all new and used batteries out of reach of children. Ensure that the battery compartment is completely secure after you replace the battery.

• If the battery compartment

cannot be completely secured, discontinue use of the product. Keep out of reach of children and contact the manufacturer.

2 EN

2 Your car

abc

def

entertainment system

Congratulations on your purchase, and welcome to Philips! To fully benet from the support that Philips oers, register your product at www.philips.com/support.

Introduction

With the car entertainment system, you can

• listen to music,

• watch videos,

• view pictures,

• listen to FM and AM/MW radio, and

• make phone calls via Bluetooth.

Playable media

• .mp3 les

Sampling frequencies: 32 kHz,

44.1 kHz, 48 kHz Bitrates: 8-320 kbps and variable bitrates

• .wma les

Versions: V4, V7, V8, V9 (L1 and L2) Sampling frequencies: 44.1 kHz, 48 kHz Bitrates: 64-192 kbps and variable bitrates

• ID3 tag V2.0 or later

• Unsupported les:

AAC, WAV, and PCM les DRM protected WMA les (.wav, .m4a, .m4p, .mp4, and .aac) WMA les in lossless format

What's in the box

Check and identify the contents of the package:

• Disc

• DVD, Video CD, SVCD, Audio

CD, JPEG Picture CD, MP3-CD, WMA-CD

• DVD-R, DVD-RW, DVD+R, DVD+RW, CD-R, CD-RW

• USB storage device

• Compatibility: USB 2.0, USB 1.1

• Class support: MSC (Mass

• Files

Storage Class)

• Maximum capacity: 32 GB

• File system: FAT16, FAT32

• Maximum number of folders: 99

• Maximum number of tracks/les:

999

• Maximum level of directory: 8

• Video formats: MPEG1, MPEG2

• Picture format: .jpeg

1 Main unit 2 Remote

control

3 ISO male

connector X 2

5 Screw X 4

(M5x8mm)

7 Remote control

battery

4 Rubber

cushion

6 Hexagon

head screw

8 User manual

3EN

Overview of the main

unit

e iR sensor

CED1500BT

• Press to eject the disc.

• Press and hold to adjust the

brightness of LCD screen.

• Press to power on the unit.

• Press and hold to power o the

unit.

• Press to mute the speakers or release them from mute status.

• Press to reset the system.

• The sensor that receives infra-

red signals from the remote control.

• Connect to the audio and video output sockets of an external player by a composite AV cable.

b c d

• Connect to a USB storage device.

h LCD screen i +/-

• Press to increase or decrease the volume.

• The built-in microphone for phone calls.

k Disc slot

4 EN

Overview of the remote

b c

x w

control

RADIO

OPTION

SUB

ZOOM

TITLE

• Press to eject the disc.

• Press to mute the speakers or release them from mute status.

• Return to the previous menu or mode.

• Press to increase or decrease the volume.

• Access the home menu.

• Select an audio language or audio channel.

• Access to system setup menu..

• Select music listening zone.

• Select an audio language or audio channel.

AUDIO

ZONE

SU BW

• Access the menu for subwoofer settings.

• Select a preset sound equalizer.

• Select a music listening zone.

• Select an available subtitle.

• Turn on or o the screen.

• Access the top menu.

• Access the DVD menu.

• Access the the folder or le list.

• In radio mode, press to display available menus or options.

• Start, pause, or resume the play.

• Conrm an option.

/ / /

• Skip to the previous or next track, chapter, or le.

• For DVD, press and hold to select a speed for fast backward or forward search.

• Select a tuner band.

/ / /

• Tune to the previous or next preset radio station.

• Skip to the previous or next folder.

• Turn the car audio on or o.

• Press to adjust the brightness of the LCD screen.

5EN

3 Install the car

Connect wires

entertainment system

Always follow the instructions in this chapter in sequence. These instructions are for a typical installation. However, if your car has dierent requirements, make the adjustment accordingly. If you have any question regarding installation kits, consult your local retailer.

Note

This system is designed for negative

•

ground (earth) 12V DC operation only.

• Always install this system in the car

dashboard. Other locations can be dangerous as the rear of the system heats up during use.

• To avoid short-circuit: before you connect,

make sure that the ignition is o.

• Make sure that you connect the yellow and

red power supply leads after all other leads are connected.

• Make sure that all loose leads are insulated

with electrical tape.

• Make sure that the leads do not get caught

under screws iron parts that will move (e.g. seat rail).

• Make sure that all ground (earth) leads are

run to a common ground (earth) point.

• Use only the supplied mounting hardware

for a safe and secure installation.

• Improper fuses can cause damage or re.

When you need to change the fuse, consult a professional.

• When you connect other devices to this

system, make sure that the rating of the car circuit is higher than the total fuse value of all the connected devices.

• Never connect speaker wires to the metal

body or chassis of the car.

• Never connect speaker wires with stripes to

one another.

Note

Make sure that all loose leads are insulated

•

with electrical tape.

• Consult a professional to connect wires as

instructed below.

• Before connection, check the car's wiring

carefully.

1 Connect the ISO male connectors.

ISO male

connectors

a Green strip,

black-edged green strip

b White strip,

black-edged white strip

c Gray strip,

black-edged gray strip

d Purple strip,

black-edged purple strip

e Red strip Ignition key +12V DC

f Blue strip Motor/electric

Connect to

Rear left speaker

Front left speaker

Front right speaker

Rear right speaker

when ON/ACC

antenna relay control lead

6 EN

ISO male

connectors

g Black strip Ground h Yellow strip The +12V car battery

Connect to

which is energized at all times

2 Connect other wires if necessary.

Caution

To avoid an accident, the driver must not

•

watch video while driving. By design, this system disallows watching video during drive. Park your car in a safe place and engage the parking brake before watching video.

Note

When the parking brake of your vehicle is

•

not engaged, the video blocking system is activated. It blocks the display of front video source only.

• If the system is not properly connected

with the parking brake control module of your vehicle, video signals will be blocked by the system, with the below message displayed on the TFT.

Connectors and

sockets on rear panel

1 For ISO male

connectors

(Red socket)

External sockets or connectors

As indicated above

Rear right speaker

Connectors and

sockets on rear panel

(Red socket)

(White socket)

(White

socket)

(Yellow socket)

(Black connector)

(Purple

socket)

(Blue socket)

(Purple wire)

(Pink wire)

(Black

connector)

(Brown

wire)

External sockets or connectors

Right audio channel output socket of an external player

Left audio channel output socket of an external player

Rear left speaker

Video output socket of an external player

Video input socket of an external display device

Radio antenna

Video output socket of an external camera

Sub-woofer

Reverse camera (B+)

Parking brake (-)

External Smart Phone Mirror Box

OE SWC remote in

7EN

Connectors and

sockets on rear panel

External sockets or connectors

Ground

(Black

wire)

(White wire)

OE SWC AD Learn line 1

OE SWC AD Learn line 2

Ground

(Black wire)

(Black

connector)

Tip

The pin arrangement for the ISO

•

connectors depends on the type of your vehicle. To avoid damage to the system, connect properly.

External microphone

8 EN

q r s

bcde fghijk

9EN

Mount into the dashboard

Note

• Make sure that wires are correctly connected

before you mount the main unit into a car.

• If preset radio stations are lost when the

ignition key is turned OFF and then back ON, reconnect the red leads crosswise to the yellow ones.

3 Slide the unit into the dashboard

until a click sound is heard.

1 If the car does not have an on-

board drive or navigation computer, disconnect the negative terminal of the car battery.

• If you disconnect the car battery in a car that has an on-board drive or navigation computer, the computer may lose its memory.

• If the car battery is not disconnected, to avoid shortcircuit, make sure that bare wires do not touch each other.

2 Make sure that the car dashboard

opening is within these measurements:

5 mm

182 mm

112 mm

4 Reconnect the negative terminal of

the car battery.

• Since the unit cannot be used if the dashboard opening's slant angle is above 20 degrees, make sure that the horizontal slant of the car dashboard opening is between 0 and 20 degrees.

10 EN

4 Get started

Turn on

Caution

Risk of car accidents! Never watch video or

•

operate this system while driving.

Prepare the remote control

For the rst time use

Pull the protective sheet out.

» The remote control is ready for use.

Replace the battery

Caution

Risk of explosion! Keep batteries away

•

from heat, sunshine or re. Never discard batteries in re.

Note

Remove the battery if it is exhausted or if

•

the remote control is not to be used for a long time.

• Batteries contain chemical substances,

they should be disposed of properly.

Press .

» PHILIPS logo and a progress bar are

displayed while boot-up.

• To turn o the system, press and hold

For the rst time use

After successful boot-up, the following interface is displayed.

for 3 seconds.

1 Tap to select a language

for on-screen display.

2 Tap to select a radio

region that matches your location.

3 Tap to complete the initial

setup.

» The device switches to radio

mode automatically.

1 Pull out the battery tray. 2 Insert one CR2025 battery with

correct polarity (+/-) as indicated.

3 Insert the battery tray.

Use the home menu

Note

•

If is displayed when you touch an icon, it indicates that the selected media or feature is unavailable at the current time.

11EN

Access the home menu

Tap to access the home menu.

• Switch the source to FM/ AM radio.

•

: Switch the source to disc.

•

: Switch the source to USB

storage device.

•

: Use the Bluetooth

feature.

•

/ : Switch the source to the audio and video input that is transferred from an external video player.

•

: Access the the Smart Phone Mirror Box (not supplied by Philips) via Smart Connect Link (refer to Chapter 8).

•

: Turn the LCD o.

•

: Access the system menu.

4 Tap , tap the hour or minute

digits, and then tap hour or minute.

/ to set the

5 Tap to return to the previous

menu.

Adjust the screen brightness

Press and hold on the front panel to select a brightness level of the screen.

Set the time

Tap .

2 Tap .

» The following menu is displayed.

3 Tap to select a time

format.

•

12 EN

: 24-hour time format : 12-hour time format

5 Play from

hard media

Region code

This system can play DVD discs marked with the following region code.

You can use this system to listen to audio, watch videos, and view photos that are stored on a disc or USB storage device.

Note

Before use, check for compatible media.

•

Load a disc

Caution

Never insert any object other than a disc of

•

12-cm diameter into the disc slot.

DVD region code

Countries and regions

South Africa

Connect a USB storage device

Note

Make sure that the USB storage device

•

contains compatible les.

• NTFS (New Technology File System) le

system is not supported.

1 Push the USB socket cover upwards

to open it.

2 Connect the USB storage device to

the USB socket.

3 Tap on the home menu.

» Play starts automatically.

1 Insert the disc into the disc slot with

the label side facing up.

» Play starts automatically.

• If play does not start

automatically, tap the screen to display the

to start play.

icon, and then tap

2 To eject the disc, press .

» When the disc is ejected, the

system switches to the previous source or radio mode.

• To remove the USB storage device, switch the system to another source rst.

13EN

Control play

Videos and pictures

• : Return to the home menu.

•

• For DVD, return to the disc menu

or root menu.

• For recorded les, return to the list of les or folders.

•

/ : Skip to the previous or

next title, chapter, track, or le.

• To search forward fast or rewind the track, tap on the progress bar.

/ : Start, pause, or resume play.

• / / : Select a repeat mode.

•

: Repeat the current track.

•

: For recorded les, repeat all

tracks in the current folder.

•

(highlighted): Repeat all

tracks.

•

: Select random play ( highlighted) or sequential play ( in gray).

Browse recorded les

During playing recorded les, you can access the le list and select les from the list.

1 Tap to access the list of les or

folders.

Audios

• : Return to the home menu.

•

• Press once to access the track

list.

• Press repeatedly to return to the playback interface.

•

: Return to the list of tracks or

folders.

•

14 EN

/ : Skip to the previous or

next track.

• To search forward fast or rewind the track, tap on the progress bar.

/ : Start, pause, or resume play.

2 Tap an icon to select a le category.

•

: Display the list of audio tracks

or folders.

•

: Display the list of picture les

or folders.

•

: Display the list of video les

or folders.

3 Tap the name of a le to start play.

6 Listen to

radio

Switch to radio mode

After the boot-up at the rst time, the system switches to radio mode automatically. To switch the source back to radio afterwards, tap menu.

» The interface for radio is displayed.

on the home

Tune to a radio station

1 Tap FM or AM to select a band.

• FM bands: FM1, FM2, FM3

• AM bands: AM1, AM2

2 Tap and hold + or - until the

frequency of target radio station is displayed.

• To tune to a radio station automatically, tap + or -.

Tip

You can also press BAND on the remote

•

control repeatedly to select a band.

Set up

Before you search for radio stations, make prior setup. Tap

to display the setup menus.

Select a radio range

1 Tap to select a tuner

sensitivity.

•

: Stations with strong and

weak signals can be tuned to.

: Only stations with strong

signals can be tuned to.

Store radio stations in memory

You can store up to 6 stations in each band.

Store radio stations manually

1 Select a band. 2 Tune to the target radio station. 3 Tap and hold one of the channels

(1 to 6) over two seconds.

» The radio station is saved under

the selected channel.

15EN

Store radio stations automatically

You can search for a radio station with intro search, which broadcasts a 10-second preview of each detected radio station.

1 Select a band. 2 Tap . 3 Tap

» Auto search starts. The six

strongest stations of the selected band are saved in preset channels automatically.

Tune to a preset radio station

Select a band.

2 Tap one of the preset channels (1 to

6) to select a preset radio station.

Use RDS related features

Note

Only after RDS feature is enabled, you can

•

use RDS related features.

Search for RDS programs of a specic type

1 Tap > [PTY] to display the list of

program types.

2 Tap the name of a program type to

start search.

» Once an RDS station that

transmits programs of the selected type is found, the RDS station is broadcast automatically.

• To save the RDS station, tap and hold one of the preset channels.

• To search for another RDS station, repeat steps 1 and 2.

RDS program types

Item Program

type

1 NEWS News services 2 AFFAIRS Politics and current

3 INFO Special information

4 SPORT Sports 5 EDUCATE Education and

6 DRAMA Radio plays and

7 CULTURE Culture, religion and

8 SCIENCE Science 9 VARIED Entertainment

10 POP M Pop music 11 ROCK M Rock music 12 MOR M Light music 13 LIGHT M Light classical music 14 CLASSICS Classical music 15 OTHER M Special music

16 WEATHER Weather 17 FINANCE Finance 18 CHILDREN Children’s programs 19 SOCIAL Social Aairs 20 RELIGION Religion 21 PHONE IN Phone In

Description

aairs

programs

advanced training

literature

society

programs

16 EN

Item Program

type

22 TRAVEL Trav el 23 LEISURE Leisure 24 JAZZ Jazz Music 25 COUNTRY Country Music 26 NATION M National Music 27 OLDIES Oldies Music 28 FOLK M Folk Music

DOCUMENT

29 30 TEST Alarm Test 31 ALARM Alarm

Description

Documentary

Use alternate frequencies

If the signal of an RDS station is poor, enable the AF (Alternate Frequency) function. The system searches for a strong station that broadcasts the same program. Tap AF to enable or disable the AF function.

• AF (highlighted): The function is enabled.

• AF (in gray): The function is disabled.

7 Use Bluetooth

devices

With this system, you can listen to audio from a player and make a call through Bluetooth.

Pair a device

Note

Gibson Innovations does not guarantee the

•

compatibility with all Bluetooth devices.

• Before pairing a device with this system,

read its user manual for Bluetooth compatibility.

• Make sure that Bluetooth function is

enabled on your device, and your device is set as visible to all other Bluetooth devices.

• The operational range between this system

and a Bluetooth device is approximately 8 meters (24 feet).

• Any obstacle between this system and

a Bluetooth device can reduce the operational range.

• Keep away from any other electronic

device that may cause interference.

On your device, follow the steps below.

1 Search for Bluetooth devices. 2 In the device list, select CE1500BT. 3 Enter the default password "0000",

and then conrm the password entry.

4 Enable or permit the connection

with CE1500BT.

» If the connection succeeds,

is displayed

on the LCD screen of this system.

• To disconnect a device, disable the Bluetooth function on the device. Before connecting another device, disconnect the current device rst.

17EN

Play audio from a connected device

If the connected Bluetooth device supports Advanced Audio Distribution Prole (A2DP), you can listen to tracks that are stored on the device through the system. If the device also supports Audio Video Remote Control Prole (AVRCP) prole, you can control play on the system or with its remote control.

1 Play a track on the connected

device.

2 On this system, tap to display the

music playback interface.

3 Tap icons on the interface to control

play.

•

: Pause or resume play.

•

/ : Select the previous or

next track.

Note

If the connected device does not support

•

the AVRCP prole, control play on the connected device.

Locate the external microphone

You can connect an external microphone for better communication quality.

Note

The external microphone is not included in

•

the packaging of this system.

1 Make sure that the microphone is

connected to this system.

2 Place the microphone at a proper

location, such as, stick it onto the dashboard, or clip it on the sunshield.

Call a number

You can make phone calls with the system.

1 Tap .

» The keypad is displayed.

Make a call

Note

Keep the Bluetooth connection active

•

between the system and your mobile phone.

18 EN

2 Tap number icons to enter the

phone number.

• To clear the last digit, tap

• To clear all digits, tap

• To return to the previous screen,

tap

3 Tap to send the call.

• To end the call, tap

• To enter numbers during the call,

tap

to display the keypad rst.

Redial the last called number

1 Tap .

» The last called number is

displayed.

2 Tap again to send the call.

Answer a call

Note

By default, all incoming calls are picked up

•

automatically. You can disable the function of automatic answer.

Transfer a phone call to mobile

phone

By default, the voice comes from the loudspeakers during a call.

1 Tap to transfer the phone call to

your mobile phone.

» The loudspeakers are muted,

and the voice comes from the mobile phone only.

2 Take up your mobile phone for the

conversation.

Adjust Bluetooth settings

1 When there is an incoming call,

is displayed on the

screen.

2 Tap to answer the call.

• To reject or end the call, tap

Tap to access the menus for Bluetooth settings.

Bluetooth settings

Options

Description

Answer phone calls automatically when the paired mobile phone receives an incoming call.

Answer phone calls manually.

19EN

Bluetooth settings

Options

CED 1500BT

Description

Set the password for pairing the car entertainment system with another Bluetooth device. The default password is

0000. Turn on the

external microphone.

Show the phone name that is connected with CED1500BT.

8 Smart

Connect Link

Smart Connect Link is a device interoperability standard dened by Philips that oers integration between external peripheral (TV box, smart devices, etc) and Philips’s car entertainment system. Smart Connect Link brings the attached peripheral’s function into the application platform of the Philips car entertainment system where apps are still hosted and running on the external peripheral. Drivers and passengers can interact with the external peripheral through the touch screen of Phillips car entertainment system. Smart Connect Link uses generic RGB video signal standard to enable the display of the user interface from external peripheral application on Philips car entertainment system and utilizes Bluetooth HID prole protocol standard to communicate user input back to the peripheral. Contact your dealer for the Smart Connect Link compatible devices to enrich your entertainment experience.

20 EN

9 Universal

USB Charging

Philips enhanced the USB interface which was normally used for music playback from pen drive to now being able to supply current for charging smart devices. The current required for recharging phone battery or operation for some smart devices are higher than the standard USB can aord. The new Philips Universal USB charging interface is able to supply 1 Amp of current to a smart device, sucient to charge up its battery and power it up for intensive usage. The software protocol is also designed to be universal such that it can be compatible with virtually all smart phones available in the market and starts charging process instantly when USB is connected.

10 Adjust sound

When you listen to radio, enjoy music, or watch video, follow the instructions below to adjust sound.

Adjust the volume level

Press +/- repeatedly on the front panel.

• +: Increase the volume level.

• -: Decrease the volume level.

Mute sound

Press on the front panel.

• To release the speakers from mute status, press

Enable the MAX Sound feature

again.

Tap on the playback interface.

•

(highlighted): The

feature is enabled.

(in gray): The

feature is disabled.

Enable the DBB sound eect

When DBB (Dynamic Bass Boost) is enabled, low tones are enhanced electronically. Tap

on the playback interface.

21EN

• (highlighted): DBB sound eect is enabled.

•

(in gray): DBB sound eect is

disabled.

• : Tap to display the interface for selecting fader and balance.

•

: Tap to display the

interface.

Select a preset sound equalizer

Tap on the playback interface.

» The current equalizer settings

are displayed.

2 Tap , , ,

, or to select a preset sound equalizer.

» The selected sound equalizer is

highlighted.

3 Tap + or - to adjust the settings.

•

4 Tap to exit.

: bass range (-15 to +15)

: middle range (-15 to +15)

: treble range (-15 to +15)

Adjust the fader and balance

Tap , , or to adjust fader or balance value.

•

Select a listening zone

Philips’ innovative Zone technology enables the driver or passengers to enjoy music with the best speakers balance and experience more vivid spacial eect as the artist is intended to create. You can switch the music listening zone from the driver to passengers for the best speaker sound settings in car.

: fader range (+16 to -16).

: balance range (-16 to +16).

Others

Tap on the playback interface.

» The setup interface is displayed.

22 EN

Tap a gray area to switch the listening zone.

» The selected area is highlighted with

red dot.

Set the sub-woofer

11 Adjust

settings

• / : Tap to turn on or o the

sub-woofer.

•

/ : Tap to set the volume of

sub-woofer (0 dB to 12 dB).

•

You can also change the settings by the remote control.

1 Press SUBW to access the menu. 2 Press OK to enable or disable the

3 Press / to select a low pass

4 Press / to set the volume.

/ / : Tap to select a low pass lter range for the sub-woofer.

subwoofer.

lter range.

• To exit the menu, press SUBW

again.

Access system setup menus

Tap .

2 Tap .

» The following menu is displayed.

3 Tap an icon on the left.

•

: Access the menu to adjust

general settings.

•

: Access the menu to view

system information.

•

: Access the menu to adjust

Bluetooth settings.

4 Tap an option to view details or

change the setting.

• To exit the menu, tap

23EN

Adjust general settings

Settings Options Description

Turn the beep sound on. Each time you press a button or tap an icon, the unit beeps.

Turn o the beep sound.

/ Select a time

format. Set the time. Select an OSD

(on-screen display) language.

Access the

interface Follow the

on-screen instructions to calibrate the touch screen.

Settings Options

View the rmware version.

View the version of Bluetooth.

View the MAC address of the product.

View system information

24 EN

12 Others

Play external audio/ video input

You can connect an external audio/ video player to this system.

1 Connect a composite AV cable to

• the

panel, and

• the audio and video output

sockets of the external player.

2 Tap > to display the

playback interface.

3 Operate on the external player to

start play (see the user manual of the external device).

Tip

If you connect this system to an external

•

player through the , , and

sockets on the rear panel, tap to switch the source instead of .

socket on the front

2 Tap .

» The

interface is displayed.

3 Tap an icon, for example,

, of which you want to assign the function to a button on the steering wheel.

• To cancel the assignment, tap .

4 Press and hold the button on the

steering wheel for one second.

» The following interface is

displayed.

Use buttons on the steering wheel

You can assign a function to a button on the steering wheel, and then control the system with that button.

1 Tap > .

25EN

5 Repeat steps 3 and 4 to assign

FUSE 15

more functions to buttons on the steering wheel.

• To clear the assignment, tap .

Reset the system

If the system hangs up, reset it.

1 Flip up the protective cover. 2 Press with the tip of a ball-

point pen or toothpick.

Replace the fuse

If there is no power, check the fuse and replace it if it is damaged.

1 Detach the main unit from

dashboard.

2 Check the electric connection. 3 Remove the damaged fuse from the

rear panel.

4 Insert a new fuse with the same

specications (15 A).

Tip

If the fuse gets damaged immediately after

•

it is replaced, an internal malfunction may occur. In this case, consult your retailer.

Upgrade the rmware

Note

Power supply must not be interrupted

•

during the upgrade.

• When the rmware upgrade succeeds, all

settings are restored to the factory default status.

1 Go to www.philips.com/support. 2 Click the link of “Register my

product“ (the exact wording of

this link name may vary in dierent languages).

3 Log in with your account on the

prompt Web page.

• If you have no account for Club Philips, create one rst on this Web page.

4 Search your product with

"CED1500BT/98" as the keyword.

5 Click the link of search result to

access the Web page for registering your product.

6 Fill in necessary information about

this product to complete the registration.

» With the registration, you can

get information about software update and product support at this Web page or via your mailbox that is registered as the account for Club Philips.

Perform the upgrade

1 Check the current rmware version

of this system.

2 Go to www.philips.com/support.

26 EN

3 Login with your account for Club

Philips.

» Support information about your

registered product is displayed.

4 Click the link of “Firmware Upgrade

Readme File“ (the exact wording of

this link name may vary in dierent languages).

5 Read and understand the

instructions on rmware upgrade.

6 Follow the instructions to download

the upgrade packet and complete the upgrade.

• If the upgrade fails, reboot this system, and then perform the upgrade again.

13 Product

information

Note

Product information is subject to change

•

without prior notice.

General

Power supply 12 V DC (11 V -

16 V), negative

ground Fuse 15 A Suitable speaker

impedance Maximum power

output Continuous power

output Pre-Amp output

voltage

Sub-woofer output voltage

Aux-in level Dimensions

(W x H x D)

Weight (main unit) 1.9 kg

4 - 8

50 W x 4 channels

21 W x 4 channels

10% T.H.D.)

2.5 V (CD play

mode;

1 kHz, 0 dB, 10 k

load)

2.5 V (CD play

mode,

61 Hz, 0 dB, 10 k

load)

800 mV

178 x 101.5 x

160 mm

Disc player

System DVD / CD audio /

MP3 system Disc diameter 12 cm Frequency

response

20 Hz - 20 kHz

Signal/noise ratio > 75 dB Total harmonic

distortion Channel

separation Video signal

format Video output 1 +/- 0.2 V p-p

Less than 0.3%

> 55 dB

NTSC/PAL

Radio

Frequency range

- FM Frequency range

- AM (MW) Usable sensitivity

- FM Usable sensitivity

- AM (MW)

87.5 - 108.0 MHz (50 kHz per step)

522 - 1620 kHz (9 kHz per step)

2 uV

25 uV

LCD

Screen size 6.2 inches Display resolution 800 x 480 dots Contrast ratio 500 Brightness 450 cd/m

Compatible Bluetooth proles

Supported codecs Receive Transmit

Hands-Free

Prole (HFP)

Handset Prole

(HSP)

Advanced Audio

Distribution Prole

(A2DP)

Audio Video

Remote Control

Prole (AVRCP)

SBC (Sub Band

Codec)

SBC (Sub Band

Codec)

Bluetooth

Communication system

Output Bluetooth

Maximum communication range

Frequency band 2.4 GHz band

Bluetooth Standard version

2.0

Standard Power Class 2

Line of sight approx. 8m

(2.4000 GHz -

2.4835 GHz)

14 Trouble-

shooting

Warning

Never remove the casing of this product.

•

To keep the warranty valid, never try to repair the product yourself. If you encounter problems when using this product, check the following points before requesting service. If the problem remains unsolved, go to the Philips Web page (www.philips.com/support). When you contact the Consumer Care, make sure that the product is nearby and the model number and serial number are available.

General

No power

• Car engine has not been started.

Start the car engine.

• Connections are incorrect.

• The fuse has been damaged.

Replace the fuse.

No sound

• Volume is too low. adjust the

volume.

• Speaker connections are incorrect.

No response to the remote control

• Make sure that the path between

the remote control and the unit is clear from obstacles.

• Move the remote control close

to the unit, and point it at the iR sensor.

• The function is not applicable to the

current media.

• Replace the remote control battery.

The disc does not play.

• The disc is upside down. Make sure

that the printed side is upwards.

• The disc is dirty. Clean the disc with

a clean, soft, lint-free cloth. Wipe the disc outwards from the center.

• The disc is defective. Try another

disc.

• The disc is incompatible. Try

another disc.

• The recordable disc is not nalized.

• The region code of DVD disc is not

supported. Use a disc with proper region code.

No image

• Parking wire connection is incorrect.

Check the wiring.

No image on rear monitor

• Enable the signal transferring to rear

monitors.

Image ashes or is distorted.

• Video connection is improper.

Check the connections.

Noise in broadcasts

• Signals are too weak. Select another

station with stronger signals.

• Check the connection of the car

antenna.

Preset stations are lost.

• Battery cable is not correctly

connected. Connect the battery cable to the terminal that is always live.

The fuse is broken.

• The fuse type is incorrect. Replace it

with a 15 A fuse.

• Speaker wire or power wire is

grounded. Check the connections.

About the Bluetooth device

Music playback is unavailable on the system even after successful Bluetooth connection.

• The device cannot be used with the

system to play music.

The audio quality is poor after connection with a Bluetooth-enabled device.

• The Bluetooth reception is poor.

Move the device closer to the system or remove any obstacle between the device and the system.

Cannot connect with the system.

• The device does not support the

proles required for the system.

• The Bluetooth function of the

device is not enabled. Refer to the user manual of the device to nd out how to enable the function.

• The system is not in the pairing

mode.

• The system is already connected

with another Bluetooth-enabled device. Disconnect that device or all other connected devices and then try again.

The paired mobile phone connects and disconnects constantly.

• The Bluetooth reception is poor.

Move the mobile phone closer to the system or remove any obstacle between the mobile phone and the system.

• Some mobile phones may connect

and disconnect constantly when you make or end calls. This does not indicate any malfunction of the system.

• For some mobile phones, the

Bluetooth connection may be deactivated automatically as a power-saving feature. This does not indicate any malfunction of the system.

15 Notice

Any changes or modications made to this device that are not expressly approved by Gibson Innovations may void the user’s authority to operate the equipment.

Compliance

Your system consists of materials which can be recycled and reused if disassembled by a specialized company. Please observe the local regulations regarding the disposal of packaging materials, exhausted batteries and old equipment.

Trademark notice

This apparatus includes this label:

Care of the environment

Your product is designed and manufactured with high quality materials and components, which can be recycled and reused. Do not throw away the product with the normal household waste at the end of its life, but hand it in at an ocial collection point or recycling. By doing this, you help to preserve the environment.

Environmental information

All unnecessary packaging has been omitted. We have tried to make the packaging easy to separate into three materials: cardboard (box), polystyrene foam (buer) and polyethylene (bags, protective foam sheet.)

The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Gibson Innovations Limited is under license. Other trademarks and trade names are those of their respective owners.

Windows Media and the Windows logo are trademarks, or registered trademarks of Microsoft Corporation in the United States and/or other countries.

Manufactured under license from Dolby Laboratories. Dolby and the double-D symbol are trademarks of Dolby Laboratories.

'DVD Video' is a trademark of DVD Format/Logo Licensing Corporation.

Copyright

This item incorporates copy protection technology that is protected by U.S. patents and other intellectual property rights of Rovi Corporation. Reverse engineering and disassembly are prohibited.

Philips and the Philips Shield Emblem are registered trademarks of Koninklijke Philips N.V. and are used under license. Specications are subject to change without notice. Gibson Innovations reserves the right to change products at any time without being obliged to adjust earlier supplies accordingly.

Warranty against Defects

In this warranty:

We or us means Gibson Innovations ABN 531 651 059 75, and our contact details are set out at the end of this warranty; You means the purchaser or the original end-user of the Goods; Supplier means the authorised distributor or retailer of the Goods that sold you the Goods in Australia, New Zealand or South Africa; and Goods means the product or equipment which was accompanied by this warranty and purchased in Australia, New Zealand or South Africa. If you require assistance with the operation of the product, its features or specications please contact

Australia New Zealand South Africa

DLG International Telephone: 1800 304 811

Australia: Our Goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and for compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the Goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure. This is not a complete statement of your legal rights as a consumer. New Zealand: Our Goods come with guarantees that cannot be excluded under the Consumer Guarantees Act 1993. This guarantee applies in addition to the conditions and guarantees implied by that legislation.

Additional Warranty:

In addition to the rights and remedies that you have under the Australian Consumer Law, Consumer Guarantees Act of New Zealand, South African Law, or any other applicable law, we provide the following warranty against defects:

1. If, during the rst 12 months from their date of purchase from the Supplier (Warranty Period), the Goods prove defective by reason of improper workmanship or materials and none of your statutory rights or remedies apply, we will repair or replace the Goods without charge. We do not have to repair or replace the Goods

2. under this Additional Warranty if the Goods have been used for a commercial purpose; misused, improperly or inappropriately installed, operated or repaired; abused; damaged; or not maintained in accordance with the manufacturer’s instructions.

3. Even when we do not have to repair or replace the Goods, we may decide to do so anyway. In some cases, we may decide to substitute the Goods with a similar alternative product of our choosing. All such decisions are at our absolute discretion.

DLG International Telephone: 0800 437 663

Connoisseur Electronics (Pty) Ltd Telephone: 0860100551 Email: info@ connoisseur.co.za

4. All such repaired, replaced or substituted Goods continue to receive the benet of this Additional Warranty for the time remaining on the original Warranty Period.

5. This Additional Warranty is limited to repair, replacement or substitution only. As far as the law permits, we will not be liable for any loss or damage caused to property or persons arising from any cause whatsoever.

6. In order to claim under this Additional Warranty you must contact us within the Warranty Period:

Australia New Zealand South Africa

DLG International Telephone: 1800 304 811

You will be asked for details of the Goods, a description of the defect and your personal details. Upon accepting your claim, we shall assist you with either returning the Goods to the Supplier for replacement or to the most convenient Philips Authorized Service Centre for your Goods to be repaired. In some case we may require that you return to the Goods to us (at the address below) for repair, replacement or substitution. * All returned Goods must be accompanied

by satisfactory proof of purchase which clearly indicates the name and address of the Supplier, the date and place of purchase and identies product. It is best to provide a legible and unmodied receipt or sales invoice.

* You must bear any expense for return of the

Goods or otherwise associated with making your claim under this Additional Warranty.

7. This warranty is only valid and enforceable in Australia, New Zealand and South Africa.

Australia New Zealand South Africa

DLG International 88 Enterprise Ave Berwick 3086 Melbourne

Service:

1800 304 811

E-mail:

service@ dlgint.com.au

DLG International Telephone: 0800 437 663

DLG International Unit K 11 Echelon Place East Tamaki 2013

Service: 0800 437 663

Email:

service@ dlgint.co.nz

Connoisseur Electronics (Pty) Ltd Telephone: 0860100551 Email: info@ connoisseur.co.za

Connoisseur Electronics (Pty) Ltd The Mediterranean Conference Centre 72 Concorde Road East Bedfordview Gauteng 2007 Telephone: 011-4501122

Service: 0860100551 E-mail: info@connoisseur. co.za

November 2016

2017 © Gibson Innovations Limited. All rights reserved. This product has been manufactured by, and is sold under the responsibility of Gibson Innovations Ltd.,and Gibson Innovations Ltd. is the warrantor in relation to this product Philips and the Philips Shield Emblem are registered trademarks of Koninklijke Philips N.V. and are used under license.

CED1500BT_98_UM_V8.0

Philips CED1500BT/98 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

1 Safety

Introduction

Playable media

What's in the box

Connect wires

Mount into the dashboard

4 Get started

Turn on

Prepare the remote control

Use the home menu

Adjust the screen brightness

Set the time

Load a disc

Connect a USB storage device

Control play

Switch to radio mode

Tune to a radio station

Set up

Store radio stations in memory

Tune to a preset radio station

Use RDS related features

Pair a device

Play audio from a connected device

Make a call

Adjust Bluetooth settings

10 Adjust sound

Adjust the volume level

Mute sound

Enable the MAX Sound feature

Select a preset sound equalizer

Others

Access system setup menus

Adjust general settings

View system information

12 Others

Play external audio/ video input

Use buttons on the steering wheel

Reset the system

Replace the fuse

General

About the Bluetooth device

15 Notice

Compliance

Trademark notice

Care of the environment

Copyright
