Page 1

Always there to help you

Question?

Contact

Philips

CE135BT/10

Manual do utilizador 43

Manual del usuario 21User manual 1

Page 2

English

Contents

1 Safety 2

2 Your car audio system 3

Introduction 3 What's in the box 3 Overview of the system 4

3 Install the car audio system 6

Connect wires 7 Mount into the dashboard 8 Attach the front panel 9

4 Get started 10

For the rst time use 10

Set the clock 10 Select a source 10

5 Listen to radio 10

Select a tuner region 10 Select a tuner sensitivity 10 Enable the RDS function 11 Search for a radio station 11 Store radio stations in memory 11

11 Reset the system 16

12 Product information 17

Product Information 17

13 Troubleshooting 18

14 Notice 19

Compliance 19 Care of the environment 19 Trademark notice 19 Copyright 19

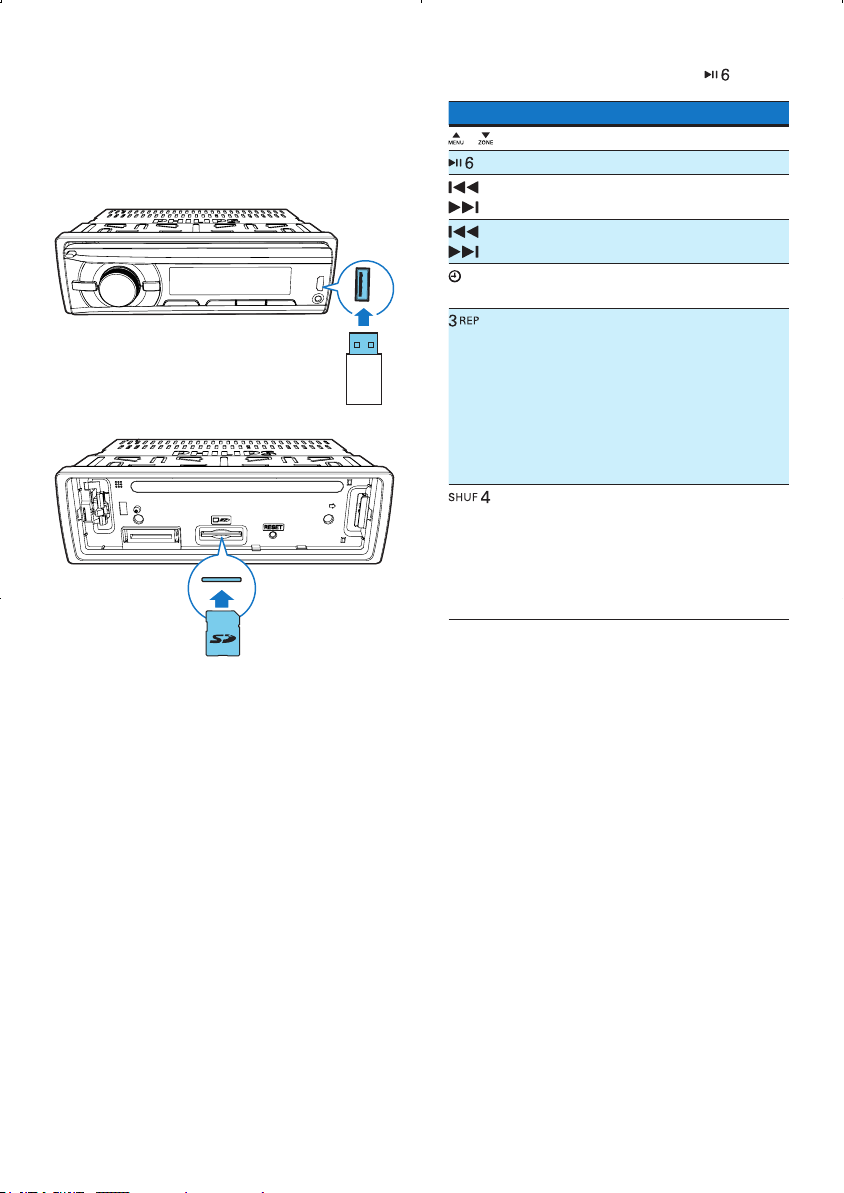

6 Play from a storage device 12

7 Use Bluetooth devices 13

Connect a device 13 Play audio from a Bluetooth device 14 Make a call 14

8 Listen to an external device 15

9 Charge your USB device 15

10 Adjust sound 16

Page 3

1 Safety

Read and understand all instructions before you use this device. If damage is caused by failure to follow instructions, the warranty does not apply.

• Modication of the product could result

in hazardous radiation of EMC or other unsafe operation.

• The device is designed for negative ground (earth) 12 V DC operation only.

• To ensure safe driving, adjust the volume to a safe and comfortable level.

• Improper fuses can cause damage or re. When you need to change the fuse,

consult a professional.

• Use only the supplied mounting hardware for a safe and secure installation.

• To avoid short circuits, do not expose the device to rain or water.

• The device shall not be exposed to dripping or splashing.

• Do not place any sources of danger on the device (e.g. liquid lled objects, lighted

candles).

• Never insert objects into the ventilation slots or other openings on the device.

• Clean the device with soft, damp cloth. Never use substances such as alcohol, chemicals or household cleaners on the device.

2 EN

Page 4

English

2 Your car audio

system

DRM protected WMA les (.wav, .m4a,

.m4p, .mp4, and .aac)

WMA les in lossless format

Introduction

With this system, you can:

• enjoy audio from USB storage devices, SD/ SDHC card, and other external players, and Bluetooth device.

• listen to radio stations.

You can enrich sound output with these sound effects:

• Dynamic bass boost (DBB)

• Digital sound control (DSC)

Playable media:

• USB storage device

• Compatibility: USB 2.0, USB 1.1

• Class support: MSC (Mass Storage

Class)

• Maximum capacity: 32 GB

• SD/SDHC card

• Maximum capacity: 32 GB

• Files

• File system: FAT16, FAT32

• Maximum number of folders: 99

• Maximum number of tracks/les: 999

• Maximum level of directory: 8

• .mp3 les

Sampling frequencies: 32 kHz, 44.1 kHz, 48 kHz Bitrates: 8-320 kbps and variable bitrates

• .wma les

Versions: V4, V7, V8, V9 (L1 and L2) Sampling frequencies: 44.1 kHz, 48 kHz Bitrates: 64-192 kbps and variable bitrates

• ID3 tag V2.0 or later

• Unsupported les:

AAC, WAV, and PCM les

What's in the box

Check and identify the contents of the package:

ab c

fed

a Main unit (with a sleeve) b Carrying case (with front panel included) c Trim plate d Disassembly tool X 2 e ISO male connector X 2 f User manual

Page 5

Overview of the system

ab cd e

ts rq ponm lk ji

• Unlock the front panel.

• For .wma and .mp3 tracks, press to

select the previous folder.

• Press and hold to access the system

menu.

• Press to select a tuner band.

• Return to the previous menu.

d LCD screen

• Connect to a USB storage device.

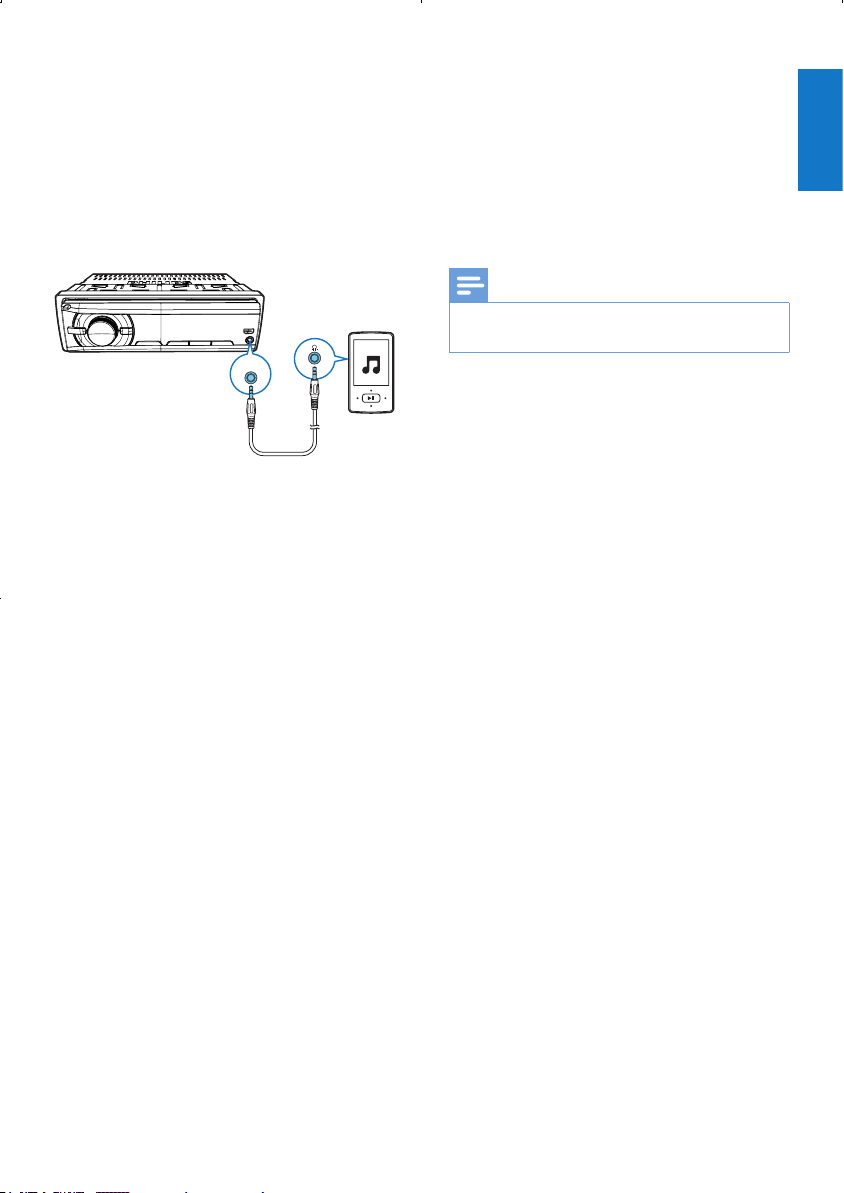

f AUDIO IN

• Connect to the audio output socket (usually the headphone socket) of an external device.

• Start, pause, or resume the play of tracks.

• In radio mode, press to select the preset radio station of No. 6.

4 EN

Page 6

English

• In radio mode, press and hold to store the current radio station at channel No. 6.

• In radio mode, press to select the preset radio station of No. 5.

• In radio mode, press and hold to store the current radio station at channel No. 5.

• In radio mode, press to select the preset radio station of No. 4.

• In radio mode, press and hold to store the current radio station at channel No. 4.

• For .wma and .mp3 tracks, press repeatedly to select a play mode: play all tracks randomly ([SHU ALL]), play tracks in the current folder randomly ([SHU FLD]), or play all tracks in the storage device in sequence ([SHU OFF]).

• In radio mode, press to select the preset radio station of No. 3.

• In radio mode, press and hold to store the current radio station at channel No. 3.

• For .wma and .mp3 tracks, press repeatedly to select a repeat mode: repeat the current track ([REP ONE]), repeat all tracks in the current folder ([RPT FLD]), or repeat all tracks in the storage device ([RPT ALL]).

• In radio mode, press to select the preset radio station of No. 2.

• In radio mode, press and hold to store the current radio station at channel No. 2.

• For .wma and .mp3 tracks, press to access the folder list.

• In radio mode, press to select the preset radio station of No. 1.

• In radio mode, press and hold to store the current radio station at channel No. 1.

• For .wma and .mp3 tracks, press to access the track list.

m /DSP

• Press repeatedly to display available information about the current track.

• Press repeatedly to display available RDS information.

• Press and hold to display the set clock.

n AS/SOURCE

• Press repeatedly select a source.

• In radio mode, press and hold to

activate the automatic search of radio stations.

• Press repeatedly to select a preset sound equalizer.

• Press and hold to activate the setup of bass, treble, balance, and fader.

• Press to turn on the system.

• Press and hold to turn off the system.

• Press to mute the speakers or release

them from mute status.

• Press to conrm an option.

• Rotate to switch between menu

options.

• Rotate to adjust the volume level.

• For .wma and .mp3 tracks, press to select the next folder.

• Press and hold to activate the selection of listening zones.

• Press to select a tuner band.

r /

• Tune to a radio station.

• Press to skip to the previous/next

track.

• Press and hold to rewind a track or search fast forward.

Page 7

• Press to enable or disable the maximum volume.

• Press and hold to enable or disable the DBB (dynamic bass boost) sound effect.

t /

• Press to hang up a call.

• Press and hold to reject an incoming

call.

u Slot for SD/SDHC card

• Insert an SD/SDHC card.

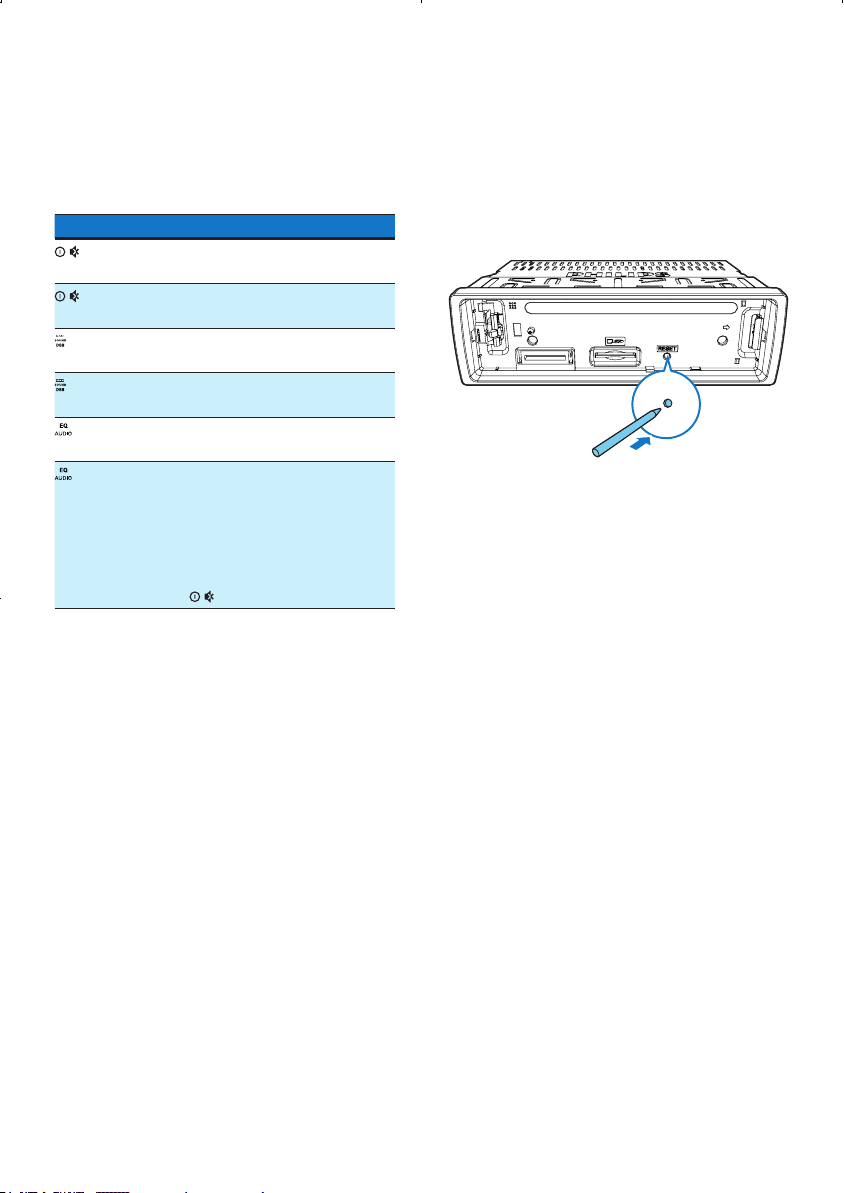

v RESET

• Press to reset the system to factory default settings.

3 Install the car

audio system

Caution

• Use the controls only as stated in this user manual.

Always follow the instructions in this chapter in sequence.

These instructions are for a typical installation. However, if your car has different requirements, make the adjustment accordingly. If you have any question regarding installation kits, consult your local retailer.

Note

• This system is designed for negative ground (earth) 12V

DC operation only.

• Always install this system in the car dashboard. Other

locations can be dangerous as the rear of the system heats up during use.

• To avoid short-circuit: before you connect, make sure

that the ignition is off.

• Make sure that you connect the yellow and red power

supply leads after all other leads are connected.

• Make sure that all loose leads are insulated with

electrical tape.

• Make sure that the leads do not get caught under

screws iron parts that will move (e.g. seat rail).

• Make sure that all ground (earth) leads are run to a

common ground (earth) point.

• Use only the supplied mounting hardware for a safe

and secure installation.

• Improper fuses can cause damage or re. When you

need to change the fuse, consult a professional.

• When you connect other devices to this system, make

sure that the rating of the car circuit is higher than the total fuse value of all the connected devices.

• Never connect speaker wires to the metal body or

chassis of the car.

• Never connect speaker wires with stripes to one

another.

6 EN

Page 8

English

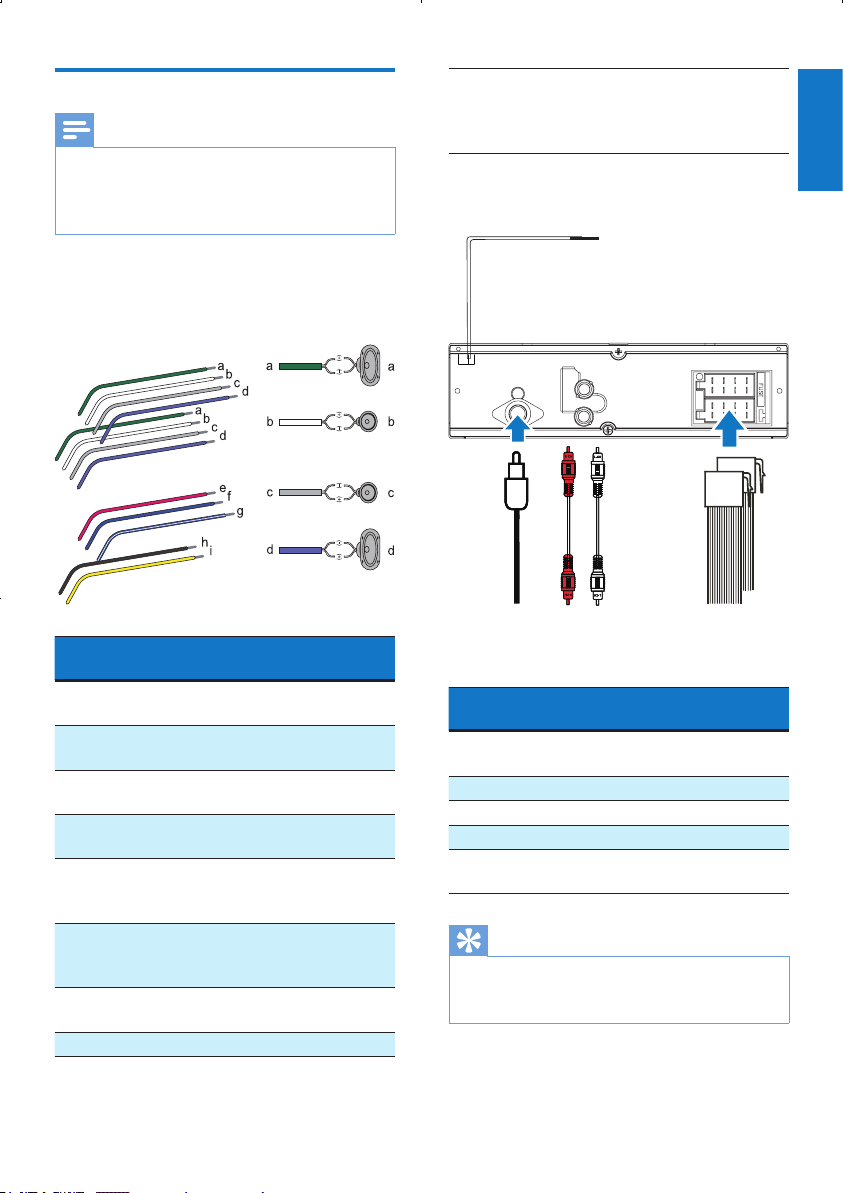

Connect wires

Note

• Make sure that all loose leads are insulated with

electrical tape.

• Consult a professional to connect wires as instructed

below.

1 Check the car's wiring carefully and

connect them to the the ISO male connectors.

ISO male

connectors

a Green strip, black-

edged green strip

b White strip, black-

edged white strip

c Gray strip, black-

edged gray strip

d Purple strip, black-

edged purple strip

e Red strip Ignition key +12V

f Blue strip Motor/electric

g White-edged blue

strip

h Black strip Ground

Connect to

Rear left speaker

Front left speaker

Front right speaker

Rear right speaker

DC when ON/ ACC

antenna relay control lead

Amplier relay

control lead

i Yellow strip To the +12V car

battery which is energized at all times

2 Connect the antenna and amplier as

illustrated, if applicable.

REAR

abcd

Sockets on rear panel External sockets or

connectors

1 For ISO male

connectors 2 REAR L Rear left speaker 3 REAR R Rear right speaker 4 ANTENNA Antenna 5 Purple strip OE remote

Tip

• The pin arrangement for the ISO connectors depends

on the type of your vehicle. To avoid damage to the unit, connect properly.

As indicated above

control module

Page 9

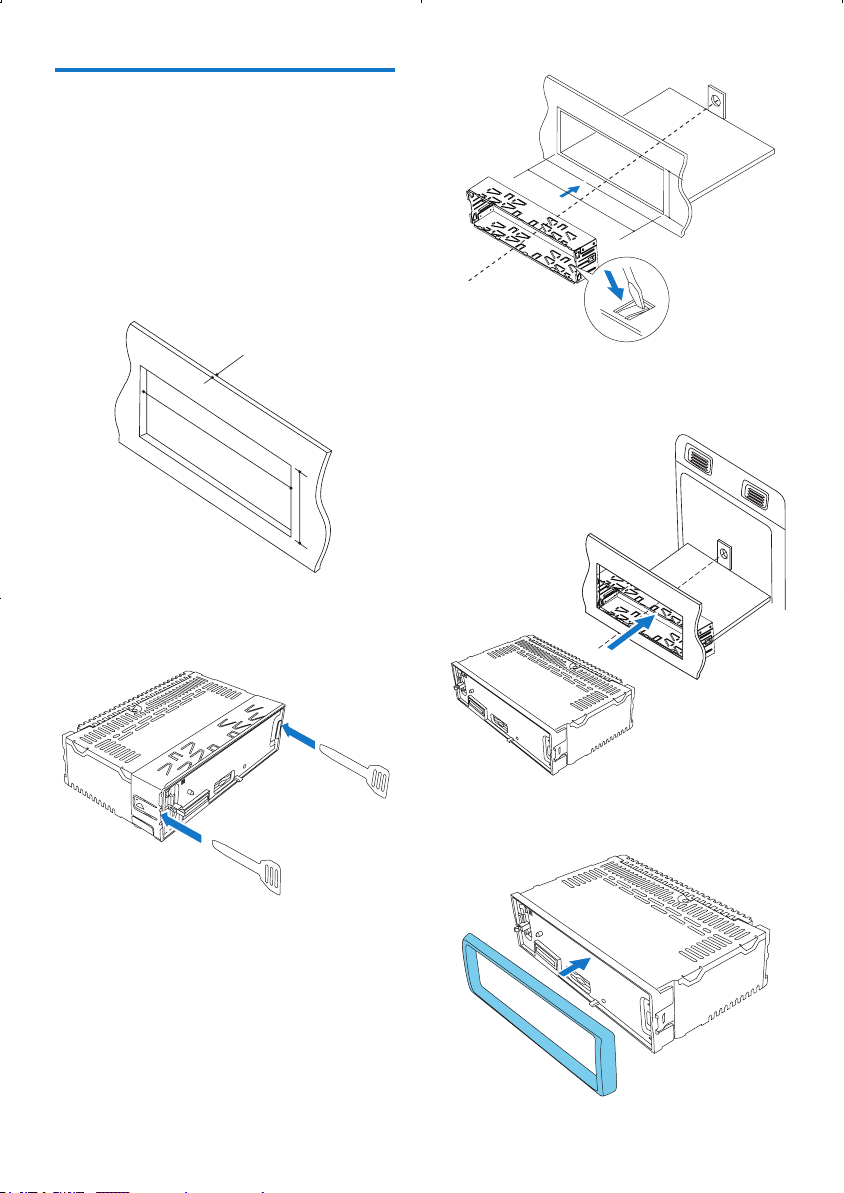

Mount into the dashboard

• If the car does not have an on-board drive or navigation computer, disconnect the negative terminal of the car battery.

• If the car battery is not disconnected, to avoid short-circuit, make sure that the bare wires do not touch each other.

1 Make sure that the car dashboard opening

is within these measurements:

5mm

183 mm

53mm

2 Remove the mounting sleeve with the

supplied disassembly tools.

53.5 mm

183 mm

4 Slide the unit into the dashboard until you

hear a "click".

3 Install the sleeve into the dashboard and

bend the tabs outward to x the sleeve.

8 EN

5 Attach the trim plate.

Page 10

English

6 Reconnect the negative terminal of the car

battery.

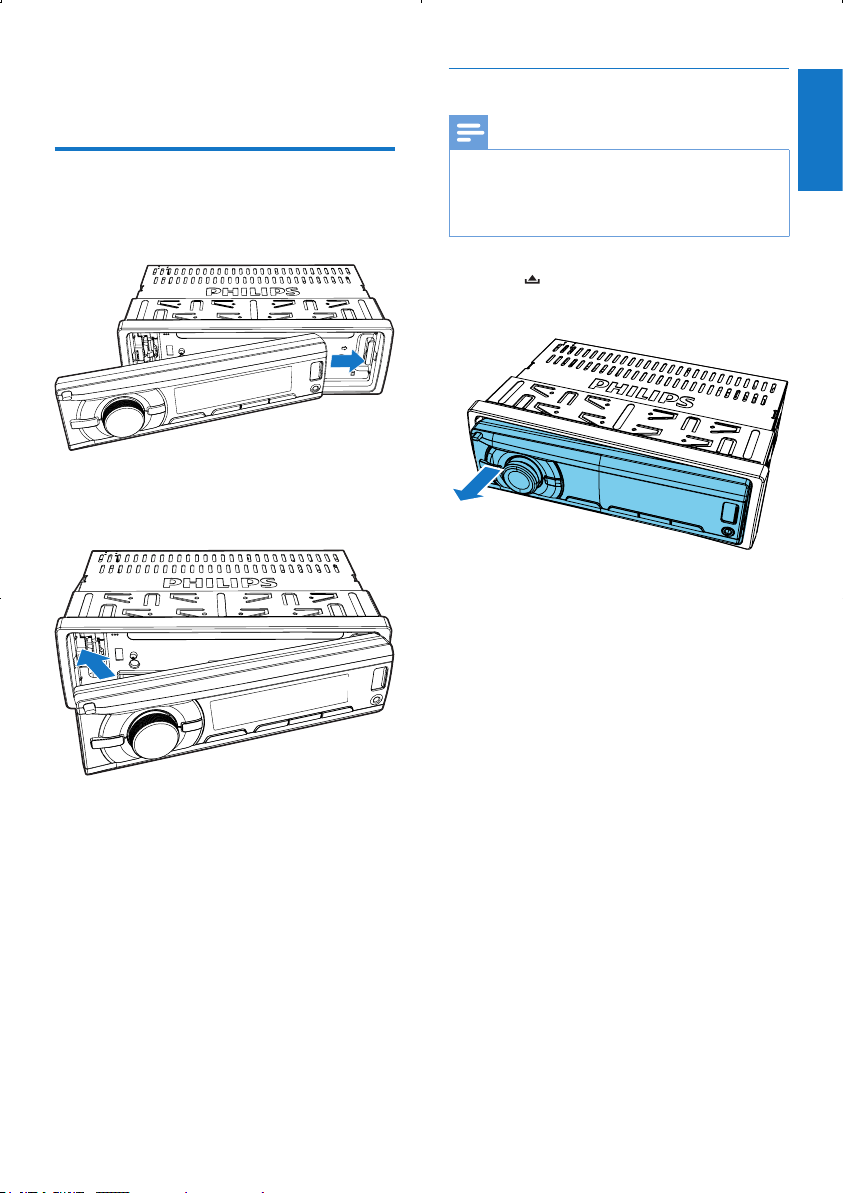

Detach the front panel

Attach the front panel

1 Insert the notch on the front panel to the

chassis on the main unit.

2 Press the left end of the front panel

inwards until it is securely locked with a "click".

Note

• Before you insert an SD/SDHC card or reset the

system, detach the front panel.

• Before you detach the front panel, make sure that the

system is turned off.

1 Press to release the front panel. 2 Pull the front panel outwards to remove it.

Page 11

4 Get started

5 Listen to radio

For the rst time use

1 Press to turn on the system.

» [PHILIPS] is displayed and the device

turns to radio mode automatically.

Set the clock

1 Press and hold to access the system

menu.

2 Press / repeatedly until [CLK] is

displayed with time digits blinking.

3 Rotate anti-clockwise to set the hour. 4 Rotate clockwise to set the minute.

Select a source

Press AS/SOURCE repeatedly to select a source.

• [RADIO]: Listen to FM/AM radio.

• [AUDIO IN]: Listen to the audio input

through the AUDIO IN socket.

• [USB]: When a USB storage device is connected and recognized, you can select

this source to play audio les that are

stored on it.

• [SD/SDHC]: When an SD/SDHC card is inserted and recognized, you can select this

source to play audio les that are stored

on it.

Select a tuner region

You can select a radio region that matches your location.

1 Press and hold to access the system

menu.

2 Press / repeatedly until one of the

following options is displayed.

• [AREA EUROPE] (Western Europe)

• [AREA ASIA] (Asia Pacic)

• [AREA M--EAST] (Middle East)

• [AREA AUST] (Australia)

• [AREA RUSSIA] (Russia)

• [AREA USA] (United States)

• [AREA LATIN] (Latin America)

3 Rotate to select a region.

Select a tuner sensitivity

To search for radio stations with strong signals only or more radio stations, you can change the tuner sensitivity.

1 Press and hold to access the system

menu.

2 Press / repeatedly until [LOC ON]

or [LOC OFF] is displayed.

3 Rotate to select a setting.

• [LOC ON]: Search for radio stations with strong signals only.

• [LOC OFF]: Search for radio stations with strong and weak signals.

10 EN

Page 12

English

Enable the RDS function

Store radio stations automatically

Note

• The RDS function is enabled by default.

• Only when the RDS function is enabled, RDS related

settings can be accessed.

1 Press and hold to access the system

menu.

2 Press / repeatedly until [RDS ON] or

[RDS OFF] is displayed.

3 Rotate to select [RDS ON].

» The RDS function is enabled.

• To disable the RDS function, rotate to select [RDS OFF].

Search for a radio station

Search for a radio station automatically

Press or to search for the previous or next radio station with strong signals.

1 Switch the source to [RADIO]. 2 Press BAND, , or repeatedly to select

a band.

3 Press and hold AS/SOURCE until

[STORE---] is displayed.

» After the search is complete, the

rst stored radio station is broadcast

automatically.

• To select a stored radio station, press , , , , , or .

Store radio stations manually

1 Press BAND, , or repeatedly to select

a tuner band.

2 Tune to the radio station that you want to

store.

3 Press and hold , , , ,

, or to store the radio station at the selected channel.

• To select a stored radio station, press , , , , , or .

Search for a radio station manually

1 Press and hold or until [M] blinks. 2 Press or repeatedly until the target

frequency is displayed.

Store radio stations in memory

Note

• You can store a maximum of six stations in each band.

Page 13

6 Play from a

storage device

3 If the play does not start, press .

Button Function

/ Press repeatedly to select a folder.

Pause or resume play.

/ Press to play the previous or next

track.

/ Press and hold to rewind a track or

search forward fast. Press repeatedly to display available

/DISP

information about the current track. Press repeatedly to select a repeat

mode:

• [REP ONE]: repeat the current track,

• [RPT FLD]: repeat all tracks in the current folder, or

• [RPT ALL]: repeat all tracks in the storage device.

Press repeatedly to select a play mode:

• [SHU ALL]: play all tracks randomly,

• [SHU FLD]: play tracks in the cur-

rent folder randomly, or

• [SHU OFF]: play all tracks in the storage device in sequence.

1 Connect a compatible USB storage device

or SD/SDHC card.

• For an SD/SDHC card, detach the front panel rst, insert the card into

the card slot, and then attach the front panel.

2 Switch the source to [USB] or [SD/

SDHC].

• When a USB storage device is connected and recognized, the system switches the source to [USB] automatically.

12 EN

Page 14

English

7 Use Bluetooth

devices

» If the connection fails, [FAILED] is

displayed on the LCD screen of this system.

Disconnect a device

With this car audio system, you can listen to audio from a player or make a call through Bluetooth.

Connect a device

Note

• Philips does not guarantee the compatibility with all

Bluetooth devices.

• Before pairing a device with this system, read its user

manual for Bluetooth compatibility.

• Make sure that Bluetooth function is enabled on your

device, and your device is set as visible to all other Bluetooth devices.

• At one time, you can connect only one Bluetooth

device to this system.

• The operational range between this system and a

Bluetooth device is approximately 3 meters (9 feet).

• Any obstacle between this system and a Bluetooth

device can reduce the operational range.

• Keep away from any other electronic device that may

cause interference.

On your device, follow the steps below.

1 Search for Bluetooth devices. 2 In the device list, select CE135BT. 3 Enter the default password "0000", and

then conrm the password entry.

» If the pairing succeeds, [PAIRED] is

displayed on the LCD screen of this system.

4 Enable or permit the connection with

CE135BT.

» If the connection succeeds,

[CONNECTED] scrolls and is displayed on the LCD screen of this system.

1 Press and hold MENU to access the

system menu.

2 Press / repeatedly until [DISCONN]

is displayed.

3 Press .

» [WAIT] is displayed with -, --, and

--- blinking alternately until [DISCNN OK] scrolls.

Tip

• You can also complete the disconnection on your

device.

Reconnect a device

Some Bluetooth devices support the automatic reconnection with a paired Bluetooth device. If your device does not support automatic reconnection, reconnect it with this system manually.

1 Press and hold MENU to access the

system menu.

2 Press / repeatedly until [CONNECT]

is displayed.

3 Press .

» [WAIT] is displayed with -, --,

and --- blinking alternately until [CONNECTED] scrolls or [FAILED] appears.

» If [CONNECTED] scrolls, this system

is reconnected to the last connected device.

Page 15

Tip

• You can also complete the reconnection on your

device.

Pick up an incoming call

When the system receives an incoming call, the phone number or [PHONE IN] is displayed.

Press to answer the call.

Play audio from a Bluetooth device

If the connected Bluetooth device supports

Advanced Audio Distribution Prole (A2DP),

you can listen to tracks that are stored on the device through the system. If the device also

supports Audio Video Remote Control Prole (AVRCP) prole, you can control play on the

system or with its remote control.

1 Play a track on the connected device. 2 Press SOURCE repeatedly to switch the

source to [BT AUDIO].

» Play star ts automatically.

• To pause or resume play, press .

• To skip to the previous or next track,

press / .

Note

• If the connected device does not support the AVRCP

prole, control play on the connected device.

Reject an incoming call

Press and hold until [END] is displayed.

End a call

To end an on-going call, press .

Make a call

Note

• Keep the Bluetooth connection active between the

system and your mobile phone.

Call a number

On your mobile phone, call a number.

» [CALLING] is displayed.

14 EN

Page 16

English

8 Listen to an

9 Charge your

external device

You can use the system to amplify the audio input from an external device, for example, MP3 player.

AUDIO-IN

1 Switch the source to AUDIO IN. 2 Connect an audio in cable to

• the AUDIO IN socket on the system, and

• the audio output socket (usually the headphone socket) on the external device.

3 Play the external device.

USB device

You can charge your USB device, for example, smart phone, with this product.

Note

• The output voltage through the USB socket is 5 V with

output currency 0.5 A.

Connect your USB device to this product with USB cable. Once the USB device is connected and recognized, it begins to charge automatically.

Page 17

10 Adjust sound

The following operations are applicable to all supported media.

Button Function

Rotate to increase or decrease the volume level.

Press to mute the speakers or release them from mute status.

Press to enable or disable the maximum volume.

Press and hold to enable or disable the Dynamic Bass Boost (DBB) effect.

Press repeatedly to select a sound equalizer.

1 Press and hold to activate the setup

of customized sound equalizer.

2 Press repeatedly to select an option:

[BAS] (bass), [TRE] (treble), [BAL] (balance), or [FAD] (fader).

3 Rotate to adjust the setting.

11 Reset the

system

If the system works abnormally, reset the system to factory default settings.

1 Detach the front panel. 2 Press the RESET button with the tip of a

ball-point pen or toothpick.

» All settings are reset to factory default.

16 EN

Page 18

English

12 Product

information

Usable sensitivity AM(MW) (S/N = 20 dB)

Bluetooth

30 µV

Note

• Product information is subject to change without prior

notice.

Product Information

General

Power supply 12 V DC (11 V - 16

V), negative ground Fuse 15 A Suitable speaker

impedance Maximum power

output Continuous power

output Pre-Amp output

voltage Aux-in level 500 mV Dimension (Wx H x D) Weight 0.63 kg

Radio

Frequency range

- FM

Usable sensitivity FM (S/N = 20 dB)

Frequency range AM(MW)

4 - 8

50 W x 4

22 W x 4 RMS (4

10% T.H.D.)

2.5 V

188 x 58 x 110 (mm)

87.5 - 108.0 MHz (100kHz per step in auto search and 50kHz per step in manual search)

8 µV

522 - 1620 KHz (9 kHz) 530 - 1710 kHz (10

kHz)

Output power

Frequency band

Range 3 meters(free space) Standard Bluetooth 2.0 specication

Compatible USB devices:

• USB ash memory: USB 1.1 host with

• USB ash players: USB 1.1 host with

Supported formats:

• USB or memory le format: FAT12,

• MP3 bit rate (data rate): 32-320 Kbps

• WMA V4, V7, V8, V9 (L1, L2)

• MP3 sampling frequencies: 8-48 kHz

• MP3 Bit-rates: 8~320 (kbps), variable

• WMA sampling frequencies: 32 kHz,

• WMA Bit-rates: 32~192 (kbps),

• Directory nesting up to a maximum of

• Number of albums/folders: CD

• Number of tracks/titles: CD maximum

• ID3 tag v2.0 or later

Class 2

2.4000 GHz - 2.4835 GHz ISM Band

interface reading all speed support (1.1, 2.0)

FAT16, FAT32

and variable bit rate

bit rates

44.1 kHz, 48 kHz

variable bit rates

8 levels

maximum 99, USB or memory maximum 99

999 (depending on number of album), USB or memory maximum 999

Page 19

Unsupported formats:

• Empty albums: an empty album is an album that does not contain MP3/

WMA les, and is not be shown in the

display.

• Unsupported le formats are skipped.

For example, Word documents (.doc)

or MP3 les with extension .dlf are

ignored and not played.

• AAC, WAV, PCM audio les

• DRM protected WMA les (.wav, .m4a,

.m4p, .mp4, .aac)

• WMA les in Lossless format

13 Troubleshooting

Warning

• Never remove the casing of this product.

To keep the warranty valid, never try to repair the product yourself.

If you encounter problems when using this product, check the following points before requesting service. If the problem remains unsolved, go to the Philips Web page (www. philips.com/support). When you contact Philips, make sure that the product is nearby and the model number and serial number are available.

No power or no sound

• The power supply from car battery is cut off, or the car battery runs out of energy. Power the system with car battery.

• Car engine is not on. Turn the car engine on.

• Cable is not correctly connected. Check connections.

• The fuse is burnt. Replace the fuse.

• Volume is too low. Adjust volume.

• If the above solutions cannot help, press the RESET button.

• Make sure that the current track is in a compatible format.

18 EN

Noise during broadcast

• Signals are too weak. Select other stations with stronger signals.

• Check the connection of the car antenna.

• Change the broadcast setting from stereo to mono.

Preset stations are erased.

• Battery cable is not correctly connected. Connect the battery cable to the terminal that is always live.

Display shows ERR-12.

• Data error. Check the USB storage device or SD/SDHC card.

Page 20

English

14 Notice

Any changes or modications made to this

device that are not expressly approved by WOOX Innovations may void the user’s authority to operate the equipment.

Compliance

This product complies with the radio interference requirements of the European Community.

A copy of the EC declaration of Conformity is available in the Por table Document Format (PDF) version of the user manual at www. philips.com/support.

Please act according to your local rules and do not dispose of your old products with your normal household waste.

Correct disposal of your old product helps to prevent potential negative consequences for the environment and human health.

Environmental information

All unnecessary packaging has been omitted. We have tried to make the packaging easy to separate into three materials: cardboard (box), polystyrene foam (buffer) and polyethylene (bags, protective foam sheet.)

Your system consists of materials which can be recycled and reused if disassembled by a specialized company. Please observe the local regulations regarding the disposal of packaging materials, exhausted batteries and old equipment.

Trademark notice

Care of the environment

Your product is designed and manufactured with high quality materials and components, which can be recycled and reused.

When this crossed-out wheeled bin symbol is attached to a product it means that the product is covered by the European Directive 2002/96/ EC. Please inform yourself about the local separate collection system for electrical and electronic products.

Windows Media and the Windows logo are trademarks, or registered trademarks of Microsoft Corporation in the United States and/or other countries.

Other trademarks and trade names are those of their respective owners.

Philips and the Philips’ Shield Emblem are registered trademarks of Koninklijke Philips N.V. and are used by WOOX Innovations Limited under license from Koninklijke Philips N.V.”

Specications are subject to change without

notice. WOOX reser ves the right to change products at any time without being obliged to adjust earlier supplies accordingly.

Page 21

Specifications are subject to change without notice © WOOX Innovations Limited. All rights reserved. Philips and the Philips’ Shield Emblem are registered trademarks of Koninklijke Philips N.V. and are used by WOOX Innovations Limited under license from Koninklijke Philips N.V.

CE135BT_10_UM_V1.0
