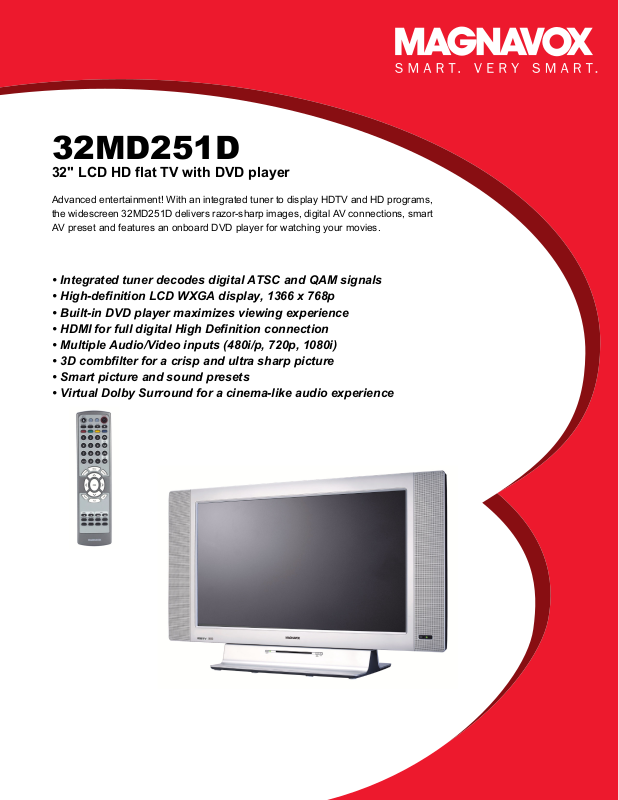

32MD251D

32" LCD HD flat TV with DVD player

Advanced entertainment! With an integrated tuner to display HDTV and HD programs,
the widescreen 32MD251D delivers razor-sharp images, digital AV connections, smart
AV preset and features an onboard DVD player for watching your movies.

• Integrated tuner decodes digital ATSC and QAM signals

• High-definition LCD WXGA display, 1366 x 768p

• Built-in DVD player maximizes viewing experience

• HDMI for full digital High Definition connection

• Multiple Audio/Video inputs (480i/p, 720p, 1080i)

• 3D combfilter for a crisp and ultra sharp picture

• Smart picture and sound presets

• Virtual Dolby Surround for a cinema-like audio experience

32MD251D/37

32" LCD HD flat TV with DVD player

Product specifications

Picture/Display

• Aspect ratio: 16:9

• Brightness: 500 cd/m²

• Contrast ratio (typical): 800:1

• Display screen type: LCD WXGA Active Matrix
TFT

• Picture enhancement: 3/2 - 2/2 motion pull down,
3D Combfilter, 3D MA deinterlacing, Automatic
skin tone correction, Black stretch, Blue stretch,
Green enhancement, Progressive Scan, White
stretch

• Screen enhancement: Anti-Reflection coated
screen

• Viewing angle (H / V): 176 / 176 degree

• Response time (typical): 8 (grey to grey) ms

• Panel resolution: 1366 x 768p

Supported Display Resolution

Resolution Refresh rate
Video formats
480i 60Hz
480p 60Hz
720p 60Hz
1080i 60Hz

Sound

• Output power (RMS): 2 speakers @ 10w each

• Sound System: Mono, SAP, Virtual Dolby
Surround

Convenience

• Ease of Installation: Autostore, Fine Tuning, PLL
Digital Tuning

• Ease of Use: Auto Volume Leveller (AVL), Smart
Picture, Smart Sound, Closed Captioning Full Text

• Remote control type: RM36ENO1

• Remote Control: TV, DVD

• Screen Format Adjustments: 16:9 subtitle, 4:3,
Automatic, Movie expand 14:9, Movie expand
16:9, Super Zoom, Superwide, Widescreen

• User convenience: Sleep Timer

• Child Protection: Child Lock+Parental Control

Tuner/Reception/Transmission

• Tuner bands: Hyperband, S-Channel, UHF, VHF

• TV system: ATSC, NTSC

• Video Playback: Multi-system

• Aerial Input: 75 ohm F-type

• Cable: Unscrambled Digital Cable -QAM

Built-in DVD

• Playback media: Audio CD, CD-R, CD-RW,
DVD+R, DVD+RW, DVD-R, DVD-RW, MP3-CD,
Picture CD, VCD

Connectivity

• AV 1: Audio L/R in, CVBS in, YPbPr

• AV 2: Audio L/R in, CVBS in, YPbPr

• AV 3: Audio L/R in, CVBS in, S-Video in

• Front / Side connections: Audio L/R in, CVBS in,
S-video in

• Rear Connections: Antenna F-type, Headphone
out 3.5 mm jack

• Other connections: HDMI, S/PDIF out (coaxial)

Power

• Power consumption: < 135 W

• Standby power consumption: < 1 W

• Ambient temperature: 5 °C to 40 °C

• Mains power: 90-240 VAC, 50/60 Hz

Dimensions

• Product weight (+stand): 19 kg

• Product weight (+stand) (lb): 41.9 lb

• Set dimensions with stand (W x H x D):

x 565 x 271 mm

925

• Set dimensions with stand in inch (W x H x D):

x 22.2 x 10.7 inch

36.4

Accessories

• Included Accessories: Batteries for remote control,
Power cord, Quick Use Guide, Remote Control,
User Manual, Warranty certificate

Integrated HDTV tuner

A built-in digital tuner receives and decodes ATSC
off-air and unscrambled cable signals directly, so you
can view digital high-definition TV programming
without an additional set-up box.

LCD WXGA display, 1366x768p

This WXGA display with state-of-the-art LCD screen
technology gives you widescreen HD resolution of
1366 x 768p pixels. It produces brilliant flicker-free
progressive scan pictures with optimum brightness
and superb colors. This vibrant and sharp image will
provide you with an enhanced viewing experience.

Built-in DVD player

A multi-format DVD player integrated into the LCD TV
that makes it easy for video fans and music lovers to
enjoy all widely accepted DVD and CD formats as
well as the increasing popular MP3 digital music
without the cost of purchasing and the hassle of
hooking up a separate player. The integrated player
is compatible with DVD, DVD+R/RW, DVD-R/RW,
VCD, CD, CR-RW, picture CD, MP3 and HDCD
discs.

HDMI input

HDMI makes an uncompressed digital RGB
connection from the source to the screen. By
eliminating conversion to an analog signal, it delivers
an unblemished image. The non-degraded signal
reduces flicker and leads to a clearer picture. HDMI
intelligently communicates the highest output
resolution with the source device. The HDMI input is
fully backward compatible with DVI sources but
includes digital audio. HDMI uses HDCP copy
protection.

Multiple AV inputs

Multiple AV inputs accommodate a variety of format
choices in connecting video and audio devices (480i/
p, 720p, 1080i).

3D combfilter

A 3D combfilter is a device that performs field-by-field
comparisons of the television image to accurately
separate the color from the black-and-white
information. It separates brightness and color signals
better in the 3D domain to eliminate cross-color,
cross-luminance and dot-crawl distortion - all of which
detract from your viewing pleasure.

Date of issue 2009-01-16

Version: 2.0.3

12 NC: 8639 000 17157
UPC: 6 09585 11596 5

Smart picture & Smart sound

Smart picture and Smart sound presets are optimized
settings for all your favorite types of programs,
various display and audio modes that are directly
accessed through a single key on the remote control.

Virtual Dolby surround

Virtual Dolby Surround is a processing technology for
enhancing surround sound effects. It which create the
sensation of Dolby Pro Logic without the necessity of
additional rear speakers. You become totally
immersed in your television experience.

Specifications are subject to change without notice.
