Philips 22HFL3XX8D-10, 32HFL3XX8D-10, 42HFL3XX8D-10, 26HFL3XX8D-10 User Manual

Philips Hospitality TV

Installation Manual for

22HFL3XX8D/10

26HFL3XX8D/10

32HFL3XX8D/10

42HFL3XX8D/10

Status: Approved Version 1.0 Date: June 2013 Author: Marian Pufulete

Contents

1. Requirements before starting the installation .......................................................................................................... 2

2. Find out the state of the TV ...................................................................................................................................... 3

3. Re-install TV .............................................................................................................................................................. 4

4. Installation wizard ..................................................................................................................................................... 6

5. Channel options ...................................................................................................................................................... 13

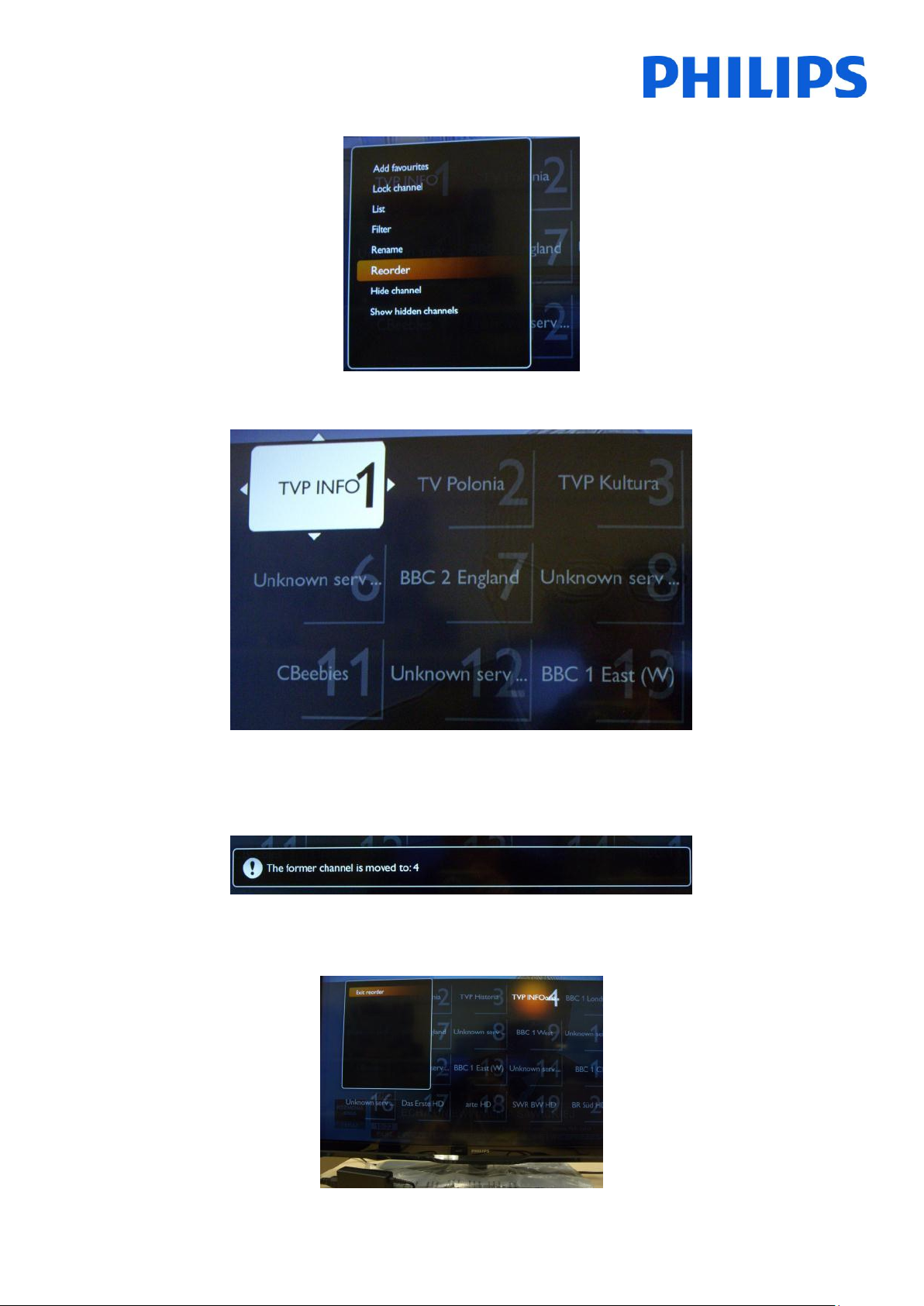

a.Reordering channels .................................................................................................................................... 13

b.Rename channels ......................................................................................................................................... 15

c.Hide channels ............................................................................................................................................... 15

6. Professional Settings .............................................................................................................................................. 16

7. Welcome Logo ........................................................................................................................................................ 27

7.1 Hotel Information ................................................................................................................................................... 27

8. Clone ....................................................................................................................................................................... 28

9. Feature settings ...................................................................................................................................................... 29

10. CSM (Consumer Setup menu) ................................................................................................................................. 33

1. Requirements before starting the installation

Before starting the installation, make sure that you have everything you need at hand.

Master remote control 22AV8573 or Guest remote control 22AV1109C

And

USB stick

You will need the master remote control or the guest remote control to access the menus.

To access the setup menu press the ‘RC5 SETUP’ key, and then press the ‘Home/Menu’ button.

For the guest remote control, press the following keys sequential: 3,1,9,7,5,3, ‘MUTE’.

Note: The sequence: 3,1,9,7,5,3, ‘MUTE’ will not show the Setup Menu if High Security Menu is enabled. For

cloning settings from one TV to another TV, you will need to have a USB stick. This stick needs to be formatted as FAT32 and should be empty.

For the best guest experience check if the software version on the TV is the latest one. This can be done using the Master Remote control by pressing Recall Button and checking on page 2.1 - Current Main Software’. This also can be done with the Guest Remote by pressing 1,2,3,6,5,4.

Go to: http://www.support.philips.com/support

Enter the model number and check to confirm you have the latest version available.

Confirm the software version present on TV is identical with the one from website. If not please download the latest version from website, unzip and save on to a USB key The USB key must be formatted as FAT32 and preferably empty to avoid and accidental upload of wrong setting and software. Follow the instruction how to upgrade the software.

If the software version from your TV is identical with the one available on website it is not necessary to upgrade.

If an upgrade is necessary you can upgrade and clone files at the same time automatically. (Upgrade -> Automatic Reboot -> Clone) --- See Instant Initial Cloning

The Initial instant cloning option can only be used if you reinstall the TV or if the TV is out the box.

2. Find out the state of the TV

Professional Settings ON

Professional Settings OFF

It is important to know if a TV is in ‘virgin mode’ (out of the box) or installed before.

If you can see this screen below, you know that the TV is in ‘virgin mode’ and you can install the set. See chapter 4 of

this manual.

If you power on the set and then press the ‘Home’ button on the guest remote, you will see this screen appear if the TV already has been installed or the wizard was already skipped.

You can start the installation wizard again by reinstalling the TV as explained in chapter 3 of this manual.

Disable the Professional Settings

Access the setup menu press the ‘RC5 SETUP’ key, and then press the ‘Home/Menu’ button. (For the guest remote

control, press the following keys in sequence: 3,1,9,7,5,3, ‘MUTE’).

Go to “Professional Mode” and select the “OFF” option and confirm with “OK”. Go back with the arrow keys and select “Store settings”. Confirm with “OK”. After restarting the TV the PROFESSIONAL SETTINGS mode will be set to OFF.

Note: All settings can be done without disabling the Professional Mode, but all settings from the ‘Professional Settings’ which were not saved will be discarded during the transition to Consumer Mode.

3. Re-install TV

If you want to start an installation from scratch you can always re-install the TV. This can be done by using the option: Re-install TV set.

If the Professional mode is active you can access the setup menu by pressing the ‘RC5 SETUP’ key, and then press the

‘Home/Menu’ button (For the guest remote control, press the following keys in sequence: 3,1,9,7,5,3, ‘MUTE’) , then go to TV Setup, confirm with “OK”. This menu will appear:

If the Professional mode is disabled, you can access the Setup menu with the guest remote control.

Select “Setup” and press “OK”

Select the option TV settings for this menu

Press “OK” to access the sub-menu, navigate to “Reinstall TV”.

Press “OK” to reinstall TV set.

If all is correct select “Start now” and press “OK”.

After this operation the TV will power off and on and display the installation wizard.

Note: All settings are at default values and no channel plan is available.

4. Installation wizard

When you turn on the TV for the first time, or you have reinstalled the TV, you should see the following screen.

Here you will need to select your preferred language. Please select with the Up and Down arrow keys and confirm with ‘OK’ or press the Left arrow key.

After this, you will need to select the country. Depending on the country selection, some pre-defined settings will be activated, because of local broadcast requirements. Example: digital/analog channels could be disabled; reordering and deleting channels can in some cases not be possible.

Note: If you are experiencing some issues after selecting your country, please select ‘Others’ in the menu.

The next step is to select ‘Wall mounted’ or ‘On a TV stand’. This option changes some settings for the audio and

image of the TV.

The next step is to choose between the options ‘Shop’ and Home’. Select ‘Home’ for installation.

If you select “SHOP” an ‘e-sticker’ banner will be displayed on the TV. This is for commercial purpose only.

Now you can select the visual and hearing impaired options. If you select ‘On’, your TV will automatically turn on settings to help visual and hearing impaired people. THE MOST COMMON OPTION IS TO TURN THIS FUNCTION OFF.

On the following page we can start the channel installation wizard. You can also press “Back” to correct any previous setting. We recommend you only select your preferred options as this will result in longer installation times.

For the channel installations, select ‘Install TV channels’ and press ‘OK’.

Then you can select ‘Continue’ and press ‘OK’ again.

Here you can select the type of channels you would like to install and what preference you will use.

It is advisable to check the settings before starting the search.

The options from the Settings menu are:

The “Frequency scan” contains three options:

- “Quick”: this is a fast method to search channels but it might

skip some channels (depending on the network).

- “Full”: the scan will search on all frequencies and will store all

channels available. This is the safe method if you don’t know

the network parameters, but it takes more time.

- “Advanced”: If you know the network parameters like

Network ID, Network Frequency, you can use this option, otherwise the safe option is to use the Full option.

The “Network frequency” options are: Automatic and Manual. If you do not know the correct values for this option, please use the Automatic option.

The “Symbol Rate” options are: Automatic and Manual. If you do not know the correct values for this option, please use the Automatic option.

“Analogue channel” If you don’t have or you don’t want to install analogue channels, you can disable the search for this type of channels.

“Free/scrambled” options are: Free channels: The TV will search only for free to air channels skipping the scrambled channels. Free + scrambled: The TV will search for free and scrambled channels.

The “Reset” option will reset the search settings to default.

After you have checked or changed settings, you can select “Done” and select “Start” to start the channel search.

During the channel search you can see the progress bar and how many channels are found at that time.

When the search is done, you should see “Channel search complete” and a summary of the channels found. Press “OK” button on remote control to finish the search.

If you would like to change the picture and sound settings, you can go to “Optimize TV picture and sound” and press the “OK” button on remote control.

A wizard will start to guide you through the process of setting the sound and picture on the TV set.
