TPH18.2A
Chassis name Platform Model name
22PFA5403S/67
TPH18.2A LA V201
22PFA5403S/70
Published by Amy.ma 1805 Quality Subject to modification 3122 785 20590
2018 © TP Vision Netherlands B.V.
All rights reserved. Specifications are subject to change without notice. Trademarks are the
property of Koninklijke Philips Electronics N.V. or their respective owners.
TP Vision Netherlands B.V. reserves the right to change products at any time without being obliged to adjust
earlier supplies accordingly.
PHILIPS and the PHILIPS’ Shield Emblem are used under license from Koninklijke Philips Electronics N.V.
2018-Feb-04
1. Product information……….…………………………………………………………………………………3
2. Precautions, Notes, and Abbreviation List……………………………………………………………4
3. Mechanical Instructions………………….…………………………………………………………………10
Cable dressing (22" 5403 series)……………………………………………………………………………10
Assembly/Panel Removal ……………………………………………………………………………………11
4. Service Modes…………….…………….………………….…………………………………………….….14
5. Software upgrading……………………………………………………………………………………..16
6. Trouble Shooting…...…………………………………………………………………………………….…..17
7. Electrical Diagram…..…………………….………………………………………………………………20
8. IC Data Sheet……...………………………………………………………………………………….…..23
9. Circuit Diagrams……………..……………………………………………………………………………….28
9.1 715G9547 M+P BOARD………………………………………………………………………………..28
9.2 715G8576 IR/LED Panel…………………………………………..…………………………………38
10. Styling Sheet……………….…………………….………………………………………………………….39
5403 series 22"………………………………………………………………………………………………39
Published by Amy.ma 1805 Quality Subject to modification 3122 785 20590
2018 © TP Vision Netherlands B.V.
All rights reserved. Specifications are subject to change without notice. Trademarks are the
property of Koninklijke Philips Electronics N.V. or their respective owners.
TP Vision Netherlands B.V. reserves the right to change products at any time without being obliged to adjust
earlier supplies accordingly.
PHILIPS and the PHILIPS’ Shield Emblem are used under license from Koninklijke Philips Electronics N.V.
2018-Feb-04
1. Product information
Product information may be subject to change without prior
notice. For detailed product information, please go to
www.philips.com/support
Display & Sound
Intrinsic resolution
• 1920 x 1080
TV Side
• POWER
• USB
• HDMI
• AV IN: CVBS, Audio L, Audio R
TV Rear
• Antenna (75 ohm)
• AUDIO IN (VGA/DVI)
• VAG
Sound power
• 3W x 2
Supported input signal formats
Video formats
Resolution — Refresh rate
• 480i - 60 Hz
• 480p - 60 Hz
• 576i - 50 Hz
• 576p - 50 Hz
• 720p - 50 Hz, 60 Hz
• 1080i - 50 Hz, 60 Hz
• 1080p - 50 Hz, 60 Hz
Computer formats
Resolution — Refresh rate
• 640 x 480 - 60 Hz
• 800 x 600 - 60 Hz
• 1024 x 768 - 60 Hz
• 1360 x 768 - 60 Hz
• 1920 x 1080 - 60 Hz
Multimedia
Supported storage devices: USB (Supports FAT 32/NTFS
USB storage devices.)
Playback formats
Video formats: MPEG- 2/MPEG 4, H.264
Audio formats: MP3
Image formats: JPEG
Documentation formats: TXT
Power supply/ tuner/ reception/
transmission
Power supply
• Mains: 110-240V, 50-60Hz
• Standby power consumption: ≤0.5W
• Ambient temperature: 5°C to 40°C
• Power consumption: 30W
Tuner/ reception/ transmission
Antenna input: 75ohm coaxial (IEC75)
TV system: NTSC, SECAM, PAL
Video Play: NTSC, SECAM, PAL
Connectivity
2. Precautions, Notes, and Abbreviation List
tools. This will prevent any short circuits and the danger
of a circuit becoming unstable.
2.1 Safety Instructions
Safety regulations require the following during a repair:
• Connect the set to the Mains/AC Power via an isolation
transformer (> 800 VA).
• Replace safety components, indicated by the symbol △!,
only by components identical to the original ones. Any
other component substitution (other than original type)
may increase risk of fire or electrical shock hazard.
Safety regulations require that after a repair, the set must
be returned in its original condition. Pay in particular
attention to the following points:
• Route the wire trees correctly and fix them with the
mounted cable clamps.
• Check the insulation of the Mains/AC Power lead for
external damage.
• Check the strain relief of the Mains/AC Power cord for
proper function.
• Check the electrical DC resistance between the
Mains/AC Power plug and the secondary side (only for
sets that have a Mains/AC Power isolated power supply):
1. Unplug the Mains/AC Power cord and connect a wire
between the two pins of the Mains/AC Power plug.
2. Set the Mains/AC Power switch to the “on” position
(keep the Mains/AC Power cord unplugged!).
3. Measure the resistance value between the pins of the
Mains/AC Power plug and the metal shielding of the
tuner or the aerial connection on the set. The reading
should be between 4.5 MΩ and 12 MΩ.
4. Switch “off” the set, and remove the wire between the
two pins of the Mains/AC Power plug.
• Check the cabinet for defects, to prevent touching of any
inner parts by the customer.
!
2.2 Warnings
• All ICs and many other semiconductors are susceptible
to electrostatic discharges (ESD ). Careless handling
during repair can reduce life drastically. Make sure that,
during repair, you are connected with the same potential
as the mass of the set by a wristband with resistance.
Keep components and tools also at this same potential.
• Be careful during measurements in the high voltage
section.
• Never replace modules or other components while the
unit is switched “on”.
• When you align the set, use plastic rather than metal
2.3 Notes
2.3.1 General
• Measure the voltages and waveforms with regard to the
chassis (= tuner) ground ( ), or hot ground ( ),
depending on the tested area of circuitry. The voltages
and waveforms shown in the diagrams are indicative.
Measure them in the Service Default Mode with a colour
bar signal and stereo sound (L: 3 kHz, R: 1 kHz unless
stated otherwise) and picture carrier at 475.25 MHz for
PAL, or 61.25 MHz for NTSC (channel 3).
• Where necessary, measure the waveforms and voltages
with ( ) and without ( ) aerial signal. Measure the
voltages in the power supply section both in normal
operation ( ) and in stand-by ( ). These values are
indicated by means of the appropriate symbols.
2.3.2 Schematic Notes
• All resistor values are in ohms, and the value multiplier is
often used to indicate the decimal point location (e.g.
2K2 indicates 2.2 kΩ).
• Resistor values with no multiplier may be indicated with
either an “E” or an “R” (e.g. 220E or 220R indicates 220
Ω).
• All capacitor values are given in micro-farads (µ = x10-6),
nano-farads (n = x10-9), or pico-farads (p = x10
• Capacitor values may also use the value multiplier as the
decimal point indication (e.g. 2p2 indicates 2.2 pF).
• An “asterisk” (*) indicates component usage varies.
Refer to the diversity tables for the correct values.
• The correct component values are listed on the Philips
Spare Parts Web Portal.
2.3.3 Spare parts
For the latest spare part overview, consult your Philips
Spare Part web portal.
2.3.4 BGA (Ball Grid Array) ICs
Introduction
For more information on how to handle BGA devices, visit
this URL: http://www.atyourservice-magazine.com. Select
“Magazine”, then go to “Repair downloads”. Here you will
find Information on how to deal with BGA-ICs.
BGA Temperature Profiles
For BGA-ICs, you must use the correct temperature-profile.
Where applicable and available, this profile is added to the
-12
).
IC Data Sheet information section in this manual.
2.3.5 Lead-free Soldering
Due to lead-free technology some rules have to be
respected by the workshop during a repair:
• Use only lead-free soldering tin. If lead-free solder paste
is required, please contact the manufacturer of your
soldering equipment. In general, use of solder paste
within workshops should be avoided because paste is
not easy to store and to handle.
• Use only adequate solder tools applicable for lead-free
soldering tin. The solder tool must be able:
– To reach a solder-tip temperature of at least 400°C.
– To stabilize the adjusted temperature at the solder-tip.
– To exchange solder-tips for different applications.
• Adjust your solder tool so that a temperature of around
360°C - 380°C is reached and stabilized at the solder
joint. Heating time of the solder-joint should not exceed ~
4 sec. Avoid temperatures above 400°C, otherwise
wear-out of tips will increase drastically and flux-fluid will
be destroyed. To avoid wear-out of tips, switch “off”
unused equipment or reduce heat.
• Mix of lead-free soldering tin/parts with leaded soldering
tin/parts is possible but PHILIPS recommends strongly to
avoid mixed regimes. If this cannot be avoided, carefully
clear the solder-joint from old tin and re-solder with new
tin.
For the third digit, the numbers 1...9 and the characters
A...Z can be used, so in total: 9 plus 26= 35 different
B.O.M.s can be indicated by the third digit of the serial
number.
Identification: The bottom line of a type plate gives a
14-digit serial number. Digits 1 and 2 refer to the production
centre (e.g. SN is Lysomice, RJ is Kobierzyce), digit 3
refers to the B.O.M. code, digit 4 refers to the Service
version change code, digits 5 and 6 refer to the production
year, and digits 7 and 8 refer to production week (in
example below it is 2010 week 10 / 2010 week 17). The 6
last digits contain the serial number.
2.3.6 Alternative BOM identification
It should be noted that on the European Service website,
“Alternative BOM” is referred to as “Design variant”.
The third digit in the serial number (example:
AG2B0335000001) indicates the number of the alternative
B.O.M. (Bill Of Materials) that has been used for producing
the specific TV set. In general, it is possible that the same
TV model on the market is produced with e.g. two different
types of displays, coming from two different suppliers. This
will then result in sets which have the same CTN
(Commercial Type Number; e.g. 28PW9515/12) but which
have a different B.O.M. number.
By looking at the third digit of the serial number, one can
identify which B.O.M. is used for the TV set he is working
with. If the third digit of the serial number contains the
number “1” (example: AG1B033500001), then the TV set
has been manufactured according to B.O.M. number 1. If
the third digit is a “2” (example: AG2B0335000001), then
the set has been produced according to B.O.M. no. 2. This
is important for ordering the correct spare parts!
Figure 3-1 Serial number (example)
2.3.7 Board Level Repair (BLR) or Component Level
Repair (CLR)
If a board is defective, consult your repair procedure to
decide if the board has to be exchanged or if it should be
repaired on component level.
If your repair procedure says the board should be
exchanged completely, do not solder on the defective board.
Otherwise, it cannot be returned to the O.E.M. supplier for
back charging!
2.3.8 Practical Service Precautions
• It makes sense to avoid exposure to electrical shock.
While some sources are expected to have a possible
dangerous impact, others of quite high potential are of
limited current and are sometimes held in less regard.
• Always respect voltages. While some may not be
dangerous in themselves, they can cause unexpected
reactions that are best avoided. Before reaching into a
powered TV set, it is best to test the high voltage
insulation. It is easy to do, and is a good service
precaution.
2.4 Abbreviation List
0/6/12 SCART switch control signal on A/V board.
0 = loop through (AUX to TV),6 = play 16 :
9 format, 12 = play 4 : 3 format
DNR Digital Noise Reduction: noise reduction
feature of the set
AARA Automatic Aspect Ratio Adaptation:
algorithm that adapts aspect ratio to
remove horizontal black bars; keeps the
original aspect ratio
ACI Automatic Channel Installation: algorithm
that installs TV channels directly from a
cable network by means of a predefined
TXT page
ADC Analogue to Digital Converter
AFC Automatic Frequency Control: control
signal used to tune to the correct
frequency
AGC Automatic Gain Control: algorithm that
ontrols the video input of the feature box
AM Amplitude Modulation
AP Asia Pacific
AR Aspect Ratio: 4 by 3 or 16 by 9
ASF Auto Screen Fit: algorithm that adapts
aspect ratio to remove horizontal black
bars without discarding video information
ATSC Advanced Television Systems Committee,
the digital TV standard in the USA
ATV See Auto TV
Auto TV A hardware and software control system
that measures picture content, and adapts
image parameters in a dynamic way
AV External Audio Video
AVC Audio Video Controller
AVIP Audio Video Input Processor
B/G Monochrome TV system. Sound carrier
distance is 5.5 MHz
BDS Business Display Solutions (iTV)
BLR Board-Level Repair
BTSC Broadcast Television Standard Committee.
Multiplex FM stereo sound system,
originating from the USA and used e.g. in
LATAM and AP-NTSC countries
B-TXT Blue TeleteXT
C Centre channel (audio)
CEC Consumer Electronics Control bus: remote
control bus on HDMI connections
CL Constant Level: audio output to connect
with an external amplifier
CLR Component Level Repair
ComPair Computer aided rePair
CP Connected Planet / Copy Protection
CSM Customer Service Mode
CTI Color Transient Improvement: manipulates
steepness of chroma transients
CVBS Composite Video Blanking and
Synchronization
DAC Digital to Analogue Converter
DBE Dynamic Bass Enhancement: extra low
frequency amplification
DCM Data Communication Module. Also
referred to as System Card or Smartcard
(for iTV).
DDC See “E-DDC”
D/K Monochrome TV system. Sound carrier
distance is 6.5 MHz
DFI Dynamic Frame Insertion
DFU Directions For Use: owner's manual
DMR Digital Media Reader: card reader
DMSD Digital Multi Standard Decoding
DNM Digital Natural Motion
DRAM Dynamic RAM
DRM Digital Rights Management
DSP Digital Signal Processing
DST Dealer Service Tool: special remote control
designed for service technicians
DTCP Digital Transmission Content Protection; A
protocol for protecting digital audio/video
content that is traversing a high speed
serial bus, such as IEEE-1394
DVB-C Digital Video Broadcast - Cable
DVB-T Digital Video Broadcast - Terrestrial
DVD Digital Versatile Disc
DVI(-d) Digital Visual Interface (d= digital only)
E-DDC Enhanced Display Data Channel (VESA
standard for communication channel and
display). Using E-DDC, the video source
can read the EDID information form the
display.
EDID Extended Display Identification Data
(VESA standard)
EEPROM Electrically Erasable and Programmable
Read Only Memory
EMI Electro Magnetic Interference
EPG Electronic Program Guide
EPLD Erasable Programmable Logic Device
EU Europe
EXT EXTernal (source), entering the set by
SCART or by cinches (jacks)
FDS Full Dual Screen (same as FDW)
FDW Full Dual Window (same as FDS)
FLASH FLASH memory
FM Field Memory or Frequency Modulation
FPGA Field-Programmable Gate Array
FTV Flat TeleVision
Gb/s Giga bits per second
G-TXT Green TeleteXT
H H_sync to the module
HD High Definition
HDD Hard Disk Drive
HDCP High-bandwidth Digital Content Protection:
A “key” encoded into the HDMI/DVI signal
that prevents video data piracy. If a source
is HDCP coded and connected via
HDMI/DVI without the proper HDCP
decoding, the picture is put into a “snow
vision” mode or changed to a low
resolution. For normal content distribution
the source and the display device must be
enabled for HDCP “software key”
decoding.
HDMI High Definition Multimedia Interface
HP HeadPhone
I Monochrome TV system. Sound carrier
distance is 6.0 MHz
I2C Inter IC bus
I2D Inter IC Data bus
I2S Inter IC Sound bus
IF Intermediate Frequency
IR Infra Red
IRQ Interrupt Request
ITU-656 The ITU Radio communication Sector
(ITU-R) is a standards body subcommittee
of the International Telecommunication
Union relating to radio communication.
ITU-656 (a.k.a. SDI), is a digitized video
format used for broadcast grade video.
Uncompressed digital component or digital
composite signals can be used. The SDI
signal is self-synchronizing, uses 8 bit or
10 bit data words, and has a maximum
data rate of 270 Mbit/s, with a minimum
bandwidth of 135 MHz.
iTV Institutional TeleVision; TV sets for hotels,
hospitals etc.
LS Last Status; The settings last chosen by
the customer and read and stored in RAM
or in the NVM. They are called at start-up
of the set to configure it according to the
customer's preferences
LATAM Latin America
LCD Liquid Crystal Display
LED Light Emitting Diode
L/L' Monochrome TV system. Sound carrier
distance is 6.5 MHz. L' is Band I, L is all
bands except for Band I
LPL LG.Philips LCD (supplier)
LS Loudspeaker
LVDS Low Voltage Differential Signalling
Mbps Mega bits per second
M/N Monochrome TV system. Sound carrier
distance is 4.5 MHz
MHEG Part of a set of international standards
related to the presentation of multimedia
information, standardised by the
Multimedia and Hypermedia Experts
Group. It is commonly used as a language
to describe interactive television services
MIPS Microprocessor without Interlocked
Pipeline-Stages; A RISC-based
microprocessor
MOP Matrix Output Processor
MOSFET Metal Oxide Silicon Field Effect Transistor,
switching device
MPEG Motion Pictures Experts Group
MPIF Multi Platform InterFace
MUTE MUTE Line
MTV Mainstream TV: TV-mode with Consumer
TV features enabled (iTV)
NC Not Connected
NICAM Near Instantaneous Compounded Audio
Multiplexing. This is a digital sound system,
mainly used in Europe.
NTC Negative Temperature Coefficient,
non-linear resistor
NTSC National Television Standard Committee.
Color system mainly used in North
America and Japan. Color carrier NTSC
M/N= 3.579545 MHz, NTSC 4.43=
4.433619 MHz (this is a VCR norm, it is
not transmitted off-air)
NVM Non-Volatile Memory: IC containing TV
related data such as alignments
O/C Open Circuit
OSD On Screen Display
OAD Over the Air Download. Method of
software upgrade via RF transmission.
Upgrade software is broadcasted in TS
with TV channels.
OTC On screen display Teletext and Control;
also called Artistic (SAA5800)
P50 Project 50: communication protocol
between TV and peripherals
PAL Phase Alternating Line. Color system
mainly used in West Europe (colour carrier
= 4.433619 MHz) and South America
(colour carrier PAL M = 3.575612 MHz and
PAL N = 3.582056 MHz)
PCB Printed Circuit Board (same as “PWB”)
PCM Pulse Code Modulation
PDP Plasma Display Panel
PFC Power Factor Corrector (or
Pre-conditioner)
PIP Picture In Picture
PLL Phase Locked Loop. Used for e.g. FST
tuning systems. The customer can give
directly the desired frequency
POD Point Of Deployment: a removable CAM
module, implementing the CA system for a
host (e.g. a TV-set)
POR Power On Reset, signal to reset the uP
PSDL Power Supply for Direct view LED
backlight with 2D-dimming
PSL Power Supply with integrated LED drivers
PSLS Power Supply with integrated LED drivers
with added Scanning functionality
PTC Positive Temperature Coefficient,
non-linear resistor
PWB Printed Wiring Board (same as “PCB”)
PWM Pulse Width Modulation
QRC Quasi Resonant Converter
QTNR Quality Temporal Noise Reduction
QVCP Quality Video Composition Processor
RAM Random Access Memory
RGB Red, Green, and Blue. The primary color
signals for TV. By mixing levels of R, G,
and B, all colors (Y/C) are reproduced.
RC Remote Control
RC5 / RC6 Signal protocol from the remote control
receiver
RESET RESET signal
ROM Read Only Memory
RSDS Reduced Swing Differential Signalling data
interface
R-TXT Red TeleteXT
SAM Service Alignment Mode
S/C Short Circuit
SCART Syndicat des Constructeurs d'Appareils
Radiorécepteurs et Téléviseurs
SCL Serial Clock I2C
SCL-F CLock Signal on Fast I2C bus
SD Standard Definition
SDA Serial Data I2C
SDA-F DAta Signal on Fast I2C bus
SDI Serial Digital Interface, see “ITU-656”
SDRAM Synchronous DRAM
SECAM SEequence Couleur Avec Mémoire.
Colour system mainly used in France and
East Europe. Colour carriers = 4.406250
MHz and 4.250000 MHz
SIF Sound Intermediate Frequency
SMPS Switched Mode Power Supply
SoC System on Chip
SOG Sync On Green
SOPS Self Oscillating Power Supply
SPI Serial Peripheral Interface bus; a 4-wire
synchronous serial data link standard
S/PDIF Sony Philips Digital InterFace
SRAM Static RAM
SRP Service Reference Protocol
SSB Small Signal Board
SSC Spread Spectrum Clocking, used to
reduce the effects of EMI
STB Set Top Box
STBY STand-BY
SVGA 800 × 600 (4:3)
SVHS Super Video Home System
SW Software
SWAN Spatial temporal Weighted Averaging
Noise reduction
SXGA 1280 × 1024
TFT Thin Film Transistor
THD Total Harmonic Distortion
TMDS Transmission Minimized Differential
Signalling
TS Transport Stream
TXT TeleteXT
TXT-DW Dual Window with TeleteXT
UI User Interface
uP Microprocessor
UXGA 1600 × 1200 (4:3)
V V-sync to the module
VESA Video Electronics Standards Association
VGA 640 × 480 (4:3)
VL Variable Level out: processed audio output
toward external amplifier
VSB Vestigial Side Band; modulation method
WYSIWYR What You See Is What You Record: record
selection that follows main picture and
sound
WXGA 1280 × 768 (15:9)
XTAL Quartz crystal
XGA 1024 × 768 (4:3)
Y Luminance signal
Y/C Luminance (Y) and Chrominance (C)
signal
YPbPr Component video. Luminance and scaled
color difference signals (B-Y and R-Y)
YUV Component video
3. Mechanical Instructions
ECN401
IR Module
SPEAKER
(1184)
ECN
403
ECN
601
Main board + Power board
ECN
601
SPEAKER
(1184)
3.1 Cable Dressing
CN8605
CN403
(1052)
CN401
CN601
J
(1056)
Cable dressing (22" 5403 series)
Back cover overview (22" 5403 series)
3.2 Assembly/Panel Removal
3.2.1 Stand removal
1. Remove the fixation screws [1] that secure the stand.
2. Take the stand bracket out from the set.
1
3.2.2 IR board Control Unit
1. Unplug the connector [2] from the IR board.
2. Press the snap that marked by blue box below backward then take out the IR board.
When defective, replace the whole unit.
2
1
1
2
3.2.3 Rear Cover
Warning: Disconnect the mains power cord before removing the rear cover.
1. Releasing the clips carefully at the indicated areas [2] that secure the back cover.
2. Unplug connector [3] carefully, as the speaker is catch on back cover.
3. Gently lift the rear cover from the TV. Make sure that wires and cables are not damaged while lifting the rear cover from the set.
2
3
3.2.4 Main + Power board
Caution: it is mandatory to remount all different screws at their original position during re-assembly. Failure to do so may result in damaging the
SSB.
1. Unplug all connectors [2].
2. Remove all the fixation screws [3].
3. The Main + Power board can now be shifted from side connector cover, then lifted and taken out of the I/O bracket.
3
3
2
3
3
3.2.5 Speakers
1. Gently release the tapes that secure the speaker cables.
2. Unplug the speaker connector from the SSB.
3. Take the speakers out.
When defective, replace the both units.
3.2.6 LCD Panel
1. Remove the Main + Power board as described earlier.
2. Remove the stand bracket as described earlier.
3. Remove the IR/LED as described earlier.
4. Remove the fixations screws that fix the metal clamps to the front bezel. Take out those clamps.
5. Remove all other metal parts not belonging to the panel.
6. Lift the LCD Panel from the bezel.
When defective, replace the whole unit.
2
3
4. Service Modes
4.1 Service Modes
The Service Mode feature is split into following parts:
Factory Mode.
Customer Service Mode (CSM).
Factory mode offer features, which can be used by the Service engineer to repair/align a TV set. Some features are:
Make alignments (e.g. White Tone).
Display information.
The CSM is a Service Mode that can be enabled by the consumer. The CSM displays diagnosis information, which the customer can forward to the
dealer or call centre. The information provided in CSM and the purpose of CSM is to:
Increase the home repair hit rate.
Decrease the number of nuisance calls.
Solved customers’ problem without home visit.
4.2 Factory mode:
Purpose
To perform extended alignments.
How to Activate the Factory mode
To activate the Factory mode, use the following method:
Press the following key sequence on the remote control transmitter: from the “Menu/Home” press “1999”, directly followed by the
“Back/Return” button. Do not allow the display to time out between entries while keying the sequence.
After entering the Factory mode, we can see many items displayed, use the UP/DOWN keys to display the next/previous menu items
Factory mode overview
How to Exit the Factory mode
Select “EXIT” from the menu and press the “OK” button.
Note: When the TV is switched “off” by a power interrupt, or normal switch to “stand-by” while in the factory mode, the TV will show up in “normal
operation mode” as soon as the power is supplied again. The error buffer will not be cleared.

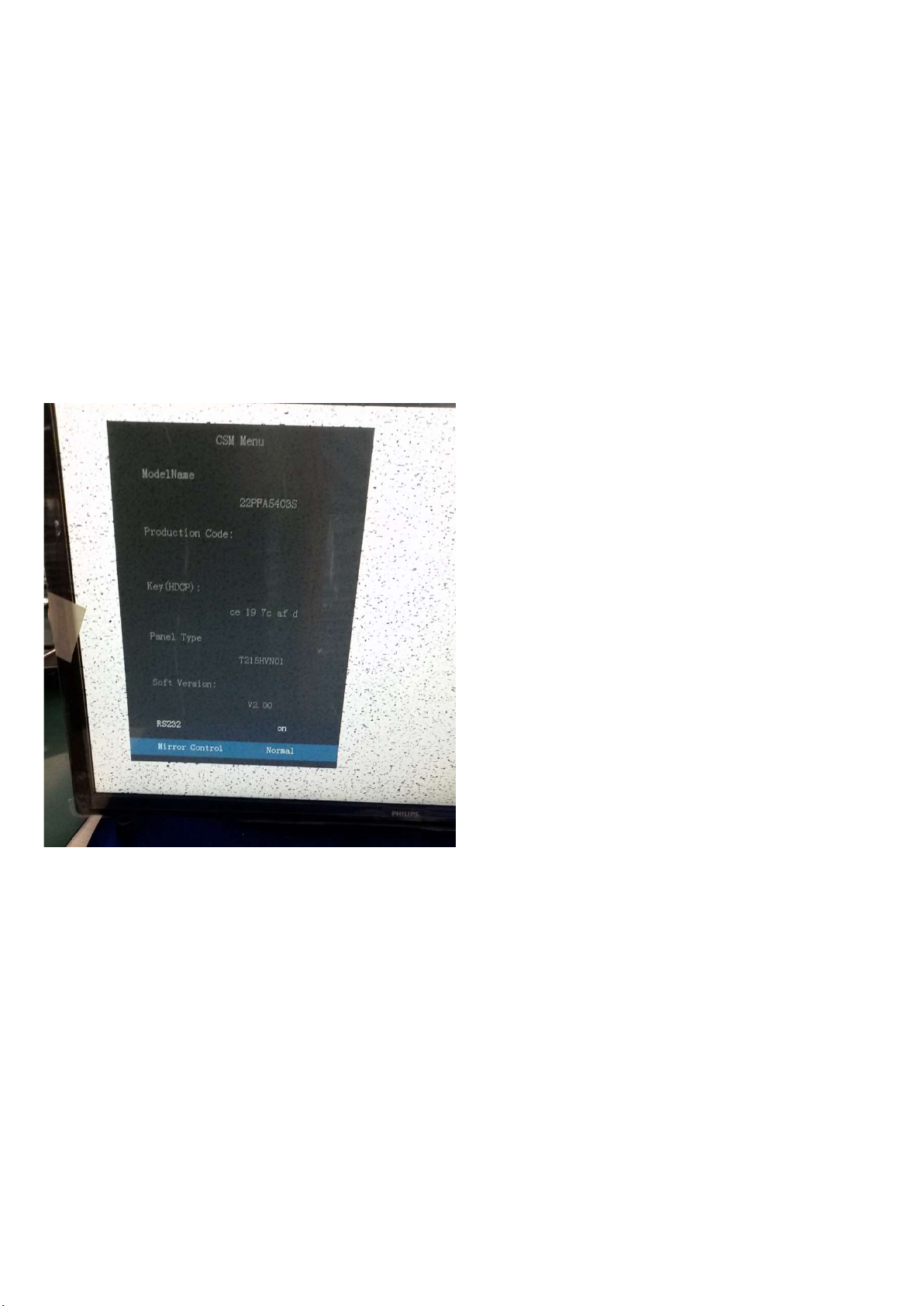

4.3 Customer Service Mode (CSM)
Purpose
The call centre can instruct the customer (by telephone) to enter CSM in order to identify the status of the set. This helps the call centre to diagnose
problems and failures in the TV set before making a service call.
The CSM is a read-only mode; therefore, modifications are not possible in this mode.
How to Activate CSM
To activate CSM, press the following key sequence on a standard remote control transmitter: from the “Menu/Home” press“456987” (do not allow
the display to time out between entries while keying the sequence). After entering the Customer Service Mode, the following items are displayed.
Use the Right/Left keys to display the next/previous menu items
Note: Activation of the CSM is only possible if there is no (user) menu on the screen!
CSM Overview
How to Navigate
By means of the “CURSOR-DOWN/UP” knob (or the scroll wheel) on the RC-transmitter, can be navigated through the menus.
How to Exit CSM
To exit CSM, use one of the following methods.
Press the MENU/HOME button on the remote control transmitter.
Press the POWER button on the remote control transmitter.
Press the POWER button on the television set.
5. Software Upgrading
Software Upgrading
Step 1: Ready for F/W Upgrade
1. Prepare a USB memory (File format: FLAT, Size: 1G~8G).
2. Copy the software (.bin file) to USB flash disk (root directory).
3. Rename the file name to “image.bin”.
4. Insert the USB memory stick that contains the software update files in TV’s USB 2.0 port.
Step 2: F/W Upgrade
1. Power off then power on the TV. The TV will detect the USB memory stick automatically. Then a window jumps out as below:
Check update file
0%
2. When the TV software is updated, please reboot the TV. Remove your USB flash drive.
3. We can enter in CSM mode to check the current software version.
Caution: Please make sure that software upgrade is finished before unplug the USB and AC power!
Step 3: Check the SW version
1. After burning software, restart the TV.
2. Press “Menu/Home+456987”, enter Customer Service Mode to check if the software version is correct.
Update the flash
12%
Trouble shooting
Picture-related
2016年12月10日
2016/4/8
Ask Photo
SW
issue
N
Intermittent
problem ?
Y
Y
SW latest ?
N
Update SW
N
Problem
solved ?
Y
Finish
Y
Picture ?
N
Backlight?
N
LED working ?
Y
Sound ?
SW+SSB
Y
N
PSU/SSB
Y
PSU+ Panel
Menu Smarkt
function?
N
SSB+LVDS+Panel
RAM
Y
Signal
issue
Trouble shooting
Audio/Sound-
related
2016年12月10日
2016/4/8
HW
issue
N
Intermittent
problem ?
Y
SW
Y
SW latest ?
N
Update SW
N
Problem
solved ?
Y
Finish
Y
Sound ?
N
Mute ?
N
Extra device
connect?
N
Factory
setting
Sound back ? Setting issue
N
Y
Y
Check extra
Y
device
Setting
issue
SSB+SPK
Trouble shooting system
Smart
N
function
issue ?
N
Intermittent
problem ?
Remark2:
Y
Y
2016年4月11日
2016/12/11
System related
Remark1:
Y
TV start
up ?
N
Network
connect ?
N
Connect network
Y
SW latest ?
N
Update SW
Problem
solved ?
Y
Y
N
SW issue
Commerce way
SCC
available ?
Y
Execute
SCC
Problem
solved ?
Y
N
N
SW update
available ?
Y
SW update
N
Problem
Y
solved ?
N
HW repair
Remark1 : What is System related issue ?
1.Permanent reboots
2.Intermittent reboots
3.No function, no standby LED (set dead)
4.No function, blinking LED
5.Set freezes, intermittently
6.Slow response to user interaction
7.Switches ON by itself
8.Switches Off by itself
9.Stuck in standby mode / unable to start up
10.Stuck on PHILIPS / ANDROID logo
11.CAM not recognized by TV
12.CAM authentication issue
13.Misc CAM issue
14.IP-EPG issues
15.BC-EPG issues
16.PVR issues w/ BC-EPG
17.PVR issues w/ IP-EPG
18.PVR issues / generic
19.EDFU-related issue
20.Features not available in UI / cannot be activated
Remark2 : How to judge intermittent issue ?
1.When the problem happened can be solved by:
1)AC off AC on
2)DC off DC on
3)RC switch different source
2.The problem intermittent happened
Finish
7. Electrical Diagram
Main filter
AC IN
12V 12V
AUDIO
AMP
7.1 Block diagram (For 715G9547)
LVDS
mLVDS
KEY
IR
SPDIF
LINEOUT
AMP
TCON IO
SPI FLASH
GPIO
USB2.0
SFC
USB2.0
LVDS
STB
HI3731V201_156PIN
SPDIF
AUDIO
AUDIO
AFE
HDMI0(MHL)
HDMI0USB2.0
HDMI1
HDMI1
HDMI2
HDMI2(ARC)
QAM
7.2 Power Supply
Power architecture of this platform.
Display power
CN8605
AC-input +
LINEIN
CVBSCVBS
IN
out
LVDS
Platform
HI3731V201
VGA
YPbPr
SI2151
7.3 Power tree (For 715G9547C)
Power tree
12V0
FHD:PMOS 3A
IRLML5203TR
PWR_EN
DC/DC 5.5A
RT6206B
PMU
RT6946
2A max
5V_STB
3.5A max
FHD:PMOS 3A
IRLML5203TR
STB_PWR
DC/DC 1.5A
RT7285A
LDO 800mA
AZ1117-ADJ
OP
RT9146
VCOM
AVDD
VMID
MINI_VGHM
MINI_VGL
PMU_3V3
VCC_PANEL
TCON
1.5A max
12V0
AMP
5V0
VDD_1V1
1A max
3V3(SOC & TUNER)
500mA max
LDO 800mA
AZ1117-ADJ
MHL 1.85A
SGM2554A
DDR_VCC
300mA max
DDR
VBUS_HDMI0_5V
1A max
1A max
MHL
5V0
(USB2.0 * 2)
7.4 Power layout SSB
L701 +5V_STB
C430 +12V_Panel VCC
C705 +3.3V
R717 +5V0
C720 VDD_+1V1
C602 +12V AUDIO
Power SSB Top View (For 715G9547C)
C711 +3.3V_TUNER
Power SSB Bottom View (For 715G9547C)
8. IC Data Sheets
8.1 MX25L3236FM2I-08G (IC U402--FLASH)
8.2 AD52060-QG28NRR (IC U601--AUDIO)

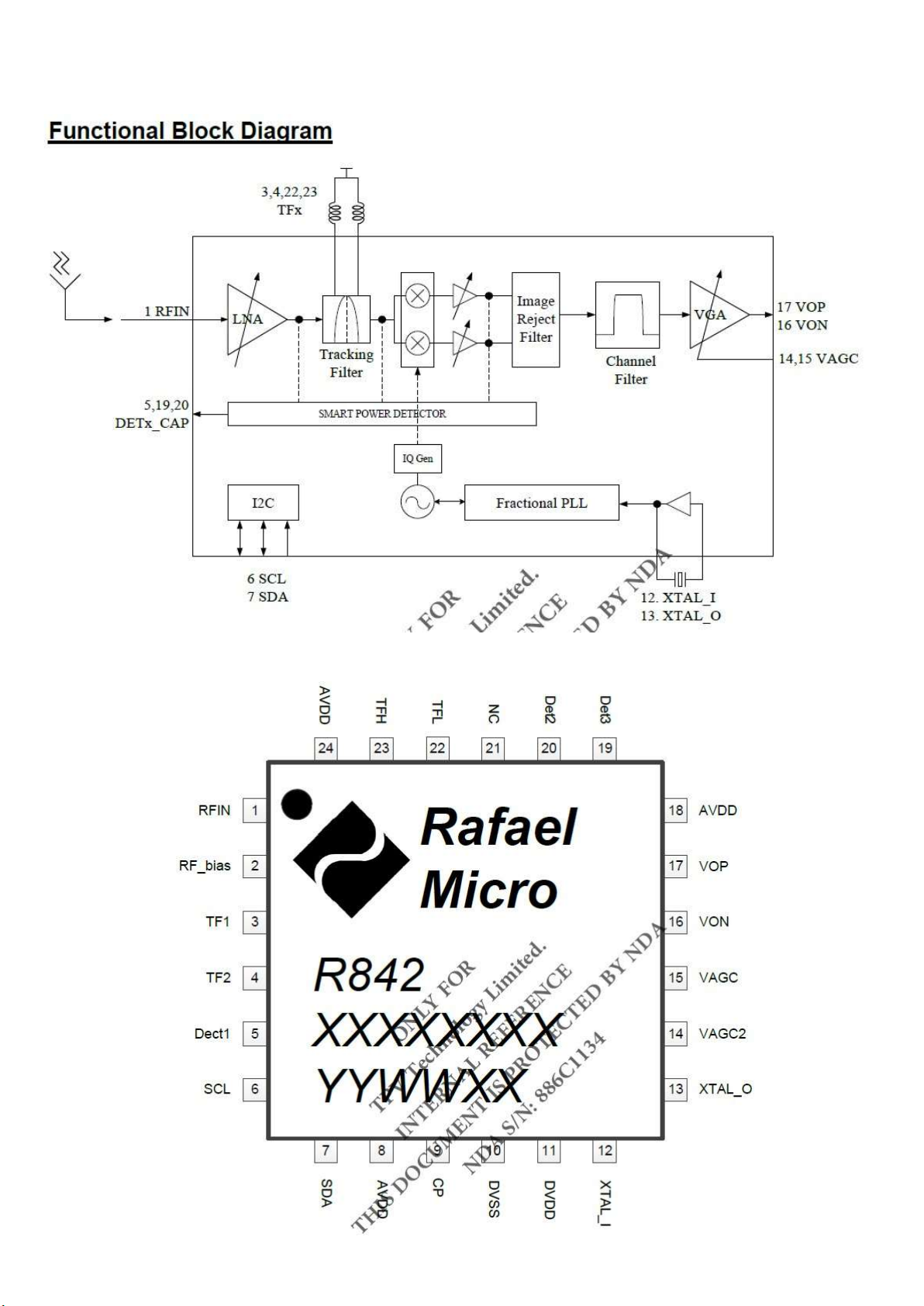

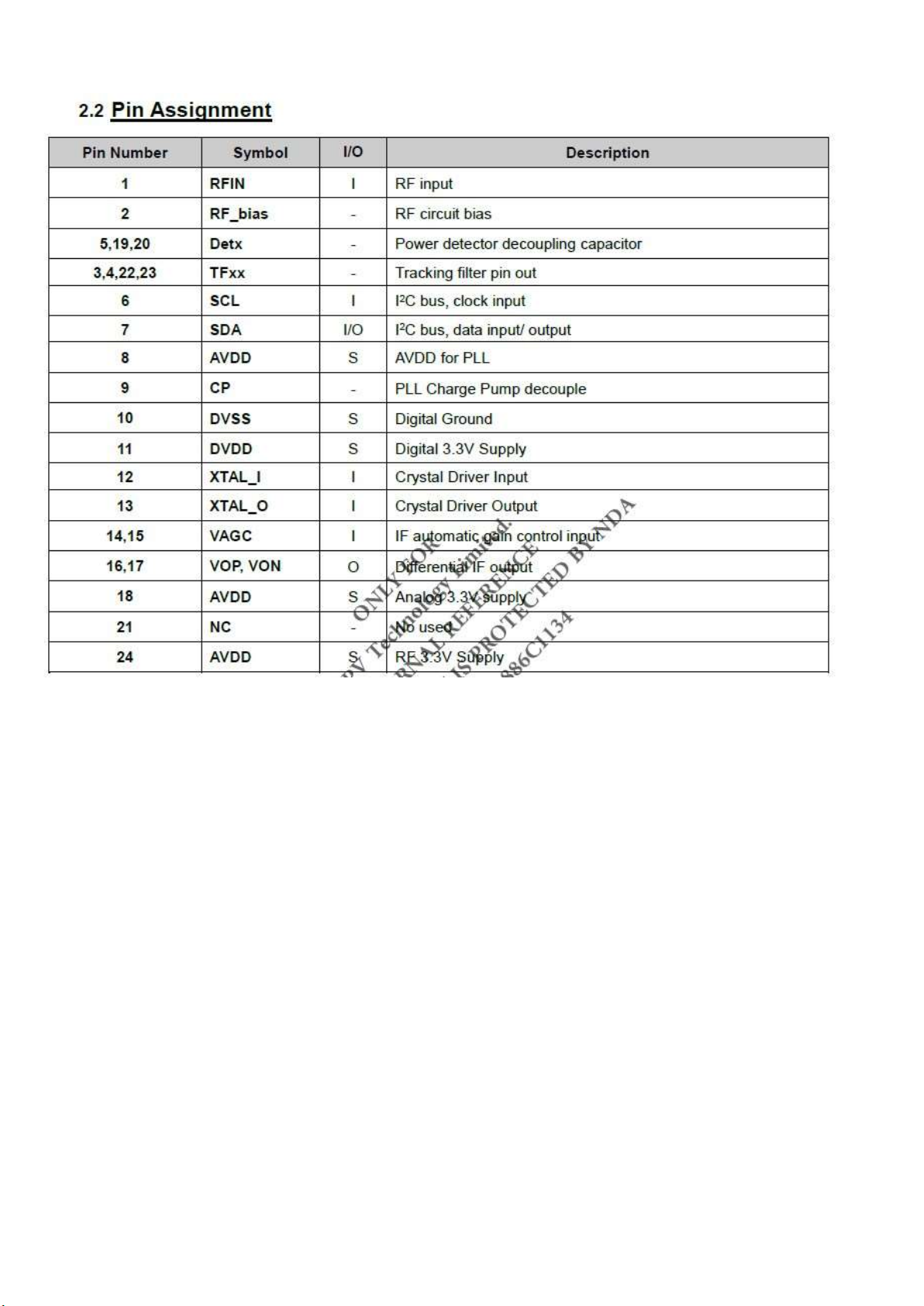

8.3 R842 (IC U101--Tuner)
9.Circuit Diagrams
9.1 A 715G9547 M+P BOARD
9-1-1 HISI V201
SMD XTAL
TUNER_CLK
VGA IN
VGA_R_IN
VGA_G_ IN
VGA_B_ IN
CVBS IN
CVBS0IN
XOUT
XIN
1M 1/16W
R402
NC/100OHM
R403
100OHM
R404
Close to SOC
R422 75OHM 1/16W
R434 75OHM 1/16W
R438
68 OHM 5% 1/16W
R436 75OHM 1/16W
Close to SOC
R405
33 OHM 1/16W
R406 75OHM 1/16W
R407
68 OHM 5% 1/16W
TP
TP401
R433
33 OHM 1/16W
R435
33 OHM 1/16W
R437
33 OHM 1/16W
3
2 4
1
24.000Mhz
X401
C404
47NF 16V
C405
47NF 16V
C402
27PF 50V
C403
27PF 50V
C433
47NF 16V
C434
47NF 16V
C436
47NF 16V
C435
47NF 16V
CVBS0_I N
CVBS_VCOM
CVBS_OUT
HS401
HEAT SINK
VGA_RP
VGA_GP
VGA_GN
VGA_BP
DDR_VCC
TP404
TP
3V3
VDD_1V1
1
2
LVDS1_TB P/MLV6P
LVDS1_TB N/MLV6N
LVDS1_TA N/MLV5N
LVDS1_TCN
LVDS1_TCP
LVDS1_TCL KN
LINEOUT_L2
AMP_MUTE
LINEOUT_R2
HP_DET
SPDIF_OUT
151
153
152
150
154
156
155
157
EPAD1
LINEOUT _L2
LINEOUT_ L1
LINEOUT_ R1
AVREF
AGND_CODEC
LINEIN_L3
LINEIN_R3
LINEIN_L2
LINEIN_R2
UART_T XD
UART_RXD
CVBS0_I N
CVBS_VCOM
CVBS_OUT
VGA_VS
VGA_HS
VGA_BP
VGA_GP
VGA_GN
VGA_RP
3V3
AVDD33_PL L
XIN
XOUT
3V3
I2C_SDA
1
LINEOUT_L1
2
LINEOUT_R1
3
VREF
4
AGND_COD EC
5
LINEIN _L3
6
LINEIN _R3
7
LINEIN _L2/GPIO5_7
8
LINEIN _R2/GPIO5_6
9
LINEIN _L1/GPIO6_1/I2S_DOU T
10
LINEIN _R1/GPIO6_0/I2S_W S
11
I2S_MCLK/GPIO6_2
12
I2S_BCLK/GPI O6_4
13
UART0_TXD/GPIO6_6/VGA_DDC _SCL
14
UART0_RXD/GPIO6_7/VGA_D DC_SDA
15
CVBS1
16
CVBS0
17
CVBS_VCOM
18
CVBS_OUT
19
VGA_VS
20
VGA_HS
21
VGA_BP
22
VGA_GP
23
AVSS_AFE
24
VGA_GN
25
VGA_RP
26
AVDD33_AFE
27
YP/C VBS1
28
YN
29
PB
30
PR
31
VDP_DE/TSI_DA TA/GPIO7_0
32
VDP_HSY NC/TSI_CLK/GPI O7_1
33
VDP_VSYNC /TSI_SYNC /GPIO7_3
34
GPIO2/TSI_VLD/ GPIO7_2
35
AVDD33_PLL
36
VSS1
37
XIN
38
XOUT
39
DVDD33_1
40
VSS2
41
I2C_SDA/GPI O7_6
LINEOUT _R2
AVDD33_COD EC
AMP_MUT E/GPIO5_4
HP_DET/GP IO5_5/LS_ADC2
SPDIF_OUT /GPIO5_3/LS_ADC 1
MISC Interface of
I2C_SCL/ GPIO7_742QAM_AVSS43IF_N44IF_P45QAM_AVREF46AVDD33_QAM47RF_AGC/ GPIO8_048VDD_149HDMI 2_HTP/GPIO8_150ARC_DET /GPIO8_251HDMI 2_SDA/GPIO8_352HDMI 2_SCL/GPIO8_453VDDIO_D DR_DQ154VDDIO_D DR_DQ255AVDD33_DD R_PLL156ARC57VDD_258HDMI _R2XCN59HDMI _R2XCP60HDMI _R2X0N61HDMI _R2X0P62HDMI _R2X1N63HDMI _R2X1P64HDMI _R2X2N65HDMI _R2X2P66HDMI 1_HTP/GPIO8_567HDMI 1_SDA/GPIO8_668HDMI 1_SCL/GPIO8_769AVDD33_HD MIRX170HDMI _R1XCN71HDMI _R1XCP72HDMI _R1X0N73HDMI _R1X0P74HDMI _R1X1N75HDMI _R1X1P76HDMI _R1X2N77HDMI _R1X2P78MHL_CD _SENSE/GPIO9_079MHL_VBUS_C TRL/GPIO9_180CBUS_HT P81VBUS_5V
LS_ADC0
IRIN
LED_PWM
149
148
LS_ADC0/GPI O5_2
LED_PWM/GP IO5_1
QFP156_CS
LVDS0_TA N/MLV0N
LVDS0_TB P/MLV1P
LVDS0_TCN/MLV 2N
LVDS0_TB N/MLV1N
LVDS0_TA P/MLV0P
AVDD33_L VDS
PWR_EN
AVDD33_DDR_PL L2
144
146
145
138
140
142
137
139
141
143
147
VDD_5
IRIN /GPIO5_0
LV0_TBP/TX1P
LV0_TAP/TX0P
AVDD33_LVDS
LV0_TBN/T X1N
LV0_TAN/T X0N
LV0_TCN/ TX2N
VDDIO_D DR_CMD
AVDD33_DDR _PLL2
PWR_EN/GPI O4_5/FUNC _SEL
U40 1
LVDS1_TA P/MLV5P
LVDS0_TCL KP/MLV3P
LVDS0_TCL KN/MLV3N
LVDS0_TCP/ MLV2P
LVDS0_TDP/ MLVCLKP
LVDS0_TDN/MLV CLKN
136
135
134
128
130
132
133
127
129
131
126
LV1_TCN
LV1_TBP/TX7P
LV1_TAP/TX6P
LV0_TEP/TX5P
LV0_TDP/T X4P
LV0_TCP/T X2P
LV1_TBN/T X7N
LV1_TAN/T X6N
LV0_TEN/T X5N
LV0_TDN/ TX4N
LV0_TCLKP/T X3P
LV0_TCLKN/T X3N
TCON_EO/GPIO1_4/ LVSYNC
TCON_MCLK/GPIO1_3/ LHSYNC
TCON_OE1/GPIO1_0/ P2P_LOCK
TCON_STV2/GPIO0_6/I 2S_MCLK
TCON_STV1/GPIO0_5/I 2S_BCLK
SFC_HOLD N/GPIO0_4/TCON_P OL/I2S_WS
SFC_WPN /GPIO0_3/TCON_TP/I2S_D OUT
BLK_ON/GPIO0_2/ ROMBOOT_SEL
124
125
LV1_TCP
LV1_TCLKN
LV1_TCLKP
LV1_TDN
LV1_TDP
LV1_TEN
LV1_TEP
VDD_4
TCON_GCLK/GPIO1 _2/LDE
TCON_OE2/GPIO1_1/LC K
TCON_CKV/GPI O0_7
DVDD33_2
BRI_PWM0/GPI O0_1
STANDBY/G PIO0_0
SFC_DOI
SFC_DI O
SFC_CLK
SFC_CSN
USB2_DP0
USB2_DM0
USB2_DP1
USB2_DM1
HDMI_R0X2P
HDMI_R0X2N
HDMI_R0X1P
HDMI_R0X1N
HDMI_R0X0P
HDMI_R0X0N
HDMI_R0XCP
HDMI_R0XCN
AVDD33_HDMIR X2
HDMI_CEC /GPIO9_4
VDD_3
HDMI0_SCL/G PIO9_3
HDMI0_SDA/GPI O9_2
82
123
LVDS1_T CLKP
122
LVDS1_T DN
121
LVDS1_T DP
120
119
118
117
116
115
114
113
112
111
110
109
POL/SFC_HOL DN
108
TP/SFC_WPN
107
BLK_ON
106
105
BRI_PWM0
104
STB_ PWR
103
SFC_DOI
102
SFC_DIO
101
SFC_CLK
100
SFC_CSN
99
USB2_DP0
98
USB2_DM0
97
96
95
HDMI_R0X2P
94
HDMI_R0X2N
93
HDMI_R0X1P
92
HDMI_R0X1N
91
HDMI_R0X0P
90
HDMI_R0X0N
89
HDMI_R0XCP
88
HDMI_R0XCN
87
86
HDMI_CEC
85
84
HDMI0_SCL
83
HDMI0_SDA
VDD_1V1 VDD_1V1
3V3 3V3
AUDIO LINE OUT/IN
FOR HEADPHONE
FOR CVBS&VGA
LINEIN3_L
LINEIN3_R
LINEIN2_L
LINEIN2_R
Close to SOC
HP_L
HP_R
C406
2.2UF 6.3V
C407
2.2UF 6.3V
C437
2.2UF 6.3V
C438
2.2UF 6.3V
LINEOUT_ L1
LINEOUT_ R1
LINEIN_L3
LINEIN_R3
LINEIN_L2
LINEIN_R2
VIF IN
IF- IF_N
IF+ IF_P
Close to SOC
ARC
IF_P
IF_N
ARC_DET
RF_AGC
I2C_SCL
QAM_AVREF
3V3
DDR_VCC
AVDD33_DDR_PL L1
VDD_1V1VDD_1V1
3V3
CBUS
MHL_VBUS_E N
MHL_VBUS_5 V
MHL_DET

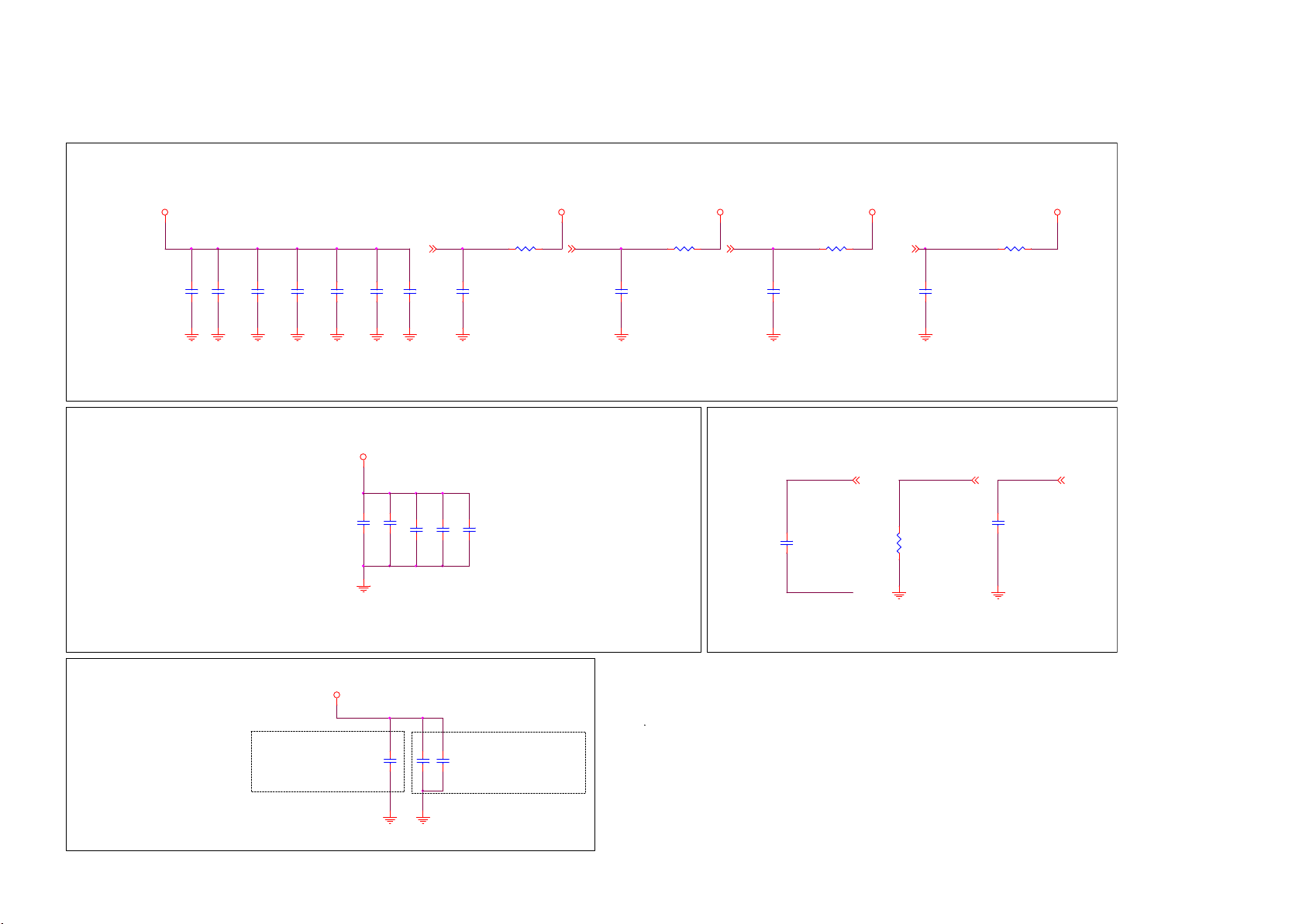

9-1-2 SOC POWER1
Power for SOC
3V3
3V3 3V33V33V3 3V3
VDD
C408
100NF 16V
C409
100NF 16V
C410
100NF 16V
C411
100NF 16V
C412
100NF 16V
VDD_1V1
C418
100NF 16V
C413
100NF 16V
C414
100NF 16V
C415
100NF 16V
R408
0R05 OHM
AVDD33_DDR_PL L1AVDD33_L VDS AVDD33_DDR_PL L2
C416
100NF 16V
R409
0R05 OHM
C401
100NF 16V
R410
0R05 OHM
AVDD33_P LL
C417
100NF 16V
R411
0R05 OHM
Vref Power
R412
0R05 OHM
AGND_CODEC
C420
2.2UF 6.3V
AVREF QAM_ AVREF
C419
C421
100NF 16V
100NF 16V
C423
C422
100NF 16V
100NF 16V
C424
2.2UF 6.3V
AGND_CODEC
DDR
DDR_VCC
For VDDIO_DDR_CMD
C426
C425
C427
For VDDIO_DDR_DQ
100NF 16V
10UF 6.3V 20%
2.2UF 6.3V

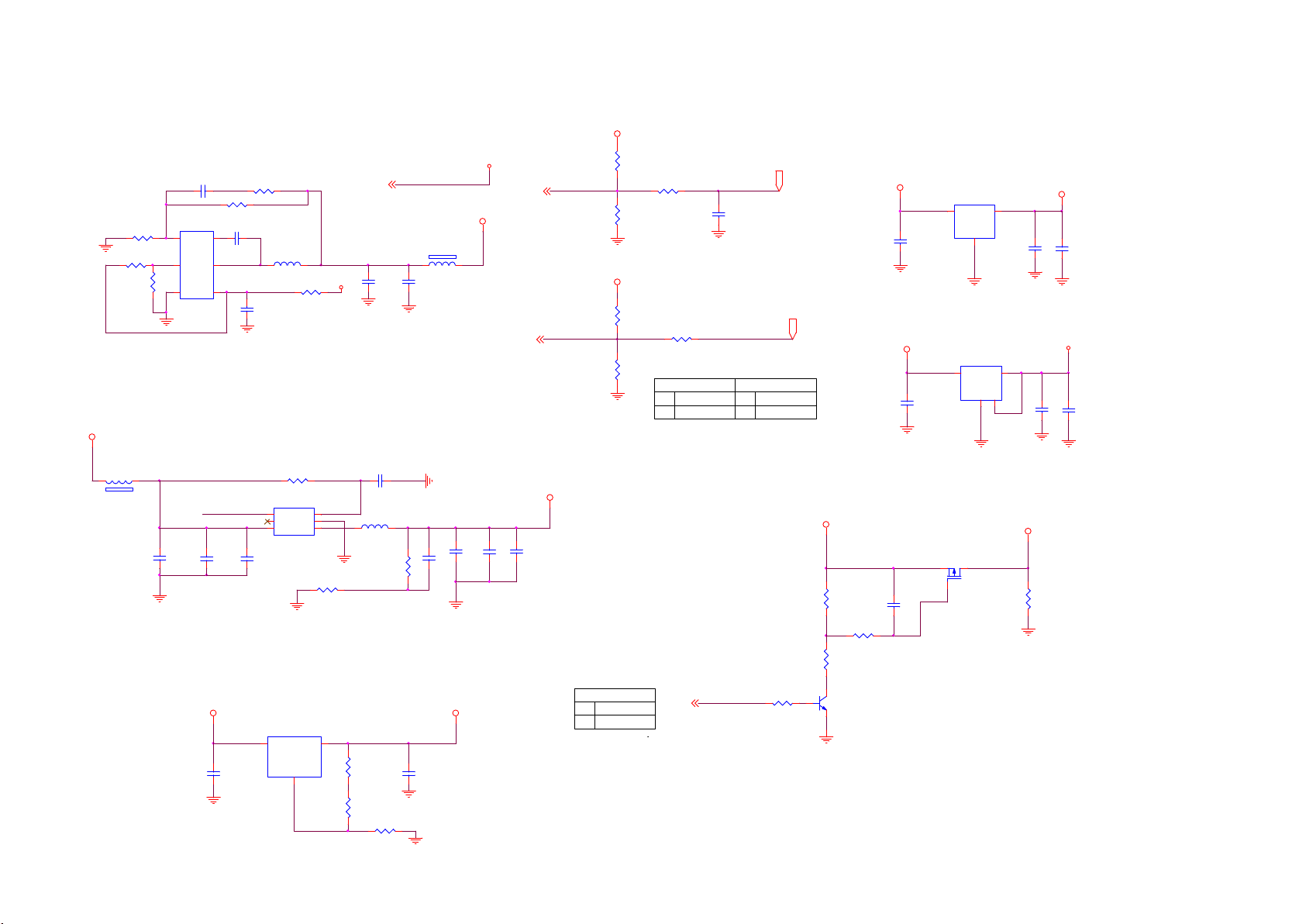

9-1-3 Main POWER2
VDD
Power supply mangement
5V_STB
R706
R707
100K 1/16W 5%
5V_STB
FB701
12
120R 3A
13.3K 1%
U703
1
FB
2
EN
R708
62K 1/16W 1%
GND3IN
SY8104ADC
C714
1UF 10 V
C702
22PF 50V
R701 0R05 1/16W
R704 100K 1%
C701
6
BS
0.1uF 50V
5
LX
4
R709 0R051/8W
C709
10uF 16V
1.5A DC-DC For VDD
VOUT=0.6*(1+10K/12K)=1.1V
U705
SY8009BABC
DDR_PW R_FB
C715
100N16V
6
FB
5
NC
4
IN
C716
2.2UF 6.3V
DDR
IF you need DDR3_1V5
VOUT=1.25*(1+110/249)=1.80V
VOUT=1.25*(1+(110//90.9)/249)=1.5V
5V0
AZ1084CD-AD JTRG1
VIN3VOUT
C722
SMT
1UF 10V
4.7uH
R713
4.7K1/16W
1
L701
GND
GND/AD J
EN
LX
U701
+12VO[3]
Vout = 0. 6x(1+ 100/13.3)= 5.11V
3.3A
C707
P12V
22UF 10V
C713 1U F 10V
1
2
L702 4.7uH
3
DDR_PW R_FB
R715
12K 1% 1/16W
2
R721
249 OHM +-1% 1/16W
R1
R722
0R05 OHM
R723
110R 1%
R2
FB702
1 2
C708
22UF 10V
C718
R714
22PF 50V
10K 1/16W
C723
10UF 10V
SMT
300R
C717
10UF
DDR_VCC
5V_STB
P12V
C719
5V0
BRI_PWM0
R705
NC/4. 7K1/16W
R702
4.7K1/16W
C703
NC/1UF 10V
BL_DIM
R703
1K
3V3
5V_STB
C704
1UF 10 V
UZ1084G33TN3R
3
VIN
U702
VOUT
1
3V3
2
GND
C705
C706
100N16V
10UF
5V0
BLK_O N
R710
NC/4. 7K1/16W
R712
4.7K1/16W
R711 4K7 1/16W 5%
BLK_O N
Bla ck ligh t OFF
0
1
BL_ON
BLK_O N
0 boot from ROM
boot from SFCBla ck ligh t ON
1
TUNER 3V3
5V0
C710
1UF 10V
U704
LD1117AG33AA3AR
VI3VO
GND14
3V3_TUN
2
C711
4
C712
100N16V
10UF
VDD_1V1
5V_SB to 5V0
5V_STB
C720
100N16V
47UF 6 .3V
R716
100K 1/16W 5%
R718
47K 1/16W
R719
10K 1/16W 5%
STB
0
5V0 O FF
1
5V0 O N
STB_ PWR
R720
10K 1/16W 5%
Q702
MMBT3904
C721
100NF 16V
Q701
AO3401A
5V0
R717
100K 1/16W 5%

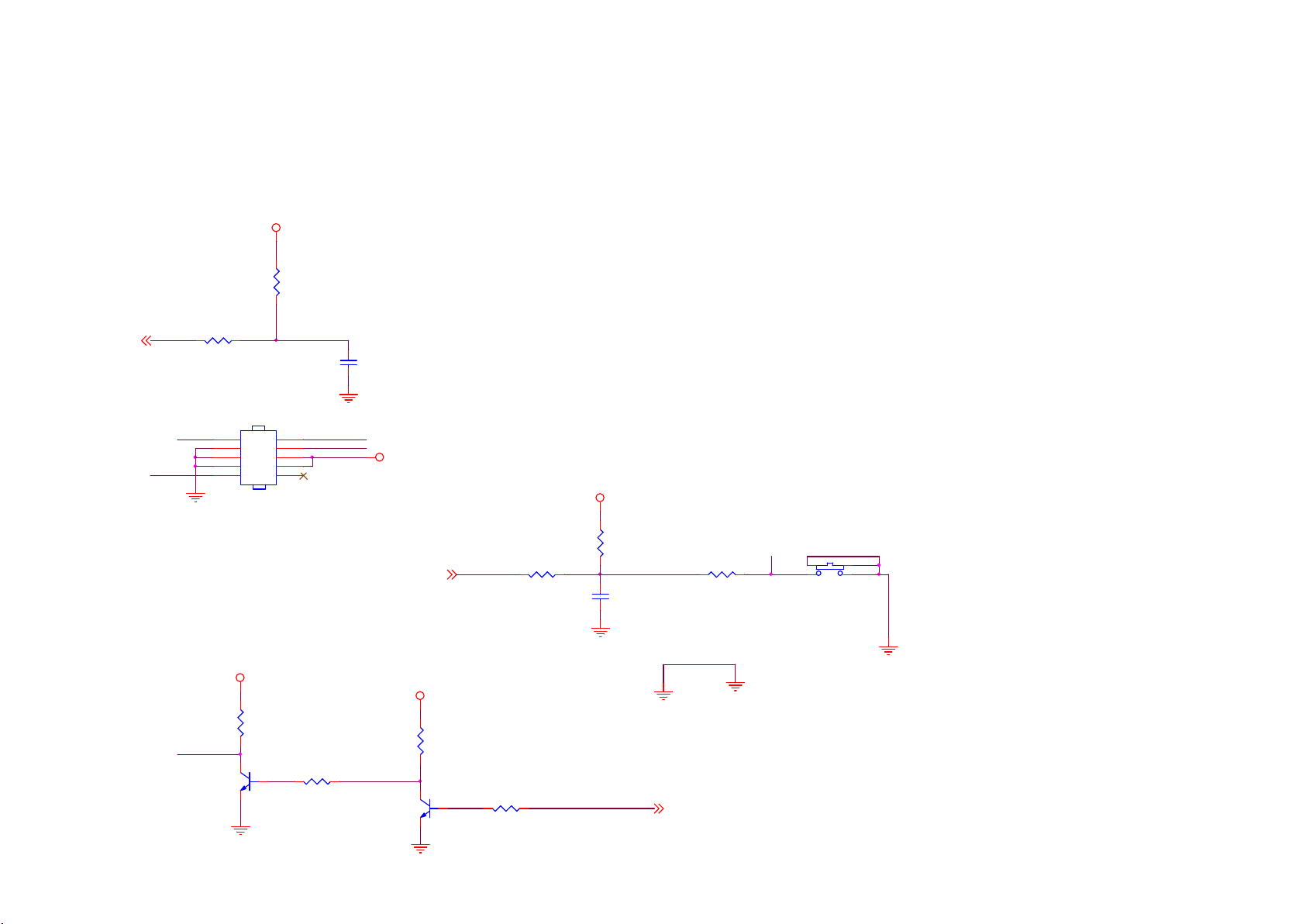

9-1-4 IR&KEY
UART & IR & KEY & XTAL
IR
IRIN
POWER_KEY
UART
LED-G
DGND
R414
100OHM
2
4
6
8
10
CN401
CONN
3V3
R413
NC/10K+-5%1/16W
IRR X1
1
3
5
7
9
C428
1N 50V
LED-R
IRR X1
3V3
LS_ADC0
KEY PADS
3V3
R415
6.8K +-1% 1/16W
R416
100OHM
C429
100NF 16V
POWER_KEY
R417
750 OHM 1%
SW401
3 4
1 2
SW
LED-G
3V3
R418
10K+-5%1/16W
MMBT3904
Q402
DGND
R420
10K 1/16W 5%
LED-R
3V3
R419
10K+-5%1/16W
DGND
MMBT3904
Q403
R421
10K 1/16W 5%
DGND
LED_PWM
9-1-5 SPI&LVDS
USB & SPI FLASH & LVDS
LVDS
VCC_PANEL
R423
NC/ 4.7K
LVDS_S EL
R424
NC/ 4.7K
3V3
LVDS0_ TAP/ML V0P
LVDS0_ TBP/ML V1P
LVDS0_ TCP/MLV 2P
LVDS0_ TDP/MLV CLKP LVDS0_ TDN/MLVCLK N
LVDS1_ TAP/ML V5P
LVDS1_ TBP/ML V6P
LVDS1_ TCP
LVDS1_ TCLKP
LVDS1_ TDP
P12V
+12VO[3]
5V_STB
P12V
R439 0OHM
R401 NC/0OHM
R428
100K 1/16W 5%
R431 33K 1%
Panel Power
NC/ BAS316WS
D401
AO3407A
C431
100N 50V
Q401
VCC_PANEL
C430
100NF 16V
R430
2K 1/4W
CN403
32
30
28
26
24
22
20
18
16
14
12
10
31
29
27
25
23
21
19
17
15
13
11
9
8
7
6
5
4
3
2
1
CONN
LVDS0_ TAN/MLV0 N
LVDS0_ TBN/MLV1 N
LVDS0_ TCN/MLV2 N
LVDS0_ TCLKN/ML V3NLVDS0_ TCLKP/M LV3P
SFC_CSN
SFC_DOI
TP/SFC_WPN
LVDS_S EL
LVDS1_ TAN/MLV 5N
LVDS1_ TBN/MLV 6N
LVDS1_ TCN
LVDS1_ TCLKN
LVDS1_ TDN
R429 NC/0R05 OHM
3V3 3V3
SPI FLASH
3V3
R425
10K 5% 1/1 6W
U402
1
CS#
2
SO/SIO1
3
WP#
GND4SI/SIO 0
MX25L3236FM2I-08G
VCC
HOLD#
SCLK
8
7
6
5
R426
10K 5% 1/1 6W
R427 NC/0R05 OHM
C432
100NF 16V
SFC_DIO
SFC_CLK
POL/SFC_HOLDN
PWR_EN
R432 4K7 1/16W 5%
Q404
MMBT3904
9-1-6 CVBS&USB&VGA
CVBS0 IN
USB2.0
VGA_S CL
VGA-HS
VGA-VS
CN102
A
B
C
RCA JACK
5V0
TH101
2
1
4
3
6
5
1716
11
12
13
14
15
18 19
R102 10K 5% 1/ 16W
R103 10K 5% 1/ 16W
R104
10K 5% 1/16W
6
1
7
2
8
3
9
4
10
5
CN104
D-SUB 15P
VGA_S DA UART_RXD
VGA_S CL
VGA-HS
VGA-VS VGA_V S
VGA_R_ IN
VGA_G _INVGA_S DA
VGA_B _IN
R134
470 OHM 1/16W
R136
470 OHM 1/16W
CVBS0IN
LINEIN3_ L
LINEIN3_ R
R105
10K 5% 1/ 16W
R133 33R 1/16W 5%
R135 33R 1/16W 5%
R137
2K 1/16W
R138
2K 1/16W
UART_T XD
VGA_HS
t
PTCR
USB_5V
12
C103
10uF 25V
CN101
R/A 6P 1*1
1
USB2_DM 0
USB2_DP0
R106 4.99ohm 1/16W +/-1%
R107 4.99ohm 1/16W +/-1%
12
12
ZD102
AZ5413-01F.R7GR
ZD103
AZ5413-01F.R7GR
1 2 3 4
2
3
4
6 5
CN103
PHONE J ACK
2
3
4
1
R108 10K 5% 1/16W
R109 10K 5% 1/16W
R122
10K 5% 1/16W
LINEIN 2_R
LINEIN 2_L
R123
10K 5% 1/16W
9-1-7 AUDIO AMP
5V_STB
AC OFF POPO
R612
Q602
MMBT3906
10K 1/16W 5%
R613
100K 1/16W 5%
+12VO[3]
R610
C616
10UF 10V
AMP_MUTE
LINEOUT_L2
10K 1/16W 5%
PVDD
C607
2.2NF 50V
AMP_MUTE
Low: Mute disa blde
High: Mute enab le
POP
LINEOUT_R2
C626
2.2NF 50V
R603
10K 1/16W 5%
R604
100OHM
100OHM
5V0
R602
10K 1/16W 5%
Q601
POP
MMBT3904
C605 220nF 16V
5V05V0
10K 1/16W 5%
NC/10K 1/16W 5%
R606
R605
PVDD
0R05 OHM
NC/0R05 OHM
R608
R617
R609
10 OHM 1/10W
R601
C614
1UF 10% 16V
R614
100K 1/16W
R616
47K 1% 1/16W
C623 220nF 16V
AMP_STB
C621
220nF 16V
C609
220nF 16V
C619
1UF 10% 16V
C620
1UF 10% 16V
U601
1
SDZ
2
FAULTZ
3
LINP
4
LINN
5
GAIN0
6
GAIN1
7
AVCC
8
AGND
9
GVDD
10
PLIMIT
11
RINN
12
RINP
13
NC
14
PBTL
AD52060-QG28NRT
1.2A Max
Thermal Pad
PVCCL
PVCCL
OUTPL
OUTNL
OUTNR
OUTPR
29
28
27
26
BSPL
C606
220nF 16V
25
24
PGND
23
22
BSNL
C612
220nF 16V
21
BSNR
C615
220nF 16V
20
19
PGND
18
17
BSPR
C624
220nF 16V
16
PVCC
C601
100N 50V
15
PVCC
100N 50V
C603
R607
10OHM1/16W
10OHM1/16W
10OHM1/16W
10OHM1/16W
FB602
120R 3A
FB603
120R 3A
R611
FB604
120R 3A
R615
FB601
120R 3A
R618
C604
1NF 50V
1 2
1 2
1 2
1 2
C627
1NF 50V
PVDD
C610
330pF 50V
C613
330pF 50V
C618
330pF 50V
C625
330pF 50V
C602
10UF 16V
PVDD
C628
10UF 16V
C608
2.2NF 50V
C611
2.2NF 50V
C617
2.2NF 50V
C622
2.2NF 50V
L+
L-
CN601
4
R-
3
2
1
5 6
CONN
R+
C632
R636
NC/4.7U F 10% 10V
HP_L HP_R
HP_L2
NC/20K 1/16W
NC/680PF 50V
A_OUT_L
HP_DET2,4
A_OUT_L
A_OUT_R
C655
R623
R660
NC/82KOHM +-5% 1/16W
NC/100 OHM 1/16W
C654
NC/1NF
R635
NC/1K 1/16W 1%
R625 NC/10 OHM
R632 NC/10 OHM
R619
NC/5.1K 1%
HP_SDN
H: ENABLE
L: MUTE
NC/47PF 50V
NC/1UF 10% 16V
C634
1
2
3
4
5
6
C629
R639
NC/100K
U600
NC/AD22650-QH14N AT
LINP
RINP
LINN
RINN
OUTL
OUTR
SGND
UVP
EN
PGND
PVSS
PVDD
CN7CP
C631
NC/1UF 10% 16V
R638
NC/100K
14
13
12
11
10
9
8
ZD600 NC/MLVG0402
12
R637 NC/5.1K 1%
R621
C657
NC/82KOHM +-5% 1/ 16W
NC/47PF 50V
NC/100 OHM 1/1 6W
R624 NC/30Kohm 1/16W +/-5%
C630
NC/1UF 6.3V
Vuvp=(1.25-6uAxR624)x(Rup+Rdown)/Rdown=2.675V
ZD601 NC/MLVG0402
12
R659
C633
NC/4.7UF 10% 10V
NC/20K 1/16W
C656
NC/680PF 50V
C7132
NC/1NF
1
2
3
3V3
NC/1.5KOHM +-5% 1/16W
R622
NC/1K
CN603
NC/CONN
R620
R661
A_OUT_R
A_OUT_R
3V3
HP_R 2
9-1-8 Tuner
Tuner(R842)
RF CONN
TU101
ANT
2
3
4
5
6
RF_I N
I2C_SCL
I2C_SDA
1
2
3
4
5
6
470pF 50V
4.7K1/16W
RF_I N
C118
1
3V3_TUN
R116
3
BAV99
D101
2
C101
1.8 pF 50V
clos e to D4 03(B AV9 9)
clos e to D4 03(B AV9 9)
1 2
R117
4.7K1/16W
R118 100OHM
R119 100OHM
L102
6.8nH
L104
1 2
C127
47NF 16V
1000R
T_SDA
39pF 50V
L105
1000R
L106 180nH
T_SCL
C131
39pF 50V
C132
100NF 16V
25
1
2
3
4
5
6
C133
100NF 16V
VDD3V
C120
U101
GND
RFI N
RFI N2
TF1
TF2
DECT1
SCL
330PF 50V
L103 68nH
23
24
AVDD
SDA7AVDD
8
R101
1.8KOHM 5% 1/16W
C136
C137
6.8nF 50V
TUNER_3V3
3V3_TUN
VDD3V
100N 16V
100 OHM 1/16 W
Close to SOC
C113
C119
NC/56pF 50V
R112
NC/ 470R 1/16W 5%
C125
NC/56pF 50V
RF_AGC
Close to SOC
R111
IFN
R114
IFP
100 OHM 1/16 W
C121 100N 16V
100 OHM 1/16 W
C124 100N 16V
IF-
IF+
C112
10UF
L101
1000R
1 2
22
TFH
9
C123
22N 25V
C122 22NF 25V
20
21
19
VOP
VON
18
17
16
15
14
13
VDD3V
C126 1NF
IF_AGC
3
2 4
1
IFN_TUNER
C129
NC/10PF 50V
24.000Mhz
X101
C130
NC/10PF 50V
IFP_T UNER
C128
100N 16V
R1 15
100OHM
C134
NC/4.7NF 50V
R1 21
NC/100OHM
TFL
VBG
GPIO
DET2
AVDD
R842
VAGC
VAGC2
XTAL_O
DVSS10CP
DVDD11XTAL_I
12
VDD3V
100NF 16V
C138
IF
close Tuner
RF_AGC _TUXG
TUNER_CLK
RF_AGC _TUXG
IFN _TUNER
IFP_TUN ER
R110
R113
R120 10K 5% 1/ 16W
C135
47NF 16V
100 OHM 1/16 W
9-1-9 HDMI&RS232
HDMI
20
SHELL1
22
SHELL3
CE R emote
DDC CLK
DDC DATA
23
SHELL4
21
SHELL2
HDMI 19P
HDMI0_HT P/CBUS CBUS
VBUS_HDMI0 _5V
CEC HDMI_CEC
VBUS_HDMI0 _5V
TP405
ARC-PAD ARC
TP
R531 33 OHM 1/16W
R510 5.1R 1/16W
R508
100OHM
R509
1K 1/16W
D2+
D2 Shield
D1+
D1 Shield
D0+
D0 Shield
CK+
CK Shield
GND
HP DET
C502
1UF 10V
CN501
D2-
D1-
D0-
CK-
NC
+5V
ARC_DET
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
MHL_VB US_5V
HDMI_R0X2 P
MHL-DET
HDMI_R0X2 N
HDMI_R0X1 P
HDMI_R0X1 N
HDMI_R0X0 P
HDMI_R0X0 N
HDMI_R0XCP
HDMI_R0XCN
CEC
UART_SEL
DDC0B_SCL
DDC0B_SDA
VBUS_HDMI0 _5V
HDMI0_HT P/CBUS
5V_STB
R524
R526 10 OHM 1/16W
R527 10 OHM 1/16W
2
3
R525
10K 5% 1/16 W
10K 5% 1/16W
1
ZD507
LBAT54CLT1G
HDMI0_S CL/RX
HDMI0_S DA/TX
VBUS_HDMI 0_5V
5V_STB
VBUS_HDMI0_ 5V
C508
NC/4. 7UF 10% 10V
R534
Char ge
NC/ 4K7 1/16W 5%
U502
4
5
6
IN
OUT
GND
OUT
EN
OC
NC/G52 9A1TB1U
3
2
1
5V_STB
C507
NC/4. 7UF 10% 10V
MHL_DET
R559
NC/0R05 OHM
R560
NC/1K 1/16W 5%
MHL_DET
MHL_VB US_EN
R532
100OHM
MHL-DET
R533
0R05 OHM
5V_STB
R515
10K
D501
BAS316WS
UART_SEL
R519
60.4K 1%
R521
40.2K 1/16W 1%
R514
10K
Q502
MMBT3904
5V_STB
5V_STB
HDMI0_SCL/ RX
HDMI0_SDA/ TX
HDMI0_SCL/R X
HDMI0_SDA/ TX
C501
0.1uF
R511
NC/0R 05 OHM
R512
NC/0R 05 OHM
S0 S1
H H Y3
L H Y2
U501
6
/E
9
S1
10
S0
3
2Z
13
1Z
8
GND
7
VEE
16
VCC
74HC4052PW
2Y3
1Y3
2Y2
1Y2
2Y1
1Y1
2Y0
1Y0
HDMI0_SCL
HDMI0_SDA
4
HDMI0_SCL
11
HDMI0_SDA
2
15
5
R520
14
R501
1
R522
12
R523
5V_STB
R516
4K7 1/16W 5%
R517
UART_RX
100OHM
R518
UART_TX
100OHM
100K
100K
100K
100K
UART_RXD 11
UART_TXD 11
R513
4K7 1/16W 5%
UART_RXD
UART_T XD
9-1-10 AC Power
SG9902
DSPL-501N-A21F
NC/750K +-5% 1/4W
NC/750K +-5% 1/4W
t
12
12
C9907
330PF 250V
C9903
100PF 250V
R9903
R9904
NR9901
5D2-07MCS
FB9907
BEAD
-
4
! !
!
L9901
30MH
3
!
C9901
470nF 275V
R9905
NC/750K +-5% 1/ 4W
R9902
NC/750K +-5% 1/ 4W
R9907
1M5
RV9901
680V
!
CN9901
AC 2P
!
C9906
330PF 250V
2
BD9901
KBP208G-C
+
3
124
!
C9904
100PF 250V
R9901
R9906
NC/750K +-5% 1/4W
!
12
!
1
1 2
SG9901
DSPL-501N-A21F
R9135
3M3 1%
NC/750K +-5% 1/4W
12
FB9908
BEAD
!
T2.5AL/250V
F9901
2.5A 250V
!
FB9906
127R
C9801
47UF 450V
510K +-1% 1/4W
100K 1/8W 1%
R9104
R9102
3M3 1%
R9114
3M3 1%
R9103
+
B+
1 2
R9134
510K +-1% 1/4W
C9109
1nF 50V
C9119
2.2nF 50V
FB9905
BEAD
1
GND
2
COMP
BNO3CS
IC9101
LD5537
R9106
510K +-1% 1/4W
OUT
VCC
6
5
4
0 OHM 1/8W
C9102
2.2NF
D9103
1N4148W
R9112
47R 1%
R9113
C9104
0.1uF 50V
R9115
470OHM +-5% 1/8W
C9105
220pF 50V
R9111
47R 1%
R9144
0R05 1/4W
R9107
82K OHM 1%
R9109
82K OHM 1%
1
R9121
10K OHM 5% 1/8W
+
C9103
4.7uF 50V
R9108
82K OHM 1%
R9110
82K OHM 1%
2
3
Hot
D9105
FR107G-A0
Q9101
TK3A65DA
D9104
1N4148W
R9101
0.24R 2W
HS9101
HEAT SINK
POWER X'FMR
R9105
4R7 1/4W 5%
C9100
100PF
1
2
3
4
!
IC9102
EL817M(X)
Hot
BL_PWM
C8613
0.1uF 50V
5
6
7
FB
GM
DIM
GND
LED1VCC2CS/OVP3OUT
4
R8606
3R9 1%
R8616
330K 1/8W 5%
BL_PWM9
IC8601
PF7708CS
OUT 11
R8609
3R9 1%
C8611
0.1uF 50V
+12VO
L8601
47UH
OUT 11
22pF 50V
R8611
3R9 1%
D8604
1N4148W
2 3
C8612
0.1uF 50V
R8601
56R 1/8W 5%
D8602
1N4148W
2.7K 1%
C8609
R8614
3R9 1%
Q8602
DTA144WN3/S
1
Q8603
2N7002K
BL_DIM9
BL_ON9
SM1A30NSK
R8602
10 OHM 1% 1/8W
R8608
R8610
NC_3.3R 1%
C8610
0.1uF 50V
Q8601
5
4
Vcc2
BL_PWM
BL_ON
R8612
NC/22K 1%
D8D7D6D
S1S2S3G
R8603
10K OHM 5% 1/8W
1 2
R8604
0.1R 5% 1W
VLED-
C8605
NC/100PF 500V
D8601
SR510-22
FB9903
BEAD
1 2
+
C8602
100UF 63V
R8607
24K +-1% 1/4W
R8605
27Kohm 1/4W +/-1%
VLED+
VLED+
VLED+
C8614
0.1uF 100V
R8617
200KOHM 1/8W +/-5%
6
CN8604
5
NC_CONN
4
3
2
1
7 8
3
CN8605
For BOE 23.8"
2
CONN
1
4 5
+12VO9
BL_PWM9
!
T9101
6
5
4
2
1
D9106
FR107G-A0
+
C9106
4.7uF 50V
4
!
680R 1/8W 1%
BZT52-B13G
C9905
680PF 250V
8
10
9
11
R9125
1
23
ZD9101
FB9901
BEAD
1 2
Cold
R9129
30 OHM 1/4W
R9116
30 OHM 1/4W
R9130
30 OHM 1/4W
R9119
30 OHM 1/4W
3
1
R9117 33ohm 1/ 4W +/-5%
R9118 33ohm 1/ 4W +/-5%
R9139 33ohm 1/ 4W +/-5%
3
2
1
R9127
NC/100K 1/ 8W 1%
R9128
1K5 1% 1/8W
IC9103
AS431AN-E1
1 2
D9101
MBRD10150D
2
R9140 33ohm 1/ 4W +/-5%
R9141 33ohm 1/ 4W +/-5%
R9142 33ohm 1/ 4W +/-5%
D9107
MBRD10150D
R9120
22K 1/8W 1%
C9112
220nF50V
C9114
1NF 500V
C9107
1NF 500V
C9117
470UF 25V
C9113
1NF 500V
C9115
+
330UF 35V
+12V1
R9123
10K OHM 5% 1/8W
+
R9124
390K 1/8W 1%
R9126
5K1 1/8W 1%
R9131
0 OHM 1/8W
+12V1
+
C9118
470UF 25V
+18V_AL
2N3904
Q9102
L9101
3UH
C9108
0.1uF 50V
R9136
470R
C9121
0.1uF 50V
+
C9111
270UF 25V
ZD9102
BZT52-B22
1 2
R9138
470 OHM 1/4W
R9137
1K OHM 5% 1/8W
+18V_AL
R9122
12K 5% 1/4W
+18V_AL
10nF 50V
+12VO 9,11
C8606
+
330UF 35V
Vcc2
BL_ON9
C8601
C8608
10UF 50V
R8613
100K OHM 5% 1/8W
C8607
10nF 50V
VLED-
For
1K OHM 5% 1/8W
C8604
0.1uF 50V
FB11
+
秨诀
R8615
FB11
C8603
0.47UF 50V
+12VO9, 11
8
Iled=220mA
Cold
9.2 715G8576 IR/LED Panel
9-2-1 IR LED
CONN
CN1
67
1
2
3
4
5
033G8032 5F S HR
LED_R
IR
VCC
ZD2
1 2
VCC
12
ZD1
1 2
NC/MLVG0402
R2
2K7 1/16W 5%
NC/MLVG0402
VCC
C1
2.2uF 10V
R1
15K 1/16W 5%
U1
1
GND
2
VCC
3
Vout
4
GND
TSOP75436TR
LED1
GPSS008RC4
LED_R
R5
22K 1/16W 5%
C2
100N 16V
Q1
BC847BW
R7
22K 1/16W 5%
10. Styling Sheets
1050
50R 50L
1056
36
1052
1184
40
30
5403 series 22"
Loading...
