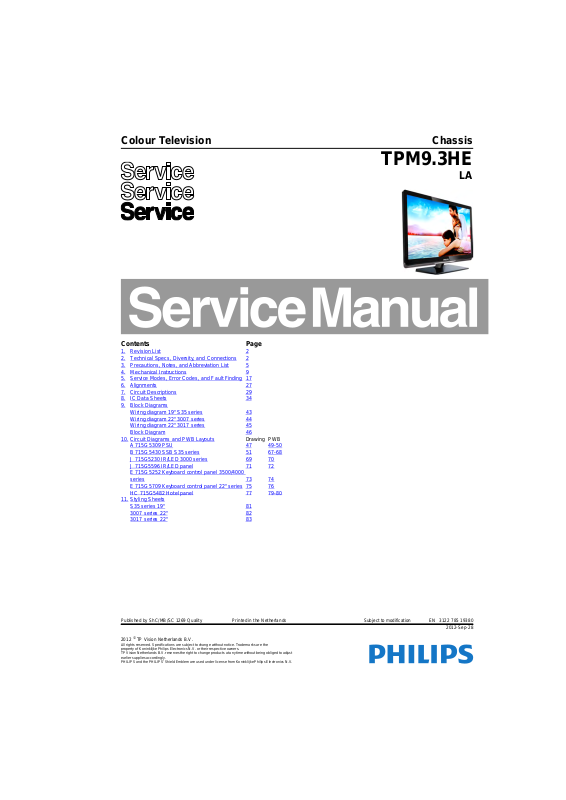

Philips 22HFL3017W/10 Schematic

Colour Television Chassis

TPM9.3HE

LA

Contents Page

1. Revision List 2

2. Technical Specs, Diversity, and Connections 2

3. Precautions, Notes, and Abbreviation List 5

4. Mechanical Instructions 9

5. Service Modes, Error Codes, and Fault Finding 17

6. Alignments 27

7. Circuit Descriptions 29

8. IC Data Sheets 34

9. Block Diagrams Wiring diagram 19" S35 series 43 Wiring diagram 22" 3007 series 44 Wiring diagram 22" 3017 series 45 Block Diagram 46

10. Circuit Diagrams and PWB Layouts Drawing PWB A 715G5309 PSU B 715G5430 SSB S35 series 51 67-68 J 715G5230 IR/LED 3000 series 69 70 J 715G5596 IR/LED panel 71 72 E 715G5252 Keyboard control panel 3500/4000 series 73 74 E 715G5709 Keyboard control panel 22" series 75 76 HC 715G5482 Hotel panel 77 79-80

11. Styling Sheets S35 series 19" 81 3007 series 22" 82 3017 series 22" 83

47 49-50

Published by ShC/MB/SC 1269 Quality Printed in the Netherlands Subject to modification EN 3122 785 19380

2012-Sep-28

2012 ©

TP Vision Netherlands B.V.

All rights reserved. Specifications are subject to change without notice. Trademarks are the property of Koninklijke Philips Electronics N.V. or their respective owners. TP Vision Netherlands B.V. reserves the right to change products at any time without being obliged to adjust earlier supplies accordingly. PHILIPS and the PHILIPS’ Shield Emblem are used under license from Koninklijke Phili ps Electronics N.V.

EN 2 TPM9.3HE LA1.

Revision List

1. Revision List

Manual xxxx xxx xxxx.0 • First release.

2. Technical Specs, Diversity, and Connections

Index of this chapter:

• Specifications are indicative (subject to change).

2.1 Technical Specifications

2.2 Directions for Use

2.3 Connections

2.4 Chassis Overview

2.1 Technical Specifications

For on-line product support please use the links in Table 2-1. Here is product information available, as well as getting started, user manuals, frequently asked questions and software &

Notes:

drivers.

• Figures can deviate due to the different set executions.

Table 2-1 Described Model Numbers and Diversity

24 9 10 11

Mechanics Block Diagrams Schematics

CTN

19HFL3007D/10 2-1 4-1 4-5 4-6 9.1 9.4 10.1 10.2 10.3 10.5 11.1 22HFL3007D/10 2-1 4-2 4-5 4-6 9.2 9.4 10.1 10.2 10.4 10.6 11.2 22HFL3017D/10 2-1 4-3 4-7 4-8 9.3 9.4 10.1 10.2 10.3 10.5 11.3 22HFL3017W/10 2-1 4-3 4-7 4-8 9.3 9.4 10.1 10.2 10.3 10.5 11.3

Connection Overview

Wire Dressing

Rear Cover Removal

SSB Removal

Wiring Diagram

Block Diagram

Power Supply

SSB

2.2 Directions for Use

Directions for use can be downloaded from the following websites:

http://www.philips.com/support http://www.p4c.philips.com

J (IR/LED)

E (Keyboard/Leading Edge)

Styling

2012-Sep-28

back to

div. table

2.3 Connections

HDMI

USB1

USB2

CI

SCART

(RGB/CVBS)

VGA

NETWORK

DIGITAL

AUDIO OUT

L R

CVBS/Y Pb

Pr

SERV.U

AUDIO IN

DVI/VGA

HDMI 2

HDMI1

ARC

TV ANTENNA

19270_001_120410.eps

120412

Side ConnectorsRear Connectors

1

2

3

4

5

12 13 14 15

67910

11

8

1 2 3 4

10000_022_090121.eps

090121

10000_017_090121.eps

090428

19

1

18 2

21

20

1

2

10000_001_090121.eps

090121

Technical Specs, Diversity, and Connections

EN 3TPM9.3HE LA 2.

2.3.1 Side Connections

Note: The following connector colour abbreviations are used

(acc. to DIN/IEC 757): Bk= Black, Bu= Blue, Gn= Green, Gy= Grey, Rd= Red, Wh= White, Ye= Yellow.

1 - Common Interface

68p- See figure 10-2-14

jk

2 - USB2 2.0

Figure 2-2 USB (type A)

1-+5V k 2 -Data (-) jk 3 -Data (+) jk 4 -Ground Gnd H

3 - USB1 2.0 (optional)

See 2 - USB2 2.0

4 - Head phone (Output)

Bk -Head phone 80 - 600  / 10 mW ot

5 - HDMI: Digital Video - In, Digital Audio - In/Out

Figure 2-3 HDMI (type A) connector

Figure 2-1 Connection overview

1 -D2+ Data channel j 2 -Shield Gnd H 3 -D2- Data channel j 4 -D1+ Data channel j 5 -Shield Gnd H 6 -D1- Data channel j 7 -D0+ Data channel j 8 -Shield Gnd H 9 -D0- Data channel j 10 - CLK+ Data channel j 11 - Shield Gnd H 12 - CLK- Data channel j 13 - Easylink/CEC Control channel jk 14 - n.c. 15 - DDC_SCL DDC clock j 16 - DDC_SDA DDC data jk 17 - Ground Gnd H 18 - +5V j 19 - HPD Hot Plug Detect j 20 - Ground Gnd H

2.3.2 Rear Connections

6 - TV ANTENNA - In

Signal input from an antenna, cable or satellite.

7 - SCART: Video RGB/YC - In, CVBS - In/Out, Audio In/Out

back to

div. table

Figure 2-4 SCART connector

2012-Sep-28

EN 4 TPM9.3HE LA2.

1

6

10

11

5

15

10000_002_090121.eps

090127

10000_025_090121.eps

120320

10000_017_090121.eps

090428

19

1

18 2

Technical Specs, Diversity, and Connections

1 -Audio R 0.5 V 2 -Audio R 0.5 V 3 -Audio L 0.5 V 4 -Ground Audio Gnd H

/ 1 k k

RMS

/ 10 k j

RMS

/ 1 k k

RMS

5 -Ground Blue Gnd H 6 -Audio L 0.5 V 7 -Video Blue/C-out 0.7 V 8 -Function Select 0 - 2 V: INT

/ 10 k j

RMS

/ 75  jk

PP

4.5 - 7 V: EXT 16:9

9.5 - 12 V: EXT 4:3 j 9 -Ground Green Gnd H 10 - n.c. 11 - Video Green 0.7 V 12 - n.c.

/ 75  j

PP

13 - Ground Red Gnd H 14 - Ground P50 Gnd H 15 - Video Red/C 0.7 V

/ 75  j

PP

16 - Status/FBL 0 - 0.4 V: INT

1 - 3 V: EXT / 75  j 17 - Ground Video Gnd H 18 - Ground FBL Gnd H 19 - Video CVBS 1 V 20 - Video CVBS/Y 1 V

/ 75  k

PP

/ 75  j

PP

21 - Shield Gnd H

8 - Audio - In: Left / Right, VGA

Bu - Audio L/R in 0.5 V

/ 10 k jq

RMS

9 - Service / UART

1 -Ground Gnd H 2 -UART_TX Transmit k 3 -UART_RX Receive j

11 - RJ45: Ethernet

Figure 2-6 Ethernet connector

1 -TD+ Transmit signal k 2 -TD- Transmit signal k 3 -RD+ Receive signal j 4 -CT Centre Tap: DC level fixation 5 -CT Centre Tap: DC level fixation 6 -RD- Receive signal j 7 -GND Gnd H 8 -GND Gnd H

12 - EXT2: Video YPbPr - In, Audio - In

Gn - Video - Y 1 V Bu - Video - Pb 0.7 V Rd -Video - Pr 0.7 V

Wh -Audio - L 0.5 V Rd -Audio - R 0.5 V

/ 75 W jq

PP

/ 75 W jq

PP

/ 75 W jq

PP

/ 10 k jq

RMS

/ 10 k jq

RMS

13 - Cinch: Digital Audio - Out

BK - Coaxial 0.4 - 0.6V

/ 75  kq

PP

14 - HDMI 2: Digital Video - In, Digital Audio - In/Out

See 5 - HDMI: Digital Video - In, Digital Audio - In/Out

10 - PC IN:VGA

Figure 2-5 VGA connector

1 -Video Red 0.7 V 2 -Video Green 0.7 V 3 -Video Blue 0.7 V 4-n.c.

/ 75 W j

PP

/ 75 W j

PP

/ 75 W j

PP

5 -Ground Gnd H 6 -Ground Red Gnd H 7 -Ground Green Gnd H 8 -Ground Blue Gnd H 9-+5V 10 - Ground Sync Gnd H

+5 V j

DC

11 - Ground Red Gnd H 12 - DDC_SDA DDC data j 13 - H-sync 0 - 5 V j 14 - V-sync 0 - 5 V j 15 - DDC_SCL DDC clock j

15 - HDMI 1: Digital Video - In, Digital Audio with ARC In/Out

Figure 2-7 HDMI (type A) connector

1 -D2+ Data channel j 2 -Shield Gnd H 3 -D2- Data channel j 4 -D1+ Data channel j 5 -Shield Gnd H 6 -D1- Data channel j 7 -D0+ Data channel j 8 -Shield Gnd H 9 -D0- Data channel j 10 - CLK+ Data channel j 11 - Shield Gnd H 12 - CLK- Data channel j 13 - Easylink/CEC Control channel jk 14 - ARC Audio Return Channel k 15 - DDC_SCL DDC clock j 16 - DDC_SDA DDC data jk 17 - Ground Gnd H 18 - +5V j 19 - HPD Hot Plug Detect j 20 - Ground Gnd H

2.4 Chassis Overview

Refer to 9. Block Diagrams for PWB/CBA locations.

2012-Sep-28

back to

div. table

16 - TV ANTENNA - In

Signal input from an antenna, cable or satellite.

Precautions, Notes, and Abbreviation List

3. Precautions, Notes, and Abbreviation List

Index of this chapter:

3.1 Safety Instructions

3.2 Warnings

3.3 Notes

3.4 Abbreviation List

3.1 Safety Instructions

Safety regulations require the following during a repair:

• Connect the set to the Mains/AC Power via an isolation transformer (> 800 VA).

• Replace safety components, indicated by the symbol h, only by components identical to the original ones. Any other component substitution (other than original type) may increase risk of fire or electrical shock hazard.

Safety regulations require that after a repair, the set must be returned in its original condition. Pay in particular attention to the following points:

• Route the wire trees correctly and fix them with the mounted cable clamps.

• Check the insulation of the Mains/AC Power lead for external damage.

• Check the strain relief of the Mains/AC Power cord for proper function.

• Check the electrical DC resistance between the Mains/AC Power plug and the secondary side (only for sets that have a Mains/AC Power isolated power supply):

1. Unplug the Mains/AC Power cord and connect a wire

between the two pins of the Mains/AC Power plug.

2. Set the Mains/AC Power switch to the “on” position

(keep the Mains/AC Power cord unplugged!).

3. Measure the resistance value between the pins of the

Mains/AC Power plug and the metal shielding of the tuner or the aerial connection on the set. The reading should be between 4.5 M and 12 M.

4. Switch “off” the set, and remove the wire between the

two pins of the Mains/AC Power plug.

• Check the cabinet for defects, to prevent touching of any inner parts by the customer.

3.2 Warnings

• All ICs and many other semiconductors are susceptible to electrostatic discharges (ESD w). Careless handling during repair can reduce life drastically. Make sure that, during repair, you are connected with the same potential as the mass of the set by a wristband with resistance. Keep components and tools also at this same potential.

• Be careful during measurements in the high voltage section.

• Never replace modules or other components while the unit is switched “on”.

• When you align the set, use plastic rather than metal tools. This will prevent any short circuits and the danger of a circuit becoming unstable.

3.3 Notes

3.3.1 General

• Measure the voltages and waveforms with regard to the chassis (= tuner) ground (H), or hot ground (I), depending on the tested area of circuitry. The voltages and waveforms shown in the diagrams are indicative. Measure them in the Service Default Mode with a colour bar signal and stereo sound (L: 3 kHz, R: 1 kHz unless stated otherwise) and picture carrier at 475.25 MHz for PAL, or 61.25 MHz for NTSC (channel 3).

• Where necessary, measure the waveforms and voltages with (D) and without (E) aerial signal. Measure the voltages in the power supply section both in normal operation (G) and in stand-by (F). These values are indicated by means of the appropriate symbols.

3.3.2 Schematic Notes

• All resistor values are in ohms, and the value multiplier is often used to indicate the decimal point location (e.g. 2K2 indicates 2.2 k).

• Resistor values with no multiplier may be indicated with either an “E” or an “R” (e.g. 220E or 220R indicates 220 ).

• All capacitor values are given in micro-farads (10 nano-farads (n 10

• Capacitor values may also use the value multiplier as the decimal point indication (e.g. 2p2 indicates 2.2 pF).

• An “asterisk” (*) indicates component usage varies. Refer to the diversity tables for the correct values.

• The correct component values are listed on the Philips Spare Parts Web Portal.

3.3.3 Spare Parts

For the latest spare part overview, consult your Philips Spare Part web portal.

3.3.4 BGA (Ball Grid Array) ICs

Introduction

For more information on how to handle BGA devices, visit this URL: http://www.atyourservice-magazine.com “Magazine”, then go to “Repair downloads”. Here you will find Information on how to deal with BGA-ICs.

BGA Temperature Profiles

For BGA-ICs, you must use the correct temperature-profile. Where applicable and available, this profile is added to the IC Data Sheet information section in this manual.

3.3.5 Lead-free Soldering

Due to lead-free technology some rules have to be respected by the workshop during a repair:

• Use only lead-free soldering tin. If lead-free solder paste is required, please contact the manufacturer of your soldering equipment. In general, use of solder paste within workshops should be avoided because paste is not easy to store and to handle.

• Use only adequate solder tools applicable for lead-free soldering tin. The solder tool must be able: – To reach a solder-tip temperature of at least 400°C. – To stabilize the adjusted temperature at the solder-tip. – To exchange solder-tips for different applications.

• Adjust your solder tool so that a temperature of around 360°C - 380°C is reached and stabilized at the solder joint. Heating time of the solder-joint should not exceed ~ 4 sec. Avoid temperatures above 400°C, otherwise wear-out of tips will increase drastically and flux-fluid will be destroyed. To avoid wear-out of tips, switch “off” unused equipment or reduce heat.

• Mix of lead-free soldering tin/parts with leaded soldering tin/parts is possible but PHILIPS recommends strongly to avoid mixed regimes. If this cannot be avoided, carefully clear the solder-joint from old tin and re-solder with new tin.

3.3.6 Alternative BOM identification

It should be noted that on the European Service website, “Alternative BOM” is referred to as “Design variant”.

The third digit in the serial number (example: AG2B0335000001) indicates the number of the alternative B.O.M. (Bill Of Materials) that has been used for producing the specific TV set. In general, it is possible that the same TV model on the market is produced with e.g. two different types of displays, coming from two different suppliers. This will then

back to

div. table

-9

), or pico-farads (p 10

. Select

EN 5TPM9.3HE LA 3.

-6

),

-12

).

2012-Sep-28

EN 6 TPM9.3HE LA3.

10000_053_110228.eps

110228

Precautions, Notes, and Abbreviation List

result in sets which have the same CTN (Commercial Type Number; e.g. 28PW9515/12) but which have a different B.O.M. number. By looking at the third digit of the serial number, one can identify which B.O.M. is used for the TV set he is working with. If the third digit of the serial number contains the number “1” (example: AG1B033500001), then the TV set has been manufactured according to B.O.M. number 1. If the third digit is a “2” (example: AG2B0335000001), then the set has been produced according to B.O.M. no. 2. This is important for ordering the correct spare parts! For the third digit, the numbers 1...9 and the characters A...Z can be used, so in total: 9 plus 26= 35 different B.O.M.s can be indicated by the third digit of the serial number.

Identification: The bottom line of a type plate gives a 14-digit serial number. Digits 1 and 2 refer to the production centre (e.g. SN is Lysomice, RJ is Kobierzyce), digit 3 refers to the B.O.M. code, digit 4 refers to the Service version change code, digits 5 and 6 refer to the production year, and digits 7 and 8 refer to production week (in example below it is 2010 week 10 / 2010 week 17). The 6 last digits contain the serial number.

Figure 3-1 Serial number (example)

3.3.7 Board Level Repair (BLR) or Component Level Repair (CLR)

If a board is defective, consult your repair procedure to decide if the board has to be exchanged or if it should be repaired on component level. If your repair procedure says the board should be exchanged completely, do not solder on the defective board. Otherwise, it cannot be returned to the O.E.M. supplier for back charging!

3.3.8 Practical Service Precautions

• It makes sense to avoid exposure to electrical shock.

While some sources are expected to have a possible dangerous impact, others of quite high potential are of limited current and are sometimes held in less regard.

• Always respect voltages. While some may not be

dangerous in themselves, they can cause unexpected reactions that are best avoided. Before reaching into a powered TV set, it is best to test the high voltage insulation. It is easy to do, and is a good service precaution.

3.4 Abbreviation List

0/6/12 SCART switch control signal on A/V

board. 0 = loop through (AUX to TV),

6 = play 16 : 9 format, 12 = play 4 : 3 format

AARA Automatic Aspect Ratio Adaptation:

algorithm that adapts aspect ratio to remove horizontal black bars; keeps the original aspect ratio

ACI Automatic Channel Installation:

algorithm that installs TV channels directly from a cable network by

means of a predefined TXT page ADC Analogue to Digital Converter AFC Automatic Frequency Control: control

signal used to tune to the correct

frequency AGC Automatic Gain Control: algorithm that

controls the video input of the feature

box AM Amplitude Modulation AP Asia Pacific AR Aspect Ratio: 4 by 3 or 16 by 9 ASF Auto Screen Fit: algorithm that adapts

aspect ratio to remove horizontal black

bars without discarding video

information ATSC Advanced Television Systems

Committee, the digital TV standard in

the USA ATV See Auto TV Auto TV A hardware and software control

system that measures picture content,

and adapts image parameters in a

dynamic way AV External Audio Video AVC Audio Video Controller AVIP Audio Video Input Processor B/G Monochrome TV system. Sound

carrier distance is 5.5 MHz BDS Business Display Solutions (iTV) BLR Board-Level Repair BTSC Broadcast Television Standard

Committee. Multiplex FM stereo sound

system, originating from the USA and

used e.g. in LATAM and AP-NTSC

countries B-TXT Blue TeleteXT C Centre channel (audio) CEC Consumer Electronics Control bus:

remote control bus on HDMI

connections CL Constant Level: audio output to

connect with an external amplifier CLR Component Level Repair ComPair Computer aided rePair CP Connected Planet / Copy Protection CSM Customer Service Mode CTI Color Transient Improvement:

manipulates steepness of chroma

transients CVBS Composite Video Blanking and

Synchronization DAC Digital to Analogue Converter DBE Dynamic Bass Enhancement: extra

low frequency amplification DCM Data Communication Module. Also

referred to as System Card or

Smartcard (for iTV). DDC See “E-DDC” D/K Monochrome TV system. Sound

carrier distance is 6.5 MHz DFI Dynamic Frame Insertion DFU Directions For Use: owner's manual DMR Digital Media Reader: card reader DMSD Digital Multi Standard Decoding DNM Digital Natural Motion

2012-Sep-28

back to

div. table

Precautions, Notes, and Abbreviation List

EN 7TPM9.3HE LA 3.

DNR Digital Noise Reduction: noise

reduction feature of the set DRAM Dynamic RAM DRM Digital Rights Management DSP Digital Signal Processing DST Dealer Service Tool: special remote

control designed for service

technicians DTCP Digital Transmission Content

Protection; A protocol for protecting

digital audio/video content that is

traversing a high speed serial bus,

such as IEEE-1394 DVB-C Digital Video Broadcast - Cable DVB-T Digital Video Broadcast - Terrestrial DVD Digital Versatile Disc DVI(-d) Digital Visual Interface (d= digital only) E-DDC Enhanced Display Data Channel

(VESA standard for communication

channel and display). Using E-DDC,

the video source can read the EDID

information form the display. EDID Extended Display Identification Data

(VESA standard) EEPROM Electrically Erasable and

Programmable Read Only Memory EMI Electro Magnetic Interference EPG Electronic Program Guide EPLD Erasable Programmable Logic Device EU Europe EXT EXTernal (source), entering the set by

SCART or by cinches (jacks) FDS Full Dual Screen (same as FDW) FDW Full Dual Window (same as FDS) FLASH FLASH memory FM Field Memory or Frequency

Modulation FPGA Field-Programmable Gate Array FTV Flat TeleVision Gb/s Giga bits per second G-TXT Green TeleteXT H H_sync to the module HD High Definition HDD Hard Disk Drive HDCP High-bandwidth Digital Content

Protection: A “key” encoded into the

HDMI/DVI signal that prevents video

data piracy. If a source is HDCP coded

and connected via HDMI/DVI without

the proper HDCP decoding, the

picture is put into a “snow vision” mode

or changed to a low resolution. For

normal content distribution the source

and the display device must be

enabled for HDCP “software key”

decoding. HDMI High Definition Multimedia Interface HP HeadPhone I Monochrome TV system. Sound

2

C Inter IC bus

I

2

I

D Inter IC Data bus

2

S Inter IC Sound bus

I

carrier distance is 6.0 MHz

IF Intermediate Frequency IR Infra Red IRQ Interrupt Request ITU-656 The ITU Radio communication Sector

(ITU-R) is a standards body

subcommittee of the International

Telecommunication Union relating to

radio communication. ITU-656 (a.k.a.

SDI), is a digitized video format used

for broadcast grade video.

Uncompressed digital component or

digital composite signals can be used.

back to

div. table

The SDI signal is self-synchronizing, uses 8 bit or 10 bit data words, and has a maximum data rate of 270 Mbit/s, with a minimum bandwidth of 135 MHz.

iTV Institutional TeleVision; TV sets for

hotels, hospitals etc.

LS Last Status; The settings last chosen

by the customer and read and stored in RAM or in the NVM. They are called at start-up of the set to configure it according to the customer's

preferences LATAM Latin America LCD Liquid Crystal Display LED Light Emitting Diode L/L' Monochrome TV system. Sound

carrier distance is 6.5 MHz. L' is Band

I, L is all bands except for Band I LPL LG.Philips LCD (supplier) LS Loudspeaker LVDS Low Voltage Differential Signalling Mbps Mega bits per second M/N Monochrome TV system. Sound

carrier distance is 4.5 MHz MHEG Part of a set of international standards

4. Mechanical Instructions

19270_100_120401.eps

120412

Index of this chapter:

4.1 Cable Dressing

4.2 Service Positions

4.3 Assembly/Panel removal for 22HFL3007 sets

4.4 Assembly/Panel removal for 22HFL3017 sets

4.5 Set Re-assembly

4.1 Cable Dressing

Mechanical Instructions

Notes:

• Figures below can deviate slightly from the actual situation, due to the different set executions.

EN 9TPM9.3HE LA 4.

Figure 4-1 Cable dressing (19")

back to

div. table

2012-Sep-28

EN 10 TPM9.3HE LA4.

19380_100_120829.eps

120924

Mechanical Instructions

Figure 4-2 Cable dressing (22" 3007 series)

2012-Sep-28

back to

div. table

Mechanical Instructions

19380_101_120829.eps

120924

EN 11TPM9.3HE LA 4.

Figure 4-3 Cable dressing (22" 3017 series)

4.2 Service Positions

For easy servicing of a TV set, the set should be put face down on a soft flat surface, foam buffers or other specific workshop tools. Ensure that a stable situation is created to perform measurements and alignments. When using foam bars take care that these always support the cabinet and never only the display. Caution: Failure to follow these guidelines can seriously damage the display! Ensure that ESD safe measures are taken.

back to

div. table

2012-Sep-28

EN 12 TPM9.3HE LA4.

19380_102_120903.eps

120924

4 × 16

1 1

1

4.3 Assembly/Panel removal for 22HFL3007 sets

4.3.1 Stand

Mechanical Instructions

Refer to Figure 4-4

1. Remove fixation screws [1] that secure the stand, pull out

the stand downwards from the set.

for details.

Figure 4-4 Stand removal

2012-Sep-28

back to

div. table

Mechanical Instructions

19380_103_120903.eps

120924

3 × 8

1

2

4 × 14

19380_104_120903.eps

120903

2

1

3

EN 13TPM9.3HE LA 4.

4.3.2 Rear Cover

Refer to Figure 4-5 Warning: Disconnect the mains power cord before removing the rear cover.

for details.

1. Remove the fixation screws [1,2] that secure the rear cover.

2. Lift the rear cover from the TV. Make sure that wires and flat foils are not damaged while lifting the rear cover from the set.

Figure 4-5 Rear cover removal

4.3.3 Small Signal Board (SSB)

Refer to Figure 4-6 Caution: it is mandatory to remount all different screws at their original position during re-assembly. Failure to do so may result in damaging the SSB.

1. Release the clips from the LVDS/Flat Foil connector that connect with the SSB [1]. Caution: be careful, as these are very fragile connectors! Take the flat foils out of their connectors.

2. Release the clamps and unplug all other connectors [2].

3. Remove all the fixation screws from the SSB [3].

4. The SSB can now be shifted from side connector cover, then lifted and taken out of the I/O bracket. Refer to

Figure 4-6

for details.

Figure 4-6 SSB removal

back to

div. table

2012-Sep-28

EN 14 TPM9.3HE LA4.

4.3.4 Power Supply Unit (PSU)

Caution: it is mandatory to remount all different screws at their

original position during re-assembly. Failure to do so may result in damaging the PSU.

1. Unplug all connectors from the PSU.

2. Remove all fixation screws from the PSU.

3. The PSU can be taken out of the set now.

4.3.5 Speakers

1. Gently release the tapes that secures the speaker cables.

2. Unplug the speaker connectors from the SSB.

3. Take the speakers out. When defective, replace the both units.

4.3.6 Keyboard Control unit

1. Unplug the connector from the keyboard control panel.

2. Gently push inwards the two clips at the PSU side of the unit. Release the unit at the PSU side and turn it away from the PSU. Now push it towards the PSU to release the catches at the other side of the unit. Take it out from the metal bracket.

When defective, replace the whole unit.

Mechanical Instructions

4.3.7 IR/LED Board

1. Unplug the connector from the IR/LED board.

2. Gently release the clip that holds the board and take it out from the bezel.

When defective, replace the whole unit.

4.3.8 LCD Panel

1. Unplug the IR/LED connector cable.

2. Remove the fixations screws that secure the subframe to the panel.

3. Release the clips at the side of the LCD panel.

4. Lift the subframe with PSU, SSB and Keyboard control panel from the LCD panel and put it aside.

5. Lift the LCD Panel from the bezel.

When defective, replace the whole unit.

2012-Sep-28

back to

div. table

Mechanical Instructions

19380_105_120905.eps

120924

2

M4 × 2

3 × 8

1

2

1

EN 15TPM9.3HE LA 4.

4.4 Assembly/Panel removal for

22HFL3017 sets

4.4.1 Stand

Refer to Figure 4-7

1. Remove fixation screws [1,2] that secure the base assembly, pull the base assembly downwards away from the catches. Do not release the two screws in the middle of the stand.

for details.

4.4.2 Rear Cover

Refer to Figure 4-7 Warning: Disconnect the mains power cord before removing the rear cover.

1. Remove fixation screws [1]and [2] that secure the rear cover.

2. At the top side the rear cover is locked by catches, so gently lift the bottom side and push the cover upwards to release these catches. Then lift the cover from the TV. Make sure that cabling and wires are not damaged while lifting the rear cover from the set.

for details.

Figure 4-7 Rear cover removal

4.4.3 Power Supply Unit (PSU)

Caution: it is mandatory to remount all different screws at their

original position during re-assembly. Failure to do so may result in damaging the PSU.

1. Unplug all connectors from the PSU.

2. Remove the fixation screw located right side of the mains inlet connector.

3. Remove the other four fixation screws located at the corners of the panel.

4. The PSU can be taken out of the set now.

When defective, replace the whole unit.

4.4.4 Small Signal Board (SSB)

Refer to Figure 4-8 Caution: it is mandatory to remount all different screws at their original position during re-assembly. Failure to do so may result in damaging the SSB.

1. Release the clips from the LVDS cable connector that connects the panel to the SSB [1]. Caution: be careful, as these are very fragile connectors!

2. Release the clamps and unplug all other connectors [2].

3. Remove all the fixation screws from the SSB [3].

4. Take out the SSB with I/O bracket.

for details.

back to

div. table

5. The SSB can now be shifted away[4] from side connector cover and lifted from the set.

2012-Sep-28

EN 16 TPM9.3HE LA4.

19380_106_120905.eps

120925

1

2

3

4

3

Figure 4-8 SSB removal

Mechanical Instructions

4.4.7 IR/LED Board

1. Remove the stand as described earlier.

2. Gently release the clip of the panels cover on the left side, and take out the cover from the bezel.

3. Gently release the clip at the right side of the panel, and take the panel from the bezel.

4. Unplug the connector from the IR/LED board.

When defective, replace the whole unit.

4.4.8 LCD Panel

1. Remove the stand as described earlier

2. Remove the SSB as described earlier.

3. Remove the PSU as described earlier.

4. Remove the speakers as described earlier.

5. Remove the keyboard control unit as described earlier.

6. Remove the IR/LED board as described earlier.

7. Remove all other metal parts that do not belong to the LCD panel.

8. Release all fixing clips that secure the front bezel to the LCD panel.

9. Lift the LCD Panel from the front bezel.

When defective, replace the whole unit.

4.4.5 Speakers

1. Gently release the tapes that holds the speaker cables.

2. Unplug the speaker connector from the SSB.

3. Take the speakers out. When defective, replace both units.

4.4.6 Keyboard Control unit

1. Gently release the tape that holds the board’s cable.

2. Gently push inwards the three clips at the PSU side of the unit. Release the unit at the PSU side and turn it away from the PSU. Now push it towards the PSU to release the catches at the other side of the unit. Take it out from the metal bracket.

3. Unplug the connector from the keyboard control unit.

When defective, replace the whole unit.

4.5 Set Re-assembly

To re-assemble the whole set, execute all processes in reverse order.

Notes:

• While re-assembling, make sure that all cables are placed and connected in their original position. See Figure 4-1

Figure 4-3

• Pay special attention not to damage the EMC foams on the SSB shields. Ensure that EMC foams are mounted correctly.

.

to

2012-Sep-28

back to

div. table

Service Modes, Error Codes, and Fault Finding

5. Service Modes, Error Codes, and Fault Finding

Index of this chapter:

5.1 Test Points

5.2 Service Modes

5.3 Stepwise Start-up

5.4 Service Tools

5.5 Software Upgrading

5.6 Error Codes

5.7 The Blinking LED Procedure

5.8 Fault Finding and Repair Tips

5.1 Test Points

As most signals are digital, it will be difficult to measure waveforms with a standard oscilloscope. However, several key ICs are capable of generating test patterns, which can be controlled via ComPair. In this way it is possible to determine which part is defective.

Perform measurements under the following conditions:

• Service Default Mode.

• Video: Colour bar signal.

• Audio: 3 kHz left, 1 kHz right.

5.2 Service Modes

The Service Mode feature is split into five parts:

• Service Default Mode (SDM).

• Service Alignment Mode (SAM).

• Factory Mode.

• Customer Service Mode (CSM).

• Computer Aided Repair Mode (ComPair).

Life Timer

During the life time cycle of the TV set, a timer is kept (called “Op. Hour”). It counts the normal operation hours (not the Stand-by hours). The actual value of the timer is displayed in SDM and SAM in a decimal value. Every two soft-resets increase the hour by + 1. Stand-by hours are not counted.

Software Identification, Version, and Cluster

The software ID, version, and cluster will be shown in the main menu display of SDM, SAM, and CSM. The screen will show: “AAAAB-X.YYY”, where:

• AAAA is the chassis name: T911HE x.yyy.

• B is the region indication: E = Europe, A = AP/China, U = NAFTA, L = LATAM.

• X is the main version number: this is updated with a major change of specification (incompatible with the previous software version). Numbering will go from 1 - 99 and AA - ZZ.

- If the main version number changes, the new version number is written in the NVM.

- If the main version number changes, the default settings are loaded.

• YYY is the sub version number: this is updated with a minor change (backwards compatible with the previous versions). Numbering will go from 000 - 999.

- If the sub version number changes, the new version number is written in the NVM.

- If the NVM is refreshed, the software identification, version, and cluster will also be written to NVM.

EN 17TPM9.3HE LA 5.

SDM, SAM and the Factory mode offer features, which can be used by the Service engineer to repair/align a TV set. Some features are:

• A pre-defined situation to ensure measurements can be made under uniform conditions (SDM).

• Activates the blinking LED procedure for error identification when no picture is available (SDM).

• Make alignments (e.g. White Tone), reset the error buffer (SAM and Factory Mode).

• Display information (“SDM” or “SAM” indication in upper right corner of screen, error buffer, software version, operating hours, options and option codes, sub menus).

The CSM is a Service Mode that can be enabled by the consumer. The CSM displays diagnosis information, which the customer can forward to the dealer or call centre. In CSM mode, “CSM”, is displayed in the top right corner of the screen. The information provided in CSM and the purpose of CSM is to:

• Increase the home repair hit rate.

• Decrease the number of nuisance calls.

• Solved customers’ problem without home visit.

ComPair Mode is used for communication between a computer and a TV on I engineer to quickly diagnose the TV set by reading out error codes, read and write in NVMs, communicate with ICs and the micro processor (PWM, registers, etc.), and by making use of a fault finding database. It will also be possible to up and download the software of the TV set via I ComPair. To do this, ComPair has to be connected to the TV set via the ComPair connector, which will be accessible through the rear of the set (without removing the rear cover).

Note: For the new model range, a new remote control (RC) is used with some renamed buttons. This has an impact on the activation of the Service modes. For instance the old “MENU” button is now called “HOME” (or is indicated by a “house” icon).

5.2.1 General

Next items are applicable to all Service Modes or are general.

2

C /UART level and can be used by a Service

2

C with help of

Display Option Code Selection

When after an SSB or display exchange, the display option code is not set properly, it will result in a TV with “no display”. Therefore, it is required to set this display option code after such a repair. To do so, press the following key sequence on a standard RC transmitter: “062598” directly followed by MENU and “xxx”, where “xxx” is a 3 digit decimal value of the panel type: see column “Display Code” in Table 6-3 accepted and stored in NVM, the set will switch to Stand-by, to indicate that the process has been completed. During this algorithm, the NVM-content must be filtered, because several items in the NVM are TV-related and not SSB related (e.g. Model and Prod. S/N). Therefore, “Model” and “Prod. S/N” data is changed into “See Type Plate”. In case a call centre or consumer reads “See Type Plate” in CSM mode.

5.2.2 Service Default Mode (SDM)

Purpose

Set the TV in SDM mode in order to be able to create a predefined setting for measurements to be made. In this platform, a simplified SDM is introduced (without protection override and without tuning to a predefined frequency).

Specifications

• Set linear video and audio settings to 50%, but volume to 25%. Stored user settings are not affected.

• All service-unfriendly modes (if present) are disabled, since they interfere with diagnosing/repairing a set. These service unfriendly modes are: – (Sleep) timer. – Blue mute/Wall paper. – Auto switch “off” (when there is no “ident” signal). – Hotel or hospital mode. – Child lock or parental lock (manual or via V-chip). – Skipping, blanking of “Not favourite”, “Skipped” or

“Locked” presets/channels.

– Automatic storing of Personal Preset or Last Status

settings.

. When the value is

back to

div. table

2012-Sep-28

EN 18 TPM9.3HE LA5.

Service Modes, Error Codes, and Fault Finding

– Automatic user menu time-out (menu switches

back/OFF automatically.

– Auto Volume levelling (AVL).

How to Activate SDM

To activate SDM, use the following methods:

• Press the following key sequence on the RC transmitter: “062596”, directly followed by the “Home” button.

After activating this mode, “SDM” will appear in the upper left corner of the screen.

On Screen Menu

After activating SDM, the following items are displayed, with SDM in the upper right corner of the screen to indicate that the television is in Service Default Mode. Menu items and explanation:

• xxxxx Operating hours (in decimal).

• AAAAB-X.YYY See Software Identification, Version, and

Cluster for the software name definition.

• ERR Shows all errors detected since the last time the buffer was erased in format <xxx> <xxx> <xxx> <xxx> <xxx> (five errors possible).

• OP Used to read-out the option bytes. In this chassis two times eight option codes are used.

How to Navigate

As this mode is read only, there is nothing to navigate. To switch to other modes, use one of the following methods:

• Command MENU from the user remote will exit SDM.

• To prevent the OSD from interfering with measurements in SDM, use the command “Adjust” or “Options” (“STATUS” or “INFO” for NAFTA and LATAM) from the user remote. This will switch the OSD “off” while remaining in the SDM mode. The “SDM” OSD is remains visible in the upper right corner of the screen. To exit SDM switch to “Stand-by” mode.

• Press the following key sequence on the remote control transmitter: “062596” directly followed by the OK button to switch to SAM (do not allow the display to time out between entries while keying the sequence). Remarks: new remote

controls will not have I+ button, but an “INFO” button instead.

How to Exit SDM

• Switch the set to Stand-by by pressing the standby button on the remote control transmitter or on the television set.

• Via a standard customer RC-transmitter: key in “00”-sequence. Note: If the TV is switched “off” by a power interrupt while in SDM, the TV will show up in the last status of SDM menu as soon as the power is supplied again. The error buffer will not be cleared.

5.2.3 Service Alignment Mode (SAM)

Purpose

• To modify the NVM.

• To display/clear the error code buffer.

• To perform alignments.

Specifications

• Operation hours counter (maximum five digits displayed).

• Software version, error codes, and option settings display.

• Error buffer clearing.

• Option settings.

• Software alignments (White Tone).

• NVM Editor.

• Set screen mode to full screen (all content is visible).

How to Activate SAM

To activate SAM, use one of the following methods:

• Press the following key sequence on the remote control transmitter: “062596”, directly followed by the “INFO” button. Do not allow the display to time out between entries while keying the sequence.

• Or via ComPair.

After entering SAM, the following items are displayed, with “SAM” in the upper right corner of the screen to indicate that the television is in Service Alignment Mode.

Table 5-1 SAM mode overview

Main Menu Sub-menu 1 Sub-menu 2 Description

System Information Op Hour This represents the life timer. The time r cou nts n or m al o per a ti on hou r s, but does not count Stand-by

Main SW ID e.g. “T91HE 1.178A” See paragraph Software Identification, Version, and Cluster ERR e.g. “000 000 000 000 000” Shows all errors detected since the last time the buffer was erased. Five errors possible. OP1 e.g. “012 007 208 002 184

032 007 030”

OP2 e.g. “056 023 000 106 064

000 000 122”

Clear Press [OK] to clean the Error

Codes immediately

RGB Align Warm R Gain To align the White Tone. See

G Gain B Gain

Normal R Gain

G Gain B Gain

Cool R Gain

G Gain B Gain

Store Store the RGB value

NVM editor Address Select and fill the NVM address

Value Select and fill the NVM value Store Store the value in the address

Upload to USB Copy Channel List to USB To upload several settings from the TV to an USB stick

Copy NVM to USB Copy Readable Info to USB Copy EDID to USB

hours.

for the software name definition.

Used to read-out the option bytes. See para graph 6.4 O ption Setting s detailed description. Ten codes are possible.

Erases the contents of the error buffer. Sel ect this menu item and press th e MENU RIGHT key on the remote control. The content of the error buffer is cleared.

paragraph 6.3 Software Alignments

in the Alignments section for a detailed description

in the Alignments section for a

2012-Sep-28

back to

div. table

Service Modes, Error Codes, and Fault Finding

Main Menu Sub-menu 1 Sub-menu 2 Description

Download from USB Copy Channel List from USB To download several settings from the USB stick to the TV

Initialize NVM Press [OK] to Initialize NVM

EDID Write Enable Press [OK] to enable EDID

Service Data Type Number Press [OK] use key pad edit

Clear OAD Version Press [OK] to clean OAD

Reload_MAC_address Press [OK] to reload MAC

Copy NVM from USB Copy Readable Info from

USB Copy EDID from USB

immediately

writable immediately

type number immediately

Production Number Press [OK] use key pad edit

12NC SSB Press [OK] use key pad edit

12NC PSU Press [OK] use key pad edit

12NC Display Press [OK] use key pad edit

Version immediately

address from ECD immediately

production number immediately

SSB immediately

PSU immediately

display immediately

To initialize a (corrupted) NVM. Be careful, this will erase all settings.

Enable EDID for writing

Edit and display the applicable service data by using the displayed key pad.

Clean OAD (Over Air Download, firmware update method) Version

If MAC address value in NVM is missing, you can trigger this item in SAM mode to reload MAC address from flash ECD key to NVM.

EN 19TPM9.3HE LA 5.

How to Navigate

• In the SAM menu, select menu items with the UP/DOWN keys on the remote control transmitter. The selected item will be indicated. When not all menu items fit on the screen, use the UP/DOWN keys to display the next/previous menu items.

• With the “LEFT/RIGHT” keys, it is possible to: – (De) activate the selected menu item. – (De) activate the selected sub menu. – Change the value of the selected menu item.

• When you press the MENU button once while in top level SAM, the set will switch to the normal user menu (with the SAM mode still active in the background).

• Press the following key sequence on the remote control transmitter: “062596” directly followed by the “Home” button to switch to SDM (do not allow the display to time out between entries while keying the sequence).

How to Store SAM Settings

To store the settings changed in SAM mode (except the RGB Align settings), leave the top level SAM menu by using the POWER button on the remote control transmitter or the television set. The mentioned exceptions must be stored separately via the STORE button.

How to Exit SAM

Use one of the following methods:

• Switch the set to STANDBY by pressing the mains button on the remote control transmitter or the television set.

• Via a standard RC-transmitter, key in “00” sequence.

Note: When the TV is switched “off” by a power interrupt while in SAM, the TV will show up in “normal operation mode” as soon as the power is supplied again. The error buffer will not be cleared.

5.2.4 Contents of the Factory mode:

Purpose

• To perform extended alignments.

Specifications

• Displaying and or changing Panel ID information.

• Displaying and or changing Tuner ID information.

• Error buffer clearing.

• Various software alignment settings.

• Testpattern displaying.

• Public Broadcasting Service password Reset.

•etc.

How to Activate the Factory mode

To activate the Factory mode, use the following method:

• Press the following key sequence on the remote control transmitter: from the “Home screen” press “1999”, directly followed by the “Back” button. Do not allow the display to time out between entries while keying the sequence.

After entering the Factory mode, the following items are displayed,

Table 5-2 Factory mode overview

Default value

Item Item value

0 F/W VERSION Press OK Displays the software versions of the supplier, Flash PQ, Smart Picture, BL Dimming, Source Meter, the

1 Panel_ID See table 6-3

2 Tuner ID 105: LG

3 ERR Code: xxx xxx xxx xxx xxx 000 000 000 000 000Values showing the last 5 errors during the last 50 hours of operation, according to table 5-4 Error code table

4 CLEAR ERROR BUFFER Pr ess OK Selecting this clear all current error codes. 5 NVM ADDRESS 0 NVM address 0 to 8191, Use Item 6 to change and 7 to store the data to the correct NVM address 6 NVM VALUE various Displays the value at the NVM address of item 5 7 NVM STORE Press OK Use this option to save the data of item 6 to NVM address of item 5

Display code overview

TDTK-G731D

Description19" 22"

Picture Quality checksum, the Dimming library, the Source meter library, the Flash AQ, the MTK, MCU and OAD software versions.

Displays and changes the Panel ID with the left and right cursor; be careful changing this, it can result in not correct displaying the screen!

Displays and changes the Tuner ID with the left and right cursor. Not t o be changed whe n the tuner is r eplaced with the correct service part

back to

div. table

2012-Sep-28

EN 20 TPM9.3HE LA5.

Default value

Item Item value

8 NVM COPY TV to USB Press OK Use this to store the NVM data to the REPAIR folder of a FAT formatted USB memory stick. The TV will write

9 NVM COPY USB to TV Press OK Use this to store the NVM data from the USB memory stick to the TV. The TV will save the two files which were

10 RESET_PBS_PWD Press OK Use this to reset the Child Lock 11 DIM_LIB_RESET Press OK Reset the Dimming 12 SRC_METER RESET Press OK Reset the Source meter 13 CIPLUS_QUERY Press OK Shows the Valid ity of the CI+ key and the supplier information 14 CIPLUS UPDATE Press OK Used to enter a new CI+ code into the NVM. This can only be used when no CI+ code exists in the NVM 15 EDID UPDATE Press OK Used to enter a new EDID codes into the NVM 16 Test Pattern Press OK With the “left” and “right” keys of the remote control various test patterns can be chosen 17 VIRGIN_MODE Off/On Use this to return the set to virgin mode. Depends whether the set has been used already. 18 E-Fuse On E-fuse mode 18 ORT_MODE Off ORT mode 20 VGA_UART_SWITCH Off When switched “on” the VGA port can be used for UART logging. 21 AGEING MODE Off Use this for ageing a new LCD panel 22 CLR_TEMP_R 128 98 Red colour temperature setting 23 CLR_TEMP_G 128 107 Green colour temperature setting 24 CLR_TEMP_B 128 128 Red colour temperature setting 25 AUTO_COLOR Press OK PC: any pattern that has black and white, YPbPr: SMPTE bar (colour bar), any timing. 26 ADC_GAIN_R 74 72 Red ADC gain 27 ADC_GAIN_G 70 78 Green ADC gain 28 ADC_GAIN_B 69 73 Blue ADC gain 29 ADC_OFFSET_R 96 88 Red ADC offset 30 ADC_OFFSET_G 98 81 Green ADC offset 31 ADC_OFFSET_B 89 86 Blue ADC offset 32 YPBPR_PHASE InValid Not available for this chassis 33 AUD_LIMITER_MODE 2 Three modes, 0: off, 1: adaptive mode, 2: fixed mode 34 AUD_THRESHOLD_BYTE1 0 Limit threshold 35 AUD_THRESHOLD_BYTE2 10 Limit threshold 36 AUD_THRESHOLD_BYTE3 6 Limit threshold 37 AUD_GAIN_LINEIN 3 Line-in audio gain 38 AUD_GAIN_HDMI 2 HDMI audio gain 39 AUD_GAIN_ATV 3 Analogue TV audio gain 40 AUD_GAIN_DTV 2 Digital TV audio gain 41 AUD_GAIN_USB 2 USB audio gain 42 AQ_ INDEX 4 5 Audio Quality index 43 Audio Test Mode Off Used for audio testing during production 44 Audio Channel Type 2.0 Defines the installed speaker system 45 DUMP PQ FROM TV Press OK Saves the picture quality data to a file “pq.bin” to the root of a FAT formatted USB memory stick 46 LOAD PQ to TV Press OK Loads the picture quality data from a file “pq.bin” in to the TV 47 DUMP AQ FROM TV Press OK Saves the audio quality data to a file “AQ.bin” to the root of a FAT formatted USB memory stick 48 LOAD AQ to TV Press OK Loads the audio quality data from a file “AQ.bin” in to the TV 49 FEF CHECK Off FEF CHECK 50 EXIT_FACTORY Press OK Exits the Factory mode

Service Modes, Error Codes, and Fault Finding

Description19" 22"

two files in the REPAIR folder of the memory stick. It will create this folder if it does not exist. The items are “Channel list”, “Personal settings”, “Option codes”, “Display-related alignments” and “History list”. In case the download to the USB stick was not successful “Failure” will appear. In this case, check if the USB stick is connected properly. Now the settings ar e stored onto the USB stick and can be used to do wnload onto anothe r TV or other SSB. Uploading is of course only possible if the software is running and if a picture is available. This method is created to be able to save the customer’s TV settings and to store them into another SSB.

created in item 8 to the NVM of the set. Use these options w hen replacin g a SSB. When “US B to TV Success” is displayed remove the power and restart the TV

How to Exit the Factory mode

Use one of the following methods:

• Select EXIT_FACTORY from the menu and press the “OK” button.

Note: When the TV is switched “off” by a power interrupt, or normal switch to “stand-by” while in the factory mode, the TV will show up in “normal operation mode” as soon as the power is supplied again. The error buffer will not be cleared.

5.2.5 Customer Service Mode (CSM)

Purpose

The Customer Service Mode shows error codes and information on the TV’s operation settings. The call centre can instruct the customer (by telephone) to enter CSM in order to identify the status of the set.This helps the call centre to diagnose problems and failures in the TV set before making a service call. The CSM is a read-only mode; therefore, modifications are not possible in this mode.

2012-Sep-28

back to

div. table

Specifications

• Ignore “Service unfriendly modes”.

• Line number for every line (to make CSM language independent).

• Set the screen mode to full screen (all contents on screen is visible).

• After leaving the Customer Service Mode, the original settings are restored.

• Possibility to use “CH+” or “CH-” for channel surfing, or enter the specific channel number on the RC.

How to Activate CSM

To activate CSM, press the following key sequence on a standard remote control transmitter: “123654” (do not allow the display to time out between entries while keying the sequence). After entering the Customer Service Mode, the following items are displayed.

Note: Activation of the CSM is only possible if there is no (user) menu on the screen!

Service Modes, Error Codes, and Fault Finding

Contents of CSM

• 1.1 Set Type This information is very helpful for a helpdesk/workshop as reference for further diagnosis. In this way, it is not necessary for the customer to look at the rear of the TV-set. Note that if an NVM is replaced or is initialized after corruption, this set type has to be re-written to NVM.

• 1.2 Production code Displays the production code (the serial number) of the TV. Note that if an NVM is replaced or is initialized after corruption, this production code has to be re-written to NVM.

• 1.3 Installation date Indicates the date of the first installation of the TV. This date is acquired via time extraction.

• 1.4 Option Code 1 Gives the option codes of option group 1 as set in SAM.

• 1.5 Option Code 2 Gives the option codes of option group 2 as set in SAM.

• 1.6 SSB Gives an identification of the SSB as stored in NVM. Note that if an NVM is replaced or is initialized after corruption, this identification number has to be re-written to NVM. This identification number is the 12NC number of the SSB.

• 1.7 Display 12NC NVM read/write.

• 1.8 PSU 12NC NVM read/write.

• 2.1 Current Main SW Displays the built-in main software version. In case of field problems related to software, software can be upgraded. As this software is consumer upgradeable, it will also be published on the internet.

• 2.2 Standby SW Displays the built-in stand-by processor software version. Upgrading this software will be possible via USB.

• 2.3 Panel Code Displays the Display Code number.

• 2.4 NVM version Detects and displays NVM version.

• 2.5 Error Codes Detects and displays errors.

• 3.1 Signal Quality Analog/digital signal strength.

• 3.2 Child lock Not active / active. This is a combined item for locks. If any lock (channel lock, parental lock) is active, it is indicated as “active”.

• 3.3 HDCP keys Indicates the validity of the HDMI keys (or HDCP keys). In case these keys are not valid and the customer wants to make use of the HDMI functionality, the SSB has to be replaced.

• 3.4 Ethernet MAC address A Media Access Control address (MAC address) is a unique identifier assigned to network interfaces for communications on the physical network segment.

• 3.5 Wireless MAC address Wireless Media Access Control address.

EN 21TPM9.3HE LA 5.

How to Navigate

By means of the “CURSOR-DOWN/UP” knob (or the scroll wheel) on the RC-transmitter, can be navigated through the menus.

How to Exit CSM

To exit CSM, use one of the following methods.

• Press the MENU/HOME button on the remote control transmitter.

• Press the POWER button on the remote control transmitter.

• Press the POWER button on the television set.

back to

div. table

2012-Sep-28

EN 22 TPM9.3HE LA5.

19080_206_110323.eps

120224

Power Off

Standby Soft Mode

Power On

Semi- Standby

Standby

Switch

Off(Mains Power Plug)

Standby Soft Mode Command Received, previously in Standby

Soft Mode (Power tact switch)

TV Wakeup commands Received (TV Wakeup keys)

Digital background tasks started

Digital background tasks completed

Swith On, previously in

Standby/Semi- Standby (Mains Power Plug)

Standby Soft Mode

Command Received (Power tact

switch)

Switch Off (Mains Power Plug)

Switch Off

(Mains Power Plug)

Swith On, previously in Standby Soft Mode (Mains Power Plug)

Standby commands

Received (RC

Standby key)

Standby Soft Mode

Command Received, previously in Standby Soft Mode (Power tact switch)

TV Wakeup commands Received (TV Wakeup keys)

Switch On, previously in Power On Mode (Power tact switch)

Standby Soft Mode Command Received, (Power tact switch)

Switch Off (Mains Power Plug)

Switch On,previously in TV Operation Mode (Mains Power Plug)

5.3 Stepwise Start-up

Service Modes, Error Codes, and Fault Finding

2012-Sep-28

Figure 5-1 Stepwise Start-up

back to

div. table

Service Modes, Error Codes, and Fault Finding

10000_036_090121.eps

091118

TO

UART SERVICE

CONNECTOR

TO

UART SERVICE

CONNECTOR

TO I2C SERVICE CONNECTOR

TO TV

PC

HDMI I

2

C only

Optional power

5V DC

ComPair II Developed by Philips Brugge

RC out

RC in

Optional

Switch

Power ModeLink/

Activity

I

2

C

ComPair II

Multi

function

RS232 /UART

EN 23TPM9.3HE LA 5.

5.4 Service Tools

5.4.1 ComPair

Introduction

ComPair (Computer Aided Repair) is a Service tool for Philips Consumer Electronics products. and offers the following:

1. ComPair helps to quickly get an understanding on how to repair the chassis in a short and effective way.

2. ComPair allows very detailed diagnostics and is therefore capable of accurately indicating problem areas. No knowledge on I because ComPair takes care of this.

3. ComPair speeds up the repair time since it can automatically communicate with the chassis (when the micro processor is working) and all repair information is directly available.

4. ComPair features TV software up possibilities.

Specifications

ComPair consists of a Windows based fault finding program and an interface box between PC and the (defective) product. The ComPair II interface box is connected to the PC via an USB cable. For the TV chassis, the ComPair interface box and the TV communicate via a bi-directional cable via the service connector(s). The ComPair fault finding program is able to determine the problem of the defective television, by a combination of automatic diagnostics and an interactive question/answer procedure.

How to Connect

This is described in the chassis fault finding database in ComPair.

2

C or UART commands is necessary,

5.5 Software Upgrading

5.5.1 Description

It is possible for the user to upgrade the main software via the USB port. This allows replacement of a software image in a stand alone set. A description on how to upgrade the main software can be found in the DFU or on the Philips website.

5.5.2 Introduction

Philips continuously tries to improve its products, and it’s recommend that the TV software is updated when updates are available. Software update files can be obtained from the dealer or can be downloaded from the following websites:

http://www.philips.com/support

Preparing a portable memory for software upgrade

The following requirements have to be met:

1. A personal computer connected to the internet.

2. An archive utility that supports the ZIP-format (e.g. WinZip for Windows or Stufflt for Mac OS).

3. A FAT formatted USB memory stick (preferably empty).

Note:

1. Only FAT/DOS-formatted memory sticks are supported.

2. Only use software update files that can be found on the

http://www.philips.com/support

5.5.3 Check the current TV software version

Before starting the software upgrade procedure, it is advised to check that what the current TV software:

1. Press the “1 2 3 6 5 4” button on the remote control to enter the CSM mode.

2. Use the up/down cursor keys to select “Current Main Software”.

If the current software version of the TV is the same as the latest update file found on http://www.philips.com/support not necessary to update the TV software.

web site.

, it is

Figure 5-2 ComPair II interface connection

Caution: It is compulsory to connect the TV to the PC as

shown in the picture above (with the ComPair interface in between), as the ComPair interface acts as a level shifter. If one connects the TV directly to the PC (via UART), ICs can be blown!

How to Order

ComPair II order codes:

• ComPair II interface: 3122 785 91020.

• Software is available via the Philips Service web portal.

• ComPair UART interface cable for TPM9.3x xx. (using DB9 to 2mm pitch JST connector): 3122 785 90630.

Note: When you encounter problems, contact your local support desk.

5.5.4 Download the latest software

1. Open the internet page http://www.philips.com/support

2. Find information and software related to the TV.

3. Select the latest software update file and download it to the PC.

4. Insert the USB memory stick into one of the USB ports of the PC.

5. Decompress the downloaded ZIP file and copy the “autorun.upg” to the root directory of the USB flash drive.

5.5.5 Update the TV software

1. Turn the TV on and wait for it to boot completely.

2. Insert the USB memory stick that contains the software update files in one of the TV’s USB ports.

3. The TV will detect the USB memory stick automatically. Then a window jumps out as Figure 5-3 Note: If the USB flash drive is not detected after power up, disconnect it and re-insert it.

4. Select [Update] and press OK. See Figure 5-3

5. To proceed, In next menu select [Start] and press OK to start software updates. See Figure 5-4

6. Upgrading will now begins and the status of the updating progress will be displayed.

7. When the TV software is updated. Remove your USB flash drive, then select [Restart] and press OK to restart the TV.See Figure 5-5

back to

div. table

.

2012-Sep-28

EN 24 TPM9.3HE LA5.

19080_207_110324.eps

110324

Figure 5-3 Update the TV software [1/3]

Figure 5-4 Update the TV software [2/3]

Service Modes, Error Codes, and Fault Finding

• FUS_clustername_version.zip: Contains the “autorun.upg” which is needed to upgrade the TV main software and the software download application.

• NVM_clustername_version.zip: Default NVM content. Must be programmed via ComPair.

5.5.7 How to Copy NVM Data to/from USB

When copying data to and from a USB memory stick, the folder “repair” is used. When inserting an empty USB memory stick, and downloading data to the stick, the TV will create this folder. When sending data from a USB memory stick to a TV, the intended data must be available in the “repair” folder. Note that when copying EDID data to the TV, all necessary EDID files must be in this folder. Service mode overview for your reference.

Table 5-3 Service mode overview

Service Modes Description

SAM Service alignment mode Factory Mode Used for extended al ignments SDM Service default Mode

19080_208_110324.eps

110324

CSM 3-page compact CSM pages. There will be CSM dump to

USB SW upgradeable SW-upgrading of flash memories MTK- chips MT5366 can

NVM-Editor in SAM NVM-editor will function as in the past: Ad dress and Value

Service Data New Service data in SAM for CTN, Prod. no., 12NC

USB copy/paste in SAM

UART logging There will be printout available in UART. No specifications

Blind SAM RC sequence “062598” + “Menu” +

Clear Buffer RC sequence “062599” + “OK” or via SAM

USB-stick upon entering CSM-mode

be done via USB. The main SW can be upgraded via Autorun.upg

field is a decimal value via digit entry

programming with virtual key board Channel list, NVM data, Readable info, EDID

of the printout, per MTK provision/definition.

“Panel code”

19080_209_110324.eps

Figure 5-5 Update the TV software [3/3]

Note:

• Do not remove the USB flash drive during the software update.

• If a power failure occurs during the update, do not remove the USB flash drive from the TV. The TV will continue the software update as soon as the power comes up again.

• If an error occurs during the update retry the procedure or contact the dealer.

• We do not recommend downgrading to an older version.

• Once the upgrade is finished, use the PC to remove the TV software from the USB portable memory.

5.5.6 Content and Usage of the One-Zip Software File

Below you find a content explanation of the One-Zip file, and instructions on how and when to use it. Only files that are relevant for Service are mentioned here.

• EDID_clustername.zip: Contains the EDID content of the different EDID NVMs. See ComPair for further instructions.

110324

5.6 Error Codes

5.6.1 Introduction

Error codes are required to indicate failures in the TV set. In principle a unique error code is available for every:

• Activated (SW) protection.

•Failing I

• General I The last five errors, stored in the NVM, are shown in the Service menu’s. This is called the error buffer. The error code buffer contains all errors detected since the last time the buffer was erased. The buffer is written from left to right. When an error occurs that is not yet in the error code buffer, it is displayed at the left side and all other errors shift one position to the right. An error will be added to the buffer if this error differs from any error in the buffer. The last found error is displayed on the left. An error with a designated error code never leads to a deadlock situation. It must always be diagnosable (e.g. error buffer via OSD or blinking LED or via ComPair). In case a failure identified by an error code automatically results in other error codes (cause and effect), only the error code of the MAIN failure is displayed.

5.6.2 How to Read the Error Buffer

You can read the error buffer in three ways:

• On screen via the SAM/SDM/CSM (if you have a picture).

2

C device.

2

C error.

Example: – ERROR: 000 000 000 000 000: No errors detected – ERROR: 013 000 000 000 000: Error code 13 is the

last and only detected error

2012-Sep-28

back to

div. table

Service Modes, Error Codes, and Fault Finding

EN 25TPM9.3HE LA 5.

– ERROR: 034 013 000 000 000: Error code 13 was

detected first and error code 34 is the last detected (newest) error

• Via the blinking LED procedure (when you have no picture). See paragraph 5.7 The Blinking LED Procedure

•Via ComPair.

5.6.3 Error codes

In this chassis only “layer 2” error codes are available and point to problems on the SSB. They are triggered by LED blinking when CSM is activated. Only the following layer 2 errors are defined:

Table 5-4 Error code table

Layer-2 error code Defective device

13 General I2C bus error on the SSB 16 +12 V missing or low, PSU defective 27 Channel decoder error on the SSB 34 Tuner I2C bus error on the SSB 35 EEPROM I2C error on SSB, M24C64

5.6.4 How to Clear the Error Buffer

The error code buffer is cleared in the following cases:

• By using the CLEAR command in the SAM menu

• By using the CLEAR command in the Factory mode:

• By using the following key sequence on the remote control transmitter: “062599” directly followed by the OK button.

• If the contents of the error buffer have not changed for 50 hours, the error buffer resets automatically.

Note: If you exit SAM by disconnecting the mains from the television set, the error buffer is not reset.

5.7 The Blinking LED Procedure

5.7.1 Introduction

The software is capable of identifying different kinds of errors. Because it is possible that more than one error can occur over time, an error buffer is available, which is capable of storing the last five errors that occurred. This is useful if the OSD is not working properly. Errors can also be displayed by the blinking LED procedure. The method is to repeatedly let the front LED pulse with as many pulses as the error code number, followed by a period of

1.5 seconds in which the LED is “off”. Then this sequence is

repeated. Example (1): error code 4 will result in four times the sequence LED “on” for 0.25 seconds / LED “off” for 0.25 seconds. After this sequence, the LED will be “off” for 1.5 seconds. Any RC command terminates the sequence. Error code LED blinking is in red color. Example (2): the content of the error buffer is “12 9 6 0 0” After entering SDM, the following occurs.

• 1 long blink of 5 seconds to start the sequence.

• 12 short blinks followed by a pause of 1.5 seconds.

• 9 short blinks followed by a pause of 1.5 seconds.

• 6 short blinks followed by a pause of 1.5 seconds.

• 1 long blink of 1.5 seconds to finish the sequence.

• The sequence starts again with 12 short blinks.

5.7.2 Displaying the Entire Error Buffer

5.8 Fault Finding and Repair Tips

Note:

• It is assumed that the components are mounted correctly with correct values and no bad solder joints.

.

• Before any fault finding actions, check if the correct options are set.

5.8.1 NVM Editor

In some cases, it can be convenient if one directly can change the NVM contents. This can be done with the “NVM Editor” in SAM mode. With this option, single bytes can be changed.

Caution:

• Do not change these, without understanding the function of each setting, because incorrect NVM settings may seriously hamper the correct functioning of the TV set!

• Always write down the existing NVM settings, before changing the settings. This will enable you to return to the original settings, if the new settings turn out to be incorrect.

5.8.2 Load Default NVM Values

It is possible to upload the default values to the NVM with ComPair in case the SW is changed, the NVM is replaced with a new (empty) one, or when the NVM content is corrupted. After replacing an EEPROM (or with a defective/no EEPROM), default settings should be used to enable the set to start-up and allow the Service Default Mode and Service Alignment Mode to be accessed.

5.8.3 No Picture

When you have no picture, first make sure you have entered the correct display code. See paragraph 6.4 Option Settings the instructions. See also Table 6-3

.

5.8.4 Unstable Picture via HDMI input

Check (via ComPair or factory mode) if HDMI EDID data is properly programmed.

5.8.5 No Picture via HDMI input

Check if HDCP key is valid. This can be done in CSM.

5.8.6 TV Will Not Start-up from Stand-by

Possible Stand-by Controller failure. Re-flash the software.

5.8.7 Audio Amplifier

The Class D-IC U6002 has a powerpad for cooling. When the IC is replaced it must be ensured that the powerpad is very well pushed to the PWB while the solder is still liquid. This is needed to insure that the cooling is guaranteed, otherwise the Class D-IC could break down in short time.

5.8.8 CSM

When CSM is activated and there is a USB memory stick connected to the TV, the software will dump the complete CSM content to the USB memory stick. The file (Csm.txt) will be saved in the root of the USB memory stick.

for

Additionally, the entire error buffer is displayed when Service Mode “SDM” is entered.

5.8.9 Loudspeakers

back to

div. table

Make sure that the volume is set to minimum during disconnecting the speakers in the ON-state of the TV. The audio amplifier can be damaged by disconnecting the speakers during ON-state of the set!

2012-Sep-28

EN 26 TPM9.3HE LA5.

5.8.10 Display option code

Attention: In case the SSB is replaced, always check the Panel Code in CSM, even when picture is available. Performance with the incorrect display option code can lead to unwanted side-effects for certain conditions.

Service Modes, Error Codes, and Fault Finding

2012-Sep-28

back to

div. table

6. Alignments

Index of this chapter:

6.1 General Alignment Conditions

6.2 Hardware Alignments

6.3 Software Alignments

6.4 Option Settings

6.5 Reset of Repaired SSB

6.1 General Alignment Conditions

Perform all electrical adjustments under the following conditions:

• Power supply voltage: 90 - 264 V

• Connect the set to the mains via an isolation transformer with low internal resistance.

• Allow the set to warm up for approximately 15 minutes.

• Measure voltages and waveforms in relation to correct ground (e.g. measure audio signals in relation to AUDIO_GND). Caution: It is not allowed to use heat sinks as ground.

• Test probe: R

> 10 M, Ci < 20 pF.

i

• Use an isolated trimmer/screwdriver to perform alignments.

, 50/ 60  3 Hz.

AC

Alignments

In case you have a colour analyser:

• Measure with a calibrated (phosphor- independent) color analyser (e.g. Minolta CA-210) in the centre of the screen. Consequently, the measurement needs to be done in a dark environment.

• Adjust the correct x, y coordinates (while holding one of the White point registers R, G or B on max. value) by means of decreasing the value of one or two other white points to the correct x, y coordinates (see Table 6-1 White D alignment

values). Tolerance: dx:  0.003, dy:  0.003.

• Repeat this step for the other colour Temperatures that need to be aligned.

• When finished return to the SAM root menu and press STANDBY on the RC to store the aligned values to the NVM.

Table 6-1 White D alignment values

Value Cool (12000 K) Normal (9000 K) Warm (6500 K)

x 0.276 0.287 0.313 y 0.282 0.296 0.329

EN 27TPM9.3HE LA 6.

6.2 Hardware Alignments

Not applicable.

6.3 Software Alignments

Put the set in SAM mode (see Chapter 5. Service Modes, Error

Codes, and Fault Finding). The SAM menu will now appear on

the screen. Select RGB Align and go to one of the sub menus. The alignments are explained below. The following items can be aligned:

• White point.

To store the data:

• Press OK on the RC before the cursor is moved to the left.

• Select “Store” and press OK on the RC.

• Switch the set to stand-by mode.

For the next alignments, supply the following test signals via a video generator to the RF input:

• EU/AP-PAL models: a PAL B/G TV-signal with a signal strength of at least 1 mV and a frequency of 475.25 MHz

• US/AP-NTSC models: an NTSC M/N TV-signal with a signal strength of at least 1 mV and a frequency of

61.25 MHz (channel 3).

• LATAM models: an NTSC M TV-signal with a signal strength of at least 1 mV and a frequency of

61.25 MHz (channel 3).

6.3.1 RGB Alignment

Before alignment, set the picture as follows:

Picture Setting

Dynamic backlight Off Dynamic Contrast Off Color Enhancement Off Picture Format Unscaled Light Sensor Off Brightness 50 Color 0 Contrast 100

If you do not have a colour analyser, you can use the default values. This is the next best solution. The default values are average values coming from production (statistics).

6.3.2 Display Adjustment

You can use the default values. The default values are average values coming from production.

• Enter SAM mode.

• Select a colour temperature (e.g. COOL, NORMAL, or WARM).

• Set the RED, GREEN and BLUE default values according to the values in Table 6-2

.

• When finished press OK on the RC, then press STORE to store the aligned values to the NVM.

• Restore the initial picture settings after the alignments.

Table 6-2 White tone default settings

Picture mode Screen size

Normal (9000K) 19HFL3007D 98 96 128

22HFL3007D 61 76 128 22HFL3017D 98 107 128 22HFL3017W 98 107 128

Cool (11000K) 19HFL3007D 82 83 128

22HFL3007D 44 63 128 22HFL3017D 86 97 128 22HFL3017W 86 97 128

Warm (6500K) 19HFL3007D 128 115 124

22HFL3007D 115 117 128 22HFL3017D 128 128 124 22HFL3017W 128 128 124

Colour temperature

Red Green Blue

This group setting of colour temperature will be applied automatically to the TV / VGA / HDMI / AV sources.

White Tone Alignment:

• Activate SAM.

• Select “RGB Align.” and choose a color temperature.

• Use a 100% white screen as input signal and set the following values: – “Red BL Offset” and “Green BL Offset” to “7” (if

present).

– All “White point” values initial to “128”.

back to

div. table

2012-Sep-28

EN 28 TPM9.3HE LA6.

Alignments

6.4 Option Settings

6.4.1 Introduction

The microprocessor communicates with a large number of I ICs in the set. To ensure good communication and to make digital diagnosis possible, the microprocessor has to know which ICs to address. The presence / absence of these MT5366 ICs is made known by the option codes.

Notes:

• After changing the option(s), save them by pressing the OK button on the RC before the cursor is moved to the left, select STORE and press OK on the RC.

• The new option setting is only active after the TV is switched “off” / “stand-by” and “on” again with the mains switch (the NVM is then read again).

6.4.2 Option Code Overview

Enter SAM mode to check the option codes. they could not be edited in the NVM.

6.4.3 Display Code Overview

Press the following key sequence on a standard RC transmitter: “062598” directly followed by MENU and “xxx”, where “xxx” is a 3 digit decimal value of the panel type: see column “Display Code” in Table 6-3 Code, restart the set immediately.

. After resetting the Display

6.5.1 SSB Identification

SSB’s of this chassis are identified by a “715” code on the SSB. 715Axxxx-Nnn-MMM-OOOO

2

C

• 715 main category, Printed Wiring Board

• Axxxx sub category, sequential coding number

• Nnn Version code

• N Development number

• nn Production number

• MMM Mounting variation code

• OOOO Optional variation code Make sure when replacing an SSB the SSB identification codes match the replacement board.

Table 6-3 Display code overview

CTN_ALT BOM# Panel Type Display Code

19HFL3007D LC185EXE-TEA1 159 22HFL3007D TPM215HW01-HGEL02 171 22HFL3017D LC215EUE-TEA1 160 22HFL3017W LC215EUE-TEA1 160

6.5 Reset of Repaired SSB

A very important issue towards a repaired SSB from a Service repair shop (SSB repair on component level) implies the reset of the NVM on the SSB. A repaired SSB in Service should get the service Set type “00PF0000000000” and Production code “00000000000000”. Also the virgin bit is to be set. To set all this, you can use the ComPair tool or use the “NVM editor” and “Dealer options” items in SAM (do not forget to “store”).

After a repaired SSB has been mounted in the set (set repair on board level), the type number (CTN) and production code of the TV has to be set according to the type plate of the set. For this, you can use the NVM editor in SAM. The loading of the CTN and production code can also be done via ComPair (Model number programming).

In case of a display replacement, reset the “Operation hours display” to “0”, or to the operation hours of the replacement display.

2012-Sep-28

back to

div. table

7. Circuit Descriptions

Index of this chapter:

7.1 Introduction

7.2 Power Supply

7.3 DC/DC Converters

7.4 Front-End Analogue and DVB-T, DVB-C, ISDB-T reception

7.5 HDMI

7.6 Video and Audio Processing - MT5366IVGG/B

Circuit Descriptions

7.1 Introduction

The TPM9.3HE LA is a new chassis launched in Europe in 2012 for institutional purposes. The whole range is covered by MT5366IVGG/B PBGA-479 main IC so-called MT5366 platform. Throughout this chassis LED displays are used.

7.1.1 Implementation

EN 29TPM9.3HE LA 7.

Notes:

•Only new circuits (circuits that are not published recently) are described.

• Figures can deviate slightly from the actual situation, due to different set executions.

• For a good understanding of the following circuit descriptions, please use the wiring, block (see chapter

9. Block Diagrams

10. Circuit Diagrams and PWB Layouts

you will find a separate drawing for clarification.

) and circuit diagrams (see chapter

).Where necessary,

Key components of this chassis are:

• MT5366IVGG/B PBGA-479 TV Processor

• TDTK-G731D Europa tuner for D series

• TMDS361BPAGR TQFP-64 HDMI Switch

• STA381BWTR 20 Watt VQFN-AUDIO Amplifier

7.1.2 TPM9.3HE LA Architecture Overview

An overview of the TPM9.3HE LA architecture can be found in

9.4 Block Diagram

back to

div. table

2012-Sep-28

EN 30 TPM9.3HE LA7.

19380_201_120829.eps

120925

CLASS-D

DC/DC

ANALOG I/O

TUNER

SCART

USB

Headphone

SERVICE CONNECTOR

MT5366

DDR

HDMI SWITCH

HDMI

COMMON INTERFACE

7.1.3 SSB Cell Layout

Circuit Descriptions

Figure 7-1 SSB layout cells (top view)

2012-Sep-28

back to

div. table

7.2 Power Supply

Display power

Platform MTK5366

PFC

Platform power

1 power- PCB

AMP

LVDS

Low stby power

Ac-input + Mains filter

BL-ON/OFF

AC IN

DIM 12V

12V24V

24V

5V

CN7001

/CN700

19240_202_120224.eps

120925

Refer to figure Figure 7-2 for the power architecture of this platform.

Circuit Descriptions

EN 31TPM9.3HE LA 7.

Figure 7-2 Power Architecture xxHFL30xxx/10

7.2.1 Power Supply Unit

All power supplies are a black box for Service. When defective, a new board must be ordered and the defective one must be returned, unless the main fuse of the board is broken. Always replace a defective fuse with one with the correct specifications! This part is available in the regular market. Consult the Philips Service web portal for the order codes of the boards.

Important delta’s with the xxHFL30xxx/10platform are:

• New power architecture for LED backlight

• “Boost”-signal is now a PWM-signal + continuous variable.

The control signals are:

• Stand-by

• Lamp “on/off”

• DIM (PWM) (not for PSDL)

In this manual, no detailed information is available because of design protection issues.

The output voltages to the chassis are:

• +5V-STANDBY (Stand-by mode only)

• +12V (on-mode)

• +Vsnd (+24V) (audio power) (on-mode)

• +24V (bolt-on power) (on-mode)

• Output to the display; in case of

- PSL and PSLS (LED-driver outputs)

- PSDL (high frequent) AC-current.

7.2.2 Diversity

The diversity in power supply units is mainly determined by the diversity in displays.

The following displays can be distinguished:

• LED backlight:

- side-view LED without scanning: PSL power board

- side-view LED with scanning: PSLS power board

- direct-view LED without 2D-dimming: PSL power board

- direct-view LED with 2D-dimming: PSDL power board.

PSL stands for Power Supply with integrated LED-drivers. PSLS stands for a Power Supply with integrated LED-drivers with added Scanning functionality (added microcontroller). PSDL stands for a Power Supply for Direct-view LED backlight

with 2D-dimming.

7.2.3 Connector overview

Table 7-1 Connector overview

no. CN8101 CN9101 CN8101 CN9101 Descr. to panel to SSB to panel to SSB Pin CN8101 CN9101 CN8101 CN9101

1 LED1 NC LED1 NC 2 LED2 +5.2V LED2 +5.2V 3 VLED+ +5.2V VLED+ +5.2V 4 LED3 NC LED3 NC 5 LED4 +16 V LED4 +16 V 6 - +16 V - +16V 7- GND- GND 8- GND- GND 9- GND- GND 10 - NC - NC 11 - NC - NC 12 - DIM - DIM 13 - ON/OFF - ON/OFF

back to

div. table

xxHFL3007D/10 22HFL3017

Connector

2012-Sep-28

EN 32 TPM9.3HE LA7.

19380_202_120911.eps

120925

U4009/U4012

Q7002

7812

LDO

ENV57U09D5F /TDTK-G731D

RF TUNER

+5V_SW

+5V1_TUN

7805

LDO

+5V_SW

G1117T43U

LDO

MT5366

MAIN CHIP

G5250

POWER SWITCH

DDRIII X 2

NT5TU64M16

USB multi-media

USB PWR

+5V_SW

USB_PWR_OCP0

AON4421

POWER SWITCH

BUCK CONVERTER

PWR_ON/OFF

AON4421

POWER SWITCH

SI5441

POWER SWITCH

DV11

DV15_DDR

LVD S_VDD

G1084TU3

LDO

DV33

+5V_SW

+12V

16V_24V

+5VSB

MT5366

MAIN CHIP

MT5135

AV12 AV12

DVB-C/T DEMOD

LCD PANEL

LCD PANEL T-CON

DV12/AV12

DV15_DDR

DV33

MT5135

PCMCIA CARD

DVB-C/T DEMOD

TMDS361

TMDS SWITCH

+5V_SW

+12V

16V_24V

G9141

LDO

MT5135

+5V_SW

DV15_DDR

DVB-C/T DEMOD

5135_DV10

G5250

LDO

CI_PWR_EN

CI CARD PWR

PANEL_VCC_ON/OFF

CI2_VCC

AUDIO _PVDD

STB_PWR5V

+5V_SW

MAIN CHIP

AUDIO AMP

STA381BW

TPS54319

DV33 & AV33

DV33

+5V_SW

STA381BW

AUDIO AMP

MT5366

MAIN CHIP

DV33

Q7004

Q7007

19240_204_120224.eps

120224

Circuit Descriptions

7.3 DC/DC Converters

The on-board DC/DC converters deliver the following voltages (depending on set execution):

• +5V2-STANDBY, permanent voltage for the Stand-by controller, LED/IR receiver and controls;

• +12V, input from the power supply for the panel common (active mode);

• +24V, input from the power supply for the amplifier;

• +1V1, core voltage supply for MTK5366; has to be started up first and switched “off” last

• +1V2, from the power supply for the scaler IC MT5366

• +1V5, supply voltage for DDR3 (diagram B)

• +3V3, general supply voltage

• +5V-TUN, supply voltage for tuner

• +5V-USB, input intermediate supply voltage for USB Power

• +3V3 from the power supply for the scaler IC MT5366

See figure 7-3 DC/DC converters

for a detailed setup of the

DC/DC converters.

Figure 7-3 DC/DC converters

7.4 Front-End Analogue and DVB-T, DVB-C, ISDB-T reception

7.4.1 Front-End Analogue part

The Front-End for the analogue tuner consist of the following key components:

• ENV57U09D5F

• MT5366IVGG/B PBGA-479

Below find a block diagram of the front-end application for analogue.

2012-Sep-28

back to

div. table

Figure 7-4 Front-End analogue block diagram

Circuit Descriptions

19240_205_120224.eps

120224

19240_208_120224.eps

120501

MT5366CVNG

TMDS361B

A

ARC

TX

RX3 RX2

CN5004 CN5002

RX1

CN5003

RX3

RX1

RX2

EN 33TPM9.3HE LA 7.

7.4.2 DVB-T/C DTV

The Front-End for DVB-T/C DTV consist of the following key components:

• ENV57U09D5F

• MT5366IVGG/B PBGA-479

• Demodulator MT5135AE/A LQFP-128

Below find a block diagram of the front-end application for DVB-T/C DTV.

Figure 7-5 Front-End DVB-T/C DTV block diagram

7.5 HDMI

It has the following features:

• Multi-standard digital video decoder (MPEG-2, H.264, MPEG-4)

• Integrated DVB-T/DVB-C channel decoder

• Integrated CI+

• Integrated motion accurate picture processing

• High definition ME/MC

• 2D LED backlight dimming option

• Embeded HDMI HDCP keys

• Extended colour gamut and colour booster

• Integrated USB2.0 host controller

• Improved MPEG artefact reduction compared

• Security for customers own code/settings (secure flash).

The MTK5366IVGG combines front-end video processing functions, such as DVB-T channel decoding, MPEG-2/H.264 decoding, analog video decode and HDMI reception, with advanced back-end video picture improvements. It also includes next generation Motion Accurate Picture Processing. High flat panel screen resolutions and refresh rates are supported with formats including 1366 × 768 @ 60Hz and 1920 × 1080 @ 60Hz. The combination of Ethernet, CI+ and H.264 supports new TV experiences with IPTV and VOD. On top of that, optional support is available for 2D dimming in combination with LED backlights for optimum contrast and power savings up to 50%.

For a functional diagram of the MTK5366IVGG, refer to Figure 8-2

.

In this platform, the Silicon Image TMDS361B HDMI multiplexer is implemented. Refer to figure 7-6 HDMI input

configuration for the application.

Figure 7-6 HDMI input configuration

The hardware default I

• TMDS361B: 0xB0/0xB2 (random: software workaround)

• TMDS361B: 0xB2 (fixed).

The TMDS361B has the following specifications:

• +5V detection mechanism

• Stable clock detection mechanism

• Integrated EDID

• RT control

•HPD control

• Sync detection

• TMDS output control

•CEC control

2

C addresses are:

7.6 Video and Audio Processing - MT5366IVGG/B

The MTK5366IVGG is the main audio and video processor (or System-on-Chip) for this platform.

back to

div. table

2012-Sep-28

EN 34 TPM9.3HE LA8.

19080_310_110408.eps

120102

Block diagram

Pinning information

DGRWP

TOOB

PH

KLC/TR

NE

DNGA

VIN

ESNESV

PMOC

15 14 13

GND

12

11

10

9

8

765

16

GND

VIN

NIV

PH

1

2

3

4

SS/TR

PowerPAD

(17)

QFN16

RTE PACKAGE

(TOP VIEW)

TPS54319

IC Data Sheets

8. IC Data Sheets

This chapter shows the internal block diagrams and pin configurations of ICs that are drawn as “black boxes” in the electrical diagrams (with the exception of “memory” and “logic” ICs).

8.1 Diagram 10-2-1 System Power 1 B01, TPS54319RTE (IC U7004)

VSENSE

SS/TR

COMP

Shutdown

107%

Overload Recovery

93%

Voltage

Reference

ERROR

AMPLIFIER

Logic

hutdown

S

PWRGD

Maximum

Clamp

EN

Minimum

COMP Clamp

i

1

Enable

Threshold

PWM

Comparator

Slope

Compensation

i

hys

Enable

Comparator

Frequency

Oscillator

with PLL

Thermal

Shutdown

Logic and PWM

Latch

Shift

Shutdown

Logic

Boot

UVLO

Boot

Charge

VIN

Current

Sense

BOOT

PH

GND

RT/CLK

AGND

POWERPAD

Figure 8-1 Internal block diagram and pin configuration

2012-Sep-28

back to

div. table

IC Data Sheets

19080_300_110316.eps

120102

Block diagram

VADC × 4

MT5366CV

8.2 Diagram 10-2-3 Peripheral B03, MT5366IVGG/B PBGA-479 (IC U4001)

EN 35TPM9.3HE LA 8.

Figure 8-2 Internal block diagram

back to

div. table

2012-Sep-28

EN 36 TPM9.3HE LA8.

19080_301_110316.eps

120102

Pinning information MT5366CV [1/2]

479 123 4 5678 910 11 12

A

B

C

D

E

F

G

H

J

K

L

M

N

P

R

T

U

V

W

Y

AA

AB

AC

AD

AE

LB1 2 3 4 5 678 9101112

IC Data Sheets

2012-Sep-28

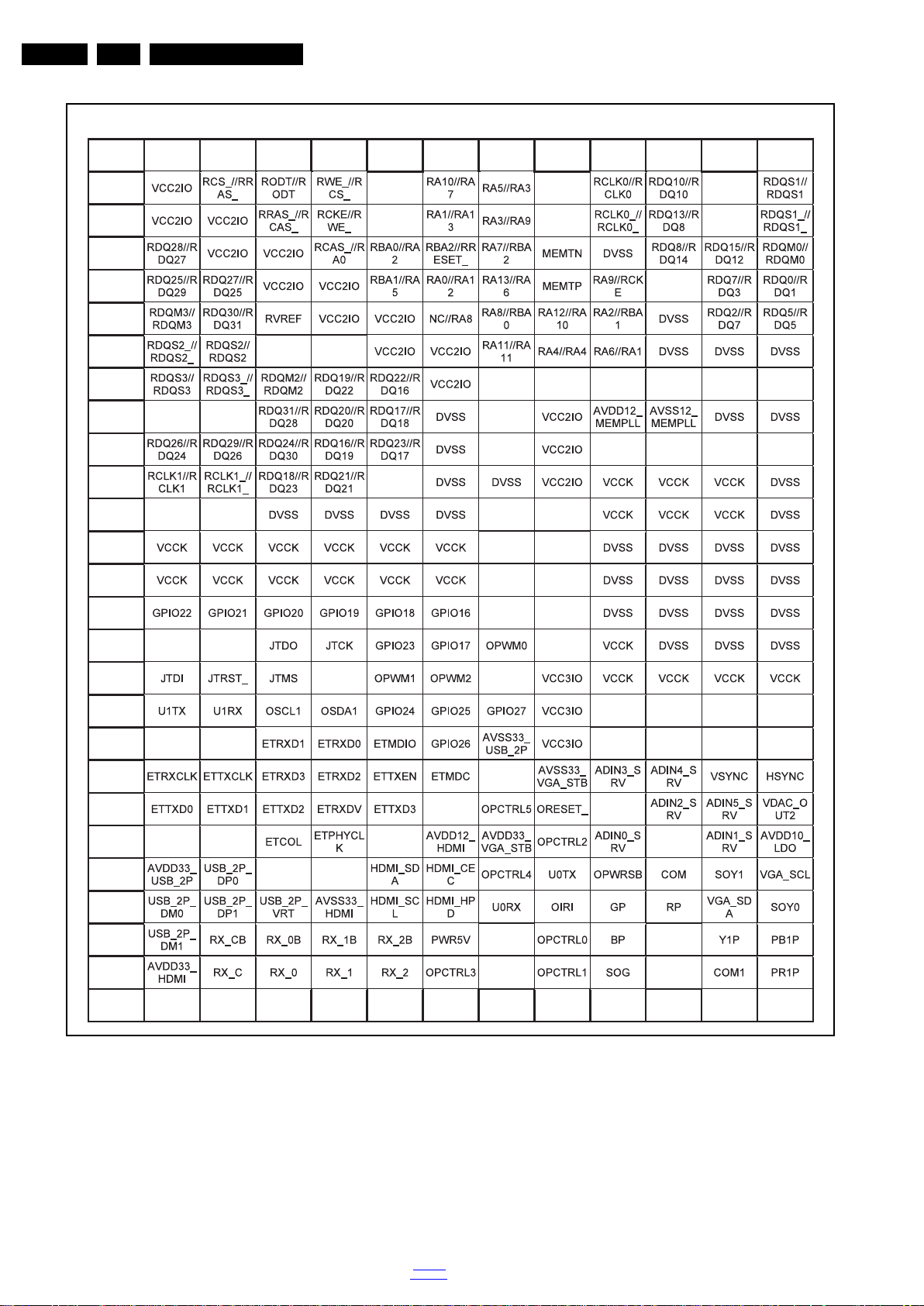

Figure 8-3 Pin configuration [1/2]

back to

div. table

IC Data Sheets

19080_302_110316.eps

120102

Pinning information MT5366CV [2/2]

1 3 1 4 1 5 1 6 1 7 1 8 1 9 2 0 2 1 2 2 2 3 2 4 2 5 R T

A

B

C

D

E

F

G

H

J

K

L

M

N

P

R

T

U

V

W

Y

A A

A B

A C

A D

A E

1 3 1 4 1 5 1 6 1 7 1 8 1 9 2 0 2 1 2 2 2 3 2 4 2 5 R B

EN 37TPM9.3HE LA 8.

Figure 8-4 Pin configuration [2/2]

back to

div. table

2012-Sep-28

EN 38 TPM9.3HE LA8.

19240_300_120221.eps

120224

Block diagram

Pinning information

1

2

3

4

5

6

7

8

9

10

11

12

36

35

34

33

32

31

30

29

28

27

26

25

VCC_REG

VSS_REG

OUT2B

GND2

VCC2

OUT2A

OUT1B

VCC1

GND1

OUT1A

VDD_REG

GND_REG

MCLK

AGNDPLL

VREGFILT

TWARNEXT/FFX4B

EAPD/FFX4A

FFX3B

FFX3A

GNDDIG1

VDDDIG1

VDD3V3CHP

CPP

GNDPSUB

13

14

15

16

17

18

19

20

21

22

23

24

48

47

46

45

44

43

42

41

40

39

38

37

F3X_FILT

F3XL

F3XR

LINEINL

LINEINR

LINEHPOUT_L

LINEHPOUT_R

GNDA

SOFTMUTE

VDD3V3

CPVSS

CPM

VDDDIG2

GNDDIG2

TESTMODESASCL

SDA

INTLINE

PWDN

RESET

SDI

LRCKI

BICKI

STA381BW

PWDN

TESTMODE

LRCKI

BICKI

4

Half

Bridges

OUT 1A OUT 1B OUT 2A OUT 2B

FFX3A FFX3B

MCLK

SDI

LINEINL

LINEINR

LINEHPOUT_L LINEHPOUT_R

SDA SCL

IIC

CPVSS

CPP

FFX4A FFX4B

GND_REG

SOFT_MUTE

2 x GND

2 x VCC

VDD_REG

GNDPSUB

2 x VDDDIG

2 x GNDDIG

VREGFILT

AGNDPLL

VCC_REG

VSS_REG

CPM

2.1 Channel

Audio Processor

STAudioFx

TM

STSpeakerSafe

TM

Parametric EQ

Volume

Bass and Treble

Speaker Compensation

Stereo Widening

SA

RESET

INTLINE

GNDA

Headphone

(2Vrms)

PLL

Negative

Charge

Pump

-3.3V

Control logic

&

Protections

REG_M3

VDD3V3CHP

F3X_FILT

FFX

TM

Modulator

Binary

Ter nary

F3XL F3XR

STA381BW

IC Data Sheets

8.3 Diagram 10-2-6 Speaker B06, STA381BWTR (IC U6002)

2012-Sep-28

Figure 8-5 Internal block diagram and pin configuration

back to

div. table

8.4 Diagram 10-2-12 GPIO & RJ45 B12, RTL8201FL-VB-CG (IC U4010)

19240_302_120221.eps

120221

Block diagram

Pinning information

MDI+

[0]

MDI -

[0]

MDI+[1]

MDI- [1]

GND

NC

PMEB

MDC

CRS/

CRS_DV

DVDD 1 0

GND

TXD[2]

MDIO

INTB

LED0

/PHYAD[0]

LED1

/PHYAD[1]

NC

AV DD 33

NC

TXEN

PHYRSTB

TXER

TXD[3]

NC

RTL8201FL

IC Data Sheets

EN 39TPM9.3HE LA 8.

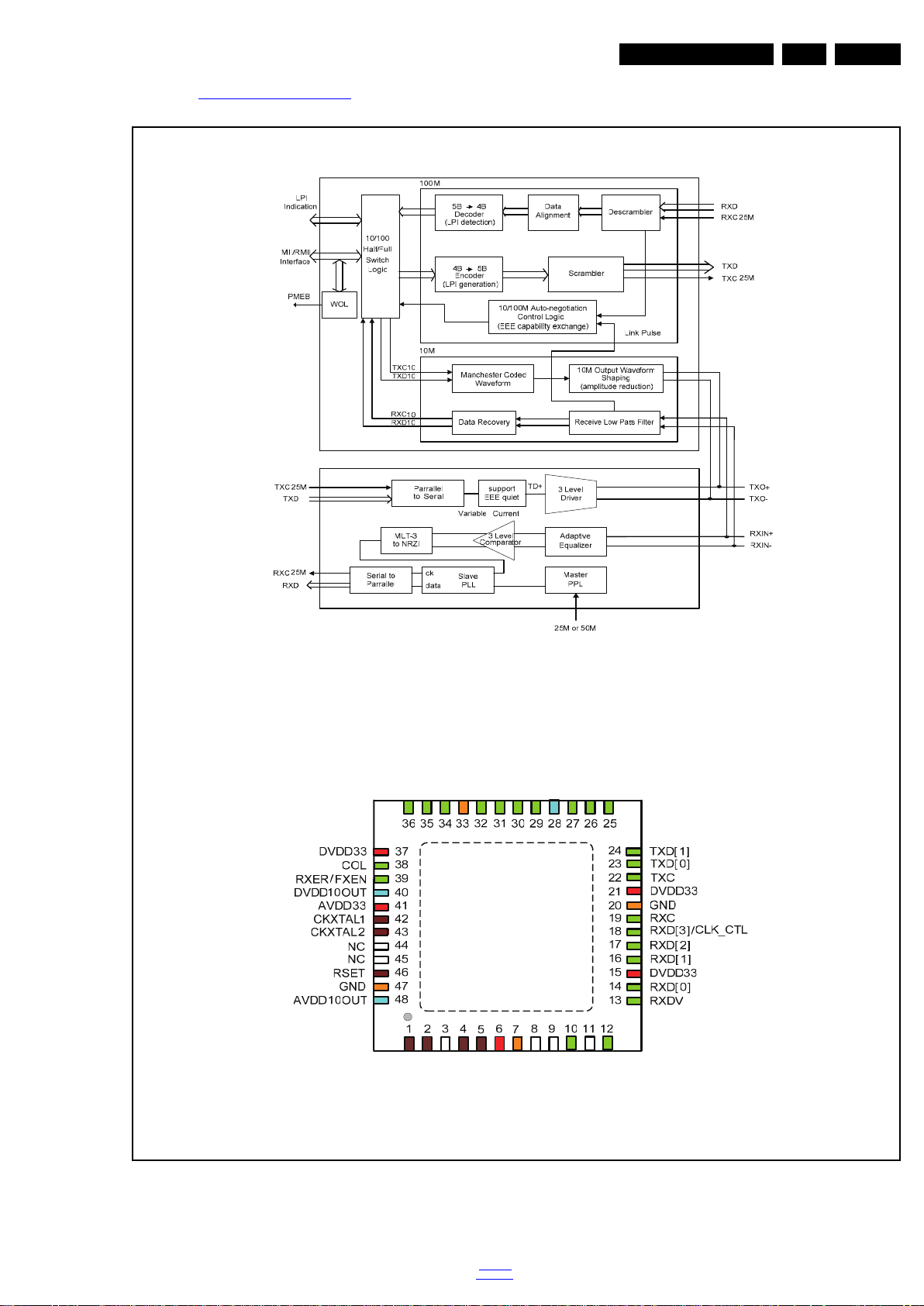

Figure 8-6 Internal block diagram and pin configuration

back to

div. table

2012-Sep-28

EN 40 TPM9.3HE LA8.

19160_304_110622.eps

110622

Block diagram

Pinning information

1 2 3 4 5 6 7 8

9 10 11 12 13 14 15 16

SDA3

SCL3

GND CLK–_3 CLK+_3

VCC D0–_3 D0+_3

GND D1–_3 D1+_3

VCC D2–_3 D2+_3

GND

VSadj

7 1

8 1

9 1

0 2

2 1

2 2

3 2

4 2

5 2

6 2

7 2

8 2

2 9

0 3

1 3

2 3

S _ + 2 D K N I

2 D K N I S _ –

C C V

N I S _ + 1 D K

N I S _ – 1 D K

N G D

_ + 0 D K N I S

N I S _ – 0 D K

C V C

L C K N I S _ + K

S _ – K L C K N I

G D N

_ L C S K N I S

I S _ A D S K N

S _ D P H K N I

1 S L C S /

48 47 46 45 44 43 42 41 40

39 38 37 36 35 34 33

D2+_1 D2–_1 VCC D1+_1 D1–_1 GND D0+_1 D0–_1 VCC CLK+_1 CLK–_1

SCL1 SDA1

HPD1 I2C_SEL S2/SDA

4 6

3 6

2 6

1 6

0 6

9 5

8 5

7 5

6 5

5 5

4 5

5 3

2 5

1 5

0 5

9 4

D P H 3

+ 2 D 2 _

2 _ – 2 D

V C C

+ 1 D 2 _

2 _ – 1 D

D N G

+ 0 D 2 _

2 _ – 0 D

V C C

K L C 2 _ +

K L C 2 _ –

2 L C S

S 2 A D

D P H 2

P L

TMDS361B

64-pin TQFP

HPD_SINK

V

cc

R

INT

Clock Detect

R

INT

V

cc

R

INT

TMDSRx

R

INT

V

cc

R

INT

Clock Detect

R

INT

V

cc

R

INT

TMDS Rx

R

INT

Dx+_1

Dx–_1

CLK+_1

CLK–_1

Dx+_3

Dx–_3

CLK+_3

CLK–_3

xx2

Rx

Tx

Rx

Tx

SCL1

SDA1

Rx

Tx

Rx

Tx

SCL3

SDA3

HPD1

HPD2

HPD3

VSadj

Dx+_SINK

Dx–_SINK

CLK+_SINK

CLK–_SINK

TMDS Tx

Tx

Rx

Tx

Rx

SDA_SINK

SCL_SINK

S1/SCL

S2/SDA

I2C_SEL

Clock Detect

LP

TMDS Rx

w/AEQ

TMDS Rx

w/AEQ

3:1

MUX

and

2

IC Data Sheets

8.5 Diagram 10-2-13 HDMI Switch & Connector B13, TMDS361BPAGR (IC U5003)

2012-Sep-28

Figure 8-7 Internal block diagram and pin configuration

back to

div. table

8.6 Diagram 10-2-15 Tuner B15, MT5135AE (IC U1005)

19080_303_110317.eps

110330

Block diagram

Pinning information

A15 97 A24 98 A12 99

A25 100

A7 101

VS2_ 102

A6 103

CMCIA_RESET 104

A5 105

WAIT_ 106

A4 107 A3 108

DVSS 109

DVDD33 110

REG_ 111 DVSS 112

DVDD10 113

A2 114

BVD2 115

A1 116

BVD1 117

A0 118 D8 119 D0 120 D9 121 D1 122

D10 123

D2 124

CD2_ 125

96 95 94 93 92 91 90 89 88 87 86 85 84 83 82 81 80 79 78 77 76 75 74 73 72 71 70 69 68 67 66 65

CI interface

MT5135AE

64 D5 63 D12 62 D4 61 D11 60 D3 59 CD1_ 58 CHIP_CTRL 57 S2_TS_DATA7 56 S2_TS_DATA6 55 S2_TS_DATA5 54 S2_TS_DATA4 53 S2_TS_DATA3 52 S2_TS_DATA2 51 S2_TS_DATA1 50 DVDD33

49 DVSS 48 S2_TS_DATA0 47 S2_TS_VAL 46 S2_TS_SYNC 45 S2_TS_CLK 44 RF_AGC 43 IF_AGC 42 TUNER_CLK 41 TUNER_DATA 40 DVDD10

39 DVSS 38 AVDD33 37 AVDD12 36 IFPGA_INP

CI_INT 126

DVSS 127

DVDD

33 128

Host chip and TS interface Analog interface 35 IFPGA_INN

34 AVSS12 33 EXT_CLKSEL

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32

32A

61A

22A

YDAER

12A

EW

_

SSVD

33DDVD

02A

41A

91A

31A

81A

01DDVD

SSVD

8A

71A

9A

R WOI

_

11A

D RO I

_

EO

_

1SV

_

01A

SSVD

33DDVD

1EC

_

51D7D41D6D31D

IPS

_

ELC

IPS

_

ATAD

IPS

_

LC

RVP

_

ST

_

1ATAD

RVP

_

ST

_

0ATAD

S_ST_RVP

Y

CN

RVP

_

ST

_

LAV

LC_ST_RVP

IC

_

ST

_

0ATAD

ST_IC

_

CNYS

IC

_

ST

_

LAV

IC

_

ST

_

LC

SSVD

33DDVD

DOMED

_

ST

_

0A T

AD

D O MED

_

ST

_

CN Y

S

DO ME

D

_

ST

_

LAV

DOMED

_

ST

_

LC

B_TSR_5315TM

01DDVD

21DDVA

3 3DDVA

0NIDA

33SSVA

NT

PT

33DDVA

33SSVA

ILATX

33SSVA

OLATX

33DDVA

e cafret

n

i dom

e d l anre

txE

ecaf retni re

n uT

RF Tuner

RSSI

RF AGC

Differential IF signal

Tuner SDA

Tuner SCL

Other demodulators

CAM

PCMCIA interface

RSSI ADC

AGC

PGA

10-bit ADC

Integrated SAW filter function

DVB-C demodulator

CI+ controller

SIF Master

Microcontroller

DVB-T demodulator

Demod TS output

TS interface

PVR playback TS PVR recording TS

Demod TS

MT5135AE

FEC decoder

SPI transceiver

SPI interface

Main decoder chip

IC Data Sheets

EN 41TPM9.3HE LA 8.

K

Figure 8-8 Internal block diagram and pin configuration

K

back to

div. table

K

2012-Sep-28

EN 42 TPM9.3HE LA8.

19270_300_120410.eps

120410

Block diagram

Pinning information

ADC

CPU I/F

AGCI

MSDA

TSCK

MN88472

AGCR

AIP

AIN

CLK gen.

TSDO0-7 PCK DEN

Tuner I/F

C/N monitor BER monit or

Sync seq. cont

TS

I/F

PLL

XI

XO

XOUT

SDA

INT

CSEL0

MSCL

SCL

SADR

IQ det. Sync

AGC

FFT EQ D VB-T2 FEC

eDRAM

Sync EQ

DVB-T2/T Demod.

DVB-C Demod.

IQ det.

DVB-T/C FEC

MSCL

TEST2

TSDO2

21

123

456

789

101112

131415

16

22

23

24

25

26

27

28

29

30

31

32

MN88472

64

63

62

61

60

59

58

57

56

55

54

53

52

51

50

49

48

47

46

45

44

434241

403938

373635

34

33

17

18

19

20

TSDO6

TSDO3

SCL

TSDO4

TSDO5

VSS

TSDO7

SADR

VDDH

AIN

VDDL

VDDH

AVDD

VDDH

HDVDDH

VDDH

SHVDDH

VSS

SDA

VDDL

NRST

CSEL0

VDDL

GPO

VSS

XOUT

VRT

AGCR

VDDL

IR

TCPO

VRB

AIP

AVSS

MSDA

AGCI

VSS

PCK DEN

HDVPP1

VDDL

VSS

TSCK

VSS

TSDO0

VDDL

HDVPP0

TSDO1

VSS

SHVPP

VSS

INT

VSS

XO XI

VDDL

TEST1 TEST0

TEST3

VDDL

IC Data Sheets

8.7 Diagram 10-2-16 DVB T2 Demodulator MN88472 B16, MN88472 (IC U1003)

2012-Sep-28

Figure 8-9 Internal block diagram and pin configuration

back to

div. table

9. Block Diagrams

19270_400_120401.eps

120925

WIRING DIAGRAM 19" (S35 series)

Board Level Repair

Component Level Repair Only for authorized workshops

KEYBOARD CONTROL

(1057)

SSB

(1053)

B

MAIN POWER SUPPLY

(1054)

A

E

IR/LED BOARD (1056)

J

CN9901

L

N

CN7001

CN6002

CN6004

LOUDSPEAKERLOUDSPEAKER

(1185)(1185)

6P

CN8103

to panel

CN016

3P

CN201

3P

CN9101

12P

CN4012

30P

to panel

12P

2P

4P

CN4003

12P

HDMI

USB 1

USB 2

CI

SCART

(RGB/CVBS)

VGA

NETWORK

DIGITAL

AUDIO OUT

LR

CVBS/Y Pb

Pr

SERV.U

AUDIO IN

DVI/VGA

HDMI 2

HDMI 1

ARC

TV ANTENNA

LOUDSPEAKER

(1185)

LOUDSPEAKERLOUDSPEAKER

(1185)(1185)

LOUDSPEAKER

(1185)

See note in chapter 6 about cable position numbers.

9.1 Wiring diagram 19" S35 series

Block Diagrams

EN 43TPM9.3HE LA 9.

2012-Sep-28

back to

div. table

9.2 Wiring diagram 22" 3007 series

19380_400_120831.eps

120925

WIRING DIAGRAM 22" (3007 series)

Board Level Repair

Component Level Repair Only for authorized workshops

SSB

(1053)

B

IR/LED BOARD (1056)

J

SCART

(RGB/CVBS)

VGA

DIGITAL

AUDIO OUT

L R

CVBS/Y Pb

Pr

SERV.U

AUDIO IN

DVI / VGA

HDMI 2

HDMI

HDMI1

ARC

TV ANTENNA

USB1

CI

LN

CN9901

MAIN POWER SUPPLY

(1054)

A

E

KEYBOARD CONTROL

(1057)

CN016

LOUDSPEAKERLOUDSPEAKER

(1185)(1185)

LOUDSPEAKER

(1185)

to panel

CN4012

30P

LOUDSPEAKERLOUDSPEAKER

(1185)(1185)

LOUDSPEAKER

(1185)

12P

CN7001

CN9101

13P

4P

CN6004

3P

CN6002

CN016

3P

CN201

6P

to panel

6P

CN8101

CN4003

12P

See note in chapter 6 about cable position numbers.

Block Diagrams

EN 44TPM9.3HE LA 9.

2012-Sep-28

back to

div. table

9.3 Wiring diagram 22" 3017 series

19380_401_120829.eps

120925

WIRING DIAGRAM 22" (3017 series)

Board Level Repair

Component Level Repair Only for authorized workshops

SSB

(1053)

B

MAIN POWER SUPPLY

(1054)

A

IR/LED PANEL (1056)

J

SCART

(RGB/CVBS)

VGA

DIGITAL

AUDIO OUT

L R

CVBS/Y Pb

Pr

SERV.U

AUDIO IN

DVI /VGA

HDMI 2

HDMI

HDMI1

ARC

TV ANTENNA

USB1

CI

LN

CN9901

E

KEYBOARD CONTROL PANEL

(1057)

CN016

LOUDSPEAKERLOUDSPEAKER

(1185)(1185)

LOUDSPEAKER

(1185)

to panel

CN4012

30P

4P

CN6004

CN05

CN4004

5P

CN016

5P

CN201

3P

CN4003

12P

3P

to panel

CN802

3P

CN6002

CN9101

12P

CN7001

SPEAKER BOARD

(1058)

NETWORK

CN016CN04

CN6005

4P

7P

LOUDSPEAKERLOUDSPEAKER

(1185)(1185)

LOUDSPEAKER

(1185)

See note in chapter 6 about cable position numbers.

HC

Block Diagrams

EN 45TPM9.3HE LA 9.

2012-Sep-28

back to

div. table

9.4 Block Diagram

19380_402_120912.eps

120925

Audio R/L of CVI / CVBS

Audio AMP

STA3398BWTR

NVM

24C128

SPDIF Out

RC

Audio R/L of SCART

System I2C

KDR071 DVD module

YPbPr/SPDIF

Local Key pad

Audio R/L of PC/ DVI

Audio Pre-Amp

NJM4580

USB × 2/1

Full SCART × 1

NAND Flash

512 KByte

DDR3 1.33 GHz 128 MByte × 2

PC VG A

DEMOD_TS

Min LVDS

12 V / 5 V

I2S

USB Protect

DBV-T/C DEMUX

CI+ controller

MT5135

Tuner I

2

C

CI/CI+

Analog Audio inputs:

Analog Video inputs:

SPI

Panel (50Hz)

DIF +/-

Speakers

UART (ISP & Factory alignment)

SCART L/R out

Headphone

PAL/ SECAM T/C

RF T uner

MT5366

MCU ARM11 MPEG/video/audio decoder Scaling Video enhancement 3D comb LVDS Transm itter HDMI 1.4 ADC H.264 T-con IC Build -in HDMI EDID × 4 min LVD S Transmitter Sawless ATD build-in

CI card slot (CAM)

HDMI × 3

HDMI 1 × 3 SW

TMDS 361B

EDID

24C02

EDID

24C02

EDID

24C02

Block Diagrams

EN 46TPM9.3HE LA 9.

2012-Sep-28

back to

div. table

Circuit Diagrams and PWB Layouts

19270_500_120409.eps

120410

Power

A01 A01

2012-03-13

A

715G5309

Power

+

C9105

47UF 50V

1 2

ZD9104

BZT52-C5V6

A

+

C9113

470UF 25V

2

1

6

5

4

7

8

12

11

9

10

T9101

NEW

A

C9126 220PF

1

2

3

D9102 MBRF20150CT

R9128

1K 1/8W

+5.2V

R9119

100 OHM 1/4W

D9106

1N4148

12

43

IC9102

PC123X2YFZOF

056G 139 3A

RV9901

TVR14511KFAOZF

12V_16V

R9116

47 OHM 1/4W

R9102

6.8K 1/4W

R9105

100K 1/4W

R9103

6.8K 1/4W

R9101

6.8K 1/4W

R9106 100K 1/4W

1

2

3

4

5

6

7

8

9

10

11

12

13

CN9101

CONN

R9111 10K 1/8W

R9120

100 OHM 1/4W

R9126 2K43 1/8W 1%

+5.2V

R9104

100K 1/4W

R9115

47 OHM 1/4W

R9131

1K 1/8W

OTP

1

COMP

2

CS

3

GND4OUT

5

VCC

6

HV

8

IC9101

LD7750RGR

+5.2V

R9107

100K 1/4W

12V_16V

R9114

100KOHM +-5% 1/8W

12

CN9901

SOCKET

Q9102

2SD1623S-TD-E

Q9103 PMBS3904

D9107 1N4148

1 2

ZD9101

GDJ13B

ON/OFF

+5.2V

C9119

100N 50V

DIM

R9118

100 OHM 1/4W

C9120 1NF

1 2

ZD9103

GDZJ5.6B

R9124

1K OHM +-5% 1/8W

C9114 100N 50V

R9901 2M4 5% 1/2W

C9110 100N 50V

R9134

NC

R9132NCR9133

NC

C9104 100N 50V

C9906 470PF 250V

R9123

3K3 1/8W 1%

SG9901

DSPL201M-A21F

1 2

3

HS4

NC

SG9902 DSPL201M-A21F

C9112 100N 50V

C9115 100N 50V

1 2

NR9901

5D2-07MCS

R9130

470R

C9124

22N 50V

C9904 470PF 250V

C9902 470PF 250V

C9125

2.2nF 10% 630V

C9118 100N 50V

1 2

3 4

F9901

FUSE

+

C9101A

47uF M 450V

+

C9102A

47uF M 450V

C9107

1NF 500V

C9108 1NF 500V

D9105

FR107

R9109

10R 1/8W 5%

L

1

N

2

CN901 NC

R9110 62R 1%

C9905 1NF 250V

1 2

3

4

HS1 HEAT SINK

1 2

3

4

HS3 HEAT SINK

Q9101 TK6A65D

L9101

3.5uH

L9102

3.5uH

12

D9104

SS1060FL

R9122 3K3 1/8W 1%

+

C9111

470UF 25V

R9125 47K 1/8W 1%

+

C9122

470UF 25V

+

C9123 470UF 25V

R9129 470R 1/8W 1%

D9103

FR107

IC9103

AS431AZTR-E1

2

1

3

4

-

+

BD9101

GBL08-C2

R9112

0R36 5% 2W

124

3

L9901 30MH

+

C9109

1000UF 10V

1 2

ZD9102

GDZJ22B

C9103

1NF

1

2

3

D9101 FMW-2156

C9907 470PF 250V

C9106

470P 50V

R9113

220 OHM 1/4W

1 2

FB9903 BEAD

R9121 820OHM +-5% 1/8W

C9117

220N 50V

R9127

100R 1/8W 5%

C9901 470NF 305V

R9108

4.7 OHM

10. Circuit Diagrams and PWB Layouts

10.1 A 715G5309 PSU

10-1-1 Power

EN 47TPM9.3HE LA 10.

2012-Sep-28

back to

div. table

10-1-2 A02 LED Driver

19270_501_120409.eps

120409

LED Driver

A02 A02

2012-03-14

A

715G5309

LED Driver

R8106

10K 1/8W

R8104

22 OHM 1/8W

R8108

200OHM +-5% 1/8W

1

2

CN8102

NC

VLED+

LED1

C8103 1uF

1 2

FB9905

BEAD

R8105

2R2 +-5% 1/8W

LED4

LED3

LED2

LED1

ON/OFF

DIM

1

2

3

4

5

6

CN8101

NC

12 34 56

78

CN8103

CONN

VFB

VSET

Q8106

2N3904

R8113

18R 1%

R8107

0R1 5% 2W

C8109

100N 50V

R8111

18K 1/8W 5%

R8116 100K 1% 1/4W

R8110 100K 1% 1/4W

R8118

1M 1/6W 5%

R8119

150K 1/8W 5%

C8110 470P 50V

C8105 100N 50V

1 2

D8101 SR510-22

VBJT

VADJ

VFB

+5.2V

12V_16V

VADJ

VBJT

1 2

FB9904

JUMPER

SLP

S1S2S3G

4

D8D7D6D

5

Q8101

AO4482L

3

1

2

D8103

BAV99

3

1

2

D8104

BAV99

3

1

2

D8105

BAV99

3

1

2

D8106

BAV99

C8115 NC/100PF

+

C8101 470UF 25V

VLED+L8102

47UH

+

C8102 100UF 63V

+

C8113 100UF 63V

Q8103

2N3904

Q8102

2N3904

12

D8102

SS1060FL

C8106 1NF

R8121

14R 1% 1/8W

LED1

R8129

0 OHM +-5% 1/8W

R8131

0 OHM +-5% 1/8W

LED2

LED3

LED4

R8130

NC

R8103 0R05 1/4W

C8104 100N 50V

12V_16V

R8101

51K 1/8W 1%

VSET

+16V

R8117

4K3 +-1% 1/8W

EN

1

DIM

2

GM

3

VFB

4

VSET

5

OVP

6

RT

7

CS

8

GND

9

VMOS

10

VCC

11

VBJT

12

VADJ

13

SLP

14

IC8501

PF7001S

C8116

220P 50V

C8107

220P 50V

Q8104

2N3904

Q8105

2N3904

Q8107

2N3904

LED2LED1 LED4LED3

SLP

C8112

NC

C8114

10N 50V

C8108

10N 50V

R8112

0R05 1/6W 5%

R8102

100KOHM +-1% 1/8W

R8122

14R 1% 1/8W

R8123

14R 1% 1/8W

C8111

NC

R8124

14R 1% 1/8W

R8120

0R05 1/6W 5%

R8125

14R 1% 1/8W

Circuit Diagrams and PWB Layouts

EN 48TPM9.3HE LA 10.

2012-Sep-28

back to

div. table

10-1-3 Power layout top

19270_502_120409.eps

120410

2012-03-14

A

715G5309

Power Layout top

CN8102

D8101

D9103

D9105

IC9102

IC9103

R9112

L9101

L9102

J919

J915

J917

J911

C9113

C9122

R8112

R8120

J928

J910

J927

J913

J924

J925

J918

J923

J922

J914

J916

J912

J921

J920

J930

J929

C9109

J926

J908

J907

J904

J909

D9106

D9107

C9101C9102

C9101AC9102A

R8118

J903

C9905

C9103

C8106

BD9101

H2

MH4

MH5

MH6

IC1

J2

J3

J5

J6

J7

R1

R2

C9123

C9105

C9111

CN8103

CN9101

FB9903

HS3

Q8104

Q8105

Q8106

Q8107

R9130

R9901

C8101

GND2

MH2

MH3

L9901

HS4

Q8102

Q8103

D9101

Q9101

L8102

F9901

C9902

C9904

C9901

R8107

SG9901

SG9902

ZD9101

ZD9102 ZD9103

C9906

C9907

C9125

C8115

C9126

RV9901

D9102

FB9904

FB9905

CN901

HS1

C8102 C8113

M1

CN8101

T9101

GND1

CN9901

NR9901

Circuit Diagrams and PWB Layouts

EN 49TPM9.3HE LA 10.

2012-Sep-28

back to

div. table

10-1-4 Power layout bottom

19270_503_120409.eps

120410

2012-03-14

A

715G5309

Power Layout Bottom

C8103

C8104

C8108

C8109

C8110

C8111

C8112

C9104

C9106

C9110

C9112

C9114

C8105

C9117

C9118

C9119

C9120

C9124

R8101

R8103

R8104

R8105

R8106

R8108

R8111

R8117

R8119

R8121

R8122

R8123

R8124

R8125

R8129

R8130

R8131

R9101

R9102

R9103

R9104

R9105

R9106

R9107

R9108

R9109

R9110 R9111

R9113

R9115

R9116

R9118

R9119

R9120

R9121

R9122

R9123

R9124

R9125

R9126

R9127

R9128

R9131

R8116

R9114

R8102

R8110

C9115

JR901

R9132

R9133

R9134

R9129

C8114

Q8101

IC2

IC3

IC4

JR903

JR902

C9107

C9108

IC5

Q9103

C8116

C8107

R8113

CN1

CN2

D8102

D9104

IC9101

IC8501

ZD9104

D8103 D8104 D8105 D8106

Q9102

Circuit Diagrams and PWB Layouts

EN 50TPM9.3HE LA 10.

2012-Sep-28

back to

div. table

10.2 B 715G5430 SSB S35 series

19270_504_120409.eps

120410

System Power 1

B01 B01

2011-12-19

1

715G5430

System Power 1

BRIGHT_ADJ

POWER_ON

Vo=1.25 x (1+1R/120R) = 1.25V

(264.5mA Max.)

ANALOG POWER AVDD1V2 from AVDD3V3

Regulator for 1A output Current

(52mVr)

(45mVr)

(64mVr)

OPWRSB

(12mVr)

(64mVr)

(0mVr)

GPIO 216

1.25 x (1+200/120) = 3.333V

STANDBY POWER +5VSB from STB_PWR5V

INVERTER_ON_OFF

U7008

AZ1117D-ADJTRE1

ADJ/GND

1

OUTPUT

2

INPUT

3

Regulator for 1A output Current

STANDBY

(61.2mVr)

DIGITAL/ANALOG POWER DVDD3V3/AVDD3V3 from +5V_SW

Regulator for 1A output Current

VCCK(+5V_SW ON/OFF): Normal: High Stand_By: Low

VCCK

INVERTER_ON_OFF: Normal: High Stand_By: Low

BRIGHT_ADJ

STB_PWR5V

INVERTER_ON_OFF

STANDBYPWR_ON/OFF

C7007

NC/22UF 6.3V

BRIGHT_ADJ: Normal:Max:+3V3, Min:0V

Stand_By:0V

STANDBY: Normal: High Stand_by: Low

DC POWER INPUT

C7009

10UF 10V

C7010

10nF50V

R7022

33K 1/10W 5%

R7009

NC/100R 1/16W 5%

C7034

10UF 10V

C7021

10UF 10V

+

C7027

100UF 16V

+

C7022

100UF 16V

R7029

180K 1/10W 1%

Q7001 BC847C

R7004

NC/1 OHM 1/10W

C7008

1UF16V

R7028

33K 1/10W 1%

TP7004

R7023

0R05 4A 1/4W

R7020

0R05 4A 1/4W

Q7002

AON4421

D

1

D

2

D

3

G4S

5

D

6

D

7

D

8

R7010

NC/10KOHM +-5% 1/8W

+

C7004

220UF 16V

R7003 NC/120R 1% 1/10W

R7015

4K7 1/16W 5%

FB7006

NC/220R/2000mA

1 2

Q7003

BC847C

C7015

100N 16V

R7234

NC/10K 1/16W 5%

R7024

22K 1/16W 5%

U7004 TPS54319RTE

VIN

1

VIN

2

GND

3

GND

4

AGND

5

VSNS

6

COMP

7

RT/CLK

8

SS

9

PH

10

PH

11

PH

12

BOOT

13

PWRGD

14

EN

15

VIN

16

PwPd

17

C7013

22NF25V

U7005

G1084-33TU3Uf

VIN3VOUT

2

GND

1

TP7006

R7032

0R05 4A 1/4W

C7011

10UF 10V

C7016

100N 16V

(54.8mVr) (0mVr)

R7012

0R05 4A 1/4W

C7017

10UF 10V

C7030

NC/10UF 10V

R7017

22K 1/16W 5%

R7011

10K 1/16W 5%

R7025

20K 1/10W 5%

CN7001

CONN

1 2

3

4 5 6 7

8

9 10 11 12

R7014

0R05 4A 1/4W

FB7004

220R/2000mA

1 2

FB7003 120R/3000mA

1 2

R7001

2K7 1/16W 5%

C7025

100N 16V

TP7007

C7003

NC/22UF 6.3V

R7016

1K5 1/10W 5%

C7029

100N 16V

R7013

0R05 4A 1/4W

ANALOG POWER AVDD3V3 from +5V_SW

C7005 NC/100N 16V

C7012

1UF16V

TP7001

R7008

10K 1/16W 5%

U7002

NC/G1117T63Uf

VIN

3

GND

1

VOUT

2

TH

4

FB7002 120R/3000mA

1 2

R7018

1K5 1%

TP7002

R7031

0R051/8W

C7001 100N 16V

TP7005

R7006

0R05 4A 1/4W

R7007

NC/15K 1/16W 5%

C7023

10UF 10V

U7003

G1117-33T63Uf

VI3VO

2

GND14

4

C7002

NC/10UF 10V

TP7003

R7002

NC/0R05 4A 1/4W

R7005

0R05 4A 1/4W

C7024

NC/10UF 10V

+5VSB

3V3SB

+12V

16V_24V

STB_PWR5V

+5VSB

+5V_SW

DVDD3V3

+5V_SW

AVDD3V3

3V3SB

ADAC_PWR

AVDD3V3

AVDD1V2

+5VSB

VCCK

3V3SB+5VSB

+5V_SW

AVDD3V3

OPWRSB4

GND 3,4,5,6,7,8,9,10,11,12,13,14,15,16,17

SMD/0402

OPWRSB: Normal: Low Stand_by: High

OPWRSB

BRIGHT_ADJ 11

SMD/0402

INVERTER_ON_OFF 11

STANDBY

(0mVr)

(77.2mVr)

Regulator for 5A output current

+5VSB to +5V_SW by VCCK

C7026 2.2U10V

(88mVr)

ANALOG POWER for PWMDAC 3.3V

(88mVr)

R7237

200R 1/16W 1%

R7238

120R 1/16W 1%

3A output Current

CORE POWER VCCK (1.12V/Max. 2.25A) from +5VSB by OPWRSB

STANDBY POWER 3V3SB from +5VSB

L7001

4.7uH

R7019

12K 1/10W 1%

(0mVr)

R7027

100R 1/16W 5%

OPWRSB

SMD/0402

STAND_BY: Normal: Low Stand_by: High

SMD/0402

Q7006 BC847C

R7039

NC/1K1/16W

POWER_ON

R7040

1K 1/16W 5%

DVDD3V3

R7041

10K 1/16W 5%

+5V_SW

SMD/0402

PWR_ON/OFF

PWR_ON/OFF 3

10-2-1 System Power 1

Circuit Diagrams and PWB Layouts

EN 51TPM9.3HE LA 10.

2012-Sep-28

back to

div. table

10-2-2 System Power 2

19270_505_120409.eps

120410

System Power 2

B02 B02

2011-12-19

1

715G5430

System Power 2

R7239

NC/0R05 1/16W

(70mVr)

TUNER POWER +5V_TUNER from +16V via 12V_TUN

Regulator for 1A output Current

TUNER POWER +5V_TUNER from +12V/+12V_TUN

(0mVr)(54mVr)

Regulator for 1A output Current

GPIO 16

PWR_ON/OFF 2

PWR_ON/OFF

PANEL_VCC_ON/OFF

R7045

NC/10K 1/16W 5%

Q7007

NC/AON4421

D

1

D

2

D

3

G

4

S

5

D

6

D

7

D

8

C7006

NC/4.7uF 50V

C7014

NC/1uF 25V

Q7008

NC/BC847C

3

2

1

R7044

NC/7K5 1/16W 5%

R7043

NC/5K1 1/16W 5%

C7037

NC/22UF 6.3V

R7042

NC/47K 1/16W 5%

R7046

0R05 1/4W

C7036 NC/4.7uF 50V

PWR_16V_24V

16V_24V

+24V or 16V

ON OFF

PWR_ON/OFF

R7021

NC/0R05 4A 1/4W

PWR to 24V or 16V for AUDIO

24V(DL)/16V(DS)

SMD/0402

ON OFF

PANEL_VCC ON/OFF: Normal:High Stand_By:Low

PANEL_VCC_ON/OFF

GND

R7030

NC/0R05 4A 1/4W

C7028

22uF 10V

C7033

NC/330NF 25V

U7006 AS7805DTR-E1

GND

2

OUT

3

IN

1

+

C7038

100UF 16V

C7020

100N 16V

R7037

5.1K 1/10W

+

C7031

100UF 16V

C7035

NC/100N 16V

R7038 10K 1/16W 5%

FB7005 220R/2000mA

1 2

R7033

NC/0R05 4A 1/4W

R7035

10K 1/10W 5%

R7034

NC/0R05 4A 1/4W

C7019

10uF 16V

U7007

NC/AS7812ADTR-G1

GND

2

OUT

3

IN

1

C7039

1UF16V

C7040

4.7uF 10V

R7026

0R05 4A 1/4W

C7018

330NF 16V

Q7005 BC847C

C7032 NC/10uF 25V

Q7004

AON4421

D

1

D

2

D

3

G

4

S

5

D

6

D

7

D

8

R7036

7K5 1/10W 5%

PANEL_VCC

+12V

+5V_SW

+5V_TUNER

+12V

+12V_TUN

PWR_16V_24V

GND 2,4,5,6,7,8,9,10,11,12,13,14,15,16,17

PANEL_VCC_ON/OFF 13

D7001

SCS0520P

1 2

+5V_SW

PANEL POWER PANEL_VCC form +12V

Circuit Diagrams and PWB Layouts

EN 52TPM9.3HE LA 10.

2012-Sep-28

back to

div. table

10-2-3 Peripheral

19270_506_120409.eps

120410

Peripheral

B03 B03

2011-12-19

1

715G5430

Peripheral

OSCL2

OSDA2

AVDD10_LDO

AVDD12_PLL

AVDD33_XTAL_STB

JTCK JTDO

JTRST#

JTDI

OSDA0

JTMS

FSRC_WR

AVDD33_REG_STB AVDD12_PLL

SYS_EEPROM_WP

AOSDATA1

OPCTRL4

AOSDATA1

OPCTRL4

OXTALO

OSCL0

OSDA2 OSCL2

OPCTRL5

OSCL1

OSDA0

OSDA1

JTAG_DBGACK

TVTREF#1

JTAG_DBGRQ

JTDO

JTMS

JTRST# JTDI

JTCK

RC6

PDD6

PDD7

POOE#

OSCL1

U0TX U0RX

PDD3

PDD4

PAALE

PDD5

PACLE

PARB#

PDD0

POCE1#

PDD1

POOE#

PDD2

OSDA1 OSCL1

OPWRSB

OPCTRL5

POCE0#

OSDA1

SYS_EEPROM_WP

OSDA0

OSCL0

POWE#

VDD_NANDVDD_NAND

OXTALI

ORESET#

OSCL2 OSDA2

U1TX

U1RX

R4040

10K 1/16W 5%

R403210K 1/16W 5%

R4045

NC/0R05 1/10W

U4005

K9F2G08U0B-PIB0

NC

1

NC

2

NC

3

NC

4

NC

5

NC

6

RB

7

R

8

E

9

NC

10

NC

11

VDD

12

VSS

13

NC

14

NC

15

CL

16

AL

17

W

18

WP

19

NC

20

NC

21

NC

22

NC

23

NC24NC

25

NC

26

NC

27

NC

28

I/O0

29

I/O1

30

I/O2

31

I/O3

32

NC

33

NC

34

NC

35

VSS

36

VDD

37

NC

38

NC

39

NC

40

I/O4

41

I/O5

42

I/O6

43

I/O7

44

NC

45

NC

46

NC

47

NC

48

R4047

10K 1/10W 5%

C4047 100N 16V

R4046 NC/10K 1/10W 5%

R4041

10K 1/16W 5%

R4104

1.3K 1%

U4008

CAT24C128WI-GT3

A0

1

A1

2

A2

3

VSS4SDA

5

SCL

6

WP

7

VCC

8

R4052

0R05 1/10W

C4060 100N 16V

C4057 100N 16V

C4052

10UF 10V

R4038

100K 1/16W 5%

C4045

27P 50V

R4049

4K7 1/10W 5%

+

C4053

NC/100UF 16V

R4103

NC/4K7 1/16W 5%

R403410K 1/16W 5%

C4042

1UF16V

R403510K 1/16W 5%

R4023

10K 1/10W 5%

R4050 NC/10K 1/10W 5%

U4001A

MT5366ZVGG

JTCK

R4

JTDI

T1

JTDO

R3

JTMS

T3

JTRST_

T2

OSDA1

U4

OSCL1

U3

XTALI

AE19

XTALO

AD19

AVDD33_XTAL_STB

AC18

AVSS33_XTAL_STB

AE18

AVDD12_PLL

AB15

AVSS12_PLL

AA17

OPWRSB

AB9

ORESET_

Y8

OIRI

AC8

DVSS

H6

DVSS

M9

DVSS

W19

DVSS

Y19

DVSS

W20

DVSS

Y20

DVSS

N9

DVSS

L12

DVSS

L13

DVSS

L14

DVSS

P9

DVSS

R10

DVSS

M11

DVSS

M12

DVSS

M13

DVSS

M14

DVSS

M15

DVSS

M16

DVSS

N11

DVSS

N12

DVSS

N13

DVSS

N14

DVSS

N15

DVSS

N16

DVSS

P11

DVSS

P12

DVSS

P13

DVSS

P14

DVSS

P15

DVSS

P16

DVSS

R11

DVSS

R12

DVSS

R13

DVSS

R14

DVSS

K12

DVSS

K13

DVSS

M10

DVSS

N10

DVSS

P10

U0TX

AB8

U0RX

AC7

U1RX

U2

U1TX

U1

POWE_

J19

POOE_

K21

POCE1_

K22

POCE0_

J21

PDD7

K23

PDD6

L23

PDD5

L24

PDD4

L25

PDD3

K20

PDD2

K19

PDD1

L22

PDD0

M23

PARB_

J20

PACLE

J24

PAALE

J25

VCCK

M1

VCCK

M2

VCCK

M3

VCCK

M4

VCCK

M5

VCCK

M6

VCCK

N1

VCCK

N2

VCCK

N3

VCCK

N4

VCCK

N5

VCCK

N6

VCCK

K10

VCCK

K11

VCCK

K9

VCCK

L9

VCCK

R9

VCCK

K15

VCCK

K16

VCCK

L10

VCCK

T9

VCCK

T10

VCCK

T11

VCCK

T12

VCCK

T13

VCCK

T14

VCCK

T15

VCCK

T16

VCC3IO

T8

VCC3IO

M18

VCC3IO

H19

VCC3IO

V8

VCC3IO

U8

VCC3IO

N18

AVDD10_LDO

AA12

FSRC_WR

E23

OSDA0

J22

OSCL0

J23

DVSS

A25

DVSS

B25

DVSS

AA20

DVSS

W21

DVSS

Y21

DVSS

Y22

DVSS

AB22

DVSS

AA23

DVSS

AB23

DVSS

AC23

DVSS

AB24

AVDD33_VGA_STB

AA7

AVSS33_VGA_STB

W8

DVSS

AC24

DVSS

AB25

OSCL2

T23

OSDA2

T22

VCCK

L11

VCCK

L15

VCCK

R15

VCCK

L16

VCCK

R16

VCCK

R17

DVSS

K14

DVSS

K17

DVSS

L17

DVSS

N17

DVSS

P17

VCCK

T17

DVSS

W17

DVSS

V19

C4041

100N 16V

C4050 100N 16V

C4046

4.7uF 10V

TP4025

TP

C4059 100N 16V

U4007

AZ809ANSTR-E1

GND

1

RESET

2

Vcc

3

CN4002

NC/CONN

1

3

5 7

9 11 13 15 17 19

2 4 6

8

10 12 14 16 18 20

R4029

NC/10K 1/10W 1%

TP4024

TP

R4048

4K7 1/10W 5%

R4026

4K7 1/16W 5%

Q4003 BC847C

X4002 27MHz

1 2

R4051

10K 1/10W 5%

R4025

4K7 1/16W 5%

R4039

33R 1/16W 5%

R4054

0R05 1/10W

C4043

4.7uF 10V

R4107

4K7 1/10W 5%

C4049 100N 16V

C4040

100N 16V

C4058 100N 16V

R4027

4K7 1/16W 5%

R4043

4K7 1/10W 5%

R4036

1K 1/16W 5%

R4024

4K7 1/16W 5%

C4051 100N 16V

C4055 100N 16V

R4056

NC/10K 1/10W 5%

R403110K 1/16W 5%

C4048 100N 16V

R4058

4K7 1/10W 5%

R4042

4K7 1/10W 5%

R4037

NC/39K 1/10W 1%

R4057

4K7 1/10W 5%

R4028

4K7 1/16W 5%

R403310K 1/16W 5%

R4106

4K7 1/10W 5%

C4056 100N 16V

R4030

0R05 1/10W

R4044

4K7 1/10W 5%

C4044

27P 50V

R4102

10K 1/16W 5%

R4013

4K7 1/16W 1%

R4053

0R05 1/10W

R4055 10K 1/10W 5%

DVDD3V3

VCCK

DVDD3V3

3V3SB AVDD1V2

3V3SB

DVDD3V3DVDD3V3

DVDD3V3

3V3SB

+5VSB

DVDD3V3

DVDD3V3DVDD3V3

DVDD3V3

3V3SB

OPCTRL5 13

OPCTRL4 13

OPWRSB2

DVDD3V3

3V3SB

U0RX 5,6,10

RC6 5

GND 2,3,5,6,7,8,9,10,11,12,13,14,15,16,17

SYS_EEPROM_WP 13

AOSDATA1 6

OSCL217

OSDA0 14

OSCL0 14

OSDA1 7 OSCL1 7

U0TX 5,6,10

3.3V IO Power

Core Power

Analog Power

OSDA217

2nd I2C

HI = > Disable write LO = > Enable Write

SYSTEM EEPROM

STRAPPING

NAND Flash

3rd I2C

27MHz CRYSTAL

MT5366

NAND 256MBytes

Reset IC

SMD/0402

GPIO 19

(0mVr)

(11.8mVr)

(26.8mVr)

(11.8mVr)

For T/C: MT5366IVGG(056G 562A40)

For T2: MT5366ZVGG(056G 562A42)

Pin7 WP

OXTALI OXTALO

ORESET#

POCE1#

PAALE

PACLE

U0TX U0RX

PDD2 PDD0

POWE# POOE#

PARB#

PDD5

PDD1

PDD7 PDD6

PDD4 PDD3

RC6

OPWRSB

POCE0#

C4054

10UF 10V

OSCL0

AVDD33_REG_STB

Circuit Diagrams and PWB Layouts

EN 53TPM9.3HE LA 10.

2012-Sep-28

back to

div. table

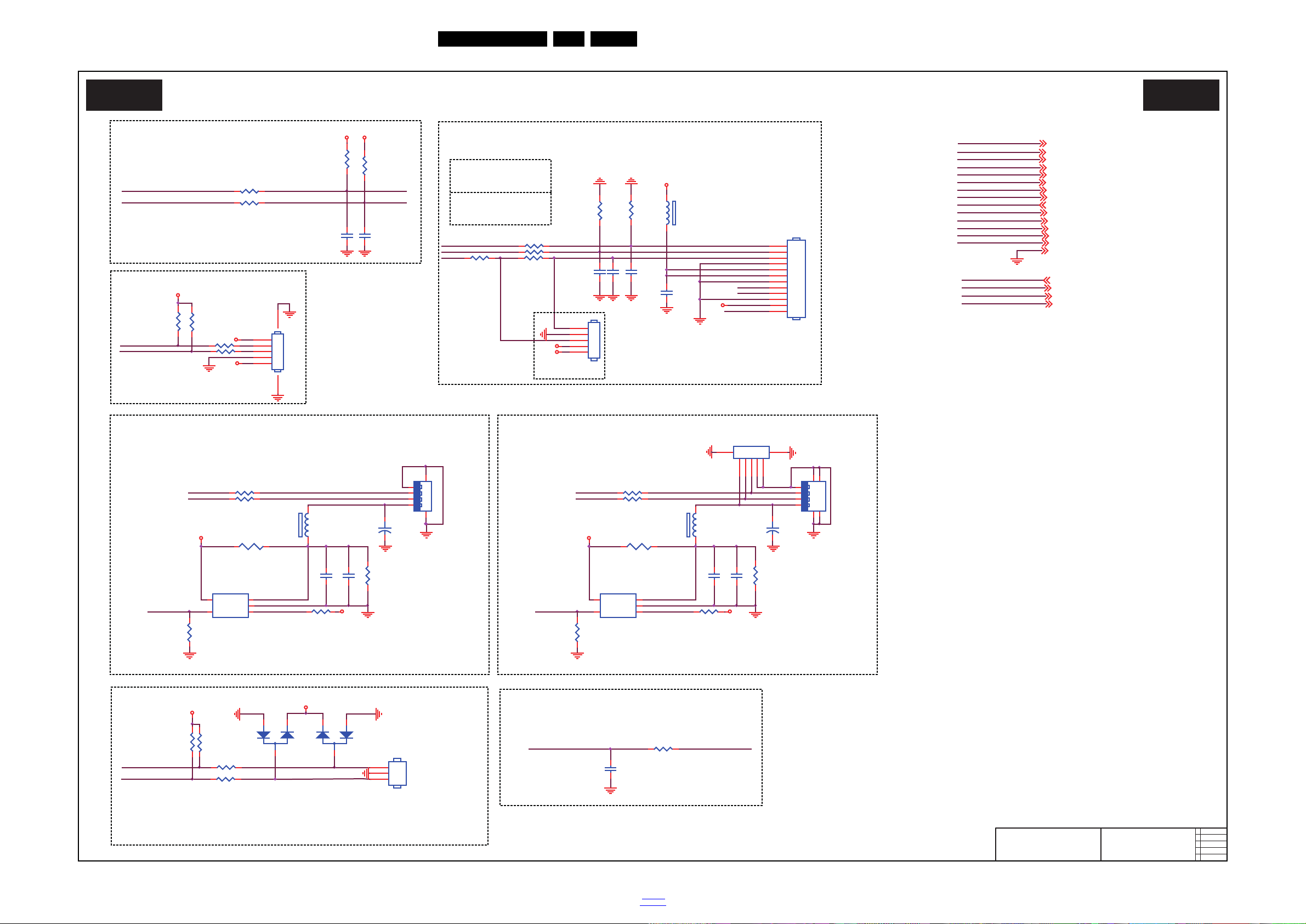

10-2-4 Connector & USB & RS232

19270_507_120409.eps

120410

Connector & USB & RS232

B04 B04

2011-12-19

1

715G5430

Connector &

USB & RS232

Key1 Key2

KEY_UP_DN_DCSW KEY_MENU_L_R_SOURCE

TO KEY PAD BOARD

For LCD Clock

USB_DM0

USB_DP0

USB_OC_COM

LIGHT_SENSOR

Key1

LED_R: Enable(Stand_By): High Disable: Low

LED_R RC6

LED_G: Enable: High Disable(Stand_By): Low

TO IR/KEY BOARD

Key2

LED_G

IR Linked

KEY_MENU_L_R_SOURCE

USB POR T 2 (Up)

USB_PWR_EN1

USB_DP1 USB_DM1

USB_OC_COM1

1

2

3

4

5 6

7 8

1234

CN4009

NC/USB CONN

GPI O 2GPI O 23

KEY_UP_DN_DCSW

LED_G

LED_R

LIGHT_SENSOR_IN

RC6

U0TX U0RX

LCD_Clock_SDA

GPI O 21

USB_PWR_EN0

GPIO 202

USB_DP1 USB_DM1

USB_PWR_EN1 USB_OC_COM1

LCD_Clock_SCL

LIGHT SENSOR

U0RX

R4077

NC/4K7 1/16W 5%

C4066

100N 50V

USB PORT 1 (Down)

R4010

NC/100R

R4076

NC/ 10K 1/ 10W 5%

1 2

3

4 5

CN4004

NC/CONN

1 2

TH4002 NC/PTCR

C4069

NC/ 10U F 10V

R4118

NC/ 4K7 1/ 16W 5%

R4059

3.9K1/16W

R4078

NC/ 4K7 1/ 16W 5%

R4080

4K7 1/16W 5%

R4066 16K 1/10W 5%

1 2

FB4003

220R/2000mA

+

C4080

NC/ 100U F 16V

C4085

NC/ 10U F 10V

R4115

NC/ 0R 05 1/ 16W

R4065 100R 1/10W 5%

1 2

FB4006

NC/220R/2000mA

R4069NC/ 100R 1/ 10W 5%

R4212

NC/ 10K 1/ 16W 5%

1

2

3

4

65

1234

CN4007

USB CON N

R4068

0R05 1/10W

OUT

1

GND

2

OC

3

EN

4

IN

5

U4009

NC/G5250M1T1U

R4081

100R 1/10W 5%

1 2

TH4001 PTCR

1 2

3

4 5 6 7

8

9 10 11 12

CN4003

CONN

R4070

NC/100R 1/10W 5%

R4082

100R 1/10W 5%

C4063

2.2UF 16V

USB_PWR_EN0

+

C4067

100UF 16V

R4062

1K 1/10W

R4063

100R 1/10W 1%

C4070

NC/100N16V

USB_DP0

3

1

2

D4001

BAV99

USB_DM0

OUT

1

GND

2

OC

3

EN

4

IN

5

U4012

NC/G5250M1T1U

R4064

100R 1/10W 1%

R4075 0R 05 1/ 16W

R4067

100R 1/10W 5%

R4074 0R 05 1/ 16W

3

1

2

D4005

BAV99

USB_OC_COM

C4062

100N 50V

R4061

16K 1/10W 5%

C4083

NC/100N16V

C4064

NC/ 10N F 50V

C4061

100N 50V

R4113

NC/ 4K7 1/ 16W 5%

LCD_clock_SDA

LCD_clock_SCL

R4116 N C / 0R 05 1/ 16W

12

FB4002 600R/200mA

R4211

NC/ 10K 1/ 16W 5%

1 2

3

CN4008

CONN

1 2

3

4 5

67

CN4005

NC/CONN

C4007

NC/10UF 10V

R4114

NC/10K 1/10W 5%

C4065

100N 50V

R4060

3.9K1/16W

R4079

4K7 1/16W 5%

3V3SB

LIGHT_SENSOR_IN

3V3SB

+5V_SW

DVDD3V3

3V3SB

+5VSB

+5V_SW

12345

6 7

CN4001

NC/CONN

3V3SB +5VSB

+5V_SW

3V3SB

DVDD3V3

KEY_MENU_L_R_SOURCE 13

KEY_UP_DN_DCSW13

LED_R 13 LED_G 13

LCD_clock_SDA 13

RC6 4 LCD_clock_SCL 13

USB_PWR_EN0 13 USB_OC_COM 13

USB_DM0 11

U0RX 4,6,10

USB_DP0 11

GND 2,3,4,6,7,8,9,10,11,12,13,14,15,16,17

U0TX 4,6,10

LIGHT_SENSOR_IN 13

USB_DP1 11

USB_DM1 11

USB_OC_COM1 13

USB_PWR_EN1 13

U0TX

Circuit Diagrams and PWB Layouts

EN 54TPM9.3HE LA 10.

2012-Sep-28

back to

div. table

10-2-5 Audio I/O & Headphone

19270_508_120409.eps

120410

Audio I/O & Headphone

B05 B05

2011-12-19

1

715G5430

Audio I/O

& Headphone

SMD/ 0402

SMD/0402

OPAVREF_L OPAVREF_R

SCT Audio Out

R6017

0R05 1/16W

C6021

NC/10UF 10V

2

4

6

8

1

3

5

7

CN6005

NC/CONN

+

C6003

100UF 16V

C6035 100N 50V

C6024

NC/ 2N 2 50V

TP6004 TP

C6079

NC/ 2N 2 50V

R6023

4K7 1/16W 5%

12

FB6008

NC/120R/3000mA

R6034

10K 1/16W 5%

AIN0_R_AADC

AE25

AIN0_L_AADC

AB21

AIN1_R_AADC

AD25

AIN1_L_AADC

AE22

AIN2_R_AADC

AC25

AIN2_L_AADC

AD22

AIN3_R_AADC

AD23

AIN3_L_AADC

AB20

AIN4_R_AADC

AE24

AIN4_L_AADC

AC21

AIN5_R_AADC

AE23

AIN5_L_AADC

AC20

AVDD33_AADC

AA19

AVSS33_AADC

AA21

VMID_AADC

AA18

AR0_ADAC

Y23

AL0_ADAC

AA25

AR1_ADAC

W23

AL1_ADAC

AA24

AR2_ADAC

V24

AL2_ADAC

Y25

AR3_ADAC

V25

AL3_ADAC

Y24

AVDD33_DAC1

V23

AVSS33_DAC1

W22

AVDD33_DAC

V22

AVSS33_DAC

AA22

ALIN

V21

ASPDIF

V20

AOBCK

T21

AOLRCK

U24

AOMCLK

U25

AOSDATA4

R21

AOSDATA3

R20

AOSDATA2

T19

AOSDATA1

U23

AOSDATA0

T20

AIN6_R_AADC

AD24

AIN6_L_AADC

AC22

U4001F

MT5366ZVGG

R6004

0R05 1/10W

R6009

47K 1/16W 5%

C6031

NC/2N2 50V

C6012

330PF 50V

TP6002 TP

R6030

4K7 1/16W 5%

R6031

NC/ 1. 2K 1/ 16W 1%

TP6005 TP

C6033

100N 50V

1 2

FB6003

NC/120R/3000mA

C6010

33P 50V

1OUT

1

1IN-

2

1IN+

3

VCC-

4

2IN+52IN-62OUT7VCC+

8

U6003

NJM4580M-TE1

R6036

NC/ 1. 2K 1/ 16W 1%

C6030

NC/2N2 50V

R6035

NC/1.2K 1/16W 1%

C6029 NC/1UF16V

R6019

16K 1%

R6049

NC/ 0R 05 1/ 16W

R6007

16K 1%

R6022

30K OHM +-1% 1/16W

C6034

NC/1UF16V

C6028 NC/1UF16V

C6077

NC/2N2 50V

C6016

10UF 10V

R6012

NC/100K 1%

C6009

10UF 10V

C6027

NC/ 2N 2 50V

C6036 NC/1UF16V

R6050

NC/0R05 1/16W

C6002 100N 16V

C6026

NC/2.2U10V

12

FB6007

120R/3000mA

R6045

NC/ 1. 2K 1/ 16W 1%

C6025

NC/ 2N 2 50V

R6032

NC/1.2K 1/16W 1%

R6039

NC/ 1. 2K 1/ 16W 1%

R6016

100K 1/16W 5%

C6078

NC/2N2 50V

Q6002 BC847C

C6020

100N 50V

C6017

33P 50V

R6021

47K 1/16W 5%

R6028

NC/10R 1/10W 5%

R6079

NC/ 0R 05 1/ 16W

R6005

100K 1/16W 5%

TP6006 TP

C6022

4.7uF 50V C6076

NC/1uF 16V

R6029

NC/ 4K7 1/ 16W 5%

R6046

NC/ 1. 2K 1/ 16W 1%

C6039

NC/2.2U10V

R6072

10K 1/16W 5%

SCART1R_PA

TP6003 TP

R6003

NC/4K7 1/16W 5%

R6024

NC/100K 1%

R6015

4K7 1/16W 5%

C6082

NC/1uF 16V

INL-

1

INR+

3

INL+

2

OUTL

16

HPVDD

12

HPVSS

8

G0

6

INR-

4

OUTR

5

CPP

11

CPN

9

EN

13

SGND

15

AVDD

14

PGND

10

G1

7

Thermal Pad

17

U6004

NC/TPA6132A2RTER

12

FB6002

NC/120R/3000mA

R6080

NC/ 0R 05 1/ 16W

R6051 NC/10R 1/ 10W 5%

R6006

30K OHM +-1% 1/16W

C6005

NC/10N 50V

R6047

NC/ 10K 1/ 16W 5%

TP6001 TP

C6007

100N 50V

R6011

20K OHM 1/16W 1%

IN3OUT

1

GND

2

U6001 L78L12ABUTR

R6013

0R05 1/16W

C6006 100N 16V

R6018

NC/0R05 1/16W

R6040

NC/ 1. 2K 1/ 16W 1%

R6002

47R 1/10W 5%

C6023 NC/1UF16V

R6048

NC/ 10K 1/ 16W 5%

R6014

20K OHM 1/16W 1%

C6004 100N 16V

1

2

3

CN6003

CONN

R6033

4K7 1/16W 5%

C6018

330PF 50V

R6010

0R05 1/10W

OPAV120

OPAVREF_R

OPAVREF_L

ADAC_PWR

OPAV120

AVDD3V3

2W_POWER

+12V

2W_POWER

+5V_SW

PWR_16V_24V

+5V_SW

3V3SB

U0RX

DVDD3V3

+5VSB

PWR_16V_24V

OPAV120

+5V_SW

+12V

HPOUTL

3V3SB

HPOUTR

SCART1L_PA 9

SCART1R_PA 9

SCART1_R_In 9

YPbPr_R_In1 8

SCART1_L_In 9

VGA_R_In 10

YPbPr_L_In1 8

VGA_L_In 10

GND 2,3,4,5,7,8,9,10,11,12,13,14,15,16,17

AOSDATA1 4

AOMCLK 7 AOLRCK 7

AOBCLK 7

SP_AMP_MUTE 13

AOSDATA0 7

OFF_MUTE 7,9

SPDIF_OUT 8,14

HP_SC_MUTE 9

SPDIF_OUT 8,14

U0TX 4,5,10 U0RX 4,5,10

AL0O 7

HP_DET 13

VMID_AADC

AR0O 7

HPOUTR 7

HP_MUTE 7

HPOUTL 7

AOLRCK

AVDD33_DAC

D6002

BAS316

Bathroom_PWR

HP_MUTE

AVDD33_DAC1

AU_DIN

AOSDATA4

AOBCLK AOLRCK AOMCLK

SPDIF_OUT

AOSDATA1

AOSDATA2

AOSDATA3

AOSDATA0

AL2O

AVDD33_DAC

AR2O

AR0O AL0O

AVDD33_DAC1

AL3O

AR3O

AR1O AL1O

AR2O

GPIO 15

U0TX U0RX

MT5366

SCART1L_PA

AL2O

+12V LDO for audio

AR0O

AL0O

SCART1L_PA

G0

G1

LEFT_1W

HPOUTR

HPOUTL

G0

AL0O

OFF_MUTE

AR0O

HP_MUTE

SPDIF_OUT

HPOUTL

HPOUTR

RIGHT_1W

G1

SP_AMP_MUTEHP_SC_MUTE

Earphone R/L output

YPbPr_L_In1

YPbPr_R_In1

SCART1_L_In

SCART1_R_In

YPbPr_L_In1

YPbPr_R_In1

VGA_L_In

C6008

1uF 16V

SCART1R_PA

C6014

10UF 25V

AVDD33_AADC

AOBCLK

AOSDATA0

SP_AMP_MUTE

AVDD33_AADC

HP_SC_MUTE

HP_MUTE

AOSDATA1

VGA_R_In

R7047

NC/ 0R 05 4A 1/ 4W

SPDIF_OUT

HP_DET

C6015

1UF 25V

Bath_L

2 W Mono Speaker output for Hotel TV

AR1O

AL1O

Bath_R

OFF_MUTE

SCART1_L_In

SCART1_R_In

VGA_R_In VGA_L_In

U0TX

AOMCLK

Analog Power

HP_DET

Circuit Diagrams and PWB Layouts

EN 55TPM9.3HE LA 10.

2012-Sep-28

back to

div. table

10-2-6 Speaker

19270_509_120409.eps

120410

Speaker

B06 B06

2011-12-19

1

715G5430

Speaker

AR0O

AL0O

LSPK-

OFF_MUTE

LSPK+

C6109

NC/4.7uF 25V

OFF_MUTE

Ant i-Pop CK T

Mute CKT

AMP_MUTE: NORMAL: Low MUTE: High

C6111

NC/4.7uF 25V

AUD_VCC

I2SAMP_RESET

C6112

NC/4.7uF 25V

L for 2.0

AOSDATA0

R6095

NC/3.4K 1%

R6060

0R05 1/16W

C6100

33P 50V

R6094

100R 1/16W 5%

C6070

NC/ 100N 50V

C6102

NC/330PF 50V

+

C6042

100UF 35V

C6098

33P 50V

C6049

100N 50V

R6061

0R05 1/16W

L6001

47UH

C6040

330PF 50V

R6078

NC/ 4K7 1/ 10W 5%

C6073

NC/1UF 10V

C6041

4.7UF 10V

R6093

100R 1/16W 5%

+

C6105

NC/ 150U F 25V

R6073

NC/ 0R 05 1/ 10W

A1K

2

D6001

BAS316

C6057

1N 50V

R6055

18Kohm 1/16W +/-1%

AMP_RESET

+

C6103

NC/ 150U F 25V

R6082

100R 1/16W 5%

C6071 1UF 50V

R6085

22 OHM 1/4W

R6092

10R 1/16W 5%

R6074 0R05 1/10W

R6071

4K7 1/16W 5%

R6089

NC/3.4K 1%

C6051 220N 50V

C6052 NC/ 220N 50V

R6056

18Kohm 1/16W +/-1%

R6087

NC/ 22 OH M 1/4W

1 2

3

45

CN6002

CONN

R6069

10K 1/16W 5%

R6076

1K 1/16W 5%

R6058

0R05 1/16W

R6054

43K 1/16W

R6027 43K 1/16W

C6053

NC/330PF 50V

A1K

2

D6005

BAS316

C6101

33P 50V

Q6003

BC847BW

1 2

FB6006 220R/2000mA

C6061

1UF 10V

+

C6085

220UF 16V

C6062 1UF 10V

R6064

0R05 1/16W

C6050 220N 50V

1 2

FB6005

120R/600mA

+

C6043

100UF 35V

C6107

NC/ 10N 50V

1

23

Q6001

BC857BW

C6038 1UF 10V

C6074

100N 16V

R6026

16K 1%

+

C6106

NC/ 150U F 25V

C6069

100N 50V

C6058

1N 50V

+

C6104

NC/ 150U F 25V

R6077

100K 1/16W 5%

C6060

100N 16V

C6054

330PF 50V

C6099

33P 50V

C6048

1UF 10V

C6019

100N 50V

R6053

16K 1%

A1K

2

D6004

BAS316

C6011 NC/ 220N 50V

R6096

NC/3.4K 1%

C6064 NC/ 1U F 10V

C6066

2.2U10V

C6108

NC/ 10N 50V

F3X_FILT

13

F3XL

14

LINEINR

17

LINEHPOUT_L

18

LINEHPOUT_R

19

GNDA

20

SOFTMUTE

21

VDD3V3

22

CPVSS

23

CPM

24

GNDPSUB

25

CPP

26

GNDDIG1

29

FFX3A

30

FFX3B

31

EAPD/FFX4A

32

TWARNEXT/FFX4B

33

VREGFILT

34

AGNDPLL

35

BICKI37LRCKI38SDI39RESET40PWDN41INTLINE42SDA

43

SA45TESTMODE46GNDDIG247VDDDIG2

48

VSS_REG

2

OUT2B

3

GND2

4

VCC2

5

OUT2A

6

OUT1B

7

VCC1

8

GND1

9

OUT1A

10

VDD_REG

11

GND_REG

12

VCC_REG

1

LINEINL

16

F3XR

15

MCLK

36

VDD3V3CHP

27

VDDIG1

28

SCL

44

E-Pad

49

U6002

STA381BWTR

R6068

10K 1/16W 5%

R6086

22 OHM 1/4W

R6091

10R 1/16W 5%

C6080

100N 50V

C6032

68P 50V

L6002 47UH

C6068 1UF 50V

C6055

330PF 50V

A

1

K

2

D6003

BAS316

C6044

4.7UF 10V

R6090

NC/3.4K 1%

C6072

NC/1UF 10V

1 2

FB6004

220R/2000mA

C6087

1N 50V

C6065

100N 16V

R6075 4K7 1/16W 5%

R6062

0R05 1/16W

1 2

FB6009

120R/600mA

L6003 47UH

C6088 1N 50V

C6037

330PF 50V

C6001

1uF 25V

C6059

68P 50V

C6063 1U F 10V

L6004 47UH

C6067

100N 16V

R6070

NC/ 22K 1/ 16W 5%

AVDD

DVDD3V3

+12V +5VSB

3V3SB

DVDD3V3

HP_MUTE

PWR_16V_24V

AVDD

AUD_VCC

AVDD_HP

AVDD

AUD_VCC

HPOUTR

AVDD_HP

DVDD3V3

AUD_VCC

AVDD

GND 2,3,4,5,6,8,9,10,11,12,13,14,15,16,17

AOMCLK 6 AOBCLK 6 AOLRCK 6 AOSDATA0 6

OSDA1 4

OSCL1 4

AMP_MUTE 13

OFF_MUTE 6,9

I2SAMP_RESET 13

AL0O 6 AR0O 6

HP_MUTE 6

HPOUTR 6

HPOUTL 6

OSCL1

OSDA1

R6098

6.2R

C6081

100N 50V

C6083

100N 50V

RSPK+

R6097

6.2R

C6056

100N 50V

C6075 100N 50V

LR SPK for 2.1

WSPK-

WSPK+

RSPK-

WOOFER for 2.1

LSPK+

AOBCLK

AOMCLK

AOBCLK

MCLK

AOLRCK

BICKI

AOMCLK

LRCLKI

AOSDATA0 SDI

HPOUTL

R for 2.0

LSPK-

AOLRCK

HPOUTL

HPOUTR

HP_MUTE

R6099

6.2R

C6084

100N 50V

C6086 100N 50V

PWRDN

RSPK+

AMP_MUTE

HP_L

C6110

NC/4.7uF 25V

RSPK-

I2SAMP_RESET

AMP_MUTE

HP_LOSDA1

HP_MUTE

LRCLKI

AL0O

AR0O

MCLK

OSCL1

I2S Input

SDI

I2C

BICKI

PWRDN

AMP_RESET

R6100

6.2R

C6089

100N 50V

C6090

100N 50V

1

2

3

4

5 6

CN6004

CONN

Circuit Diagrams and PWB Layouts

EN 56TPM9.3HE LA 10.

2012-Sep-28

back to

div. table

10-2-7 Video I/O & SPDIF

19270_510_120409.eps

120410

Video I/O & SPDIF

B07 B07

2011-12-19

1

715G5430

Video I/O & SPDIF

OFF_MU TE

TU_FAT_IN2+

DVBT Only

AVDD12_RGB

Y1P SOY1

PB1P PR1P

COM1

PB0P

SOY0

AVDD33_VDAC

VDAC_FS

TUN ER _BY PASS_OUT

COM0

Y0P

PR0P

TU_FAT_IN2-

PR_IN_1

Y_IN_1

YPBPR I N

PB_IN_1 PB1P

COM1

PR1P

SPDIF

SOY1

Y1P

Side_CVBS

RF_AGC_H

SPDIF_OUTSPDIF

SPDIF OUT

AUDIO IN for YPbPr

YPbPrR_IN

YPbPrL_IN

YPbPr_R_In1

YPbPr_L_In1

AVDD33_VDAC

CVBS1P

SOG

GP

RP BP

VGACOM

AVDD33_IF PGA

AVDD33_DEMOD

( 9.5 mA )

CVBS_COM

TU_FAT_IN2-

TU_FAT_IN2+

( 20 mA )

HP_SC_MUTE

AVDD12_RGB

( 37 mA )

IF_AGC

5135_REFCLKP

5135_REFCLKM

SPDIF_OUT

CVBS in share with Y

AVDD12_DEMOD

AVDD33_DEMOD

AVDD33_IFPGA

C1001 1.5nF 50V

C1018

47pF 50V

R1005

0R05 1/10W

R1002

0R05 1/10W

C1037 10UF 10V

R1037

56R 1/16W 1%

R1019 100R 1/ 16W 5%

C1003

100N 16V

C1190

NC/10NF 50V

C1006 100N 16V

R1021

56R 1/16W 1%

Analog Power

C1007

100N 16V

RF_AGC

C1002

100N 16V

R1040 100R 1/ 16W 5%

R1050

30KOHM 1/16W +/-5%

C1199

33P 50V

C1029 10N 50V

C1014 10N 50V

C1005

100N 16V

R1013

100R 1/16W 5%

R1051

30KOHM 1/16W +/-5%

C1191

NC/10NF 50V

R1042

100R 1/10W 5%

R1009

10K 1/10W 5%

C1010

47nF 16V

R1022

0R05 1/16W

R1028

18 OHM +-5% 1/16W

C1008

47N 50V

R1004

0R05 1/10W

R1003

0R05 1/10W

TP1002

R1006

0R05 1/10W

R1008

NC/ 10K 1/10W 5%

R1010

560R 1/10W 1%

R1018

18 OHM +-5% 1/16W

R1029 100R 1/ 16W 5%

R1007

0R05 1/10W

FS_VDAC

AA15

VDAC_OUT1

W13

VDAC_OUT2

Y12

AVDD33_VDAC

AA14

AVSS33_VDAC

W15

ADCINP_DEMOD

AD17

ADCINN_DEMOD

AE17

AVDD33_DEMOD

AC19

AVDD33_IF PGA

AB19

AVSS33_DEMOD

Y18

AVDD12_DEMOD

AB18

AVSS12_DEMOD

Y16

IF_AGC

R19

RF_AGC

P23

SC0

AD15

SC1

AC15

SY0

AE15

SY1

AB16

CVBS2P

AC16

CVBS1P

AC17

CVBS0P

AB17

CVBS_COM

Y15

AVDD33_CVBS

W14

AVSS33_CVBS

W16

HSYNC

W12

VSYNC

W11

RP

AC10

GP

AC9

BP

AD9

COM

AB10

SOG

AE9

COM1

AE11

PB1P

AD12

PR1P

AE12

Y1P

AD11

SOY1

AB11

COM0

AC13

PB0P

AB14

PR0P

AC14

Y0P

AB13

SOY0

AC12

AVDD12_RGB

AD14

AVSS12_RGB

Y14

VGA_SDA

AC11

VGA_SCL

AB12

LOUTN

AD20

LOUTP

AE20

U4001C

MT5366ZVGG

C1013

1UF16V

R1043

240R 1/10W 5%

R1038

18 OHM +-5% 1/16W

R1023 100R 1/16W 5%

C1004

100N 16V

C1198

100N 16V

R1001 0R 05 1/ 16W

C1027

47pF 50V

C1036 10UF 10V

R1034

56R 1/16W 1%

C1019 10N 50V

3

2

6 5

9

8

1 4

7 10

11

12

ABC

D

EF

CN1002

RCA JACK

C1022 10N 50V

C1028

47pF 50V

AVDD1V2 AVDD3V3AVDD3V3

AVDD1V2

AVDD3V3

VSYNC

+5V_SW

HSYNC

YPbPr_R_In1 6

TUNER_BYPASS_OUT 9

YPbPr_L_In1 6

VSYNC 10

HSYNC 10

GP 10

RP 10 BP 10 SOG 10

VGACOM 10 VGASDA 10

SOY0 9

VGASCL 10

COM0 9

Y0P 9 PB0P 9

CVBS2P 9

PR0P 9

GND 2,3,4,5,6,7,9,10,11,12,13,14,15,16, 17

5135_REFCLKP 15

5135_REFCLKM 15

HP_SC_MUTE 6,9

OFF_MU TE 6,7, 9

SPDIF_OUT 6,14

TU_FAT_IN2-16

TU_FAT_IN2+16

IF_AGC16

RF_AGC_H16

IF_AGC

PR_IN_1

VGASCL

VGASDA

AVDD33_CVBS

SOY0

CVBS2P

PR0P

PB0P

COM0

Y0P

TUN ER _BY PASS_OUT

AVDD12_DEMOD

Side_CVBS

PB_IN_1 YPbPrR_IN

YPbPrL_INY_IN_1

YPbPr & Audio IN

RF_AGC_HRF_AGC

CVBS2P CVBS1P

CVBS_COM

YPbPr_L_In1

YPbPr_R_In1

5135_REFCLKP

5135_REFCLKM

AVDD33_CVBS

MT5366

SOG

GP

HSYNC VSYNC RP

BP VGACOM

VGASCL

VGASDA

Circuit Diagrams and PWB Layouts

EN 57TPM9.3HE LA 10.

2012-Sep-28

back to

div. table

10-2-8 Scart

19270_511_120409.eps

120410

Scart

B08 B08

2011-12-19

1

715G5430

Scart

CVBS OUT

Audio Output

SCT1_AV_IN CVBS2P

Audio Input

CVBS IN

SCART (F u l l SCART ) -- C VB S+ SV+R GB+TV OU T

FAST BLAN KING/SOY

SCART1L_PA

OFF_MUTE

HP_SC_MUTE

SCT1_FS_IN

SCT1_B_IN

TUNER_BY PASS_OUT

SCT1_AUR_IN

OFF_MUTE

HP_SC_MUTE

SCT1_AUL_IN

SCART1R_PA

SCART1_L_In

SCART1_R_In

SCT1_AUL_OUT

SCT1_R_IN

PB0P

PR0P

Y0P

SCT1_G_IN

COM0

SCART_FS0

SOY0

HP_SC_MUTE

OFF_MUTE

SCT1_AV_OUT

SCT1_G_IN

SCT1_AUL_OUT

SCT1_B_IN

SCT1_AV_IN

SCT1_AUL_IN

SCT1_R_IN

SCT1_FB_IN

SCT1_AUR_IN

SCT1_AUR_OUT

SCT1_AVO_GND

SCT1_FS_IN

SCT1_AV1_GND

SOY0

SCT1_FB_IN

C1110

10UF 10V

R1068

75R 1/10W 1%

PR0P

PB0P

CVBS2P

2

31

R1

Q1006

DTC623TK

COM0

Y0P

R1079

68R 1/16W 5%

C1192

NC/ 10N F 50V

R1064

0R05 1/10W

R1073

10K 1/16W 5%

C1054

10N 50V

C1053

10UF 10V

R1071

68R 1/16W 5%

R1060

0R05 1/16W

C1051

15PF50V

R1080

75 OHM +-5% 1/16W

C1043

NC/ 10N 50V

R1077

30Kohm 1/16W +/-5%

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

2223

CN1005

SCART CON N 21P

R1059

47K 1/16W 5%

C1046

NC/ 47pF 50V

R1082

0R05 1/16W

R1063

100R 1/16W 5%

C1073

10UF 10V

1 2

FB1005

80R

C1055

15PF50V

C1047

47pF 50V

C1193

NC/10NF 50V

R1056

0R05 1/16W

C1050

10N 50V

C1049 10UF 10V

SCART1_R_In

R1066

75 OHM +-5% 1/16W

1 2

FB1006

80R

C1040

NC/ 10N 50V

R1075

0R05 1/16W

2

31

R1

Q1008 DTC623TK

R1067

75 OHM +-5% 1/16W

C1052

10N 50V

R1072

30Kohm 1/16W +/-5%

1 2

FB1007

80R

R1076

100R 1/16W 5%

L1003

1U8 10%

C1056

15PF50V

C1044

47nF 16V

R1054

0R05 1/16W

R1065

0R05 1/16W

R1078

0R05 1/16W

C1057

10N 50V

R1062

0R05 1/16W

R1053

330R 1/16W 5%

C1048

47pF 50V

1 2

ZD1027

NC/VPORT0603100KV05

R1074

75 OHM +-5% 1/16W

R1083

68R 1/16W 5%

R1055 47K 1/16W 5%

R1069

51K 1/16W 5%

C1045

47pF 50V

R1081

75 OHM +-5% 1/16W

R1070

0R05 1/16W

R1058

330R 1/16W 5%

R1061

0R05 1/16W

SCART1_R_In 6

CVBS2P 8

SCART1_L_In 6

Y0P 8 PB0P 8

COM0 8

SCART_FS0 13

PR0P 8

SOY0 8

SCART1R_PA 6

TUNER_BY PASS_OUT 8

SCART1L_PA 6

HP_SC_MUTE 6

OFF_MUTE 6, 7

SMD/0402SMD/0402

GND 2,3,4,5,6,7,8,10,11,12,13,14,15,16,17

SMD/0402

TUNER_BY PASS_OUT SCT1_AV_OUT

Function Select

RGB IN

SCART1R_PA SCART1L_PA

SCART1_L_In

SCART_FS0

SCT1_AUR_OUT

Circuit Diagrams and PWB Layouts

EN 58TPM9.3HE LA 10.

2012-Sep-28

back to

div. table

10-2-9 VGA Input

19270_512_120409.eps

120410

VGA Input

B09 B09

2011-12-19

1

715G5430

VGA Input

1 2

ZD1100

NC/UDZSNP5.6B

1 2

ZD1101

NC/UDZSNP5.6B

HSYNC#

VGA I2C

VGA_RX

VSYNC#

U0TX

U0RX

VGA_TX

VGA_UR_EN

VGA_R_In VGA_L_In

VGA_L_In

VGA_R_In

VGA AUD IO

1 2

3

CN1006

PHONE J AC K

VGA_AudioLIN

VGA_UR_EN

VGA_PLUGPWR

VGASDA_24C02

EDID_WEN

VGASCL_24C02

RED

GRN_GND

GP

RP

BP

VGACOM

SOG

VGA IN

BLU

RED_GND

BLU_GND

GRN

VGA_TX

BP VGACOM SOG

GP

VGASCL

VGASDA

HSYNC VSYNC RP

RED_GND

BLU

VGA_AudioRIN

VGA_PLUGPWR

GRN_GND

VSYNC#

VGASDA_IN

VGASCL_IN

GRN

HSYNC#

GPIO 12

RED

BLU_GND

VGA_AudioLIN

Q1104

2N7002

Q1105

2N7002

VGASCL_24C02

U0TX U0RX

VGA_RX

GPIO12 : L VGA_Tx / Rx O N

GPIO 27

EDID_WEN

GPIO12 : H VGA_Tx/Rx OFF

VGASCL

D1008

BAS316

VGASDA_IN

HSYNC

VSYNC

VGASCL_IN

VGA_AudioRIN

R1210

4K7 1/10W 5%

R1085 100R 1/ 16W 5%

1 6 2 7

3 8

4 9 5

11 12 13 14 15

10

1716

CN1001 D-SUB 15P

R1167

NC/ 100R 1/ 16W 5%

R1211

10K 1/10W 5%

C1061 10N 50V

C1067 NC/ 5PF 50V

R1096

30Kohm 1/16W +/-5%

R1092

75 OHM +-5% 1/16W

VGASDA

R1089 100R 1/ 16W 5%

R1091 100R 1/ 16W 5%

R1229

10K 1/16W 5%

C1064 10N 50V

C1066

10UF 10V

C1063 47pF 50V

R1208

0R05 1/16W

R1100

10K 1/10W 5%

C1059 10N 50V

R1104

100R 1/16W 5%

R1084 0R05 1/ 16W

VGA Audio I nput

VGA Input

VGA SYNC SLICER

Q1012

2N7002

R1207

0R05 1/16W

R1234

NC/ 0R 05 1/ 16W

R1093

30Kohm 1/16W +/-5%

R1094

0R05 1/16W

E0

1

E1

2

E2

3

VSS4SDA

5

SCL

6

WC

7

VCC

8

U1004

M24C02-WDW6P

R1206

0R05 1/16W

R1103

10K 1/16W 5%

R1101

100R 1/16W 5%

C1068

10UF 10V

C1062 10N 50V

C1058 1.5nF 50V

C1197

10UF 10V

Q1009 BC847C

R1099

10K 1/16W 5%

R1097

0R05 1/16W

1 2

FB1011

600R/200mA

R1102

10K 1/16W 5%

R1205

0R05 1/16W

R1088 100R 1/ 16W 5%

C1065 47pF 50V

C1070 100N 16V

Q1013

2N7002

R1209

100R 1/10W 5%

C1060 47pF 50V

C1069 NC/ 5PF 50V

R1086

75 OHM +-5% 1/16W

R1090

75 OHM +-5% 1/16W

OSDA0

OSCL0

Q1153

BC847C

R1087

0R05 1/16W

R1165

NC/ 100R 1/ 16W 5%

1 2

FB1013

600R/200mA

VGA_PLUGPWR

+5V_SW

VGA_PLUGPWR

DVDD3V3

VGA_L_In 6

+5V_SW

VSYNC 8

VGA_R_In 6 HSYNC 8

RP 8 GP 8 BP 8 VGACOM 8

VGASDA 8 VGASCL 8

SOG 8

GND 2,3,4,5,6,7,8,9,11,12,13,14,15,16,17

D1009

BAS316

OSCL0 4,14

EDID_WEN 13,14

U0TX 4,5,6

OSDA0 4,14

U0RX 4,5,6

VGA_UR_EN 13

VGASDA_24C02

VGA EDID

Circuit Diagrams and PWB Layouts

EN 59TPM9.3HE LA 10.

2012-Sep-28

back to

div. table

10-2-10 LVDS

19270_513_120409.eps

120410

LVDS

B10 B10

2011-12-19

1

715G5430

LVDS

C4073

100N 16V

C4071

NC/10UF 10V

U4001D

MT5366ZVGG

AE0P

D17

AE0N

C17

AE1P

C19

AE1N

D19

AE2P

D20

AE2N

C20

AECKP

C21

AECKN

D21

AE3P

D23

AE3N

C23

AE4P

C24

AE4N

D24

AE5P

D25

AE5N

C25

AO0P

A17

AO0N

B17

AO1P

A18

AO1N

B18

AO2P

A19

AO2N

B19

AOCKP

A20

AOCKN

B20

AO3P

A21

AO3N

B21

AO4P

A22

AO4N

B22

AO5P

A23

AO5N

B23

TP_VPLL

A24

AVDD33_LVDSA

E18

AVDD33_LVDSA

E19

AVDD12_VPLL

F19

USB_2P_DP0

AB2

USB_2P_DM0

AC1

USB_2P_DP1

AC2

USB_2P_DM1

AD1

AVDD33_USB_2P

AB1

AVSS33_USB_2P

V7

USB_2P_VRT

AC3

AVSS33_LVDSA

E16

AVSS33_LVDSA

E17

AVSS12_VPLL

G19

R4094

0R05 1/10W

R4086

1K 1/10W

C4076 NC/100N 16V

R4087

100R 1/10W 5%

C4077

100N 16V

AVDD3V3

AVDD1V2

+5V_SW

3V3SB

+5V_SW

DVDD3V3

DVDD3V3DVDD3V3

PANEL_VCC

Panel_Power

USB_OC_COM 5,13

USB_PWR_EN0 5,13

BL_DIMMING 13 BL_ON/OFF 13

USB_DM0 5

USB_DP0 5

AVDD33_LVDSTX

BRIGHT_ADJ 2

INVERTER_ON_OFF 2

GND 2,3,4,5,6,7,8,9,10,12,13,14,15,16,17

USB_DM1 5

USB_DP1 5

Panel_Power

2N

MT5366

2P

AVDD33_LVDSTX

AVDD12_VPLL

Analog Power

AVDD33_USB_2P

Panel_Power

USB_DM1

USB_DP1

INVERTER_ON_OFF

0N

TX_AE1P TX_AE1N

TX_AE0P

TX_AO4P TX_AO4N

TX_AO3P TX_AO3N

TX_AOCKN

TX_AOCKP

TX_AO2P TX_AO2N

TX_AO1P TX_AO1N

TX_AO0P TX_AO0N

TX_AE4P

TX_AE0N

TX_AE4N

TX_AE3P TX_AE3N

TX_AECKP TX_AECKN

TX_AE2P TX_AE2N

K1N

BL_DIMMING BL_ON/OFF

CN4012

CONN

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

BL_DIMMING(PWM for BRIGHT_ADJ): Max: 0V Min: +3V3

BRIGHT_ADJ

DC

PWM

100R

5K6

N/C

10U

R

BL_DIMMING

C

VPLL_TP

N/C

2K

RB

1K

INVERTER _ON_OFF

RA

3V3

5V

INVERTER_ON_OFF

INVERTER ON/OFF

BRIGHT ADJUST

BL_ON/OFF

BL_ON/OFF: Inverter on: Low Inverter off: High

USB_DM1

USB_DP1

R

0P

C

K1P

E2N E2P

E0N

EK1N

E0P

EK1P

E1N

E3N

E1P

E3P

FOR 22"/24" PANEL

RA RB

AVDD33_USB_2P

USB_PWR_EN0

AVDD12_VPLL

R4100

NC/4K7 1/16W 5%

USB_OC_COM

1N

BRIGHT_ADJ

3N

USB_DM0

USB_DP0

CN4010

CONN

2 4 6

8

10 12 14 16 18 20 22 24 26 28 30

1

3

5 7 9 11 13 15 17 19 21 23 25 27 29

31 32

TX_AECKN EK1N

GPIO_87

TX_AOCKN K1N

TX_AE2N E2N

TX_AE1PE1P

Panel_Power

TX_AE3NE3N

TX_AE0N E0N TX_AE0PE0P

TX_AOCKPK1P

TX_AO4N

TX_AE4N

TX_AO2N 2N

TX_AE3PE3P

TX_AO3P3P

TX_AO0N 0N

TX_AE1N E1N

TX_AO4P

TX_AE4P

TX_AE2PE2P

FOR FULL HD PANEL

TX_AO1P1P

TX_AO0P0P

FOR WXGA P ANEL

TX_AECKPEK1P

TX_AO2P2P

TX_AO3N 3N

GPIO_25

USB_VRT

USB_DM0

USB_DP0

TX_AO1N 1N

LVDS OUTPUT

1P

BRIGHT_ADJ

3P

R4091

0R05 1/10W

R4085

NC/4K7 1/16W 5%

R4088

4K7 1/16W 5%

R4093

NC/4K7 1/16W 5%

Q4001

PMBT3904

3

1

2

R4089

2KOHM 1/10W

FB4004

120R/3000mA

1 2

R4084

NC/4K7 1/16W 5%

R4092

4K7 1/16W 5%

TP4003 TP

R4096

0R05 1/10W

FB4005

120R/3000mA

1 2

R4095

4K7 1/16W 5%

R4090

NC/1K 1/10W 5%

C4075

100N 16V

C4078 10U 16V

C4072 NC/100N 16V

Q4002

PMBT3904

3

1

2

C4074

NC/10UF 10V

R4083

5K1 1/16W 5%

R4097

10K OHM +-5% 1/8W

Circuit Diagrams and PWB Layouts

EN 60TPM9.3HE LA 10.

2012-Sep-28

back to

div. table

10-2-11 DDR3 Interface

19270_514_120409.eps

120410

DDR3 Interface

B11 B11

2011-12-19

1

715G5430

DDR3 Interface

RVREF5

CAPs for DRAM IO Power

RDQM3 RDQM2

Analog Power

1_CKE

1_ODT 1_CAS#

1_RAS#

1_A1

1_A0

1_A5

1_A4

1_A3

1_A2

1_WE#

1_CS#

1_A10

1_A9

1_A8

1_A7

1_A6

1_BA0 1_BA2

1_A13

1_A12

1_A11

1_BA1

ZQ2

AVDD12_MEMPLL

RDQ1

RDQ7

RDQ3

RDQ2

AVDD12_MEMPLL

RDQ5 RDQ6

RDQ15

RDQ4

RDQ0

RDQ13

RDQ9

RDQ14

RDQ12

RDQ8 RDQ10

RDQ11

RDQ16 RDQ17

RDQ19

RDQ31

RDQ21

RDQ18

RDQ30

C4004 100N 16V

RDQ28

RDQ20

R4014

1K 1/16W 1%

RDQ23

R4020

0R051/8W

RDQ29

RDQ22

1 2

3

4

8

7 6 5

RP4006

0OHM 1/16W

RDQ25

RDQ24

RDQ27

R4120

240 OHM +-5% 1/16W

RDQ26

R4001

1K 1/10W 1%

RDQS3#

R4016

0R05 1/16W

RVREF2

RDQS1#

RDQS3

C4012 100N 16V

RDQS1

RDQS0 RDQS0#

C4026

100N 16V

TP4002

C4017 100N 16V

1 2

3

4

8

7 6 5

RP4009

0OHM 1/16W

C4020 100N 16V

C4029 100N 16V

R4121

240 OHM +-5% 1/16W

C4003 100N 16V

1 2

3

4

8

7 6 5

RP4003

0OHM 1/16W

RVREF3

R4018

1K 1/16W 1%

RDQS0 RDQS0#

RDQS1#

RDQS1

VDD_0

B2

NC_0

J1

VSS_0

A9

VSSQ_0

B1

UDQS#

B7

VDDQ_0

A1

DQU6

B8

VSSQ_1

B9

UDM

D3

UDQS

C7

VSSQ_2

D1

DQU7

A3

VDDQ_1

A8

DQU1

C3

VDDQ_2

C1

VDDQ_3

C9

DQU0

D7

VDDQ_4

D2

DQU4

A7

VSSQ_3

D8

DQU3

C2

DQU2

C8

VSSQ_4

E2

DQU5

A2

VDD_1

D9

NC_1

J9

VSS_1

B3

VSSQ_5

E8

LDQS#

G3

VDDQ_5

E9

DQL6

G2

VSSQ_6

F9

LDM

E7

LDQS

F3

VSSQ_7

G1

DQL7

H7

VDDQ_6

F1

DQL1

F7

VDDQ_7

H2

DQL0

E3

VDDQ_8

H9

DQL4

H3

VSSQ_8

G9

DQL3

F8

DQL2

F2

BA2

M3

DQL5

H8

VDD_5

N1

VREFDQ

H1

VSS_2

E1

VSS_5

J8

CK

J7

VDD_2

G7

CKE

K9

WE#

L3

RAS#

J3

CK#

K7

ODT

K1

RESET#

T2

BA0

M2

BA1

N8

CAS#

K3

CS#

L2

A10/AP

L7

A1

P7

A2

P3

A0

N3

VDD_3K2VSS_3

G8

A3

N2

A5

P2

A6

R8

A4

P8

A7

R2

A9

R3

A11

R7

A8

T8

VSS_4

J2

VDD_4

K8

A12/BC#

N7

NC_3

L9

ZQ

L8

NC_2

L1

VREFCA

M8

NC_4

M7

NC

T3

NC_6

T7

VSS_6

M1

VSS_7

M9

VSS_8

P1

VSS_9

P9

VSS_10

T1

VSS_11

T9

VDD_6

N9

VDD_7

R1

VDD_8

R9

U4003

H5TQ1G63DFR-H9C

1 2

3

4

8

7 6 5

RP4007

0OHM 1/16W

R4006

1K 1/16W 1%

1 2

3

4

8

7 6 5

RP4004 0OHM 1/16W

1_RST#

ADJ/GND

1

OUTPUT

2

INPUT

3

U4004

AZ1117D-ADJTRE1

C4024 100N 16V

C4025

10uF 16V

C4011 100N 16V

C4022 100N 16V

C4157

10uF 6.3V

R4019

1K 1/10W 1%

1 2

3

4

8

7 6 5

RP4005

0OHM 1/16W

1 2

3

4

8

7 6 5

RP4012

0OHM 1/16W

C4023

10uF 16V

1 2

FB4100 120R/3000mA

+

C4158

100UF 16V

ZQ1

RDQ6//RDQ0

D13

RDQ0//RDQ1

D12

RDQ1//RDQ2

E13

RDQ7//RDQ3

D11

RDQ4//RDQ4

D14

RDQ5//RDQ5

E12

RDQ3//RDQ6

E14

RDQ2//RDQ7

E11

RDQ13//RDQ8

B10

RDQ11//RDQ9

B15

RDQ10//RDQ10

A10

RDQ12//RDQ11

A15

RDQ15//RDQ12

C11

RDQ9//RDQ13

C15

RDQ8//RDQ14

C10

RDQ14//RDQ15

C14

RDQ22//RDQ16

G5

RDQ23//RDQ17

J5

RDQ17//RDQ18

H5

RDQ16//RDQ19

J4

RDQ20//RDQ20

H4

RDQ21//RDQ21

K4

RDQ19//RDQ22

G4

RDQ18//RDQ23

K3

RDQ26//RDQ24

J1

RDQ27//RDQ25

D2

RDQ29//RDQ26

J2

RDQ28//RDQ27

C1

RDQ31//RDQ28

H3

RDQ25//RDQ29

D1

RDQ24//RDQ30

J3

RDQ30//RDQ31

E2

RDQS0//RDQS0

B13

RDQS0_//RDQS0_

A13

RDQS1//RDQS1

A12

RDQS1_//RDQS1_

B12

RDQS2//RDQS2

F2

RDQS2_//RDQS2_

F1

RDQS3//RDQS3

G1

RDQS3_//RDQS3_

G2

RDQM0//RDQM0

C12

RDQM1//RDQM1

C13

RDQM2//RDQM2

G3

RDQM3//RDQM3

E1

RCLK0//RCLK0

A9

RCLK0_//RCLK0_

B9

RCLK1//RCLK1

K1

RCLK1_//RCLK1_

K2

RBA2//RRESET_

C6

AVDD12_MEMPLL

H9

AVSS12_MEMPLL

H10

MEMTP

D8

MEMTN

C8

RCAS_//RA0

C4

RA6//RA1

F9

RBA0//RA2

C5

RA5//RA3

A7

RA4//RA4

F8

RBA1//RA5

D5

RA13//RA6

D7

RA10//RA7

A6

NC//RA8

E6

RA3//RA9

B7

RA12//RA10

E8

RA11//RA11

F7

RA0//RA12

D6

RA1//RA13

B6

RCKE//RWE_

B4

RODT//RODT

A3

RRAS_//RCAS_

B3

RWE_//RCS_

A4

RCS_//RRAS_

A2

RA9//RCKE

D9

RA8//RBA0

E7

RA2//RBA1

E9

RA7//RBA2

C7

RVREF

E3

VCC2IO

C16

VCC2IO

B16

VCC2IO

A16

VCC2IO

F15

VCC2IO

E15

VCC2IO

D15

VCC2IO

H14

VCC2IO

H13

VCC2IO

K8

VCC2IO

J8

VCC2IO

H8

VCC2IO

B1

VCC2IO

F6

DVSS

L5

VCC2IO

E5

DVSS

L4

VCC2IO

D4

DVSS

L3

VCC2IO

C3

VCC2IO

B2

VCC2IO

A1

DVSS

L6

DVSS

K6

DVSS

C9

DVSS

F11

DVSS

F12

DVSS

E10

DVSS

J6

DVSS

F10

DVSS

H11

DVSS

K7

DVSS

H12

VCC2IO

C2

VCC2IO

D3

VCC2IO

E4

VCC2IO

F5

VCC2IO

G6

VCC2IO

F14

U4001B

MT5366ZVGG

C4033 100N 16V

C4009 100N 16V

C4081 100N 16V

Paraller

VDD_0

B2

NC_0

J1

VSS_0

A9

VSSQ_0

B1

UDQS#

B7

VDDQ_0

A1

DQU6

B8

VSSQ_1

B9

UDM

D3

UDQS

C7

VSSQ_2

D1

DQU7

A3

VDDQ_1

A8

DQU1

C3

VDDQ_2

C1

VDDQ_3

C9

DQU0

D7

VDDQ_4

D2

DQU4

A7

VSSQ_3

D8

DQU3

C2

DQU2

C8

VSSQ_4

E2

DQU5

A2

VDD_1

D9

NC_1

J9

VSS_1

B3

VSSQ_5

E8

LDQS#

G3

VDDQ_5

E9

DQL6

G2

VSSQ_6

F9

LDM

E7

LDQS

F3

VSSQ_7

G1

DQL7

H7

VDDQ_6

F1

DQL1

F7

VDDQ_7

H2

DQL0

E3

VDDQ_8

H9

DQL4

H3

VSSQ_8

G9

DQL3

F8

DQL2

F2

BA2

M3

DQL5

H8

VDD_5

N1

VREFDQ

H1

VSS_2

E1

VSS_5

J8

CK

J7

VDD_2

G7

CKE

K9

WE#

L3

RAS#

J3

CK#

K7

ODT

K1

RESET#

T2

BA0

M2

BA1

N8

CAS#

K3

CS#

L2

A10/AP

L7

A1

P7

A2

P3

A0

N3

VDD_3K2VSS_3

G8

A3

N2

A5

P2

A6

R8

A4

P8

A7

R2

A9

R3

A11

R7

A8

T8

VSS_4

J2

VDD_4

K8

A12/BC#

N7

NC_3

L9

ZQ

L8

NC_2

L1

VREFCA

M8

NC_4

M7

NC

T3

NC_6

T7

VSS_6

M1

VSS_7

M9

VSS_8

P1

VSS_9

P9

VSS_10

T1

VSS_11

T9

VDD_6

N9

VDD_7

R1

VDD_8

R9

U4002

H5TQ1G63DFR-H9C

R4009

1K 1/16W 1%

C4159

NC/10uF 6.3V

C4035 100N 16V

R4022

24R 1/10W 1%

C4031 100N 16V

1 2

3

4

8

7 6 5

RP4008

0OHM 1/16W

C4010 100N 16V

C4037

100N 50V

C4006 100N 16V

C4014 100N 16V

C4002 100N 16V

C4030 100N 16V

1 2

3

4

8

7 6 5

RP4010

0OHM 1/16W

R4012

1K 1/10W 1%

R4017

1K 1/16W 1%

C4034 100N 16V

C4028

10uF 16V

C4036

100N 50V

1 2

3

4

8

7 6 5

RP4001

0OHM 1/16W

R4123

1K 1/10W 1%

C4082 100N 16V

C4032 100N 16V

R4007

100R 1/16W 1%

R4003

100R 1/16W 1%

C4001 100N 16V

C4016 100N 16V

C4019 100N 16V

(28.4 mVr)

1 2

3

4

8

7 6 5

RP4011

0OHM 1/16W

C4008 100N 16V

C4027

10uF 16V

R4021

110R 1/10W 1%

RVREF1

C4015 100N 16V

1 2

3

4

8

7 6 5

RP4002 0OHM 1/16W

+

C4038

NC/ 100U F 16V

R4122

1K 1/16W 1%

TP4001

C4021 100N 16V

DDRV DDRV

DDRV

DDRV DDRV

DDRV

AVDD1V2

DDRV

DDRV DDRVDDRV

Paraller

DDRV DDRV DDRV

DVDD3V3

DDRV

GND 2,3,4,5,6,7,8,9,10,11,13,14,15,16,17

RDQS2 RDQS2#

(38.4mVr)

MT5366

A_RST#

RDQM2 RDQM3

RDQM0 RDQM1

DDR3_DDRV= 1.5V

RCLK0

RCLK0#

RCLK1

RDQS2#

RDQS3#

RDQS3 RDQS2

RDQ19

RDQ31

RDQ17

RDQ16

RDQ29

RDQ22 RDQ23

RDQ28

RDQ20 RDQ21

RDQ18

RDQ30

RDQ26

RDQ25

RDQ24

RDQ27

RDQ12

RDQ8

RDQ13

RDQ9

RDQ14 RDQ15

RDQ4

RDQ0

RDQ5 RDQ6 RDQ7

RDQ3

RDQ2

RDQ1

RCLK1#

CLK0

CLK0#

CLK1

CLK1#

RDQ10 RDQ11

A_A5

A_A4

A_A3

A_A2

A_A1

A_A0

A_ODT A_WE#

A_CS#

A_BA2

A_BA1

A_BA0

A_A13

A_A12

CLK1 CLK1#

A_A11

A_A10

A_A9

A_A8

A_A7

A_A6

B_A7

B_A5

B_A2 B_A3

B_A1

A_CKE

A_RAS#

A_CAS#

B_A0

B_A12 B_A13

B_A8 B_A10

B_A11

B_A9

B_A4 B_A6

1_A0 1_CS#

1_A11

1_BA0

1_A2 1_A5

C4068

10uF 16V

A_A0

A_A5

A_A4

A_A3

A_A2

A_A1

A_A11

A_A10

A_A9

A_A8

A_A7

A_A6

A_BA2

A_BA1

A_BA0

A_A13

A_A12

A_RAS#

A_CAS#

A_ODT

A_WE#

A_CS#

1_RAS#

1_CKE 1_BA0 1_BA2 1_A3 1_CKE

1_A1

1_A8

1_RAS#

RCLK0

1_A6

1_RST#

1_CAS#

RCLK1 RCLK1#

RCLK0#

1_A10

1_A4 1_A1 1_BA1

1_ODT

1_A4

1_A13

1_CS#

1_A8 1_A11

1_A0

1_CAS#

1_A6

1_A12

1_WE#

1_ODT

1_A12

A_CKE

1_RST#

1_A3

1_WE#

1_A7A_RST#

1_A9 1_A7 1_A13

1_BA2

1_A9

1_A5

B_CKE

B_A2

B_A1

B_A0

1_A2

B_A9

B_A8

B_A7

B_A6

B_A5

B_A4

B_CAS#

B_A3

B_A13

B_A12

B_A11

B_A10

CLK0#

CLK0

B_RAS#

B_ODT

B_WE#

B_CS#

B_BA0

B_BA1

B_CKE

B_WE#

1_A10

B_RST#

B_BA2

B_RAS# B_CAS#

B_BA1

B_BA0

B_CS#

B_BA2

Damping and Termination for CLK

DDR3#1 DDR3#2

CAPs for DRAM IO PowerCAPs for DRAM IO Power

Damping for DDR3#1 ADDR/CMD Damping for DDR3#2 ADDR/CMD

B_RST#

RVREF4

C4039

10uF 16V

( 4 mA )

MEMTP

1_BA1

RDQM1 RDQM0

MEMTN

Circuit Diagrams and PWB Layouts

EN 61TPM9.3HE LA 10.

2012-Sep-28

back to

div. table

10-2-12 GPIO & RJ45

19270_515_120409.eps

120410

GPIO & RJ45

B12 B12

2011-12-19

1

715G5430

GPIO & RJ45

DVDD12

TX_CLK

USB_OC_COM1

USB_PWR_EN1

MII_XTAL_OUT

RX_CLK

LED1_AD1

ETRXD1 ETRXD3

PHYRST#

PWR5V_1

T2_RESET

BL_ON/OFF

RF_AGC_Control

DVBT Only

COL/SNI ETTXD3

ETRXD0

ETMDC

ETTXD2

ETTXEN

ETRXD1

ETMDIO

ETRXCLK

ETRXD2

PHY_REFCLK

ETRXD3

ETTXCLK_REF_CLK

ETTXD0 RXDV

ETTXD1

Panel_OPC

OPCTRL5

T2_RESET

LED1_AD1 DVDD3V3_MII

LED0_AD0

PWR5V_3

PANEL_VCC_ON/OFF

RJ45

PWR5V_1

LED_G

USB_OC_COM

MDI _TP MDI _TN

USB_PWR_EN0

BL_ON/OFF

MDI _R P

PANEL_VCC_ON/OFF

12V_DET

KEY_MENU_L_R_SOURCE

KEY_UP_DN_DCSW

LED_G

LED_R

MT5366

LCD_Clock_SDA LCD_Clock_SCL

OPCTRL5

Panel_OPC

USB_PWR_EN0

12V_DET

MDI _TN

MDI _TP

MDI _TN

MDI _R P MDI _R N

MDI _TP

ESD & Surge Protect

EDID_WEN

USB_OC_COM1

MDC

30

MDIO

31

TXD0

23

TXD1

24

TXD2

25

TXD3

26

TXEN

27

TXC

22

RXDV

13

RXD0

14

RXD1

16

RXD2

17

RXD3

18

RXC

19

COL/SNI

38

CRS/RPTR

36

RXER/FXEN

39

CKXTAL1

42

CKXTAL2

43

LED0/PHYAD0

34

LED1/PHYAD1

35

PWOUT12A

48

PWOUT12D

40

DVDD33

15

DVDD33

21

DVDD33

37

DVDD12

28

GND

7

GND

20

GND

33

GND

47

AVDD33

6

AVDD33

41

NC

3

NC

8

NC

9

NC

10

NC

11

NC

12

NC

44

NC

45

MDI[1]+

4

MDI[1]-

5

MDI[0]+

1

MDI[0]-

2

RSET

46

PHYRSTB

29

INTB

32

U4010 RTL8201EL-VC-GR

SEV_ADIN5LIGHT_SENSOR_IN

HP_DET

LCD_Clock_SCL

BL_DIMMING

SEV_ADIN0SCART_FS0 SEV_ADIN1 SEV_ADIN2KEY _UP_DN_DCSW SEV_ADIN3

R4178

5.1K 1%

C4151

NC/10P 50V

1 2

3

4

8

7 6 5

RP4020

22R

USB_OC_COM

LCD_Clock_SDA

R4162

22R 1/16W 5%

TP4008

TP

C4136

NC/ 100nF 25V

C4150

NC/ 47P 50V

C4156

NC/ 10P 50V

C4137 10N 50V

R41884K7 1/16W 5%

C4134 10N 50V

R4183NC/4K7 1/16W 5%

R4105

4K7 1/16W 5%

R4190

0R05 1/10W

R41854K7 1/16W 5% R4186NC/4K7 1/16W 5%

R4163 NC/ 49. 9 OH M 1/16W 1%

GPIO2

F23

GPIO12

G20

GPIO13

H24

GPIO14

G25

GPIO15

G22

GPIO16

P6

GPIO17

R6

GPIO18

P5

GPIO19

P4

GPIO20

P3

GPIO21

P2

GPIO22

P1

GPIO23

R5

GPIO24

U5

GPIO25

U6

GPIO26

V6

OPCTRL0

AD8

OPCTRL1

AE8

OPCTRL2

AA8

OPCTRL3

AE6

OPCTRL4

AB7

OPCTRL5

Y7

ADIN0_SRV

AA9

ADIN1_SRV

AA11

ADIN2_SRV

Y10

ADIN3_SRV

W9

ADIN4_SRV

W10

ADIN5_SRV

Y11

OPWM0

R7

OPWM1

T5

OPWM2

T6

DEMOD_TSCLK

R25

DEMOD_TSVAL

R24

DEMOD_TSSYNC

R22

DEMOD_TSDATA0

N19

CI_TSCLK

P25

CI_TSVAL

N20

CI_TSSYNC

P21

CI_TSDATA0

P24

PVR_TSCLK

P22

PVR_TSVAL

M21

PVR_TSSYNC

M20

PVR_TSDATA0

M19

SPI_CLK

N21

SPI_DATA

M22

SPI_CLE

M25

CI_INT

M24

DEMOD_RST

R23

ETCOL

AA3

ETTXEN

W5

ETTXD3

Y5

ETTXD2

Y3

ETTXD1

Y2

ETTXD0

Y1

ETTXCLK

W2

ETRXDV

Y4

ETRXD3

W3

ETRXD2

W4

ETRXD1

V3

ETRXD0

V4

ETRXCLK

W1

ETPHYCLK

AA4

ETMDIO

V5

ETMDC

W6

GPIO1

G24

GPIO0

E25

GPIO3

H25

GPIO4

G23

GPIO5

E24

GPIO6

H20

GPIO7

G21

GPIO8

H21

GPIO9

E22

GPIO27

U7

GPIO11

F21

GPIO10

F22

PVR_TSDATA1

N22

U4001E

MT5366ZVGG

1

2

3

4

8

7

6

5 RP4019

22R

C4149

10N 50V

C4139 27P 50V

R4184NC/4K7 1/16W 5%

R4011

1K 1/16W 5%

R4173

NC/ 49. 9 OH M 1/16W 1%

1 2

FB4007

NC/60OHM

LIGHT_SENSOR_IN

88471_INT

HP_DET

R4164

22R 1/16W 5%

R4015

10K 1/16W 5%

IN1

1

IN2

2

IN3

3

IN4

4

OUT4

5

OUT3

6

OUT2

7

OUT1

8

U4011

NC/uClamp2512T.TCT

R4166 22R 1/16W 5%

R4172

0R05 1/10W

TP4009

TP

R4177 22R 1/16W 5%

C4152

100N 16V

R4171510R 1/10W

R7235

0R05 1/16W

C4140

10UF 10V

R41894K7 1/16W 5%

TP4010

TP

C4133

NC/ 100nF 25V

C4141

100N 16V

DEMOD_TSCLK DEMOD_TSVAL DEMOD_TSSYNC DEMOD_TSDATA0

P1

1

P2

2

P3

3

P4

4

P5

5

P6

6

P7 NC

7

P8

8

P9

9

P10

10

P11

11

P12

12

TH2

14

TH1

13

CN4011

RJ45 CONN+LED

R4157

0R05 1/10W

C4147

10UF 10V

R4209

100K1/16W

C4132 NC/100N 16V

C4148

100N 16V

R4165 0R05 1/16W

R41794K7 1/16W 5%

R4170

0R05 1/10W

LED_R

C4143

100N 16V

C4145

10UF 10V

R41924K7 1/16W 5%

TP4011

TP

C4144

10N 50V

1

24

3

X4001

25MHz

R4154

22R 1/16W 5%

R4210

27K 1/16W 5%

R7236

0R05 1/16W

R4168510R 1/ 10W

R4155

1K5 1/16W 5%

C4146

100N 16V

R4156 22R 1/16W 5%

R4167 0R05 1/16W

R4175 22R 1/16W 5%

R4174 NC/ 49. 9 OH M 1/16W 1%

I2SAMP_RESET

C4138

27P 50V

R4072

1K 1/16W 5%

R4161

NC/ 49. 9 OH M 1/16W 1%

R4181NC/4K7 1/16W 5%

R4187NC/4K7 1/16W 5%

R4160 0R05 1/16W

C4155

NC/10P 50V

C4135

100N 16V

C4153

100N 16V

R41914K7 1/16W 5%

C4142 NC/100N 16V

C4154

NC/ 10P 50V

R4182NC/4K7 1/16W 5%

+12V

DVDD3V3_MII

DVDD3V3

MDI _R N

DVDD3V3_MII

SYS_EEPROM_WP 4

USB_PWR_EN0 5

SCART_FS09

USB_OC_COM 5

OPCTRL4 4 OPCTRL5 4

GND 2,3,4,5,6,7,8,9,10,11,12,14,15,16,17

BL_ON/OFF 11

BL_DIMMING 11

PANEL_VCC_ON/OFF 3

SP_AMP_MUTE 6

SPI_CLK 15

DEMOD_TSCLK 15 DEMOD_TSVAL 15

LNA_ON/OFF

DEMOD_TSSYNC 15 DEMOD_TSDATA0 15

SPI_DATA 15 SPI_CLE 15

CI_INT 15

DEMOD_RST15

KEY_MENU_L_R_SOURCE 5

KEY_UP_DN_DCSW5

LED_G 5

LED_R 5

LCD_Clock_SCL 5

LCD_Clock_SDA 5

PWR5V_1 14

EDID_WEN 10,14

I2SAMP_RESET 7

LIGHT_SENSOR_IN 5

PWR5V_3 14

AMP_MUTE 7

Panel_OPC 11

USB_OC_COM1 5

USB_PWR_EN1 5

88471_INT

LVDS_CTRL 11

HDMI_SW_CTRL1 14 HDMI_SW_CTRL2 14

VGA_UR_EN 10 ARC_EN 14

RF_AGC_Control16

LNA_ON/OFF16

88471_INT17

T2_R ESET17

HP_DET 6

USB_PWR_EN1

HDMI_SW_CTRL2

LVDS_CTRL

ARC_EN

HDMI_SW_CTRL1

VGA_UR_EN

SEV_ADIN4KEY_MENU_L_R_SOURCE

OPCTRL4

EDID_WEN

SP_AMP_MUTE

AMP_MUTE

R4117

4K7 1/16W 5%

OPCTRL4

SP_AMP_MUTE

RF_AGC_Control

I2SAMP_RESET

LNA_ON/OFF

DEMOD_TSCLK DEMOD_TSVAL DEMOD_TSSYNC DEMOD_TSDATA0

SPI_DATA

SPI_CLK SPI_CLE

CI_INT

DEMOD_RST

R4169

2.49KOHM 1/10W

AMP_MUTE

ATSC/DVBT Only

SPI_DATA

SPI_CLK SPI_CLE

CI_INT DEMOD_RST

SCART_FS0

SYS_EEPROM_WP

COL/SNI

LED0_AD0

PHY_REFCLK

ETTXD0 ETTXD1 ETTXD2 ETTXD3

MII_XTAL_IN

ETMDC

PHYRST#

CRS/RPTR

ETMDIO

LED0_AD0

ETRXD0

LED1_AD1

ETHERNET PHY MII Mode

25MHz REF _CL K fr o m MT 5366

ETTXEN

RXER/FXEN

LVDS_CTRL

HDMI_SW_CTRL1 HDMI_SW_CTRL2

VGA_UR_EN

SYS_EEPROM_WP

ARC_EN

MDI _R P

DVDD12

ETTXCLK_REF_CLK

ETRXCLK

MDI _R N

RXDV

PWR5V_3

BL_DIMMING

ETRXD2

MDI _TN

MDI _TP

RXDV

COL/SNI RXER/FXEN

PHYRST#

CRS/RPTR

Circuit Diagrams and PWB Layouts

EN 62TPM9.3HE LA 10.

2012-Sep-28

back to

div. table

10-2-13 HDMI Switch & Connector

19270_516_120409.eps

120410

HDMI Switch & Connector

B13 B13

2011-12-19

1

715G5430

HDMI Switch

& Connector

HPLUGP3_5V

+5V_SW

OSDA0

OSCL0

+5V_SW

DV33_TMDS

GND 2,3,4,5,6,7,8,9,10,11,12,13,15,16,17

PWR5V_1 13

HDMI_SW_CTRL1 13

EDID_WEN 10,13

HDMI_SW_CTRL2 13

ARC_EN 13

SPDIF_OUT 6,8

OSCL0 4

PWR5V_3 13

OSDA0 4

CEC_3

RX2_0+ M_RX1_0 RX2_0- M_RX1_0B

CLK pull down resistance

Audio Reture Channel (ARC)

ARC_EN

M_RX1_1

PWR5V_2

RX3_1-

RX1_C-

( 61 mA )

PWR5V_3

RX2_C-

HPD-1

AVDD12_HDMI

AVDD33_HDMI

M_RX1_2B

RX2_C+ M_RX1_C RX2_C- M_RX1_CB

SPDIF_OUT

GPIO 10

GPIO 9

RX1_2+

M_RX1_2

SDA_3

SCL_3

CEC_3

PWR5V_3

SPDIF_OUT

HDMI 2 ESD PROTECTER

PWR5V_3

RX3_1-

RX3_1+

RX3_2-

RX3_2+

RX3_2-

RX3_2+

SDA_3

SCL_3

CEC_3

RX3_C+

RX3_0-

RX3_0+

RX3_1-

RX3_1+

RX3_C-

RX3_C+

RX3_0-

RX3_0+

RX3_C-

ARC disable

H

ARC_EN

ARC enable

L

M_RX1_0

RX3_C-

ARC_EN

HDMI2_SCL HDMI_SW_SCL

HDMI2_SDA HDMI_SW_SDA

HDMI_SW_CTRL1 HDMI_SW_CTRL2

RX2_2+

EDID_WEN

SIDE HDMI

OSDA0

( 17 mA )

RP5002

NC/0OHM 1/16W

1

2

3

4

8

7

6

5

RX3_0+

RX3_1+

HDMI3_SCL

HDMI3_SDA

RX3_2+

HPD3

RX3_0-

HPD2 HDMI_SW_HPD

ARC_HDMI

HDMI_SW_HPD

M_RX1_1B

M_RX1_C

RX3_2-

OSCL0

RX3_0+

HDMI 2

PWR5V_1

SMD/0402

5V Input Detect

SMD/0402

ARC_HDMI

PWR5V_1

RX1_0+

RX1_1-

RX1_1+

RX1_2-

RX1_C-

RX1_C+

RX1_0-

SMD/0402

EDID_WEN

NONE

HPLUGP1_5V

HPD1

HDMI1_SCL

HPLUGP1_5V

HPD-1

HDMI1_SCL

SMD/0402

EDID_WEN: write_enable: High write_disable: Low

HDMI1_SDA

M_RX1_0B

RX1_0+

HDMI_SW_CTRL2

SMD/0402

HDMI1_SDA

SMD/0402 SMD/0402

DV33_TMDS

SMD/0402

DV33_TMDS

SMD/0402

HDMI1_SCL

RX1_1+

SMD/0402

HPD1

RX1_C-

HDMI_CEC

PWR5V_3

CEC_1

HDMI_SW_CTRL2

CEC_2

H

RX1_2+

HDMI (Ext)

HH

PWR5V_2

RX2_2+

PWR5V_2

RX2_0-

RX2_0+

RX2_1-

RX2_1+

RX2_2-

CEC_2

RX2_C-

RX2_C+

L

HPD2

HPLUGP2_5V

HDMI2_SCL HDMI2_SDA

RX1_C+

EDID_WEN

SMD/0402

RX1_2-

HDMI2_SCL

HDMI

DV33_TMDS

SMD/0402

L

SMD/0402

DV33_TMDS

M_RX1_2B

HDMI2_SDA

M_RX1_1B

M_RX1_CB

M_RX1_1

M_RX1_C

For one HDMI input (HDMI1/ Support ARC)

M_RX1_2

M_RX1_0B

HDMI_SW_SDA

M_RX1_0

HDMI_SW_SCL

SMD/0402

EDID_WEN: write_enable: High write_disable: Low

CEC_1

RX2_2- M_RX1_2B

L

M_RX1_CB

DV33_TMDS

D5008 BAS316

A1K

2

U5010

M24C02-WDW6P

E0

1

E1

2

E2

3

VSS4SDA

5

SCL

6

WC

7

VCC

8

RX2_1+

RX2_C+

R5023

47K 1/10W

RX2_2+

RX2_0+

RX2_1-

RX2_C-

HDMI_SW_CTRL1

HPD2

DV33_TMDS

RX2_2-

HDMI2_SDA

RX2_0-

HDMI2_SCL

RX1_0-

U5008 NC/RClamp0524P.TCT

IN1

1

IN2

2

GND

3

IN3

4

IN45OUT4

6

OUT3

7

GND

8

OUT2

9

OUT1

10

DV33_TMDS

R5050

470K 1/16W 5%

R5073

NC/4.7K1/16W

C5007 100N 16V

R5028

33R 1/16W 5%

R5068

NC/3.3K 1/16W

R5064

1K 1/16W 5%

R5037470K 1/16W 5%

R5015 0R05 1/10W

R5003

0R05 1/10W

RP5001

NC/0OHM 1/16W

1

2

3

4

8

7

6

5

R5070 0R05 1/16W

R5043

NC/4.7K1/16W

HDMI_SW_HPD

R5019 100R 1/16W 5%

R5051

NC/0R05 1/16W

SMD/0402

R5059

100K 1/16W 5%

PWR5V_3

U5013 NC/RClamp0524P.TCT

IN1

1

IN2

2

GND

3

IN3

4

IN45OUT4

6

OUT3

7

GND

8

OUT2

9

OUT1

10

RX3_1-

RX3_1+

RX3_2-

RX3_2+

CEC_3

RX3_C-

RX3_C+

RX3_0-

C5018

100N 16V

GPIO 27

R5024

47K 1/10W

HPD3

HDMI SWITCH

HPLUGP3_5V

U4001G

MT5366ZVGG

PWR5V

AD6

HDMI_CEC

AB6

HDMI_HPD

AC6

HDMI_SCL

AC5

HDMI_SDA

AB5

AVDD33_HDMI

AE1

AVDD12_HDMI

AA6

AVSS33_HDMI

AC4

RX_0

AE3

RX_0B

AD3

RX_1

AE4

RX_1B

AD4

RX_2

AE5

RX_2B

AD5

RX_C

AE2

RX_CB

AD2

R5020 100R 1/16W 5%

HDMI3_SDA

HDMI3_SCL

D5007 BAS316

A1K

2

L

MT5366

EDID_WEN

U5009 NC/RClamp0524P.TCT

IN1

1

IN2

2

GND

3

IN3

4

IN45OUT4

6

OUT3

7

GND

8

OUT2

9

OUT1

10

SMD/0402

HDMI3_SCL

C5009 100N 16V

EDID_WEN: write_enable: High write_disable: Low

SMD/0402

HDMI3_SDA

C5005 100N 16V

R5030

4K7 1/16W 5%

PWR5V_2

SDA_2

SCL_2

CEC_2

R5054 100R 1/16W 5%

RX2_1-

R5052 100R 1/16W 5%

RX2_2+ RX2_2-

RX2_1+

FB5005 600R/500mA

1 2

SIDE HDMI

SIDE HDMI ESD PROTECTER

RX2_0+ RX2_0-

SCL_2

CEC_2

RX3_C+

U5005 NC/RClamp0524P.TCT

IN1

1

IN2

2

GND

3

IN3

4

IN45OUT4

6

OUT3

7

GND

8

OUT2

9

OUT1

10

RX2_1-

R5065

10K 1/10W 5%

RX2_2+ RX2_2-

RX2_1+

R5080

NC/0R05 1/16W

RX2_0+ RX2_0-

SDA_2

RX2_C+ RX2_C-

R5061

4K7 1/16W 5%

RX2_C-

PWR5V_2

RX2_C+

U5014 NC/RClamp0524P.TCT

IN1

1

IN2

2

GND

3

IN3

4

IN45OUT4

6

OUT3

7

GND

8

OUT2

9

OUT1

10

SDA_3

SCL_3

CEC_1

PWR5V_1

R5018 0R05 1/10W

HDMI 1 ESD PROTECTER

SCL_1

SDA_1

SCL_1

SDA_1

PWR5V_1

R5010

0R05 1/16W

HDMI 1/Support ARC

ZD5004NC/PDZ24B

12

RX1_2+

Analog Power

RX1_1-

RX1_1+

RX1_2-

CN5003

HDMI

SHLD0

20

SHLD1

21

TMDSD2+

1

DSHLD0

2

TMDSD2-

3

TMDSD1+

4

DSHLD1

5

TMDSD1-

6

TMDSD0+

7

DSHLD2

8

TMDSD0-

9

TMDSC+

10

CSHLD0

11

TMDSC-

12

CEC

13

NC

14

SCL

15

SDA

16

DDC_GND

17

VCC5

18

HPD

19

SHLD2

22

SHLD3

23

CEC_1

R5056 100R 1/16W 5%

HDMI_SW_CTRL1

SCL_1

C5013

100N 16V

RX1_1-

RX1_1+

RX1_2-

RX1_2+

SDA_1

Q5006 BC847C

RX1_C+

RX1_0-

RX1_0+

D5006BAS316

A

1

K

2

RX1_C-

Q5003 BC847C

R5035

47K 1/10W

C5004 100N 16V

R5081

NC/0R05 1/16W

ZD5002NC/PDZ24B

12

R5067

NC/3.3K 1/16W

RX1_0-

RX1_0+

RX1_C-

RX1_C+

CN5004

HDMI

TMDSD0+

7

TMDSD0-

9

TMDSD1+

4

TMDSD1-

6

TMDSD2+

1

TMDSD2-

3

SCL

15

DSHLD1

5

VCC5

18

CSHLD0

11

HPD

19

NC

14

DSHLD0

2

CEC

13

SDA

16

DDC_GND

17

DSHLD2

8

TMDSC+

10

TMDSC-

12

SHLD_GND1

20

SHLD_GND2

21

SHLD1

22

SHLD2

23

SHLD3

24

SHLD4

25

SHLD5

26

R5013 10K 1/16W 5%

D5011

BAS316

A1K

2

R5041

4.7K 1/10W

Q5007 BC847C

R5022

10K 1/10W 5%

C5015100N 16V

R5004

NC/2.2K1/16W

U5016 NC/RClamp0524P.TCT

IN1

1

IN2

2

GND

3

IN3

4

IN45OUT4

6

OUT3

7

GND

8

OUT2

9

OUT1

10

R5029

4K7 1/16W 5%

R5017

0R05 1/10W

FB5006 600R/500mA

1 2

D5003

BAS316

A

1

K

2

ZD5003NC/PDZ24B

12

FB5002

120R/3000mA

1 2

R5009

NC/4.7K1/16W

R5039

1K 1/16W 5%

R50441K 1/16W 5%

R5012 10K 1/16W 5%

U5007

M24C02-WDW6P

E0

1

E1

2

E2

3

VSS4SDA

5

SCL

6

WC

7

VCC

8

R5005

4.02K 1%

RX2_1+ M_RX1_1

R5034

10K 1/10W 5%

RX2_1- M_RX1_1B

R5069

NC/3.3K 1/16W

R5046

33R 1/16W 5%

R5072

4K7 1/16W 5%

R5032 100R 1/16W 5%

R5045

100R 1/16W 5%

D5005 BAS316

A1K

2

R5021

NC/0R05 1/16W

R5008

0R05 1/16W

CN5002

HDMI

TMDSD0+

7

TMDSD0-

9

TMDSD1+

4

TMDSD1-

6

TMDSD2+

1

TMDSD2-

3

SCL

15

DSHLD1

5

VCC5

18

CSHLD0

11

HPD

19

NC

14

DSHLD0

2

CEC

13

SDA

16

DDC_GND

17

DSHLD2

8

TMDSC+

10

TMDSC-

12

SHLD_GND1

20

SHLD_GND2

21

SHLD1

22

SHLD2

23

SHLD3

24

SHLD4

25

SHLD5

26

PWR5V_1

FB5004 600R/500mA

1 2

RX1_1-

R5057 100R 1/16W 5%

R5047

47K 1/10W

H

R5016

27K 1/10W 5%

M_RX1_2

SDA_2

SCL_2

TMDS361BPAGR

U5003

SDA3

1

SCL3

2

GND

3

CLK-_3

4

CLK+_3

5

VCC

6

D0-_3

7

D0+_3

8

GND

9

D1-_3

10

D1+_3

11

VCC

12

D2-_3

13

D2+_3

14

GND

15

VSadj

16

D2+_SINK17D2-_SINK18VCC19D1+_SINK20D1-_SINK21GND22D0+_SINK23D0-_SINK24VCC25CLK+_SINK26CLK-_SINK27GND28SCL_SINK29SDA_SINK30HPD_SINK31S1/SCL

32

S2/SDA

33

I2C_SEL

34

HPD1

35

SDA1

36

SCL1

37

CLK-_1

38

CLK+_1

39

VCC

40

D0-_1

41

D0+_1

42

GND

43

D1-_1

44

D1+_1

45

VCC

46

D2-_1

47

D2+_1

48

LP

49

HPD2

50

SDA2

51

SCL2

52

CLK-_2

53

CLK+_2

54

VCC

55

D0-_2

56

D0+_2

57

GND

58

D1-_2

59

D1+_2

60

VCC

61

D2-_2

62

D2+_2

63

HPD3

64

R5071

0R05 1/16W

D5009BAS316

A

1

K

2

C5010

1UF16V

D5004 BAS316

A1K

2

C5008 100N 16V

R5025470K 1/16W 5%

C5003 100N 16V

R5011 NC/100OHM1/16W

U5004 NC/RClamp0524P.TCT

IN1

1

IN2

2

GND

3

IN3

4

IN45OUT4

6

OUT3

7

GND

8

OUT2

9

OUT1

10

C5016

100N 16V

ZD5001 NC/BZX384-C5V6

1 2

Q5004 BC847C

R5040

33R 1/16W 5%

R5053

47K 1/10W

R5007

NC/4.7K1/16W

D5002

NC/BAT54C

132

R5002

0R05 1/10W

R5048

4K7 1/16W 5%

GPIO 11

R5066

1K 1/16W 5%

R5082

NC/0R05 1/16W

R5033

NC/0R05 1/16W

C5014100N 16V

C5012

100N 16V

U5006 NC/RClamp0524P.TCT

IN1

1

IN2

2

GND

3

IN3

4

IN45OUT4

6

OUT3

7

GND

8

OUT2

9

OUT1

10

D5012BAS316

A

1

K

2

R5027

1K 1/16W 5%

R5036

47K 1/10W

U5011 NC/RClamp0524P.TCT

IN1

1

IN2

2

GND

3

IN3

4

IN45OUT4

6

OUT3

7

GND

8

OUT2

9

OUT1

10

D5010 BAS316

A1K

2

Q5002 BC847C

R5060

82R 1/16W 5%

Q5005 BC847C

M_RX1_1B

AVDD12_HDMI

AVDD33_HDMI

R50381K 1/16W 5%

M_RX1_0 M_RX1_1

M_RX1_2B

M_RX1_2

M_RX1_CB

M_RX1_C

R5058

180ohm 1/16W +/-5%

M_RX1_0B

R50261K 1/16W 5%

HDMI_CEC

FB5003

NC/120R/3000mA

1 2

HDMI_SW_SDA

HDMI_SW_SCL

R5006 NC/100OHM1/16W

R5049

4K7 1/16W 5%

R5055 100R 1/16W 5%

C5006 100N 16V

U5012

M24C02-WDW6P

E0

1

E1

2

E2

3

VSS4SDA

5

SCL

6

WC

7

VCC

8

R5014 4K7 1/16W 5%

U5015

74LVC1G125GV

24

5

1

3

R5031 100R 1/16W 5%

C5002

NC/10UF 10V

C5017

1UF 10V

C5011 100N 16V

R5042

4K7 1/16W 5%

AVDD1V2

DVDD3V3

AVDD3V3

HPLUGP2_5V

+5V_SW

DV33_TMDS

3V3SB

AVDD3V3

HPLUGP1_5V

AVDD3V3

+5V_SW

DV33_TMDS

Circuit Diagrams and PWB Layouts

EN 63TPM9.3HE LA 10.

2012-Sep-28

back to

div. table

10-2-14 DVB T/C Demodulator MT5135

19270_517_120409.eps

120410

D VB T/C Demodulator MT5135

B14 B14

2011-12-19

1

715G5430

DVB T/C

Demodulator MT5135

XTALO

XTALI

TP

TN

DEMOD_RST

M_CI_OUTDATA4M_CI_INDATA6

CI_VS1#

M_CI_OUTDATA2

CI_WE#

CI_D4

M_CI_INCLK

CI_INCLK

M_CI_OUTCLK

CI_A11

M_CI_OUTDATA2

M_CI_INDATA5

M_CI_INDATA4

M_CI_INDATA3

M_CI_INDATA1 M_CI_INDATA2

M_CI_INDATA6

M_CI_INVALID

M_CI_OUTDATA1

M_CI_OUTSYNC M_CI_OUTDATA0

M_CI_OUTVALID

M_CI_INDATA7

M_CI_OUTDATA3

CI_OUTSYNC CI_OUTDATA1

CI_OUTDATA0 CI_OUTDATA2

CI_OUTVALID

CI_INDATA1

CI_OUTDATA0

CI_INDATA2

CI_A8

CI_D7

CI_INDATA6 CI_INDATA7

CI_INDATA2

CI_OUTDATA3

CI_IOWR#

CI_INVALID

CI_INDATA5

CI_CE1#

CI_INDATA3

CI_A13

CI_OUTDATA6

CI_INDATA4

CI_A14

CI_VS1#

CI_INDATA0

CI_INDATA3

CI_OUTDATA2

CI_REG#

CI_INVALID

CI_OUTCLK

CI_OUTSYNC

CI_INDATA7

CI_A10

CI_INDATA6

M_CI_INCLK

M_CI_INSYNC

M_CI_OUTDATA1

CI_A12

CI_OUTDATA3

CI_A7 CI_A6

M_CI_OUTDATA3

CI_D0 CI_D1

CI_A2 CI_A1

CI_A3

CI_D2

CI_A0

CI_A5

M_CI_OUTDATA6

CI_A4

CI_OUTDATA4

CI_INSYNC

CI_D3

CI_INCLK

CI_WE#

CI_OE#

CI_D4

CI_IORD#

CI_OUTDATA7

CI_OUTDATA1

CI_A11

CI_D5

CI_OUTDATA4

CI_IREQ#

CI_INDATA1

CI_OUTVALID

M_CI_INDATA0

CI_OUTDATA5

CI_CD1#

CI_WAIT#

CI_CD2#

CI_A9

CI_D6

CI_OUTDATA6

M_CI_INDATA0

CI_CE2#

CI_RESET

CI_OUTDATA5 CI_OUTDATA7

M_CI_OUTDATA6

M_CI_OUTDATA7

CI_INSYNC CI_INDATA0

M_CI_OUTDATA4 M_CI_OUTDATA5

CI_INDATA5

CI_INDATA4

CI_OUTCLK

CI_A3

CI_D3

CI_A10

M_CI_INDATA2

M_CI_OUTDATA0

PAD_CHIP_CTRL

CI_CD1#

CI_A4

CI_CD1#

CI_VS1#

CI_IREQ#

CI_CD2#

CI_WAIT# CI_OUTCLK

CI_CE2#

CI_A0

CI_OE#

CI_PWR_EN

CI_WAIT#

CI_A8

M_CI_OUTSYNC

CI_D6

M_CI_OUTCLK

CI_CE1#

CI_A14

CI_A5

CI_A1

CI_IOWR#

CI_RESET

PIN13

CI_A6

CI_CD2#

M_CI_INSYNC

M_CI_OUTDATA5

M_CI_INDATA4

CI_IREQ#

M_CI_OUTVALID

M_CI_INDATA1

M_CI_OUTDATA7

M_CI_INDATA5

CI_A7

CI_D2

M_CI_INDATA3

XTALO

5366_XTALI XTALI

5366_XTALO

DEMOD_RST

SPI_CLE

SPI_CLK SPI_DATA

DEMOD_TSDATA0

DEMOD_TSSYNC

DEMOD_TSVAL

CI_INT

SPI_CLE SPI_CLK

SPI_DATA

DEMOD_TSDATA0 DEMOD_TSSYNC DEMOD_TSVAL DEMOD_TSCLK

CI_A2

5135_REFCLKM5366_XTALO 5135_REFCLKP5366_XTALI

CI_PWR_EN CI_OCP

CI_INT

DEMOD_TSCLK

CI_OCP

Parallel_TSDATA6

Parallel_TSDATA7

Parallel_TSDATA1

Parallel_TSDATA3

DEMOD_RST

Parallel_TSCLK

Parallel_TSSYNC

Parallel_TSVALID

Parallel_TSDATA0

Parallel_TSDATA2

Parallel_TSDATA4

Parallel_TSDATA5

Parallel_TSDATA4

Parallel_TSSYNC

Parallel_TSVALID

Parallel_TSDATA2

Parallel_TSDATA1

Parallel_TSDATA0

Parallel_TSDATA3

Parallel_TSCLK

T/C/T2_TUNER_SCL

MT5135AD-

MT5135AD+

MT5135AD-

MT5135AD+

Parallel_TSDATA7

Parallel_TSDATA6

Parallel_TSDATA5

RSSI

RF_AGC_T

T/C/T2_TUNER_SCL

T/C/T2_TUNER_SDA

5135_SDA

5135_SCL

T/C/T2_TUNER_SDA

PIN49

PIN72

PIN82

PIN90

PIN112

PIN109

RF_AGC_T

PIN49

PIN13

PIN39

PIN72

PIN90

PIN112

PIN39

PIN109

PIN82

C1095

100N 16V

R1166

0R05 1/10W

R1116 22R 1/16W 5%

R1228 0R05 1/16W

C1109

10UF 10V

M_CI_INDATA7

PAD _SPI_CLE1PAD _SPI_DATA2PAD _SPI_CLK3PAD_PVR_TS_DATA14PAD_PVR_TS_DATA0(TS_ERR)5PAD_PVR_TS_SYNC(TS_DATA7)6PAD_PVR_TS_VAL(TS_DATA6)7PAD_PVR_TS_CLK(TS_DATA5)8PAD_CI_TS_DATA0(TS_DATA4)9PAD_CI_TS_SYNC(TS_DATA3)10PAD_CI_TS_VAL(TS_DATA2)11PAD_CI_TS_CLK(TS_DATA1)12DGND3313DVDD3314PAD_DEMOD_TS_DATA0(TS_DATA0)15PAD_DEMOD_TS_SYNC(TS_SYNC)16PAD_DEMOD_TS_VAL(TS_VAL)17PAD_DEMOD_TS_CLK(TS_CLK)18PAD_MT5135_RST19DVDD1020AVDD12_PLL21AVDD33_RSSI22PAD_ADIN023AVSS33_RSSI24PAD _T N25PAD _T P26AVDD33_DEMOD_327AVSS33_DEMOD_328PAD_XTALI29AVSS33_XTAL30PAD_XTALO31AVDD33_XTAL

32

PAD_TUNER_DATA

41

PAD_TUNER_CLK

42

PAD_IF_AGC

43

PAD_RF_AGC

44

PAD_S2_TS_CLK

45

PPAD_S2_TS_SYNC

46

AD_S2_TS_VAL

47

PAD_S2_TS_DATA0

48

DGND33

49

DVDD33

50

PAD_S2_TS_DATA1

51

PAD_S2_TS_DATA2

52

PAD_S2_TS_DATA3

53

PAD_S2_TS_DATA4

54

PAD_S2_TS_DATA5

55

PAD_S2_TS_DATA6

56

PAD_S2_TS_DATA7

57

PAD_CHIP_CTRL

58

PAD_CD1_

59

PAD_D3

60

PAD_D11

61

PAD_D4

62

PAD_D12

63

PAD_D5

64

PAD_D13

65

PAD_D6

66

PAD_D14

67

PAD_D7

68

PAD_D15

69

PAD_CE1_

70

DVDD33

71

DGND33

72

PAD_A10

73

PAD _V S1_

74

PAD_OE_

75

PAD_IORD_

76

PAD_A11

77

PAD_IOWR_

78

PAD_A9

79

PAD_A17

80

PAD _A 8

81

DGND10

82

DVDD10

83

PAD_A1884PAD_A1385PAD_A1986PAD_A1487PAD_A20

88

DVDD33

89

DGND33

90

PAD_WE_

91

PAD_A21

92

PAD_READY

93

PAD_A2294PAD_A1695PAD_A23

96

PAD_A15

97

PAD_A24

98

PAD_A12

99

PAD_A25

100

PAD_A7

101

PAD_VS2_

102

PAD_A6

103

PAD_PCMCIA_RESET

104

DVDD10

113

PAD_A2

114

PAD_BVD2

115

PAD_A1

116

PAD_BVD1

117

PAD_A0

118

PAD_D8

119

PAD_D0

120

PAD_D9

121

PAD_D1

122

PAD_D10

123

PAD_D2

124

PAD_CD2_

125

PAD_CI_INT

126

DGND33

127

DVDD33

128

PAD_EXT_CLKSEL

33

AVSS12_DEMOD_3

34

PAD_IFPGA_INN

35

PAD_IFPGA_INP

36

AVDD12_DEMOD

37

AVDD33_IFPGA

38

AVSS10_5

39

DVDD10

40

PAD_A5

105

PAD_WAIT_

106

PAD_A4

107

PAD_A3

108

DGND33

109

DVDD33

110

PAD_REG_

111

DGND10

112

U1005

MT5135AE

CI_D1

R1131 22R 1/16W 5%

C1185 NC/100N 16V

R1120 22R 1/16W 5%

C1196 NC/100N 16V

R1164

0R05 1/10W

R1148

4K7 1/16W 5%

1

2

3

4

X1001

NC/27MHz

C1078100N 16V

R1129

4K7 1/10W 5%

C1195 NC/100N 16V

C1072

100N 50V

R1218 0R05 1/16W

C1089

NC/10uF 16V

R1145

47R 1/16W 5%

R1117 22R 1/16W 5%

R1219 NC/0R05 1/16W

R1139 22R 1/16W 5%

R1124 22R 1/16W 5%

C1075

NC/10pF 50V

TP1001

TP

R1109 NC/10K 1/16W 5%

R1157 0R05 1/16W

R1214 NC/0R05 1/16W

R1132

NC/4K7 1/10W 5%

R1114 22R 1/16W 5%

C1098

NC/10uF 16V

R1144

0R05 1/16W

C1105

100N 50V

R1107 10K 1/16W 5%

R1134 22R 1/16W 5%

C1103

100N 50V

C1081

10PF 50V

C1071

100N 50V

R1216 0R05 1/16W

C1096

NC/10uF 16V

R1111

10K 1/16W 5%

R1227 0R05 1/16W

C107910UF 10V

A15

20

A16

19

CE1#

7

OE#

9

WE#

15

READY#:IREQ#

16

GND

1

GND

34

D0

30

D1

31

D2

32

D3

2

D4

3

D5

4

D6

5

D7

6

A0

29

A1

28

A2

27

A3

26

A4

25

A5

24

A6

23

A7

22

A8

12

A9

11

A10

8

A11

10

A12

21

A13

13

A14

14

WP#

33

VPP1

18

VCC

17

GND

68

CD2#

67

D10

66

D9

65

D8

64

BVD1#:STSCHG

63

BVD2#:SPKR

62

GND

35

CD1#

36

D11

37

D12

38

D13

39

D14

40

D15

41

CE2#

42

VS1#

43

IORD#

44

IOWR#

45

A17

46

A18

47

A19

48

A20

49

A21

50

VCC

51

VPP2

52

A22

53

A23

54

A24

55

A25

56

VS2#

57

RESET

58

WAIT#

59

INPACK

60

REG#

61

69697070717172

72

PCMCIA

CN1007

PCMICA CARD

TP1003

TP

R1160

0R05 1/10W

R1140 22R 1/16W 5%

C1099

100N 16V

R1146

47R 1/16W 5%

R1137 22R 1/16W 5%

C1092

100N 16V

R1142 22R 1/16W 5%

C1087

100N 16V

C1104

100N 50V

R1225 0R05 1/16W

R1217 NC/0R05 1/16W

R1130

0R05 1/16W

C1084

100N 16V

C1093

100N 16V

C1077

10UF 10V

R1230 0R05 1/16W

R1150

10K 1/16W 5%

R1121 22R 1/16W 5%

R1212 NC/0R05 1/16W

C1090

100N 16V

C1200 NC/100N 16V

C1201 NC/100N 16V

OUT

1

GND

2

OC3EN

4

IN

5

U1006

G5250M1T1U

R1149

4K7 1/16W 5%

R1115 22R 1/16W 5%

C1106

100N 50V

C1088

100N 16V

C1091

NC/10uF 16V

1 2

FB1015

220R/2000mA

R1153

7M5

R1221 0R05 1/16W

R1159 0R05 1/16W

R1161

0R05 1/10W

R1122

NC/10K 1/16W 5%

R1138 22R 1/16W 5%

C1102

100N 50V

R1158 0R05 1/16W

R1106

10K 1/16W 5%

R1110 10K 1/16W 5%R1105

10K 1/16W 5%

123

4

876

5

RP1002

47 OHM 1/16W 5%

C1085

100N 16V

C1094

NC/10uF 16V

C1097

100N 16V

R1123 22R 1/16W 5%

R1135 22R 1/16W 5%

R1113

4K7 1/10W 5%

C1194 NC/100N 16V

R1118 22R 1/16W 5%

R1163

0R05 1/10W

R1156

0R05 1/10W

R1226 NC/0R05 1/16W

C1086

100N 16V

R1224 NC/0R05 1/16W

R1213 0R05 1/16W

R1162

0R05 1/10W

R1119 22R 1/16W 5%

R1128

47R 1/16W 5%

C1083

100N 16V

C1082

NC/10uF 16V

R1125

10K 1/16W 5%

R1152

10M

C1076

NC/10pF 50V

R1151

0R05 1/16W

R1136 22R 1/16W 5%

R1141

51R 1%

R1143 22R 1/16W 5%

R1108 10K 1/16W 5%

R1133

51R 1%

CI2_VCC CI2_VCC

CI2_VCC

5135_DV33

5135_DV335135_DV33

5135_DV33

CI2_VCC

5135_DV10

5135_DV33

AVDD33_4

5135_DV33

5135_DV10

5135_AV12

AVDD1V2

DVDD3V3

5135_DV33

AVDD33_2

AVDD33_3

CI_REG#

5135_AV12

5135_DV10

5135_AV12

AVDD33_1

AVDD33_3

5135_DV10

AVDD33_3

AVDD33_2

AVDD33_1

AVDD33_4

CI2_VCC

DVDD3V3

+5V_SW

5135_DV10

VCCK

5135_DV33

DEMOD_TSCLK 13

SPI_CLK 13

GND 2,3,4,5,6,7,8,9,10,11,12,13,14,16,17

5135_DV33

SPI_CLE 13

SPI_DATA 13

DEMOD_TSDATA0 13

DEMOD_TSSYNC 13

DEMOD_TSVAL 13

Parallel_TSCLK17

5135_REFCLKP 8

5135_REFCLKM 8

DEMOD_RST13

CI_INT 13

Parallel_TSDATA317

Parallel_TSDATA217

Parallel_TSDATA117

Parallel_TSDATA017

Parallel_TSSYNC17

Parallel_TSVALID17

MT5135AD- 16

Parallel_TSDATA717

Parallel_TSDATA617

Parallel_TSDATA517

Parallel_TSDATA417

CI_IORD#

CI_A9

RF_AGC_T 16

T/C/T2_TUNER_SCL16,17

T/C/T2_TUNER_SDA16,17

MT5135AD+ 16

Should be 50ohm

CI Interface

GPIO

CI Bus Power Control

Function 1 (Internal CI) CI Interface

PCMCIA 5V Slot

DEMODULATOR 27MHz Crystal

DEMODULATOR MT5135/MT5136 Co-layout

Close to MT5366

ANALOG POWER 5135_DV10 form VCCK

Should be 50ohm

(65mVr)

(0mVr)

(10.8mVr)

(26.8mVr)

CI_A12

CI_D5

CI_D0

CI_A13

CI_D7

M_CI_INVALID

Circuit Diagrams and PWB Layouts

EN 64TPM9.3HE LA 10.

2012-Sep-28

back to

div. table

10-2-15 Tuner

19270_518_120409.eps

120410

Tuner

B15 B15

2011-12-19

1

715G5430

Tuner

GPIO 7

T2_AINP T2_AINN

LNA_ON/OFF

TU_FAT_IN2-

TU_FAT_IN2+

T/C/T2_TUNER_SDA

MT5135AD-

MT5135AD+

T/C/T2_TUNER_SCL

IF_AGC

RF_AGC_H

RF_AGC_Control RF_AGC_T

T2_RFAGC

T2_IFAGC

R1193

0R05 1/16W

AGC:OFF(analog), ON(digital)

R1198

51R 1%

C1162

47nF 16V

R1244

0R05 1/10W

U1000

NC/G552B1TA1U

VOUT

1

GND

2

FLAG

3

ON/ON

4

VIN

5

C1161

47nF 16V

C1513

100N 16V

R1201

NC/150R 1/16W 1%

R1188

0R05 1/10W

C1163

470nF 16V

R1182

100R 1/10W 5%

L1001

NC/0.22UH

L1500 NC/0.33uH 10%

R1185

10K 1/16W 5%

C1159

100N 50V

C1165

NC/220pF 50V

C1174

NC/10N 50V

R1192

51R 1%

R1184

10K 1/16W 5%

R1199

NC/49.9 OHM 1/16W 1%

L1008

NC/0.12UH

R1222

0R05 1/10W

R1202

NC/49.9 OHM 1/16W 1%

C1175

NC/10N 50V

C1203

33pF 50V

C1507

100N 16V

FB1034

120R/600mA

1 2

R1183

100R 1/10W 5%

Q1501 2N7002

C1157

39P 50V

R1187

10K 1/16W 5%

R1506

22R 1/16W 5%

R1203

NC/0R05 1/16W

Q1500 2N7002

R1181

4K7 1/10W 5%

t

TH1300 NC/PTCR

1 2

C1167

10N 50V

C1171

10N 50V

R1223

0R05 1/10W

C1160

10UF 10V

R1528 NC/270R 1/16W 5%

C1172

NC/220pF 50V

R1505

33R 1/16W 5%

C1173 NC/5P6 50V

R1245

0R05 1/10W

R1502 NC/0R05 1/16W

R1191

0R05 1/16W

R1507

33R 1/16W 5%

C1158

39P 50V

C1170

10N 50V

R1215NC/4K7 1/16W 5%

R1200

NC/0R05 1/16W

R1501 NC/0R05 1/16W

C1164

NC/5P6 50V

R1508

22R 1/16W 5%

L1006

NC/0.12UH

R1254

NC/0R05 1/16W

C1168

NC/220pF 50V

R1197

0R05 1/16W

C1169

NC/220pF 50V

C1186

NC/1NF 50V

R1220

NC/0R05 1/16W

C1188

NC/100N16V

R1194

NC/0R05 1/16W

C1509 NC/56pF 50V

FB1037

NC/120R/3000mA

1 2

R1180

4K7 1/10W 5%

C1166

10N 50V

C1511

100N 16V

Q1001

NC/BC857C

1

23

C1189NC/100N16V

C1187

NC/100N16V

TU1002NC/TDTK-G731D

N/C

1

N/C(P3)

2

N/C

3

RF AGC

4

+B(5V)

5

SDA

6

SCL

7

N/C

8

N/C

9

DIF(+)

10

DIF(-)

11

TH1

12

TH2

13

TH3

14

TH4

15

C1508

100N 16V

R1186

NC/100K 1/16W 5%

+5V_TUNER

DVDD3V3

+5V_TUNER

T2_AINP17

LNA_ON/OFF 13

T/C/T2_TUNER_SCL15,17

T/C/T2_TUNER_SDA15,17

T2_AINN17

GND 2,3,4,5,6,7,8,9,10,11,12,13,14,15,17

RF_AGC_H 8

IF_AGC 8

RF_AGC_T 15

MT5135AD+ 15

MT5135AD- 15

T2_IFAGC17

TU_FAT_IN2- 8

TU_FAT_IN2+ 8

RF_AGC_Control 13

T2_RFAGC17

NC = not connected for SAWless tuner

For T/C/T2 tuner with saw, ATV control by IF_AGC from 5366, DTV control by T2_IFAGC from MN88472

R1195

0R05 1/16W

C1202

33pF 50V

DIF1_OUT2

+5V_VCC

IF_AGCT

I2C

From MT5366

MT5135AD-

MT5135AD+

DIF1_OUT1

DIF1_OUT1 TU_FAT_IN2-

TU_FAT_IN2+

RF_AGC_H

From MT5135

RF_AGC_T

TUNER_DATA

DVB-T/C: Panasonic ENV57U09D5F(094GPASEALL17M) DVB-T2: Panasonic ENV57U04D8F(094GPASEALL15M)

DVB-T2: LG TDTK-G631D

DVB-T/C: LG TDTK-G731D

From MN88472 for DVB-T/C/T2

+5V_VCC

Tuner

DIF

L1007

NC/0.22UH

LNA(LG tuner)

To MT5366

To MT5135

RF_AGC_T

+5V_ANT

DVB-T/C/T2 TUNER CIRCUIT

DIF1_OUT1

DIF1_OUT2

SMD/0402

IF BPF for T2

SMD/0402

DIF1_OUT2

SMD/0402

TUN_INP

TUN_INN T2_AINN

T2_AINP

SMD/0402

RF_AGC_Control

FROM MN88472 or MT5135

T/C/T2_TUNER_SCL

TUNER I2C level shift

TUNER_CLK

TUNER_DATA

SMD/0402

T/C/T2_TUNER_SDA

SMD/0402

IF_AGC

Current Limit Switch

GND

TT_SDA

TT_SCL

TT_SDA

TUNER_CLK

LNA_ON/OFF

LNA_CONTROL

From MT5366

RF_AGC_S

For LG T2 support (W/ SAW), the IF_AGC is connected.

T2_RFAGC

From MN88472

TT_SCL

RF AGC

AGC:ON (analog), OFF(digital)

LNA_CONTROL

+5V_ANT

NC

GPIO_34

IF AGC (Panasonic tuner)

GPIO_6

R1190

100K 1/16W 5%

Q1002

BC857C

1

23

T2_IFAGC

RF_AGC_Control

GPIO_6

Circuit Diagrams and PWB Layouts

EN 65TPM9.3HE LA 10.

2012-Sep-28

back to

div. table

10-2-16 DVB T2 Demodulator MN88472

19270_519_120409.eps

120410

D VB T2 Demodulator MN88472

B16 B16

2011-12-19

1

715G5430

DVB T2 Demodulate

MN88472

Regulator for 1A output Current

ANALOG POWER 1V2 form AVDD3V3

C1515 1uF 16V

CSEL0

SMD/0402

Parallel_TSCLK

AGC_R

T2_RFAGC

SMD/0402

Parallel_TSDATA2

Parallel_TSDATA1

Parallel_TSDATA0

Parallel_TSDATA3

Parallel_TSDATA7

Parallel_TSDATA6

Parallel_TSDATA5

Parallel_TSDATA4

Parallel_TSSYNC

Parallel_TSVALID

SMD/0402

T2_TSCLK

SMD/0402

3V3_IO

SMD/0402

SMD/0402SMD/0402 SMD/0402

DVB-T2 parallel TS to MT5135

88471_INT

SMD/0402

88471_INT

T2_TSVALID

T2_RESET

OSCL2 OSDA2

SMD/0402

T2_TUNER_SDA

1V2

SMD/0402 SMD/0402

T2_AINN

SMD/0402

3V3_LM

T2_AINP

SMD/0402

T2_TSSYNC

SMD/0402

AGC_I

SMD/0402

T2_OXTALI

T2_IFAGC AGC_I

T2_TUNER_SCL

3V3_IO

T2_IFAGC

Parallel_TSSYNC

1V2

OSDA2

OSCL2

T2_AINN

T2_AINP

1V2

88471_TEST3

1V2

Demodulator I2C

T2_TSVALID

3V3_IO

T2_TSSYNC

88471_SADR

T2_TSDAT A1

T2_TSDAT A0

T2_TSCLK

T2_OXTALOT2_OXTALI

T2_TSDAT A2

T2_TSDAT A4 T2_TSDAT A3

SMD/0402

T2_TSDAT A6

T2_TSDAT A5

1V2

88471_SADR

T/C/T2_TUNER_SDA

T2_TSDAT A7

T/C/T2_TUNER_SCL

T2_DEMOD_SDA T2_DEMOD_SCL

1V2

SMD/0402

AGC_R

T2_TSDATA1

T2_TSDATA0

Parallel_TSDATA3

T2_OXTALO

3V3_AD

T2_RFAGC

Parallel_TSDATA1

Parallel_TSDATA0

T2_TSDATA3

T2_TSDATA2

Parallel_TSVALID

Parallel_TSDATA2

SMD/0402

3V3_IO

1V2

T2_DEMOD_SDA

T2_TUNER_SDA

T2_TUNER_SCL

1V2

T2_DEMOD_SCL

T/C/T2_TUNER_SDA T/C/T2_TUNER_SCL

SMD/0402

Parallel_TSCLK

1V2

From MT5366

I2C to TUNER

T2_TSDATA4

88471_TEST3

Parallel_TSDATA5

Parallel_TSDATA4

T2_TSDATA7Parallel_TSDATA7

T2_TSDATA6

T2_TSDATA5

SMD/0402

Parallel_TSDATA6

SMD/0402

3V3_LM

T2_RESET

SMD/0402

R1512 NC/4K7 1/10W 5%

C1537 10UF 10V

R1520 4K7 1/10W 5%

R1518

0R05 1/16W

R1511 NC/4K7 1/10W 5%

RP1500

47 OHM 1/16W 5%

1 2

3

4

8

7 6 5

C1531 10N 50V

R1510

10K 1/16W 5%

C1544

NC/10PF 50V

C1546

100N 16V

C1523 100N 16V

R1269

0R05 1/10W

R1526 0R05 1/16W

U1007

G1117T63Uf

VIN

3

GND

1

VOUT

2

TH

4

C1521 100N 16V

R1515 NC/4K7 1/16W 5%

C1542

NC/10PF 50V

R1522

0R05 1/10W

C1543

10N 50V

C1525 NC/18pF 50V

C1524 NC/18pF 50V

R1531

0R05 4A 1/4W

C1518 100N 16V

R1270

0R05 1/10W

C1535 100N 16V

RP1501

47 OHM 1/16W 5%

1 2

3

4

8

7 6 5

R1532

0R05 4A 1/4W

C1538 100N 16V

C1547

10UF 10V

C1527 1uF 16V

C1540 10N 50V

R1514 4K7 1/10W 5%

C1519 100N 16V

C1504 10N 50V

C1514 NC/100N 16V

R1524 0R05 1/16W

C1529 10N 50V

U1003

MN88472

TSDO3

1

TSDO4

2

TSDO5

3

VSS1

4

TSDO6

5

VDDH1

6

TSDO7

7

VDDL1

8

SADR

9

VSS2

10

SCL

11

SDA

12

VDDL2

13

NRST

14

CSEL0

15

GPO(CSEL1)

16

VSS3

17

INT

18

VDDL3

19

TEST0

20

SHVPP

21

TEST1

22

SHVDDH

23

TEST2

24

VDDL4

25

TEST3

26

VSS4

27

VDDH2

28

XI

29

XO

30

VDDL5

31

VSS5

32

AVSS

33

AIP

34

AIN

35

AVDD

36

VRB

37

VRT

38

IR

39

TCPO

40

XOUT

41

VDDL6

42

MSDA

43

VSS6

44

MSCL

45

VDDL7

46

VDDH3

47

AGCR

48

AGCI49VSS750HDVPP051PCK52DEN53VDDL854TSCK55TSDO056VDDH457HDVDDH58TSDO159VSS860TSDO261HDVPP162VDDL963VSS964E-PAD

65

C1526 100N 16V

C1522 100N 16V

C1541 100N 16V

R1271

0R05 1/10W

R1527 4K7 1/16W 5%

R1529

0R05 OHM

R1521 4K7 1/10W 5%

R1513 4K7 1/10W 5%

C1528 100N 16V

X1500

20.5MHz

1

2 4

3

R1519 10K 1/16W 5%

C1501

10UF 10V

RP1502

47 OHM 1/16W 5%

1 2

3

4

8

7 6 5

C1520 100N 16V

C1516 100N 16V

C1503 10UF 10V

R1530 NC/120R 1% 1/10W

R1516

0R05 1/16W

R1525 0R05 1/16W

R1509

NC/10K 1/16W 5%

C1534 100N 16V

C1532 100N 16V

C1539 100N 16V

C1500

10UF 10V

R1517 4K7 1/16W 5%

C1258

10UF 10V

C1536 100N 16V

R1523

0R05 1/10W

C1533 100N 16V

C1545

10N 50V

3V3_LM

1V2

DVDD3V3

3V3_AD

3V3_LM

DVDD3V3

3V3_IO

DVDD3V3DVDD3V3

3V3_AD

AVDD1V2

DVDD3V3

3V3_IO

DVDD3V3

1V2

AVDD3V3

OSCL24

GND2,3,4,5,6,7,8,9,10,11,12,13,14,15,16

T/C/T2_TUNER_SDA15,16

Parallel_TSCLK15

T2_IFAGC16

T2_RESET13

OSDA24

Parallel_TSDATA015

Parallel_TSSYNC15

Parallel_TSVALID15

Parallel_TSDATA315

Parallel_TSDATA215

Parallel_TSDATA115

Parallel_TSDATA615

Parallel_TSDATA515

Parallel_TSDATA415

T2_RFAGC16 88471_INT13

Parallel_TSDATA715

T2_AINN16

T2_AINP16

T/C/T2_TUNER_SCL15,16

(0mVr)

Circuit Diagrams and PWB Layouts

EN 66TPM9.3HE LA 10.

2012-Sep-28

back to

div. table

10-2-17 SSB layout top

19270_520_120409.eps

120410

2011-12-19

1

715G5430

SSB Layout Top

C1013

C1036

C1037

C4158

C1082

C1089

C1091

C1094

C1096

C1098

C1102

C1103

C1104

C1105

C1106

C1199

C1008

C1157C1158

C4036

C4038

C4042

C4061

C4062

C4066

C4067

C4074

C4147

C5010

C6001

C6008

C6021

C6026

C6041

C6066

C6076

C6082

C6085

C7002

C7012

C6022

C7022

C7023

C7027

C7038

C1163

D5004

D5005

D5006

D5007 D5008

D5012

FB4007

R1002

R1042

R1043

R1064 R1068

R1156

R1210

R1009

R4114

R4001

R4012

R4019

R4023

R4043 R4044

R4045

R4048

R4049

R4053

R4054

R4057

R4058

R4063

R4064

R4067

R4068

R4069

R4070

R4076

R4081

R4082

R4089

R4106 R4107

R4123

R4157

R4168

R4169

R4171

R4172

R4190

R5002

R5003

R5022

R5034

R5035

R5036

R5047

R5053

R5065

R6002

R6085

R6086

R6087

R6078

R7003

R7004

R7005

R7010

R7016 R7019 R7028

R7029

R7031

R4010

TH4001

U4001

X4001

ZD5002

ZD5003

ZD5004

C1527

C4085

C4080

TH4002

C6020

C6003

C7021

C7030

C7004

C7017

C6043

C6014

C7008

C6042

C1164 C1173

R1182

R1183

R1223

R1245

R1520

R1521

R1522 R1523

R1531

R1532

R6027

C6019

C6049

C6069

C6070

C6080

C6068

C6071

C6050

C6044

R1161

R1160

R1162

R1163

R1164

R1166

R1269

R1270

R1271

TH1300

C6052

C6011

R6090

R6089

R6096

C4007

C1258

C1500

C1501

C1503

C1537

C1109

C1160

C1197

C6009

C6016

C7007

C7011

C6051

C6057

C6058

C7031

C7033

C7034

R7020

C4053

L7001

C6103

C6104

C6105

C6106

C6056

C6075

C6081

C6083

C6084

C6086

C6089

C6090

R6097

R6098

R6099

R6100

R4161

R4163

R4173

R4174

D1008

C7037

R4022

ZD1100

ZD1101

TP4002

TP4003

TP4009

TP4024

TP4025

TP7001

TP7002

TP7003

TP7004

TP7005

TP7006

TP7007

MH3

MH4

MH5

MH6

MH8

MH9

R3

HS04HS03

HS01

HS02

HS3

MH1 MH2

C1002

C1010

C1014

C1019

C1022

C1029

C1044

C1045

C1046

C1047

C1050

C1052

C1054

C1055 C1056

C1057

C1058

C1059

C1060

C1061

C1062

C1063

C1064

C1065

C1067

C1069

C1081

C1083

C1084

C1085

C1086

C1087

C1088

C1092

C1093

C1095

C1099

C4083

C1188

C1189

C1190

C1191

C1198

C1172

C1186

C1187

C1203

C1516

C1541

C4006

C4008

C4010

C4011

C4040

C4041

C4044

C4045

C4050

C4051

C4059

C4064

C4132

C4133

C4134

C4135

C4136

C4137

C4138

C4139

C4142

C4143

C4144

C4148

C4149

C4150

C4151

C4152

C4154

C4155

C4156

C5009

C5011

C5013

C5014

C5015

C5016

C5017

C5018

C6002

C6004

C6018

C6031

C6065

C6053

C6032

C6054

C6067

C6077

C6078

C6079

C6060

C6061

C6064

C6098

C6100

C7013

C7015

C7016

C7025

C1194

C7029

CN1001

CN1005

CN1007

CN4002

CN4005

D5002

FB6009

FB4002

FB4003

FB5002

FB5003

FB5004

FB5005

FB6003

FB6004

FB6006

FB7002

FB7003

FB7004

L6003

L6004

Q1008

R1013

R1019

R1023

R1029

R1040

R1050

R1051

R1053

R1054

R1060

R1061

R1063

R1065

R1066

R1071

R1075

R1076

R1078

R1079

R1080 R1081 R1082

R1083

R1084

R1085

R1086

R1087

R1088

R1089

R1090

R1091

R1092

R1094

R1097

R1099

R1101

R1103

R1104

R1110

R1111

R1122

R1146

R1149

R1157

R1215

R1229

R4118

R4003

R4007

R4011

R4013

R4014

R4018

R4024

R4025

R4027

R4028

R4031

R4032

R4033

R4034

R4035

R4036

R4039 R4040 R4041

R4059R4060

R4074

R4075

R4077R4078

R4079

R4080

R4102

R4103

R4154 R4156

R4160

R4162

R4164

R4165

R4166

R4167

R4175

R4177

R4179

R4182

R4183 R4184

R4185

R4186

R4187

R4188

R4189

R4191 R4192

R4209

R4210

R5005

R5006

R5011

R5019

R5020

R5021

R5025

R5026

R5027

R5029

R5031 R5032

R5033 R5037

R5038

R5040

R5042

R5045

R5046

R5051

R5052

R5054 R5055

R5056

R5057

R5058

R5059

R5060

R5064

R5066

R5067

R5068

R5069

R5070

R5071

R6005

R6007

R6012

R6019

R6021

R6022

R6023

R6024

R6029

R6030

R6035

R6036

R6045 R6046

R6058 R6061

R6062

R4211

R7007

R7009

R7011

R7015

R7018

R1527

R7234

RP4001

RP4003

RP4005

RP4007

RP4009

RP4010

RP4011

RP4012

RP4019

RP4020

U4009

U4010

U4011

U5004

U5005U5006

U5008

U5009 U5011

U5013U5014

U5015

U5016

U7002

U7003

U7004

U7005

X4002

HS2

FDT3

CN4012

FB4006

R4113

R4115 R4116

U4012

HS1

U6001

R1224

R1

R2

R4

R5

R6

CN6005

CN4011

C1546

R1198

CN1006

U5003

TU1002

C1165

C1166

C1167

C1168

C1169

C1170

C1171

C1202

C1504

C1518

C1519

C1520

C1521

C1522C1523

C1528

C1529

C1531

C1532

C1533

C1534

C1535

C1536

C1538

RP1500

RP1501

RP1502

FB1037

L1001

L1006

L1007

L1008

R1187

R1191

R1192

R1194

R1197

R1254

R1501

R1502

R1517

Q1500

Q1501

C6062

C6063

R6056

R8

R9

C1195

C1196

C1201

C6038

C6048

C6072

C6073

R1214

R1216

R1217 R1218

R1219

R1221

R1226

R1227

R1228

R1230

R4212

R6026

R6053

R6091

CN4007

C6102

C6087

CN6002

C6088

R6093

R6094

R7017

CN1002

C6055

FDT10

FDT11

CN5003

R5080

R5081

R5082

L6001

L6002

U7006

U7007

R7236

U4004

R1125

CN4001

C6107

C6108

R7237

R7238

U7008

CN7001

CN6003

CN4004

CN4003

R7024

R7027

R7039 R7040

R7041

CN4008

CN5004

CN5002

R1193

R1195

R7042

R7043

Q7008

U4002

U4003

Q4003

Q5002

Q5005

Q5006

Q5007

Q6002

Q7003

Q7006

CN4010

CN6004

CN4009

R4117

Q1104

Q1105

U6002

RP5001

RP5002

Circuit Diagrams and PWB Layouts

EN 67TPM9.3HE LA 10.

back to

div. table

2012-Sep-28

10-2-18 SSB layout bottom

19270_521_120409.eps

120410

2011-12-19

1

715G5430

SSB Layout bottom

C1049

C1053

C1066

C1068

C1071

C1072

C1073

C1077

C1079

C1110

C1547

C1524

C1525

C4023

C4025

C4027

C4028

C4037

C4043

C4046

C4052

C4054

C4063

C4065

C4069

C4071

C4078

C4140

C4145

C5002

C6007

C6023

C6028

C6029

C6033

C6034

C6035

C6036

C6039

C7010

C7024

C7026

C7039

C7040

D5003

D5009

D5010

D5011

D6001

D6003

D6004

D6005

FB1005

FB1006

FB1007

R1003

R1004

R1005

R1006

R1007

R1010

R1100

R1113

R1129 R1132

R1209

R1211

R1008

R4020

R4021

R4029 R4030

R4037

R4042

R4046 R4047

R4050R4051

R4052

R4055 R4056

R4061

R4062

R4065

R4066

R4086

R4087

R4090

R4091

R4094

R4096

R4097

R4170

R5015

R5016

R5017

R5018

R5023

R5024

R5041

R6010

R6004

R6028

R6051

R6073

R6074

R7002

R7006

R7012

R7032

R7014

R7022

R7023

R7025

R7026

R7013

R7035

R7036

R7037

X1001

X1500

ZD5001

R7030

C6015

C7009

C1159

R1180

R1181

R1188

R1222

R1244

R1511

R1512

R1513

R1514

R1529

R1530

R6054

C4157

C4159

C7019

R6095

C7003

C7035

C7018

C7028

C7032

R7033

R7034

L1003

R7021

C6109

C6110

C6111 C6112

D1009

D6002

C7014

C7006

C7036

R7046

R7047

C1515

C4039

C4068

TP1001

TP1002

TP1003

TP4001

TP4008

TP4010

TP4011

TP6001

TP6002

TP6003

TP6004

TP6005

TP6006

C1001

C1003

C1004

C1005

C1006

C1007

C1018

C1027

C1028

C1040

C1043

C1048

C1051

C1070

C1075

C1076

C1078

C1090

C1097

C1192

C1193

C1508

C1509

C4001

C4002

C4003

C4004

C4009

C4012

C4014

C4015

C4016

C4017

C4019

C4020

C4021

C4022

C4024

C4026

C4029

C4030

C4031

C4032

C4033

C4034

C4035

C4047

C4048

C4049

C4055

C4056

C4057 C4058

C4060

C4070

C4072

C4073

C4075

C4076

C4077

C4081

C4082

C4141

C4146

C4153

C5003

C5004

C5005

C5006

C5007

C5008

C5012

C6006

C6010

C6012

C6017

C6024

C6025 C6027

C6030

C6059

C6037

C6099 C6101

C7001

C7005

D4001

D4005

FB1011 FB1013

FB1015

FB4004 FB4005

FB5006

FB6002

FB6005

FB6007

FB7006

Q1006

Q1012

Q1013

Q4001

Q4002

Q6001

Q6003

Q7004

R1001

R1018

R1021

R1022

R1028

R1034R1037

R1038

R1055

R1056

R1058

R1059

R1062

R1067

R1069

R1070

R1072

R1073

R1074

R1077

R1093

R1096

R1102

R1105

R1106

R1107

R1108

R1109

R1114

R1115

R1116

R1117

R1118

R1119

R1120

R1121

R1123

R1124

R1128

R1130

R1131

R1133

R1134

R1135

R1136

R1137

R1138

R1139

R1140

R1141

R1142

R1143

R1144

R1145

R1148

R1150

R1151

R1165

R1167

R1205R1206

R1207

R1208

R1516

R1518

R1234

R1526

R4006

R4009

R4015

R4016

R4017

R4026

R4038

R4083

R4084

R4085

R4088

R4092

R4093

R4095

R4104

R4105

R4120

R4121

R4122

R4155

R4178

R4181

R5004

R5007

R5008

R5009

R5010

R5012

R5013

R5014

R5028

R5030

R5039

R5043

R5044

R5048

R5049

R5050

R5061

R5072

R6006

R6009

R6011

R6013R6014

R6015

R6016

R6017

R6031

R6032

R6033

R6039

R6040

R6047

R6048

R6049

R6050

R6055

R6060 R6064

R6068

R6069 R6070

R6071

R6072

R6075

R6076

R6077

R6079

R6080

R6082

R7001

R7008

R7038

RP1002

RP4002

RP4004

RP4006

RP4008

U1000

U1005

U1006

U4005

U4007

U6003

U6004

U1007

FDT1

FDT2

FDT4

C1526

FB6008

ZD1027

R4072

R1519

R7

FDT5

FDT6

FDT7

C1543

C1545

C1162

R1185

R1199

R1200

R1202

C6005 R6003

R6018

C1161

C1174

C1175

C1507

C1511 C1513

C1514

C1539C1540

C1542 C1544

FB1034

L1500

R1152

R1153

R1158 R1159

R1184

R1186

R1201

R1203

R1220

R1505

R1506

R1507

R1508

R1509

R1510

R1515

R1524

R1525

R1528

Q1001

C6040

C1185

C1200

FB4100

R1212

R1213

R1225

R6034

R6092

R5073

C6074

FDT8

FDT9

C7020

FB7005

R7235

U1004

U4008

U5007

U5010

U5012

R4100

Q7007

R7044

R7045

Q7002

Q1009

Q1153

Q5003

Q5004

Q7001

Q7005

R1190

R7239

D7001

Q1002

U1003

Circuit Diagrams and PWB Layouts

EN 68TPM9.3HE LA 10.

2012-Sep-28

back to

div. table

Circuit Diagrams and PWB Layouts

19230_536_120305.eps

120305

IR/LED board

J J

2011-10-14

1

715G5230

IR/LED board

3

1

2

D202 BAV99

Q301 BC847C

C002

0.1UF50V

R302

1K 1/10W

C001

0.1UF50V

R301

2.2K 1/10W

KEY2

12

LED301

LED

KEY1

Red

1 2

3

4 5 6

78

CN201 CONN

GND

1

Vs

2

OUT

3

GND

4

U201

TSOP75436W

RC6

C204

1UF16V

R202

100R

C203

NC/100P 50V

3V3SB

R201

NC/2K7 1/16W 5%

LED_R

3V3SB

1 2

3

45

CN001 CONN

RC6

KEY1

C201

10uF 10V

3V3SB

KEY2

LED_R

3

1

2

D201 BAV99

10.3 J 715G5230 IR/LED 3000 series

10-3-1 IR/LED board

EN 69TPM9.3HE LA 10.

2012-Sep-28

back to

div. table

10-3-2 IR/LED Board layout

19230_537_120305.eps

120305

2011-10-14

1

715G5230

IR/LED board

layout top/bottom

C001

C201

C203

LED301

Q301

R201

R202

R301

U201

D201

D202

C002

C204

CN001

CN201

R302

Layout IR/LED Board (Top Side)

Layout IR/LED Board (Bottom Side)

Circuit Diagrams and PWB Layouts

EN 70TPM9.3HE LA 10.

2012-Sep-28

back to

div. table

10.4 J 715G5596 IR/LED panel

19242_504_120618.eps

120626

IR/LED panel

J J

2012-02-01

B

715G5596

IR/LED panel

3

1

2

D202 BAV99

Q301 BC847C

R302

1K 1/10W

R301

2.2K 1/10W

12

LED301

LED

Red

1 2

3

4 5 6

78

CN201 CONN

RC6

C204

1UF16V

R202

100R

C203

NC/100P 50V

R201

NC/2K7 1/16W 5%

3V3SB

LED_R

GND

1

GND

2

OUT

3

VCC

4

U201

IRM-H636M3/TR2

3V3SB

RC6

C201

10uF 10V

3V3SB

LED_R

3

1

2

D201 BAV99

10-4-1 IR/LED panel

Circuit Diagrams and PWB Layouts

EN 71TPM9.3HE LA 10.

2012-Sep-28

back to

div. table

10-4-2 IR/LED board layout

19242_505_120618.eps

120626

2012-02-01

B

715G5596

IR/LED board

layout top/bottom

C201

C204

R301 R302

C203

CN201

D201

D202

LED301

Q301

R201

R202

U201

U2

U1

Layout IR/LED panel (top side)

Layout IR/LED panel (bottom side)

Circuit Diagrams and PWB Layouts

EN 72TPM9.3HE LA 10.

2012-Sep-28

back to

div. table

Circuit Diagrams and PWB Layouts

19240_513_120215.eps

120629

Keyboard control panel

E E

2011-10-05

1

715G5252

Keyboard control panel

KEY2 KEY1

SOURCE VOL- VOL+

CH- CH+POWER

----><----|

----><----|----><----|

----><----|

----><----| ----><----|

SW020

TACT SW FWRD H1.5MM

R020

470R 1/8W 1%

R017

2K2 1/8W 1%

SW022

TACT SW FWRD H1.5MM

R022

5K6 +-1% 1/8W

C019

NC/100N 50V

C023

100N 50V

C016

NC/100N 50V

CN016 CONN

1 2

3

45

R018

5K6 +-1% 1/8W

R024

NC/0R05 1/10W

SW016

TACT SW FWRD H1.5MM

SW021

TACT SW FWRD H1.5MM

SW017

TACT SW FWRD H1.5MM

C020

NC/100N 50V

C017

NC/100N 50V

SW019

TACT SW FWRD H1.5MM

C024 100N 50V

R016

470R 1/8W 1%

R021

2K2 1/8W 1%

R025

NC/1K 1/10W 1%

C021

NC/100N 50V

R023

0R05 1/10W

C018

NC/100N 50V

10.5 E 715G5252 Keyboard control panel 3500/4000 series

10-5-1 Keyboard

EN 73TPM9.3HE LA 10.

2012-Sep-28

back to

div. table

Circuit Diagrams and PWB Layouts

19240_514_120215.eps

120629

2012-01-09

1

715G5252

Keyboard control panel

layout top/bottom

CN016

SW016

SW017

SW019

SW020

SW021

SW022

C016

C017

C018

C019

C020

C021

C023

C024

R023 R024

R025

R016

R017

R018

R020

R021

R022

Layout Keyboard control panel (top side)

Layout Keyboard control panel (bottom side)

10-5-2 Key board layout

EN 74TPM9.3HE LA 10.

2012-Sep-28

back to

div. table

Circuit Diagrams and PWB Layouts

19243_513_120802.eps

120917

Keyboard control panel

E E

2012-05-18

1

715G5709

Keyboard control panel

----><----|

C022

NC/100N 50V

----><----|

SW018

TACT SW FWRD H1.5MM

MENU

R019

NC/5K6 +-1% 1/8W

R023

0R05 1/10W

R024

NC/0R05 1/10W

SW021

TACT SW FWRD H1.5MM

KEY1

R020

470R 1/8W 1%

R021

2K2 1/8W 1%

R022

5K6 +-1% 1/8W

----><----|

KEY2

R025

NC/1K 1/10W 1%

C023

100N 50V

SW022

TACT SW FWRD H1.5MM

C016

NC/100N 50V

C017

NC/100N 50V

C018

NC/100N 50V

C019

NC/100N 50V

SW016

TACT SW FWRD H1.5MM

C020

NC/100N 50V

C021

NC/100N 50V

CN016 CONN

1 2

3

45

----><----|

SW019

TACT SW FWRD H1.5MM

----><----| ----><----|

C024 100N 50V

----><----|

SW020

TACT SW FWRD H1.5MM

----><----|

SOURCE

SW017

TACT SW FWRD H1.5MM

VOL- VOL+

CH- CH+POWER

R017

2K2 1/8W 1%

R018

5K6 +-1% 1/8W

R016

470R 1/8W 1%

10.6 E 715G5709 Keyboard control panel 22" series

10-6-1 Keyboard control panel

EN 75TPM9.3HE LA 10.

2012-Sep-28

back to

div. table

Circuit Diagrams and PWB Layouts

19243_514_120802.eps

120917

2012-01-09

1

715G5709

Keyboard control panel

layout top/bottom

C016

C017

C018

C019

C020

C021

C023

C024

CN016

R016

R017

R018

R020

R021

R022

R023

R024

R025

SW016

SW017

SW019

SW020

SW021

SW022

SW1

SW2

SW3

SW8

SW018

C022

R019

Layout Keyboard control panel (top side)

Layout Keyboard control panel (bottom side)

10-6-2 Key board layout

EN 76TPM9.3HE LA 10.

2012-Sep-28

back to

div. table

10.7 HC 715G5482 Hotel panel

19360_500_120822.eps

120906

RS232 connector

HC01 HC01

2011-05-17

C

715G5482

RS232 connector

FB6 NC/220OHM

1 2

TXD_UART

RXD_UART

Connected to SSB CN6005

(EMI)

C25

100N16V

AUDIO_L[3]

AUDIO_R[3]

SSB_TXD

+5VSB

+12V

SSB_RXD

R11 0R05 1/16W

C19

NC/10UF 10V

C01

470pF 50V

C20 NC/100N16V

R06

100R 1/16W 5%

C14

100N16V

C13

100N16V

C21 NC/100N16V

C17 100N16V

ZD9

NC/MLVS0402M04

1 2

C09

NC/470pF 50V

+12V 12V_PSU

3V3_STBY

R30

NC/0R05 1/4W

U1

TS5A3157DCKRE4

NO

1

GND

2

NC3COM

4

V+

5

IN

6

FB5

120R/600mA

1 2

ZD8

NC/MLVS0402M04

1 2

C18 10UF

C02

NC/470pF 50V

C10 1000pF 50V

RXD_UART TXD_UART

R08 10K 1/16W 5%

IR_DET_SW

R14 NC/0R05 1/16W R15 NC/0R05 1/16W

R17 NC/0R05 1/16W R18 NC/0R05 1/16W

R09

22K 1/16W 5%

R22

NC/22K 1/16W 5%

IR_IN

C22 NC/100N16V

3V3_SW

IR_RC

C23 NC/100N16V

Q4 PMBT3904

C15 NC/100N16V

3V3_STBY

IR_DET_SW

R01 10K 1/16W 5%

R02 10K 1/16W 5%

R03

22K 1/16W 5%

3V3_STBY

Q1

PMBT3904

IR_RC

R05 22K 1/16W 5%

Q2

PMBT3904

IR_RC

+12V

U3

NC/ICL3232ECV-16Z

C1+

1

V+

2

C1-

3

C2+

4

C2-

5

V-

6

T2OUT

7

R2IN8R2OUT

9

T2IN

10

T1IN

11

R1OUT

12

R1IN

13

T1OUT

14

GND

15

VCC

16

Connected to

SSB CN4004

3V3_STBY

R13 0R05 1/16W

IR_SSB

Q6 2N7002

R26 1K 1/16W 5% Q5

PMBT3904

R25 10K 1/16W 5%

IR_OUT

(EMI)

C12

NC/470pF 50V

C11

NC/470pF 50V

+5VSB 3V3_STBY

IR SWITCH

H:NO-COM L:NC-COM

RJ48_TXD RJ48_RXD

SSB_RXD

IR_BUFFER

CN05

CONN

1 2

3

4 5

67

3V3_SW

U2

74LVC1G17GV

2 4

53

1

R16

NC/0R05OHM1/16W

CN04

CONN

2

4

6

8

1

3

5

7

3V3_STBY

R27

33K 1/16W 5%

Q3

2N7002

R20 NC/0R05 1/16W

R19 NC/0R05OHM1/16W

+5VSB

IR_SSB

SSB_TXD

CN01

RJ45 CONN

1 2

3

4 5 6 7

8

9 10

FB1 220OHM

1 2

R12 0R05 1/16W

FB2 NC/220OHM

1 2

FB4 220OHM

1 2

FB3 NC/220OHM

1 2

3V3_STBY

12V_PSU

CN02

NC/JACK

3

2 1

Connected to PSU 12V directly

12V_PSU

t

TH1

0.09R 1.5W

1 2

CN03

NC/CONN

1 2

3

45

C32

NC/100N16V

R04

NC/0R05OHM1/16W

R21 10K 1/16W 5%

R29 NC/10K 1/16W 5%

3V3_STBY

R28

NC/10K 1/16W 5%

DET_IR_CON

SMT

DET_IR_CON IR_IN

RJ48_TXD RJ48_RXD IR_OUT

PWR_STATU S

3V3_STBY

RJ48(RJ45-10p10c)

R07 2K7 1/16W 5%

C08

470pF 50V

ZD6

MLVS0402M04

1 2

R10

NC/0R05OHM1/16W

ZD5

MLVS0402M04

1 2

C07

470pF 50V

ZD4

NC/MLVS0402M04

1 2

C06

NC/470pF 50V

ZD3

NC/MLVS0402M04

1 2

C16 470pF 50V

C05

NC/470pF 50V

ZD2

MLVS0402M04

1 2

C04

470pF 50V

ZD1

MLVS0402M04

1 2

C03

470pF 50V

DET_IR_CON RJ48_TXD

IR_IN

IR_OUT

RJ48_RXD

PWR_STATU S

R24

NC/0R05 1/16W

R23

NC/0R05 1/16W

RXD_UART

TXD_UART

FB7 NC/220OHM

1 2

10-7-1 RS232 Connector

Circuit Diagrams and PWB Layouts

EN 77TPM9.3HE LA 10.

2012-Sep-28

back to

div. table

10-7-2 Audio amplifier

19360_501_120822.eps

120906

Audio amplifier

HC02 HC02

2011-05-17

C

715G5482

Audio amplifier

R606

22K 1/16W 5%

C607

470nF 16V

R610

22K 1/16W 5%

FB601

1 2

FB602

1 2

GAIN0

R608

2.2K 1/ 10W

R609

2.2K 1/ 10W

+12V_AMP

C601

220N 25V

C604

100N16V

CN601

PHON E J AC K

1 2

3

C605

100N16V

GAIN1

C611

100N16V

R622

NC / 10K 1/ 10W 5%

R623 10KOHM +-5% 1/10W

GAIN0 GAIN1

R604

1K 1/16W 5%

MUTE

+12V_AMP

D602

NC/FB340M

1 2

+12V

R607

470OHM1/10W

D601

LL4148

C608 100N16V

R619

27K 1/16W 5%

R601

100K 1/16W 5%

(EMI)

R615 100R 1/ 16W 5%

SPK_OUT

+

C603

330UF 16V

+

C606

330UF 16V

C613 1uF 10V C614 1uF 10V

C612

4.7UF

C616 1uF 25V

C618 1uF 25V

C619 470pF 50V

C609 470pF 50V

Q601 PMBT3904

Q602 PMBT3904

R618 0R 05 1/ 16W

R620 0R 05 1/ 16W

R614

10R 1/ 16W 5%

C602 10UF

R602

22K 1/16W 5%

3V3_STBY

+12V_AMP

/SD

R617

100K 1/16W 5%

C610 470pF 50V

C620

470pF 50V

R605 0R05 1/ 16W

AUDIO_L[2]

AUDIO_R[2]

+12V_AMP

ZD601

RLZ10B

1 2

R611 10K 1/10W 5%

L601

33uH

U601 TPA3124D2PHPR

PVCCL

1

SD

2

PVCCL

3

LIN

5

RIN

6

MUTE

4

BYPASS

7

AGND

8

AGND

9

PVCCR

10

VCLAMP

11

PVCCR

12

PGNDL

24

PGNDL

23

LOUT

22

BSL

21

AVCC

20

AVCC

19

GAIN0

18

BSR

16

GAIN1

17

ROUT

15

PGNDR

14

PGNDR

13

TH1

25

R625

NC / 0R 05 1/ 16W

R624

0R05OHM1/16W

R613

0R05 OH M

Circuit Diagrams and PWB Layouts

EN 78TPM9.3HE LA 10.

2012-Sep-28

back to

div. table

10-7-3 Hotel panel layout top

19360_502_120822.eps

120906

2011-05-17

C

715G5482

Hotel panel

Layout top

C27

C01

C03

C04

C05

C06

C07

C08

C10

C11

C12

C13

C14

C16

C17

C19

C20

C21

C22

C23

C15

C02

C09

C601

C602

C604

C605

C607

C608

C609

C610

C611

C612

C613

C614

C616

C618

C619

CN01

CN02

CN601

D601

D602

FB1

FB2

FB3

FB4

FB5

FB6

FB601

FB602

FB7

Q1 Q2

Q4

Q5

Q6

Q601

Q602

R01

R02

R03

R04

R05

R06

R08

R09

R10

R11

R12

R13

R14

R15

R16

R17

R18

R19

R20

R21

R22

R23

R24

R25

R26

R27

R28

R29

R30

R601

R602

R604

R605

R606

R607

R608

R609

R610

R611

R613

R614

R615

R617

R618

R619

R620

R622

R623

R624

R625

U1

U2

U3

U601

ZD1

ZD2

ZD3

ZD4

ZD5

ZD6

ZD601

ZD8

ZD9

C32

C1

C2

C18

T1

T2

C603

C606

CN05

R07

C25

C620

L601

CN03

CN04

TH1

Q3

Circuit Diagrams and PWB Layouts

EN 79TPM9.3HE LA 10.

2012-Sep-28

back to

div. table

10-7-4 Hotel panel layout bottom

19360_503_120822.eps

120906

2011-05-17

C

715G5482

Hotel panel

Layout bottom

Circuit Diagrams and PWB Layouts

EN 80TPM9.3HE LA 10.

2012-Sep-28

back to

div. table

11. Styling Sheets

19270_800_120401.eps

120419

S35 series 19"

Pos No. Description Remarks

0031 Front bezel 0032 Deco bezel 0041 Rear cover 0050 Stand assembly 1050 Display panel 1053 Panel SSB 1054 Power Supply Unit 1056 IR/LED panel 1057 Keyboard control panel 1176 Remote control Not displayed 1185 Speakers

FOR ELECTRICAL PARTS/ASSEMBLIES SEE WIRING DIAGRAM CHAPTER 9

1050

1054

1057

0041

0050

1053

1185

0032

1056

0031

11.1 S35 series 19"

Styling Sheets

EN 81TPM9.3HE LA 11.

2012-Sep-28

back to

div. table

11.2 3007 series 22"

19380_800_120829.eps

120925

3007 series 22"

FOR ELECTRICAL PARTS/ASSEMBLIES SEE WIRING DIAGRAM CHAPTER 9

Pos No. Description Remarks

0031 Bezel 0041 Rear cover 0050 Stand assembly 1050 Display panel 1053 Panel SSB 1054 Power Supply Unit 1056 IR/LED panel 1057 Keyboard control panel 1176 Remote control Not displayed 1185 Speaker

0031

1050

0050

1057

1056

1185

0041

1054

1053

1185

Styling Sheets

EN 82TPM9.3HE LA 11.

2012-Sep-28

back to

div. table

11.3 3017 series 22"

19380_801_120829.eps

120926

STYLING SIZE"

FOR ELECTRICAL PARTS/ASSEMBLIES SEE WIRING DIAGRAM CHAPTER 9

Pos No. Description Remarks

0031 Bezel 0032 Deco Bezel 0041 Rear cover 0050 Stand assembly 1050 Display panel 1053 Panel SSB 1054 Power Supply Unit 1056 IR/LED panel 1057 Keyboard control panel 1176 Remote control Not displayed 1185 Speaker

0032

0031

1056

1050

1057

1185

1054

1053

0041

1185

0050

0041

Styling Sheets

EN 83TPM9.3HE LA 11.

2012-Sep-28

back to

div. table

Philips 22HFL3017W/10 Schematic

Specifications and Main Features

Frequently Asked Questions

User Manual

Contents Page

1. Revision List

2. Technical Specs, Diversity, and Connections

2.1 Technical Specifications

2.2 Directions for Use

Table 2-1 Described Model Numbers and Diversity

2.3 Connections

2.3.1 Side Connections

1 - Common Interface

2 - USB2 2.0

Figure 2-2 USB (type A)

3 - USB1 2.0 (optional)

4 - Head phone (Output)

5 - HDMI: Digital Video - In, Digital Audio - In/Out

Figure 2-3 HDMI (type A) connector

Figure 2-1 Connection overview

2.3.2 Rear Connections

6 - TV ANTENNA - In

Figure 2-4 SCART connector

8 - Audio - In: Left / Right, VGA

9 - Service / UART

11 - RJ45: Ethernet

Figure 2-6 Ethernet connector

12 - EXT2: Video YPbPr - In, Audio - In

13 - Cinch: Digital Audio - Out

14 - HDMI 2: Digital Video - In, Digital Audio - In/Out

10 - PC IN:VGA

Figure 2-5 VGA connector

Figure 2-7 HDMI (type A) connector

2.4 Chassis Overview

16 - TV ANTENNA - In

3. Precautions, Notes, and Abbreviation List

3.1 Safety Instructions

3.2 Warnings

3.3 Notes

3.3.1 General

3.3.2 Schematic Notes

3.3.3 Spare Parts

3.3.4 BGA (Ball Grid Array) ICs

Introduction

BGA Temperature Profiles

3.3.5 Lead-free Soldering

3.3.6 Alternative BOM identification

Figure 3-1 Serial number (example)

3.3.7 Board Level Repair (BLR) or Component Level Repair (CLR)

3.3.8 Practical Service Precautions

3.4 Abbreviation List

4. Mechanical Instructions

4.1 Cable Dressing

Figure 4-1 Cable dressing (19")

Figure 4-2 Cable dressing (22" 3007 series)

Figure 4-3 Cable dressing (22" 3017 series)

4.2 Service Positions

4.3 Assembly/Panel removal for 22HFL3007 sets

4.3.1 Stand

Figure 4-4 Stand removal

4.3.2 Rear Cover

Figure 4-5 Rear cover removal

4.3.3 Small Signal Board (SSB)

Figure 4-6 SSB removal

4.3.4 Power Supply Unit (PSU)

4.3.5 Speakers

4.3.6 Keyboard Control unit

4.3.7 IR/LED Board

4.3.8 LCD Panel

4.4.1 Stand

4.4.2 Rear Cover

Figure 4-7 Rear cover removal

4.4.3 Power Supply Unit (PSU)

4.4.4 Small Signal Board (SSB)

Figure 4-8 SSB removal

4.4.7 IR/LED Board

4.4.8 LCD Panel

4.4.5 Speakers

4.4.6 Keyboard Control unit

4.5 Set Re-assembly
