SAFETY INSTRUCTIONS
When using an electrical appliance, basic safety should always be followed, including the following:
Read all instructions before using this sewing machine.
DANGER
1. An appliance should never be left unattended when plugged in.
2. Always unplug this appliance from the electrical outlet immediately after using and before cleaning.
3. Always unplug before checking and re-lamping. Contact the authorized retailer or service center for
repair in the event of failure if the machine is with 200mW, 300mW and 200mW LED lamp, which is
not user-replaceable.
WARNING
1. Do not allow to be used as a toy. Close attention is necessary when this appliance is used by or
near children.
2. Use this appliance only for its intended use as described in this manual. Use only the attachments
recommended by the manufacturer as contained in this manual.
3. Never operate this appliance if it has a damaged cord or plug, if it is not working properly, if it has
been dropped or damaged, or dropped into water. Return the appliance to the nearest authorized
retailer or service center for examination, repair, electrical or mechanical adjustment.
Never operate the appliance with any air openings blocked
4. . Keep ventilation openings of the
sewing machine and foot control free from accumulation of lint, dust, and loose cloth.
5. Keep fingers away from all moving parts. Special care is required around the sewing machine needle.
Always use the proper needle plate, as a wrong needle plate can cause the needle to break.
6.
7. Do not use bent needles.
8. Do not pull or push fabric while stitching. It may deflect the needle causing it to break.
Switch the sewing machine off ("O") when making any adjustments in the needle area, such as
9.
threading the needle, changing the needle, threading the bobbin, changing the presser foot or
changing the light.
10.Always unplug sewing machine from the electrical outlet when removing covers, lubricating, or
when making any other user servicing adjustments mentioned in the instruction manual.
11.Never drop or insert any object into any opening.
12.Do not use outdoors.
13.Do not operate where aerosol spray products are being used or where oxygen is being administered.
14.To disconnect, turn all controls to the off ("O") position, then remove plug from outlet.
15.Do not unplug by pulling on cord. To unplug, grasp the plug, not the cord.
16.The sound pressure level under normal operating conditions is 75dB(A).
Please turn off the machine or unplug when the machine is not operating properly.
17.
18.Never place anything on the Foot Control.
19. If the supply cord that fixed with Foot Control is damaged, it must be replaced by the manufacturer or
its service agent or a similar qualified person in order to avoid a hazard.
20.This appliance is not intended for use by persons (including children) with reduced physical,
sensory or mental capabilities, or lack of experience and knowledge, unless they have been given
supervision or instruction concerning use of the appliance by a person responsible for their safety.
21.Children should be supervised to ensure that they do not play with the appliance.
-To reduce the risk of electrical shock:
-To reduce the risk of burns, fire, electrical shock, or injury to persons:
SAVE THESE INSTRUCTIONS
This sewing machine is intended for household use only.
1
INSTRUCTIONS
PLEASE READ BEFORE USING THIS MACHINE
For safe operation
1. Be sure to keep your eye on the needle while sewing. Do not touch the handwheel, thread takeĀup lever, needle or other moving parts.
2. Remember to turn OFF the power switch and unplug the cord when:
Operation is completed.
Replacing or removing the needle or any other parts.
A power failure occurs during use.
Maintaining the machine.
Leaving the machine unattended.
3. Do not store anything on the foot control.
4. Plug the machine directly into the wall.
For a longer service life
1. When storing this machine, avoid direct sunlight and high humidity locations. Do not use or
store the machine near a space heater, iron, halogen lamp, or other hot objects.
2. Use only neutral soaps or detergents to clean the machine. Benzene, thinner, and scouring
powder can damage the machine, and should never be used.
3. Do not drop or hit the machine.
4. Always consult this operation manual when replacing or installing any assemblies, the presser
feet, needle or other parts to assure correct installation.
For repair or adjustment
In the event a malfunction occurs or adjustment is required, first follow the troubleshooting guide
in the back of this operation manual to inspect and adjust the machine yourself. If the problem
persists, please consult your local authorized retailer.
2
INSTRUCTIONS
CONTENTS
INSTRUCTIONS
SAFETY INSTRUCTIONS ...................................................................................................................1-2
CONTENTS..........................................................................................................................................3-5
ACCESSORIES ......................................................................................................................................6
PRINCIPAL PARTS OF THE MACHINE ................................................................................................7
FOOT CONTROL....................................................................................................................................8
OPERATION BUTTONS....................................................................................................................9-11
START/STOP button.....................................................................................................................9
Thread Snips .................................................................................................................................9
Reverse button ............................................................................................................................10
Auto-lock button ..........................................................................................................................10
Needle position button ................................................................................................................11
FUNCTION BUTTONS ....................................................................................................................12-15
Stitch width adjustment button ....................................................................................................12
Stitch length adjustment button ...................................................................................................13
Tension adjustment buttons ........................................................................................................13
FUNC selection button ................................................................................................................14
Key lock button............................................................................................................................14
Bobbin winding button .................................................................................................................14
Elongation button ........................................................................................................................15
Mirror image button .....................................................................................................................15
Twin needle button ......................................................................................................................15
SELECTION BUTTONS ..................................................................................................................16-17
Direct stitch selection and number buttons .................................................................................16

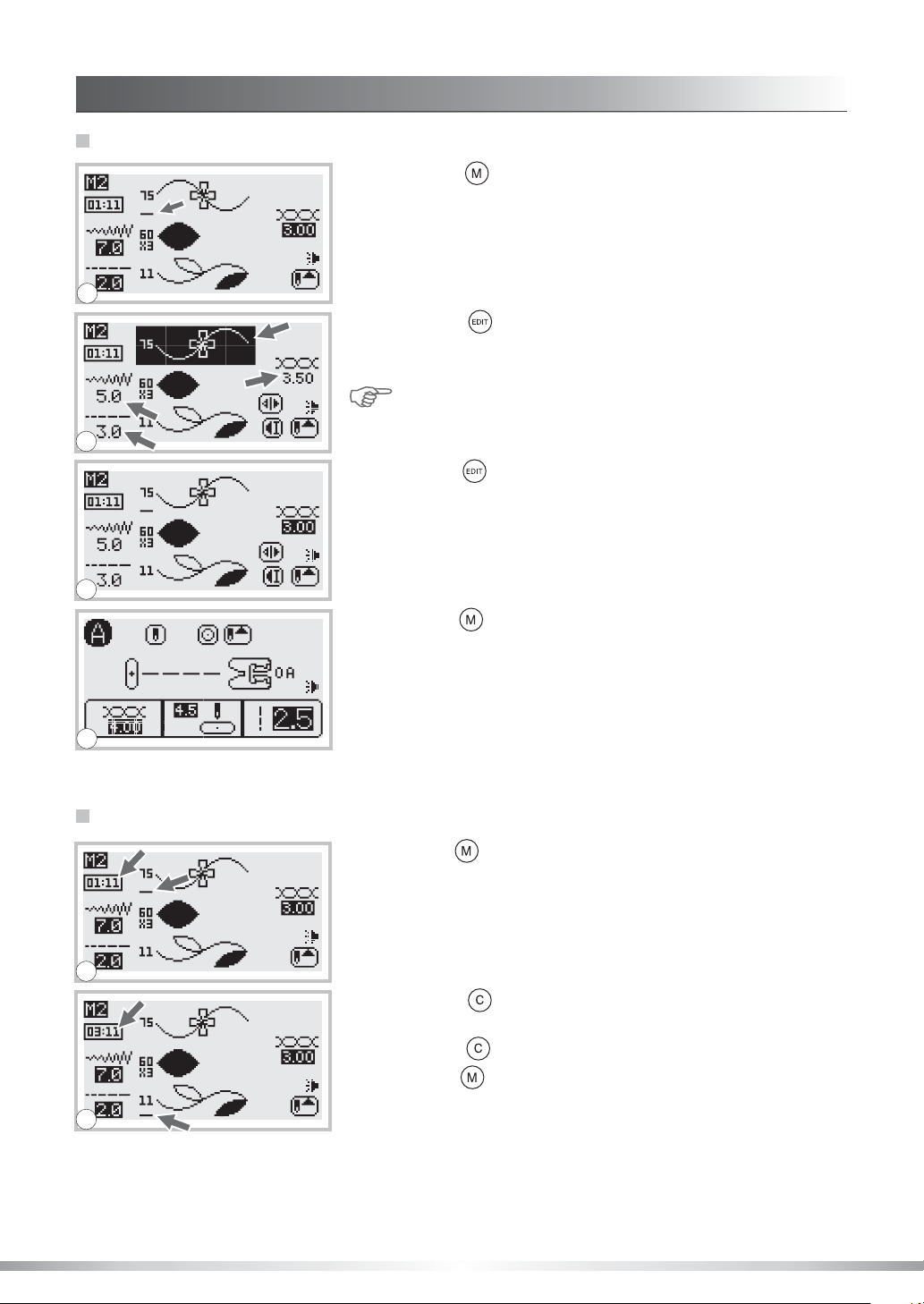

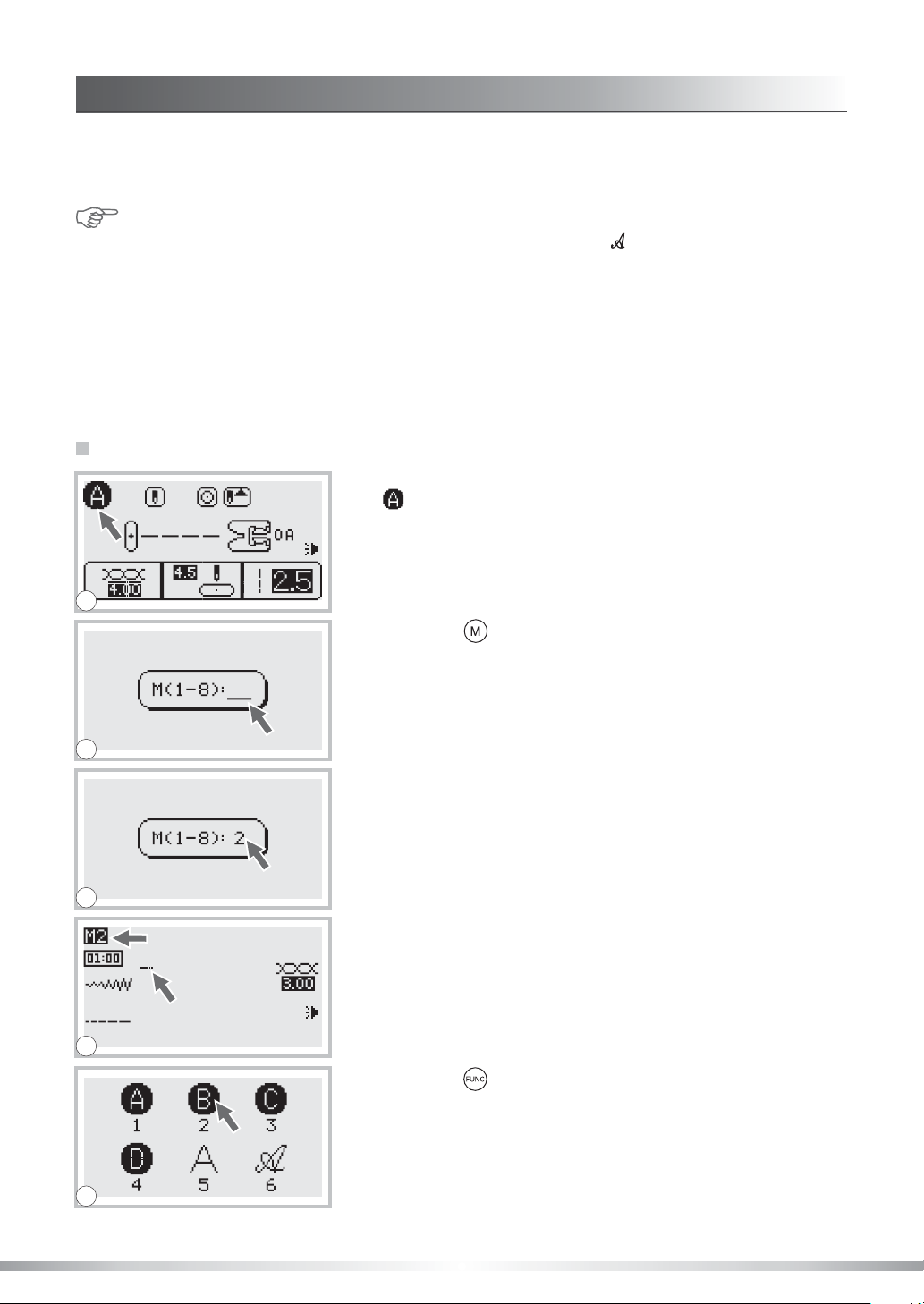

Memory button ............................................................................................................................17
Edit button ...................................................................................................................................17
Clear button.................................................................................................................................17
GETTING READY
CONNECTING THE MACHINE TO THE POWER SOURCE ...............................................................18
Connecting the machine..............................................................................................................18
TURN MACHINE ON / OFF ..................................................................................................................19
UNDERSTANDING THE LCD SCREEN .........................................................................................20-21
LCD SCREEN BRIGHTNESS CONTROL............................................................................................21
WINDING THE BOBBIN .......................................................................................................................22
Bobbin winding.......................................................................................................................22-24
INSERTING THE BOBBIN ..............................................................................................................25-26
UPPER THREADING.......................................................................................................................27-32
Threading the upper thread....................................................................................................27-29
Using the needle threader ...........................................................................................................30

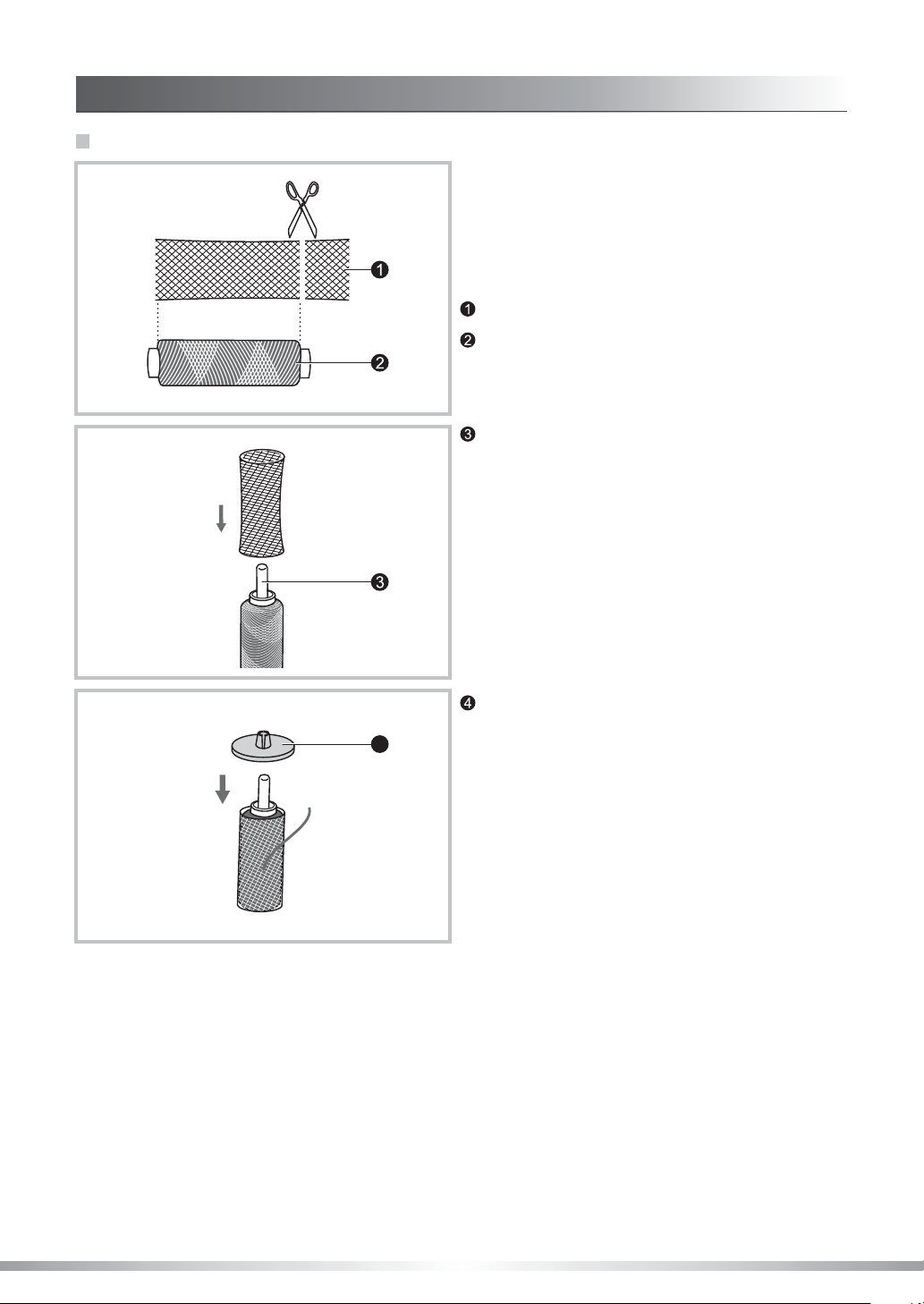

Using the thread net ....................................................................................................................31
Raising up the lower thread.........................................................................................................32
CUTTING THE THREAD ......................................................................................................................33

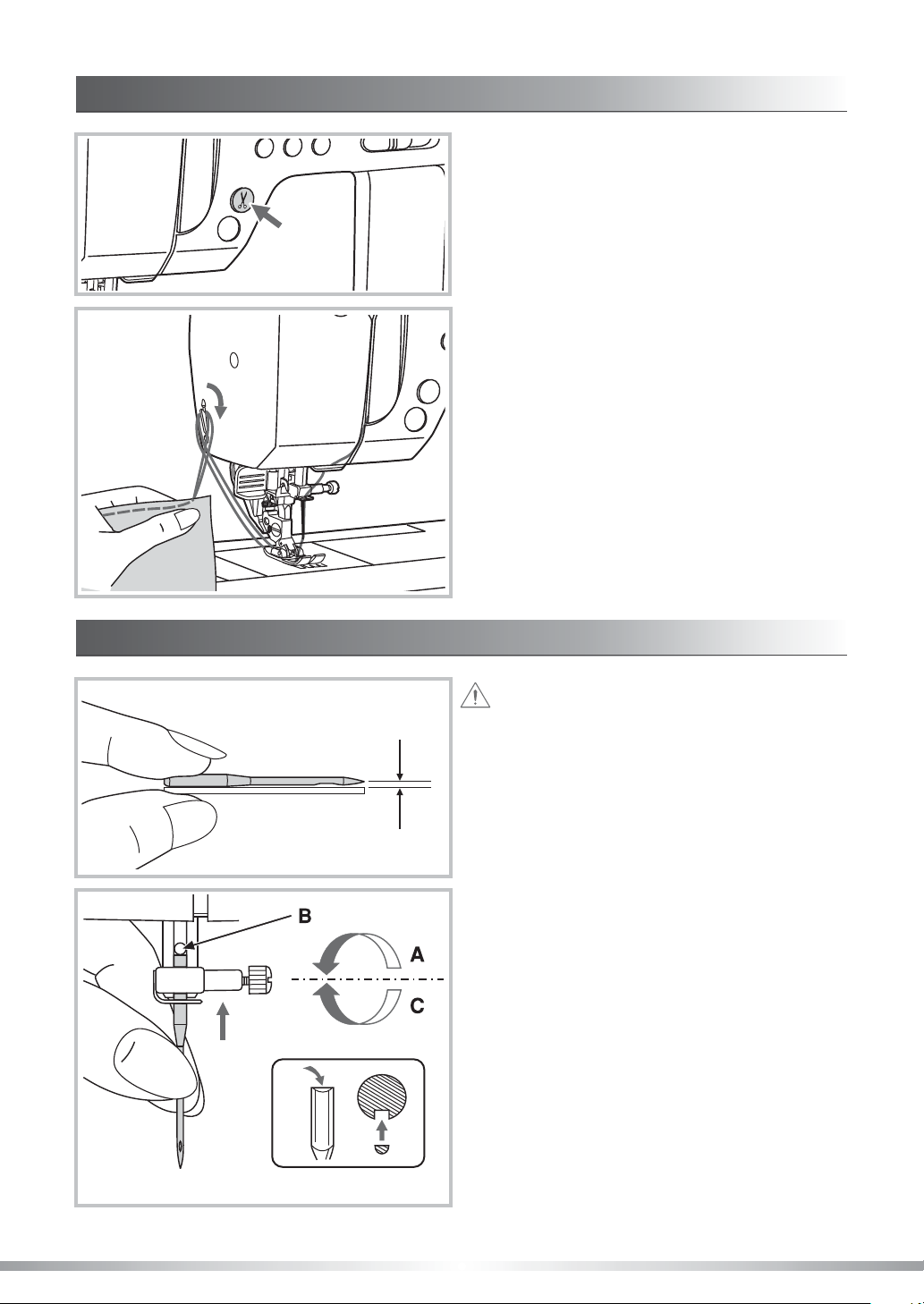

REPLACING THE NEEDLE..................................................................................................................33
CHANGING THE PRESSER FOOT ................................................................................................34-36
Attaching the presser foot holder ................................................................................................34
3
INSTRUCTIONS
CONTENTS
Attaching the presser foot ...........................................................................................................34
Removing the presser foot ..........................................................................................................34
Type of presser foot chart ...........................................................................................................35
Two-step presser foot lifter..........................................................................................................36
DUAL FEED SYSTEM (DFS) ..........................................................................................................37-38
To engage the DFS .........................................................................................................37
To disengage the DFS ....................................................................................................38
Fabric positioning ........................................................................................................................38
SEWING BASICS

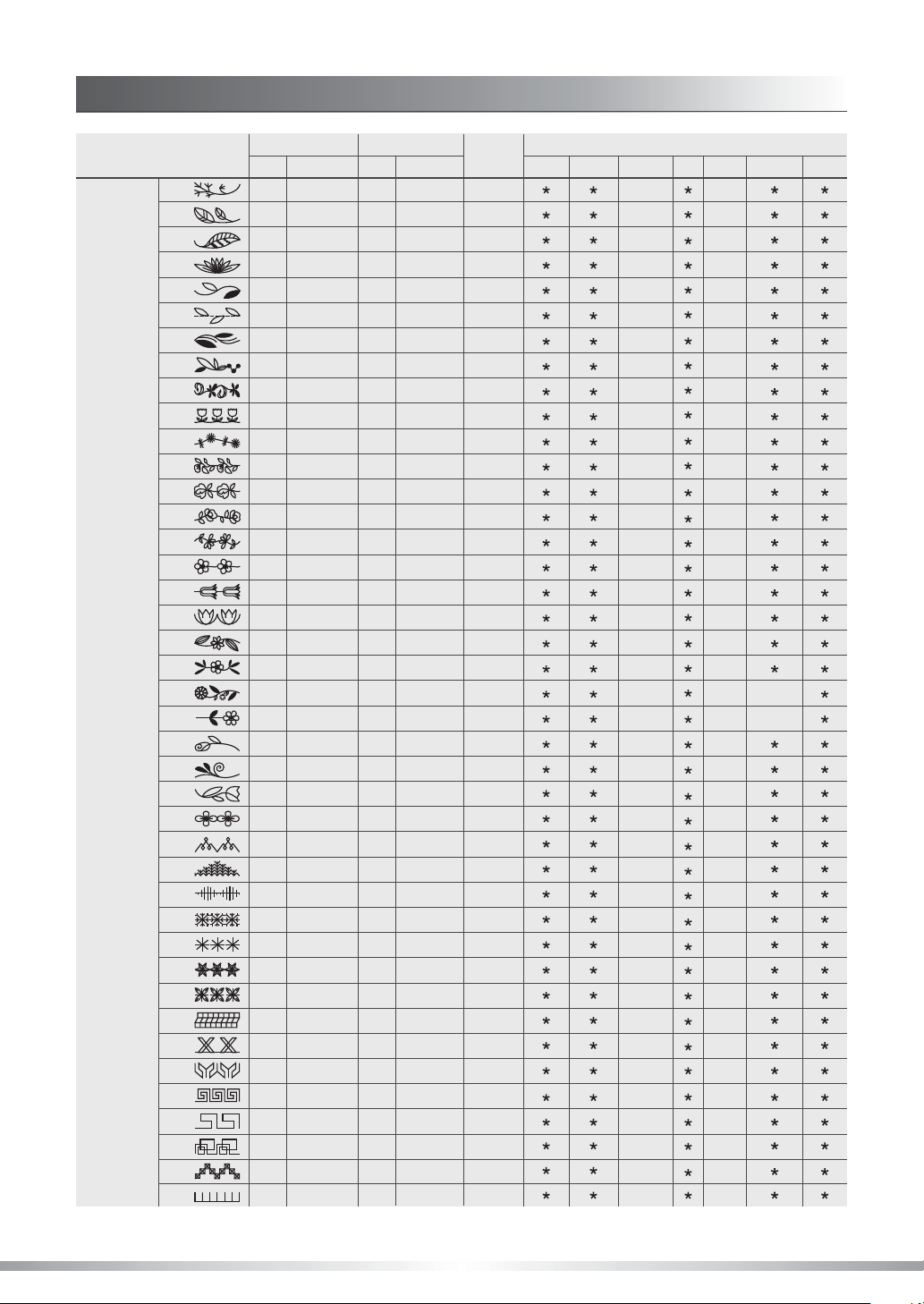

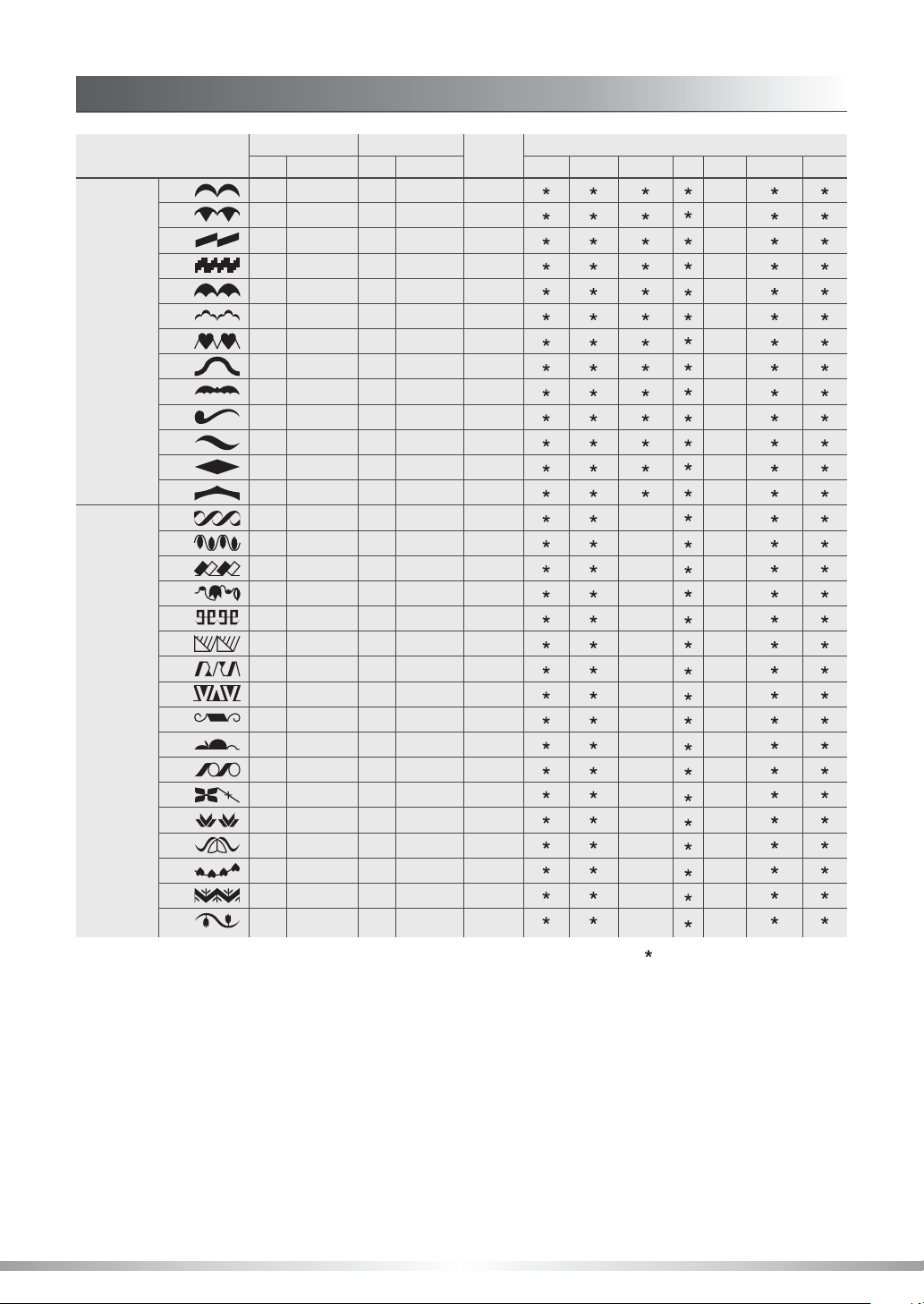

STITCH CHART...............................................................................................................................39-40
MATCHING NEEDLE/ FABRIC/ THREAD ...........................................................................................41
THREAD TENSION...............................................................................................................................42

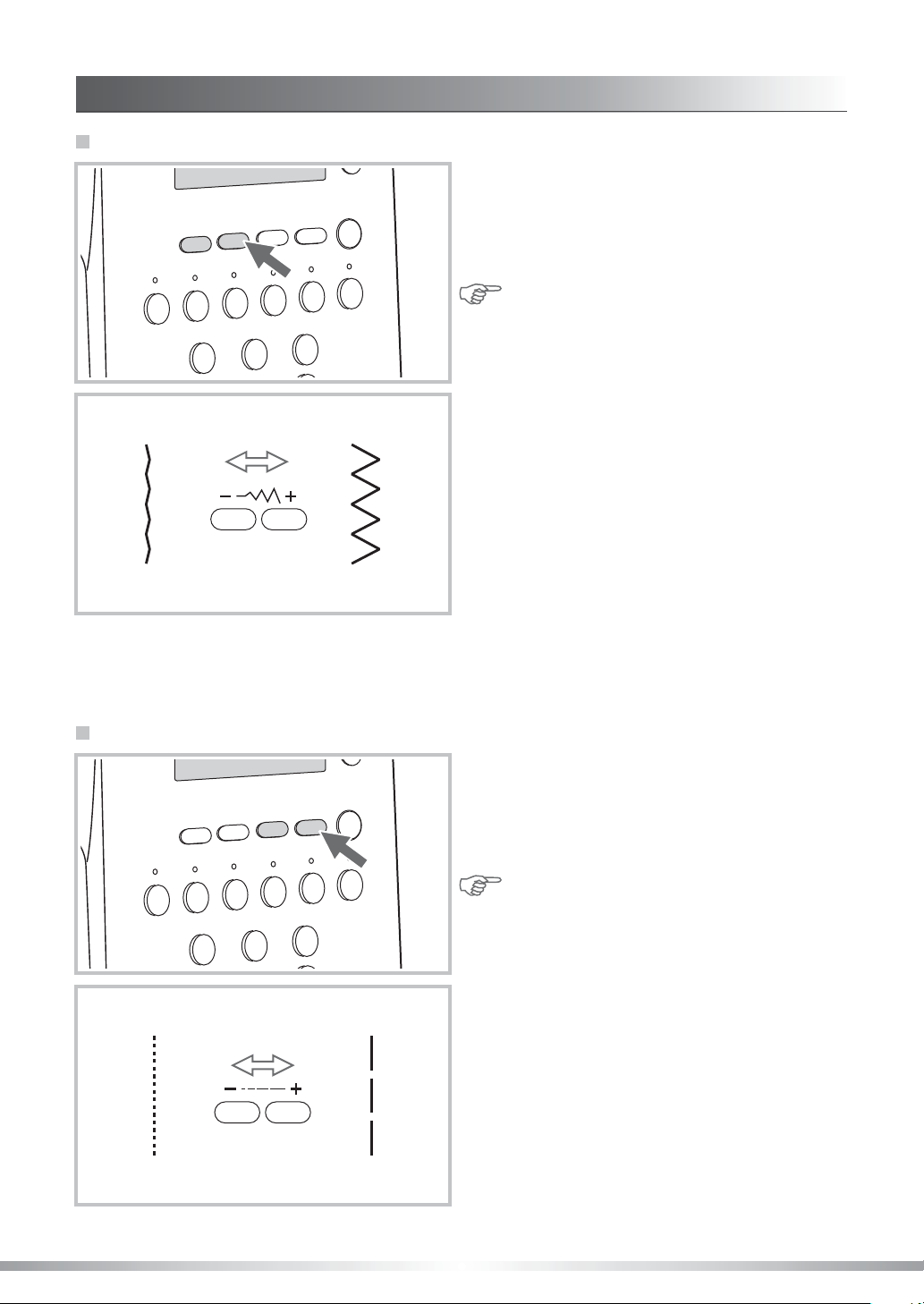

LENGTH & WIDTH ADJUSTMENT......................................................................................................43
Stitch width adjustment ...............................................................................................................43
Stitch length adjustment ..............................................................................................................43
STITCH BALANCE ADJUSTMENT .....................................................................................................44
PRESSER FOOT PRESSURE ADJUSTMENT ....................................................................................45
USEFUL FUNCTIONS .....................................................................................................................46-48

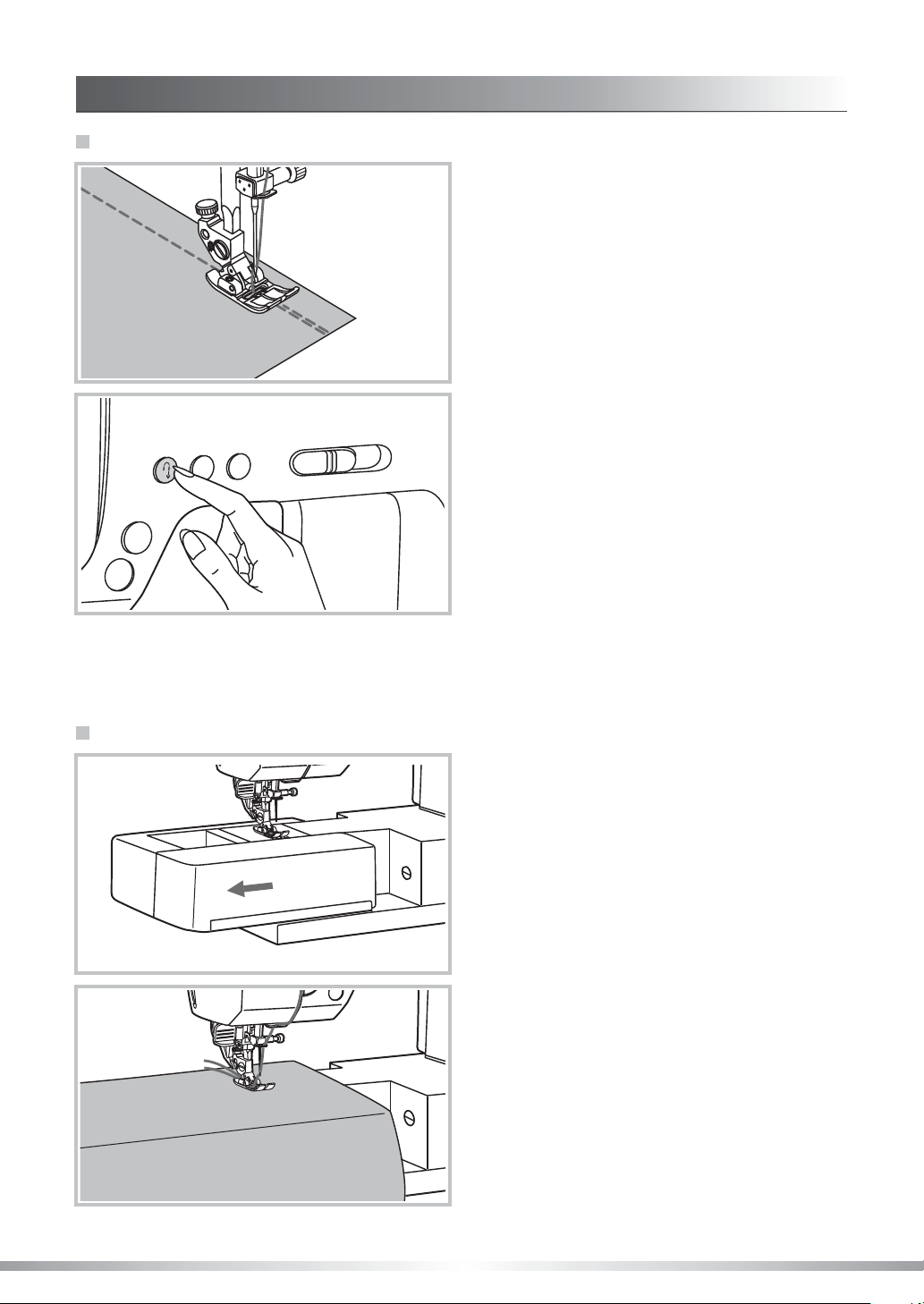

Reverse .......................................................................................................................................46
Free arm sewing..........................................................................................................................46
To raise or lower the feed dogs...................................................................................................47
Attaching the Knee Lift ................................................................................................................47
Knee Lift to raise / lower presser foot..........................................................................................47
USEFUL SEWING TIPS........................................................................................................................48

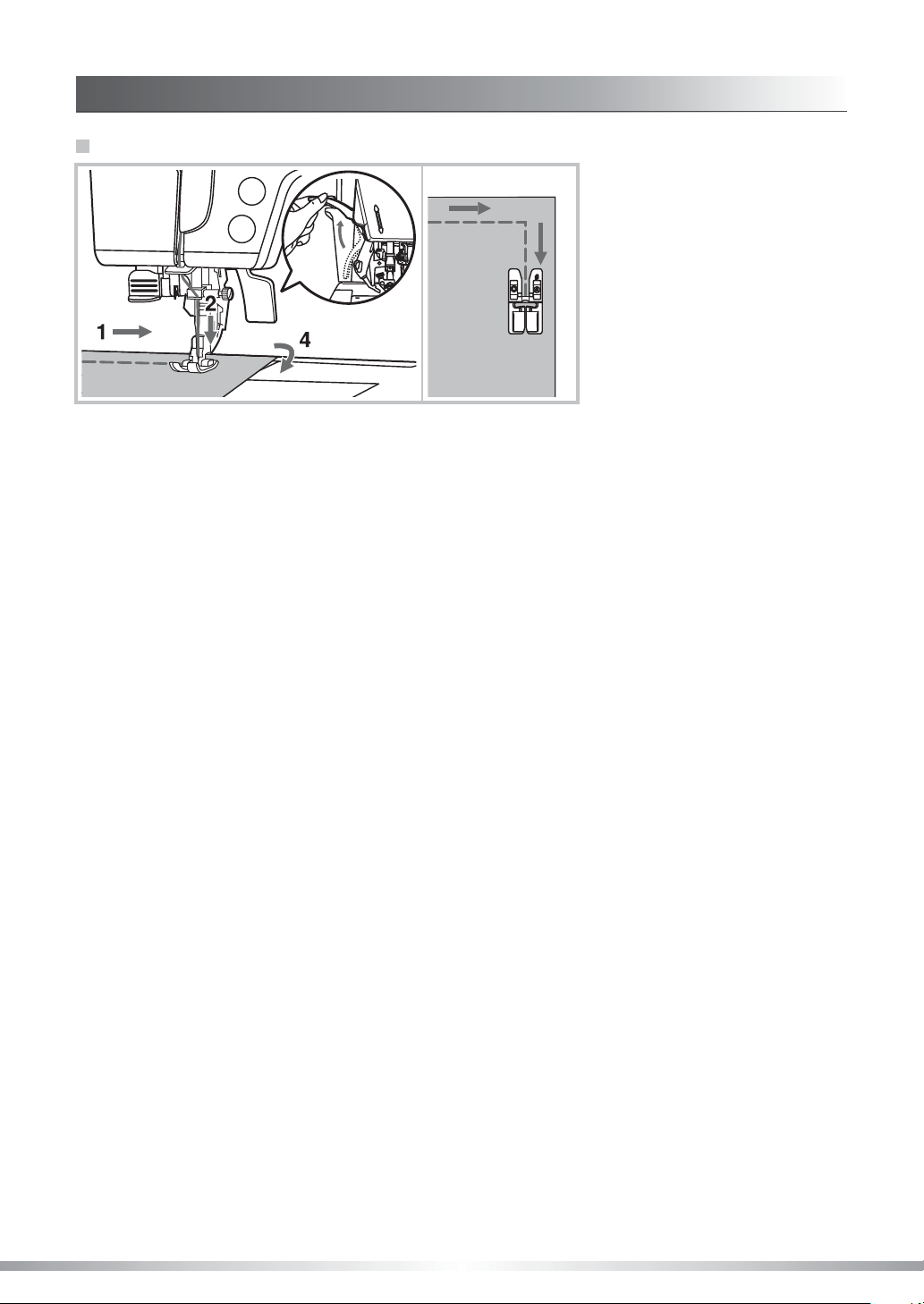

Sewing corners............................................................................................................................48
system
system
STITCHES

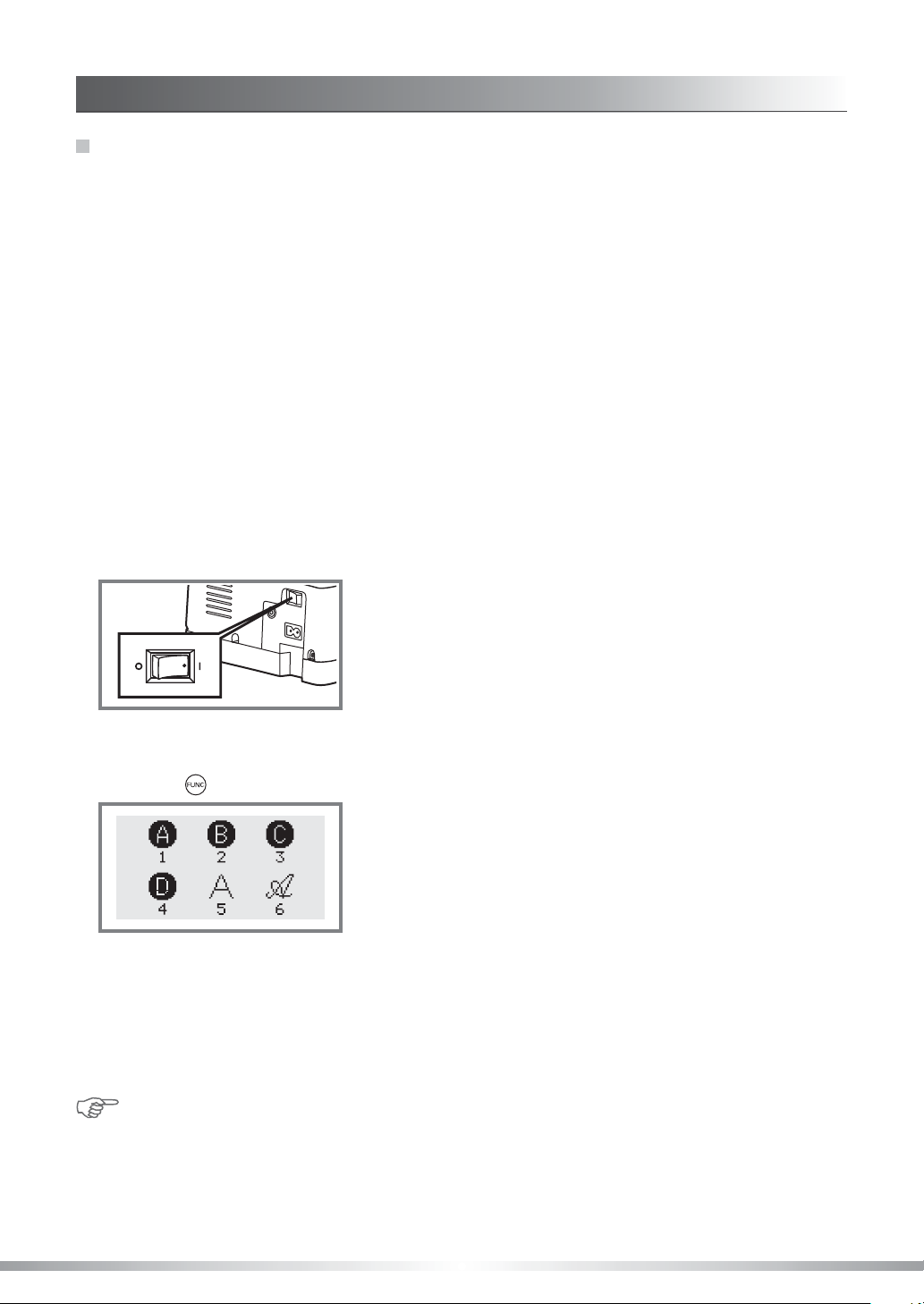

SELECTING STITCHES .......................................................................................................................49
BASIC STITCHING..........................................................................................................................50-51

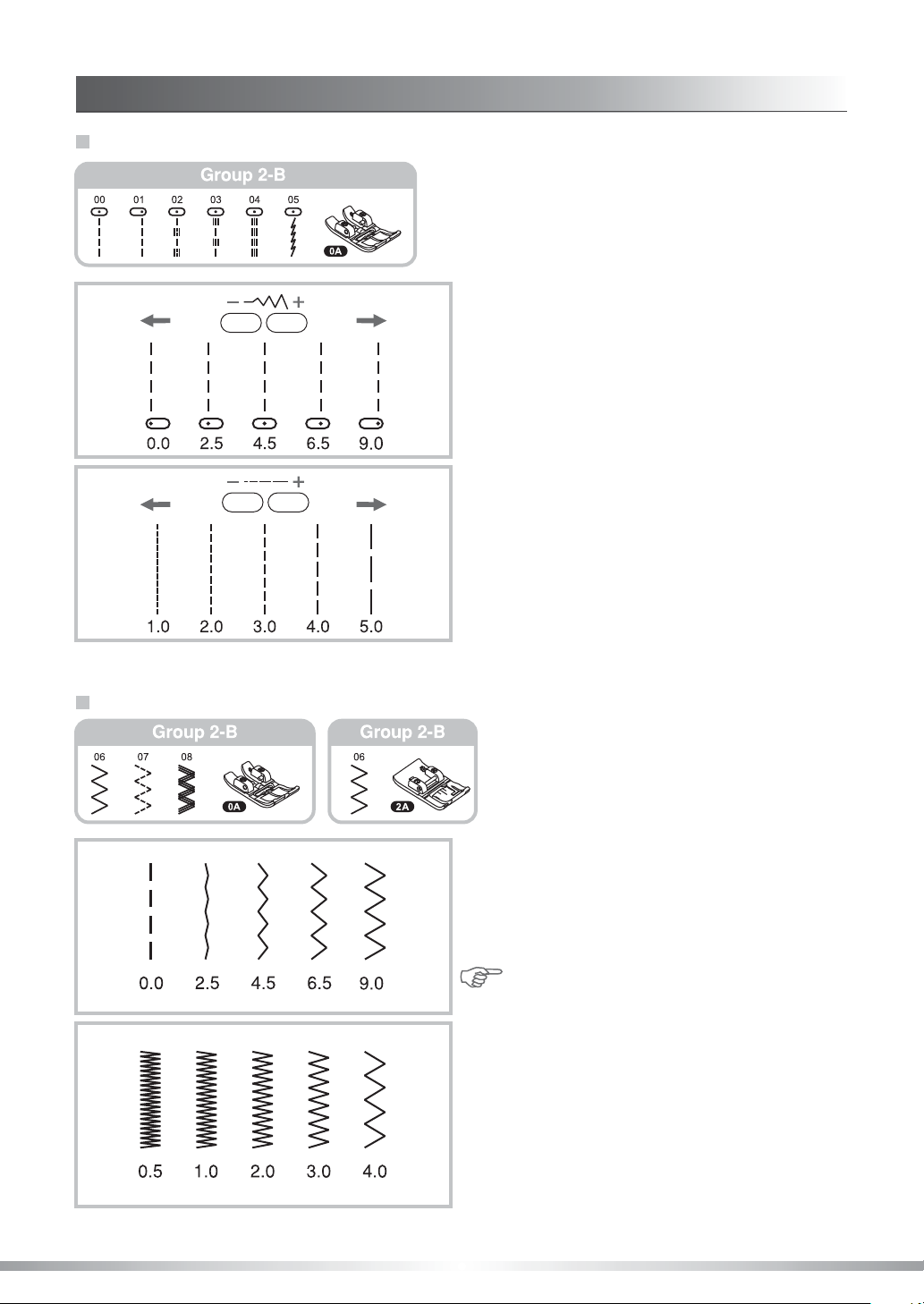

Straight stitches and needle position...........................................................................................50
Zigzag stitches ...........................................................................................................................50
Stretch stitch................................................................................................................................51
BLIND HEM / LINGERIE STITCHING ..................................................................................................52
OVERCASTING STITCHES .................................................................................................................53
Using the adjustable blindhem foot .............................................................................................53
Using the standard presser foot ..................................................................................................53
ZIPPER INSERTION........................................................................................................................54-55
Inserting a centered zipper..........................................................................................................54
Inserting a side zipper .................................................................................................................55

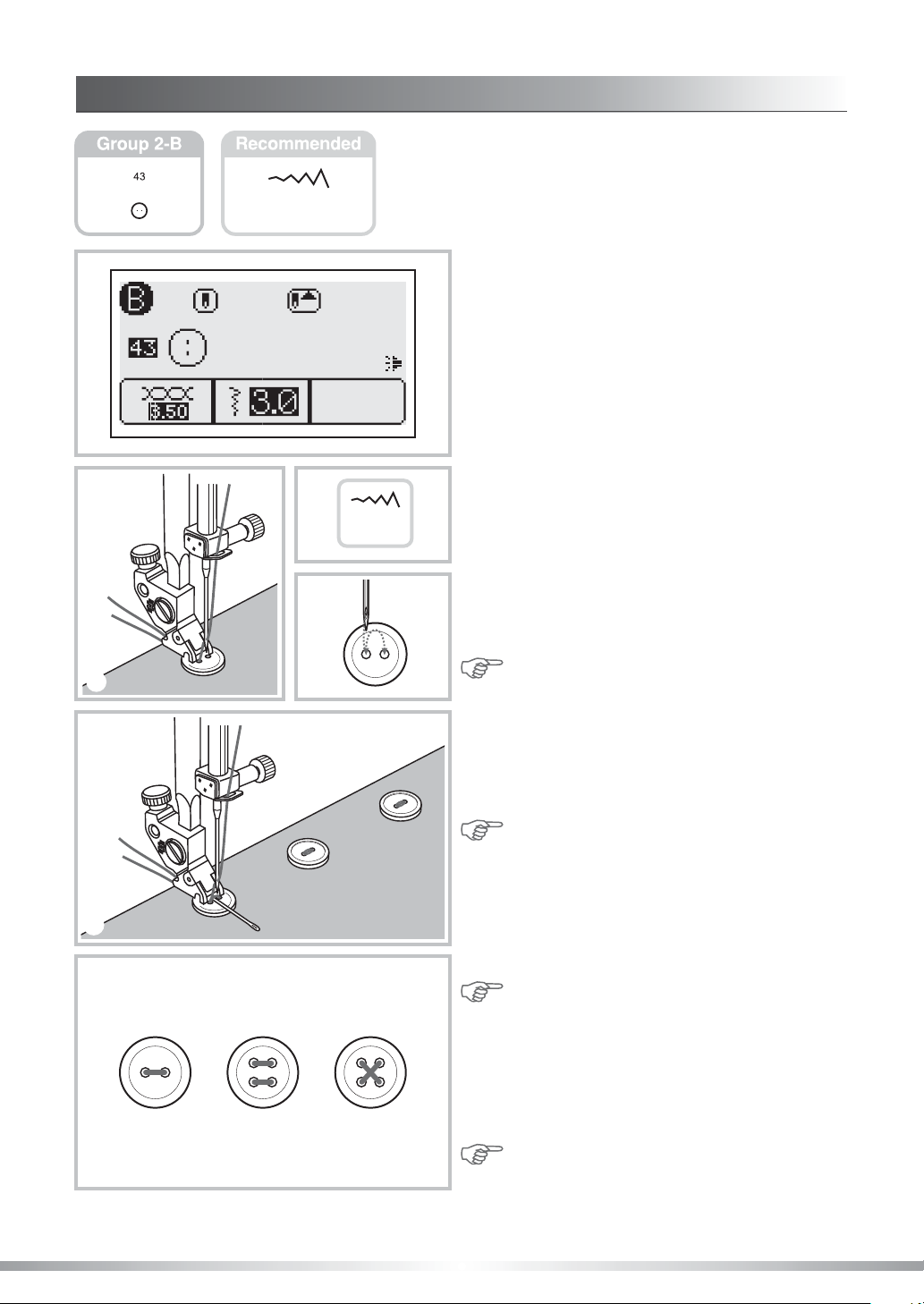

BUTTON SEWING ................................................................................................................................56

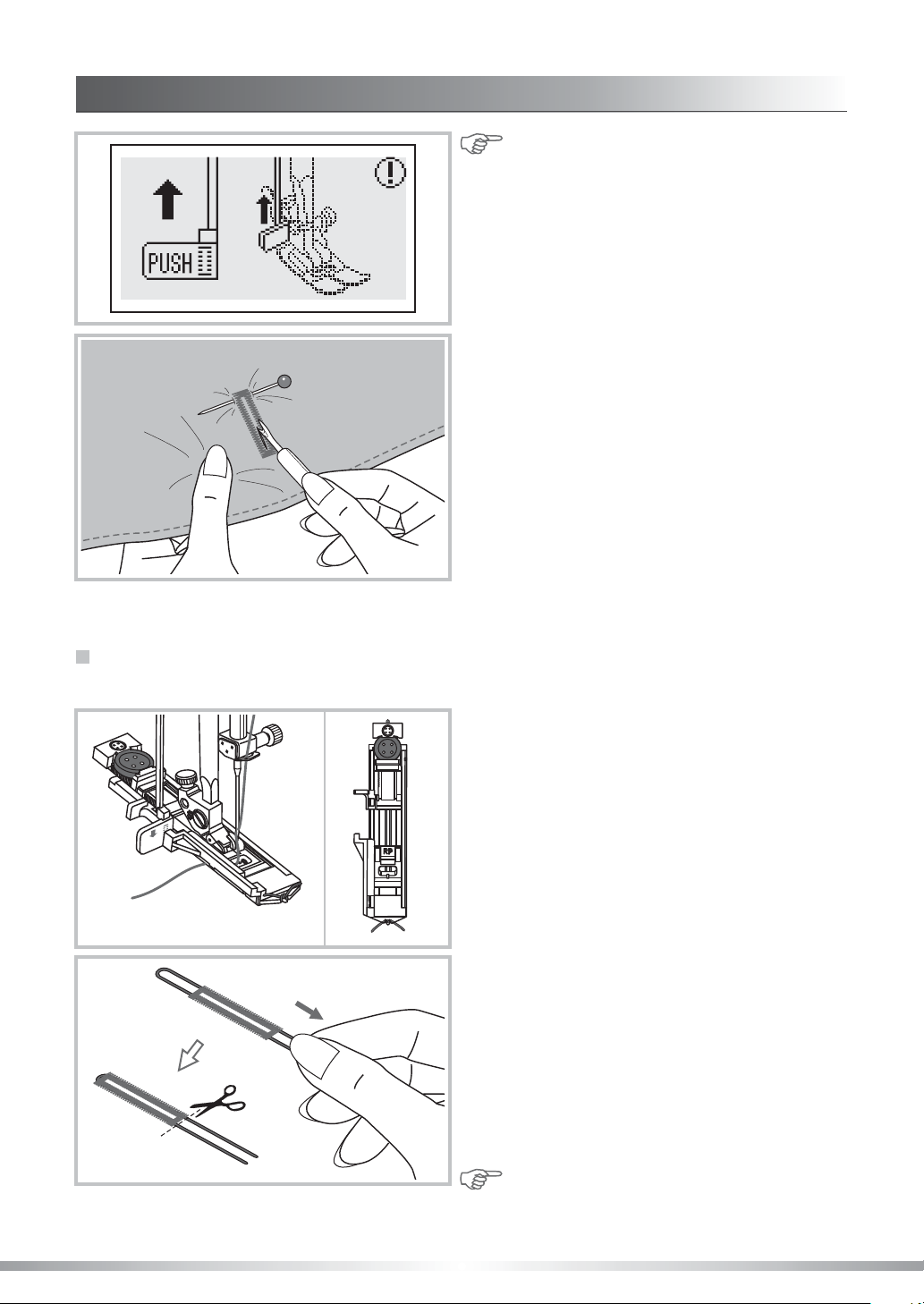

BUTTONHOLE STITCHING ............................................................................................................57-60

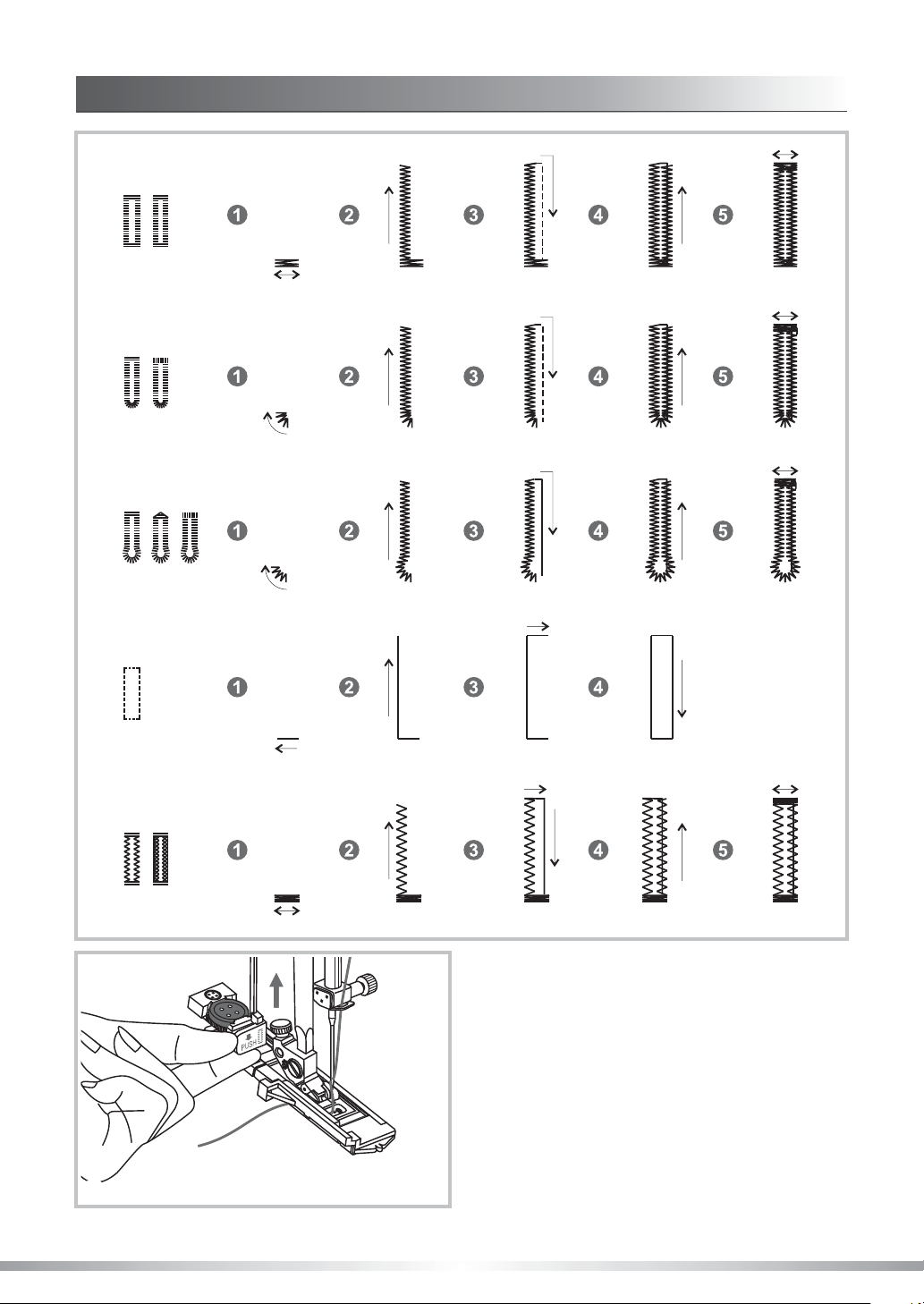

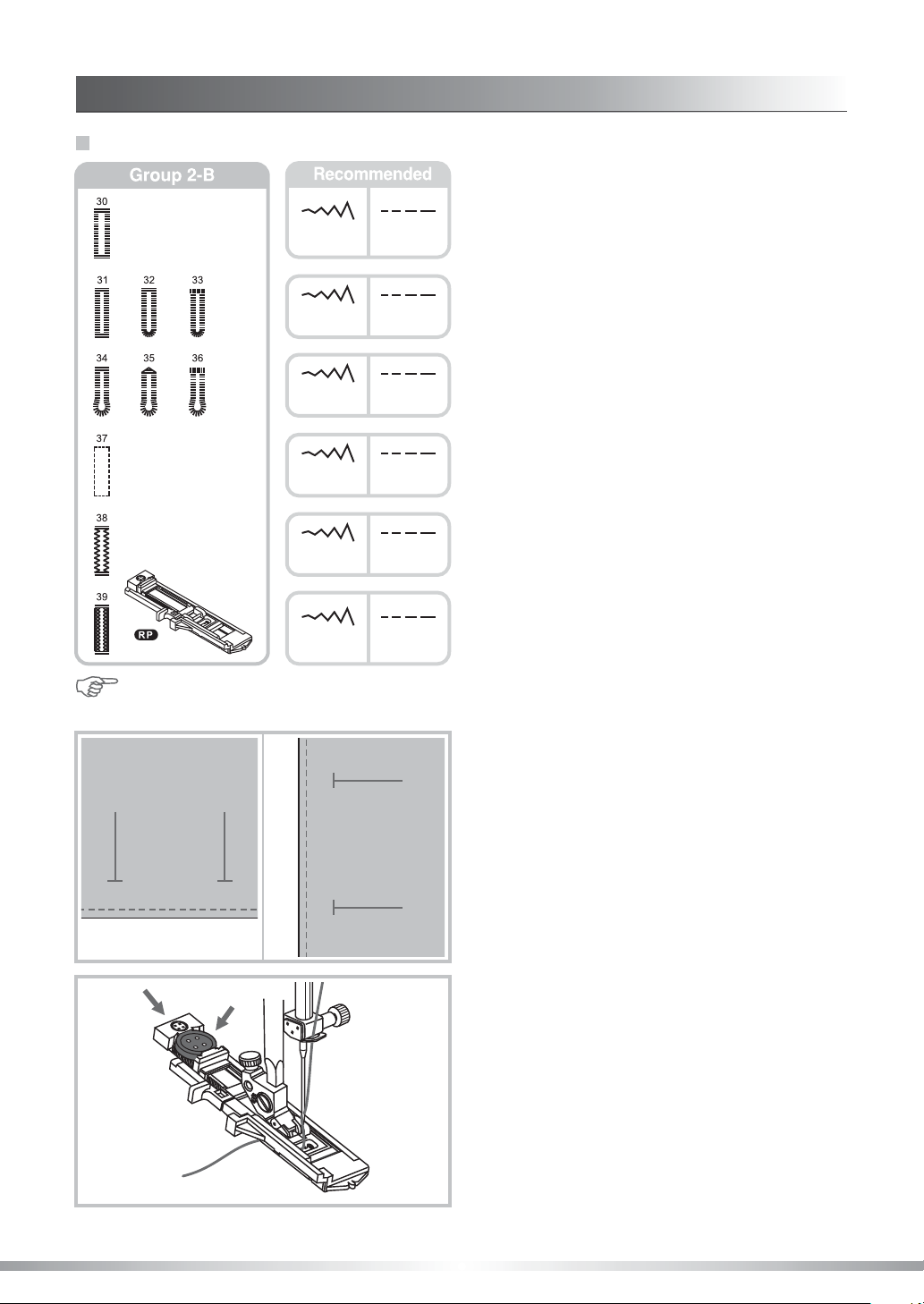

Making a one-step buttonhole................................................................................................57-60
Making a buttonhole on stretch fabrics........................................................................................60
BAR TACK STITCH.........................................................................................................................61-62
EYELET STITCH...................................................................................................................................63
DARNING STITCH...........................................................................................................................64-65
4
INSTRUCTIONS
CONTENTS
To adjust the evenness of darning stitch.....................................................................................65

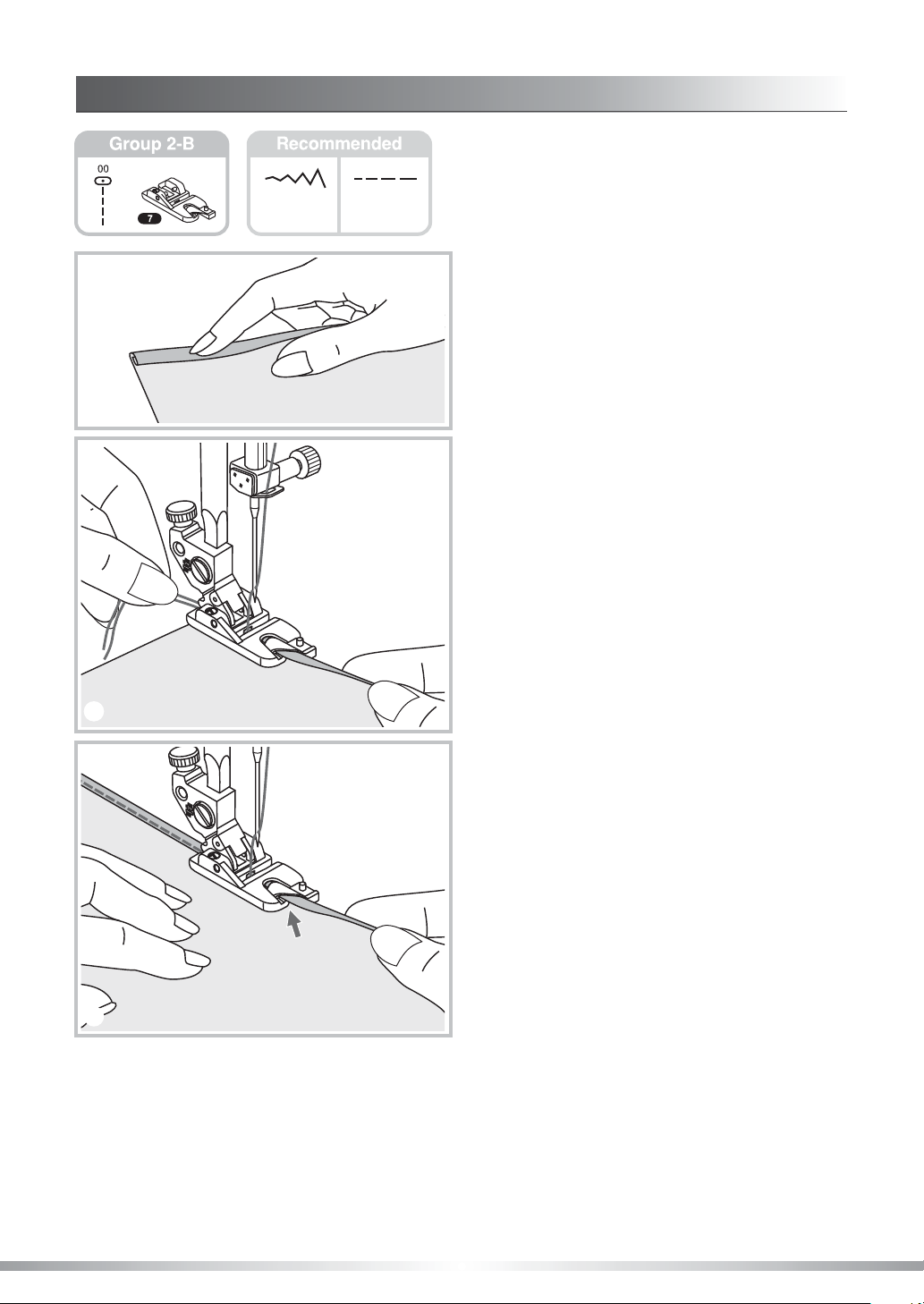

NARROW HEMMING ...........................................................................................................................66
QUILTING .............................................................................................................................................67
Hand-look quilting stitch ..............................................................................................................67
Decorative patchwork stitching....................................................................................................67

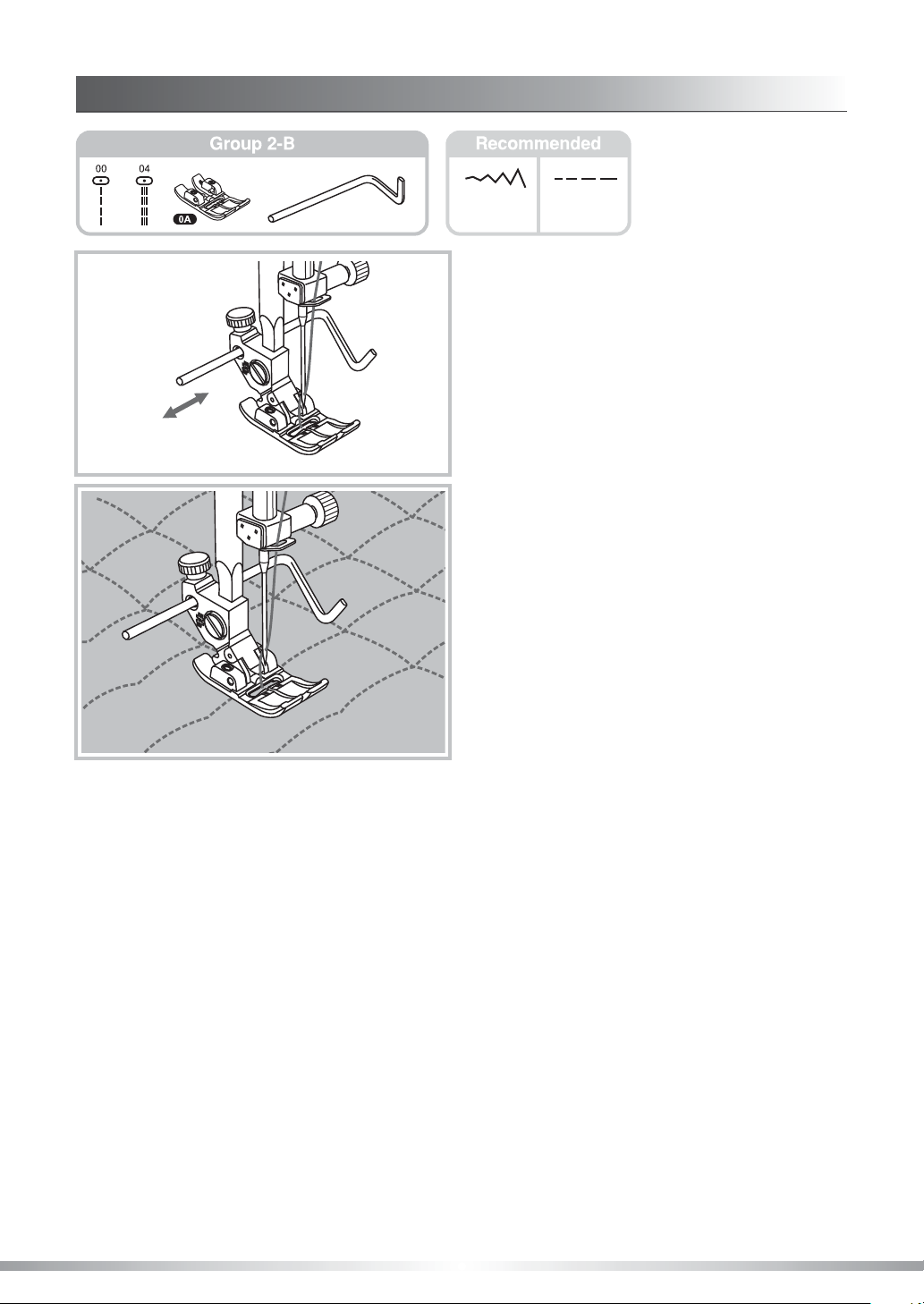

ATTACHING THE EDGE/ QUILTING GUIDE ......................................................................................68
DECORATIVE TECHNIQUES
CORDING..............................................................................................................................................69

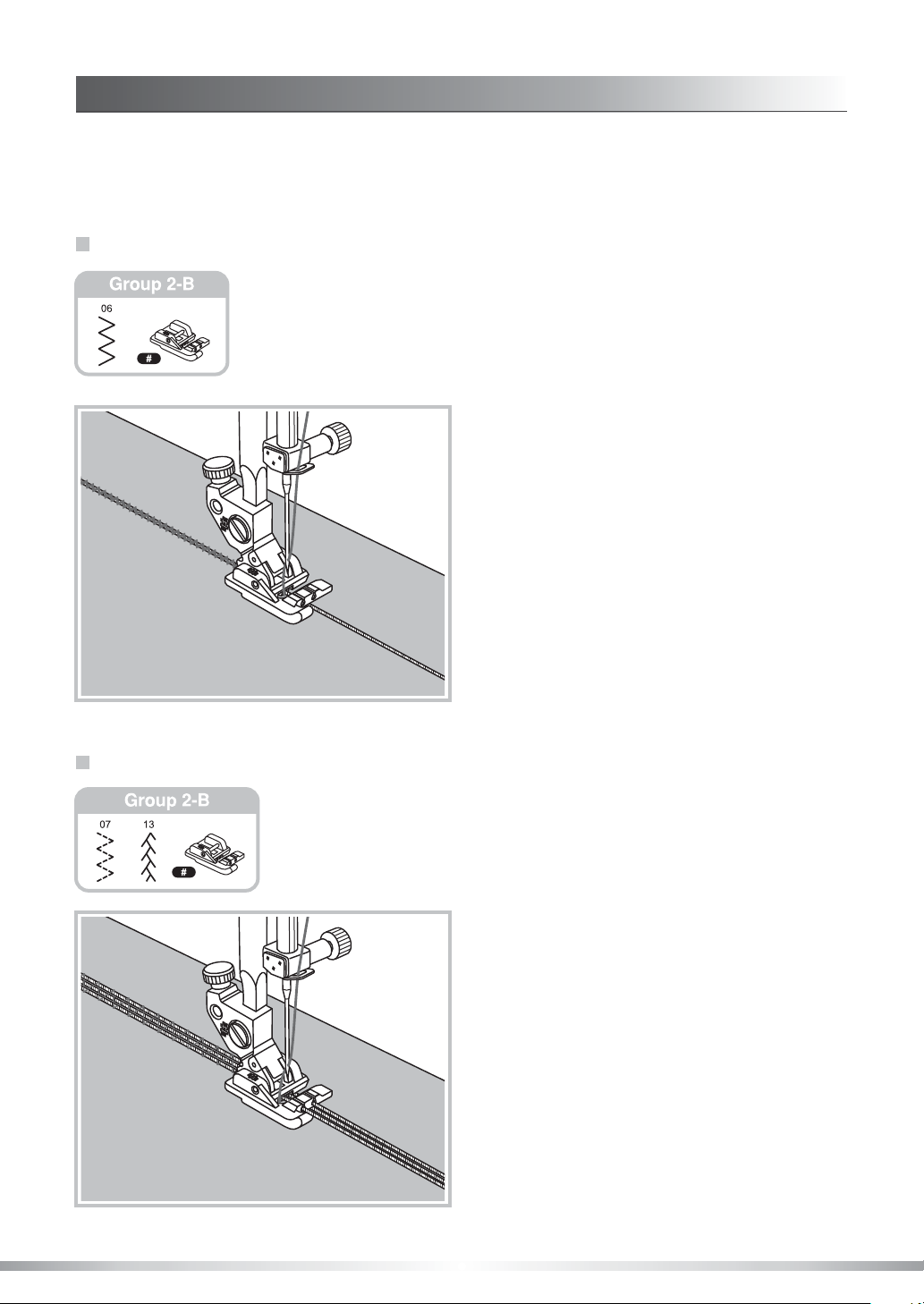

Single cording..............................................................................................................................69
Triple cording...............................................................................................................................69
FAGOTING............................................................................................................................................70
GATHERING....................................................................................................................................71-72
SATIN STITCH SEWING ......................................................................................................................73
SCALLOP STITCH ...............................................................................................................................74
Scallop hem.................................................................................................................................74
Scallop edging.............................................................................................................................74

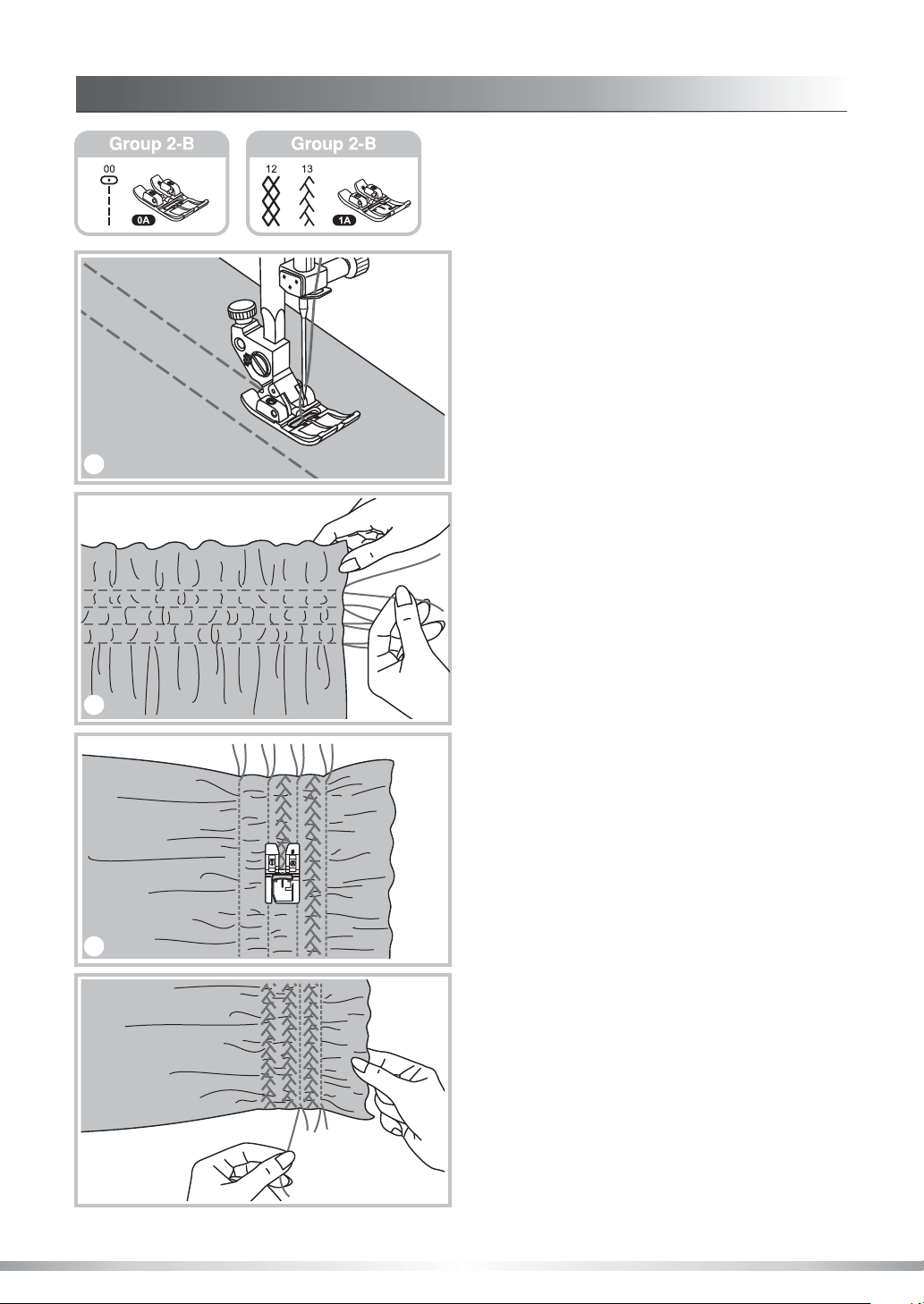

SMOCKING...........................................................................................................................................75
TWIN NEEDLE SEWING .................................................................................................................76-77
DECORATIVE STITCHES
ELONGATION.......................................................................................................................................78
MIRROR IMAGE ...................................................................................................................................79
MEMORY FUNCTION......................................................................................................................80-83
Combining stitches or letters..................................................................................................80-81
Adding stitches or letters .............................................................................................................81
Editing stitches ............................................................................................................................82
Clearing stitches or letters...........................................................................................................82
Recalling and sewing the memorized stitch ................................................................................83
APPENDIX

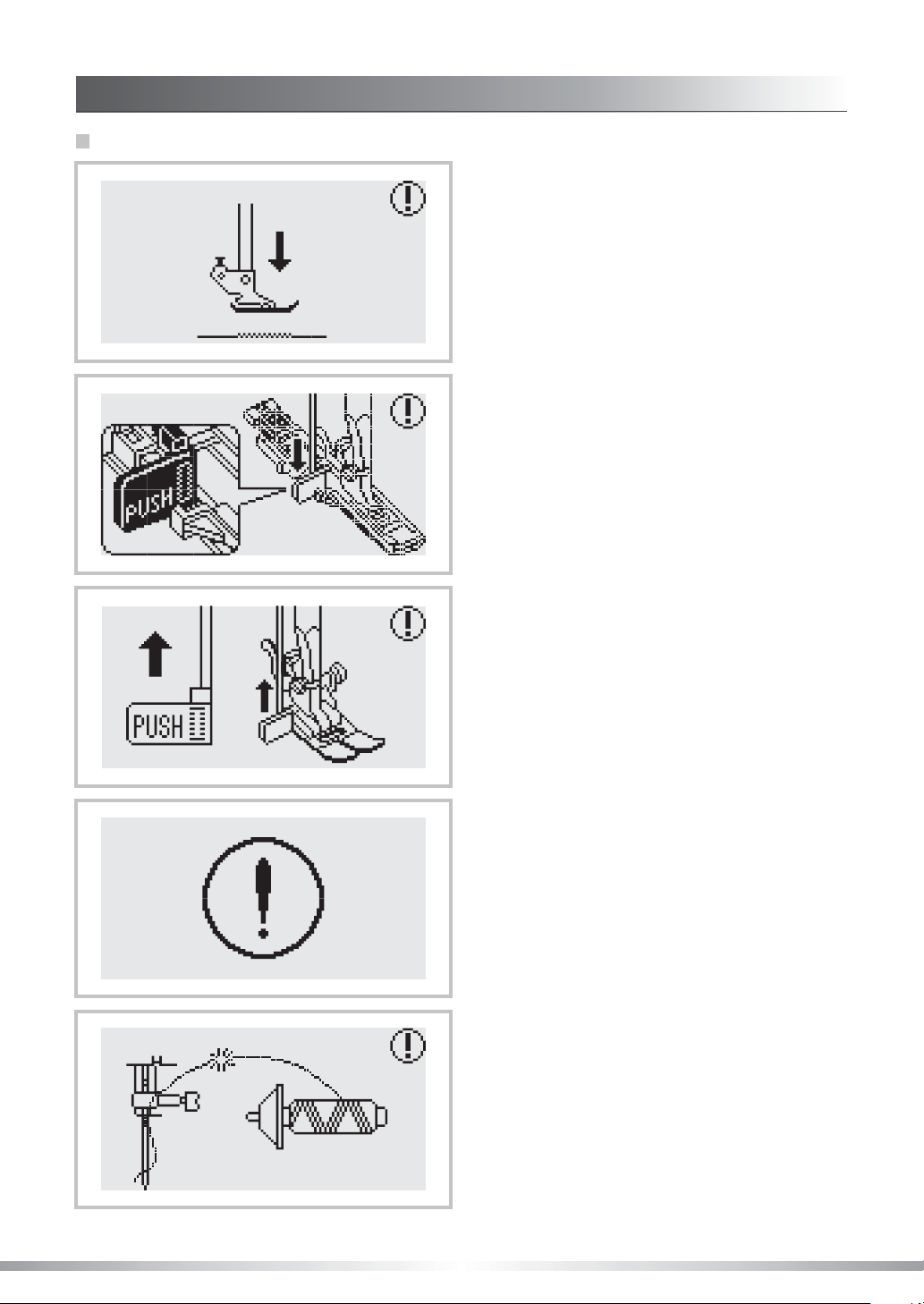

WARNING FUNCTIONS..................................................................................................................84-87
Warning animation message display .....................................................................................84-85
Instruction animation message display .......................................................................................86
Warning beeping sound ..............................................................................................................87
Beeping sound ............................................................................................................................87

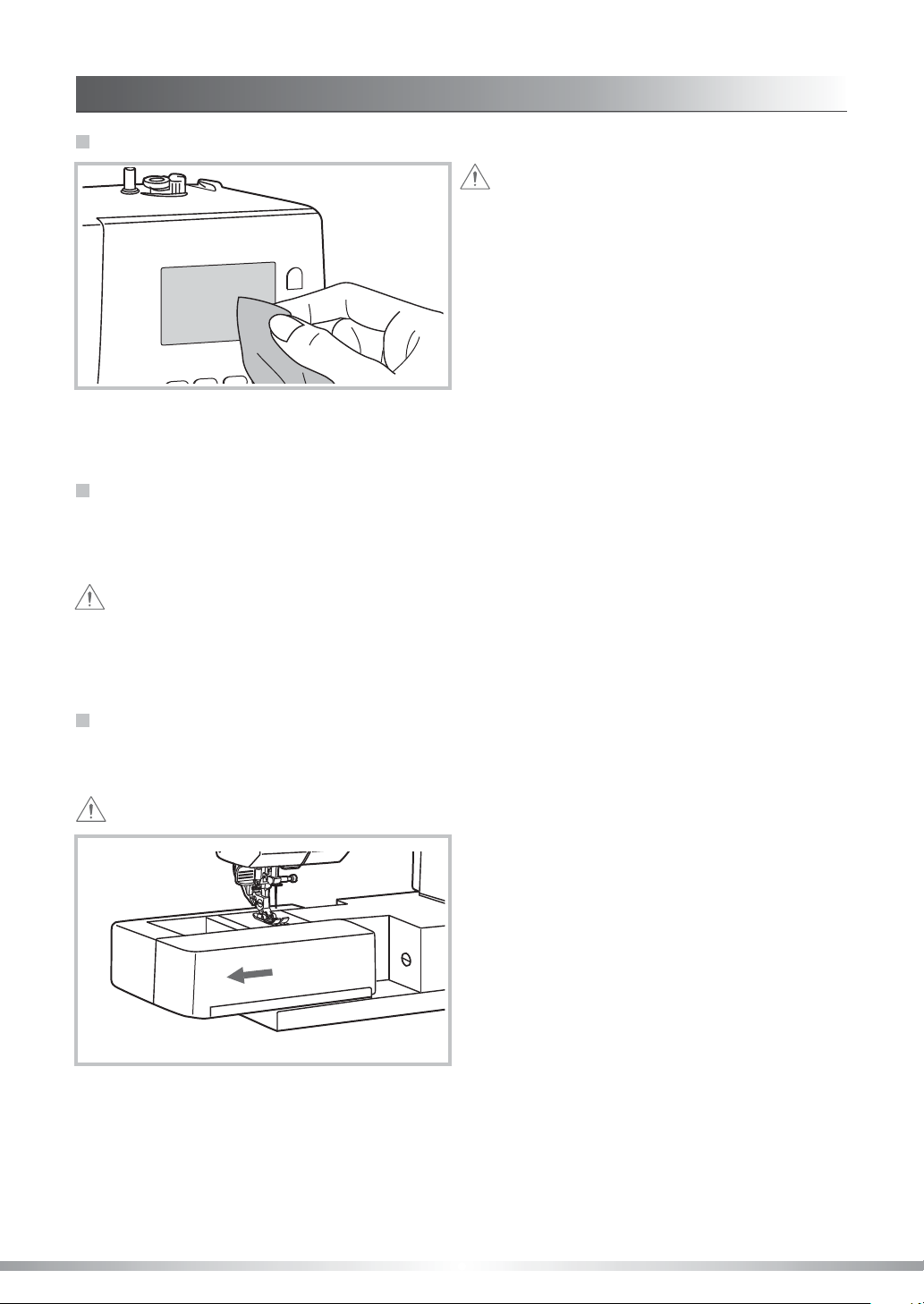

MAINTENANCE...............................................................................................................................88-89
Cleaning the LCD screen ............................................................................................................88
Cleaning the sewing machine surface.........................................................................................88
Cleaning the hook ..................................................................................................................88-89
TROUBLESHOOTING.....................................................................................................................90-91
STITCH REFERENCE CHART......................................................................................................92-103
5
INSTRUCTIONS
ACCESSORIES
1. Standard Presser Foot 0A
2. Zipper Foot 4
3. Gathering Foot
4. Rolled Hem Foot 7
5. Three-groove Cording Foot
6. Fancy Stitch Foot 1A
7. Buttonhole Foot
8. Blindhem Foot 3
9. Fancy Stitch Foot 2A
10. Pack of needles
11. Bobbin (3X)
12. Net
Edge/quilting guide
13.
14. Cone holder (2X)
15. Spool cap ī
large (2x)
16
. Spool cap ī
small (2x)
17
. Screwdriver (L & S)
18. Brush/seam ripper
19. Knee Lift
20. Soft canvas cover (Black)
6
INSTRUCTIONS
PRINCIPAL PARTS OF THE MACHINE
Bobbin thread guide
Stitch chart
Presser foot pressure dial
Operation buttons
Face plate
Thread cutter
Buttonhole lever
Needle threader
Needle plate
Sewing table and
accessory box
Drop feed lever
Sewing speed control
Spool pins
Retractable thread guide
Bobbin winder
Bobbin winder switch
and thread cutter
LCD screen
LCD screen
brightness control
Function buttons
Selection buttons
Knee Lift slot
Stitch adjustment dial
Handwheel
Main power switch
Foot control connector
Power supply connector
Handle
Dual feed system(DFS)
Presser foot lever
7
INSTRUCTIONS
FOOT CONTROL
With the sewing machine turned off, insert the foot
control plug and the power supply cord into their
appointed connectors on the sewing machine.
Turn on the sewing machine, and then slowly
depress the foot control to start sewing.
Release the foot control to stop the sewing machine.
By tapping the foot control one time will allow the
needle to go up or down.
Note: The setting of the sewing speed control will limit the maximum speed of the machine
when using the foot control.
Attention: Consult a qualified electrician if in doubt as how to connect the machine to
the power source. Unplug the power cord when the machine is not in use.
The appliance must be used with the foot control C-9001 manufactured by CHIEN HUNG
TAIWAN., LTD.
8
INSTRUCTIONS
OPERATION BUTTONS
Needle position button
Auto-lock button
Reverse button
Thread Snips
START/STOP button
START/STOP button
Thread Snips
The machine will start running when the
START/STOP button is pressed and will stop
when pressed the second time. The machine will
stitch slowly at the beginning of the sewing.
The sewing speed can be controlled by the
sewing speed control.
Note: The Reverse button function will work
with the foot control either connected or
disconnected. The START/STOP button
functions will also work with the foot control
either connected or disconnected.
Use the sewing speed control to adjust the sewing
speed.
To increase the speed, slide the lever to the
right; to decrease the sewing speed, slide the
lever to the left.
Press this button after finishing sewing and the
machine will trim the threads.
9
INSTRUCTIONS
OPERATION BUTTONS
Reverse button
Auto-lock button
The following stitches can be sewn in reverse:
Group 2-B stitches 00-06, 27-29; Group 3-C
stitches 00-01, 04. After selecting the stitch, press
the reverse button. An arrow " " will display on the
LCD screen while stitching in reverse. The machine
will sew forward after the button is released.
The reverse button can be used to sew a
reinforcement stitch for the following stitches: Group
2-B stitches 07-26, 50-92; Group 3-C stitches 03, 05Ā24; Group 4-D stitches 00-78. After selecting the
stitch, press the reverse button. A reinforcement
stitch sews at a low speed and the machine will
automatically stop.
When the Group 2-B stitches 00-05, 45 and
Group 3-C stitches 01-02, 04, 18 are selected,
the machine will immediately sew 3 locking
stitches when the Auto-lock button is pressed,
then will automatically stop.
The LCD screen will display the figure " " until
the locking stitches stop.
To stop machine at the end of the current stitch or
to sew a single stitch (except Group 2-B stitches
00-05, 27-49 and Group 3-C stitches 00-02, 04, 18),
press the Auto-lock button, the machine will sew 3
locking stitches at the end of the current stitch and
automatically stop.
The LCD screen will display the Auto-stop figure
" " until the feature is cancelled.
The function will be cancelled if you press the
button once again or select another stitch.
10
INSTRUCTIONS
OPERATION BUTTONS
Needle position button
Press the needle position button so that the arrow
" " (on the LCD screen) will point upward and
the needle will stop in the highest position.
When you press the button so that the arrow
points downward " ", the machine will stop
with the needle in the lowest position.
Pressing the needle position button once will raise
or lower the needle.
Pressing the needle position button twice will sew
one stitch.
11
INSTRUCTIONS
FUNCTION BUTTONS
Stitch width adjustment buttons
Stitch width
adjustment buttons
Stitch length
adjustment buttons
Tension adjustment
buttons
Twin needle button
Mirror image button
Elongation button
Bobbin winding button
Key lock button
FUNC selection button
When you select a stitch, the machine will autoĀmatically set the recommended stitch width, which
will be indicated by numbers on the LCD screen.
The stitch width can be regulated by pressing the
stitch width adjustment buttons.
Certain stitches have a limited stitch width.
For a narrower stitch, press the left side of the
button "ī". For a wider stitch, press the right side
of button "+". The stitch width can be adjusted
between "0.0-9.0".
Certain stitches have a limited stitch width. (See
" " on page 92.)Stitch reference chart
When Group 2-B stitches 00-05, 27-29 and
Group 3-C stitches 00-02, 04, 18 and Group 4-D
stitch 50 are selected, the needle position is
regulated by the stitch width adjustment buttons.
Pressing the "ī" button (left), will move the needle
to the left and pressing the "+" button (right), will
move the needle to the right. The numbers will be
changed from left position "0.0" to extreme right
position "9.0". The pre-set center needle position
will be indicated as "4.5".
12
INSTRUCTIONS
FUNCTION BUTTONS
Stitch length adjustment button
When you select a stitch the machine will
automatically set the recommended stitch length
which will be indicated by numbers on the LCD
screen. The stitch length can be adjusted by
pressing the stitch length adjustment buttons.
For a shorter stitch, press the left side of the
button . For a longer stitch, press the right
side of button "+". The stitch length can be
adjusted between "0.0-5.0".
"ī"
Tension adjustment buttons
Tight
Loose
Note:
stitch length range.
When you select a stitch the machine will
automatically set the recommended
tension
the LCD screen. The can be
adjusted by pressing the tension adjustment
buttons.
To increase the tension, press the button "+" to
the next number up. To reduce the tension,
press the button "ī" to the next number down.
Certain stitches have a limited
thread
which will be indicated by numbers on
thread tension
13
INSTRUCTIONS
FUNCTION BUTTONS
FUNC selection button
The LCD screen will be set at direct mode A when
you turn on the machine. By pressing the " "
button, the LED light will turn on. LCD screen
enters the stitch group screen automatically. Press
the numbered button corresponding to the group
of stitches. For example : Press FUNC, then 2 for
group B. Then press the 2 digit stitch number from
group B on the stitch chart.
Direct mode stitch selection (Group 1-A)ĀSelect stitch from the numbered buttons or
" ", and then 1 to reenter direct selection.
Utility and decorative stitch mode (Group 2ĀB)- Press " ", then 2, and then stitch
number by using the numbered buttons.
Quilt stitch mode (Group 3-C)- Press " ",
then 3, and then stitch number by using the
numbered buttons.
Decorative stitch mode (Group 4-D)- Press
" ", then 4, and then stitch number by
using the numbered buttons.
Key lock button
Bobbin winding button
Block letter mode - Press " ", then 5, and
then stitch number by using the numbered
buttons.
Script letter mode - Press " ", then 6, and
then stitch number by using the numbered
buttons.
Press the " " button to lock the Function and
Selection buttons. Press the " " button again
to unlock. Lock buttons to prevent stitch settings
from accidentally being changed.
Attention: While the key lock button is locked
the Function and Selection buttons cannot be
operated.
Put the empty bobbin on the bobbin winder shaft.
Push the bobbin winder switch to the left.
Press the " " button to wind the bobbin.
The LED light will be on while the bobbin is
winding.
Bobbin can wind in any operation mode.
14
INSTRUCTIONS
FUNCTION BUTTONS
Elongation button
Mirror image button
Group 2-B stitches 58-75 can be elongated up
to five times their normal length by pressing the
" " button, the LED light will turn on.
Combine different stitches in this group : change
width or length for a greater variety of stitches.
Stitch can be mirror imaged along a vertical axis
by pressing the " " button except for stitches
30-49 from the Group 2-B stitches.
LED light will turn on. The machine will continue
to sew the reflected stitch until the mirror image
button is pressed again or the stitch is changed.
Mirror imaging the stitch appears on the LCD
screen.
A
Twin needle button
A - Normal
B - Mirror imaged
B
Stitches can be sewn in two parallel lines of the
same stitch with the twin needle.
Press the " " buttonīthe LED light will turn on
and the machine automatically reduces the width
for twin needle sewing.
When using some straight stitches and the
needle position is set below 2.0, the width will
automatically move to 2.0mm.
Press the button again to return to single needle
sewing.
Note: Group 1-A stitch 0, 8, 9 and Group
2-B stitches 27-49 cannot be used with
twin needle function.
15
INSTRUCTIONS
SELECTION BUTTONS
Direct stitch selection and number buttons
Direct stitch selection
Press the numbered button to the right of the utility
stitch shown when the mode button (FUNC) is set
at the direct mode (1-A).
Direct stitch selection
and number buttons
Memory button
Clear button
Edit button
Number buttons
To select a stitch other than direct mode 1-A :
Press the " " button and enter the number of
stitch group (see page 14). Then press the two
numbers of the desired stitch from the stitch
chart.
For example: For Group 2-B press FUNC then
button 2. Press 92.
16
INSTRUCTIONS
SELECTION BUTTONS
Memory button
Edit button
Press the " " button to enter the memory mode.
Select up to 8 memories for storing combinations
of characters and decorative stitches.
Up to 20 stitches can be combined in each memory.
Use the stitch width "+" and button to scroll
through the sequence memorized. Press the " "
button again to exit the memory mode.
See page 80 for details.
Note: Direct stitches, Group 2-B stitches 27Ā49 and Group 3-C stitch 00 cannot be
memorized.
If you wish to modify the stitch settings in the
memory mode, use the stitch width "+" or
button to select the stitch to be modified. Press
the " " button to enter the editing mode, the
LED light will turn on.
Manual setting function of the stitch width, stitch
length, mirror and Auto-lock for these memorized
stitches can be changed. Press the " " button
again to exit the editing mode. See page 82 for
details.
"ī"
"ī"
Clear button
When combining characters or decorative stitches,
press the " " button to clear or erase one
character or stitch. See page 82 for details.
17
INSTRUCTIONS
CONNECTING THE MACHINE TO THE POWER SOURCE
Connecting the machine
Before connecting the power supply, make sure that the voltage and the frequency shown on the
machine is conforming to your electrical power.
Place the machine on a stable table.
1. Connect the power cord to the machine by inserting the plug into the power supply connector.
2. Connect the power cord plug to the electrical outlet.
3. Insert foot control plug into the foot control connector on machine.
* 001.The appliance must be used with foot control C-9
Caution: Never leave machine unattended when plugged in.
Always unplug this machine from the electrical outlet immediately after using and before
maintenance.
18
GETTING READY
TURN MACHINE ON/ OFF
Turn on the machine
Press the right side of the main power switch on
the right side of the machine, the
ON (" I ").
The lamp comes on when the machine is
.
on
Turn off the machine
When you are finished using the machine, turn it
off. In addition, before transporting the machine to
another location, be sure to turn it off.
1. Make sure the machine is not sewing.
2. Press the left side of the main power switch on
the right of the machine, the power switch is
OFF ("O").
The lamp goes off when the machine is turned
off.
3. Unplug the power supply cord from the power
supply jack.
power switch is
turned
Note: If a power outage occurs while the machine is being operated, turn off the machine
and unplug the power supply cord.
When restarting the machine, follow the necessary procedure to correctly operate the
machine.
19
GETTING READY
UNDERSTANDING THE LCD SCREEN
Stitch
Single needle
Mirror
Group mode
Stitch
Tension
Reverse
Twin needle Needle down position
Group mode
Stitch number
Stitch
Auto-lock
Needle up position
Bobbin winding
Suggested presser foot
and identification letter
Sound on/off
Stitch length
Needle position
Auto-stop
Suggested presser foot
and identification letter
Sound on/off
Alphabet
Single needle
Group mode
Stitch number
Tension
Stitch
Tension
Stitch length
Stitch width
Needle up position
Auto-stop
Suggested presser foot
and identification letter
Sound on/off
Stitch width
20
GETTING READY
UNDERSTANDING THE LCD SCREEN
Elongation
Auto-stop
Mirror
Stitch
Stitch number
Magnification
Tension
Stitch width
Stitch length
Memory
Memory group
Number of current unit
Total number of unit
Stitch width
Stitch length
Bobbin winding
Single needle
Sound on/off
Needle up position
Suggested presser foot
and identification letter
Stitch to edit
Bobbin winding
Tension
Mirror
Sound on/off
Needle up position
LCD SCREEN BRIGHTNESS CONTROL
The LCD screen brightness control dial is located
at the right of LCD screen. Use this to dial adjust
the sharpness of the LCD .
If no indication is shown on the screen after
switching on the power, adjust the LCD screen
brightness with the dial.
LCD screen brightness : Turn the dial to the
toward the "+"
LCD screen darkness : Turn the dial to the left
toward the " ".
21
GETTING READY
.
ī
Auto-stop
screen
right
WINDING THE BOBBIN
b
a
3
2
5
6
4
11
9
7
8
1
Note: Due to the independent bobbin winder motor, you can wind the bobbin during sewing.
Follow the steps for "Winding The Bobbin" except place the thread for the bobbin through
the thread guide opening not in use being careful not to tangle thread.
Bobbin winding
1
2
1. Align the groove (a) in the bobbin with the spring
(b) on the bobbin winder shaft, and then place
the empty bobbin on the bobbin winder shaft.
2. Place the spool of thread and spool cap onto
the spool pin. For smaller spools of thread,
use the small spool cap.
Spool cap should be close in size to the thread
spool, however should not be any smaller. If the
spool cap is smaller than thread spool, thread
may get caught in the slit on end of spool and
cause damage.
Note: If the thread spool does have a slit
on the end, it is recommended to place
this end of the spool toward the bottom,
so it doesn't get caught while sewing or
bobbin winding.
22
GETTING READY
WINDING THE BOBBIN
3
4
3. Bring the hinged thread guide up and forward
into the upright position.
4. Place the thread through the thread guide
above the spool of thread from back to front.
5. Place the thread through the appropriate
thread guide opening for the spool pin that is
being used.
5
6. Pass the thread clockwise around the bobbin
winder tension disc, as illustrated. Make sure
the thread is under the disc securely.
6
7. Wind the thread clockwise around the bobbin
four or five times and then pull the thread to
the right to cut it with the cutter.
7
23
GETTING READY
WINDING THE BOBBIN
8
9
8. Push the bobbin winder switch to the left.
9. Press the bobbin winding button.
10.When the bobbin winder switch is pushed to
the left and bobbin winder button is pressed,
the LCD screen will display the animation of
the bobbin winding.
10
11
Note: When the bobbin winder button is
pushed without pushing the bobbin winder
switch to the left, the following screen is
displayed for a few seconds.
11.The bobbin stops spinning automatically when
it is full, and the bobbin winder switch returns
to the orginal position.
Remove the bobbin then cut the thread on
the thread cutter.
Attention: Since this machine is equipped
with an independent bobbin winder the sewing
speed controller does not effect the winding
speed. Keep fingers clear of the needle area
while winding the bobbin.
24
GETTING READY
INSERTING THE BOBBIN
1
Attention: Turn power switch OFF ("O")
before inserting or removing the bobbin.
Press the needle position button to raise the
needle before inserting or removing the
bobbin.
1. Open the hinged cover.
2. It is important to be sure that the bobbin is
turning in a clockwise direction (arrow).
2
3. Hold the bobbin case with one hand. Insert the
bobbin so that the bobbin turns in a clockwise
direction.
3
4. Pull the thread through the slot, to the left and
then right until it enters the delivery eyelet
under the tension spring.
4
25
GETTING READY
INSERTING THE BOBBIN
5
5. Pull the bobbin thread through the metal hook
using a clockwise motion.
6. Hold the bobbin case by the hinged latch.
Insert the bobbin case fully into the shuttle
race and release the latch.
6
7. Close the hinged cover.
7
26
GETTING READY
UPPER THREADING
6
7
8
9
10
2
1
3
4
5
Threading the upper thread
Note: It is important to thread the machine correctly. Improper threading could result in
several sewing problems.
Before threading the machine, raise the needle
to its highest point and raise the presser foot
to release the tension discs.
1. Slide the spool of thread onto the spool pin
so the thread unwinds clockwise from the
1
2
GETTING READY
thread spool. Then position the spool cap on
the spool pin to secure the spool of thread.
2. Place thread in the thread guide above the
spool of thread.
27
UPPER THREADING
3
4
3. Place the thread through the appropriate
thread guide opening for the spool pin that is
being used.
4. Guide the thread into the pre-tension thread
guide pulling the thread through the preĀtension spring as illustrated.
5. Pull the thread downward from the thread guide.
5
6. Draw the thread down through the right slot,
pulling into the tension discs. Bring it down,
around the U-turn from right to left, then pull
the thread upward.
6
7. Bring the thread up through the left slot and
then into the slotted eye of the take-up lever
from right to left. Continue by bringing the
thread back down through the left slot.
7
28
GETTING READY
UPPER THREADING
8
9
8. Pass the thread behind the flat, horizontal
thread guide and then through the thread
guide above the needle.
9. Insert the end of the thread through the eye of
the needle from front to back or use the needle
threader to thread the needle. (See next page
for needle threader instructions.)
10.Place the thread under the foot and pull out
approximately 15 cm (6 inches) of thread to the
back of the machine.
10
29
GETTING READY
UPPER THREADING
Using the needle threader
1
Attention: Turn power switch to the OFF
position ("O").
Raise the needle to its highest position and
lower the presser foot.
1. Lower the needle threader lever slowly and
draw the thread through the thread guide as
illustrated and then to the right.
2. Pivot the needle threader into the threading
position so the hook pin passes through the
needle eye.
2
3. Pass the thread in front of the needle to catch
the hook of the threader.
3
4. Hold the thread loosely and return the threader
to its original position. The hook will turn and
pull the thread through the needle eye forming
a loop.
Pull the loop of thread through the needle eye.
4
30
GETTING READY
UPPER THREADING
Using the thread net
1
If using special threads which wind quickly off
the thread spool, attach a net to the spool before
using.
* Cut the net to match the size of the spool.
NET
Thread spool
Spool pin
2
Spool cap
4
3
31
GETTING READY
UPPER THREADING
Raising up the lower thread
1
1. Hold the upper thread with the left hand. Turn
the handwheel towards you (counterclockwise)
lowering, then raising the needle.
2. Gently pull on the upper thread to bring the
bobbin thread up through the needle plate
hole. The bobbin thread will come up in a loop.
2
3. Pull both threads to the back under the presser
foot.
3
32
GETTING READY
CUTTING THE THREAD
Press thread snips after finishing sewing and the
machine will trim the threads.
Use the thread cutter on the face plate to cut the
threads.
Raise the presser foot. Remove the fabric, draw
the threads to the left side of the face plate and
cut using the thread cutter.
The threads are cut at the proper length to start
the next seam.
REPLACING THE NEEDLE
Attention: Turn power switch to OFF (
when replacing the needle !
Change the needle regularly. A bent or damaged
needle can cause skipped stitches, damage fabric
or break while sewing.
To check the needle, place the flat side of the
needle on a flat surface. Discard any damaged
or bent needles.
Before changing the needle, press the needle
position button to raise the needle to its highest
position.
A. Loosen the needle clamp screw and remove
the damaged needle.
B. With the flat side of the needle facing the back,
insert a new needle up as far as it will go.
C. Securely tighten the needle clamp screw.
"O")
33
GETTING READY
CHANGING THE PRESSER FOOT
a
b
Attaching the presser foot holder
Attaching the presser foot
a
b
c
e
Attention: Turn power switch to OFF ( )
when carrying out any of the following
operations!
Raise the presser foot bar (a).
Position the presser foot holder (b) in place and
attach as illustrated.
Lower the presser foot holder (b) until the notch
(c) is directly above the pin (d).
Lower the presser foot holder (b) and the presser
foot (e) will engage automatically.
"O"
d
Removing the presser foot
Raise the presser foot.
Press down on the front of the presser foot by hand.
The foot will disengage.
34
GETTING READY
CHANGING THE PRESSER FOOT
Type of presser foot chart
(twin needle is shown below, suggesting opportunities for more creativity)
PRESSER FOOT PRESSER FOOT
APPLICATION
NEEDLE NEEDLE
General sewing,
Patchwork stitches,
Decorative
stitching,
Standard presser
foot with DFS
Zipper foot
with DFS
Smocking,
Fagoting, etc.
Inserting zippers
Fancy stitch foot
Buttonhole sewing
Rolled hem foot
Buttonhole foot
with DFS
APPLICATION
Satin stitch sewing,
Decorative stitching.
Narrow hemming
Three-groove
Cording foot
Blindhem foot
with DFS
Cording
Blind hem stitching
Overcasting
Gathering
Gathering foot
35
GETTING READY
CHANGING THE PRESSER FOOT
Two-step presser foot lifter
1. The presser foot lever raises and lowers the
presser foot.
1
2. When sewing several layers or thick fabrics,
the presser foot can be raised a second stage
for easy positioning of the work.
2
36
GETTING READY
DUAL FEED SYSTEM (DFS)
The DFS system feeds fabrics from the top and bottom simultaneously, ensuring that the fabric
layers feed evenly. Use this when sewing checked, striped or plaid fabrics, as well as quilt layers.
It is also helpful when sewing lightweight or difficult-to-handle fabrics such as silk or rayon, as the
DFS system prevents puckering.
To engage the DFS system
Raise the presser foot.
Lower the DFS mechanism slowly.
Attention:
mechanism
Swing the DFS mechanism forward under the
back of the presser foot until it is engaged and
stays in the lowered position.
Only use presser feet with the back opening when engaging the DFS
.
37
GETTING READY
DUAL FEED SYSTEM (DFS)
To disengage the DFS system
Raise the presser foot.
Pull down DFS mechanism and swing it to
the rear to disengage.
Push DFS mechanism up.the
the
Fabric positioning
Place fabric flat on top of needle plate and position
the fabric under presser foot.
While holding the thread tails with left hand turn
handwheel with right hand to insert the needle into
the fabric. Lower the presser foot and make 3-4
stitches.
Place hands on each side of the presser foot
and gently guide the fabric while sewing.
38
GETTING READY
STITCH CHART
On the chart below, the portion marked in gray shows a single unit of each stitch.
Stitches
Group 1-A 10 Stitches (Direct Selection)
Group 2-B 93 Stitches
Group 3-C 25 Stitches
39
SEWING BASICS
STITCH CHART
Group 4-D 79 Stitches
Alphabets
40
SEWING BASICS
MATCHING NEEDLE/ FABRIC/ THREAD
NEEDLE, FABRIC, THREAD SELECTION GUIDE
NEEDLE SIZE FABRICS
9-11 (70-75) Lightweight fabrics-thin cottons, voile,
serge, silk, muslin, interlocks, cotton
knits, tricot, jerseys, crepes, woven
polyester, shirt & blouse fabrics.
12-14 (80-90) Medium weight fabrics-cotton, satin,
sailcloth, double knits, lightweight
woolens.
14 (90)
16 (100)
Note:
- In general, fine threads and needles are used for sewing fine fabrics, and thicker threads
are used for sewing heavy fabrics.
- Always test thread and needle size on a small piece of fabric which will be used for actual
sewing.
- It is recommended that the same thread be used in the needle as in the bobbin.
Medium weight fabrics-cotton duck,
woolen, heavier knits, terrycloth,
denims.
Heavyweight fabrics-canvas, woolens,
quilted fabrics, denims, upholstery
material (light to medium).
Light-duty thread in cotton, nylon,
polyester or cotton wrapped polyester.
Most threads sold are medium size
and suitable for these fabrics and
needle sizes. Use polyester threads
on synthetic materials and cotton on
natural woven fabrics for best results.
Always use the same thread on top
and bottom.
Heavy duty thread.
THREAD
41
SEWING BASICS
THREAD TENSION
Tight
Loose
- To increase the tension, press the button "+" to the next number up. To reduce the tension,
press the button "ī" to the next number down.
- Proper setting of tension is important to good sewing.
- There is no single tension setting appropriate for all the stitch functions and fabrics.
- For all decorative sewing you will always obtain a nicer stitch and less fabric puckering when the
upper thread appears slightly on the bottom side of your fabric.
1
2
3
Wrong
side
Upper thread
Bobbin thread
Wrong
side
Upper thread
Bobbin thread
Wrong
side
Upper thread
Bobbin thread
Surface
Surface
Surface
1. Normal thread tension for straight stitch sewing.
2. Upper thread tension is too loose for straight
stitch sewing. Press the button "+" to higher
number to tighten the upper tension.
3. Upper thread tension is too tight for straight
stitch sewing. Press the button "ī" to lower
number to reduce the upper tension.
4
Wrong
side
Upper thread
Bobbin thread
Surface
SEWING BASICS
4. Thread tension for zigzag and decorative
sewing should be slightly looser on the upper
thread stitching for the fabric to lay flat and to
avoid puckering of fabric.
42
LENGTH & WIDTH ADJUSTMENT
Stitch width adjusting
For a narrower stitch, press the left side of the
button . For a wider stitch, press the right side
of button "+". The stitch width can be adjusted
between "0.0-9.0".
"ī"
Stitch length adjusting
Note:
stitch width. (See " "
on page 92.)
For a shorter stitch, press the left side of the
button . For a longer stitch, press the right
side of button "+". The stitch length can be
adjusted between "0.0-5.0".
Certain stitches have a limited
Stitch reference chart
"ī"
43
SEWING BASICS
Note:
stitch length range.
Certain stitches have a limited
PATTERN BALANCE ADJUSTMENT
If decorative stitches, letters, numbers or the manual buttonhole are uneven when sewn
on a particular fabric, adjust them with the stitch adjustment dial. Use a coin or
screwdriver to turn the dial slightly toward the "+" or " ".
The stitch adjustment dial normally should be in
the horizontal position.
Adjusting distorted stretch stitch stitches
A. When stitches are too compressed, correct by
turning the dial in the direction of " ".
B. Correct setting.
C. When stitches are too drawn out, correct by
turning the dial in the direction of "+".
ī
ī
Adjusting distorted letters or numbers
A. When the letters or numbers are overlap, turn
the dial to " ".
B. Correct setting.
C. When the stitches are too drawn out, correct
by turning the dial to "+".
Adjusting the stitch density for buttonhole
A. Buttonhole is too dense, correct by turning the
dial to " ".
B. Correct setting.
C. Buttonhole is less dense, correct by turning
the dial to "+".
Note: Always test sew the stitch on a piece of fabric that is the same as the fabric used for
your project.
ī
ī
44
SEWING BASICS
PRESSER FOOT PRESSURE ADJUSTMENT
Presser foot pressure controls the amount of
pressure placed on the fabric by the presser foot.
The presser foot pressure dial is on the top of
the face plate, and can be used to adjust the
presser foot pressure.
The presser foot pressure of the machine has
been preset and usually requires no particular
adjustment.
For regular sewing of most fabrics, the dial
should be set near "1". However, when working
with heavyweight or thicker fabrics, the pressure
can be adjusted between "0" and "2". When
working with lightweight/fine fabrics or applique,
the pressure can be adjusted between "1" and
"2".
45
SEWING BASICS
USEFUL FUNCTIONS
Reverse
Reverse stitching is used to secure the threads
at the beginning and at the end of a seam.
Press the reverse button and sew 4-5 stitches.
The machine will sew forward when the button is
released.
Free arm sewing
Free-arm sewing is convenient for sewing
tubular areas such as pant hems and cuffs.
46
SEWING BASICS
bab
a
a
b
USEFUL FUNCTIONS
To raise or lower the feed dogs
With the sewing table off the machine, the feed
dog adjustment lever is located at the base of
the free-arm in the front of the machine.
Sliding the lever to the " " (b) will lower the
feed dogs, for example during button sewing. If
you wish to continue sewing normally, slide the
lever to the " " (a) in order to raise the feed
dogs.
Note: Turn the handwheel one complete
cycle to return the feed dogs to the raised
position.
Attaching the Knee lift
The Knee lift is extremely helpful when sewing
applique, patchwork and quilting since it allows
you to handle the fabric while your knee controls
the presser foot.
Match the ribs on the Knee lift with the notches
in the Knee lift socket and insert the Knee lift.
Knee lift to raise / lower presser foot
Move the Knee lift to the right to raise the presser
foot. Release the Knee lift to lower the presser
foot.
Attention: Do not touch the Knee lift while
sewing, otherwise the fabric will not be fed
correctly.
47
SEWING BASICS
USEFUL SEWING TIPS
5
3
Sewing corners
1. Stop the sewing machine
when you reach a corner.
2. Lower the needle into the
fabric manually or by pressing
the needle up/down button till
needle is in down position.
3. Raise the presser foot.
4. Use the needle as a pivot and
turn the fabric.
5. Lower the presser foot and
resume sewing.
48
SEWING BASICS
SELECTING STITCHES
Using the selection buttons
Ten of the most frequently used utility stitches can quickly be selected with the selection buttons.
Select the desired stitch from those shown on the stitch chart.
When the sewing machine is turned on, the straight stitch (center needle position) is automatically
selected.
1. Determine the stitch that you wish to use.
* Refer to Stitch Chart on page 39.
2. Determine which presser foot should be used with the selected stitch.
The presser feet can be stored inside the accessory compartment.
* For details on the stitches that can be sewn with a twin needle, refer to "Stitch Reference
Chart" beginning on page 92.
3. Attach the correct presser foot for the selected stitch.
* For details, refer to "Changing the Presser Foot" on page 34.
4. Turn on the sewing machine.
* The straight stitch (center needle position) is shown selected within the LCD.
5. Press the " " button and the stitch group screen will automatically appear on the LCD screen.
6. Press the numbered button corresponding to the desired group of stitches that you wish to
use. (e.g. press 2 for group "B")
7. Press the 2 digit stitch number from the selected group on the stitch chart.
Note: When a stitch is selected, the icon for the presser foot that should be used appears
in the screen. Check that the correct presser foot is attached before starting to sew. If the
wrong presser foot is installed, turn off the sewing machine, attach the correct presser foot,
and then select the desired stitch again.
49
STITCHES
BASIC STITCHING
Straight stitches and needle position
Changing the needle position
This setting can be applied only to stitches 1-4
from Group 1-A, Group 2-B stitches 00-05, 27-29,
Group 3-C stitch 00-02, 04, 18 and Group 4-D
stitch 50.
The pre-set position is "4.5", center position.
When you press the " " stitch width adjustment
button, the needle position will move to the left.
When you press the "+" stitch width adjustment
button, the needle position will move to the right.
The LCD screen width illustration indicates the
position of needle and number for easy reference.
Changing the stitch length
To shorten the stitch length, press the " " stitch
length adjustment button. For a longer stitch length,
press the "+" stitch length adjustment button.
Generally speaking, the thicker the fabric, thread
and needle, the longer the stitch should be.
ī
ī
Zigzag stitches
Adjusting the stitch width
The maximum zigzag stitch width for zigzag stitchĀing is "9.0". However, the width can be reduced on
any stitches. The width increases as you press the
"+" stitch width adjustment button from "0.0-9.0".
Note: Some stitches have a limited stitch
width range.
Adjusting the stitch length
The density of zigzag stitches increases as the
setting of stitch length approaches "0.0". Neat
zigzag stitches are usually achieved at "1.0-2.5".
Zigzag stitches with a short length (approximately
0.4) are referred to as a satin stitch. The cutout on
the underside of the is
designed to accom
Fancy stitch foot (2A)
modate dense stitch formation.
50
STITCHES
04 05
08
BASIC STITCHING
Stretch stitch
Straight stretch stitch
Straight stitch
Stretch stitches ensure you of a stitch that is
strong and flexible and will give with the fabric
without breaking. The flexibility of the straight
stretch stitch makes it ideal for seaming heavy,
knit or easy to ravel fabrics.
These stitches can also be used as a bold,
decorative top stitch.
Straight stretch stitch is used to add triple
reinforcement to stretch and hardwearing seams.
Use it to sew stress areas such as the crotch
seams in pants or the sleeve underarm area.
Triple zigzag stretch stitch is suitable for medium
to heavyweight stretch fabrics in any area you
would normally use a zigzag stitch or decorative
rickrack trim.
Note: Reinforce points that will be subject
to strain such as inseams and attaching
sleeves.
51
STITCHES
BLIND HEM/ LINGERIE STITCH
3
a
b
5
4
2
2.5~6.0
5mm
Wrong side Wrong side
1
Overcasting
stitches
1.0~5.0
5mm
3.5~6.0
16:
Blind hem/ lingerie for firm fabrics
19:
Blind hem for stretch fabrics
20:
Blind hem for stretch fabrics
Note: It takes practice to sew blind hems.
Always make a sewing test first.
1. Fold the fabric as illustrated with the wrong
side facing up.
2. Attach the blindhem foot.
Place the fabric under the foot.
Turn the handwheel toward you (counter
clockwise) by hand until the needle swings
fully to the left. It should just pierce the fold of
the fabric. If it does not, adjust the stitch width
or guide on the presser foot accordingly.
3. Adjust the guide (b) by turning the knob (a) so
that the guide just rests against the folded
edge of the fabric and the needle just barely
catches the fold as you sew.
4. Sew slowly, guiding the fabric carefully along
the edge of the guide.
1.0~3.0
5. Turn the fabric over.
Note: If the stitches are too visible on the
right side of the fabric, decrease the width
of the stitch or move the guide to the right.
If the stitches are not catching the fold of
the fabric, increase the width or move the
guide to the left.
52
STITCHES
OVERCASTING STITCHES
2
2
Using the adjustable blindhem foot
4.0~6.0
1. Change the presser foot to the blindhem foot.
2. Sew the fabric with the fabric edge against the guide of the blindhem foot.
2.0~3.0
Using the standard presser foot
1
1. Change the presser foot to the standard presser foot.
2. Sew the overcasting along the edge of the fabric so that the needle drops over the edge of the
fabric on the right side.
2.5~4.5
2.0~3.0
53
STITCHES
ZIPPER INSERTION
3mm
(1/8")
1
2
6
5
4.0
Inserting a centered zipper
1.5~3.0
Attention: Zipper foot should be used for
sewing with the centered needle position
straight stitch only. It is possible that the
needle could hit the presser foot and break
when sewing other stitches.
1. Baste the zipper opening on the garment.
2. Press open the seam allowance. Place the
zipper face down on the seam allowance with
the teeth against the seam line. Baste the
zipper tape.
3. Attach the zipper foot. Attach the left side of
the presser foot pin to the presser foot holder
when sewing the right side of the zipper.
4. Attach the right side of the presser foot pin to
the presser foot holder when sewing the left
side of the zipper.
43
5. Stitch left side of the zipper from bottom to top.
6. Stitch across the lower end and right side of
zipper. Remove the basting stitches and press.
54
STITCHES
2
5
6
3
4
3mm
(1/8")
1
ZIPPER INSERTION
Inserting a side zipper
1. Baste the zipper opening on the garment.
2. Fold the garment back to the left seam
allowance. Turn under the right seam
allowance to form a 3mm (1/8 inch) fold.
3. Attach the zipper foot. Attach the left side of
the presser foot pin to the presser foot holder
when sewing the right side of the zipper.
Attach the right side of the presser foot pin to
the presser foot holder when sewing the left
side of the zipper.
4. Stitch the left side of the zipper from bottom to
top.
5. Turn the fabric right side out, stitch across the
lower end and right side of zipper.
6. Stop about 5cm (2 inches) from the top of
zipper. Remove the basting and open the
zipper. Stitch the remainder of the seam.
55
STITCHES
BUTTON SEWING
2
5
2.5~4.5
1
1. Select stitch 43 from the Group 2-B to get the
button sewing stitch.
Remove the presser foot and lower feed dogs.
2. Position the fabric under the foot. Place the
button in the desired position, lower the presser
2.5~4.5
3
4
foot lever.
3. Adjust the stitch width to "2.5-4.5" according to
the distance between the two holes of the button.
4. Turn the handwheel counterclockwise to check
that the needle goes cleanly into the left and
right holes of the button.
Note: Sew at a slow speed to avoid hitting
the button.
5. Hold the end of the upper thread gently, and
begin sewing. Once sewing is completed, the
machine automatically sews reinforcement
stitches, then stops.
Note: Repeat this procedure to attach the
button more securely.
With scissors, cut the upper and bobbin threads
at the beginning of the stitching, pull the upper
thread at the end of the stitching to the wrong
side of the fabric, and then tie it with the bobbin
thread.
Note: The auto thread cutter is not to be
used for button sewing.
6. For 4-hole buttons, sew the two holes towards
the front. Then, raise the presser foot, move
the fabric so that the needle goes into the back
two holes, and then sew them in the same way.
Note: If a shank is required, place a needle
6
or straight pin on top of the button and sew.
56
STITCHES
BUTTONHOLE STITCHING
1
2
Making a one-step buttonhole
Recommended
3.0~7.0
2.5~7.0
5.5~7.0
2.5~7.0
2.5~7.0
0.3~1.0
0.3~1.0
0.3~1.0
1.5~3.0
1.0~2.0
30 :
For horizontal holes on blouses or shirts
made from thin or medium fabric.
31:
For thin or medium fabric.
32 :
For thin or medium fabric.
33 :
For horizontal buttonholes on thick fabrics.
34:
For suits or overcoats.
35:
For jeans or trousers.
36:
For thick coats.
37:
For bound button holes.
38:
For jeans or stretch fabric with a coarse
weave.
39:
For stretch fabric.
3.5~7.0
Note: Before sewing a buttonhole on your project, practice on a scrap piece of the same
type of fabric.
2.0~3.0
1. Mark the position of the buttonholes on the
fabric.
The maximum buttonhole length is 3cm (13/16
inch). (Total of diameter + thickness of button.)
2. Attach the buttonhole foot, then extend the
button guide plate and insert the button. The
size of the buttonhole is determined by the
button inserted in the button plate.
The upper thread should be passed through
the needle opening in the buttonhole foot, then
the thread placed under the foot as illustrated.
57
STITCHES
4
PUSH
5
PUSH
3
BUTTONHOLE STITCHING
3. Select the buttonhole stitch.
Adjust the stitch width and the stitch length to
the desired width and density.
Position the fabric under the presser foot with
the front end of the buttonhole mark aligned
with the center line on the buttonhole foot.
4. Pull the buttonhole lever all the way down and
position it behind the bracket on the buttonhole
foot.
Note: When you start to sew any buttonĀhole stitch before the buttonhole lever is
lowered, the LCD screen will show the
animated warning message to remind you
to lower the buttonhole lever.
5. While lightly holding the end of the upper
thread, start sewing.
Note: Gently guide the fabric by hand.
Before stopping, the machine will autoĀmatically sew a reinforcement stitch after
the buttonhole is sewn.
58
STITCHES
7
BUTTONHOLE STITCHING
31
30
32
33
34 35 36
37
38
39
6
6. Buttonholes are sewn from the front of the
presser foot to the back, as shown.
7. Raise the presser foot and cut thread. To
restart the same buttonhole at the beginning,
raise the presser foot to return to the starting
position. After sewing the buttonholes, raise the
buttonhole lever all the way up to its original
position for other sewing.
59
STITCHES
8
PUSH
BUTTONHOLE STITCHING
Note: If the buttonhole lever is in the down
position and a stitch other than a buttonhole
is selected an animated warning message
to raise the lever will appear on the LCD
screen when the START/STOP button or
foot control is pressed.
8. Cut the center of the buttonhole being careful
not to cut any buttonhole stitches on either
side. Use a pin as a stopper at the bartack to
prevent the stitching from being cut.
Making a buttonhole on stretch fabrics
When sewing buttonholes on stretch fabric, hook gimp thread under the buttonhole foot.
1. Attach the buttonhole foot and hook the gimp
thread onto the back spur of the presser foot.
Bring the two gimp thread ends parallel to the
front of the foot and insert them into the
grooves, then temporarily tie them there.
Set the stitch width to match the diameter of the
gimp thread. Stitches will sew over top of thread.
Lower the presser foot and begin sewing.
1
2. Once sewing is completed, carefully remove
gimp thread from buttonhole foot.
Pull the gimp thread gently to remove any slack,
then trim off any excess.
3. Pull the gimp thread to the wrong side of the
fabric using a hand sewing needle and tie.
Using a seam ripper, cut the middle part of the
4.
gimp thread remaining at the top of the buttonhole.
Then trim off any excess.
2
Note: It is suggested that you use interĀfacing on the backside of the fabric.
60
STITCHES
BAR TACK STITCH
3
2mm
PUSH
1.0~3.0
0.4~1.0
1 2
Starting
point
1. Select stitch 44 from the Group 2-B stitches to
get the bar tack stitch. Change the presser foot
to the buttonhole foot.
2. Extend the button guide plate and set to the
desire bartack length. Adjust the stitch width
and stitch length to personalize the stitches.
3. Position the fabric so that the needle is 2mm
(1/16 inch) in front of the pocket opening, and
then lower the presser foot lever.
4. Pass the upper thread down through the hole in
the presser foot. Pull down the buttonhole lever
and position behind the bracket on the
buttonhole foot. Gently hold the end of the
upper thread in your left hand, and start sewing.
4
5. Sewing procedure for bar tack is illustrated.
6. This is an example of sewn bar tacks at pocket
corners.
5
6
61
STITCHES
BAR TACK STITCH
2
1.0~3.0
0.4~1.0
1. Select stitch 45 from the Group 2-B stitches
to get the bar tack stitch. The stitch width and
stitch length can be . Change to the
fancy stitch foot "1A".
adjusted
1
2. Position the needle at the top edge of the
pocket opening.
Starting
point
3. Press the START/STOP button or push on the
foot control to start sewing.
When the bar tack has reached the desired
length push the Auto-lock button. Machine will
sew locking stitches and stop.
3
4. Illustration shows sewing procedure for bar
tack.
5. Example of sewn bar tacks at pocket corners
is shown.
Note: Reinforce points that will be subject
4 5
to strain such as pocket corners.
62
STITCHES
EYELET STITCH
1
5.0~8.0
40:
Select for sewing eyelets on belts, doll
clothes, heirloom sewing, etc.
41:
Select for sewing eyelets on belts, doll
clothes, heirloom sewing, etc.
1. Select stitch 40 or 41 from Group 2-B stitches
to get the eyelet stitch.
Attach the fancy stitch foot "1A".
2. Press the "ī" or "+" stitch width adjustment
button to select the eyelet size.
Size of eyelet.
A. 8.0mm (5/16 inch).
B. 7.0mm (1/4 inch).
C. 6.0mm (15/64 inch).
D. 5.0mm (3/16 inch).
2
3. Lower the needle into the fabric at the
beginning of the stitching, and then lower the
presser foot lever.
Once sewing is completed, the machine autoĀmatically sews reinforcement stitches, then
stops.
3
4. Make a hole in the center using an eyelet
punch.
* Eyelet punch is not included with the machine.
Note: If fine thread is used, the stitching
may be sparse. If this occurs, sew the
eyelet twice; one on top of the other.
4
63
STITCHES
2mm
DARNING STITCH
3.5~9.0
1.5~2.0
1. Select stitch 46, 47 or 48 from Group 2-B
stitches to get the darning stitch. Change the
presser foot to the buttonhole foot "RP".
1
2. Baste the upper fabric and the reinforcement
fabric together. Select the width of the stitch
by using the stitch width button. Lower the
presser foot over the center of the tear.
Determine the desired length of the darning
then extend the button guide plate on the
buttonhole foot "RP" to the desired length.
2
3. The size of one darning stitch cycle is variable.
However, the maximum stitch length is 3.5cm
(1-1/8 inch) and the maximum stitch width is
8mm (5/16 inch).
a. The length of darning stitch.
b. The width of darning stitch.
3
4. Position the fabric so that the needle is 2mm
(1/16 inch) in front of the area to be darned,
and then lower the presser foot lever.
When lowering the presser foot, do
Note:
not push on the front of the presser foot,
otherwise the darning stitch will not be
sewn with the correct size.
4
64
STITCHES
PUSH
7
DARNING STITCH
5
6
5. Pass the upper thread down through the hole
in the presser foot. Pull down the buttonhole
lever and position it behind the bracket on the
buttonhole foot. Gently hold the end of the
upper thread in your left hand, and then start
sewing.
Note: When you start to sew darning stitch
before the buttonhole lever is lowered,
LCD screen will show the animated
warning message to remind you to lower
the buttonhole lever.
6. Darning stitches are sewn from the front of
the presser foot to the back, as shown.
7. If the tear is too large to cover with one darning
stitch, reposition the fabric and sew additional
darning stitches for better coverage.
To adjust the evenness of darning stitch
The evenness of darning may vary depend
ing on the sewing condition type of fabrics
You can correct the unevenness of darning .
- Press the " " button.
A. If the left corner is lower than the right side,
press the stitch length adjusting button "+".
AB
B. If the right corner is lower than the left side,
press the stitch length adjusting button " ".
- Press the " " button again after to
return to the normal LCD screen.
stitch -
, i.e. .
stitch
ī
adjusting
Note: Only Group 2-B stitches 46-48 can
adjusted.
be
65
STITCHESSTITCHES
NARROW HEMMING
3
fabric
raw
edge
2
4.0
1.5~3.0
1. Fold the edge of the fabric over about 3mm
(1/8 inch), then fold it over again 3mm (1/8
inch) for about 5cm (2 inches) along the edge
of the fabric.
1
2. Insert the needle into the fold by rotating the
handwheel toward you, and lower the presser
foot. Sew several stitches and raise the presser
foot.
Insert the fabric fold into the spiral opening of
rolled hem foot. Adjust the fabric back until the
fold forms a scroll shape.
3. Lower the presser foot and start sewing slowly
guiding the fabric raw edge against the recess
in front of the rolled hem foot and the fabric
into the scroll of the foot.
66
STITCHES
QUILTING
Hand-look quilting stitch
Decorative patchwork stitching
You can duplicate the look of a hand quilted stitch
by using monofilament thread in the needle, 50 to
60 weight cotton thread in the bobbin, and
increasing the needle tension. The needle tension
and stitch length will need to be determined based
on the thickness of the fabrics and batting.
Note: Monofilament thread may be
substituted with a thread that matches or
blends with the color of the top fabric.
Place the two pieces of fabric with the right sides
together and sew with the straight stitch.
Open the seam allowances and press it flat.
On the right side of the joined pieces of fabric
place the center of the presser foot on the seam
line and sew over the seam with decorative
stitching.
67
STITCHES
ATTACHING THE EDGE/ QUILTING GUIDE
4.0
Use the edge/quilting guide to sew parallel
stitches that are equally spaced.
Loosen the screw at the back of the presser foot
ankle just enough to insert the guide in the hole.
Secure the guide by tightening the screw.
Adjust the bar of the edge/quilting guide to the
width from the needle that you desire.
Sew the first row of stitching then move the fabric
over placing the bar over the previous line of
stitching.
Continue to sew each consecutive row in this
manner for equal distance between rows.
1.0~3.0
68
STITCHES
CORDING
Sew over one, two or three strands of cording to create embellishments or surface texture on all
kinds of projects. Pearl cotton, lightweight yarns, embroidery floss, etc, can be used for cording.
Single cording
To create gathering with the three-groove cording
foot, place a single strand of pearl cotton or
similar type of cord in the center groove, then
place the back end of the cord under the foot.
Secure the cord by tying a knot at the back of the
foot.
Select a narrow zig-zag, medium-long stitch
length. Test to ensure that the zig-zag stitches
over the cord, not into the cord.
Place the fabric under the foot and sew. After
the stitching is done, pull the cord, which will
draw up or gather the fabric. Adjust the gathers
evenly, then sew a straight stitch to secure the
gathers in place.
Triple cording
Push the sewing thread to the left and insert
three cords into the grooves of the foot and pull
about 5cm (2 inches) of the cords behind the
foot.
Select the desired stitch and adjust the stitch
width so that the stitches are just covering the
cords. Lower the foot and sew slowly guiding the
cords.
69
DECORATIVE TECHNIQUES
FAGOTING
3
Thin paper
Basting
1
2
1. Separate the folded edges of the fabric pieces
with a gap of 4mm (1/8 inch) and baste them
onto a piece of thin paper or water-soluble
stabilizer sheet.
2. Align the center of the presser foot with the
center of the two pieces of fabric and begin
sewing.
3. After sewing, remove the paper.
DECORATIVE TECHNIQUES
70
GATHERING
1.0
4.5
Gather a single layer of fabric, or, gather one
layer while simultaneously attaching it to another
fabric using the gathering foot. This foot works
best when on light to medium weight fabrics. It is
usually necessary to use an alternative sewing
technique for gathering heavier fabrics.
1. Attach the gathering foot
2. For gathering a single layer, just place a piece
of fabric under the foot and adjust your stitch
length and/or tighten the needle tension to
automatically gather as you sew. The smaller
sole on the bottom of the gathering foot causes
the fabric to gather up behind the presser foot.
3. To get results by increasing stitch length. Test
stitch length and tension adjustments to get
the amount of gathers desired. Starting with
the stitch length, begin by increasing the length
the longer the length the fuller the gathers.
4. To get results by tightening needle tension.
Using a stitch length of 2.5-3mm, increase the
needle tension as you sew to get the results
you desire.
.
5. To get results by increasing stitch length and
needle tension. Combine an increased stitch
length with a tightened needle tension for a
fuller gather. Always test your results before
sewing to achieve the effect you desire.
Note:
presser foot to gather fabric by hand. First
lower the tension setting to below 2 and
pull the bobbin thread to gather the fabric.
Attention:
better fabric control.
71
DECORATIVE TECHNIQUES
You can also use the standard
Sew slow to medium speed for
GATHERING
1.0
4.5
Look closely at the gathering foot, and you will
notice a slot at the side of the foot.
When using the slot, you can gather the bottom
layer of the fabric while attaching it to a flat top
layer, such as the waistband on a dress bodice.
Attach the gathering foot.
1.
2. Place the fabric to be gathered with right side
up under the foot.
3. Place top layer of the fabric right side down in
the slot.
4. Guide the two layers as illustrated.
Note:
adjustments to achieve desired fullness,
work with 10" increments of the fabric, trims
or elastic. This makes it easier to determine
the adjustments and how much change is
needed for your project. Always test on
your project fabric and on the same
grainline as will be used in your finished
project.
Using the crossgrain of the fabric will make
prettier gathers than the straight of grain.
When testing machine for
Note:
better fabric control.
72
DECORATIVE TECHNIQUES
Sew slow to medium speed for
SATIN STITCH SEWING
06
58
81 82 83
6059
63 64 65 66 67 68 69
61 62
85 8684
87
88
89
90 91 92
70
71 72
73
74
75 76
77 78 79 80
See Stitch Reference Chart on page 92 for stitch
length and stitch width ranges
.
Use the satin stitch foot for satin stitching and
sewing decorative stitches. This foot has a full
indentation on the underside which allows dense
stitching to pass freely underneath, so fabric
feeds smoothly.
To tailor the satin or decorative stitch, you may
adjust the length and width of the stitch by
pressing the stitch length and width adjustment
buttons. Experiment with fabric scraps until you
get the desired length and width.
Note: When sewing very fine or light
weight fabrics, it is suggested that you use
interfacing or appropriate stabilizer on the
backside of the fabric.
73
DECORATIVE TECHNIQUES
1
Wrong side
of fabric
SCALLOP STITCH
3
2
2
1
Scallop hem
1. Place the fabric right sides together and sew
along the edge.
2. Cut the fabric along the seam leaving an
allowance of 3mm (1/8 inch) for seaming.
Notch the allowance.
3. Turn the fabric over and push out the curved
seam to the surface and press flat with iron.
Scallop edging
1. Place the fabric wrong sides together and
stitch along the edge of the fabric, making
sure not to sew directly on the edge of the
fabric.
* For better results, apply spray starch onto the
fabric and press with an iron (set at the
appropriate temperature for the fabric) before
it is sewn.
2. Trim along the stitches.
* Be careful not to cut the stitches.
74
DECORATIVE TECHNIQUES
SMOCKING
4
2
3
1
1. Use the standard presser foot to sew straight,
parallel lines 1cm (3/8 inch) apart, across the
area to be smocked.
2.
Knot the threads at the beginning of the stitchĀing. Pull the bobbin threads and distribute the
gathers evenly. Secure the threads at end of the
stitching.
3. Reduce the tension, if necessary and sew
decorative stitch stitches between the straight
seams.
4. Pull out the gathering straight stitches.
75
DECORATIVE TECHNIQUES
TWIN NEEDLE SEWING
2.0~7.0
1
With a twin needle, you can sew two parallel lines
of the same stitch using two different threads;
however make sure that the two threads are of the
same weight and quality for balanced stitching.
The needle distance of the twin needle can not
exceed 5.0mm. If using a 5.0mm twin needle it is
recommended to only use with the straight stitch.
2.0mm twin needle is recommended for use with
decorative stitches.
Note: Always use the standard presser foot
(0A) or the fancy stitch foot (1A) when
sewing with a twin needle.
1. Insert the twin needle with flat side of the
needle facing the back. See instructions for
changing the needle on page 33.
2. Place one spool of thread on each spool pin.
Thread the left spool of thread through the
2
upper thread path, by pass the needle clamp
thread guide and then into the left needle eye
manually. (The needle threader cannot be used
with twin needle.)
3. Thread the right spool of thread through the
upper thread path, into the needle clamp
thread guide, and then into the right needle
eye manually. (The needle threader cannot be
used with twin needle.)
3
76
DECORATIVE TECHNIQUES
TWIN NEEDLE SEWING
4
4. Make sure that you pass one thread to the left
and one thread to the right of the thread guide.
5. Select a stitch. Except stitches 27-49 from
group 2-B, other stitches can be used with a
twin needle.
Press the twin needle button, the LED light
will turn on, and the machine automatically
reduces the maximum width for twin needle
sewing by 2mm.
5
6. The LCD screen will display the twin needle
" " symbol.
Each time a different stitch is selected, touch
the twin needle button for twin needle sewing.
6
7. Two lines of stitching are sewn parallel to
each other.
Note: Before sewing, always turn the
handwheel to make sure the needles do
not hit the foot.
Note: When sewing with twin needle,
always proceed slowly, and make sure to
maintain a slow speed to insure quality
stitching.
7
77
DECORATIVE TECHNIQUES
ELONGATION
3.0~9.0
1. The stitch can be elongated up to five times
its normal length by pressing the elongation
button.
0.0~1.0
1
2. The elongation icon appears on the LCD screen
with the elongated image of the selected stitch.
2
3. Press the elongation button to lengthen the
stitch up to 5 times its original size.
Changing the width or length adds to the variety
of stitches.
Note:
Original stitch density remains the
same after the stitch is elongated.
Stitch length on the LCD screen indicates
the length of actual stitch; however the
elongation icon represents the stitch length.
Note:
Satin stitches 58-75 can be elongated
and mirrored simultaneously.
3
78
DECORATIVE STITCHES
MIRROR IMAGE
Note:
- stitches 30-49 from Group 2-B stitches cannot be mirror imaged.
- Mirror imaged stitches can also be combined with other stitches.
1. Press Func and Group 4-D, then select stitch
11.
1
2. Press the mirror image button.
2
3. The LCD screen icon for mirror imaging of the
stitch appears.
3
A. Normal stitch sewing.
B. Mirror stitch sewing.
4
79
DECORATIVE STITCHES
MEMORY FUNCTION
Stitches can be combined into sequences and stored for later use. Sequences are not lost
after the sewing machine is turned off, they can be recalled at any time. This is convenient
for stitches, such as names, that will be used often.
Note:
- Multiple stitches from groups 2-B, 3-C, 4-D, 5-A, 6- can be combined and sewn
together.
- Direct stitches, Group 2-B stitches 27-49 and Group 3-C stitch 00 cannot be entered into
memory.
- 20 stitches can be combined in each of the 8 memories.
- Stitch length, stitch width, elongation, mirror, and auto-lock for each stitch in the memory
can be edited.
- When adjusting the thread tension, all stitches tension will also be changed.
Combining stitches or letters
1
selected
1. When you turn the machine "ON", the LCD screen displays
" ", however the memory function can be accessed
through most screens.
2. Press the " " button to open the memory mode and then
a sub-screen appears in the center.
2
3. Press a numbered button 1 through 8 for the selected memory
pocket. ( 2)e.g.
3
4. The memory screen is entered automatically and the flashing
cursor is in position for the first stitch to be entered.
4
5. Press the " " Button; the LED light will turn on and LCD
screen enters the stitch group screen.
Select the number of the desired stitch group (for example,
press 2.)
5
80
DECORATIVE STITCHES
MEMORY FUNCTION
10
6
7
8
9
6. Press the desired stitch number. (e.g. 82)
(Upper left corner of LCD shows the number of the memory
opened- e.g. M2.)
7. The selected stitch displays on the LCD screen and the
cursor moves to the second position.
8. Repeat step 5~7 for more stitches to be stored in the memory.
Note: Directly below the memory number is the cursor
position in the entire memory pocket. Illustration shows
the cursor in the 3 stitch position; and 2 stitches have
been entered.
9. When 20 stitches have been selected, the memory will be
full. Illustration 9 shows the cursor in the 20 position and 20
stitches have been entered.
Note: If another stitch is selected after the memory is full
the machine will signal with two short beeps.
rd
th
Adding stitches or letters
1
2
10.Press the " " button to save the sequence and return to
the normal screen.
Attention: The selected sequence will not be stored
within the selected memory if the machine is turned off
before pressing the " " button after you have
completed your stitch selection(s).
1. Press the " " button and the number of the memory you
wish to edit. Press the stitch width adjustment button to move
the cursor. New stitch will be inserted above the stitch or
letter selected with the cursor.
Attention: The selected memory has to contain less
than 20 stitches before selected stitch or letter can be
inserted.
2. Press stitch number. (e.g. 28 ) The selected stitch will be
inserted.
Press the " " button to save the sequence and return to
normal screen.
81
DECORATIVE STITCHES
MEMORY FUNCTION
Editing stitches
1
2
3
1. Press the " " button and the number of the memory you
wish to edit. Press the stitch width adjustment button to move
the cursor to the stitch you wish to edit.
2. Press the " " button to edit the stitch. The stitch length,
stitch width, tension, elongation, mirror imaging and auto-lock
of the stitches can be adjusted.
Note: When adjusting the thread tension, all stitches
tension will also be changed.
3. Press the " " button when selected stitch has been edited
in order to return to the browse status. This will allow
additional stitches to be edited if so desired.
4
Clearing stitches or letters
1
2
4. Press the " " button to save the stitch changes and return
to the normal screen.
1. Press the " " button and the number of the memory you wish
to clear a selected stitch. Press the stitch width adjustment
button to move the cursor below the stitch you wish to clear
from the memory.
2. Press the " " button to delete the selected stitch and the
next stitch will move forward.
Press the " " button again to clear any additional stitches.
Press the " " button to save the stitch changes and return to
the normal screen.
82
DECORATIVE STITCHES
MEMORY FUNCTION
Recalling and sewing the memorized stitch
1. Press the " " button to enter the memory mode and then
input the number of the memory when the cursor starts
flashing.
1
2. Input the number of the memory you wish to recall or sew.
(e.g. 2)
2
3. The LCD screen containing the various types of saved
stitches will open.
3
4. Press on the foot control or press the START/STOP button
to start the sewing machine.
4
5. The cursor on the LCD screen will move along with the
sequential stitch while sewing.
Note:
stitch, the machine will start sewing from the first stitch
of the memory.
machine will start sewing from that stitch.
If the cursor stays in a position not showing a
If the cursor stays , the
in a certain stitch
5
6. Press the " " button to leave memory and return to the
normal sewing screen.
6
83
DECORATIVE STITCHES
WARNING FUNCTIONS
Warning animation message display
Presser foot is not lowered
The START/STOP button or reverse button was
pressed while the presser foot was in the "UP"
position. Lower presser foot lever.
BH lever is not lowered
The buttonhole or darning stitch was selected
and the START/STOP button was pressed while
the buttonhole lever is raised. To sew a button
hole or darning stitch, lower the buttonhole lever.
BH lever is not lifted
A stitch other than the buttonhole or darning
stitch was selected and the START/STOP button
was pressed while the buttonhole lever is down.
To continue sewing, move the buttonhole lever
up to the raised position.
The sewing machine is in trouble
This message means that the thread is twisted
or jammed and the handwheel cannot move.
Please look through the "Trouble shooting" on
page 90/91 to find the solution. After the problem
has been solved, the machine will continue to
sew. If the problem persists, please consult your
local authorized retailer.
The upper thread is broken
This message is displayed when the upper thread
is broken.
Please check and rethread the upper thread.
84
APPENDIX
WARNING FUNCTIONS
1
Bobbin thread is almost empty
This message is displayed when the bobbin
thread is running out.
The auto thread cutter is in trouble
When using the thread snips, fabric lint in the
hook area can cause the machine to jam. Three
warning tones will sound and repeated caution
pictures (1, 2) will appear on the LCD screen. If
this happens, please switch off the power, clean
the hook area and turn the machine back on. If
the jam is not cleared, the screen will stay at
caution status.
2
85
APPENDIX
WARNING FUNCTIONS
Instruction animation message display
Push the bobbin winder stopper to the left.
This message appears when the bobbin winding
button is pressed without pushing the bobbin
winder stopper to the left. To wind a bobbin, push
the bobbin winder stopper to the left and press
the bobbin winder button again.
Press the bobbin winding button.
Push the bobbin winder stopper to left and this
message will show the next step to wind a bobbin.
Press the bobbin winding button to continue.
Bobbin winding
This illustration appears on LCD screen while
the bobbin winder is winding the bobbin.
Unlock
This illustration on LCD screen while the
Function and Selection buttons are locked.
Press the " " button to unlock.
Attention: If the thread gets jammed inside the bobbin area stopping the needle from
moving and you continue pressing the foot control, the security switch will stop the machine
completely. Turn OFF the machine, clean all thread and lint from the bobbin area. Rethread
the machine completely; turn ON the machine to continue sewing.
appears
86
APPENDIX
WARNING FUNCTIONS
ONOFF
Warning beeping sound
- When operating correctly: 1 beep.
- When the memory is full with 20 units of stitch: 3-short beeps.
- When operating incorrectly: 3-short beeps.
- When the sewing machine is in trouble and can't sew: 8 seconds short beeps.
This means that the thread is twisted or jammed and the handwheel can't move.
Please look through the "Trouble shooting" on pages 90/91 to find the solution. After the problem
has been solved, the machine will continue to sew.
Note: If the problem is still not solved, please contact your local retailer.
Beeping Sound
1. You can mute the beeping sound in normal
operation.
Press and hold the " " button and turn on the
power switch.
1
2. You can select the mode by pressing the
stitch width "+" or " " button. Select desired
mode sound on " "or sound off " ".
ī
2
3. Press the " " button after making selection to
return to the normal LCD screen.
Note: When the beeping sound is turned
off the sound will remain muted even
when power to the machine is switched to
the OFF position.
To resume the beeping sound by repeating
3
steps 1 and 2.
87
APPENDIX
MAINTENANCE
Cleaning the LCD screen
Attention: Disconnect the power cord from
the wall socket before cleaning the LCD
screen and sewing machine surface,
otherwise injury or electrical shock may
result.
If the front panel is dirty, wipe it gently with a soft,
dry cloth.
Do not use any organic solvents or detergents.
Cleaning the sewing machine surface
If the surface of the sewing machine is dirty, lightly soak a cloth in mild detergent, squeeze it out
firmly and then wipe the surface. After cleaning it once in this way, wipe the surface again with a
dry cloth.
Attention: This machine is equipped with a 200mW, 300mW and 200mW LED lamp. If lamp
replacement is needed, please contact nearest authorized retailer.
Cleaning the hook
If lint and bits of thread accumulate in the hook, this will interfere with the smooth operation of the
machine. Check and clean regularly.
Attention: Disconnect the machine from the wall outlet before cleaning.
1. Remove the sewing table and accessory box.
1
88
APPENDIX
MAINTENANCE
2
3
2. Open the hinged cover.
3. Remove the bobbin.
4. Remove the needle, presser foot, and presser
foot holder.
Remove the screws holding the needle plate
and remove the needle plate.
4
5. Clean the hook race, feed dogs and bobbin
case with a brush. Also clean them, using a
soft, dry cloth.
5
6. Apply a drop of oil (every 15 to 20 hours of
operation) to the hook as shown in the
illustration.
Note: Use good quality sewing machine
oil only!
6
89
APPENDIX
TROUBLE SHOOTING
Before calling for service, check the following items.
If the problem still persists, contact the place of purchase or your nearest authorized retailer.
Problem
Upper
thread
breaks
Lower
thread
breaks
Skipped
stitches
Needle
breaks
Loose
stitches
Seams
gather or
pucker
Cause
1.The machine is not threaded correctly.
2.The thread tension is too tight.
3.The thread is too thick for the needle.
4.The needle is not inserted correctly.
5.The thread is wound around the spool
holder pin.
6.The needle is damaged.
1.The bobbin case is not inserted correctly.
2.The bobbin case is threaded wrong.
1.The needle is not inserted correctly.
2.The needle is damaged.
3.The wrong size needle has been used.
4.The foot is not attached correctly.
5.The machine is not threaded correctly.
6.The presser foot pressure is not strong
enough.
1.The needle is damaged.
2.The needle is not correctly inserted.
3.Wrong needle size for the fabric.
4.The wrong foot is attached.
5.The needle clamp screw is loose.
6.The presser foot that is used is not approĀpriate for the type of stitch that you wish
to sew.
7.The upper thread tension is too tight.
1.The machine is not correctly threaded.
2.The bobbin case is not correctly threaded.
3.Needle/fabric/thread combination is wrong.
4.Thread tension is wrong.
1.The needle is too thick for the fabric.
2.The stitch length is adjusted wrong.
3.The thread tension is too tight.
Correction Reference
1.Rethread the machine.
2.Reduce the thread tension to a lower
number.
3.Select a larger needle.
4.Remove and reinsert the needle (flat
side towards the back).
5.Remove the spool of thread and rethread
machine.
6.Replace the needle.
1.Remove and reinsert the bobbin case and
pull on the thread. The thread should pull
easily.
2.Rethread both bobbin and bobbin case.
1.Remove and reinsert needle (flat side
towards the back).
2.Insert a new needle.
3.Choose a needle to match the thread.
4.Check and attach correctly.
5.Rethread the machine.
6.Adjusting the presser foot pressure.
1.Insert a new needle.
2.Insert the needle correctly (flat side
towards the back).
3.Choose a needle to match the thread
and fabric.
4.Select the correct foot.
5.
Use the screwdriver to firmly tighten the
screw.
6.Attach the presser foot that is appropriate
for the type of stitch that you wish to sew.
7.Loosen the upper thread tension.
1.Rethread the machine.
2.Rethread the bobbin case.
3.The needle size must match the fabric
and thread.
4.Correct the thread tension.
1.Select a finer needle.
2.Readjust the stitch length.
3.Loosen the thread tension.
page 27
page 42
page 41
page 33
page 27
page 33
page 25
page 25
page 33
page 33
page 41
page 34
page 27
page 45
page 33
page 33
page 41
page 92
page 33
page 92
page 42
page 27
page 25
page 41
page 42
page 41
page 43
page 42
90
APPENDIX
TROUBLE SHOOTING
Problem
Seam
puckering
Stitches are
distorted
The
machine
jams
The
machine is
noisy
Uneven
stitches,
uneven feed
The sewing
machine
doesn't
operate
Cause
1.The needle thread tension is too tight.
2.The needle thread is not threaded
correctly.
3.The needle is too heavy for the fabric
being sewn.
4.The stitch length is too long for the fabric.
5.The presser foot pressure is not correctly
adjusted.
1.The correct presser foot is not used.
2.The needle thread tension is too tight.
3.The stitch length is not suitable for the
fabric being sewn.
4.Feed balancing dial is not set properly.
1.Thread is caught in the hook.
2.The feed dogs are packed with lint.
1.Lint or oil have collected on the hook or
needle bar.
2.Poor quality oil has been used.
3.The needle is damaged.
4.Slight humming sound coming from
internal motor.
5.Thread is caught in the hook.
6.The feed dogs are packed with lint.
1.Poor quality thread.
2.The bobbin case is threaded wrong.
3.Fabric has been pulled.
1.The machine is not turned on.
2.The START/STOP button or foot control
pedal was not pressed.
3.The presser foot lever is raised.
4.A thread is caught in the hook race.
5.The machine is not plugged in.
Correction Reference
1.Loosen the thread tension.
2.Rethread the machine.
3.Choose a needle to match the thread and
fabric.
4.Change the stitch length.
5.Adjust the presser foot pressure.
1.Select the correct foot.
2.Loosen the thread tension .
3.Change stitch length.
4.Adjusting stitch balance.
Remove the upper thread and bobbin
case, turn the handwheel backwards and
forwards by hand and remove the thread
remnants.
1.Clean the hook and feed dog.
2.Only use good quality sewing machine
oil.
3.Replace the needle.
4.Normal.
Remove the upper thread and bobbin
case, turn the handwheel backwards and
forwards by hand and remove the thread
remnants.
1.Select a better quality thread.
2.Remove the bobbin case, then thread
and reinsert correctly.
3.Do not pull on the fabric while sewing,
let it be taken up by the machine.
1.Turn on the machine.
2.Press the START/STOP button or the
foot control pedal.
3.Lower the presser foot lever.
4.Remove the upper thread and bobbin
case, turn the handwheel backwards
and forwards by hand and remove the
thread remnants.
5.Connect the power cord plug to the
electrical outlet.
page 42
page 27
page 41
page 43
page 45
page 92
page 42
page 43
page 44
page 88
page 88
--
page 33
--
page 88
page 41
page 26
--
page 19
page 8/9
page 36
page 88
page 18
91
APPENDIX
STITCH REFERENCE CHART
Group 1-A stitch " "-10 Stitches
Stitch
Utility
stitches
Buttonhole
stitches
1
2
3
4
5
6
7
8
9
0
Width (mm) Length (mm)
Auto Manual Auto Manual
0.0~5.0
4.5
9.0
4.5
4.5
6.0
6.0
6.0
5.4
5.0
7.0
0.0~9.0
0.0~9.0
0.0~9.0
1.0~8.0
0.0~9.0
0.0~9.0
4.0~6.0
3.0~7.0
3.5~7.0
5.5~7.0
2.5
3.0
2.5
2.0
3.0
1.0
3.0
0.4
0.4
0.4
0.0~5.0
1.0~3.0
1.0~3.0
0.0~5.0
0.3~5.0
1.0~3.0
0.3~1.0
0.3~1.0
0.3~1.0
Group 2-B stitch " "-93 Stitches
Width (mm) Length (mm)
Auto Manual Auto Manual
0.0~5.0
4.5
9.0
4.5
4.5
4.5
4.5
6.0
6.0
6.0
6.0
6.0
6.0
6.0
6.0
6.0
4.0
3.0
3.0
3.0
4.0
6.0
6.0
0.0~9.0
0.0~9.0
0.0~9.0
0.0~9.0
0.0~9.0
1.0~8.0
0.0~9.0
1.0~9.0
2.5~9.0
4.0~6.0
2.5~9.0
2.5~9.0
2.5~9.0
2.5~9.0
2.5~9.0
2.5~9.0
2.5~6.0
2.5~9.0
2.5~9.0
2.5~6.0
2.5~6.0
2.5~9.0
2.5
3.0
2.0
2.0
2.5
2.0
3.0
1.0
2.5
3.0
3.0
3.0
3.0
3.0
3.0
2.0
2.0
1.5
1.0
1.0
1.0
1.0
0.0~5.0
1.5~3.0
1.5~3.0
1.0~3.0
1.0~3.0
0.0~5.0
0.3~5.0
1.0~3.0
1.0~3.0
1.0~3.0
2.0~3.0
1.0~3.0
1.0~3.0
1.0~3.0
1.0~5.0
1.0~5.0
1.0~5.0
1.0~5.0
1.0~3.0
1.0~5.0
1.0~5.0
Utility
stitches
Stitch
00
01
02
03
04
05
06
07
08
09
10
11
12
13
14
15
16
17
18
19
20
21
Presser
Foot
0A
0A
0A
0A
0A
0A
3
RP
RP
RP
Presser
Foot
0A
0A
0A
0A
0A
0A
0A
0A
0A
3
0A
0A
1A
1A
1A
1A
3
0A
0A
3
3
0A
Reverse
Reverse
Functions
Auto-lock Elongation
: Features may be applicable.
Functions
Auto-lock Elongation
Presser
Mirror Twin needle
foot
0A
0A
0A
0A
0A
0A
0A
Presser
Mirror Twin needle
foot
0A
0A
0A
0A
0A
0A
0A
0A
0A
0A
0A
0A
1A
1A
1A
1A
0A
0A
3
0A
0A
0A
Memory
Memory
92
APPENDIX
STITCH REFERENCE CHART
Stitch
Utility
stitches
Tie-off
straight stitch
Piecing straight
stitch
Basting
stitch
Buttonhole
stitches
Eyelet
stitches
Buttonhole
stitch
Button sewing
stitch
Bar tack
stitch
Darning
stitches
Cross
stitches
Satin
stitches
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
Width (mm) Length (mm)
Auto Manual Auto Manual
1.0~5.0
6.0
4.0
4.0
6.0
4.0
4.5
4.5
4.5
5.4
5.0
5.0
5.0
7.0
7.0
7.0
5.0
6.0
6.0
7.0
7.0
5.0
3.0
2.0
2.0
9.0
9.0
9.0
9.0
6.0
6.0
6.0
6.0
4.0
9.0
9.0
6.0
9.0
9.0
9.0
9.0
9.0
2.5~9.0
2.5~9.0
2.5~9.0
2.5~9.0
3.5~9.0
0.0~9.0
0.0~9.0
0.0~9.0
3.0~7.0
2.5~7.0
3.5~7.0
3.5~7.0
5.5~7.0
5.5~7.0
5.5~7.0
2.5~7.0
2.5~7.0
3.5~7.0
5.0~8.0
5.0~8.0
2.5~9.0
2.5~4.5
1.0~3.0
1.0~3.0
3.5~9.0
3.5~9.0
3.5~9.0
3.5~9.0
3.0~9.0
3.0~9.0
2.5~9.0
3.0~9.0
3.0~9.0
3.5~9.0
3.5~9.0
3.5~9.0
3.0~9.0
3.0~9.0
3.0~9.0
3.0~9.0
3.0~9.0
1.5
1.0
2.0
2.0
3.0
2.0
2.0
5.0
0.4
0.4
0.4
0.4
0.4
0.4
0.4
2.0
1.0
2.0
2.0
0.5
0.5
2.0
2.0
2.0
1.0
1.0
1.0
3.0
3.0
1.0
3.0
2.0
3.0
0.4
0.4
0.4
0.4
0.4
1.0~5.0
1.0~5.0
1.5~3.0
2.0~3.0
1.0~5.0
1.0~5.0
1.0~5.0
0.3~1.0
0.3~1.0
0.3~1.0
0.3~1.0
0.3~1.0
0.3~1.0
0.3~1.0
1.5~3.0
1.0~2.0
2.0~3.0
1.0~2.0
0.4~1.0
0.0~1.0
1.5~2.0
1.5~2.0
1.5~2.0
1.0~3.0
1.0~3.0
1.0~3.0
1.0~3.0
2.5~3.0
1.0~3.0
2.0~3.0
1.5~3.0
2.0~3.0
0.0~1.0
0.0~1.0
0.0~1.0
0.0~1.0
0.0~1.0
Presser
Foot
0A
0A
0A
0A
0A
0A
0A
0A
RP
RP
RP
RP
RP
RP
RP
RP
RP
RP
1A
1A
RP
--
RP
1A
RP
RP
RP
2A
2A
2A
2A
2A
0A
2A
0A
2A
2A
2A
2A
2A
2A
Reverse
Functions
Auto-lock Elongation
Presser
Mirror Twin needle
foot
0A
0A
0A
0A
0A
0A
0A
0A
2A
2A
2A
2A
0A
2A
0A
2A
2A
2A
2A
2A
2A
Memory
93
APPENDIX
STITCH REFERENCE CHART
Satin
stitches
Decorative
stitches
Stitch
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
Width (mm) Length (mm)
Auto Manual Auto Manual
0.0~1.0
9.0
9.0
9.0
9.0
9.0
9.0
9.0
9.0
9.0
9.0
9.0
9.0
9.0
9.0
9.0
9.0
9.0
9.0
9.0
7.0
7.0
9.0
9.0
9.0
9.0
9.0
9.0
9.0
9.0
9.0
3.0~9.0
3.0~9.0
3.0~9.0
3.0~9.0
3.0~9.0
3.0~9.0
3.0~9.0
3.0~9.0
3.0~9.0
3.0~9.0
3.0~9.0
3.0~9.0
3.0~9.0
3.0~9.0
3.0~9.0
3.5~9.0
4.0~9.0
3.5~9.0
3.5~9.0
3.5~9.0
3.5~9.0
2.5~9.0
3.5~9.0
4.0~9.0
4.0~9.0
3.5~9.0
3.5~9.0
3.5~9.0
4.0~9.0
3.5~9.0
0.4
0.4
0.4
0.4
0.4
0.4
0.4
0.4
0.4
0.4
0.4
0.4
0.4
1.0
1.0
2.0
2.0
1.5
3.0
2.0
2.0
2.0
3.0
2.0
2.0
1.0
2.0
2.0
2.0
2.0
0.0~1.0
0.0~1.0
0.0~1.0
0.0~1.0
0.0~1.0
0.0~1.0
0.0~1.0
0.2~1.0
0.0~1.0
0.0~1.0
0.0~1.0
0.0~1.0
1.0~2.0
1.0~3.0
2.0~3.0
1.0~3.0
1.5~3.0
1.5~3.0
1.5~3.0
1.5~3.0
1.5~3.0
2.5~3.0
1.5~3.0
2.0~3.0
1.0~3.0
1.5~3.0
1.0~3.0
1.8~3.0
1.8~3.0
Presser
Foot
2A
2A
2A
2A
2A
2A
2A
2A
2A
2A
2A
2A
2A
2A
2A
2A
2A
2A
2A
2A
2A
2A
2A
2A
2A
2A
2A
2A
2A
2A
Reverse
Functions
Auto-lock Elongation
Presser
Mirror Twin needle
foot
2A
2A
2A
2A
2A
2A
2A
2A
2A
2A
2A
2A
2A
2A
2A
2A
2A
2A
2A
2A
2A
2A
2A
2A
2A
2A
2A
2A
2A
2A
Memory
94
APPENDIX
: Features may be applicable.
STITCH REFERENCE CHART
Group 3-C stitch " "-25 Stitches
Quilt
stitches
Stitch
00
01
02
03
04
05
06
07
08
09
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
Width (mm) Length (mm)
Auto Manual Auto Manual
1.0~5.0
4.5
4.5
7.8
6.0
1.8
2.5
2.5
2.0
3.0
3.0
2.0
6.0
6.0
6.0
9.0
9.0
9.0
9.0
4.5
9.0
5.0
5.0
9.0
7.0
7.0
0.0~9.0
0.0~9.0
0.0~9.0
4.5~9.0
0.0~9.0
2.0~9.0
2.0~9.0
1.5~9.0
2.0~9.0
2.0~9.0
2.0~9.0
2.5~9.0
3.5~9.0
2.5~9.0
3.5~9.0
3.5~9.0
3.5~9.0
3.5~9.0
0.0~9.0
3.5~9.0
2.5~9.0
2.5~9.0
3.5~9.0
3.5~9.0
3.5~9.0
2.5
2.5
2.5
1.0
2.5
2.5
2.5
2.0
2.0
2.0
1.0
3.0
3.0
2.0
3.0
2.0
2.0
2.5
2.5
3.0
3.0
3.0
2.0
1.4
1.0
1.0~5.0
1.0~5.0
1.0~2.5
1.0~5.0
2.5~3.0
1.5~3.0
1.0~3.0
1.0~3.0
1.0~3.0
1.0~5.0
1.0~3.0
1.5~3.0
1.0~3.0
2.5~3.0
1.0~3.0
1.0~3.0
2.0~3.0
1.5~3.0
1.5~3.0
1.5~5.0
2.0~3.0
1.5~3.0
1.0~3.0
1.0~3.0
Presser
Foot
0A
0A
0A
0A
0A
0A
0A
0A
0A
0A
0A
0A
0A
0A
0A
0A
0A
0A
0A
0A
0A
1A
0A
0A
0A
Reverse
Functions
Auto-lock Elongation
: Features may be applicable.
Presser
Mirror Twin needle
foot
0A
0A
0A
0A
0A
0A
0A
0A
0A
0A
0A
0A
0A
0A
0A
0A
0A
0A
0A
0A
0A
1A
0A
0A
0A
Memory
Group 4-D stitch " "-79 Stitches
Stitch
Decorative
stitches
00
01
02
03
04
05
06
Width (mm) Length (mm)
Auto Manual Auto Manual
5.0
5.0
5.0
7.0
7.0
7.0
7.0
3.5~9.0
3.5~9.0
3.5~9.0
3.5~9.0
3.5~9.0
3.5~9.0
3.0~9.0
2.0
3.0
3.0
3.0
3.0
2.0
2.0
1.5~3.0
1.5~3.0
2.0~3.0
2.0~3.0
2.0~3.0
2.0~3.0
1.5~3.0
Presser
Foot
2A
2A
2A
2A
2A
2A
2A
95
APPENDIX
Reverse
Functions
Auto-lock Elongation
Presser
Mirror Twin needle
foot
2A
2A
2A
2A
2A
2A
2A
Memory
STITCH REFERENCE CHART
Stitch
Decorative
stitches
07
08
09
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
Width (mm) Length (mm)
Auto Manual Auto Manual
1.5~3.0
7.0
7.0
7.0
7.0
7.0
7.0
7.0
7.0
9.0
9.0
9.0
9.0
9.0
9.0
9.0
9.0
9.0
9.0
9.0
9.0
9.0
9.0
9.0
9.0
9.0
9.0
7.0
9.0
9.0
9.0
7.0
9.0
9.0
9.0
7.0
7.0
7.0
7.0
7.0
9.0
5.0
3.5~9.0
3.5~9.0
4.0~9.0
4.5~9.0
3.5~9.0
3.5~9.0
4.5~9.0
4.5~9.0
5.0~9.0
3.5~9.0
5.0~9.0
4.5~9.0
4.5~9.0
4.5~9.0
3.5~9.0
5.0~9.0
4.0~9.0
4.0~9.0
5.0~9.0
5.0~9.0
5.0~9.0
5.0~9.0
3.5~9.0
5.0~9.0
3.5~9.0
5.0~9.0
3.5~9.0
4.5~9.0
3.5~9.0
4.5~9.0
4.5~9.0
4.5~9.0
3.5~9.0
3.5~9.0
3.5~9.0
3.5~9.0
4.5~9.0
3.5~9.0
3.0~9.0
3.0
3.0
3.0
2.5
2.0
2.0
3.0
3.0
3.0
3.0
3.0
2.0
3.0
3.0
2.0
2.0
3.0
2.0
2.0
3.0
3.0
3.0
3.0
3.0
3.0
2.0
3.0
1.8
2.0
3.0
2.0
3.0
3.0
3.0
2.0
2.0
2.0
2.0
2.0
3.0
2.0
1.5~3.0
2.0~3.0
2.0~3.0
1.5~3.0
1.5~3.0
2.5~3.0
2.5~3.0
2.5~3.0
1.5~3.0
2.5~3.0
1.5~3.0
2.0~3.0
2.0~3.0
1.5~3.0
2.0~3.0
2.0~3.0
1.5~3.0
2.0~3.0
2.5~3.0
2.0~3.0
2.0~3.0
1.5~3.0
2.0~3.0
1.5~3.0
1.0~2.5
1.5~3.0
2.5~3.0
1.5~3.0
2.0~3.0
1.5~3.0
1.5~3.0
1.5~3.0
1.0~3.0
1.5~3.0
1.0~3.0
1.5~3.0
1.5~3.0
1.5~3.0
Presser
Foot
2A
2A
2A
2A
2A
2A
2A
2A
2A
1A
2A
2A
1A
2A
2A
1A
2A
2A
2A
2A
2A
1A
2A
1A
2A
2A
2A
2A
2A
2A
2A
2A
2A
2A
2A
2A
1A
2A
2A
2A
2A
Reverse
Functions
Auto-lock Elongation
Presser
Mirror Twin needle
foot
2A
2A
2A
2A
2A
2A
2A
2A
2A
1A
2A
2A
1A
2A
2A
1A
2A
2A
2A
2A
2A
1A
2A
1A
2A
2A
2A
2A
2A
2A
2A
2A
2A
2A
2A
2A
1A
2A
2A
2A
2A
Memory
96
APPENDIX
STITCH REFERENCE CHART
Stitch
Decorative
stitches
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
Width (mm) Length (mm)
Auto Manual Auto Manual
1.5~3.0
5.0
9.0
4.0
7.0
7.0
7.0
7.0
7.0
7.0
7.0
7.0
7.0
7.0
7.0
7.0
7.0
7.0
7.0
7.0
7.0
7.0
7.0
7.0
7.0
7.0
7.0
5.0
7.0
7.0
7.0
7.0
3.5~9.0
3.5~9.0
0.0~9.0
3.5~9.0
3.5~9.0
3.0~9.0
3.0~9.0
5.0~9.0
5.0~9.0
5.0~9.0
5.0~9.0
3.5~9.0
5.0~9.0
5.0~9.0
3.5~9.0
5.0~9.0
5.0~9.0
5.5~9.0
5.5~9.0
3.5~9.0
3.5~9.0
4.5~9.0
4.0~9.0
4.0~9.0
3.5~9.0
5.0~9.0
4.0~9.0
4.5~9.0
5.0~9.0
5.0~9.0
5.0~9.0
3.0
3.0
3.0
2.0
2.0
2.0
2.0
3.0
3.0
1.5
3.0
2.0
2.0
2.0
2.0
3.0
3.0
3.0
2.0
2.0
1.0
3.0
3.0
2.5
2.0
2.0
1.0
2.0
3.0
3.0
3.0
1.5~3.0
2.0~3.0
1.5~3.0
1.5~3.0
1.5~3.0
1.5~3.0
2.0~3.0
2.0~3.0
1.5~3.0
1.0~3.0
1.0~3.0
1.5~3.0
1.5~3.0
2.0~3.0
2.0~3.0
2.0~3.0
2.5~3.0
2.0~3.0
1.5~3.0
1.0~3.0
1.5~3.0
2.0~3.0
2.0~3.0
1.5~3.0
2.0~3.0
1.0~3.0
1.5~3.0
2.0~3.0
2.0~3.0
2.0~3.02
Presser
Foot
2A
2A
2A
2A
2A
2A
1A
2A
2A
2A
2A
2A
2A
2A
2A
2A
2A
2A
1A
2A
2A
2A
2A
2A
2A
2A
2A
2A
2A
2A
2A
Reverse
Functions
Auto-lock Elongation
: Features may be applicable.
Presser
Mirror Twin needle
foot
2A
2A
2A
2A
2A
2A
1A
2A
2A
2A
2A
2A
2A
2A
2A
2A
2A
2A
1A
2A
2A
2A
2A
2A
2A
2A
2A
2A
2A
2A
2A
Memory
97
APPENDIX
STITCH REFERENCE CHART
Block style group " "-97 Stitches
Stitch
Block style
01
02
03
04
05
06
07
08
09
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
Width (mm) Length (mm)
Auto Manual Auto Manual
------
8.0
8.0
8.0
8.0
8.0
8.0
8.0
8.0
8.0
8.0
8.0
8.0
8.0
8.0
8.0
8.0
8.0
8.0
8.0
8.0
8.0
8.0
8.0
8.0
8.0
8.0
8.0
8.0
8.0
8.0
8.0
8.0
8.0
8.0
8.0
8.0
8.0
8.0
8.0
6.0,8.0
6.0,8.0
6.0,8.0
6.0,8.0
6.0,8.0
6.0,8.0
6.0,8.0
6.0,8.0
6.0,8.0
6.0,8.0
6.0,8.0
6.0,8.0
6.0,8.0
6.0,8.0
6.0,8.0
6.0,8.0
6.0,8.0
6.0,8.0
6.0,8.0
6.0,8.0
6.0,8.0
6.0,8.0
6.0,8.0
6.0,8.0
6.0,8.0
6.0,8.0
6.0,8.0
6.0,8.0
6.0,8.0
6.0,8.0
6.0,8.0
6.0,8.0
6.0,8.0
6.0,8.0
6.0,8.0
6.0,8.0
6.0,8.0
6.0,8.0
6.0,8.0
---
---
---
---
---
---
---
---
---
---
---
---
---
---
---
---
---
---
---
---
---
---
---
---
---
---
---
---
---
---
---
---
---
---
---
---
---
---
---
------
------
------
------
------
------
------
------
------
------
------
------
------
------
------
------
------
------
------
------
------
------
------
------
------
------
------
------
------
------
------
------
------
------
------
------
------
------
Presser
Foot
1A
1A
1A
1A
1A
1A
1A
1A
1A
1A
1A
1A
1A
1A
1A
1A
1A
1A
1A
1A
1A
1A
1A
1A
1A
1A
1A
1A
1A
1A
1A
1A
1A
1A
1A
1A
1A
1A
1A
Reverse
Functions
Auto-lock Elongation
Presser
Mirror Twin needle
foot
Memory
98
APPENDIX
STITCH REFERENCE CHART
Stitch
Block style
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
Width (mm) Length (mm)
Auto Manual Auto Manual
------
8.0
8.0
8.0
8.0
8.0
8.0
8.0
8.0
8.0
8.0
8.0
8.0
8.0
8.0
8.0
8.0
8.0
8.0
8.0
8.0
8.0
8.0
8.0
8.0
8.0
8.0
8.0
8.0
8.0
8.0
8.0
8.0
8.0
8.0
8.0
8.0
8.0
8.0
8.0
8.0
8.0
6.0,8.0
6.0,8.0
6.0,8.0
6.0,8.0
6.0,8.0
6.0,8.0
6.0,8.0
6.0,8.0
6.0,8.0
6.0,8.0
6.0,8.0
6.0,8.0
6.0,8.0
6.0,8.0
6.0,8.0
6.0,8.0
6.0,8.0
6.0,8.0
6.0,8.0
6.0,8.0
6.0,8.0
6.0,8.0
6.0,8.0
6.0,8.0
6.0,8.0
6.0,8.0
6.0,8.0
6.0,8.0
6.0,8.0
6.0,8.0
6.0,8.0
6.0,8.0
6.0,8.0
6.0,8.0
6.0,8.0
6.0,8.0
6.0,8.0
6.0,8.0
6.0,8.0
6.0,8.0
6.0,8.0
---
---
---
---
---
---
---
---
---
---
---
---
---
---
---
---
---
---
---
---
---
---
---
---
---
---
---
---
---
---
---
---
---
---
---
---
---
---
---
---
---
------
------
------
------
------
------
------
------
------
------
------
------
------
------
------
------
------
------
------
------
------
------
------
------
------
------
------
------
------
------
------
------
------
------
------
------
------
------
------
------
Presser
Foot
1A
1A
1A
1A
1A
1A
1A
1A
1A
1A
1A
1A
1A
1A
1A
1A
1A
1A
1A
1A
1A
1A
1A
1A
1A
1A
1A
1A
1A
1A
1A
1A
1A
1A
1A
1A
1A
1A
1A
1A
1A
Reverse
Functions
Auto-lock Elongation
Presser
Mirror Twin needle
foot
Memory
99
APPENDIX
