OptioWG1_eng.book Page 1 Friday, March 11, 2011 4:10 PM

To users of this camera

• Do not use or store this device in the vicinity of equipment that generates strong electromagnetic radiation or magnetic fields. Strong static charges or the magnetic fields produced by equipment such as radio transmitters could interfere with the monitor, damage the stored data, or affect the product’s internal circuitry and cause camera misoperation.

• The liquid crystal panel used in the display is manufactured using extremely high precision technology. Although the level of functioning pixels is 99.99% or better, you should be aware that 0.01% or fewer of the pixels may not illuminate or may illuminate when they should not. However, this has no effect on the recorded image.

• A band of light may appear on the display if the camera is aimed at a bright subject. This is known as a smear, but it is not a malfunction.

• There is a possibility that the illustrations and the display screen in this manual are different from the actual product.

• In this manual, SD Memory Cards, SDHC Memory Cards and SDXC Memory Cards are referred to as SD Memory Cards.

• In this manual, the generic term “computer(s)” refers to either a Windows PC or a Macintosh hereafter.

• In this manual, the term “battery(ies)” refers to any type of batteries used for this camera and accessories.

Using Your Camera Safely

We have paid close attention to the safety of this product. When using this product, we request your special attention regarding items marked with the following symbols.

Warning

Caution

This symbol indicates that violating this item could cause serious personal injuries.

This symbol indicates that violating this item could cause minor or medium personal injuries, or loss of property.

OptioWG1_eng.book Page 2 Friday, March 11, 2011 4:10 PM

About the Camera

Warning

• Do not attempt to take the camera apart or modify the camera. High voltages are present within the camera, and there is a danger of electric shock if the camera is taken apart.

• If the inside of the camera should become exposed as a result of, for example, the camera being dropped, please do not under any circumstances touch such exposed portions, as there is a danger of receiving an electric shock.

• Wrapping the strap of the camera around your neck is also dangerous. Please take care that small children do not hang the strap around their necks.

• If any irregularities occur during use, such as smoke or a strange odor, stop use immediately, remove the battery or the AC adapter, and contact your nearest PENTAX Service Center. Continuing to use the product can cause a fire or electric shock.

Caution

• Do not place your finger on the flash when it is discharging as there is a risk of burns.

• Do not discharge the flash while it is touching your clothing as there is a risk of discoloring.

• Some portions of the camera heat up during use, so please take care, as there is a risk of low temperature burns if such portions are held for long periods of time.

• Should the LCD be damaged, be careful of glass fragments. Also, be careful not to allow the liquid crystal to get on your skin, in your eyes, or in your mouth.

• Depending on your individual factors or physical condition, the use of the camera may cause itching, rashes or blisters. In case of any abnormality, stop using the camera and get medical attention immediately.

OptioWG1_eng.book Page 3 Friday, March 11, 2011 4:10 PM

About the Battery Charger and the AC Adapter

Warning

• Always use the battery charger and AC adapter exclusively developed for this product, with the specified power and voltage. Using a battery charger or AC adapter not exclusive to this product, or using the exclusive battery charger or AC adapter with an unspecified power or voltage can cause a fire, electric shock, or camera breakdown. The specified voltage is 100240V AC.

• Do not disassemble or modify the product. This can cause a fire or electric shock.

• If the generation of smoke or strange odor from the product or other abnormality occurs, immediately discontinue its use and consult a PENTAX Service Center. Continuing to use the product can cause a fire or electric shock.

• If water should happen to get inside the product, consult a PENTAX Service Center. Continuing to use the product can cause a fire or electric shock.

• If a thunder storm should occur while using the battery charger or AC adapter, unplug the AC plug cord and discontinue use. Continuing to use the product can cause damage to the equipment, fire, or electric shock.

• Wipe off the plug of the AC plug cord if it becomes covered with dust. Dust on the plug may cause a fire.

Caution

• Do not place heavy objects on the AC plug cord, allow heavy objects to drop onto it or allow the AC plug cord to become damaged due to excessive bending. If the AC plug cord becomes damaged, consult a PENTAX Service Center.

• Do not short or touch the output terminals of the product while it is still plugged in.

• Do not plug in the AC plug cord with wet hands. This can cause an electric shock.

• Do not subject the product to strong impacts or allow it to drop onto a hard surface. This can cause a malfunction.

• Do not use the battery charger to charge a battery other than a rechargeable lithium-ion battery D-LI92. This can cause overheating, explosion, or battery charger failure.

OptioWG1_eng.book Page 4 Friday, March 11, 2011 4:10 PM

•

To reduce the risk of hazards, use only a CSA/UL certified power supply cord set, cord is Type SPT-2 or heavier, minimum NO.18 AWG copper, one end with a molded-on male attachment plug cap (with a specified NEMA configuration), and the other is provided with a molded-on female connector body (with a specified IEC nonindustrial type configuration) or the equivalent.

About the Battery

Warning

• Be sure to store the battery out of the reach of small children. Placing it in their mouths may cause an electric shock.

• If any leakage from the battery should come in contact with your eyes, it may cause a loss of sight. Flush your eyes with clean water and get medical attention immediately. Do not rub them.

Caution

• Only use the specified battery with this camera. Use of other batteries may cause an explosion or fire.

• Do not disassemble the battery. Disassembling the battery may cause an explosion or leakage.

• Remove the battery from the camera immediately if it becomes hot or begins to smoke. Be careful not to burn yourself during removal.

• Keep wires, hairpins, and other metal objects away from the + and contacts of the battery.

• Do not short the battery or dispose of the battery in fire. This can cause an explosion or fire.

•

If any leakage from the battery should come in contact with skin or clothes, it may cause irritation to the skin. Wash the affected areas thoroughly with water.

• Precautions for D-LI92 Battery Usage: BATTERY MAY EXPLODE OR FIRE IF MISTREATED.

- DO NOT DISASSEMBLE OR DISPOSE OF IN FIRE.

- DO NOT CHARGE EXCEPT SPECIFIED CHARGING CONDITION.

- DO NOT HEAT ABOVE 140°F / 60°C, OR SHORT CIRCUIT.

- DO NOT CRUSH OR MODIFY.

OptioWG1_eng.book Page 5 Friday, March 11, 2011 4:10 PM

Keep the Camera and Accessories Out of the Reach of Small Children

Warning

• Be sure to keep the camera and its accessories out of the reach of small children.

1. Injuries may result from the product falling or from unexpected

movement.

2. Suffocation may result from wrapping the strap around the neck.

3. Small accessories such as the battery or an SD Memory Card may be

swallowed. Seek medical attention immediately if an accessory is accidentally swallowed.

Care to be Taken During Handling

Before Starting Use

• When traveling, take the Worldwide Service Network listing that is included in the package. This will be useful if you experience problems abroad.

• When the camera has not been used for a long time, confirm that it is still working properly, particularly prior to taking important pictures (such as at a wedding or when traveling). Contents of the recording cannot be guaranteed if recording, playback or transferring your data to a computer, etc. is not possible due to a malfunction of your camera or recording media (SD Memory Card), etc.

• The lens on this camera is not interchangeable. The lens is not removable.

About the Battery and Battery Charger

• Storing the battery fully charged may decrease the battery performance. Avoid storing it especially in high temperatures. If the battery is left inserted and the camera is not used for a long time, the battery will over-discharge and shorten the battery’s service life.

•

Charging the battery a day before use or on the day of use is recommended.

• The AC plug cord supplied with the camera is for exclusive use with the battery charger D-BC92. Do not use it with any other equipment.

OptioWG1_eng.book Page 6 Friday, March 11, 2011 4:10 PM

Cautions when Carrying and Using the Camera

•

Hot and humid places should be avoided. Particular care should be taken regarding vehicles, which can become very hot inside.

• Ensure that the camera is not subjected to substantial vibrations, shocks, or pressure as this may cause damage, malfunction, or a loss in waterproof performance. Place the camera on a cushion for protection when the camera is subjected to the vibrations of a motorbike, car, ship, etc. If the camera is subjected to substantial vibrations, shocks, or pressure, take your camera to your nearest PENTAX Service Center and have it checked.

• The temperature range in which the camera can be used is -10°C to 40°C (14°F to 104°F).

• The liquid crystal display will become black at high temperatures but will return to normal at normal temperatures.

• The response speed of the liquid crystal display becomes slow at low temperatures. This is due to the properties of the liquid crystal and is not a malfunction.

• If the camera is subjected to rapid temperature changes, condensation may form on the inside and outside of the camera. Therefore don't open the battery/card and terminal covers before the difference in temperature has subsided.

• Avoid contact with garbage, mud, sand, dust, water, toxic gases, or salts. These could cause the camera to breakdown. Wipe the camera to dry off any rain or water drops.

• Please do not press forcefully on the display. This could cause it to break or malfunction.

• Be careful not to sit down with the camera in your back pocket as this may damage the exterior of the camera or the display.

• When using a tripod with the camera, be careful not to overtighten the screw in the tripod socket on the camera.

About Repairs

• Do not clean the product with organic solvents such as thinner, alcohol or benzene.

• Use a lens brush to remove dust accumulated on the lens. Never use a spray blower for cleaning as it may damage the lens.

OptioWG1_eng.book Page 7 Friday, March 11, 2011 4:10 PM

About Storage

• Avoid storing the camera where pesticides and chemicals are handled. Remove the camera from its case and store it in a well-ventilated place to prevent the camera from becoming moldy during storage.

Others

• Periodic checks are recommended every 1 to 2 years in order to maintain high performance.

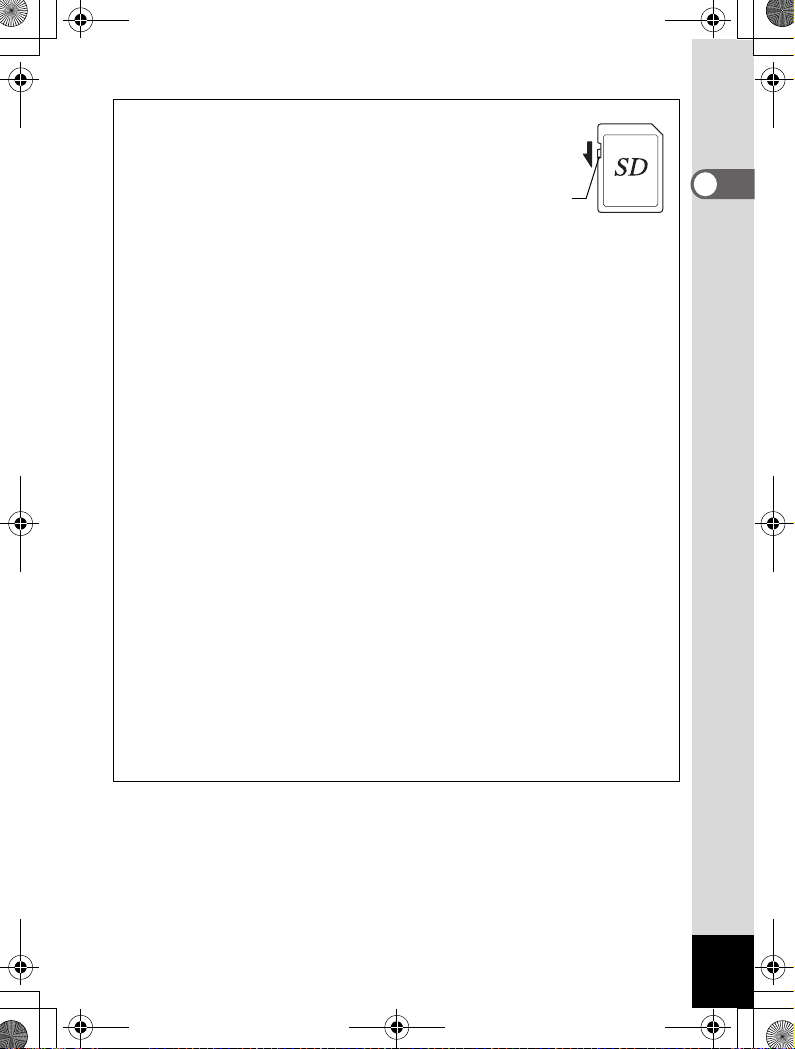

• Refer to “Precautions When Using an SD Memory Card” (p.47) regarding the SD Memory Card.

• Please note that deleting images, or formatting the SD Memory Cards or the built-in memory does not completely erase the original data. Deleted files can sometimes be recovered using commercially available software. It is the user’s responsibility to ensure the privacy of such data.

OptioWG1_eng.book Page 8 Friday, March 11, 2011 4:10 PM

Regarding Waterproof, Dustproof, and Shockproof Design

• This camera is provided with a waterproof/dustproof design complying with JIS waterproof grade 8 and JIS dustproof grade 6 (equivalent to IP68).

• The camera satisfies the PENTAX drop test (1.5 m height onto a 5 cm thick plywood surface) complying with MIL-Standard 810F Method 516.5-Shock testing.

• The camera satisfies the PENTAX test for the waterproof, dustproof, and shockproof performance, but this does not guarantee it will remain free of trouble or damages.

• Waterproof performance is not guaranteed if the camera is exposed to impact such as being dropped or hit.

Precautions Before Using the Camera in the Water

Check the Following Before Going Near the Water

• Make sure that there are no cracks or scratches on the rubber seal of the battery/card and terminal covers.

Packing contact surface Waterproof packing

Packing contact surface

• Make sure there are no foreign objects (dust, sand, hair, lint or liquid) on the rubber seals or the surface they contact before closing the battery/card and terminal covers. Wipe off any foreign objects with a clean lint-free cloth.

Waterproof packing

OptioWG1_eng.book Page 9 Friday, March 11, 2011 4:10 PM

• Close the battery/card and terminal covers properly until they click. Otherwise water may get in and damage the camera.

Be Careful Near the Water

• Avoid opening the battery/card and terminal covers when near the waterside or with wet hands. Wait until the camera is completely dry before changing the battery or the SD Memory Card. Avoid changing the battery or card where the camera is likely to get wet or dirty, and make sure that your hands are dry.

• The camera will sink if dropped in water, so be sure to attach the strap and slip the strap over your wrist when using the camera in or near water.

• To enhance the waterproof performance of the camera, the front of the lens is protected by glass. As any dirt or water on the glass will affect the quality of pictures taken, the glass should be kept clean at all times.

Precautions When Using the Camera in the Water

• Do not use the camera deeper than 10 meters underwater. Do not use the camera underwater for more than 120 minutes consecutively.

• Do not open the battery/card and terminal covers underwater.

• Do not use in hot water or in a hot spring.

• Do not apply excessive force to the camera, for example diving into water with it. Doing so may compromise the waterproof performance of the camera or cause the covers to open.

• Leaving the camera on the sand at the beach may cause the camera to exceed its operating temperature or cause the speaker or microphone to become blocked with sand.

• Avoid subjecting the camera to substantial vibrations, shocks, or pressure as this may cause a loss in waterproof performance. If the camera is subjected to substantial vibrations, shocks or pressure, take your camera to your nearest PENTAX Service Center and have it checked.

• Avoid getting sunscreen or sun oil on the camera as it may cause discoloration of the surface. If any oil gets on the camera, wash it off immediately with warm water.

• Sudden and extreme changes in temperature may cause condensation to form in and on the camera. Keep the camera in a bag or case to reduce the difference in temperature.

OptioWG1_eng.book Page 10 Friday, March 11, 2011 4:10 PM

Precautions After Using the Camera in the Water

• Do not open the battery/card cover or terminal cover if the camera is wet. Wipe off any water with a clean lint-free cloth.

• The inside surface of the covers may get wet when they are opened. Wipe off any water that is on the cover.

• Wiping off the camera while there is sand or dust on it may scratch the surface of the camera. Make sure that the battery/card cover and terminal cover are firmly closed before washing the camera in tap water. After washing the camera, dry it with a soft cloth.

• Wipe off any dirt or sand on the waterproof packing or the packing contact surface. The camera’s waterproof performance may be compromised by loose packing or cracks or dents in the packing or packing contact surface. If there is any such damage, contact your nearest PENTAX Service Center.

• If the camera is very dirty or after it has been used in the sea, make sure that it is turned off and the battery/card and terminal covers are firmly closed before rinsing it under running tap water or leaving it in a bowl of clean water for a short time (2 or 3 minutes).

• Avoid cleaning with agents such as soapy water, mild detergents, or alcohol as this may compromise the waterproof performance of the camera.

• To maintain the waterproof performance of the camera, you are recommended to change the waterproof packing once a year. Contact your nearest PENTAX Service Center regarding changing the packing. (A charge will be made.)

• The camera’s accessories are not waterproof.

OptioWG1_eng.book Page 11 Friday, March 11, 2011 4:10 PM

Contents

Using Your Camera Safely ...............................................................1

Care to be Taken During Handling ...................................................5

Regarding Waterproof, Dustproof, and Shockproof Design ............ 8

Precautions Before Using the Camera in the Water......................... 8

Precautions When Using the Camera in the Water .......................... 9

Precautions After Using the Camera in the Water.......................... 10

Contents .........................................................................................11

Composition of the Operating Manual ............................................17

Camera Features.................................................................................18

Checking the Contents of the Package ..........................................22

Names of Parts...............................................................................23

Names of Operating Parts ..............................................................24

Monitor Indications .........................................................................25

Getting Started 35

Attaching the Strap............................................................................. 36

Attaching the Strap ......................................................................... 36

Attaching the Carabiner Strap ........................................................36

Powering the Camera ......................................................................... 38

Charging the Battery....................................................................... 38

Installing the Battery .......................................................................39

Using the AC Adapter..................................................................... 43

Installing the SD Memory Card.......................................................... 45

Number of Images Recordable on an SD Memory Card ................ 48

Turning the Camera On and Off ........................................................ 49

Starting-up in the Playback Mode................................................... 50

Initial Settings .....................................................................................51

Setting the Display Language......................................................... 51

Setting the Date and Time.............................................................. 55

Common Operations 59

Understanding the Button Functions ............................................... 60

A Mode .........................................................................................60

Q Mode ........................................................................................62

Switching Between A Mode and Q Mode................................... 64

Setting the Camera Functions ...........................................................65

Operating the Menus ......................................................................65

Menu List ........................................................................................69

OptioWG1_eng.book Page 12 Friday, March 11, 2011 4:10 PM

Taking Pictures 73

Taking Still Pictures............................................................................ 74

Taking Pictures...............................................................................74

Setting the Shooting Mode .............................................................78

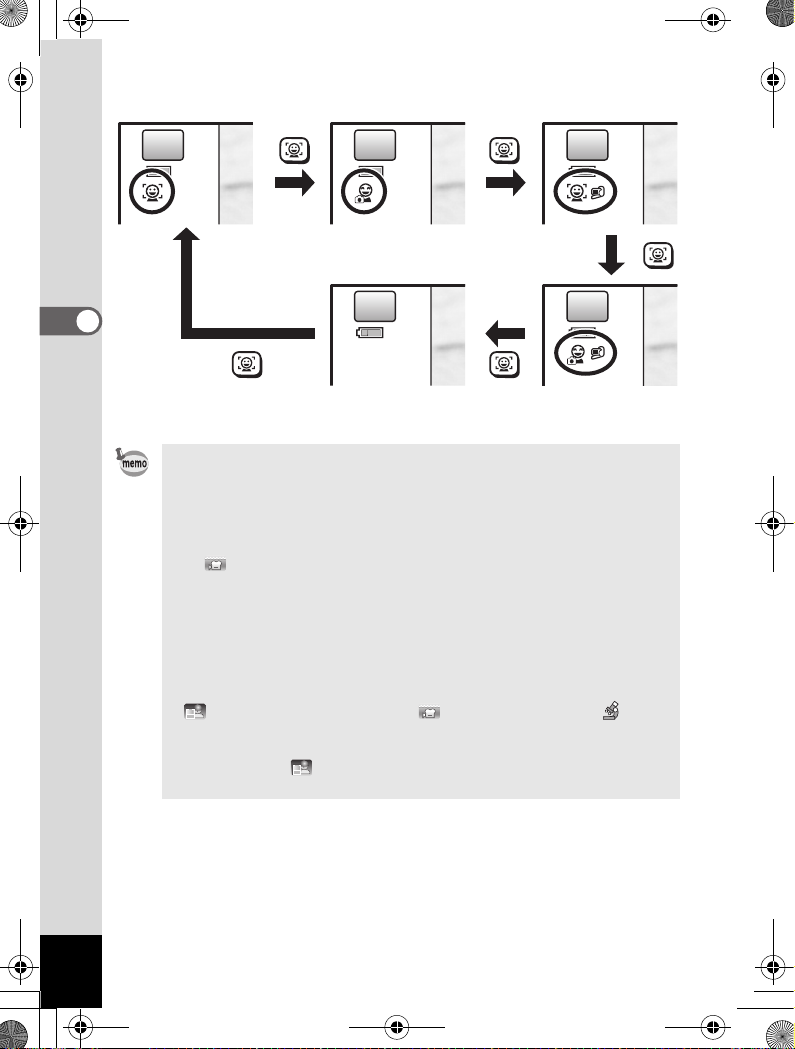

Using the Face Detection Function ................................................80

Taking Pictures Automatically (Auto Picture Mode) .......................84

Setting the Functions (Program Mode)........................................... 85

Taking Pictures in the Basic Mode (Green Mode)..........................86

Using the Zoom ..............................................................................88

Taking Pictures of Dark Scenes (Night Scene, Night Scene Portrait,

Digital SR, Fireworks, and Candlelight Modes)........................ 90

Taking Pictures of People (Portrait Mode)...................................... 92

Taking Pictures of Children (Kids Mode) ........................................93

Taking Pictures of Your Pet (Pet Mode) .........................................94

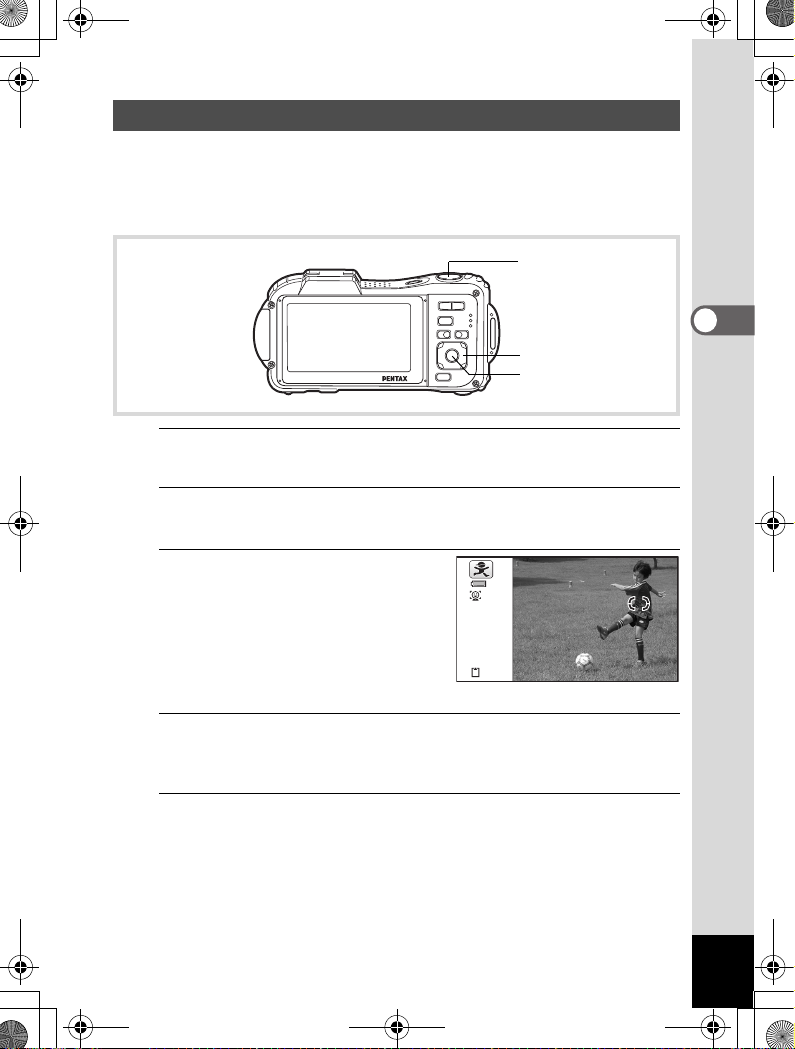

Taking Pictures of Sports and Leisure Activities (Surf & Snow/Sport Mode)........97

Taking Pictures of Text (Text Mode) ..............................................98

Taking Pictures in Digital Microscope Mode................................... 99

Framing Your Pictures (Frame Composite Mode) ........................ 101

Using the Self-timer ......................................................................103

Taking a Series of Pictures (Continuous Shooting/Burst Shooting)..... 104

Taking Pictures Using the Remote Control Unit (Optional) ..........106

Taking Pictures at a Set Interval (Interval Shoot) .........................108

Taking Pictures with Automatic Exposure Adjustment

(Auto Bracketing) ...................................................................110

Using the Digital Wide Function (Digital Wide Mode) ................... 111

Taking Panoramic Pictures (Digital Panorama Mode).................. 114

Setting the Shooting Functions....................................................... 117

Selecting the Flash Mode .............................................................117

Selecting the Focus Mode ............................................................119

Setting the Image Tone ................................................................124

Selecting the Number of Recorded Pixels .................................... 125

Selecting the Quality Level of Still Pictures ..................................127

Adjusting the White Balance......................................................... 128

Setting the AE Metering................................................................ 130

Setting the Sensitivity ...................................................................131

Setting AUTO ISO Range............................................................. 132

Setting the Exposure (EV Compensation) .................................... 133

Correcting the Brightness (D-Range Setting) ...............................134

Setting Pixel Track SR.................................................................. 135

Setting the Interval Shooting ........................................................136

Setting Blink Detection .................................................................138

Setting the Instant Review............................................................ 139

Setting the Green Button ..............................................................139

OptioWG1_eng.book Page 13 Friday, March 11, 2011 4:10 PM

Setting the Image Sharpness (Sharpness)................................... 143

Setting the Saturation/Tone Adjustment.......................................144

Setting the Image Contrast (Contrast)..........................................145

Setting the Date Imprint Function .................................................145

Setting the IQ Enhancer Processing ............................................146

Setting the Macro Light................................................................. 147

Taking Pictures Underwater ............................................................148

Taking Underwater Pictures (Underwater Mode/Underwater

Movie Mode) ..........................................................................148

Recording Movies .............................................................................150

Recording Movies.........................................................................150

Selecting the Number of Recorded Pixels and Frame Rate for Movies......152

Setting the Movie SR (Movie Shake Reduction) Function............ 153

Recording a Movie from Pictures Taken at a Set Interval (Interval Movie).... 154

Saving the Settings (Memory) .........................................................158

Playing Back and Deleting Images 161

Playing Back Images ........................................................................162

Playing Back Still Pictures ............................................................162

Playing Back a Movie ...................................................................163

Multi-Image Display ......................................................................164

Using the Playback Function ........................................................166

Slideshow .....................................................................................169

Rotating the Image .......................................................................172

Zoom Playback............................................................................. 173

Zoom In on the Subject’s Face Automatically (Face Close-up

Playback) ...............................................................................174

Deleting Images and Sound Files.................................................... 176

Deleting a Single Image/Sound File .............................................176

Deleting Selected Images and Sound Files.................................. 178

Deleting All Images and Sound Files............................................ 179

Protecting Images and Sound Files from Deletion (Protect) ........180

Connecting the Camera to AV Equipment......................................183

Connecting the Camera to a Video IN Jack .................................183

Connecting the Camera to an HDMI Terminal .............................185

Editing and Printing Images 187

Editing Images ..................................................................................188

Changing the Image Size (Resize)...............................................188

Cropping Images ..........................................................................189

Processing Images to Make Faces Look Smaller ........................190

Using the Digital Filters................................................................. 192

OptioWG1_eng.book Page 14 Friday, March 11, 2011 4:10 PM

Using the Ink Rubbing Filter .........................................................197

Creating a Collage Image ............................................................. 198

Red-eye Compensation................................................................ 203

Adding a Frame (Frame Composite) ............................................204

Overlaying Your Original Frame on an Image ..............................207

Editing Movies ..............................................................................212

Copying Images and Sound Files................................................. 215

Setting the Printing Service (DPOF)................................................ 217

Printing a Single Image ................................................................217

Printing All Images........................................................................ 219

Recording and Playing Back Sound 221

Recording Sound (Voice Recording Mode) .................................... 222

Setting Voice Recording ...............................................................222

Recording Sounds ........................................................................223

Playing Back Sound .....................................................................224

Adding a Voice Memo to Images ..................................................... 226

Recording a Voice Memo .............................................................226

Playing Back a Voice Memo.........................................................227

Settings 229

Camera Settings................................................................................ 230

Formatting the Memory ................................................................230

Changing the Sound Settings.......................................................231

Changing the Date and Time........................................................ 233

Setting the Alarm ..........................................................................235

Setting the World Time .................................................................237

Setting the Text Size on the Menu ...............................................240

Changing the Display Language ..................................................241

Changing the System for Naming Folders.................................... 242

Changing the Video Output Format.............................................. 244

Selecting the HDMI Output Format ..............................................245

Setting the Eye-Fi Communication ...............................................247

Adjusting the Brightness of the Display ........................................248

Using the Power Saving Function ................................................249

Setting Auto Power Off .................................................................250

Setting the Quick Zoom Function .................................................251

Setting the Guide Display .............................................................252

Perform Pixel Mapping .................................................................253

Changing the Start-up Screen ......................................................254

Resetting to Default Settings (Reset) ...........................................255

Displaying the Clock Mode ...........................................................256

OptioWG1_eng.book Page 15 Friday, March 11, 2011 4:10 PM

Connecting to a Computer 257

Setting Up Your Computer ............................................................... 258

Provided Software ........................................................................258

System Requirements ..................................................................259

Installing the Software ..................................................................260

Setting the USB Connection Mode............................................... 263

Connecting to a Windows PC ..........................................................265

Connecting the Camera and Your Windows PC ..........................265

Transferring Images .....................................................................266

Disconnecting the Camera from Your Windows PC.....................269

Starting “MediaImpression 3.0 for PENTAX” ................................ 270

Viewing Images ............................................................................272

Details on How to Use “MediaImpression 3.0 for PENTAX”......... 273

Connecting to a Macintosh ..............................................................274

Connecting the Camera and Your Macintosh............................... 274

Transferring Images .....................................................................275

Disconnecting the Camera from Your Macintosh .........................276

Starting “MediaImpression 2.1 for PENTAX” ................................ 277

Viewing Images ............................................................................279

Details on How to Use “MediaImpression 2.1 for PENTAX”......... 279

Transferring Images Using an Eye-Fi Card ....................................280

Appendix 283

Functions Available for Each Shooting Mode................................284

Messages........................................................................................... 287

Troubleshooting................................................................................289

Default Settings................................................................................. 291

List of World Time Cities.................................................................. 296

Optional Accessories .......................................................................297

Main Specifications ..........................................................................298

Utilities Guide for GPS .....................................................................303

Before using GPS .............................................................................303

About GPS....................................................................................303

Function of Optio WG-1 GPS .......................................................303

Precautions for using GPS ...........................................................303

Using the GPS ...................................................................................305

Recording GPS data onto images ................................................ 305

Saving logs ................................................................................... 306

Correcting time automatically .......................................................308

Warranty Policy................................................................................. 310

Index................................................................................................... 315

OptioWG1_eng.book Page 16 Friday, March 11, 2011 4:10 PM

In this manual, the method for operating the four-way controller is shown in illustrations, such as in the one below.

2 or

The meanings of the symbols used in this Operating Manual are explained below.

A Mode

Q Mode

Indicates the reference page number for an explanation of the related operation.

Indicates information that is useful to know.

Indicates precautions to be taken when operating the camera.

This is the mode for taking still pictures and movies. In this manual, “Still Picture Capture Mode” is the mode for taking still pictures while “C mode” is the mode for taking movies.

This is the mode for viewing still pictures and playing back movies and sound files.

OptioWG1_eng.book Page 17 Friday, March 11, 2011 4:10 PM

Composition of the Operating Manual

This Operating Manual contains the following chapters.

1 Getting Started –––––––––––––––––––––––––––––––––––––––––

This chapter explains what you need to do after purchasing the camera before you start taking pictures. Be sure to read it and follow the instructions.

2 Common Operations ––––––––––––––––––––––––––––––––––––

This chapter explains common operations such as the functions of the buttons and how to use the menus. For more details, refer to the respective chapters below.

3 Taking Pictures ––––––––––––––––––––––––––––––––––––––––

This chapter explains the various ways of capturing images and how to set the relevant functions.

4 Playing Back and Deleting Images–––––––––––––––––––––––––

This chapter explains how to view still pictures and movies on the camera or on a TV and how to delete images, sound files, and movies from the camera.

5 Editing and Printing Images ––––––––––––––––––––––––––––––

This chapter explains the various ways of printing still pictures and how to edit images with the camera.

6 Recording and Playing Back Sound –––––––––––––––––––––––

This chapter explains how to record sound files or add sound (a voice memo) to an image and how to play back sound files.

7 Settings –––––––––––––––––––––––––––––––––––––––––––––––

This chapter explains how to set camera-related functions.

8 Connecting to a Computer –––––––––––––––––––––––––––––––

This chapter explains how to connect the camera to a computer, and includes installation instructions and a general overview of the provided software.

9 Appendix––––––––––––––––––––––––––––––––––––––––––––––

This chapter deals with troubleshooting and lists the optional accessories.

OptioWG1_eng.book Page 18 Friday, March 11, 2011 4:10 PM

Camera Features

In addition to basic picture-taking, this camera has a variety of shooting modes to suit different situations. This section describes how to make the most of the key features of your camera. For details on how to operate the camera, look at the table of contents or in the index for specific functions.

Suitable for Outdoor Activities

This camera is both waterproof and dustproof and has a tough body. You need not worry about sprays of water while fishing or unexpected rain or dust while trekking.

Functions that expand photo opportunities to the sea, the hills, and the rivers

• Waterproof at a depth of 10 meters (32.8 ft.)

• Take pictures underwater for up to two hours.

• Covers can be locked*1

• Shockproof performance*2

• Water repellent coating on the lens cover glass.

*1 This camera has locks for the battery/card and terminal covers. The

battery compartment and the card and terminal compartment are not waterproof or dustproof. Lock the covers properly before approaching anyplace that is wet or dirty.

*2 The camera satisfies the PENTAX drop test (1.5 m height onto a 5 cm

thick plywood surface) complying with MIL-Standard 810F Method

516.5-Shock testing.

• Waterproof performance is not guaranteed if the camera is exposed to impact such as being dropped or hit.

• The camera is not guaranteed to be free of trouble or damages under every condition.

XXXXXXXXXXXXXXX

XXXXXXX

OptioWG1_eng.book Page 19 Friday, March 11, 2011 4:10 PM

For taking enlarged pictures of very close objects such

as the veins of leaves or specimens of tiny insects in Digital Microscope mode (p.99).

For creating an image like an ink rubbing using the Ink

Rubbing Filter (p.197).

Easy-to-Navigate Capture and Playback Functions!

The user-friendly design of the camera enables easy operation with only a few buttons. Simply by choosing the appropriate icon, you can select the shooting mode (p.79) and choose the optimal settings for the situation, or the playback mode (p.168) and enjoy the various playback and editing functions. A guide on the display lets you check the functions available in each mode and how to use them.

A shooting mode guide is displayed in the Capture Mode

Palette and a playback mode guide in the Playback Mode Palette (p.78, p.166). Use the Green Mode to take pictures easily using standard settings (p.86).

OptioWG1_eng.book Page 20 Friday, March 11, 2011 4:10 PM

Perfect for Portrait Shots!

This camera comes with a “Face Detection” function that spots the faces in your shot and automatically adjusts the focus and exposure for the faces. It can recognize up to 32 people per shot (*1), so it will help you take perfect group shots too. It automatically releases the shutter when people are smiling, and if anyone blinks, it tells you that. It also tells you where faces are detected on the screen (*2), so you can take the shot again until it is perfect. It also has a feature that lets you enlarge each person’s face in sequence during playback so you can quickly check their facial expressions.

*1 Up to 31 face detection frames are displayed on the monitor. *2 The camera can tell the position of up to 2 detected faces using the

lights around the lens as indicators.

Face Detection function (p.80). Modes for taking stunning pictures of people (p.92). Close-ups of people’s faces for easy checking during

playback (p.174).

Self-portrait Assist function tells you the face position

on the screen (p.83).

Advanced Movie Recording Functions!

This camera includes Movie SR to reduce camera shake during movie recording (p.153). It also supports 1280×720 HDTV so you can view your recordings as stunning wide-screen movies.

Use the camera to shoot fun-filled movies of your

children or pets as a visual diary of their development (p.150).

OptioWG1_eng.book Page 21 Friday, March 11, 2011 4:10 PM

A Multitude of Functions inside the Camera for Enjoying Images Without a Computer!

This camera has a variety of functions to let you enjoy playing back and editing images without having to connect the camera to your computer and transfer the images first. The camera is all you need to take and edit still pictures and movies (p.188).

Resize (p.188), Cropping (p.189) and Red-eye

Compensation (p.203) can be used, while the image is displayed in the playback mode.

You can divide a movie in two or select a frame from a

movie to save it as a still picture (p.212).

OptioWG1_eng.book Page 22 Friday, March 11, 2011 4:10 PM

Checking the Contents of the Package

Camera

Optio WG-1 GPS/

Optio WG-1

Software (CD-ROM)

S-SW117

Rechargeable lithium-ion

battery D-LI92 (*)

Macro stand

O-MS1

Strap

O-ST104 (*)

USB cable I-USB7 (*)

Battery charger

D-BC92 (*)

Utilities Guide for GPS

Before using GPS ....................................... 2

Using the GPS .............................................4

This manual describes how to use the Optio WG-1 GPS camera’s GPS function and precautions when using it. Please read this manual before using the GPS function with this camera.

53209 H01-201102

Printed in Vietnam

Utilities Guide for GPS

(Optio WG-1 GPS only)

Carabiner strap

O-ST117 (WG-1 GPS) (*)

O-ST118 (WG-1) (*)

AV cable

I-AVC7 (*)

AC plug cord (*)

Operating Manual

(this manual)

Quick Guide

Items marked with an asterisk (*) are also available as optional accessories. The battery charger and AC plug cord are only sold as a set (battery charger kit K-BC92). For other optional accessories, refer to “Optional Accessories” (p.297).

OptioWG1_eng.book Page 23 Friday, March 11, 2011 4:10 PM

Names of Parts

Front

Shutter release button

Back

Terminal cover

Power switch/Power lamp (green)

Lens (with guard glass)

Macro light

Terminal cover lock lever

Flash

Speaker/ Microphone

Remote control receiver

Self timer lamp/ Focus assist

Display

Tripod socket

Battery/card cover lock lever

Battery/card cover

PC/AV terminal Battery lock lever

HDMI terminal

OptioWG1_eng.book Page 24 Friday, March 11, 2011 4:10 PM

Names of Operating Parts

Power switch

Shutter release button

w/x/f/y button

Q button

I button

Four-way controller

4/W button

3 button

Refer to “Understanding the Button Functions” (p.60 - 63) for an explanation of the function of each button.

Macro stand

Attaching the supplied macro stand (O-MS1) reduces camera shake during shooting in Digital Microscope mode (p.106). Insert the two clips above and below the macro lights part. When attaching and detaching the macro stand, do not hold the clip part.

Green/i button

* When using the macro stand, the camera may not be able to focus if the

objects have asperities protruding toward the lens.

AWB

ISO

200

OptioWG1_eng.book Page 25 Friday, March 11, 2011 4:10 PM

Monitor Indications

Display in A Mode

The display changes in the following sequence each time you press the 4/W button: “Normal Display”, “Histogram + Info”, “No Info”, “LCD Off”.

• All the camera buttons function as normal even when the LCD is off. Press the shutter release button to take pictures as normal.

• Y appears if you press the shutter release button halfway when camera shake is likely to occur. To prevent the camera from shaking, use a tripod, a remote controller (optional) and/or the self-timer function (p.103, p.106).

• You cannot turn off the LCD in N (Frame Composite), e (Pet) and F (Digital Panorama) mode.

• You cannot change the information on the display by pressing the 4/ W button in 9 (Green) mode or X (Digital Wide) mode.

• In (Digital Microscope) mode, the 4/W button only switches between the Normal display and the No Info display.

Normal Display

LCD Off

Histogram + Info

M14M

AWB

200

ISO

No Info

1 4 :2 5

0 2 /0 2/ ' 11

GPS

OptioWG1_eng.book Page 26 Friday, March 11, 2011 4:10 PM

Normal Display in Still Picture Capture Mode

11 12 13 14 15

GPS

2 3

DATE

5 6 7

+1.0 1/250 F3.5

02/02/'11

02/02/'11 14:25

14:25

18 19

Shooting mode (p.78)

Battery level indicator (p.42)

Face Detection icon (p.81)

Date Imprint setting (p.145)

EV Compensation (p.133)

Shutter speed

Aperture

Pixel Track SR icon (p.135)

Memory status (p.49)

Remaining image storage capacity

Flash mode (p.117)

* 6 and 7 are only displayed when the shutter release button is pressed

half-way.

* For 8, M is displayed when Pixel Track SR is set to O (On) on the

[A Rec. Mode] menu. f is displayed when the shutter release button is pressed halfway if Pixel Track SR is set to P (Off) and there is a danger of camera shake.

* For 13, when the focus mode is set to = and the Auto Macro function

is activated, the q appears on the display (p.119).

Drive mode (p.103 - p.110)

Focus mode (p.119)

Eye-Fi communication status

(p.247) Digital Zoom/Intelligent Zoom

icon (p.88) Focus frame (p.74)

Date and time (p.55)

World Time setting (p.237)

D-Range Setting (p.134)

Positioning status

(Optio WG-1 GPS only)

GPS

OptioWG1_eng.book Page 27 Friday, March 11, 2011 4:10 PM

* 14 changes as follows depending on the [Eye-Fi] setting in [W Setting]

menu.

During Eye-Fi communication. The camera is communicating or searching for the access point when [Eye-Fi] is set to O (on). Eye-Fi communication waiting. The camera is not communicating when [Eye-Fi] is set to O (on). Eye-Fi communication prohibited. [Eye-Fi] is set to P (off).

Eye-Fi version error. The version of the Eye-Fi card is out of date.

* 17 disappears two seconds after the camera is turned on. * 19 depends on the [D-Range Setting] setting in the [A Rec. Mode]

menu.

P When [Highlight Correction] is set to O Q When [Shadow Correction] is set to O O When [Highlight Correction] and [Shadow Correction] are both

set to O

If [Highlight Correction] and [Shadow Correction] are both set to P (Off), nothing appears in 19.

* 20 changes as follows depending on [GPS] setting in [WSetting] menu.

GPS

[GPS Setting] is set to O (On) in [GPS], and the GPS data is received.

GPS

[GPS Setting] is set to O (On) in [GPS], but GPS data is not received.

GPS

GPS Error (*) (*) To recover from an error, turn off the camera, remove and

then re-insert the battery and turn on the camera again. If is still displayed, the built-in GPS unit may be malfunctioning. Contact your nearest PENTAX Service Center.

No GPS status icon is displayed on the screen when [GPS Setting] is set to P (Off).

* Some indications may not appear depending on the shooting mode.

GPS

ISO

200

AWB

GPS

OptioWG1_eng.book Page 28 Friday, March 11, 2011 4:10 PM

Histogram + Info/No Info Display in Still Picture Capture Mode

A1 to A21 and B3 appear when “Histogram + Info” is selected. Only B3 appears when “No Info” is selected.

A9 A10 A11

A12 A13

A22

GPS

A2 A3 A4

A5 B1 B2 A6 A7

DATE

+1.0 1/250 F3.5

14M

AWB

ISO

200

A14

A15

A16 A17 A18 A19 A20 A21

Shooting mode (p.78)

Battery level indicator (p.42)

Face Detection icon (p.81)

Date Imprint setting (p.145)

EV Compensation (p.133)

Pixel Track SR icon (p.135)

Memory status (p.49)

Remaining image storage capacity

Flash mode (p.117)

Drive mode (p.103 - p.110)

A10

Focus mode (p.119)

A11

Eye-Fi communication status (p.247)

A12

Digital Zoom/Intelligent Zoom icon

A13

Histogram (p.33)

A14

Sensitivity (p.131)

A15

World time setting

A16

D-Range Setting (p.134)

A17

Recorded pixels (p.125)

A18

Quality Level (p.127)

A19

White Balance (p.128)

A20

AE Metering (p.130)

A21

Positioning status

A22

(Optio WG-1 GPS only) Shutter speed

Aperture

Focus frame (p.74)

(p.88)

*For A6, M is displayed when Pixel Track SR is set to O (On) on the

[A Rec. Mode] menu. f is displayed when the shutter release button is pressed halfway if Pixel Track SR is set to P (Off) and there is a danger of camera shake.

* On the No Info display, A6 is displayed for two seconds after turning

on the camera, setting the Pixel Track SR to ON, or turning the camera to capture mode.

GPS

OptioWG1_eng.book Page 29 Friday, March 11, 2011 4:10 PM

* A12 changes as follows depending on the [Eye-Fi] setting in

[W Setting] menu.

Eye-Fi version error. The version of the Eye-Fi card is out of date.

* A17 depends on the [D-Range Setting] setting in the [A Rec. Mode]

menu.

P When [Highlight Correction] is set to O Q When [Shadow Correction] is set to O O When [Highlight Correction] and [Shadow Correction] are both

set to O

If [Highlight Correction] and [Shadow Correction] are both set to P (Off), nothing appears in A17.

* A22 changes as follows depending on [GPS] setting in [WSetting] menu.

GPS

[GPS Setting] is set to O (On) in [GPS], and the GPS data is received.

GPS

[GPS Setting] is set to O (On) in [GPS], but GPS data is not received.

GPS

GPS Error (*) (*) To recover from an error, turn off the camera, remove and

then re-insert the battery and turn on the camera again. If is still displayed, the built-in GPS unit may be malfunctioning. Contact your nearest PENTAX Service Center.

No GPS status icon is displayed on the screen when [GPS Setting] is set to P (Off).

* B1 and B2 are only displayed when the shutter release button is

pressed half-way.

* When the shooting mode is b (Auto Picture) and if you press the

shutter release button halfway, the automatically selected shooting mode appears in A1 even when “No Info” is selected (p.84).

* Some indications may not appear depending on the shooting mode.

GPS

10 0

00 38

10 0

00 38

ISO

200

AWB

10 0

00 38

10 0

00 38

GPS

13 9

4 1' 2 9"

4 5' 5 2"

02 /0 2/ '11

OptioWG1_eng.book Page 30 Friday, March 11, 2011 4:10 PM

* When there is an area on the screen that is overexposed so that it

appears white, the indicated area blinks red as a warning. Similarly, when there is an area that is underexposed so that it appears black, the indicated area blinks yellow as a warning.

Display in Q Mode

The display shows the shooting information of the image in the playback mode. The display changes in the following sequence each time you press the 4/W button:

• The display cannot be changed by pressing the 4/W button

while playing back a voice memo/movie or pausing playback.

• Only the Optio WG-1 GPS can display GPS information. If you are using the Optio WG-1, the display changes to the normal display by pressing the 4 button at no info display.

Normal Display Histogram + Info

Edit

0038

100

100-0038

1/250 F3.5

Edit

1212M14M

AWB

0038

100

100-0038

ISO

200

ISO

200

Edit

02/02/'11

GPS

100

100-0038

14 : 25:00

14: 25:00

139

0038

45' 52"

45' 52" 41' 29"

41' 29"

Edit

No InfoGPS information display

1 0 0

0 0 3 8

ISO

200

AWB

OptioWG1_eng.book Page 31 Friday, March 11, 2011 4:10 PM

Histogram + Info Display in Playback Mode

(All of the display items are displayed here for explanatory purposes.)

The display shows information such as the shooting conditions. A1 to A11 also appear when “Normal Display” is selected. B1 to B8 appear only when “Histogram + Info” is selected.

A1 A2 A3

A4 A5 B1 B2

1/250 F3.5

Edit

Face Detection icon (p.80)

Playback mode

Q : Still Picture (p.162)

K : Movie (p.163) L : Sound (p.224)

Battery level indicator (p.42)

Protect icon (p.180)

Voice memo icon (p.227)

Four-way controller guide

File number

Folder number (p.242)

Memory status (p.49)

1212M

14M

B6 B7 B8

100-0038

ISO

AWB

Eye-Fi communication status

A10

ISO

200

(p.247) Volume icon

A11

Shutter speed

Aperture

Histogram (p.33)

Sensitivity (p.131)

Recorded pixels (p.125)

Quality Level (p.127)

White Balance (p.128)

AE Metering (p.130)

A7 A8 A9 A10 A11

0038

100

* A1 appears only if the Face Detection function worked when the image

was shot.

* In “Normal Display”, A3 disappears if no operation is performed for two

seconds.

* A6 appears even when “No Info” is selected, but disappears if no

operation is performed for two seconds. When no operation is performed for two seconds in “Normal Display” or “Histogram + Info”, only “Edit” disappears.

1 0 0

0 0 3 8

139

41' 29"

45' 52"

0 2 / 0 2 / ' 11

GPS

OptioWG1_eng.book Page 32 Friday, March 11, 2011 4:10 PM

* A11 appears only when the volume is being adjusted during playback

of movies, sounds, or voice memos (p.163, p.224, p.227).

* When “Normal Display” is selected, the current date and time appears

for two seconds in the B4 to B8 positions.

* When there is an area on the screen that is overexposed so that it

appears white, the indicated area blinks red. Similarly, when there is an area that is underexposed so that it appears black, the indicated area blinks yellow.

GPS Information Display in Playback Mode (displayed only on the Optio WG-1 GPS)

0038

100

100-0038

4 5

7 8 9 10 11

02/02/'11

02/02/'11 114: 25:0014: 25:00

GPS

139

45' 52"

45' 52" 41' 29"

41' 29"

Edit

1 Face Detection icon 8 Folder number 2 Playback mode 9 Memory status 3 Battery level indicator 10 Eye-Fi communication status 4 Protect icon 11 Volume icon 5 Voice memo icon 12 Positioning time 6 Four-way controller guide 13 Positioning latitude 7 File number 14 Positioning longitude

* For 12, the date and time received from GPS are displayed. (Not

camera’s inner clock time)

12 13 14

OptioWG1_eng.book Page 33 Friday, March 11, 2011 4:10 PM

Guide Display

A guide for each available button operation appears as follows on the display during operation.

2 Four-way controller (2) Zoom button 3 Four-way controller (3) 4/W button 4 Four-way controller (4) Shutter release button 5 Four-way controller (5) X, i Green/i button

3 button I, JI button

SHUTTER

Histogram

A histogram shows the brightness distribution of an image. The horizontal axis represents brightness (dark at the left and bright at the right) and the vertical axis represents the number of pixels. The shape of the histogram before and after shooting tells

Number of pixels→

Dark portions Bright portions

←Brightness→(Dark) (Bright)

you whether the brightness and contrast are correct or not, and lets you decide if you need to use EV compensation and take the picture again.

Setting the Exposure (EV Compensation) 1p.133

Understanding Brightness

If the brightness is correct, the graph peaks in the middle. If the image is underexposed, the peak is on the left side, and if it is overexposed, the peak is on the right side.

Underexposed (dark)


Correct image Overexposed (bright)


OptioWG1_eng.book Page 34 Friday, March 11, 2011 4:10 PM

When the image is underexposed, the part to the left is cut off (dark portions) and when the image is overexposed, the part to the right is cut off (bright portions). This camera has a function where overexposed areas are indicated as blinking red and underexposed areas as blinking yellow.

Understanding Contrast

The graph peaks gradually for images in which contrast is balanced. The graph peaks on both sides but sinks in the middle for images with a large difference in contrast and low amounts of mid-level brightness.

OptioWG1_eng.book Page 35 Friday, March 11, 2011 4:10 PM

1 Getting Started

Attaching the Strap ................................... 36

Powering the Camera ............................... 38

Installing the SD Memory Card ................ 45

Turning the Camera On and Off .............. 49

Initial Settings ........................................... 51

OptioWG1_eng.book Page 36 Friday, March 11, 2011 4:10 PM

Attaching the Strap

Getting Started

Attach the strap (O-ST104) supplied with the camera.

Pass the narrow end of the strap through the strap lug.

Pass the other end of the strap through the loop and pull tight.

Attaching the Carabiner Strap

Attach the carabiner strap (O-ST117/O-ST118) supplied with the camera.

Pass the narrow end of the strap through the strap lug on the camera.

Fix the end of the strap to the stopper.

OptioWG1_eng.book Page 37 Friday, March 11, 2011 4:10 PM

Protective rubber ring

The carabiner has rubber rings to prevent damage to the display. These rubber rings cushion the impact when the carabiner hits the display. Be sure to adjust the position of the rubber rings as shown in the figure below for the best results before using the carabiner strap.

Getting Started

OptioWG1_eng.book Page 38 Friday, March 11, 2011 4:10 PM

Powering the Camera

Charging the Battery

Getting Started

Use the supplied battery charger (D-BC92) to charge the supplied rechargeable lithium-ion battery (D-LI92) before using it in the camera for the first time or after a long period of non-use, or when the [Battery depleted] message appears. Note: AC plug cord “Listed, Type SPT-2 or NISPT-2, 18/2 flexible cord, rated 125 V, 7A, minimum 6 ft (1.8 m)”

Charging indicator While charging: Lights Charging finished: Turns off

Battery

Battery charger

Connect the AC plug cord to the battery charger.

Plug the AC plug cord into the power outlet.

Place the battery in the battery charger so that the

PENTAX logo is facing up.

The charging indicator turns on while charging. When charging is finished, the charging indicator turns off.

Remove the battery from the battery charger when charging is finished.

To power outlet

AC plug cord

OptioWG1_eng.book Page 39 Friday, March 11, 2011 4:10 PM

• Do not charge batteries other than the rechargeable lithium ion D-LI92 battery using the supplied D-BC92 battery charger. Doing otherwise may cause damage or overheating.

• The battery has reached the end of its service life when it starts to run down soon after being charged. Replace it with a new battery.

• If the battery is inserted correctly but the charging indicator fails to light, the battery may be faulty. Replace it with a new battery.

The time required to fully charge the battery is about 120 minutes (max.). (The charging time may vary depending on the ambient temperature and charging conditions.) The appropriate ambient temperature for charging the battery is 0°C to 40°C (32°F to 104°F).

Installing the Battery

Use the rechargeable lithium-ion battery D-LI92 that is provided with the camera. Charge the battery before using it in the camera for the first time.

Battery lock lever

Battery/card cover lock lever

Getting Started

Battery

Open the battery/card cover.

Press the battery/card cover lock lever in the direction shown 1, slide the cover towards 2 and open it towards 3.

Battery/card cover

OptioWG1_eng.book Page 40 Friday, March 11, 2011 4:10 PM

Using the side of the battery to press the battery lock lever in the direction of 4, insert the battery with the PENTAX logo pointing toward the lens.

Getting Started

Push the battery in until it is locked in place.

Make sure that the battery is inserted with the PENTAX logo pointing toward the lens. If the battery is incorrectly oriented, malfunction may result.

Close the battery/card cover.

While lightly pressing the battery/card cover in the opposite direction indicated by 2, slide the cover. The cover clicks to confirm that it is securely closed.

Removing the Battery

Open the battery/card cover.

Press the battery lock lever towards 4.

The battery will be ejected. Take care not to drop the battery when removing it.

OptioWG1_eng.book Page 41 Friday, March 11, 2011 4:10 PM

• Do not use excessive force when sliding the battery/card cover open and closed because the waterproof packing may peel off. If the packing is not in the correct position, the camera will not be waterproof.

• If the battery/card cover is not locked securely when you close it, water, sand, or dirt may get into the camera.

• This camera uses a rechargeable lithium-ion battery D-LI92. Use of any other type of battery may damage the camera and cause malfunction.

• Insert the battery correctly. If the battery is incorrectly oriented, malfunction may result.

• Do not remove the battery while the camera is turned on.

• When storing the battery for more than 6 months, charge the battery for 30 minutes using the battery charger and store the battery separately. Be sure to recharge the battery every 6 to 12 months. Storing the battery below room temperature is ideal. Avoid storing it in high temperatures.

• The date and time may be returned to the default setting if the camera is left without the battery for a long time.

• Be careful as the camera or the battery may become hot when the camera is used continuously for a long period of time.

• Allow the camera to dry completely before changing the battery. Avoid changing the battery where the camera is likely to get wet or dirty, and make sure that your hands are dry.

• Battery performance may deteriorate as temperature decreases. When using the camera in cold regions, we recommend carrying a spare battery in your pocket to keep it warm. Battery performance will return to normal in normal temperatures.

Getting Started

OptioWG1_eng.book Page 42 Friday, March 11, 2011 4:10 PM

• Image Storage Capacity, Movie Recording Time, Sound Recording Time, and Playback Time

(at 23°C or 73.4°F with the display on and the battery fully charged)

Getting Started

Image Storage

(flash used for 50% of

Approx. 260 pictures Approx. 120 min. Approx. 350 min. Approx. 280 min.

Capacity

shots)

Movie Recording

Time

Sound Recording

Time

Playback Time

*1 Recording capacity shows approximate number of shots recorded

during CIPA-compliant testing (with display on, flash used for 50% of the shots, and 23°C or 73.4°F). Actual performance may vary according to operating conditions.

*2 According to the results of in-house testing.

• In general, battery performance may temporarily deteriorate as the temperature decreases.

• Be sure to take a spare battery with you when traveling abroad or to a cold region, or if you intend to take a lot of pictures.

• Battery Level Indicator

You can check the battery level by the indicator on the display.

Screen Display Battery Status

(green) Adequate power remains.

(green) Battery is running low.

(yellow) Battery is running very low.

(red) Battery is exhausted.

[Battery depleted] The camera will turn off after this message appears.

OptioWG1_eng.book Page 43 Friday, March 11, 2011 4:10 PM

Using the AC Adapter

Use of the optional AC adapter kit (K-AC117) is recommended if you intend to use the camera for a long time or connect it to a computer.

Getting Started

Make sure that the camera is turned off and open the battery/card cover.

Remove the Battery.

Refer to p.39 - p.40 on how to open the battery/card cover and remove the battery.

Insert the DC coupler.

Using the side of the DC coupler to press the battery lock lever, insert the DC coupler. Confirm that the DC coupler is locked in place. The battery/card cover will not close while the DC coupler is inserted. Leave the cover open when using the AC adapter and do not attempt to close it.

Connect the DC terminal of the AC adapter to the DC terminal of the DC coupler.

DC terminal

DC coupler

Connect the AC plug cord to the AC adapter.

Plug the AC plug cord into the power outlet.

OptioWG1_eng.book Page 44 Friday, March 11, 2011 4:10 PM

• Make sure that the camera is turned off before connecting or disconnecting the AC adapter.

• Make sure that the AC plug cord and the DC terminal connecting the AC adapter to the camera are inserted securely. Data may be lost if

Getting Started

either becomes disconnected while data is being recorded on the SD Memory Card or the built-in memory.

• Use the AC adapter with due care to avoid fire or electric shock. Be sure to read “About the Battery Charger and the AC Adapter” (p.3) before using the AC adapter.

• Be sure to read the operation manual accompanying the AC adapter kit K-AC117 before using the adapter.

• When connecting the AC adapter, you cannot set the camera upright on the table because the cord from the DC coupler comes out of the bottom of the camera.

OptioWG1_eng.book Page 45 Friday, March 11, 2011 4:10 PM

Installing the SD Memory Card

This camera uses SD Memory Cards, SDHC Memory Cards or SDXC Memory Cards. (These cards are referred to as SD Memory Cards hereafter.) Captured images and sound files are saved on the SD Memory Card if a card is inserted in the camera. They are saved in the built-in memory if a card is not inserted (p.49).

• Be sure to use this camera to format (initialize) an SD Memory Card that is unused or has been used on other cameras or digital devices. Refer to “Formatting the Memory” (p.230) for instructions on formatting.

• Make sure that the camera is turned off before inserting or removing the SD Memory Card.

• Allow the camera to dry completely before changing the SD Memory Card. Avoid changing the card where the camera is likely to get wet or dirty, and make sure that your hands are dry.

• The still picture storage capacity varies depending on the capacity of the SD Memory Card and the selected number of recorded pixels and quality level (p.299).

•

The power lamp blinks while the SD Memory Card is being accessed (data is being recorded or read).

Getting Started

Backing Up Data

The camera may not be able to access data in the built-in memory in the case of a malfunction. Use a computer or other device to back up important data in another location.

OptioWG1_eng.book Page 46 Friday, March 11, 2011 4:10 PM

Getting Started

SD Memory Card socket

Open the battery/card cover.

Press the battery/card cover lock lever in the direction shown 1, slide the cover towards 2 and open it towards 3.

Insert the SD Memory Card into the SD Memory Card

SD Memory Card

Battery/card cover

socket so that the label is facing toward the front of the camera (the side with the lens).

Push the card in all the way. Images and sound may not be recorded correctly if the card is not inserted all the way.

Close the battery/card cover.

While lightly pressing the battery/card cover in the opposite direction indicated by 2, slide the cover. The cover clicks to confirm that it is securely closed.

To Remove the SD Memory Card

Open the battery/card cover.

Push the card into the SD Memory Card socket to eject it.

Pull the card out.

If the battery/card cover is not locked securely when you close it, water, sand, or dirt may get into the camera.

OptioWG1_eng.book Page 47 Friday, March 11, 2011 4:10 PM

Precautions When Using an SD Memory Card

• The SD Memory Card is equipped with a write-protect switch. Setting the switch to LOCK prevents new data from being recorded on the card, the stored data from being deleted, and the card from being formatted by the camera or a computer. r appears on the display when the card is write-protected.

• Care should be taken when removing the SD Memory Card immediately after using the camera, as the card may be hot.

• Keep the battery/card cover closed and do not remove the SD Memory Card or turn the camera off while images are being played back or saved to the card, or the camera is connected to a computer with the USB cable, as this may cause the data to be lost or the card to be damaged.

• Do not bend the SD Memory Card or subject it to violent impact. Keep it away from water and store away from high temperature.

•

Never remove the SD Memory Card while it is being formatted. This may damage the card and make it unusable.

• The data on the SD Memory Card may be deleted in the following circumstances. We do not accept any liability for data that is deleted. This includes the following: (1) When the SD Memory Card is mishandled by the user.

(2) When the SD Memory Card is exposed to static electricity or electrical

interference. (3) When the SD Memory Card has not been used for a long time. (4) When the SD Memory Card is ejected or the battery is removed while the

data on the card is being recorded or accessed.

• If it is not used for a long time, the data on the card may become unreadable. Be sure to regularly make a backup of important data on a computer.

• Avoid using or storing the card where it may be exposed to static electricity or electrical interference.

• Avoid using or storing the card in direct sunlight or where it may be exposed to rapid changes in temperature or to condensation.

• When using an SD Memory Card with a slow recording speed, recording may stop while you are taking movies even when there is adequate space in the memory, or shooting and playback may take a long time.

• Be sure to format SD Memory Cards that are unused or have been used on another camera. Refer to “Formatting the Memory” (p.230).

Write-protect

switch

Getting Started

OptioWG1_eng.book Page 48 Friday, March 11, 2011 4:10 PM

Number of Images Recordable on an SD Memory Card

The size of a recorded image differs depending on the number of

recorded pixels of the images. This affects the number of images that

Getting Started

can be saved on an SD Memory Card.

Choose the appropriate number of recorded pixels for still pictures on the [A Rec. Mode] menu.

Selecting the Number of Recorded Pixels 1p.125

Choose the appropriate number of recorded pixels and frame rate in [Movie] on the [A Rec. Mode] menu.

Selecting the Number of Recorded Pixels and Frame Rate for Movies 1p.152

For an approximate guide to the number of images or the length of recorded movies that can be saved on an SD Memory Card, see “Main Specifications” (p.298).

OptioWG1_eng.book Page 49 Friday, March 11, 2011 4:10 PM

Turning the Camera On and Off

Power switch/Power lamp

Press the power switch.

The camera turns on and both the power lamp and display turn on. If the [Language/ ] screen or [Date Adjustment] screen appears when you turn the camera on, follow the procedure on p.51 to set the display language and/or current date and time.

Press the power switch again.

The camera turns off and both the power lamp and display turn off.

Taking Still Pictures 1p.74

Checking the SD Memory Card

The SD Memory Card is checked when the camera turns on and the memory status is displayed.

The SD Memory Card is inserted. Images and sound files will be saved on the SD

Memory Card.

The SD Memory Card is not inserted. Images and sound files will be saved in the

built-in memory.

The write-protect switch on the SD Memory Card is in the LOCK position (p.47). Images

and sounds cannot be recorded.

Memory status

Getting Started

OptioWG1_eng.book Page 50 Friday, March 11, 2011 4:10 PM

Starting-up in the Playback Mode

Use this function when you want to play back images or sound files straightaway without taking any pictures.

Getting Started

Press the power switch while holding down the Q button.

The display turns on and the camera starts up in playback mode.

To switch from Playback Mode to A mode, press the Q button or press the shutter release button halfway.

Playing Back Still Pictures 1p.162

Power switch

button

OptioWG1_eng.book Page 51 Friday, March 11, 2011 4:10 PM

Initial Settings

The [Language/ ] screen appears when the camera is turned on for the first time. Perform the operations in “Setting the Display Language” below to set the language, and in “Setting the Date and Time” (p.55) to set the current date and time.

The language, date, and time can be changed later. Refer to the pages below for instructions.

• To change the language, follow the steps in “Changing the Display Language” (1p.241).

• To change the date and time, follow the steps in “Changing the Date and Time” (1p.233).

Setting the Display Language

3 button

Four-way controller 4 button

Getting Started

Use the four-way controller (2345) to choose the display language.

MENU OK

Cancel OK

OFF OFF

OptioWG1_eng.book Page 52 Friday, March 11, 2011 4:10 PM

Press the 4 button.

The [Initial Setting] screen appears in the selected language. If the desired

Getting Started

settings for [Hometown] and [DST] (Daylight Saving Time) appear, proceed to Step 3. Proceed to “To Set Hometown and DST” (p.54) if the desired settings do not appear.

Press the four-way controller (3) twice to select [Settings complete].

Press the 4 button.

The [Date Adjustment] screen appears. Set the date and time by following the procedure in “Setting the Date and Time” (p.55).

Initial Setting

Hometown New York

Settings complete

Cancel

Initial Setting

Hometown New York

Settings complete

Cancel

English

DST

OFF

Daylight saving time

English

DST

OFF

OptioWG1_eng.book Page 53 Friday, March 11, 2011 4:10 PM

If you accidentally select the wrong language and go to the next procedure, perform the following operation to set the language back.

When the Wrong Language Has Been Inadvertently Selected

Press the four-way controller (5).

Use the four-way controller (2345) to select the language and press the 4 button.

The [Initial Setting] screen appears in the selected language.

When the Screen After Step 2 Appears in the Wrong Language

Press the 3 button.

This exits the settings screen and returns the camera to capture mode.

Press the 3 button.

The [A Rec. Mode] menu appears.

Press the four-way controller (5).

Use the four-way controller (32) to select [Language/

Press the four-way controller (5).

The [Language/ ] screen appears.

Use the four-way controller (2345) to select the language.

Press the 4 button.

The [W Setting] menu appears in the selected language.

Getting Started

The language is now switched to your desired language. To reset [Hometown], [Date] and [Time], refer to the pages below for instructions.

• To change [Hometown], follow the steps in “Setting the World Time” (1p.237).

• To change the date and time, follow the steps in “Changing the Date and Time” (1p.233).

OFF

OptioWG1_eng.book Page 54 Friday, March 11, 2011 4:10 PM

To Set Hometown and DST

Press the four-way controller

Getting Started

(3).

The frame moves to [W Hometown].

Press the four-way controller (5).

The [W Hometown] screen appears.

Use the four-way controller (45) to choose a city.

Press the four-way controller (3).

The frame moves to [DST] (Daylight Saving Time).

Use the four-way controller (45) to select O or P.

Initial Setting

Hometown New York

Settings complete

Cancel

Hometown

City

DST

Cancel

New York

English

DST

OFF

Press the 4 button.

The [Initial Setting] screen reappears.

Press the four-way controller

Initial Setting

(3) to select [Settings complete].

Press the 4 button.

The [Date Adjustment] screen appears. Next, set the date and time.

Hometown New York

Cancel

Settings complete

English

DST

OFF

OptioWG1_eng.book Page 55 Friday, March 11, 2011 4:10 PM

The video output format (NTSC/PAL) is set to the format of the city selected in [Hometown] on the [Initial Setting] screen. See the following pages for information on the available video output formats and how to change the initial settings.

• Video output formats available initially: “List of World Time Cities” (1p.296)

• To change the video out format, follow the steps in “Changing the Video Output Format” (1p.244).

Setting the Date and Time

Set the current date and time and the display format.

Press the four-way controller (5).

The frame moves to [mm/dd/yy].

Use the four-way controller (23) to choose the date and time display format.

Choose from [mm/dd/yy], [dd/mm/yy] or [yy/mm/dd].

Press the four-way controller (5).

The frame moves to [24h].

Date Adjustment

Date Format

Date

Time

Settings complete

Cancel

/dd/yy24h

01/01/2011

00:00

Getting Started

Use the four-way controller (23) to select [24h] (24-hour display) or [12h] (12-hour display).

Press the four-way controller (5).

The frame returns to [Date Format].

Date Adjustment

Date Format

Date

Time

Settings complete

Cancel

/dd/yy24h

01/01/2011

00:00

OptioWG1_eng.book Page 56 Friday, March 11, 2011 4:10 PM

Press the four-way controller (3).

The frame moves to [Date].

Getting Started

Press the four-way controller (5).

The frame moves to the month.

Use the four-way controller (23) to change the month.

Change the day and year in the same manner. Next, change the time. If you selected [12h] in step 4, the setting switches between am and pm corresponding to the time.

Press the four-way controller (3) to select [Settings complete].

Date Adjustment

Date Format

Date

Time

Settings complete

Cancel

Date Adjustment

Date Format

Date

Time

Settings complete

Cancel

Date Adjustment

Date Format

Date

Time

Settings complete

Cancel

/dd/yy

01/01/2011

00:00

/dd/yy24h

01/01/2011

00:00

/dd/yy

01/01/2011

00:00

Press the 4 button.

This confirms the date and time.

• If you press the 4 button in step 10, the camera clock is reset to 00

seconds. To set the exact time, press the 4 button when the time signal (on the TV, radio, etc.) reaches 00 seconds.

• The Optio WG-1 GPS can correct its clock automatically using received information from GPS satellites. For further details, see the “Utilities Guide for GPS”.

When the [Initial Setting] or [Date Adjustment] screen is displayed, you can cancel the setting operation and switch to the capture mode by pressing the 3 button. In this case, the [Initial Setting] screen will appear next time you turn the camera on.

OptioWG1_eng.book Page 57 Friday, March 11, 2011 4:10 PM

[Language/ ], [Date], [Time], [Hometown] and [DST] can be changed. Refer to the pages below for instructions.

• To change the language, follow the steps in “Changing the Display Language”

(1p.241).

• To change the date and time, follow the steps in “Changing the Date and

Time” (1p.233).

• To change the city or turn DST on and off, follow the steps in “Setting the

World Time” (1p.237).

Getting Started

OptioWG1_eng.book Page 58 Friday, March 11, 2011 4:10 PM

Memo

OptioWG1_eng.book Page 59 Friday, March 11, 2011 4:10 PM

2 Common Operations

Understanding the Button Functions ..... 60

Setting the Camera Functions ................. 65

OptioWG1_eng.book Page 60 Friday, March 11, 2011 4:10 PM

Understanding the Button Functions

A Mode

Common Operations

4 6

7 8

1 Power switch

Turns the camera on and off (p.49).

2 Shutter release button

Focuses the camera on the subject when pressed halfway in Still Picture Capture Mode (except when the focus mode is set to 3, s, and \) (p.75). Takes a still picture when pressed down fully (p.75). Pressing down fully starts and stops movie recording in C (Movie) and

(Underwater Movie) modes (p.148, p.151).

Pressing down fully starts and stops sound file recording in O (Voice Recording) mode (p.223).

3 w/xbutton

Changes the captured area (p.88).

4 Q button

Switches to the Q mode (p.64).

5 3 button

Displays the [A Rec. Mode] menu (p.65).

OptioWG1_eng.book Page 61 Friday, March 11, 2011 4:10 PM

6 I button

Switches the Face Detection function (p.80). The Face Detection function is switched as follows each time the I button is pressed: Smile Capture ´ Self-portrait Assist ´ Self-portrait Assist + Smile Capture ´ Face Detection Off ´ Face Detection On Selects or registers a pet in e (Pet) mode.

7 Four-way controller

(2) : Changes the drive mode (p.103 - p.110). (3) : Displays the Capture Mode Palette (p.79). (4) : Changes the flash mode (p.117). (5) : Changes the focus mode (p.119). (23) : Adjusts the focus when the focus mode is set to \ (p.120).

8 4/W button

Changes the information on the display (p.25).

9 Green button

Switches to the 9 (Green) mode (p.86). Calls up the assigned function (p.139).

Common Operations

OptioWG1_eng.book Page 62 Friday, March 11, 2011 4:10 PM

Q Mode

Common Operations

1 Power switch

Turns the camera on and off (p.49).

2 Shutter release button

Switches to A mode (p.64).

3 f/y button

In single-image display, pressing f switches to 6-image display. Pressing f again switches to 12-image display (p.164). Press y to return to the previous display. In single-image display, pressing y enlarges the image. Press f to return to the previous display (p.173). In 12-image display press f to change to folder or calendar display (p.165). In folder/calendar display, press y to change to 12-image display (p.165, p.166). Adjusts the volume during playback of movies, sound files or voice memo (p.163, p.224, p.227).

4 Q button

Switches to A mode (p.64).

5 3 button

Displays the [W Setting] menu during single-image display (p.65). Returns to single-image display during Playback Mode Palette display (p.167). Returns zoom, 6- or 12-image display to single-image display.

4 6

7 8

OptioWG1_eng.book Page 63 Friday, March 11, 2011 4:10 PM

Changes to 12-image display of the selected folder during folder display (p.166). Changes to 12-image display of the selected date during calendar display (p.166).

6 I button

Zooms up on the subjects’ faces in the order in which they were recognized during shooting (Face close-up playback) (p.174).

7 Four-way controller

(2) : Plays back and pauses a movie or sound file (p.163,

p.224, p.227).

(3) : Displays the Playback Mode Palette (p.168).

Stops a movie or sound file during playback (p.163, p.225, p.227).

(45) : Displays the previous or next image and sound file

during single-image display (p.162). Fast-forwards, fast-reverses, frame forwards, frame reverses, reverses a movie and makes a movie play forwards during playback (p.163). Fast forwards, reverses, and moves to the next index in sound file playback (p.224).

(2345) : Moves the display area during zoom display (p.173).

Selects an image in 6- or 12-image display, a folder in folder display, and a date in calendar display (p.164, p.165, p.166). Moves the image when using the Frame Composite function (p.205). Adjusts the position of a frame or an image when you are using the Original Frame function (p.209).

8 4/W button

Changes the information on the display (p.30). Returns zoom, 6- or 12-image display to single-image display (p.165, p.173). Changes to 12-image display of the selected folder during folder display (p.165). Changes to single-image display of the selected date during calendar display (p.166).

9 Green/i button

Switches from single-image display to the Delete screen (p.176). Switches from 6- or 12-image display to the Select & Delete screen (p.178). Switches from folder display to the calendar display screen (p.165). Switches from calendar display to the folder display screen (p.165).

Common Operations

OptioWG1_eng.book Page 64 Friday, March 11, 2011 4:10 PM

Switching Between A Mode and Q Mode

In this manual, the capture mode, such as for taking still pictures, is referred to as “A mode” (the capture mode). The playback mode, such as for displaying captured images on the monitor, is referred to as “Q mode” (the playback mode). In Q mode, you can perform simple editing operations on the images that are played back. Follow the procedure below to switch between A mode and Q mode.

Common Operations

To Switch from A Mode to Q Mode

Press the Q button.

The camera switches to Q mode.

To Switch from Q Mode to A Mode

Press the Q button or the shutter release button halfway.

The camera switches to A mode.

Displaying data stored in the built-in memory

When an SD Memory Card is inserted in the camera, images, movies, and sounds on the SD Memory Card are displayed. If you want to display images, movies, and sounds stored in built-in memory, turn the camera off and remove the SD Memory Card.

Make sure that the camera is turned off before inserting or removing the SD Memory Card.

OptioWG1_eng.book Page 65 Friday, March 11, 2011 4:10 PM

Setting the Camera Functions

To change the camera settings, press the 3 button to display the [A Rec. Mode] menu or [W Setting] menu. Functions for playing back and editing images and sound files are displayed from the Playback Mode Palette.

Operating the Menus

Press the 3 button in A mode to display the [A Rec. Mode] menu. Press the 3 button in Q mode to display the [W Setting] menu. Use the four-way controller (45) to switch between [A Rec. Mode] menu and [W Setting] menu.

Common Operations

10 0

00 38

10 0

00 38

OptioWG1_eng.book Page 66 Friday, March 11, 2011 4:10 PM

During recording During playback

100

100-0038

0038

Edit

Common Operations

Rec. Mode

Image Tone Recorded Pixels Quality Level White Balance AF Setting AE Metering

Exit

Rec. Mode

Image Tone Recorded Pixels Quality Level White Balance AF Setting AE Metering

Exit

SHUTTER

Press halfway

The setting is complete and the camera returns to A mode.

1/4

Bright

AWB

1/4

Bright

AWB

Setting

Sound Date Adjustment Alarm World Time Text Size

Exit

Setting

Sound Date Adjustment Alarm World Time Text Size

Exit

Edit

The setting is complete and the camera returns to Q mode.

1/4

02/02/2011

Standard English

1/4

02/02/2011

Standard English

100

100-0038

0038

Available button operations appear on the display during menu operation.

OptioWG1_eng.book Page 67 Friday, March 11, 2011 4:10 PM

e.g.: To set the [Quality Level] on the [A Rec. Mode] menu

Press the 3 button in A mode.

The [A Rec. Mode] menu appears.

Press the four-way controller (3).

The frame moves to [Image Tone].

Press the four-way controller (3) twice.

Rec. Mode

Image Tone Recorded Pixels Quality Level

White Balance

AF Setting AE Metering

Exit

The frame moves to [Quality Level].

Press the four-way controller (5).

A pull-down menu appears with the items that can be selected. The pull-down menu displays only those items that can be selected with

Recordable Image No.

Image Tone Recorded Pixels Quality Level White Balance

AF Setting

AE Metering

Cancel

the current camera settings.

Use the four-way controller (23) to change the setting.

The quality level changes each time the four-way controller (23) is pressed.

1/4

Bright

ڎڎ

AWB

Bright

ڎڎڎ

ڎڎ

Common Operations

Press the 4 button or the four-way controller (4).

The setting is saved and then the camera is ready for setting other functions. To exit the settings, press the 3 button.

To use another operation, refer to the alternate step 6 options on the next page.

OptioWG1_eng.book Page 68 Friday, March 11, 2011 4:10 PM

To Save the Setting and Start Taking Pictures

Press the shutter release button halfway.

The setting is saved and the camera returns to capture mode. When the shutter release button is pressed fully, the picture is taken.

Common Operations

When the [W Setting] menu is displayed from Q mode, you can switch to A mode by pressing the Q button.

To Save the Setting and Start Playback of Images

Press the Q button.

When the [A Rec. Mode] menu is displayed from A mode, the setting is saved and the camera returns to playback status.

To Cancel the Changes and Continue with Menu Operations

Press the 3 button.

The changes are canceled and the screen returns to step 3.

The 3 button function differs depending on the screen. Refer to the guide indications.

Exit Exits the menu and returns to the original screen.

Cancel Cancels the current selection, exits the menu and

Returns to the previous screen with the current setting.

returns to the previous screen.

OptioWG1_eng.book Page 69 Friday, March 11, 2011 4:10 PM

Menu List

This displays the items that can be set with the menus and provides descriptions of each item. See the list of default settings in the Appendix “Default Settings” (p.291) to decide whether you want the settings saved when the camera is turned off and whether you want the settings returned to the defaults when the camera is reset.

[A Rec. Mode] Menu

This menu shows the functions related to taking still pictures and recording movies.

Item Description Page Image Tone For setting the tone of images p.124 Recorded Pixels Quality Level For setting the quality level of still pictures p.127

White Balance

Focusing

AF Setting

AE Metering

Sensitivity For setting the sensitivity p.131

AUTO ISO Range

EV Compensation For adjusting the overall brightness of the picture p.133

Movie

D-Range Setting

Pixel Track SR

Interval Shoot

Area

Auto Macro Focus

Assist

Recorded Pixels

Movie SR

Interval Shoot

Highlight Correction

Shadow Correction

For choosing the number of recorded pixels of still pictures

For adjusting the color balance according to the lighting conditions

When = (Standard), q (Macro), or (1cm Macro) is selected as the focus mode, you can change the autofocus area (Focusing Area)

For choosing whether or not to use the auto macro function For setting whether or not to use the focus assist

light For choosing the area of the screen that is metered

to determine the exposure

For setting the adjustment range when sensitivity is set to AUTO

For choosing the number of recorded pixels and the frame rate for movies

For choosing whether or not to use the movie shake reduction function

For recording multiple still pictures taken at a set interval as a movie file

For setting whether to perform bright portion compensation

For setting whether to perform dark portion compensation

For choosing whether to compensate for camera shake while taking still pictures

For setting the interval, number of pictures, and start time for taking pictures

p.125

p.128

p.121

p.122

p.123

p.130

p.132

p.152

p.153

p.154

p.134

p.135

p.136

Common Operations

OptioWG1_eng.book Page 70 Friday, March 11, 2011 4:10 PM

Item Description Page

Blink Detection

Digital Zoom

For choosing whether to use the Blink Detection function with the Face Detection function

For choosing whether or not to use the digital zoom function

Instant Review For choosing whether to display Instant Review p.139

For choosing whether to save the set values of the

Memory

Common Operations

Green Button

shooting function or return to the defaults when the camera is turned off

For assigning a function to the Green button in A

mode Sharpness For choosing sharp or soft outlines p.143 Saturation

(Tone Adjustment)

For setting the color saturation. When [Monochrome] is

selected, the item changes to [Tone Adjustment] Contrast For setting the image contrast level p.145

Date Imprint

For choosing whether to imprint the date and/or time

when taking still pictures IQ Enhancer* For setting whether to perform the IQ enhancer. p.146

Macro Light

For setting whether or not to turn on the macro light

for macro photography

*IQ Enhancer = Image Quality enhancement processing

[A Rec. Mode] Menu 1 [A Rec. Mode] Menu 2

Rec. Mode

Image Tone Recorded Pixels Quality Level White Balance AF Setting AE Metering

Exit

1/4

Bright

ڎڎ

AWB

Rec. Mode

Sensitivity AUTO ISO Range EV Compensation Movie D-Range Setting Pixel Track SR

Exit

2/4

AUTO ISO

0.0

80-800

p.138

p.90

p.158

p.139

p.144

p.145

p.147

[A Rec. Mode] Menu 3 [A Rec. Mode] Menu 4

Rec. Mode

Interval Shoot Blink Detection Digital Zoom Instant Review Memory Green Button

Exit

3/4

• Use the 9 (Green) mode to enjoy easy picture-taking using standard settings, regardless of the settings in the [A Rec. Mode] menu (p.86).

• Assigning frequently used functions to the Green button enables you to go straight to the desired function (p.139).

Rec. Mode

Sharpness

Saturation Contrast Date Imprint

IQ Enhancer Macro Light

Exit

4/4

Off

OptioWG1_eng.book Page 71 Friday, March 11, 2011 4:10 PM

[W Setting] Menu

Item Description Page

Sound

Date Adjustment For adjusting the date and time p.233 Alarm For setting the alarm p.235 World Time For setting the hometown and destination p.237 Text Size For setting the text size of the menu p.240

Language/

Folder Name

USB Connection

Video Out For setting the output format to the AV equipment p.244

HDMI Out

Eye-Fi

Brightness Level For changing the brightness of the display p.248

Power Saving

Auto Power Off

Quick Zoom

Guide Display

Reset

Delete All For deleting all the images and sound files at once p.179 Pixel Mapping For correcting for defective pixels on the CCD sensor p.253 Format For formatting the SD Memory Card/built-in memory p.230

GPS Setting

GPS (*)

Auto Time Synch.

(*) Optio WG-1 GPS only

For adjusting the operation volume and playback volume, and setting the start-up sound, shutter sound, key operation sound, and self-timer sound

For setting the language in which menus and messages appear

For choosing how names are assigned to folders for storing images and sound files

For setting the method for connecting to a PC (MSC or PTP)

For setting the HDMI output format when connecting to an AV device with an HDMI terminal

For setting whether or not to use Eye-Fi communication

For setting the time until the camera enters powersaving mode

For setting the time until the camera turns off automatically

For choosing whether to use the Quick Zoom function (p.173) when playing back images

For setting whether to display explanations for selected items in Capture Mode Palette and Playback Mode Palette displays

For returning settings other than the date and time, language, world time and video out to their defaults

For setting whether to record the GPS data on captured images

GPS GuideLogging For setting the interval at which to record GPS logs

For setting whether to correct the clock in the camera automatically using the received GPS data

p.231

Common Operations

p.241

p.242

p.263

p.245

p.247

p.249

p.250

p.251

p.252

p.255

OptioWG1_eng.book Page 72 Friday, March 11, 2011 4:10 PM

[W Setting] Menu 1 [W Setting] Menu 2

Setting

Sound Date Adjustment Alarm World Time

Common Operations

Text Size

Exit

1/4

01/01/2011

Standard English

Setting

Folder Name Date USB Connection Video Out HDMI Out Eye-Fi Brightness Level

Exit

MSC NTSC Auto

2/4

[W Setting] Menu 3

Setting

Power Saving Auto Power Off Quick Zoom Guide Display Reset Delete All

Exit

5sec. 3min.

3/4

[W Setting] Menu 4

Setting

Pixel Mapping Format GPS

Exit

4/4

OptioWG1_eng.book Page 73 Friday, March 11, 2011 4:10 PM

3 Taking Pictures

Taking Still Pictures .................................. 74

Setting the Shooting Functions ............. 117

Taking Pictures Underwater .................. 148

Recording Movies ................................... 150

Saving the Settings (Memory) ............... 158

OptioWG1_eng.book Page 74 Friday, March 11, 2011 4:10 PM

Taking Still Pictures

Taking Pictures

This camera is equipped with functions and shooting modes that support a wide array of scenes and subjects. This section explains shooting using the default settings when shipped.

Power switch

Taking Pictures

Press the power switch.

The camera turns on and is ready to take still pictures. In this manual, this is called Still Picture Capture mode.

Confirm the subject and shooting information on the display.

The focus frame in the middle of the display indicates the zone of automatic focusing.

When the camera detects a person’s face, the Face Detection function is activated and the face detection frame appears (p.80).

Shutter release button

w/x button

Focus frame

Face detection frame

OptioWG1_eng.book Page 75 Friday, March 11, 2011 4:10 PM

You can change the captured area by pressing the zoom button (p.88).

Right (x) Enlarges the subject. Left (w) Widens the area that is captured by the camera.

Press the shutter release button halfway.

The camera emits Focus Assist light in dark shooting situations. The focus frame (or face detection frame) on the display turns green when the camera focuses on the subject at the correct distance.

Press the shutter release button fully.

The picture is taken. The flash discharges automatically depending on the light conditions. The image appears on the display temporarily (Instant Review: p.77) and is saved to the SD Memory Card or the built-in memory.

Press the Green button to switch to the 9 (Green) mode and let the camera set all the shooting functions automatically (p.86).

1/250 F4.6

Taking Pictures

OptioWG1_eng.book Page 76 Friday, March 11, 2011 4:10 PM

Using the Shutter Release Button

The shutter release button works in a two-step action as follows.

Press halfway

This refers to pressing the shutter release button gently to the first position. This locks the focus setting and the exposure. The green focus frame lights on the display when the shutter release button is pressed halfway and the subject is in focus. If the subject is out of focus, the frame turns white.

Press fully

This refers to pressing the shutter release button all the way down to the

Taking Pictures

fully depressed position. This takes a picture.

Not pressed Pressed halfway

(first position)

• Press the shutter release button gently when taking a picture to prevent camera shake.

• Practice pressing the shutter release button halfway/fully to learn where the first position and second position are.

Pressed fully

(second position)

Poor focusing conditions

The camera may not be able to focus under the following conditions. In these cases, lock the focus on an object the same distance away as the subject (by pressing and holding the shutter release button halfway), then aim the camera at your subject and press the shutter release button fully.

• Objects that lack contrast such as a blue sky or white wall

• Dark places or objects, or conditions that prevent light being reflected back

• Horizontal lines or intricate patterns

• Fast moving objects

• When there is an object in the foreground and an object in the background in the captured area

• Strongly reflected light or strong backlighting (bright background)

OptioWG1_eng.book Page 77 Friday, March 11, 2011 4:10 PM

Instant Review and Blink Detection

The image appears on the display temporarily (Instant Review) immediately after it is captured. If the camera detects that the subject’s eyes are closed while Face Detection (p.80) is activated, the message [Closed eyes have been detected] appears for 3 seconds (Blink Detection).

• When the Face Detection function does not work, Blink Detection also does not function. Even if the subject’s faces are recognized, Blink Detection may not function depending on the condition of the recognized faces.

• You can also disable the Blink Detection function (p.138).

Taking Pictures

OptioWG1_eng.book Page 78 Friday, March 11, 2011 4:10 PM

Setting the Shooting Mode

This camera has a variety of shooting modes that let you take pictures or record movies and sound in different situations simply by choosing the right mode for the particular situation from the Capture Mode Palette.

Taking Pictures

Press the four-way controller (3) in A mode.

The Capture Mode Palette appears.

Use the four-way controller (2345) to choose a shooting mode.

A guide of the selected shooting mode is displayed in the lower part of the display.

Press the 4 button.

The shooting mode is selected and the camera returns to capture mode.

Four-way controller 4 button

Landscape

For capturing landscape views. Enhances colors of sky and foliage

Cancel

1/2

OptioWG1_eng.book Page 79 Friday, March 11, 2011 4:10 PM

The following 24 modes can be selected with Capture Mode Palette.

Item Description Page

Auto Picture Automatically selects the best capture mode p.84

Program

Night Scene

Movie For recording movies p.150

Underwater For capturing images underwater p.148

Underwater Movie Use this mode for taking underwater movie p.148

Digital Microscope

Landscape

b Flower

Portrait

X Digital Wide

Digital SR Higher sensitivity reduces blur p.90

Surf & Snow

Kids

Pet

Sport

Fireworks

Candlelight For capturing scenes in candlelight p.90

Night Scene

Portrait

Text

Food

Digital Panorama

Used for basic shooting. Various functions can also be set with this mode

For night time images. Use of a tripod or other support is suggested

Capture magnified images of the closer objects (fixed to h)

For capturing landscape views. Enhances colors of sky and foliage

For images of flowers. The outline of the flower is softened

For capturing portraits. Reproduces a healthy and bright skin tone

Stitches two pictures together to create a wider image

For bright images such as sand or snow. Accurately meters for bright scenes

For capturing moving kids. Reproduces a healthy and bright skin tone

Suitable shooting for moving pets. Available to detect registered pets

For a fast moving subject. Tracks the subject until the picture is taken

For capturing fireworks. Use of a tripod or other support is suggested

For images of people at night. Use of a tripod or other support is advised

Captures text in an easy to read manner. Text contrast can be adjusted

For images of food and prepared dishes. Enhances saturation and contrast

Stitches images taken with the camera to create a panoramic photograph

p.85

p.90

p.99

⎯

p.92

p.111

p.97

p.93

p.94

p.97

p.90

p.98

⎯

p.114

Taking Pictures

OptioWG1_eng.book Page 80 Friday, March 11, 2011 4:10 PM

Item Description Page

Frame Composite

Report

* Green Mode (p.86) and Voice Recording (p.222) are available in addition to the

ones noted above.

• In shooting modes other than R (Program), A (Night Scene), C (Movie), (Digital Microscope), c (Digital SR), F (Digital

Taking Pictures

Panorama), X (Digital Wide), and N (Frame Composite), saturation, contrast, sharpness, white balance, etc. are automatically set to the optimal settings for the selected mode.

• Some functions may not be available or may not function fully depending on the selected shooting mode. For details, refer to “Functions Available for Each Shooting Mode” (p.284).

• You can turn off the shooting mode guide on the Capture Mode Palette (p.252).

For capturing images with a frame. Recorded pixels is fixed to h or h

For capturing image with fixed 1280×960 pixels for reports

Using the Face Detection Function

When the camera detects a person’s face in the image, the Face Detection function displays a yellow face detection frame around the face on the display screen, sets the focus (Face Detection AF) and compensates the exposure (Face Detection AE). If the subject in the face detection frame moves, the frame also moves and changes size as it tracks the face.

The Face Detection function can recognize up to 32 people’s faces. If it recognizes multiple faces, the camera displays a yellow frame over the main face and white frames over the other faces. It can display up to a total of 31 frames, including both the main and white frames.

Face detection frame

When the multiple faces are

detected

Main frame

p.101

⎯

White frame

OptioWG1_eng.book Page 81 Friday, March 11, 2011 4:10 PM

• Face Detection AF and AE may not work if the subject is wearing sunglasses, has part of their face covered or is not looking toward the camera.

• If the camera cannot detect the subject’s face, the camera focuses using the setting currently selected in [Focusing Area].

• However, the Smile Capture function may not work and an image may not be captured, even when turned on, depending on the condition of the recognized faces, such as the faces are too small. If this happens, press the shutter release button to take a picture.

•In e (Pet) mode, the Face Detection mode is switched to pet detection (only one pet at a time can be detected).

To Switch the Face Detection Function

By default, the Face Detection function is set to Face Detection On. You can switch to the Smile Capture function, which automatically releases the shutter when your subject smiles. The Face Detection function is switched as follows each time the I button is pressed: Smile Capture ´ Self-portrait Assist ´ Self-portrait Assist + Smile Capture ´ Face Detection Off ´ Face Detection On

Taking Pictures

I button

An icon indicating either Face Detection or Smile Capture appears on the display. (The Face Detection Off icon only appears right after the Face Detection function is switched to off.)

PPP

OptioWG1_eng.book Page 82 Friday, March 11, 2011 4:10 PM

Face Detection On Smile Capture Self-portrait Assist

Taking Pictures

Face Detection Off Self-portrait Assist

+ Smile Capture

• The Face Detection function cannot be set to off in b (Auto Picture), B (Night Scene Portrait), c (Portrait), or R (Kids). Any one of Face Detection On, Smile Capture, Self-portrait Assist or Self-portrait Assist + Smile Capture is always activated in these modes.

• When Face Detection Off is selected, selecting 9 (Green), b (Auto Picture), B (Night Scene Portrait), C (Movie), c (Portrait), R (Kids), or (Underwater Movie) modes automatically switches to Face Detection On. When switching to another mode from one of these modes, the Face Detection setting returns to the previous setting.

• If you use the Face Detection function when the flash mode is set to , (Auto), the flash mode automatically changes to d (Flash On + Red-eye).

• The Self-portrait Assist or the Self-portrait Assist + Smile Capture cannot be set to on in X (Digital Wide), F (Digital Panorama),

(Report), e (Pet), C (Movie), (Underwater Movie), or (Digital

Microscope).

• Self-portrait Assist and Self-portrait Assist + Smile Capture cannot be selected when (Report) mode is selected or the Macro Light is on in the [A Rec. Mode] menu.

OptioWG1_eng.book Page 83 Friday, March 11, 2011 4:10 PM

To Use the Self-portrait Assist Function

The macro lights around the lens blink when the camera detects people faces in the Self-portrait Assist or Self-portrait Assist + Smile Capture function. The position of the blinking lights indicate where the detected face is on the screen.

When the camera detects a face When the camera detects two faces

Detects a face on the right while facing the camera.

Detects a face on the left while facing the camera.

Detects a face at the center while facing the camera.

• The camera can tell the position of up to two detected faces.

• When the camera detects three or four faces, the lights blink depending on the number of the detected faces. When the camera detects five or more faces, all lights (five) blink (the lights do not tell the position of detected faces).

•In b (Auto Picture) mode, lights turn off after pressing the shutter release button halfway when the camera is in a mode with no face detection function.

• When the Self Portrait Assist function is on, lights do not turn off after the set period of Power Saving.

• Lights do not blink when the detected faces are too small.

Detects two faces, one at the center and one on the right while facing the camera.

Detects two faces, one at the center and one on the left while facing the camera.

Detects two faces at the center or one on the right and one on the left while facing the camera.

Taking Pictures

OptioWG1_eng.book Page 84 Friday, March 11, 2011 4:10 PM

Taking Pictures Automatically (Auto Picture Mode)

In b (Auto Picture) mode, the camera automatically selects the most appropriate mode depending on the situations and subjects.

Shutter release button

Taking Pictures

Four-way controller 4 button

Press the four-way controller (3) in A mode.

The Capture Mode Palette appears.

Use the four-way controller (2345) to select b (Auto Picture).

Press the 4 button.

Auto Picture mode is selected and the camera returns to capture mode. When the camera detects a person’s face, the Face Detection function is activated and the face detection frame appears ( detects a pet’s full face, the shutter is automatically released.

Press the shutter release button halfway.

The automatically selected capture mode appears on the top left of the display.

The focus frame on the display turns green when the camera focuses on the subject at the correct distance.

p.80

). When the camera

Standard Night Scene

Landscape Flower Portrait

Sport Candlelight Blue Sky

Portrait×Blue Sky Portrait×Backlight

Portrait×Sunset Group Photograph

Night Scene Portrait

Sunset

Text

OptioWG1_eng.book Page 85 Friday, March 11, 2011 4:10 PM

Press the shutter release button fully.

The picture is taken.

The following restrictions apply in b mode:

• EV Compensation is unavailable.

• You cannot turn the Face Detection function off.

• The [Focusing Area] setting is fixed at J (Multiple).

• Flower cannot be selected when using Digital Zoom or Intelligent Zoom.

• If Night Scene is selected when the flash mode is , (Auto) or c (Auto + Red-eye), the flash mode automatically changes to a (Flash Off).

• If the (Night Scene Portrait) mode is selected when the flash mode is , (Auto), the flash mode automatically changes to d (Flash On + Red-eye) when the camera detects a face and determines that the flash is needed.

Setting the Functions (Program Mode)

In R (Program) mode, the shutter speed and the aperture are set automatically by the camera during shooting. However, you can select other functions such as the flash mode and recorded pixels.

Shutter release button

Taking Pictures

Press the four-way controller (3) in A mode.

The Capture Mode Palette appears.

Use the four-way controller (2345) to select R (Program).

Four-way controller 4 button

OptioWG1_eng.book Page 86 Friday, March 11, 2011 4:10 PM

Press the 4 button.

Program mode is selected and the camera returns to capture mode. When the camera detects a person’s face, the Face Detection function is activated and the face detection frame appears (

Set the functions you want to use.

Refer to “Setting the Shooting Functions” (p.117 - p.147) for details of how to set the functions.

p.80

383838

Taking Pictures

Press the shutter release button halfway.

The focus frame on the display turns green when the camera focuses on the subject at the correct distance.

Press the shutter release button fully.

The picture is taken.

Taking Still Pictures 1p.74

Taking Pictures in the Basic Mode (Green Mode)

In the 9 (Green) mode, you can enjoy easy picture-taking using standard settings, regardless of the settings in the [A Rec. Mode] menu. 9 mode settings are as shown below.

Flash Mode Drive Mode 9 (Standard) Shadow Correction P (Off) Focus Mode = (Standard) Sensitivity AUTO (80-800) Information Display Standard EV Compensation ±0.0 Pixel Track SR P (Off) Blink Detection O (On) Recorded Pixels White Balance Focusing Area Auto Macro O (On) Saturation G (Normal) Focus Assist O (On) Contrast G (Normal)

AE Metering

Image Tone Bright Macro Light P (Off) Quality Level D (Better)

, (Auto)

(4288×3216) Digital Zoom O (On)

F (Auto)

J (Multiple)

L (Multi-segment metering)

Highlight Correction P (Off)

Instant Review O (On) Sharpness G (Normal)

Date Imprint Off IQ Enhancer O (On)

OptioWG1_eng.book Page 87 Friday, March 11, 2011 4:10 PM

Shutter release button

Green Button

Press the Green button in A mode.

The camera switches to 9 mode.

Press the Green button again to return to the status before 9 mode was selected.

When the camera detects a person’s face, the Face Detection function is activated and the face detection frame appears (p.80).

Press the shutter release button halfway.

The focus frame on the display turns green when the camera focuses on the subject at the correct distance.

Press the shutter release button fully.

The picture is taken.

Taking Pictures

• Assign 9 mode to the [Green Button] on the [A Rec. Mode] menu for using 9 mode (p.140). (The default setting is 9 mode).

•In 9 mode, you cannot change the information on the display by pressing the 4/W button.

• Press the 3 button in 9 mode to display the [W Setting] menu. The [A Rec. Mode] menu cannot be displayed.

• When the camera is turned off in 9 mode, it turns on in 9 mode next time the power switch is pressed.

33.5

OptioWG1_eng.book Page 88 Friday, March 11, 2011 4:10 PM

Using the Zoom

You can use the zoom to change the captured area.

Taking Pictures

w/x button

3 button

Four-way controller 4 button

Press the w/x button in A mode.

Zoom bar

w Wide (left)

Widens the area that is captured by the camera.

x Tele (right)

Enlarges the subject.

If you continue to press x, the camera

automatically switches from Optical Zoom to Intelligent Zoom and stops at the point where the zoom switches to Digital Zoom. Once the button is released and pressed again, the camera switches to digital zoom. If the Digital Zoom is set to off on the menu, the Optical Zoom and the Intelligent Zoom ranges are available for use. The zoom ratio of the intelligent zoom changes depending on the number of recorded pixels.

The zoom bar is displayed as follows.

Zoom in with high image quality.

Optical zoom range*1 Intelligent

Zoom in with some degree of image

deterioration.

Zoom range*2

Digital Zoom range

*1 You can zoom in to a maximum of 5× optically. *2 The Intelligent Zoom range differs depending on the recorded

pixels. See the following table.

Zoom ratio

33.5

OptioWG1_eng.book Page 89 Friday, March 11, 2011 4:10 PM

Recorded pixels and the maximum zoom ratio

Recorded Pixels

g/i/j

6/ f/

(*) V can only be set for recorded pixels when (Report) mode is set.

(The zoom ratio includes the 5× optical zoom.)

Not Available (5× optical zoom only)

(*)

Not Available (5× optical zoom only)

Approx. 33.5× (same as Digital Zoom)

• We recommend you use a tripod to prevent camera shake when taking pictures at high zoom.

• Pictures taken in the digital zoom range appear grainier than pictures taken in the optical zoom range.

• Intelligent Zoom is not available under the following conditions: When the number of recorded pixels is set to g, i and j (5× optical zoom available). In 9 (Green), C (Movie), and (Underwater movie) mode

• Intelligent Zoom and Digital Zoom are not available in c (Digital SR) and (Report) modes, or when the sensitivity is set to 3200 or 6400.

• The image enlarged using Intelligent Zoom may appear rough on the display. This does not affect the quality of the recorded image.

• Intelligent Zoom is available regardless of whether Digital Zoom is turned on or off.

• Digital Zoom is not available in (Digital Microscope) mode.

• Not every zooming function is available in X (Digital Wide) mode.

Intelligent Zoom

Approx. 7.0×

Approx. 8.3×

Approx. 10.5×

Approx. 11.2×

Approx. 20.9×

Digital Zoom

Equivalent to

approx. 33.5×

Equivalent to

approx. 33.5×

Taking Pictures

OptioWG1_eng.book Page 90 Friday, March 11, 2011 4:10 PM

To Set the Digital Zoom

The digital zoom is set to O (On) in the default settings. To take pictures using only the optical zoom and Intelligent Zoom, set the digital zoom to P (Off).

Press the 3 button in A mode.

The [A Rec. Mode] menu appears.

Taking Pictures

Use the four-way controller (

Use the four-way controller (45) to switch between

O (On) or P (Off).

O(On) Uses Digital Zoom P (Off) Uses only optical zoom

and Intelligent Zoom

The setting is saved.

Press the 3 button.

The camera returns to capture mode.

Saving the Digital Zoom Function setting 1p.158

) to select [Digital Zoom].

Rec. Mode

Interval Shoot Blink Detection Digital Zoom Instant Review Memory Green Button

Exit

3/4

Taking Pictures of Dark Scenes (Night Scene, Night Scene Portrait, Digital SR, Fireworks, and Candlelight Modes)

You can choose settings appropriate for taking pictures of dark scenes, such as nightscapes.

For night time images. Use of a tripod or other support is suggested

For images of people at night. Use of a tripod or other support is advised

For capturing fireworks. Use of a tripod or other support is suggested

Night Scene

Night Scene Portrait

Digital SR Higher sensitivity reduces blur

Fireworks

Candlelight For capturing scenes in candlelight

OptioWG1_eng.book Page 91 Friday, March 11, 2011 4:10 PM

Shutter release button

Four-way controller 4 button

Press the four-way controller (3) in A mode.

The Capture Mode Palette appears.

Use the four-way controller (2345) to select A (Night Scene), B (Night Scene Portrait), c (Digital SR), S (Fireworks), or U (Candlelight).

Press the 4 button.

The shooting mode is selected and the camera returns to capture mode. When the camera recognizes a person’s face, the Face Detection function is activated and the face detection frame appears (p.80).

Press the shutter release button halfway.

The focus frame on the display turns green when the camera focuses on the subject at the correct distance.

Taking Pictures

Press the shutter release button fully.

The picture is taken.

• The shutter speed tends to be slower when taking pictures of dark scenes.

• To prevent the camera from shaking, set the Pixel Track SR (p.144) or use a tripod and/or either a remote control (optional) or the self-timer function (p.110).

•In c (Digital SR) mode, the sensitivity is automatically set to AUTO, the [AUTO ISO Range] is set to 80-6400, and the number of recorded pixels is fixed at f (2592×1944)/ (2592×1464).

•For S (Fireworks) mode, the sensitivity is fixed at the minimum, the focus mode is s (Infinity), and the flash mode is a (Flash Off). Also, the shutter speed is set to 4 seconds and the aperture is fixed to open.

• Digital Zoom and Intelligent Zoom are not available in c (Digital SR) mode.

OptioWG1_eng.book Page 92 Friday, March 11, 2011 4:10 PM

Taking Pictures of People (Portrait Mode)

c (Portrait) mode is suitable for taking pictures of people. It reproduces a healthy and bright skin tone. The Face Detection function (p.80) operates for the shooting mode, making it easier to emphasize the subject’s face when taking pictures.

Shutter release button

Taking Pictures

Press the four-way controller (3) in A mode.

The Capture Mode Palette appears.

Use the four-way controller (2345) to select c (Portrait).

Press the 4 button.

The shooting mode is selected and the camera returns to capture mode. When the camera detects a person’s face, the Face Detection function is activated and the face detection frame appears (p.80).

Four-way controller 4 button

Press the shutter release button halfway.

The focus frame on the display turns green when the camera focuses on the subject at the correct distance.

Press the shutter release button fully.

The picture is taken.

OptioWG1_eng.book Page 93 Friday, March 11, 2011 4:10 PM

Taking Pictures of Children (Kids Mode)

R (Kids) mode is suitable for taking pictures of moving children. It also reproduces healthy and bright skin tone. Face Detection function (p.80) operates automatically in R mode, making it easier to emphasize the subject’s face when taking pictures.

Shutter release button

Four-way controller 4 button

Press the four-way controller (3) in A mode.

The Capture Mode Palette appears.

Use the four-way controller (2345) to select R (Kids).

Press the 4 button.

Kids mode is selected and the camera returns to capture mode. When the camera detects a person’s face, the Face Detection function is activated and the face detection frame appears (p.80).

Taking Pictures

Press the shutter release button halfway.

The focus frame on the display turns green when the camera focuses on the subject at the correct distance.

Press the shutter release button fully.

The picture is taken.

Sel ecti on / R eg ist ry

OptioWG1_eng.book Page 94 Friday, March 11, 2011 4:10 PM

Taking Pictures of Your Pet (Pet Mode)

In e (Pet) mode, the camera automatically releases the shutter when the pet is detected. Also the camera can register pets.

Shutter release button

3 button I button

Taking Pictures

Press the four-way controller (3) in A mode.

The Capture Mode Palette appears.

Use the four-way controller (2345) to select e (Pet).

Press the 4 button.

e (Pet) mode is selected and the camera returns to capture status. When the camera detects the pet’s full face, the shutter is automatically released.

Four-way controller 4 button Green button

Selection / Registry

To Register the Pet

Press the I button on the capture status screen in e (Pet) mode.

The pet registration screen appears.

Selecting pet to shoot

New Registry

Cancel

If pet fa ce t ur ns to c am er a

fro nt, it 's s el f-r egis te ri ng

Can cel

Reg iste r th is i mag e?

Sel ecti on / R eg ist ry

OptioWG1_eng.book Page 95 Friday, March 11, 2011 4:10 PM

Press the I button again.

The pet registration screen appears. Aiming the camera at the pet’s full face automatically releases the shutter and the pet registration confirmation dialog appears.

When you select [Registry] using the four-way controller (2) and press the 4 button, the picture of the registered pet is indicated on the upper-left corner of the display and the camera returns to the capture status.

When the camera detects the pet’s full face, the camera automatically releases the shutter. You can also take a picture by pressing the shutter release button.

When you press the I button twice in the capture status screen, the pet registration screen appears to register another pet. You can register up to three pets.

If pet face turns to camera

front, it's self-registering

Cancel

Pet registration screen

Registry

Cancel

Registry confirmation screen

Selection / Registry

Capture status screen

Taking Pictures

• When you press the 3 button on the pet registration screen, the registration will be canceled and the camera returns to the still picture capture mode.

• Only dogs and cats can be registered using the Pet Detection function. Other animals or human faces cannot be registered. You may not be able to register a pet’s face if, for example, the pet’s face is too small.

• The camera may not detect the registered pet’s face, depending on the shooting situation.

• You cannot turn off the LCD by pressing the 4/W button in e (Pet) mode.

• Digital Zoom and Intelligent Zoom are unavailable when the sensitivity is set to 3200/6400 in e (Pet) mode.

OptioWG1_eng.book Page 96 Friday, March 11, 2011 4:10 PM

To Switch the Pet You Want to Shoot

If you have registered two or three pets, choose the pet you want to detect.

Press the I button on the

Selecting pet to shoot

capture status screen in e (Pet) mode.

The pet registration screen appears.

Taking Pictures

Use the four-way controller (45) to select the pet you

Cancel

want to detect.

Press the 4 button.

The selected pet is switched to the pet you want to detect and the camera returns to capture status.

To Delete the Pet from the Entry

Press the I button on the

Selecting pet to shoot

capture status screen in e (Pet) mode.

The pet registration screen appears.

Cancel

Delete

Use the four-way controller (45) to select the pet you want to delete.

Press the Green button.

Use the four-way controller (2) to select [Delete].

Press the 4 button.

The selected pet is deleted.

• [Focusing Area] is set to W (Automatic Tracking AF) and the flash mode is set to a (Flash Off). However, you can change these settings.

• [Focus Assist] is set to off. However, you can change this setting.

OptioWG1_eng.book Page 97 Friday, March 11, 2011 4:10 PM

Taking Pictures of Sports and Leisure Activities (Surf & Snow/Sport Mode)

Surf & Snow

Sport

Press the four-way controller (3) in A mode.

The Capture Mode Palette appears.

Use the four-way controller (2345) to select Q (Surf

For bright images such as sand or snow. Accurately meters for bright scenes

For a fast moving subject. Tracks the subject until the picture is taken

Shutter release button

Four-way controller 4 button

& Snow) or \ (Sport).

Press the 4 button.

The shooting mode is selected and the camera returns to capture mode. When the camera detects a person’s face, the Face Detection function is activated and the face detection frame appears (p.80).

Press the shutter release button halfway.

The focus frame on the display turns green when the camera focuses on the subject at the correct distance. When the Sport mode is selected, the focus frame follows the subject while the shutter release button is pressed halfway.

Taking Pictures

Can cel

OptioWG1_eng.book Page 98 Friday, March 11, 2011 4:10 PM

Press the shutter release button fully.

The picture is taken.

Taking Pictures of Text (Text Mode)

Take crisp and easy-to-read pictures of text. It is useful for taking pictures of and saving important documents, and when the text is too small and difficult to read.

Taking Pictures

Color A picture of the text is taken in its original color.

Reversed Color The colors are reversed.

B&W A picture of the text is taken in black and white.

Negative Black and white are reversed.

Shutter release button

Four-way controller 4 button

Press the four-way controller (3) in A mode.

The Capture Mode Palette appears.

Use the four-way controller (2345) to select (Text).

Press the 4 button.

The text mode selection screen appears.

Cancel

Use the four-way controller (

) to select , , , or .

OptioWG1_eng.book Page 99 Friday, March 11, 2011 4:10 PM

Press the 4 button.

The selected icon appears and the camera returns to capture status.

Press the shutter release button halfway.

The focus frame on the display turns green when the camera focuses on the subject at the correct distance.

Press the shutter release button fully.

The picture is taken.

Taking Pictures in Digital Microscope Mode

In the Digital Microscope mode, you can take pictures of objects as close as 1 cm, also because the macro lights around the lens are always lighted, you can take minute pictures of text, the veins of leaves, or specimens of tiny insects etc.

• The number of recorded pixels is fixed at h (1920×1080).

• The focus mode is fixed at (1cm Macro).

• The default setting is O (On) for Pixel Track SR.

• j (Continuous Shooting) /c (Burst Shooting)/l (Auto Bracketing) cannot be selected.

• The flash does not discharge in this mode.

• The Face Detection function and the Blink Detection function are turned off.

• You can change the information display only between the normal and No Info displays.

• The illumination of the macro lights may be uneven or insufficient depending on the shooting conditions.

Taking Pictures

Press four-way controller (3) in A mode.

Use the four-way controller (2345) to select

(Digital Microscope).

3 8

3.8

OptioWG1_eng.book Page 100 Friday, March 11, 2011 4:10 PM

Press the 4 button.

Digital Microscope mode is selected and the camera returns to capture mode.

Press the w/x button.

If you press x, the camera enlarges

Taking Pictures

the subject.

w Wide (left)

Widens the area that is captured by the camera.

x Tele (right)

Enlarges the subject.

Press the shutter release button halfway.

The focus frame on the display turns green at the position where the camera focuses on the subject.

Press the shutter release button fully.

The picture is taken.

Attaching the supplied macro stand (O-MS1) reduces camera shake during macro photography (p.24).

3.8

6.1

100

Pentax WG-1 GPS User Manual [ru]

Specifications and Main Features

Frequently Asked Questions

User Manual
