Pentax W-822NX, W-822EX, W-823NX, W-823EX, W-825NX QUICK REFERENCE GUIDE

...

Ahead of Vision

PENTAX Industrial Instruments Co., Ltd.

2-5-2 Higashi-Oizumi Nerima-Ku, Tokyo 178-8555, Japan Tel. +81 3 5905 1222 Fax +81 3 5905 1225 E-mail: international@piic.pentax.co.jp Website: www.pentax.co.jp/piic/survey

www.pentaxsurveying.com

TOTAL STATION

W-800

QUICK REFERENCE GUIDE

W-822NX W-822EX W-823NX W-823EX W-825NX W-825EX W-835NX W-835EX

SERIES

This Quick Reference Guide explains about the essential ways of handling the hardware of the W-800 series and cautions required in handling it. For further detailed information on the W-800 series, please refer to Basic Instruction Manual contained in the CD supplied with the instrument. For the operations of application software,please refer to their respective manuals.

PENTAX Industrial Instruments Co., Ltd. makes no warranty, expressed or implied, including but not limited to any implied warranties or merchantability or fitness for a particular purpose, regarding these materials and makes such materials available.

Before using this product, be sure that you have thoroughly read and understood this instruction manual to ensure proper operation. After reading this manual, be sure to keep in a convenient place for easy reference.

PRECAUTIONS REGARDING SAFETY

Safety Precautions (Must be followed)

The following items are intended to prevent possible injury to the user or other people and/or damage to the instrument before it occurs.These safety precautions are important to the safe operation of this product and should be observed at all times.

Distinctive Displays

The following displays are used to distinguish precautions by the degree of injury or damage that may result if the precaution is ignored.

WARNING

Items indicated by this display are precautions which, if ignored, would result in serious injury.

CAUTION

Items indicated by this display are precautions which,if ignored, may result in injury or material.

• Here “injury” refers to injuries such as cuts, burns or electric shock the treatment of which will not likely require hospitalization or long-term attention.

• “Material damage”refers to damage to facilities,buildings, acquired data, etc.

Before using this product, be sure that you have thoroughly read and understood this instruction manual to ensure proper operation. After reading this manual, be sure to keep it in a convenient place for easy reference.

This instrument complies with the protection requirement for residential and commercial areas. If this instrument is used close to industrial areas or transmitters, the equipment can be influenced by electromagnetic fields.

WARNING

Do not stare into the laser beam directly as this may result in damage to your eyes. W-800 is a Class II Laser product. (The reflectorless type is a Class IIIa (3R) laser product.)

Do not look into the laser radiation aperture directly as this may result in damage to your eyes.

Never use the telescope to view intense light such as direct sunlight or sunlight reflected through a prism as this may result in loss of sight.

Do not disassemble, modify or repair this product as there a risk of laser radiation.

Do not aim the laser beam at a person as it is harmful to the eyes and body. Receive the examination treatment by the doctor when the eyesight or body trouble is doubted by any chance.

• Electro-Magnetic Compatibility (EMC): This instrument complies with the protection requirement for residential and commercial areas. If this instrument is used close to industrial areas or transmitters,the equipment can be influenced by electromagnetic fields.

• Do not use this product in a coal mine, in a location where there is coal dust, or near flammable material as there is a risk of explosion.

• Do not disassemble, modify or repair this product as there is a risk of fire, electric shock and burn injury. If you think the product requires repair, contact the retail outlet where you purchased it or an authorized repair site.

• Only use the battery charger intended for this product as the battery charger. Use of another battery charger entails a risk of fire or burn injury from the battery bursting into flames due to possible differences in voltage or polarity.

• Do not use a damaged electric cord plug or loose electric outlet when charging as there is a risk of fire or electric shock.

• Do not charge the battery while covered by clothes or similar item as there is a risk of fire if the clothes ignite.

• Do not use the battery or charger when wet as there is a risk of fire and burn injury due to short-circuit.

• To prevent making short-circuit when removing the battery and charger from the case and storing them,apply electrically resistant tape to the poles of the battery.Storing the battery and charger as it may result in fire or burn injury due to short-circuit.

• Do not throw the battery into fire or expose it to heat as there is a risk of injury if it explodes

CAUTION

For your safety, perform the initial and periodical inspection as well as when the instrument is fixed and adjusted.

When the laser beam enters eyes, an unexpected accident might be caused by blink of eyes. Do not place the laser product at a height where its laser beam may hit the eyes of car drivers and pedestrians.

Do not place the laser product at a place where its laser beam may hit a reflecting object such as a mirror or a glass window.The reflection beam of the laser is also harmful to the human body.

When not performing measurement, cut off the power supply or shade the Objective lens with Objective cap to prevent the instrument emitting the laser beam.

Keep the laser product in the place where the person who does not have the product knowledge such as children does not touch by mistake.

Before disposing of the instrument, destroy its power supply mechanism to prevent it from emitting the laser beam.

• Do not remove the handgrip without good reason. If it does come off, be sure to attach it securely to the instrument with screws. If it is not fastened securely, the instrument may fall when you grasp the handgrip,leading to possible injury.

• Do not short the poles of the battery or charger as there is a risk of injury or fire.

• Do not touch any fluid which may leak from the battery as there is a risk of chemical burn injury or reaction.

• Do not insert or remove the electric plug with wet hands as there is a risk of electric shock.

• Do not use the case to stand on as it is slippery and unstable and may cause you to fall, resulting in possible injury.

• Be sure the tripod itself and the instrument on the tripod are both installed securely as insecure installation may cause the tripod to fall over or the instrument to drop, resulting in possible injury.

• Do not carry the tripod with the metal shoe pointing toward another person as it may injure him/her.

• The instrument contains a rechargeable battery and a battery charger.

• It may be illegal to dispose the battery at the end of its useful life.

• Check with your local solid waste officials for details for recycling.

[Usage precautions]

Surveying instruments are high-precision instruments. In order to assure that the Electronic Total Station W-800X series product which you have purchased will provide long-lasting maximum performance, the precautions in this manual must be followed. Be sure to follow these instructions and use this product properly at all times.

[Solar observation]

WARNING

Never view the sun directly using the telescope as this may result in loss of sight. Never point the objective lens directly at the sun as this may damage internal components.When using the instrument for solar observation, be sure to attach the specially designed solar filter (MU64) to the objective lens.

[Laser beam]

Do not stare into laser beam.W-800 series is a class-II Laser product. (The reflectorless type is a Class IIIa (3R) laser product.)

[EDM axis]

The W-800 series EDM is the red visible laser beam and the beam diameter is very small. The beam is emitted from the objective center and the base plate center hole. The EDM axis is designed to coincide with the telescope sight axis (but both axes may deviate slightly because of intense temperature changes and a long time lapse).

[Target constant]

Confirm the Target Constant of the instrument before measurement. If a different constant is to be used, use the correct constant of the target. The constant is stored in the instrument's memory when turned off.

[Reflectorless and reflector sheet]

• Reflectorless: The measurement range and accuracy of Reflectorless are based on the condition that laser beam is emitted perpendicular to the white side of the Kodak Gray Card. The measurement range may be influenced by the shape of the target and its environment.There is a possibility that the range may vary when the target does not satisfy the conditions above at survey work.

• Note the following possibilities when performing reflectorless measurement. In a situation high accuracy cannot not be expected, perform the measurement by reflector sheet or prism (W-822NX, W-823NX,W-825NX,W-835NX)

• There is a possibility that correct distance measurement may be impossible by dispersion or reduction of laser beam when the laser beam comes into the target from diagonal angle.

• There is a possibility that the instrument cannot calculate correctly when receiving reflected laser beam from forth and back directions in case of measuring the target on the road.

• There is a possibility that synthesized values are calculated and the distance may become longer or shorter than the actual one when the operator measure the target of slope or sphere or rugged shape.

• There is a possibility that the instrument cannot calculate correctly by collecting the reflected laser beam from a man or a car that comes and goes in front of the target.

• When using reflector sheet, set the reflector sheet to have its surface be perpendicular to the aiming line. If it is positioned not to be perpendicular, there is a possibility that correct distance measurement may not be performed by dispersion or reduction of laser beam. In the following environments, the distance might not be able to be measured. There is is a reflecting object (mirror, stainless board and white wall, etc.) in the direction of the target and under too strong sun light.

[Battery & charger]

• Do not use any batteries and battery chargers other than those PENTAX assured adequate as it may result in damage to the instrument.

• If water should happen to splash on the instrument or the battery, wipe it off immediately and allow it to dry in a dry location. Do not put the instrument in the case until it is completely dry as this may result in damage to the instrument.

• Turn off the power when removing the battery from the instrument as removing the battery while the power is still on may result in damage to the instrument.

• The battery mark displayed on the instrument is only an estimate of remaining battery power and is not completely accurate. Replace the battery quickly when it is about to run out as the time a battery lasts on one full charge differs depending on conditions of ambient temperature, and the measurement mode of the instrument.

• Confirm the battery level remaining before operating.

[Auto focus]

The Auto focus mechanism is very precise but will not function under every condition.Focusing depends on brightness, contrast, the shape and size of the target. In such a case, press the AF button and focus on the target by operating the Power focus key or the Focus ring.

[LD POINT, laser pointer]

When making a correct direction using the “LD POINT”, aim the laser beam at the wall and mark the center and then confirm the discrepancy between the reticle center and the marked point beforehand.

[Interface]

Do not insert or remove SD card, CF card and USB Connector outdoors. Be careful not to let dust,mud,sand,water,harmful gas or salty steam enter the card slot or USB connector port. Be sure to turn the instrument’s power off before inserting or removing the SD card, CF card or USB Connector.

[Touch panel]

Use the Stylus pen when you touch the panel for operation of software. Do not touch the panel with any things such as fingertips or pen point as this may scratch and damage the screen.

[Data saving]

When using application software, store data in SD card drive, CF card drive or DiskOnChip folder. Data stored in other drives is deleted when the power is turned OFF.

[Storage and operating environment]

• To prevent making short-circuit when removing the battery and charger from the case and storing them,apply electrically resistant tape to the poles of the battery.Storing the battery and charger as is may result in fire or burn injury due to short-circuit.

• Avoid storing the instrument in places subject to extreme high, low or radically fluctuating temperature. (Ambient temperature range during use: –20° C to +50° C)

• Distance measurements may take longer when atmospheric conditions are poor such as when heat shimmer is present. When storing the instrument, always put it in its case and avoid storage in dusty location or location subject to vibration or extreme heat or humidity.

• Whenever there is a sharp temperature difference between the instrument’s storage and usage environment, allow the instrument to adjust to the environment for an hour or more before using it. Be sure to protect the instrument from the sun if the location is subject to intense direct sunlight.

• During surveys for which the survey precision or atmospheric measurement method has been defined measure the atmospheric temperature and pressure separately and enter those values rather than using the Automatic Atmospheric Correction function.

• The battery should be charged approximately once per month if the instrument is to be stored for an extended period of time.The instrument should also be removed from its case occasionally and aired out.

• In addition to these precautions, be sure to handle the instrument properly at all times following the descriptions given in the various sections of this manual to assure safe and proper measurements.

[Transporting and carrying the instrument]

• Be careful to protect this instrument from shock of impact and excessive vibration which may result in damage during transportation and shipment.

• When transporting the instrument, always put it in the case and wrap shockabsorbing material around it and be sure it is handled as “FRAGILE”.

[Checks and repairs]

• Always check the instrument before beginning work and check that the instrument is maintaining the proper level of precision. Pentax bears absolutely no responsibility for damages due to survey results obtained from surveys conducted without an initial instrument check. Never disassemble the instrument, battery or charger even if you do detect an abnormality as there is a risk of fire or electric shock due to short-circuit. If you think the product requires repair , contact the retail outlet where you purchased it or an authorized repair site.

• Never disassemble the instrument, battery or charger even if you do detect an abnormality as there is a there is a risk of fire or electric shock due to short-circuit, If you think the product requires repair, contact the retail outlet where you purchased it or an authorized repair site.

CONTENTS

PRECAUTIONS REGARDING SAFETY 4

SAFETY PRECAUTIONS(MUST BE FOLLOWED) 4 USAGE PRECAUTIONS 7

1. BEFORE USING THE INSTRUMENT 12

1.1 NAMES OF PARTS 12

1.2 ATTACHING AND CHARGING THE BATTERY 13

1.3 INSERTING/ REMOVING SD CARD 14

1.4 INSERTING/ REMOVING CF CARD 15

1.5 CONECTING USB CABLE 16

2. DISPLAY AND KEYBOARD 17

2.1 DISPLAY AND KEYBOARD 17

2.2 OPERATION KEY 17

2.3 ALPHANUMERIC INPUT 18

2.4 LASER PLUMMET, LASER POINTER 18

3. PREPARATION FOR SURVEYING 19

4. SPECIFICATIONS 22

4.1 NX MODELS 22

4.2 EX MODELS 23

5. NOTICE TO THE USER OF THIS PRODUCT 25

1. BEFORE USING THE INSTRUMENT

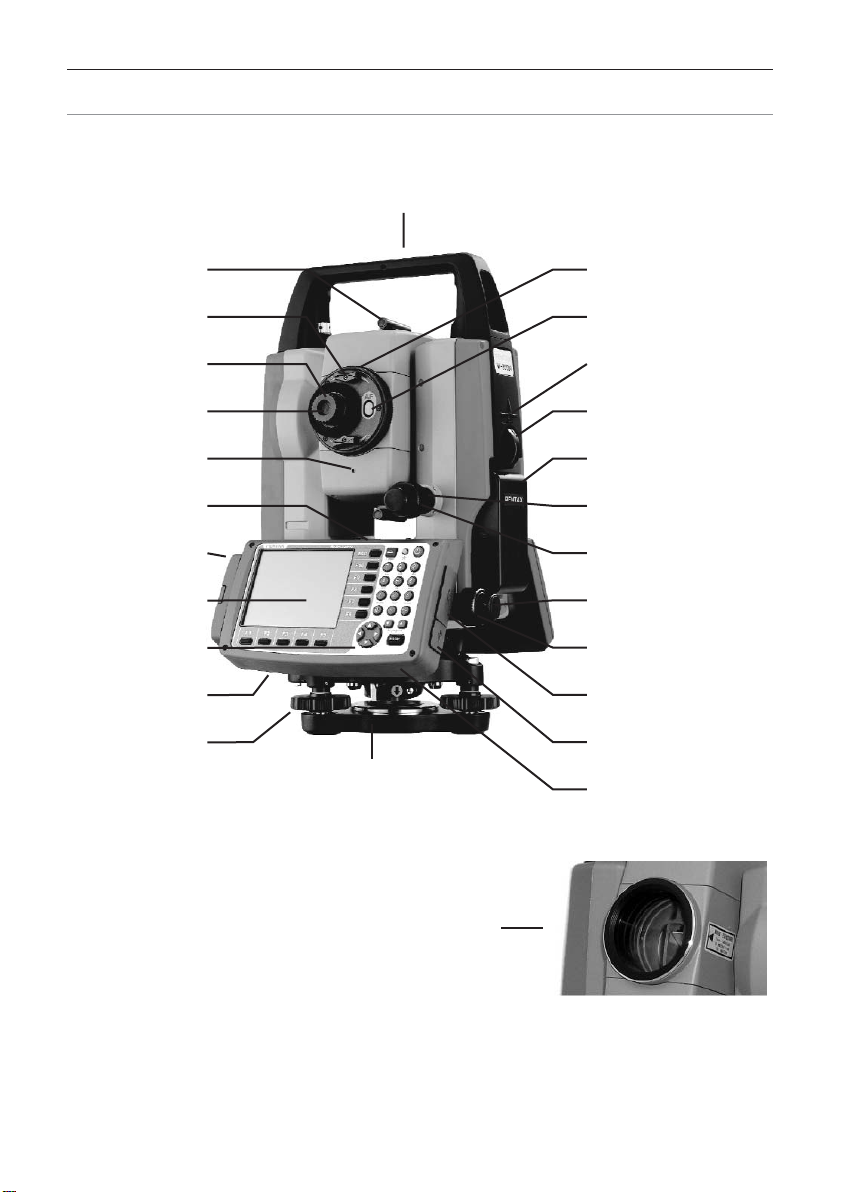

1.1 Names of parts

A shift fixed screw is attached to Base plate of a shift base type model.

Collimator

Power focus key

Eyepiece ring

Eyepiece

Laser indicator

Circulator vial

CF card slot

Display panel

Key board

RS-232C connector

Leveling screw

Focus ring

AF buton

Instrument height mark

Battery latch

Battery pack

Telescope tangent screw

Telescope clamp screw

Clamp screw

Tangent screw

SD card slot

USB connector

Top handle

Detaching knob

Base plate

Objective lens

1.2 Attaching and charging the battery

[Removing the Battery]

c Turn the Battery latch anticlockwise and remove the battery pack. d Lift up the battery pack and remove it from the instrument.

• Be absolutely sure to turn the power off when removing the battery pack as removing the battery pack while the power is still on may result in damage to the instrument.

[Attaching the battery]

c Align the guide grooves on the battery pack with the guide grooves on the instrument

and push the top of the battery pack into place.

d Turn the Battery latch clockwise to fix.

• Turn and fix the Battery latch to lock the battery pack while in use

1.3 Inserting / removing SD card

• Be sure to turn the instrument’s power off before inserting or removing the SD card.

[Inserting SD card]

1) Open the Slot cover

2) Insert the SD card into the slot. (The side with terminal should face the instrument and the cut-off corner should be up).

3) Insert the SD card to the end. Be sure not to press the card too hard. After the SD card is inserted, close the Slot cover completely.

[Removing SD card]

1) Open the Slot cover

2) Lightly press the SD card so the card pops out.

3) After the SD card is removed, close the Slot cover completely.

• Do not open/close the Slot cover or insert/remove the SD card outdoors.

1.4 Inserting / removing CF card

• Be sure to turn the instrument’s power off before inserting or removing the CF card.

[Inserting CF card]

1) Unlock the CF card slot cover by pressing ‘CF OPEN’ button, then, open the cover.

2) Carefully insert the CF card into the Slot until the Inject button pops out. (The side with terminal must face the instrument)

3) After the CF card is inserted, close the Slot cover completely.

• Do not open/close the Slot cover or insert/remove the CF card outdoors.

Insert the CF card with its tub facing the instrument.

[Removing CF card]

1) Unlock the CF card slot cover by pressing ‘CF OPEN’ button, then, open the cover.

2) Press the Inject button so the CF card pops out.

3) After the CF card is removed, close the Slot cover completely.

1.5 Connecting USB cable

• Be sure to turn the instrument’s power off before connecting or disconnecting the USB Cable.

1) Open the USB connector cover

2) Insert the USB connector into the USB port in right direction.

3) After the USB is disconnected, close the USB connector cover completely.

• Do not open/close the USB connector cover or connect/disconnect the USB cable outdoors.

Be sure the direction of USB mini B connector is same as that of the USB port.

2. DISPLAY AND KEYBOARD

2.1 Display and keyboard

2.2 Operation key

Key Description

Used to turn ON/OFF of power supply

Used to return to previous screen or cancels an operation.

Used to turn ON/OFF the illumination of the LCD display.

Used to accept the selected (highlighted) choice or the displayed screen.

[LASER] Used to operate the functions such as Laser plummet and the LD point screen

[Alphanumeric] Used to input alphabets and numerical value.

Used to display the data 1 page back or 1 page ahead

Used to move the cursor up or down

Used to move the cursor left or right

Function key Cursor control key

Illumination key

Power key

Alphanumeric and +/- key

ENT key

Laser and Electronic vial key

ESC key

2.3 Alphanumeric input

The point name is inputted by the Alphanumeric keys as following.

Key Letter under Key Letter & Figure order to input

[0] [@][.][_][-][:][/][0]

[1] PQRS [P][Q][R][S][p][q][r][s][1]

[2] TUV [T][U][V][t][u][v][2]

[3] WXYZ [W ][X][Y][Z][w][x][y][z][3]

[4] GHI [G][H][I][g][h][i][4]

[5] JKL [J][K][L][j][k][l][5]

[6] MNO [M][N][O][m][n][o][6]

[7] [ ][?][!][_][ ][^][I][&][7]

[8] ABC [A][B][C][a][b][c][8]

[9] DEF [D][E][F][d][e][f ][9]

[.] [.][,][:][;][#][(][)]

[+/-] [+][-][*][/][%][=][<][>]

2.4 LD POINT, Laser pointer

How to activate/terminate the laser beam emission differs depending on application software. For exact method of activating/terminating laser beam emission,refer to the instructions in the manuals of respective software.

• The Laser indicator is turned on and the mark on the left of the screen blinks while the Laser pointer function is operating.

• The beam of the sun is strong and visual confirmation is difficult in daytime when outdoors.

• The laser beam is designed not to be able to observe through the telescope.

• Please visually align the laser beam to the target and mark the center. Confirm the alignment (horizontal and vertical ) before measuring when performing accurate work like stake out when using the Laser pointer function.

• Please do not look at the laser source of beam directly.

3. PREPARATION FOR SURVEYING

[Auto focus: Target sighting by Normal mode]

c Loosen the telescope clamp and horizontal clamp screws.

d Point the telescope at the target using a collimator.

e Tighten the above two screws.

f Adjust the eyepiece.

g Look through the telescope and press the AF button. Move your eye vertically and

horizontally to see if the target image moves in relation to reticle.

h Align the reticle accurately on the target using telescope and horizontal tangent screws.

[Auto focus: Target sighting by Continuous mode]

c Loosen the telescope clamp and horizontal clamp screws.

d Point the telescope at the target using a collimator.

e Tighten the above two screws.

f Adjust the eyepiece.

g Look through the telescope and then press the AF button for two seconds to beep, and

release the key to enter into the Continuous mode.

h Align the reticle accurately on the target using telescope and horizontal tangent screws.

i Point the telescope to the next target as well.

Collimator

AF button

Target

Collimator

Target sighting

[Auto focus: Target sighting by Power focus mode]

c Loosen the telescope clamp and horizontal clamp screws.

d Point the telescope at the target using a collimator.

e Tighten the above two screws

f Adjust the eyepiece.

g Look through the telescope,and then operate the Power focus key and focus on the target.

h Align the reticle accurately on the target using telescope and horizontal tangent screws.

[Target sighting by manual focus]

c Loosen the telescope clamp and horizontal clamp screws.

d Point the telescope at the target using a collimator.

e Tighten the above two screws.

f Adjust the eyepiece.

g Look through the telescope and then rotate the Focus ring and stop it where the target

can be seen clearly and the target image does not move in relation to reticle even if your eye is vertically and horizontally moved.

h Aligh the reticle accurately on the target using telescope and horizontal tangent screws.

Collimator

AF button Press AF buttons for two seconds beeps and release the key.

Power focus key

Target

Collimator

Target sighting

Target

Collimator

Target sighting

Collimator

• The Focus ring rotation “clockwise” makes it possible to focus on closer objects and “counter clock wise” will focus on further objects.

Collimator

Focus ring

Target

Collimator

Target sighting

4. SPECIFICATIONS

4.1 NX models

These items are applicable to “NX”models only.

Telescope Magnification 30x

Optical aperture 45mm (EDM 45mm) Resolving power 3” Field of view 1°30' (2.6%) Minimum focus 1.0 m

Focus Auto-focus + Power Focus + Manual

Phase differential

Data Processor CPU, Clock frequency Intel Xscale, 400MHz

OS Microsoft® Windows® CE .NET 4.2 Internal memory SDRAM = 64MB

FLASH = 128MB (built-in)

Interface RS-232C

USB (USB Mini-B Connector)

CF Type II Slot

SD Slot

Display 3.7 inch, Color LCD, 640x480 pixels *(5), with back light and touch panel function

Quantity 2 1

Key board 33 keys

EDM Laser class Class (IIIa)3R / Class (II) 2 (Selective)

Distance Reflectorless 1.5~270m Measurement Mini Prism 1.5m~1100m (1600m) *(1) Range 1P 1.5m~3400m (4500m) *(2)

3P 200m~4500m (5600m) *(2) Reflective sheet 1.5m~600m (800m) *(3)

Accuracy Prism, Reflector sheet ± (2+2ppmxD) mm

Reflectorless ±(5+2ppmxD) mm *(4) ± (5+3ppmxD) mm *(4)

Measuring time Repeat meas Normal: Prism,R ef.sheet 2.0sec. (1 mm) Normal:Prism, Ref.sheet 1.2sec.(1 mm)

Track:Prism, Ref.sheet 0.4 sec. (1 cm) *Quick mode

Initial meas Normal: Reflectorless 2.3sec.(1mm )

Normal: Prism,Ref.sheet 2.5sec. (1mm ) *Quick mode

Application software Selective Memory Internal memory 128MB

Memory Card 2GB (Max) *(6)

Angle Method Absolute Rotary Encoder measurement Accuracy (ISO 17123-3) 2” 3” 5”

Compensator Triple Axis Dual Axis Tangent screw 2 speed 1 speed Calendar clock Available Plummet Visible Laser,±0.8 mm (instrument height 1.5m) Plate level (electronic) Plate level (electronic) 30”/1div. Circular level 8’/2mm Water resistant IP54 Ambient temperature -20°C ~ +50°C / -4°F ~122°F (Working range) Battery pack BP02 Ni-MH (Rechargeable)(4300mAh) , DC6V

Operat ion time Continuous Approx.3 hrs (ETH+EDM), 8hrs (ETH) with Approx. 2.2 hrs of charging time

Weight Approx. 380g Charger BC03 and AC Adapter AC01 Input voltage :AC100~240V (AC01) Output voltage : DC7.5V (BC03) Weight :280g Base Detachable Shifting Physical Instrument Dimension 197(W ) x 347(H) x 217(L)mm (including Battery) Weight 6.3kg 6.1kg

Model W-822NX W-823NX W-825NX W-835NX

4.2 EX models

These items are applicable to “EX”models only.

*(1), *(2),*(3):Values in ( ) are distance measurement range in good condition *(4) Over 200 to 270m: ± (7+10ppm x D) *(5) Depending on application software. *(6) Memory card is not supplied with the instrument.

Telescope Magnification 30x

Optical aperture 45 mm (EDM 45mm)

Resolving power 3”

Field of view 1°30' (2.6%)

Minimum focus 1.0 m Focus Auto-focus + Power Focus + Manual

Phase differential

Data Processor CPU, Clock frequency Intel Xscale, 400MHz

OS Microsoft® Windows® CE .NET 4.2

Internal memory SDRAM = 64MB

FLASH = 128MB (built-in)

Interface RS-232C

USB (USB Mini-B Connector)

CF Type II Slot

SD Slot

Display 3.7 inch, Color LCD, 640x480 pixels *(5), with back light and touch panel function

Quantity 2 1

Key board 33 keys EDM Laser class Class (II) 2

Distance Reflectorless N/A

Measurement Mini Prism 1.5m~1100m (1600m) *(1)

Range 1P 1.5m~3000m (4000m) *(2)

3P 200m~4000m (5000m) *(2) Reflective sheet 1.5m~600m (800m) *(3)

Accuracy Prism, Reflector sheet ± (2+2ppmxD) mm

Reflectorless N/A

Measuring time Repeat meas Normal: Prism,R ef.sheet 2.0sec. (1 mm) Normal:Prism, Ref.sheet 1.2sec.(1 mm)

Track:Prism, Ref.sheet 0.4 sec. (1 cm) *Quick mode

Initial meas Normal: Reflectorless 2.3sec.(1mm )

Normal: Prism,Ref.sheet 2.5sec. (1mm ) *Quick mode

Application software Selective Memory Internal memory 128MB

Memory Card 2GB (Max) *(6)

Angle Method Absolute Rotary Encoder measurement Accuracy (ISO 17123-3) 2” 3” 5”

Operat ion time Continuous Approx.3 hrs (ETH+EDM), 8hrs (ETH) with Approx. 2.2 hrs of charging time

Model W-822EX W-823EX W-825EX W-835EX

[Note]

• The measurement range may vary by measurement conditions.

• Normal conditions: 20 km visibility with slight shimmer.

• Good conditions: 40 km visibility, overcast, no heat,no shimmer and moderate wind.

• Reflector sheet: PENTAX genuine reflector sheet (5 cm x 5 cm).

• Quick Mode, which is effective only under Normal mode (1mm) setting, functions with Prism and Reflectorless Sheet. It is incorporated in all X series models and effective up to 500 m.

• When Quick Mode is on, the EDM accuracy using prism and reflector sheet is ± (3 + 2 ppm x D)mm. When automatic correction is activated in Quick Mode, the EDM accuracy is ± (3 +10 ppm x D) mm.

• EDM Measuring time varies according to distance to be measured and conditions of the environment.

• Reflectorless:

- The measurement range and accuracy of Reflectorless are based on the condition

that laser beam is emitted perpendicular to the white side of the Kodak Gray Card.

- The measurement range may be influenced by the shape of the target and its

environment.

- The measurement range at TRACK mode is over 5m.

- It takes time, longer than usual, to measure the distance exceeding 200m or to

measure the distance to the object that is hard to measure.

- The maximum distance that can be shown on the display is 322m in the non-prism

measurement mode.

- The measurement range, accuracy of distance measurement and time required to

measure may be influenced by the shape, size of surface area and reflection rate of the target and its environment.

5. NOTICE TO THE USER OF THIS PRODUCT

To assure compliance with the Safety standard 21 CFR, Chapter 1. Subchapter J. The U.S. bureau of Radiological Health requires the following information to be provided to user.:

It can be dangerous to look into the beam with optical equipment such as binoculars and telescopes.

1) Specifications of Laser Radiation

A) The EDM module of the W-800 series produces a visible light beam, which is emitted

from the telescope objective lens and the center hole of the instrument base plate. The W-800 series is designed and built to have a laser diode radiating at 620-690 nm.

B) Radiant power

The W-800 series is designed and built to radiate a maximum average radiant power of

4.75mw.(0.95mw for the model without “NX”) from the telescope, and 0.95mw from the center hole of the base plate.The user may be subject to this radiation as a beam while operation until such time that the instrument is turned off.

2) The following labels are affixed to and must remain attached to this laser product.

A) The following Certification label is located near the Plate level.:

“This laser product is complied with the provisions of 21 CFR 1040. 10 and 1040.11. For a Class II laser product.” Or for W-800NX models: “This laser product is complied with the provisions of 21 CFR 1040. 10 and 1040.11. For a Class IIIa laser product.”

B) Caution label is located near the exit aperture:

“AVOID EXPOSURE Laser radiation is emitted from this aperture.”

C) Warning logotype is located on the surface of the telescope:

“CAUTION LASER RADIATION DO NOT STARE INTO BEAM” Or for W-800NX models: “DANGER LASER RADIATION AVOID DIRECT EYE EXPOSURE”

D) Warning label is Located near the exit aperture.

3) Caution to maintain the safety in compliance with the standard

A) To maintain the safety standard, refrain from any operation,maintenance,or adjustment

other than described in this instruction manual.

B) Operation, maintenance or adjustment other than those specified in this instruction

manual may result in hazardous radiation exposure.

C) Maintenance and repair not covered in this manual must be done by an authorized Pentax dealer. D) How to activate/terminate the laser beam emission differs depending on application

software. For exact method of activating/terminating the following types of laser beam emission, refer to the instructions in the manuals of respective software.

1) Laser beam emission by the Distance measurement

2) Laser beam emission by the Laser pointer

3) Laser beam emission by the Laser plummet

PENTAX Industrial Instruments Co., Ltd.

2-5-2 Higashi-Oizumi

Nerima-Ku,Tokyo 178-8555, Japan

Tel.+81 3 5905 1222

Fax +81 3 5905 1225

E-mail: international@piic.pentax.co.jp

Web-Site: www.pentax.co.jp/piic/survey

www.pentaxsurveying.com

Printed in Belgium

Total Surveying Solutions

02.2007 W800-Quick01A

Member symbol of the Japan Surveying Instruments Manufacturers’ Association representing the high quality surveying products.

Japan Surveying Instruments Manufacturers’ Association

Pentax W-822NX, W-822EX, W-823NX, W-823EX, W-825NX QUICK REFERENCE GUIDE

Specifications and Main Features

Frequently Asked Questions

User Manual
