Pentax OPTIO M10 User Manual

Digital Camera

Operating Manual

To ensure the best performance from your camera, please read the Operating Manual before using the camera.

Thank you for buying the PENTAX Digital Camera.

Please read this manual before using the camera in order to get the most out of all the features and functions. Keep this manual safe, as it can be a valuable tool in helping you to understand all the camera’s capabilities.

Regarding copyrights

Images taken using the PENTAX Digital Camera that are for anything other than personal enjoyment cannot be used without permission according to the rights as specified in the Copyright Act. Please take care, as there are even cases where limitations are placed on taking pictures even for personal enjoyment du ring demonstrations, performances or of items on display. Images taken with the purpose of obtaining copyrights also cannot be used outside the scope of use of the copyright as laid out in the Copyright Act, and care should be taken here also.

Regarding trademarks

• PENTAX and Optio are trademarks of PENTAX Corporation.

• The SD logo is a trademark.

• QuickTime™ and QuickTime logo are trademarks used under license. The QuickTime logo is registered in U.S. and other countries.

• All other brands or product names are trademarks or registered trademarks of their respective owners.

To users of this camera

• There is a possibility that recorded data may be erased or that the camera may not function correctly when used in surroundings such as installations generating strong electromagnetic radiation or magnetic fields.

• The liquid crystal panel used in the LCD display is manufactured using extremely high precision technology. Although the level of functioning pixels is 99.99% or better, you should be aware that 0.01% or fewer of the pixels may not illuminate or may illuminate when they should not. However, this has no effect on the recorded image.

This product supports PRINT Image Matching III, PRINT Image Matching enabled digital still cameras, printers and software help photographers to produce images more faithful to their intentions. Some functions are not available on printers that are not PRINT Image Matching III compliant. Copyright 2001 Seiko Epson Corporation. All Right Reserved. PRINT Image Matching is a trademark of Seiko Epson Corporation. The PRINT Image Matching logo is a trademark of Seiko Epson Corporation.

Regarding PictBridge

PictBridge allows the user to connect the printer and digital camera directly, using the unified standard for the direct printout of images. You can print images directly from the camera through a few simple operations.

Regarding ImageLink

ImageLink and the ImageLink print system logo are trademarks of Eastman Kodak Company used under license.

• There is a possibility that the illustrations and the display screen of the LCD monitor in this manual are different form the actual product.

Regarding Product Registration

In order to better service you, we request that you complete the product registration, which can be found on the CD-ROM supplied with the camera or the PENTAX website. Thank you for your cooperation. Refer to the PC Connection Manual (bottom right of the front side) for more information.

FOR SAFE USE OF YOUR CAMERA

Sufficient attention has been paid to the safety of this product but please pay particular attention to the warnings indicated by the following symbols during use.

Warning

These symbols indicate that it is possible that the user may experience serious difficulties if the warnings are not heeded.

Caution

These symbols indicate that it is possible that the user may experience minor or middling difficulties or physical difficulties if the warnings are not heeded.

About the Camera

Warning

• Do not attempt to take the camera apart or remodel the camera. High voltages are present within the camera, and there is therefore a danger of electric shocks if the camera is taken apart.

• If the inside of the camera should become exposed as a result of, for example, the camera being dropped, please do not under any circumstances touch such exposed portions, as there is a danger of receiving an electric shock.

• To avoid the risk of it being swallowed by mistake, keep the SD Memory Card out of the reach of small children. Seek medical attention immediately if a card is accidentally swallowed.

• Wrapping the strap of the camera around your neck is also dangerous. Please take care that small children do not hang the strap around their necks.

• Use an AC adapter that is of the power and voltage specified for exclusive use with this product. The use of an AC adapter other than that specified exclusively for use with this product may cause fire or electric shocks.

• If the camera emits smoke or a strange smell, or in the event of any other irregularity, stop using the camera immediately, remove the batteries or unplug the AC adapter, and contact your nearest PENTAX Service Center. Continued use of the camera may result in fire or electric shock.

Caution

• Never try to disassemble or short the batteries. Also, do not dispose of the batteries in a fire, as they may explode.

• Do not charge any batteries other than rechargeable Ni-MH batteries. The batteries could explode or catch fire. Batteries for use with this camera other than Ni-MH batteries cannot be charged.

• Do not place your finger on the flash when it is discharging as there is a risk of burns.

• Do not discharge the flash while it is touching your clothing as there is a risk of discoloring.

• If any of the battery leakage should come in contact with your eyes, do not rub them. Flush your eyes with clean water and get medical attention immediately.

• If any of the battery leakage should come in contact with skin or clothes, wash the affected areas thoroughly with water.

• Remove the batteries from the camera immediately if it becomes hot or begins to smoke. Be careful not to burn yourself during removal.

• Some portions of the camera heat up during use, so please take care, as there is a risk of low temperature burns if such portions are held for long periods of time.

• Should the LCD be damaged, be careful of glass fragments. Also, be careful not to allow the liquid crystal to get on your skin or in your eyes or in your mouth.

Handling Precautions for Batteries

• This camera uses two AA alkaline, AA lithium, AA Ni-MH or AA nickel manganese batteries. Do not use batteries other than those specified here. Using some other type of battery may cause the camera to function poorly, or the batteries may rupture or cause a fire.

• AA alkaline, AA lithium and AA nickel manganese batteries cannot be recharged. Do not try to take the batteries apart. The batteries may rupture or leak if you try to charge them or take them apart.

• When replacing the batteries, do not combine different brands, types or capacities. Also, do not combine old batteries with new ones. Doing so may cause the batteries to rupture or cause a fire. Do not insert the batteries with the positive (+) and negative (–) poles in the

• wrong orientation. Doing so may cause the batteries to rupture or cause a fire.

About the AC Adapter

Caution

• Do not place heavy objects on the AC plug cord, allow heavy objects to drop onto it or allow the AC plug cord to become damaged due to excessive bending. If the AC plug cord becomes damaged, consult a PENTAX Service Center.

• Do not short or touch the output terminals of the product while it is still plugged in.

• Do not plug in the AC plug cord with wet hands. This can cause an electrical shock.

• Do not subject the product to strong impacts or allow it to drop onto a hard surface. This can cause a malfunction.

Care to be Taken During Handling

• Take the Worldwide Service Network listing that is included in the package with you when traveling. This will be useful if you experience problems abroad.

• When the camera has not been used for a long time, confirm that it is still working properly, particularly prior to taking important pictures (such as at a wedding or during traveling). Contents of the recording cannot be guaranteed if recording, playback or transferring your data to a computer, etc. is not possible due to a malfunction of your camera or recording media (SD Memory Card), etc.

• The lens on this camera is not interchangeable. The lens is not removable.

• Do not clean the product with organic solvents such as thinner, alcohol or benzene.

•

Places of high temperature and humidity should be avoided. Particular care should be taken regarding vehicles, which can become very hot inside.

• Storing the camera where pesticides and chemicals are handled should be avoided. Remove from case and store in a well-ventilated place to prevent the camera from becoming moldy during storage.

• As this camera is not waterproof, do not use the camera where it may come in contact with rain, water or any other liquid.

• Ensure that the camera is not subjected to substantial vibrations, shock, or pressure. Use a cushion to protect the camera when it is subjected to the vibrations of a motorbike, car, ship, etc.

• The temperature range in which the camera can be used is 0°C to 40°C (32°F to 104°F).

• The liquid crystal display will become black at a high temperature but will return to normal when normal temperatures are returned to.

•

The response speed of the liquid crystal display becomes slow at low temperatures. This is due to the properties of the liquid crystal and is not a fault.

• Periodic checks are recommended every 1 to 2 years in order to maintain high performance.

• If the camera is subjected to rapid temperature changes, condensation may form on the inside and outside of the camera. Therefore put the camera in a bag or plastic bag, and take the camera out when the difference in temperature has subsided.

• Be careful not to allow dirt, mud, sand, dust, water, toxic gases or salt to enter the camera as this may damage the camera. Wipe away any raindrops or water droplets and allow the camera to dry.

• Refer to “Precautions When Using an SD Memory Card” (p.28) regarding the SD Memory Card.

• Please note that formatting an SD memory card or built-in memory will delete all data; however it may still be possible to recover that data using off-the-shelf data recovery software. Please manage your camera’s memory at your own risk.

• Please do not press forcefully on the LCD monitor. This could cause breakage or malfunction.

• Be careful not to sit down with the camera in your back pocket as this may damage the exterior of the camera or the LCD monitor.

• When using a tripod with the camera, be careful not to overtighten the screw in the tripod socket on the camera.

FOR SAFE USE OF YOUR CAMERA .............................................1

Care to be Taken During Handling ...................................................3

Contents ...........................................................................................5

Composition of the Operating Manual ............................................11

Camera Features.................................................................................12

Checking the Contents of the Package ..........................................14

Names of Parts...............................................................................15

Names of Operating Parts..............................................................16

Monitor Indications .........................................................................16

Getting Started 19

Attaching the Strap.............................................................................19

Powering the Camera .........................................................................20

Installing the Batteries ....................................................................20

Using the AC Adapter with a Household Power Supply ................. 23

Using the AC Adapter Abroad ........................................................24

Installing the SD Memory Card..........................................................26

Recorded Pixels and Quality Level of Still Pictures........................29

Recorded Pixels and Frame Rate of Movies .................................. 31

Turning the Camera On and Off ........................................................32

Playback Only Mode.......................................................................33

Initial Settings .....................................................................................34

Setting the Display Language.........................................................34

Setting the Date and Time ..............................................................36

Quick Start 38

Taking Still Pictures............................................................................38

Playing Back Still Pictures.................................................................40

Playing Back Images ......................................................................40

Playing Back the Previous or Next Image ......................................40

Rotating the Displayed Image ........................................................41

Common Operations 42

Understanding the Button Functions ...............................................42

A Mode .........................................................................................42

Q Mode ........................................................................................44

Setting the Camera Functions...........................................................46

Setting with the Menus ...................................................................46

Menu List ........................................................................................49

Setting the Shooting Mode .............................................................51

Setting the Playback Mode.............................................................55

Taking Pictures 57

Taking Pictures ...................................................................................57

Letting the Camera Choose the Optimal Settings

(Program Mode) .............................................................................57

Taking Pictures in the Basic Mode (Green Mode) ..........................58

Taking Pictures of Dark Scenes (Night Scene/Fireworks Mode)....60

Taking Pictures of Your Pet (Pet Mode) ......................................... 61

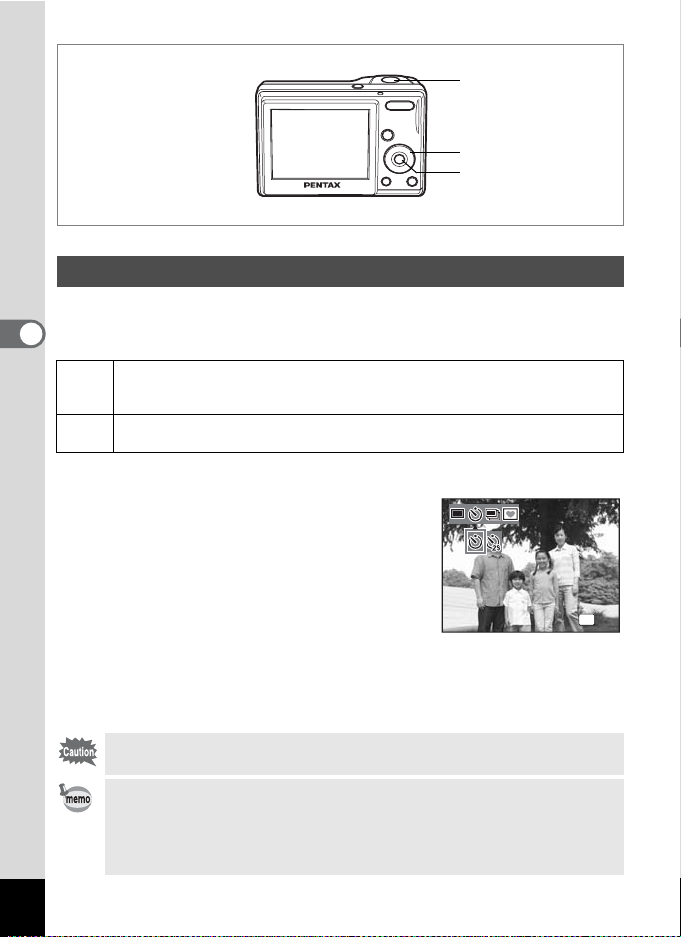

Using the Self-timer........................................................................62

Taking a Series of Pictures.............................................................63

Framing Your Pictures....................................................................64

Using the Zoom ..............................................................................66

Setting the Exposure (EV Compensation) ...................................... 68

Displaying Shooting Information in Capture Mode .........................69

Setting the Shooting Functions.........................................................71

Selecting the Focus Mode ..............................................................71

Selecting the Flash Mode...............................................................73

Selecting the Recorded Pixels........................................................75

Selecting the Quality Level.............................................................77

Adjusting the White Balance...........................................................78

Changing the Focusing Area..........................................................80

Setting the Sensitivity .....................................................................81

Setting the Instant Review Time (Instant Review)..........................82

Setting the Image Sharpness (Sharpness).....................................83

Setting the Color Saturation (Saturation)........................................84

Setting the Image Contrast (Contrast)............................................85

Saving the Settings (Memory) ...........................................................86

Recording Movies...............................................................................88

Recording a Movie..........................................................................88

Selecting the Recorded Pixels for Movies ...................................... 90

Recording Movies in Black and White or Sepia Tones

(Color Mode)...................................................................................91

Selecting the Frame Rate...............................................................92

Playing Back and Deleting Images 93

Playing Back Images ..........................................................................93

To Switch Between A Mode and Q Mode ..................................93

Playing Back Still Pictures..............................................................93

Nine-Image Display and Folder Display .........................................94

Zoom Playback...............................................................................96

Displaying Shooting Information in Playback Mode .......................98

Slideshow .......................................................................................99

Playing Back Movies ........................................................................101

Playing Back a Movie ...................................................................101

Connecting the Camera to AV Equipment...................................... 102

Deleting Images ................................................................................103

Deleting Single Images/Sound Files.............................................103

Deleting Selected Images and Sound Files

(from Nine-Image Display)............................................................105

Deleting All Images.......................................................................107

Protecting Images and Sound Files from Deletion (Protect) ........108

Editing and Printing Images 110

Editing Images ..................................................................................110

Changing the Image Size and Quality (Resize)............................110

Trimming Images..........................................................................112

Copying Images and Sound Files.................................................113

Setting the Printing Service (DPOF)................................................115

Printing Single Images..................................................................115

Printing All Images........................................................................117

Printing Using PictBridge ................................................................118

Connecting the Camera to the Printer..........................................118

Printing Single Images..................................................................119

Printing All Images........................................................................121

Printing Using the DPOF Settings ................................................122

Disconnecting the Cable from the Printer.....................................122

Printing Using ImageLink..............................................................123

Recording and Playing Back Sound 124

Recording Sound (Voice Recording Mode)....................................124

Playing Back Sound .........................................................................126

Adding a Voice Memo to Images.....................................................127

Recording a Voice Memo .............................................................127

Playing Back a Voice Memo.........................................................128

Settings 129

Camera Settings................................................................................129

Formatting an SD Memory Card or the Built-in Memory ..............129

Changing the Sound Settings .......................................................130

Changing the Start-up Screen ......................................................132

Changing the Date and Time........................................................133

Changing the Display Language ..................................................135

Changing the Image Folder Name ...............................................136

Changing the USB Connection Mode...........................................137

Changing the Video Output Format..............................................138

Automatically Adjusting the Brightness of the LCD Monitor

(Auto LCD Dimmer) ......................................................................139

Setting Auto Power Off.................................................................140

Resetting to Default Settings (Reset) ...........................................141

Appendix 142

Default Settings.................................................................................142

Functions Available for Each Shooting Mode................................145

Optional Accessories .......................................................................146

Messages...........................................................................................147

Troubleshooting................................................................................149

Main Specifications ..........................................................................151

WARRANTY POLICY.........................................................................155

Index...................................................................................................160

The meanings of the symbols used in this operating manual are explained below.

A mode

Q mode

A, R, A, C, O, q, <, I,

i, \, Q, E,

X, y, >, D

indicates the reference page number for an explanation of the related operation.

indicates information that is useful to know.

indicates precautions to be taken when operating the camera.

This is the mode for capturing still pictures and recording movies and sound files. In this manual, the mode for taking still pictures is referred to as the “Still Picture Capture Mode”, the mode for recording movies is referred to as the “C mode” and the mode for recording sound files is referred to as the “O mode”.

This is the mode for viewing still pictures and playing back movies and sound files.

The icons above the title show the shooting modes that can activate the function. Ex.

Setting the Image Sharpness (Sharpness)

R C

Memo

Composition of the Operating Manual

This operating manual contains the following chapters.

1 Getting Started –––––––––––––––––––––––––––––––––––––––––

This chapter explains what you need to do after purchasing the camera before you start taking pictures. Be sure to read it and follow the instructions.

2 Quick Start ––––––––––––––––––––––––––––––––––––––––––––

This chapter explains the simplest way to take pictures and play back images. Use it if you want to start taking pictures or playing back images straightaway.

3 Common Operations ––––––––––––––––––––––––––––––––––––

This chapter explains common operations such as the functions of the buttons and how to use the menus. For more details, refer to the respective chapters below.

4 Taking Pictures ––––––––––––––––––––––––––––––––––––––––

This chapter explains the various ways of capturing images and how to set the relevant functions.

5 Playing Back and Deleting Images–––––––––––––––––––––––––

This chapter explains how to view still pictures and movies on the camera or on a TV and how to delete images from the camera.

6 Editing and Printing Images ––––––––––––––––––––––––––––––

This chapter explains the various ways of printing still pictures and how to edit images with the camera. Refer to the PC Connection Manual for instructions on saving images to a computer and installing ACDSee for PENTAX, and refer to ACDSee for PENTAX Help for instructions on editing and printing images with a computer.

7 Recording and Playing Back Sound –––––––––––––––––––––––

This chapter explains how to record sound files or add sound (a voice memo) to an image, and how to play back sound files.

8 Settings –––––––––––––––––––––––––––––––––––––––––––––––

This chapter explains how to set the camera-related functions.

9 Appendix––––––––––––––––––––––––––––––––––––––––––––––

This section deals with troubleshooting and lists the optional accessories.

Camera Features

In addition to basic picture-taking, the Optio M10 has a variety of shooting modes to suit different situations. This section describes how to make the most of the key features of your camera. Together with the explanations of camera operations, it will enable you to enjoy your camera to the full.

Easy-to-Navigate Capture and Playback Functions!

The user-friendly design of the Optio M10 enables easy operation with only a few buttons. Simply by choosing the appropriate icon, you can select Shooting mode (p.51) and choose the optimal settings for the situation, or Playback mode (p.93, p.110) and enjoy the various playback and editing functions. Use the Capture Mode Palette in Capture mode to choose from 15 shooting modes. Capture still images, video and audio of your frolicking puppy, a beautiful fireworks display and other special moments. A guide on the LCD monitor lets you check the functions available in each mode and how to use them. (p.56)

Let the camera choose the optimal settings. Use the Green Mode to take pictures easily using

standard settings. (p.58)

Press the Green button while the Mode Palette is

displayed to display the guide. (p.56)

Choose a Frame Before Taking the Picture!

The Optio M10 lets you choose a frame and display it on the screen before you take the picture, so you can be sure that the frame complements your subject perfectly. (p.64)

For decorating your pictures

with a frame.

Easy Printing without Using a Computer!

By connecting the camera to a printer that supports PictBridge using the USB cable, you can print images directly from the camera. In addition, by placing the supplied dock insert onto a Kodak EasyShare Printer Dock and then placing the camera on the printer dock, anyone can enjoy easily printing out images with the touch of a single button. Gone are the days of not being able to print out pictures at home because operating the computer was too difficult!

Easily print out images without using a computer.

Checking the Contents of the Package

Camera

Optio M10

Software (CD-ROM)

S-SW48

Two AA

alkaline batteries

Strap

O-ST51 (*)

USB cable

I-USB7 (*)

PC Connection Manual Operating Manual

Dock insert

O-DI51

AV cable

I-AVC7 (*)

(this manual)

Items marked with an asterisk (*) are also available as optional accessories. For other optional accessories, refer to “Optional Accessories” (p.146).

Names of Parts

Front

Back

Strap lug

Shutter release button

Ambient light sensor Power switch

Power switch

Flash Self-timer lamp (red)

Lens

Microphone

DC coupler cable cover

LCD monitor

ImageLink Terminal

Battery/card cover

Tripod socket

Speaker

PC/AV terminal

Names of Operating Parts

03/25/2006

14:25

+1.0

Power switch

Shutter release button

Zoom/w/x/f/y button

Q button

Four-way controller

4/W button Green/i button

3 button

Refer to Understanding the Button Functions (p.42 - p.45) for an explanation of the function of each button.

Monitor Indications

Normal Display in Still Picture Capture Mode

The display shows information such as the shooting conditions.

7 1 2 3 4

383838

03/25/2006

+1.0

14:25+1.0

14:25

11 12

Shooting mode (p.51)

F3.3

1/250

+1.0

200

ISO

Flash mode (p.73)

Drive mode (p.62, p.63, p.64)

Focus mode (p.71)

Camera shake icon (p.69)

Digital zoom icon (p.66)

Memory status (p.32)

Remaining image storage

capacity Battery indicator (p.22)

Focus frame (p.38)

EV compensation (p.68)

Date and time (p.36)

+ : Built-in memory

(without card)

a : SD Memory Card r : Card is write-protected

Full Display in Still Picture Capture Mode

1 2

1/250

1/250 F3.3

F3.3

+1.0

ISO

383838

200

5 6 7 8

Bright portion (blinks red)

Dark portion (blinks yellow)

Shutter speed

Aperture

Recorded pixels (p.75)

Quality (p.77)

White balance (p.78)

Sensitivity (p.81)

Histogram (p.70)

About the Bright and Dark Portions

When there is an area in the frame that is so bright it appears white, the indicated area blinks red as a warning. Similarly, when there is an area that is so dark it appears black, the indicated area blinks yellow as a warning.

Full Display in Still Picture Playback Mode

F3.3

1/250

03/25/2006

100

0038

14:25

200

ISO

(All of the display items are displayed here for explanatory purposes.)

The display shows information such as the shooting conditions. A1 to A11 appear when [Normal Display] or [Histogram + Info] is selected. B1 to B9 only appear when [Histogram + Info] is selected. (p.98)

A11

A1 B1 B2

B3 B4

ISO

1/250

F3.3

Playback mode (p.55)

Folder number (p.136)

File number

Protect icon (p.108)

Voice memo icon (p.128)

Battery indicator (p.22)

Volume icon (p.128)

Memory status (p.32)

+ :

Built-in memory (without card)

a : SD Memory Card r : Card is write-protected Captured date and time (p.36)

200

100

100-0038

0038

03/25/2006

14:25

Four-way controller guide

A10

Key lock icon (p.58)

A11

Bright portion (blinks red)

(p.17) Recorded pixels (p.75)

Quality (p.77)

White balance (p.78)

Sensitivity (p.81)

Dark portion (blinks yellow)

(p.17) Shutter speed

Aperture

Histogram (p.70)

A2 A3

A4 A5

A6 A7 A8

A10

In Normal Display, A6 and A9 disappear if no operation is performed in two seconds.

Guide Indications

A guide to available button operations appears on the LCD monitor during operation. The buttons are indicated as shown below.

Four-way controller (2) 2 Zoom button Four-way controller (3) 3 Four-way controller (4) 4 Shutter release button Four-way controller (5) 5 3 button

4/W button

Green/i button |,

SHUTTER

Getting Started

Attaching the Strap

Attach the strap (O-ST51) supplied with the camera.

1 Pass the narrow end of the strap through the strap lug. 2 Pass the other end of the strap through the loop and

pull tight.

Getting Started

Powering the Camera

Getting Started

Installing the Batteries

Install the batteries into the camera. Use two AA alkaline, AA lithium, AA Ni-MH, or AA nickel manganese batteries.

1 Open the battery/card cover.

Pull the battery/card cover in the direction of 1 and flip the cover open in the direction of 2.

2 Insert the batteries, making sure the (+) and (–) on the

batteries match the (+) and (–) inside the battery compartment.

3 Close the battery/card cover and slide it back into

place.

• Use the AC adapter kit K-AC51 (optional) if you intend to use the camera for a long time. (p.23)

• AA alkaline, AA lithium and AA nickel manganese batteries are not rechargeable.

• Do not open the battery/card cover or remove the batteries while the camera is turned on.

• If you do not intend to use the camera for a long time, remove the batteries. If the batteries are left in the camera for a long time, they may leak.

• If the batteries have been removed from the camera for a long time, when they are reinserted and the camera is turned on, the message [Battery depleted] may appear. This can also happen when using the camera for the first time; however this is not a malfunction. Wait a minute and then turn the camera on again to reset the camera. The date and time may also be reset.

• Insert the batteries correctly. If the batteries are incorrectly oriented, malfunction may result. Wipe the ends of the batteries and insert them into the camera.

• Image Storage Capacity, Movie Recording Time, Sound Recording Time, and Playback Time

(at 23°C with the LCD monitor on and fresh batteries inserted)

The number of recordable images and playback time for different types of batteries.

Battery Type

AA lithium

batteries

AA NiMH

batteries

AA nickel

manganese

batteries

AA alkaline

batteries


Storage

Capacity*

900 pictures 310 min. 1340 min. 850 min.

640 pictures 230 min. 740 min. 660 min.

430 pictures 120 min. 540 min. 490 min.

220 pictures 90 min. 430 min. 380 min.

Movie

Recording

Time*

*1: Recording capacity shows approximate number of shots recorded during

CIPA-compliant testing (with LCD monitor on, flash used for 50% of the shots, and 23 degrees centigrade). Actual performance may vary according to operating conditions.

*2: According to the result of in-house testing.

Sound

Recording

Time*

Playback

Time*

Getting Started

• In general, battery performance may temporarily deteriorate as the temperature decreases. Be sure to take spare batteries when using the camera in a cold region and keep the batteries warm by

Getting Started

placing them in your pocket or inside your coat. Battery performance that has deteriorated due to cold temperature will return to normal performance when the batteries reach room temperature.

• Due to their characteristics, AA alkaline batteries may not allow the camera to make full use of its capabilities, and therefore they are not recommended except for emergency use.

• Due to their characteristics, AA alkaline batteries and nickel manganese batteries may not allow the camera to make full use of its capabilities when used at cold temperatures. Use of AA lithium batteries is recommended when the camera is used at cold temperatures.

• Be sure to take spare batteries with you when traveling abroad or to a cold region, or if you intend to take a lot of pictures.

• Battery Level Indicator

You can check the battery level by the w indicator on the LCD monitor.

Screen Display Battery Status

(green) Adequate power remains.

(green) Batteries are running low.

(yellow) Batteries are running very low.

(red) Batteries are exhausted.

[Battery depleted] The camera will turn off after this message appears.

Due to the characteristics of AA nickel manganese batteries, the battery level may not be displayed correctly when using these batteries. # may be displayed for the battery level even if the batteries are running low. The camera may also turn off without warning even if # is displayed.

AC plug cord

AC adapter

DC terminal

DC coupler cable cover

DC coupler

DC coupler cable

DC input terminal

Using the AC Adapter with a Household Power Supply

Use of the AC adapter kit K-AC51 (optional) with a household power supply is recommended if you intend to use the camera for a long time or connect it to a computer. (The AC adapter kit K-AC51 includes AC adapter D-AC5, DC coupler D-DC51, and AC plug cord D-CO2.)

1 Connect the DC terminal of the AC adapter to the DC

input terminal of the DC coupler.

2 Make sure that the camera is turned off and open the

battery/card cover.

Pull the battery/card cover in the direction of 1 and flip the cover open in the direction of 2.

3 Insert the DC coupler into the battery compartment,

making sure the (+) and (–) on the coupler match the (+) and (–) on the battery compartment.

4 Open the DC coupler cable cover, pass the DC coupler

cable through the opening, and close the battery/card cover.

Slide the battery/card cover in the opposite direction of 1. Slide the battery/card cover all the way in to make sure it is securely closed.

5 Connect the AC plug cord to the AC adapter. 6 Plug the AC plug cord into the power outlet.

Getting Started

• Make sure that the camera is turned off before connecting or disconnecting the AC adapter.

• Make sure that the AC plug cord and the power cord connecting the AC adapter to the camera are inserted securely. The data may

Getting Started

become lost if either cord becomes disconnected while data is being recorded.

• Use the AC adapter with due care to avoid fire or electric shock. Be sure to read “FOR SAFE USE OF YOUR CAMERA” (p.1) before using the AC adapter.

• Be sure to read the operation manual accompanying the AC adapter kit K-AC51 before using the adapter.

Using the AC Adapter Abroad

The AC adapter kit K-AC51 (optional) is designed to switch automatically to the voltage (100-240V) and frequency (50Hz, 60Hz) of the electricity supply in the country or region where used. However, electrical socket shapes differ from country to country. Before traveling abroad, you are advised to check the socket shape in the country of your destination (see “Main Socket Types in the Major Countries and Regions of the World” (p.25)) and take an appropriately shaped adapter plug with you.

Adapter plug

•

Use of an off-the-shelf transformer may lead to defective operation.

• Unplug the adapter plug from the power outlet when not in use.

Type

Adapter

Shape

plug

A B BF C S

—

Main Socket Types in the Major Countries and Regions of the World

North America U.S.A., Canada

Europe, Former Soviet Union

Asia Taiwan, Japan 9

Oceania Australia, Tonga, New Zealand, Fiji 9

Central and South America

Middle East Israel, Iran 9

Africa Canary Islands, Guinea, Mozambique, Morocco 9

Iceland, Ireland, Italy, Ukraine, Austria, Netherlands, Kazakhstan, Greece, Sweden, Denmark, Germany, Nor way, Hungary, Finland, France, Belarus, Belgium, Rumania, Russia

U.K. 99 Spain 99 Switzerland, Poland, Portugal 99

Sri Lanka, Maldives 9 Nepal, Bangladesh, Mongolia 9 Vietnam 99 India, Indonesia, Pakistan, Macau 99 Thailand 999 Korea 99 9 Philippines 999 Singapore, Hong Kong 99 China 99999 Malaysia 999

Guam 9 Tahiti 9

Colombia, Jamaica, Haiti, Panama, Bahamas, Puerto Rico, Venezuela, Mexico

Brazil, Peru 99 Chile 99 Argentina 999

Kuwait 99 Jordan 99

Kenya, South Africa 99 Algeria 999 Egypt 999 Zambia, Tanzania 99

A B BF C S

Getting Started

Installing the SD Memory Card

Getting Started

SD Memory Card socket

SD Memory Card

This camera uses an SD Memory Card. Captured images and sound files are saved on the SD Memory Card if a card is inserted in the camera. They are saved in the built-in memory if a card is not inserted. (p.32)

• Be sure to use this camera to format an SD Memory Card that

is unused or has been used on another camera. Refer to “Formatting an SD Memory Card or the Built-in Memory” (p.129) for instructions on formatting.

• Make sure that the camera is turned off before inserting or removing the SD Memory Card.

The still picture storage capacity varies depending on the capacity of the SD Memory Card and the selected number of recorded pixels and quality level. (p.29)

Backing Up Data

The camera may not be able to access data in the built-in memory in the case of a malfunction. Use a computer or other device to back up important data in another location.

1 Open the battery/card cover.

Pull the battery/card cover in the direction of 1 and flip the cover open in the direction of 2.

2 Insert the SD Memory Card into the SD Memory Card

socket so that the label is facing toward the LCD monitor.

Push the card in until it clicks. Images and sound may not be recorded correctly if the card is not inserted all the way.

3 Close the battery/card cover and slide it back into

place.

Removing the SD Memory Card

1 Open the battery/card cover. 2 Push the card into the SD Memory Card socket to eject

it.

Pull the card out.

Getting Started

Precautions When Using an SD Memory Card

•

The SD Memory Card is equipped with a write-protect switch. Setting the switch to LOCK protects the existing data by prohibiting recording of new data, deletion

of existing data or formatting of the card.

Getting Started

appears on the LCD monitor when the

card is write-protected.

• Care should be taken when removing the SD Memory Card immediately after using the camera, as the card may be hot.

• Do not remove the SD Memory Card or turn the camera off while data is being saved to the card, images or sound files are being played back, or the camera is connected to a computer with the USB cable, as this may cause the data to be lost or the card to be damaged.

• Do not bend the SD Memory Card or subject it to violent impact. Keep it away from water and store away from high temperature.

• Do not remove the SD Memory Card during formatting as this may damage the card and render it unusable.

• The data on the SD Memory Card may be deleted in the following circumstances. PENTAX does not accept any liability for data that is deleted (1) when the SD Memory Card is mishandled by the user. (2) when the SD Memory Card is exposed to static electricity or electrical

interference. (3) when the card has not been used for a long time. (4) when the card is ejected or the batteries are removed while the data on

the card is being recorded or accessed.

• The SD Memory Card has a limited service life. If it is not used for a long time, the data on the card may become unreadable. Be sure to regularly make a backup of important data on a computer.

• Avoid using or storing the card where it may be exposed to static electricity or electrical interference.

• Avoid using or storing the card in direct sunlight or where it may be exposed to rapid changes in temperature or to condensation.

• When using an SD Memory Card with a slow recording speed, recording may stop while you are taking movies even when there is adequate space in the memory, or shooting and playback may take a long time.

• For information on compatible SD Memory Cards, visit the PENTAX website or contact your nearest PENTAX Service Center.

Write-protect switch

Recorded Pixels and Quality Level of Still Pictures

Choose the number of pixels (size) and quality level (data compression rate) of still pictures according to how you intend to use the pictures you have taken. Higher quality levels and numbers of pixels produce clearer images, but the resulting increase in data volume reduces the total number of pictures that can be taken (stored in the camera's built-in memory or on the SD Memory Card). The quality of the captured photo or printed picture also depends on the quality level, exposure compensation, resolution of the printer and a variety of other factors, so you do not need to select more than the required number of pixels. As a rough guide, i (1600×1200) is adequate for making postcard-size prints. Refer to the table below for the appropriate settings according to use.

Appropriate Number of Recorded Pixels According to Use

Recorded Pixels Use

P 2816×2112

f 2560×1920

g 2304×1728

h 2048×1536

i 1600×1200

l 1024× 768

m 640× 480

The default setting is P (2816×2112).

Appropriate Quality Level According to Use

The default setting is D (Better).

Best Lowest compression rate. Suitable for photo prints.

Better

Good

Choose the appropriate number of recorded pixels and quality level for still pictures on the [A Rec. Mode] menu.

Selecting the Recorded Pixels 1p.75

For printing high quality photos or A4-size pictures, or editing images on a PC.

Clearer

For making postcard-size prints.

For posting on a website or attaching to e-mail.

Standard compression rate. Suitable for viewing the image on a computer screen.

Highest compression rate. Suitable for posting on a website or attaching to e-mail.

Getting Started

Selecting the Quality Level 1p.77

Recorded Pixels, Quality Level and Image Storage Capacity

(Approximate numbers of pictures)

C (Best) D (Better) E (Good)

Getting Started

P 2816×2112

f 2560×1920 g 2304×1728 h 2048×1536 i 1600×1200 l 1024× 768 m 640× 480

Built-in

Memory

128MB

7 41148322124

8 49179524137

11 62 22 124 31 178

13 77 27 153 40 223

22 124 37 206 54 301

43 244 74 412 93 522

87 489 127 712 175 979

• The above figures may vary depending on the subject, shooting conditions, shooting mode and SD Memory Card, etc.

Built-in

Memory

128MB

Built-in

Memory

128MB

Recorded Pixels and Frame Rate of Movies

Choose the recorded pixels and frame rate (number of frames per second) according to how you intend to use the movies you have taken. The higher the number of recorded pixels, the clearer the details, but the bigger the file size. The more frames per second, the better the quality of the movie, but the bigger the file size. Choose the appropriate number of recorded pixels and frame rate in [Movie] on the [A Rec. Mode] menu.

Selecting the Recorded Pixels for Movies 1p.90

Selecting the Frame Rate 1p.92

Appropriate Number of Recorded Pixels According to Use

(320×240)

(160×120)

The default setting is D (320×240).

Appropriate Frame Rate According to Use

30fps

15fps

The default setting is 30fps (frames per second).

Recorded Pixels, Frame Rate and Recording Time

D 320×240 33 sec.

E 160×120

• The above figures are based on PENTAX standard shooting conditions and may vary depending on the subject, shooting conditions and type of SD Memory Card used.

Suitable for viewing the movie on a computer.

File size is smaller, but total recording time is increased. Suitable for posting on a website or attaching to e-mail.

Produces high quality movies, but reduces the total recording time.

Increases the total recording time because the file size is smaller.

(Approximate recording time)

30fps 15fps Sound

Built-in

Memory

2 min.

7 sec.

128MB

3 min. 6 sec.

11 min. 51 sec.

Built-in

Memory

1 min. 3 sec.

3 min.

54 sec.

128MB

5 min.

55 sec.

21 min. 45 sec.

Built-in

Memory

47 min. 57 sec.

128MB

4 hr. 27 min. 19 sec.

Getting Started

Turning the Camera On and Off

03/25/2006

14:25

Getting Started

Press the power switch.

The camera turns on and the LCD monitor turns on. When you turn the camera on, the lens cover opens and the lens extends. If the Language Selection screen or Date Adjust screen appears when you turn the camera on, follow the procedure on p.34 to set the display language and/or current date and time.

Power switch

2 Press the power switch again.

The camera and the LCD monitor turn off and the lens closes.

Taking Pictures 1p.57

Checking the Memory Card

The memory card is checked automatically

when the camera turns on.

appears on the LCD monitor when there is no SD Memory Card inserted in the camera. In this case, images and sound files will be saved in the built-in memory.

appears instead of a when the write-protect switch on the SD Memory Card is in the locked position. Images and sound cannot be recorded when the write-protect switch is locked.

If the batteries have been removed from the camera for a long time, when they are reinserted and the camera is turned on, the message [Battery depleted] may appear. This can also happen when using the camera for the first time; however this is not a malfunction. Wait a minute and then turn the camera on again to reset the camera. The date and time and other settings may also be reset. Follow the procedure on p.36 to set these settings again.

Memory status

383838

03/25/2006

14:25

Power switch

Q button

Playback Only Mode

Playback Only Mode is the Playback Mode when the lens is closed. Use this mode when you want to play back an image or sound file straightaway without taking any more pictures. Pressing the shutter release button does not change the mode to A mode.

Press the power switch while holding down the Q button.

The LCD monitor turns on while the lens is closed and the camera turns on in Playback Only Mode.

• To switch from Playback Only Mode to A mode, turn the camera

off and then turn it on again.

• In Capture Mode, press the Q button for more than two seconds.

The camera switches to Playback Mode and the lens closes. This mode is different than Playback Only Mode, and if you press the Q button again or press the shutter release button, the camera switches to Capture Mode.

Playing Back Still Pictures 1p.40

Getting Started

Initial Settings

Set the language, time, and date after purchasing the camera before you start taking pictures.

Getting Started

The Language Selection screen appears when the camera is turned on for the first time. Perform the operations in “Setting the Display Language” below to set the language, and in “Setting the Date and Time” (p.36) to set the current date and time. Go to “Setting the Date and Time” (p.36) when the Date Adjust screen appears.

Language, Date, and Time can be changed. Refer to the pages below for instructions.

• To change the language, follow the steps in “Changing the Display

Language” (1p.135).

• To change the date and time, follow the steps in “Changing the Date

and Time” (1p.133).

Setting the Display Language

Power switch

Four-way controller

4 button

3 button

1 Use the four-way controller

(2345) to choose the display language.

2 Press the 4 button.

The Date Adjust screen appears. Next, set the date style and the current date and time using the steps in “Setting the Date and Time” (p.36-37).

English Francais Deutsch Español Italiano Svenska

Cancel

Nederlands

If the 4 button was accidentally pressed in another language, perform the following operation to set the language back.

1 Press the 4 button once. 2 Press the 3 button. 3 Press the four-way controller (5). 4 Use the four-way controller (23) to select

[Language/ ].

5 Press the four-way controller (5).

The Language/ screen appears.

6 Use the four-way controller (2345) to select the

language.

7 Press the 4 button.

The [u Setting] screen for the set language appears.

The language is now switchend to your desired language. Date and time are set to correspond to the language mistakenly set previously. Follow the steps in “Changing the Date and Time” (p.133) to set the current date and time.

Getting Started

Setting the Date and Time

Set the current date and time and the display style.

1 Press the four-way controller (5).

Getting Started

The frame moves to [mm/dd/yy].

2 Use the four-way controller (23)

to choose the date and time display style.

Date Adjust

Date Style mmdd yy Date 01/01/2006 Time

Cancel

0:00

24h

3 Press the four-way controller (5).

The frame moves to [24h].

4 Use the four-way controller (23)

to select [24h] (24-hour display) or [12h] (12-hour display).

5 Press the four-way controller (5).

The frame returns to [Date Style].

6 Press the four-way controller (3).

The frame moves to [Date].

7 Press the four-way controller (5).

The frame moves to the month.

8 Use the four-way controller (23)

to change the month.

Change the day and year in the same manner. Next, change the time. If you selected [12h] in Step 4, the setting switches between am and pm corresponding to the time.

Date Adjust

Date Style mmdd yy Date 01/01/2006 Time

Cancel

Date Adjust

Date Style mmdd yy Date 01/01/2006 Time

Cancel

Date Adjust

Date Style mmdd yy Date 01/01/2006 Time

Cancel

0:00

24h

9 Press the 4 button.

The camera returns to capture status.

Language, Date and Time can be changed. Refer to the pages below for instructions.

• To change the language, follow the steps in “Changing the Display

Language” (1p.135).

• To change the date and time, follow the steps in “Changing the Date

and Time” (1p.133).

When the Initial Setting or Date Adjust screen is displayed, you can cancel the setting operation and switch to Capture mode by pressing the 3 button. In this case, the Initial Setting screen will appear next time you turn the camera on.

If you press the 4 button in Step 9, the camera clock is reset to 00 seconds. To set the exact time, press the 4 button when the time signal (on the TV, radio, etc.) reaches 00 seconds.

The video output format is set to the format of the country or region selected in [Language/ ] on the Initial Setting screen. You can change the setting. (p.138)

Getting Started

Quick Start

03/25/2006

14:25

Taking Still Pictures

Power switch Shutter release button

Zoom/w/x button

Quick Start

The standard procedure for taking still pictures is described below. The flash fires automatically depending on the light conditions.

1 Press the power switch.

The camera turns on and is ready to take still pictures. In this manual, this is called Still Picture Capture Mode.

2 Confirm the subject and shooting

information on the LCD monitor.

The focus frame in the middle of the LCD monitor indicates the zone of automatic focusing. You can change the captured area by pressing the Zoom/w/x button to the left or right.

x : enlarges the subject w : widens the area that is captured by the camera

Focus frame

3 Press the shutter release button halfway.

The focus frame on the LCD monitor turns green if the subject is in focus.

4 Press the shutter release button fully.

The picture is taken. The image appears on the LCD monitor for one second (Instant Review) and is saved to the SD Memory Card or built-in memory. (p.39)

383838

03/25/2006

14:25

Press the Green button to switch to the Green Mode and let the camera set all the shooting functions automatically. Selecting the Green Mode is the easiest way to ensure that pictures come out well. (p.58)

Using the Shutter Release Button

The shutter release button works in a two-step action as follows.

Press halfway

The focus and exposure are locked when the shutter release button is pressed halfway. The green focus frame lights on the LCD monitor when the shutter release button is pressed halfway and the subject is in focus. If the subject is out of focus, the frame will light red.

Press fully

Press the shutter release button all the way down to take the picture.

[Poor focusing conditions]

The camera may not be able to focus under the following conditions. In this case, lock the focus on an object the same distance away as the subject (by pressing the shutter release button halfway), then aim the camera at your subject and press the shutter release button fully.

• Objects that lack contrast such as a blue sky or white wall

• Dark places or objects, or conditions that prevent light being reflected back

• Horizontal lines or intricate patterns

• Fast moving objects

• When there is an object in the foreground and an object in the background in the same picture

• Strongly reflected light or strong backlighting (bright background)

Instant Review

The image appears on the LCD monitor for one second (Instant Review) immediately after it is captured. You can change the Instant Review time. (p.82) You can delete the image during Instant Review by pressing the

i button.

Quick Start

03/25/2006

14:25

100

0038

Playing Back Still Pictures

Shutter release button

Quick Start

Playing Back Images

Press the Q button after taking a

picture.

The image appears on the LCD monitor. In this manual, this is called Q mode (Playback mode). Displaying one image in full in Q mode (Q mode default setting) is called single-image display. Press the Q button again in Q mode or press the shutter release button halfway to switch to A mode.

Playing Back the Previous or Next Image

1 Press the Q button after taking a picture.

The image appears on the LCD monitor.

2 Press the four-way controller (45).

The previous or next image appears.

Q button Four-way controller

File number

100

100-0038

03/25/2006

14:25

0038

3 button

100

0017

All Images/Sounds

Rotating the Displayed Image

1 Press the Q button after taking a picture.

The image appears on the LCD monitor.

2 Press the four-way controller (3).

The Playback Mode Palette appears.

3 Use the four-way controller

(2345) to select s (Image Rotation).

4 Press the 4 button.

The image is rotated 90 degrees clockwise each time the button is pressed.

5 Press the 3 button twice.

The rotated image appears.

• Movies cannot be rotated.

• Protected images can be rotated, but they cannot be saved in a rotated state.

Deleting the Displayed Image

Press the i button while the image is displayed to display the Delete screen. Use the four-way controller (2) to select [Deletion] and press the 4 button. (p.103)

Q button Four-way controller

4 button

i button

MENU OK

100

100-0017

Deletion

Cancel

All Images/Sounds

0017

Quick Start

Common Operations

Understanding the Button Functions

1 2

Common Operations

A Mode

1 Power switch

Turns the camera off. (p.32)

2 Shutter release button

Focuses the camera on the subject when pressed halfway in Still Picture Capture Mode. (Except in s and \ modes) (p.38) Takes the still picture when pressed down fully. (p.38) Starts and stops movie recording in C mode. (p.88) Starts and stops sound file recording in O mode. (p.124)

3 Zoom/w/x/f/y button

Changes the captured area. (p.66)

4 Q button

Switches to the Q mode. (p.93)

5 Four-way controller

(2) : Changes the drive mode. (p.62, p.63, p.64) (3) : Displays the Capture Mode Palette. (p.51) (4) : Changes the flash mode. (p.73) (5) : Changes the focus mode. (p.71) (23) : Adjusts \ in \ mode. (p.72)

6 4/W button

Changes the information displayed on the LCD monitor. (p.69)

7 Green button

Switches to the Green Mode. (p.58) Displays an explanation of the function selected on the Capture Mode Palette. (p.56)

8 3 button

Displays the [A Rec. Mode] menu. (p.46)

Common Operations

Q Mode

1 Power switch

Turns the camera off. (p.32)

2 Shutter release button

Switches to A mode when pressed halfway. (p.93)

3 Zoom/f/y button

Switches from single-image display to nine-image display when f is pressed and to folder display when f is pressed again. Returns to the previous display when y is pressed. (p.94) Enlarges the image when y is pressed during single-image display. Returns to the previous display when f is pressed. (p.96) Can be used to adjust the volume during movie playback. (p.101, p.126)

4 Q button

Switches to A mode. (p.93)

1 2

5 Four-way controller

(2) : Plays back and pauses a movie or sound file. (p.101,

p.126)

(3) : Displays the Playback Mode Palette. (p.56)

Stops a movie or sound file during playback. (p.101, p.126)

(45) : Displays the previous or next image and sound file

during single-image display. (p.40) Frame forwards, frame reverses and reverses a movie during playback. (p.101) Fast forwards, reverses, and moves to the index in sound file playback. (p.126)

(2345) : Moves the display area during zoom display. (p.96)

Selects an image in nine-image display and a folder in folder display. (p.94)

6 4/W button

Changes the information displayed on the LCD monitor. (p.98) Returns zoom display or nine-image display to single-image display. (p.94, p.96) Changes to nine-image display of the selected folder during folder display. (p.95)

7 Green/i button

Switches from single-image display to the Delete screen. (p.103) Switches from nine-image display to the Select & Delete screen. (p.105) Displays a guide of the function selected on the Playback Mode Palette. (p.56)

8 3 button

Displays the [H Setting] menu during single-image display. (p.46) Returns to single-image display during Playback Mode Palette display. (p.55) Returns zoom display or nine-image display to single-image display. (p.94, p.96) Changes to nine-image display of the selected folder during folder display. (p.95)

Common Operations

Setting the Camera Functions

03 / 25/20 0 6

14 : 25

03 / 25/20 0 6

14 : 25

10 0

00 3 8

03 / 25/20 0 6

14 : 25

03 / 25/20 0 6

14 : 25

10 0

00 3 8

To change the camera settings, press the

Rec. Mode] menu or [

Setting] menu. Menus for playing back and editing

button to display the [A

images and sound files are displayed from the Playback Mode Palette.

Setting with the Menus

Pressing the Pressing the 3 button in Q mode displays the [H Setting] menu.

Common Operations

Press halfway

button in A mode displays the [ARec. Mode] menu.

During recording During playback

383838

or,

SHUTTER

Rec. Mode

Recorded Pixels Quality Level White Balance

AWB

Focusing Area

ISO

Sensitivity

AUTO

Exit

Rec. Mode

Recorded Pixels

Quality Level White Balance

AWB

Focusing Area

ISO

Sensitivity

AUTO

Exit

03/25/2006

14:25

1/3

Setting

Format Sound Start-up Screen Date Adjust

Exit

Setting

Format Sound Start-up Screen Date Adjust

Exit

100

100-0038

0038

03/25/2006

14:25

1/3

03/25/2006

English

1/3

03/25/2006

English

The setting is complete and the camera returns to A mode

383838

03/25/2006

14:25

100

100-0038

0038

03/25/2006

14:25

The setting is complete and the camera returns to Q mode

A guide to available button operations appears on the LCD monitor

Exit

Cancel

during menu operation.

Ex.) To set the [Quality Level] on the [A Rec. Mode] menu

1 Press the 3 button in A

mode.

The [A Rec. Mode] menu appears.

2 Press the four-way controller (3).

The frame moves to [Recorded Pixels].

3 Press the four-way controller (3).

The frame moves to [Quality Level].

Rec. Mode

Recorded Pixels Quality Level White Balance

AWB

Focusing Area

ISO

Sensitivity

AUTO

Exit

Rec. Mode

Recorded Pixels

Quality Level

White Balance

AWB

Focusing Area

ISO

Sensitivity

AUTO

Exit

1/3

Common Operations

1/3

4 Press the four-way controller (5).

A pull-down menu appears with the items that can be selected. The pull-down menu displays only those items that can be selected with the current camera settings.

5 Use the four-way controller (23)

to change the setting.

The quality level changes each time the four-way controller (23) is pressed.

Refer to the following page for instructions on saving settings and canceling changes.

Rec. Mode

Recorded Pixels

Quality Level

White Balance

AWB

Focusing Area

ISO

Sensitivity

AUTO

MENU OK

Cancel

1/3

OKOKOK

To Save the Setting and Start Taking Pictures

6 Press the shutter release button halfway.

The setting is saved and the camera returns to capture status. When the shutter release button is pressed fully, the picture is taken.

To Save the Setting and Begin Playback of Images

6 Press the Q button.

The setting is saved and the camera returns to playback status.

To Save the Setting and Continue with Menu Operations

Common Operations

6 Press the 4 button or the four-way controller (4).

The setting is saved and the screen returns to Step 3.

To Cancel the Changes and Continue with Menu Operations

6 Press the 3 button.

The changes are canceled and the screen returns to Step 3.

The 3 button function differs depending on the screen. Refer to the guide indications.

Exit : Exits the menu and returns to the original screen.

MENU MENU

Cancel : Cancels the current selection, exits the menu and

: Returns to Step 3 with the current setting.

returns to Step 3.

Menu List

This displays the items that can be set with the menus and provides descriptions of each item. See the list of default settings in the Appendix “Default Settings” (p.142) to decide whether you want the settings saved when the camera is turned off and whether you want the settings returned to the defaults when the camera is reset.

[A Rec. Mode] Menu

This menu shows the functions related to taking still pictures and recording movies.

Item Description Page

Recorded Pixels

Quality Level For choosing the quality level of still pictures p.77

White Balance

Focusing Area For changing the area of the autofocus p.80

Sensitivity For setting the sensitivity p.81

EV Compensation For adjusting the overall brightness of the picture p.68

Recorded Pixels

Frame Rate

Movie

Color Mode For choosing a color mode for movies p.91

Digital Zoom For choosing whether to use the digital zoom function p.67

Instant Review For setting the Instant Review time p.82

Memory

Sharpness For choosing sharp or soft outlines p.83

Saturation For setting the color saturation p.84

Contrast For setting the image contrast level p.85

For choosing the number of recorded pixels of still pictures

For adjusting the color balance according to the light conditions

For choosing the number of recorded pixels of movies p.90

For setting the frame rate (number of frames per second)

For choosing whether to save the set values of the shooting function or return to the defaults when the camera is turned off

p.75

p.78

p.92

p.86

Common Operations

Use the Green Mode to enjoy easy picture-taking using standard settings, regardless of the settings in the [A Rec. Mode] menu. (p.58)

[u Setting] Menu

Item Description Page

Format For formatting the SD Memory Card or built-in memory p.129

Sound

Start-up Screen For setting the start-up screen p.132

Date Adjust For adjusting the date, time, and date and time styles p.133

Language/

Folder Name

Common Operations

USB Connection For setting the USB cable connection (to PC or printer) p.137

Video Out For setting the output format to the AV equipment p.138

Auto LCD Dimmer

Auto Power Off

Quick Zoom

Reset

For adjusting the playback volume and setting the start-up sound, shutter sound, key operation sound and self-timer sound

For setting the language in which menus and messages appear

For choosing how names are assigned to folders for storing images and sound files

For automatically adjusting the brightness of the LCD monitor according to the surrounding brightness

For setting the time until the camera turns off automatically

For displaying an image at maximum magnification by pressing y on the Zoom/f/y button during still picture playback

For returning settings other than the date and time, language, and video out to their defaults

p.130

p.135

p.136

p.139

p.140

p.97

p.141

1, 2

Landscape

Guide

03/25/2006

14:25

Setting the Shooting Mode

The Optio M10 has a variety of shooting modes that let you take pictures or record movies and sound in different situations simply by choosing the right mode for the particular situation from the Capture Mode Palette.

1 Press the four-way controller (3) in A mode.

The Capture Mode Palette appears.

2 Use the four-way controller

(2345) to choose a shooting mode.

Choose a shooting mode and press the Green button to display a guide of the shooting mode. (p.56)

3 Press the 4 button.

The shooting mode is selected and the camera returns to capture status.

• In shooting modes other than R, C and O, the flash, focus, saturation, contrast, sharpness, white balance, etc. are automatically set to the optimal settings for each mode.

• Some functions may not be available or may not function fully depending on the shooting mode. For details, refer to “Functions Available for Each Shooting Mode” (p.145).

• The Capture Mode Palette does not appear even if you press the four-way controller (3) when Focus Mode is set to \.

Landscape

Guide

Guide OK

03/25/2006

14:25

383838

Common Operations

There are 15 available shooting modes.

1 R Program

The basic picture-taking mode. You can let the camera set the functions or choose various functions yourself. (p.57)

2 A Night Scene

Ideal for taking night views. It is best to use a tripod in this mode. Use the flash if including people in your picture. (p.60)

Common Operations

3 C Movie

Use this mode for taking movies. Sound is recorded at the same time. (p.88)

4 O Voice Recording

Use this mode to record sound files. Be careful not to cover the microphone below the lens on the camera with your hand. (p.124)

5 X Soft

For taking pictures with soft, blurred outlines.

6 q Landscape

Use this mode for taking landscape views. The depth of field encompasses a wide area.

7 < Flower

Use this mode for taking bright, colorful pictures of flowers with soft outlines.

8 I Portrait

Use this mode for taking pictures of people. Gives your subject a bright, healthy look.

9 i Surf & Snow

For capturing images with dazzling backgrounds, such as beaches or snowy mountains.

0 \ Sport

Ideal for taking fast-moving action shots. The camera keeps the moving subject in focus until the shutter release button is pressed.

a Q Kids

Ideal for taking pictures of children who are moving around. Gives your subject a bright, healthy look.

b E Pet

Ideal for taking pictures of pets. The camera keeps the moving pet in focus until the shutter release button is pressed. You can select settings according to the color of your pet’s coat. (p.61)

Common Operations

c y Fireworks

Use this mode to take spectacular pictures of fireworks. It is best to use a tripod as the shutter speed is fixed at 4 sec. (p.60)

d D Food

Use this mode for taking pictures of food. The increased saturation gives pictures a bright, vivid finish.

e S Self-portrait

Use this mode to take pictures of yourself or include yourself in pictures. The camera

Common Operations

adjusts the focus and color.

Setting the Playback Mode

03 / 25/20 0 6

14 : 25

10 0

00 3 8

03 / 25/20 0 6

14 : 25

Cancel

Qu a lity L evel

Guid eOKOK

Sl id e sh o w

Re si z e

Guid e

Press the four-way controller (3) in Playback mode to display the Playback Mode Palette. You can display the playback function you want to use simply by using the four-way controller (2345) to choose an icon and pressing the 4 button.

100

100-0038

0038

03/25/2006

14:25

Slideshow

Resize

Common Operations

MENU OKMENU

Guide

Guide OK

SHUTTER OK

Press halfway

03/25/2006

Close the Playback Mode

Palette and go to A mode.

14:25

383838

Guide

Recorded Pixels Quality Level

Quality Level

Cancel

Go to screen for selected

playback function.

OKGuide

Playback Mode Palette

Landscape

Guide

Landscape

Item Description Page

Slideshow For playing back recorded images one after another p.99

Common Operations

Resize

Trimming For deleting the unneeded part of a picture p.112

Image/

Sound Copy

Image Rotation For rotating still pictures p.41

Voice Memo For adding a voice memo to still pictures p.127

Protect

DPOF

For changing the recorded pixels and quality of images

For copying images and sound files from the built-in memory to the SD Memory Card and vice versa

For protecting images and sound files from accidental deletion

For setting the DPOF print order data for still pictures

Viewing a Guide of the Shooting and Playback Modes

Selecting a mode on the Capture Mode Palette or Playback Mode Palette and pressing the Green button displays an explanation of the selected item.

1 Press the four-way controller (3) in A mode.

The Capture Mode Palette appears. Press the four-way controller (3) in Q mode to display the Playback Mode Palette.

2 Use the four-way controller

(2345) to choose a shooting mode.

Landscape

p.110

p.113

p.108

p.115

3 Press the Green button.

A guide of the selected shooting mode appears.

4 Press the 4 button.

The camera returns to capture status with the selected shooting mode.

Press the Green button while the guide is displayed to return to the Capture Mode Palette or Playback Mode Palette.

Guide

Guide OK

Landscape

For capturing landscape views. The camera focuses on a wide range.

OKOKOK

Taking Pictures

03/25/2006

14:25

Taking Pictures

1 3, 4

Letting the Camera Choose the Optimal Settings (Program Mode)

In R (Program mode), the camera automatically sets the shutter speed and aperture for taking still pictures. However, you can select other functions such as the flash mode and recorded pixels.

1 Press the power switch.

The camera turns on and is ready to take still pictures.

2 Set the functions you want to use.

Refer to “Setting the Shooting Functions” (p.71 - p.85) for details of how to set the functions.

3 Press the shutter release button

halfway.

The focus frame on the LCD monitor turns green if the subject is in focus.

383838

03/25/2006

14:25

4 Press the shutter release button fully.

The picture is taken.

If a shooting mode other than R mode has been selected, select R mode from the Capture Mode Palette. (p.51)

Taking Pictures

Taking Still Pictures 1p.38

2, 3

Taking Pictures in the Basic Mode (Green Mode)

In the Green Mode, you can enjoy easy picture-taking using standard settings*, regardless of the settings in the [A Rec. Mode] menu.

Taking Pictures

1 Press the Green button in A

mode.

The camera switches to the Green Mode. Press the Green button again to return to the status before the Green Mode was selected.

2 Press the shutter release button

Key lock icon

halfway.

The focus frame on the LCD monitor turns green if the subject is in focus.

3 Press the shutter release button fully.

The picture is taken.

• In Green Mode, you cannot change the information displayed on the LCD monitor by pressing the 4/W button.

• You cannot use the [A Rec. Mode] menu or Capture Mode Palette in Green Mode. If you try to display the [A Rec. Mode] menu or Capture Mode Palette, - (key lock icon) appears.

• If you switched to Q mode from Green Mode, you cannot display the [H Setting] menu by pressing the 3 button. If you try to display the [H Setting] menu, - (key lock icon) appears.

• When the camera is turned off in the Green Mode, it turns on in the Green Mode next time the power switch is pressed.

383838

* The Green Mode settings are as shown below.

Flash Mode , (Auto) Drive Mode 9 (Standard) Focus Mode = (Standard) Information Display Standard Recorded Pixels P (h for Frame Composite function) Quality Level D (Better) White Balance F (Auto) Focusing Area J (Multiple) Sensitivity Auto EV Compensation ±0.0 Digital Zoom O (On) Instant Review 1 sec Sharpness G (Standard) Saturation G (Standard) Contrast G (Standard)

Taking Pictures

4, 5

1, 2 3

Taking Pictures of Dark Scenes (Night Scene/Fireworks Mode)

You can choose settings appropriate for taking pictures of dark scenes,

such as nightscapes.

Taking Pictures

Use this mode when taking pictures of night views.

Use this mode to take spectacular pictures of fireworks.

1 Press the four-way controller (3) in A mode.

The Capture Mode Palette appears.

2 Use the four-way controller (2345) to select A

(Night Scene) or y (Fireworks).

3 Press the 4 button.

The shooting mode is selected and the camera returns to capture status.

4 Press the shutter release button halfway.

The focus frame on the LCD monitor turns green if the subject is in focus.

5 Press the shutter release button fully.

The picture is taken.

• The shutter speed is slower when taking pictures of dark scenes.

• To prevent camera shake, use a tripod and the self-timer function. (p.62)

• The sensitivity is set at 64, the focus mode is set to s, and the flash mode is set to a in y mode. In addition, the shutter speed is set at 4 sec. and the aperture is left open, and EV compensation is not available.

A y

6, 7

03/25/2006

14:25

1, 2, 4 3, 5

E F F (H G G)

Taking Pictures of Your Pet (Pet Mode)

Use this mode to keep your moving pet in focus while you take the picture and capture the color of your pet’s coat. Choose the appropriate icon depending on what color your pet is (closer to black or white or in between).

1 Press the four-way controller (3) in A mode.

The Capture Mode Palette appears.

2 Use the four-way controller (2345) to select E (Pet). 3 Press the 4 button.

The Pet mode selection screen appears.

4 Use the four-way controller (23)

to select E, F, F, H, G or G.

There are two types of icons: a cat and dog icon. (Choosing either the cat or dog icon does not affect the resulting picture. Choose whichever you prefer.)

5 Press the 4 button.

The Pet mode is selected and the camera returns to capture status.

OKOKOK

6 Press the shutter release button

halfway.

The focus frame on the LCD monitor turns green if the subject is in focus.

03/25/2006

14:25

7 Press the shutter release button fully.

The picture is taken.

Taking Pictures

3, 4

Drive Mode

Self-timer

1, 2 2

A R A C X q

Using the Self-timer

In Self-timer mode, the picture is taken ten seconds or two seconds after the shutter release button is pressed.

Stabilize the camera with a tripod when taking a picture with the self-timer.

Taking Pictures

Use this mode when you want to be included in a group picture. The picture is taken approximately ten seconds after the shutter release

button is pressed.

Use this mode to avoid camera shake. The picture is taken approximately two

seconds after the shutter release button is pressed.

1 Press the four-way controller (2) in A mode. 2 Use the four-way controller

(453) to select g or Z and press the 4 button.

The camera is ready to take the picture using the self-timer.

Drive Mode

Self-timer

3 Press the shutter release button

halfway.

The focus frame on the LCD monitor turns green if the subject is in focus.

4 Press the shutter release button fully.

The picture is taken ten seconds or two seconds later.

Focusing may be compromised if you move the camera while the self-timer lamp is blinking when taking still pictures.

•In C mode, recording will start after ten seconds (or two seconds).

•

Press the shutter release button halfway while the self-timer is engaged to stop the countdown and press fully to restart the countdown.

• Z cannot be selected while A is in default setting. Select Z in

another shooting mode and then switch the shooting mode to A.

OKOKOK

3, 4

Drive Mode

Continuous Shooti n g

1, 2 2

R q

Taking a Series of Pictures

In this mode, pictures are taken continuously for as long as the shutter release button is pressed.

Continuous Shooting

Each time a picture is taken, the image is saved in the memory before the next image is taken. The higher the image quality, the longer the interval between shots.

1 Press the four-way controller (2) in A mode. 2

Use the four-way controller ( to select and press the

The camera is ready to take a series of pictures.

(Continuous Shooting)

button.

)

Drive Mode

Continuous Shooting

3 Press the shutter release button

halfway.

The focus frame on the LCD monitor turns green if the subject is in focus.

4 Press the shutter release button fully.

Pictures are taken continuously for as long as you keep the shutter release button pressed.

• The flash will not discharge in Continuous Shooting mode.

• The continuous shooting function is not available in A, A, C, O, X or y mode.

• You can continue shooting until the memory capacity of the SD Memory Card or built-in memory is full.

• The interval of continuous shooting will vary according to the Recorded Pixels and Quality Level settings.

• The focus, exposure and white balance are locked with the first image.

Taking Pictures

5, 6

Drive Mode

Frame Composite

Change

Select the frame

for composite

03/25/2006

14:25

1, 2, 3 2, 4

A R A X q

Framing Your Pictures

In this mode you can take pictures using the frames stored in the camera. There are three frames already stored in the camera.

Taking Pictures

1 Press the four-way controller (2) in A mode.

The drive mode selection screen appears.

2 Use the four-way controller (45)

to select Y (Frame Composite) and press the 4 button.

Frame Composite

The frame selection screen appears.

3 Use the four-way controller (45)

to choose the frame you want to use.

Select the frame

for composite

Drive Mode

OKOKOK

4 Press the 4 button.

The frame appears on the screen.

5 Press the shutter release button

halfway.

The focus frame on the LCD monitor turns

green if the subject is in focus.

Change

383838

03/25/2006

14:25

6 Press the shutter release button fully.

The picture is taken.

• The frame function is not available in C or O mode.

• Press the 3 button in the frame selection screen to display the [A Rec. Mode] menu.

• The number of recorded pixels is fixed at h and the quality level at D.

To Register a New Frame

To switch to the screen for registering a frame, press the Green button in Step 3. You can register frames which you have downloaded from the internet, etc. When you register a new frame, it replaces one of the existing three frames in the built-in memory. Before you register a new frame, copy it first to the SD Memory Card.

When a new frame on the SD Memory Card is registered in the builtin memory, it replaces one of the existing frames in the built-in memory. The replaced frame is deleted from the built-in memory.

1 In the frame selection screen, choose the frame you

want to replace and press the Green button.

A message appears and the frames on the SD Memory Card that you can register in the built-in memory appear.

2 Use the four-way controller (45) to choose the frame

you want to register and press the 4 button.

The frame is registered in the built-in memory instead of the frame selected in Step 1.

Taking Pictures

Visit the PENTAX website at the URL below to download new frames.

http://www.pentax.co.jp/english/support/digital/optio_frame.html

A R A C X q

Using the Zoom

You can use the zoom to change the captured area.

1 Press the Zoom/w/x button in A

Taking Pictures

mode.

x Tele : enlarges the subject w Wide : widens the area that is captured

by the camera The zoom bar indicates the current level of magnification.

When the digital zoom function is set to P (Off), you can take pictures at up to three times magnification using the optical zoom. When the digital zoom function is set to O (On), you can combine it with the optical zoom to enlarge the subject to a maximum magnification equivalent to 12 times.

383838

Zoom bar

Press x

383838

Optical zoom range

• You are recommended to use a tripod to prevent camera shake when taking pictures at a high magnification rate.

• Pictures taken in the digital zoom range appear grainier than pictures taken in the optical zoom range.

Digital zoom range

Setting the Digital Zoom

Exit

The digital zoom is set to O (On) in the default settings. To take pictures using only the optical zoom, set the digital zoom to P (Off).

1 Press the 3 button in A mode.

The [A Rec. Mode] menu appears.

2 Use the four-way controller (23) to select [Digital

Zoom].

3 Use the four-way controller (45)

to select O (On) or P (Off).

The selected setting is saved.

4 Press the 3 button.

The setting is complete and the camera returns to capture status.

Saving the Digital Zoom Function Setting 1p.86

Rec. Mode

0.0

EV Compensation Movie

Digital Zoom

Instant Review

QUICK

Memory

Exit

2/3

Taking Pictures

Rec. Mode

Exit

2, 3

1, 4

Recorded Pixels Quality Level White Balance

AWB

Focusing Area

ISO

Sensitivity

AUTO

Exit

R A C X q

Setting the Exposure (EV Compensation)

You can adjust the overall brightness of the picture. Use this function to take pictures that are intentionally overexposed or

underexposed.

Taking Pictures

1 Press the 3 button in A

mode.

The [A Rec. Mode] menu appears.

2 Use the four-way controller (23)

to select [EV Compensation].

3 Use the four-way controller (45)

Rec. Mode

0.0

EV Compensation

Movie Digital Zoom Instant Review

QUICK

Memory

Exit

to select the EV value.

The selected EV value is saved. To brighten, select a positive (+) value. To darken, select a negative (–) value. You can choose the EV setting in the range of –2.0 EV to +2.0 EV in 1/3 EV steps.

4 Press the 3 button.

The setting is complete and the camera returns to capture status.

When the histogram is displayed, bright portions and dark portions are indicated on the LCD monitor, enabling you to check the exposure. (p.70)

1/3

2/3

0.0

Saving the EV Compensation Value 1p.86

Displaying Shooting Information in

03 / 2 5/2006

14 : 2 5

+1 . 0

F3 . 3

1/ 2 5 0

+1 . 0

200

ISO

Capture Mode

The LCD monitor display changes in the following sequence each time you press the 4/W button: Normal Display, Histogram + Info, No Icons. For details of each display mode, refer to “Monitor Indications” (p.16).

S appears when camera shake is likely to occur. To prevent camera shake, use a tripod and the self-timer function. (p.62)

Normal Display

383838

03/25/2006

14:25+1.0

+1.0

14:25

Histogram + Info

383838

ISO

200

1/250

1/250 F3.3

F3.3

+1.0

Taking Pictures

No Icons

Using the Histogram

A histogram shows the brightness distribution of an image. The horizontal axis represents brightness (dark at the left and bright at the right) and the vertical axis represents the number of pixels. The shape of the histogram before and after shooting tells you

Number of pixels→

Dark portions Bright portions

←Brightness→(Dark) (Bright)

whether the brightness and contrast are correct or not, and lets you decide if you need to use EV compensation and take the picture again.

Taking Pictures

Setting the Exposure (EV Compensation) 1p.68

Understanding Brightness

If the brightness is correct, the graph peaks in the middle. If the image is too dark, the peak is on the left side, and if it is too bright, the peak is on the right side.

Dark image Correct image Bright image

When the image is too dark, the part to the left is cut off (dark portions) and when the image is too bright, the part to the right is cut off (bright portions). Bright portions blink red on the LCD monitor and dark portions blink yellow.

Displaying Shooting Information in Capture Mode 1p.69 Displaying Shooting Information in Playback Mode 1p.98

Understanding Contrast

The graph peaks gradually for images in which contrast is balanced. The graph peaks on both sides but sinks in the middle for images with a large difference in contrast and low amounts of mid-level brightness.

Setting the Shooting Functions

Focus Mode

Standard

1 2

A R A X q

Selecting the Focus Mode

Focus Mode

Use this mode when the distance to the subject is 40 cm

Standard

Macro

Infinity

Manual Focus This mode lets you adjust the focus manually.

(15.7 in.) or more. The camera is focused on the subject in the autofocus area when the shutter release button is pressed halfway.

This mode is used when the distance to the subject is approx. 10 cm to 60 cm (3.9 in. to 23.6 in.). The camera is focused on the subject in the autofocus area when the shutter release button is pressed halfway.

This mode is used for taking distant objects. The flash is set to a (Flash Off).

1 Press the four-way controller (5)

in A mode.

The focus mode changes each time the button is pressed. You can also change the setting using the four-way controller (23).

2 Press the 4 button.

The Focus Mode setting is saved and the camera returns to capture status.

•In y mode, the focus mode is set to s.

•In A mode, you can only select = and q.

Manual Focus 1p.72 Saving the Focus Mode 1p.86

Focus Mode

Standard

Taking Pictures

OKOKOK

Manual Focus

Focus Mode

Manual Focus

The procedure for setting the focus manually (\) is described below.

1 Press the four-way controller (5)

in A mode.

Focus Mode

Manual Focus

2 Use the four-way controller (5) to

select \ and press the 4 button.

The central portion of the image is magnified to fill the screen of the LCD monitor when focusing.

3 Press the four-way controller

Taking Pictures

(23).

The \ indicator appears on the LCD monitor to indicate the approximate distance to the subject. Use the four-way controller (23) to adjust the focus using the indicator as a guide.

2 : for distant focus 3 : for closer focus

33 2

1m1m1m

\ indicator

4 Press the 4 button.

The focus is fixed and the camera returns to capture status. The focus position is fixed five seconds after you remove your finger from the four-way controller. After the focus is fixed, you can press the four-way controller (23) again to display the \ indicator and readjust the focus.

Shooting mode and drive mode cannot be changed while adjusting \.

OKOKOK

383838

OKOKOK

Auto

Flash Mode

A R A X q

Selecting the Flash Mode

Flash Modes

Auto

Flash Off

Flash On The flash discharges regardless of the brightness.

Auto + Red-eye

Flash On + Red-eye

The flash discharges automatically depending on the light conditions.

The flash will not discharge, regardless of the brightness. Use this mode to take pictures where flash photography is prohibited.

This mode reduces the phenomenon of red eyes caused by the light from the flash being reflected in the subject’s eyes. The flash discharges automatically.

This mode reduces the phenomenon of red eyes caused by the light from the flash being reflected in the subject’s eyes. The flash will discharge regardless of the light conditions.

• The flash will not discharge a (Flash Off) in C mode or y mode, or when the drive mode is set to 1, or the focus mode is set to s.

• A pre-flash discharges when using the red-eye reduction function.

•In A mode, you can only select , or a.

1 Press the four-way controller (4)

in A mode.

The flash mode changes each time the button is pressed. You can also change the setting using the four-way controller (23).

2 Press the 4 button.

The camera returns to capture status with the selected flash mode.

Flash Mode

Auto

Taking Pictures

[About the red-eye phenomenon]

Taking pictures using the flash may cause the subject’s eyes to appear red in the resulting picture. This phenomenon occurs when the light from the flash is reflected in the subject’s eyes. It can be reduced by illuminating the area around the subject or moving closer to the subject and zooming out to a wider angle. Setting the flash mode to c (Auto + Red-eye) or d (Flash On + Red-eye) is also an effective way of reducing red eyes.

Saving the Flash Mode 1p.86

Taking Pictures

Exit

1/3

2, 3, 4 5

1, 6

Rec. Mode

Recorded Pixels Quality Level White Balance

AWB

Focusing Area

ISO

Sensitivity

AUTO

Exit

R A X q

Selecting the Recorded Pixels

You can choose from seven recorded pixels settings for still pictures. The larger your recorded pixels, the clearer the details will appear when you print your picture. As the quality of the printed picture also depends on the image quality, exposure control, resolution of the printer and other factors, you do not need to select more than the required number of recorded pixels. i (1600×1200) is adequate for making postcard-size prints. The more pixels there are, the larger the picture and the bigger the file size. The data volume also varies depending on the quality level setting (p.77).

Recorded Pixels

Recorded Pixels Use

P 2816×2112

f 2560×1920

g 2304×1728

h 2048×1536

i 1600×1200

l 1024× 768

m 640× 480

For printing high quality photos or A4-size pictures, or editing images on a PC.

Clearer

For making postcard-size prints.

For posting on a website or attaching to e-mail.

Taking Pictures

1 Press the 3 button in A mode.

The [A Rec. Mode] menu appears.

2 Use the four-way controller (23) to select [Recorded

Pixels].

3 Press the four-way controller (5).

Cancel

A pull-down menu appears.

4 Use the four-way controller (23)

to change the number of recorded pixels.

5 Press the 4 button.

The Recorded Pixels setting is saved.

6 Press the 3 button.

The camera returns to capture status with the current setting.

When drive mode is set to Y, the number of recorded pixels is set

Taking Pictures

to h and quality level is set to D.

Recorded Pixels and Quality Level of Still Pictures 1p.29

Rec. Mode

Recorded Pixels

Quality Level White Balance

AWB

Focusing Area

ISO

Sensitivity

AUTO

Cancel

1/3

6 5 4 3 2

1024

640

M M M M M

OKOKOK

Exit

1/3

Cancel

2, 3, 4 5

1, 6

Rec. Mode

Recorded Pixels Quality Level White Balance

AWB

Focusing Area

ISO

Sensitivity

AUTO

Exit

R A X q

Selecting the Quality Level

You can select the quality (compression rate) of still pictures. The more stars, the lower the compression rate and the clearer the picture, but the file size becomes larger. The recorded pixels setting also affects the file size (p.75).

Quality Level

Best Lowest compression rate. Suitable for photo prints.

Better

Good

Standard compression rate. Suitable for viewing the image on a computer screen.

Highest compression rate. Suitable for posting on a website or attaching to e-mail.

1 Press the 3 button in A mode.

The [A Rec. Mode] menu appears.

Use the four-way controller (

3 Press the four-way controller (5).

A pull-down menu appears.

4 Use the four-way controller (23)

to change the quality level.

5 Press the 4 button.

The Quality Level setting is saved.

) to select [Quality Level].

Rec. Mode

Recorded Pixels

Quality Level

White Balance

AWB

Focusing Area

ISO

Sensitivity

AUTO

MENU OK

Cancel

1/3

OKOKOK

6 Press the 3 button.

The camera returns to capture status with the current setting.

Taking Pictures

Quality level is set at D when drive mode is set to Y.

Recorded Pixels and Quality Level of Still Pictures 1p.29

Rec. Mode

Exit

Auto

Cancel

2, 3, 4 5

1, 6

Recorded Pixels Quality Level White Balance

AWB

Focusing Area

ISO

Sensitivity

AUTO

Exit

Adjusting the White Balance

You can take pictures in natural colors by adjusting the white balance according to the light conditions at the time of shooting.

White Balance

Taking Pictures

Auto The camera adjusts the white balance automatically.

Daylight Use this mode when taking pictures outside in sunlight.

Cloudy

Tungsten Light

Fluores. Light

Manual Use this mode when adjusting the white balance manually.

Use this mode when taking pictures outside on a cloudy day.

Use this mode when taking pictures under electric or other tungsten light.

Use this mode when taking pictures under fluorescent light.

1 Press the 3 button in A mode.

The [A Rec. Mode] menu appears.

Use the four-way controller (

3 Press the four-way controller (5).

The White Balance screen appears.

) to select [White Balance].

White Balance

Auto

4 Use the four-way controller (23)

to change the setting.

5 Press the 4 button.

The White Balance setting is saved.

Cancel

6 Press the MENU button.

The camera returns to capture status with the current setting. Refer to “Manual Setting” (p.79) for instructions on adjusting the white balance manually.

Saving the White Balance 1p.86

1/3

R C

OKOKOK

Manual Setting

Cancel

Have a blank sheet of white paper or similar material ready.

1 In the White balance screen, use the four-way controller

(23) to select K (Manual).

2 Point the camera at the blank

White Balance

sheet of paper or other material so that it fills the screen of the LCD monitor.

SHUTTER

3 Press the shutter release button

fully.

The white balance is automatically adjusted.

Cancel

Adjust

OKOKOK

4 Press the 4 button.

The setting is saved and the screen returns to the [A Rec. Mode] menu.

5 Press the 3 button.

The camera returns to capture status.

Taking Pictures

Exit

2, 3, 4 5

1, 6

R A X q

Changing the Focusing Area

You can change the autofocus area (Focusing Area).

Focusing Area

Taking Pictures

Multiple Normal range

Spot The autofocus range becomes smaller.

Automatic Tracking AF

Keeps moving subjects in focus.

1 Press the 3 button in A mode.

The [A Rec. Mode] menu appears.

2 Use the four-way controller (23)

to select [Focusing Area].

3 Press the four-way controller (5).

A pull-down menu appears.

4 Use the four-way controller (23)

to change the setting.

5 Press the 4 button.

The Focusing Area setting is saved.

6 Press the MENU button.

The camera returns to capture status with the current setting.

Rec. Mode

Recorded Pixels Quality Level White Balance

AWB

Focusing Area

ISO

Sensitivity

AUTO

Exit

Rec. Mode

Recorded Pixels Quality Level White Balance

AWB

Focusing Area

ISO

Sensitivity

AUTO

Cancel

1/3

Exit

1/3

2, 3, 4 5

1, 6

Rec. Mode

Recorded Pixels Quality Level White Balance

AWB

Focusing Area

ISO

Sensitivity

AUTO

Exit

R A C X q

Setting the Sensitivity

You can select the sensitivity to suit the brightness of the surroundings.

Sensitivity

Auto Sensitivity is automatically adjusted to between 64 and 200.

64 • The lower the sensitivity, the less noise that affects the image. The

100

200

400

shutter speed will be slower in low light conditions.

• Higher sensitivity settings use faster shutter speeds in low light conditions to reduce camera shake, but the image may be affected by noise.

1 Press the 3 button in A mode.

The [A Rec. Mode] menu appears.

2 Use the four-way controller (23) to select [Sensitivity]. 3 Press the four-way controller (5).

A pull-down menu appears.

4 Use the four-way controller (23)

to change the sensitivity.

5 Press the 4 button.

The Sensitivity setting is saved.

Rec. Mode

Recorded Pixels Quality Level White Balance

AWB

Focusing Area

ISO

Sensitivity

AUTO

Cancel

1/3

Auto

64 100 200 400

OKOKOK

6 Press the MENU button.

The camera returns to capture status with the current setting.

Taking Pictures

Sensitivity is set at 64 when Shooting mode is set to y. Other values cannot be set.

Saving the Sensitivity 1p.86

Rec. Mode

Exit

Cancel

2, 3, 4 5

1, 6

Recorded Pixels Quality Level White Balance

AWB

Focusing Area

ISO

Sensitivity

AUTO

Exit

R A X q

Setting the Instant Review Time (Instant Review)

You can choose the Instant Review time (the length of time the image is displayed immediately after capture) from 0.5sec, 1sec, 2sec, 3sec,

5sec and Off (no display).

Taking Pictures

1 Press the 3 button in A mode.

The [A Rec. Mode] menu appears.

2 Use the four-way controller (23) to select [Instant

Review].

3 Press the four-way controller (5).

A pull-down menu appears.

4 Use the four-way controller (23)

to change the display time.

5 Press the 4 button.

The Instant Review setting is saved.

Rec. Mode

0.0

EV Compensation Movie Digital Zoom

Instant Review

QUICK

Memory

Cancel

6 Press the MENU button.

The camera returns to capture status with the current setting.

1/3

2/3

5sec 3sec 2sec

1sec

0.5sec Off

OKOKOK

Instant Review 1p.39

Exit

2, 3

Exit

1, 4

Rec. Mode

Recorded Pixels Quality Level White Balance

AWB

Focusing Area

ISO

Sensitivity

AUTO

Exit

1/3

R C

Setting the Image Sharpness (Sharpness)

You can give the image sharp or soft outlines.

1 Press the 3 button in A mode.

The [A Rec. Mode] menu appears.

2 Use the four-way controller (23) to select [Sharpness]. 3 Use the four-way controller (45)

to change the sharpness level.

The following setting is saved.

F (Soft) G (Normal) H (Hard)

Rec. Mode

Sharpness

Saturation Contrast

Exit

3/3

4 Press the 3 button.

The Sharpness setting is saved and the camera returns to capture status.

Taking Pictures

Rec. Mode

Exit

2, 3

1, 4

Recorded Pixels Quality Level White Balance

AWB

Focusing Area

ISO

Sensitivity

AUTO

Exit

Setting the Color Saturation (Saturation)

You can set the color saturation.

1 Press the 3 button in A mode.

Taking Pictures

The [A Rec. Mode] menu appears.

2 Use the four-way controller (23) to select [Saturation]. 3 Use the four-way controller (45)

to change the saturation level.

The following setting is saved.

F (Low) G (Normal) H (High)

Rec. Mode

Sharpness

Saturation

Contrast

Exit

4 Press the 3 button.

The Saturation setting is saved and the camera returns to capture status.

1/3

R C

3/3

Exit

1/3

Exit

2, 3

1, 4

Rec. Mode

Recorded Pixels Quality Level White Balance

AWB

Focusing Area

ISO

Sensitivity

AUTO

Exit

R C

Setting the Image Contrast (Contrast)

You can set the image contrast level.

1 Press the 3 button in A mode.

The [A Rec. Mode] menu appears.

2 Use the four-way controller (23) to select [Contrast]. 3 Use the four-way controller (45)

to change the contrast level.

The following setting is saved.

F (Low) G (Normal) H (High)

Rec. Mode

Sharpness

Saturation

Contrast

Exit

3/3

4 Press the 3 button.

The Contrast setting is saved and the camera returns to capture status.

Taking Pictures

Saving the Settings (Memory)

The Memory function is for saving the current camera settings when the camera is turned off. For some camera settings, the Memory function is always set to O (On) (the settings are saved when the camera is turned off), while for others you can choose on or off (to choose whether the settings are saved or not when the camera is turned off). The items which can be set to O (On) or P (Off) in the Memory function are shown in the table below. (Items not listed here will be saved in the selected settings when the camera is turned off.) If you select O (On), the settings will be saved in the status they were in immediately before the camera was turned off. If you select P (Off), the settings will be reset to the defaults when the camera is

turned off. The table below also shows whether the Memory default

Taking Pictures

setting for each item is on or off.

Item Description

Flash Mode The flash mode set with the four-way controller (4) (p.73) O

Drive Mode

Focus Mode The focus mode set with the four-way controller (5) (p.71) P Zoom Position The zoom position set with the Zoom/w/x button (p.66) P

MF Position

White Balance

Sensitivity The [Sensitivity] setting on the [A Rec. Mode] menu (p.81) P

EV Compensation

Digital Zoom

DISPLAY

File #

The drive mode set with the four-way controller (2) (p.62, p.63, p.64)

The manual focus position set with the four-way controller (23) (p.72)

The [White Balance] setting on the [A Rec. Mode] menu (p.78)

The [EV Compensation] setting on the [A Rec. Mode] menu (p.68)

The [Digital Zoom] setting on the [A Rec. Mode] menu (p.67)

The LCD monitor information display mode set with the 4/W button (p.69, p.98)

If a new SD Memory Card is inserted when On has been selected, file numbers are assigned sequentially.

Default Setting

Exit

1/3

2, 3, 4, 5 6

1, 7

Rec. Mode

Recorded Pixels Quality Level White Balance

AWB

Focusing Area

ISO

Sensitivity

AUTO

Exit

1 Press the 3 button in A mode.

The [A Rec. Mode] menu appears.

2 Press the four-way controller (23) to select [Memory]. 3 Press the four-way controller (5).

The Memory screen appears.

4 Use the four-way controller (23)

to choose an item.

5 Use the four-way controller (45)

to select O (On) or P (Off).

6 Press the 4 button.

Memory Flash Mode

Drive Mode Focus Mode Zoom Position MF Position White Balance

Cancel

1/2

The Memory setting is saved.

7 Press the 3 button.

The camera returns to capture status with the current setting.

Taking Pictures

Recording Movies

Guide

Movie

07:34

4, 5

1, 2 3

Recording a Movie

Taking Pictures

This mode enables you to record movies. Sound is recorded at the same time.

1 Press the four-way controller (3) in A mode.

The Capture Mode Palette appears.

2 Use the four-way controller

(2345) to select C (Movie).

Movie

3 Press the 4 button.

C mode is selected and the camera returns to capture status. The following information appears on the LCD monitor.

1 Movie mode icon

2 Recording indicator (blinks during

recording)

3 Recording time

You can change the captured area by pressing the Zoom/w/x button

to the left or right.

x : enlarges the subject w : widens the area that is captured by the camera

132

Guide

OKOKOKGuide

07:34

4 Press the shutter release button fully.

Recording starts.

• The flash will not discharge in C mode.

• The focus is fixed when recording movies in C mode.

• You can use the optical zoom and digital zoom before starting to record, and the digital zoom while recording.

• Changing the LCD monitor display mode by pressing the 4/W button while recording a movie will not display the histogram.

5 Press the shutter release button fully.

Recording stops.

Playing Back Movies 1p.101

Keeping the Shutter Release Button Pressed

If you keep the shutter release button pressed for more than one second, recording will continue for as long as you keep the button pressed. Shooting stops when you take your finger off the shutter release button.

Taking Pictures

Rec. Mode

Exit

Cancel

Recorded Pixels Quality Level White Balance

AWB

Focusing Area

ISO

Sensitivity

AUTO

Exit

2, 3, 4, 5, 6

1, 8

Selecting the Recorded Pixels for Movies

You can choose from two recorded pixels settings for movies: [D 320×240] and [E 160×120].

The more pixels there are, the bigger the file size. The data volume also

Taking Pictures

varies depending on the frame rate setting. (p.31)

Recorded Pixels for Movies

(320×240)

(160×120)

Suitable for viewing the movie on a computer.

The file size is smaller, but the total recording time is increased. Suitable for posting on a website or e-mail.

1 Press the 3 button in A mode.

The [A Rec. Mode] menu appears.

2 Use the four-way controller (23) to select [Movie]. 3 Press the four-way controller (5).

The Movie screen appears.

Use the four-way controller (23) to select [Recorded Pixels].

5 Press the four-way controller (5).

A pull-down menu appears.

6 Use the four-way controller (23)

to change the number of recorded

Movie Recorded Pixels

Color Mode Frame Rate

pixels.

7 Press the 4 button.

The Recorded Pixels setting is saved.

MENU OK

Cancel

8 Press the 3 button twice.

The camera returns to capture status with the current setting.

Recorded Pixels and Frame Rate of Movies 1p.31

1/3

320 160

30fps

OKOKOK

Exit

1/3

Cancel

2, 3, 4, 5, 6

1, 8

Rec. Mode

Recorded Pixels Quality Level White Balance

AWB

Focusing Area

ISO

Sensitivity

AUTO

Exit

Recording Movies in Black and White or Sepia Tones (Color Mode)

You can set the color mode to Black and White or Sepia, as well as Full Color, when recording a movie.

1 Press the 3 button in A mode.

The [A Rec. Mode] menu appears.

2 Use the four-way controller (23) to select [Movie]. 3 Press the four-way controller (5).

The Movie screen appears.

4 Use the four-way controller (23) to select

[Color Mode].

5 Press the four-way controller (5).

A pull-down menu appears.

6 Use the four-way controller (23)

to choose a color.

7 Press the 4 button.

The Color Mode setting is saved.

Movie Recorded Pixels

Color Mode Frame Rate

MENU OK

Cancel

320

Full Color B & W Sepia

OKOKOK

8 Press the 3 button twice.

The camera returns to capture status with the current setting.

Taking Pictures

The color mode setting cannot be changed after a movie is recorded.

Rec. Mode

Exit

Cancel

Recorded Pixels Quality Level White Balance

AWB

Focusing Area

ISO

Sensitivity

AUTO

Exit

2, 3, 4, 5, 6

1, 8

Selecting the Frame Rate

You can choose from two frame rates (number of frames per second) for movies: [30fps] and [15fps]. The more frames per second, the better the

Taking Pictures

quality of the movie, but the file size becomes larger.

1 Press the 3 button in A mode.

The [A Rec. Mode] menu appears.

2 Use the four-way controller (23) to select [Movie]. 3 Press the four-way controller (5).

The Movie screen appears.

4 Use the four-way controller (23) to select [Frame

Rate].

5 Press the four-way controller (5).

A pull-down menu appears.

6 Use the four-way controller (23)

Movie Recorded Pixels

Color Mode Frame Rate

to select [30fps] or [15fps].

7 Press the 4 button.

The Frame Rate setting is saved.

MENU OK

Cancel

8 Press the 3 button twice.

The camera returns to capture status with the current setting.

1/3

320

Full Color 30fps 15fps

OKOKOK

Recorded Pixels and Frame Rate of Movies 1p.31

Playing Back and Deleting Images

Playing Back Images

To Switch Between A Mode and Q Mode

In this manual, the capture mode, such as for taking still pictures, is referred to as “A mode”. The playback mode, such as for displaying captured images on the LCD monitor, is referred to as “Q mode”. In Q mode, you can perform simple editing operations on the images that are played back. Follow the procedure below to switch between A mode and Q mode.

To Switch from A Mode to Q Mode

1 Press the Q button.

The camera switches to Q mode.

To Switch from Q Mode to A Mode

1 Press the Q button or shutter release button halfway.

The camera switches to A mode.

Playing Back Still Pictures

Refer to “Playing Back Images” (p.40) for instructions.

Playing Back and Deleting Images

Zoom/f/y button

Q button

Four-way controller

4 button

3 button

Nine-Image Display and Folder Display

Nine-Image Display

You can display nine thumbnails of captured images at a time.

1 In Q mode, press f on the Zoom/

Playing Back and Deleting Images

f/y button.

A page consisting of nine thumbnail images appears. The displayed images change nine at a time page by page. Use the four-way controller (2345) to move the frame. When 10 or more images have been saved, if you choose image 1 and press the four-way controller (24), the previous page appears. Similarly, if you choose image 2 and press the four-way controller (35), the next page appears.

The icons that appear on the images indicate the following: No icon : Still picture without sound

O (with image) : Still picture with sound C : Movie (first frame appears) O (without image) : Sound file only

Select & Delete 100-0010

Frame

Press the 4 button, 3 button or y on the Zoom/f/y button to switch to single-image display of the selected image. Press the Q button to switch to A mode.

Folder Display

If images and sound files are stored in several folders, follow the procedure below to find the folder that you are looking for.

1 In Q mode, press f on the Zoom/f/y button.

The screen changes to nine-image display.

2 Press f on the Zoom/f/y

button.

The list of folders appears.

100 101

103 104

3 Use the four-way controller

(2345) to choose a folder.

Press the 4 button, 3 button or y on the Zoom/f/y button to display thumbnails of the images inside the folder. Next, press the 4 button, 3 button or y on the Zoom/f/y button to switch to single-image display of a selected image.

Changing the Image Folder Name 1p.136

102

10 0PENTX

Playing Back and Deleting Images

2.0

1, 2 3

Zoom Playback

You can magnify an image up to eight times. A guide showing the center of the magnified portion of the image appears on the LCD monitor during zoom playback.

1 Enter the Q mode and use the four-way controller

Playing Back and Deleting Images

(45) to choose the image you want to magnify.

2 Press y on the Zoom/f/y

button.

The image is magnified (×1.1 to ×8). Holding down y on the Zoom/f/y button changes the magnification continuously. You can use the guide at the bottom left of the screen to check which portion of the image is magnified.

The following operations can be performed while the magnified image is displayed.

Four-way controller (2345) Moves the position to be magnified Zoom/f/y button (y) Makes the image bigger (max. ×8) Zoom/f/y button (f) Makes the image smaller (min. ×1.1)

Guide

3 Press the 4 button.

The image returns to single-image display.

2.0

×2.0×

• Movies cannot be magnified.

• The guide does not appear if the LCD monitor display mode is set to “No Icons”.

Exit

2, 3

Setting

Format Sound Start-up Screen Date Adjust

Exit

1/3

03/25/2006

English

Setting the Quick Zoom Function

When the Quick Zoom function is enabled, you can display an image at maximum magnification (×8) simply by pressing y on the Zoom/f/y button once.

1 Press the 3 button in Q mode.

The [u Setting] menu appears.

2 Use the four-way controller (23) to select [Quick

Zoom].

3 Use the four-way controller (45)

to select O (On) or P (Off).

O : Jumps to ×8 magnification P : Pressing y on the Zoom/f/y button

once magnifies the image in stages from ×1.1 to ×8.0

Setting

Quick Zoom Reset

Exit

3/3

4 Press the 3 button.

The camera returns to Q mode.

Playing Back and Deleting Images

Displaying Shooting Information in Playback

03 / 2 5/2006

14 : 2 5

10 0

00 2 6

F3 . 3

1/ 2 5 0

03 / 2 5/2006

14 : 2 5

200

ISO

10 0

00 2 6

Mode

Shooting information can be displayed on the LCD monitor in Q mode. Pressing the 4/W button changes the display mode. Refer to p.18 for details of each display mode.

Normal Display

0026

100

100-0026

03/25/2006

14:25

Playing Back and Deleting Images

Histogram + Info

100

100-0026

200

ISO

200

ISO 1/250

1/250 F3.3

F3.3

03/25/2006

No Icons

0026

14:25

Displaying Shooting Information in Capture Mode 1p.69
